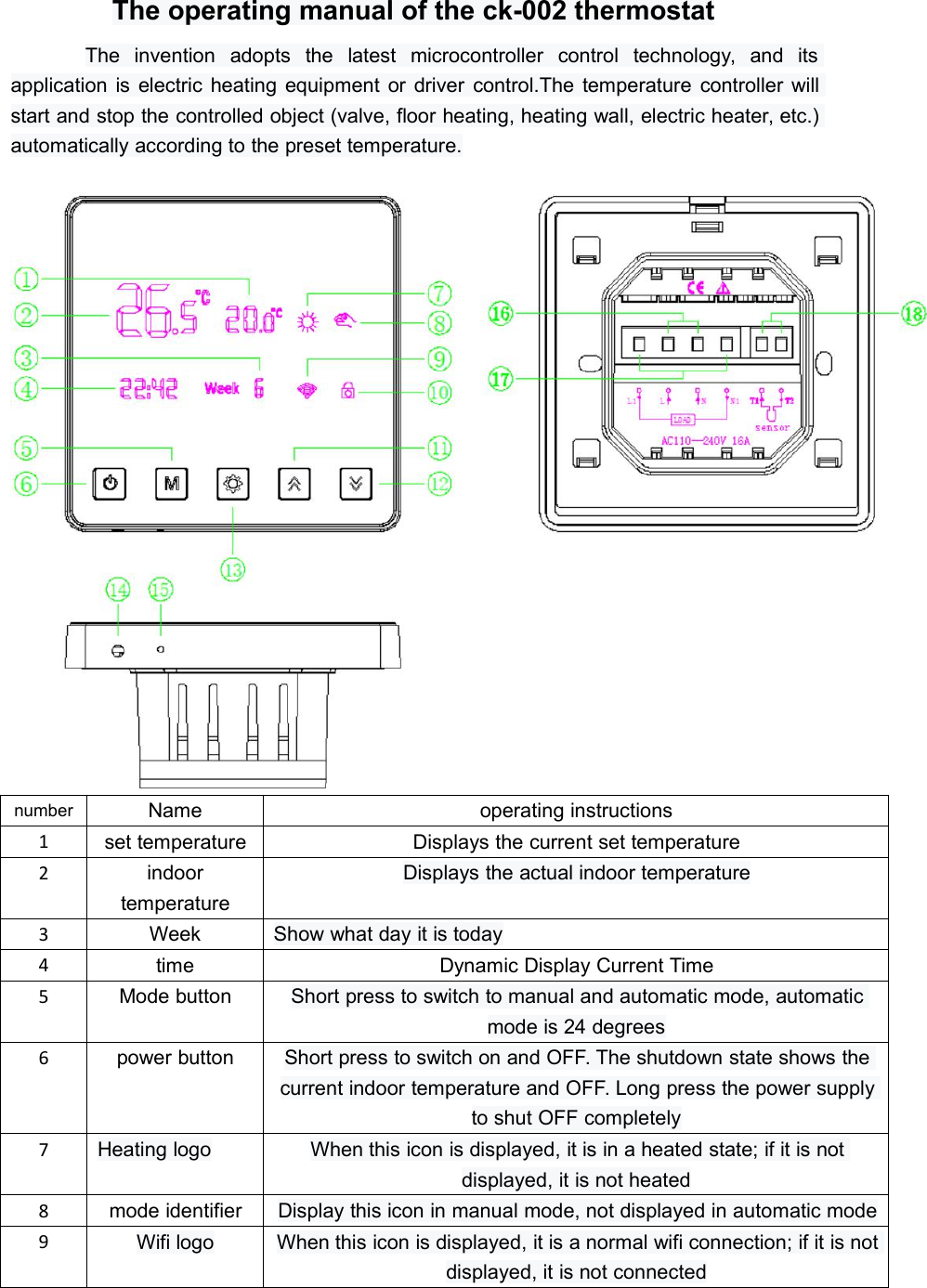

The operating manual of the ck-002 thermostatThe invention adopts the latest microcontroller control technology, and itsapplication is electric heating equipment or driver control.The temperature controller willstart and stop the controlled object (valve, floor heating, heating wall, electric heater, etc.)automatically according to the preset temperature.numberNameoperating instructions1set temperatureDisplays the current set temperature2indoortemperatureDisplays the actual indoor temperature3WeekShow what day it is today4timeDynamic Display Current Time5Mode buttonShort press to switch to manual and automatic mode, automaticmode is 24 degrees6power buttonShort press to switch on and OFF. The shutdown state shows thecurrent indoor temperature and OFF. Long press the power supplyto shut OFF completely7Heating logoWhen this icon is displayed, it is in a heated state; if it is notdisplayed, it is not heated8mode identifierDisplay this icon in manual mode, not displayed in automatic mode9Wifi logoWhen this icon is displayed, it is a normal wifi connection; if it is notdisplayed, it is not connected

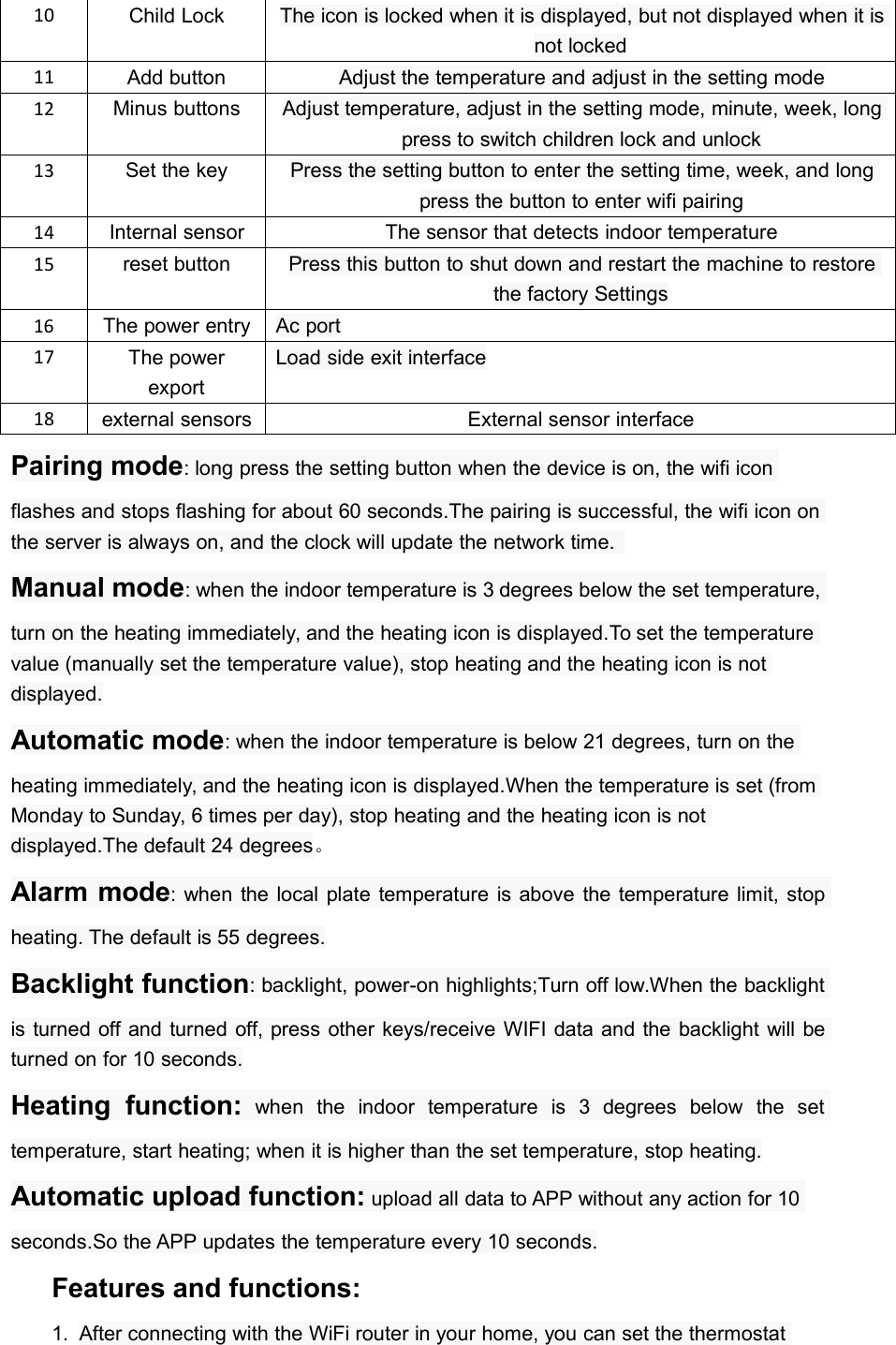

10Child LockThe icon is locked when it is displayed, but not displayed when it isnot locked11Add buttonAdjust the temperature and adjust in the setting mode12Minus buttonsAdjust temperature, adjust in the setting mode, minute, week, longpress to switch children lock and unlock13Set the keyPress the setting button to enter the setting time, week, and longpress the button to enter wifi pairing14Internal sensorThe sensor that detects indoor temperature15reset buttonPress this button to shut down and restart the machine to restorethe factory Settings16The power entryAc port17The powerexportLoad side exit interface18external sensorsExternal sensor interfacePairing mode: long press the setting button when the device is on, the wifi iconflashes and stops flashing for about 60 seconds.The pairing is successful, the wifi icon onthe server is always on, and the clock will update the network time.Manual mode: when the indoor temperature is 3 degrees below the set temperature,turn on the heating immediately, and the heating icon is displayed.To set the temperaturevalue (manually set the temperature value), stop heating and the heating icon is notdisplayed.Automatic mode: when the indoor temperature is below 21 degrees, turn on theheating immediately, and the heating icon is displayed.When the temperature is set (fromMonday to Sunday, 6 times per day), stop heating and the heating icon is notdisplayed.The default 24 degrees。Alarm mode: when the local plate temperature is above the temperature limit, stopheating. The default is 55 degrees.Backlight function: backlight, power-on highlights;Turn off low.When the backlightis turned off and turned off, press other keys/receive WIFI data and the backlight will beturned on for 10 seconds.Heating function: when the indoor temperature is 3 degrees below the settemperature, start heating; when it is higher than the set temperature, stop heating.Automatic upload function: upload all data to APP without any action for 10seconds.So the APP updates the temperature every 10 seconds.Features and functions:1. After connecting with the WiFi router in your home, you can set the thermostat

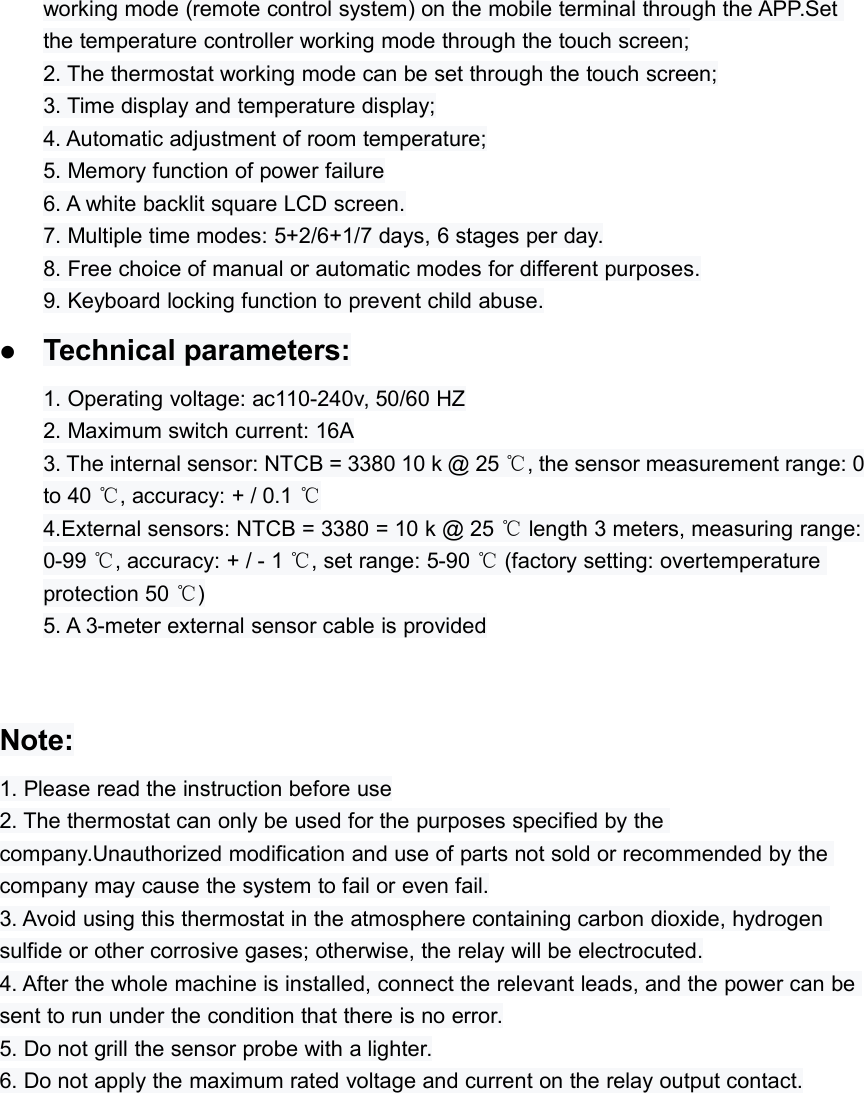

working mode (remote control system) on the mobile terminal through the APP.Setthe temperature controller working mode through the touch screen;2. The thermostat working mode can be set through the touch screen;3. Time display and temperature display;4. Automatic adjustment of room temperature;5. Memory function of power failure6. A white backlit square LCD screen.7. Multiple time modes: 5+2/6+1/7 days, 6 stages per day.8. Free choice of manual or automatic modes for different purposes.9. Keyboard locking function to prevent child abuse.Technical parameters:1. Operating voltage: ac110-240v, 50/60 HZ2. Maximum switch current: 16A3. The internal sensor: NTCB = 3380 10 k @ 25 ℃, the sensor measurement range: 0to 40 ℃, accuracy: + / 0.1 ℃4.External sensors: NTCB = 3380 = 10 k @ 25 ℃length 3 meters, measuring range:0-99 ℃, accuracy: + / - 1 ℃, set range: 5-90 ℃(factory setting: overtemperatureprotection 50 ℃)5. A 3-meter external sensor cable is providedNote:1. Please read the instruction before use2. The thermostat can only be used for the purposes specified by thecompany.Unauthorized modification and use of parts not sold or recommended by thecompany may cause the system to fail or even fail.3. Avoid using this thermostat in the atmosphere containing carbon dioxide, hydrogensulfide or other corrosive gases; otherwise, the relay will be electrocuted.4. After the whole machine is installed, connect the relevant leads, and the power can besent to run under the condition that there is no error.5. Do not grill the sensor probe with a lighter.6. Do not apply the maximum rated voltage and current on the relay output contact.

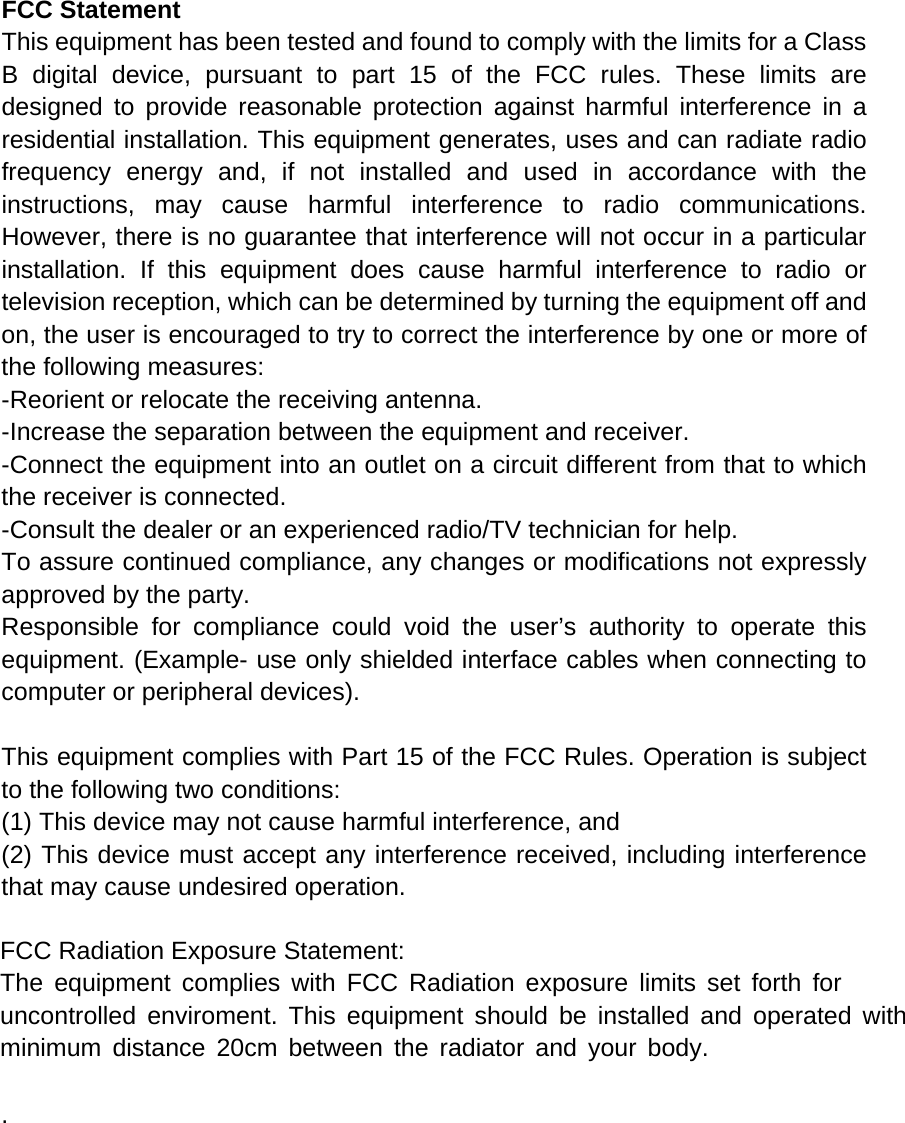

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: The equipment complies with FCC Radiation exposure limits set forth foruncontrolled enviroment. This equipment should be installed and operated withminimum distance 20cm between the radiator and your body. .
