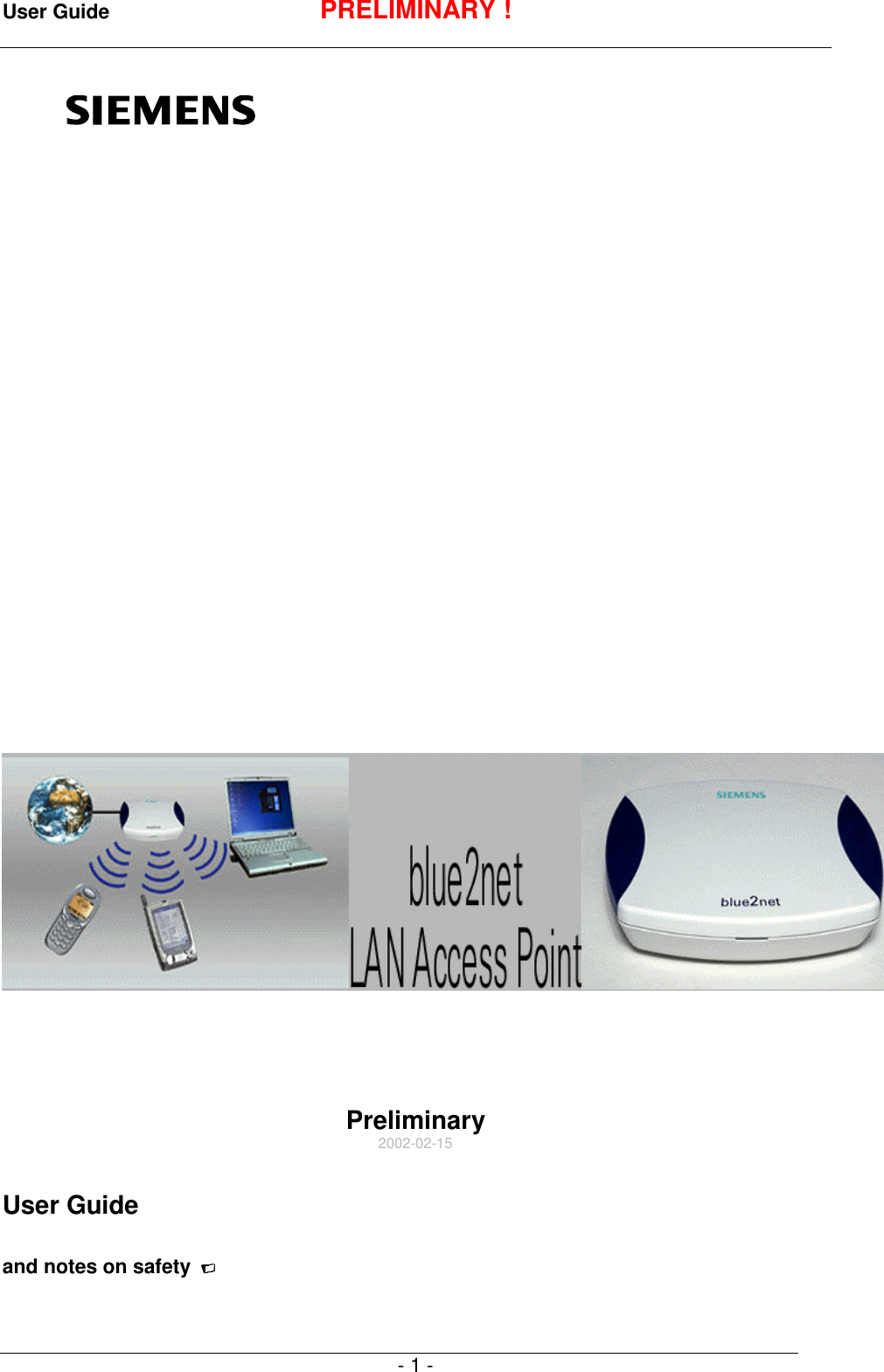

User Guide PRELIMINARY !- 1 -Preliminary2002-02-15User Guideand notes on safety 7777

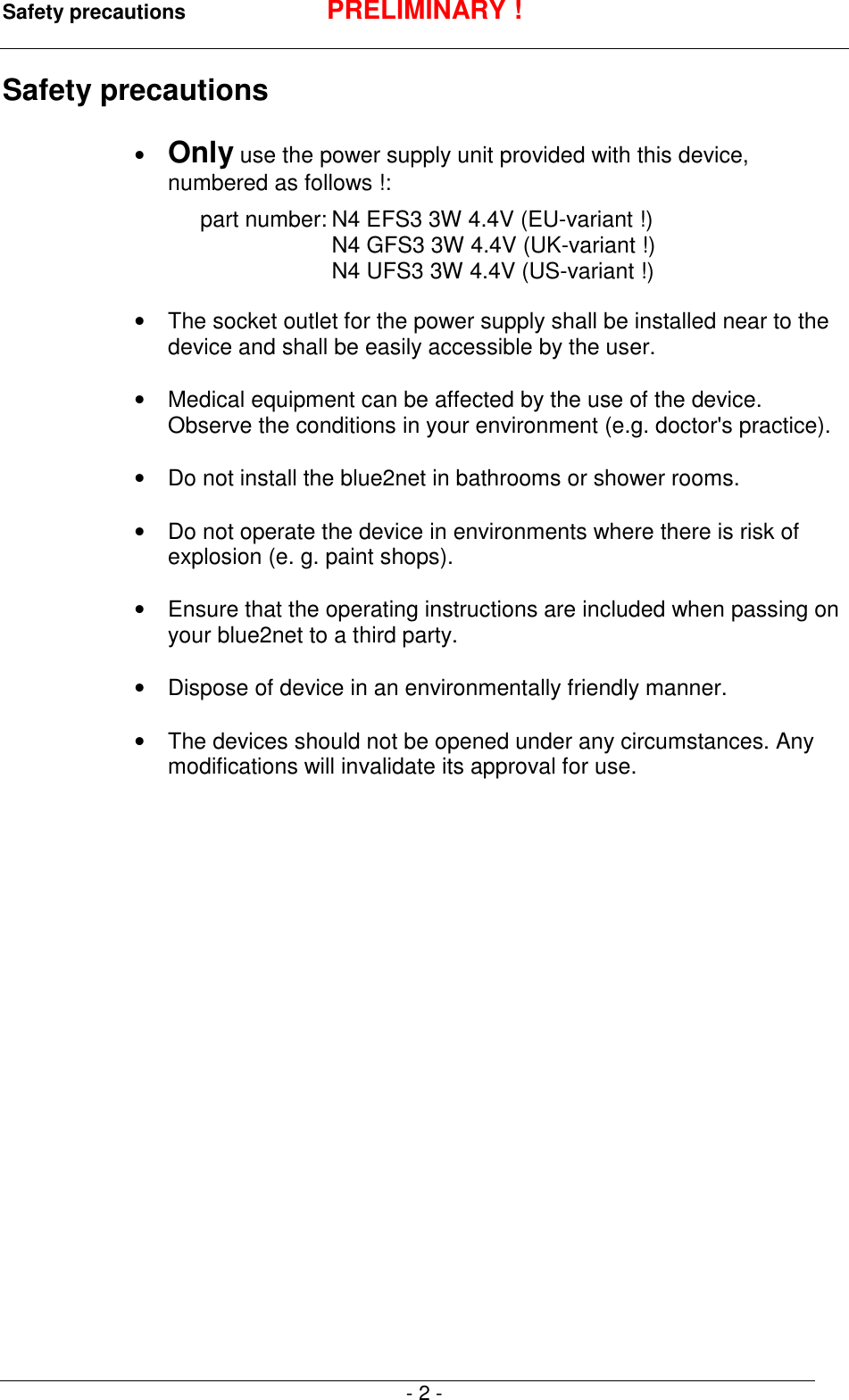

Safety precautions PRELIMINARY !- 2 -Safety precautions• Only use the power supply unit provided with this device,numbered as follows !:part number: N4 EFS3 3W 4.4V (EU-variant !)N4 GFS3 3W 4.4V (UK-variant !)N4 UFS3 3W 4.4V (US-variant !)• The socket outlet for the power supply shall be installed near to thedevice and shall be easily accessible by the user.• Medical equipment can be affected by the use of the device.Observe the conditions in your environment (e.g. doctor's practice).• Do not install the blue2net in bathrooms or shower rooms.• Do not operate the device in environments where there is risk ofexplosion (e. g. paint shops).• Ensure that the operating instructions are included when passing onyour blue2net to a third party.• Dispose of device in an environmentally friendly manner.• The devices should not be opened under any circumstances. Anymodifications will invalidate its approval for use.

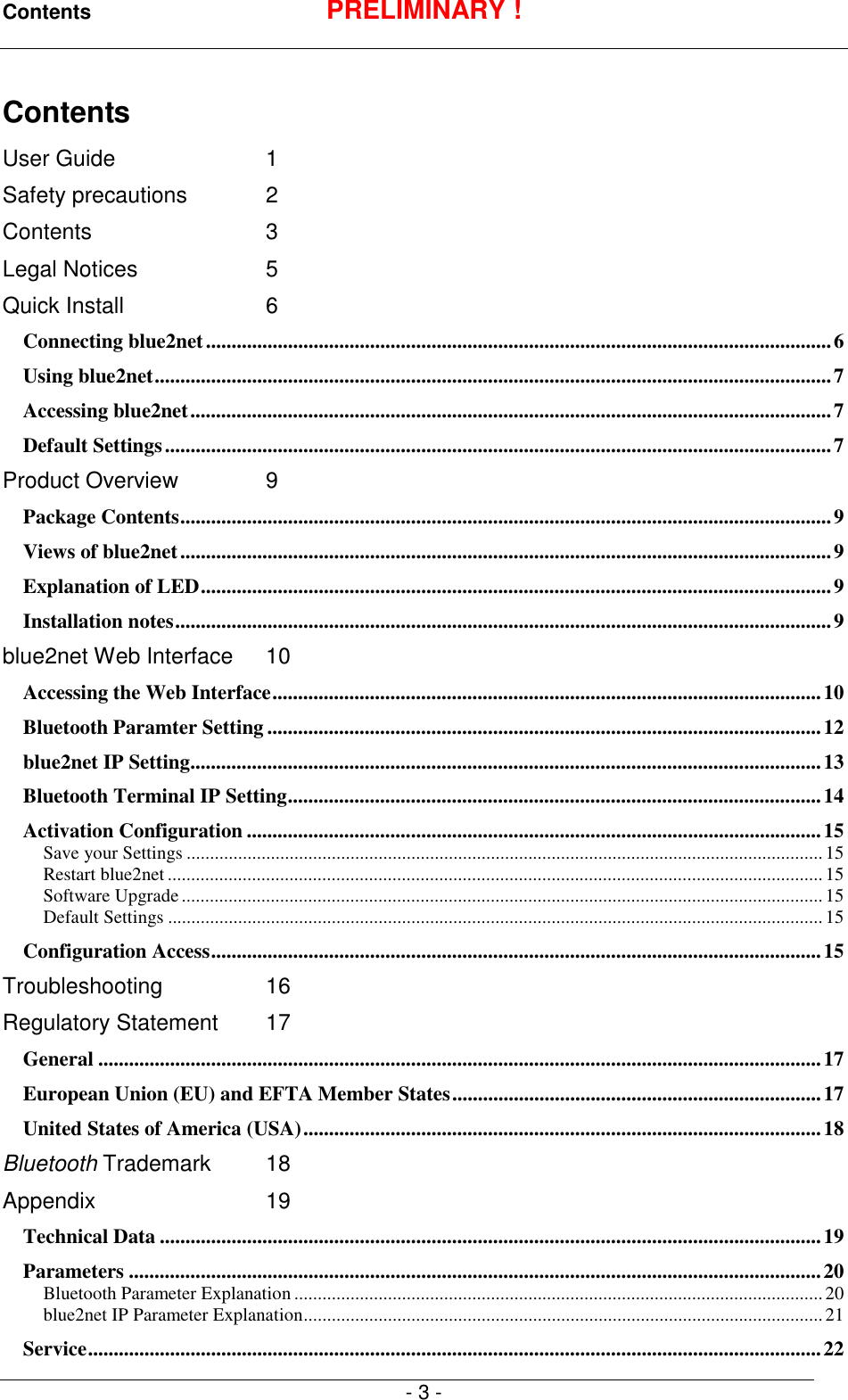

Contents PRELIMINARY !- 3 -ContentsUser Guide 1Safety precautions 2Contents 3Legal Notices 5Quick Install 6Connecting blue2net..........................................................................................................................6Using blue2net....................................................................................................................................7Accessing blue2net.............................................................................................................................7Default Settings..................................................................................................................................7Product Overview 9Package Contents...............................................................................................................................9Views of blue2net...............................................................................................................................9Explanation of LED...........................................................................................................................9Installation notes................................................................................................................................9blue2net Web Interface 10Accessing the Web Interface...........................................................................................................10Bluetooth Paramter Setting ............................................................................................................12blue2net IP Setting...........................................................................................................................13Bluetooth Terminal IP Setting........................................................................................................14Activation Configuration ................................................................................................................15Save your Settings ........................................................................................................................................15Restart blue2net ............................................................................................................................................15Software Upgrade.........................................................................................................................................15Default Settings ............................................................................................................................................15Configuration Access.......................................................................................................................15Troubleshooting 16Regulatory Statement 17General .............................................................................................................................................17European Union (EU) and EFTA Member States........................................................................17United States of America (USA).....................................................................................................18Bluetooth Trademark 18Appendix 19Technical Data .................................................................................................................................19Parameters .......................................................................................................................................20Bluetooth Parameter Explanation .................................................................................................................20blue2net IP Parameter Explanation...............................................................................................................21Service...............................................................................................................................................22

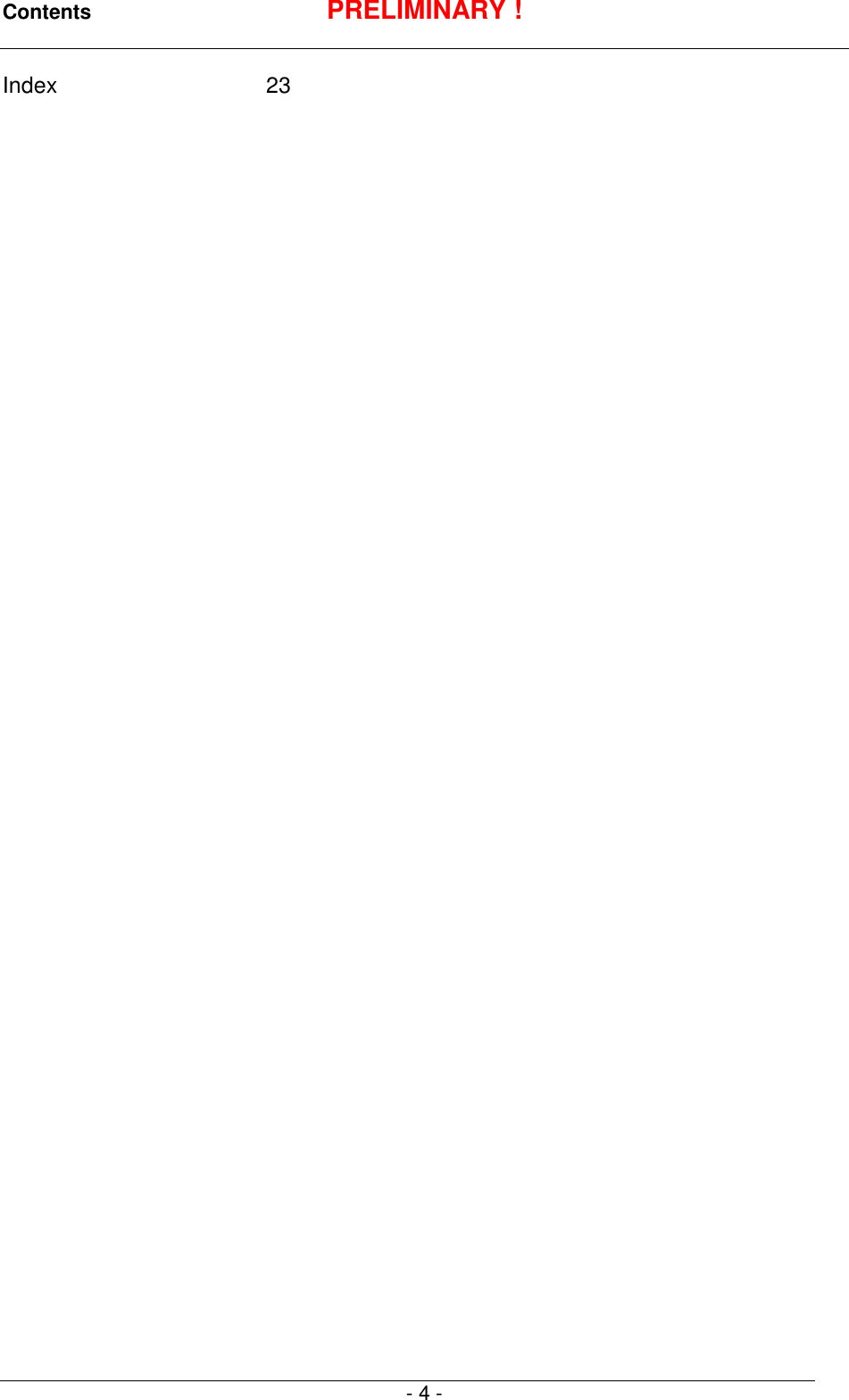

Contents PRELIMINARY !- 4 -Index 23
Legal Notices PRELIMINARY !- 5 -Legal Noticestbd.

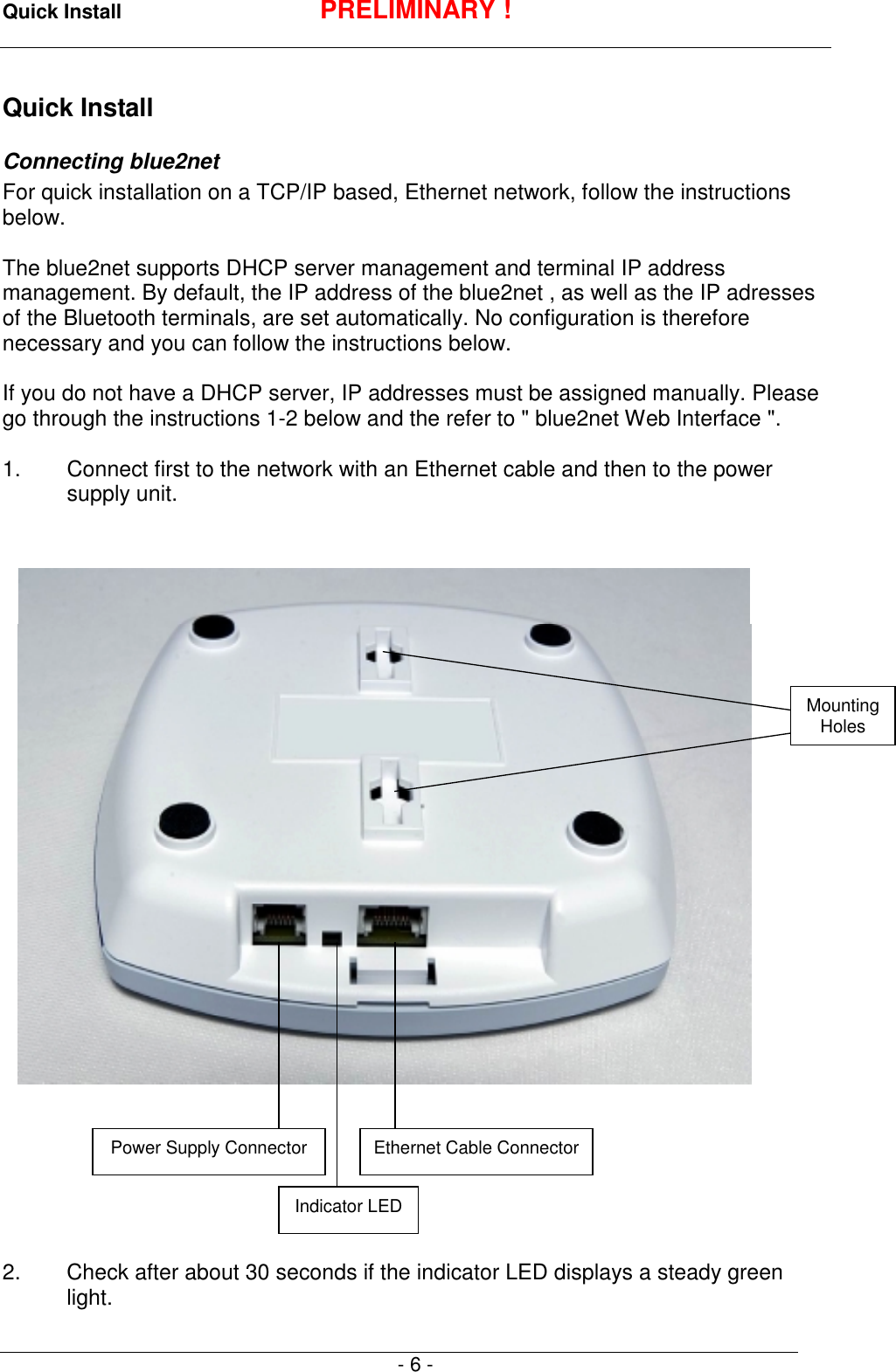

Quick Install PRELIMINARY !- 6 -Quick InstallConnecting blue2netFor quick installation on a TCP/IP based, Ethernet network, follow the instructionsbelow.The blue2net supports DHCP server management and terminal IP addressmanagement. By default, the IP address of the blue2net , as well as the IP adressesof the Bluetooth terminals, are set automatically. No configuration is thereforenecessary and you can follow the instructions below.If you do not have a DHCP server, IP addresses must be assigned manually. Pleasego through the instructions 1-2 below and the refer to " blue2net Web Interface ".1. Connect first to the network with an Ethernet cable and then to the powersupply unit.2. Check after about 30 seconds if the indicator LED displays a steady greenlight.Power Supply Connector Ethernet Cable ConnectorIndicator LEDMountingHoles

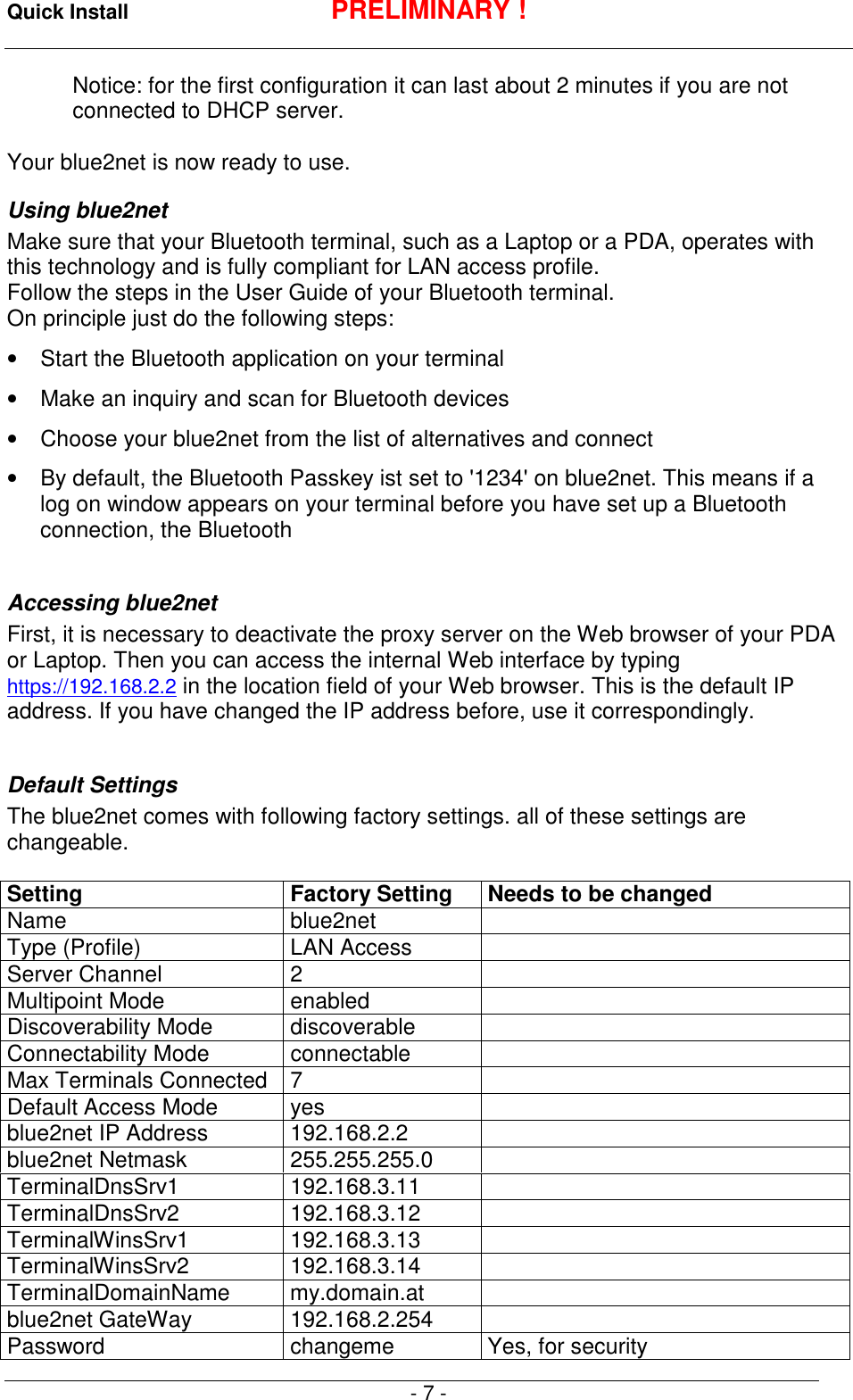

Quick Install PRELIMINARY !- 7 -Notice: for the first configuration it can last about 2 minutes if you are notconnected to DHCP server.Your blue2net is now ready to use.Using blue2netMake sure that your Bluetooth terminal, such as a Laptop or a PDA, operates withthis technology and is fully compliant for LAN access profile.Follow the steps in the User Guide of your Bluetooth terminal.On principle just do the following steps:• Start the Bluetooth application on your terminal• Make an inquiry and scan for Bluetooth devices• Choose your blue2net from the list of alternatives and connect• By default, the Bluetooth Passkey ist set to '1234' on blue2net. This means if alog on window appears on your terminal before you have set up a Bluetoothconnection, the BluetoothAccessing blue2netFirst, it is necessary to deactivate the proxy server on the Web browser of your PDAor Laptop. Then you can access the internal Web interface by typinghttps://192.168.2.2 in the location field of your Web browser. This is the default IPaddress. If you have changed the IP address before, use it correspondingly.Default SettingsThe blue2net comes with following factory settings. all of these settings arechangeable.Setting Factory Setting Needs to be changedName blue2netType (Profile) LAN AccessServer Channel 2Multipoint Mode enabledDiscoverability Mode discoverableConnectability Mode connectableMax Terminals Connected 7Default Access Mode yesblue2net IP Address 192.168.2.2blue2net Netmask 255.255.255.0TerminalDnsSrv1 192.168.3.11TerminalDnsSrv2 192.168.3.12TerminalWinsSrv1 192.168.3.13TerminalWinsSrv2 192.168.3.14TerminalDomainName my.domain.atblue2net GateWay 192.168.2.254Password changeme Yes, for security

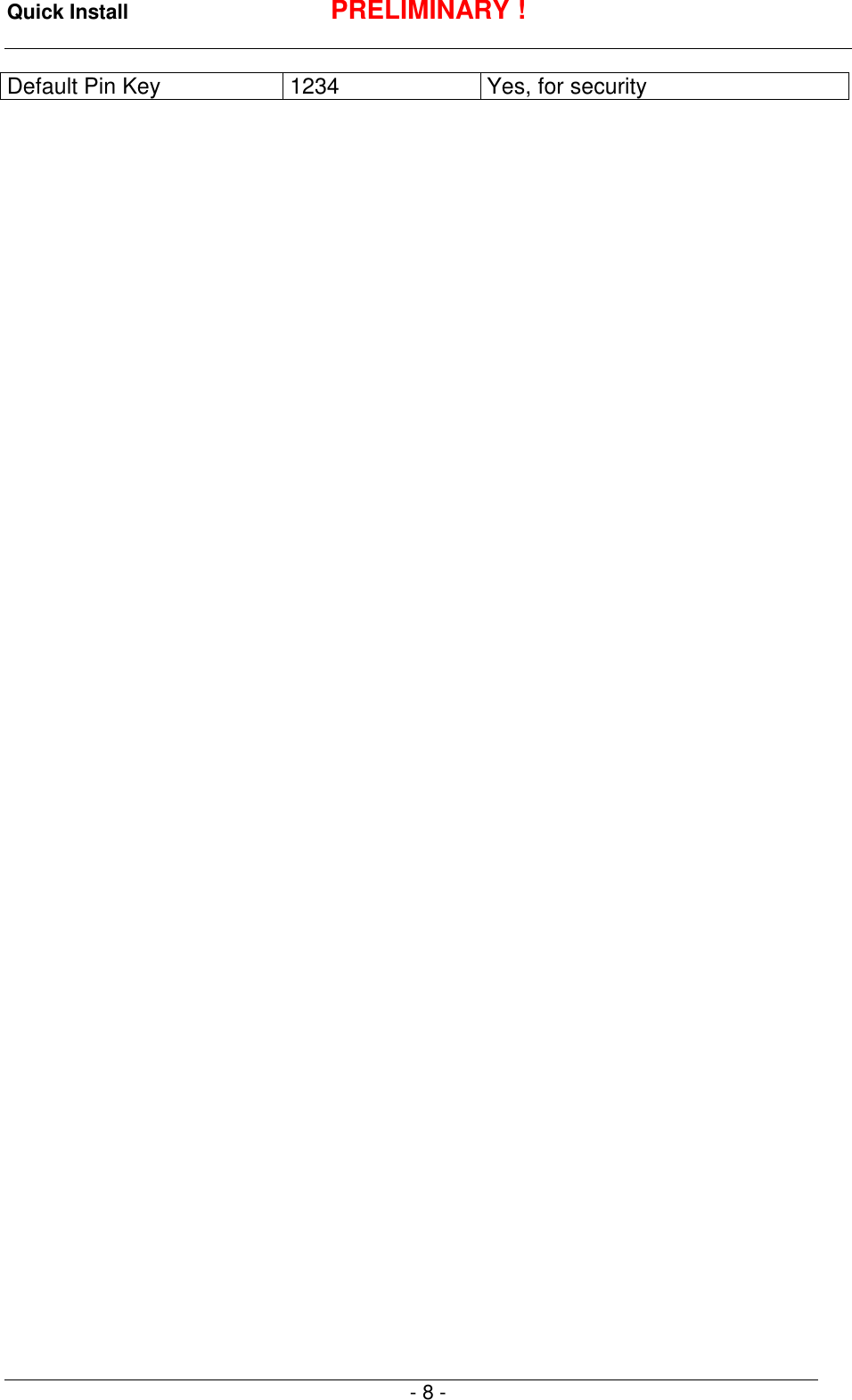

Quick Install PRELIMINARY !- 8 -Default Pin Key 1234 Yes, for security

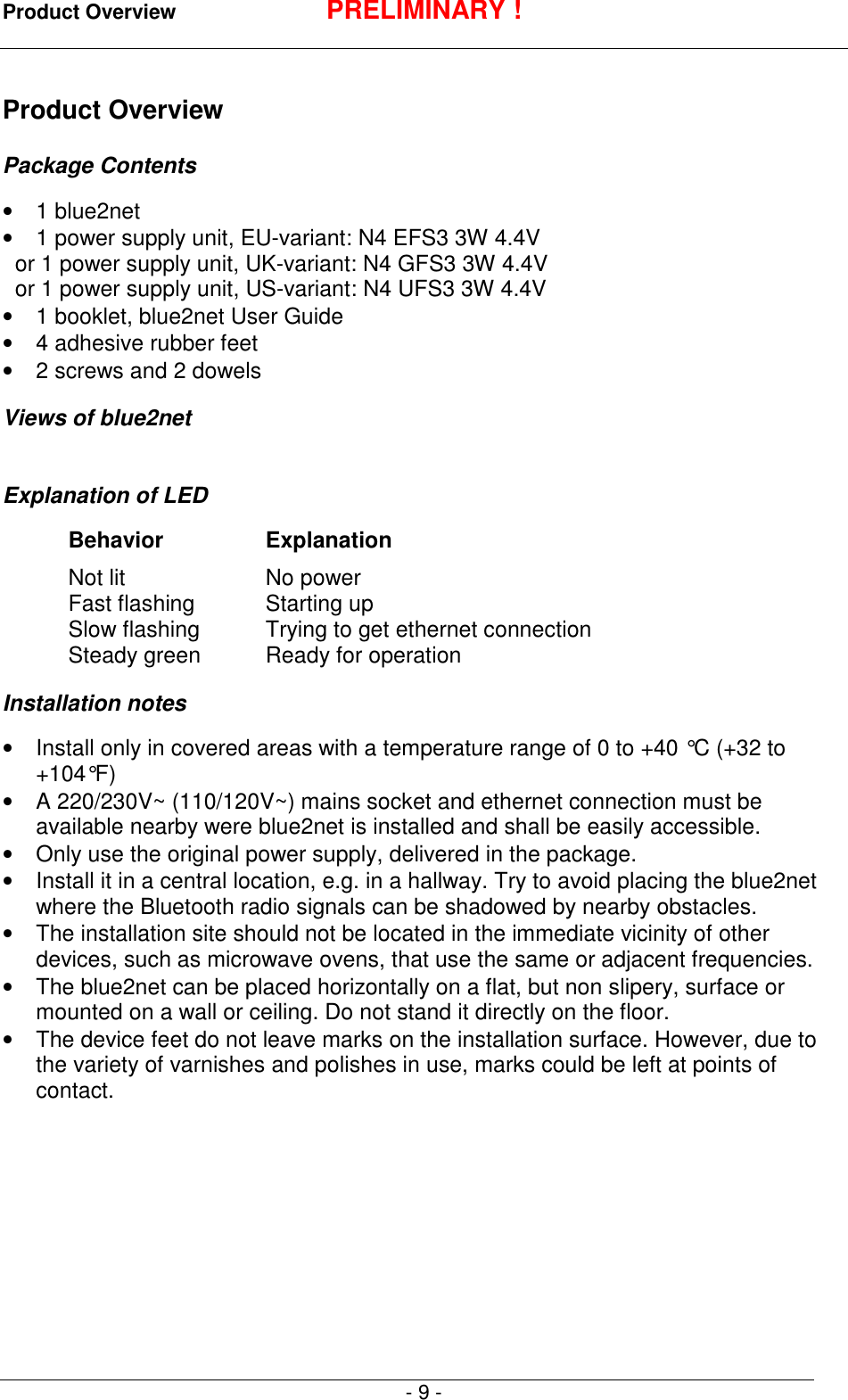

Product Overview PRELIMINARY !- 9 -Product OverviewPackage Contents• 1 blue2net• 1 power supply unit, EU-variant: N4 EFS3 3W 4.4V or 1 power supply unit, UK-variant: N4 GFS3 3W 4.4V or 1 power supply unit, US-variant: N4 UFS3 3W 4.4V• 1 booklet, blue2net User Guide• 4 adhesive rubber feet• 2 screws and 2 dowelsViews of blue2netExplanation of LEDBehavior ExplanationNot lit No powerFast flashing Starting upSlow flashing Trying to get ethernet connectionSteady green Ready for operationInstallation notes• Install only in covered areas with a temperature range of 0 to +40 °C (+32 to+104°F)• A 220/230V~ (110/120V~) mains socket and ethernet connection must beavailable nearby were blue2net is installed and shall be easily accessible.• Only use the original power supply, delivered in the package.• Install it in a central location, e.g. in a hallway. Try to avoid placing the blue2netwhere the Bluetooth radio signals can be shadowed by nearby obstacles.• The installation site should not be located in the immediate vicinity of otherdevices, such as microwave ovens, that use the same or adjacent frequencies.• The blue2net can be placed horizontally on a flat, but non slipery, surface ormounted on a wall or ceiling. Do not stand it directly on the floor.• The device feet do not leave marks on the installation surface. However, due tothe variety of varnishes and polishes in use, marks could be left at points ofcontact.

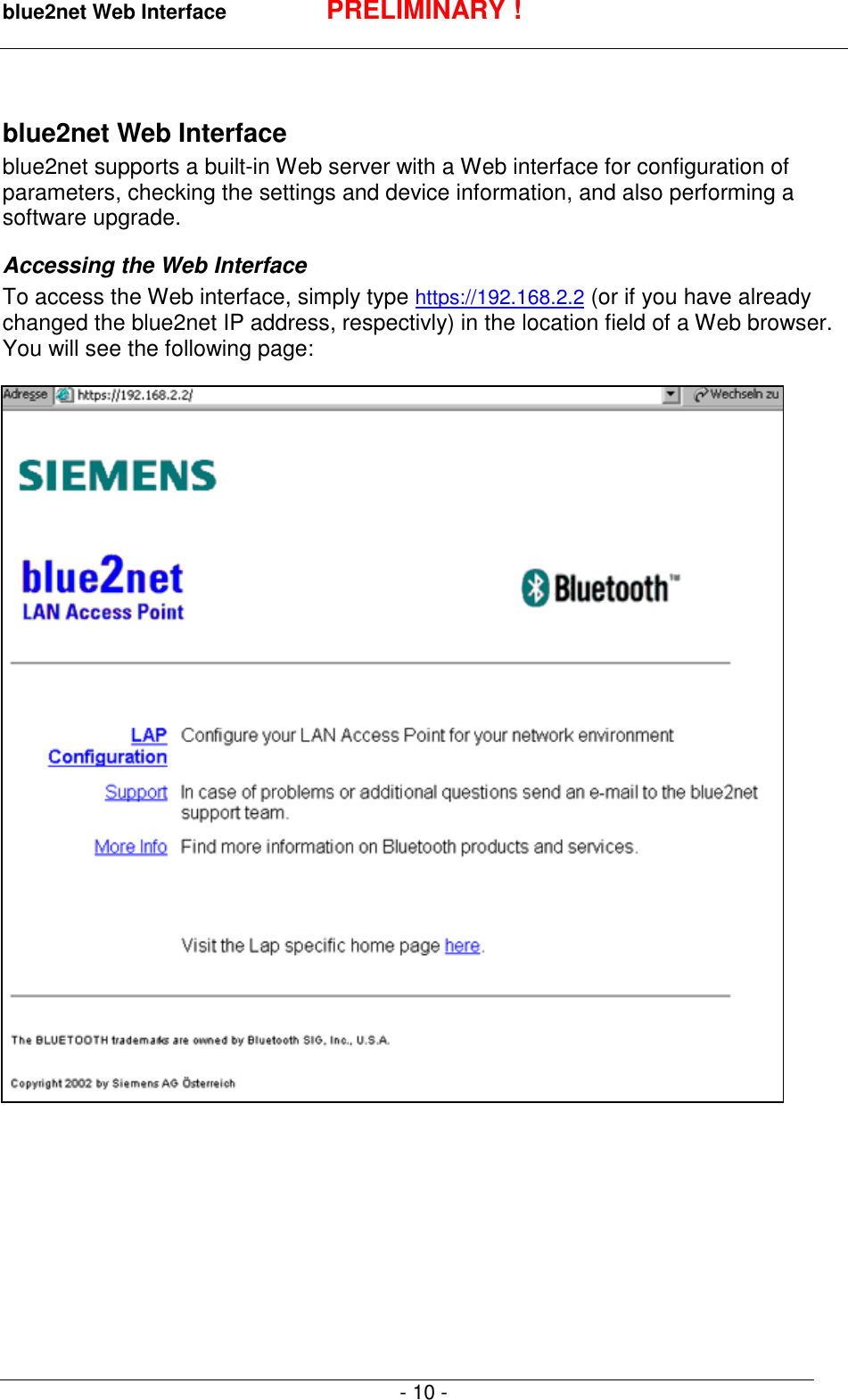

blue2net Web Interface PRELIMINARY !- 10 -blue2net Web Interfaceblue2net supports a built-in Web server with a Web interface for configuration ofparameters, checking the settings and device information, and also performing asoftware upgrade.Accessing the Web InterfaceTo access the Web interface, simply type https://192.168.2.2 (or if you have alreadychanged the blue2net IP address, respectivly) in the location field of a Web browser.You will see the following page:

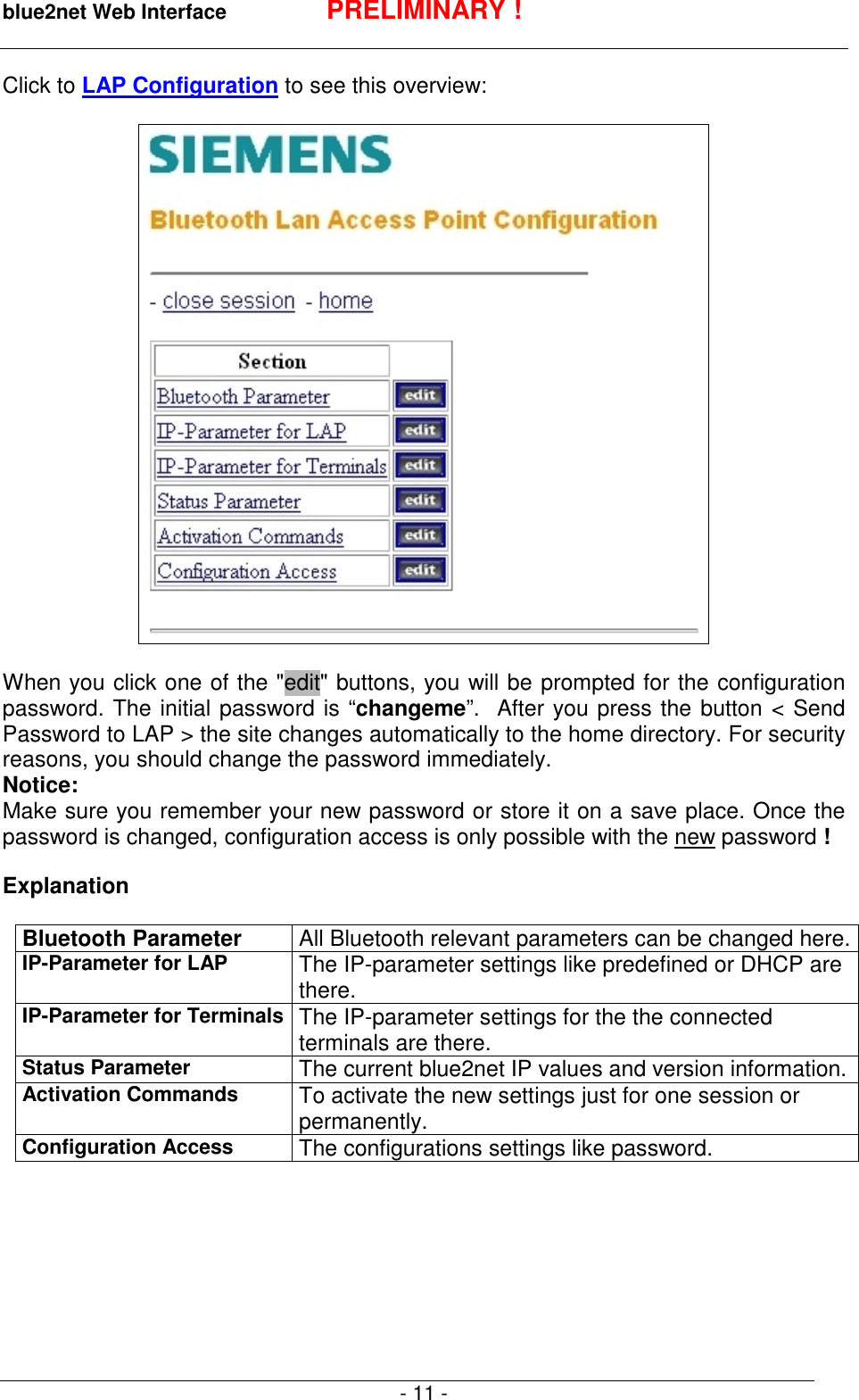

blue2net Web Interface PRELIMINARY !- 11 -Click to LAP Configuration to see this overview:When you click one of the "edit" buttons, you will be prompted for the configurationpassword. The initial password is “changeme”. After you press the button < SendPassword to LAP > the site changes automatically to the home directory. For securityreasons, you should change the password immediately.Notice:Make sure you remember your new password or store it on a save place. Once thepassword is changed, configuration access is only possible with the new password !ExplanationBluetooth Parameter All Bluetooth relevant parameters can be changed here.IP-Parameter for LAP The IP-parameter settings like predefined or DHCP arethere.IP-Parameter for Terminals The IP-parameter settings for the the connectedterminals are there.Status Parameter The current blue2net IP values and version information.Activation Commands To activate the new settings just for one session orpermanently.Configuration Access The configurations settings like password.

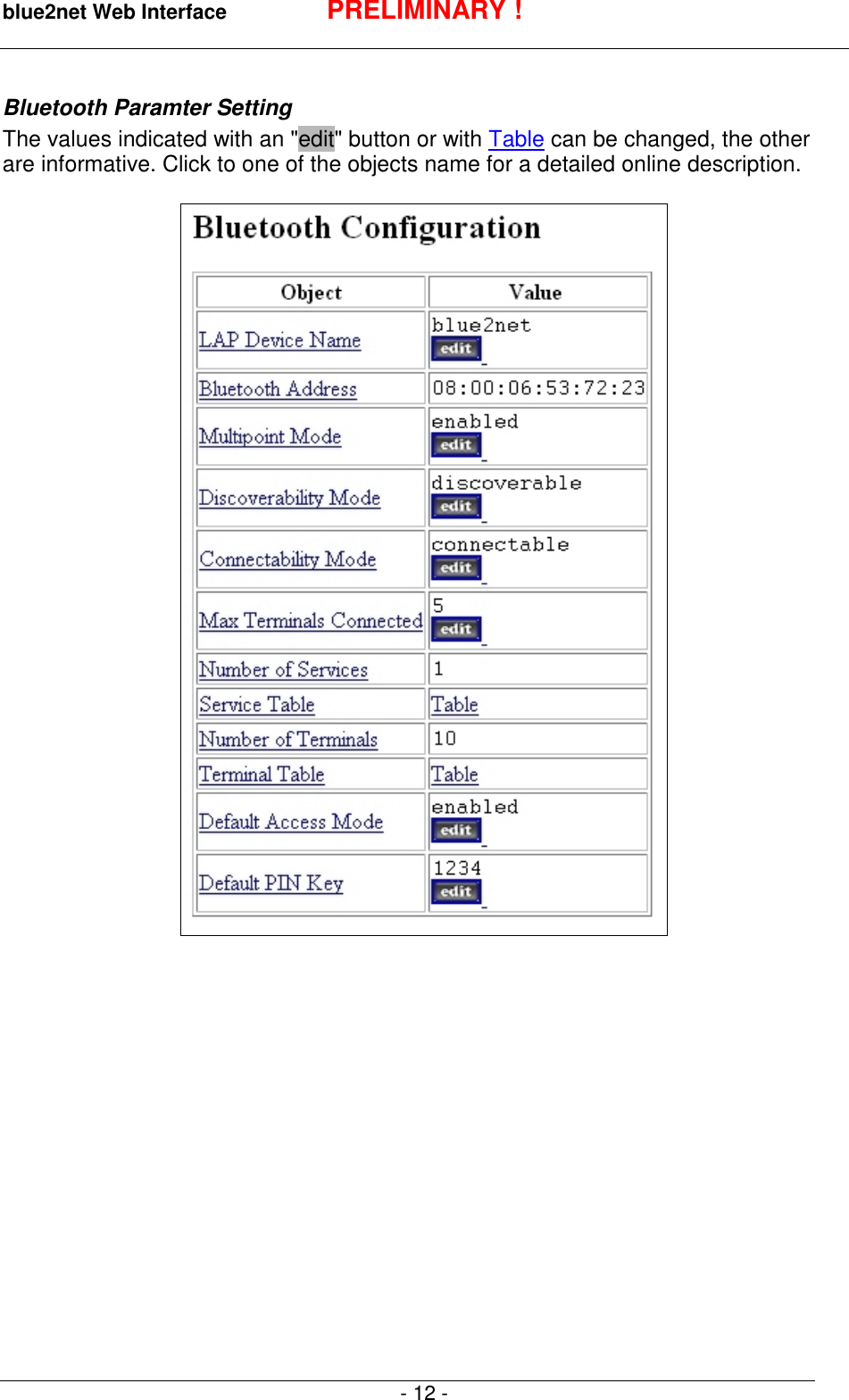

blue2net Web Interface PRELIMINARY !- 12 -Bluetooth Paramter SettingThe values indicated with an "edit" button or with Table can be changed, the otherare informative. Click to one of the objects name for a detailed online description.

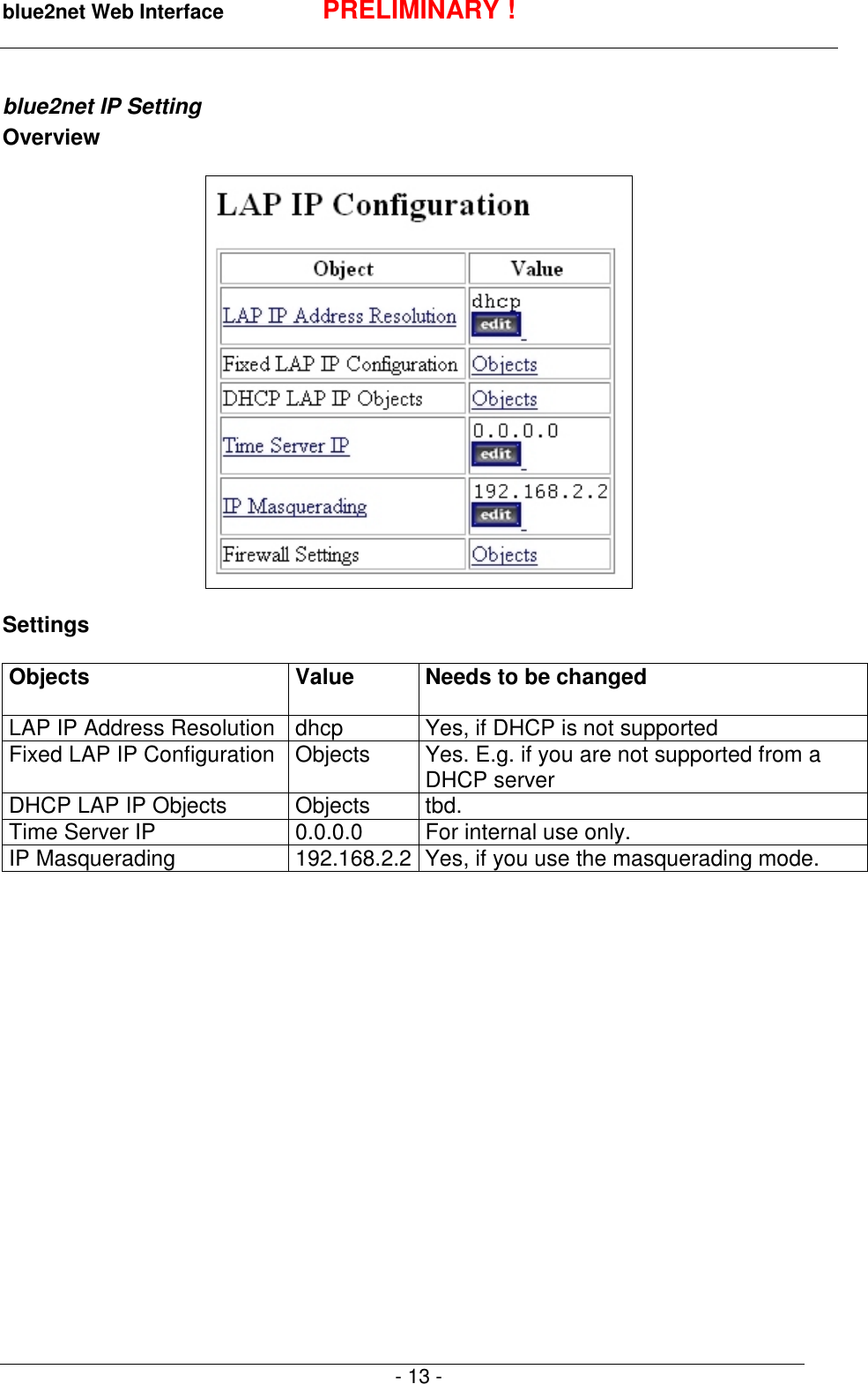

blue2net Web Interface PRELIMINARY !- 13 -blue2net IP SettingOverviewSettingsObjects Value Needs to be changedLAP IP Address Resolution dhcp Yes, if DHCP is not supportedFixed LAP IP Configuration Objects Yes. E.g. if you are not supported from aDHCP serverDHCP LAP IP Objects Objects tbd.Time Server IP 0.0.0.0 For internal use only.IP Masquerading 192.168.2.2 Yes, if you use the masquerading mode.

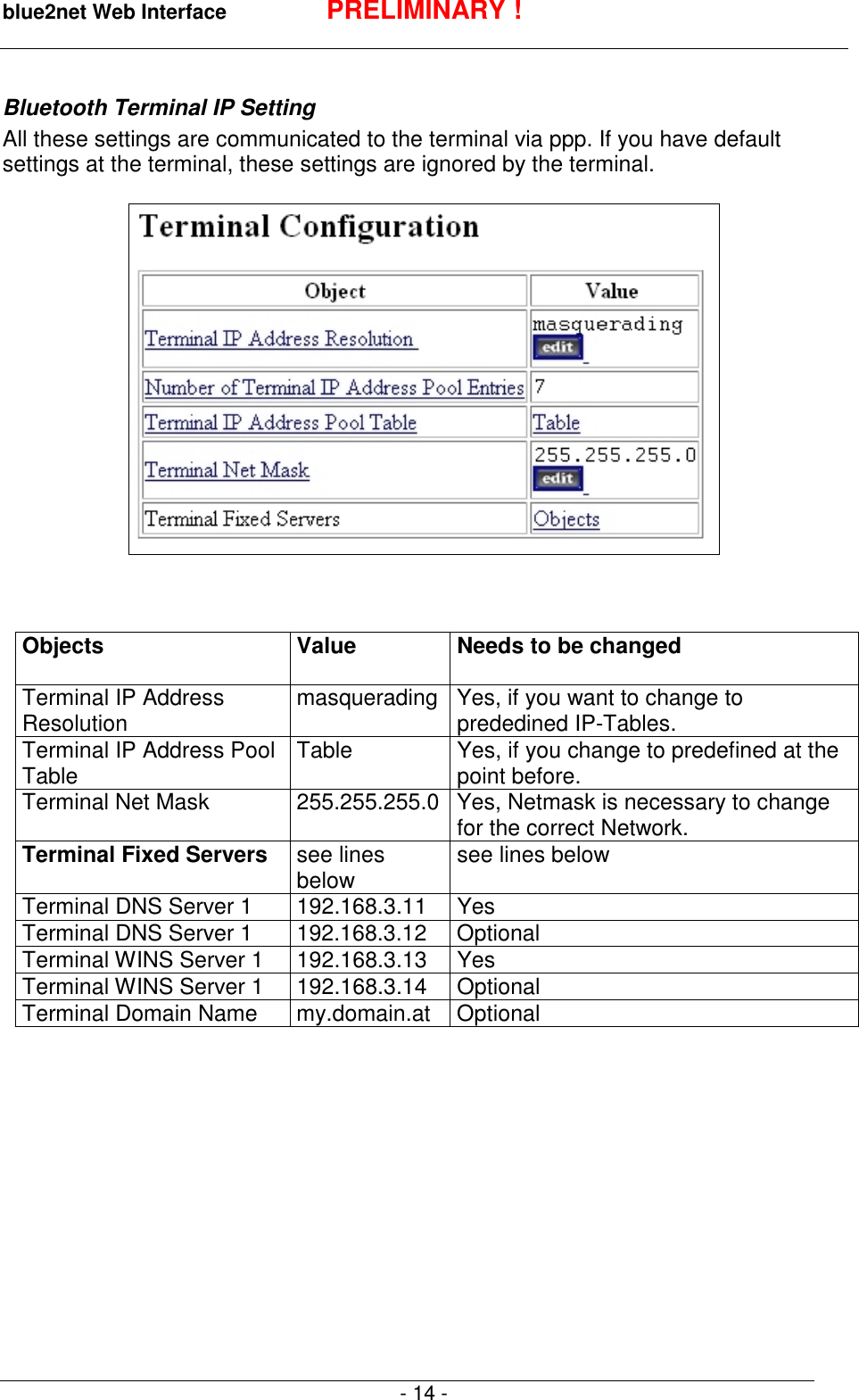

blue2net Web Interface PRELIMINARY !- 14 -Bluetooth Terminal IP SettingAll these settings are communicated to the terminal via ppp. If you have defaultsettings at the terminal, these settings are ignored by the terminal.Objects Value Needs to be changedTerminal IP AddressResolution masquerading Yes, if you want to change toprededined IP-Tables.Terminal IP Address PoolTable Table Yes, if you change to predefined at thepoint before.Terminal Net Mask 255.255.255.0 Yes, Netmask is necessary to changefor the correct Network.Terminal Fixed Servers see linesbelow see lines belowTerminal DNS Server 1 192.168.3.11 YesTerminal DNS Server 1 192.168.3.12 OptionalTerminal WINS Server 1 192.168.3.13 YesTerminal WINS Server 1 192.168.3.14 OptionalTerminal Domain Name my.domain.at Optional

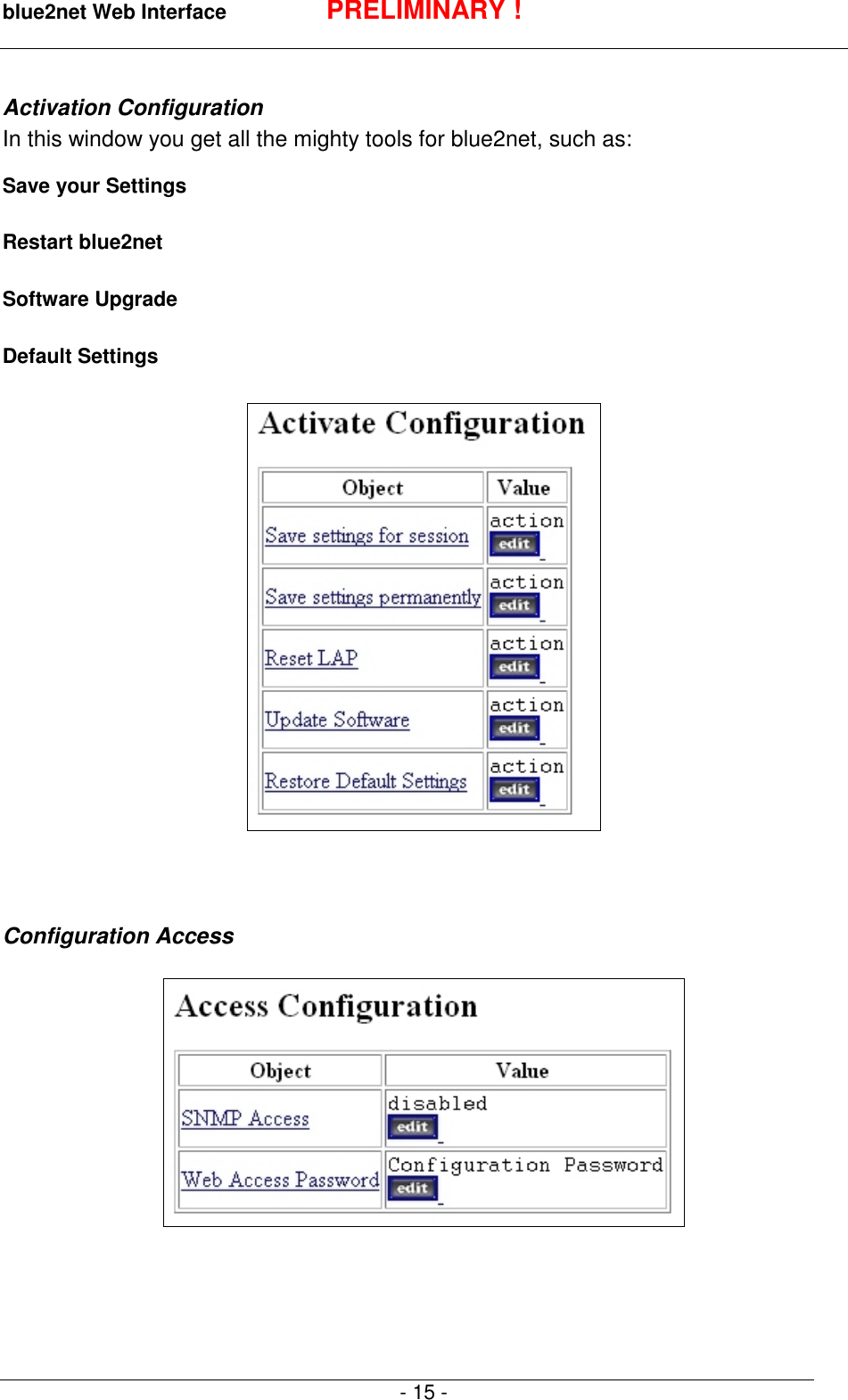

blue2net Web Interface PRELIMINARY !- 15 -Activation ConfigurationIn this window you get all the mighty tools for blue2net, such as:Save your SettingsRestart blue2netSoftware UpgradeDefault SettingsConfiguration Access

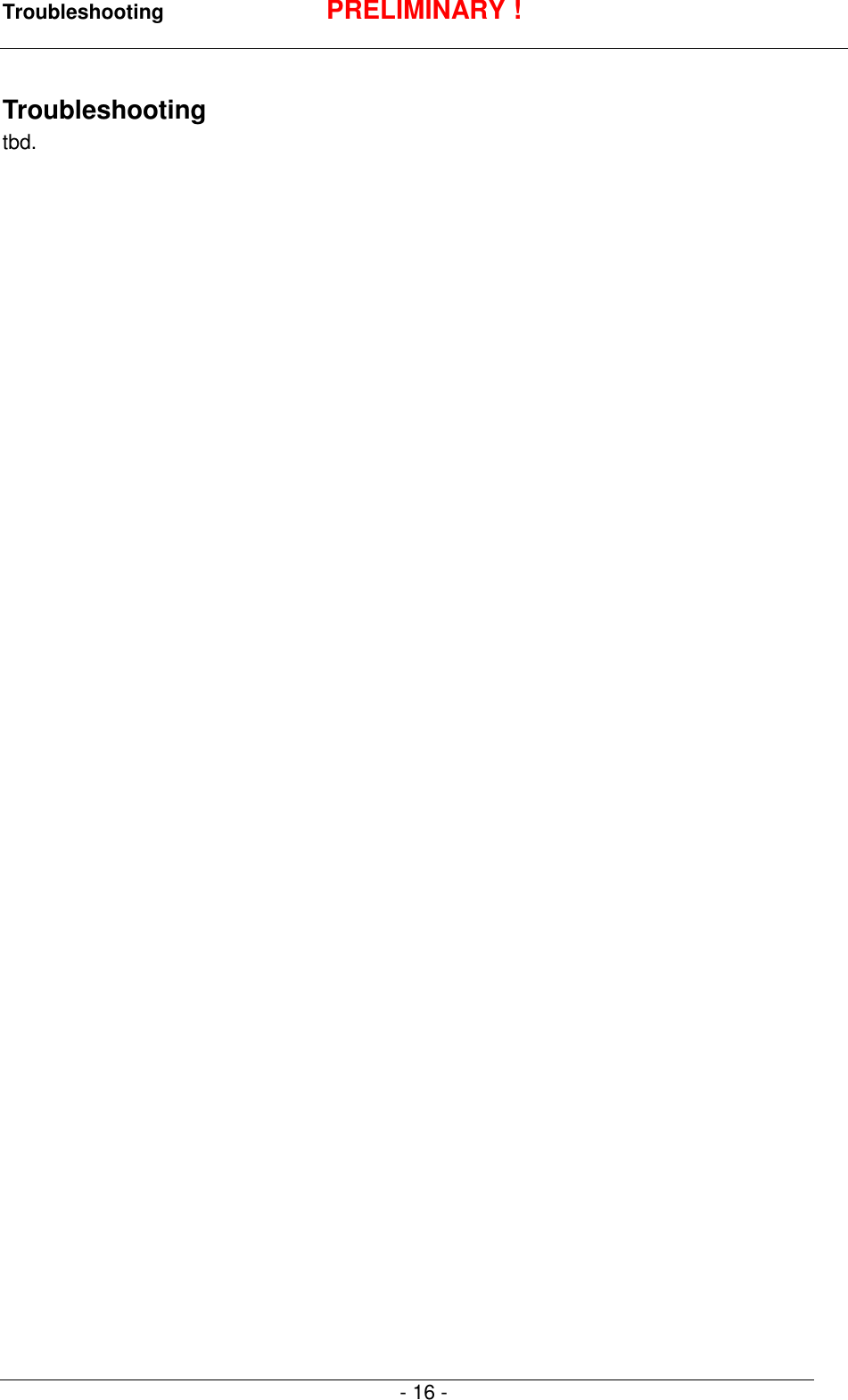

Troubleshooting PRELIMINARY !- 16 -Troubleshootingtbd.

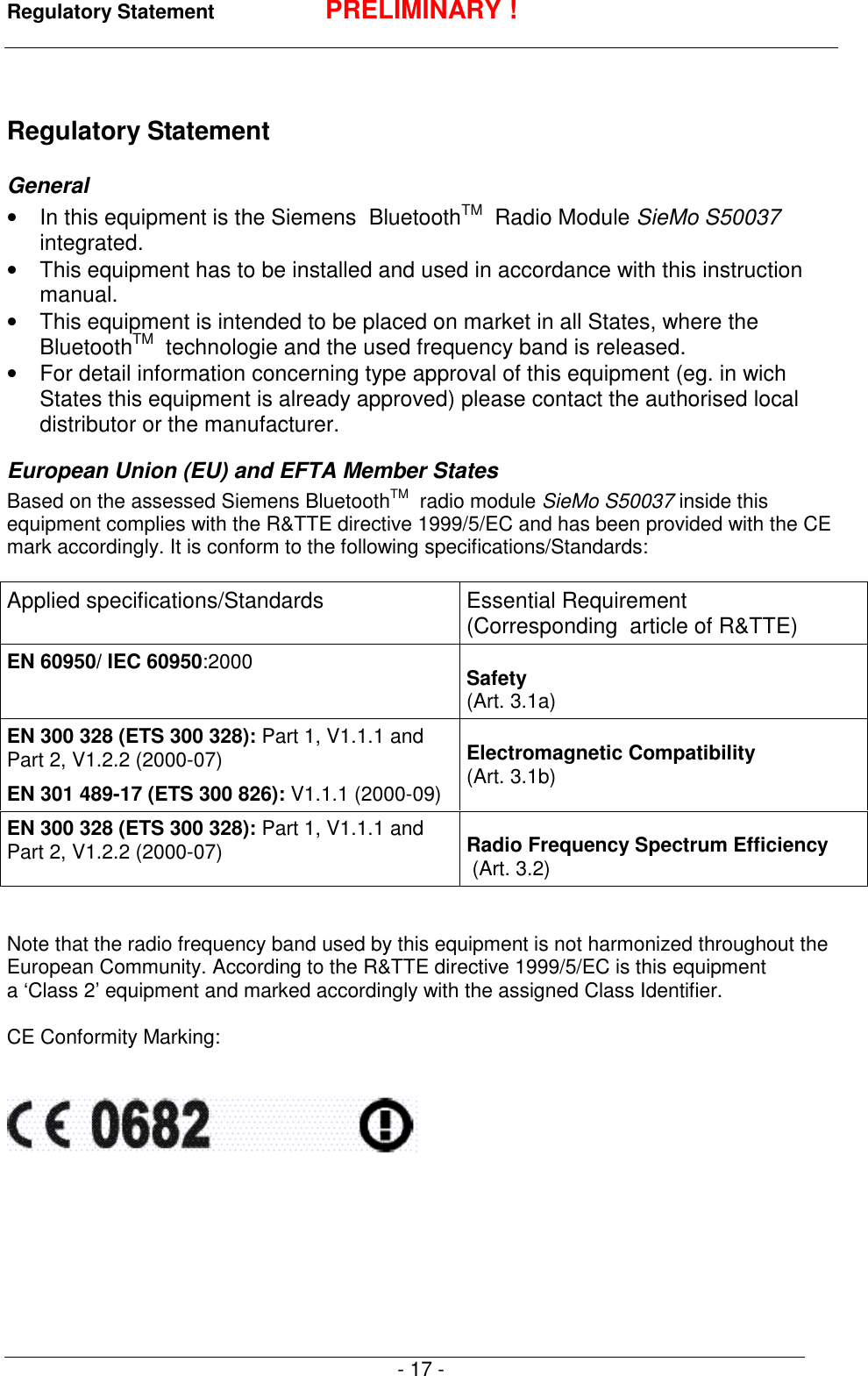

Regulatory Statement PRELIMINARY !- 17 -Regulatory StatementGeneral• In this equipment is the Siemens BluetoothTM Radio Module SieMo S50037integrated.• This equipment has to be installed and used in accordance with this instructionmanual.• This equipment is intended to be placed on market in all States, where theBluetoothTM technologie and the used frequency band is released.• For detail information concerning type approval of this equipment (eg. in wichStates this equipment is already approved) please contact the authorised localdistributor or the manufacturer.European Union (EU) and EFTA Member StatesBased on the assessed Siemens BluetoothTM radio module SieMo S50037 inside thisequipment complies with the R&TTE directive 1999/5/EC and has been provided with the CEmark accordingly. It is conform to the following specifications/Standards:Applied specifications/Standards Essential Requirement(Corresponding article of R&TTE)EN 60950/ IEC 60950:2000 Safety(Art. 3.1a)EN 300 328 (ETS 300 328): Part 1, V1.1.1 andPart 2, V1.2.2 (2000-07)EN 301 489-17 (ETS 300 826): V1.1.1 (2000-09)Electromagnetic Compatibility(Art. 3.1b)EN 300 328 (ETS 300 328): Part 1, V1.1.1 andPart 2, V1.2.2 (2000-07) Radio Frequency Spectrum Efficiency (Art. 3.2)Note that the radio frequency band used by this equipment is not harmonized throughout theEuropean Community. According to the R&TTE directive 1999/5/EC is this equipmenta ‘Class 2’ equipment and marked accordingly with the assigned Class Identifier.CE Conformity Marking:

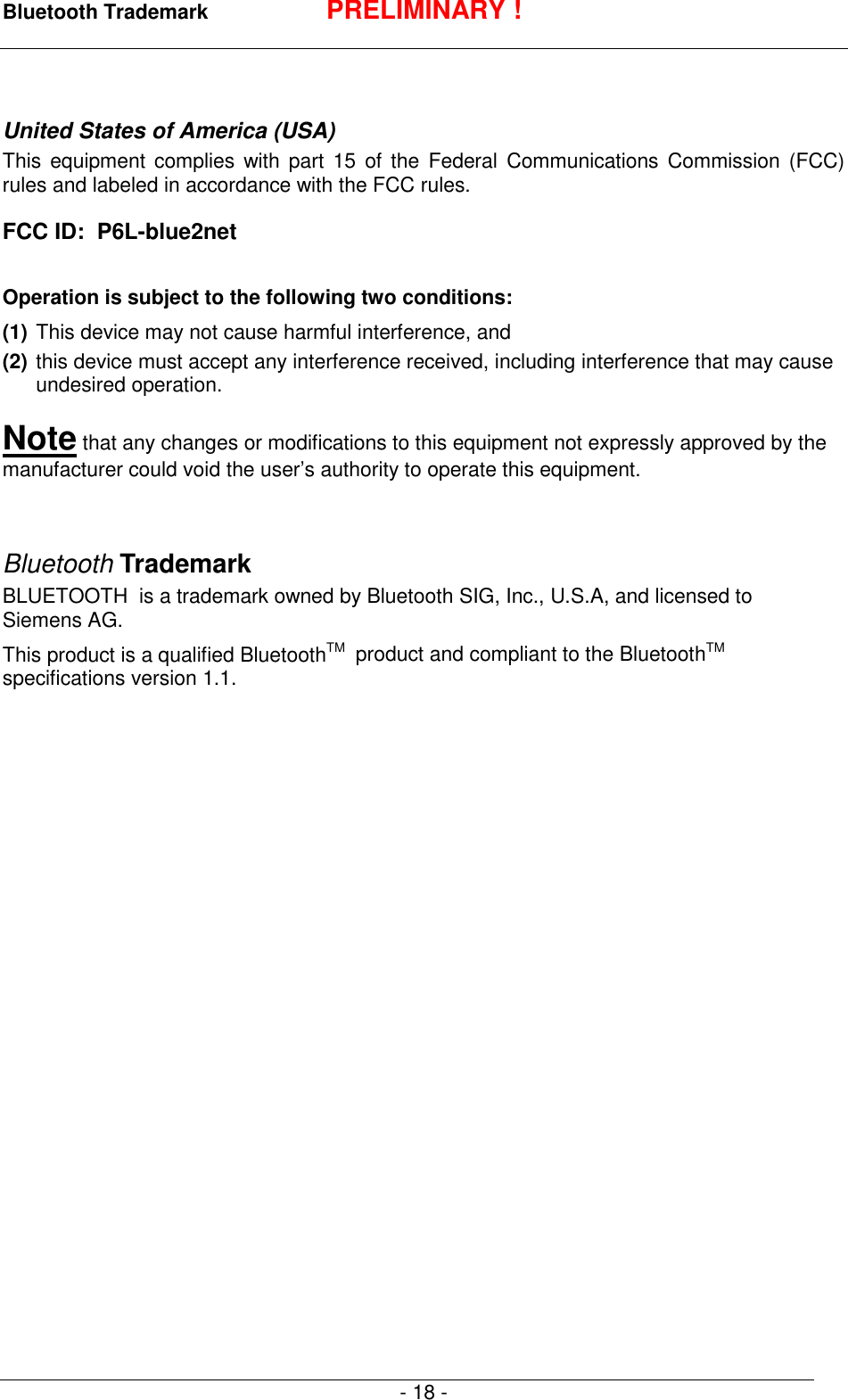

Bluetooth Trademark PRELIMINARY !- 18 -United States of America (USA)This equipment complies with part 15 of the Federal Communications Commission (FCC)rules and labeled in accordance with the FCC rules.FCC ID: P6L-blue2netOperation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) this device must accept any interference received, including interference that may causeundesired operation.Note that any changes or modifications to this equipment not expressly approved by themanufacturer could void the user’s authority to operate this equipment.Bluetooth TrademarkBLUETOOTH is a trademark owned by Bluetooth SIG, Inc., U.S.A, and licensed toSiemens AG.This product is a qualified BluetoothTM product and compliant to the BluetoothTMspecifications version 1.1.

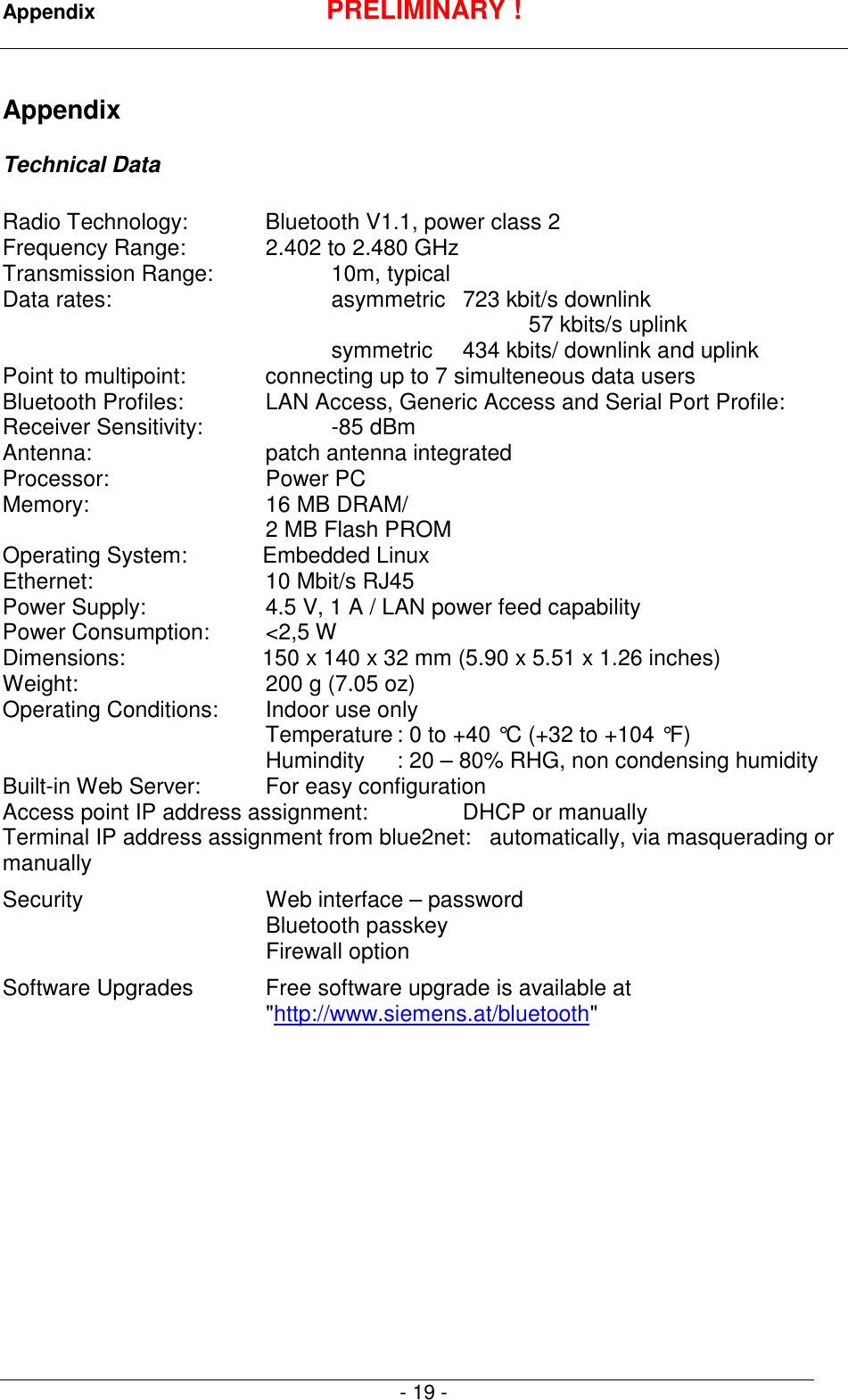

Appendix PRELIMINARY !- 19 -AppendixTechnical DataRadio Technology: Bluetooth V1.1, power class 2Frequency Range: 2.402 to 2.480 GHzTransmission Range: 10m, typicalData rates: asymmetric 723 kbit/s downlink57 kbits/s uplinksymmetric 434 kbits/ downlink and uplinkPoint to multipoint: connecting up to 7 simulteneous data usersBluetooth Profiles: LAN Access, Generic Access and Serial Port Profile:Receiver Sensitivity: -85 dBmAntenna: patch antenna integratedProcessor: Power PCMemory: 16 MB DRAM/2 MB Flash PROMOperating System: Embedded LinuxEthernet: 10 Mbit/s RJ45Power Supply: 4.5 V, 1 A / LAN power feed capabilityPower Consumption: <2,5 WDimensions: 150 x 140 x 32 mm (5.90 x 5.51 x 1.26 inches)Weight: 200 g (7.05 oz)Operating Conditions: Indoor use onlyTemperature : 0 to +40 °C (+32 to +104 °F)Humindity : 20 – 80% RHG, non condensing humidityBuilt-in Web Server: For easy configurationAccess point IP address assignment: DHCP or manuallyTerminal IP address assignment from blue2net: automatically, via masquerading ormanuallySecurity Web interface – passwordBluetooth passkeyFirewall optionSoftware Upgrades Free software upgrade is available at"http://www.siemens.at/bluetooth"

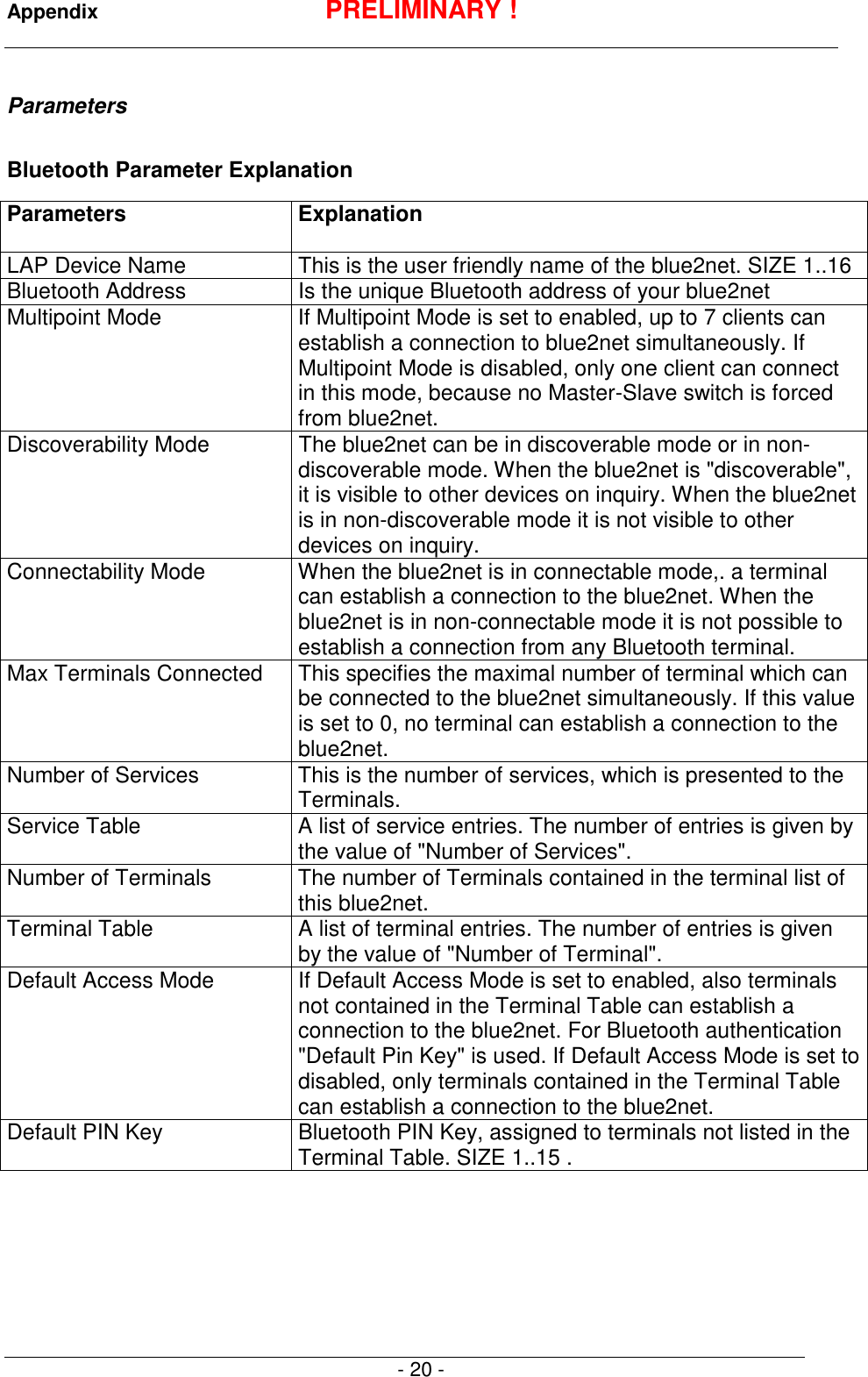

Appendix PRELIMINARY !- 20 -ParametersBluetooth Parameter ExplanationParameters ExplanationLAP Device Name This is the user friendly name of the blue2net. SIZE 1..16Bluetooth Address Is the unique Bluetooth address of your blue2netMultipoint Mode If Multipoint Mode is set to enabled, up to 7 clients canestablish a connection to blue2net simultaneously. IfMultipoint Mode is disabled, only one client can connectin this mode, because no Master-Slave switch is forcedfrom blue2net.Discoverability Mode The blue2net can be in discoverable mode or in non-discoverable mode. When the blue2net is "discoverable",it is visible to other devices on inquiry. When the blue2netis in non-discoverable mode it is not visible to otherdevices on inquiry.Connectability Mode When the blue2net is in connectable mode,. a terminalcan establish a connection to the blue2net. When theblue2net is in non-connectable mode it is not possible toestablish a connection from any Bluetooth terminal.Max Terminals Connected This specifies the maximal number of terminal which canbe connected to the blue2net simultaneously. If this valueis set to 0, no terminal can establish a connection to theblue2net.Number of Services This is the number of services, which is presented to theTerminals.Service Table A list of service entries. The number of entries is given bythe value of "Number of Services".Number of Terminals The number of Terminals contained in the terminal list ofthis blue2net.Terminal Table A list of terminal entries. The number of entries is givenby the value of "Number of Terminal".Default Access Mode If Default Access Mode is set to enabled, also terminalsnot contained in the Terminal Table can establish aconnection to the blue2net. For Bluetooth authentication"Default Pin Key" is used. If Default Access Mode is set todisabled, only terminals contained in the Terminal Tablecan establish a connection to the blue2net.Default PIN Key Bluetooth PIN Key, assigned to terminals not listed in theTerminal Table. SIZE 1..15 .

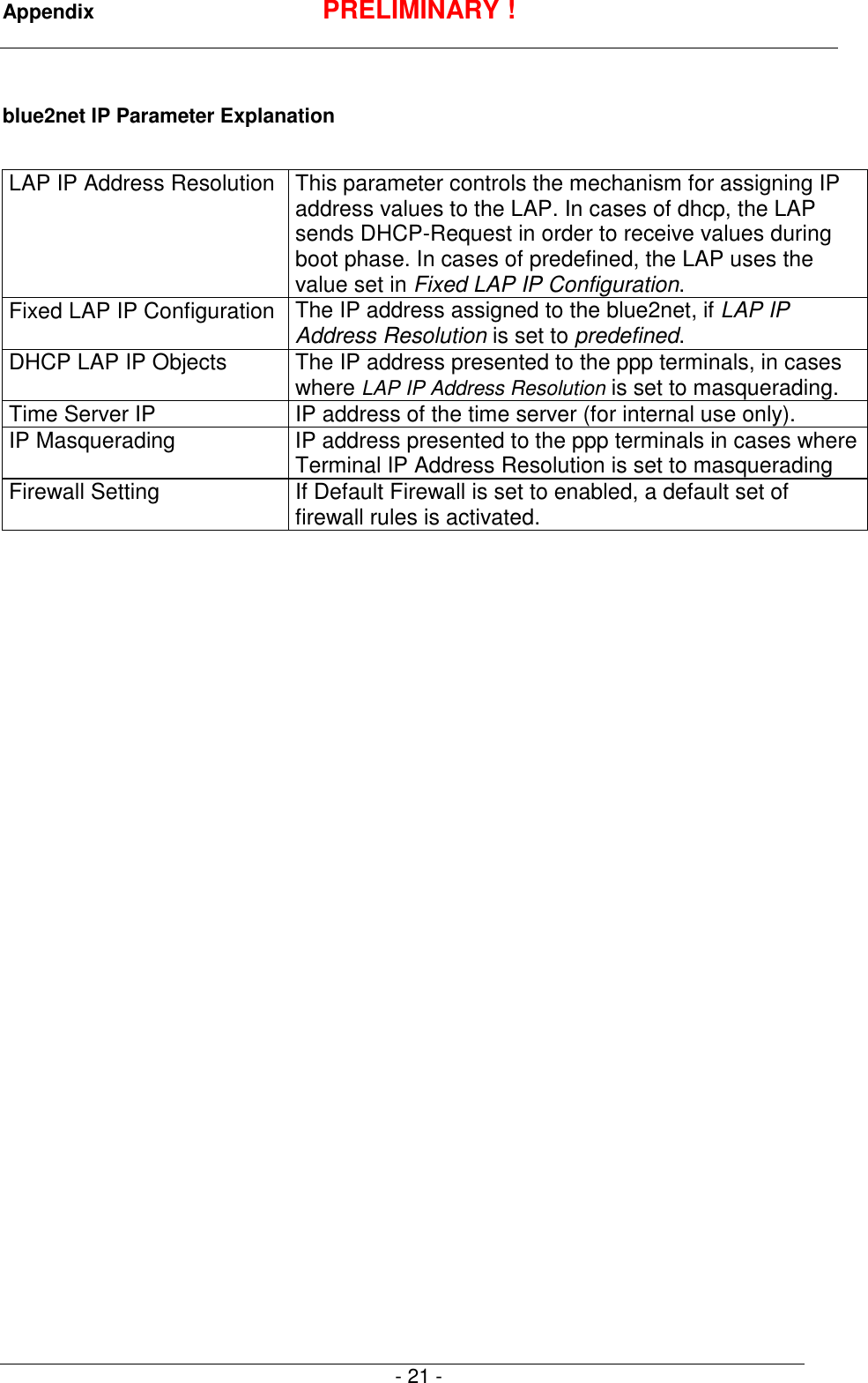

Appendix PRELIMINARY !- 21 -blue2net IP Parameter ExplanationLAP IP Address Resolution This parameter controls the mechanism for assigning IPaddress values to the LAP. In cases of dhcp, the LAPsends DHCP-Request in order to receive values duringboot phase. In cases of predefined, the LAP uses thevalue set in Fixed LAP IP Configuration.Fixed LAP IP Configuration The IP address assigned to the blue2net, if LAP IPAddress Resolution is set to predefined.DHCP LAP IP Objects The IP address presented to the ppp terminals, in caseswhere LAP IP Address Resolution is set to masquerading.Time Server IP IP address of the time server (for internal use only).IP Masquerading IP address presented to the ppp terminals in cases whereTerminal IP Address Resolution is set to masqueradingFirewall Setting If Default Firewall is set to enabled, a default set offirewall rules is activated.

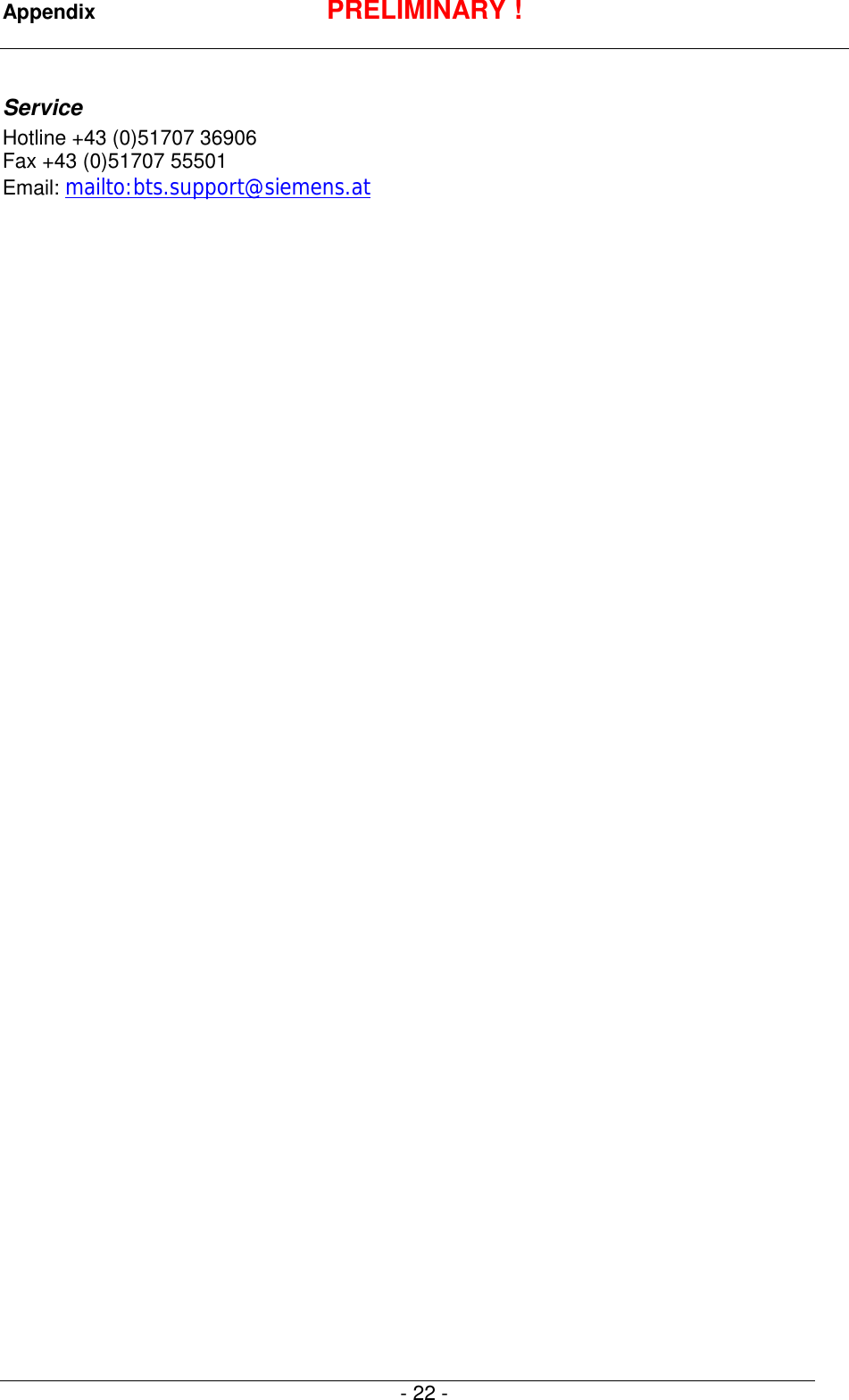

Appendix PRELIMINARY !- 22 -ServiceHotline +43 (0)51707 36906Fax +43 (0)51707 55501Email: mailto:bts.support@siemens.at

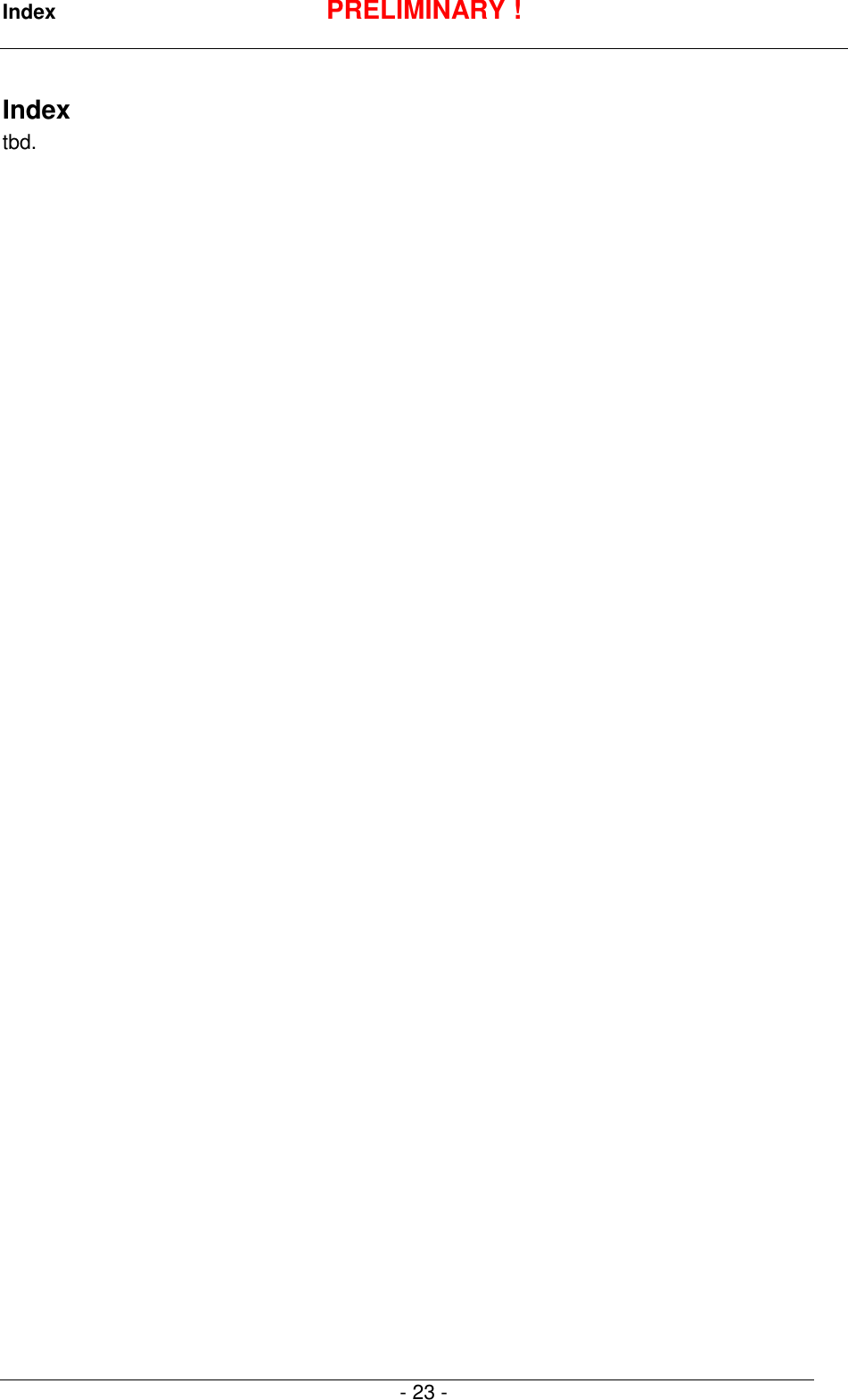

Index PRELIMINARY !- 23 -Indextbd.
