User Manual

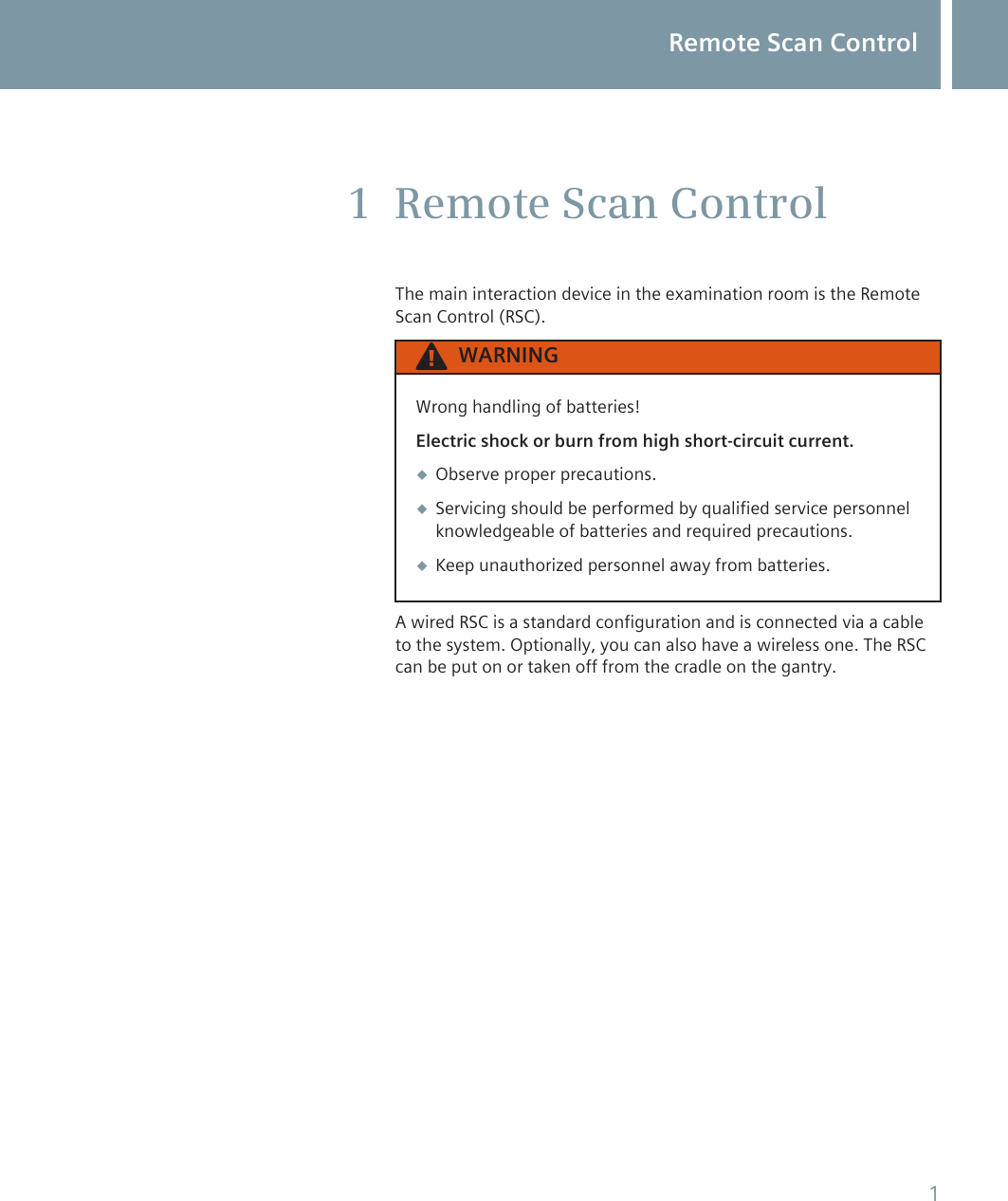

Remote Scan ControlThe main interaction device in the examination room is the RemoteScan Control (RSC).WARNINGWrong handling of batteries!Electric shock or burn from high short-circuit current.◆Observe proper precautions.◆Servicing should be performed by qualified service personnelknowledgeable of batteries and required precautions.◆Keep unauthorized personnel away from batteries.A wired RSC is a standard configuration and is connected via a cableto the system. Optionally, you can also have a wireless one. The RSCcan be put on or taken off from the cradle on the gantry.1Remote Scan Control1

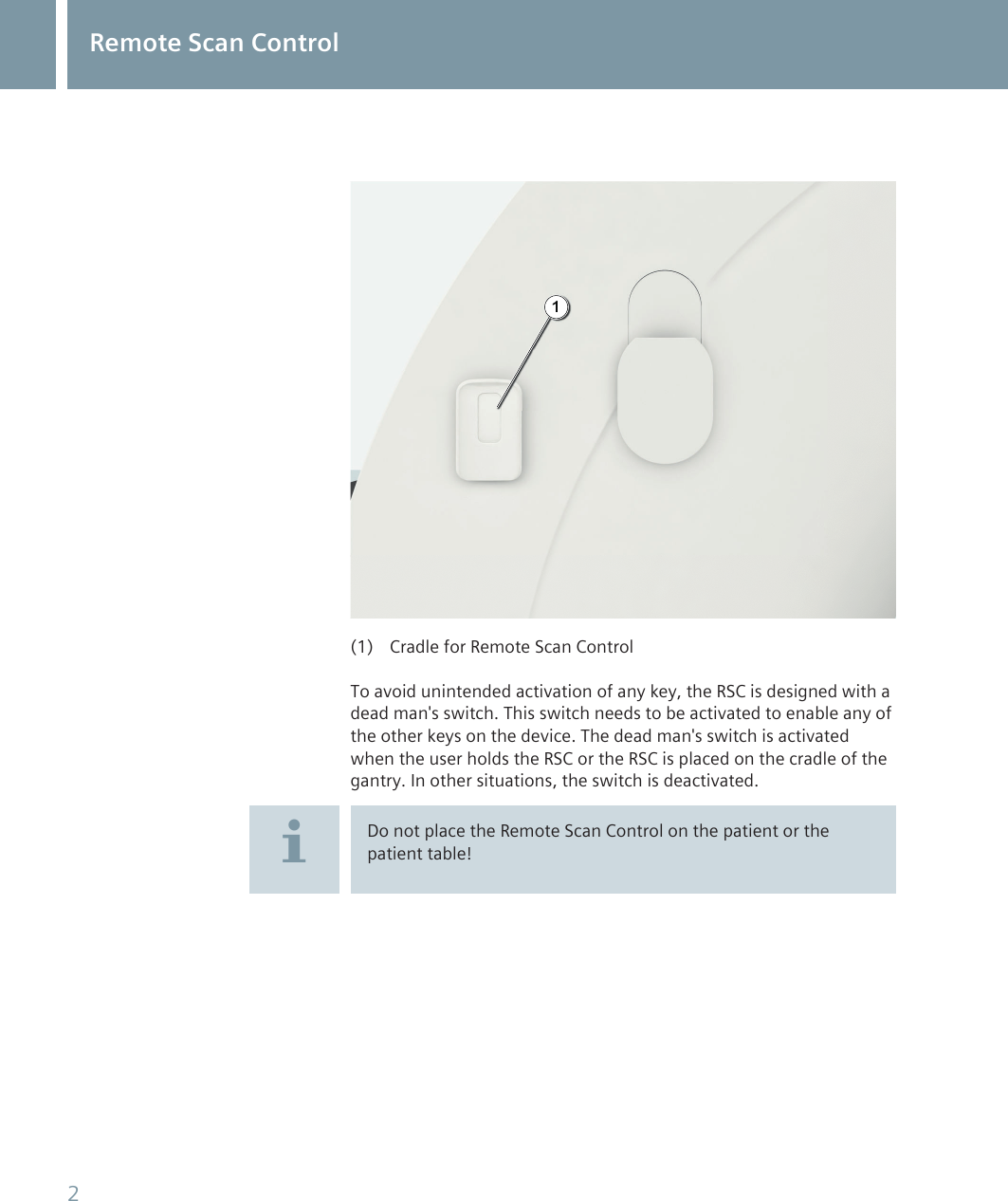

1(1) Cradle for Remote Scan ControlTo avoid unintended activation of any key, the RSC is designed with adead man's switch. This switch needs to be activated to enable any ofthe other keys on the device. The dead man's switch is activatedwhen the user holds the RSC or the RSC is placed on the cradle of thegantry. In other situations, the switch is deactivated.Do not place the Remote Scan Control on the patient or thepatient table!Remote Scan Control2

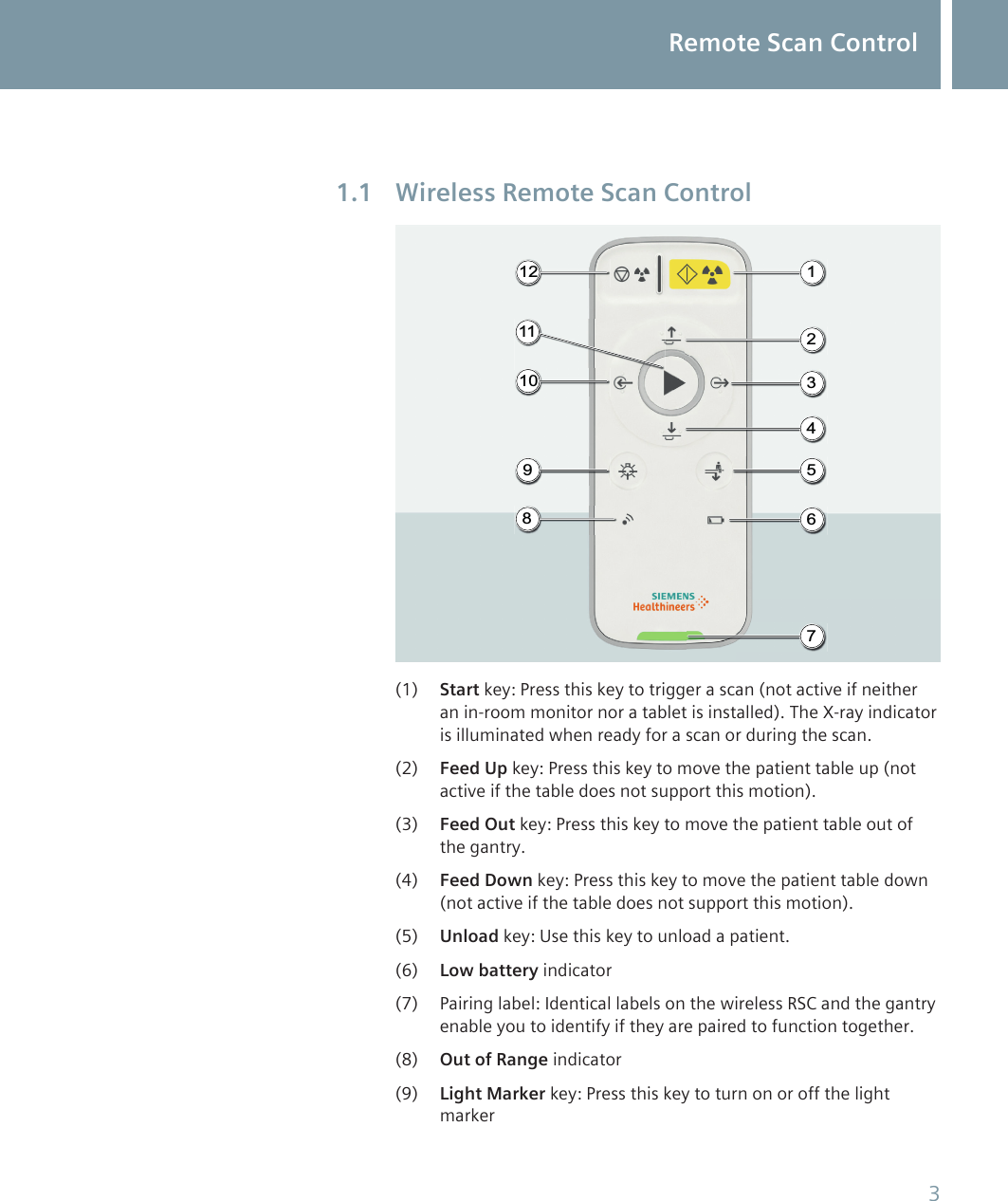

Wireless Remote Scan Control135212109684117(1) Start key: Press this key to trigger a scan (not active if neitheran in-room monitor nor a tablet is installed). The X-ray indicatoris illuminated when ready for a scan or during the scan.(2) Feed Up key: Press this key to move the patient table up (notactive if the table does not support this motion).(3) Feed Out key: Press this key to move the patient table out ofthe gantry.(4) Feed Down key: Press this key to move the patient table down(not active if the table does not support this motion).(5) Unload key: Use this key to unload a patient.(6) Low battery indicator(7) Pairing label: Identical labels on the wireless RSC and the gantryenable you to identify if they are paired to function together.(8) Out of Range indicator(9) Light Marker key: Press this key to turn on or off the lightmarker1.1Remote Scan Control3

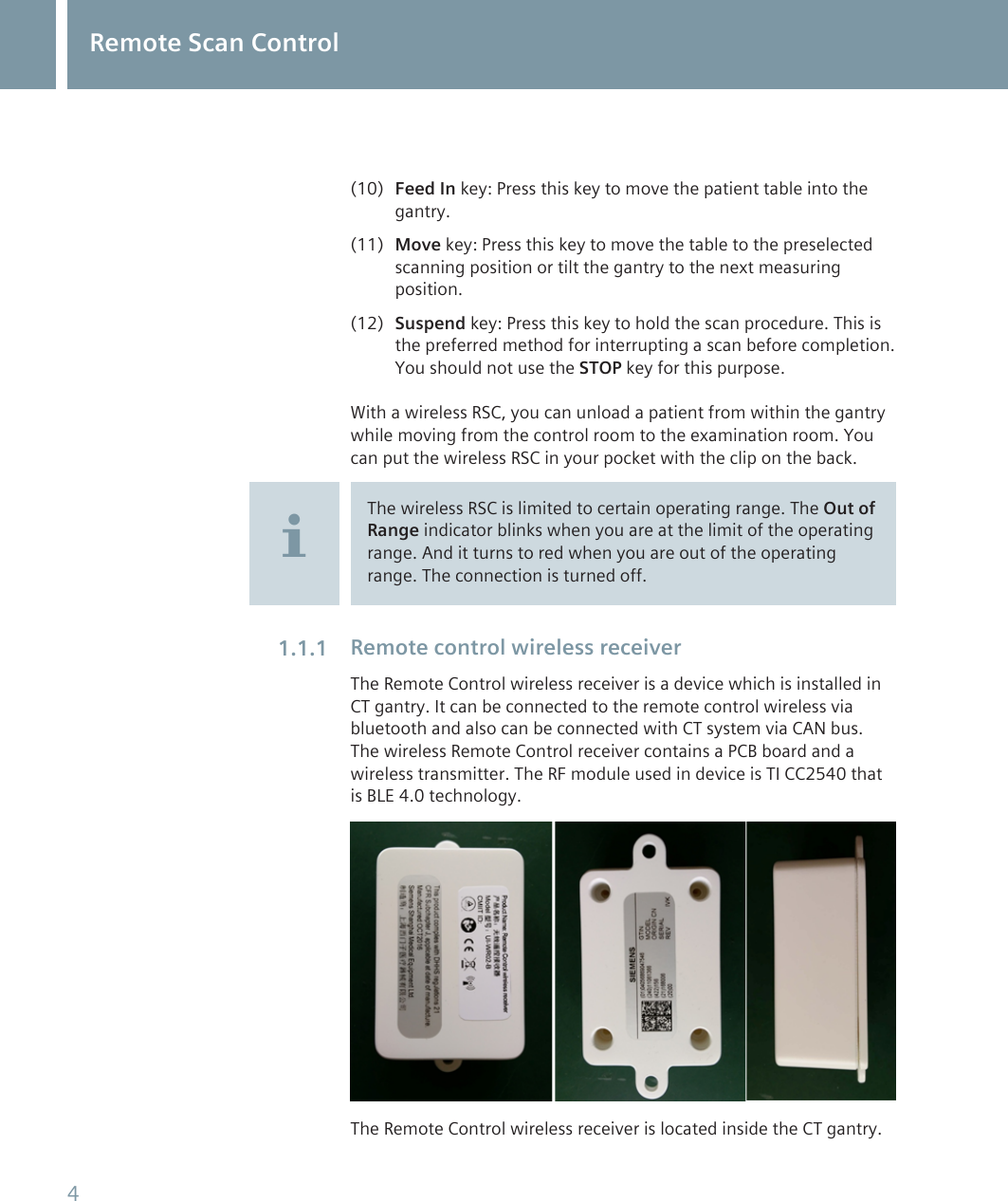

(10) Feed In key: Press this key to move the patient table into thegantry.(11) Move key: Press this key to move the table to the preselectedscanning position or tilt the gantry to the next measuringposition.(12) Suspend key: Press this key to hold the scan procedure. This isthe preferred method for interrupting a scan before completion.You should not use the STOP key for this purpose.With a wireless RSC, you can unload a patient from within the gantrywhile moving from the control room to the examination room. Youcan put the wireless RSC in your pocket with the clip on the back.The wireless RSC is limited to certain operating range. The Out ofRange indicator blinks when you are at the limit of the operatingrange. And it turns to red when you are out of the operatingrange. The connection is turned off.Remote control wireless receiverThe Remote Control wireless receiver is a device which is installed inCT gantry. It can be connected to the remote control wireless viabluetooth and also can be connected with CT system via CAN bus.The wireless Remote Control receiver contains a PCB board and awireless transmitter. The RF module used in device is TI CC2540 thatis BLE 4.0 technology.The Remote Control wireless receiver is located inside the CT gantry.1.1.1Remote Scan Control4

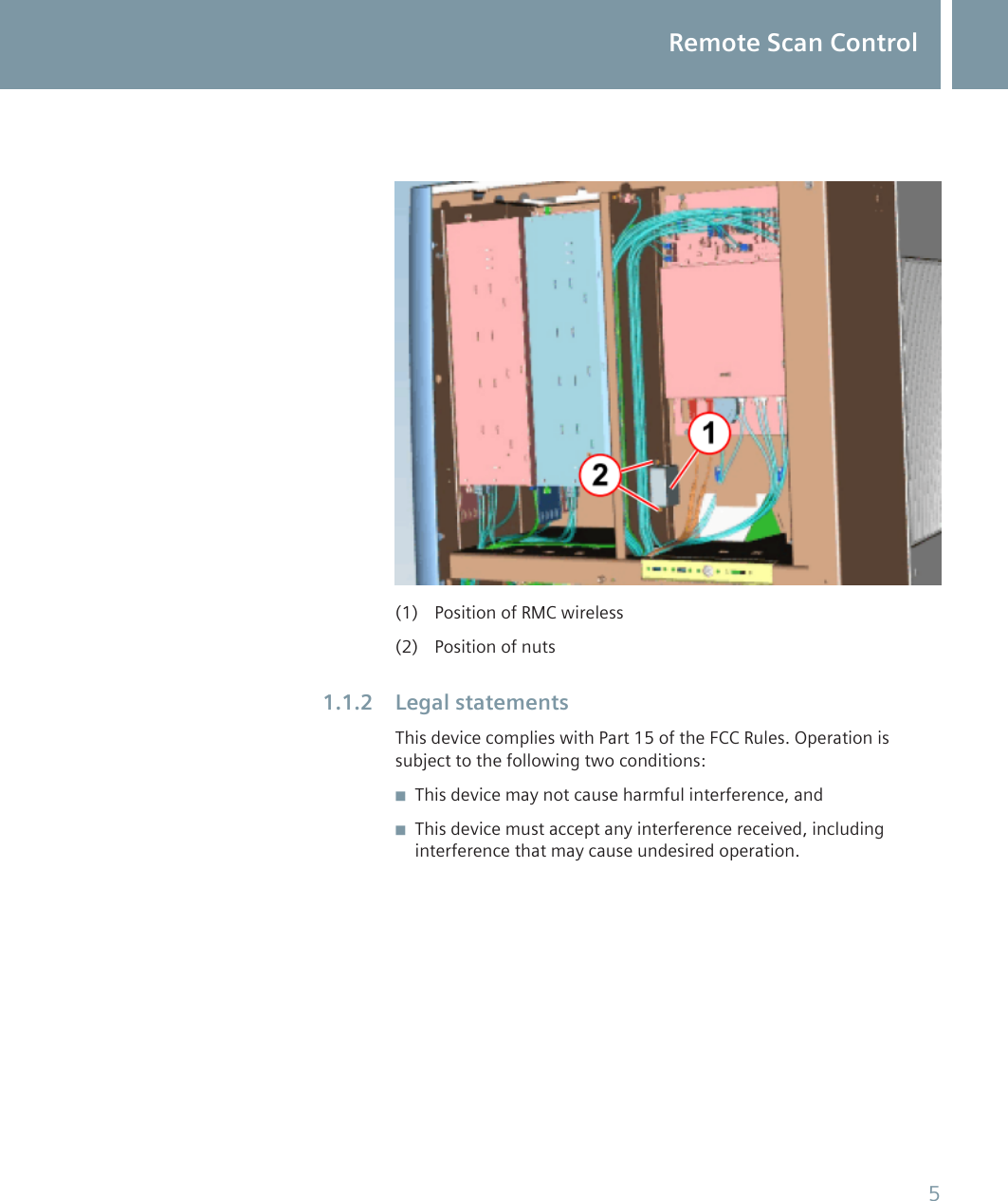

(1) Position of RMC wireless(2) Position of nutsLegal statementsThis device complies with Part 15 of the FCC Rules. Operation issubject to the following two conditions:◾This device may not cause harmful interference, and◾This device must accept any interference received, includinginterference that may cause undesired operation.1.1.2Remote Scan Control5

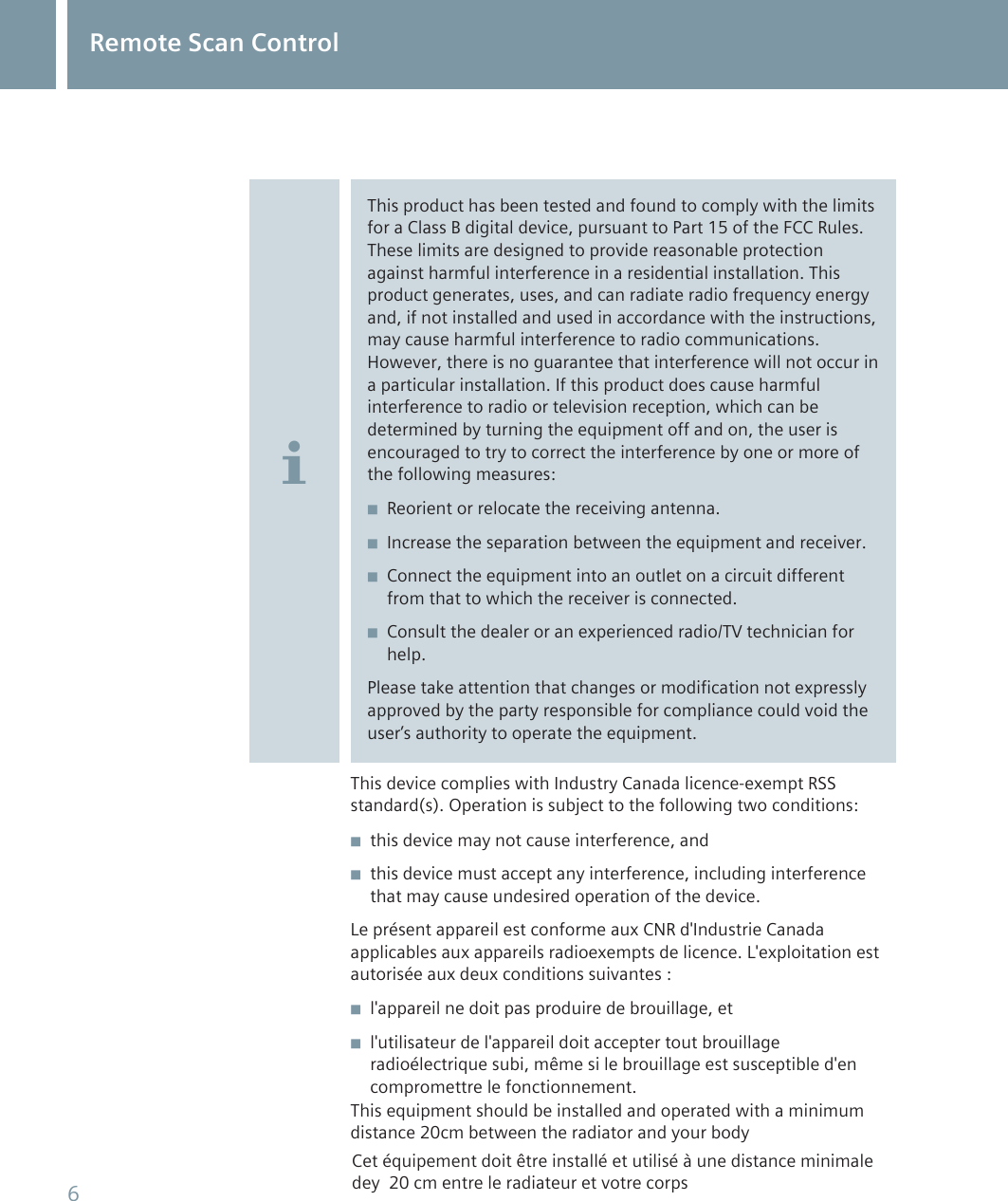

This product has been tested and found to comply with the limitsfor a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. Thisproduct generates, uses, and can radiate radio frequency energyand, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur ina particular installation. If this product does cause harmfulinterference to radio or television reception, which can bedetermined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more ofthe following measures:◾Reorient or relocate the receiving antenna.◾Increase the separation between the equipment and receiver.◾Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected.◾Consult the dealer or an experienced radio/TV technician forhelp.Please take attention that changes or modification not expresslyapproved by the party responsible for compliance could void theuser’s authority to operate the equipment.This device complies with Industry Canada licence-exempt RSSstandard(s). Operation is subject to the following two conditions:◾this device may not cause interference, and◾this device must accept any interference, including interferencethat may cause undesired operation of the device.Le présent appareil est conforme aux CNR d'Industrie Canadaapplicables aux appareils radioexempts de licence. L'exploitation estautorisée aux deux conditions suivantes :◾l'appareil ne doit pas produire de brouillage, et◾l'utilisateur de l'appareil doit accepter tout brouillageradioélectrique subi, même si le brouillage est susceptible d'encompromettre le fonctionnement.Remote Scan Control6This equipment should be installed and operated with a minimumdistance 20cm between the radiator and your body Cet équipement doit être installé et utilisé à une distance minimaledey  20 cm entre le radiateur et votre corps

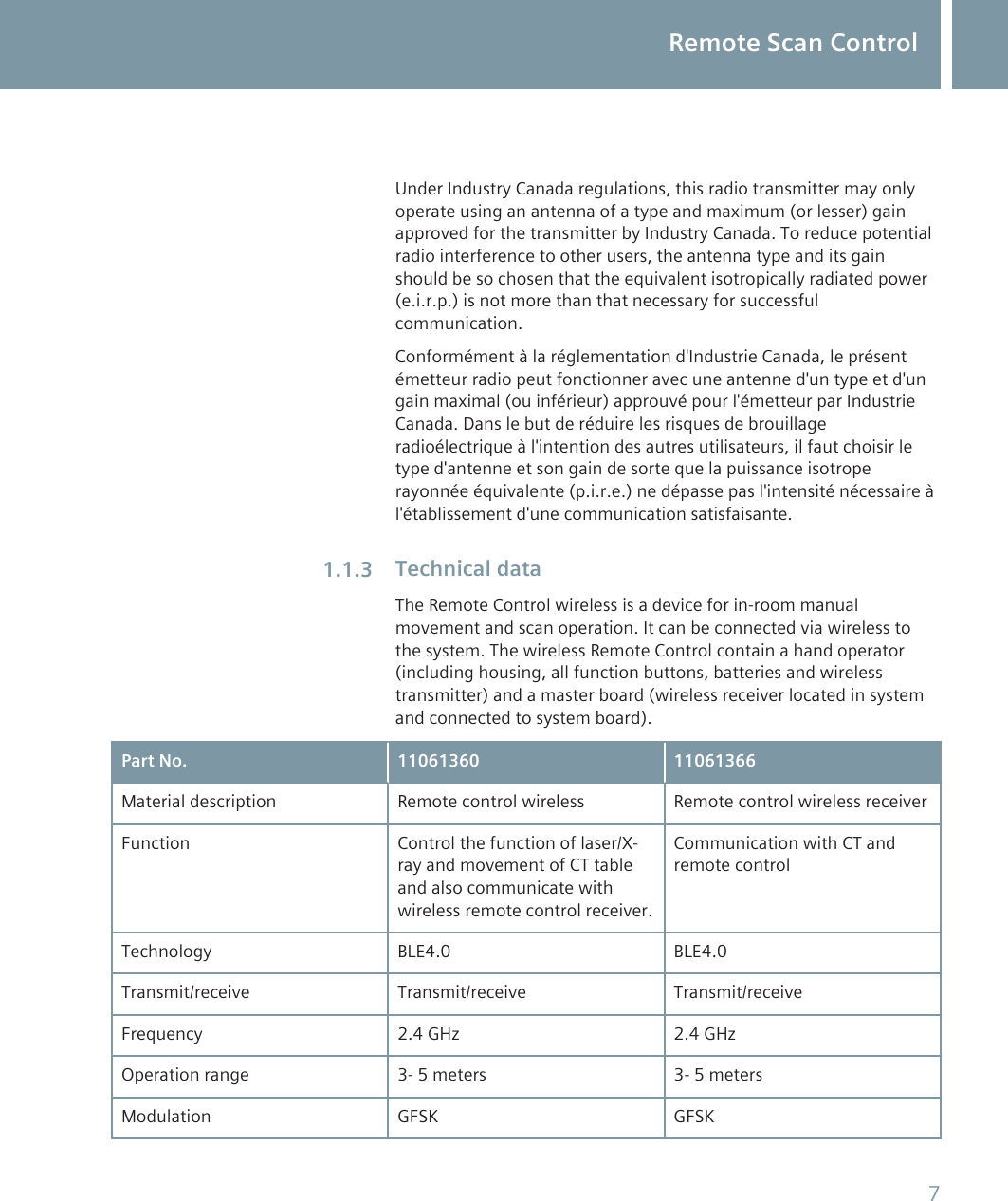

Under Industry Canada regulations, this radio transmitter may onlyoperate using an antenna of a type and maximum (or lesser) gainapproved for the transmitter by Industry Canada. To reduce potentialradio interference to other users, the antenna type and its gainshould be so chosen that the equivalent isotropically radiated power(e.i.r.p.) is not more than that necessary for successfulcommunication.Conformément à la réglementation d'Industrie Canada, le présentémetteur radio peut fonctionner avec une antenne d'un type et d'ungain maximal (ou inférieur) approuvé pour l'émetteur par IndustrieCanada. Dans le but de réduire les risques de brouillageradioélectrique à l'intention des autres utilisateurs, il faut choisir letype d'antenne et son gain de sorte que la puissance isotroperayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire àl'établissement d'une communication satisfaisante.Technical dataThe Remote Control wireless is a device for in-room manualmovement and scan operation. It can be connected via wireless tothe system. The wireless Remote Control contain a hand operator(including housing, all function buttons, batteries and wirelesstransmitter) and a master board (wireless receiver located in systemand connected to system board).Part No. 11061360 11061366Material description Remote control wireless Remote control wireless receiverFunction Control the function of laser/X-ray and movement of CT tableand also communicate withwireless remote control receiver.Communication with CT andremote controlTechnology BLE4.0 BLE4.0Transmit/receive Transmit/receive Transmit/receiveFrequency 2.4 GHz 2.4 GHzOperation range 3- 5 meters 3- 5 metersModulation GFSK GFSK1.1.3Remote Scan Control7

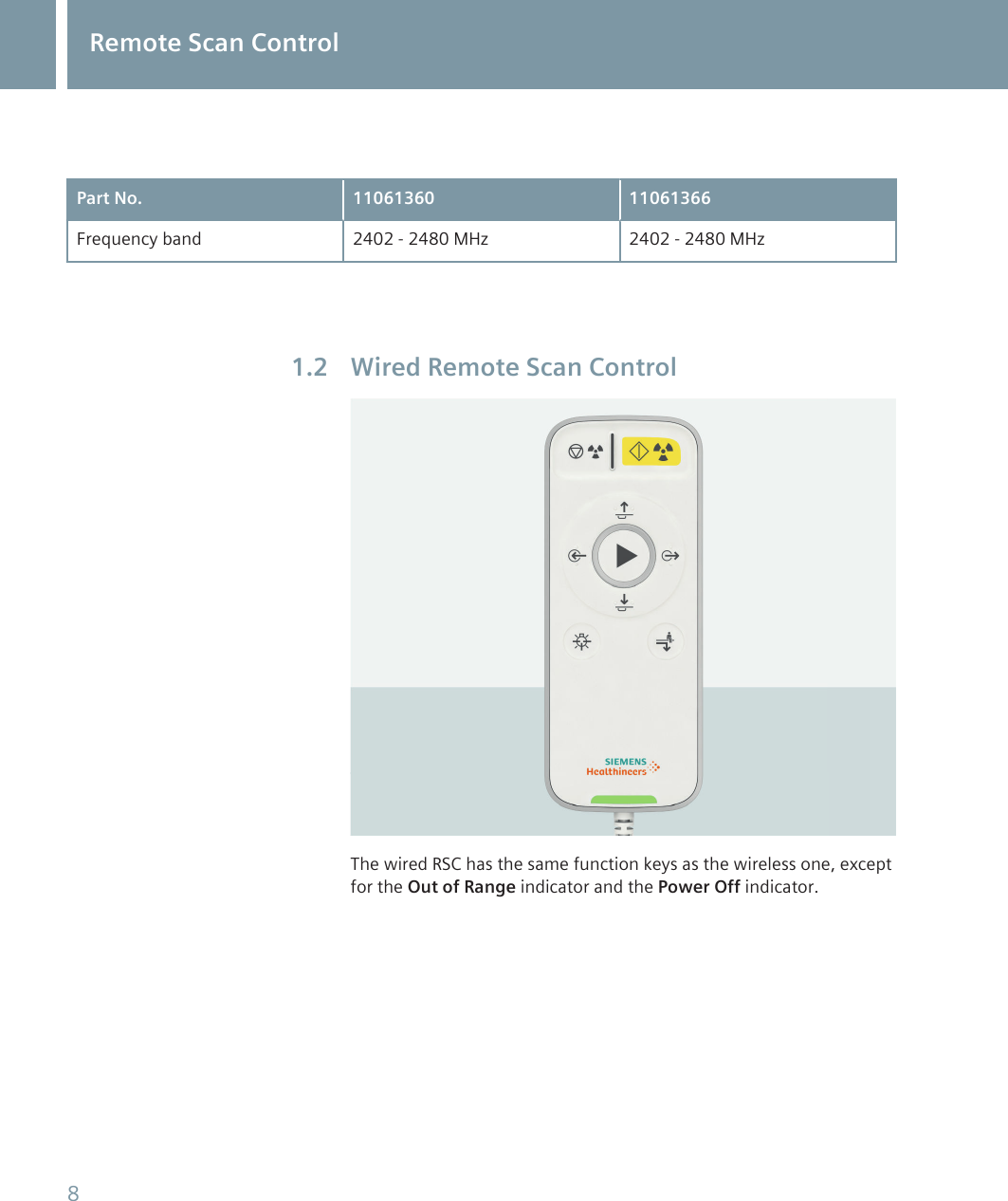

Part No. 11061360 11061366Frequency band 2402 - 2480 MHz 2402 - 2480 MHzWired Remote Scan ControlThe wired RSC has the same function keys as the wireless one, exceptfor the Out of Range indicator and the Power Off indicator.1.2Remote Scan Control8
