Siemens Medical Equipment 11333743 Remote control wireless receiver User Manual

Siemens Shanghai Medical Equipment Ltd. Remote control wireless receiver Users Manual

Users Manual

1 / 4 Wireless remote control receiver (model: 11333743) Product description and technical manual

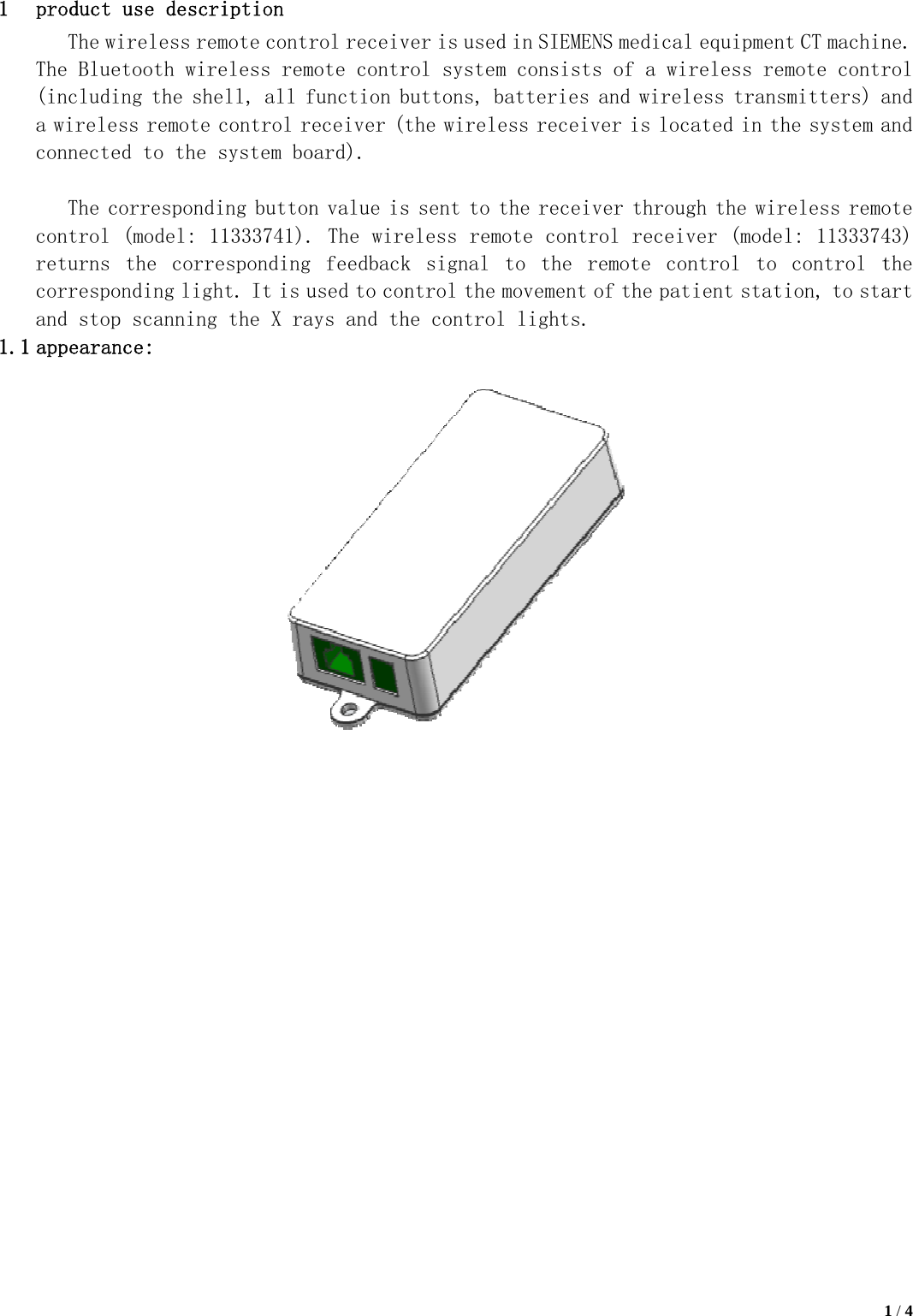

1 1.1product The wiThe Blue(includia wireleconnecte The ccontrol returns correspoand stop1 appearanuse descrireless reetooth wirng the shess remote ed to the orrespond(model: 1the corronding lighp scanningnce: ription emote contrreless remell, all fcontrol rsystem boing button11333741).espondinght. It is ug the X rarol receivmote contrfunction beceiver (toard). n value is The wire feedbackused to conays and th ver is usedrol systembuttons, bthe wireles sent to teless remk signal ntrol the mhe control d in SIEMENm consistsbatteries ess receivthe receivote contrto the rmovement ol lights.NS medical s of a wirand wirelever is locaver througol receivemote conof the pati equipmentreless remess transmated in thgh the wirever (modelntrol to ient stati 1t CT machinmote contrmitters) ahe system aeless remol: 1133374control tion, to sta1 / 4 ne. rol and and ote 43) the art

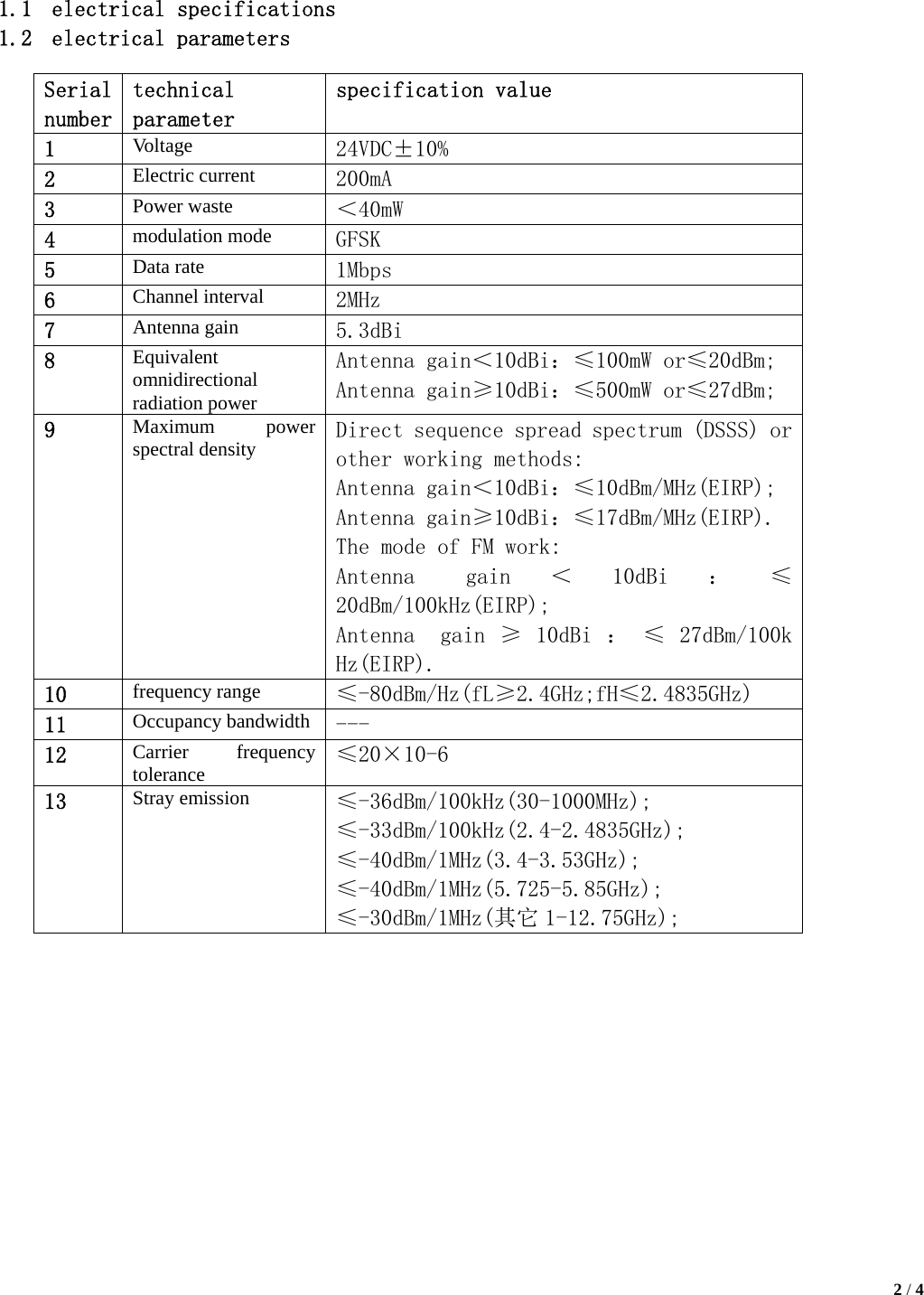

2 / 4 1.1 electrical specifications 1.2 electrical parameters Serial number technical parameter specification value 1 Voltage 24VDC±10% 2 Electric current 200mA 3 Power waste ＜40mW 4 modulation mode GFSK 5 Data rate 1Mbps 6 Channel interval 2MHz 7 Antenna gain 5.3dBi 8 Equivalent omnidirectional radiation power Antenna gain＜10dBi：≤100mW or≤20dBm; Antenna gain≥10dBi：≤500mW or≤27dBm; 9 Maximum power spectral density Direct sequence spread spectrum (DSSS) or other working methods: Antenna gain＜10dBi：≤10dBm/MHz(EIRP); Antenna gain≥10dBi：≤17dBm/MHz(EIRP). The mode of FM work: Antenna gain ＜ 10dBi ： ≤20dBm/100kHz(EIRP); Antenna gain ≥ 10dBi ： ≤ 27dBm/100k Hz(EIRP). 10 frequency range ≤-80dBm/Hz(fL≥2.4GHz;fH≤2.4835GHz) 11 Occupancy bandwidth --- 12 Carrier frequency tolerance ≤20×10-6 13 Stray emission ≤-36dBm/100kHz(30-1000MHz); ≤-33dBm/100kHz(2.4-2.4835GHz); ≤-40dBm/1MHz(3.4-3.53GHz); ≤-40dBm/1MHz(5.725-5.85GHz); ≤-30dBm/1MHz(其它 1-12.75GHz);

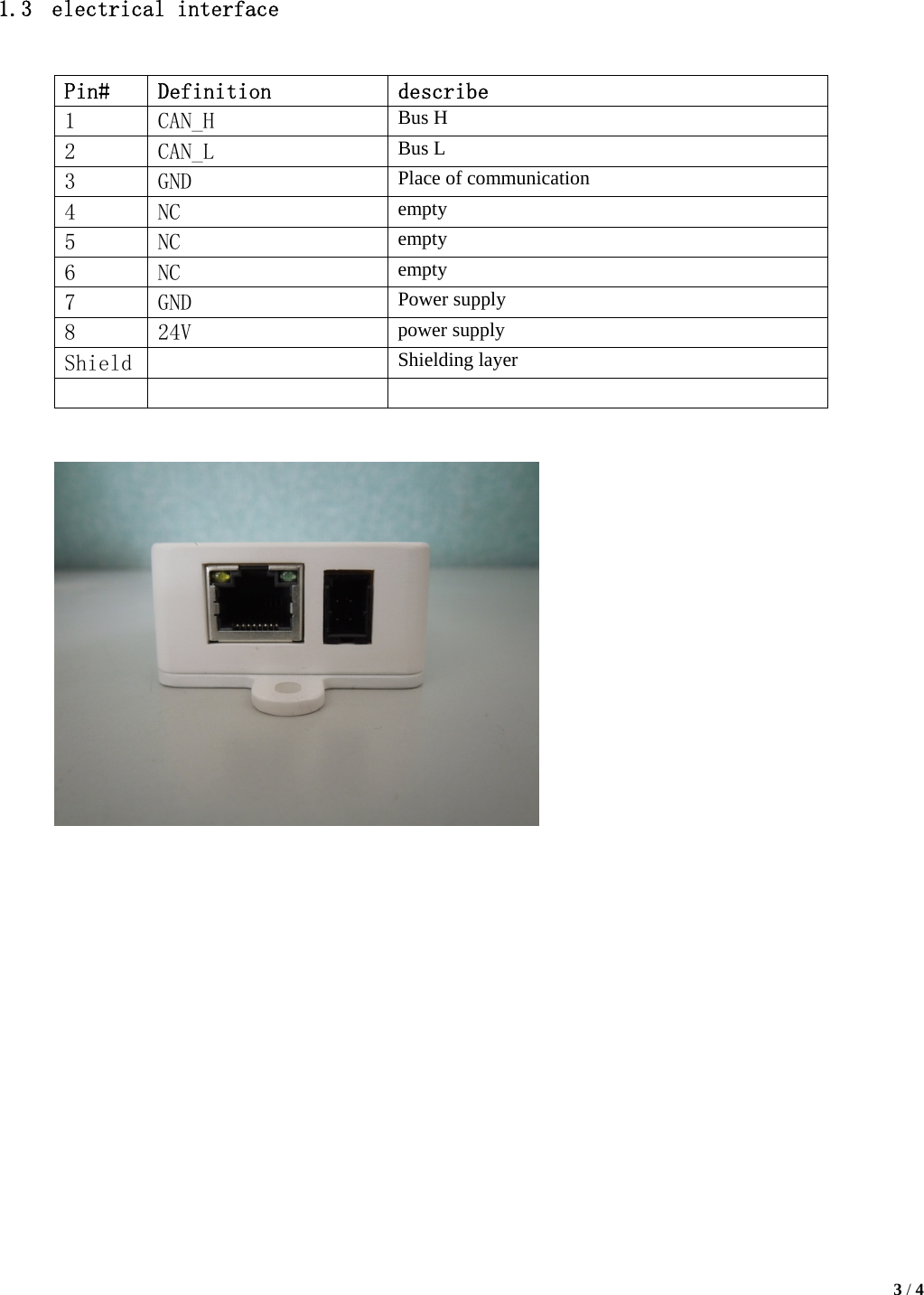

3 / 4 1.3 electrical interface Pin# Definition describe 1 CAN_H Bus H 2 CAN_L Bus L 3 GND Place of communication 4 NC empty 5 NC empty 6 NC empty 7 GND Power supply 8 24V power supply Shield Shielding layer

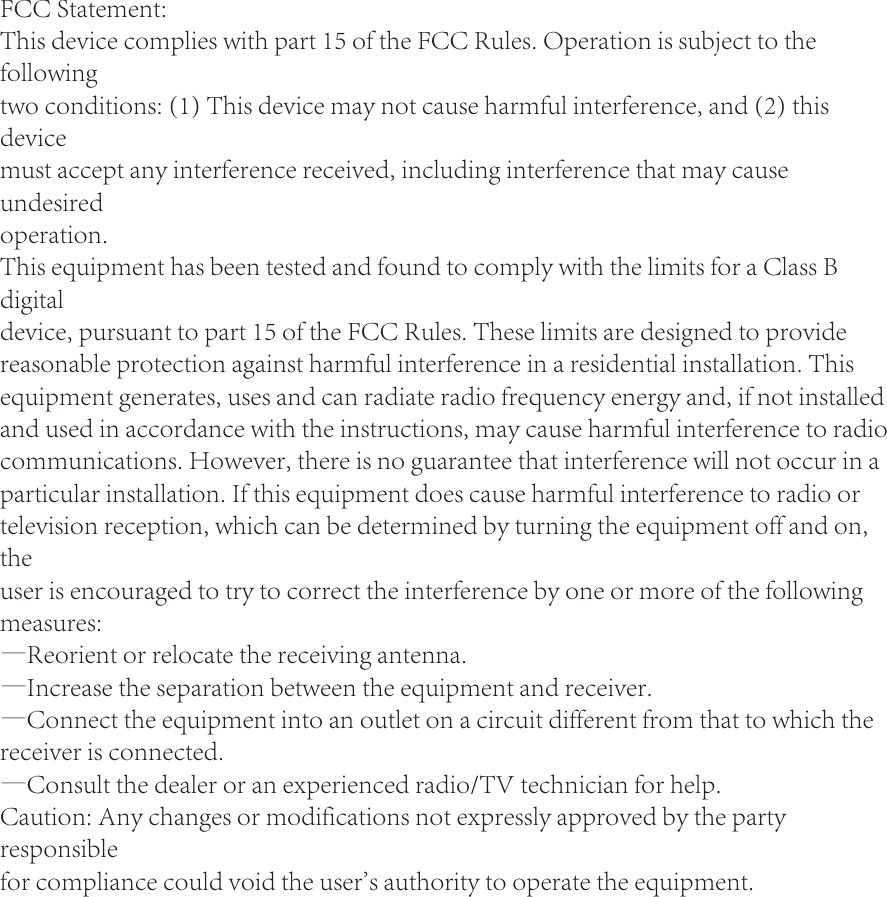

FCC Statement:This device complies with part 15 of the FCC Rules. Operation is subject to the followingtwo conditions: (1) This device may not cause harmful interference, and (2) this devicemust accept any interference received, including interference that may cause undesiredoperation.This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, theuser is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help.Caution: Any changes or modifications not expressly approved by the party responsiblefor compliance could void the user's authority to operate the equipment.
