OWNERS MANUALELECTRO-OPTICSKILO2400ABS™ 7x25mm DIGITAL BALLISTIC LASER RANGEFINDERKILO®

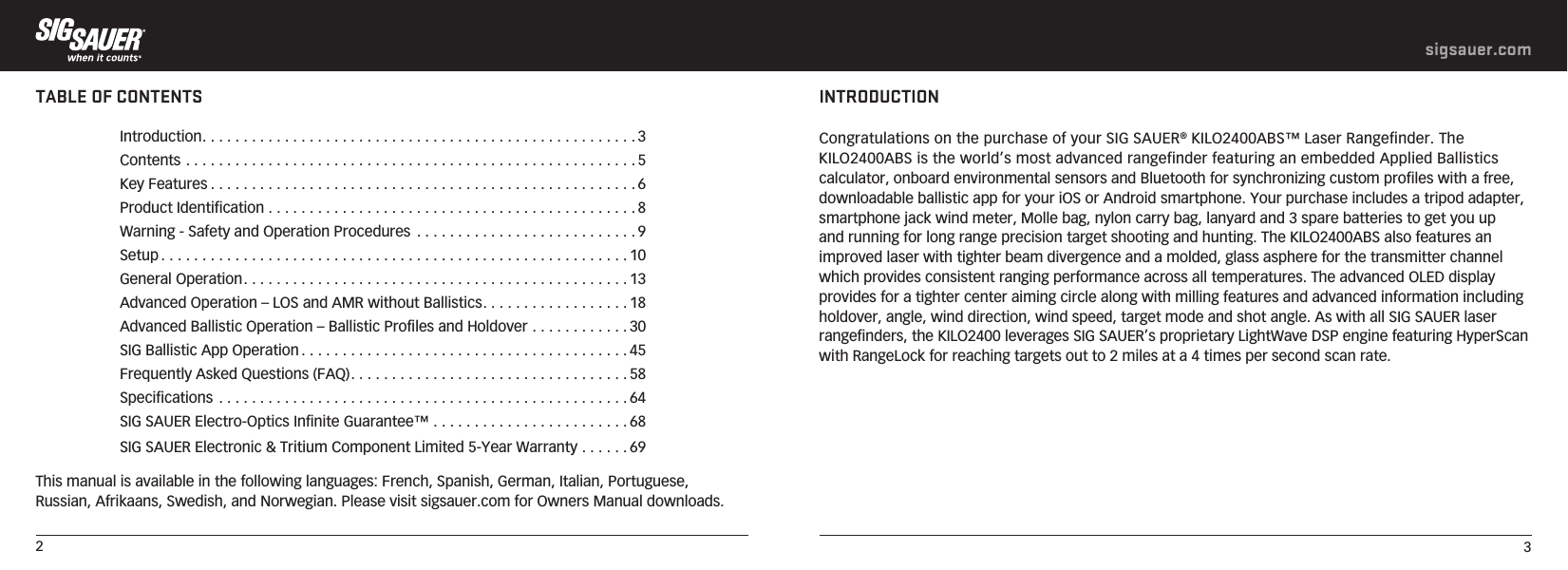

23sigsauer.comINTRODUCTIONCongratulations on the purchase of your SIG SAUER® KILO2400ABS™ Laser Rangefinder. The KILO2400ABS is the world’s most advanced rangefinder featuring an embedded Applied Ballistics calculator, onboard environmental sensors and Bluetooth for synchronizing custom profiles with a free, downloadable ballistic app for your iOS or Android smartphone. Your purchase includes a tripod adapter, smartphone jack wind meter, Molle bag, nylon carry bag, lanyard and 3 spare batteries to get you up and running for long range precision target shooting and hunting. The KILO2400ABS also features an improved laser with tighter beam divergence and a molded, glass asphere for the transmitter channel which provides consistent ranging performance across all temperatures. The advanced OLED display provides for a tighter center aiming circle along with milling features and advanced information including holdover, angle, wind direction, wind speed, target mode and shot angle. As with all SIG SAUER laser rangefinders, the KILO2400 leverages SIG SAUER’s proprietary LightWave DSP engine featuring HyperScan with RangeLock for reaching targets out to 2 miles at a 4 times per second scan rate. TABLE OF CONTENTSThis manual is available in the following languages: French, Spanish, German, Italian, Portuguese, Russian, Afrikaans, Swedish, and Norwegian. Please visit sigsauer.com for Owners Manual downloads.Introduction .....................................................3Contents .......................................................5Key Features ....................................................6Product Identification .............................................8Warning - Safety and Operation Procedures ...........................9Setup .........................................................10General Operation ...............................................13Advanced Operation – LOS and AMR without Ballistics ..................18Advanced Ballistic Operation – Ballistic Profiles and Holdover ............30SIG Ballistic App Operation ........................................45Frequently Asked Questions (FAQ) ..................................58Specifications ..................................................64SIG SAUER Electro-Optics Infinite Guarantee™ ........................68SIG SAUER Electronic & Tritium Component Limited 5-Year Warranty ......69

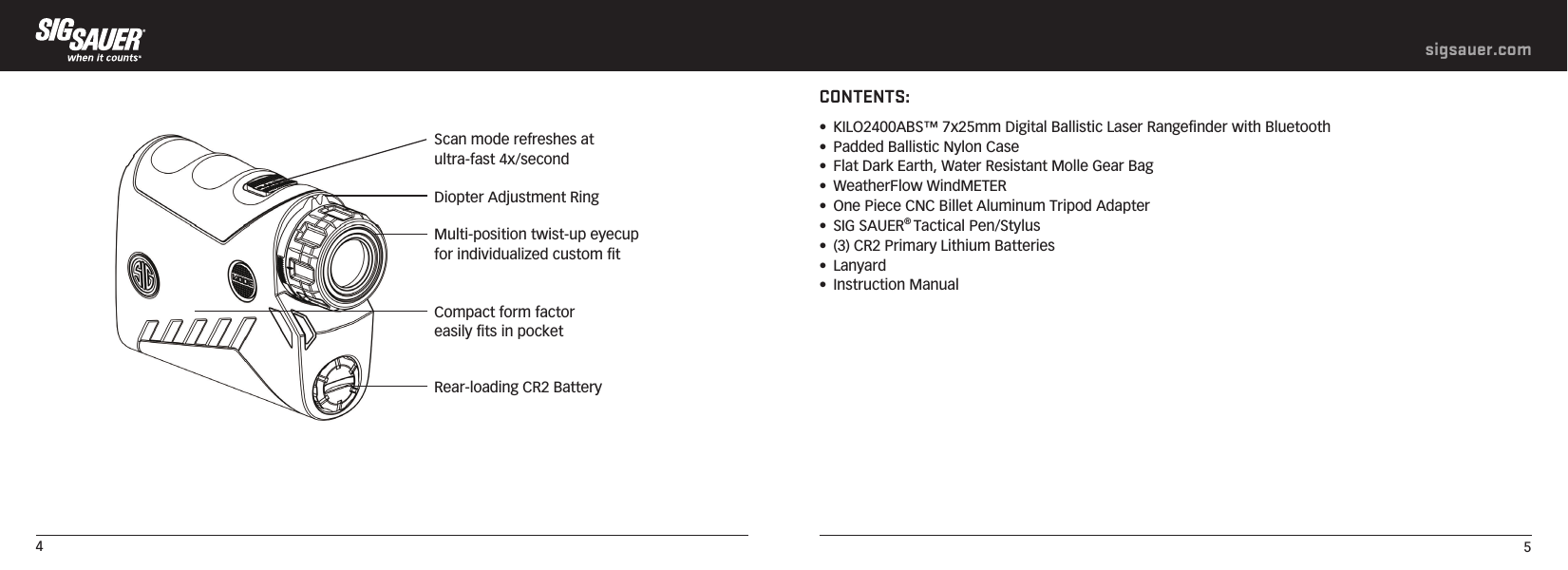

45sigsauer.comScan mode refreshes at ultra-fast 4x/second Diopter Adjustment RingMulti-position twist-up eyecup for individualized custom fitCompact form factor easily fits in pocketRear-loading CR2 BatteryCONTENTS:• KILO2400ABS™ 7x25mm Digital Ballistic Laser Rangefinder with Bluetooth• Padded Ballistic Nylon Case• Flat Dark Earth, Water Resistant Molle Gear Bag• WeatherFlow WindMETER• One Piece CNC Billet Aluminum Tripod Adapter• SIG SAUER® Tactical Pen/Stylus• (3) CR2 Primary Lithium Batteries• Lanyard• Instruction Manual

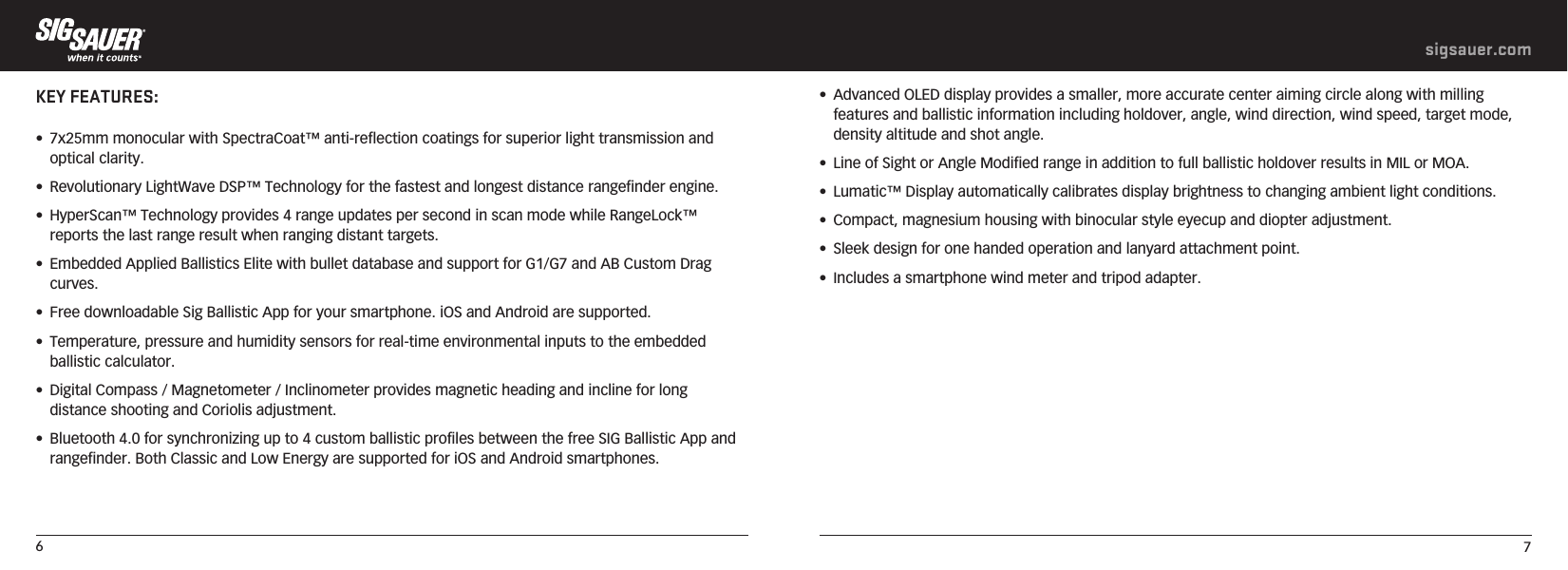

67sigsauer.com• Advanced OLED display provides a smaller, more accurate center aiming circle along with milling features and ballistic information including holdover, angle, wind direction, wind speed, target mode, density altitude and shot angle.• Line of Sight or Angle Modified range in addition to full ballistic holdover results in MIL or MOA.• Lumatic™ Display automatically calibrates display brightness to changing ambient light conditions.• Compact, magnesium housing with binocular style eyecup and diopter adjustment.• Sleek design for one handed operation and lanyard attachment point.• Includes a smartphone wind meter and tripod adapter. KEY FEATURES:• 7x25mm monocular with SpectraCoat™ anti-reflection coatings for superior light transmission and optical clarity.• Revolutionary LightWave DSP™ Technology for the fastest and longest distance rangefinder engine.• HyperScan™ Technology provides 4 range updates per second in scan mode while RangeLock™ reports the last range result when ranging distant targets.• Embedded Applied Ballistics Elite with bullet database and support for G1/G7 and AB Custom Drag curves.• Free downloadable Sig Ballistic App for your smartphone. iOS and Android are supported.• Temperature, pressure and humidity sensors for real-time environmental inputs to the embedded ballistic calculator.• Digital Compass / Magnetometer / Inclinometer provides magnetic heading and incline for long distance shooting and Coriolis adjustment.• Bluetooth 4.0 for synchronizing up to 4 custom ballistic profiles between the free SIG Ballistic App and rangefinder. Both Classic and Low Energy are supported for iOS and Android smartphones.

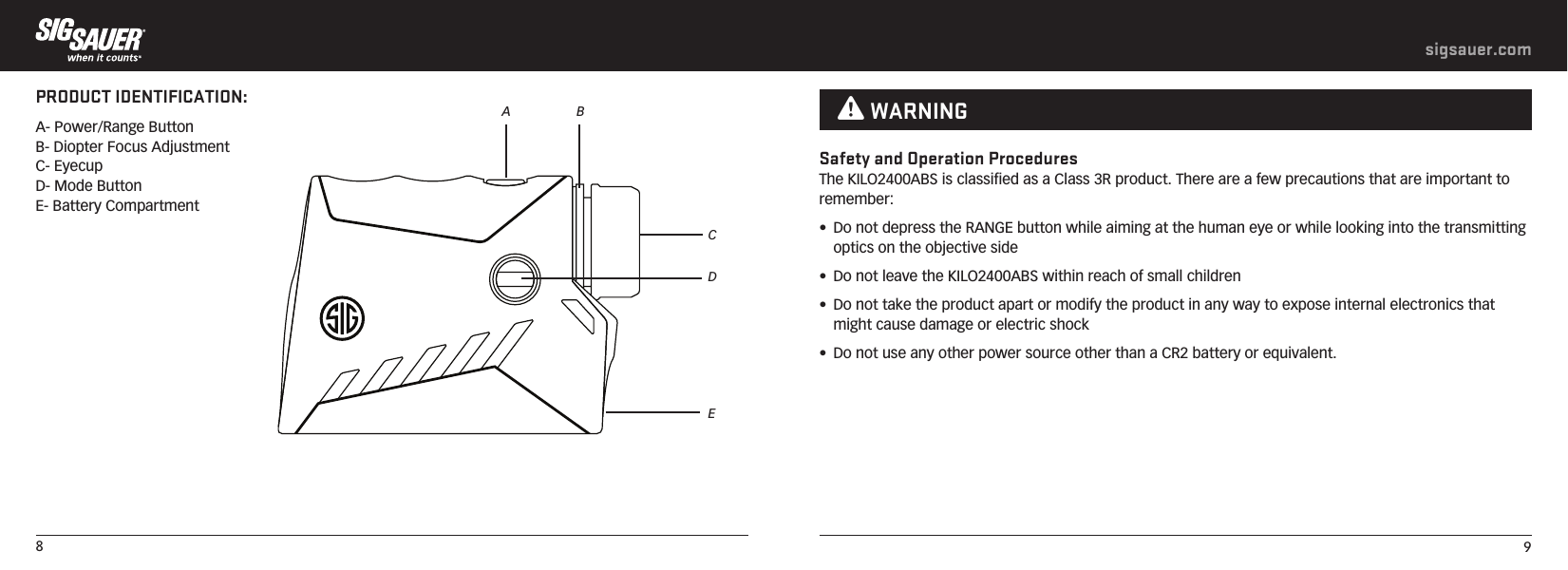

89sigsauer.comACBPRODUCT IDENTIFICATION:A- Power/Range ButtonB- Diopter Focus AdjustmentC- EyecupD- Mode ButtonE- Battery CompartmentA BCDESafety and Operation ProceduresThe KILO2400ABS is classified as a Class 3R product. There are a few precautions that are important to remember:• Do not depress the RANGE button while aiming at the human eye or while looking into the transmitting optics on the objective side• Do not leave the KILO2400ABS within reach of small children• Do not take the product apart or modify the product in any way to expose internal electronics that might cause damage or electric shock• Do not use any other power source other than a CR2 battery or equivalent. W WARNING

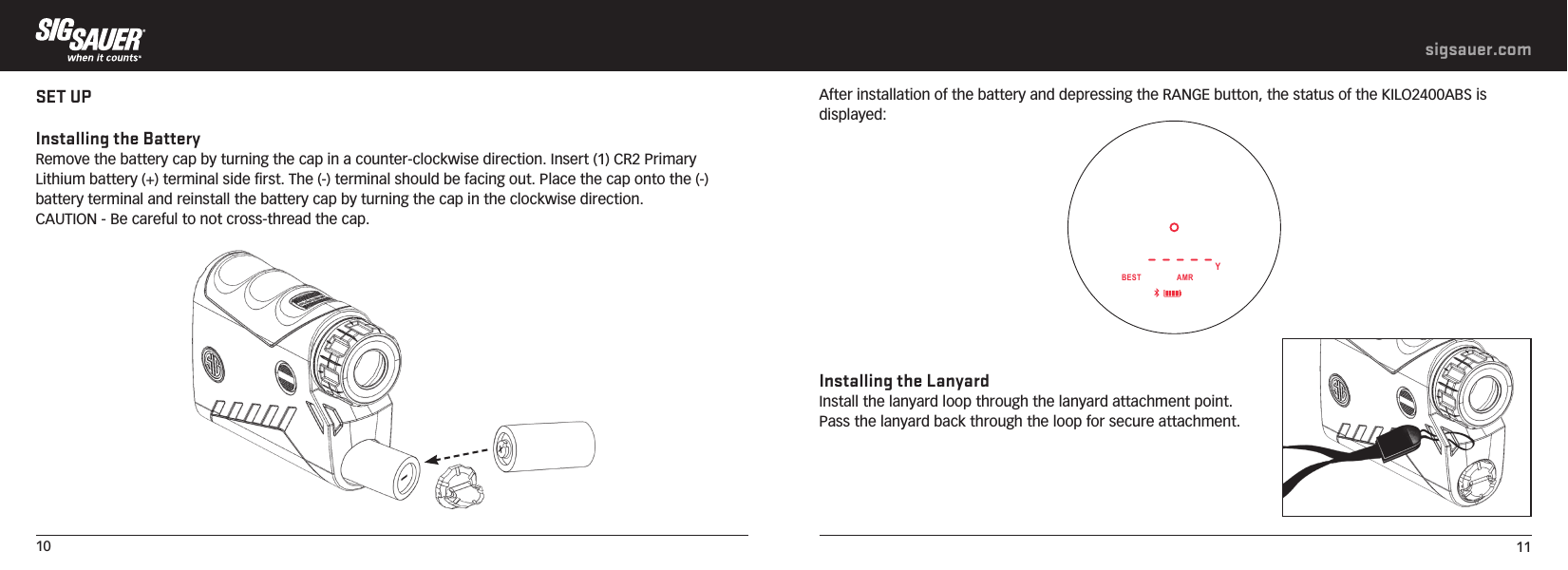

10 11sigsauer.comAfter installation of the battery and depressing the RANGE button, the status of the KILO2400ABS is displayed:Installing the LanyardInstall the lanyard loop through the lanyard attachment point.Pass the lanyard back through the loop for secure attachment. SET UPInstalling the BatteryRemove the battery cap by turning the cap in a counter-clockwise direction. Insert (1) CR2 Primary Lithium battery (+) terminal side first. The (-) terminal should be facing out. Place the cap onto the (-) battery terminal and reinstall the battery cap by turning the cap in the clockwise direction.CAUTION - Be careful to not cross-thread the cap.----- BEST AMRY

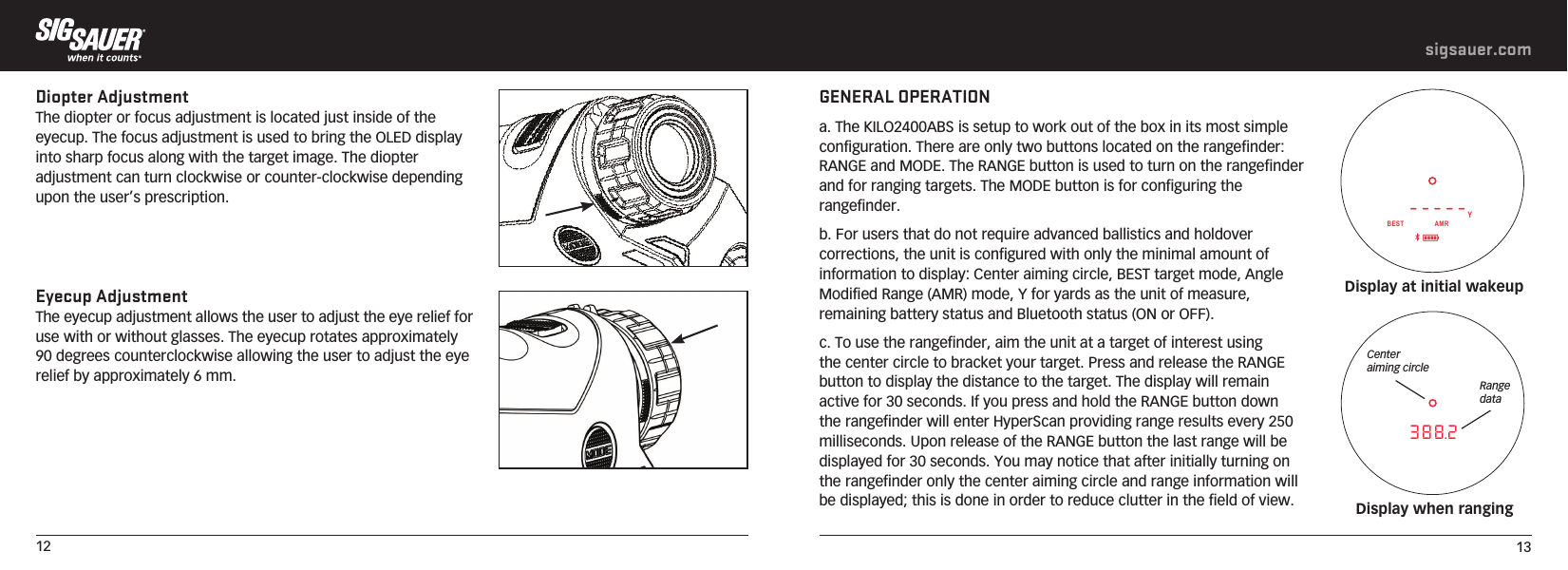

12 13sigsauer.comDiopter AdjustmentThe diopter or focus adjustment is located just inside of the eyecup. The focus adjustment is used to bring the OLED display into sharp focus along with the target image. The diopter adjustment can turn clockwise or counter-clockwise depending upon the user’s prescription.Eyecup Adjustment The eyecup adjustment allows the user to adjust the eye relief for use with or without glasses. The eyecup rotates approximately 90 degrees counterclockwise allowing the user to adjust the eye relief by approximately 6 mm.GENERAL OPERATIONa. The KILO2400ABS is setup to work out of the box in its most simple configuration. There are only two buttons located on the rangefinder: RANGE and MODE. The RANGE button is used to turn on the rangefinder and for ranging targets. The MODE button is for configuring the rangefinder.b. For users that do not require advanced ballistics and holdover corrections, the unit is configured with only the minimal amount of information to display: Center aiming circle, BEST target mode, Angle Modified Range (AMR) mode, Y for yards as the unit of measure, remaining battery status and Bluetooth status (ON or OFF).c. To use the rangefinder, aim the unit at a target of interest using the center circle to bracket your target. Press and release the RANGE button to display the distance to the target. The display will remain active for 30 seconds. If you press and hold the RANGE button down the rangefinder will enter HyperScan providing range results every 250 milliseconds. Upon release of the RANGE button the last range will be displayed for 30 seconds. You may notice that after initially turning on the rangefinder only the center aiming circle and range information will be displayed; this is done in order to reduce clutter in the field of view.----- BEST AMRYDisplay at initial wakeupDisplay when ranging388.2Centeraiming circleRangedata

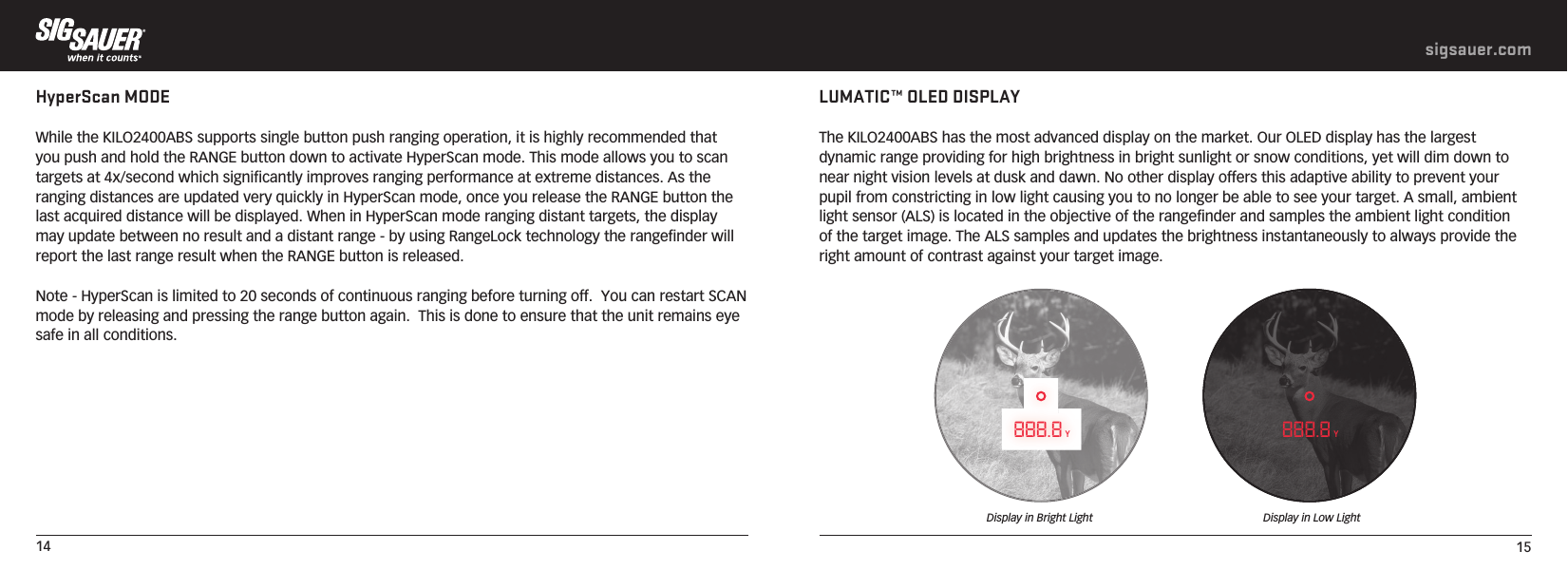

14 15sigsauer.comLUMATIC™ OLED DISPLAYThe KILO2400ABS has the most advanced display on the market. Our OLED display has the largest dynamic range providing for high brightness in bright sunlight or snow conditions, yet will dim down to near night vision levels at dusk and dawn. No other display offers this adaptive ability to prevent your pupil from constricting in low light causing you to no longer be able to see your target. A small, ambient light sensor (ALS) is located in the objective of the rangefinder and samples the ambient light condition of the target image. The ALS samples and updates the brightness instantaneously to always provide the right amount of contrast against your target image. HyperScan MODEWhile the KILO2400ABS supports single button push ranging operation, it is highly recommended that you push and hold the RANGE button down to activate HyperScan mode. This mode allows you to scan targets at 4x/second which significantly improves ranging performance at extreme distances. As the ranging distances are updated very quickly in HyperScan mode, once you release the RANGE button the last acquired distance will be displayed. When in HyperScan mode ranging distant targets, the display may update between no result and a distant range - by using RangeLock technology the rangefinder will report the last range result when the RANGE button is released.Note - HyperScan is limited to 20 seconds of continuous ranging before turning off. You can restart SCAN mode by releasing and pressing the range button again. This is done to ensure that the unit remains eye safe in all conditions.888.8 YDisplay in Bright Light Display in Low Light888.8 Y

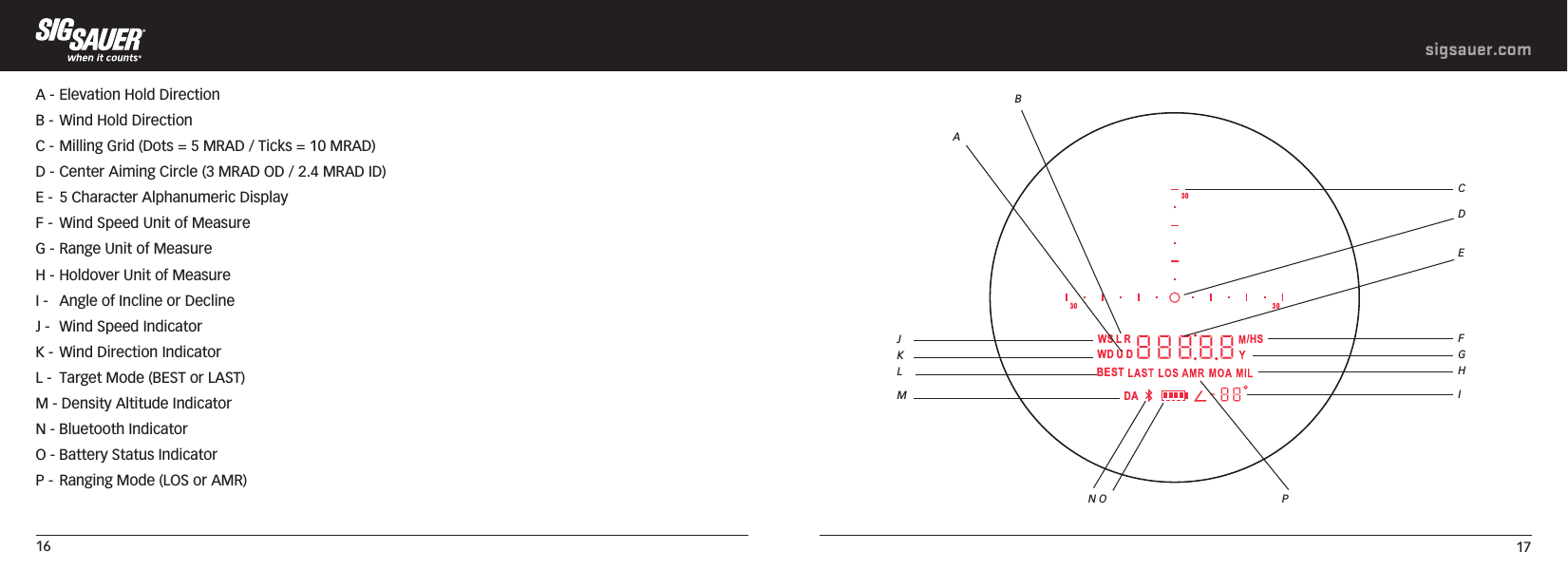

16 17sigsauer.comA - Elevation Hold DirectionB - Wind Hold Direction C - Milling Grid (Dots = 5 MRAD / Ticks = 10 MRAD) D - Center Aiming Circle (3 MRAD OD / 2.4 MRAD ID)E - 5 Character Alphanumeric DisplayF - Wind Speed Unit of MeasureG - Range Unit of MeasureH - Holdover Unit of MeasureI - Angle of Incline or DeclineJ - Wind Speed IndicatorK - Wind Direction IndicatorL - Target Mode (BEST or LAST)M - Density Altitude IndicatorN - Bluetooth IndicatorO - Battery Status IndicatorP - Ranging Mode (LOS or AMR)BEST3030 30BESTWS L RWD U D/HSDACDEFGHIBAN O PJKLM

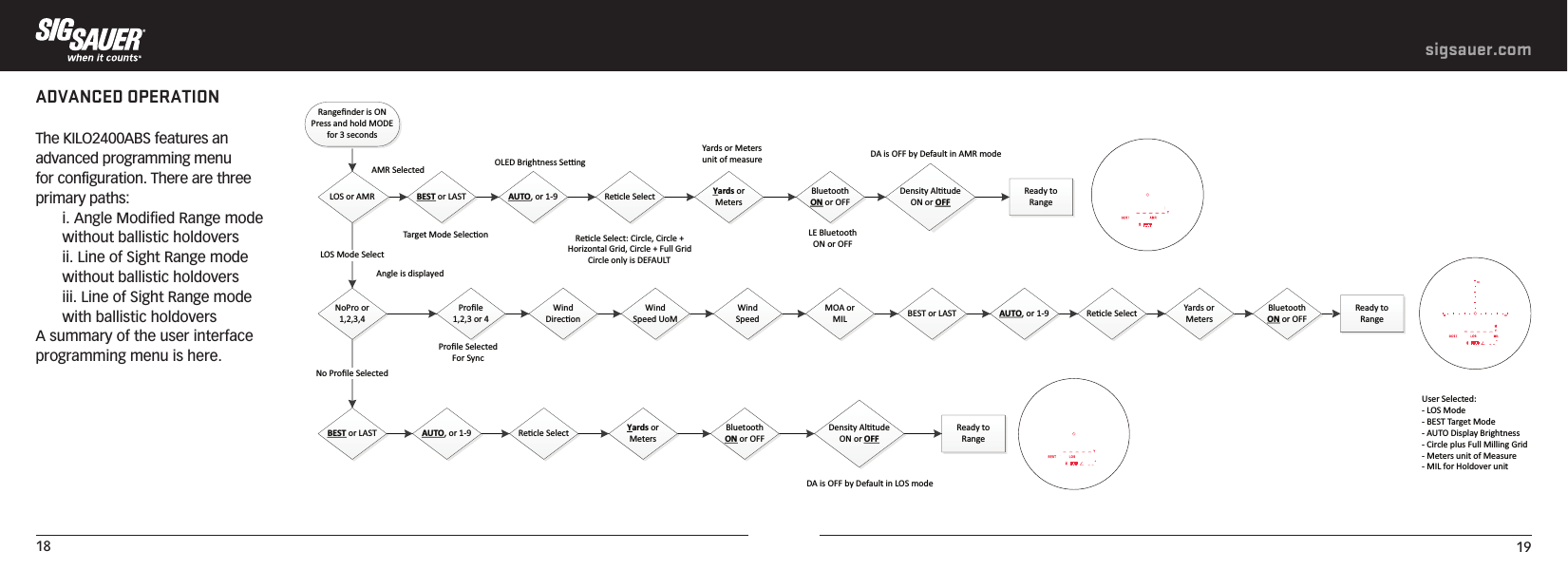

18 19sigsauer.comADVANCED OPERATIONThe KILO2400ABS features an advanced programming menu for configuration. There are three primary paths:i. Angle Modified Range mode without ballistic holdoversii. Line of Sight Range mode without ballistic holdoversiii. Line of Sight Range mode with ballistic holdoversA summary of the user interface programming menu is here.3030 30Rangeﬁnder is ONPress and hold MODE for 3 secondsLOS or AMRKILO2400ABS Summary Flow ChartNoPro or 1,2,3,4LOS Mode SelectBEST or LAST AUTO, or 1-9 Recle Select Yards or MetersBluetoothON or OFFOLED Brightness SengRecle Select: Circle, Circle + Horizontal Grid, Circle + Full GridCircle only is DEFAULTYards or Metersunit of measureAngle is displayedLE BluetoothON or OFFBEST or LAST AUTO, or 1-9 Recle Select Yards or MetersBluetoothON or OFFNo Proﬁle SelectedDensity AltudeON or OFFProﬁle1,2,3 or 4WindDireconWindSpeed UoMMOA orMIL BEST or LAST AUTO, or 1-9 Recle Select Yards or MetersBluetoothON or OFFReady toRangeReady toRangeReady toRangeUser Selected:- LOS Mode- BEST Target Mode- AUTO Display Brightness- Circle plus Full Milling Grid- Meters unit of Measure- MIL for Holdover unitDensity AltudeON or OFFDA is OFF by Default in AMR modeDA is OFF by Default in LOS modeWindSpeedTarget Mode SeleconAMR SelectedProﬁle SelectedFor Sync

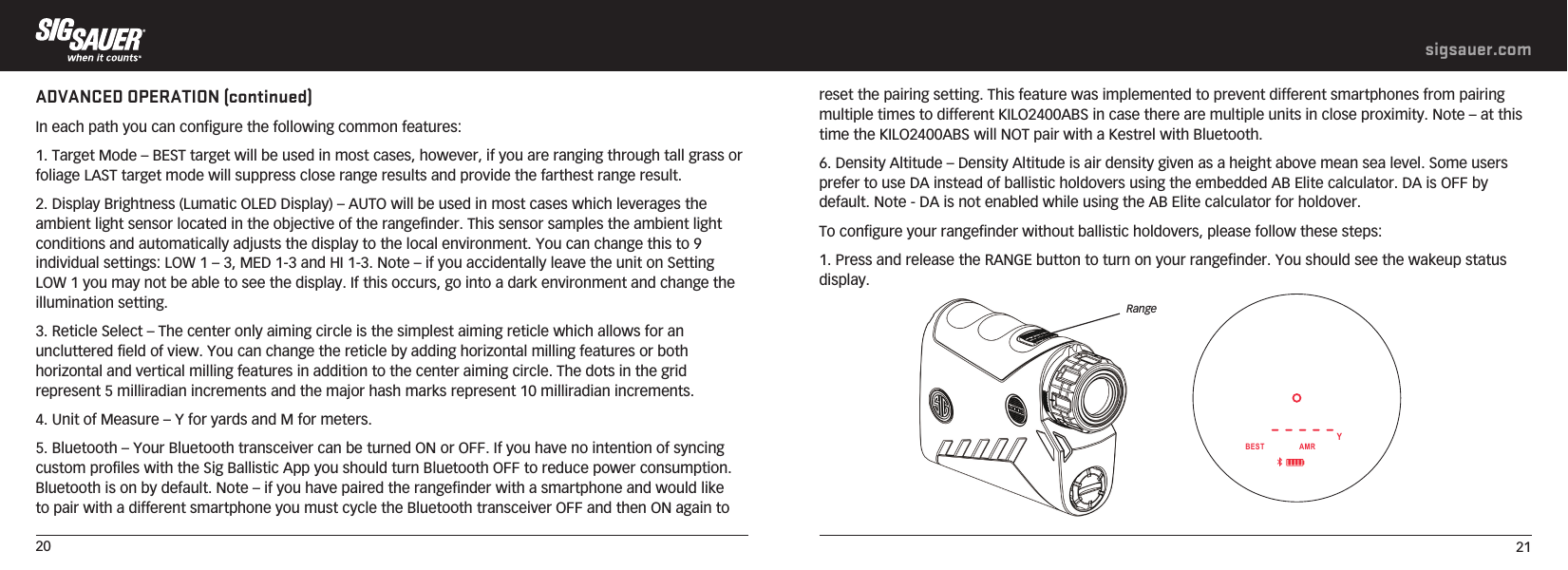

20 21sigsauer.comreset the pairing setting. This feature was implemented to prevent different smartphones from pairing multiple times to different KILO2400ABS in case there are multiple units in close proximity. Note – at this time the KILO2400ABS will NOT pair with a Kestrel with Bluetooth.6. Density Altitude – Density Altitude is air density given as a height above mean sea level. Some users prefer to use DA instead of ballistic holdovers using the embedded AB Elite calculator. DA is OFF by default. Note - DA is not enabled while using the AB Elite calculator for holdover. To configure your rangefinder without ballistic holdovers, please follow these steps:1. Press and release the RANGE button to turn on your rangefinder. You should see the wakeup status display.ADVANCED OPERATION (continued)In each path you can configure the following common features:1. Target Mode – BEST target will be used in most cases, however, if you are ranging through tall grass or foliage LAST target mode will suppress close range results and provide the farthest range result.2. Display Brightness (Lumatic OLED Display) – AUTO will be used in most cases which leverages the ambient light sensor located in the objective of the rangefinder. This sensor samples the ambient light conditions and automatically adjusts the display to the local environment. You can change this to 9 individual settings: LOW 1 – 3, MED 1-3 and HI 1-3. Note – if you accidentally leave the unit on Setting LOW 1 you may not be able to see the display. If this occurs, go into a dark environment and change the illumination setting.3. Reticle Select – The center only aiming circle is the simplest aiming reticle which allows for an uncluttered field of view. You can change the reticle by adding horizontal milling features or both horizontal and vertical milling features in addition to the center aiming circle. The dots in the grid represent 5 milliradian increments and the major hash marks represent 10 milliradian increments.4. Unit of Measure – Y for yards and M for meters.5. Bluetooth – Your Bluetooth transceiver can be turned ON or OFF. If you have no intention of syncing custom profiles with the Sig Ballistic App you should turn Bluetooth OFF to reduce power consumption. Bluetooth is on by default. Note – if you have paired the rangefinder with a smartphone and would like to pair with a different smartphone you must cycle the Bluetooth transceiver OFF and then ON again to ----- BEST AMRYRange

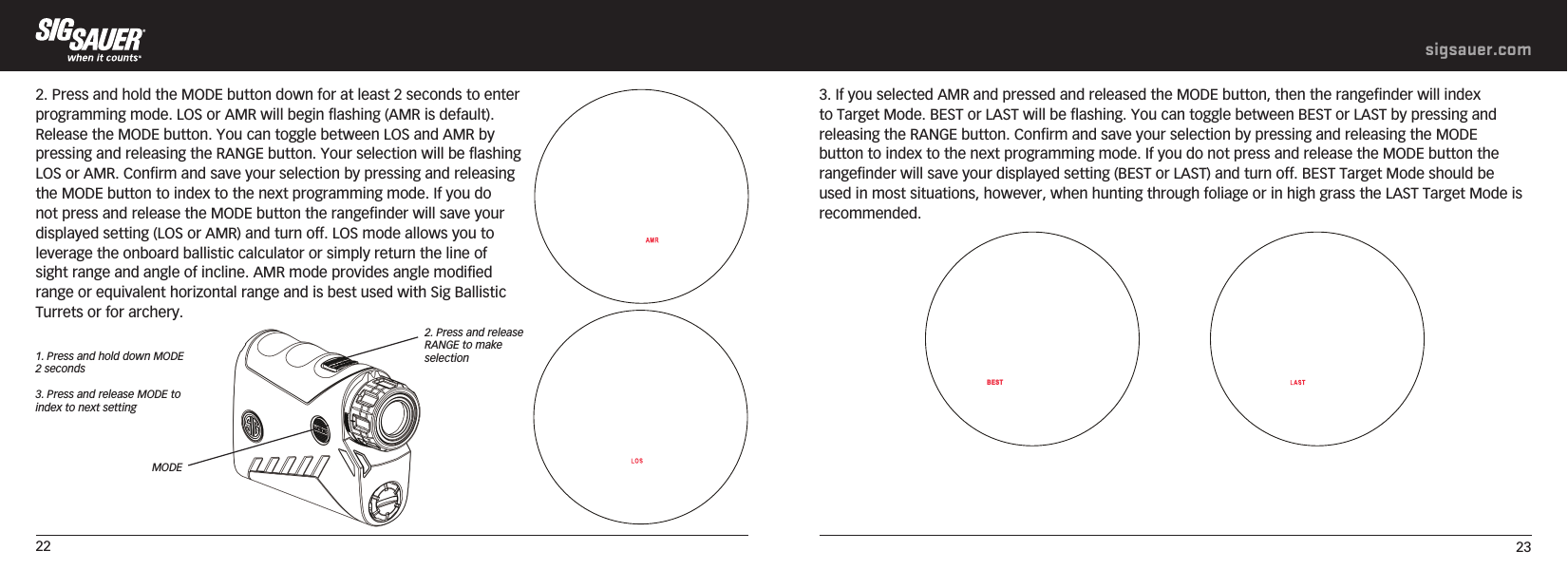

22 23sigsauer.com2. Press and hold the MODE button down for at least 2 seconds to enter programming mode. LOS or AMR will begin flashing (AMR is default). Release the MODE button. You can toggle between LOS and AMR by pressing and releasing the RANGE button. Your selection will be flashing LOS or AMR. Confirm and save your selection by pressing and releasing the MODE button to index to the next programming mode. If you do not press and release the MODE button the rangefinder will save your displayed setting (LOS or AMR) and turn off. LOS mode allows you to leverage the onboard ballistic calculator or simply return the line of sight range and angle of incline. AMR mode provides angle modified range or equivalent horizontal range and is best used with Sig Ballistic Turrets or for archery.3. If you selected AMR and pressed and released the MODE button, then the rangefinder will index to Target Mode. BEST or LAST will be flashing. You can toggle between BEST or LAST by pressing and releasing the RANGE button. Confirm and save your selection by pressing and releasing the MODE button to index to the next programming mode. If you do not press and release the MODE button the rangefinder will save your displayed setting (BEST or LAST) and turn off. BEST Target Mode should be used in most situations, however, when hunting through foliage or in high grass the LAST Target Mode is recommended.2. Press and release RANGE to make selection1. Press and hold down MODE 2 seconds3. Press and release MODE toindex to next setting MODEBESTBEST

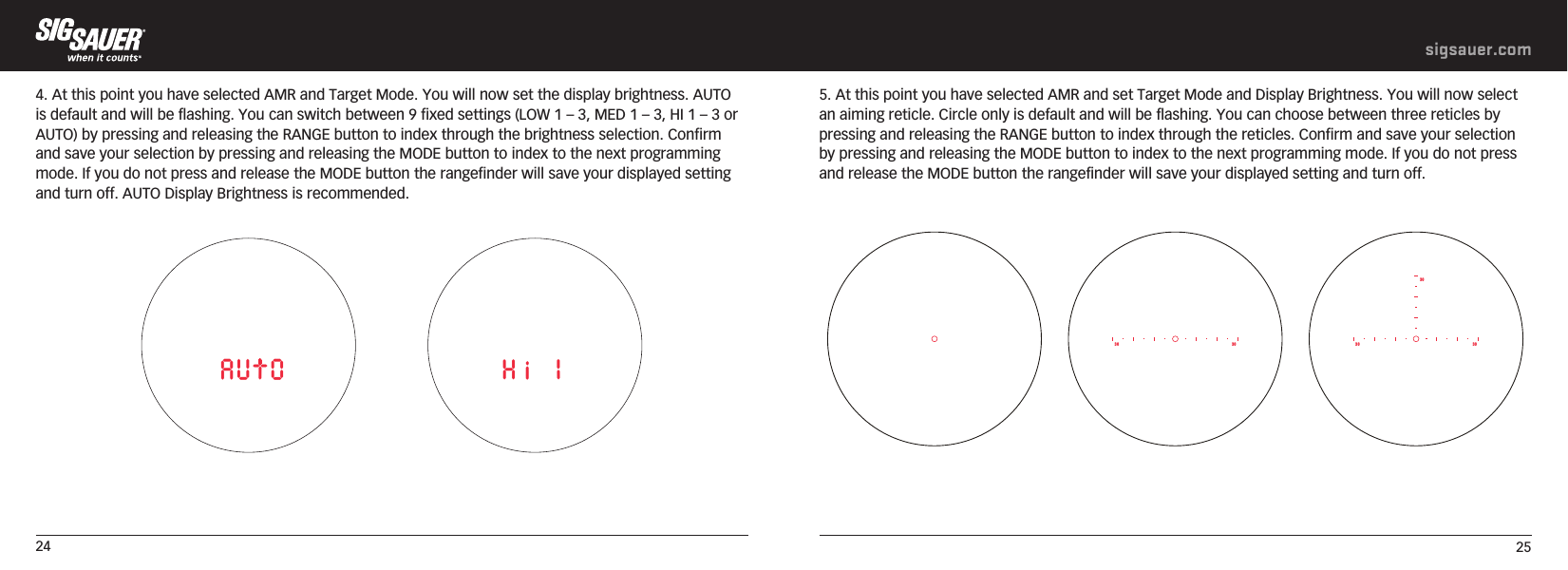

24 25sigsauer.comH i I4. At this point you have selected AMR and Target Mode. You will now set the display brightness. AUTO is default and will be flashing. You can switch between 9 fixed settings (LOW 1 – 3, MED 1 – 3, HI 1 – 3 or AUTO) by pressing and releasing the RANGE button to index through the brightness selection. Confirm and save your selection by pressing and releasing the MODE button to index to the next programming mode. If you do not press and release the MODE button the rangefinder will save your displayed setting and turn off. AUTO Display Brightness is recommended. 5. At this point you have selected AMR and set Target Mode and Display Brightness. You will now select an aiming reticle. Circle only is default and will be flashing. You can choose between three reticles by pressing and releasing the RANGE button to index through the reticles. Confirm and save your selection by pressing and releasing the MODE button to index to the next programming mode. If you do not press and release the MODE button the rangefinder will save your displayed setting and turn off. AUtO30 303030 30

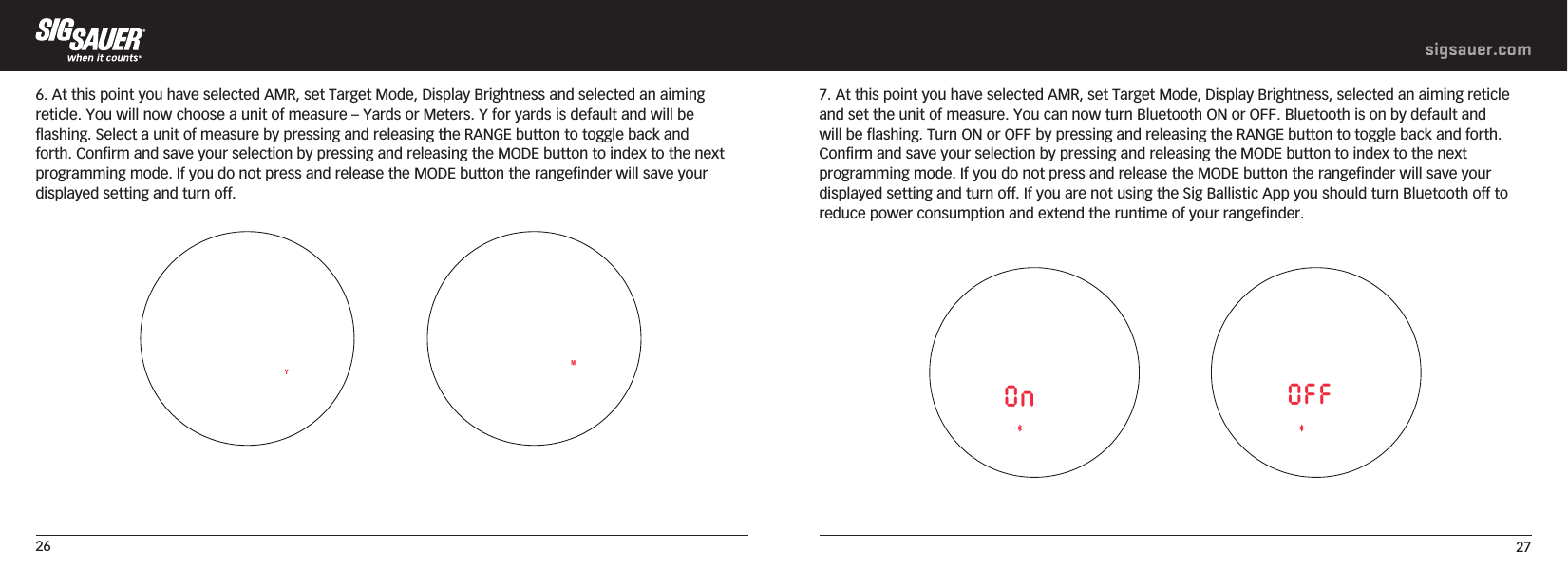

26 27sigsauer.com7. At this point you have selected AMR, set Target Mode, Display Brightness, selected an aiming reticle and set the unit of measure. You can now turn Bluetooth ON or OFF. Bluetooth is on by default and will be flashing. Turn ON or OFF by pressing and releasing the RANGE button to toggle back and forth. Confirm and save your selection by pressing and releasing the MODE button to index to the next programming mode. If you do not press and release the MODE button the rangefinder will save your displayed setting and turn off. If you are not using the Sig Ballistic App you should turn Bluetooth off to reduce power consumption and extend the runtime of your rangefinder. 6. At this point you have selected AMR, set Target Mode, Display Brightness and selected an aiming reticle. You will now choose a unit of measure – Yards or Meters. Y for yards is default and will be flashing. Select a unit of measure by pressing and releasing the RANGE button to toggle back and forth. Confirm and save your selection by pressing and releasing the MODE button to index to the next programming mode. If you do not press and release the MODE button the rangefinder will save your displayed setting and turn off. On OFF

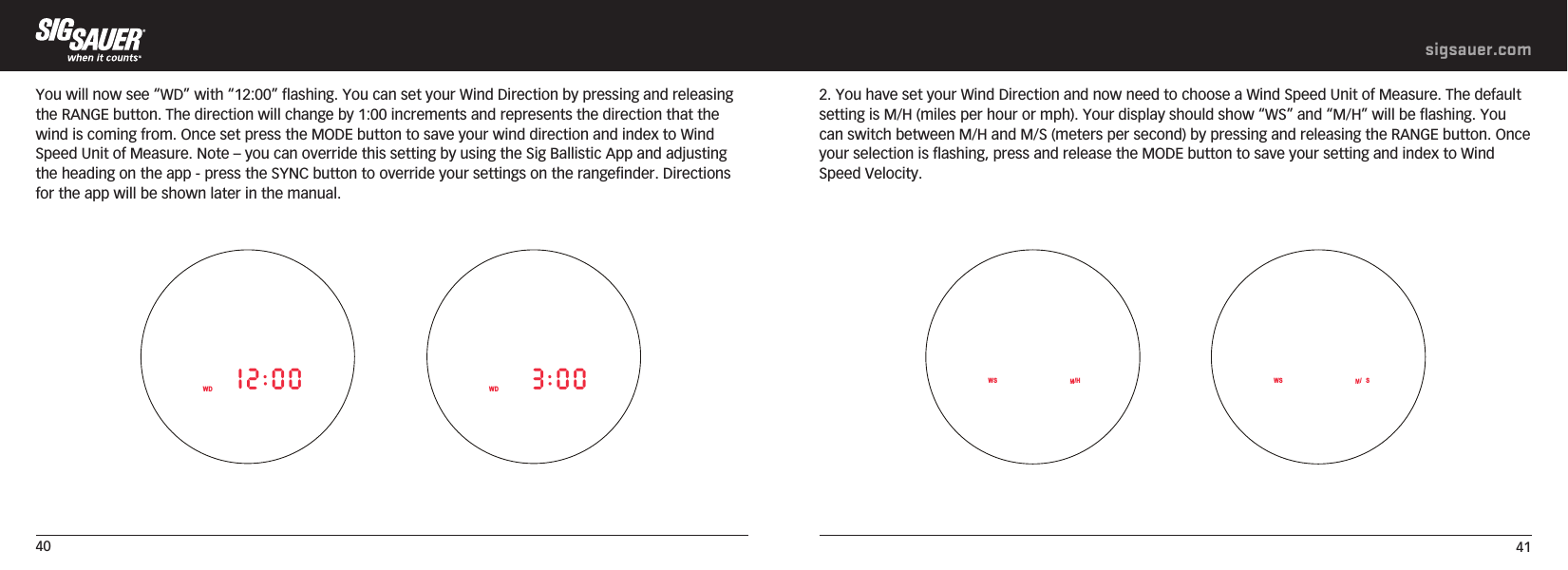

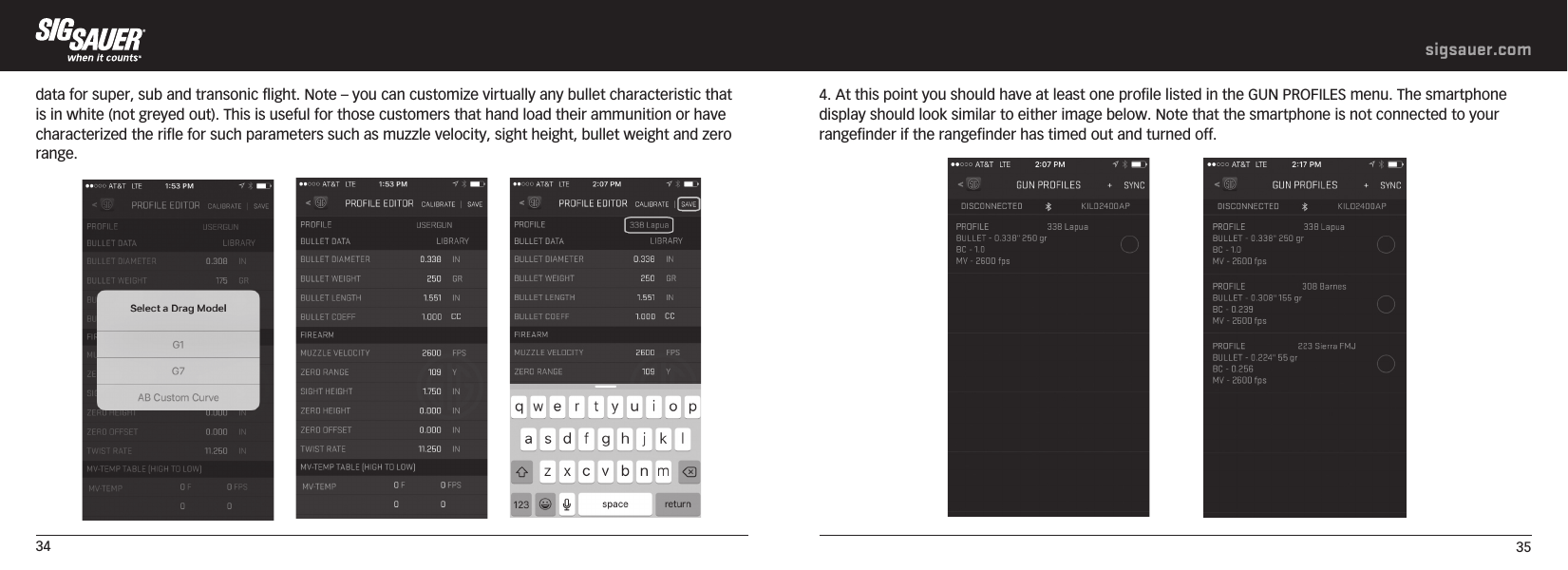

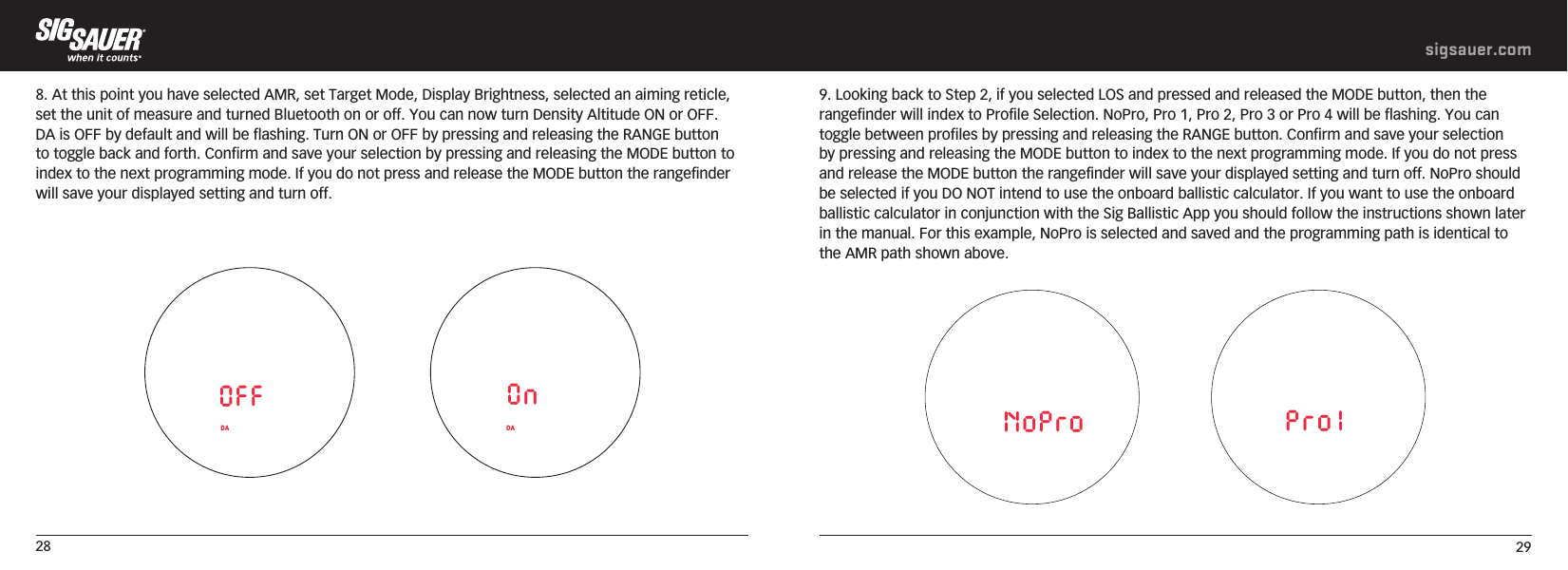

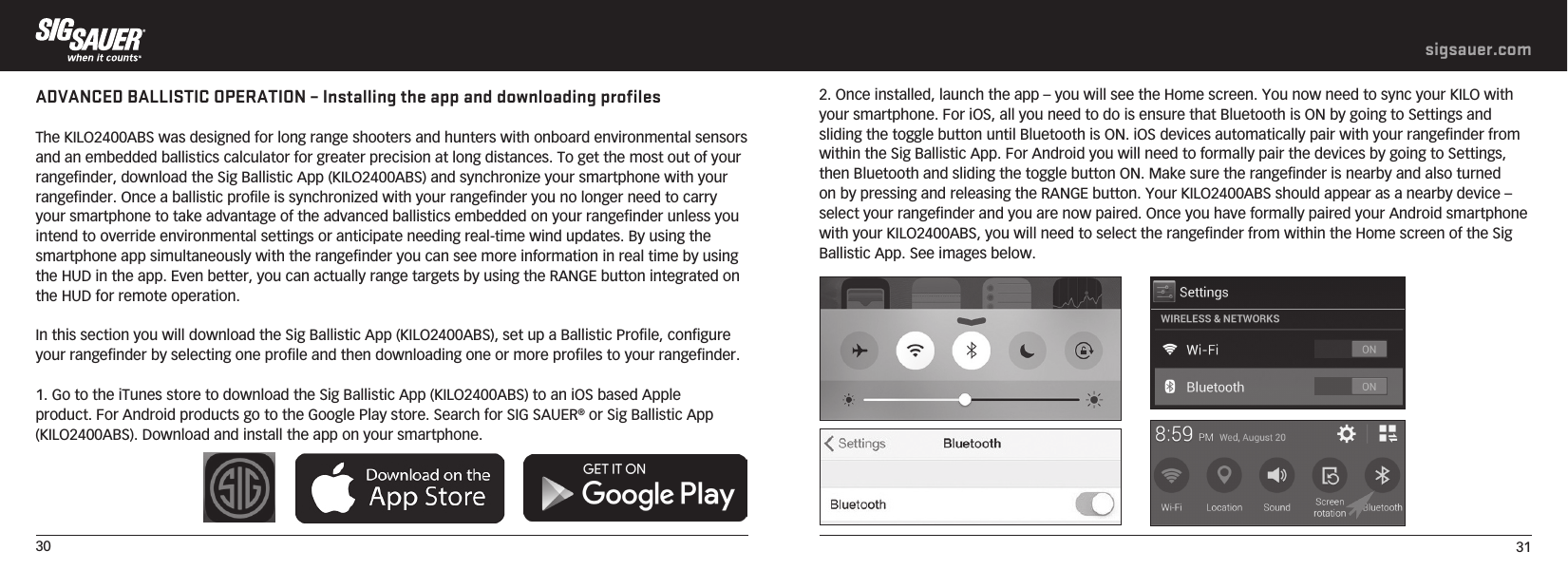

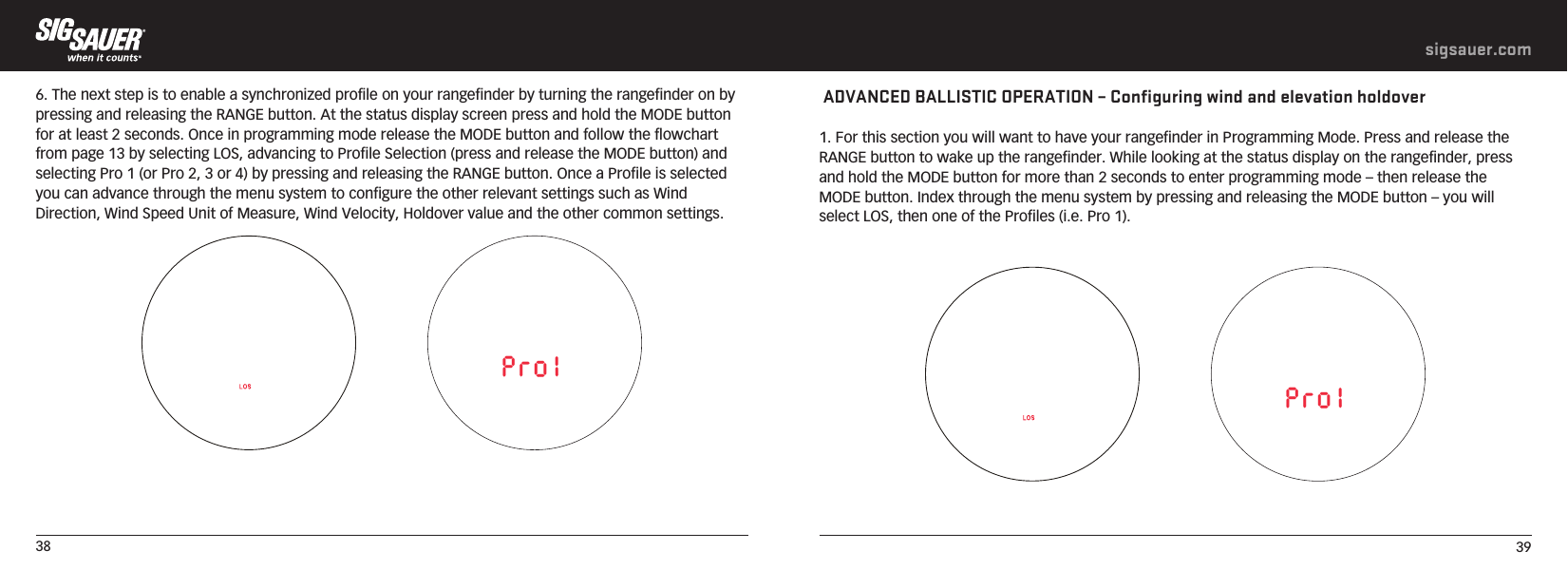

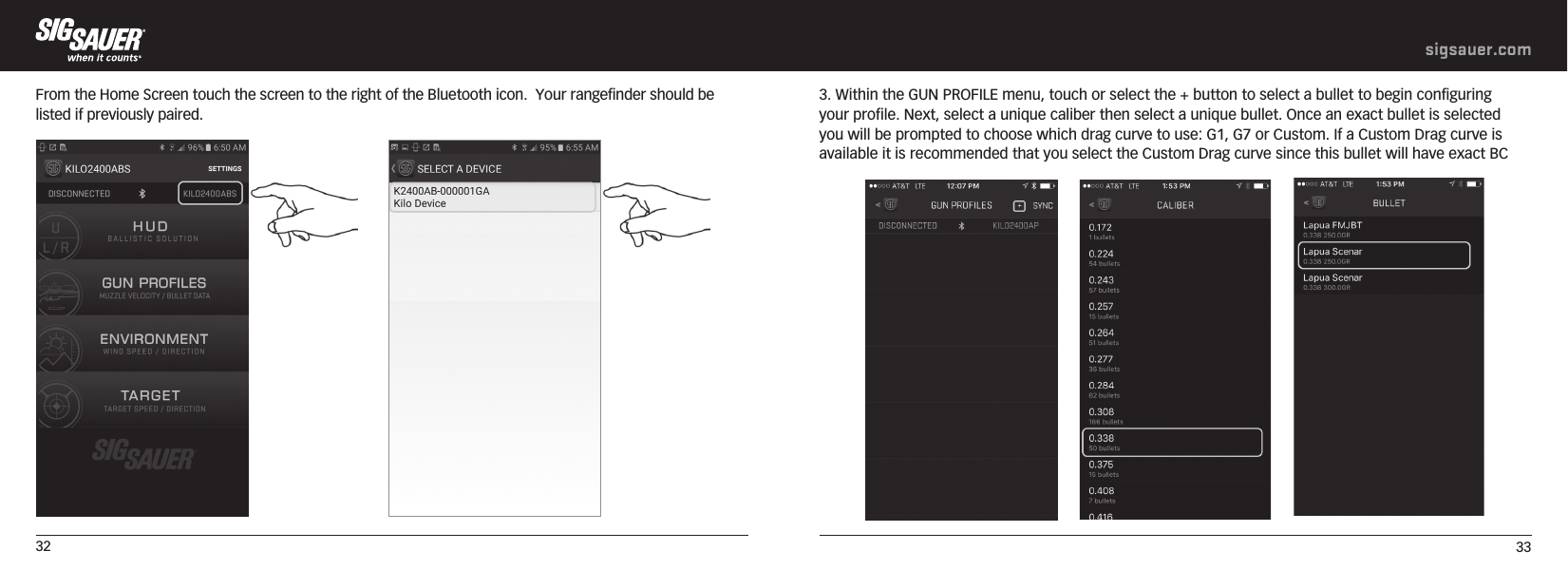

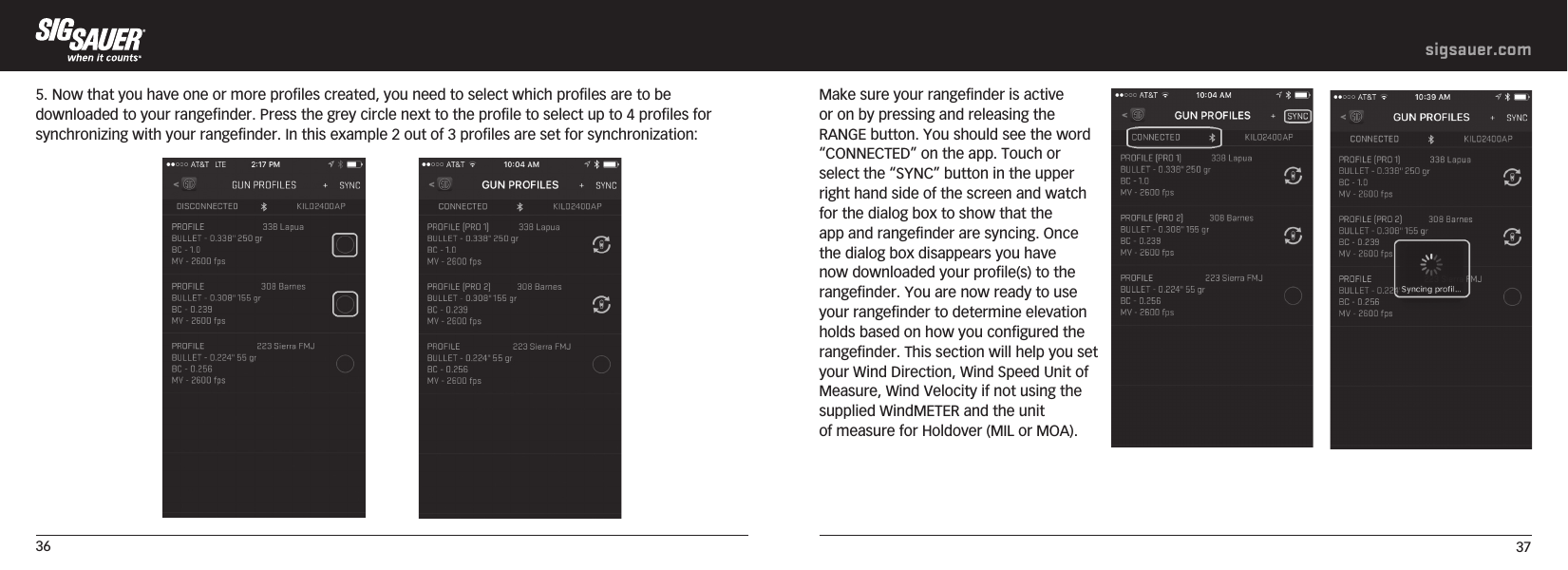

40 41sigsauer.comYou will now see “WD” with “12:00” flashing. You can set your Wind Direction by pressing and releasing the RANGE button. The direction will change by 1:00 increments and represents the direction that the wind is coming from. Once set press the MODE button to save your wind direction and index to Wind Speed Unit of Measure. Note – you can override this setting by using the Sig Ballistic App and adjusting the heading on the app - press the SYNC button to override your settings on the rangefinder. Directions for the app will be shown later in the manual. WD 12:00 WD 3:002. You have set your Wind Direction and now need to choose a Wind Speed Unit of Measure. The default setting is M/H (miles per hour or mph). Your display should show “WS” and “M/H” will be flashing. You can switch between M/H and M/S (meters per second) by pressing and releasing the RANGE button. Once your selection is flashing, press and release the MODE button to save your setting and index to Wind Speed Velocity. WS /H WS /S

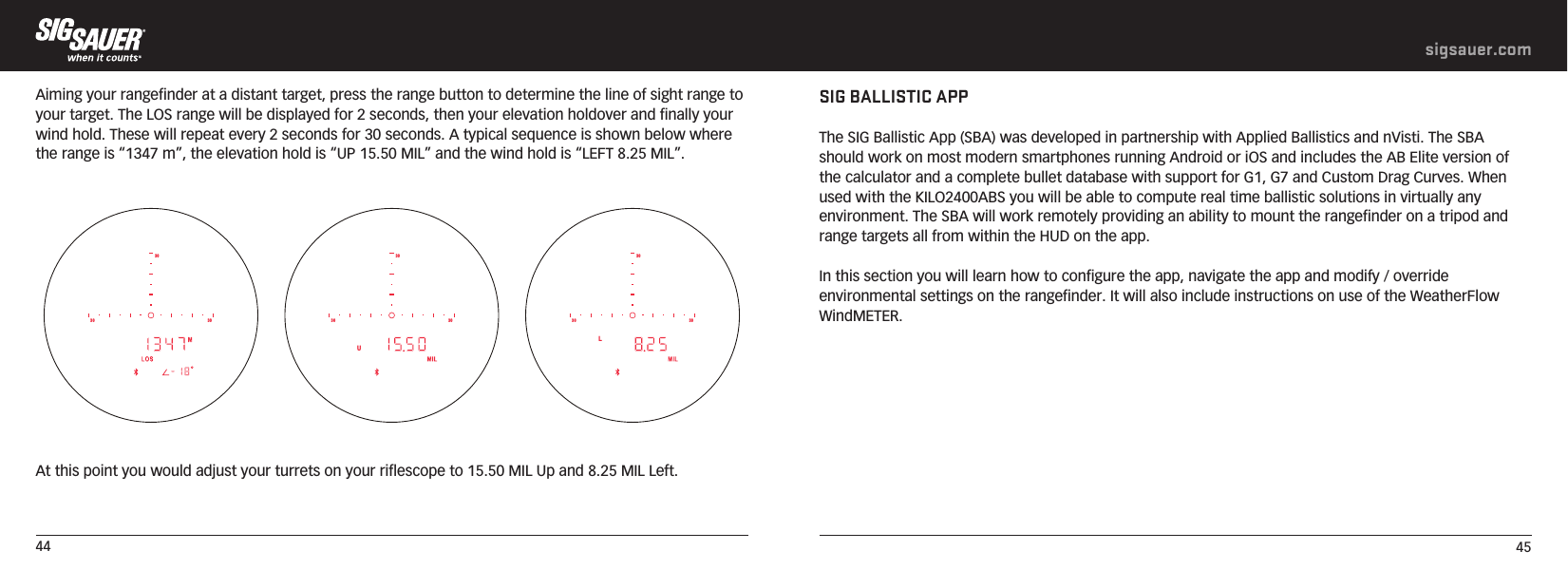

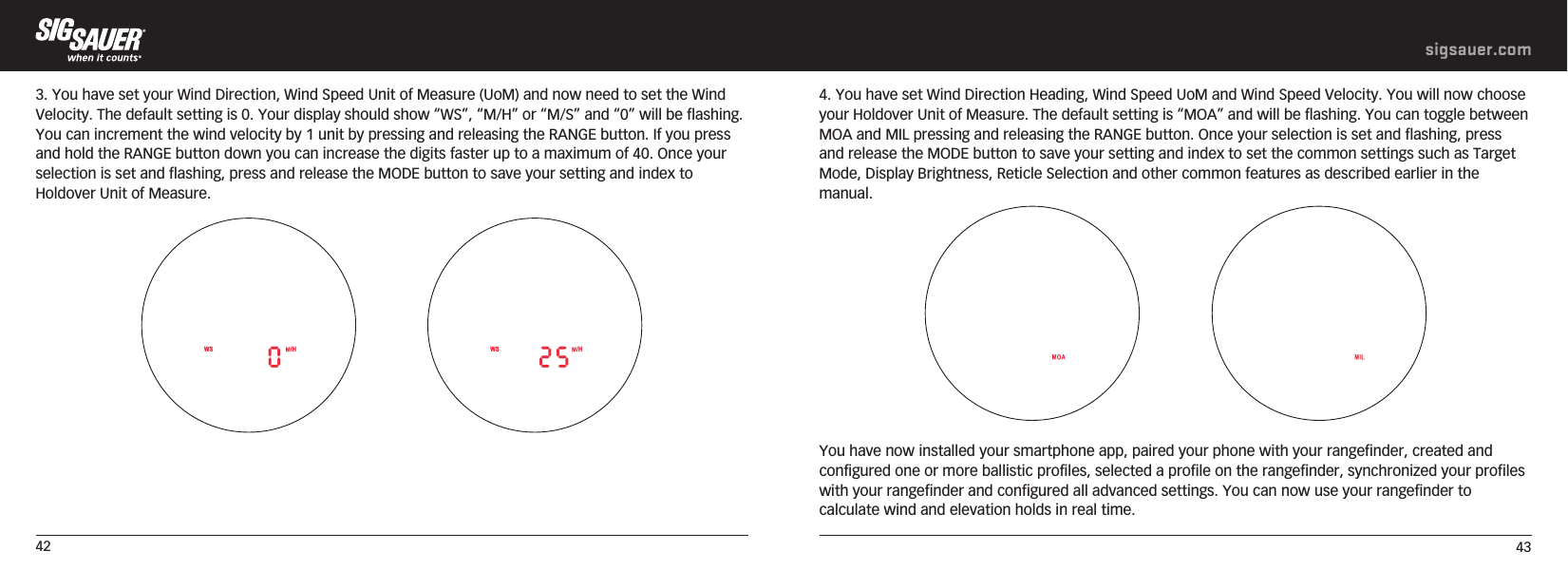

44 45sigsauer.comAiming your rangefinder at a distant target, press the range button to determine the line of sight range to your target. The LOS range will be displayed for 2 seconds, then your elevation holdover and finally your wind hold. These will repeat every 2 seconds for 30 seconds. A typical sequence is shown below where the range is “1347 m”, the elevation hold is “UP 15.50 MIL” and the wind hold is “LEFT 8.25 MIL”. At this point you would adjust your turrets on your riflescope to 15.50 MIL Up and 8.25 MIL Left.3030 30 U 3030 30L3030 30SIG BALLISTIC APPThe SIG Ballistic App (SBA) was developed in partnership with Applied Ballistics and nVisti. The SBA should work on most modern smartphones running Android or iOS and includes the AB Elite version of the calculator and a complete bullet database with support for G1, G7 and Custom Drag Curves. When used with the KILO2400ABS you will be able to compute real time ballistic solutions in virtually any environment. The SBA will work remotely providing an ability to mount the rangefinder on a tripod and range targets all from within the HUD on the app.In this section you will learn how to configure the app, navigate the app and modify / override environmental settings on the rangefinder. It will also include instructions on use of the WeatherFlow WindMETER.

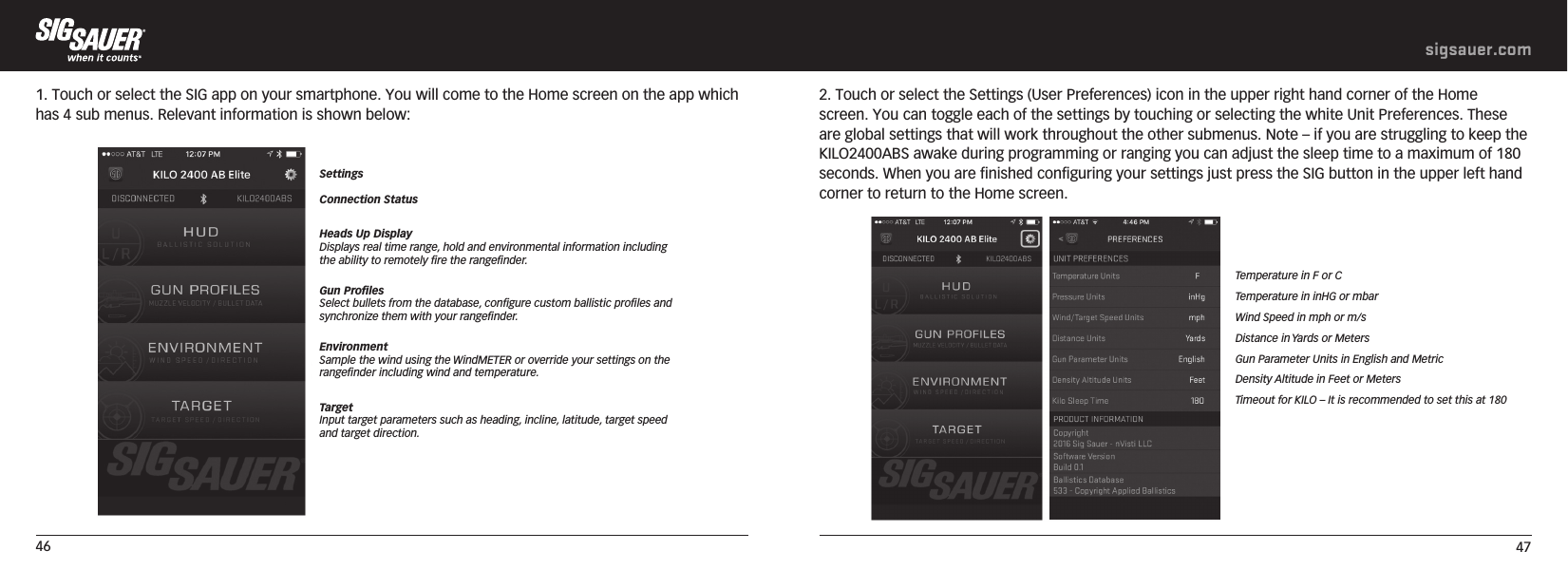

46 47sigsauer.com1. Touch or select the SIG app on your smartphone. You will come to the Home screen on the app which has 4 sub menus. Relevant information is shown below:SettingsConnection StatusHeads Up DisplayDisplays real time range, hold and environmental information including the ability to remotely ﬁre the rangeﬁnder.Gun ProﬁlesSelect bullets from the database, conﬁgure custom ballistic proﬁles and synchronize them with your rangeﬁnder.EnvironmentSample the wind using the WindMETER or override your settings on the rangeﬁnder including wind and temperature.TargetInput target parameters such as heading, incline, latitude, target speed and target direction.2. Touch or select the Settings (User Preferences) icon in the upper right hand corner of the Home screen. You can toggle each of the settings by touching or selecting the white Unit Preferences. These are global settings that will work throughout the other submenus. Note – if you are struggling to keep the KILO2400ABS awake during programming or ranging you can adjust the sleep time to a maximum of 180 seconds. When you are finished configuring your settings just press the SIG button in the upper left hand corner to return to the Home screen.Temperature in F or CTemperature in inHG or mbarWind Speed in mph or m/sDistance in Yards or MetersGun Parameter Units in English and MetricDensity Altitude in Feet or MetersTimeout for KILO – It is recommended to set this at 180

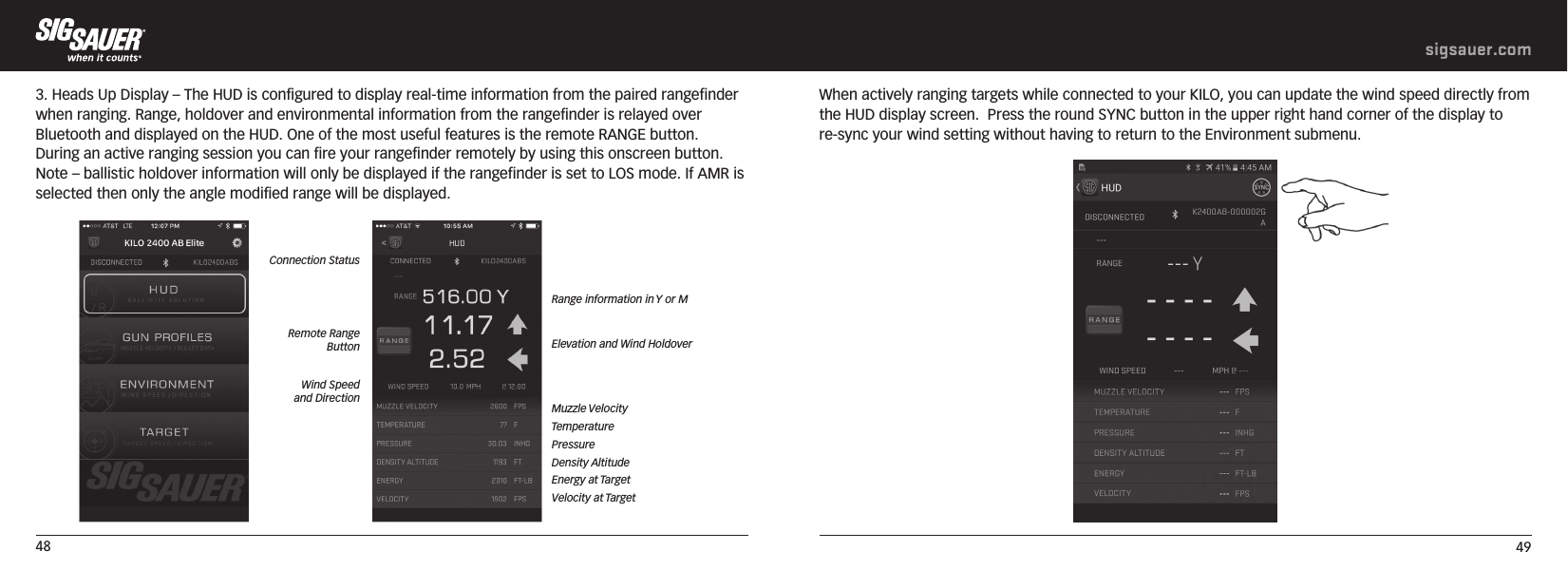

48 49sigsauer.com3. Heads Up Display – The HUD is configured to display real-time information from the paired rangefinder when ranging. Range, holdover and environmental information from the rangefinder is relayed over Bluetooth and displayed on the HUD. One of the most useful features is the remote RANGE button. During an active ranging session you can fire your rangefinder remotely by using this onscreen button. Note – ballistic holdover information will only be displayed if the rangefinder is set to LOS mode. If AMR is selected then only the angle modified range will be displayed. Range information in Y or MElevation and Wind HoldoverMuzzle VelocityTemperaturePressureDensity AltitudeEnergy at TargetVelocity at TargetConnection StatusRemote RangeButtonWind Speed and DirectionWhen actively ranging targets while connected to your KILO, you can update the wind speed directly from the HUD display screen. Press the round SYNC button in the upper right hand corner of the display to re-sync your wind setting without having to return to the Environment submenu.

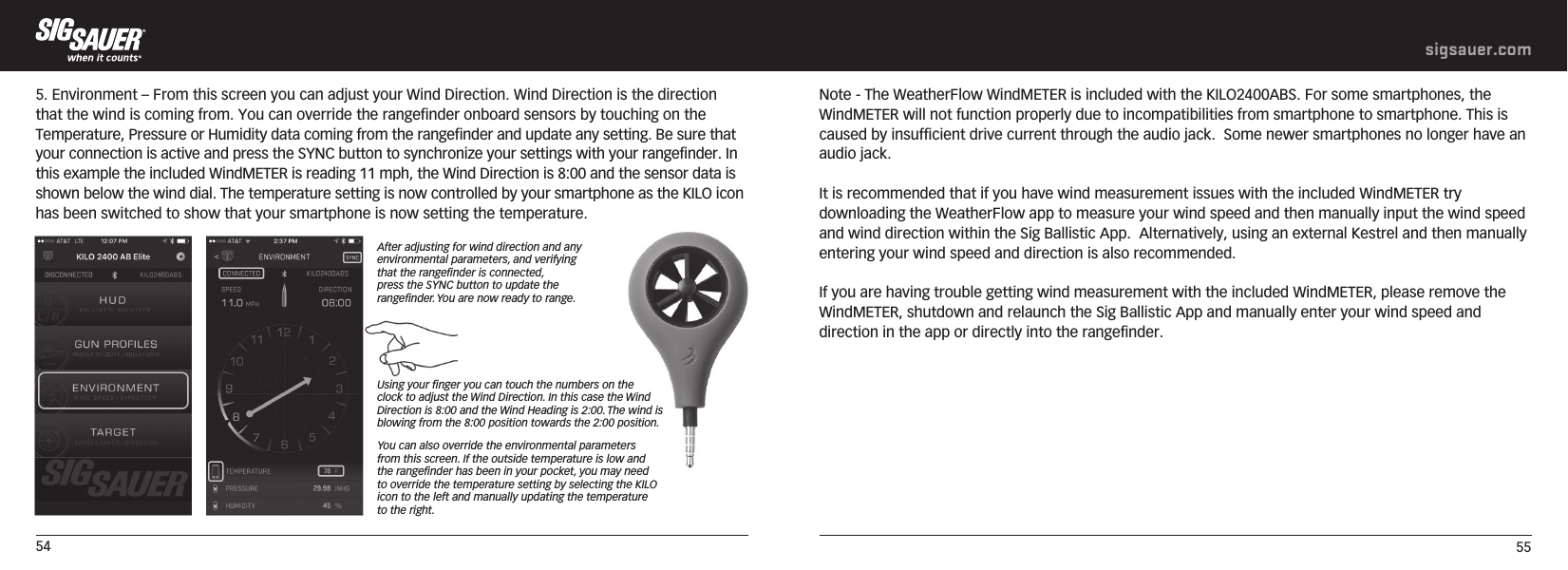

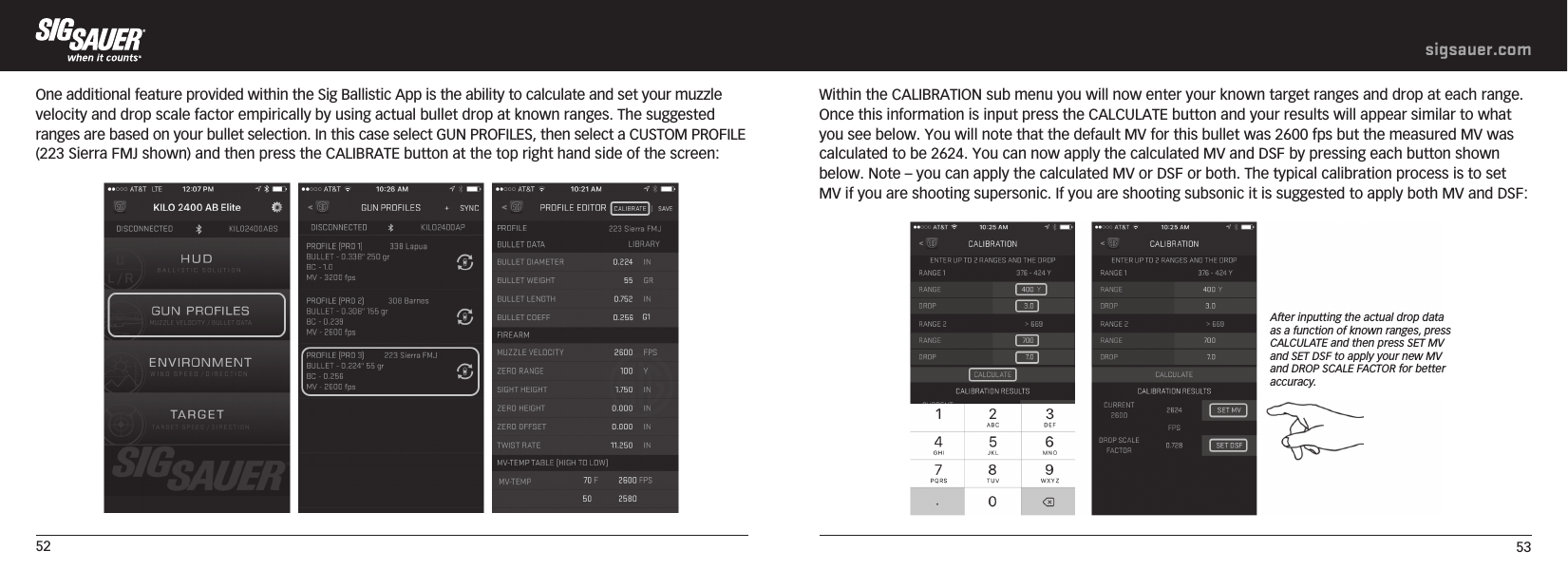

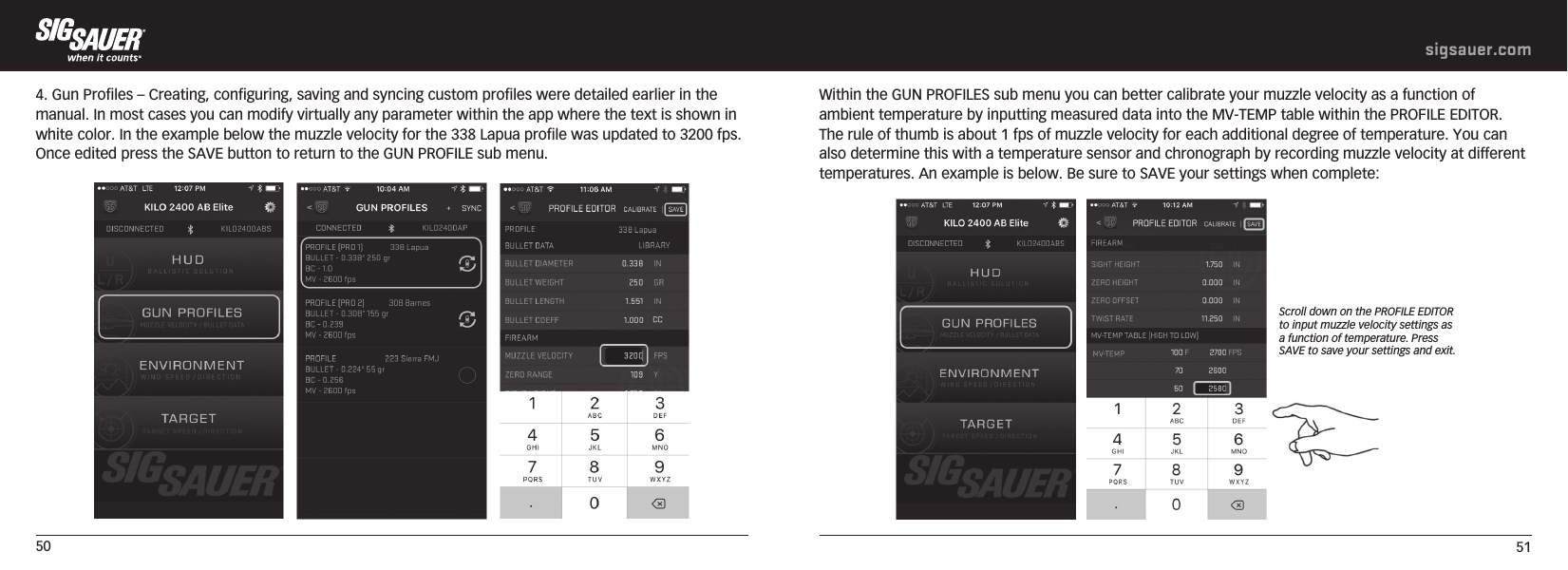

54 55sigsauer.com5. Environment – From this screen you can adjust your Wind Direction. Wind Direction is the direction that the wind is coming from. You can override the rangefinder onboard sensors by touching on the Temperature, Pressure or Humidity data coming from the rangefinder and update any setting. Be sure that your connection is active and press the SYNC button to synchronize your settings with your rangefinder. In this example the included WindMETER is reading 11 mph, the Wind Direction is 8:00 and the sensor data is shown below the wind dial. The temperature setting is now controlled by your smartphone as the KILO icon has been switched to show that your smartphone is now setting the temperature.Insert a Note between #5 and #6. Push #6 onto a new page.After adjusting for wind direction and any environmental parameters, and verifying that the rangeﬁnder is connected, press the SYNC button to update the rangeﬁnder. You are now ready to range.Using your ﬁnger you can touch the numbers on the clock to adjust the Wind Direction. In this case the Wind Direction is 8:00 and the Wind Heading is 2:00. The wind is blowing from the 8:00 position towards the 2:00 position.You can also override the environmental parameters from this screen. If the outside temperature is low and the rangeﬁnder has been in your pocket, you may need to override the temperature setting by selecting the KILO icon to the left and manually updating the temperature to the right.Note - The WeatherFlow WindMETER is included with the KILO2400ABS. For some smartphones, the WindMETER will not function properly due to incompatibilities from smartphone to smartphone. This is caused by insufficient drive current through the audio jack. Some newer smartphones no longer have an audio jack.It is recommended that if you have wind measurement issues with the included WindMETER try downloading the WeatherFlow app to measure your wind speed and then manually input the wind speed and wind direction within the Sig Ballistic App. Alternatively, using an external Kestrel and then manually entering your wind speed and direction is also recommended.If you are having trouble getting wind measurement with the included WindMETER, please remove the WindMETER, shutdown and relaunch the Sig Ballistic App and manually enter your wind speed and direction in the app or directly into the rangefinder.

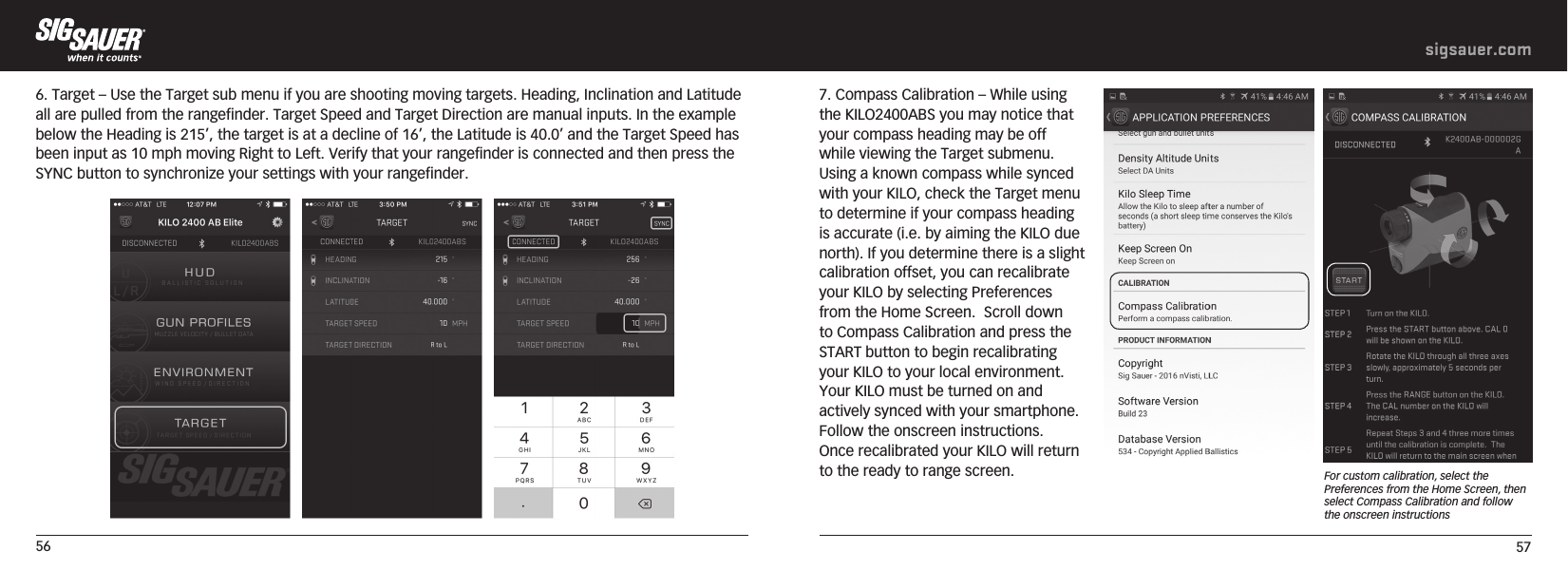

56 57sigsauer.com6. Target – Use the Target sub menu if you are shooting moving targets. Heading, Inclination and Latitude all are pulled from the rangefinder. Target Speed and Target Direction are manual inputs. In the example below the Heading is 215’, the target is at a decline of 16’, the Latitude is 40.0’ and the Target Speed has been input as 10 mph moving Right to Left. Verify that your rangefinder is connected and then press the SYNC button to synchronize your settings with your rangefinder.7. Compass Calibration – While using the KILO2400ABS you may notice that your compass heading may be off while viewing the Target submenu. Using a known compass while synced with your KILO, check the Target menu to determine if your compass heading is accurate (i.e. by aiming the KILO due north). If you determine there is a slight calibration offset, you can recalibrate your KILO by selecting Preferences from the Home Screen. Scroll down to Compass Calibration and press the START button to begin recalibrating your KILO to your local environment. Your KILO must be turned on and actively synced with your smartphone. Follow the onscreen instructions. Once recalibrated your KILO will return to the ready to range screen. For custom calibration, select the Preferences from the Home Screen, then select Compass Calibration and follow the onscreen instructions

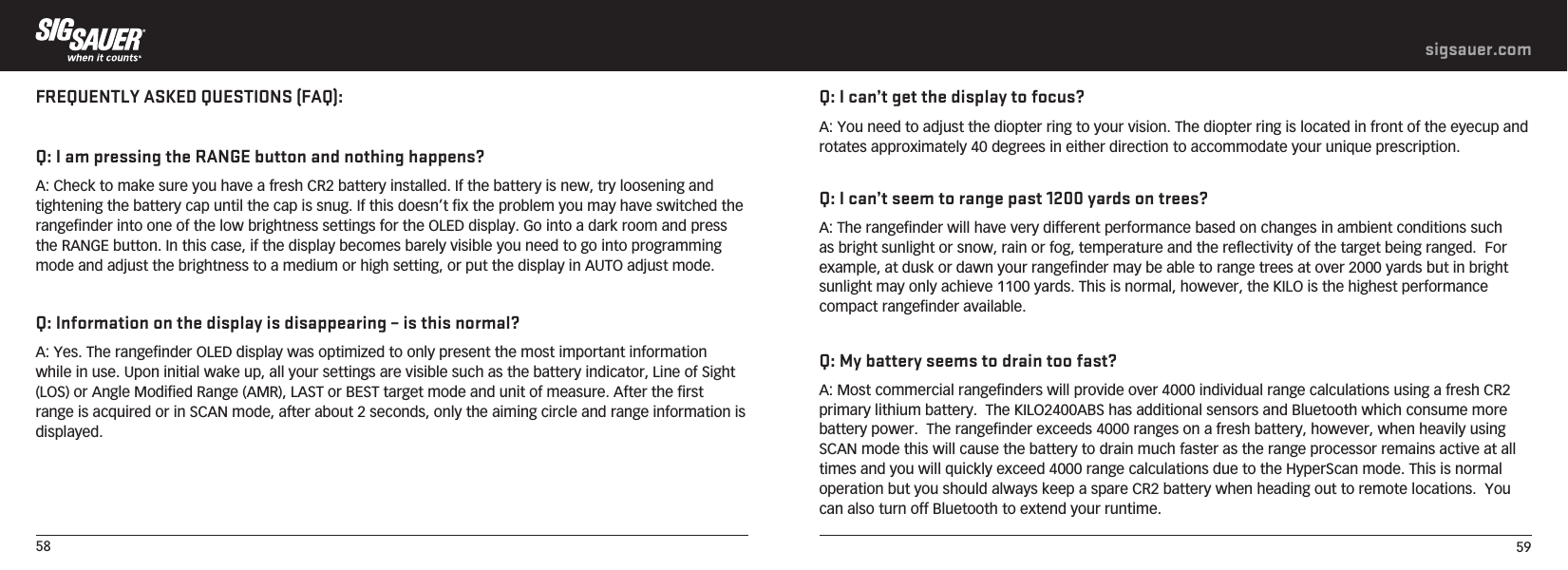

58 59sigsauer.comFREQUENTLY ASKED QUESTIONS (FAQ):Q: I am pressing the RANGE button and nothing happens?A: Check to make sure you have a fresh CR2 battery installed. If the battery is new, try loosening and tightening the battery cap until the cap is snug. If this doesn’t fix the problem you may have switched the rangefinder into one of the low brightness settings for the OLED display. Go into a dark room and press the RANGE button. In this case, if the display becomes barely visible you need to go into programming mode and adjust the brightness to a medium or high setting, or put the display in AUTO adjust mode.Q: Information on the display is disappearing – is this normal?A: Yes. The rangefinder OLED display was optimized to only present the most important information while in use. Upon initial wake up, all your settings are visible such as the battery indicator, Line of Sight (LOS) or Angle Modified Range (AMR), LAST or BEST target mode and unit of measure. After the first range is acquired or in SCAN mode, after about 2 seconds, only the aiming circle and range information is displayed.Q: I can’t get the display to focus?A: You need to adjust the diopter ring to your vision. The diopter ring is located in front of the eyecup and rotates approximately 40 degrees in either direction to accommodate your unique prescription.Q: I can’t seem to range past 1200 yards on trees?A: The rangefinder will have very different performance based on changes in ambient conditions such as bright sunlight or snow, rain or fog, temperature and the reflectivity of the target being ranged. For example, at dusk or dawn your rangefinder may be able to range trees at over 2000 yards but in bright sunlight may only achieve 1100 yards. This is normal, however, the KILO is the highest performance compact rangefinder available.Q: My battery seems to drain too fast?A: Most commercial rangefinders will provide over 4000 individual range calculations using a fresh CR2 primary lithium battery. The KILO2400ABS has additional sensors and Bluetooth which consume more battery power. The rangefinder exceeds 4000 ranges on a fresh battery, however, when heavily using SCAN mode this will cause the battery to drain much faster as the range processor remains active at all times and you will quickly exceed 4000 range calculations due to the HyperScan mode. This is normal operation but you should always keep a spare CR2 battery when heading out to remote locations. You can also turn off Bluetooth to extend your runtime.

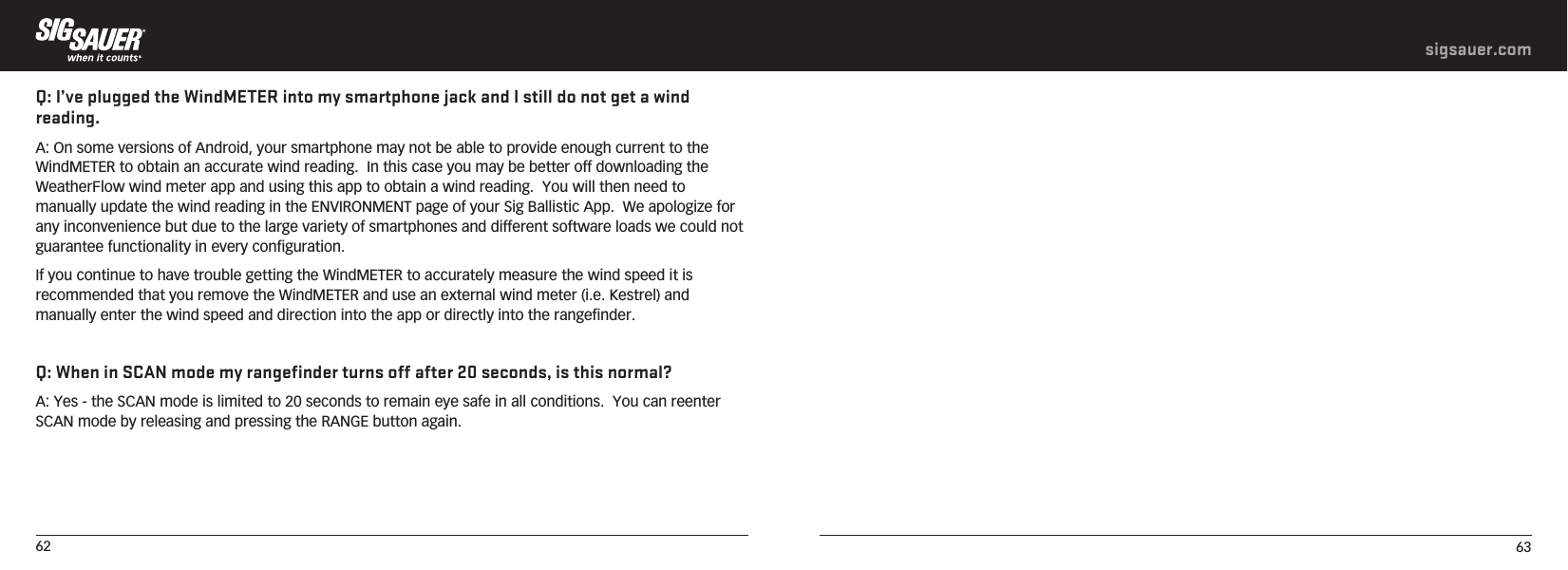

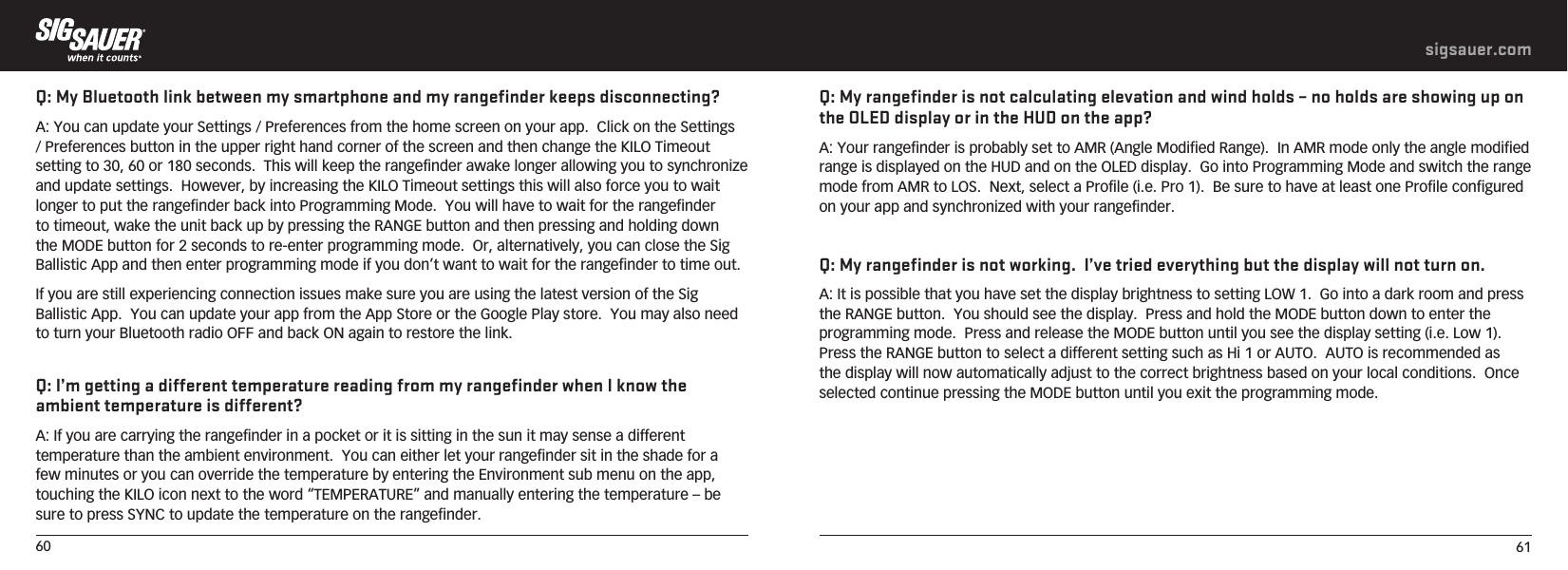

62 63sigsauer.comQ: I’ve plugged the WindMETER into my smartphone jack and I still do not get a wind reading.A: On some versions of Android, your smartphone may not be able to provide enough current to the WindMETER to obtain an accurate wind reading. In this case you may be better off downloading the WeatherFlow wind meter app and using this app to obtain a wind reading. You will then need to manually update the wind reading in the ENVIRONMENT page of your Sig Ballistic App. We apologize for any inconvenience but due to the large variety of smartphones and different software loads we could not guarantee functionality in every configuration. If you continue to have trouble getting the WindMETER to accurately measure the wind speed it is recommended that you remove the WindMETER and use an external wind meter (i.e. Kestrel) and manually enter the wind speed and direction into the app or directly into the rangefinder.Q: When in SCAN mode my rangefinder turns off after 20 seconds, is this normal?A: Yes - the SCAN mode is limited to 20 seconds to remain eye safe in all conditions. You can reenter SCAN mode by releasing and pressing the RANGE button again.

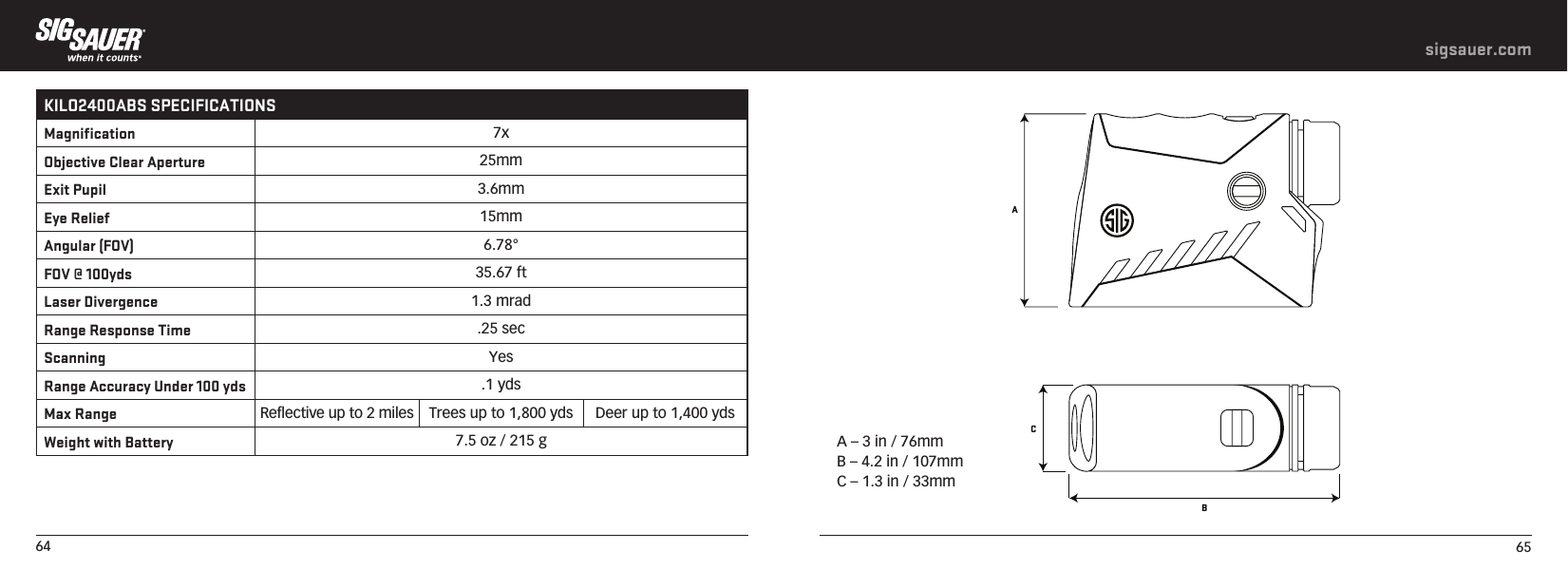

64 65sigsauer.comKILO2400ABS SPECIFICATIONSMagnification 7xObjective Clear Aperture 25mmExit Pupil 3.6mmEye Relief 15mmAngular (FOV) 6.78°FOV @ 100yds 35.67 ftLaser Divergence 1.3 mradRange Response Time .25 secScanning YesRange Accuracy Under 100 yds .1 ydsMax Range Reflective up to 2 miles Trees up to 1,800 yds Deer up to 1,400 ydsWeight with Battery 7.5 oz / 215 gACBA – 3 in / 76mmB – 4.2 in / 107mmC – 1.3 in / 33mm

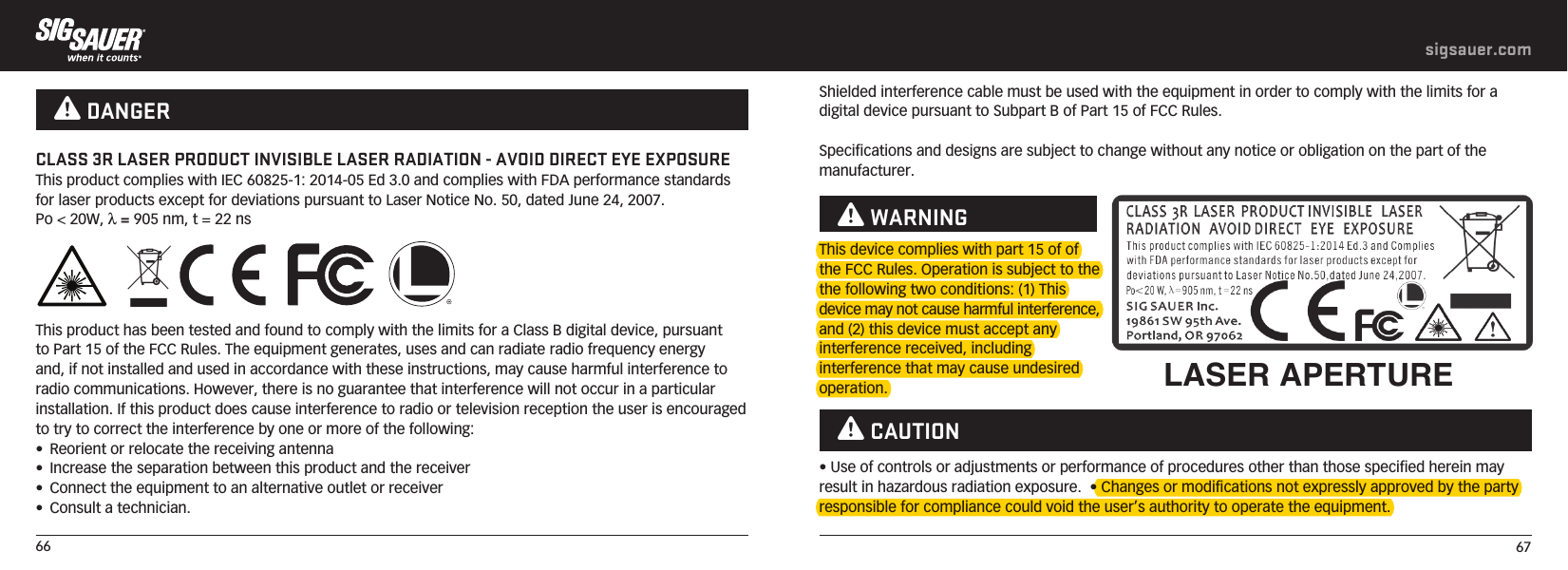

66 67sigsauer.comThis product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. The equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with these instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause interference to radio or television reception the user is encouraged to try to correct the interference by one or more of the following:• Reorient or relocate the receiving antenna• Increase the separation between this product and the receiver• Connect the equipment to an alternative outlet or receiver• Consult a technician.CLASS 3R LASER PRODUCT INVISIBLE LASER RADIATION - AVOID DIRECT EYE EXPOSUREThis product complies with IEC 60825-1: 2014-05 Ed 3.0 and complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.Po < 20W, λ = 905 nm, t = 22 ns W DANGERShielded interference cable must be used with the equipment in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.Specifications and designs are subject to change without any notice or obligation on the part of the manufacturer.This device complies with part 15 of ofthe FCC Rules. Operation is subject to thethe following two conditions: (1) Thisdevice may not cause harmful interference,and (2) this device must accept any interference received, includinginterference that may cause undesired operation. • Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. • Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. W CAUTION W WARNINGLASER APERTURE

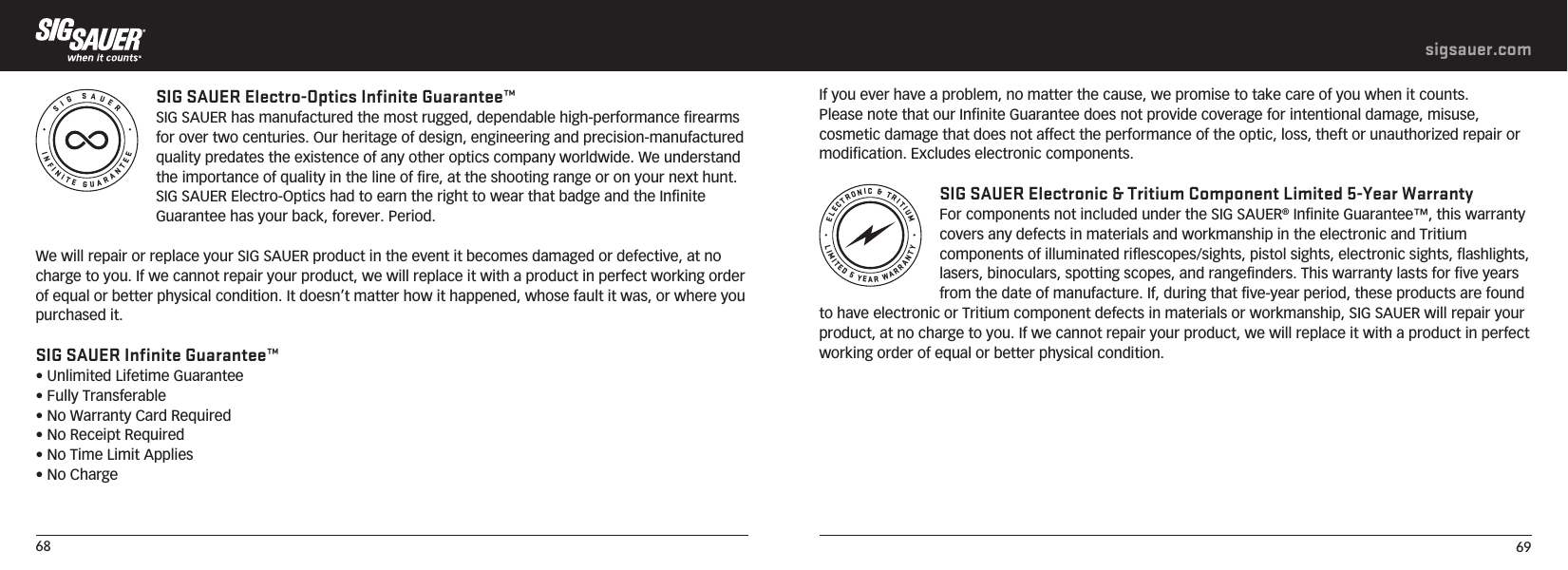

68 69sigsauer.comINFINITE GUARANTEESIG SAUERSIG SAUER Electro-Optics Infinite Guarantee™SIG SAUER has manufactured the most rugged, dependable high-performance firearms for over two centuries. Our heritage of design, engineering and precision-manufactured quality predates the existence of any other optics company worldwide. We understand the importance of quality in the line of fire, at the shooting range or on your next hunt. SIG SAUER Electro-Optics had to earn the right to wear that badge and the Infinite Guarantee has your back, forever. Period.We will repair or replace your SIG SAUER product in the event it becomes damaged or defective, at no charge to you. If we cannot repair your product, we will replace it with a product in perfect working order of equal or better physical condition. It doesn’t matter how it happened, whose fault it was, or where you purchased it.SIG SAUER Infinite Guarantee™• Unlimited Lifetime Guarantee• Fully Transferable• No Warranty Card Required• No Receipt Required• No Time Limit Applies• No ChargeLIMITED 5 YEAR WARRANTYELECTRONIC & TRITIUMIf you ever have a problem, no matter the cause, we promise to take care of you when it counts.Please note that our Infinite Guarantee does not provide coverage for intentional damage, misuse, cosmetic damage that does not affect the performance of the optic, loss, theft or unauthorized repair or modification. Excludes electronic components. SIG SAUER Electronic & Tritium Component Limited 5-Year WarrantyFor components not included under the SIG SAUER® Infinite Guarantee™, this warranty covers any defects in materials and workmanship in the electronic and Tritium components of illuminated riflescopes/sights, pistol sights, electronic sights, flashlights, lasers, binoculars, spotting scopes, and rangefinders. This warranty lasts for five years from the date of manufacture. If, during that five-year period, these products are found to have electronic or Tritium component defects in materials or workmanship, SIG SAUER will repair your product, at no charge to you. If we cannot repair your product, we will replace it with a product in perfect working order of equal or better physical condition.

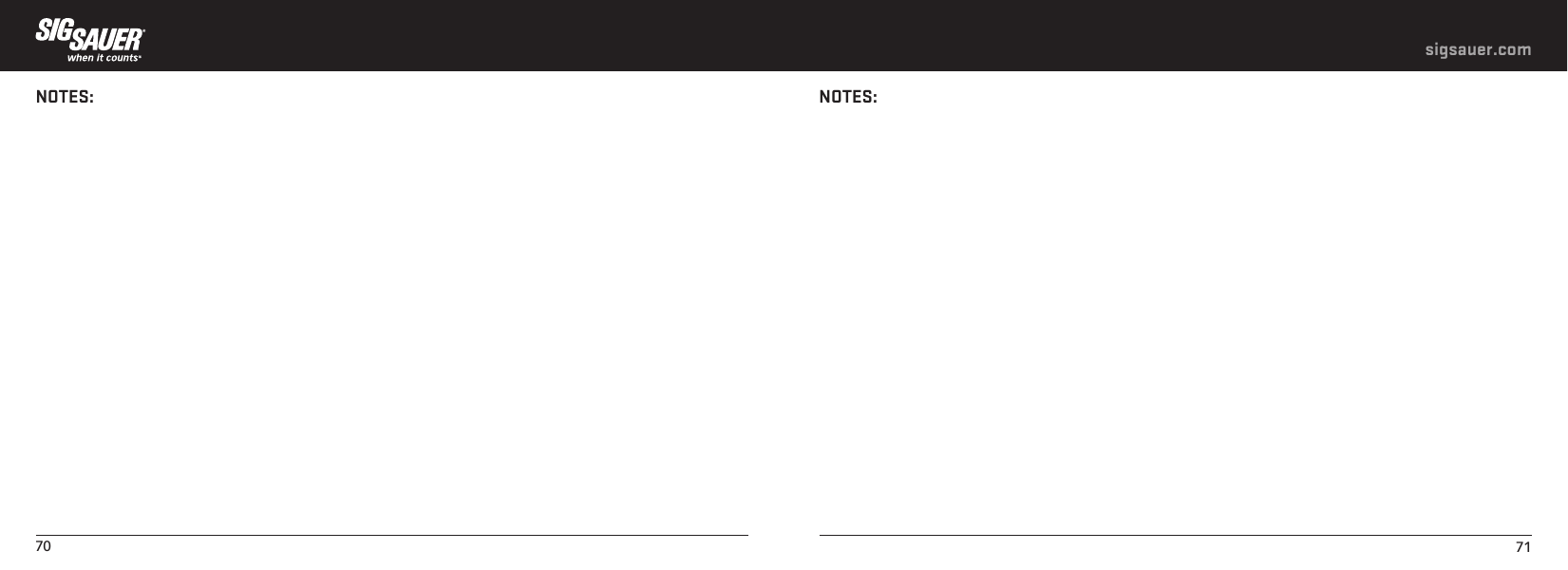

70 71sigsauer.comNOTES: NOTES:

P/N 7400372-01 R03FOR PRODUCT SERVICE ON THIS MODEL, PLEASE CALL 603-610-3000 19861 SW 95th Avenue, Portland, OR 97062 USAsigsauer.com
