SkyAutoNet ULTRASCAN-B Low-Powered Wireless Device User Manual

SkyAutoNet Inc Low-Powered Wireless Device

User Manual

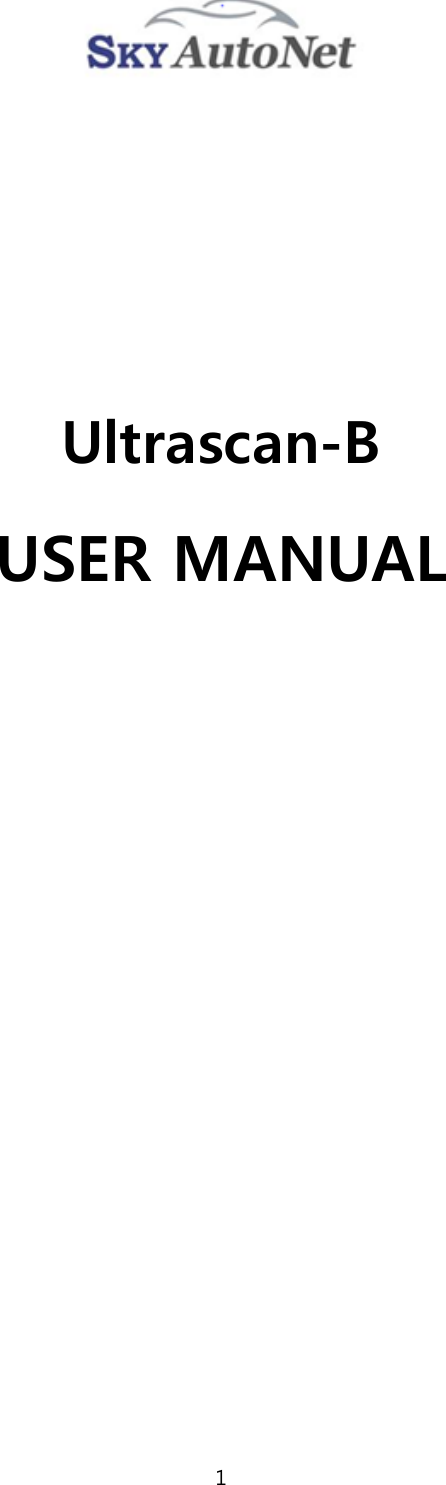

1     Ultrascan-B USER MANUAL

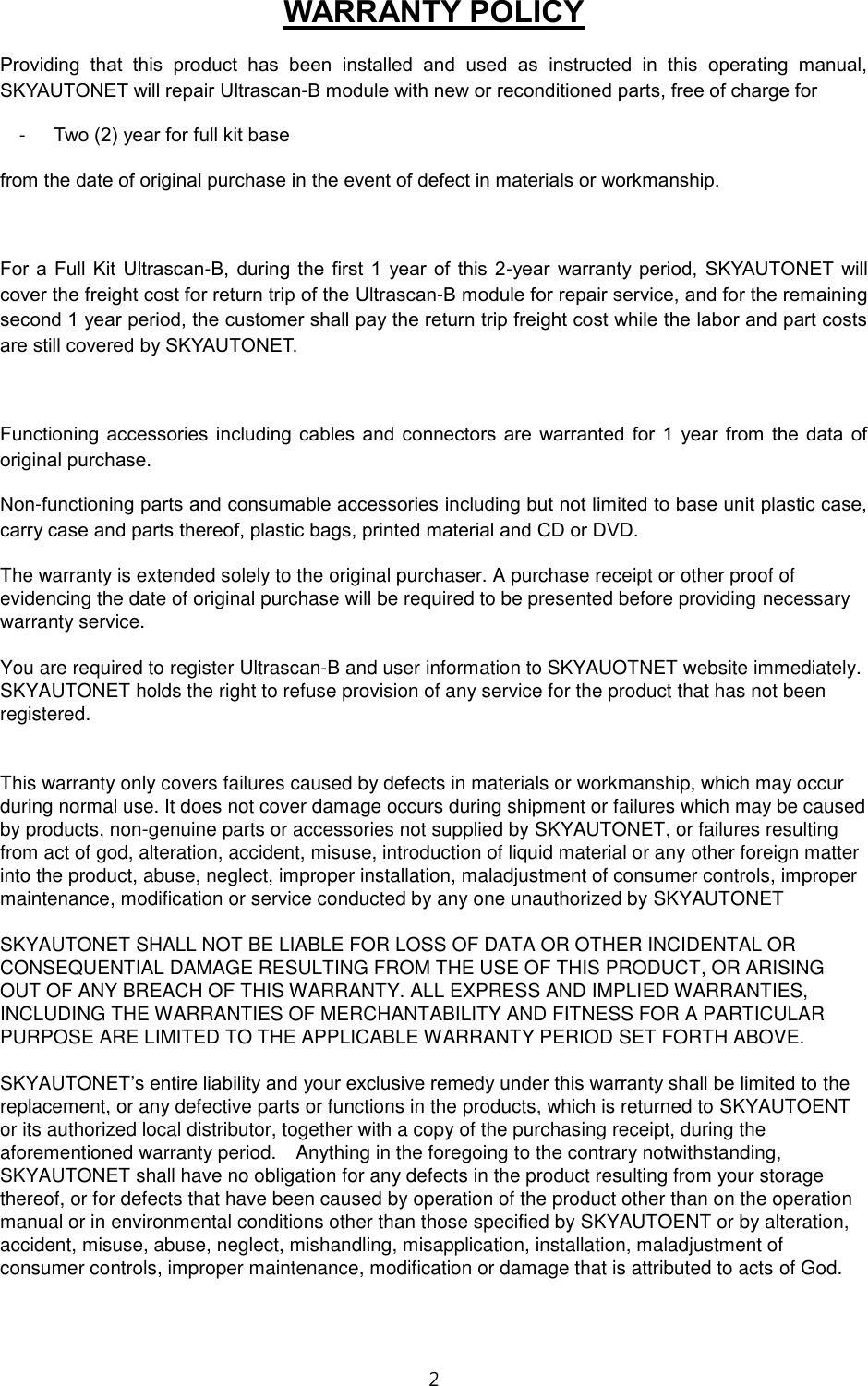

2  WARRANTY POLICY Providing  that  this  product  has  been  installed  and  used  as  instructed  in  this  operating  manual, SKYAUTONET will repair Ultrascan-B module with new or reconditioned parts, free of charge for   -  Two (2) year for full kit base  from the date of original purchase in the event of defect in materials or workmanship.      For  a Full Kit  Ultrascan-B,  during  the  first  1  year of  this 2-year  warranty  period,  SKYAUTONET  will cover the freight cost for return trip of the Ultrascan-B module for repair service, and for the remaining second 1 year period, the customer shall pay the return trip freight cost while the labor and part costs are still covered by SKYAUTONET.  Functioning  accessories  including  cables  and  connectors  are  warranted  for  1  year  from  the data  of original purchase. Non-functioning parts and consumable accessories including but not limited to base unit plastic case, carry case and parts thereof, plastic bags, printed material and CD or DVD.   The warranty is extended solely to the original purchaser. A purchase receipt or other proof of evidencing the date of original purchase will be required to be presented before providing necessary warranty service.  You are required to register Ultrascan-B and user information to SKYAUOTNET website immediately. SKYAUTONET holds the right to refuse provision of any service for the product that has not been registered.   This warranty only covers failures caused by defects in materials or workmanship, which may occur during normal use. It does not cover damage occurs during shipment or failures which may be caused by products, non-genuine parts or accessories not supplied by SKYAUTONET, or failures resulting from act of god, alteration, accident, misuse, introduction of liquid material or any other foreign matter into the product, abuse, neglect, improper installation, maladjustment of consumer controls, improper maintenance, modification or service conducted by any one unauthorized by SKYAUTONET  SKYAUTONET SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGE RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.  SKYAUTONET’s entire liability and your exclusive remedy under this warranty shall be limited to the replacement, or any defective parts or functions in the products, which is returned to SKYAUTOENT or its authorized local distributor, together with a copy of the purchasing receipt, during the aforementioned warranty period.    Anything in the foregoing to the contrary notwithstanding, SKYAUTONET shall have no obligation for any defects in the product resulting from your storage thereof, or for defects that have been caused by operation of the product other than on the operation manual or in environmental conditions other than those specified by SKYAUTOENT or by alteration, accident, misuse, abuse, neglect, mishandling, misapplication, installation, maladjustment of consumer controls, improper maintenance, modification or damage that is attributed to acts of God.

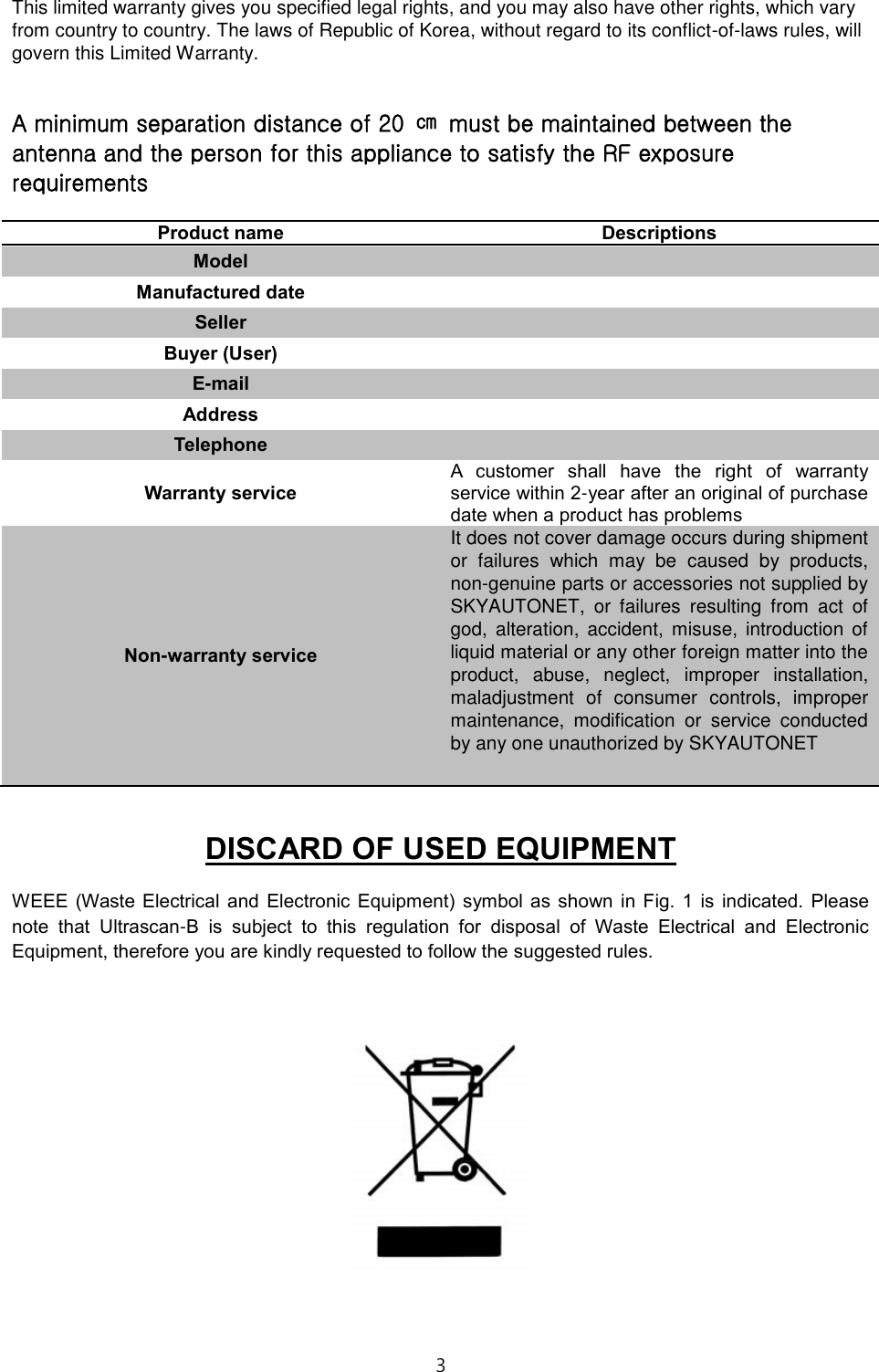

3  This limited warranty gives you specified legal rights, and you may also have other rights, which vary from country to country. The laws of Republic of Korea, without regard to its conflict-of-laws rules, will govern this Limited Warranty.  A minimum separation distance of 20  ㎝  must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements  Product name Descriptions Model  Manufactured date  Seller  Buyer (User)  E-mail  Address  Telephone  Warranty service A  customer  shall  have  the  right  of  warranty service within 2-year after an original of purchase date when a product has problems Non-warranty service It does not cover damage occurs during shipment or  failures  which  may  be  caused  by  products, non-genuine parts or accessories not supplied by SKYAUTONET,  or  failures  resulting  from  act  of god,  alteration,  accident,  misuse,  introduction  of liquid material or any other foreign matter into the product,  abuse,  neglect,  improper  installation, maladjustment  of  consumer  controls,  improper maintenance,  modification  or  service  conducted by any one unauthorized by SKYAUTONET   DISCARD OF USED EQUIPMENT WEEE (Waste Electrical  and  Electronic  Equipment)  symbol  as shown  in  Fig.  1  is  indicated.  Please note  that  Ultrascan-B  is  subject  to  this  regulation  for  disposal  of  Waste  Electrical  and  Electronic Equipment, therefore you are kindly requested to follow the suggested rules.

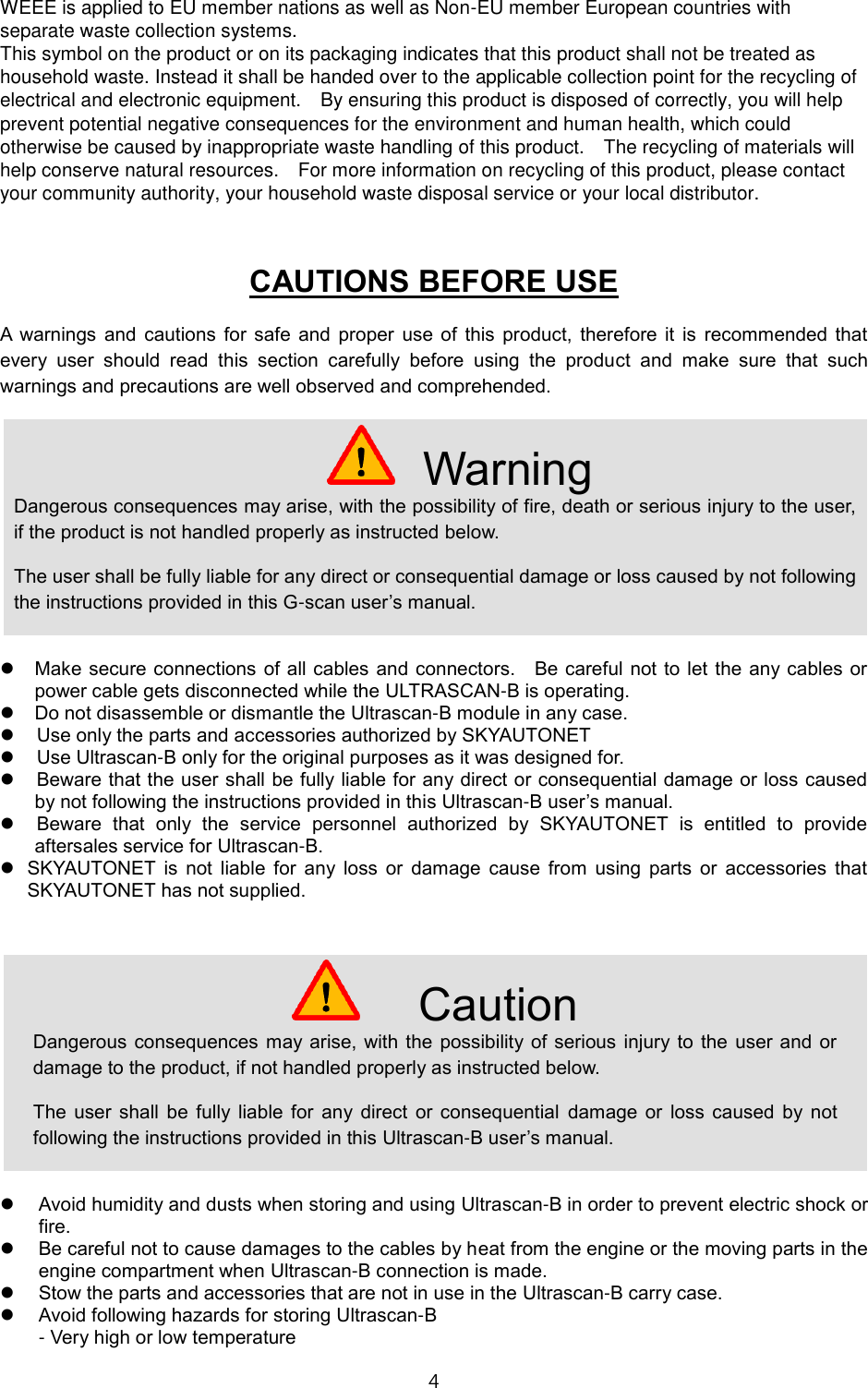

4  WEEE is applied to EU member nations as well as Non-EU member European countries with separate waste collection systems. This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.    By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.    The recycling of materials will help conserve natural resources.    For more information on recycling of this product, please contact your community authority, your household waste disposal service or your local distributor.  CAUTIONS BEFORE USE A  warnings  and  cautions  for  safe  and  proper  use of  this  product,  therefore  it  is  recommended  that every  user  should  read  this  section  carefully  before  using  the  product  and  make  sure  that  such warnings and precautions are well observed and comprehended.   Make secure connections of all cables and connectors.    Be careful  not to let the  any cables or power cable gets disconnected while the ULTRASCAN-B is operating.  Do not disassemble or dismantle the Ultrascan-B module in any case.    Use only the parts and accessories authorized by SKYAUTONET    Use Ultrascan-B only for the original purposes as it was designed for.    Beware that the user shall be fully liable for any direct or consequential damage or loss caused by not following the instructions provided in this Ultrascan-B user’s manual.    Beware  that  only  the  service  personnel  authorized  by  SKYAUTONET  is  entitled  to  provide aftersales service for Ultrascan-B.    SKYAUTONET  is  not  liable  for  any  loss  or  damage  cause  from  using  parts  or  accessories  that SKYAUTONET has not supplied.       Avoid humidity and dusts when storing and using Ultrascan-B in order to prevent electric shock or fire.  Be careful not to cause damages to the cables by heat from the engine or the moving parts in the engine compartment when Ultrascan-B connection is made.  Stow the parts and accessories that are not in use in the Ultrascan-B carry case.  Avoid following hazards for storing Ultrascan-B - Very high or low temperature  Warning Dangerous consequences may arise, with the possibility of fire, death or serious injury to the user, if the product is not handled properly as instructed below. The user shall be fully liable for any direct or consequential damage or loss caused by not following the instructions provided in this G-scan user’s manual.  Caution Dangerous  consequences  may arise, with the possibility  of serious injury to the  user and  or damage to the product, if not handled properly as instructed below. The  user  shall  be  fully  liable  for  any  direct  or  consequential  damage  or  loss  caused  by  not following the instructions provided in this Ultrascan-B user’s manual.

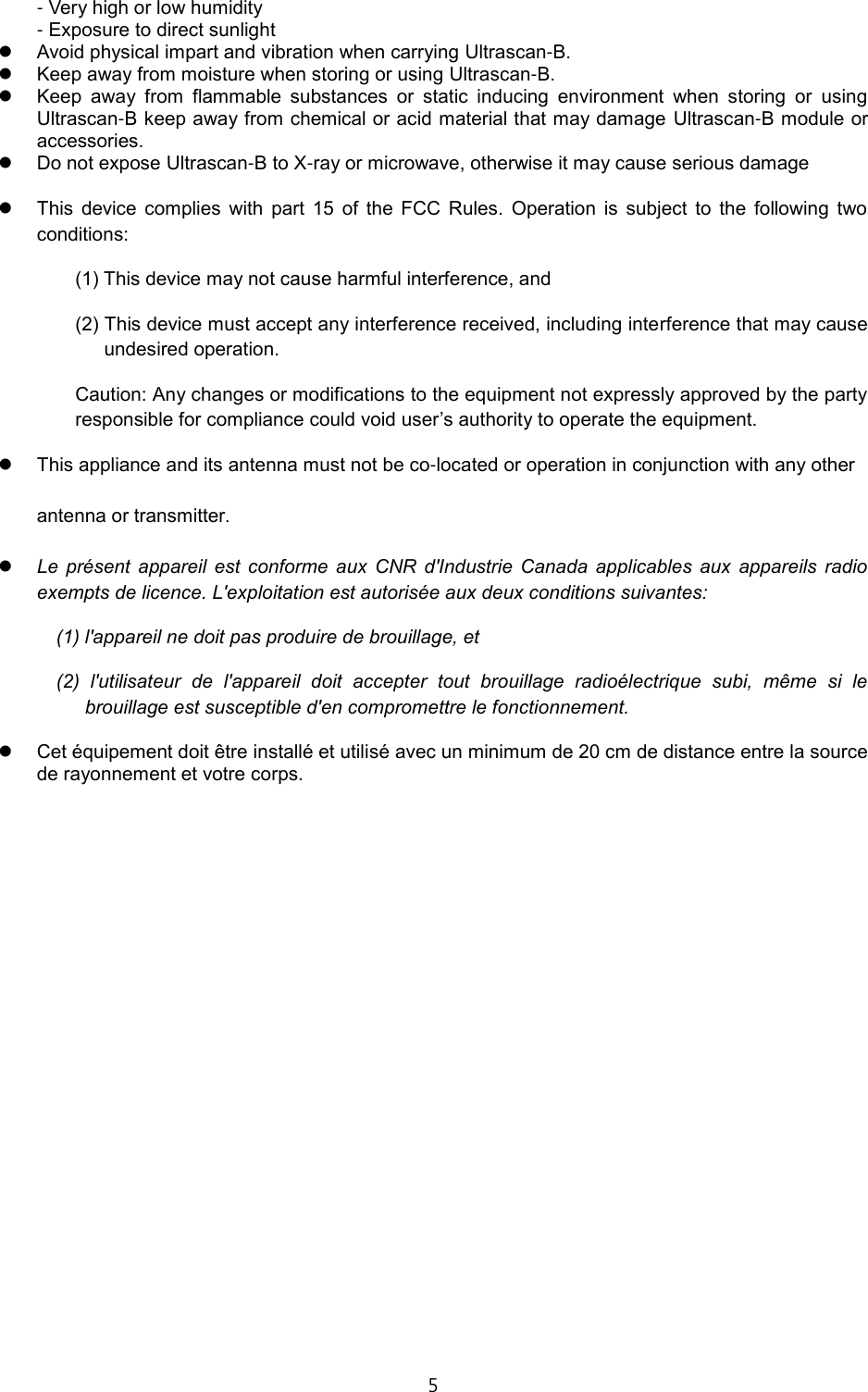

5  - Very high or low humidity   - Exposure to direct sunlight    Avoid physical impart and vibration when carrying Ultrascan-B.  Keep away from moisture when storing or using Ultrascan-B.  Keep  away  from  flammable  substances  or  static  inducing  environment  when  storing  or  using Ultrascan-B keep away from chemical or acid material that may damage  Ultrascan-B module or accessories.  Do not expose Ultrascan-B to X-ray or microwave, otherwise it may cause serious damage   This  device  complies  with  part  15  of  the  FCC  Rules.  Operation  is  subject  to  the  following  two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment.  This appliance and its antenna must not be co-located or operation in conjunction with any other   antenna or transmitter.  Le  présent  appareil  est  conforme  aux  CNR  d'Industrie  Canada  applicables  aux  appareils  radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:   (1) l'appareil ne doit pas produire de brouillage, et   (2)  l'utilisateur  de  l'appareil  doit  accepter  tout  brouillage  radioélectrique  subi,  même  si  le brouillage est susceptible d'en compromettre le fonctionnement.  Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

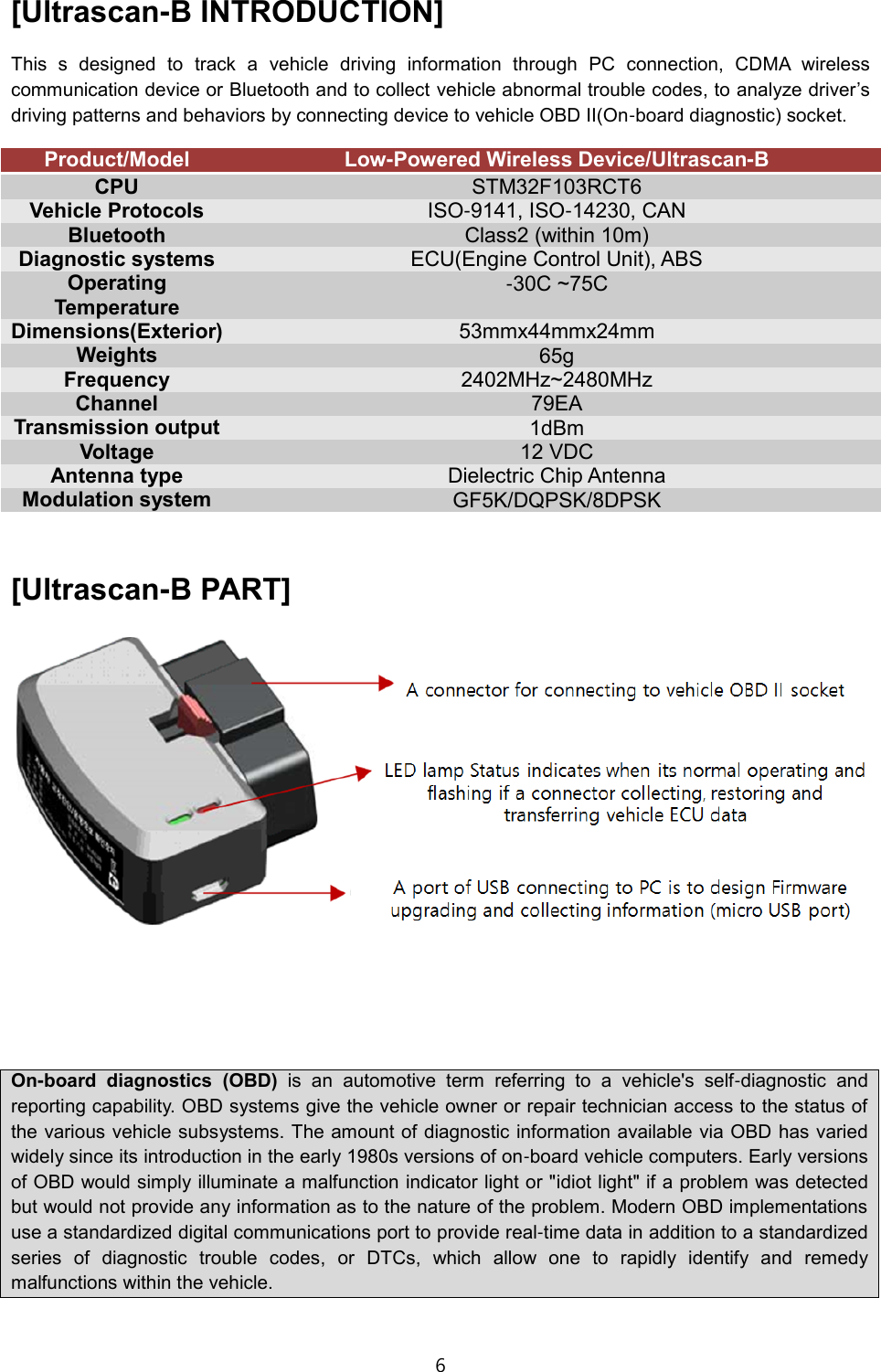

6  [Ultrascan-B INTRODUCTION] This  s  designed  to  track  a  vehicle  driving  information  through  PC  connection,  CDMA  wireless communication device or Bluetooth and to collect vehicle abnormal trouble codes, to analyze driver’s driving patterns and behaviors by connecting device to vehicle OBD II(On-board diagnostic) socket. Product/Model Low-Powered Wireless Device/Ultrascan-B CPU STM32F103RCT6 Vehicle Protocols ISO-9141, ISO-14230, CAN Bluetooth Class2 (within 10m) Diagnostic systems ECU(Engine Control Unit), ABS Operating Temperature -30C ~75C Dimensions(Exterior) 53mmx44mmx24mm Weights 65g Frequency 2402MHz~2480MHz Channel 79EA Transmission output 1dBm Voltage 12 VDC Antenna type Dielectric Chip Antenna Modulation system GF5K/DQPSK/8DPSK  [Ultrascan-B PART]      On-board  diagnostics  (OBD)  is  an  automotive  term  referring  to  a  vehicle's  self-diagnostic  and reporting capability. OBD systems give the vehicle owner or repair technician access to the status of the various vehicle subsystems. The amount of diagnostic information available via OBD has varied widely since its introduction in the early 1980s versions of on-board vehicle computers. Early versions of OBD would simply illuminate a malfunction indicator light or "idiot light" if a problem was detected but would not provide any information as to the nature of the problem. Modern OBD implementations use a standardized digital communications port to provide real-time data in addition to a standardized series  of  diagnostic  trouble  codes,  or  DTCs,  which  allow  one  to  rapidly  identify  and  remedy malfunctions within the vehicle.

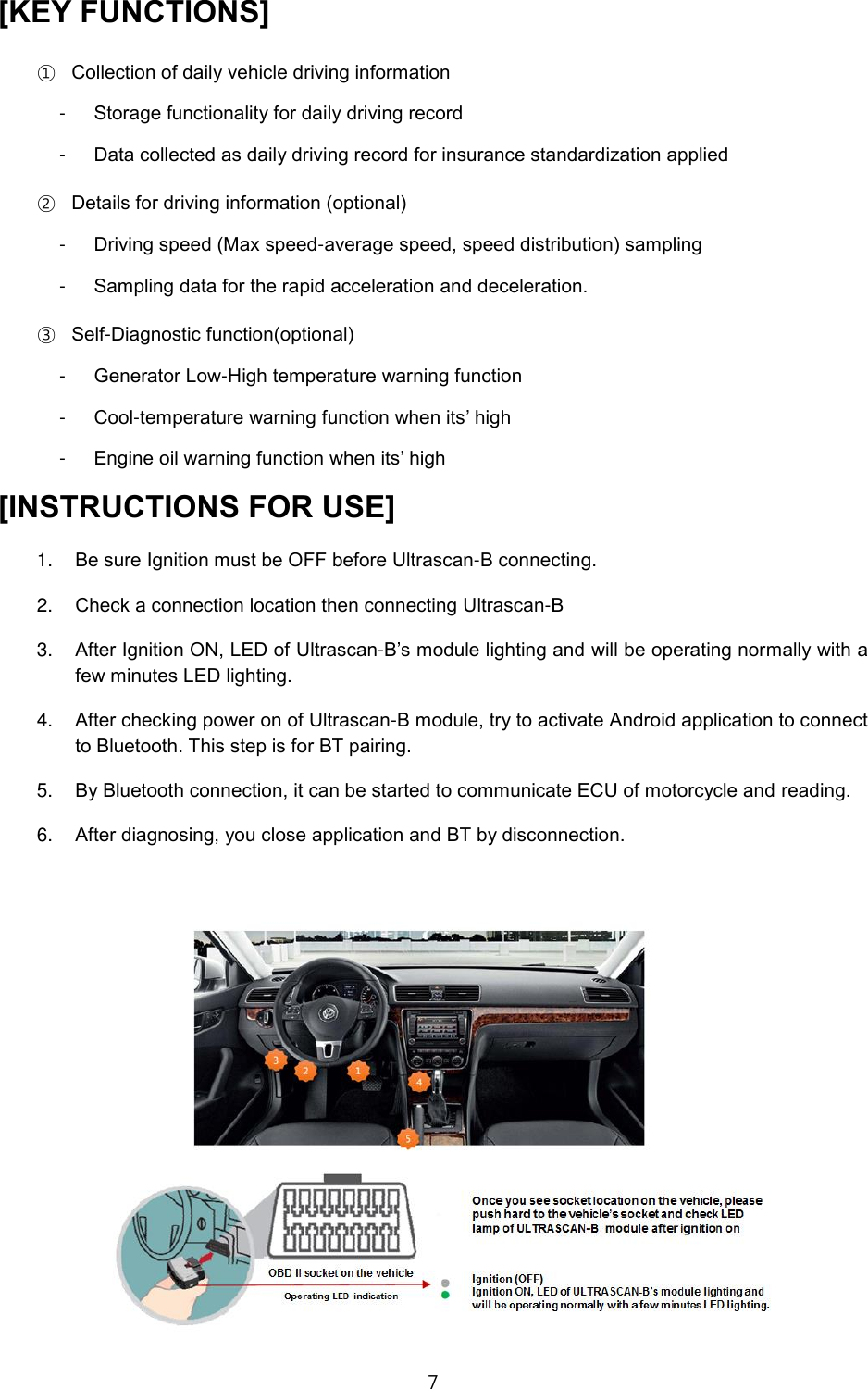

7  [KEY FUNCTIONS] ① Collection of daily vehicle driving information -  Storage functionality for daily driving record -  Data collected as daily driving record for insurance standardization applied ② Details for driving information (optional) -  Driving speed (Max speed-average speed, speed distribution) sampling -  Sampling data for the rapid acceleration and deceleration. ③ Self-Diagnostic function(optional) -  Generator Low-High temperature warning function -  Cool-temperature warning function when its’ high -  Engine oil warning function when its’ high [INSTRUCTIONS FOR USE] 1. Be sure Ignition must be OFF before Ultrascan-B connecting. 2. Check a connection location then connecting Ultrascan-B 3. After Ignition ON, LED of Ultrascan-B’s module lighting and will be operating normally with a few minutes LED lighting. 4. After checking power on of Ultrascan-B module, try to activate Android application to connect to Bluetooth. This step is for BT pairing.   5. By Bluetooth connection, it can be started to communicate ECU of motorcycle and reading. 6. After diagnosing, you close application and BT by disconnection.

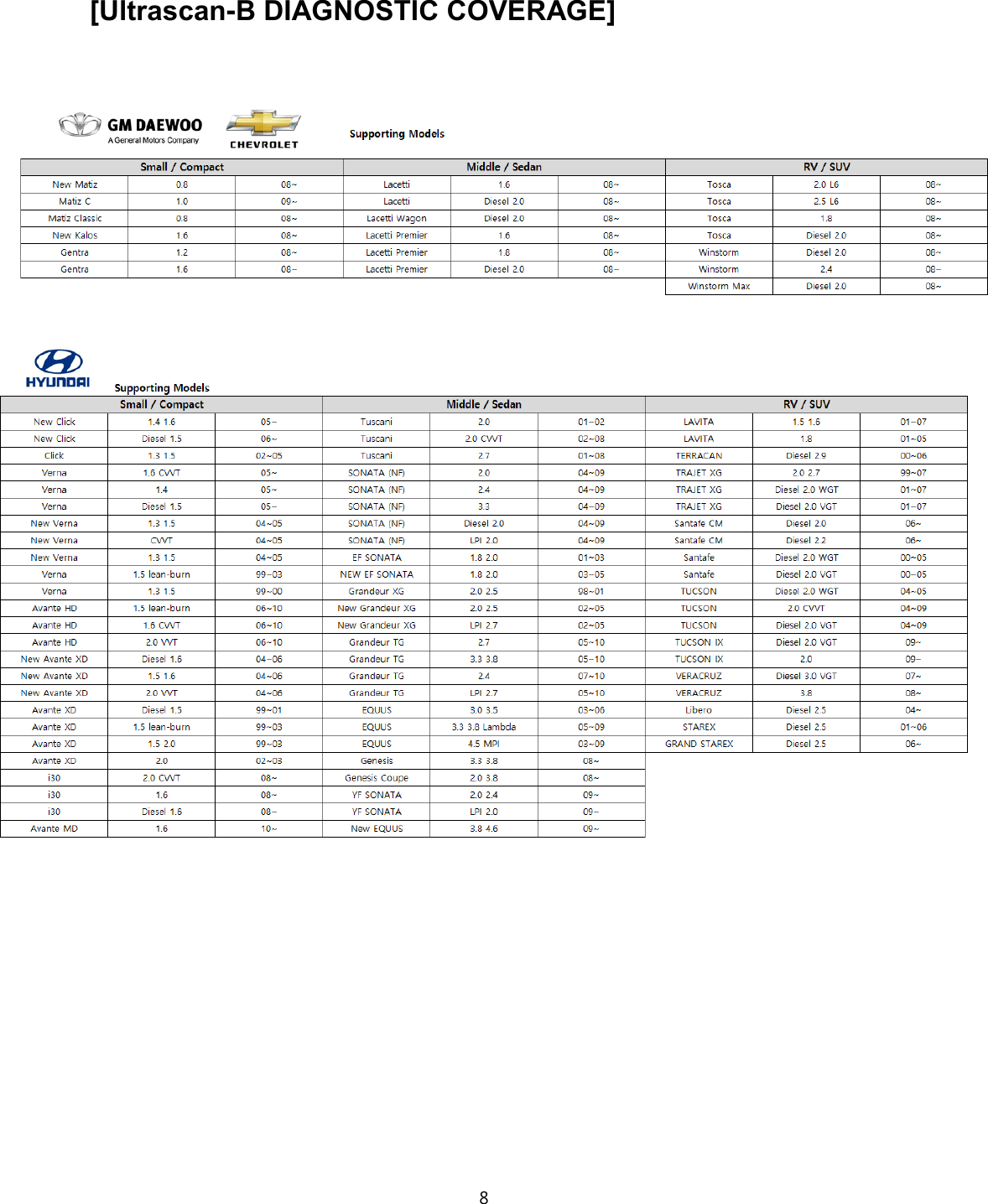

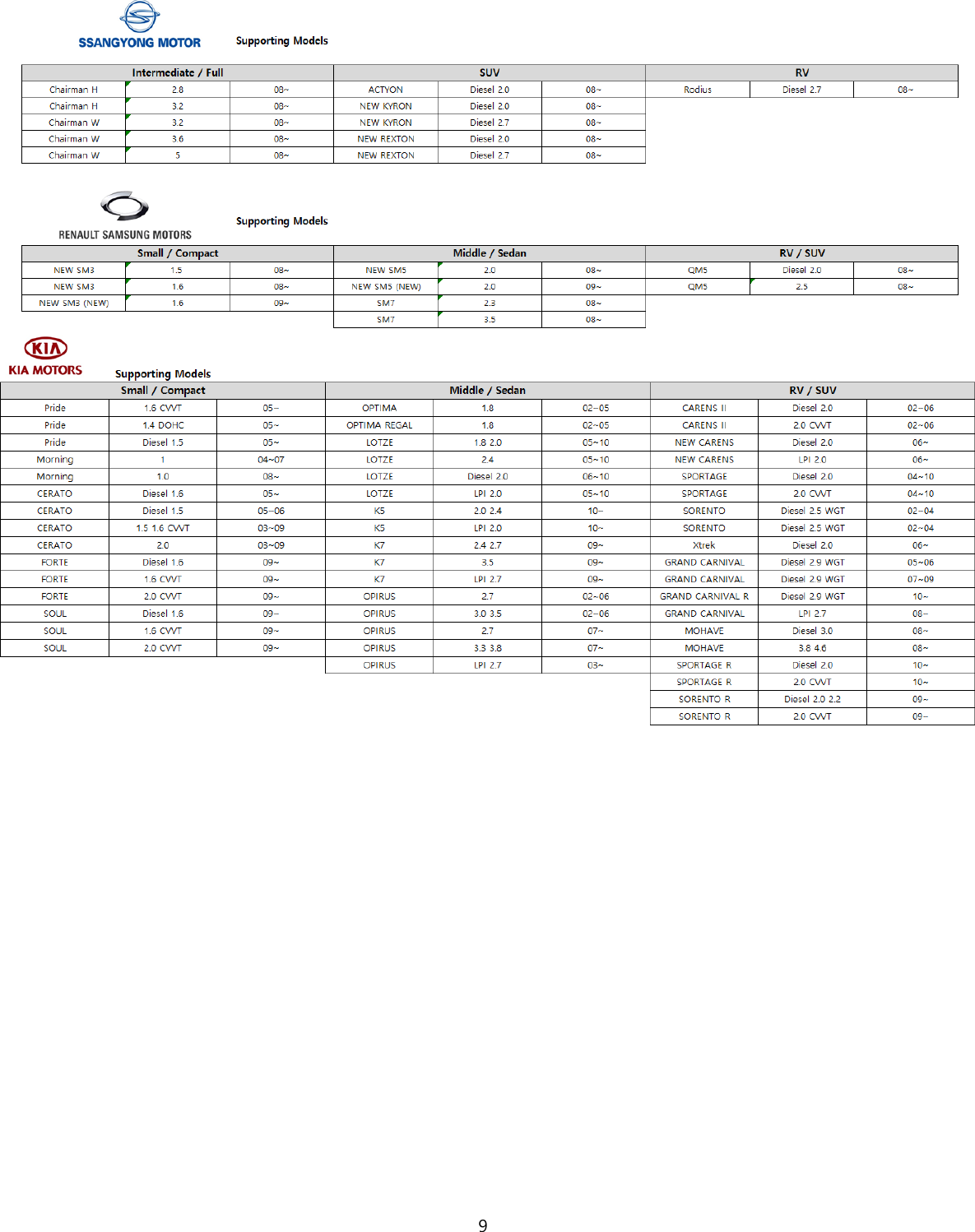

8   [Ultrascan-B DIAGNOSTIC COVERAGE]
9
