Snap on Diagnostics EEMS330E Display Unit User Manual VerusPro UserManual

Snap-on Diagnostics Display Unit VerusPro UserManual

Contents

Users Manual-2

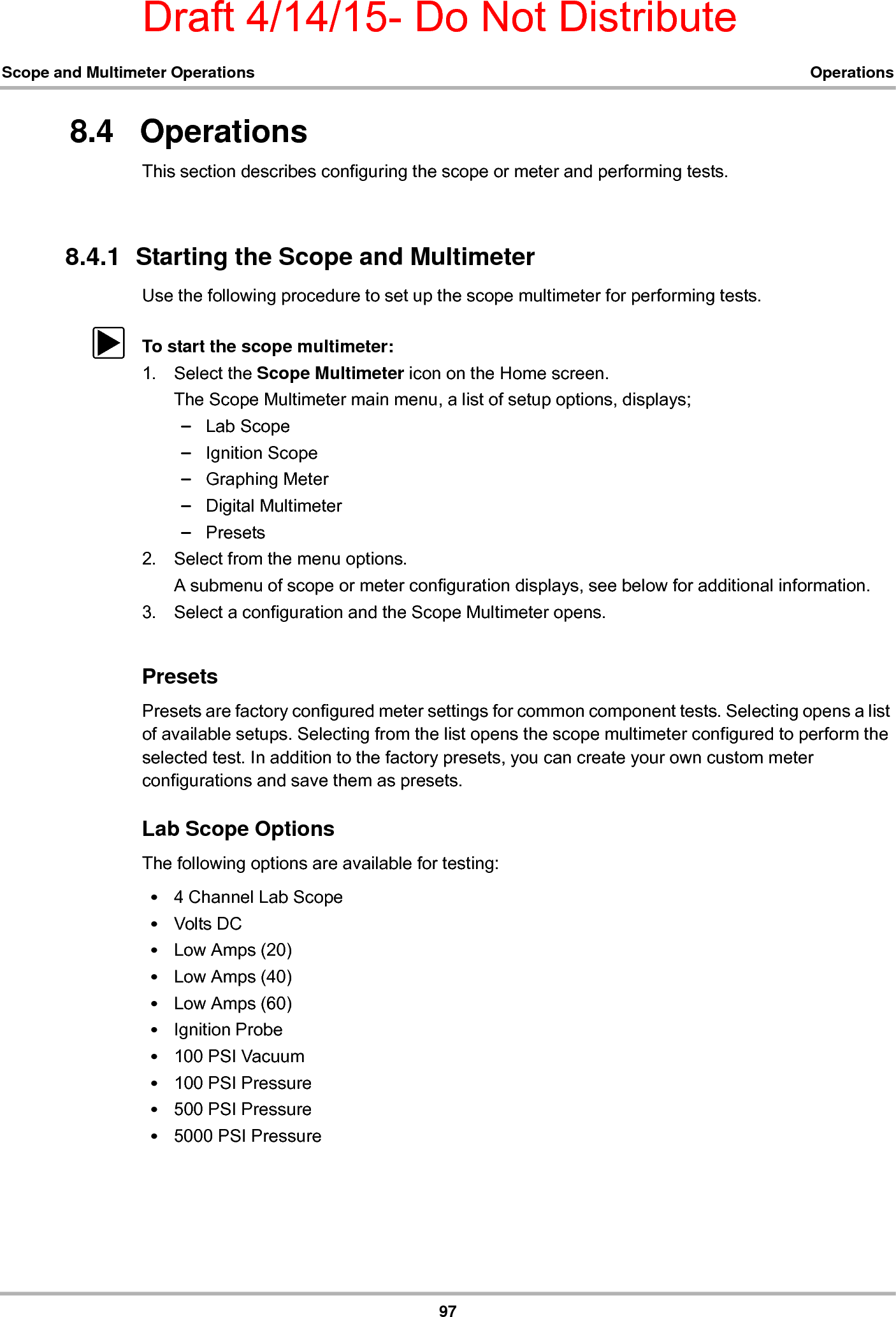

Draft 4/14/15- Do Not Distribute97Scope and Multimeter Operations Operations8.4 OperationsThis section describes configuring the scope or meter and performing tests.8.4.1 Starting the Scope and MultimeterUse the following procedure to set up the scope multimeter for performing tests.zTo start the scope multimeter:1. Select the Scope Multimeter icon on the Home screen.The Scope Multimeter main menu, a list of setup options, displays;–Lab Scope–Ignition Scope–Graphing Meter–Digital Multimeter–Presets2. Select from the menu options.A submenu of scope or meter configuration displays, see below for additional information.3. Select a configuration and the Scope Multimeter opens.PresetsPresets are factory configured meter settings for common component tests. Selecting opens a list of available setups. Selecting from the list opens the scope multimeter configured to perform the selected test. In addition to the factory presets, you can create your own custom meter configurations and save them as presets.Lab Scope OptionsThe following options are available for testing:•4 Channel Lab Scope•Volts DC•Low Amps (20)•Low Amps (40)•Low Amps (60)•Ignition Probe•100 PSI Vacuum•100 PSI Pressure•500 PSI Pressure•5000 PSI Pressure
