Snap on orporated CTBTS861 BLUETOOTH SPEAKER User Manual

Snap-on Incorporated BLUETOOTH SPEAKER

User Manual

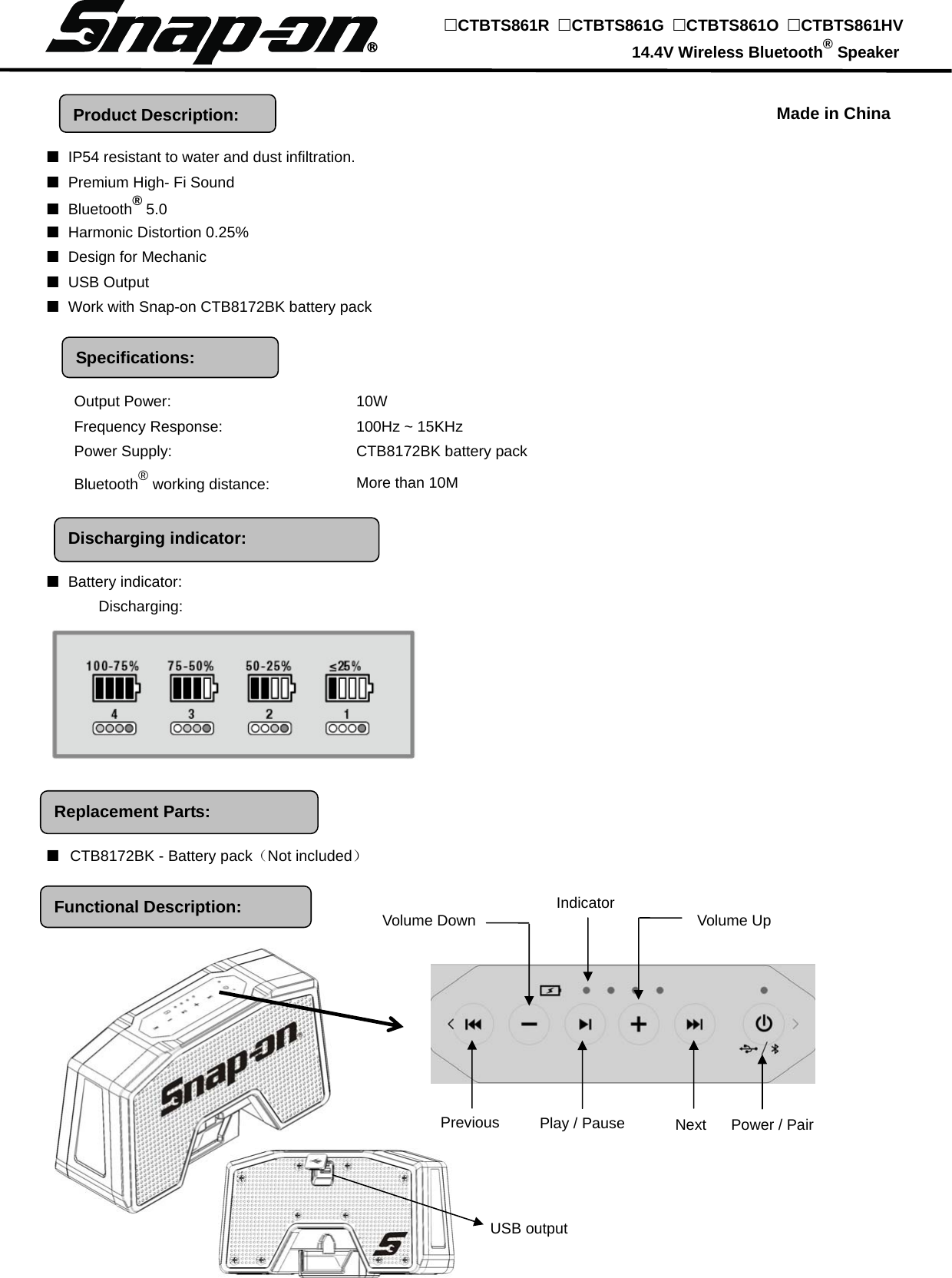

Discharging indicator: Functional Description:     ■  IP54 resistant to water and dust infiltration. ■ Premium High- Fi Sound ■ Bluetooth® 5.0 ■ Harmonic Distortion 0.25% ■ Design for Mechanic ■ USB Output ■  Work with Snap-on CTB8172BK battery pack           ■ Battery indicator:         Discharging:                                                                                  ■ CTB8172BK - Battery pack(Not included)                Output Power:    10W Frequency Response:    100Hz ~ 15KHz Power Supply:    CTB8172BK battery pack Bluetooth® working distance:    More than 10M Indicator Volume DownProduct Description: Specifications: CTBTS861R  CTBTS861G  CTBTS861O  CTBTS861HV                                            14.4V Wireless Bluetooth® Speaker Made in China Replacement Parts: Previous  Play / Pause  Next  Power / Pair Volume Up USB output

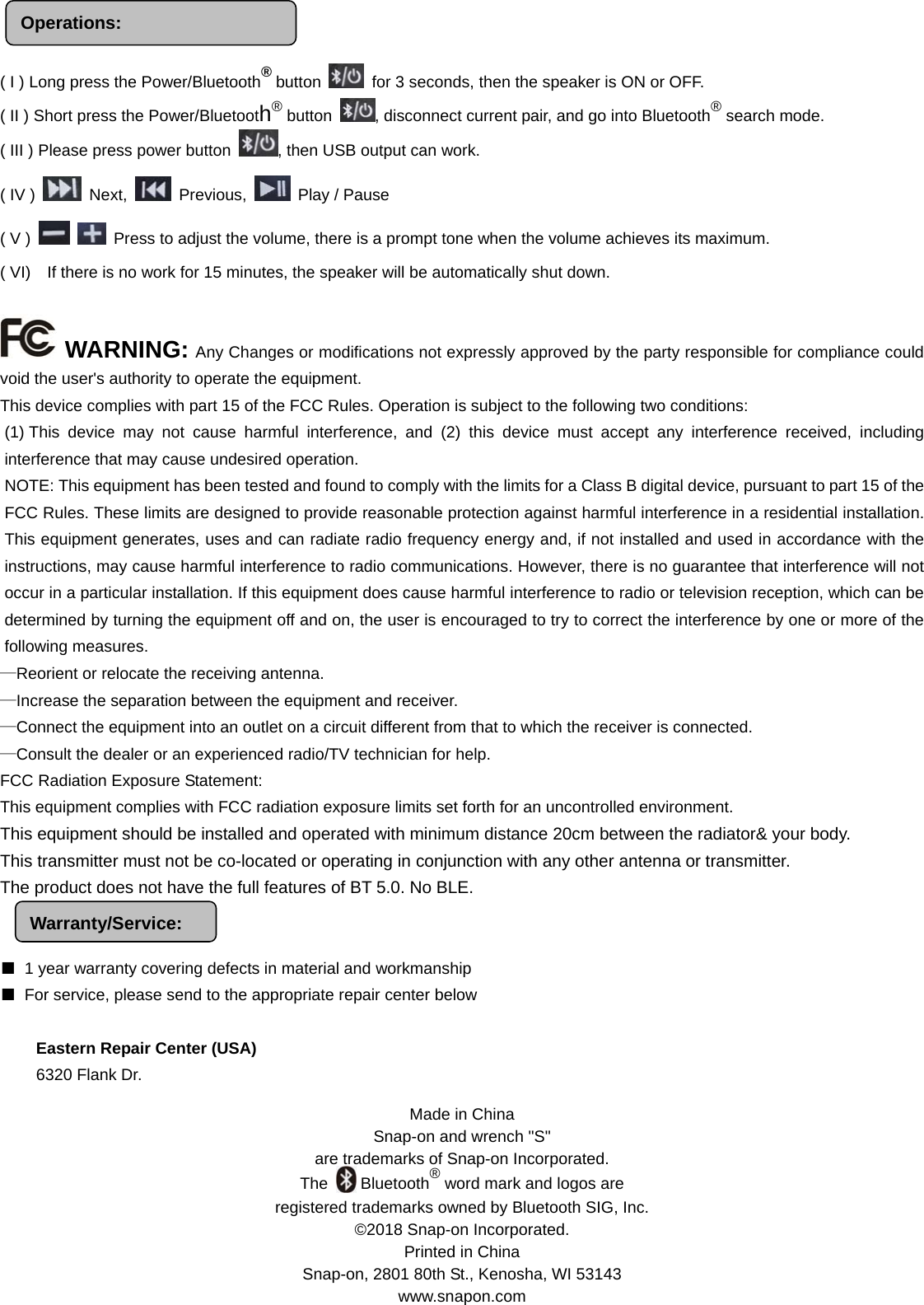

Made in China Snap-on and wrench "S"   are trademarks of Snap-on Incorporated. The    Bluetooth® word mark and logos are   registered trademarks owned by Bluetooth SIG, Inc. ©2018 Snap-on Incorporated. Printed in China Snap-on, 2801 80th St., Kenosha, WI 53143   www.snapon.com Operations:    ( I ) Long press the Power/Bluetooth® button    for 3 seconds, then the speaker is ON or OFF.   ( II ) Short press the Power/Bluetooth® button  , disconnect current pair, and go into Bluetooth® search mode. ( III ) Please press power button  , then USB output can work. ( IV )   Next,   Previous,   Play / Pause ( V )     Press to adjust the volume, there is a prompt tone when the volume achieves its maximum. ( VI)    If there is no work for 15 minutes, the speaker will be automatically shut down.     WARNING: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.   This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.    NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. —Reorient or relocate the receiving antenna.     —Increase the separation between the equipment and receiver.     —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.   —Consult the dealer or an experienced radio/TV technician for help.  FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.   The product does not have the full features of BT 5.0. No BLE.                                              ■  1 year warranty covering defects in material and workmanship ■  For service, please send to the appropriate repair center below  Eastern Repair Center (USA) 6320 Flank Dr. Warranty/Service:

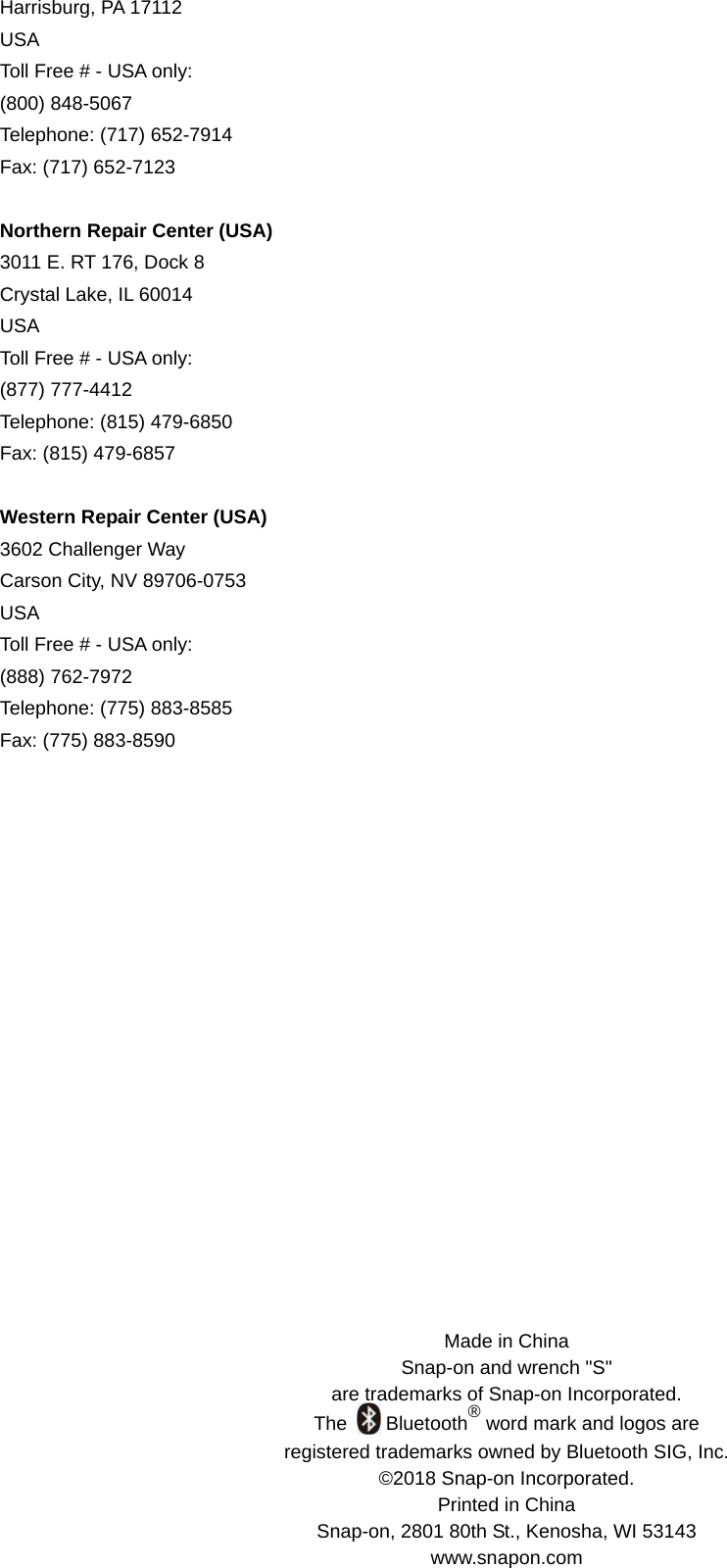

Made in China Snap-on and wrench "S"   are trademarks of Snap-on Incorporated. The    Bluetooth® word mark and logos are   registered trademarks owned by Bluetooth SIG, Inc. ©2018 Snap-on Incorporated. Printed in China Snap-on, 2801 80th St., Kenosha, WI 53143   www.snapon.com Harrisburg, PA 17112   USA Toll Free # - USA only: (800) 848-5067 Telephone: (717) 652-7914 Fax: (717) 652-7123  Northern Repair Center (USA) 3011 E. RT 176, Dock 8 Crystal Lake, IL 60014 USA Toll Free # - USA only: (877) 777-4412 Telephone: (815) 479-6850 Fax: (815) 479-6857  Western Repair Center (USA) 3602 Challenger Way Carson City, NV 89706-0753 USA Toll Free # - USA only: (888) 762-7972 Telephone: (775) 883-8585 Fax: (775) 883-8590
