Sony Ericsson Mobile Communications TR-505-A2 TRANSCEIVER MODULE User Manual 8 DM25

Sony Ericsson Mobile Communications Inc. TRANSCEIVER MODULE 8 DM25

exhibit 8

DM15/25 Integrator’s Manual 1 OF 38DM-15/25Integrator’s Manual

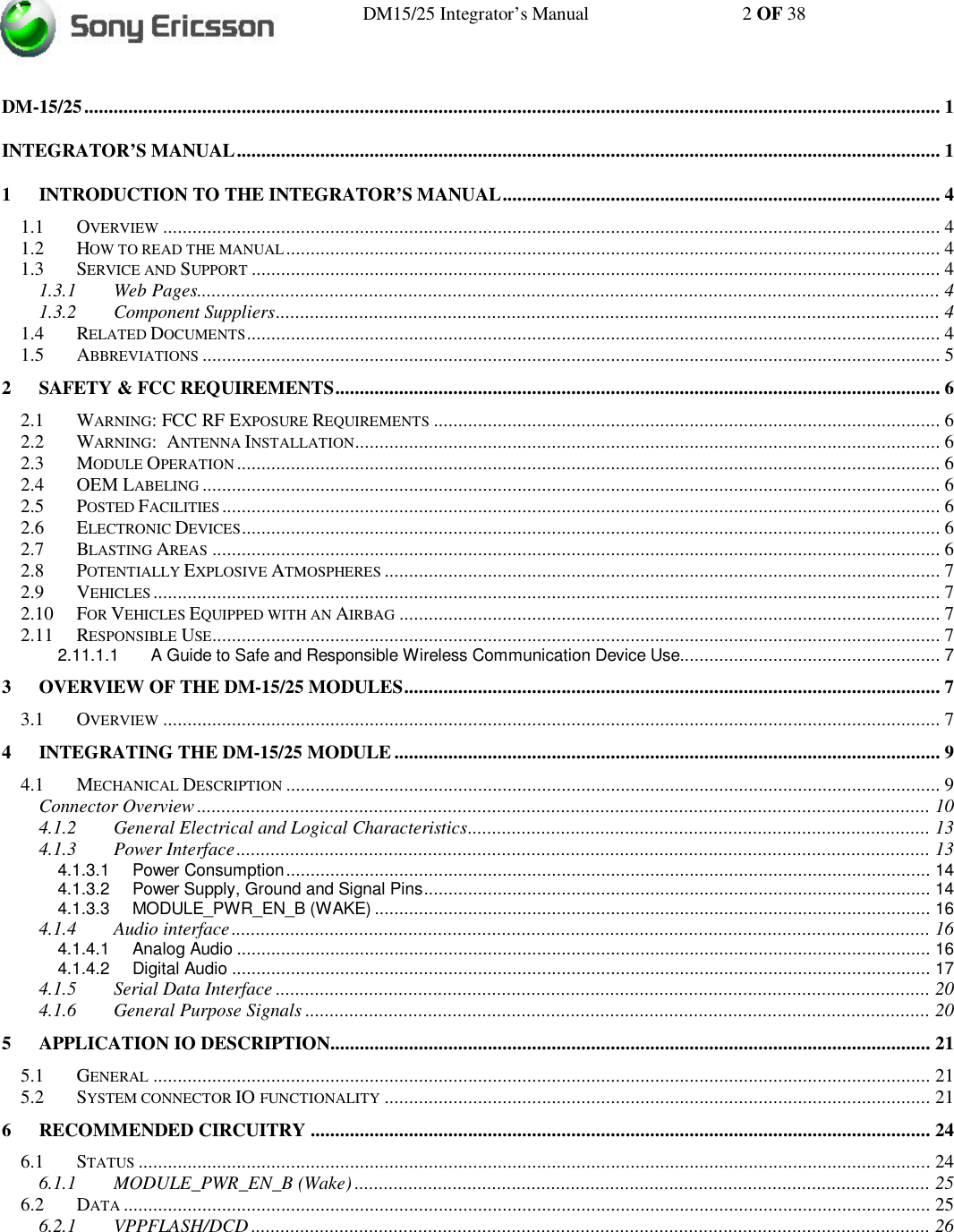

DM15/25 Integrator’s Manual 2 OF 38DM-15/25.............................................................................................................................................................................. 1INTEGRATOR’S MANUAL............................................................................................................................................... 11INTRODUCTION TO THE INTEGRATOR’S MANUAL......................................................................................... 41.1 OVERVIEW .............................................................................................................................................................. 41.2 HOW TO READ THE MANUAL..................................................................................................................................... 41.3 SERVICE AND SUPPORT ............................................................................................................................................ 41.3.1 Web Pages....................................................................................................................................................... 41.3.2 Component Suppliers....................................................................................................................................... 41.4 RELATED DOCUMENTS............................................................................................................................................. 41.5 ABBREVIATIONS ...................................................................................................................................................... 52SAFETY & FCC REQUIREMENTS........................................................................................................................... 62.1 WARNING: FCC RF EXPOSURE REQUIREMENTS ....................................................................................................... 62.2 WARNING: ANTENNA INSTALLATION....................................................................................................................... 62.3 MODULE OPERATION ............................................................................................................................................... 62.4 OEM LABELING ...................................................................................................................................................... 62.5 POSTED FACILITIES .................................................................................................................................................. 62.6 ELECTRONIC DEVICES.............................................................................................................................................. 62.7 BLASTING AREAS .................................................................................................................................................... 62.8 POTENTIALLY EXPLOSIVE ATMOSPHERES ................................................................................................................. 72.9 VEHICLES ................................................................................................................................................................ 72.10 FOR VEHICLES EQUIPPED WITH AN AIRBAG .............................................................................................................. 72.11 RESPONSIBLE USE.................................................................................................................................................... 72.11.1.1 A Guide to Safe and Responsible Wireless Communication Device Use..................................................... 73OVERVIEW OF THE DM-15/25 MODULES............................................................................................................. 73.1 OVERVIEW .............................................................................................................................................................. 74INTEGRATING THE DM-15/25 MODULE ............................................................................................................... 94.1 MECHANICAL DESCRIPTION ..................................................................................................................................... 9Connector Overview ..................................................................................................................................................... 104.1.2 General Electrical and Logical Characteristics.............................................................................................. 134.1.3 Power Interface............................................................................................................................................. 134.1.3.1 Power Consumption................................................................................................................................... 144.1.3.2 Power Supply, Ground and Signal Pins....................................................................................................... 144.1.3.3 MODULE_PWR_EN_B (WAKE) ................................................................................................................. 164.1.4 Audio interface.............................................................................................................................................. 164.1.4.1 Analog Audio ............................................................................................................................................. 164.1.4.2 Digital Audio .............................................................................................................................................. 174.1.5 Serial Data Interface ..................................................................................................................................... 204.1.6 General Purpose Signals ............................................................................................................................... 205APPLICATION IO DESCRIPTION.......................................................................................................................... 215.1 GENERAL .............................................................................................................................................................. 215.2 SYSTEM CONNECTOR IO FUNCTIONALITY ............................................................................................................... 216RECOMMENDED CIRCUITRY .............................................................................................................................. 246.1 STATUS ................................................................................................................................................................. 246.1.1 MODULE_PWR_EN_B (Wake) ..................................................................................................................... 256.2 DATA .................................................................................................................................................................... 256.2.1 VPPFLASH/DCD .......................................................................................................................................... 26

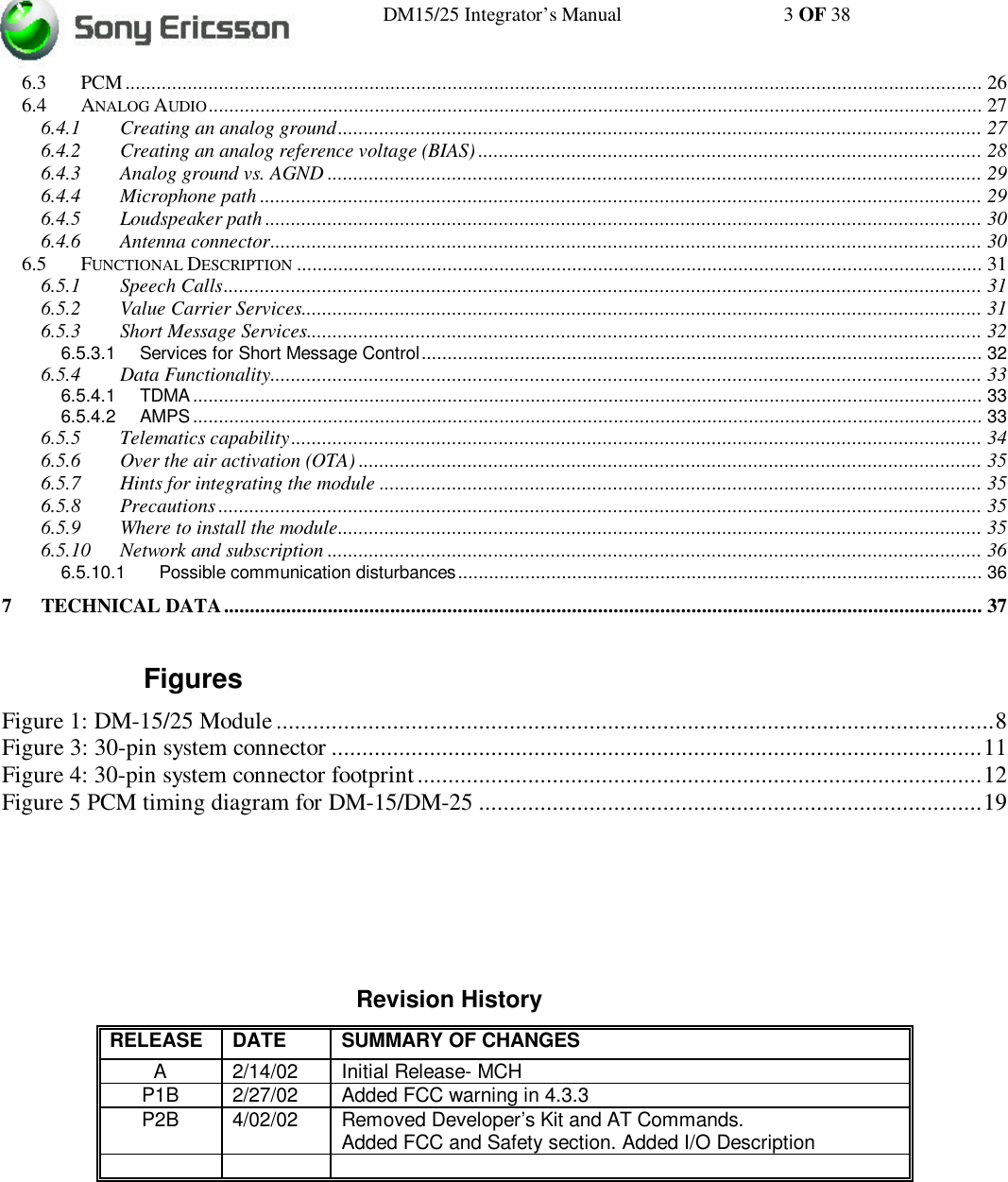

DM15/25 Integrator’s Manual 3 OF 386.3 PCM..................................................................................................................................................................... 266.4 ANALOG AUDIO..................................................................................................................................................... 276.4.1 Creating an analog ground............................................................................................................................ 276.4.2 Creating an analog reference voltage (BIAS) ................................................................................................. 286.4.3 Analog ground vs. AGND .............................................................................................................................. 296.4.4 Microphone path ........................................................................................................................................... 296.4.5 Loudspeaker path .......................................................................................................................................... 306.4.6 Antenna connector......................................................................................................................................... 306.5 FUNCTIONAL DESCRIPTION .................................................................................................................................... 316.5.1 Speech Calls.................................................................................................................................................. 316.5.2 Value Carrier Services................................................................................................................................... 316.5.3 Short Message Services.................................................................................................................................. 326.5.3.1 Services for Short Message Control............................................................................................................ 326.5.4 Data Functionality......................................................................................................................................... 336.5.4.1 TDMA ........................................................................................................................................................ 336.5.4.2 AMPS ........................................................................................................................................................ 336.5.5 Telematics capability..................................................................................................................................... 346.5.6 Over the air activation (OTA) ........................................................................................................................ 356.5.7 Hints for integrating the module .................................................................................................................... 356.5.8 Precautions ................................................................................................................................................... 356.5.9 Where to install the module............................................................................................................................ 356.5.10 Network and subscription .............................................................................................................................. 366.5.10.1 Possible communication disturbances..................................................................................................... 367TECHNICAL DATA.................................................................................................................................................. 37FiguresFigure 1: DM-15/25 Module .....................................................................................................................8Figure 3: 30-pin system connector ..........................................................................................................11Figure 4: 30-pin system connector footprint............................................................................................12Figure 5 PCM timing diagram for DM-15/DM-25 ..................................................................................19Revision HistoryRELEASE DATE SUMMARY OF CHANGESA2/14/02 Initial Release- MCHP1B 2/27/02 Added FCC warning in 4.3.3P2B 4/02/02 Removed Developer’s Kit and AT Commands.Added FCC and Safety section. Added I/O Description

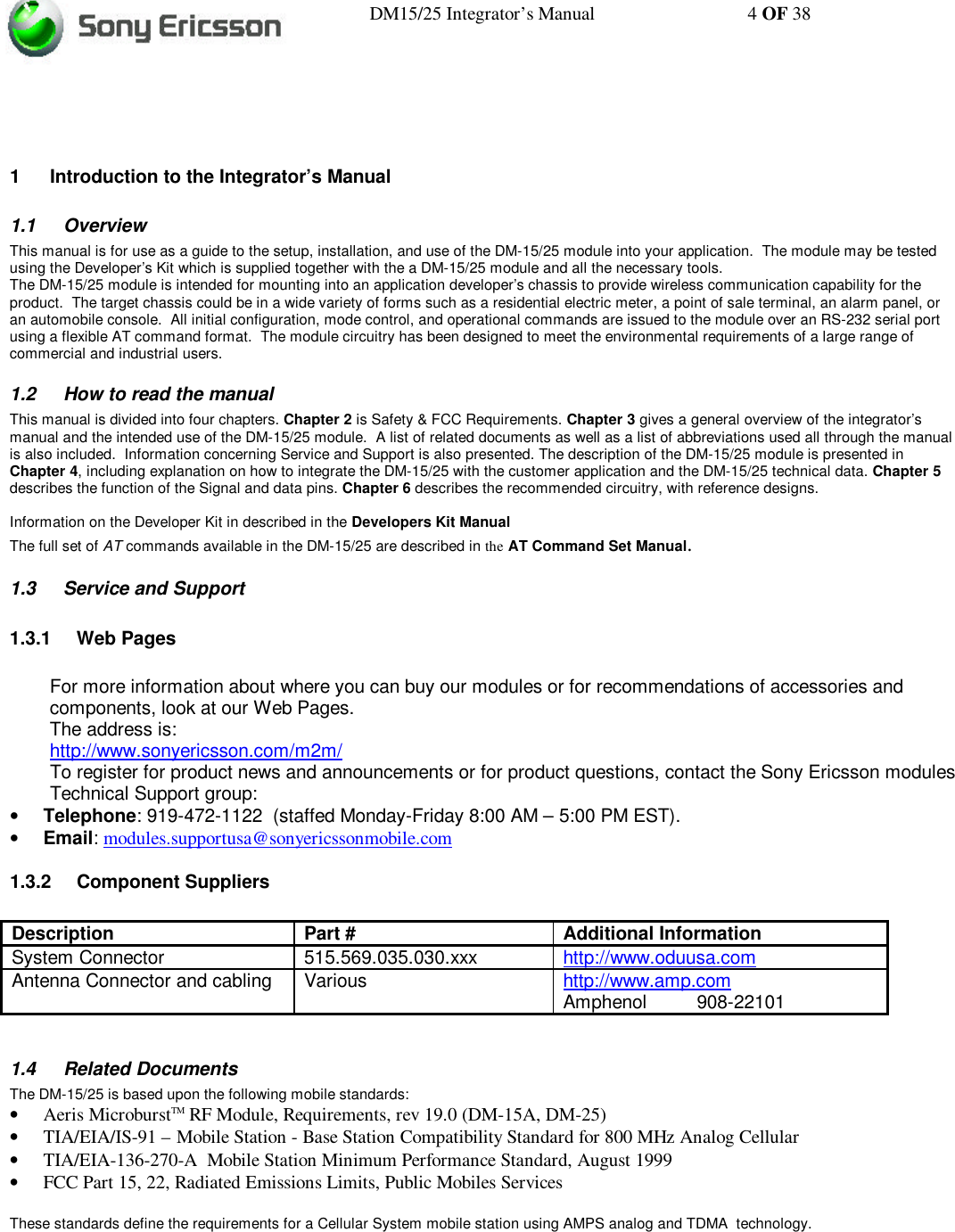

DM15/25 Integrator’s Manual 4 OF 381 Introduction to the Integrator’s Manual1.1 OverviewThis manual is for use as a guide to the setup, installation, and use of the DM-15/25 module into your application. The module may be testedusing the Developer’s Kit which is supplied together with the a DM-15/25 module and all the necessary tools.The DM-15/25 module is intended for mounting into an application developer’s chassis to provide wireless communication capability for theproduct. The target chassis could be in a wide variety of forms such as a residential electric meter, a point of sale terminal, an alarm panel, oran automobile console. All initial configuration, mode control, and operational commands are issued to the module over an RS-232 serial portusing a flexible AT command format. The module circuitry has been designed to meet the environmental requirements of a large range ofcommercial and industrial users.1.2 How to read the manualThis manual is divided into four chapters. Chapter 2 is Safety & FCC Requirements. Chapter 3 gives a general overview of the integrator’smanual and the intended use of the DM-15/25 module. A list of related documents as well as a list of abbreviations used all through the manualis also included. Information concerning Service and Support is also presented. The description of the DM-15/25 module is presented inChapter 4, including explanation on how to integrate the DM-15/25 with the customer application and the DM-15/25 technical data. Chapter 5describes the function of the Signal and data pins. Chapter 6 describes the recommended circuitry, with reference designs.Information on the Developer Kit in described in the Developers Kit ManualThe full set of AT commands available in the DM-15/25 are described in the AT Command Set Manual.1.3 Service and Support1.3.1 Web PagesFor more information about where you can buy our modules or for recommendations of accessories andcomponents, look at our Web Pages.The address is:http://www.sonyericsson.com/m2m/To register for product news and announcements or for product questions, contact the Sony Ericsson modulesTechnical Support group:• Telephone: 919-472-1122 (staffed Monday-Friday 8:00 AM – 5:00 PM EST).• Email: modules.supportusa@sonyericssonmobile.com1.3.2 Component SuppliersDescription Part # Additional InformationSystem Connector 515.569.035.030.xxx http://www.oduusa.comAntenna Connector and cabling Various http://www.amp.comAmphenol 908-221011.4 Related DocumentsThe DM-15/25 is based upon the following mobile standards:• Aeris MicroburstTM RF Module, Requirements, rev 19.0 (DM-15A, DM-25)• TIA/EIA/IS-91 – Mobile Station - Base Station Compatibility Standard for 800 MHz Analog Cellular• TIA/EIA-136-270-A Mobile Station Minimum Performance Standard, August 1999• FCC Part 15, 22, Radiated Emissions Limits, Public Mobiles ServicesThese standards define the requirements for a Cellular System mobile station using AMPS analog and TDMA technology.

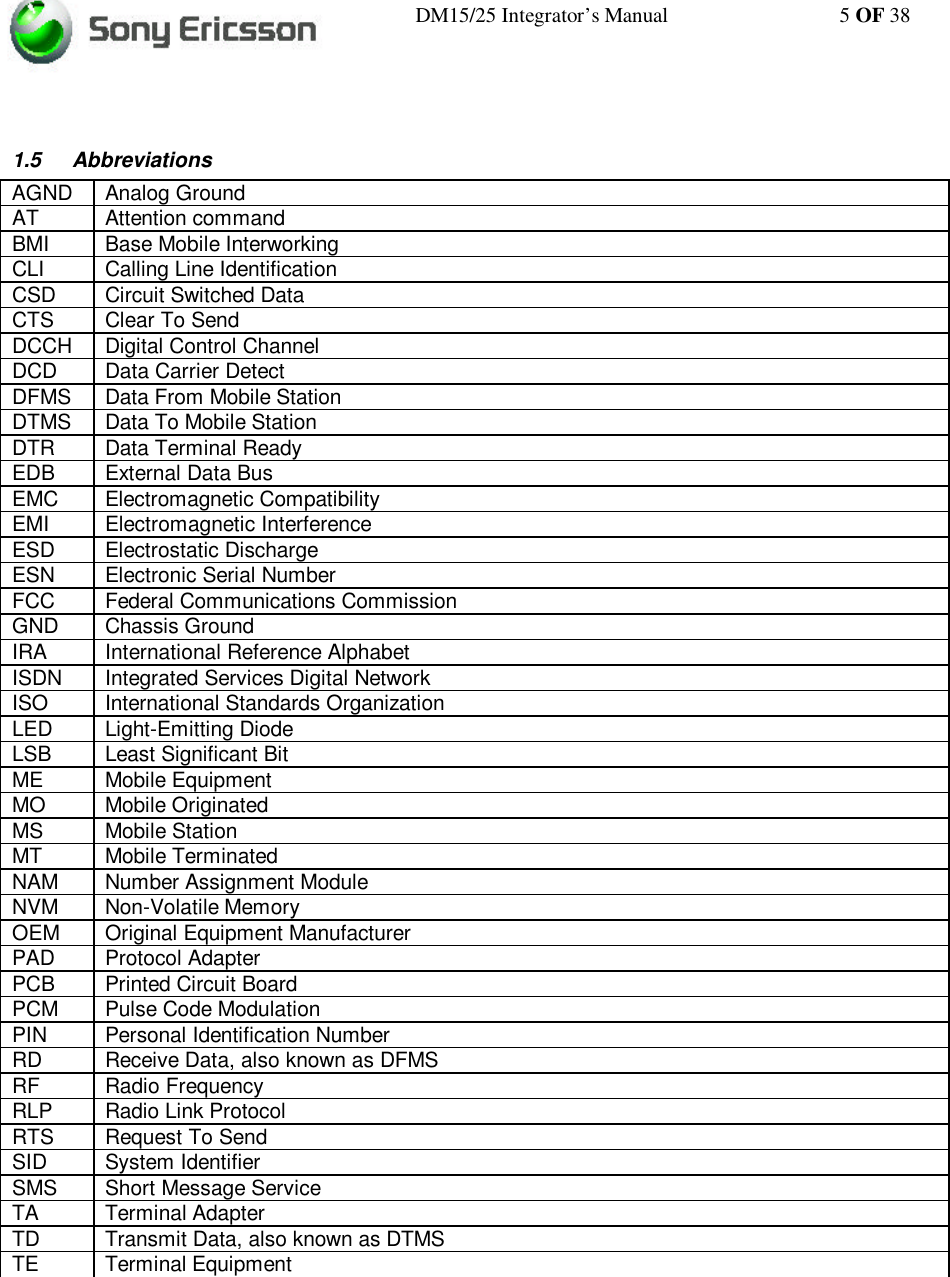

DM15/25 Integrator’s Manual 5 OF 381.5 AbbreviationsAGND Analog GroundAT Attention commandBMI Base Mobile InterworkingCLI Calling Line IdentificationCSD Circuit Switched DataCTS Clear To SendDCCH Digital Control ChannelDCD Data Carrier DetectDFMS Data From Mobile StationDTMS Data To Mobile StationDTR Data Terminal ReadyEDB External Data BusEMC Electromagnetic CompatibilityEMI Electromagnetic InterferenceESD Electrostatic DischargeESN Electronic Serial NumberFCC Federal Communications CommissionGND Chassis GroundIRA International Reference AlphabetISDN Integrated Services Digital NetworkISO International Standards OrganizationLED Light-Emitting DiodeLSB Least Significant BitME Mobile EquipmentMO Mobile OriginatedMS Mobile StationMT Mobile TerminatedNAM Number Assignment ModuleNVM Non-Volatile MemoryOEM Original Equipment ManufacturerPAD Protocol AdapterPCB Printed Circuit BoardPCM Pulse Code ModulationPIN Personal Identification NumberRD Receive Data, also known as DFMSRF Radio FrequencyRLP Radio Link ProtocolRTS Request To SendSID System IdentifierSMS Short Message ServiceTA Terminal AdapterTD Transmit Data, also known as DTMSTE Terminal Equipment

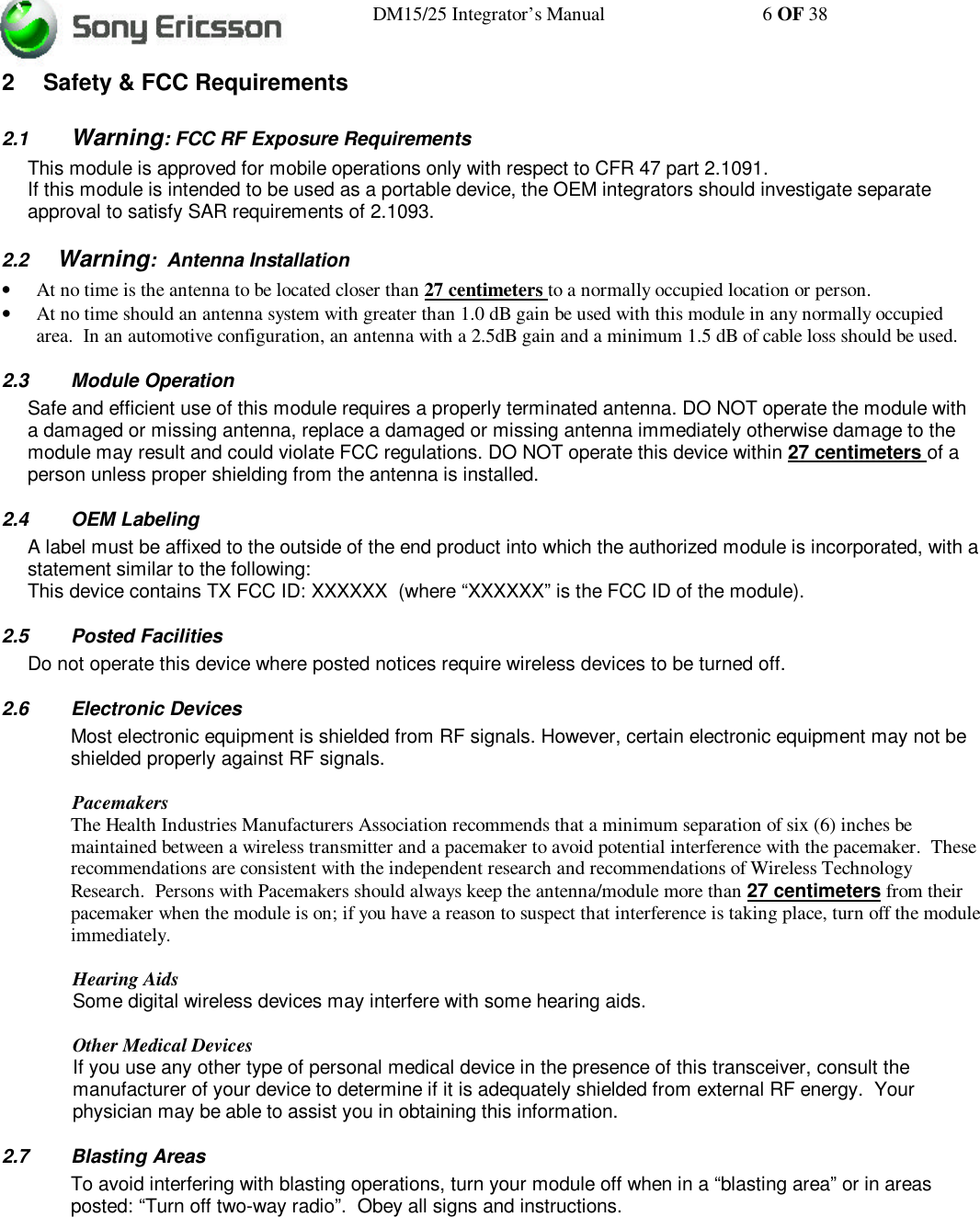

DM15/25 Integrator’s Manual 6 OF 382 Safety & FCC Requirements2.1 Warning: FCC RF Exposure RequirementsThis module is approved for mobile operations only with respect to CFR 47 part 2.1091.If this module is intended to be used as a portable device, the OEM integrators should investigate separateapproval to satisfy SAR requirements of 2.1093.2.2 Warning: Antenna Installation• At no time is the antenna to be located closer than 27 centimeters to a normally occupied location or person.• At no time should an antenna system with greater than 1.0 dB gain be used with this module in any normally occupiedarea. In an automotive configuration, an antenna with a 2.5dB gain and a minimum 1.5 dB of cable loss should be used.2.3 Module OperationSafe and efficient use of this module requires a properly terminated antenna. DO NOT operate the module witha damaged or missing antenna, replace a damaged or missing antenna immediately otherwise damage to themodule may result and could violate FCC regulations. DO NOT operate this device within 27 centimeters of aperson unless proper shielding from the antenna is installed.2.4 OEM LabelingA label must be affixed to the outside of the end product into which the authorized module is incorporated, with astatement similar to the following:This device contains TX FCC ID: XXXXXX (where “XXXXXX” is the FCC ID of the module).2.5 Posted FacilitiesDo not operate this device where posted notices require wireless devices to be turned off.2.6 Electronic DevicesMost electronic equipment is shielded from RF signals. However, certain electronic equipment may not beshielded properly against RF signals.PacemakersThe Health Industries Manufacturers Association recommends that a minimum separation of six (6) inches bemaintained between a wireless transmitter and a pacemaker to avoid potential interference with the pacemaker. Theserecommendations are consistent with the independent research and recommendations of Wireless TechnologyResearch. Persons with Pacemakers should always keep the antenna/module more than 27 centimeters from theirpacemaker when the module is on; if you have a reason to suspect that interference is taking place, turn off the moduleimmediately.Hearing AidsSome digital wireless devices may interfere with some hearing aids.Other Medical DevicesIf you use any other type of personal medical device in the presence of this transceiver, consult themanufacturer of your device to determine if it is adequately shielded from external RF energy. Yourphysician may be able to assist you in obtaining this information.2.7 Blasting AreasTo avoid interfering with blasting operations, turn your module off when in a “blasting area” or in areasposted: “Turn off two-way radio”. Obey all signs and instructions.

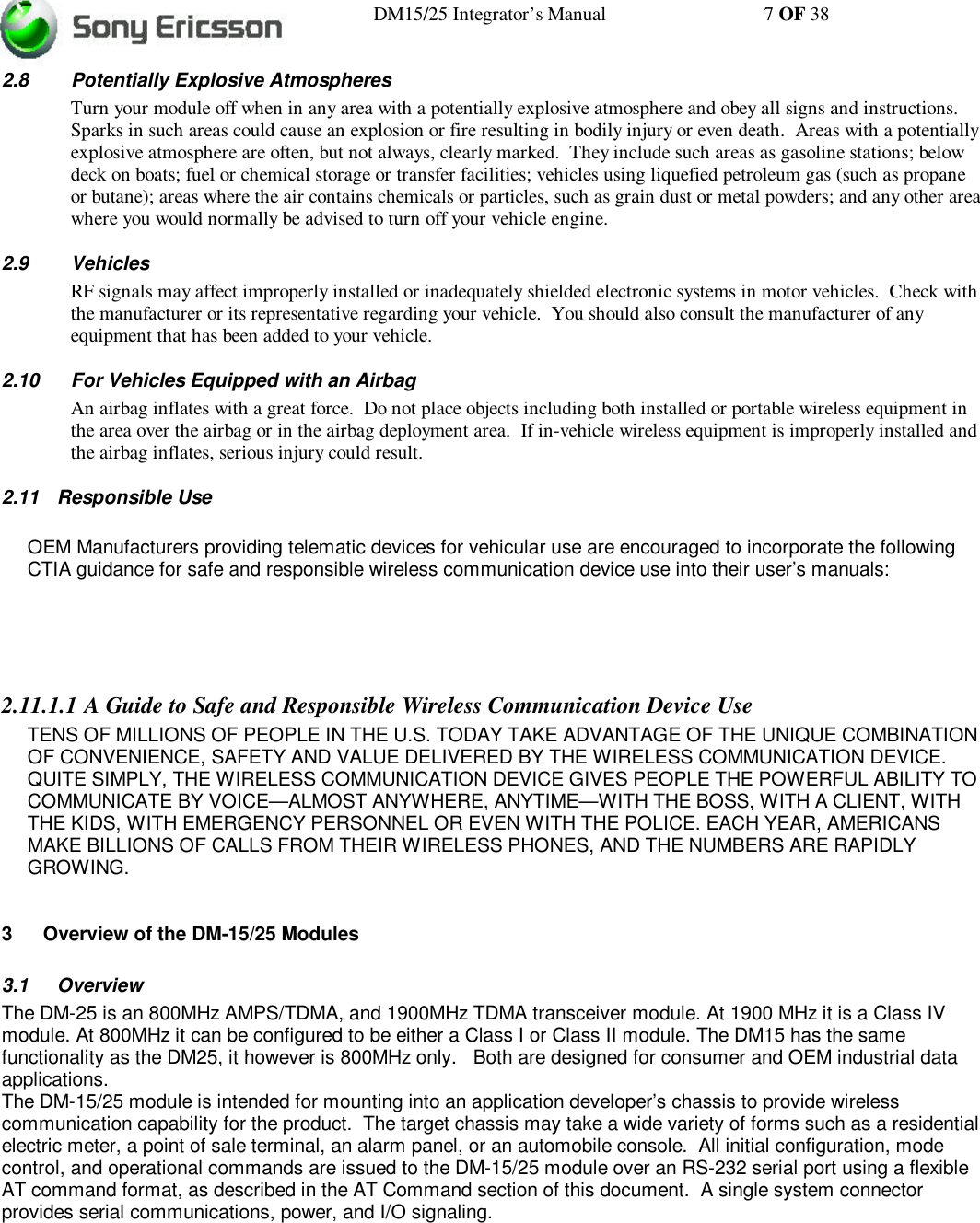

DM15/25 Integrator’s Manual 7 OF 382.8 Potentially Explosive AtmospheresTurn your module off when in any area with a potentially explosive atmosphere and obey all signs and instructions.Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Areas with a potentiallyexplosive atmosphere are often, but not always, clearly marked. They include such areas as gasoline stations; belowdeck on boats; fuel or chemical storage or transfer facilities; vehicles using liquefied petroleum gas (such as propaneor butane); areas where the air contains chemicals or particles, such as grain dust or metal powders; and any other areawhere you would normally be advised to turn off your vehicle engine.2.9 VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check withthe manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of anyequipment that has been added to your vehicle.2.10 For Vehicles Equipped with an AirbagAn airbag inflates with a great force. Do not place objects including both installed or portable wireless equipment inthe area over the airbag or in the airbag deployment area. If in-vehicle wireless equipment is improperly installed andthe airbag inflates, serious injury could result.2.11 Responsible UseOEM Manufacturers providing telematic devices for vehicular use are encouraged to incorporate the followingCTIA guidance for safe and responsible wireless communication device use into their user’s manuals:2.11.1.1 A Guide to Safe and Responsible Wireless Communication Device UseTENS OF MILLIONS OF PEOPLE IN THE U.S. TODAY TAKE ADVANTAGE OF THE UNIQUE COMBINATIONOF CONVENIENCE, SAFETY AND VALUE DELIVERED BY THE WIRELESS COMMUNICATION DEVICE.QUITE SIMPLY, THE WIRELESS COMMUNICATION DEVICE GIVES PEOPLE THE POWERFUL ABILITY TOCOMMUNICATE BY VOICE—ALMOST ANYWHERE, ANYTIME—WITH THE BOSS, WITH A CLIENT, WITHTHE KIDS, WITH EMERGENCY PERSONNEL OR EVEN WITH THE POLICE. EACH YEAR, AMERICANSMAKE BILLIONS OF CALLS FROM THEIR WIRELESS PHONES, AND THE NUMBERS ARE RAPIDLYGROWING.3 Overview of the DM-15/25 Modules3.1 OverviewThe DM-25 is an 800MHz AMPS/TDMA, and 1900MHz TDMA transceiver module. At 1900 MHz it is a Class IVmodule. At 800MHz it can be configured to be either a Class I or Class II module. The DM15 has the samefunctionality as the DM25, it however is 800MHz only. Both are designed for consumer and OEM industrial dataapplications.The DM-15/25 module is intended for mounting into an application developer’s chassis to provide wirelesscommunication capability for the product. The target chassis may take a wide variety of forms such as a residentialelectric meter, a point of sale terminal, an alarm panel, or an automobile console. All initial configuration, modecontrol, and operational commands are issued to the DM-15/25 module over an RS-232 serial port using a flexibleAT command format, as described in the AT Command section of this document. A single system connectorprovides serial communications, power, and I/O signaling.

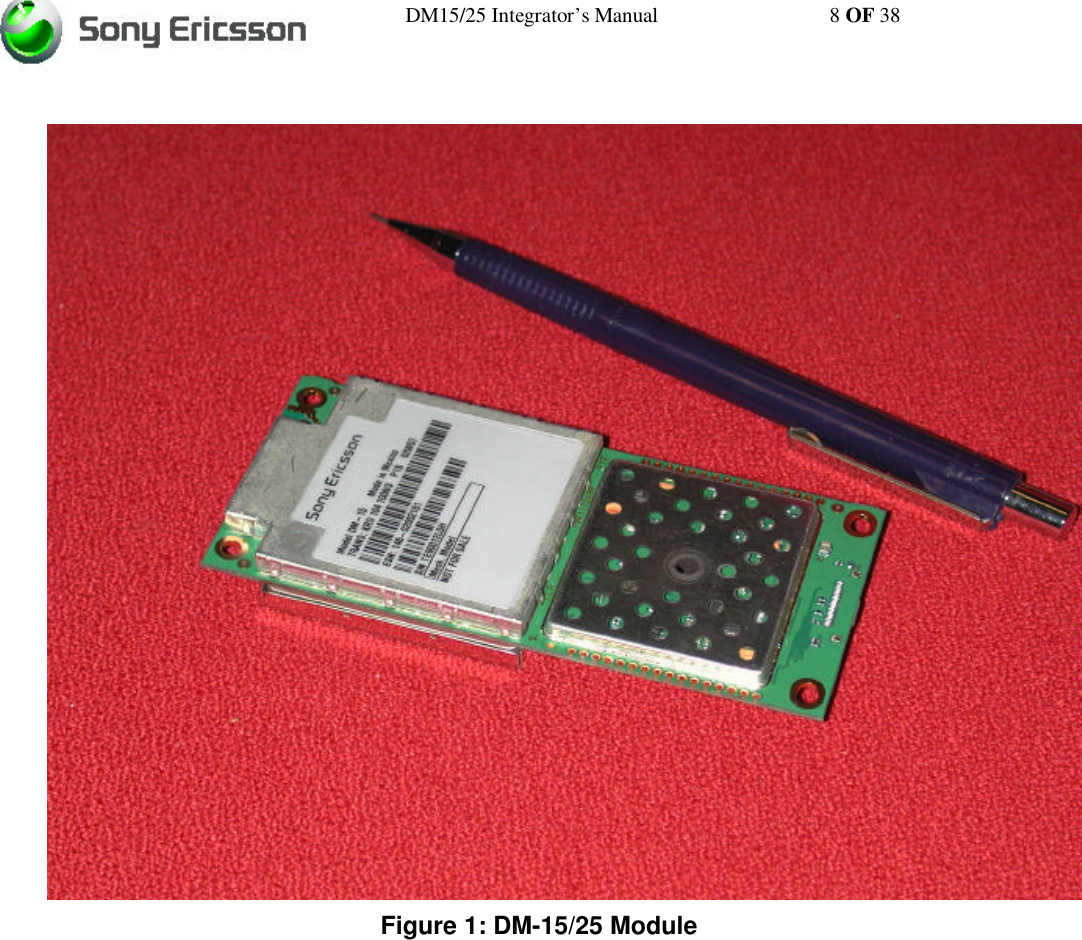

DM15/25 Integrator’s Manual 8 OF 38Figure 1: DM-15/25 Module

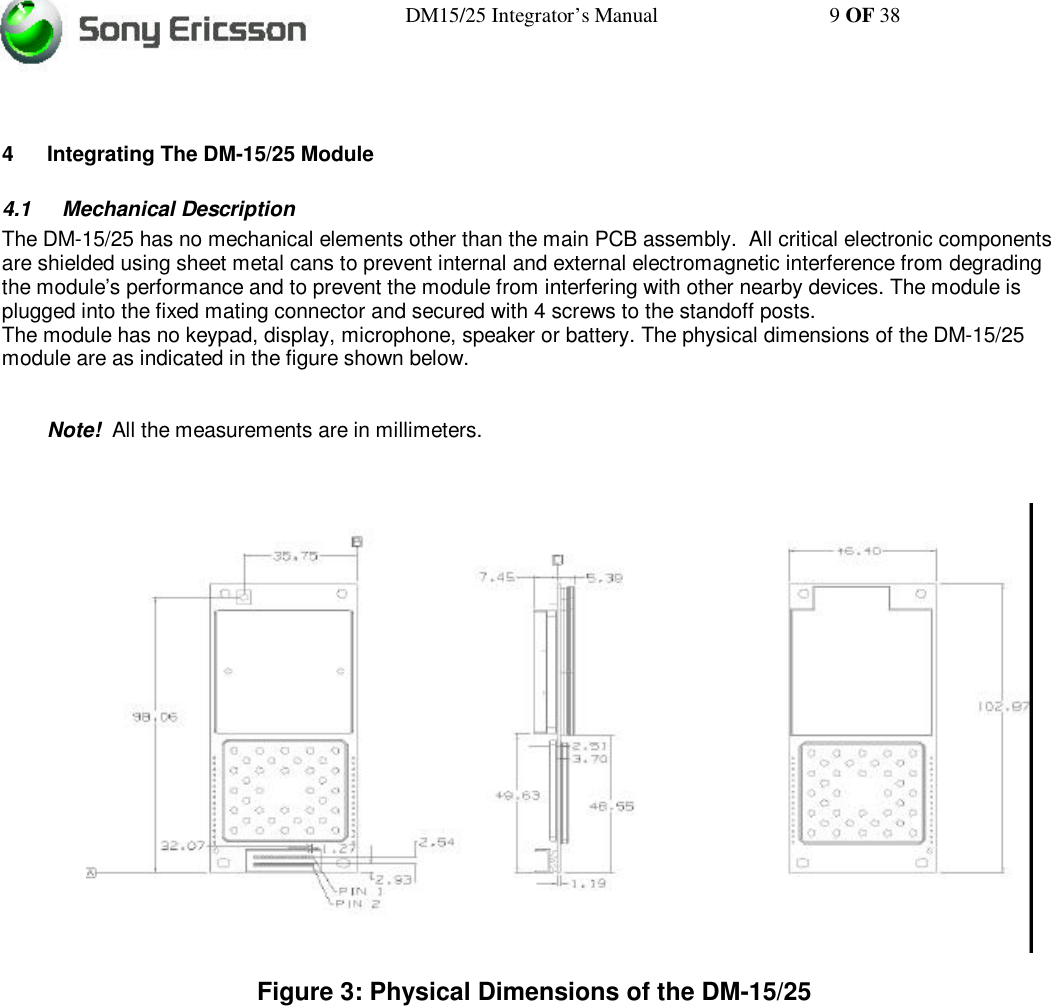

DM15/25 Integrator’s Manual 9 OF 384 Integrating The DM-15/25 Module4.1 Mechanical DescriptionThe DM-15/25 has no mechanical elements other than the main PCB assembly. All critical electronic componentsare shielded using sheet metal cans to prevent internal and external electromagnetic interference from degradingthe module’s performance and to prevent the module from interfering with other nearby devices. The module isplugged into the fixed mating connector and secured with 4 screws to the standoff posts.The module has no keypad, display, microphone, speaker or battery. The physical dimensions of the DM-15/25module are as indicated in the figure shown below.Note! All the measurements are in millimeters.Figure 3: Physical Dimensions of the DM-15/25

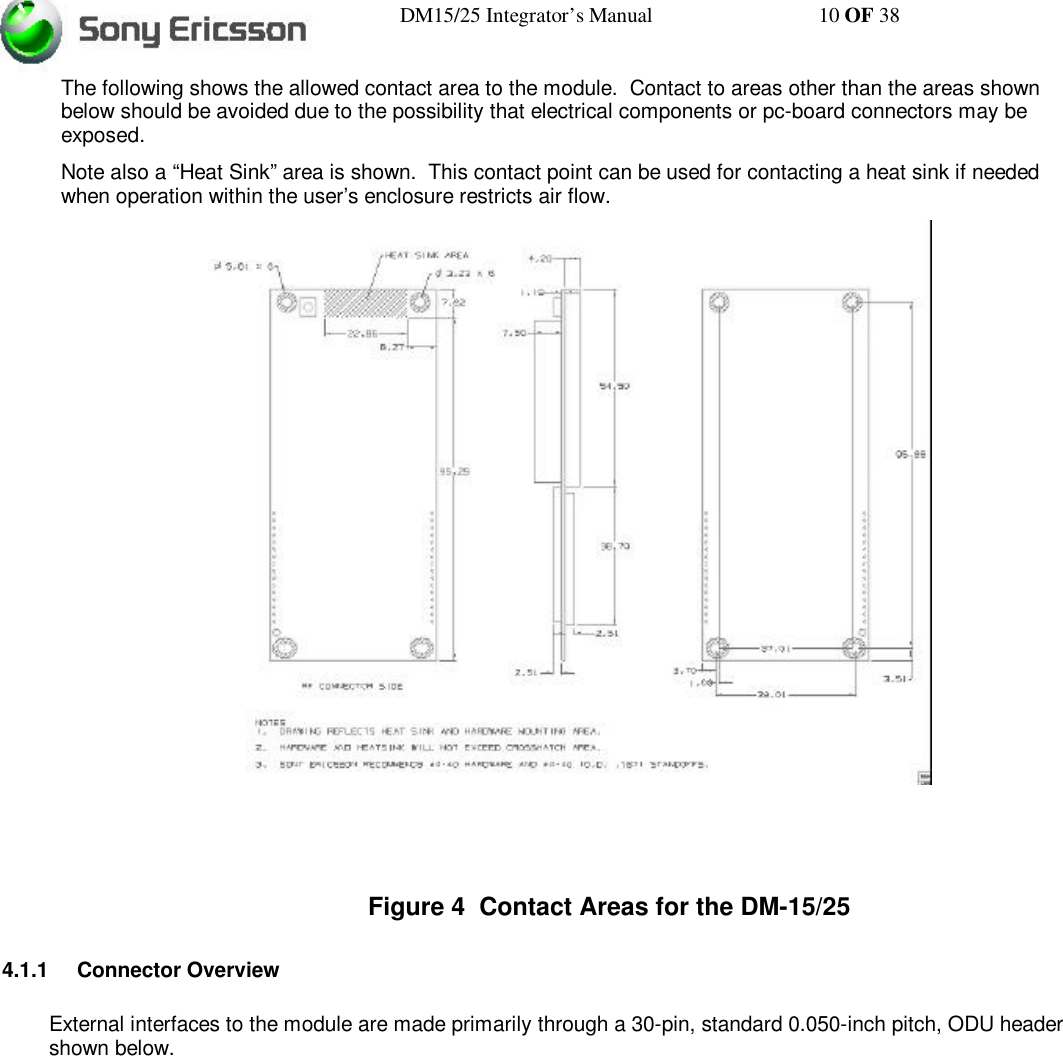

DM15/25 Integrator’s Manual 10 OF 38The following shows the allowed contact area to the module. Contact to areas other than the areas shownbelow should be avoided due to the possibility that electrical components or pc-board connectors may beexposed.Note also a “Heat Sink” area is shown. This contact point can be used for contacting a heat sink if neededwhen operation within the user’s enclosure restricts air flow.Figure 4 Contact Areas for the DM-15/254.1.1 Connector OverviewExternal interfaces to the module are made primarily through a 30-pin, standard 0.050-inch pitch, ODU headershown below.
DM15/25 Integrator’s Manual 11 OF 38Figure 2: 30-pin system connector

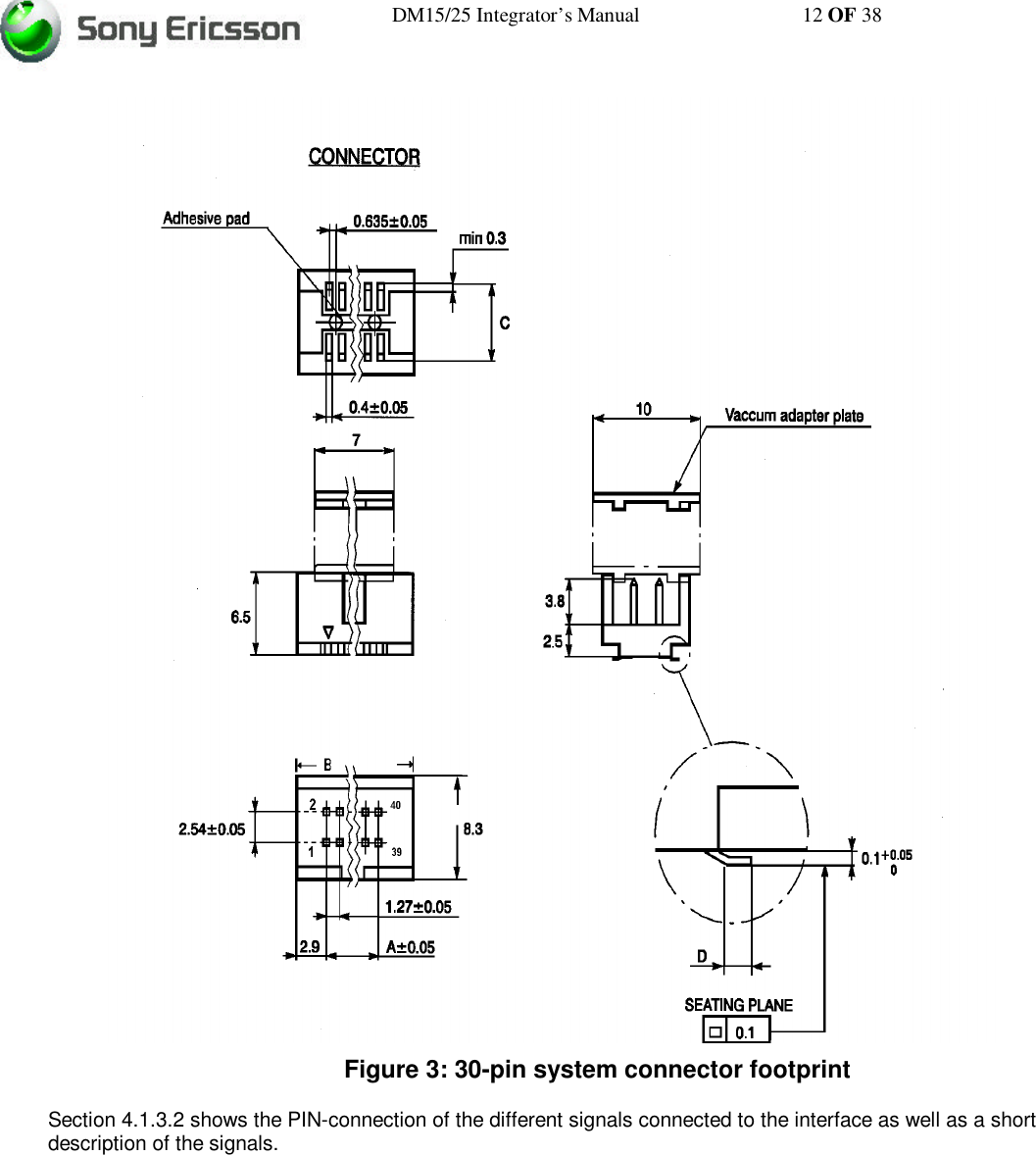

DM15/25 Integrator’s Manual 12 OF 38Figure 3: 30-pin system connector footprintSection 4.1.3.2 shows the PIN-connection of the different signals connected to the interface as well as a shortdescription of the signals.

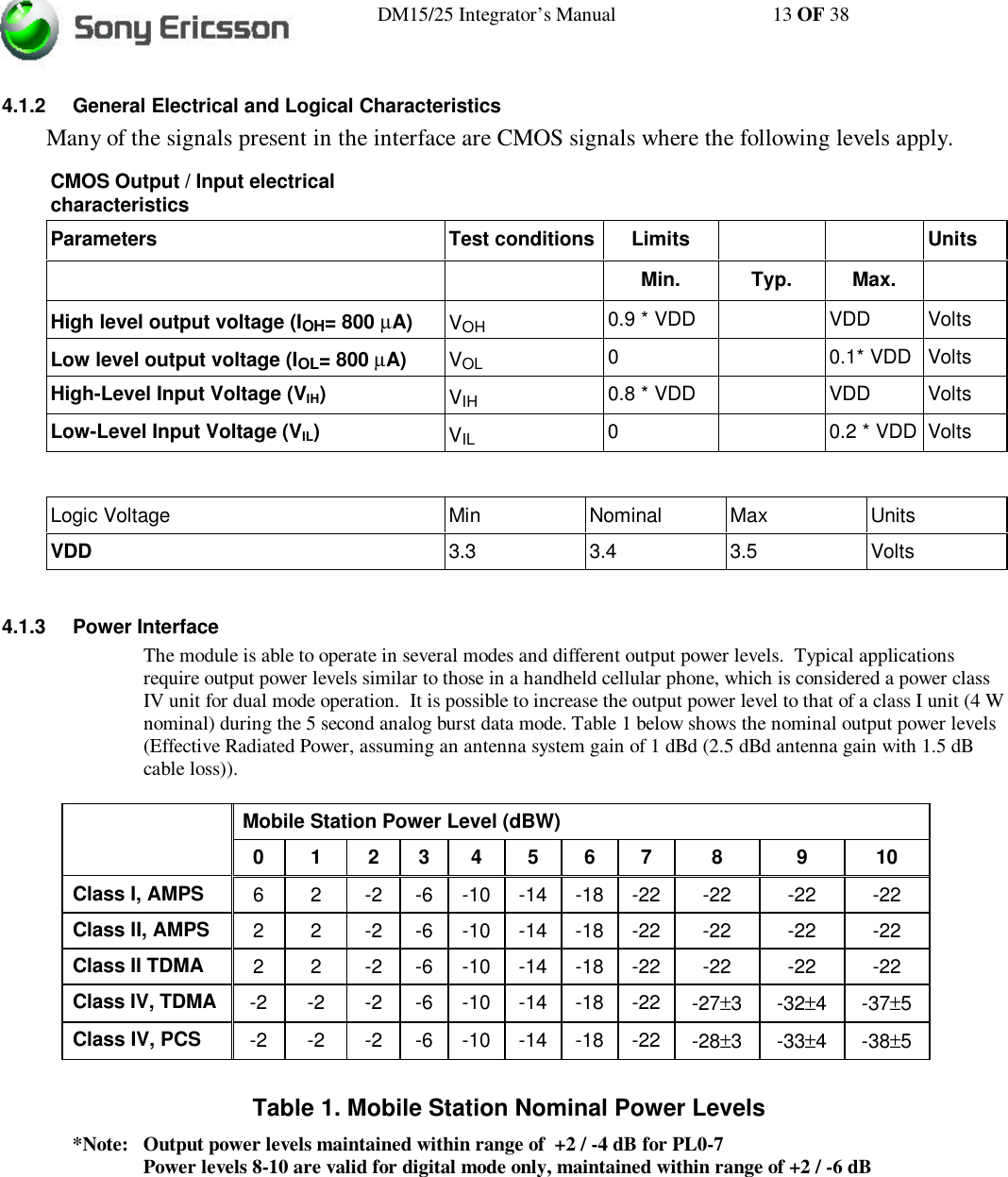

DM15/25 Integrator’s Manual 13 OF 384.1.2 General Electrical and Logical CharacteristicsMany of the signals present in the interface are CMOS signals where the following levels apply.CMOS Output / Input electricalcharacteristicsParameters Test conditions Limits UnitsMin. Typ. Max.High level output voltage (IOH= 800 µA) VOH 0.9 * VDD VDD VoltsLow level output voltage (IOL= 800 µA) VOL 00.1* VDD VoltsHigh-Level Input Voltage (VIH)VIH 0.8 * VDD VDD VoltsLow-Level Input Voltage (VIL)VIL 00.2 * VDD VoltsLogic Voltage Min Nominal Max UnitsVDD 3.3 3.4 3.5 Volts4.1.3 Power InterfaceThe module is able to operate in several modes and different output power levels. Typical applicationsrequire output power levels similar to those in a handheld cellular phone, which is considered a power classIV unit for dual mode operation. It is possible to increase the output power level to that of a class I unit (4 Wnominal) during the 5 second analog burst data mode. Table 1 below shows the nominal output power levels(Effective Radiated Power, assuming an antenna system gain of 1 dBd (2.5 dBd antenna gain with 1.5 dBcable loss)).Mobile Station Power Level (dBW)0 1 2 3 4 5 6 7 8 9 10Class I, AMPS 6 2 -2 -6 -10 -14 -18 -22 -22 -22 -22Class II, AMPS 2 2 -2 -6 -10 -14 -18 -22 -22 -22 -22Class II TDMA 2 2 -2 -6 -10 -14 -18 -22 -22 -22 -22Class IV, TDMA -2 -2 -2 -6 -10 -14 -18 -22 -27±3-32±4-37±5Class IV, PCS -2 -2 -2 -6 -10 -14 -18 -22 -28±3-33±4-38±5Table 1. Mobile Station Nominal Power Levels*Note: Output power levels maintained within range of +2 / -4 dB for PL0-7Power levels 8-10 are valid for digital mode only, maintained within range of +2 / -6 dB

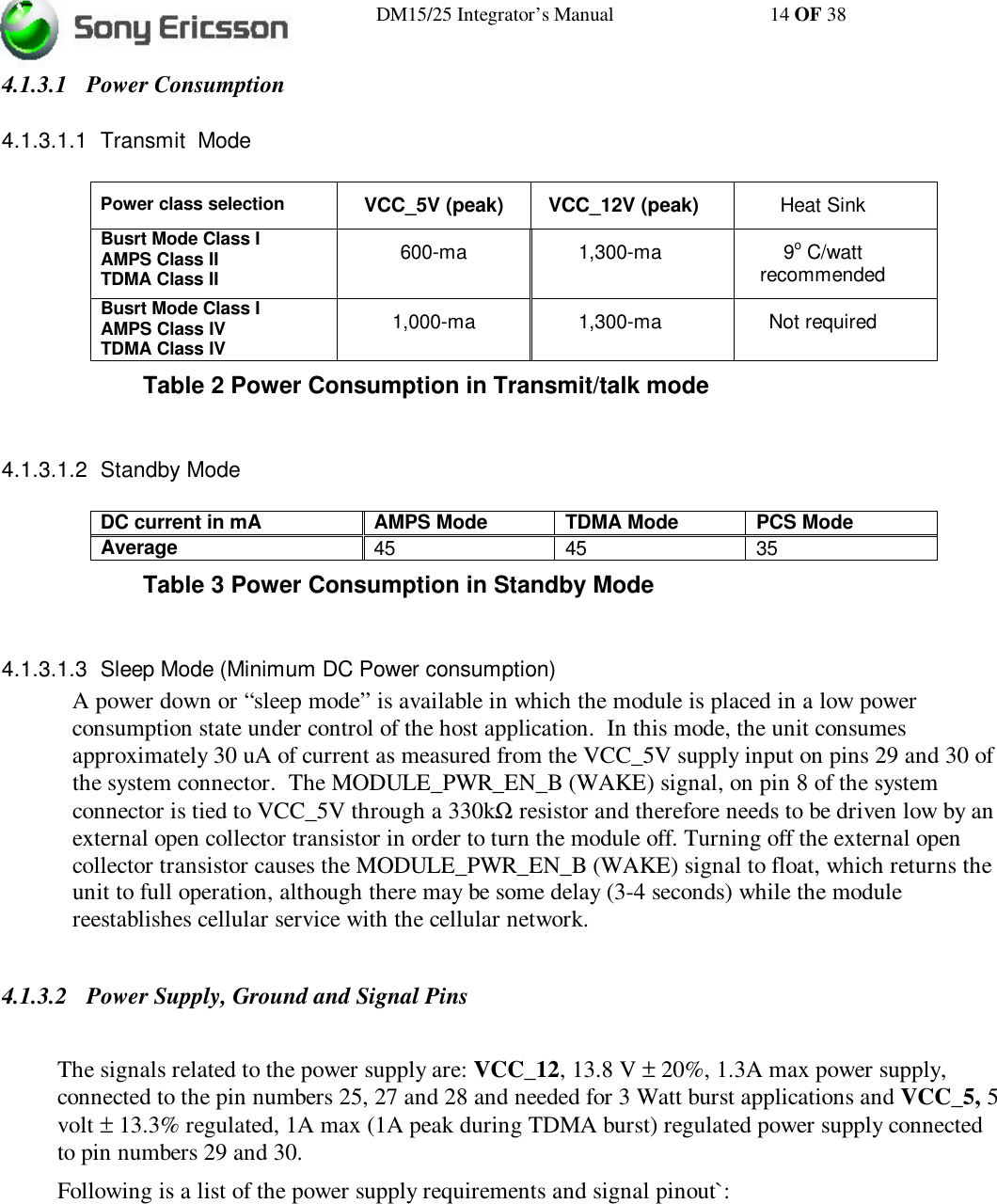

DM15/25 Integrator’s Manual 14 OF 384.1.3.1 Power Consumption4.1.3.1.1 Transmit ModePower class selection VCC_5V (peak) VCC_12V (peak) Heat SinkBusrt Mode Class IAMPS Class IITDMA Class II600-ma 1,300-ma 9o C/wattrecommendedBusrt Mode Class IAMPS Class IVTDMA Class IV1,000-ma 1,300-ma Not requiredTable 2 Power Consumption in Transmit/talk mode4.1.3.1.2 Standby ModeDC current in mA AMPS Mode TDMA Mode PCS ModeAverage 45 45 35Table 3 Power Consumption in Standby Mode4.1.3.1.3 Sleep Mode (Minimum DC Power consumption)A power down or “sleep mode” is available in which the module is placed in a low powerconsumption state under control of the host application. In this mode, the unit consumesapproximately 30 uA of current as measured from the VCC_5V supply input on pins 29 and 30 ofthe system connector. The MODULE_PWR_EN_B (WAKE) signal, on pin 8 of the systemconnector is tied to VCC_5V through a 330kΩ resistor and therefore needs to be driven low by anexternal open collector transistor in order to turn the module off. Turning off the external opencollector transistor causes the MODULE_PWR_EN_B (WAKE) signal to float, which returns theunit to full operation, although there may be some delay (3-4 seconds) while the modulereestablishes cellular service with the cellular network.4.1.3.2 Power Supply, Ground and Signal PinsThe signals related to the power supply are: VCC_12, 13.8 V ± 20%, 1.3A max power supply,connected to the pin numbers 25, 27 and 28 and needed for 3 Watt burst applications and VCC_5, 5volt ± 13.3% regulated, 1A max (1A peak during TDMA burst) regulated power supply connectedto pin numbers 29 and 30.Following is a list of the power supply requirements and signal pinout`:

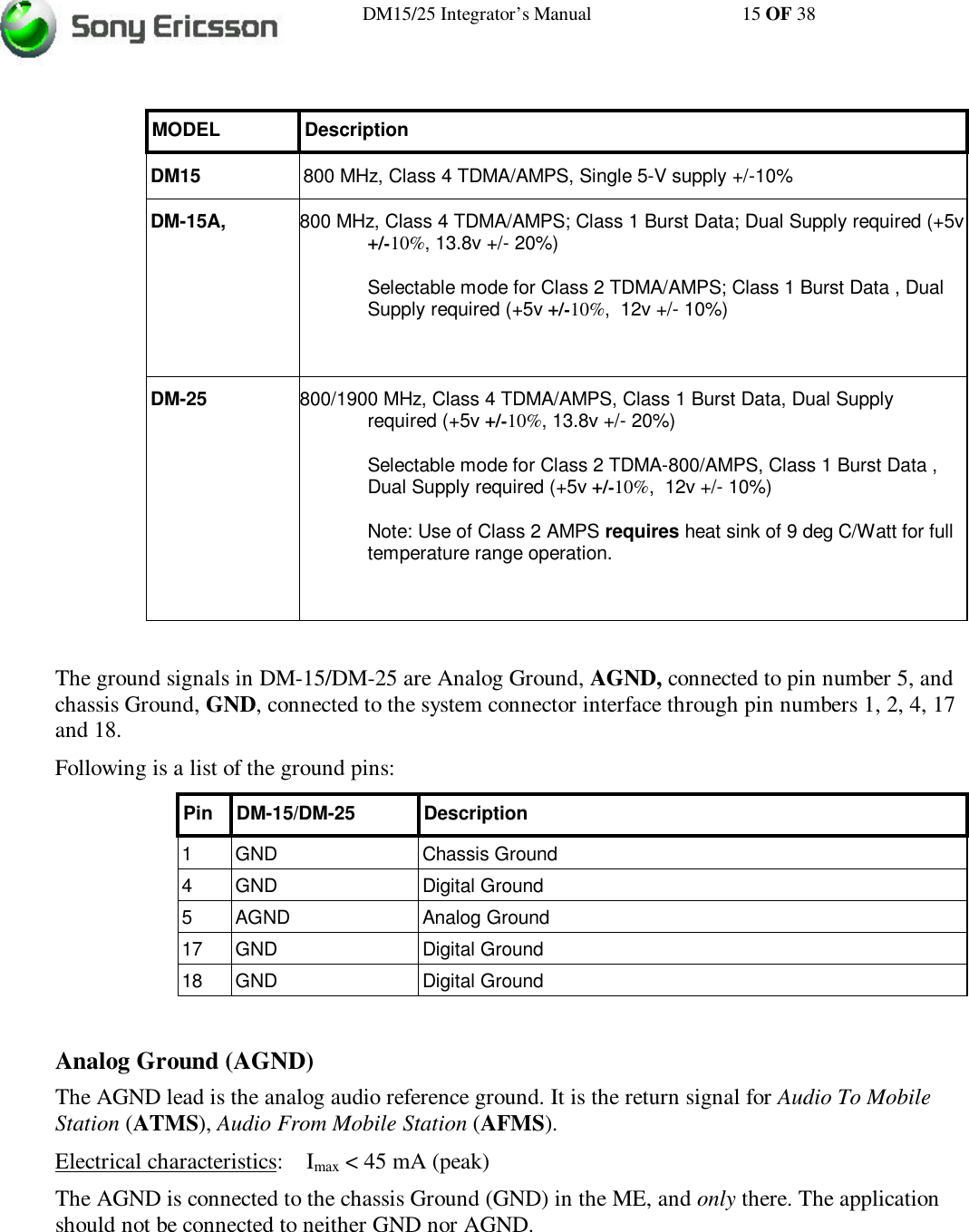

DM15/25 Integrator’s Manual 15 OF 38MODEL DescriptionDM15 800 MHz, Class 4 TDMA/AMPS, Single 5-V supply +/-10%DM-15A, 800 MHz, Class 4 TDMA/AMPS; Class 1 Burst Data; Dual Supply required (+5v+/-10%, 13.8v +/- 20%)Selectable mode for Class 2 TDMA/AMPS; Class 1 Burst Data , DualSupply required (+5v +/-10%, 12v +/- 10%)DM-25 800/1900 MHz, Class 4 TDMA/AMPS, Class 1 Burst Data, Dual Supplyrequired (+5v +/-10%, 13.8v +/- 20%)Selectable mode for Class 2 TDMA-800/AMPS, Class 1 Burst Data ,Dual Supply required (+5v +/-10%, 12v +/- 10%)Note: Use of Class 2 AMPS requires heat sink of 9 deg C/Watt for fulltemperature range operation.The ground signals in DM-15/DM-25 are Analog Ground, AGND, connected to pin number 5, andchassis Ground, GND, connected to the system connector interface through pin numbers 1, 2, 4, 17and 18.Following is a list of the ground pins:Pin DM-15/DM-25 Description1GND Chassis Ground4GND Digital Ground5AGND Analog Ground17 GND Digital Ground18 GND Digital GroundAnalog Ground (AGND)The AGND lead is the analog audio reference ground. It is the return signal for Audio To MobileStation (ATMS), Audio From Mobile Station (AFMS).Electrical characteristics: Imax < 45 mA (peak)The AGND is connected to the chassis Ground (GND) in the ME, and only there. The applicationshould not be connected to neither GND nor AGND.

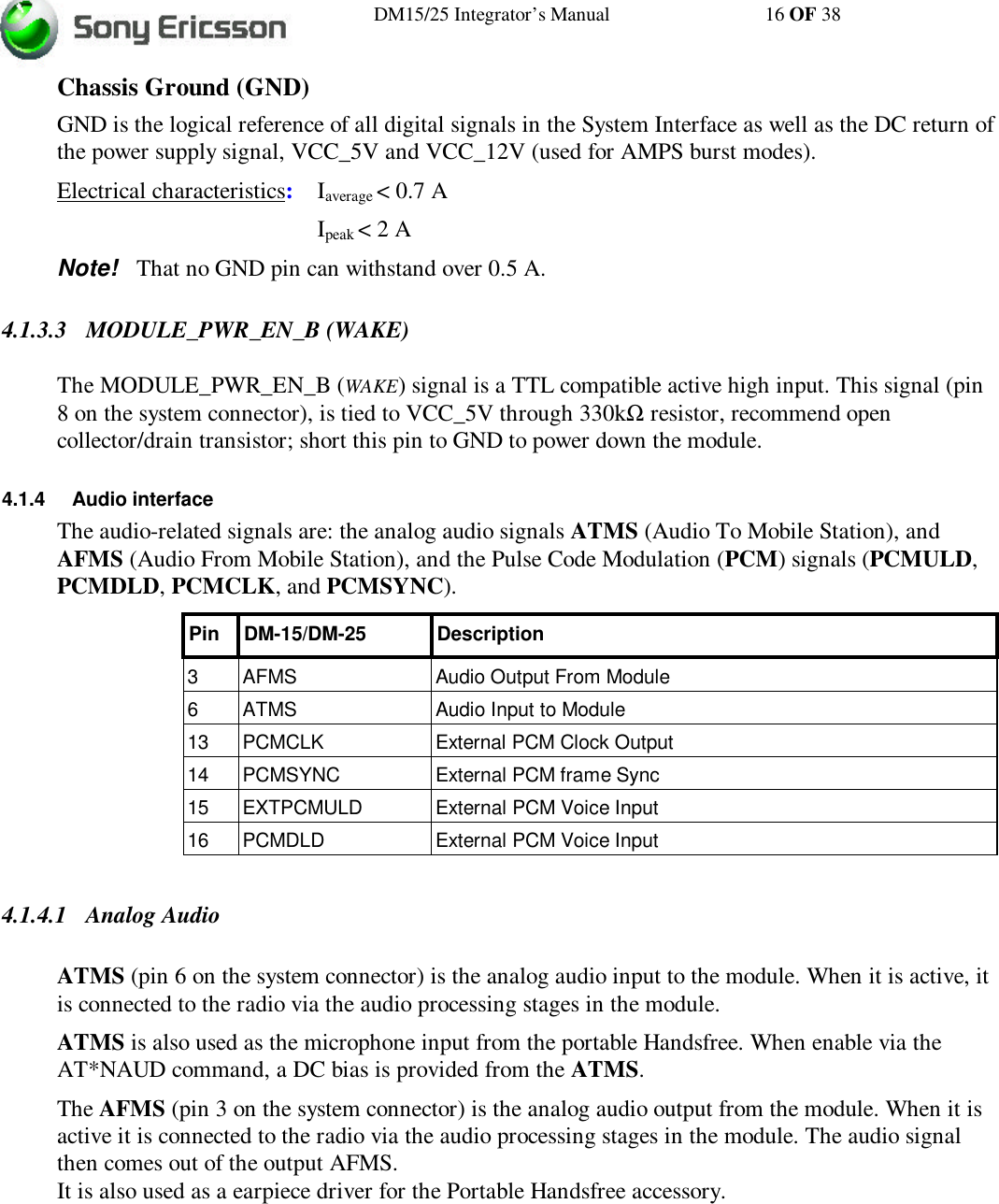

DM15/25 Integrator’s Manual 16 OF 38Chassis Ground (GND)GND is the logical reference of all digital signals in the System Interface as well as the DC return ofthe power supply signal, VCC_5V and VCC_12V (used for AMPS burst modes).Electrical characteristics: Iaverage < 0.7 AIpeak < 2 ANote! That no GND pin can withstand over 0.5 A.4.1.3.3 MODULE_PWR_EN_B (WAKE)The MODULE_PWR_EN_B (WAKE) signal is a TTL compatible active high input. This signal (pin8 on the system connector), is tied to VCC_5V through 330kΩ resistor, recommend opencollector/drain transistor; short this pin to GND to power down the module.4.1.4 Audio interfaceThe audio-related signals are: the analog audio signals ATMS (Audio To Mobile Station), andAFMS (Audio From Mobile Station), and the Pulse Code Modulation (PCM) signals (PCMULD,PCMDLD, PCMCLK, and PCMSYNC).Pin DM-15/DM-25 Description3AFMS Audio Output From Module6ATMS Audio Input to Module13 PCMCLK External PCM Clock Output14 PCMSYNC External PCM frame Sync15 EXTPCMULD External PCM Voice Input16 PCMDLD External PCM Voice Input4.1.4.1 Analog AudioATMS (pin 6 on the system connector) is the analog audio input to the module. When it is active, itis connected to the radio via the audio processing stages in the module.ATMS is also used as the microphone input from the portable Handsfree. When enable via theAT*NAUD command, a DC bias is provided from the ATMS.The AFMS (pin 3 on the system connector) is the analog audio output from the module. When it isactive it is connected to the radio via the audio processing stages in the module. The audio signalthen comes out of the output AFMS.It is also used as a earpiece driver for the Portable Handsfree accessory.

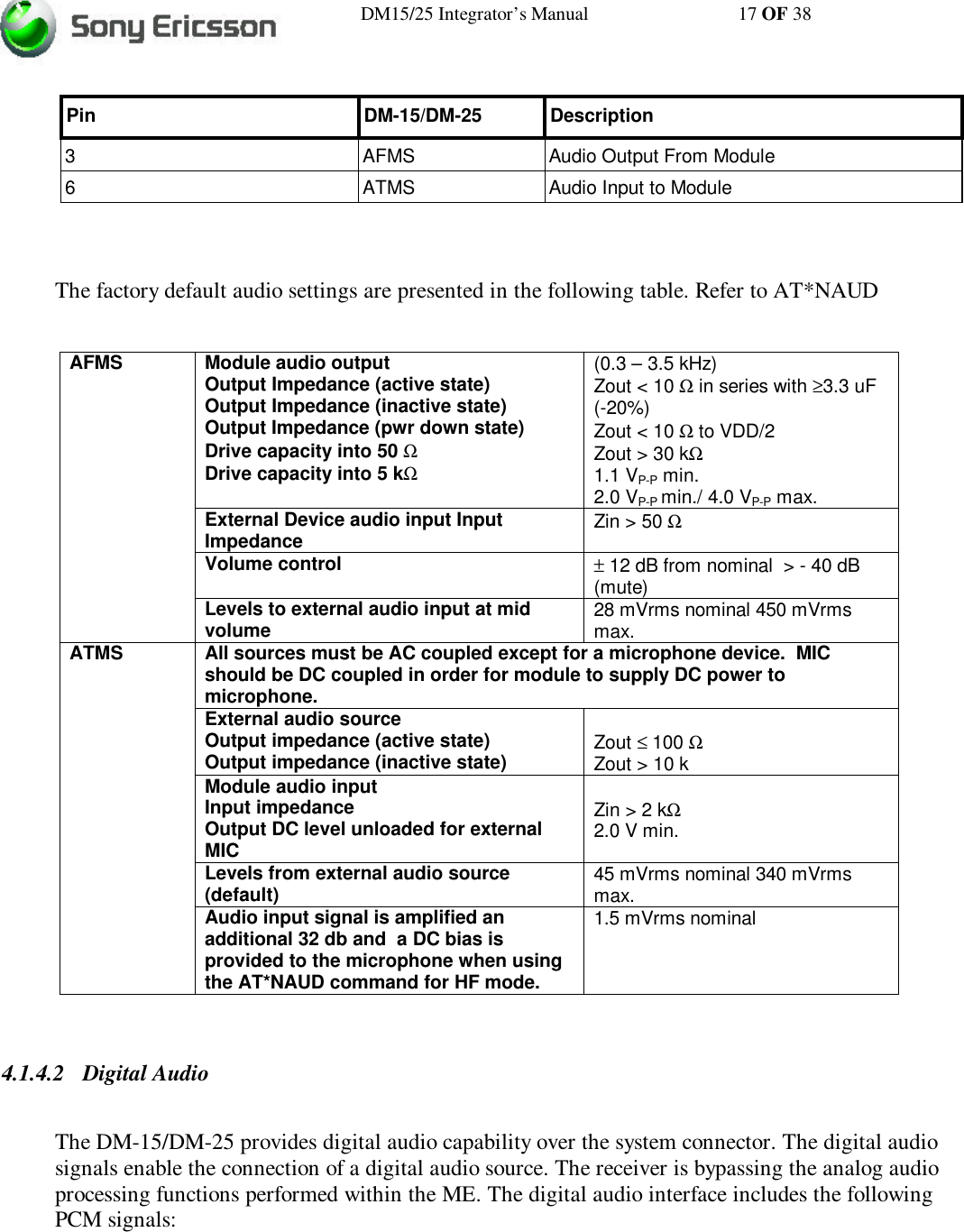

DM15/25 Integrator’s Manual 17 OF 38Pin DM-15/DM-25 Description3AFMS Audio Output From Module6ATMS Audio Input to ModuleThe factory default audio settings are presented in the following table. Refer to AT*NAUDModule audio outputOutput Impedance (active state)Output Impedance (inactive state)Output Impedance (pwr down state)Drive capacity into 50 ΩDrive capacity into 5 kΩ(0.3 – 3.5 kHz)Zout < 10 Ω in series with ≥3.3 uF(-20%)Zout < 10 Ω to VDD/2Zout > 30 kΩ1.1 VP-P min.2.0 VP-P min./ 4.0 VP-P max.External Device audio input InputImpedance Zin > 50 ΩVolume control ± 12 dB from nominal > - 40 dB(mute)AFMSLevels to external audio input at midvolume 28 mVrms nominal 450 mVrmsmax.All sources must be AC coupled except for a microphone device. MICshould be DC coupled in order for module to supply DC power tomicrophone.External audio sourceOutput impedance (active state)Output impedance (inactive state) Zout ≤ 100 ΩZout > 10 kModule audio inputInput impedanceOutput DC level unloaded for externalMICZin > 2 kΩ2.0 V min.Levels from external audio source(default) 45 mVrms nominal 340 mVrmsmax.ATMSAudio input signal is amplified anadditional 32 db and a DC bias isprovided to the microphone when usingthe AT*NAUD command for HF mode.1.5 mVrms nominal4.1.4.2 Digital AudioThe DM-15/DM-25 provides digital audio capability over the system connector. The digital audiosignals enable the connection of a digital audio source. The receiver is bypassing the analog audioprocessing functions performed within the ME. The digital audio interface includes the followingPCM signals:

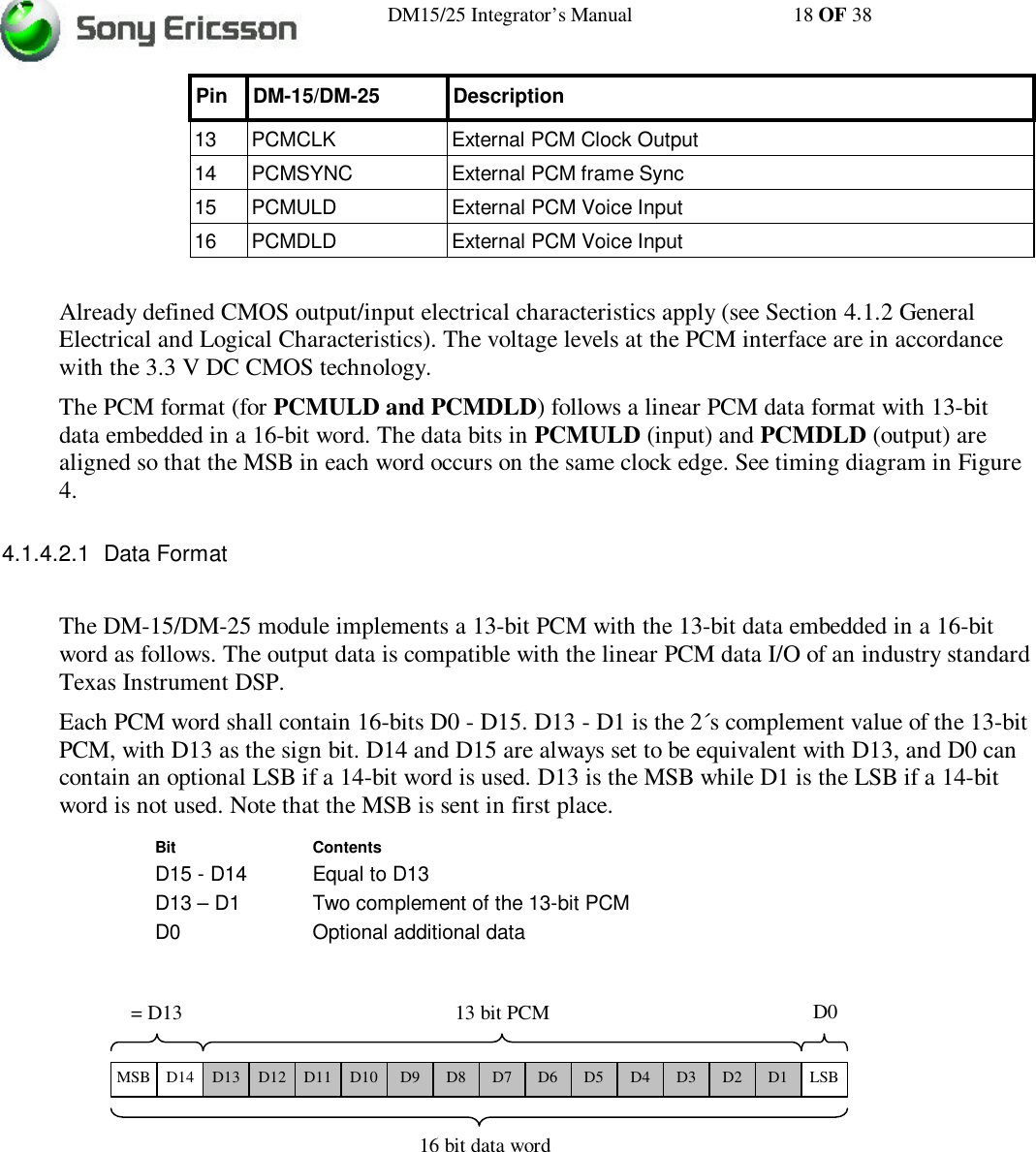

DM15/25 Integrator’s Manual 18 OF 38Pin DM-15/DM-25 Description13 PCMCLK External PCM Clock Output14 PCMSYNC External PCM frame Sync15 PCMULD External PCM Voice Input16 PCMDLD External PCM Voice InputAlready defined CMOS output/input electrical characteristics apply (see Section 4.1.2 GeneralElectrical and Logical Characteristics). The voltage levels at the PCM interface are in accordancewith the 3.3 V DC CMOS technology.The PCM format (for PCMULD and PCMDLD) follows a linear PCM data format with 13-bitdata embedded in a 16-bit word. The data bits in PCMULD (input) and PCMDLD (output) arealigned so that the MSB in each word occurs on the same clock edge. See timing diagram in Figure4.4.1.4.2.1 Data FormatThe DM-15/DM-25 module implements a 13-bit PCM with the 13-bit data embedded in a 16-bitword as follows. The output data is compatible with the linear PCM data I/O of an industry standardTexas Instrument DSP.Each PCM word shall contain 16-bits D0 - D15. D13 - D1 is the 2´s complement value of the 13-bitPCM, with D13 as the sign bit. D14 and D15 are always set to be equivalent with D13, and D0 cancontain an optional LSB if a 14-bit word is used. D13 is the MSB while D1 is the LSB if a 14-bitword is not used. Note that the MSB is sent in first place.Bit ContentsD15 - D14 Equal to D13D13 – D1 Two complement of the 13-bit PCMD0 Optional additional dataD0MSB D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 LSB= D13 13 bit PCM16 bit data word

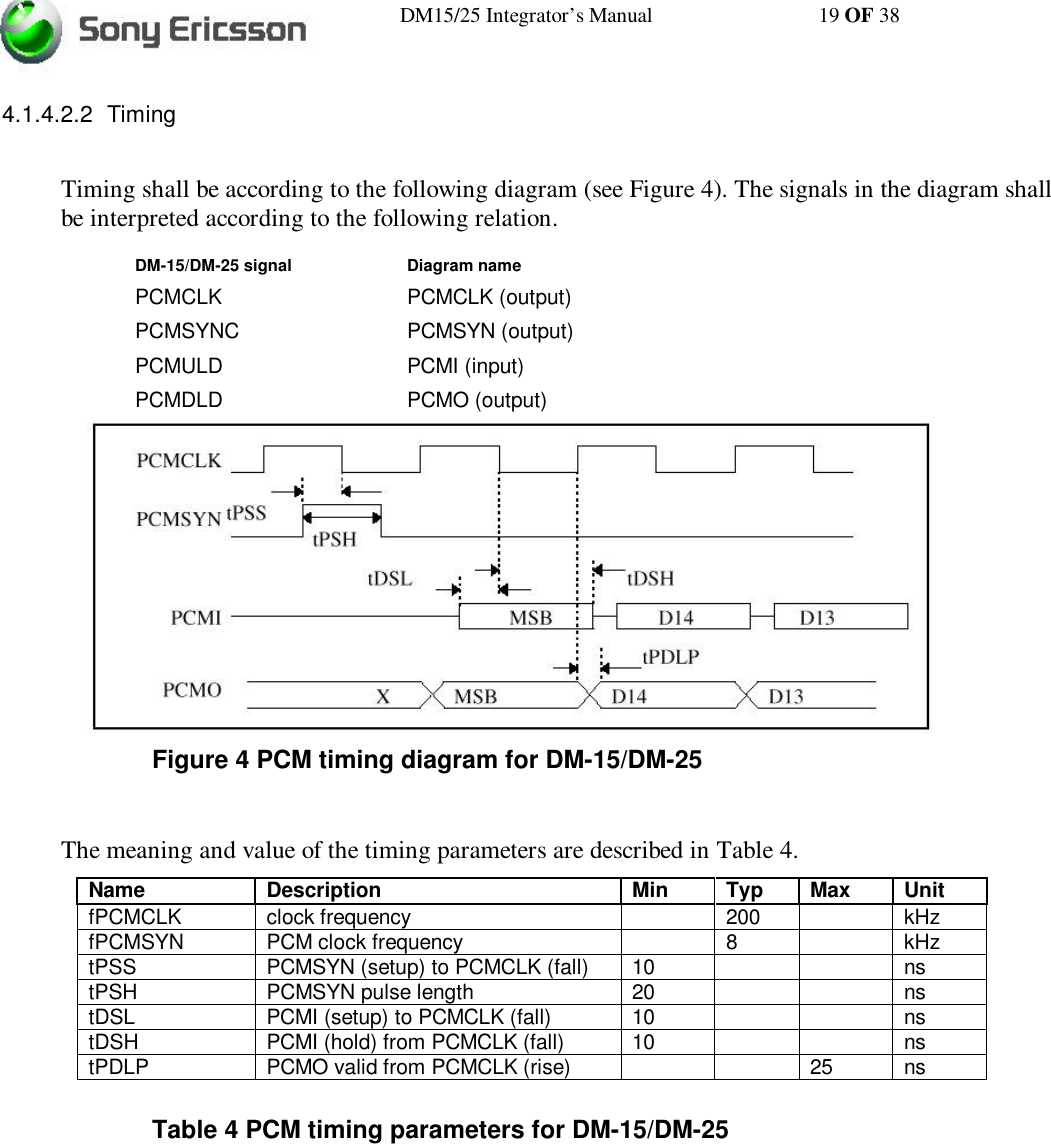

DM15/25 Integrator’s Manual 19 OF 384.1.4.2.2 TimingTiming shall be according to the following diagram (see Figure 4). The signals in the diagram shallbe interpreted according to the following relation.DM-15/DM-25 signal Diagram namePCMCLK PCMCLK (output)PCMSYNC PCMSYN (output)PCMULD PCMI (input)PCMDLD PCMO (output)Figure 4 PCM timing diagram for DM-15/DM-25The meaning and value of the timing parameters are described in Table 4.Name Description Min Typ Max UnitfPCMCLK clock frequency 200 kHzfPCMSYN PCM clock frequency 8kHztPSS PCMSYN (setup) to PCMCLK (fall) 10 nstPSH PCMSYN pulse length 20 nstDSL PCMI (setup) to PCMCLK (fall) 10 nstDSH PCMI (hold) from PCMCLK (fall) 10 nstPDLP PCMO valid from PCMCLK (rise) 25 nsTable 4 PCM timing parameters for DM-15/DM-25

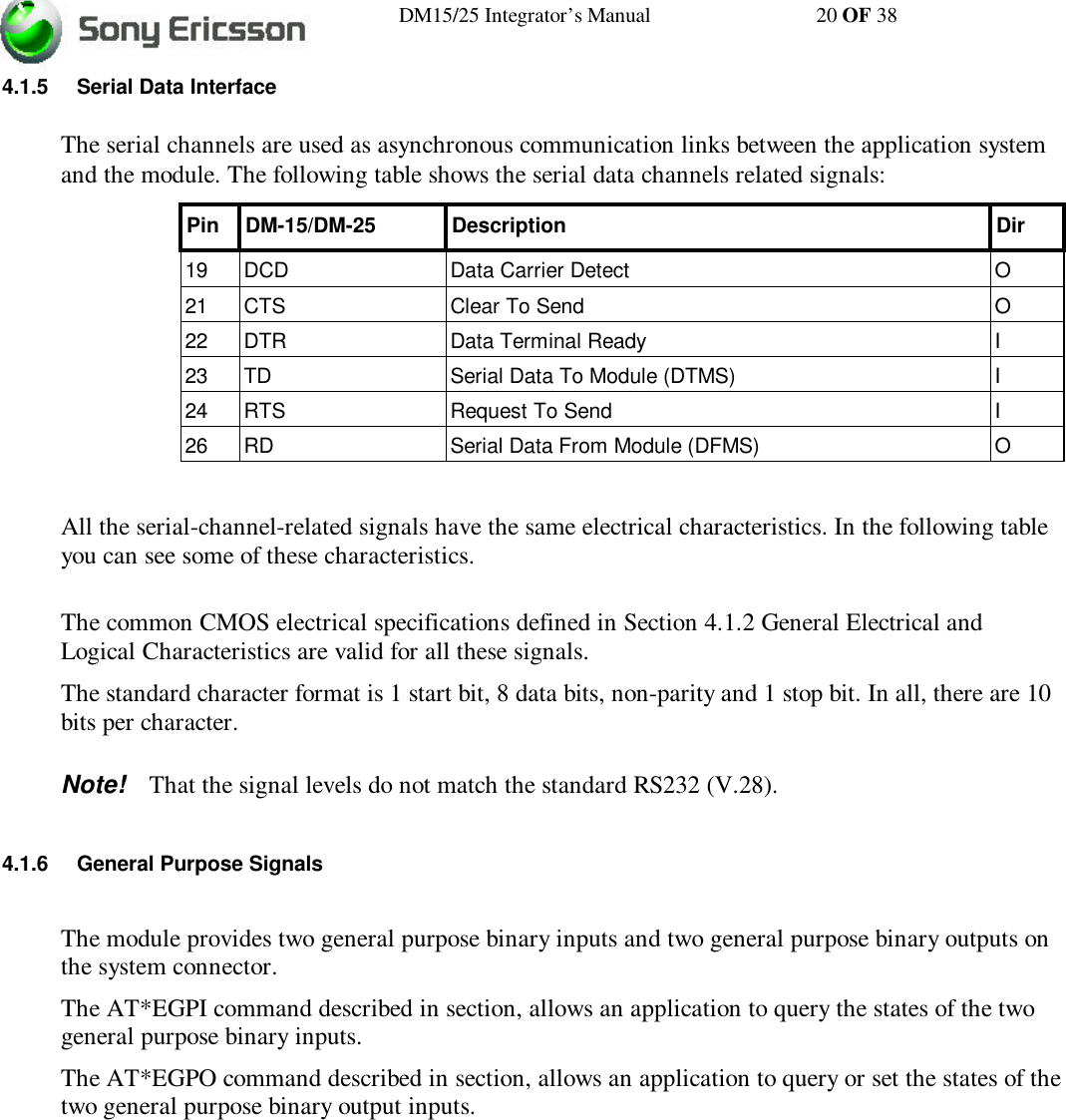

DM15/25 Integrator’s Manual 20 OF 384.1.5 Serial Data InterfaceThe serial channels are used as asynchronous communication links between the application systemand the module. The following table shows the serial data channels related signals:Pin DM-15/DM-25 Description Dir19 DCD Data Carrier Detect O21 CTS Clear To Send O22 DTR Data Terminal Ready I23 TD Serial Data To Module (DTMS) I24 RTS Request To Send I26 RD Serial Data From Module (DFMS) OAll the serial-channel-related signals have the same electrical characteristics. In the following tableyou can see some of these characteristics.The common CMOS electrical specifications defined in Section 4.1.2 General Electrical andLogical Characteristics are valid for all these signals.The standard character format is 1 start bit, 8 data bits, non-parity and 1 stop bit. In all, there are 10bits per character.Note! That the signal levels do not match the standard RS232 (V.28).4.1.6 General Purpose SignalsThe module provides two general purpose binary inputs and two general purpose binary outputs onthe system connector.The AT*EGPI command described in section, allows an application to query the states of the twogeneral purpose binary inputs.The AT*EGPO command described in section, allows an application to query or set the states of thetwo general purpose binary output inputs.

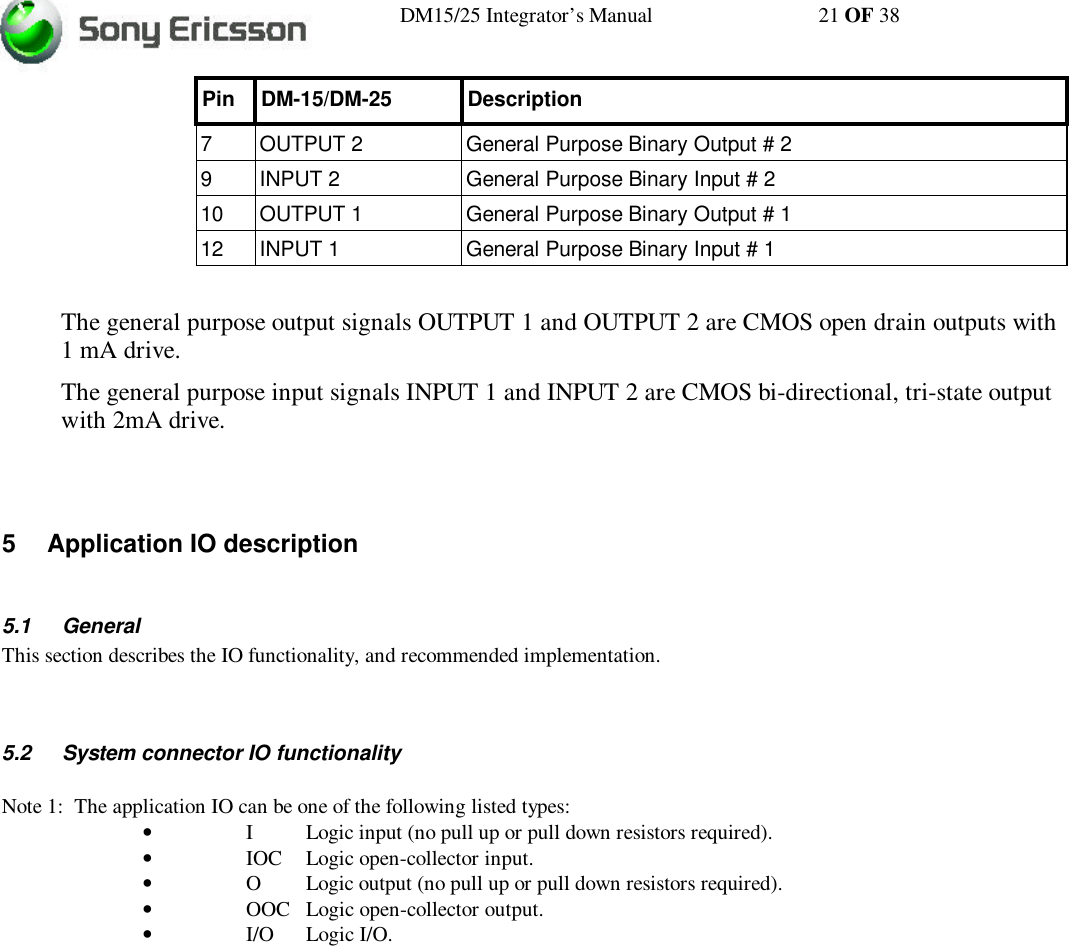

DM15/25 Integrator’s Manual 21 OF 38Pin DM-15/DM-25 Description7OUTPUT 2 General Purpose Binary Output # 29INPUT 2 General Purpose Binary Input # 210 OUTPUT 1 General Purpose Binary Output # 112 INPUT 1 General Purpose Binary Input # 1The general purpose output signals OUTPUT 1 and OUTPUT 2 are CMOS open drain outputs with1 mA drive.The general purpose input signals INPUT 1 and INPUT 2 are CMOS bi-directional, tri-state outputwith 2mA drive.5 Application IO description5.1 GeneralThis section describes the IO functionality, and recommended implementation.5.2 System connector IO functionalityNote 1: The application IO can be one of the following listed types:• ILogic input (no pull up or pull down resistors required).• IOC Logic open-collector input.• OLogic output (no pull up or pull down resistors required).• OOC Logic open-collector output.• I/O Logic I/O.

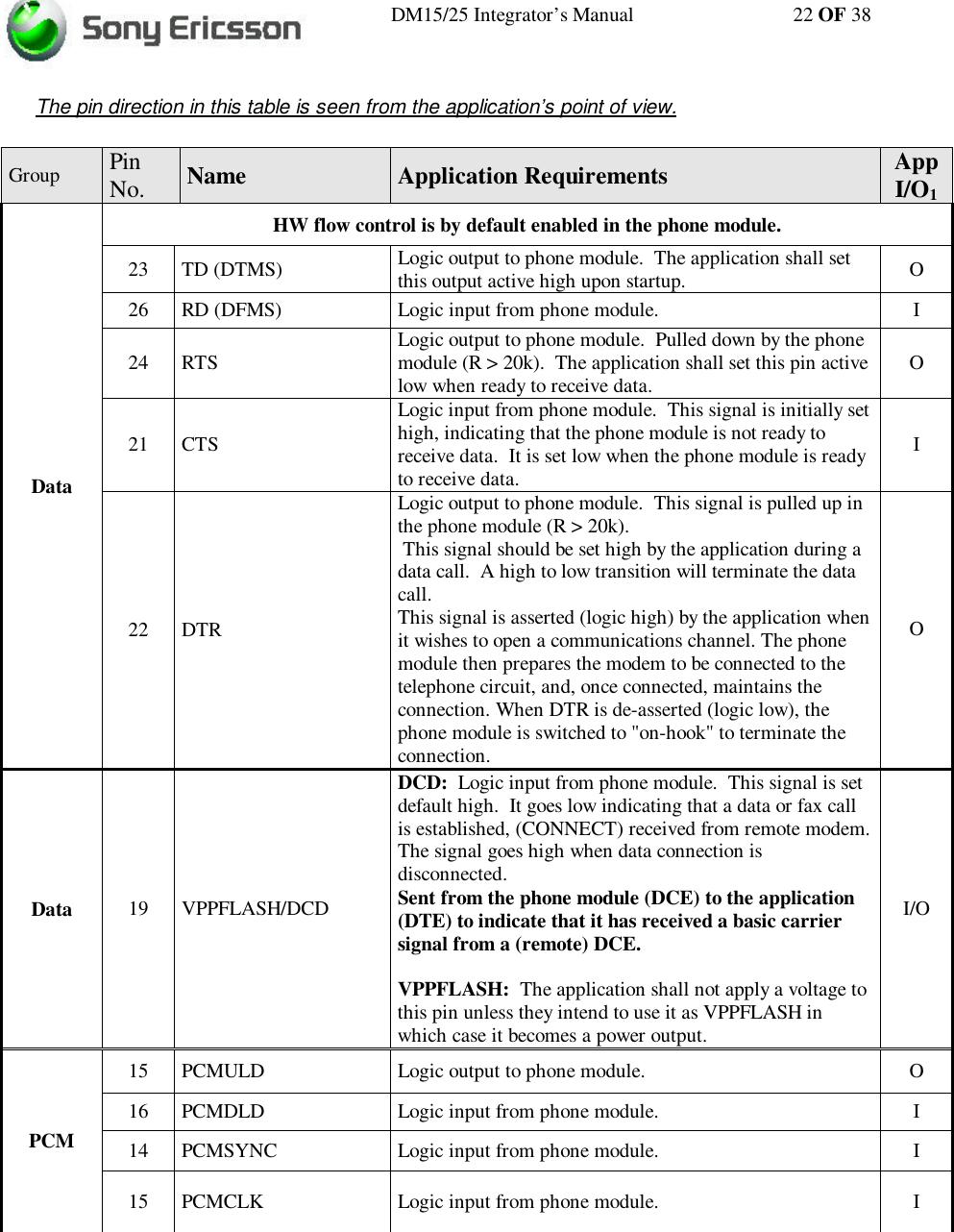

DM15/25 Integrator’s Manual 22 OF 38The pin direction in this table is seen from the application’s point of view.Group PinNo. Name Application Requirements AppI/O1HW flow control is by default enabled in the phone module.23 TD (DTMS) Logic output to phone module. The application shall setthis output active high upon startup. O26 RD (DFMS) Logic input from phone module. I24 RTS Logic output to phone module. Pulled down by the phonemodule (R > 20k). The application shall set this pin activelow when ready to receive data. O21 CTSLogic input from phone module. This signal is initially sethigh, indicating that the phone module is not ready toreceive data. It is set low when the phone module is readyto receive data.IData22 DTRLogic output to phone module. This signal is pulled up inthe phone module (R > 20k). This signal should be set high by the application during adata call. A high to low transition will terminate the datacall.This signal is asserted (logic high) by the application whenit wishes to open a communications channel. The phonemodule then prepares the modem to be connected to thetelephone circuit, and, once connected, maintains theconnection. When DTR is de-asserted (logic low), thephone module is switched to "on-hook" to terminate theconnection.OData 19 VPPFLASH/DCDDCD: Logic input from phone module. This signal is setdefault high. It goes low indicating that a data or fax callis established, (CONNECT) received from remote modem.The signal goes high when data connection isdisconnected.Sent from the phone module (DCE) to the application(DTE) to indicate that it has received a basic carriersignal from a (remote) DCE.VPPFLASH: The application shall not apply a voltage tothis pin unless they intend to use it as VPPFLASH inwhich case it becomes a power output.I/O15 PCMULD Logic output to phone module. O16 PCMDLD Logic input from phone module. I14 PCMSYNC Logic input from phone module. IPCM15 PCMCLK Logic input from phone module. I
DM15/25 Integrator’s Manual 23 OF 385AGNDAnalog reference. This signal is an analog referenceoutput by the phone module. This signal is connected toGND in one place in the phone module. Under nocircumstances shall it be connected to any ground or beused as ground in the application.See 3.4 for more detailed information.I6ATMS Single ended audio output to phone module. OAnalog Audio3AFMS Single ended audio input from phone module. I8MODULE_PWR_EN_BLogic open collector output that is set low by theapplication to enable power to the phone module. Thepull-up resistor resides in the phone module. OOC2420 RINGER Pulse Modulated logic input from phone module. Theapplication must provide power amplification if the currentdraw is expected to exceed 1mA. IStatus40 USB_D- No termination. Leave open.Unused9RESERVED No termination. Leave open. I12 RESERVED Terminate with a ~100k resistor to DGND. O7RESERVED Terminate with a ~100k resistor to DGND. O10 RESERVED No termination. Leave open. IReserved11 RESERVED Terminate with a ~100k resistor to DGND. NC

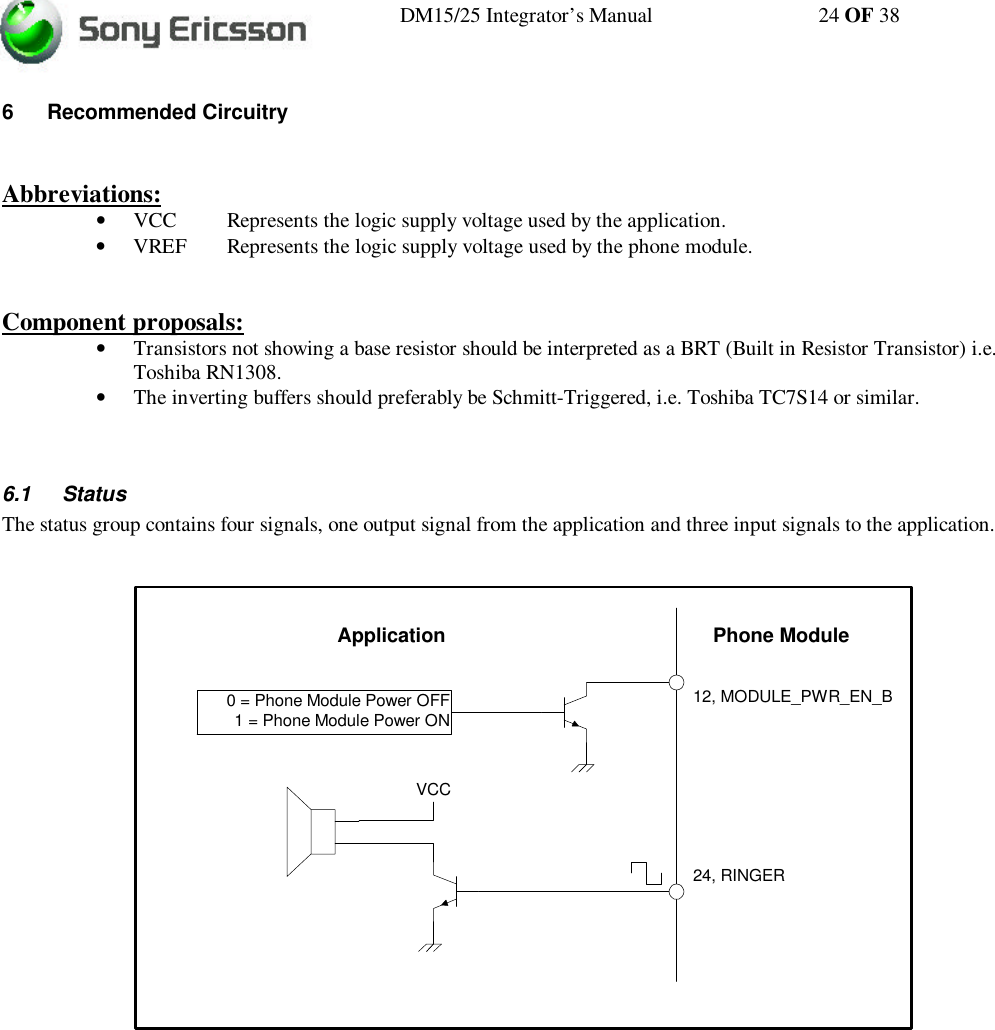

DM15/25 Integrator’s Manual 24 OF 386 Recommended CircuitryAbbreviations:• VCC Represents the logic supply voltage used by the application.• VREF Represents the logic supply voltage used by the phone module.Component proposals:• Transistors not showing a base resistor should be interpreted as a BRT (Built in Resistor Transistor) i.e.Toshiba RN1308.• The inverting buffers should preferably be Schmitt-Triggered, i.e. Toshiba TC7S14 or similar.6.1 StatusThe status group contains four signals, one output signal from the application and three input signals to the application.Phone ModuleApplication12, MODULE_PWR_EN_B0 = Phone Module Power OFF1 = Phone Module Power ON24, RINGERVCC

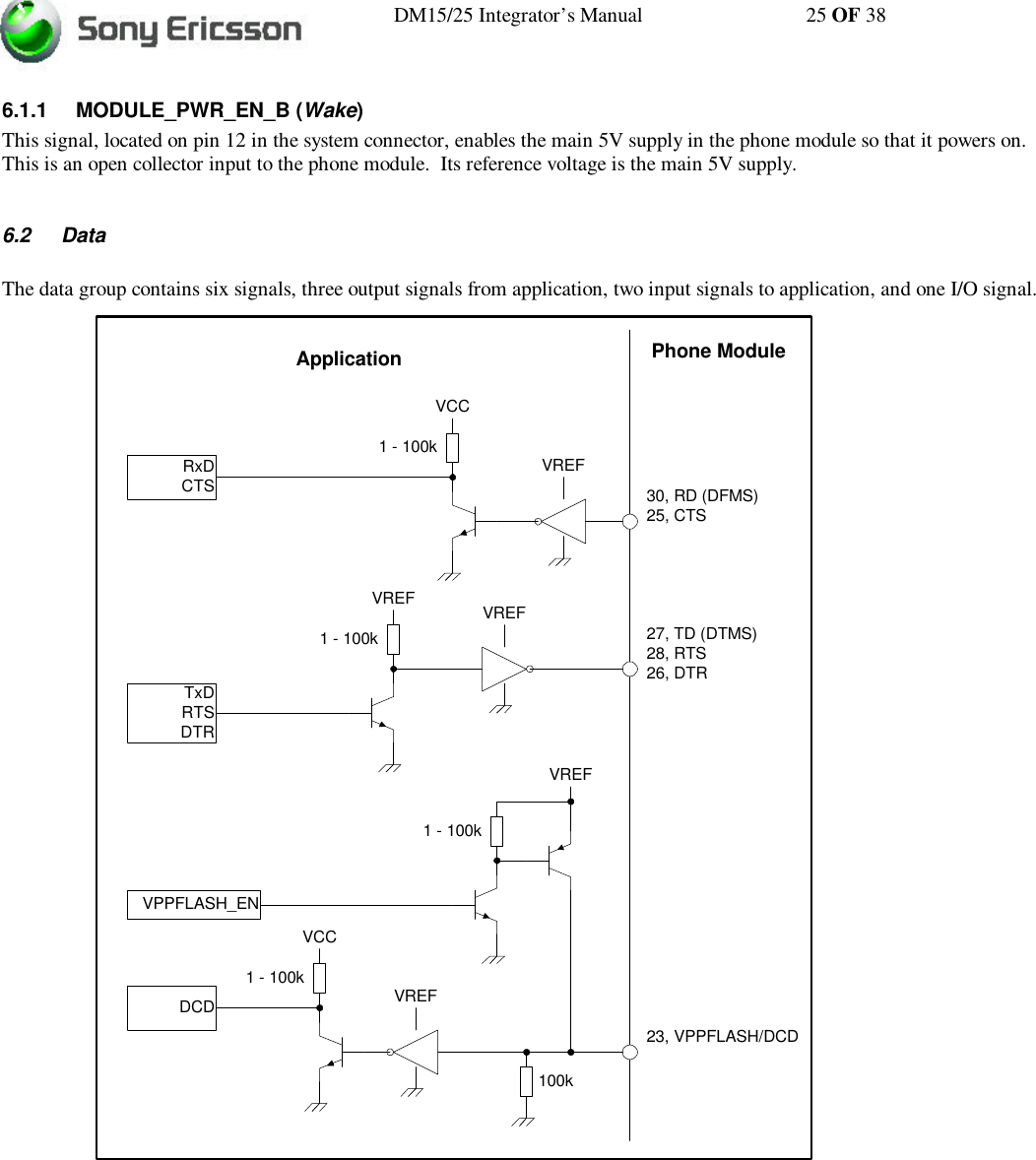

DM15/25 Integrator’s Manual 25 OF 386.1.1 MODULE_PWR_EN_B (Wake)This signal, located on pin 12 in the system connector, enables the main 5V supply in the phone module so that it powers on.This is an open collector input to the phone module. Its reference voltage is the main 5V supply.6.2 DataThe data group contains six signals, three output signals from application, two input signals to application, and one I/O signal.VREF30, RD (DFMS)25, CTS1 - 100kVCCRxDCTSPhone ModuleApplicationVREF27, TD (DTMS)28, RTS26, DTR1 - 100kVREFTxDRTSDTRVREF23, VPPFLASH/DCD1 - 100kVCCDCD100kVREFVPPFLASH_EN1 - 100k

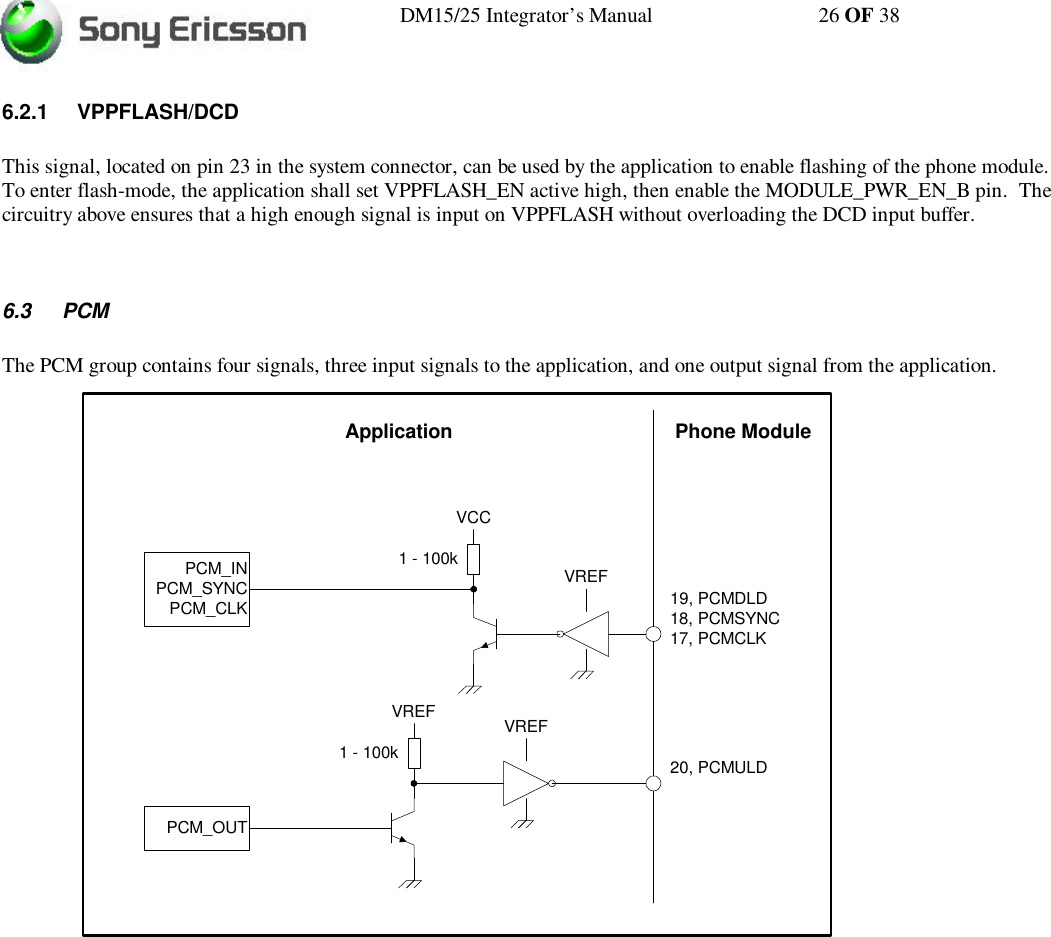

DM15/25 Integrator’s Manual 26 OF 386.2.1 VPPFLASH/DCDThis signal, located on pin 23 in the system connector, can be used by the application to enable flashing of the phone module.To enter flash-mode, the application shall set VPPFLASH_EN active high, then enable the MODULE_PWR_EN_B pin. Thecircuitry above ensures that a high enough signal is input on VPPFLASH without overloading the DCD input buffer.6.3 PCMThe PCM group contains four signals, three input signals to the application, and one output signal from the application.VREF19, PCMDLD18, PCMSYNC17, PCMCLK1 - 100kVCCPCM_INPCM_SYNCPCM_CLKVREF20, PCMULD1 - 100kVREFPCM_OUTPhone ModuleApplication
DM15/25 Integrator’s Manual 27 OF 386.4 Analog Audio6.4.1 Creating an analog groundAn analog ground plane should be generated, which connects to GND in one point so that high frequency digital current is notfloating through the analog ground. Connecting the analog ground in only one point avoids ground currents from powersupplies and other high current circuitry from creating noise in the analog circuitry. This common point should be locatedwhere the analog supply voltage (VANA) is generated (at filter (A), or regulator (B) depending on implementation).5V VANA12VVANARegulatorBA
DM15/25 Integrator’s Manual 28 OF 386.4.2 Creating an analog reference voltage (BIAS)The BIAS reference should be generated from the analog supply voltage (VANA) and be referenced to the analog ground.This reference shall be used to bias all analog circuitry in the application.The bias can be tapped directly from the resistor voltage divider, but the amplifier will make the bias more stable and lesssusceptible to noise.-+0100k100kVANABIAS

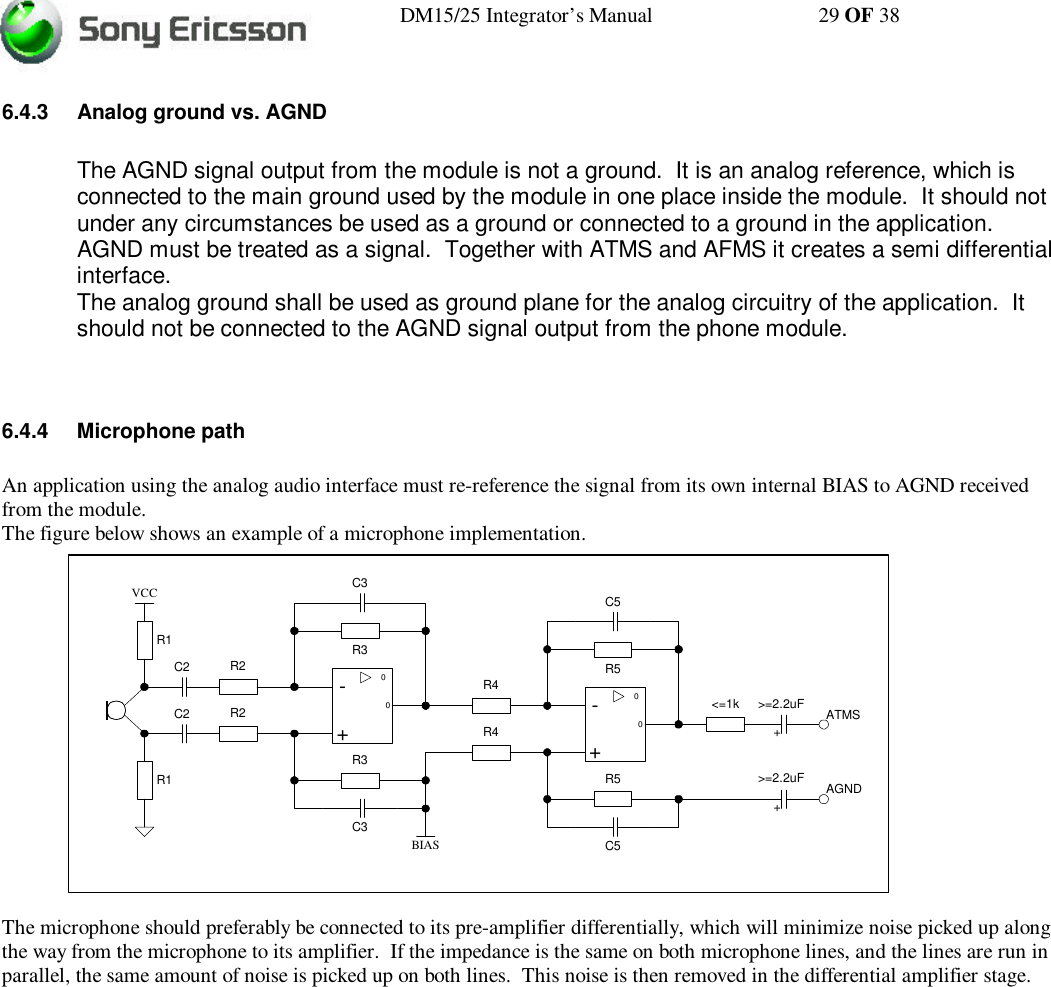

DM15/25 Integrator’s Manual 29 OF 386.4.3 Analog ground vs. AGNDThe AGND signal output from the module is not a ground. It is an analog reference, which isconnected to the main ground used by the module in one place inside the module. It should notunder any circumstances be used as a ground or connected to a ground in the application.AGND must be treated as a signal. Together with ATMS and AFMS it creates a semi differentialinterface.The analog ground shall be used as ground plane for the analog circuitry of the application. Itshould not be connected to the AGND signal output from the phone module.6.4.4 Microphone pathAn application using the analog audio interface must re-reference the signal from its own internal BIAS to AGND receivedfrom the module.The figure below shows an example of a microphone implementation.The microphone should preferably be connected to its pre-amplifier differentially, which will minimize noise picked up alongthe way from the microphone to its amplifier. If the impedance is the same on both microphone lines, and the lines are run inparallel, the same amount of noise is picked up on both lines. This noise is then removed in the differential amplifier stage.0-+0R2R2R3R3R1R1VCCC2C2C3C30-+0R4R4R5R5C5C5<=1kBIAS>=2.2uF ATMSAGND>=2.2uF++
DM15/25 Integrator’s Manual 30 OF 386.4.5 Loudspeaker pathAn application using the analogaudio interface must re-reference theAFMS-signal from AGND to its owninternal BIAS. The figure shows adifferential implementation. C1 ischosen to create the correct HPfrequency response. R1 and R2determine the gain, and C2 and R2determine the LP frequencyresponse.6.4.6 Antenna connectorThe antenna connector is the hub for transmission of the Radio Frequency (RF) signals from the DM-15/DM-25module to the external antenna. The antenna connector of the module is surface mounted, micro miniaturesnap-on MA/-COM connector (P/N 2367-5002-54). A wide variety of compatible mating connectors areavailable. Pigtail assembly (P/N 9960-2100-24), and the inter-series cable assembly (P/N 9960-4100-XX) fromM/A-COM are two options using pre-assembled cables. Another mating option is a right angle crimp jack fromM/A-COM that uses standard RG-type coaxial cable. Custom cables assemblies can be manufactured toindividual requirements using standard off-the-shelf coaxial cable and mating connectors (TNC, SMA, etc.) witheither RG-178 or RG-316 size M/A-COM connectors. Since the mating connector can rotate through 360o, theapplication developer has maximum flexibility for routing the RF coax assembly. The total height of the matedpair using M/A-COM pre-assembled RF connectors is 0.12 inches. The mated pair height using the right anglecrimp jack is approximately 0.290 inches. Physical dimensions of the two module connector types are shownbelow. The pigtail and the right angle crimp.The physical dimensions of the connector are shown in the drawing below.Electrical performance parameters are valid only when the terminating impedance at the output of the antennaconnector exhibits a VSWR of less than 2:1 for all phase angles in the frequency band of operation. HighVSWR loads at the antenna connector adversely affect current consumption, linearity, and power efficiency ofthe module and may prevent operation or cause internal damage.The RF performance of the DM-15/DM-25 meets the requirements of the TIA/EIA-136-270-B specification.Pigtail Assembly Right Angle Crimp Jack.152(3.86).223(5.66)0-+0R1>=10kR1>=10kR2R2C1C1C2C2BIASAFMSAGNDInternal App +Internal App -

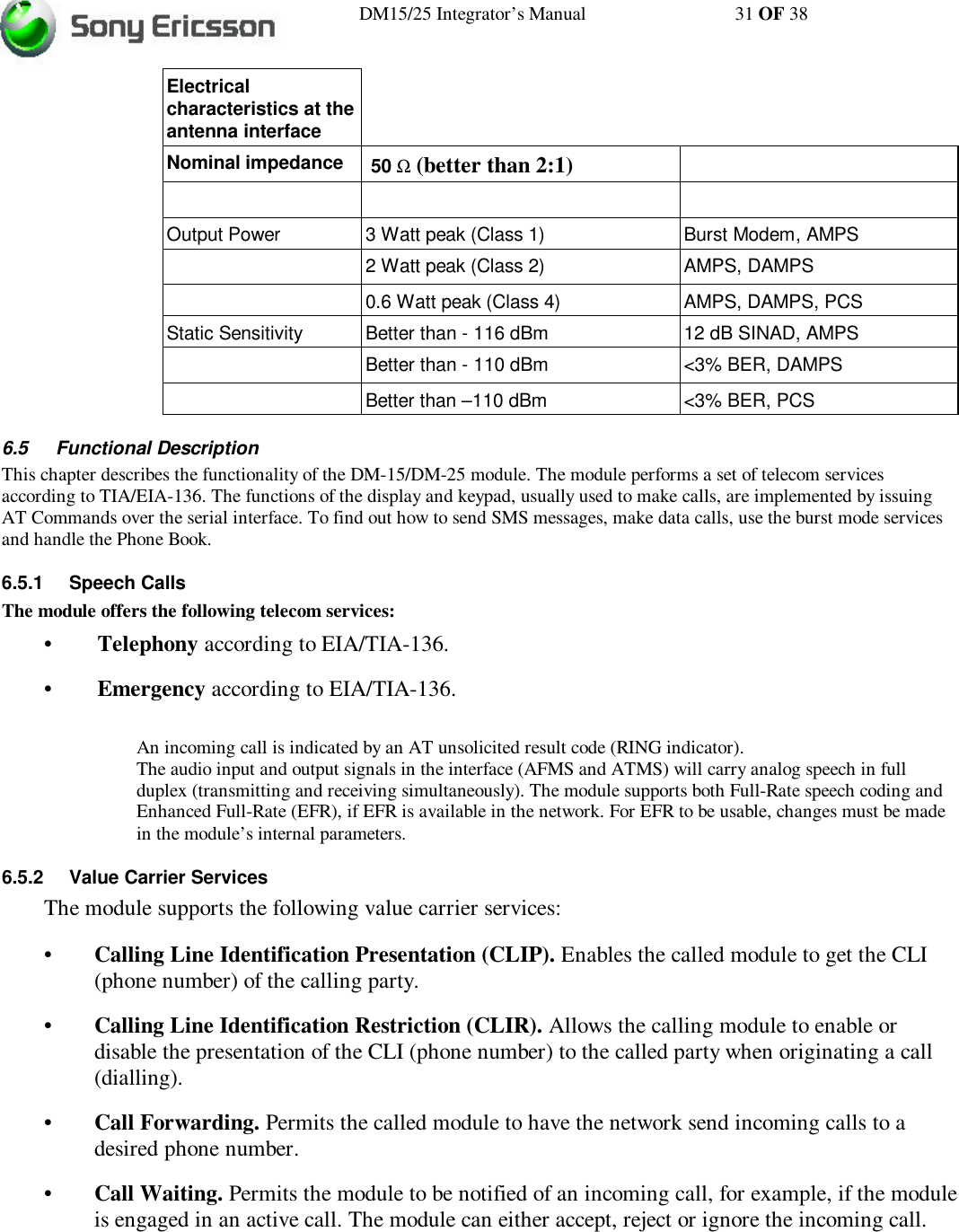

DM15/25 Integrator’s Manual 31 OF 38Electricalcharacteristics at theantenna interfaceNominal impedance 50 Ω (better than 2:1)Output Power 3 Watt peak (Class 1) Burst Modem, AMPS2 Watt peak (Class 2) AMPS, DAMPS0.6 Watt peak (Class 4) AMPS, DAMPS, PCSStatic Sensitivity Better than - 116 dBm 12 dB SINAD, AMPSBetter than - 110 dBm <3% BER, DAMPSBetter than –110 dBm <3% BER, PCS6.5 Functional DescriptionThis chapter describes the functionality of the DM-15/DM-25 module. The module performs a set of telecom servicesaccording to TIA/EIA-136. The functions of the display and keypad, usually used to make calls, are implemented by issuingAT Commands over the serial interface. To find out how to send SMS messages, make data calls, use the burst mode servicesand handle the Phone Book.6.5.1 Speech CallsThe module offers the following telecom services:•Telephony according to EIA/TIA-136.•Emergency according to EIA/TIA-136.An incoming call is indicated by an AT unsolicited result code (RING indicator).The audio input and output signals in the interface (AFMS and ATMS) will carry analog speech in fullduplex (transmitting and receiving simultaneously). The module supports both Full-Rate speech coding andEnhanced Full-Rate (EFR), if EFR is available in the network. For EFR to be usable, changes must be madein the module’s internal parameters.6.5.2 Value Carrier ServicesThe module supports the following value carrier services:•Calling Line Identification Presentation (CLIP). Enables the called module to get the CLI(phone number) of the calling party.•Calling Line Identification Restriction (CLIR). Allows the calling module to enable ordisable the presentation of the CLI (phone number) to the called party when originating a call(dialling).•Call Forwarding. Permits the called module to have the network send incoming calls to adesired phone number.•Call Waiting. Permits the module to be notified of an incoming call, for example, if the moduleis engaged in an active call. The module can either accept, reject or ignore the incoming call.

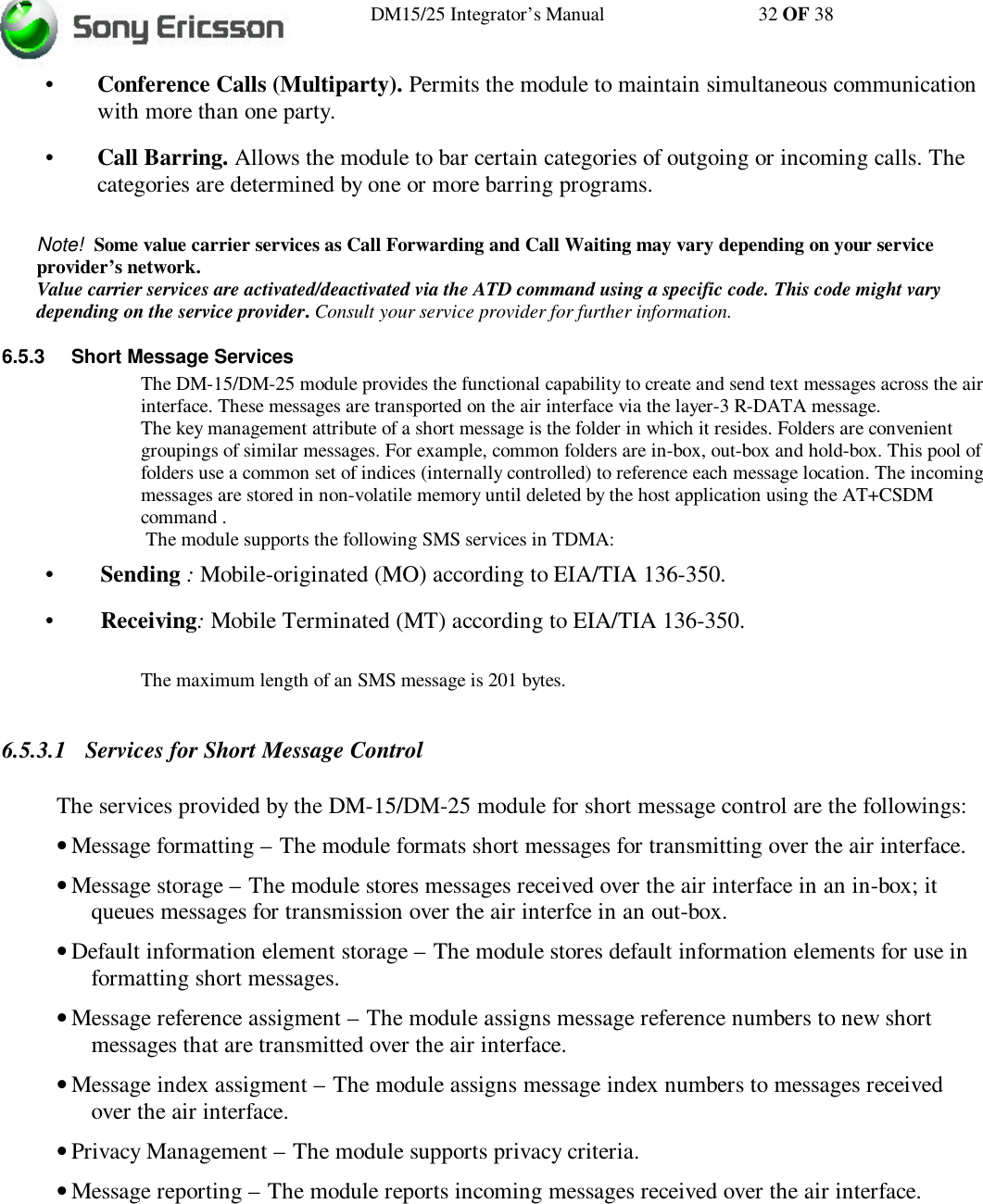

DM15/25 Integrator’s Manual 32 OF 38•Conference Calls (Multiparty). Permits the module to maintain simultaneous communicationwith more than one party.•Call Barring. Allows the module to bar certain categories of outgoing or incoming calls. Thecategories are determined by one or more barring programs.Note! Some value carrier services as Call Forwarding and Call Waiting may vary depending on your serviceprovider’s network.Value carrier services are activated/deactivated via the ATD command using a specific code. This code might varydepending on the service provider. Consult your service provider for further information.6.5.3 Short Message ServicesThe DM-15/DM-25 module provides the functional capability to create and send text messages across the airinterface. These messages are transported on the air interface via the layer-3 R-DATA message.The key management attribute of a short message is the folder in which it resides. Folders are convenientgroupings of similar messages. For example, common folders are in-box, out-box and hold-box. This pool offolders use a common set of indices (internally controlled) to reference each message location. The incomingmessages are stored in non-volatile memory until deleted by the host application using the AT+CSDMcommand . The module supports the following SMS services in TDMA:•Sending : Mobile-originated (MO) according to EIA/TIA 136-350.•Receiving: Mobile Terminated (MT) according to EIA/TIA 136-350.The maximum length of an SMS message is 201 bytes.6.5.3.1 Services for Short Message ControlThe services provided by the DM-15/DM-25 module for short message control are the followings:• Message formatting – The module formats short messages for transmitting over the air interface.• Message storage – The module stores messages received over the air interface in an in-box; itqueues messages for transmission over the air interfce in an out-box.• Default information element storage – The module stores default information elements for use informatting short messages.• Message reference assigment – The module assigns message reference numbers to new shortmessages that are transmitted over the air interface.• Message index assigment – The module assigns message index numbers to messages receivedover the air interface.• Privacy Management – The module supports privacy criteria.• Message reporting – The module reports incoming messages received over the air interface.
DM15/25 Integrator’s Manual 33 OF 386.5.4 Data Functionality6.5.4.1 TDMA•Asynchronous Circuit Switch Data (CSD) according to EIA/TIA 136-350. AMPS• AMPS Data over the voice channel. In this case an external modem connected to the analog audiosignals (ATMS, AFMS) is needed.• Microburst/Vburst mode (by Aeris).• The DM-15/DM-25 module supports Aeris Microburst and Vburst protocols. These protocols enableapplications to send either short messages or 1045 byte data-grams to the Aeris data center. The shortmessages in Microburst mode are sent using dialed digits inside a feature request. Feature requests arepages with a ‘*’ character followed by 15 digits. In Microburst/Vburst mode the DM-15/DM-25module does not use either IRDB or WIN4 list.• The Microburst and Vburst service is detected by listening for pages to area code 175 or area code 180respectively.• Application providers that use Aeris Microburst/Vburst protocols must obtain Microburst and Vburstdocumentation from Aeris (see section 1.4)• Sony Ericsson Burst Modem.• The Sony Ericsson Burst Modem protocol enables applications to send 250-byte messages on anAMPS voice channel.• In order to have a complete solution customers must develop an application to control the module,obtain service with a cellular provider, and develop a call center to process incoming data packets orvoice calls.• The DM-15/DM-25 module supports several control channel selection modes. The Sony EricssonBurst Modem protocol may use a standard IRDB lookup mode or a GTE Win4 scanning mode..
DM15/25 Integrator’s Manual 34 OF 38PSTNBSMSCAutomaticCallDirector(DigitalPBX)ApplicationServeroperatormoduleV.27terBurst modem applicationT1T1T1data basePBX controlT1modemRX/TXdata-Natural Microsystems AG/4000 Card.- Four T1 Lines, 96 ports. Host Modem Server The 250 Byte Message ProtocolThe key feature of the 250-byte protocol is that it allows applications to send up to 250 bytes of dataduring a voice call. The voice conversation is suspended while data is transferred.The 250-byte protocol utilizes powerful error detection and correction algorithms to maximize thechance of delivering error free data. The data in each packet is duplicated three times to enablemajority logic correction, the data is encoded with a convolution encoder that allows multiple biterror correction, and each ten data bytes are protected by a 16 bit CRC. If a first attempt to send thedata packet fails then it is retransmitted up to two more times. The time to send 250 bytes variesbetween 5 and 15.5 seconds depending on the number of retransmissions.6.5.5 Telematics capabilitySony Ericsson DM-15/DM-25 modules can be used in two different modes. The two modes arecalled NAM-1 and NAM-2. In NAM-1 mode the module is a TDMA dual mode phone.Applications can use NAM-1 mode to place analog or digital calls. NAM-1 also supports digitaldata modes such as short message service. In NAM-2 mode, also called “telematics” mode, themodule behaves similar to an AMPS-only phone. Applications can use telematics mode to sendshort data packets on an analog voice channel.In order to switch between NAM-1 and NAM-2 modes the module must be reset, thereforeapplications that desire to use both modes are necessarily more complex. The NAM-1 and NAM-2modes share the same ESN as well as most of the configuration settings. The important exceptionsare MIN, band order, SID and SOC. These parameters can be set independently for telematics
DM15/25 Integrator’s Manual 35 OF 38mode. This means that applications that want to use both modes may choose a different carrier forNAM-2. Using different carriers raises some complications with IRDB settings..6.5.6 Over the air activation (OTA)The DM-15/DM-25 supports Over the Air Programming as defined in EIA/TIA 136 Rev. B6.5.7 Hints for integrating the moduleThis chapter, which gives you advice and helpful hints on how to integrate the DM-15/DM-25 withthe application, should be taken as a guide.Note! The circuits on the test board are not shielded. Thus take proper precautions for avoidingESD and EMI.6.5.8 PrecautionsHere is a list of preparations that you should make before beginning the integration work that isdescribed in this chapter.•Where to install the module.•Safety Standards.•Network and subscription.•Antenna.6.5.9 Where to install the moduleMake sure that the module is installed so that the environmental conditions, such as temperature,humidity, vibration, etc., are not beyond the limits specified for it. See also section 7 TechnicalData.Make sure that the signal strength is sufficient. To improve signal strength, move the antenna toanother position. Signal strength may depend on how close the module is to a radio base station.Degradation in signal strength could be a result of disturbance from another source, for example, anelectronic device nearby.You can verify signal strength by issuing the AT command AT+CSQ.Tip! Before installing the module, use an ordinary mobile telephone to check a possible location forit. Consider signal strength as well as cable length in determining the location for the module andantenna. That way, you will find out if it is practical to install the module where you intended.

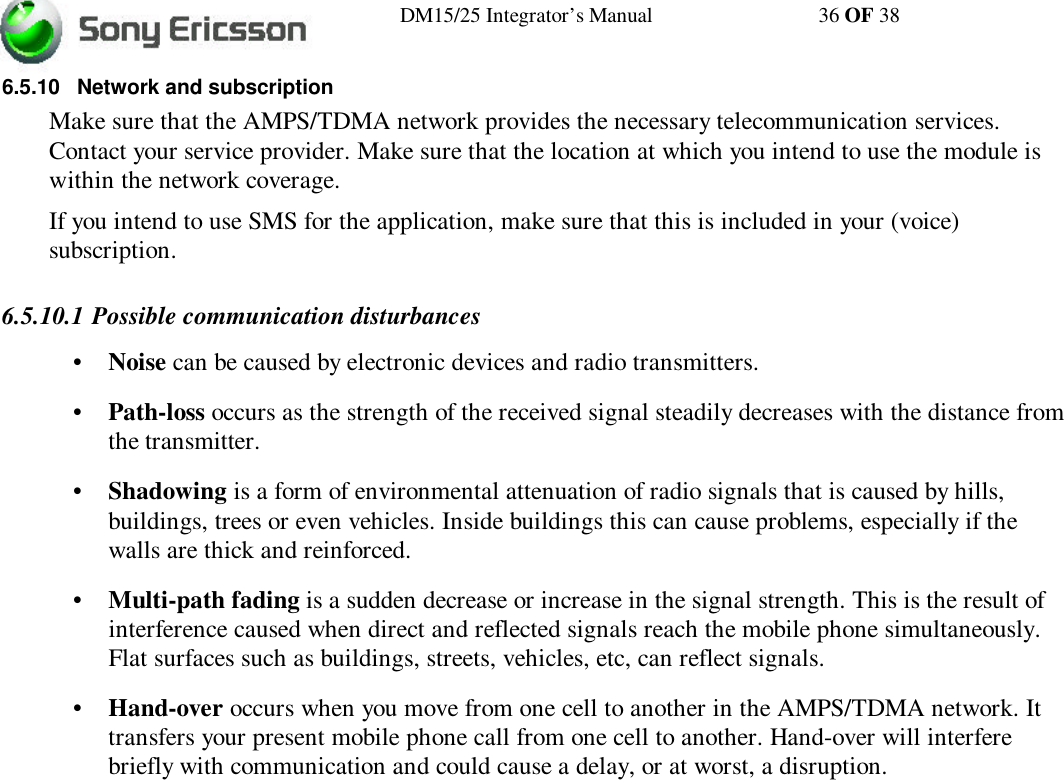

DM15/25 Integrator’s Manual 36 OF 386.5.10 Network and subscriptionMake sure that the AMPS/TDMA network provides the necessary telecommunication services.Contact your service provider. Make sure that the location at which you intend to use the module iswithin the network coverage.If you intend to use SMS for the application, make sure that this is included in your (voice)subscription.6.5.10.1 Possible communication disturbances•Noise can be caused by electronic devices and radio transmitters.•Path-loss occurs as the strength of the received signal steadily decreases with the distance fromthe transmitter.•Shadowing is a form of environmental attenuation of radio signals that is caused by hills,buildings, trees or even vehicles. Inside buildings this can cause problems, especially if thewalls are thick and reinforced.•Multi-path fading is a sudden decrease or increase in the signal strength. This is the result ofinterference caused when direct and reflected signals reach the mobile phone simultaneously.Flat surfaces such as buildings, streets, vehicles, etc, can reflect signals.•Hand-over occurs when you move from one cell to another in the AMPS/TDMA network. Ittransfers your present mobile phone call from one cell to another. Hand-over will interferebriefly with communication and could cause a delay, or at worst, a disruption.

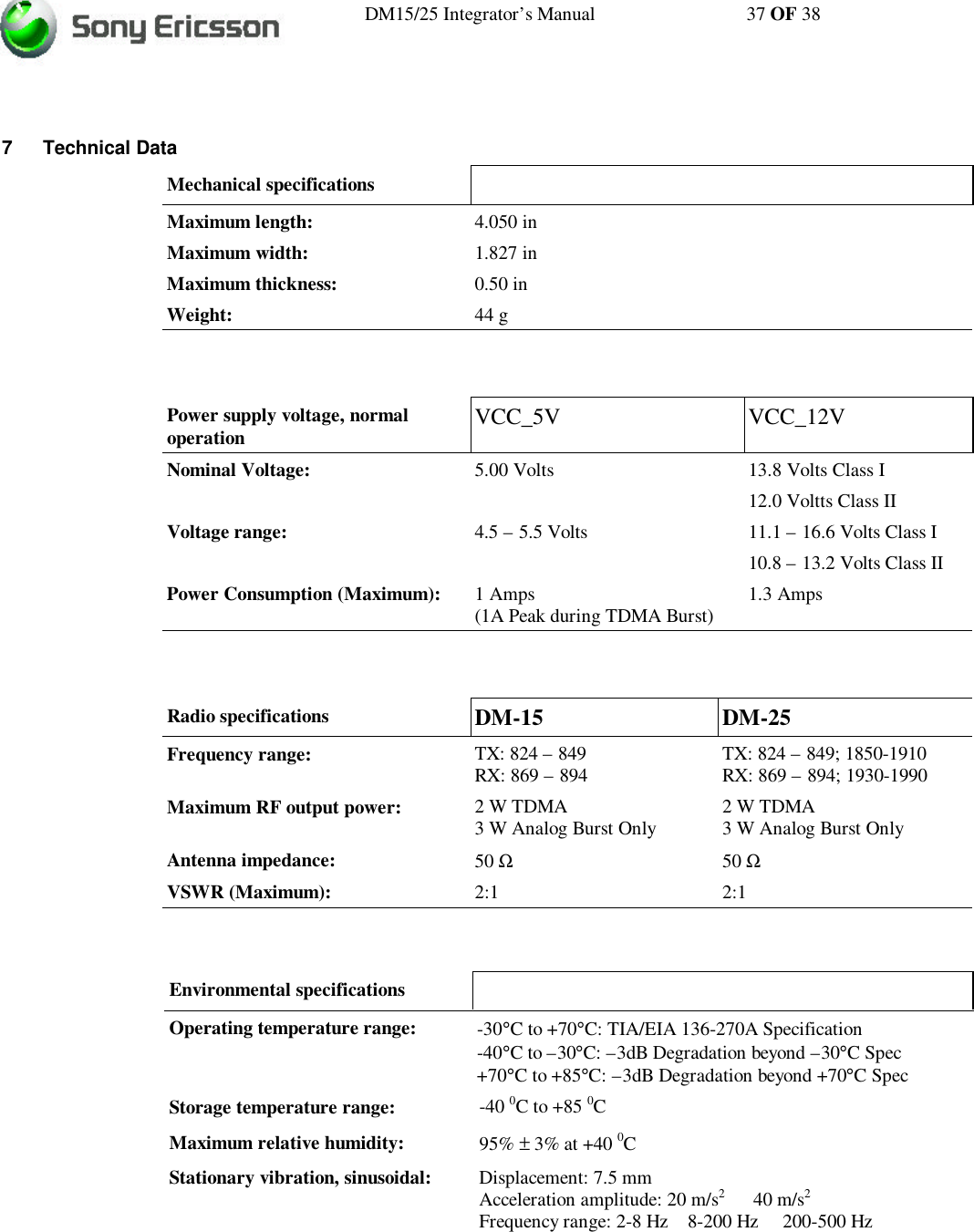

DM15/25 Integrator’s Manual 37 OF 387 Technical DataMechanical specificationsMaximum length: 4.050 inMaximum width: 1.827 inMaximum thickness: 0.50 inWeight: 44 gPower supply voltage, normaloperation VCC_5V VCC_12VNominal Voltage: 5.00 Volts 13.8 Volts Class I12.0 Voltts Class IIVoltage range: 4.5 – 5.5 Volts 11.1 – 16.6 Volts Class I10.8 – 13.2 Volts Class IIPower Consumption (Maximum): 1 Amps(1A Peak during TDMA Burst) 1.3 AmpsRadio specifications DM-15 DM-25Frequency range: TX: 824 – 849RX: 869 – 894 TX: 824 – 849; 1850-1910RX: 869 – 894; 1930-1990Maximum RF output power: 2 W TDMA3 W Analog Burst Only 2 W TDMA3 W Analog Burst OnlyAntenna impedance: 50 Ω50 ΩVSWR (Maximum): 2:1 2:1Environmental specificationsOperating temperature range: -30°C to +70°C: TIA/EIA 136-270A Specification-40°C to –30°C: –3dB Degradation beyond –30°C Spec+70°C to +85°C: –3dB Degradation beyond +70°C SpecStorage temperature range: -40 0C to +85 0CMaximum relative humidity: 95% ± 3% at +40 0CStationary vibration, sinusoidal: Displacement: 7.5 mmAcceleration amplitude: 20 m/s2 40 m/s2Frequency range: 2-8 Hz 8-200 Hz 200-500 Hz

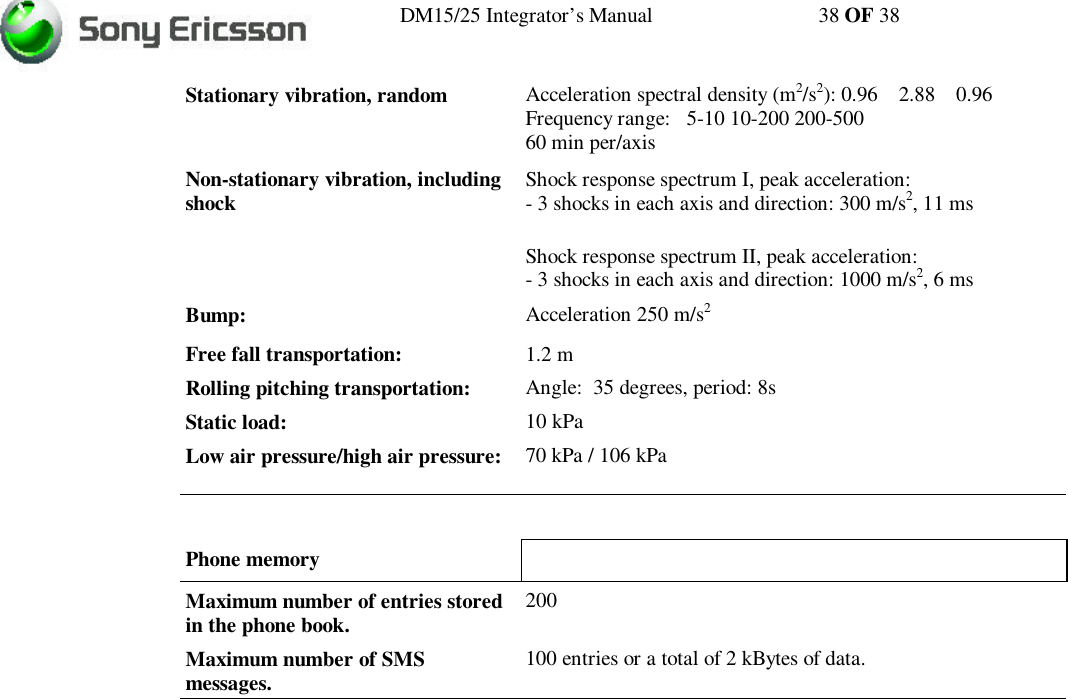

DM15/25 Integrator’s Manual 38 OF 38Stationary vibration, random Acceleration spectral density (m2/s2): 0.96 2.88 0.96Frequency range: 5-10 10-200 200-50060 min per/axisNon-stationary vibration, includingshock Shock response spectrum I, peak acceleration:- 3 shocks in each axis and direction: 300 m/s2, 11 msShock response spectrum II, peak acceleration:- 3 shocks in each axis and direction: 1000 m/s2, 6 msBump: Acceleration 250 m/s2Free fall transportation: 1.2 mRolling pitching transportation: Angle: 35 degrees, period: 8sStatic load: 10 kPaLow air pressure/high air pressure: 70 kPa / 106 kPaPhone memoryMaximum number of entries storedin the phone book. 200Maximum number of SMSmessages. 100 entries or a total of 2 kBytes of data.
