Speed Dragon Multimedia SPEEDIRU1F PART 15 CLASS B COMPUTING DEVICE PERIPHERAL User Manual

Speed Dragon Multimedia Ltd PART 15 CLASS B COMPUTING DEVICE PERIPHERAL Users Manual

Users Manual

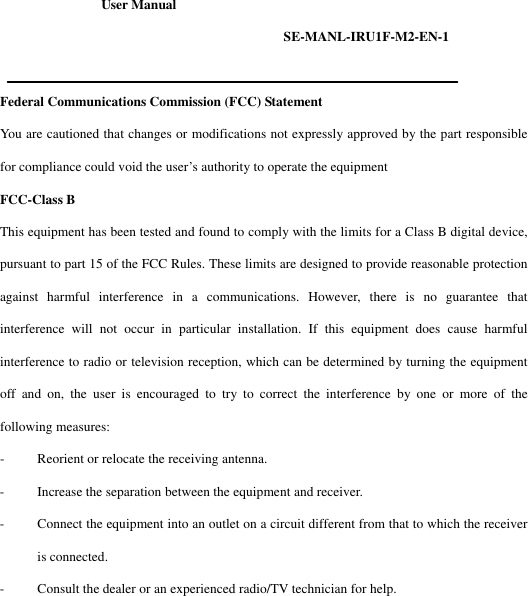

User Manual SE-MANL-IRU1F-M2-EN-1 Federal Communications Commission (FCC) Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment FCC-Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help.

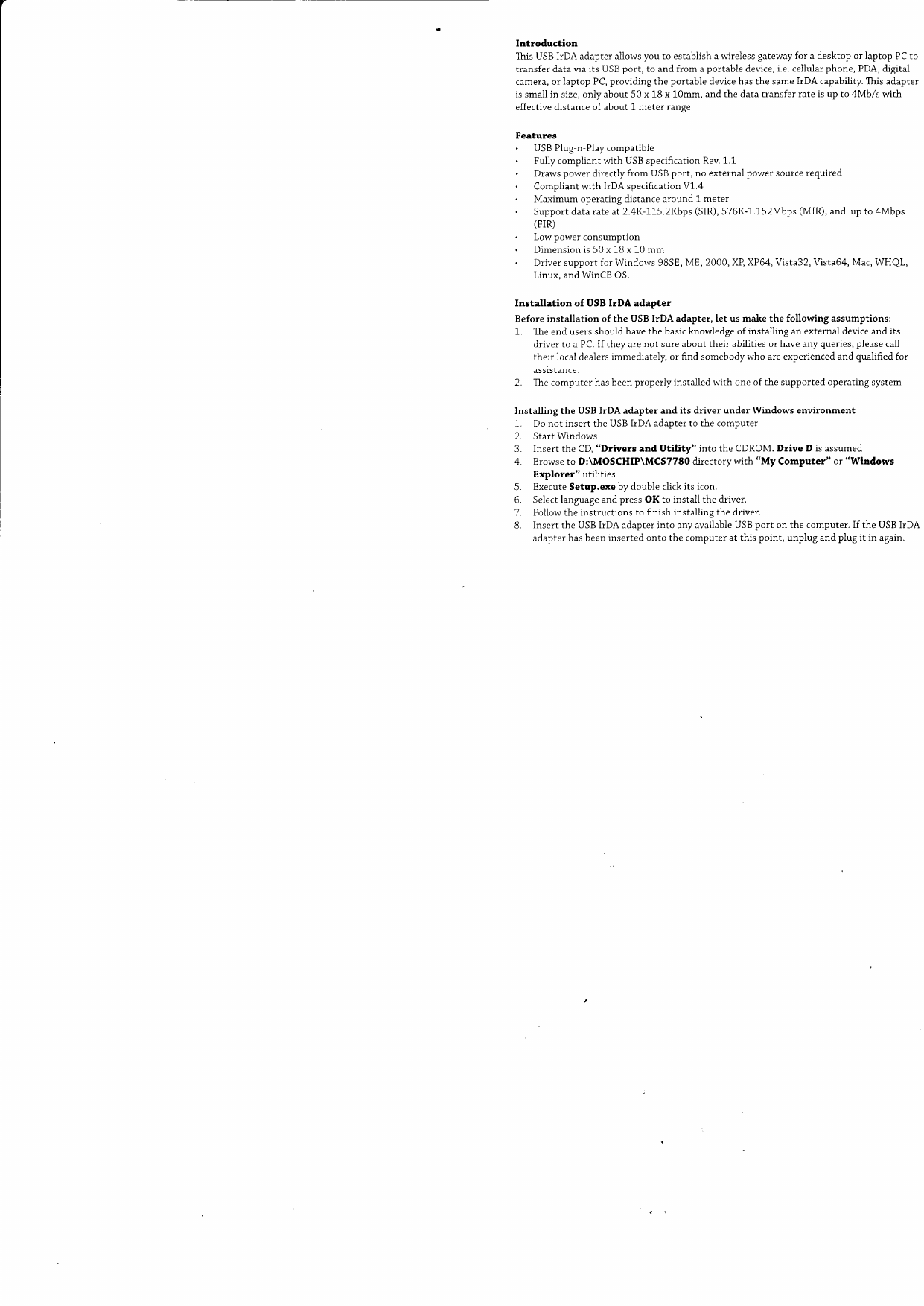

User Introductionlhis USB irDA adapter aiiows you to establish a wireless gateway for a desktop or laptop PC totransfer data via its USB port, to and frorn a portable device, i.e. cellular phone, PDA, digitalcamera, or laptop PC, providing the portable device has the same IrDA capability. This adapteris small in size, only about 50 x 18 x 10mm, and the data transfer rate is up to 4Mbls witheffective distance of about 1 meter ranqe.FeaturesUSB Plug-n-Play compatibieFully compliant with USB specification Rev. 1.1Draws power directiy from USB port, no external power source requiredCompliant with IrDA specification V1.4Maximum operating distance around 1 meterSupport data rate at2.4K-1.75.2Kbps (SIR), 576K-1.152Mbps (MIR), and up to 4Mbps(FIR)Low power consumptionDimension is 50 x 18 x 10 mmDriver support for Windorvs 98SE, ME, 2000, XP, XP64, Vista32, Vista64, Mac, WHQLLinux, and WinCE OS.Installation of USB IrDA adapterBefore installation of the USB IrDA adapter, Iet us make the following assumptions:1. The end users should have the basic knowledge ofinstalling an external device and itsdriver to a PC. If they are not sure about their abilities or have any queries, please calltheir local dealers immediately, or frnd somebody who are experienced and qualified forassistance.2. The computer has been properly installed with one of the supported operating systemInstalling the USB IrDA adapter and its driver under Windows environment1. Do not insert the USB IrDA adapter to the comDuter.2. Start Windows3. Insert the CD, "Drivers and Utility" into the CDROM. Drive D is assumed4. Browse to D:\MOSCHIP\MCS7780 directory with "My Computer" or "WindowsExplorer" utiiities5. Execute Setup.exe by double click its icon,6. Select language and press OK to install the driver.7. Foilow the instructions to finish installing the drtver.B. Insert the USB IrDA adapter into any available USB port on the computer. If the USB IrDAadapter has been inserted onto the computer at this point, unplug and plug it in again.

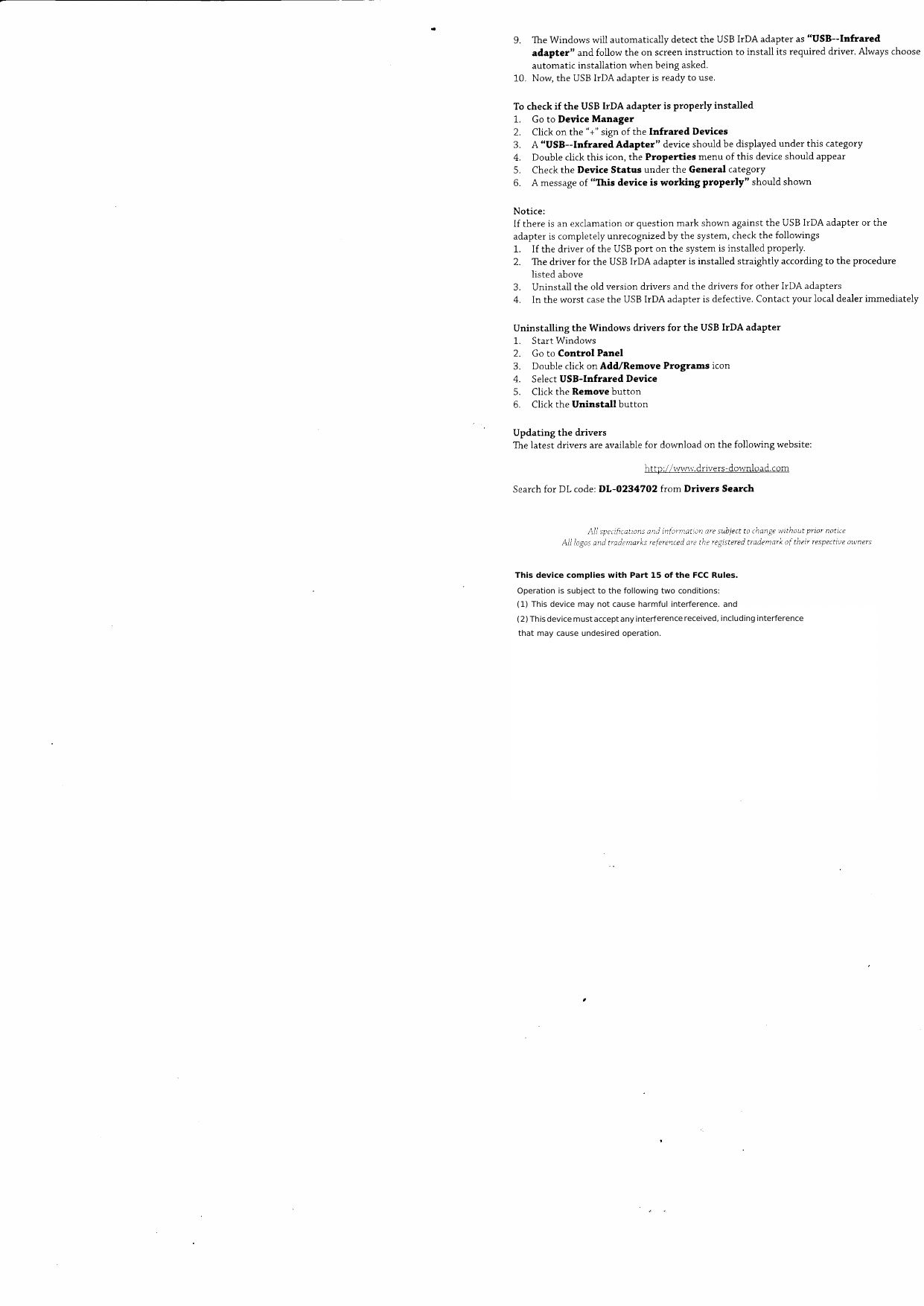

9. The Windows will automatically detect the USB IrDA adapter as "USB--Infraredadapter" and follow the on screen instruction to install its required driver. Always chooseautomatic installation when being asked.10. Now, the USB IrDA adapter is ready to use.To check if the USB IrDA adapter is properly installed1. Go to Device Manager2. Click on the "+" sign of the Infrared Devices3. A "USB--Infrared Adapter" device should be displayed under this category4. Double click this icon, the Properties menu of this device should appear5. Check the Device Status under the General category6. A message of "This device is working ProPerly" should shownNotice:If there is an exclamation or question mark shown against the USB IIDA adapter or theadapter is compietely unrecognized by the system, check the followings1. If the driver of the USB port on the system is installed properly.2. The driver for the USB IrDA adapter is instalied straightly according to the procedurelisted above3. Uninstall the old version drivers and the drivers for other IrDA adapters4. In the worst case the USB IIDA adapter is defective. Contact your local dealer immediatelyUninstalling the Windows drivers for the USB IrDA adapter1. Start Windows2. Go to Control Panel3. Double click on Add/Remove Programs icon4. Select USB-Infrared Device5. Click the Remove button6. Click the Uninstall buttonUpdating the driversThe latest drivers are available for download on the following website:http ://lvwrv. dnvers-download. comSearch for DL code: DL-O2347O2 from Drivers SearchAli spec!ficattons and infornation are subjed to change wtthaut priar not:ircAil Iogos and tradtnarks referenterl are the registered trademark of their respective awners This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. and (2) This device must accept any interference received, including interference that may cause undesired operation.
