Stanley Black & Decker Outdoor Access Point Installation Guide

Contents

Installation Guide

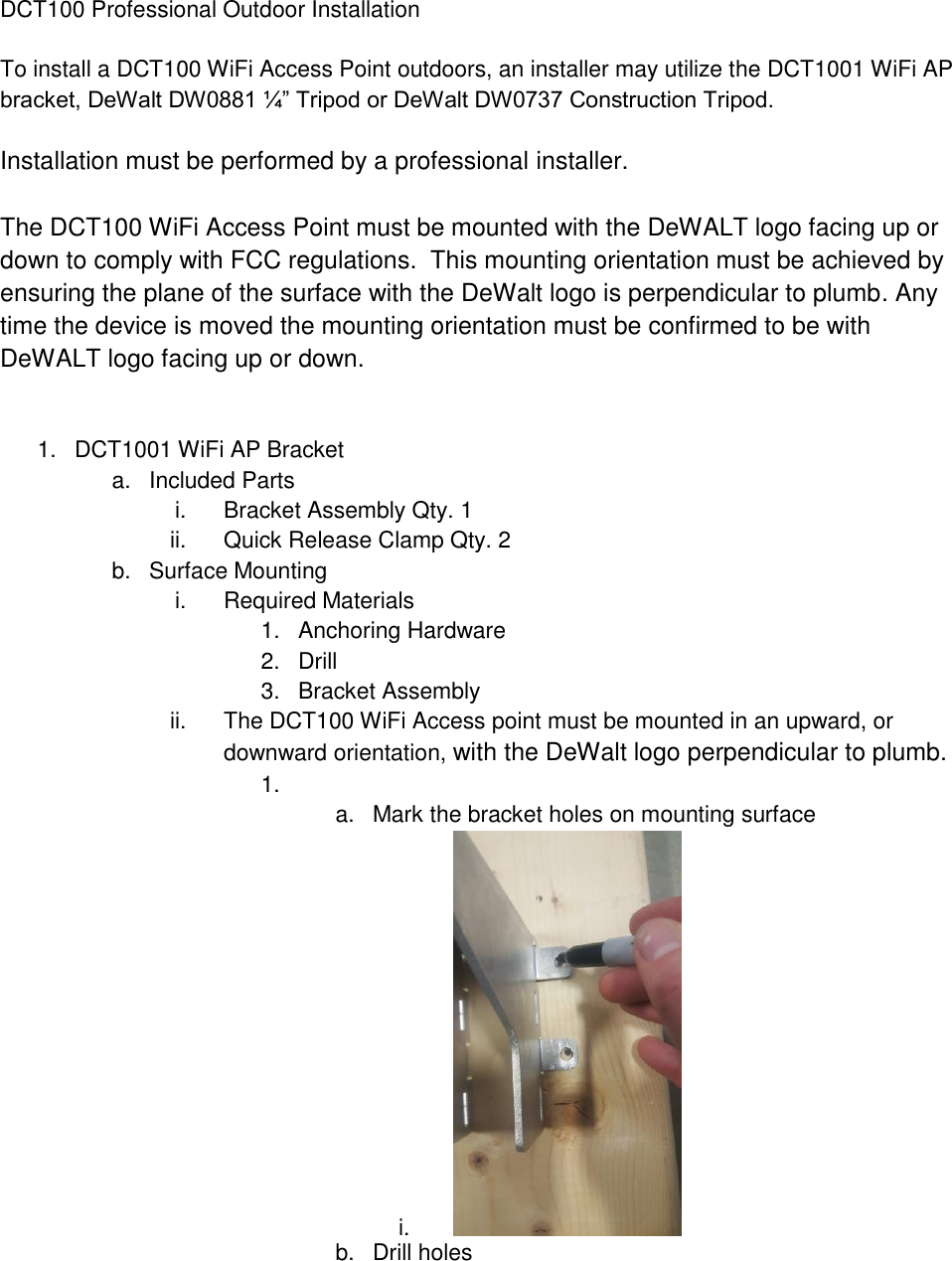

DCT100 Professional Outdoor Installation To install a DCT100 WiFi Access Point outdoors, an installer may utilize the DCT1001 WiFi AP bracket, DeWalt DW0881 ¼” Tripod or DeWalt DW0737 Construction Tripod. Installation must be performed by a professional installer. The DCT100 WiFi Access Point must be mounted with the DeWALT logo facing up or down to comply with FCC regulations. This mounting orientation must be achieved by ensuring the plane of the surface with the DeWalt logo is perpendicular to plumb. Any time the device is moved the mounting orientation must be confirmed to be with DeWALT logo facing up or down. 1. DCT1001 WiFi AP Bracket a. Included Parts i. Bracket Assembly Qty. 1 ii. Quick Release Clamp Qty. 2 b. Surface Mounting i. Required Materials 1. Anchoring Hardware 2. Drill 3. Bracket Assembly ii. The DCT100 WiFi Access point must be mounted in an upward, or downward orientation, with the DeWalt logo perpendicular to plumb. 1. a. Mark the bracket holes on mounting surface i. b. Drill holes

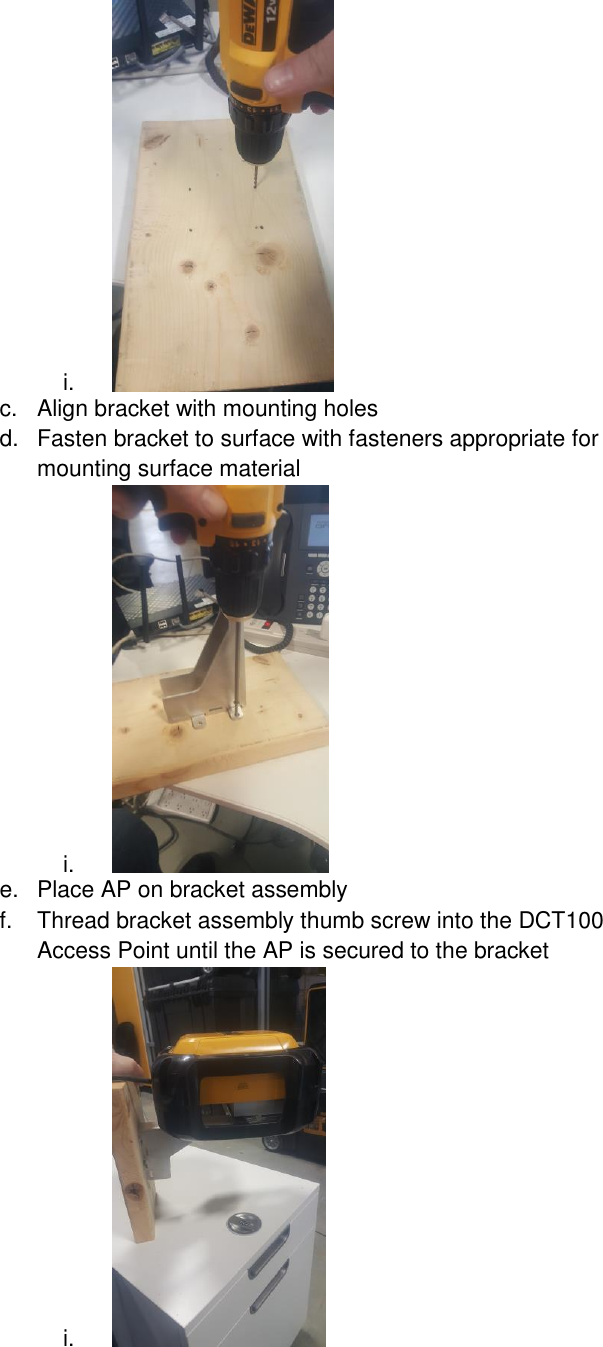

i. c. Align bracket with mounting holes d. Fasten bracket to surface with fasteners appropriate for mounting surface material i. e. Place AP on bracket assembly f. Thread bracket assembly thumb screw into the DCT100 Access Point until the AP is secured to the bracket i.

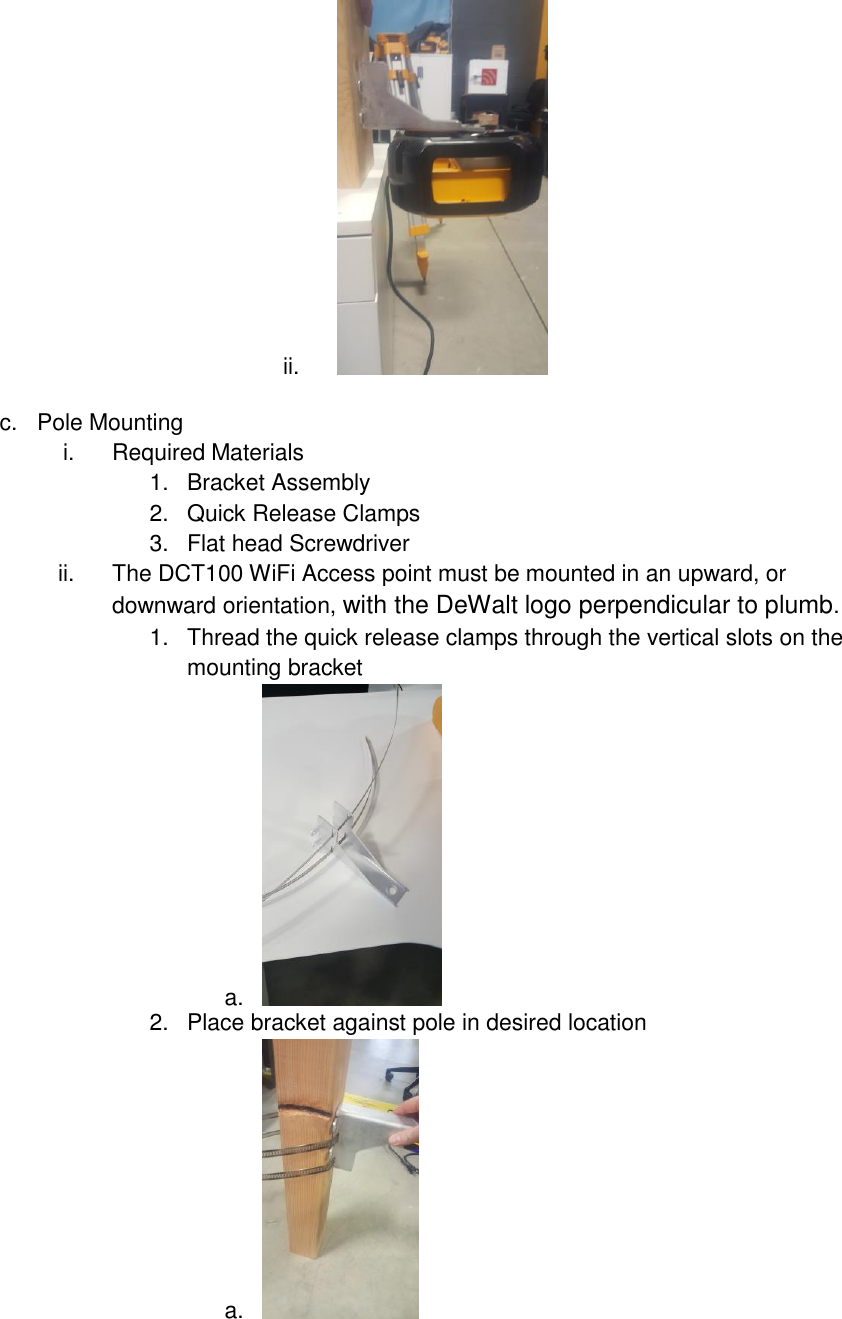

ii. c. Pole Mounting i. Required Materials 1. Bracket Assembly 2. Quick Release Clamps 3. Flat head Screwdriver ii. The DCT100 WiFi Access point must be mounted in an upward, or downward orientation, with the DeWalt logo perpendicular to plumb. 1. Thread the quick release clamps through the vertical slots on the mounting bracket a. 2. Place bracket against pole in desired location a.

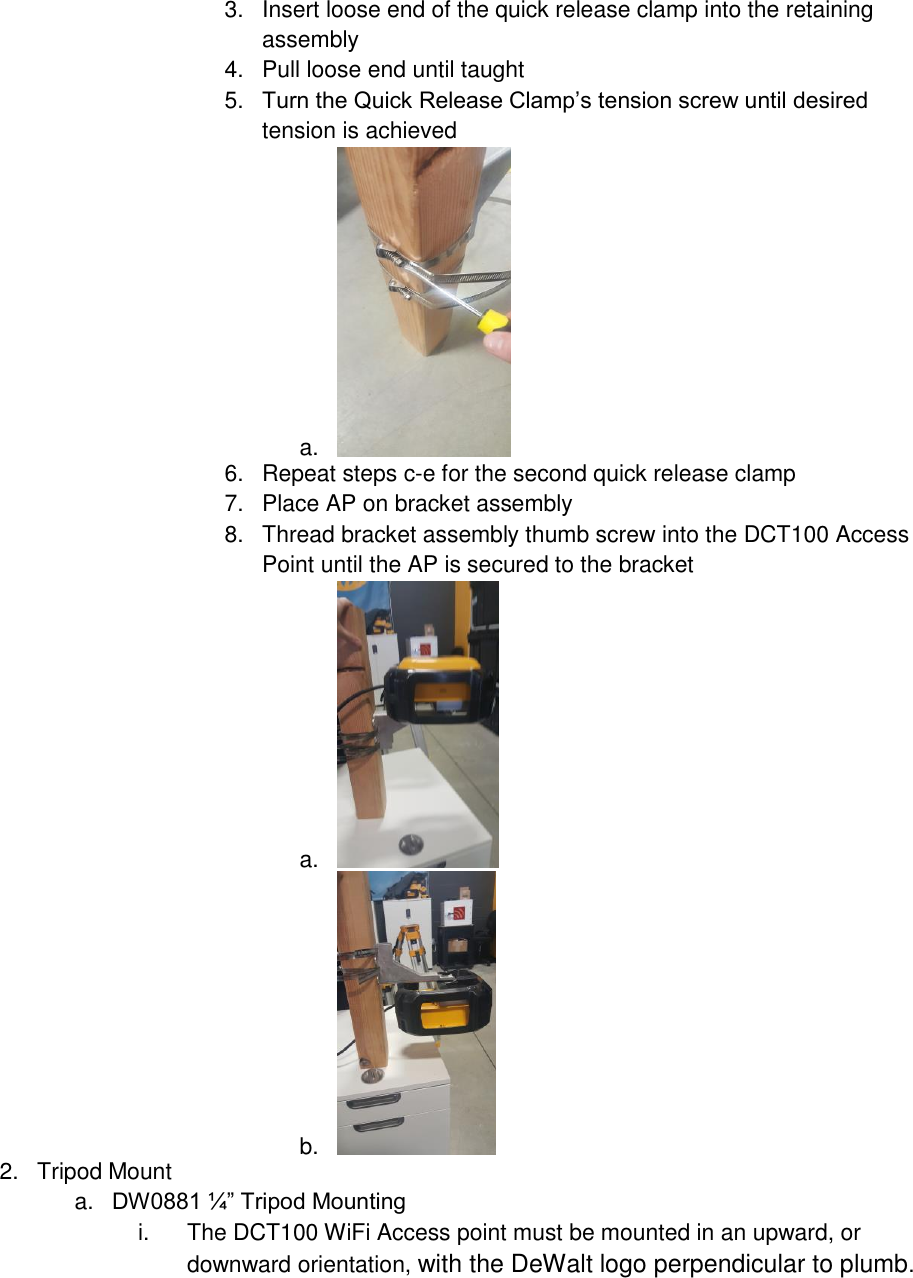

3. Insert loose end of the quick release clamp into the retaining assembly 4. Pull loose end until taught 5. Turn the Quick Release Clamp’s tension screw until desired tension is achieved a. 6. Repeat steps c-e for the second quick release clamp 7. Place AP on bracket assembly 8. Thread bracket assembly thumb screw into the DCT100 Access Point until the AP is secured to the bracket a. b. 2. Tripod Mount a. DW0881 ¼” Tripod Mounting i. The DCT100 WiFi Access point must be mounted in an upward, or downward orientation, with the DeWalt logo perpendicular to plumb.

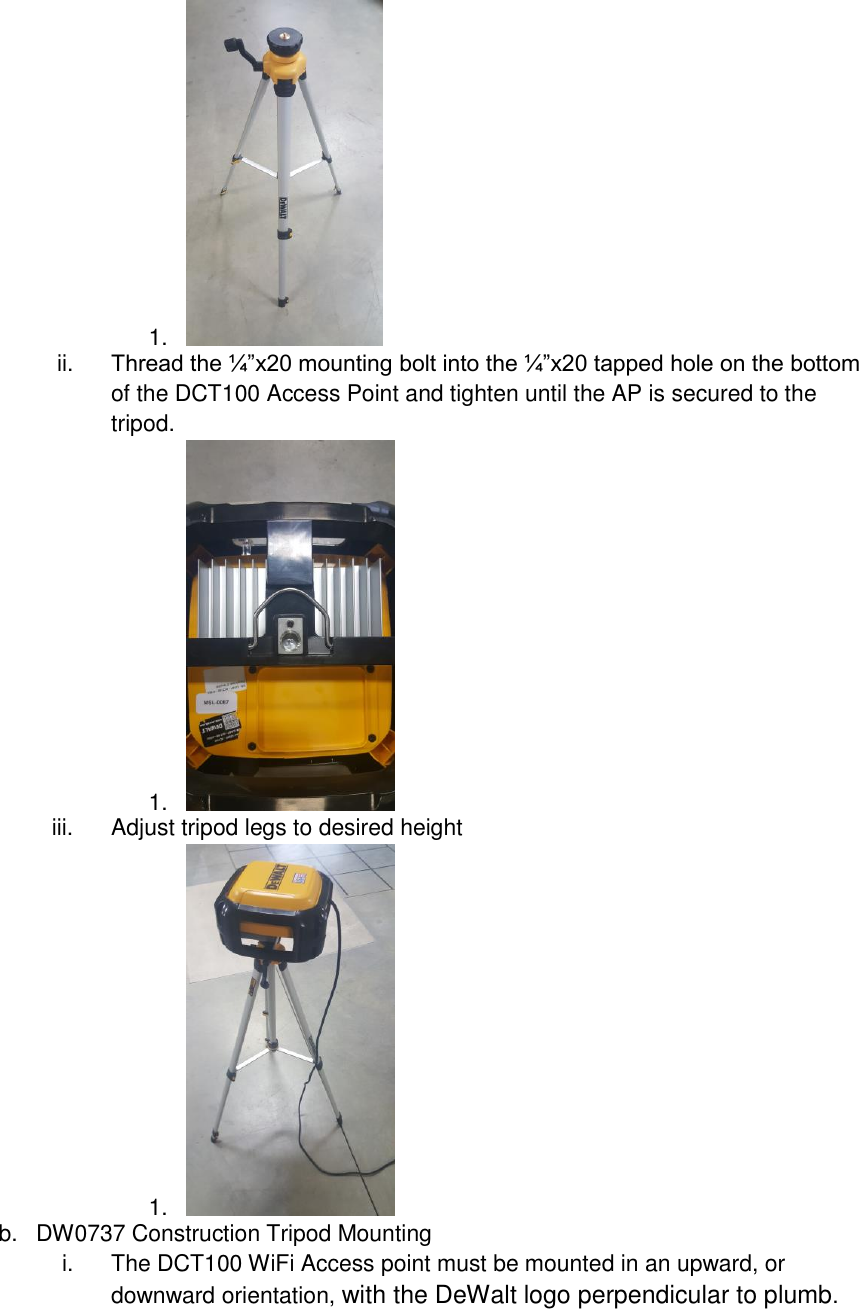

1. ii. Thread the ¼”x20 mounting bolt into the ¼”x20 tapped hole on the bottom of the DCT100 Access Point and tighten until the AP is secured to the tripod. 1. iii. Adjust tripod legs to desired height 1. b. DW0737 Construction Tripod Mounting i. The DCT100 WiFi Access point must be mounted in an upward, or downward orientation, with the DeWalt logo perpendicular to plumb.

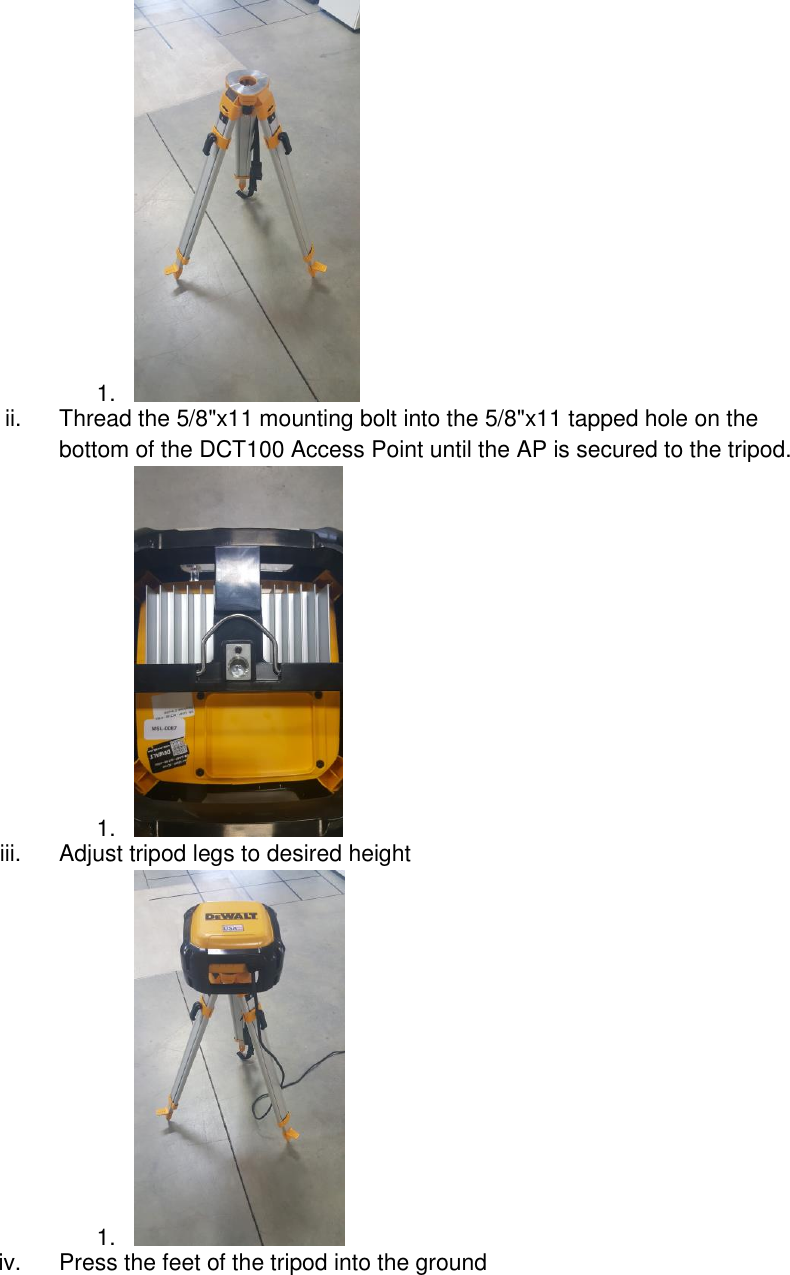

1. ii. Thread the 5/8"x11 mounting bolt into the 5/8"x11 tapped hole on the bottom of the DCT100 Access Point until the AP is secured to the tripod. 1. iii. Adjust tripod legs to desired height 1. iv. Press the feet of the tripod into the ground

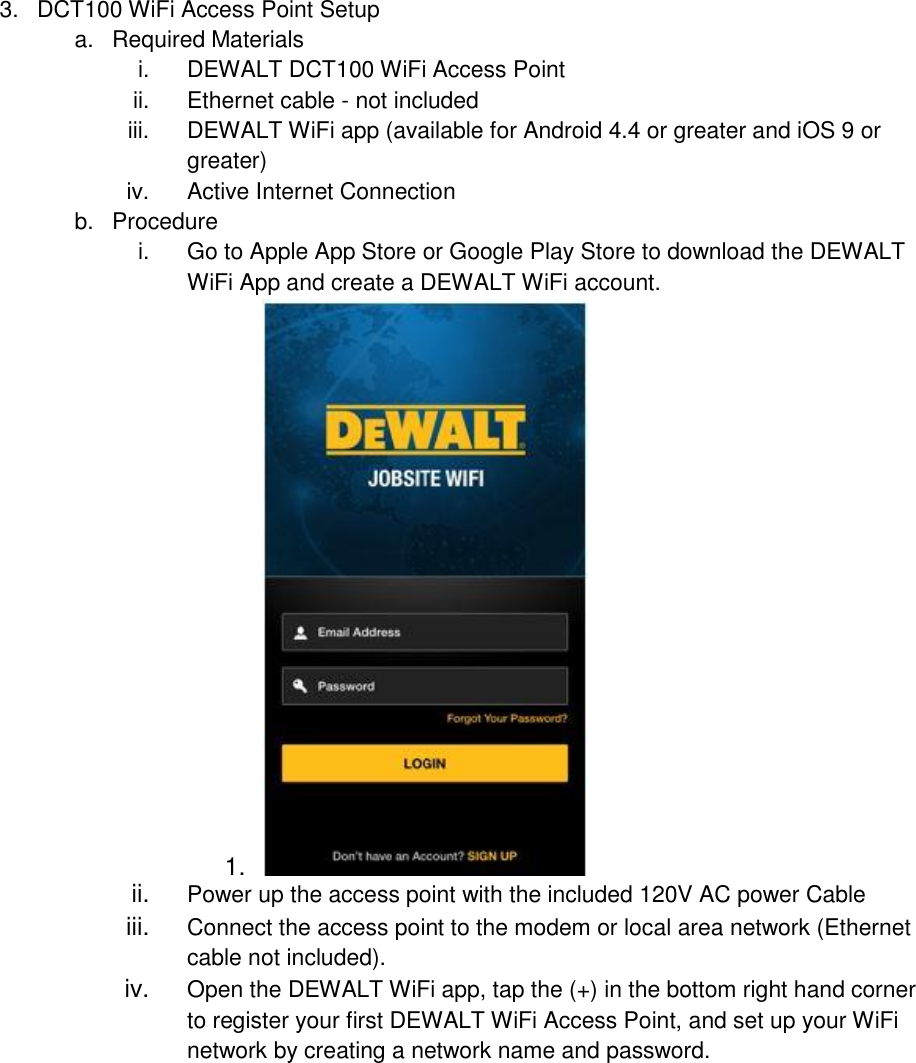

3. DCT100 WiFi Access Point Setup a. Required Materials i. DEWALT DCT100 WiFi Access Point ii. Ethernet cable - not included iii. DEWALT WiFi app (available for Android 4.4 or greater and iOS 9 or greater) iv. Active Internet Connection b. Procedure i. Go to Apple App Store or Google Play Store to download the DEWALT WiFi App and create a DEWALT WiFi account. 1. ii. Power up the access point with the included 120V AC power Cable iii. Connect the access point to the modem or local area network (Ethernet cable not included). iv. Open the DEWALT WiFi app, tap the (+) in the bottom right hand corner to register your first DEWALT WiFi Access Point, and set up your WiFi network by creating a network name and password.

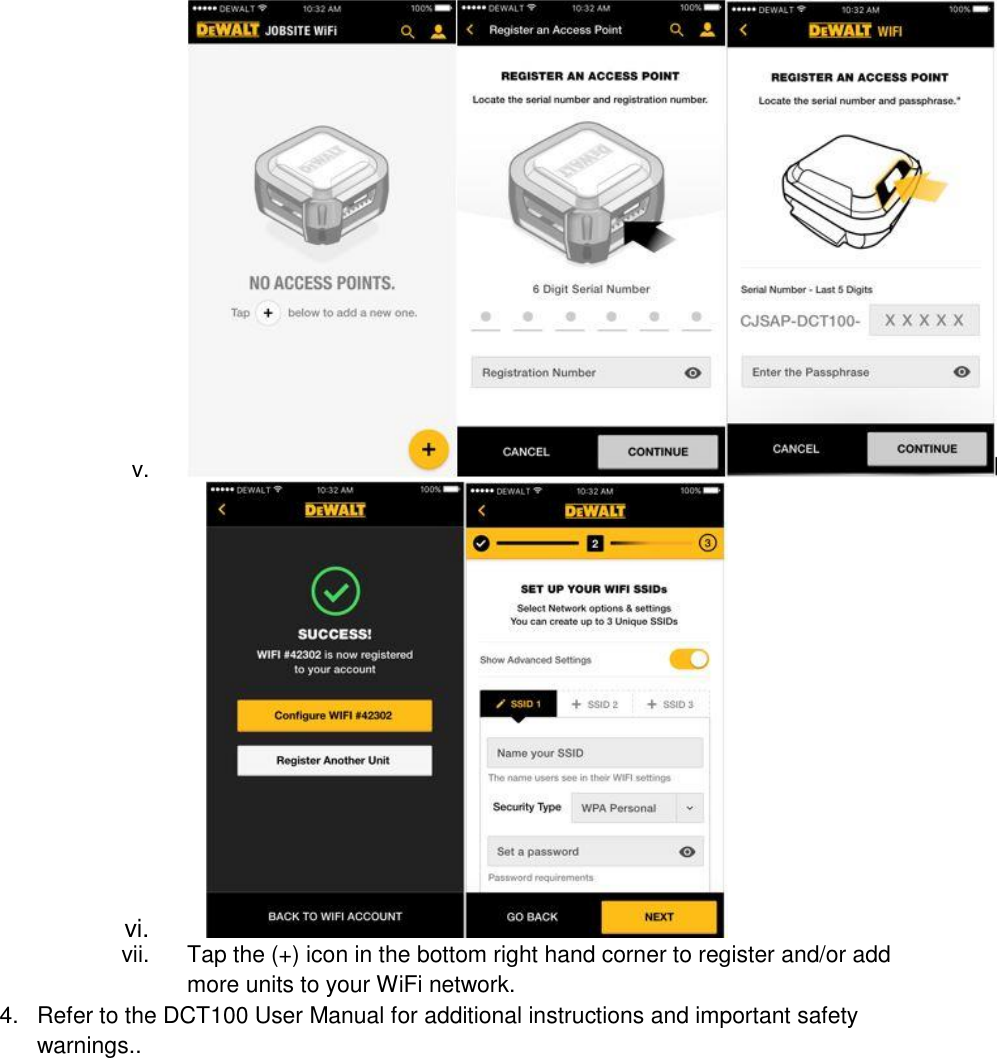

v. vi. vii. Tap the (+) icon in the bottom right hand corner to register and/or add more units to your WiFi network. 4. Refer to the DCT100 User Manual for additional instructions and important safety warnings..
