Suga Electronics SWP33MA0 Wifi module 802.11 b/g/n with AP (Access Point) / Router function User Manual

Suga Electronics Limited Wifi module 802.11 b/g/n with AP (Access Point) / Router function Users Manual

Users Manual

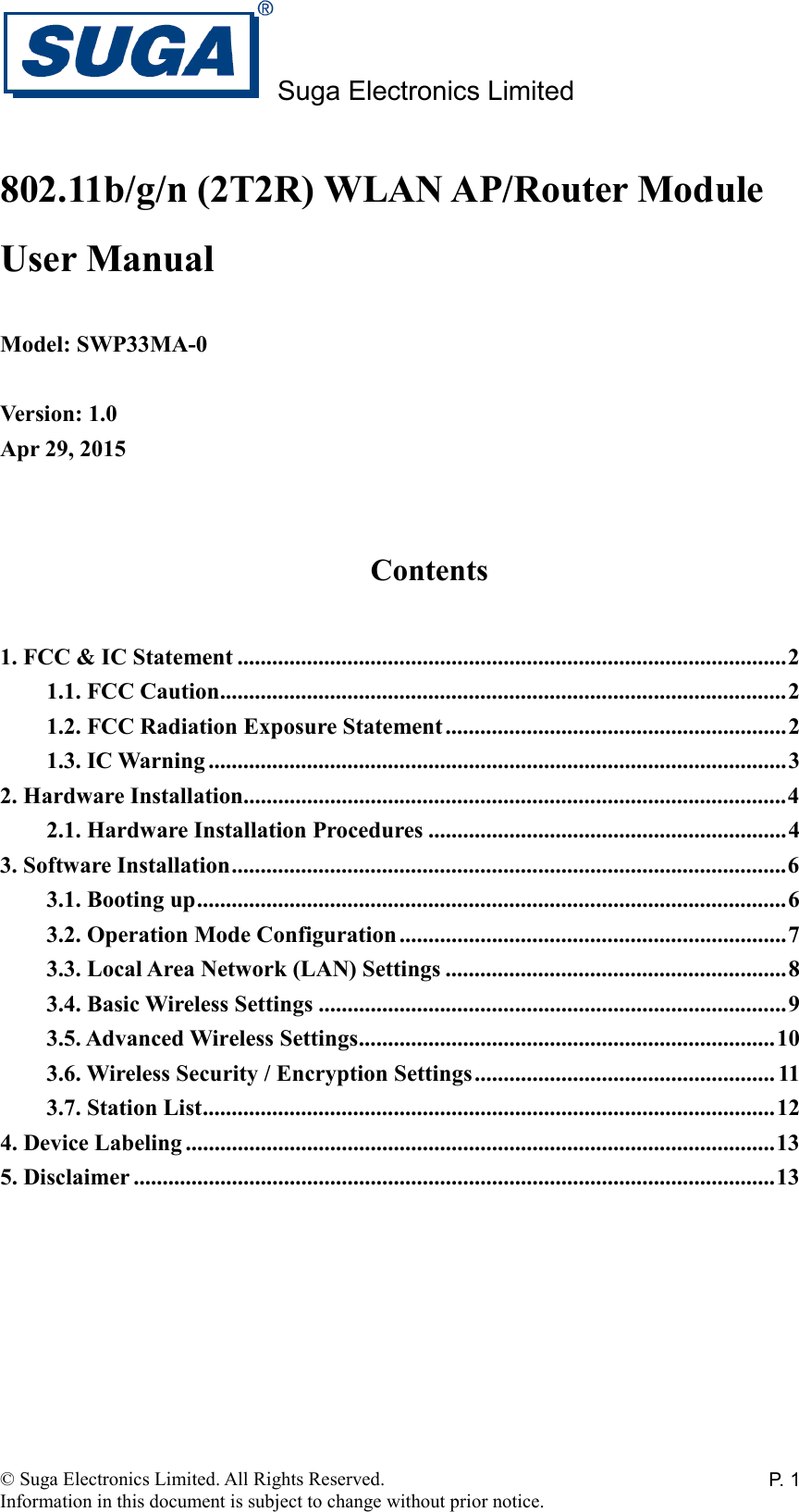

Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. P. 1802.11b/g/n (2T2R) WLAN AP/Router Module User Manual  Model: SWP33MA-0  Version: 1.0 Apr 29, 2015   Contents  1. FCC & IC Statement ............................................................................................... 2 1.1. FCC Caution .................................................................................................. 2 1.2. FCC Radiation Exposure Statement ........................................................... 2 1.3. IC Warning .................................................................................................... 3 2. Hardware Installation.............................................................................................. 4 2.1. Hardware Installation Procedures .............................................................. 4 3. Software Installation ................................................................................................ 6 3.1. Booting up ...................................................................................................... 6 3.2. Operation Mode Configuration ................................................................... 7 3.3. Local Area Network (LAN) Settings ........................................................... 8 3.4. Basic Wireless Settings ................................................................................. 9 3.5. Advanced Wireless Settings ........................................................................ 10 3.6. Wireless Security / Encryption Settings .................................................... 11 3.7. Station List ................................................................................................... 12 4. Device Labeling ...................................................................................................... 13 5. Disclaimer ............................................................................................................... 13
Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. P. 21. FCC & IC Statement  1.1. FCC Caution Any  Changes  or  modifications  not  expressly  approved  by  the  party  responsible  for compliance could void the user's authority to operate the equipment. This  device  complies  with  part  15  of  the  FCC  Rules.  Operation  is  subject  to  the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.  1.2. FCC Radiation Exposure Statement IMPORTANT NOTE: This  equipment  complies  with  FCC  radiation  exposure  limits  set  forth  for  an uncontrolled  environment.  This  equipment  should  be  installed  and  operated  with minimum distance 20cm between the radiator & your body. This  transmitter  must  not  be  co-located  or  operating  in  conjunction  with  any  other antenna or transmitter.

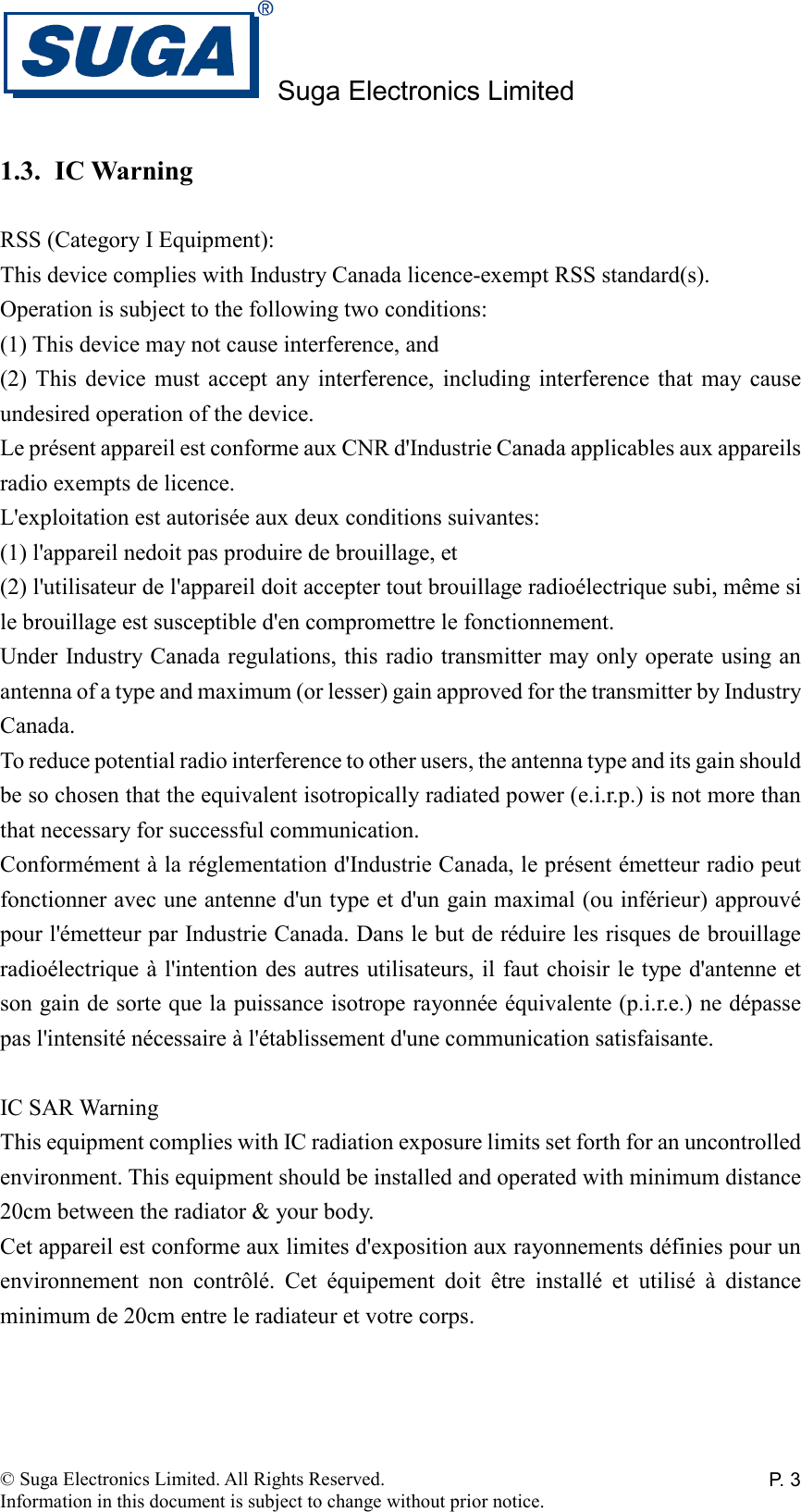

Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. P. 31.3. IC Warning  RSS (Category I Equipment): This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This  device  must  accept  any  interference,  including  interference  that  may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.  IC SAR Warning This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Cet appareil est conforme aux limites d'exposition aux rayonnements définies pour un environnement  non  contrôlé.  Cet  équipement  doit  être  installé  et  utilisé  à  distance minimum de 20cm entre le radiateur et votre corps.

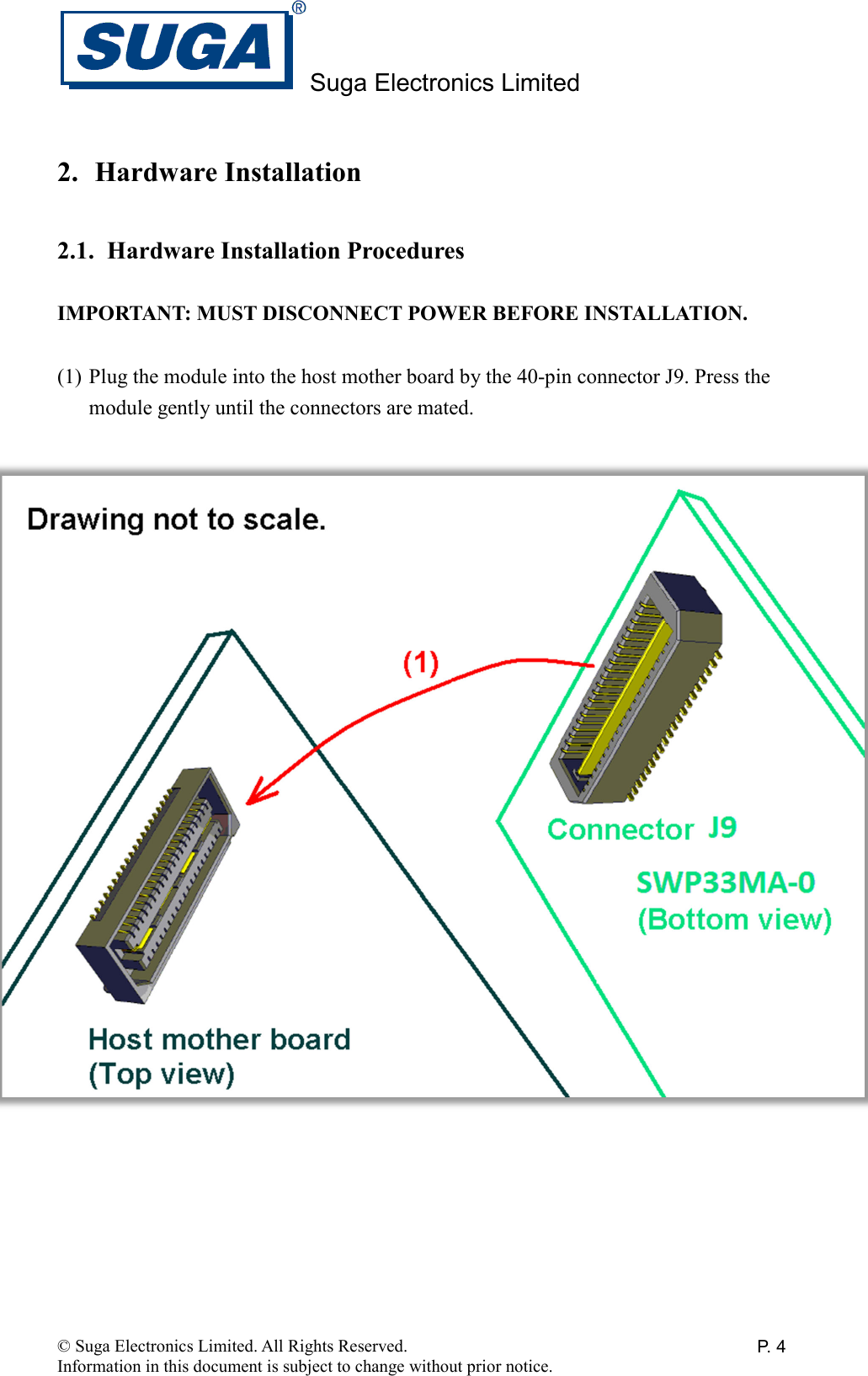

Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. P. 42. Hardware Installation  2.1. Hardware Installation Procedures  IMPORTANT: MUST DISCONNECT POWER BEFORE INSTALLATION.  (1) Plug the module into the host mother board by the 40-pin connector J9. Press the module gently until the connectors are mated.

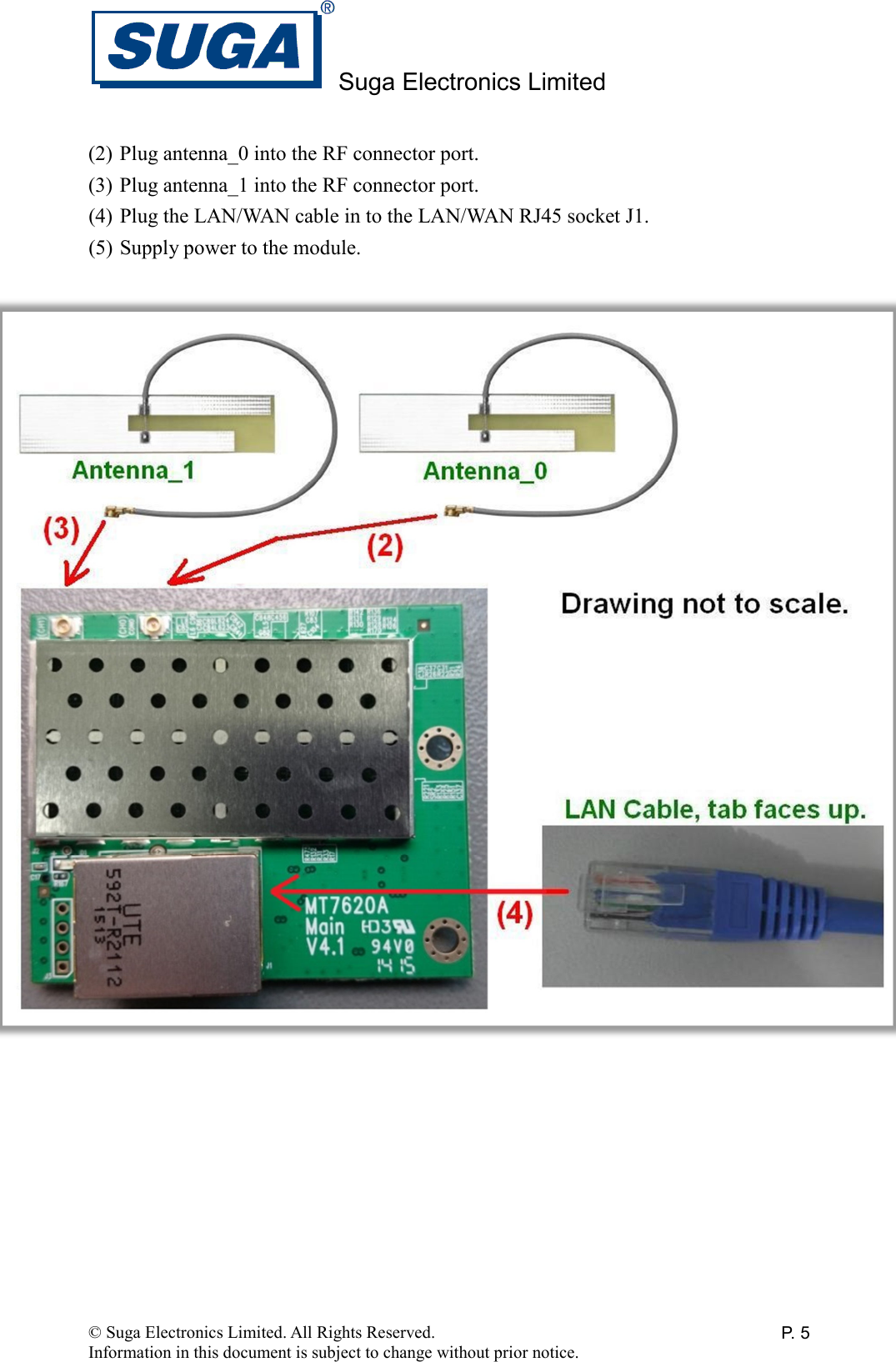

Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. P. 5(2) Plug antenna_0 into the RF connector port. (3) Plug antenna_1 into the RF connector port. (4) Plug the LAN/WAN cable in to the LAN/WAN RJ45 socket J1. (5) Supply power to the module.
Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. P. 63. Software Installation  3.1. Booting up  Power up the module. Connect the Ethernet port to the PC. Enter http://10.10.10.254 into Browser (e.g., Internet Explorer) to open the AP/router home page. As below:

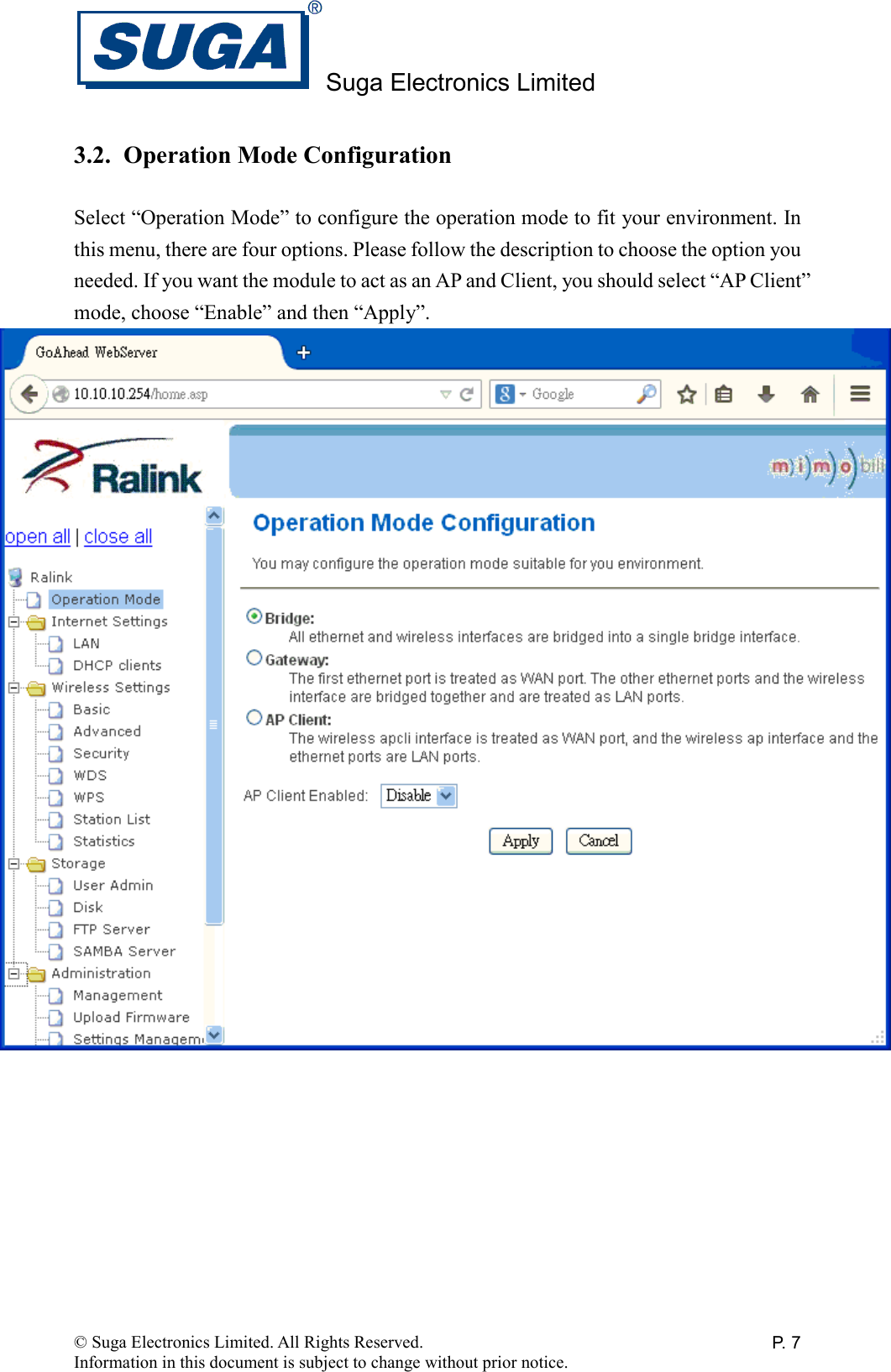

Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. P. 73.2. Operation Mode Configuration  Select “Operation Mode” to configure the operation mode to fit your environment. In this menu, there are four options. Please follow the description to choose the option you needed. If you want the module to act as an AP and Client, you should select “AP Client” mode, choose “Enable” and then “Apply”.
Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. P. 83.3. Local Area Network (LAN) Settings  Select “LAN” option to set your home page IP address, subnet mask, default gateway, etc. The default IP is 10.10.10.254.

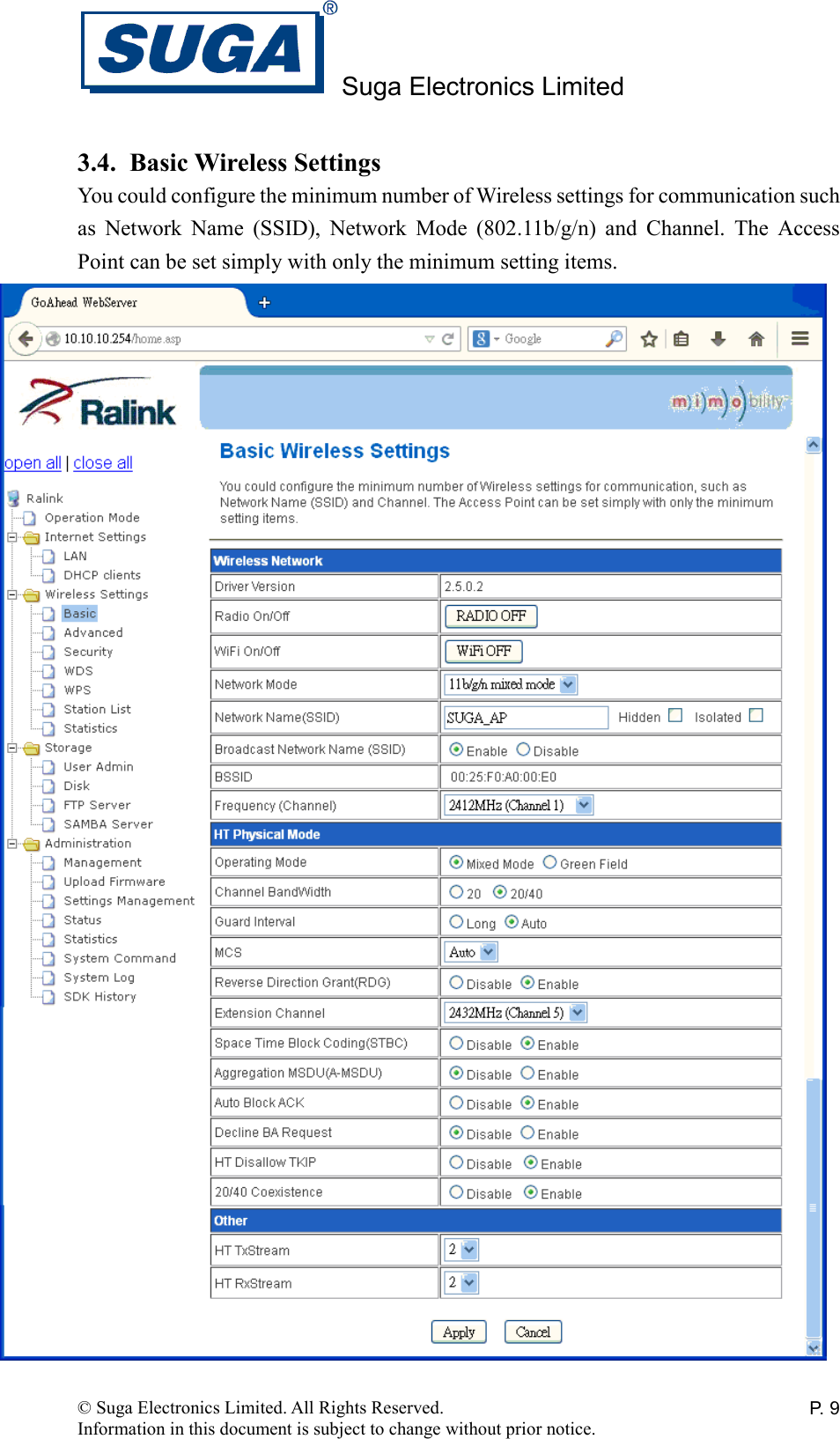

Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. P. 93.4. Basic Wireless Settings You could configure the minimum number of Wireless settings for communication such as  Network  Name  (SSID),  Network  Mode  (802.11b/g/n)  and  Channel.  The  Access Point can be set simply with only the minimum setting items.
Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. P. 103.5. Advanced Wireless Settings  Use the Advanced Setup page to make advanced settings for the Wireless. Advanced Setup includes items that are not available from the Basic Setup page such as Beacon Interval, Control Tx Rates and Basic Data Rates.

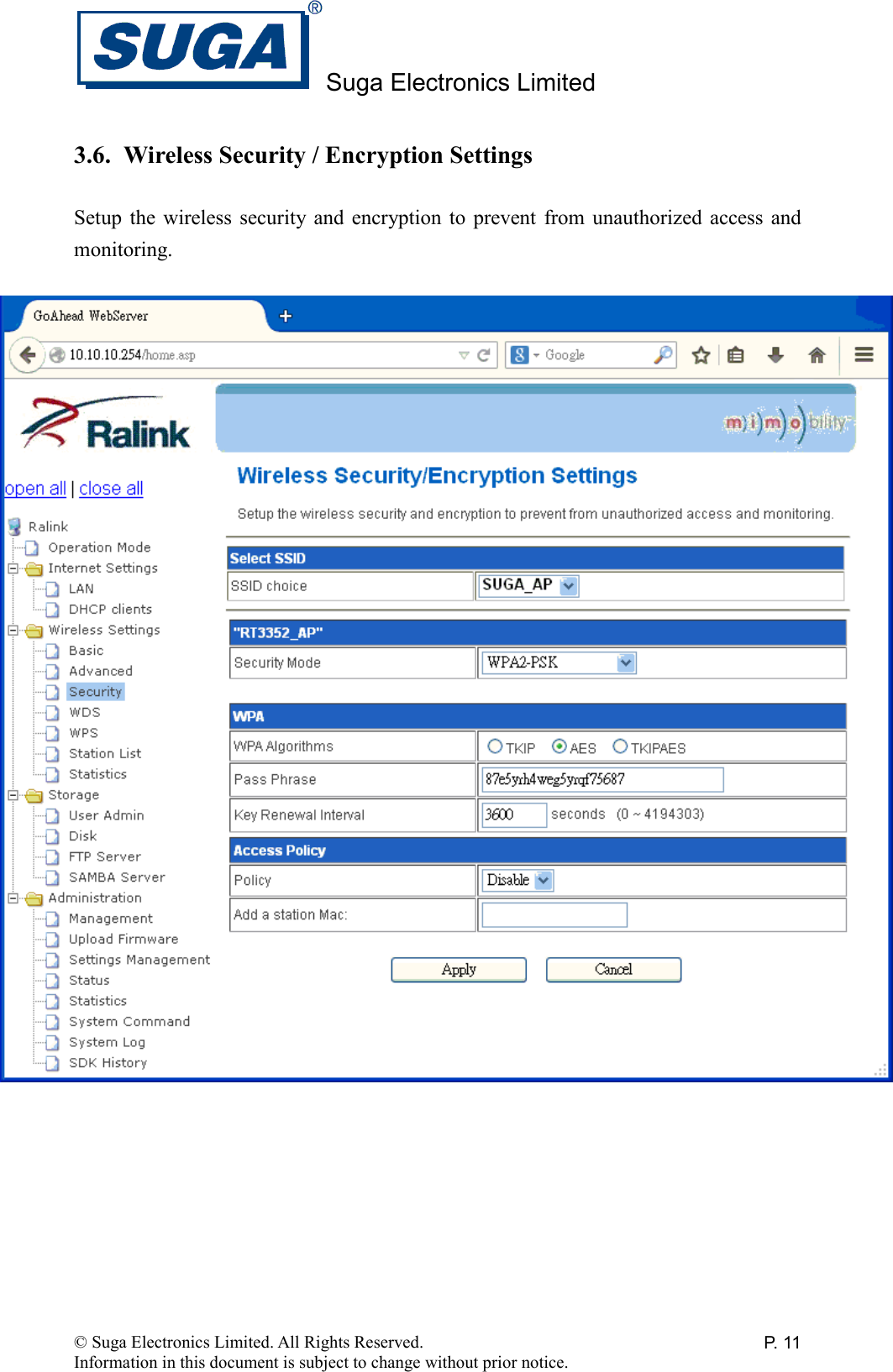

Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. P. 113.6. Wireless Security / Encryption Settings  Setup  the  wireless  security  and  encryption to  prevent from  unauthorized  access and monitoring.

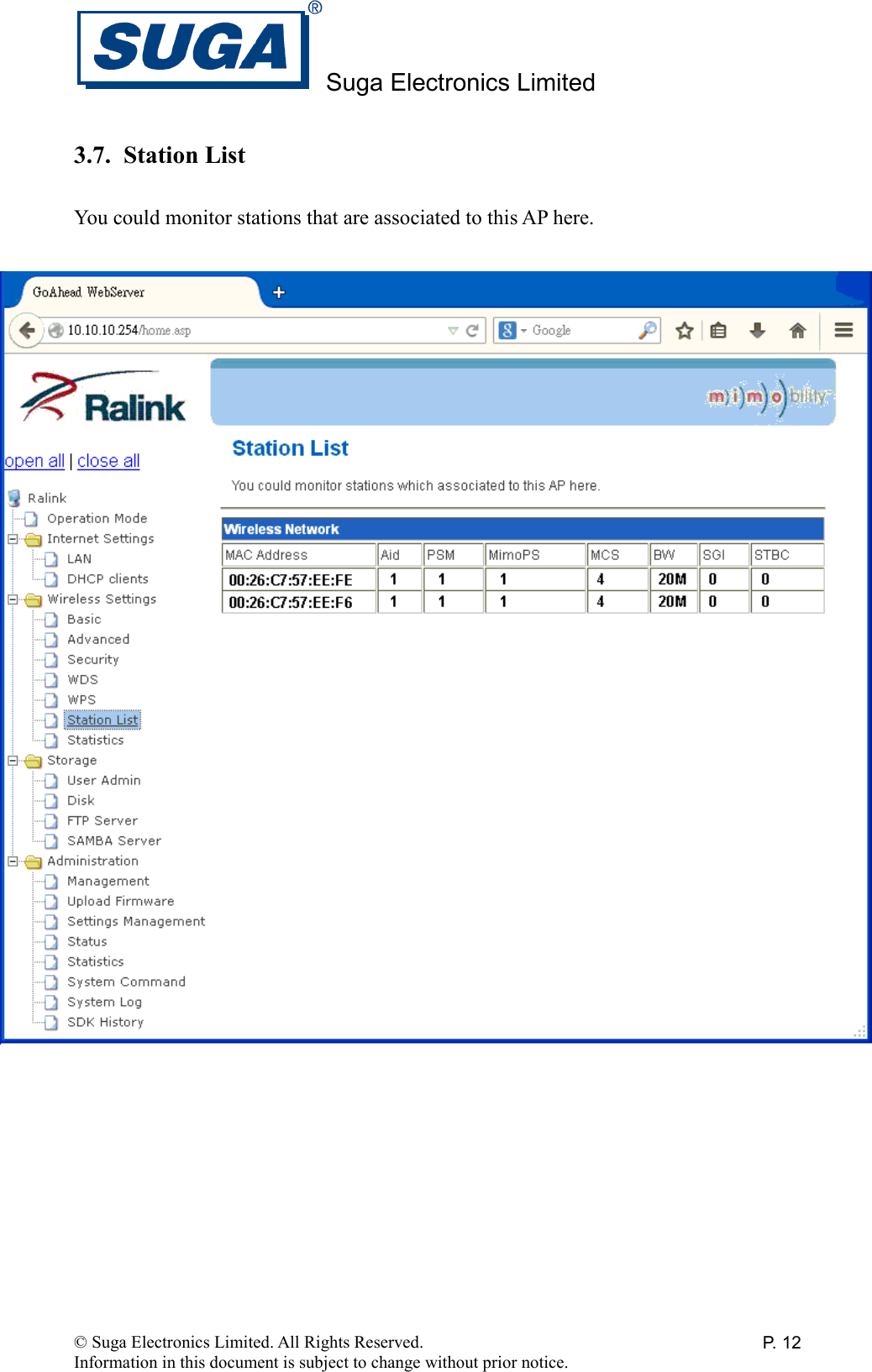

Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. P. 123.7. Station List  You could monitor stations that are associated to this AP here.
Suga Electronics Limited © Suga Electronics Limited. All Rights Reserved. Information in this document is subject to change without prior notice. P. 134. Device Labeling  The host device containing this module must either: (1).  Make  the  module  label  visible  so  that  the  FCC/IC  ID  is  visible  in  the  end construction. (2). Label the end product with the FCC ID and IC ID of the module. For example: “Contain FCC ID: VZFSWP33MA0” and “Contain IC: 10609A-SWP33MA0”.   5. Disclaimer  Suga  Electronics  Limited  assumes  no  responsibility  for  errors  or  omissions  in  the materials available on this Document.  THESE MATERIALS AND INFORMATION ARE PROVIDED “AS IS” WITHOUT WARRANTY  OF  ANY  KIND,  EITHER  EXPRESS  OR  IMPLIED  ,  INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT.  SugaE uses reasonable efforts to include accurate and up-to-date information on this Document;  it  does  not,  however,  make  any  representations  as  to  its  accuracy  or completeness of the information, text, graphics, links or other items contained within these materials.    Your use of this Document is at your own responsibility.    SugaE, its suppliers,  and  other  parties  involved  in  creating  and  delivering  this  Document’s contents  shall  not  be  liable  for  any  special,  indirect,  incidental,  or  consequential damages, including without limitation, lost revenues or lost profits.
