Summit Electronics CAD-4057 Cup Holder BT FM Transmitter &Charger; User Manual

Summit Electronics LLC Cup Holder BT FM Transmitter &Charger;

User Manual

User Manual CAD-4057 Cup Holder BT FM Transmitter &Charger

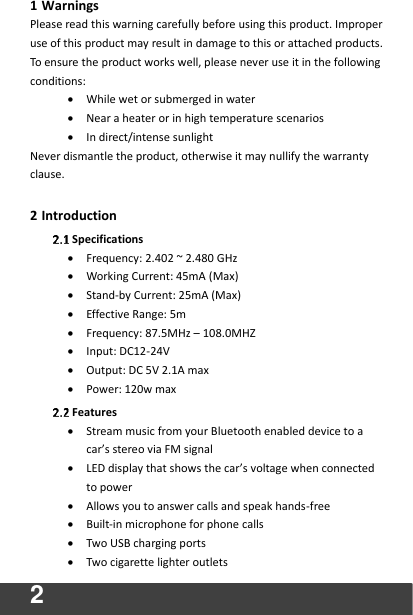

2 1 Warnings Please read this warning carefully before using this product. Improper use of this product may result in damage to this or attached products. To ensure the product works well, please never use it in the following conditions: • While wet or submerged in water • Near a heater or in high temperature scenarios • In direct/intense sunlight Never dismantle the product, otherwise it may nullify the warranty clause. 2 Introduction Specifications • Frequency: 2.402 ~ 2.480 GHz • Working Current: 45mA (Max) • Stand-by Current: 25mA (Max) • Effective Range: 5m • Frequency: 87.5MHz – 108.0MHZ • Input: DC12-24V • Output: DC 5V 2.1A max • Power: 120w max Features • Stream music from your Bluetooth enabled device to a car’s stereo via FM signal • LED display that shows the car’s voltage when connected to power • Allows you to answer calls and speak hands-free • Built-in microphone for phone calls • Two USB charging ports • Two cigarette lighter outlets

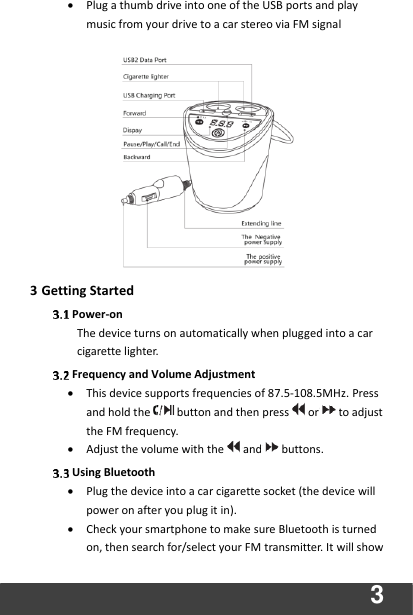

3 • Plug a thumb drive into one of the USB ports and play music from your drive to a car stereo via FM signal 3 Getting Started Power-on The device turns on automatically when plugged into a car cigarette lighter. Frequency and Volume Adjustment • This device supports frequencies of 87.5-108.5MHz. Press and hold the button and then press or to adjust the FM frequency. • Adjust the volume with the and buttons. Using Bluetooth • Plug the device into a car cigarette socket (the device will power on after you plug it in). • Check your smartphone to make sure Bluetooth is turned on, then search for/select your FM transmitter. It will show

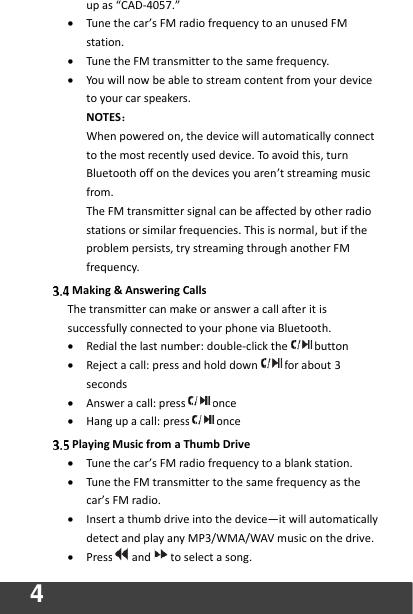

4 up as “CAD-4057.” • Tune the car’s FM radio frequency to an unused FM station. • Tune the FM transmitter to the same frequency. • You will now be able to stream content from your device to your car speakers. NOTES： When powered on, the device will automatically connect to the most recently used device. To avoid this, turn Bluetooth off on the devices you aren’t streaming music from. The FM transmitter signal can be affected by other radio stations or similar frequencies. This is normal, but if the problem persists, try streaming through another FM frequency. Making & Answering Calls The transmitter can make or answer a call after it is successfully connected to your phone via Bluetooth. • Redial the last number: double-click the button • Reject a call: press and hold down for about 3 seconds • Answer a call: press once • Hang up a call: press once Playing Music from a Thumb Drive • Tune the car’s FM radio frequency to a blank station. • Tune the FM transmitter to the same frequency as the car’s FM radio. • Insert a thumb drive into the device—it will automatically detect and play any MP3/WMA/WAV music on the drive. • Press and to select a song.

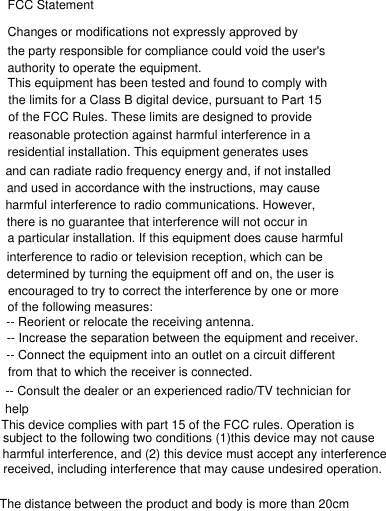

subject to the following two conditions (1)this device may not cause -- Consult the dealer or an experienced radio/TV technician for of the following measures:there is no guarantee that interference will not occur in and used in accordance with the instructions, may cause FCC StatementChanges or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed harmful interference to radio communications. However, a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more -- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.helpThis device complies with part 15 of the FCC rules. Operation is harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.The distance between the product and body is more than 20cm
