Sunricher Technology 2836 LED Controller User Manual 2836rgb US

Shenzhen Sunricher Technology Co.,Ltd LED Controller 2836rgb US

User Manual

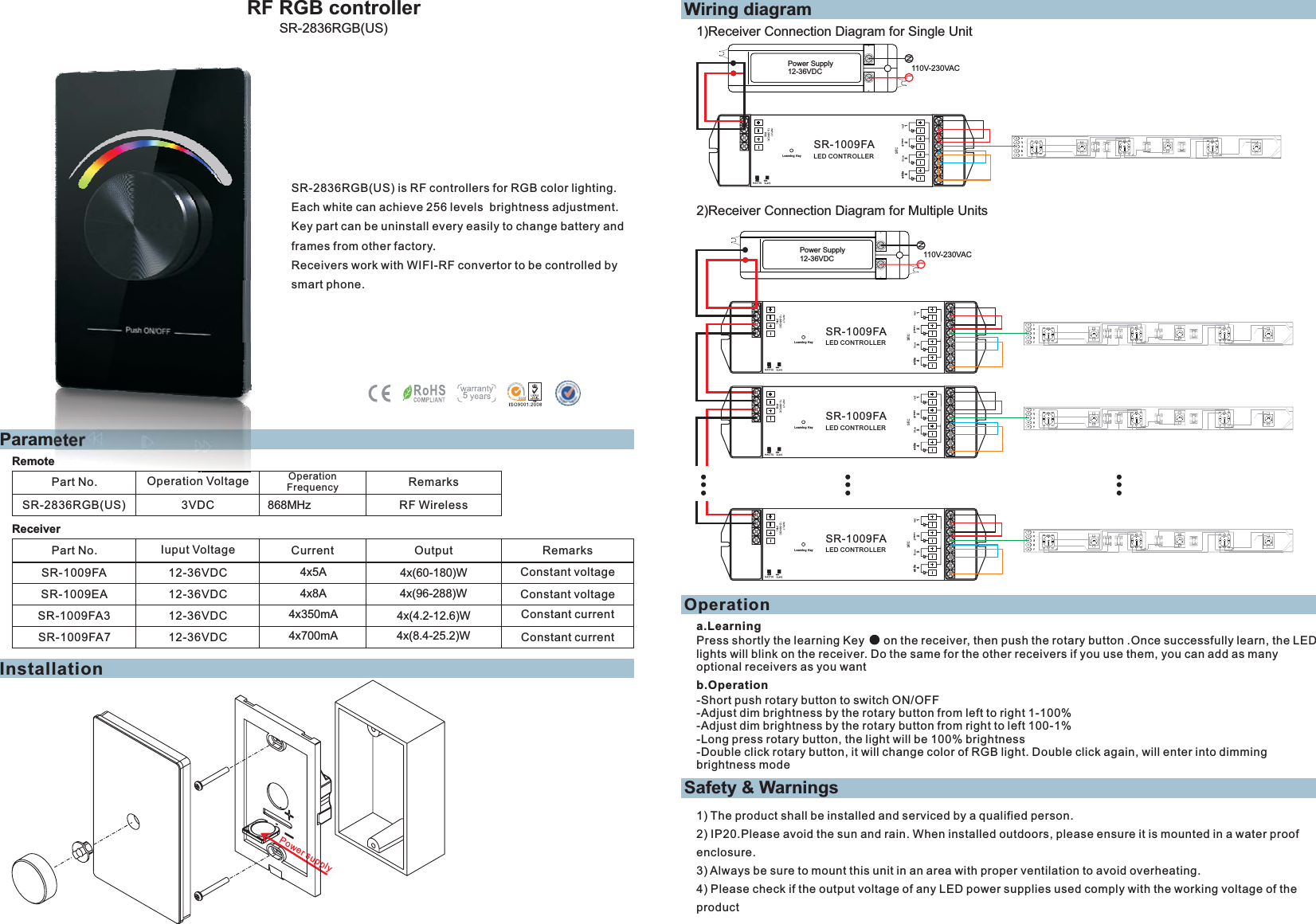

RF RGB controllerSR-2836RGB(US)ParameterInstallationRemotePart No. Operation Voltage OperationFrequencySR-2836RGB(US) 3VDC 868MHzRemarksRF WirelessWiring diagramPart No. Iuput Voltage RemarksCurrentSR-1009FA 12-36VDC Constant voltage4x(60-180)W4x5AOutputSR-1009EA 12-36VDC Constant voltage4x(96-288)W4x8AReceiverSR-1009FA3 12-36VDC Constant current4x(4.2-12.6)W4x350mASR-1009FA7 12-36VDC Constant current4x(8.4-25.2)W4x700mA1)Receiver Connection Diagram for Single Unit2) Connection Diagram for Multiple UnitsReceiverPower Supply12-36VDCLN110V-230VACwhiteSR-1009FALED CONTROLLER1234Learning KeywhiteSR-1009FALED CONTROLLER1234Learning KeywhiteSR-1009FALED CONTROLLER1234Learning KeyPower Supply12-36VDCLN110V-230VACwhiteSR-1009FALED CONTROLLER1234Learning KeyOperationa.LearningPress shortly the learning Key on the receiver, then push the rotary button .Once successfully learn, the LEDlights will blink on the receiver. Do the same for the other receivers if you use them, you can add as manyoptional receivers as you wantb.Operation-Short push rotary button to switch ON/OFF-Adjust dim brightness by the rotary button from left to right 1-100%-Adjust dim brightness by the rotary button from right to left 100-1%-Long press rotary button, the light will be 100% brightness-Double click rotary button, it will change color of RGB light. Double click again, will enter into dimmingbrightness modeSafety & Warnings1) The product shall be installed and serviced by a qualified person.2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proofenclosure.3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.4) Please check if the output voltage of any LED power supplies used comply with the working voltage of theproduct5Power supplySR-2836RGB(US) is RF controllers for RGB color lighting.Each white can achieve 256 levels brightness adjustment.Key part can be uninstall every easily to change battery andframes from other factory.Receivers work with WIFI-RF convertor to be controlled bysmart phone.

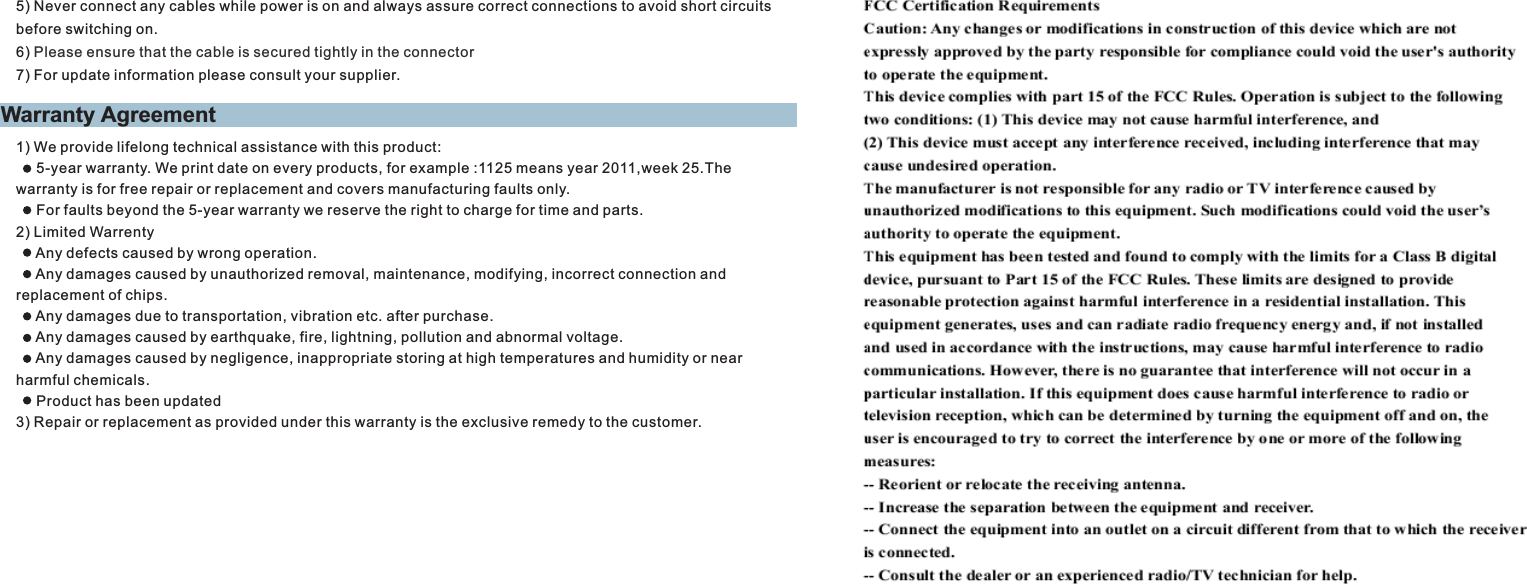

Warranty Agreement1) We provide lifelong technical assistance with this product:5-year warranty. We print date on every products, for example :1125 means year 2011,week 25.Thewarranty is for free repair or replacement and covers manufacturing faults only.For faults beyond the 5-year warranty we reserve the right to charge for time and parts.2) Limited WarrentyAny defects caused by wrong operation.Any damages caused by unauthorized removal, maintenance, modifying, incorrect connection andreplacement of chips.Any damages due to transportation, vibration etc. after purchase.Any damages caused by earthquake, fire, lightning, pollution and abnormal voltage.Any damages caused by negligence, inappropriate storing at high temperatures and humidity or nearharmful chemicals.Product has been updated3) Repair or replacement as provided under this warranty is the exclusive remedy to the customer.5) Never connect any cables while power is on and always assure correct connections to avoid short circuitsbefore switching on.6)7) For update information please consult your supplier.Please ensure that the cable is secured tightly in the connector
