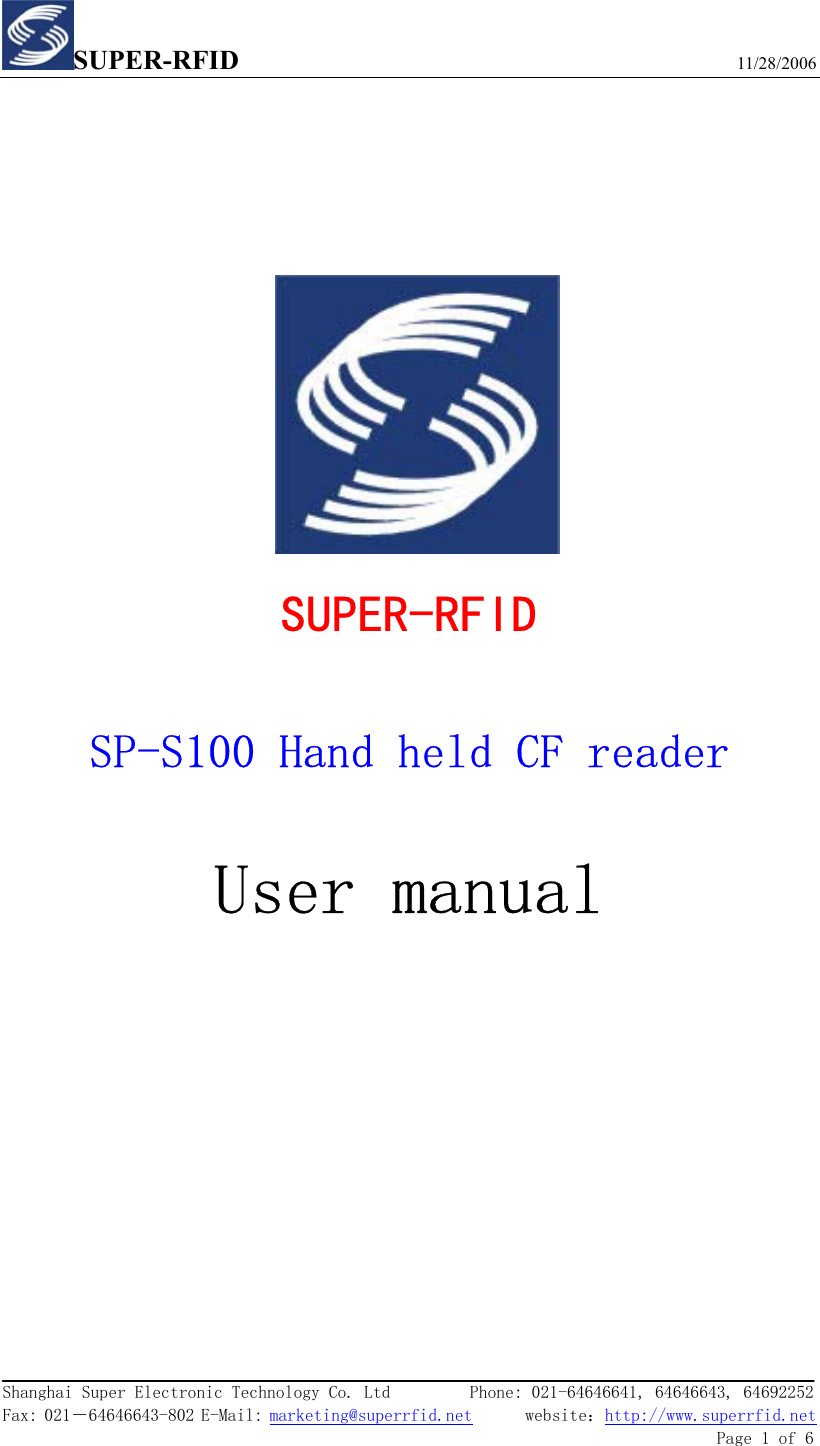

SUPER-RFID                             11/28/2006  Shanghai Super Electronic Technology Co. Ltd         Phone: 021-64646641, 64646643, 64692252  Fax: 021-64646643-802 E-Mail: marketing@superrfid.net      website:http://www.superrfid.net               Page 1 of 6                SUPER-RFID  SP-S100 Hand held CF reader   User manual

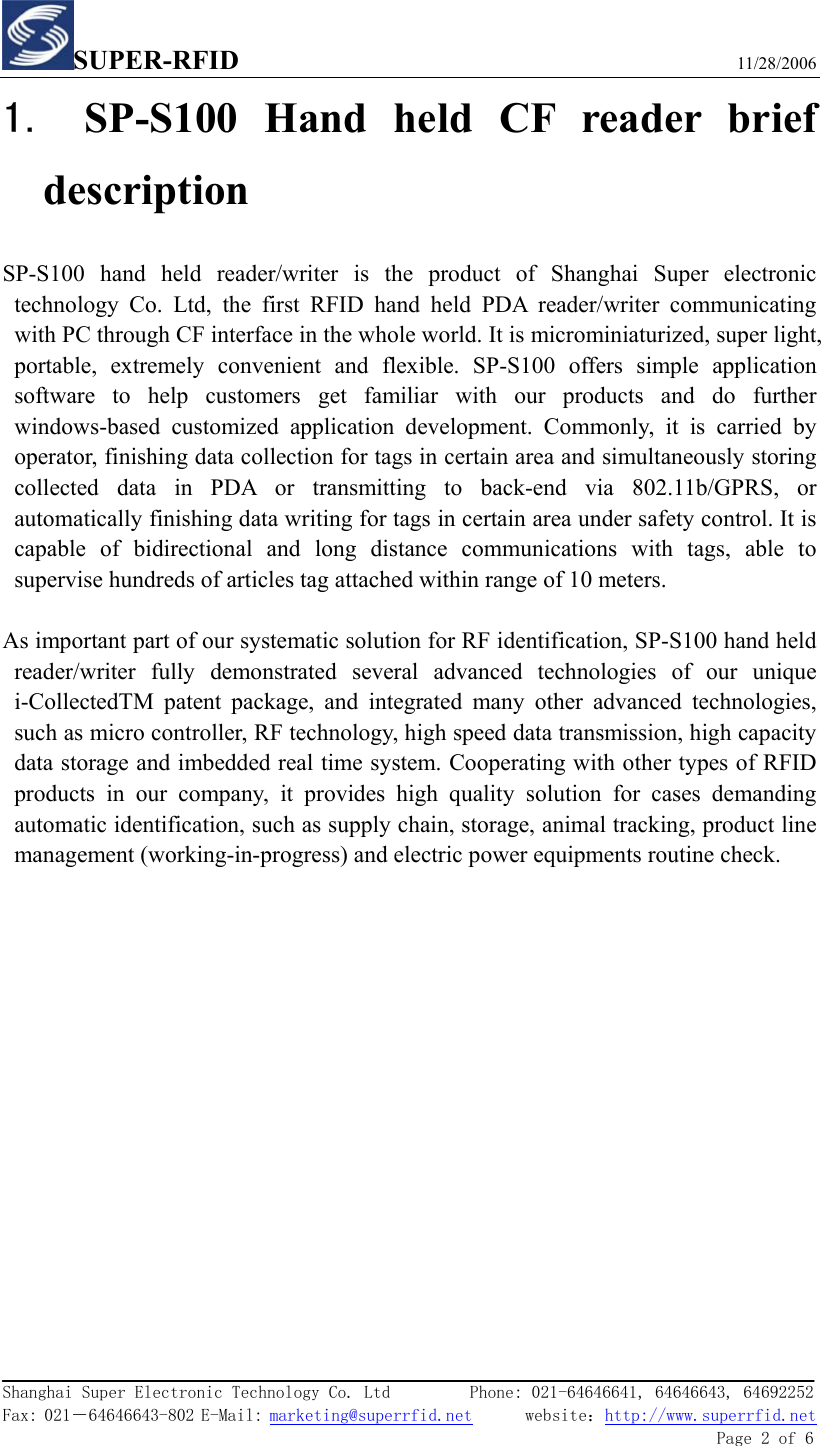

SUPER-RFID                             11/28/2006  Shanghai Super Electronic Technology Co. Ltd         Phone: 021-64646641, 64646643, 64692252  Fax: 021-64646643-802 E-Mail: marketing@superrfid.net      website:http://www.superrfid.net               Page 2 of 6  1. SP-S100 Hand held CF reader brief description SP-S100 hand held reader/writer is the product of Shanghai Super electronic technology Co. Ltd, the first RFID hand held PDA reader/writer communicating with PC through CF interface in the whole world. It is microminiaturized, super light, portable, extremely convenient and flexible. SP-S100 offers simple application software to help customers get familiar with our products and do further windows-based customized application development. Commonly, it is carried by operator, finishing data collection for tags in certain area and simultaneously storing collected data in PDA or transmitting to back-end via 802.11b/GPRS, or automatically finishing data writing for tags in certain area under safety control. It is capable of bidirectional and long distance communications with tags, able to supervise hundreds of articles tag attached within range of 10 meters.  As important part of our systematic solution for RF identification, SP-S100 hand held reader/writer fully demonstrated several advanced technologies of our unique i-CollectedTM patent package, and integrated many other advanced technologies, such as micro controller, RF technology, high speed data transmission, high capacity data storage and imbedded real time system. Cooperating with other types of RFID products in our company, it provides high quality solution for cases demanding automatic identification, such as supply chain, storage, animal tracking, product line management (working-in-progress) and electric power equipments routine check.

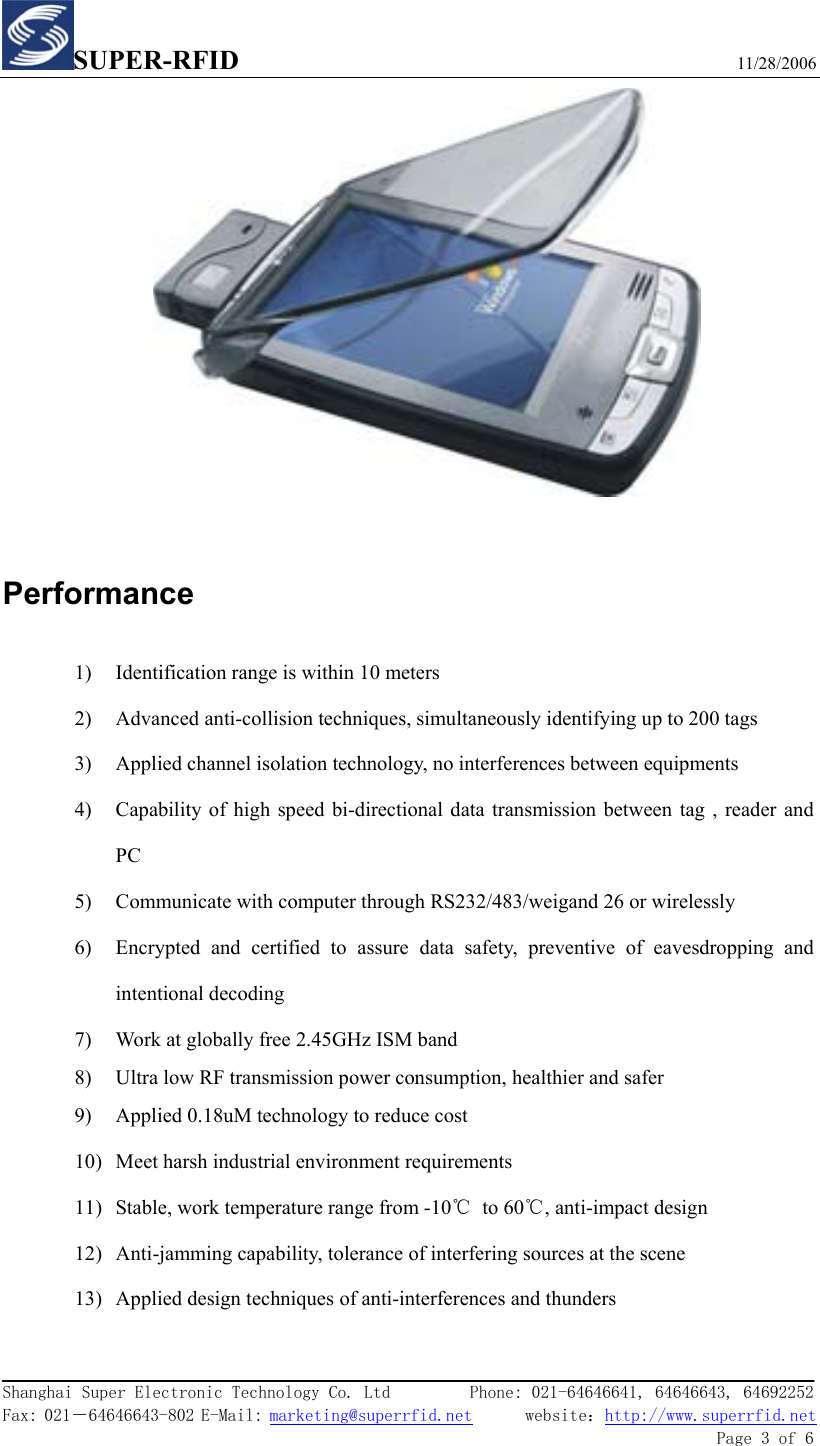

SUPER-RFID                             11/28/2006  Shanghai Super Electronic Technology Co. Ltd         Phone: 021-64646641, 64646643, 64692252  Fax: 021-64646643-802 E-Mail: marketing@superrfid.net      website:http://www.superrfid.net               Page 3 of 6    Performance 1) Identification range is within 10 meters 2) Advanced anti-collision techniques, simultaneously identifying up to 200 tags 3) Applied channel isolation technology, no interferences between equipments 4) Capability of high speed bi-directional data transmission between tag , reader and PC 5) Communicate with computer through RS232/483/weigand 26 or wirelessly 6) Encrypted and certified to assure data safety, preventive of eavesdropping and intentional decoding 7) Work at globally free 2.45GHz ISM band 8) Ultra low RF transmission power consumption, healthier and safer 9) Applied 0.18uM technology to reduce cost 10) Meet harsh industrial environment requirements 11) Stable, work temperature range from -10℃ to 60℃, anti-impact design 12) Anti-jamming capability, tolerance of interfering sources at the scene 13) Applied design techniques of anti-interferences and thunders

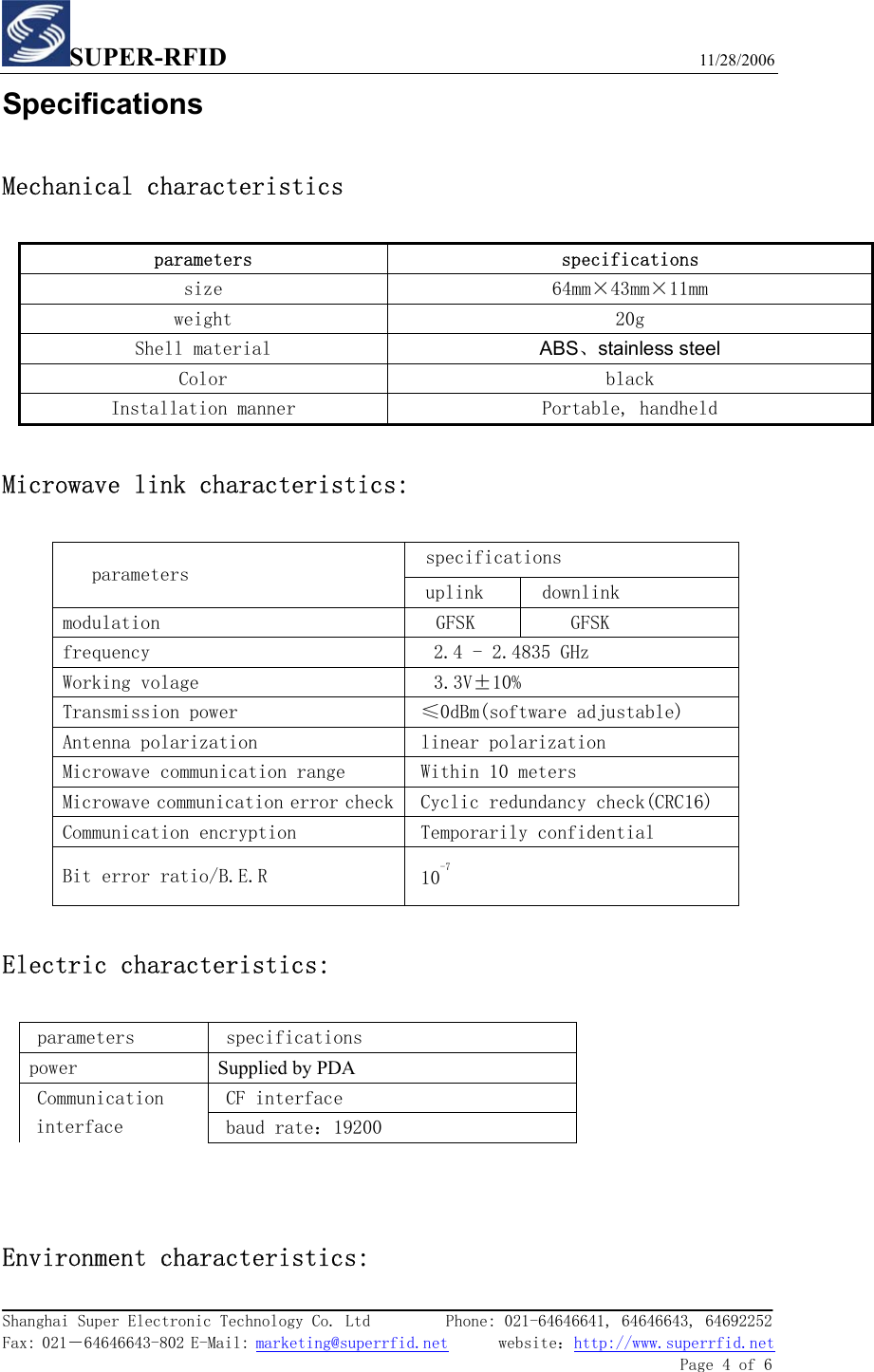

SUPER-RFID                             11/28/2006  Shanghai Super Electronic Technology Co. Ltd         Phone: 021-64646641, 64646643, 64692252  Fax: 021-64646643-802 E-Mail: marketing@superrfid.net      website:http://www.superrfid.net               Page 4 of 6  Specifications Mechanical characteristics parameters specifications size  64mm×43mm×11mm weight  20g Shell material  ABS、stainless steel Color  black Installation manner  Portable, handheld  Microwave link characteristics:  specifications  parameters   uplink   downlink  modulation  GFSK   GFSK  frequency  2.4 - 2.4835 GHz Working volage  3.3V±10% Transmission power  ≤0dBm(software adjustable) Antenna polarization   linear polarization  Microwave communication range  Within 10 meters  Microwave communication error check Cyclic redundancy check(CRC16)  Communication encryption  Temporarily confidential  Bit error ratio/B.E.R  10-7  Electric characteristics:  parameters   specifications  power  Supplied by PDA  CF interface Communication interface   baud rate:19200   Environment characteristics:

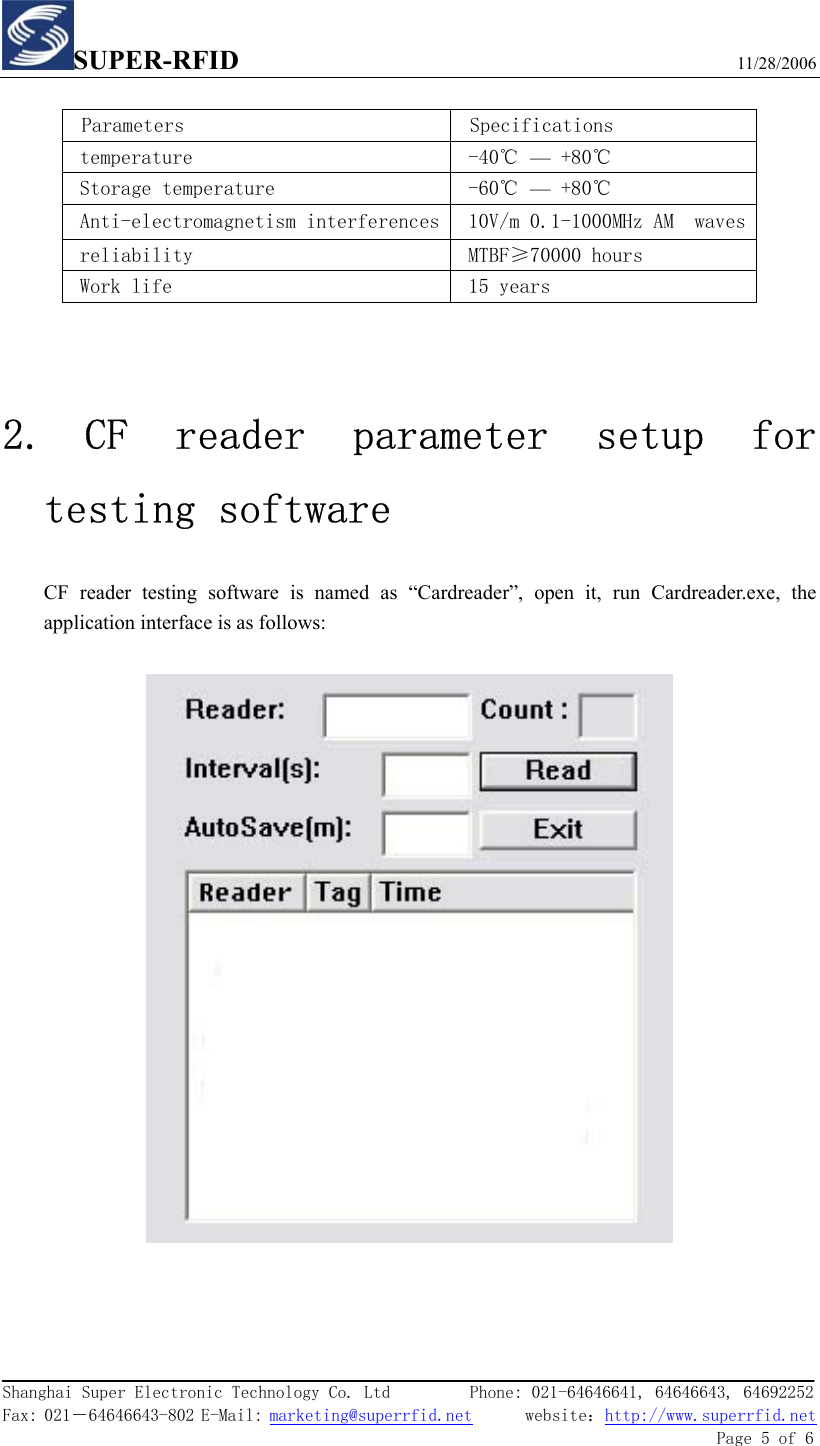

SUPER-RFID                             11/28/2006  Shanghai Super Electronic Technology Co. Ltd         Phone: 021-64646641, 64646643, 64692252  Fax: 021-64646643-802 E-Mail: marketing@superrfid.net      website:http://www.superrfid.net               Page 5 of 6   Parameters  Specifications temperature  -40℃ — +80℃  Storage temperature   -60℃ — +80℃  Anti-electromagnetism interferences 10V/m 0.1-1000MHz AM  waves  reliability   MTBF≥70000 hours  Work life  15 years    2. CF  reader  parameter  setup  for testing software CF reader testing software is named as “Cardreader”, open it, run Cardreader.exe, the application interface is as follows:

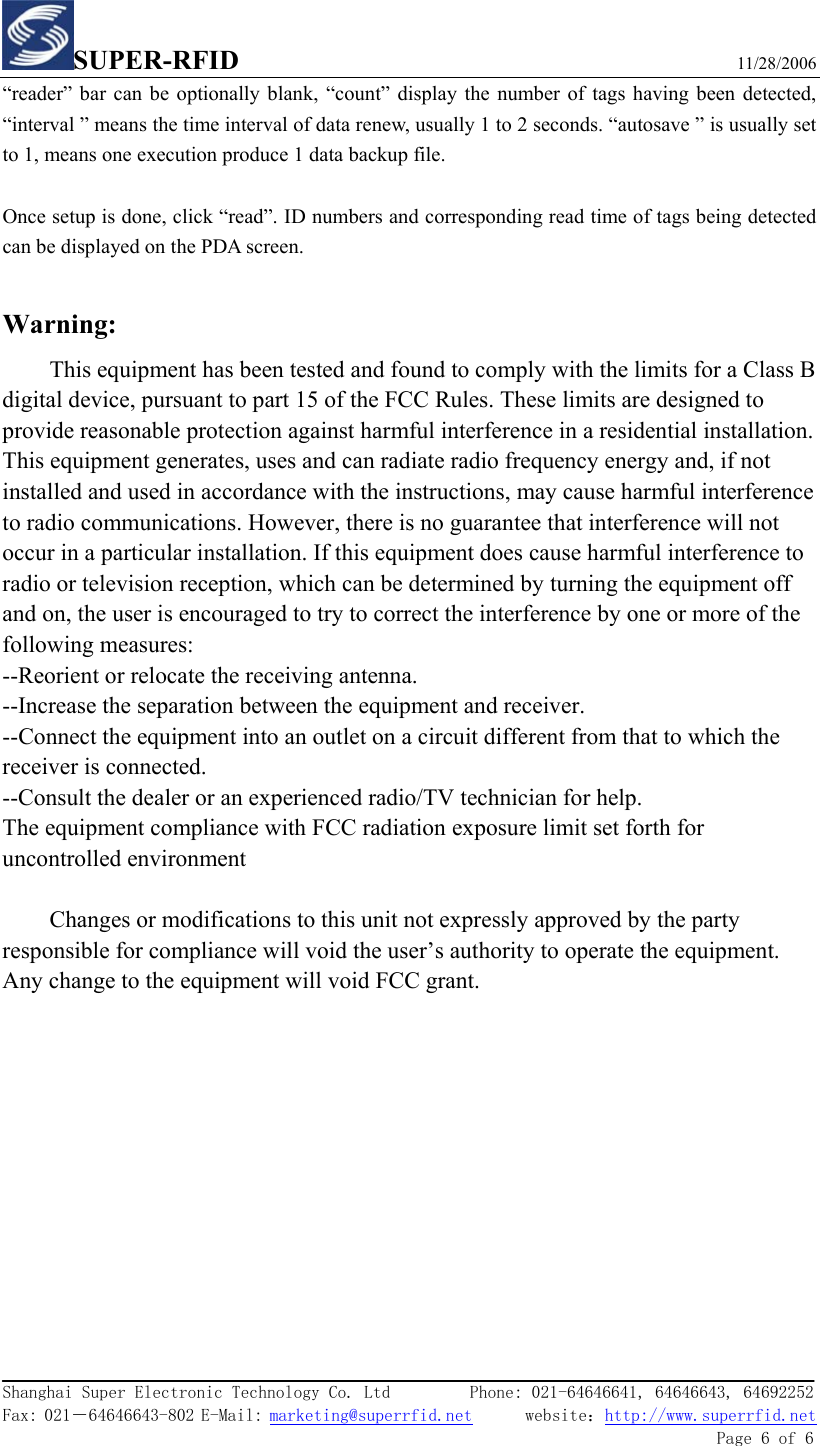

SUPER-RFID                             11/28/2006  Shanghai Super Electronic Technology Co. Ltd         Phone: 021-64646641, 64646643, 64692252  Fax: 021-64646643-802 E-Mail: marketing@superrfid.net      website:http://www.superrfid.net               Page 6 of 6  “reader” bar can be optionally blank, “count” display the number of tags having been detected, “interval ” means the time interval of data renew, usually 1 to 2 seconds. “autosave ” is usually set to 1, means one execution produce 1 data backup file.  Once setup is done, click “read”. ID numbers and corresponding read time of tags being detected can be displayed on the PDA screen.  Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The equipment compliance with FCC radiation exposure limit set forth for uncontrolled environment  Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant.
