Suzhou Sate Auto Electronic 3666OCU Yard Check TPMS PCBA User Manual 3666OCU User Manual

Suzhou Sate Auto Electronic Co., Ltd Yard Check TPMS PCBA 3666OCU User Manual

User Manual

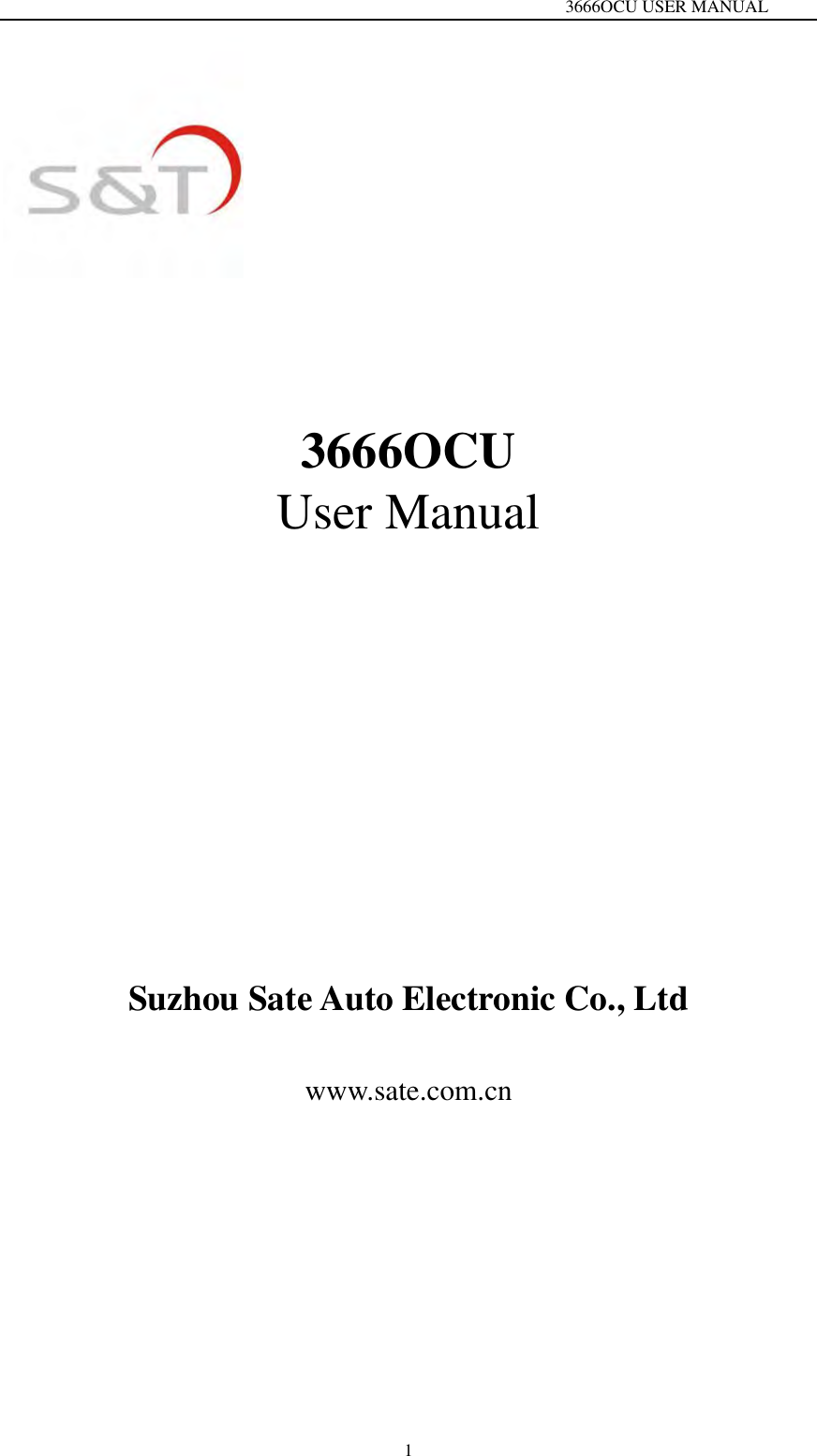

3666OCU USER MANUAL 1 3666OCU User Manual Suzhou Sate Auto Electronic Co., Ltd www.sate.com.cn

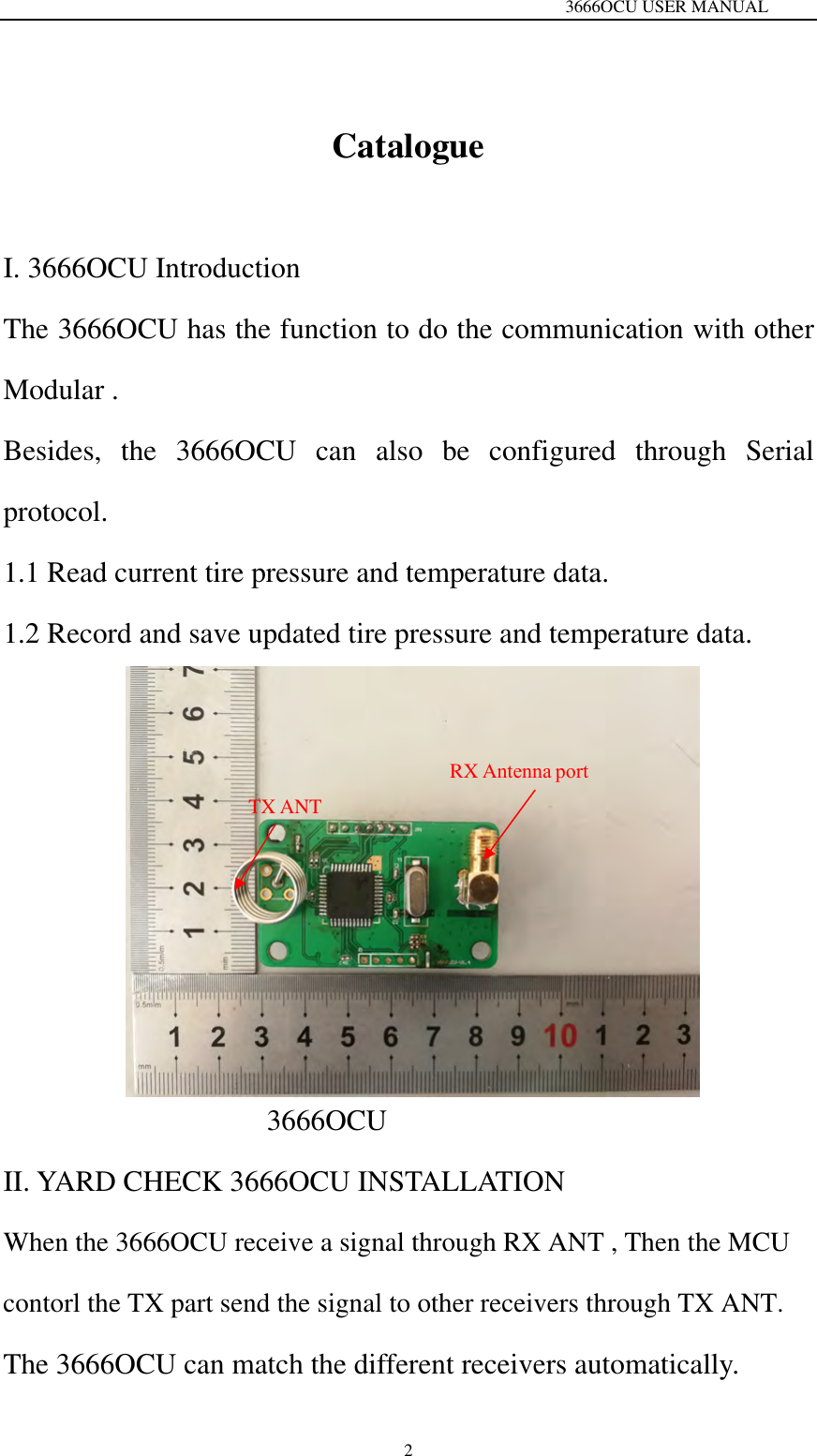

3666OCU USER MANUAL 2Catalogue I. 3666OCU Introduction The 3666OCU has the function to do the communication with other Modular . Besides, the 3666OCU can also be configured through Serial protocol. 1.1 Read current tire pressure and temperature data. 1.2 Record and save updated tire pressure and temperature data. 3666OCU II. YARD CHECK 3666OCU INSTALLATIONWhen the 3666OCU receive a signal through RX ANT , Then the MCU contorl the TX part send the signal to other receivers through TX ANT. The 3666OCU can match the different receivers automatically. TX ANT RX Antenna port

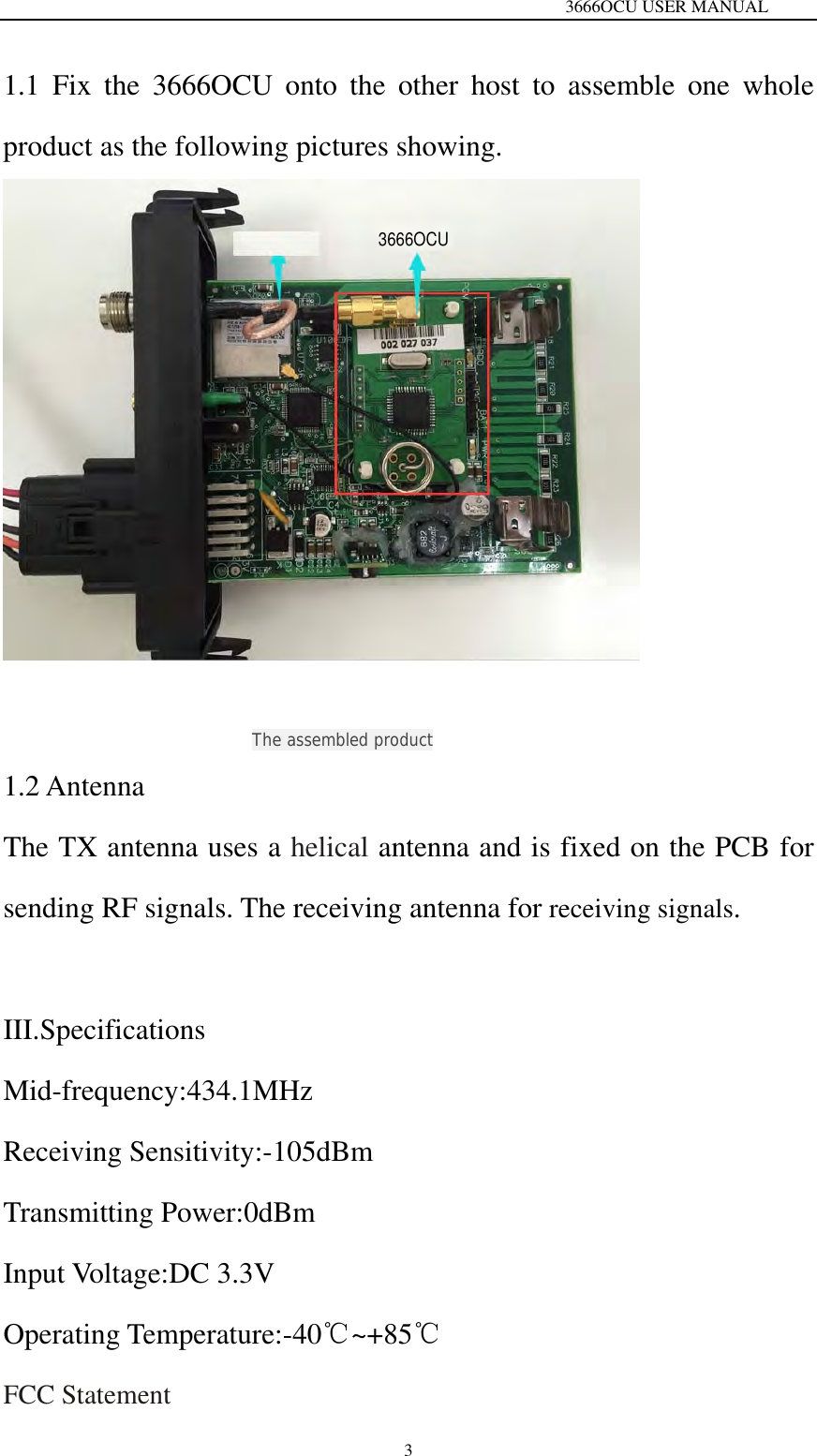

3666OCU USER MANUAL 3 1.1 Fix the 3666OCU onto the other host to assemble one whole product as the following pictures showing. The assembled product 1.2 Antenna The TX antenna uses a helical antenna and is fixed on the PCB for sending RF signals. The receiving antenna for receiving signals. III.Specifications Mid-frequency:434.1MHz Receiving Sensitivity:-105dBm Transmitting Power:0dBm Input Voltage:DC 3.3V Operating Temperature:-40℃~+85℃ FCC Statement 3666OCU

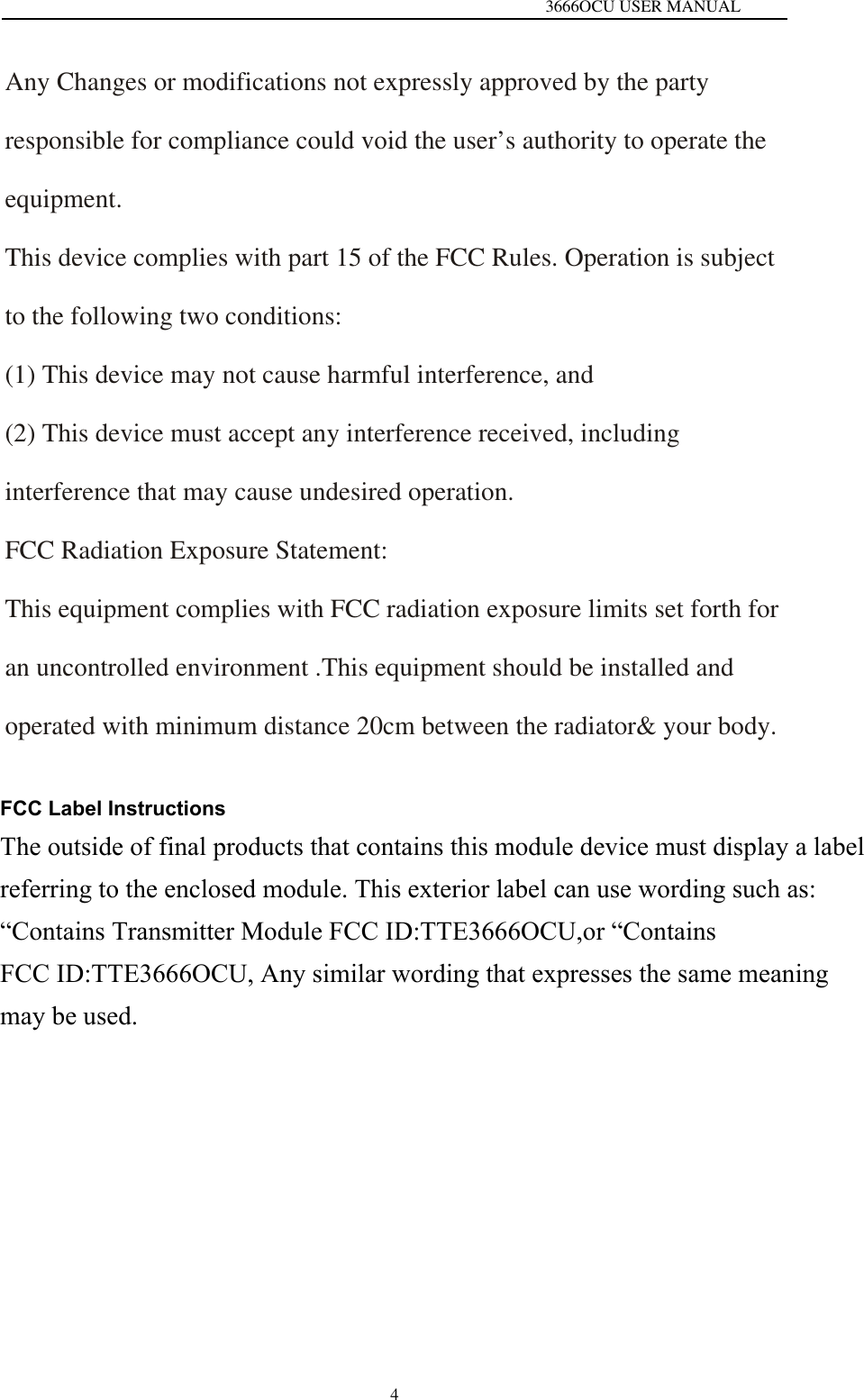

3666OCU USER MANUAL 4Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. FCC Label InstructionsThe outside of final products that contains this module device must display a label referring to the enclosed module. This exterior label can use wording such as: “Contains Transmitter Module FCC ID:TTE3666OCU,or “Contains FCC ID:TTE3666OCU, Any similar wording that expresses the same meaning may be used.
