Suzhou Sate Auto Electronic TP079 TIRE PRESSURE MONITORING SYSTEM User Manual

Suzhou Sate Auto Electronic Co., Ltd TIRE PRESSURE MONITORING SYSTEM Users Manual

Users Manual

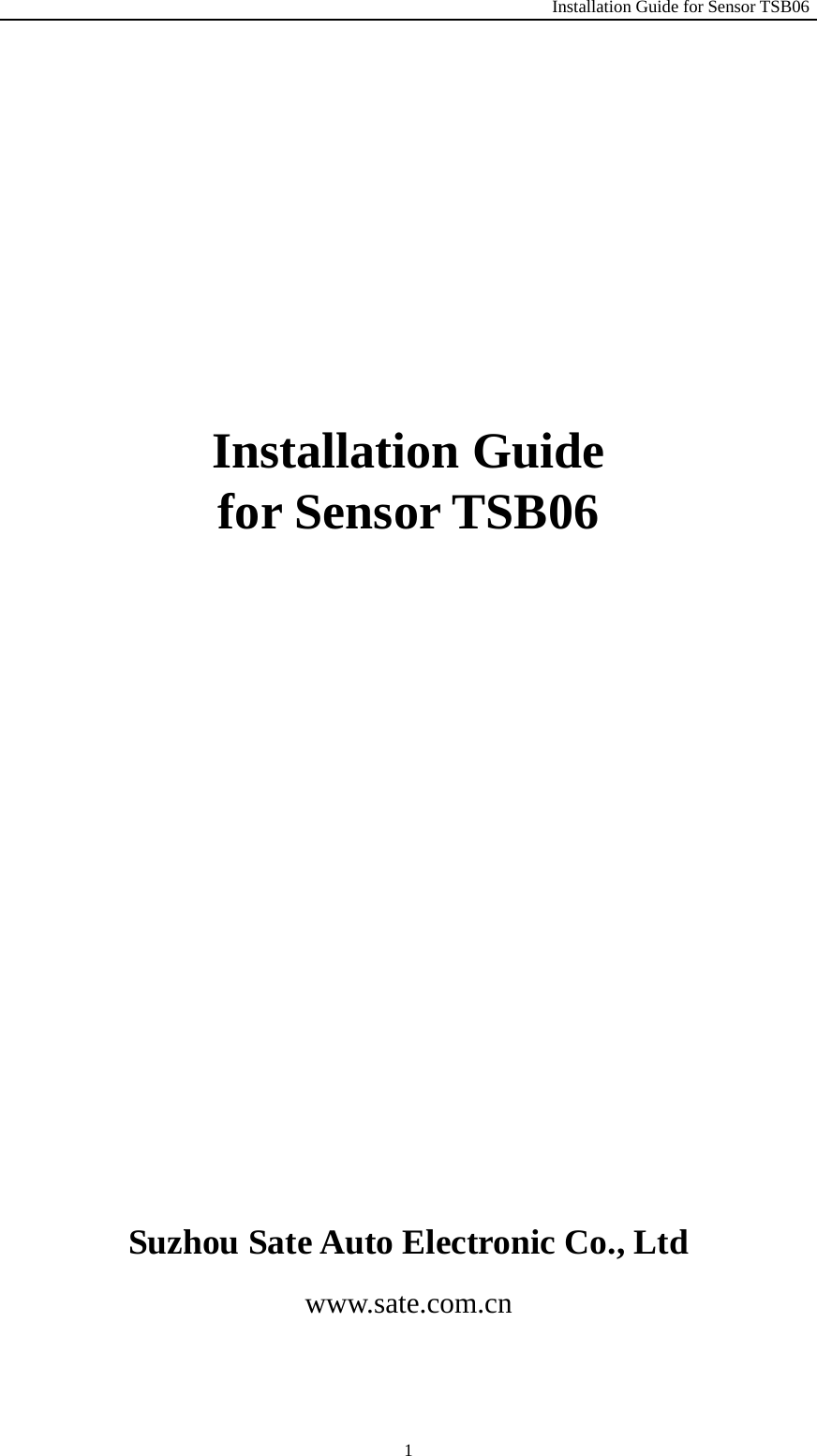

Installation Guide for Sensor TSB06 1 Installation Guide for Sensor TSB06 Suzhou Sate Auto Electronic Co., Ltd www.sate.com.cn

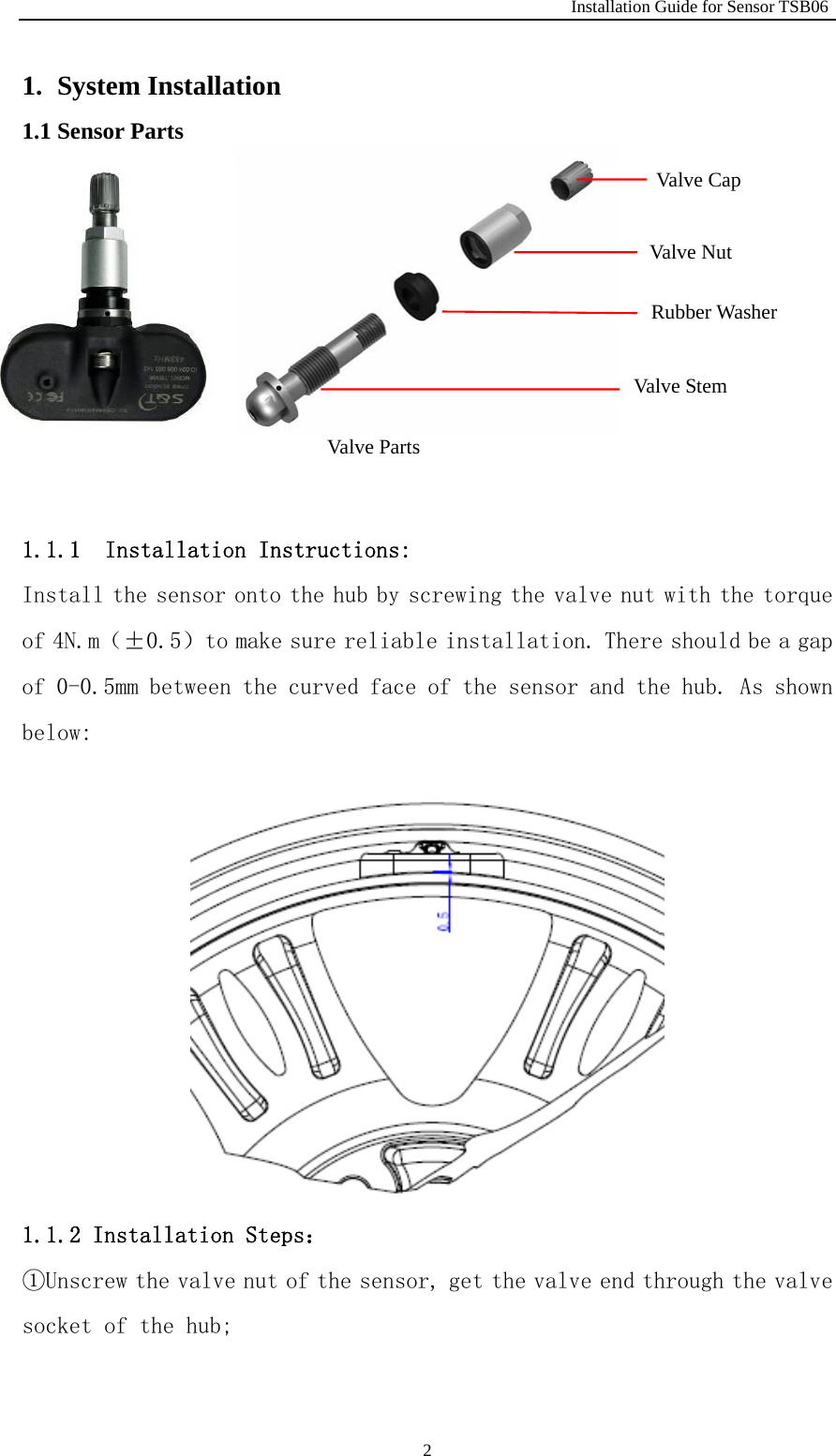

Installation Guide for Sensor TSB06 21. System Installation 1.1 Sensor Parts 1.1.1 Installation Instructions: Install the sensor onto the hub by screwing the valve nut with the torque of 4N.m（±0.5）to make sure reliable installation. There should be a gap of 0-0.5mm between the curved face of the sensor and the hub. As shown below: 1.1.2 Installation Steps： ①Unscrew the valve nut of the sensor, get the valve end through the valve socket of the hub; Valve Parts Valve Cap Valve Nut Rubber Washer Valve Stem

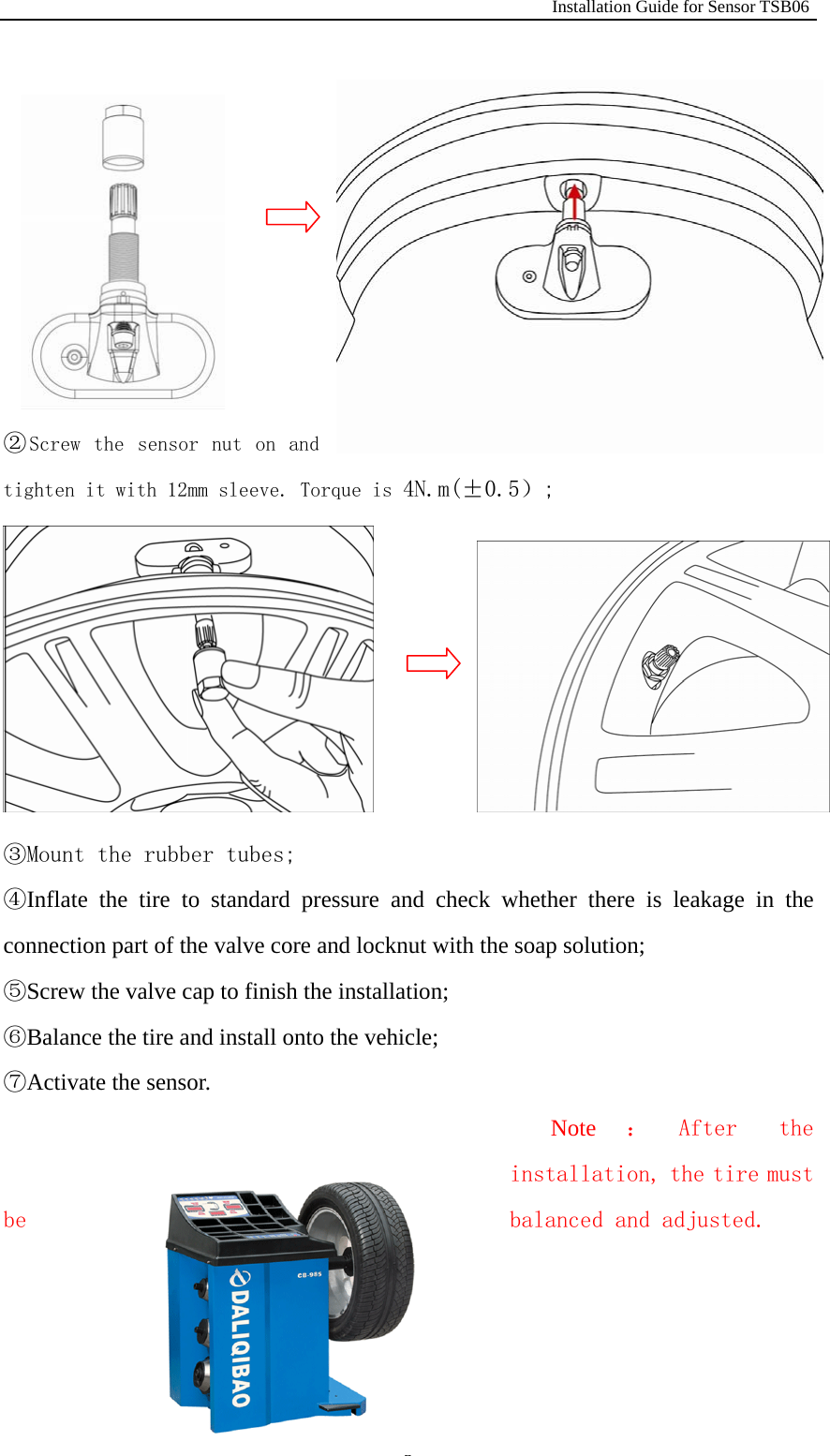

Installation Guide for Sensor TSB06 3 ②Screw the sensor nut on and tighten it with 12mm sleeve. Torque is 4N.m(±0.5）; ③Mount the rubber tubes; ④Inflate the tire to standard pressure and check whether there is leakage in the connection part of the valve core and locknut with the soap solution; ⑤Screw the valve cap to finish the installation; ⑥Balance the tire and install onto the vehicle; ⑦Activate the sensor. Note ： After the installation, the tire must be balanced and adjusted.

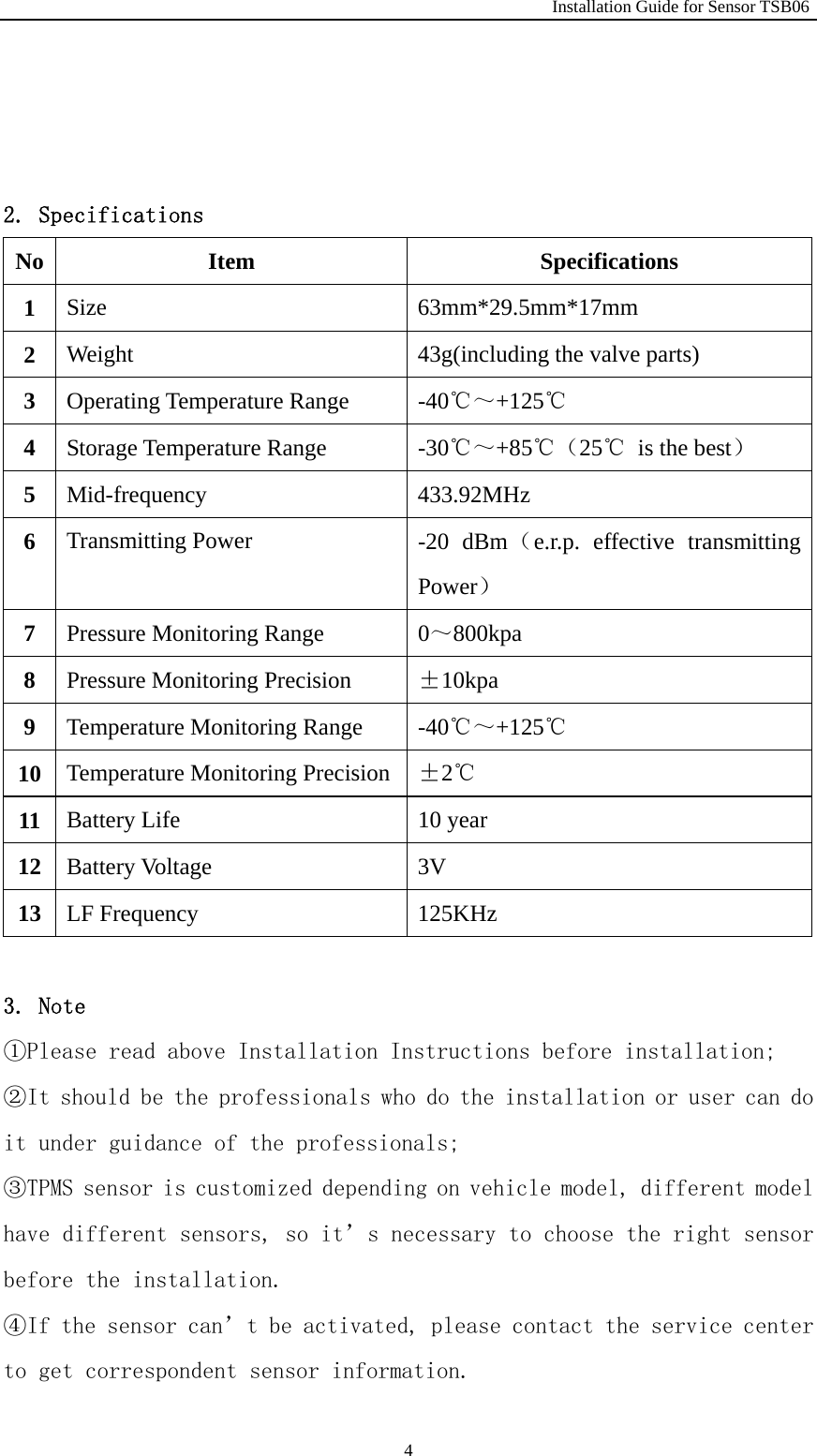

Installation Guide for Sensor TSB06 4 2. Specifications No Item Specifications 1 Size 63mm*29.5mm*17mm 2 Weight 43g(including the valve parts) 3 Operating Temperature Range -40℃～+125℃ 4 Storage Temperature Range -30℃～+85℃（25℃ is the best） 5 Mid-frequency 433.92MHz 6 Transmitting Power -20 dBm（e.r.p. effective transmitting Power） 7 Pressure Monitoring Range 0～800kpa 8 Pressure Monitoring Precision ±10kpa 9 Temperature Monitoring Range -40℃～+125℃ 10 Temperature Monitoring Precision ±2℃ 11 Battery Life 10 year 12 Battery Voltage 3V 13 LF Frequency 125KHz 3. Note ①Please read above Installation Instructions before installation; ②It should be the professionals who do the installation or user can do it under guidance of the professionals; ③TPMS sensor is customized depending on vehicle model, different model have different sensors, so it’s necessary to choose the right sensor before the installation. ④If the sensor can’t be activated, please contact the service center to get correspondent sensor information.

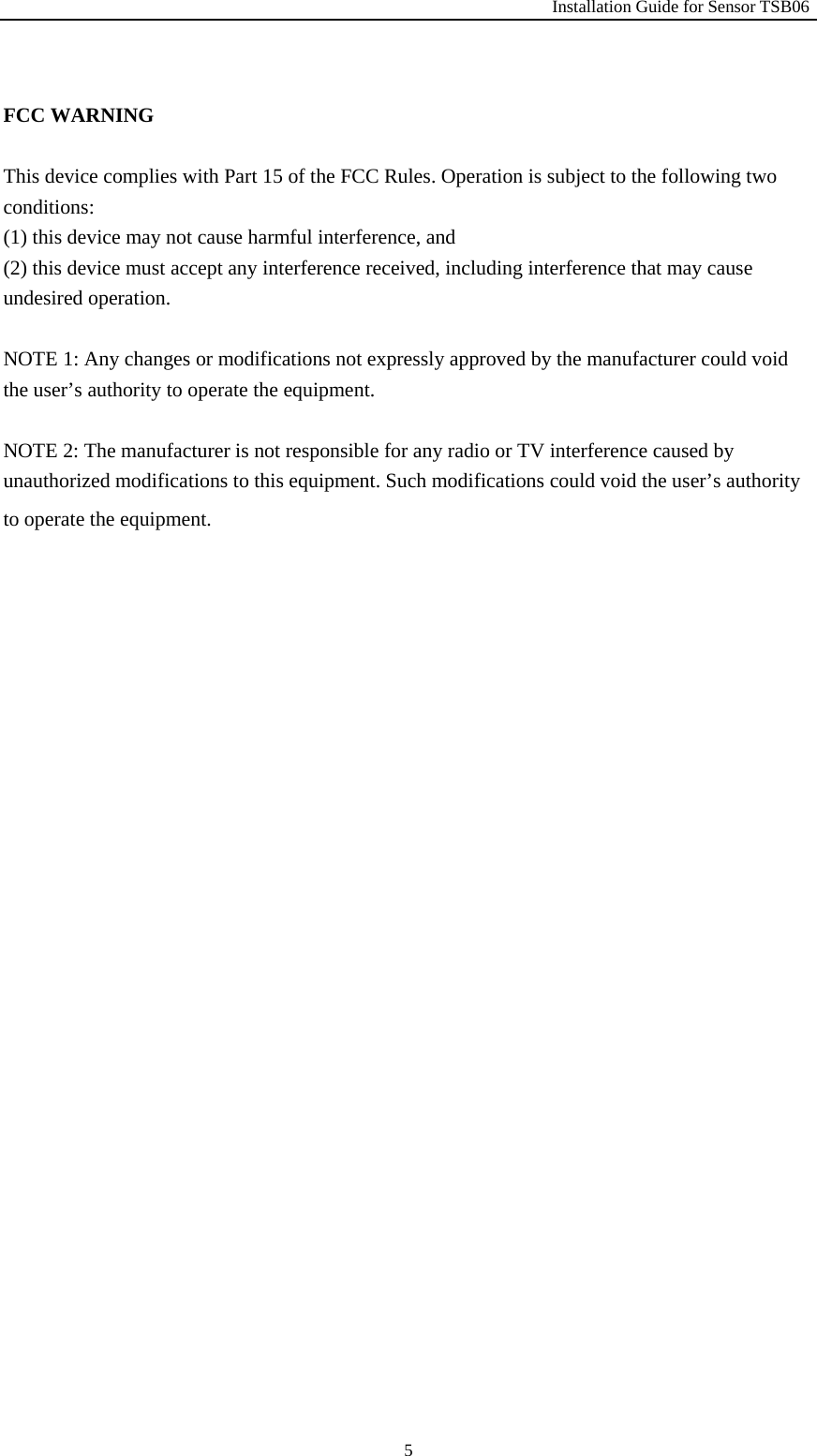

Installation Guide for Sensor TSB06 5 FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. NOTE 2: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment.
