Syncomm Technology C2PTRUI24R IA2P DUPLEX CARDTYPE DIGITAL AUDIO TRANSCEIVER User Manual

Syncomm Technology Corp. IA2P DUPLEX CARDTYPE DIGITAL AUDIO TRANSCEIVER Users Manual

Users Manual

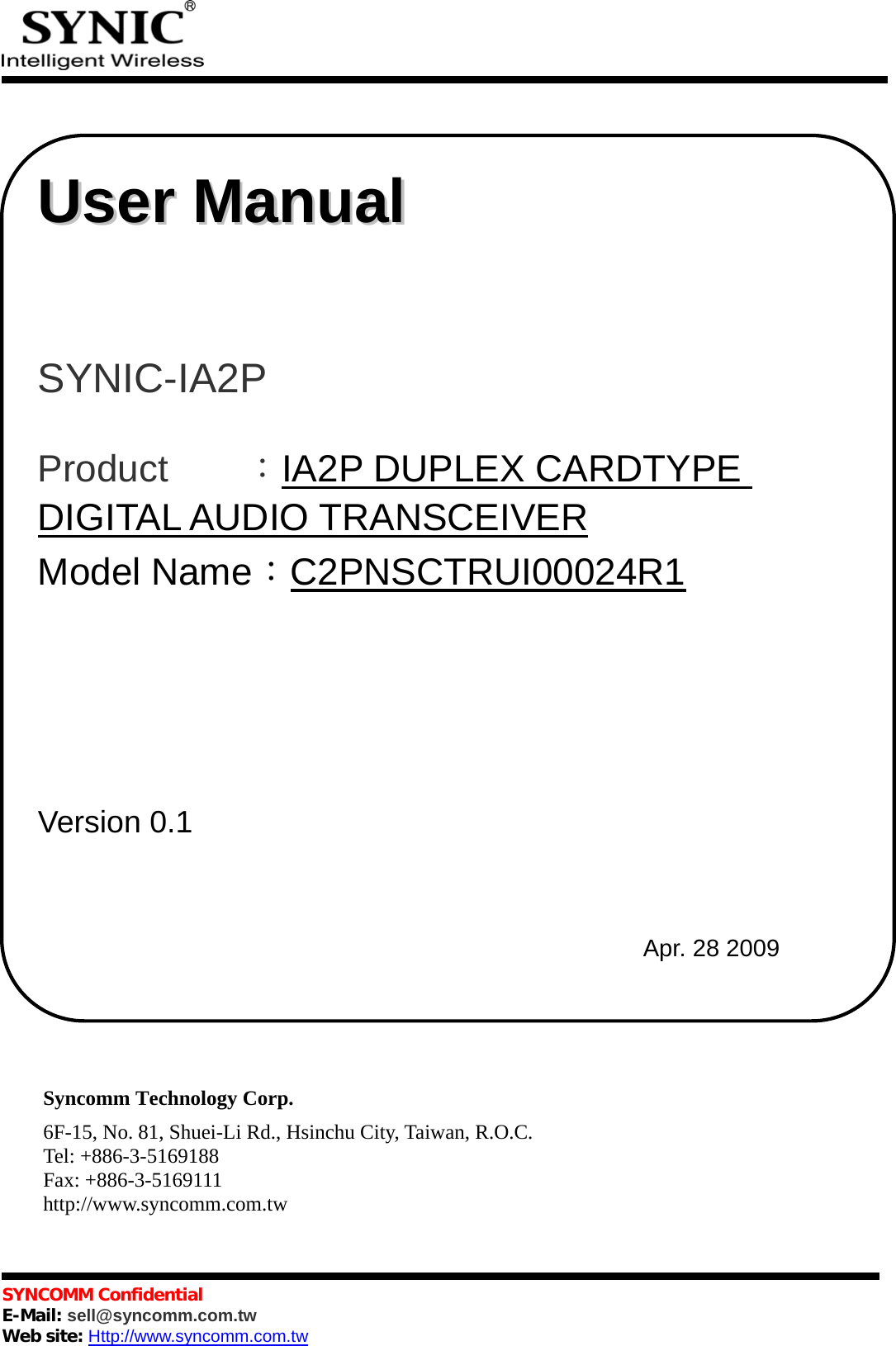

SYNCOMM Confidential E-Mail: sell@syncomm.com.tw Web site: Http://www.syncomm.com.tw Syncomm Technology Corp. 6F-15, No. 81, Shuei-Li Rd., Hsinchu City, Taiwan, R.O.C. Tel: +886-3-5169188 Fax: +886-3-5169111 http://www.syncomm.com.tw UUsseerr MMaannuuaall SYNIC-IA2P Product ：IA2P DUPLEX CARDTYPE DIGITAL AUDIO TRANSCEIVER Model Name：C2PNSCTRUI00024R1 Version 0.1 Apr. 28 2009

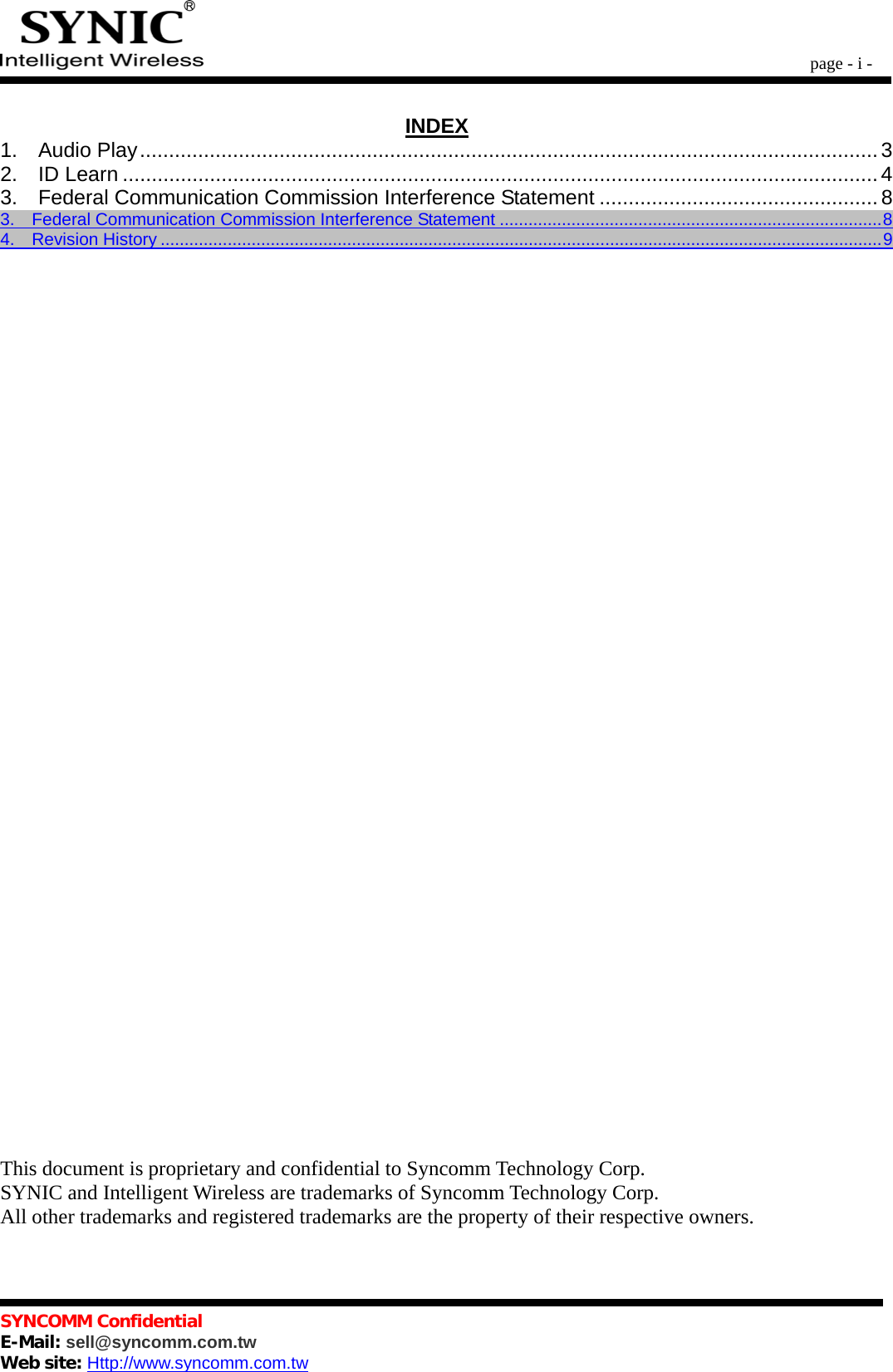

page - i - SYNCOMM Confidential E-Mail: sell@syncomm.com.tw Web site: Http://www.syncomm.com.tw INDEX1. Audio Play...............................................................................................................................3 2. ID Learn .................................................................................................................................. 4 3. Federal Communication Commission Interference Statement ................................................ 83. Federal Communication Commission Interference Statement ................................................................................8 4. Revision History .......................................................................................................................................................9 This document is proprietary and confidential to Syncomm Technology Corp. SYNIC and Intelligent Wireless are trademarks of Syncomm Technology Corp. All other trademarks and registered trademarks are the property of their respective owners.

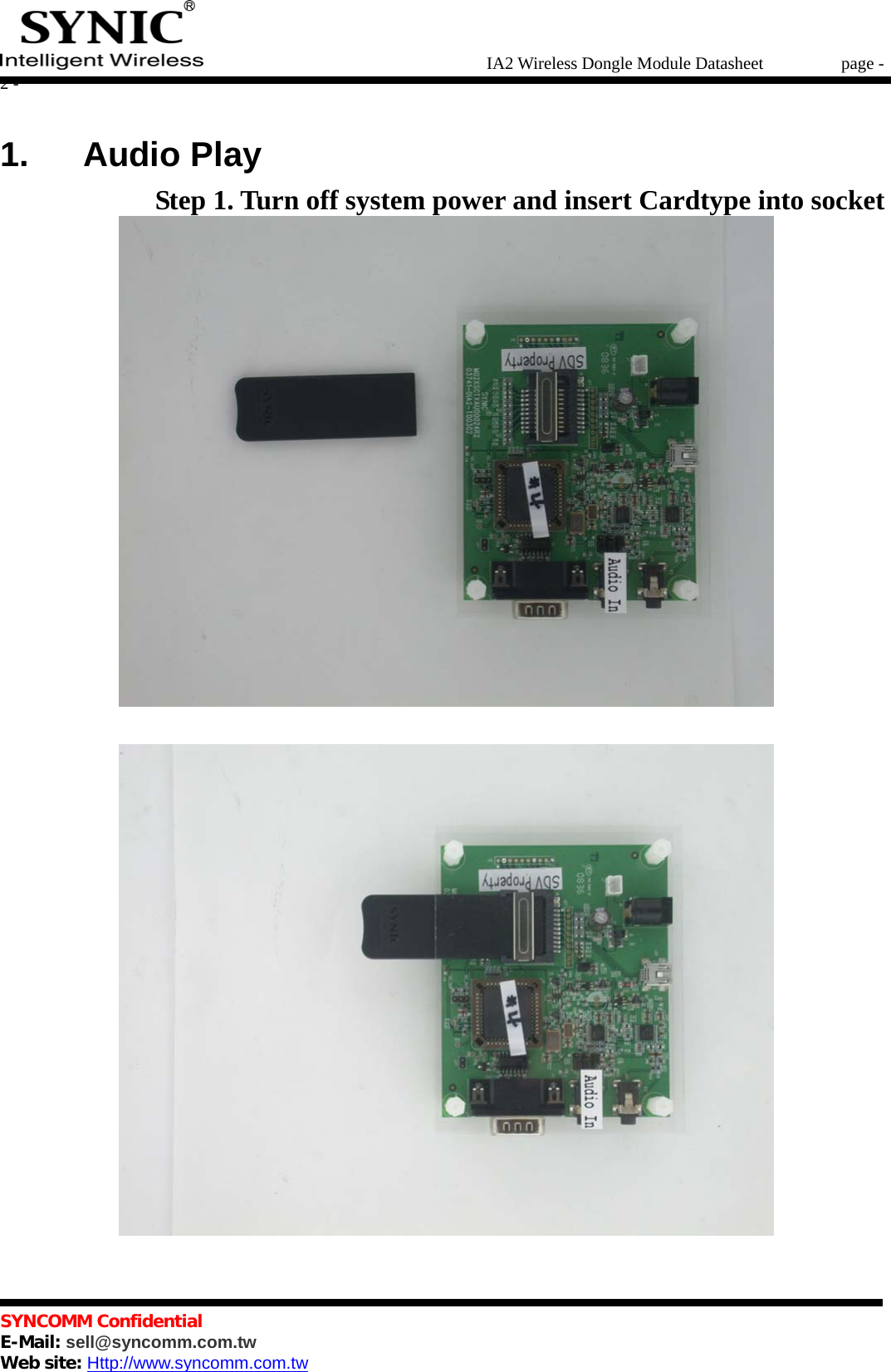

IA2 Wireless Dongle Module Datasheet page - 2 - SYNCOMM Confidential E-Mail: sell@syncomm.com.tw Web site: Http://www.syncomm.com.tw 1. Audio Play Step 1. Turn off system power and insert Cardtype into socket

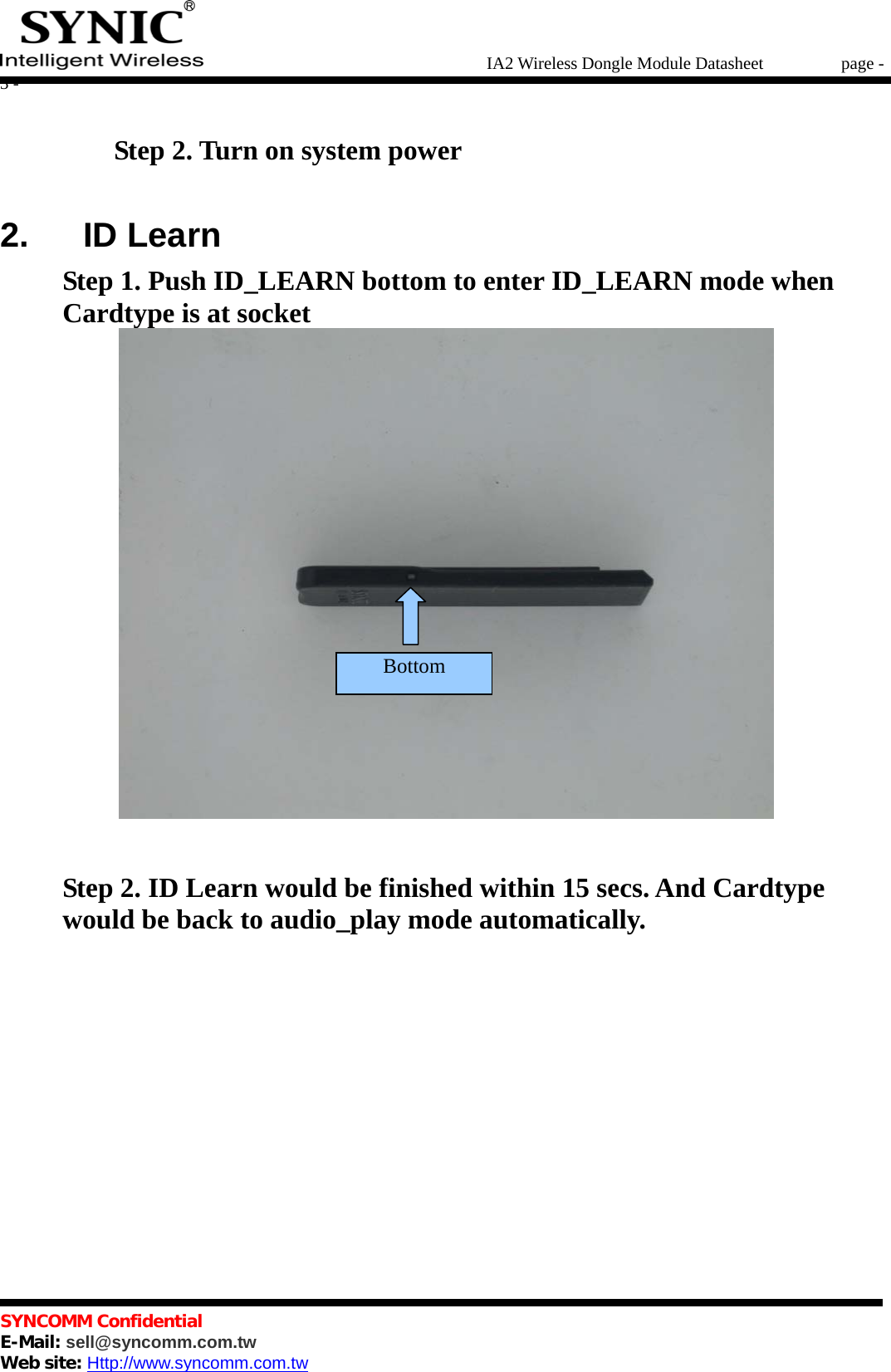

IA2 Wireless Dongle Module Datasheet page - 3 - SYNCOMM Confidential E-Mail: sell@syncomm.com.tw Web site: Http://www.syncomm.com.tw Step 2. Turn on system power 2. ID Learn Step 1. Push ID_LEARN bottom to enter ID_LEARN mode when Cardtype is at socket Step 2. ID Learn would be finished within 15 secs. And Cardtype would be back to audio_play mode automatically. Bottom

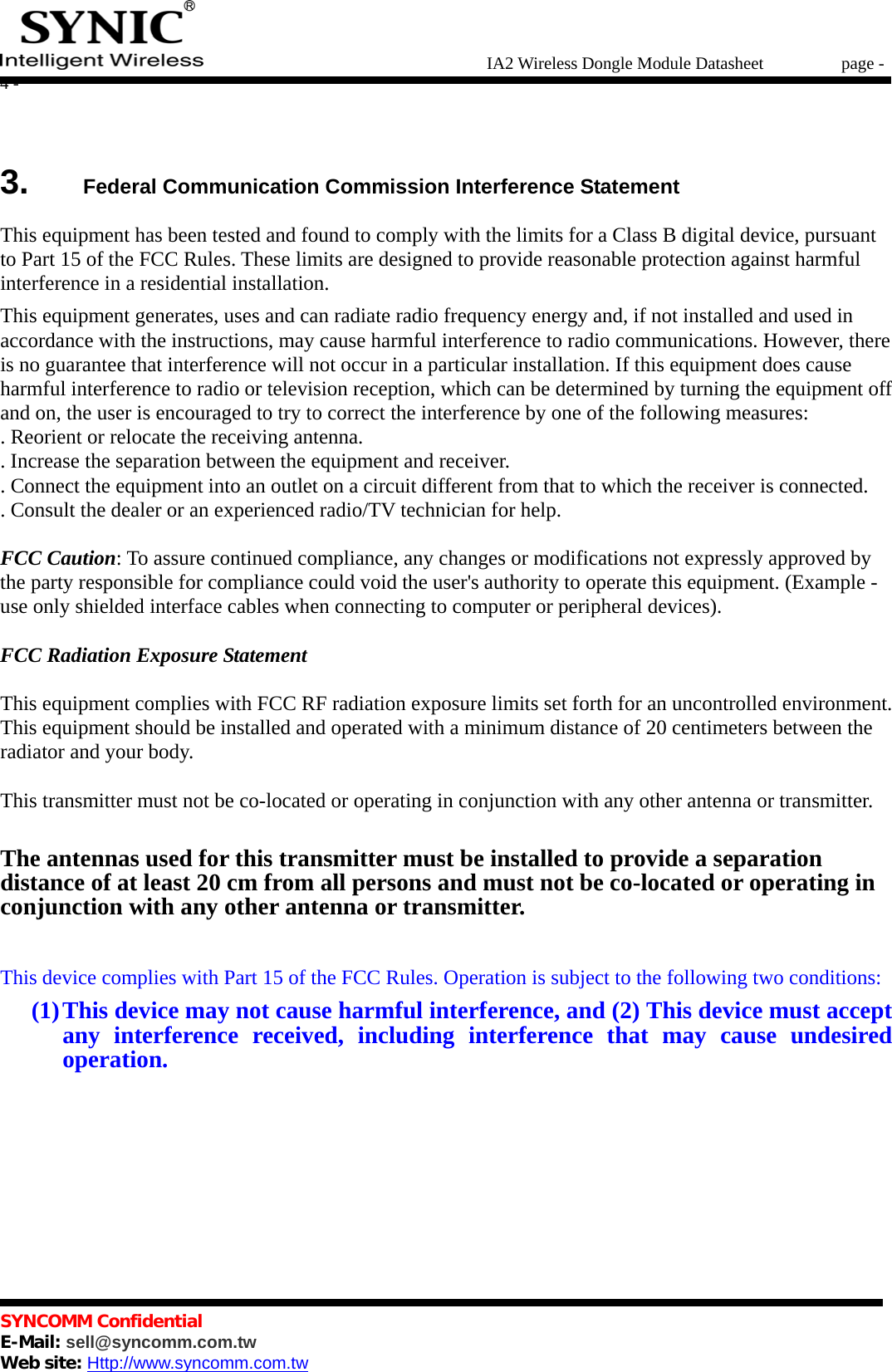

IA2 Wireless Dongle Module Datasheet page - 4 - SYNCOMM Confidential E-Mail: sell@syncomm.com.tw Web site: Http://www.syncomm.com.tw 3. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

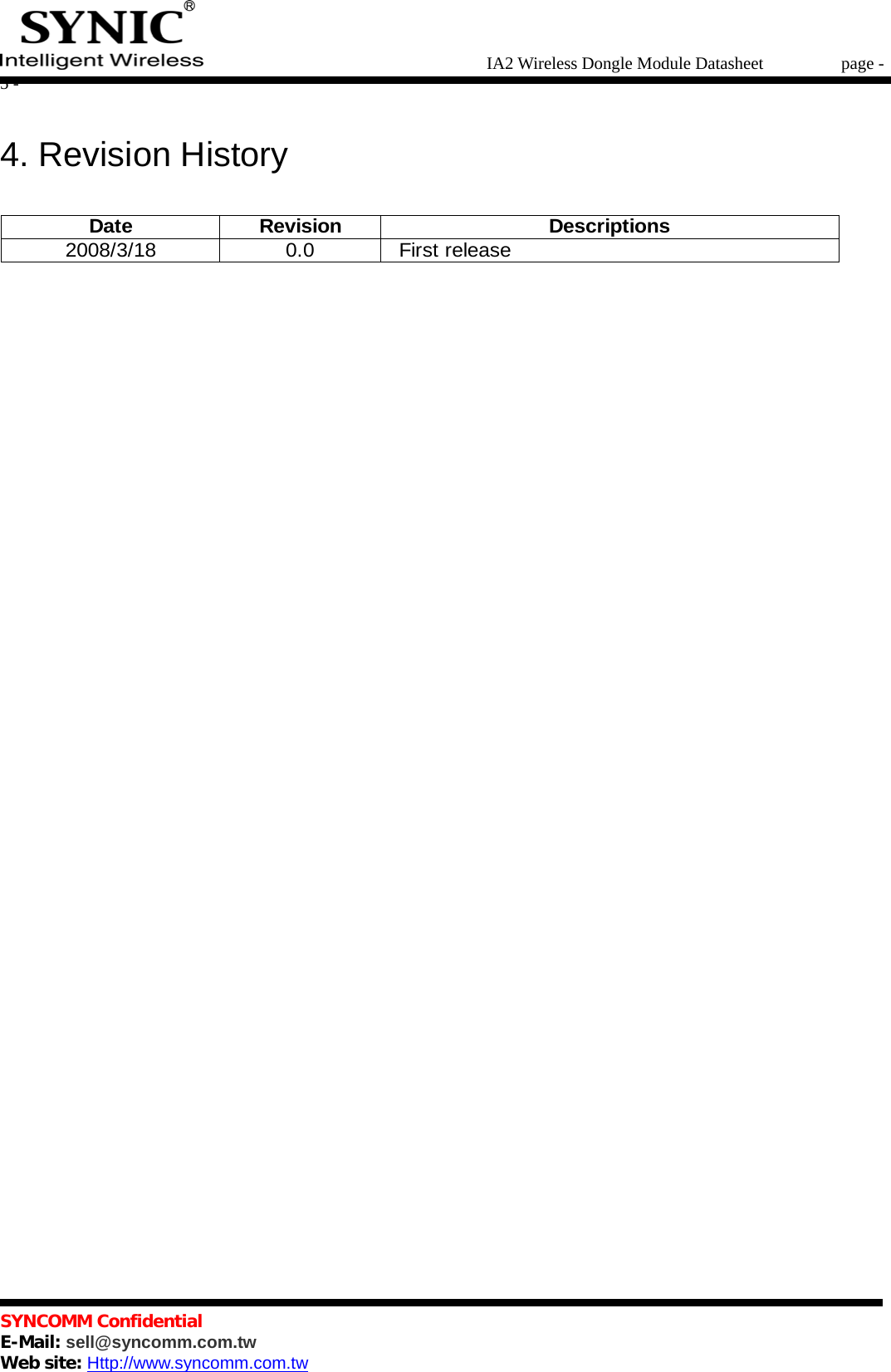

IA2 Wireless Dongle Module Datasheet page - 5 - SYNCOMM Confidential E-Mail: sell@syncomm.com.tw Web site: Http://www.syncomm.com.tw 4. Revision History Date Revision Descriptions2008/3/18 0.0 First release
