TAIYO YUDEN EYSHSN Bluetooth Smart / ANT Module User Manual Bluetooth 4

TAIYO YUDEN CO., LTD. Bluetooth Smart / ANT Module Bluetooth 4

05 (Short-Term Confidential) User Manual

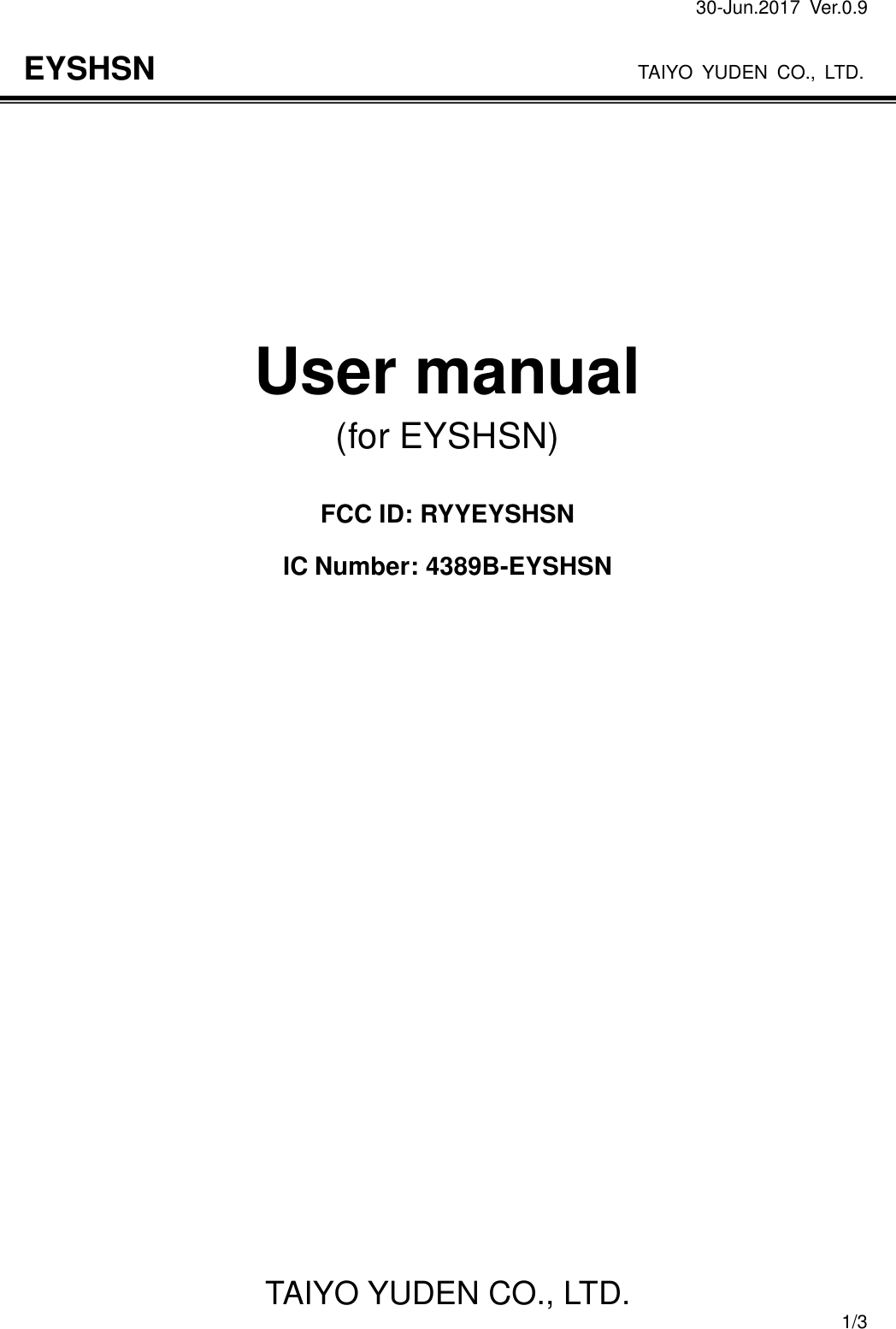

30-Jun.2017  Ver.0.9                                                                    TAIYO YUDEN CO., LTD. TAIYO YUDEN CO., LTD.  1/3 EYSHSN          User manual (for EYSHSN)  FCC ID: RYYEYSHSN IC Number: 4389B-EYSHSN

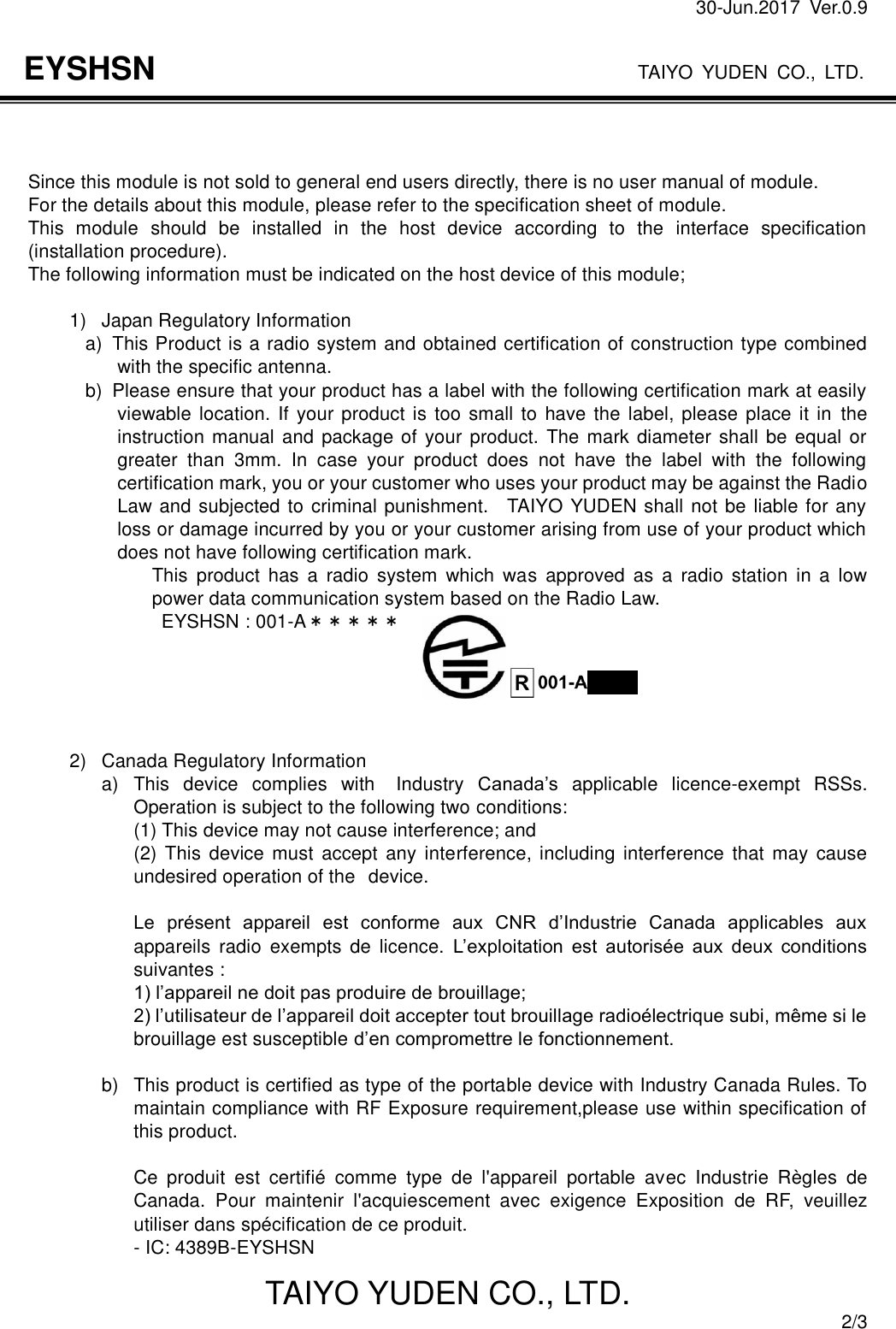

30-Jun.2017  Ver.0.9                                                                    TAIYO YUDEN CO., LTD. TAIYO YUDEN CO., LTD.  2/3 EYSHSN    Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module.   This  module  should  be  installed  in  the  host  device  according  to  the  interface  specification (installation procedure). The following information must be indicated on the host device of this module;  1)  Japan Regulatory Information a)   This Product is a radio system and obtained certification of construction type combined with the specific antenna.   b)   Please ensure that your product has a label with the following certification mark at easily viewable location. If your product is too small to  have the label, please place it in  the instruction manual and package of your product.  The mark diameter shall be equal or greater  than  3mm.  In  case  your  product  does  not  have  the  label  with  the  following certification mark, you or your customer who uses your product may be against the Radio Law and subjected to criminal punishment.    TAIYO YUDEN shall not be liable for any loss or damage incurred by you or your customer arising from use of your product which does not have following certification mark. This  product  has  a  radio  system  which  was  approved  as  a  radio  station  in  a  low power data communication system based on the Radio Law.                             EYSHSN : 001-A*****      2)  Canada Regulatory Information a)  This  device  complies  with  Industry  Canada’s  applicable  licence-exempt  RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This  device  must  accept  any  interference, including interference  that  may  cause undesired operation of the device.  Le  présent  appareil  est  conforme  aux  CNR  d’Industrie  Canada  applicables  aux appareils  radio  exempts  de  licence.  L’exploitation  est  autorisée  aux  deux  conditions suivantes : 1) l’appareil ne doit pas produire de brouillage; 2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.  b)  This product is certified as type of the portable device with Industry Canada Rules. To maintain compliance with RF Exposure requirement,please use within specification of this product.    Ce  produit  est  certifié  comme  type  de  l'appareil  portable  avec  Industrie  Règles  de Canada.  Pour  maintenir  l'acquiescement  avec  exigence  Exposition  de  RF,  veuillez utiliser dans spécification de ce produit. - IC: 4389B-EYSHSN

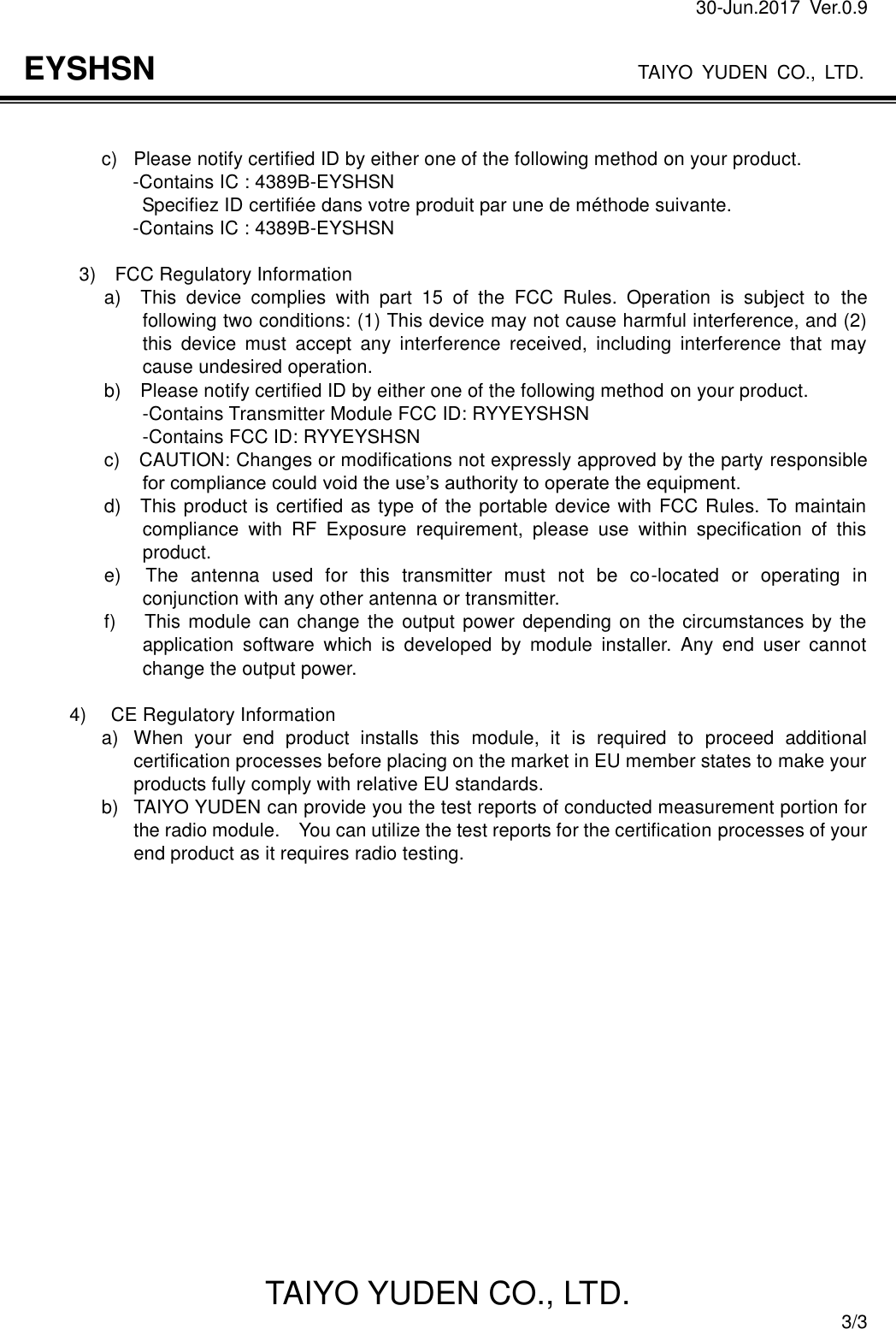

30-Jun.2017  Ver.0.9                                                                    TAIYO YUDEN CO., LTD. TAIYO YUDEN CO., LTD.  3/3 EYSHSN   c)  Please notify certified ID by either one of the following method on your product.                       -Contains IC : 4389B-EYSHSN                     Specifiez ID certifiée dans votre produit par une de méthode suivante.                     -Contains IC : 4389B-EYSHSN  3)    FCC Regulatory Information       a)    This  device  complies  with  part  15  of  the  FCC  Rules.  Operation  is  subject  to  the following two conditions: (1) This device may not cause harmful interference, and (2) this  device  must  accept  any  interference  received,  including  interference  that  may cause undesired operation.       b)    Please notify certified ID by either one of the following method on your product.                         -Contains Transmitter Module FCC ID: RYYEYSHSN                         -Contains FCC ID: RYYEYSHSN                 c)    CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the use’s authority to operate the equipment.               d)    This product is certified as type of the portable device with FCC Rules. To maintain compliance  with  RF  Exposure  requirement,  please  use  within  specification  of  this product.                 e)    The  antenna  used  for  this  transmitter  must  not  be  co-located  or  operating  in conjunction with any other antenna or transmitter.                 f)      This module can change  the  output power depending on the circumstances by the application  software  which  is  developed  by  module  installer.  Any  end  user  cannot change the output power.  4)    CE Regulatory Information a)  When  your  end  product  installs  this  module,  it  is  required  to  proceed  additional certification processes before placing on the market in EU member states to make your products fully comply with relative EU standards. b)  TAIYO YUDEN can provide you the test reports of conducted measurement portion for the radio module.    You can utilize the test reports for the certification processes of your end product as it requires radio testing.
