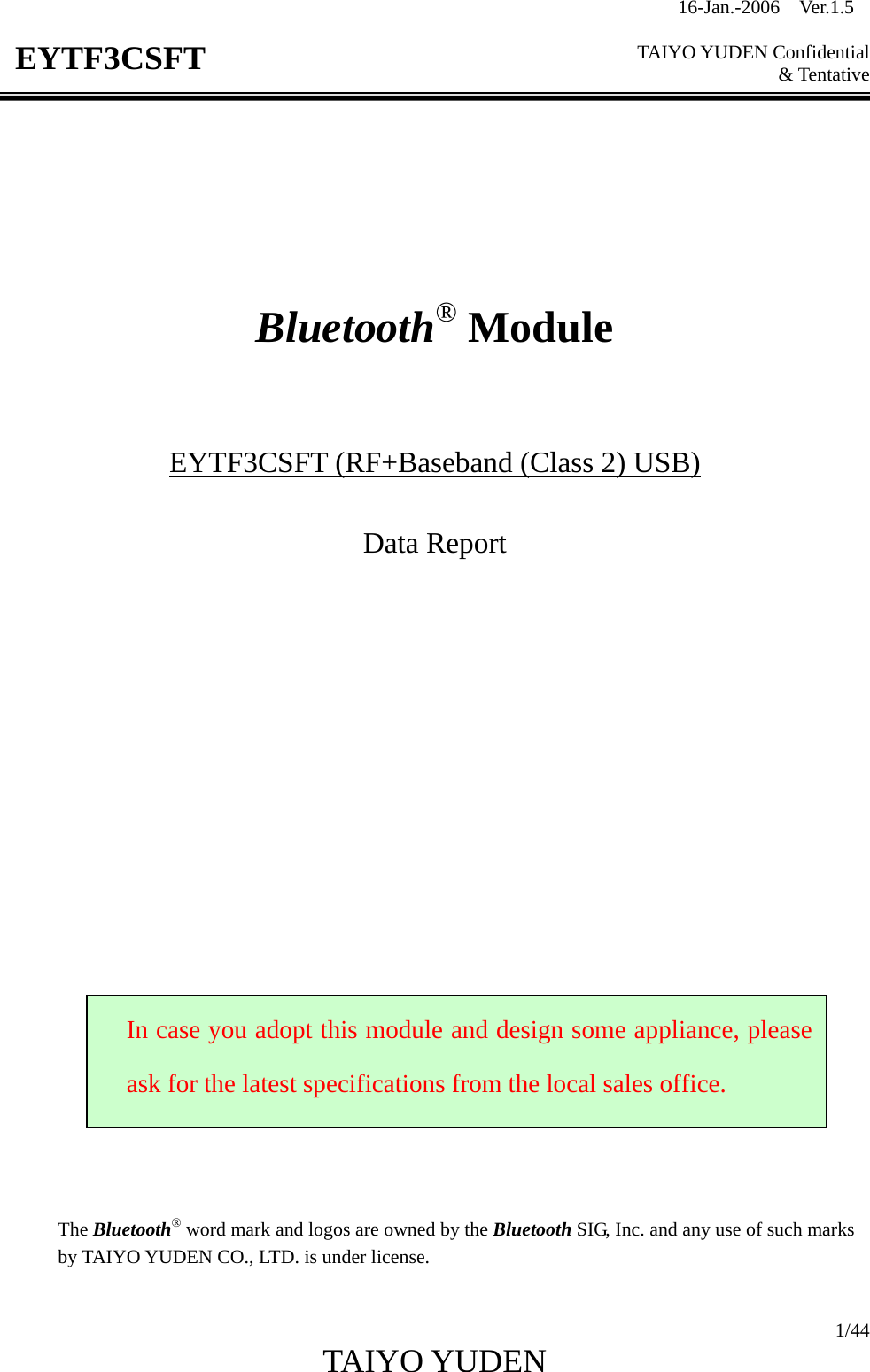

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 1/44 TAIYO YUDEN EYTF3CSFT Bluetooth® Module EYTF3CSFT (RF+Baseband (Class 2) USB) Data Report The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by TAIYO YUDEN CO., LTD. is under license. In case you adopt this module and design some appliance, please ask for the latest specifications from the local sales office.

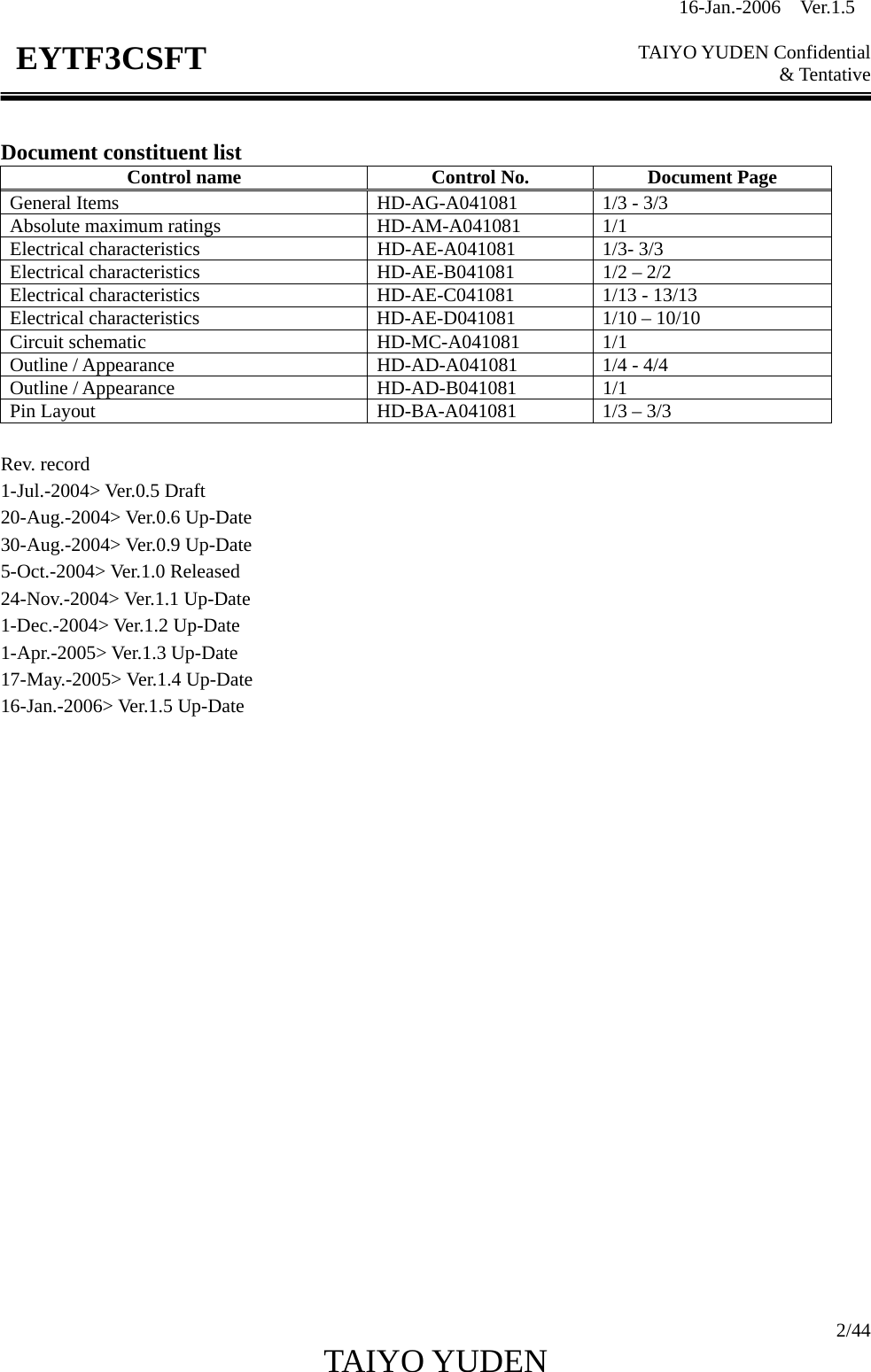

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 2/44 TAIYO YUDEN EYTF3CSFT Document constituent list Control name Control No. Document Page General Items HD-AG-A041081 1/3 - 3/3 Absolute maximum ratings HD-AM-A041081 1/1 Electrical characteristics HD-AE-A041081 1/3- 3/3 Electrical characteristics HD-AE-B041081 1/2 – 2/2 Electrical characteristics HD-AE-C041081 1/13 - 13/13 Electrical characteristics HD-AE-D041081 1/10 – 10/10 Circuit schematic HD-MC-A041081 1/1 Outline / Appearance HD-AD-A041081 1/4 - 4/4 Outline / Appearance HD-AD-B041081 1/1 Pin Layout HD-BA-A041081 1/3 – 3/3 Rev. record 1-Jul.-2004> Ver.0.5 Draft 20-Aug.-2004> Ver.0.6 Up-Date 30-Aug.-2004> Ver.0.9 Up-Date 5-Oct.-2004> Ver.1.0 Released 24-Nov.-2004> Ver.1.1 Up-Date 1-Dec.-2004> Ver.1.2 Up-Date 1-Apr.-2005> Ver.1.3 Up-Date 17-May.-2005> Ver.1.4 Up-Date 16-Jan.-2006> Ver.1.5 Up-Date

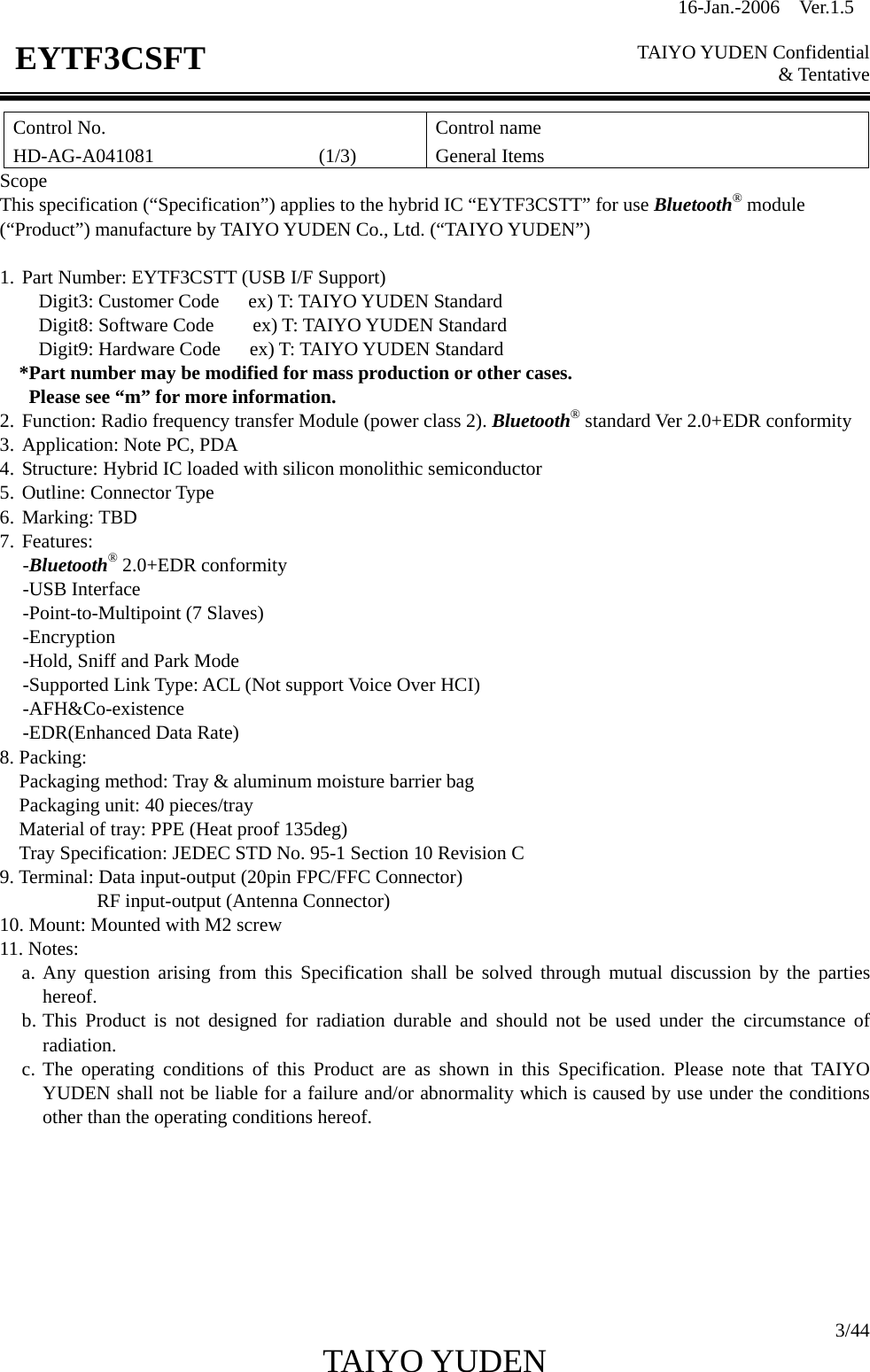

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 3/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AG-A041081 (1/3) Control name General Items Scope This specification (“Specification”) applies to the hybrid IC “EYTF3CSTT” for use Bluetooth® module (“Product”) manufacture by TAIYO YUDEN Co., Ltd. (“TAIYO YUDEN”) 1. Part Number: EYTF3CSTT (USB I/F Support) Digit3: Customer Code ex) T: TAIYO YUDEN Standard Digit8: Software Code ex) T: TAIYO YUDEN Standard Digit9: Hardware Code ex) T: TAIYO YUDEN Standard *Part number may be modified for mass production or other cases. Please see “m” for more information. 2. Function: Radio frequency transfer Module (power class 2). Bluetooth® standard Ver 2.0+EDR conformity 3. Application: Note PC, PDA 4. Structure: Hybrid IC loaded with silicon monolithic semiconductor 5. Outline: Connector Type 6. Marking: TBD 7. Features: -Bluetooth® 2.0+EDR conformity -USB Interface -Point-to-Multipoint (7 Slaves) -Encryption -Hold, Sniff and Park Mode -Supported Link Type: ACL (Not support Voice Over HCI) -AFH&Co-existence -EDR(Enhanced Data Rate) 8. Packing: Packaging method: Tray & aluminum moisture barrier bag Packaging unit: 40 pieces/tray Material of tray: PPE (Heat proof 135deg) Tray Specification: JEDEC STD No. 95-1 Section 10 Revision C 9. Terminal: Data input-output (20pin FPC/FFC Connector) RF input-output (Antenna Connector) 10. Mount: Mounted with M2 screw 11. Notes: a. Any question arising from this Specification shall be solved through mutual discussion by the parties hereof. b. This Product is not designed for radiation durable and should not be used under the circumstance of radiation. c. The operating conditions of this Product are as shown in this Specification. Please note that TAIYO YUDEN shall not be liable for a failure and/or abnormality which is caused by use under the conditions other than the operating conditions hereof.

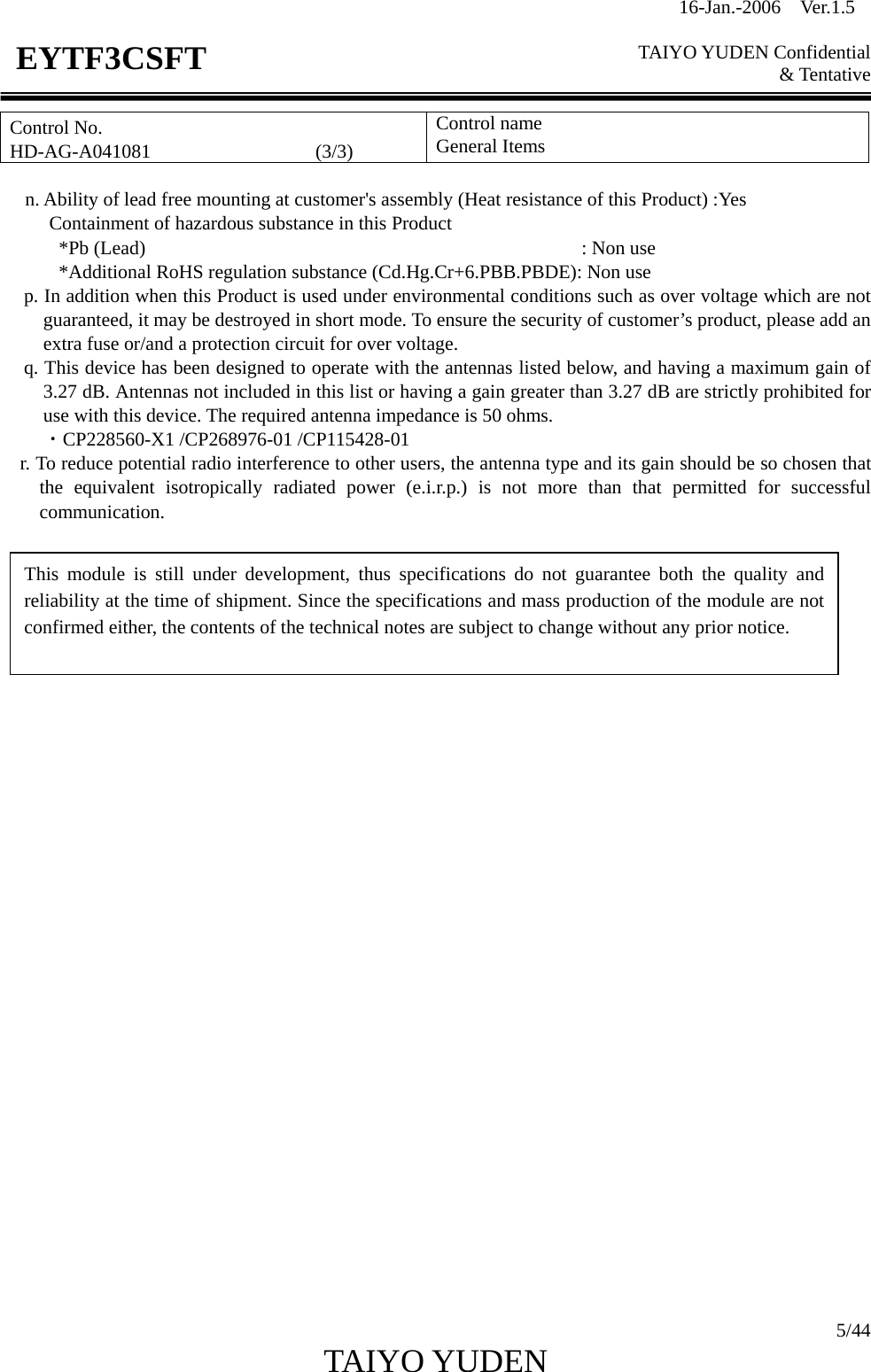

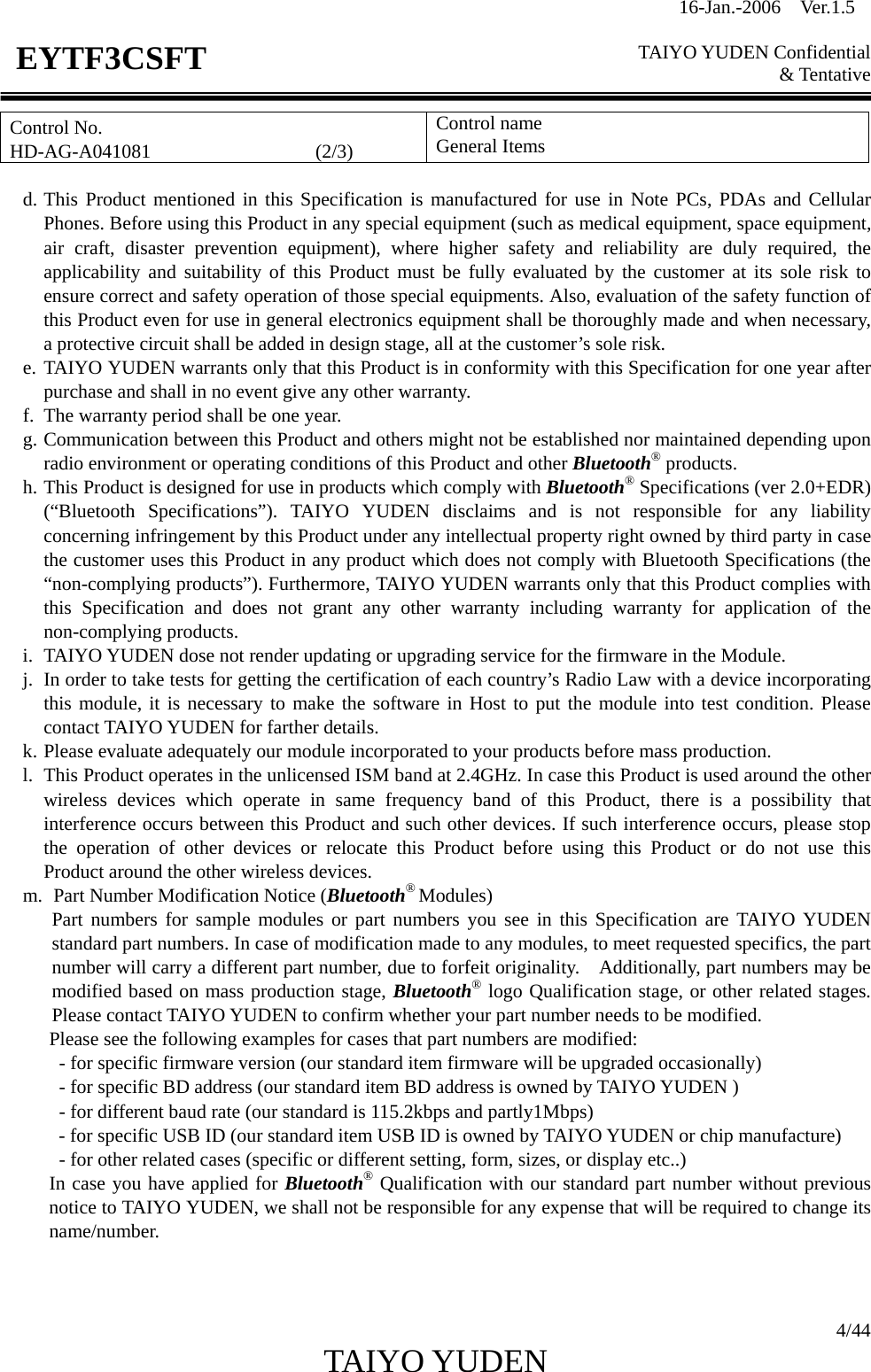

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 5/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AG-A041081 (3/3) Control name General Items n. Ability of lead free mounting at customer's assembly (Heat resistance of this Product) :Yes Containment of hazardous substance in this Product *Pb (Lead) : Non use *Additional RoHS regulation substance (Cd.Hg.Cr+6.PBB.PBDE): Non use p. In addition when this Product is used under environmental conditions such as over voltage which are not guaranteed, it may be destroyed in short mode. To ensure the security of customer’s product, please add an extra fuse or/and a protection circuit for over voltage. q. This device has been designed to operate with the antennas listed below, and having a maximum gain of 3.27 dB. Antennas not included in this list or having a gain greater than 3.27 dB are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. ・CP228560-X1 /CP268976-01 /CP115428-01 r. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication. This module is still under development, thus specifications do not guarantee both the quality and reliability at the time of shipment. Since the specifications and mass production of the module are not confirmed either, the contents of the technical notes are subject to change without any prior notice.

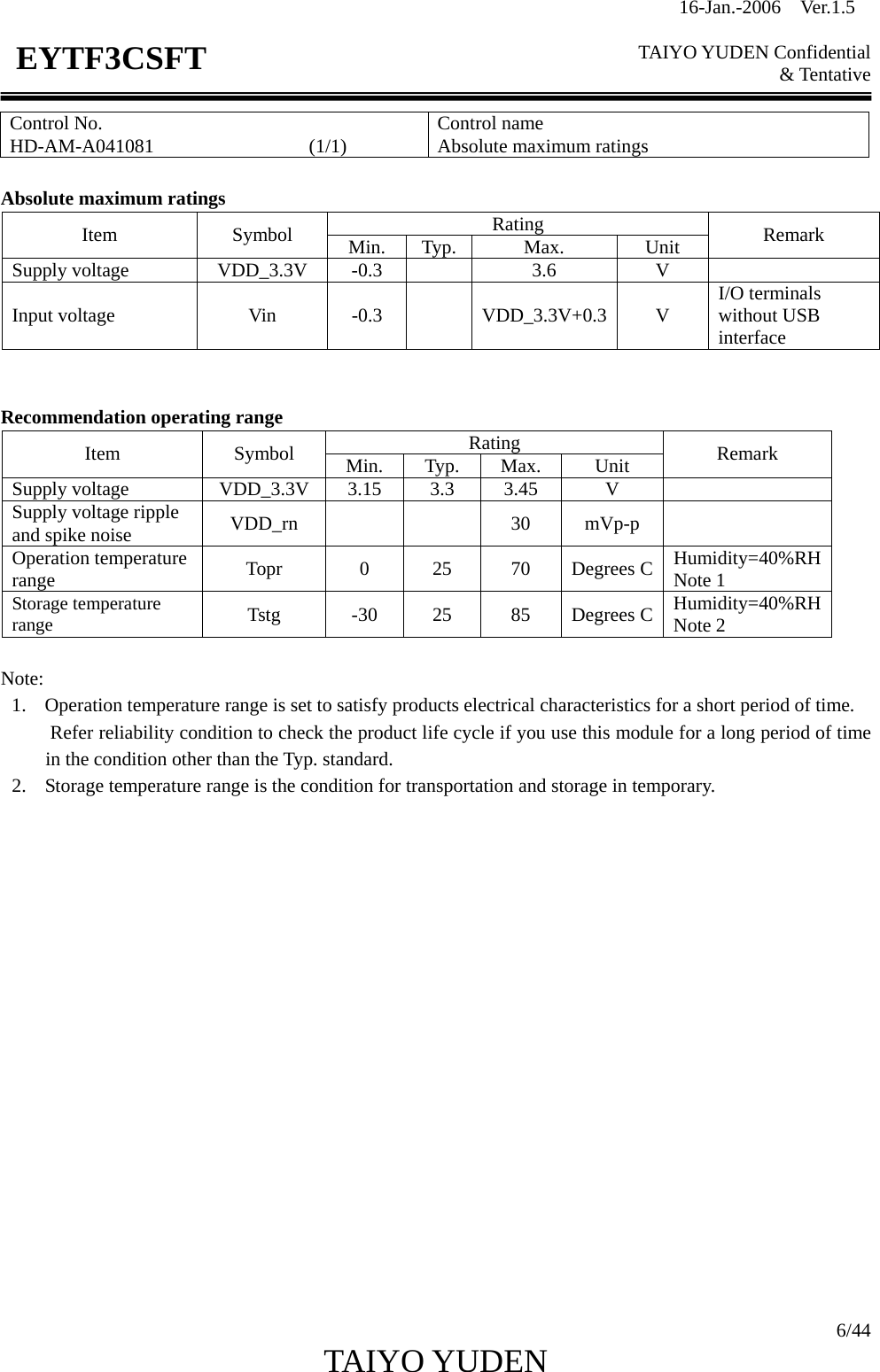

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 6/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AM-A041081 (1/1) Control name Absolute maximum ratings Absolute maximum ratings Rating Item Symbol Min. Typ. Max. Unit Remark Supply voltage VDD_3.3V -0.3 3.6 V Input voltage Vin -0.3 VDD_3.3V+0.3 V I/O terminals without USB interface Recommendation operating range Rating Item Symbol Min. Typ. Max. Unit Remark Supply voltage VDD_3.3V 3.15 3.3 3.45 V Supply voltage ripple and spike noise VDD_rn 30 mVp-p Operation temperature range Topr 0 25 70 Degrees C Humidity=40%RHNote 1 Storage temperature range Tstg -30 25 85 Degrees C Humidity=40%RHNote 2 Note: 1. Operation temperature range is set to satisfy products electrical characteristics for a short period of time. Refer reliability condition to check the product life cycle if you use this module for a long period of time in the condition other than the Typ. standard. 2. Storage temperature range is the condition for transportation and storage in temporary.

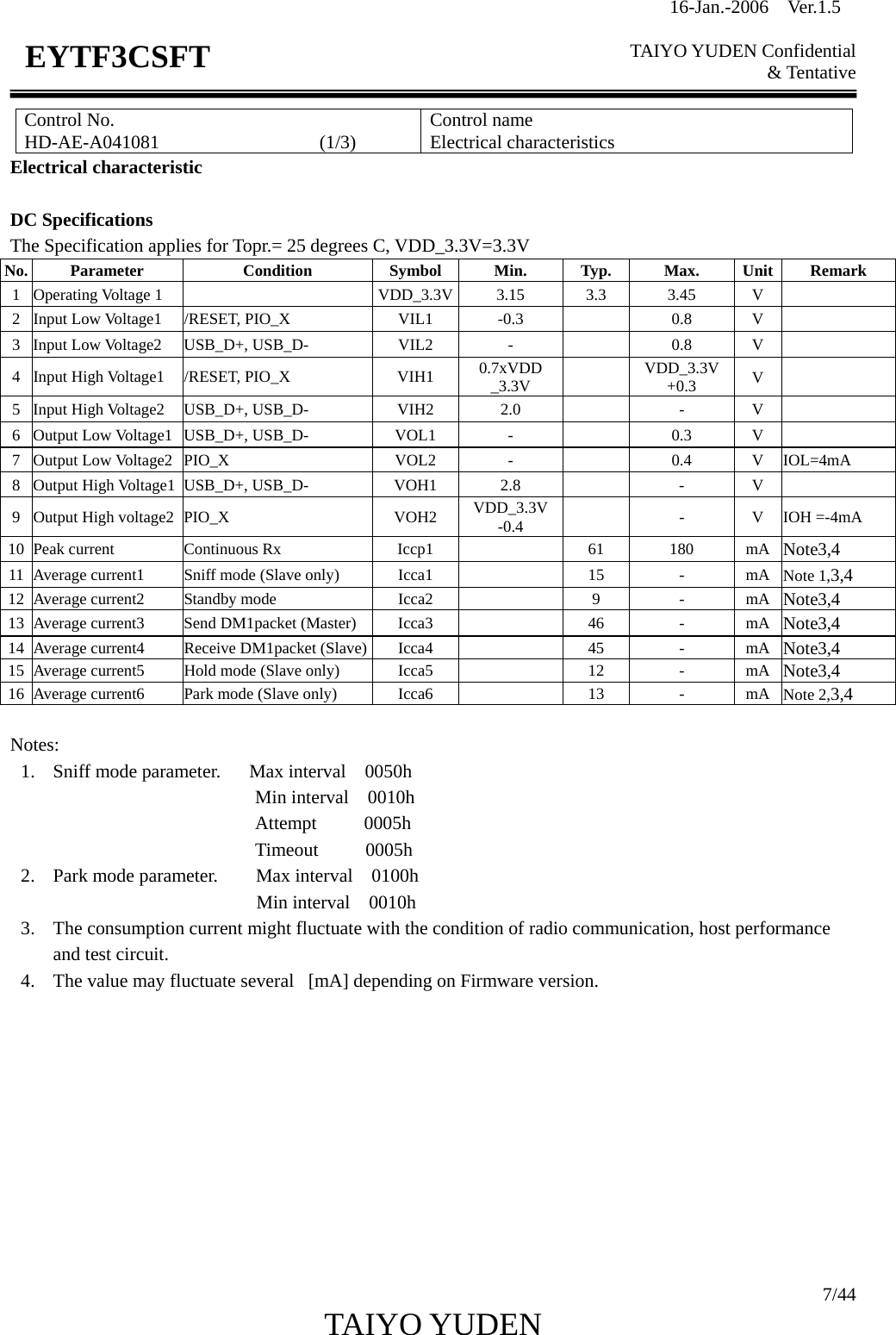

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 7/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-A041081 (1/3) Control name Electrical characteristics Electrical characteristic DC Specifications The Specification applies for Topr.= 25 degrees C, VDD_3.3V=3.3V No. Parameter Condition Symbol Min. Typ. Max. Unit Remark 1 Operating Voltage 1 VDD_3.3V 3.15 3.3 3.45 V 2 Input Low Voltage1 /RESET, PIO_X VIL1 -0.3 0.8 V 3 Input Low Voltage2 USB_D+, USB_D- VIL2 - 0.8 V 4 Input High Voltage1 /RESET, PIO_X VIH1 0.7xVDD _3.3V VDD_3.3V +0.3 V 5 Input High Voltage2 USB_D+, USB_D- VIH2 2.0 - V 6 Output Low Voltage1 USB_D+, USB_D- VOL1 - 0.3 V 7 Output Low Voltage2 PIO_X VOL2 - 0.4 V IOL=4mA 8 Output High Voltage1 USB_D+, USB_D- VOH1 2.8 - V 9 Output High voltage2 PIO_X VOH2 VDD_3.3V-0.4 - V IOH =-4mA 10 Peak current Continuous Rx Iccp1 61 180 mA Note3,4 11 Average current1 Sniff mode (Slave only) Icca1 15 - mA Note 1,3,4 12 Average current2 Standby mode Icca2 9 - mA Note3,4 13 Average current3 Send DM1packet (Master) Icca3 46 - mA Note3,4 14 Average current4 Receive DM1packet (Slave) Icca4 45 - mA Note3,4 15 Average current5 Hold mode (Slave only) Icca5 12 - mA Note3,4 16 Average current6 Park mode (Slave only) Icca6 13 - mA Note 2,3,4 Notes: 1. Sniff mode parameter. Max interval 0050h Min interval 0010h Attempt 0005h Timeout 0005h 2. Park mode parameter. Max interval 0100h Min interval 0010h 3. The consumption current might fluctuate with the condition of radio communication, host performance and test circuit. 4. The value may fluctuate several [mA] depending on Firmware version.

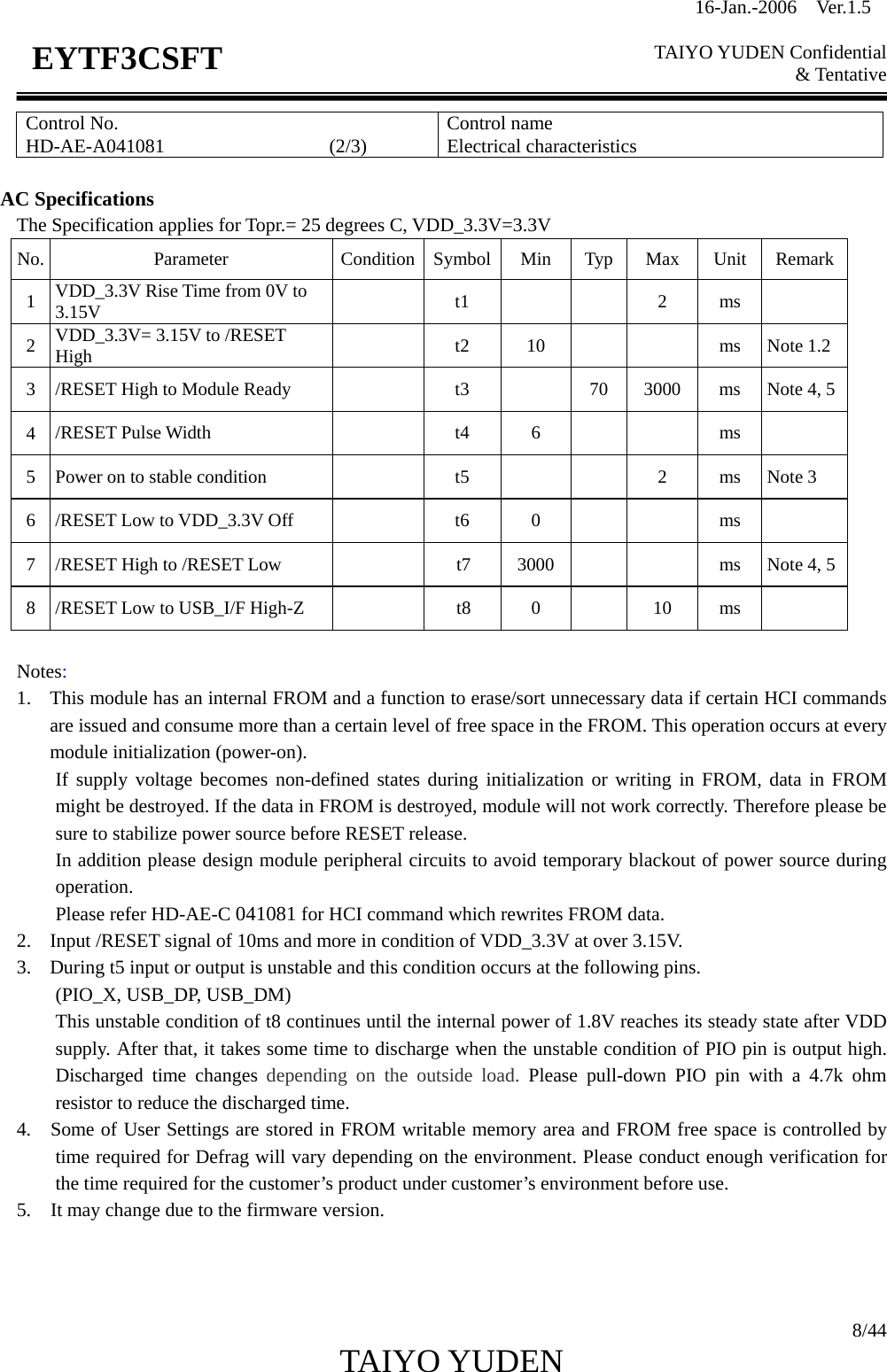

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 8/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-A041081 (2/3) Control name Electrical characteristics AC Specifications The Specification applies for Topr.= 25 degrees C, VDD_3.3V=3.3V No. Parameter Condition Symbol Min Typ Max Unit Remark1 VDD_3.3V Rise Time from 0V to 3.15V t1 2 ms 2 VDD_3.3V= 3.15V to /RESET High t2 10 ms Note 1.2 3 /RESET High to Module Ready t3 70 3000 ms Note 4, 54 /RESET Pulse Width t4 6 ms 5 Power on to stable condition t5 2 ms Note 3 6 /RESET Low to VDD_3.3V Off t6 0 ms 7 /RESET High to /RESET Low t7 3000 ms Note 4, 58 /RESET Low to USB_I/F High-Z t8 0 10 ms Notes: 1. This module has an internal FROM and a function to erase/sort unnecessary data if certain HCI commands are issued and consume more than a certain level of free space in the FROM. This operation occurs at every module initialization (power-on). If supply voltage becomes non-defined states during initialization or writing in FROM, data in FROM might be destroyed. If the data in FROM is destroyed, module will not work correctly. Therefore please be sure to stabilize power source before RESET release. In addition please design module peripheral circuits to avoid temporary blackout of power source during operation. Please refer HD-AE-C 041081 for HCI command which rewrites FROM data. 2. Input /RESET signal of 10ms and more in condition of VDD_3.3V at over 3.15V. 3. During t5 input or output is unstable and this condition occurs at the following pins. (PIO_X, USB_DP, USB_DM) This unstable condition of t8 continues until the internal power of 1.8V reaches its steady state after VDD supply. After that, it takes some time to discharge when the unstable condition of PIO pin is output high. Discharged time changes depending on the outside load. Please pull-down PIO pin with a 4.7k ohm resistor to reduce the discharged time. 4. Some of User Settings are stored in FROM writable memory area and FROM free space is controlled by time required for Defrag will vary depending on the environment. Please conduct enough verification for the time required for the customer’s product under customer’s environment before use. 5. It may change due to the firmware version.

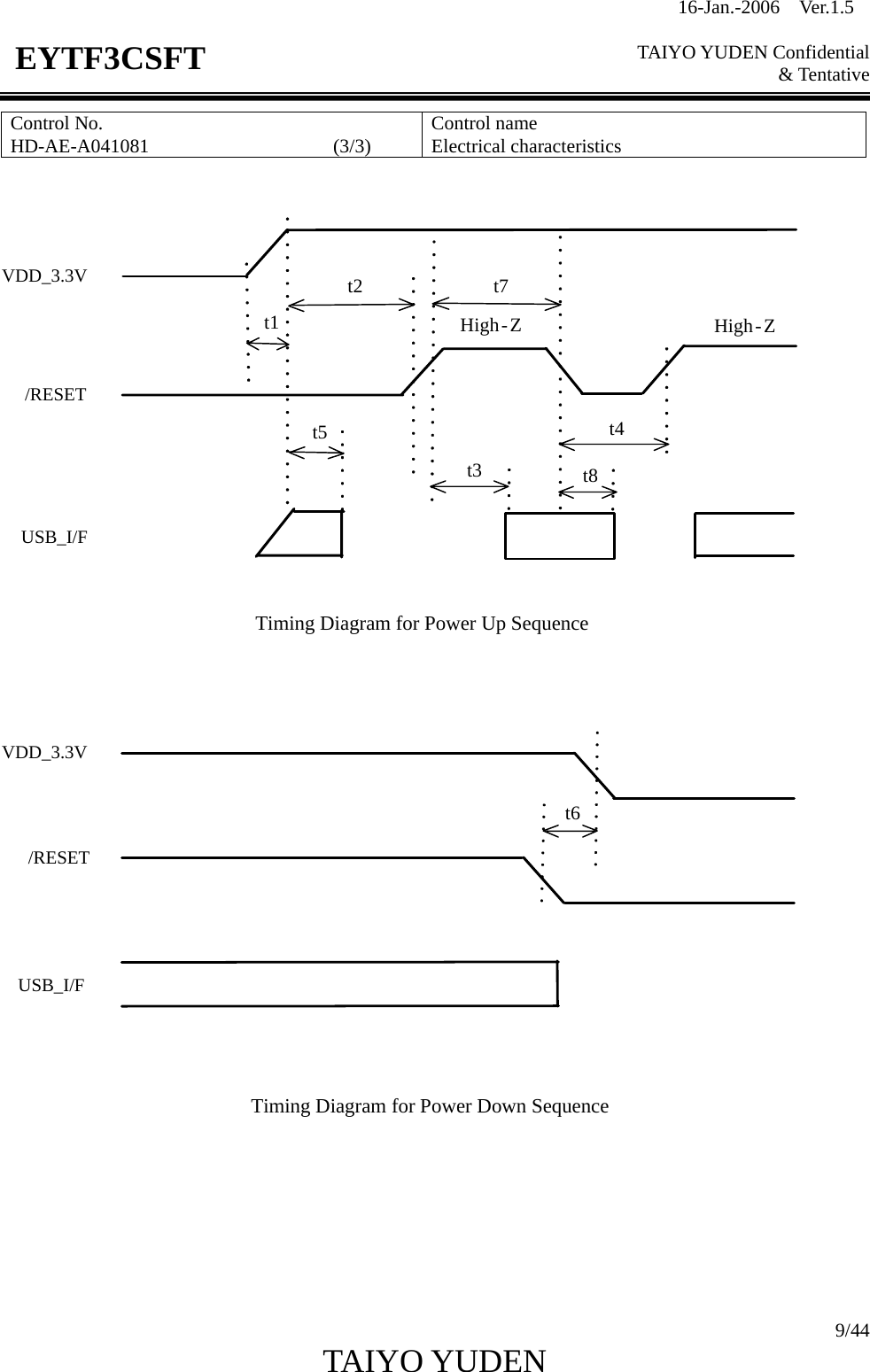

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 9/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-A041081 (3/3) Control name Electrical characteristics Timing Diagram for Power Up SequenceVDD_3.3V/RESETUSB_I/Ft1t2t3t4t5t7t8High-Z High-Z Timing Diagram for Power Down SequenceVDD_3.3V/RESETUSB_I/Ft6

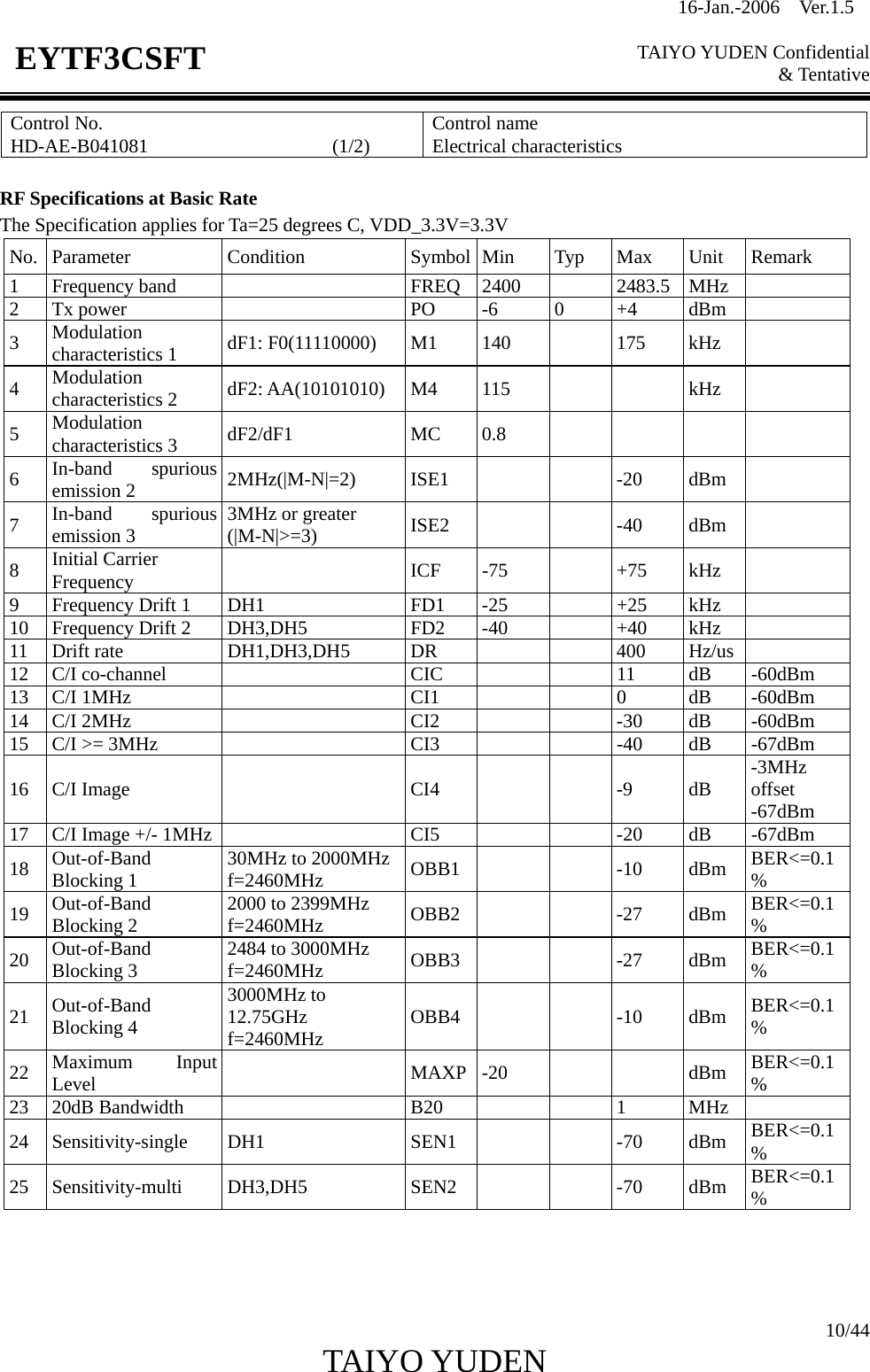

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 10/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-B041081 (1/2) Control name Electrical characteristics RF Specifications at Basic Rate The Specification applies for Ta=25 degrees C, VDD_3.3V=3.3V No. Parameter Condition Symbol Min Typ Max Unit Remark 1 Frequency band FREQ 2400 2483.5 MHz 2 Tx power PO -6 0 +4 dBm 3 Modulation characteristics 1 dF1: F0(11110000) M1 140 175 kHz 4 Modulation characteristics 2 dF2: AA(10101010) M4 115 kHz 5 Modulation characteristics 3 dF2/dF1 MC 0.8 6 In-band spurious emission 2 2MHz(|M-N|=2) ISE1 -20 dBm 7 In-band spurious emission 3 3MHz or greater (|M-N|>=3) ISE2 -40 dBm 8 Initial Carrier Frequency ICF -75 +75 kHz 9 Frequency Drift 1 DH1 FD1 -25 +25 kHz 10 Frequency Drift 2 DH3,DH5 FD2 -40 +40 kHz 11 Drift rate DH1,DH3,DH5 DR 400 Hz/us 12 C/I co-channel CIC 11 dB -60dBm 13 C/I 1MHz CI1 0 dB -60dBm 14 C/I 2MHz CI2 -30 dB -60dBm 15 C/I >= 3MHz CI3 -40 dB -67dBm 16 C/I Image CI4 -9 dB -3MHz offset -67dBm 17 C/I Image +/- 1MHz CI5 -20 dB -67dBm 18 Out-of-Band Blocking 1 30MHz to 2000MHzf=2460MHz OBB1 -10 dBm BER<=0.1% 19 Out-of-Band Blocking 2 2000 to 2399MHz f=2460MHz OBB2 -27 dBm BER<=0.1% 20 Out-of-Band Blocking 3 2484 to 3000MHz f=2460MHz OBB3 -27 dBm BER<=0.1% 21 Out-of-Band Blocking 4 3000MHz to 12.75GHz f=2460MHz OBB4 -10 dBm BER<=0.1% 22 Maximum Input Level MAXP -20 dBm BER<=0.1% 23 20dB Bandwidth B20 1 MHz 24 Sensitivity-single DH1 SEN1 -70 dBm BER<=0.1% 25 Sensitivity-multi DH3,DH5 SEN2 -70 dBm BER<=0.1%

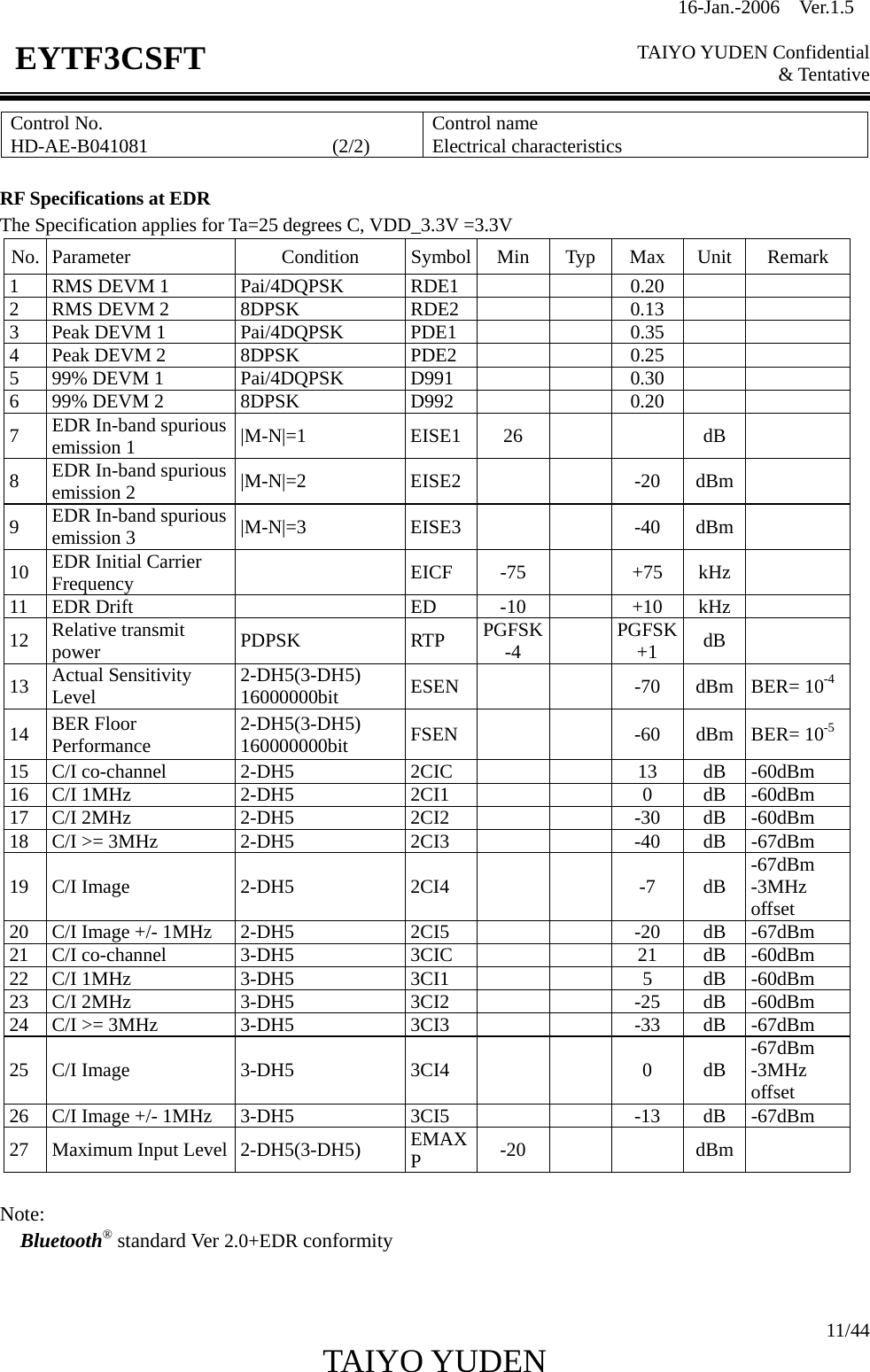

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 11/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-B041081 (2/2) Control name Electrical characteristics RF Specifications at EDR The Specification applies for Ta=25 degrees C, VDD_3.3V =3.3V No. Parameter Condition Symbol Min Typ Max Unit Remark 1 RMS DEVM 1 Pai/4DQPSK RDE1 0.20 2 RMS DEVM 2 8DPSK RDE2 0.13 3 Peak DEVM 1 Pai/4DQPSK PDE1 0.35 4 Peak DEVM 2 8DPSK PDE2 0.25 5 99% DEVM 1 Pai/4DQPSK D991 0.30 6 99% DEVM 2 8DPSK D992 0.20 7 EDR In-band spurious emission 1 |M-N|=1 EISE1 26 dB 8 EDR In-band spurious emission 2 |M-N|=2 EISE2 -20 dBm 9 EDR In-band spurious emission 3 |M-N|=3 EISE3 -40 dBm 10 EDR Initial Carrier Frequency EICF -75 +75 kHz 11 EDR Drift ED -10 +10 kHz 12 Relative transmit power PDPSK RTP PGFSK-4 PGFSK+1 dB 13 Actual Sensitivity Level 2-DH5(3-DH5) 16000000bit ESEN -70 dBm BER= 10-414 BER Floor Performance 2-DH5(3-DH5) 160000000bit FSEN -60 dBm BER= 10-515 C/I co-channel 2-DH5 2CIC 13 dB -60dBm 16 C/I 1MHz 2-DH5 2CI1 0 dB -60dBm 17 C/I 2MHz 2-DH5 2CI2 -30 dB -60dBm 18 C/I >= 3MHz 2-DH5 2CI3 -40 dB -67dBm 19 C/I Image 2-DH5 2CI4 -7 dB -67dBm -3MHz offset 20 C/I Image +/- 1MHz 2-DH5 2CI5 -20 dB -67dBm 21 C/I co-channel 3-DH5 3CIC 21 dB -60dBm 22 C/I 1MHz 3-DH5 3CI1 5 dB -60dBm 23 C/I 2MHz 3-DH5 3CI2 -25 dB -60dBm 24 C/I >= 3MHz 3-DH5 3CI3 -33 dB -67dBm 25 C/I Image 3-DH5 3CI4 0 dB -67dBm -3MHz offset 26 C/I Image +/- 1MHz 3-DH5 3CI5 -13 dB -67dBm 27 Maximum Input Level 2-DH5(3-DH5) EMAXP -20 dBm Note: Bluetooth® standard Ver 2.0+EDR conformity

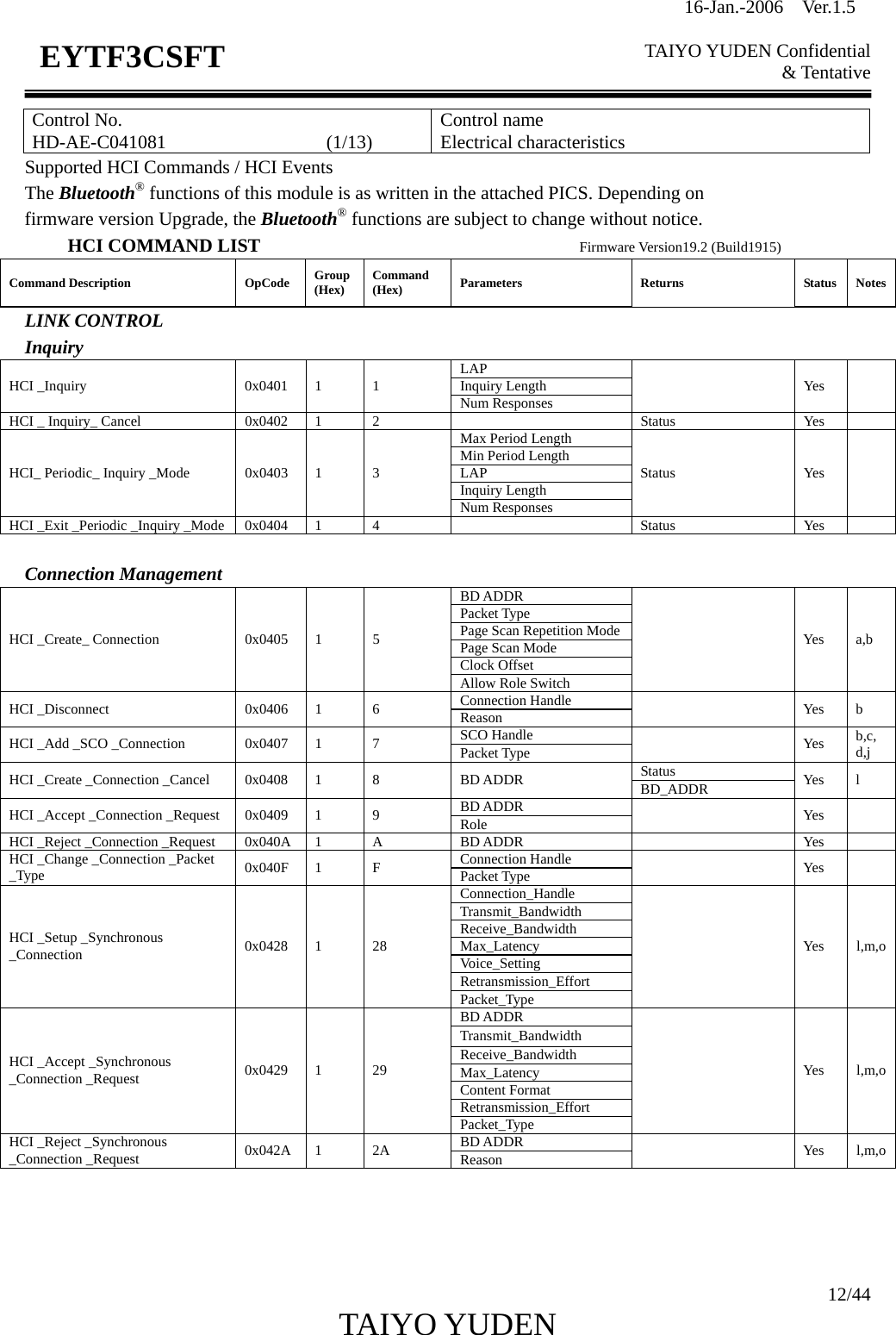

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 12/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-C041081 (1/13) Control name Electrical characteristics Supported HCI Commands / HCI Events The Bluetooth® functions of this module is as written in the attached PICS. Depending on firmware version Upgrade, the Bluetooth® functions are subject to change without notice. HCI COMMAND LIST Firmware Version19.2 (Build1915) Command Description OpCode Group (Hex) Command (Hex) Parameters Returns Status NotesLINK CONTROL Inquiry LAP Inquiry Length HCI _Inquiry 0x0401 1 1 Num Responses Yes HCI _ Inquiry_ Cancel 0x0402 1 2 Status Yes Max Period Length Min Period Length LAP Inquiry Length HCI_ Periodic_ Inquiry _Mode 0x0403 1 3 Num Responses Status Yes HCI _Exit _Periodic _Inquiry _Mode 0x0404 1 4 Status Yes Connection Management BD ADDR Packet Type Page Scan Repetition ModePage Scan Mode Clock Offset HCI _Create_ Connection 0x0405 1 5 Allow Role Switch Yes a,b Connection Handle HCI _Disconnect 0x0406 1 6 Reason Yes b SCO Handle HCI _Add _SCO _Connection 0x0407 1 7 Packet Type Yes b,c, d,j Status HCI _Create _Connection _Cancel 0x0408 1 8 BD ADDR BD_ADDR Yes l BD ADDR HCI _Accept _Connection _Request 0x0409 1 9 Role Yes HCI _Reject _Connection _Request 0x040A 1 A BD ADDR Yes Connection Handle HCI _Change _Connection _Packet _Type 0x040F 1 F Packet Type Yes Connection_Handle Transmit_Bandwidth Receive_Bandwidth Max_Latency Voice_Setting Retransmission_Effort HCI _Setup _Synchronous _Connection 0x0428 1 28 Packet_Type Yes l,m,oBD ADDR Transmit_Bandwidth Receive_Bandwidth Max_Latency Content Format Retransmission_Effort HCI _Accept _Synchronous _Connection _Request 0x0429 1 29 Packet_Type Yes l,m,oBD ADDR HCI _Reject _Synchronous _Connection _Request 0x042A 1 2A Reason Yes l,m,o

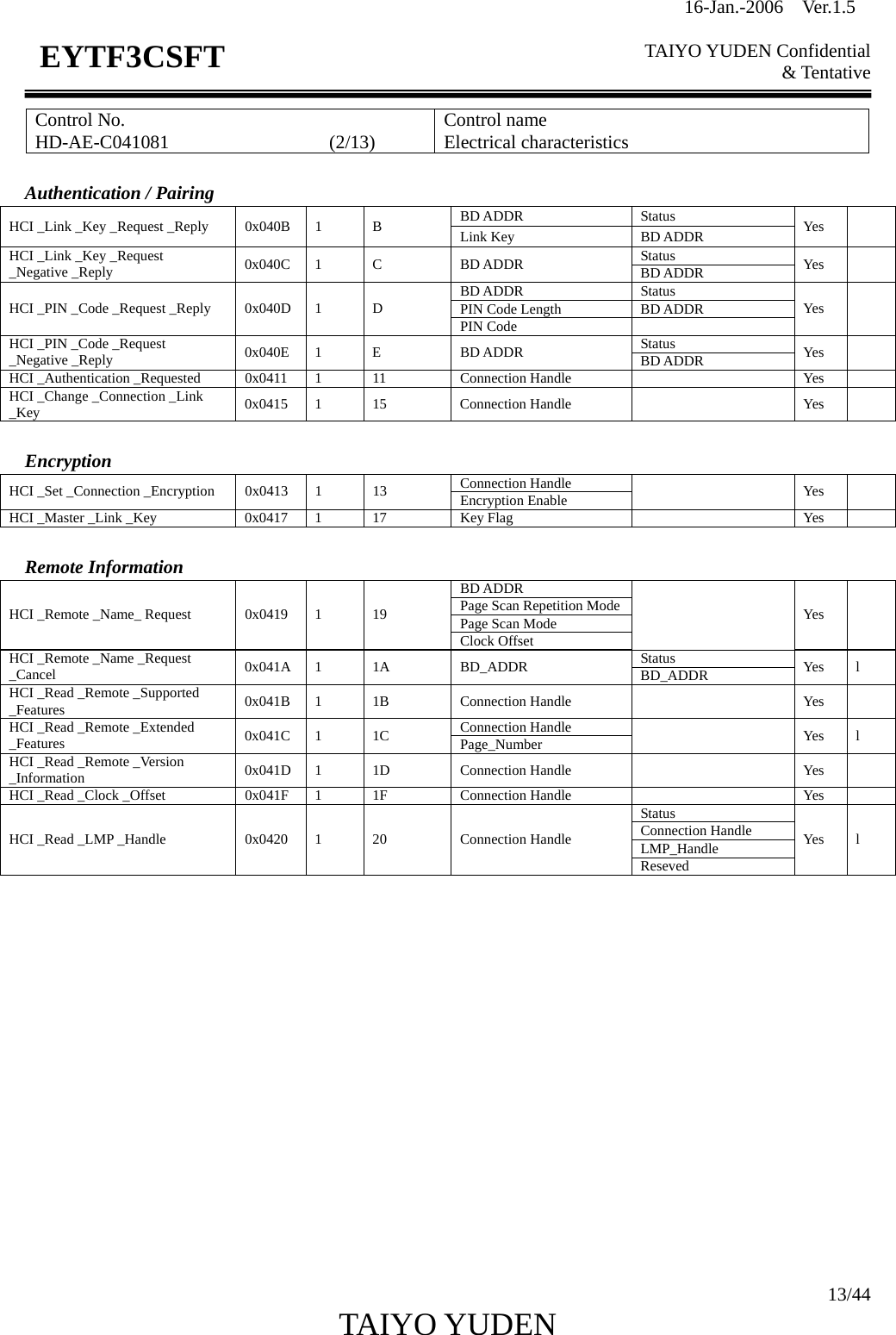

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 13/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-C041081 (2/13) Control name Electrical characteristics Authentication / Pairing BD ADDR Status HCI _Link _Key _Request _Reply 0x040B 1 B Link Key BD ADDR Yes Status HCI _Link _Key _Request _Negative _Reply 0x040C 1 C BD ADDR BD ADDR Yes BD ADDR Status PIN Code Length BD ADDR HCI _PIN _Code _Request _Reply 0x040D 1 D PIN Code Yes Status HCI _PIN _Code _Request _Negative _Reply 0x040E 1 E BD ADDR BD ADDR Yes HCI _Authentication _Requested 0x0411 1 11 Connection Handle Yes HCI _Change _Connection _Link _Key 0x0415 1 15 Connection Handle Yes Encryption Connection Handle HCI _Set _Connection _Encryption 0x0413 1 13 Encryption Enable Yes HCI _Master _Link _Key 0x0417 1 17 Key Flag Yes Remote Information BD ADDR Page Scan Repetition ModePage Scan Mode HCI _Remote _Name_ Request 0x0419 1 19 Clock Offset Yes Status HCI _Remote _Name _Request _Cancel 0x041A 1 1A BD_ADDR BD_ADDR Yes l HCI _Read _Remote _Supported _Features 0x041B 1 1B Connection Handle Yes Connection Handle HCI _Read _Remote _Extended _Features 0x041C 1 1C Page_Number Yes l HCI _Read _Remote _Version _Information 0x041D 1 1D Connection Handle Yes HCI _Read _Clock _Offset 0x041F 1 1F Connection Handle Yes Status Connection Handle LMP_Handle HCI _Read _LMP _Handle 0x0420 1 20 Connection Handle Reseved Yes l

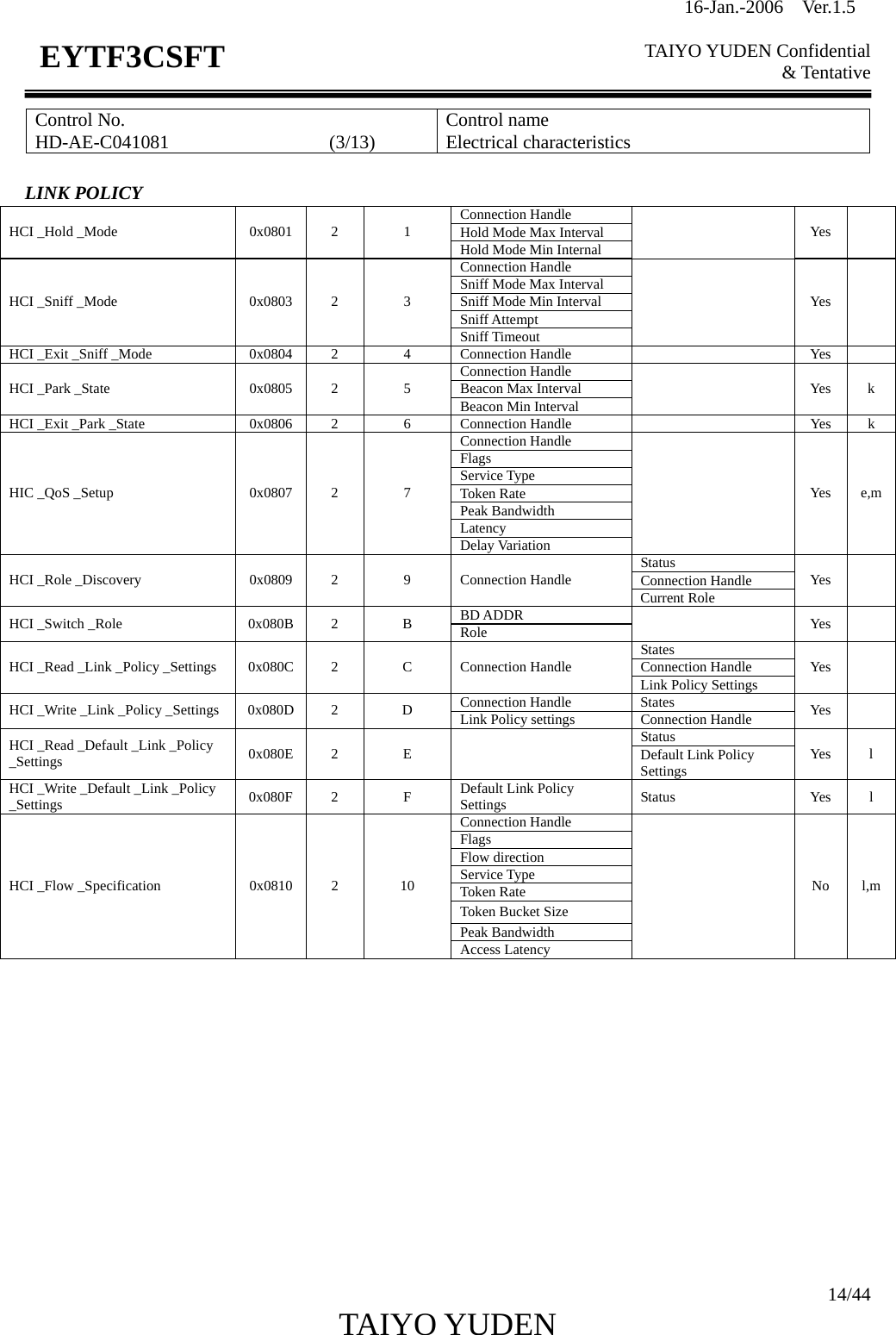

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 14/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-C041081 (3/13) Control name Electrical characteristics LINK POLICY Connection Handle Hold Mode Max Interval HCI _Hold _Mode 0x0801 2 1 Hold Mode Min Internal Yes Connection Handle Sniff Mode Max Interval Sniff Mode Min Interval Sniff Attempt HCI _Sniff _Mode 0x0803 2 3 Sniff Timeout Yes HCI _Exit _Sniff _Mode 0x0804 2 4 Connection Handle Yes Connection Handle Beacon Max Interval HCI _Park _State 0x0805 2 5 Beacon Min Interval Yes k HCI _Exit _Park _State 0x0806 2 6 Connection Handle Yes k Connection Handle Flags Service Type Token Rate Peak Bandwidth Latency HIC _QoS _Setup 0x0807 2 7 Delay Variation Yes e,mStatus Connection Handle HCI _Role _Discovery 0x0809 2 9 Connection Handle Current Role Yes BD ADDR HCI _Switch _Role 0x080B 2 B Role Yes States Connection Handle HCI _Read _Link _Policy _Settings 0x080C 2 C Connection Handle Link Policy Settings Yes Connection Handle States HCI _Write _Link _Policy _Settings 0x080D 2 D Link Policy settings Connection Handle Yes Status HCI _Read _Default _Link _Policy _Settings 0x080E 2 E Default Link Policy Settings Yes l HCI _Write _Default _Link _Policy _Settings 0x080F 2 F Default Link Policy Settings Status Yes l Connection Handle Flags Flow direction Service Type Token Rate Token Bucket Size Peak Bandwidth HCI _Flow _Specification 0x0810 2 10 Access Latency No l,m

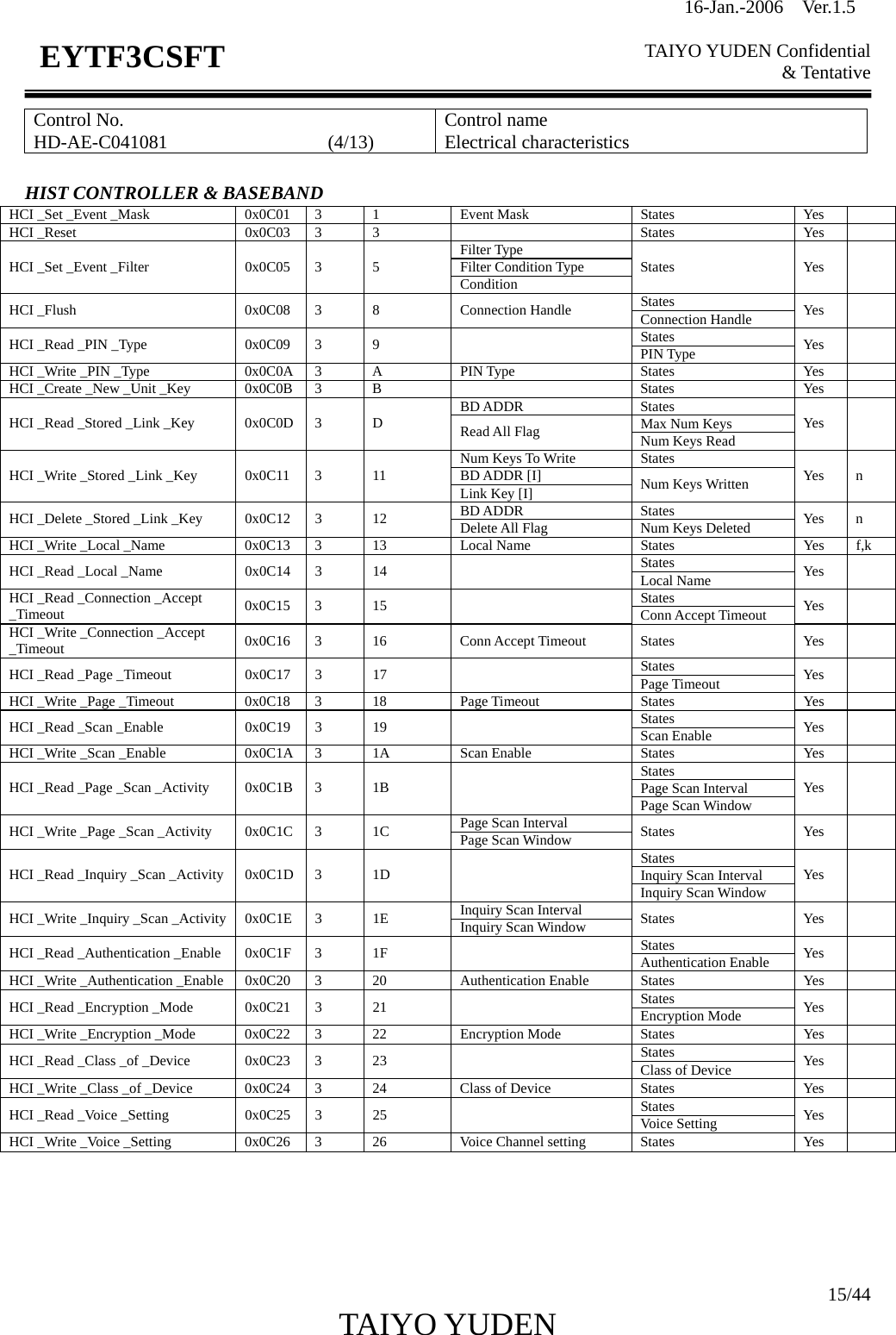

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 15/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-C041081 (4/13) Control name Electrical characteristics HIST CONTROLLER & BASEBAND HCI _Set _Event _Mask 0x0C01 3 1 Event Mask States Yes HCI _Reset 0x0C03 3 3 States Yes Filter Type Filter Condition Type HCI _Set _Event _Filter 0x0C05 3 5 Condition States Yes States HCI _Flush 0x0C08 3 8 Connection Handle Connection Handle Yes States HCI _Read _PIN _Type 0x0C09 3 9 PIN Type Yes HCI _Write _PIN _Type 0x0C0A 3 A PIN Type States Yes HCI _Create _New _Unit _Key 0x0C0B 3 B States Yes BD ADDR States Max Num Keys HCI _Read _Stored _Link _Key 0x0C0D 3 D Read All Flag Num Keys Read Yes Num Keys To Write States BD ADDR [I] HCI _Write _Stored _Link _Key 0x0C11 3 11 Link Key [I] Num Keys Written Yes n BD ADDR States HCI _Delete _Stored _Link _Key 0x0C12 3 12 Delete All Flag Num Keys Deleted Yes n HCI _Write _Local _Name 0x0C13 3 13 Local Name States Yes f,k States HCI _Read _Local _Name 0x0C14 3 14 Local Name Yes States HCI _Read _Connection _Accept _Timeout 0x0C15 3 15 Conn Accept Timeout Yes HCI _Write _Connection _Accept _Timeout 0x0C16 3 16 Conn Accept Timeout States Yes States HCI _Read _Page _Timeout 0x0C17 3 17 Page Timeout Yes HCI _Write _Page _Timeout 0x0C18 3 18 Page Timeout States Yes States HCI _Read _Scan _Enable 0x0C19 3 19 Scan Enable Yes HCI _Write _Scan _Enable 0x0C1A 3 1A Scan Enable States Yes States Page Scan Interval HCI _Read _Page _Scan _Activity 0x0C1B 3 1B Page Scan Window Yes Page Scan Interval HCI _Write _Page _Scan _Activity 0x0C1C 3 1C Page Scan Window States Yes States Inquiry Scan Interval HCI _Read _Inquiry _Scan _Activity 0x0C1D 3 1D Inquiry Scan Window Yes Inquiry Scan Interval HCI _Write _Inquiry _Scan _Activity 0x0C1E 3 1E Inquiry Scan Window States Yes States HCI _Read _Authentication _Enable 0x0C1F 3 1F Authentication Enable Yes HCI _Write _Authentication _Enable 0x0C20 3 20 Authentication Enable States Yes States HCI _Read _Encryption _Mode 0x0C21 3 21 Encryption Mode Yes HCI _Write _Encryption _Mode 0x0C22 3 22 Encryption Mode States Yes States HCI _Read _Class _of _Device 0x0C23 3 23 Class of Device Yes HCI _Write _Class _of _Device 0x0C24 3 24 Class of Device States Yes States HCI _Read _Voice _Setting 0x0C25 3 25 Voice Setting Yes HCI _Write _Voice _Setting 0x0C26 3 26 Voice Channel setting States Yes

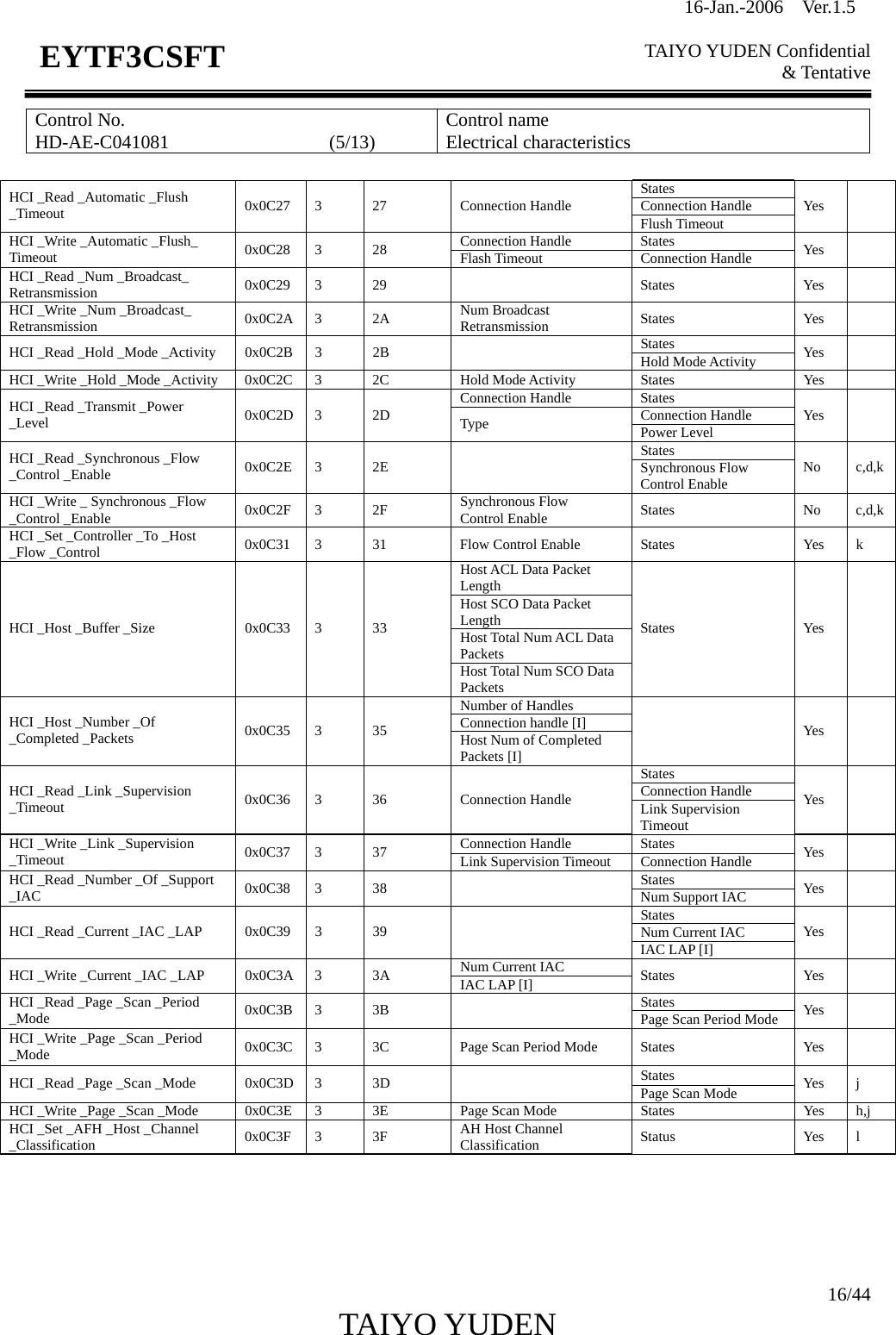

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 16/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-C041081 (5/13) Control name Electrical characteristics States Connection Handle HCI _Read _Automatic _Flush _Timeout 0x0C27 3 27 Connection Handle Flush Timeout Yes Connection Handle States HCI _Write _Automatic _Flush_ Timeout 0x0C28 3 28 Flash Timeout Connection Handle Yes HCI _Read _Num _Broadcast_ Retransmission 0x0C29 3 29 States Yes HCI _Write _Num _Broadcast_ Retransmission 0x0C2A 3 2A Num Broadcast Retransmission States Yes States HCI _Read _Hold _Mode _Activity 0x0C2B 3 2B Hold Mode Activity Yes HCI _Write _Hold _Mode _Activity 0x0C2C 3 2C Hold Mode Activity States Yes Connection Handle States Connection Handle HCI _Read _Transmit _Power _Level 0x0C2D 3 2D Type Power Level Yes States HCI _Read _Synchronous _Flow _Control _Enable 0x0C2E 3 2E Synchronous Flow Control Enable No c,d,kHCI _Write _ Synchronous _Flow _Control _Enable 0x0C2F 3 2F Synchronous Flow Control Enable States No c,d,kHCI _Set _Controller _To _Host _Flow _Control 0x0C31 3 31 Flow Control Enable States Yes k Host ACL Data Packet Length Host SCO Data Packet Length Host Total Num ACL Data Packets HCI _Host _Buffer _Size 0x0C33 3 33 Host Total Num SCO Data Packets States Yes Number of Handles Connection handle [I] HCI _Host _Number _Of _Completed _Packets 0x0C35 3 35 Host Num of Completed Packets [I] Yes States Connection Handle HCI _Read _Link _Supervision _Timeout 0x0C36 3 36 Connection Handle Link Supervision Timeout Yes Connection Handle States HCI _Write _Link _Supervision _Timeout 0x0C37 3 37 Link Supervision Timeout Connection Handle Yes States HCI _Read _Number _Of _Support _IAC 0x0C38 3 38 Num Support IAC Yes States Num Current IAC HCI _Read _Current _IAC _LAP 0x0C39 3 39 IAC LAP [I] Yes Num Current IAC HCI _Write _Current _IAC _LAP 0x0C3A 3 3A IAC LAP [I] States Yes States HCI _Read _Page _Scan _Period _Mode 0x0C3B 3 3B Page Scan Period Mode Yes HCI _Write _Page _Scan _Period _Mode 0x0C3C 3 3C Page Scan Period Mode States Yes States HCI _Read _Page _Scan _Mode 0x0C3D 3 3D Page Scan Mode Yes j HCI _Write _Page _Scan _Mode 0x0C3E 3 3E Page Scan Mode States Yes h,j HCI _Set _AFH _Host _Channel _Classification 0x0C3F 3 3F AH Host Channel Classification Status Yes l

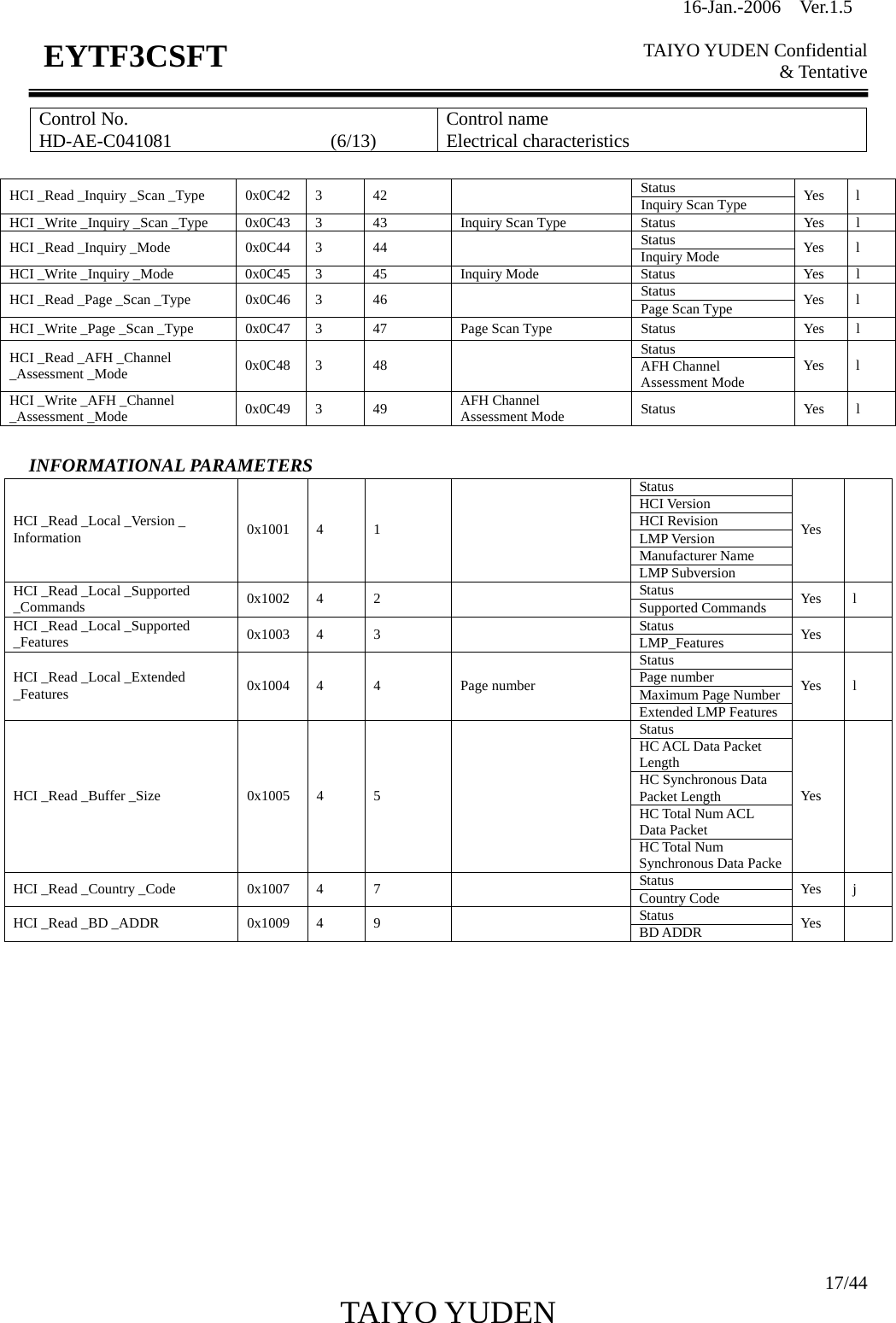

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 17/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-C041081 (6/13) Control name Electrical characteristics Status HCI _Read _Inquiry _Scan _Type 0x0C42 3 42 Inquiry Scan Type Yes l HCI _Write _Inquiry _Scan _Type 0x0C43 3 43 Inquiry Scan Type Status Yes l Status HCI _Read _Inquiry _Mode 0x0C44 3 44 Inquiry Mode Yes l HCI _Write _Inquiry _Mode 0x0C45 3 45 Inquiry Mode Status Yes l Status HCI _Read _Page _Scan _Type 0x0C46 3 46 Page Scan Type Yes l HCI _Write _Page _Scan _Type 0x0C47 3 47 Page Scan Type Status Yes l Status HCI _Read _AFH _Channel _Assessment _Mode 0x0C48 3 48 AFH Channel Assessment Mode Yes l HCI _Write _AFH _Channel _Assessment _Mode 0x0C49 3 49 AFH Channel Assessment Mode Status Yes l INFORMATIONAL PARAMETERS Status HCI Version HCI Revision LMP Version Manufacturer Name HCI _Read _Local _Version _ Information 0x1001 4 1 LMP Subversion Yes Status HCI _Read _Local _Supported _Commands 0x1002 4 2 Supported Commands Yes l Status HCI _Read _Local _Supported _Features 0x1003 4 3 LMP_Features Yes Status Page number Maximum Page NumberHCI _Read _Local _Extended _Features 0x1004 4 4 Page number Extended LMP FeaturesYes l Status HC ACL Data Packet Length HC Synchronous Data Packet Length HC Total Num ACL Data Packet HCI _Read _Buffer _Size 0x1005 4 5 HC Total Num Synchronous Data PackeYes Status HCI _Read _Country _Code 0x1007 4 7 Country Code Yes j Status HCI _Read _BD _ADDR 0x1009 4 9 BD ADDR Yes

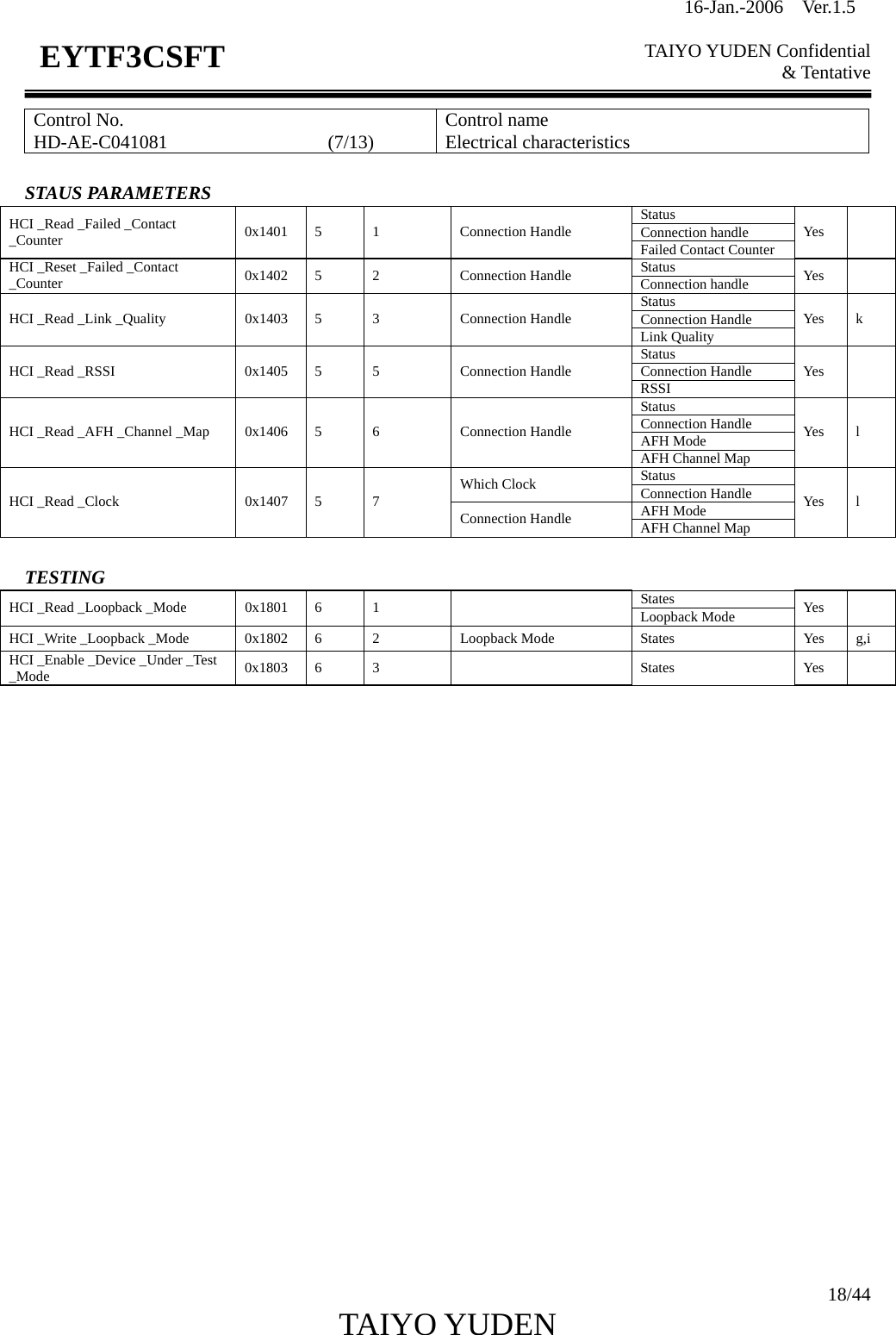

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 18/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-C041081 (7/13) Control name Electrical characteristics STAUS PARAMETERS Status Connection handle HCI _Read _Failed _Contact _Counter 0x1401 5 1 Connection Handle Failed Contact Counter Yes Status HCI _Reset _Failed _Contact _Counter 0x1402 5 2 Connection Handle Connection handle Yes Status Connection Handle HCI _Read _Link _Quality 0x1403 5 3 Connection Handle Link Quality Yes k Status Connection Handle HCI _Read _RSSI 0x1405 5 5 Connection Handle RSSI Yes Status Connection Handle AFH Mode HCI _Read _AFH _Channel _Map 0x1406 5 6 Connection Handle AFH Channel Map Yes l Status Which Clock Connection Handle AFH Mode HCI _Read _Clock 0x1407 5 7 Connection Handle AFH Channel Map Yes l TESTING States HCI _Read _Loopback _Mode 0x1801 6 1 Loopback Mode Yes HCI _Write _Loopback _Mode 0x1802 6 2 Loopback Mode States Yes g,i HCI _Enable _Device _Under _Test _Mode 0x1803 6 3 States Yes

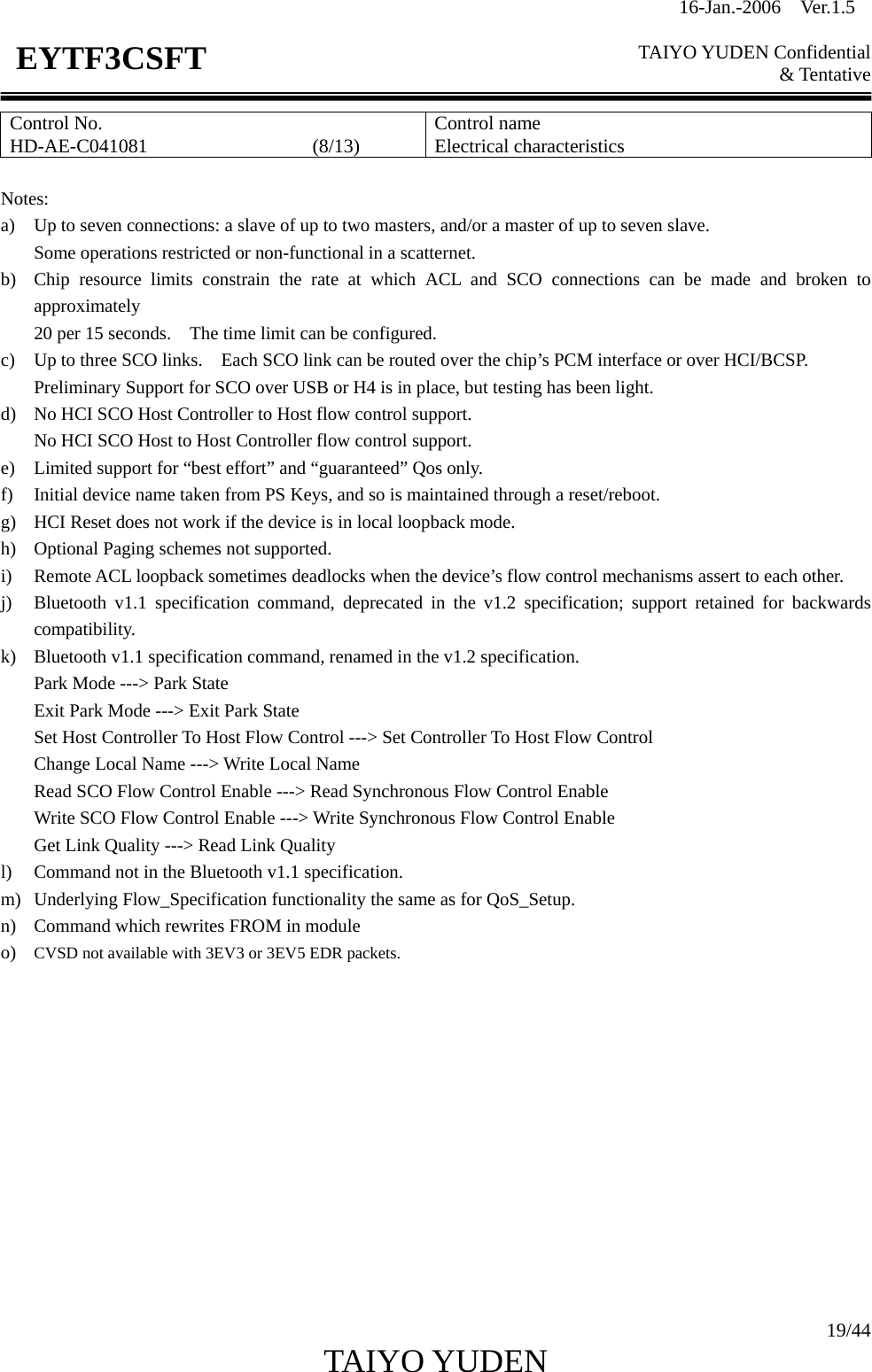

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 19/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-C041081 (8/13) Control name Electrical characteristics Notes: a) Up to seven connections: a slave of up to two masters, and/or a master of up to seven slave. Some operations restricted or non-functional in a scatternet. b) Chip resource limits constrain the rate at which ACL and SCO connections can be made and broken to approximately 20 per 15 seconds. The time limit can be configured. c) Up to three SCO links. Each SCO link can be routed over the chip’s PCM interface or over HCI/BCSP. Preliminary Support for SCO over USB or H4 is in place, but testing has been light. d) No HCI SCO Host Controller to Host flow control support. No HCI SCO Host to Host Controller flow control support. e) Limited support for “best effort” and “guaranteed” Qos only. f) Initial device name taken from PS Keys, and so is maintained through a reset/reboot. g) HCI Reset does not work if the device is in local loopback mode. h) Optional Paging schemes not supported. i) Remote ACL loopback sometimes deadlocks when the device’s flow control mechanisms assert to each other. j) Bluetooth v1.1 specification command, deprecated in the v1.2 specification; support retained for backwards compatibility. k) Bluetooth v1.1 specification command, renamed in the v1.2 specification. Park Mode ---> Park State Exit Park Mode ---> Exit Park State Set Host Controller To Host Flow Control ---> Set Controller To Host Flow Control Change Local Name ---> Write Local Name Read SCO Flow Control Enable ---> Read Synchronous Flow Control Enable Write SCO Flow Control Enable ---> Write Synchronous Flow Control Enable Get Link Quality ---> Read Link Quality l) Command not in the Bluetooth v1.1 specification. m) Underlying Flow_Specification functionality the same as for QoS_Setup. n) Command which rewrites FROM in module o) CVSD not available with 3EV3 or 3EV5 EDR packets.

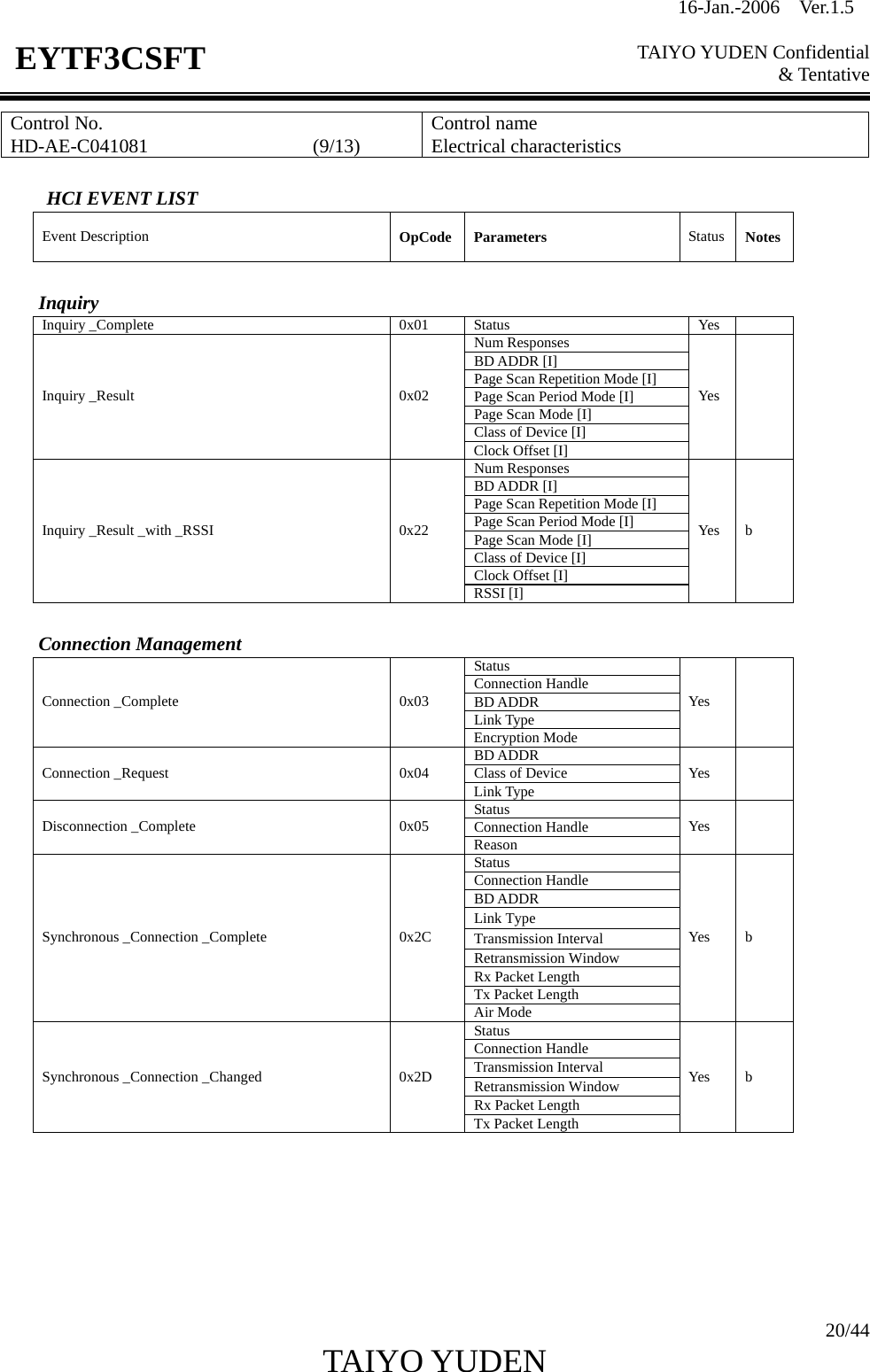

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 20/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-C041081 (9/13) Control name Electrical characteristics HCI EVENT LIST Event Description OpCode Parameters Status Notes Inquiry Inquiry _Complete 0x01 Status Yes Num Responses BD ADDR [I] Page Scan Repetition Mode [I] Page Scan Period Mode [I] Page Scan Mode [I] Class of Device [I] Inquiry _Result 0x02 Clock Offset [I] Yes Num Responses BD ADDR [I] Page Scan Repetition Mode [I] Page Scan Period Mode [I] Page Scan Mode [I] Class of Device [I] Clock Offset [I] Inquiry _Result _with _RSSI 0x22 RSSI [I] Yes b Connection Management Status Connection Handle BD ADDR Link Type Connection _Complete 0x03 Encryption Mode Yes BD ADDR Class of Device Connection _Request 0x04 Link Type Yes Status Connection Handle Disconnection _Complete 0x05 Reason Yes Status Connection Handle BD ADDR Link Type Transmission Interval Retransmission Window Rx Packet Length Tx Packet Length Synchronous _Connection _Complete 0x2C Air Mode Yes b Status Connection Handle Transmission Interval Retransmission Window Rx Packet Length Synchronous _Connection _Changed 0x2D Tx Packet Length Yes b

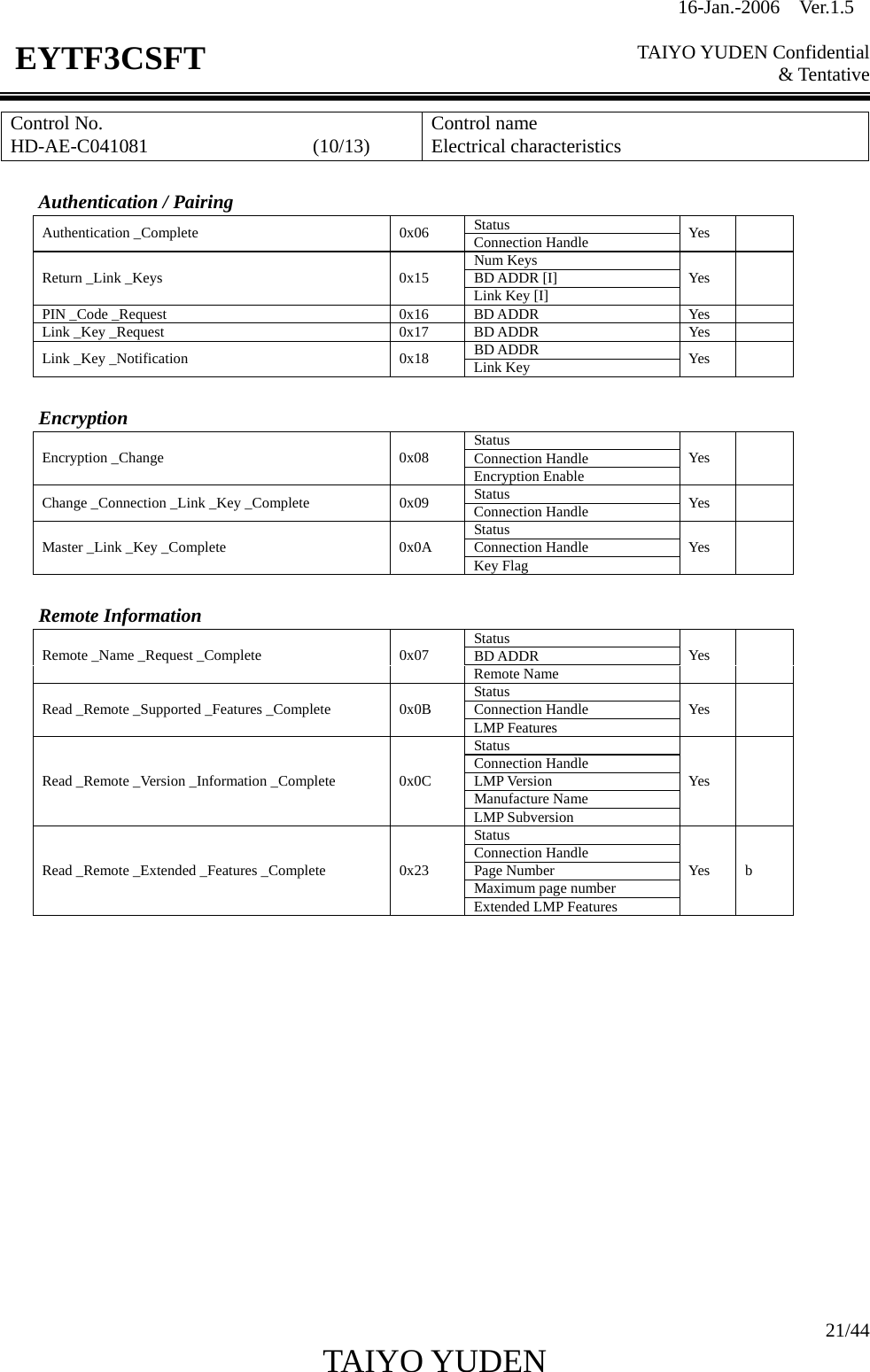

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 21/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-C041081 (10/13) Control name Electrical characteristics Authentication / Pairing Status Authentication _Complete 0x06 Connection Handle Yes Num Keys BD ADDR [I] Return _Link _Keys 0x15 Link Key [I] Yes PIN _Code _Request 0x16 BD ADDR Yes Link _Key _Request 0x17 BD ADDR Yes BD ADDR Link _Key _Notification 0x18 Link Key Yes Encryption Status Connection Handle Encryption _Change 0x08 Encryption Enable Yes Status Change _Connection _Link _Key _Complete 0x09 Connection Handle Yes Status Connection Handle Master _Link _Key _Complete 0x0A Key Flag Yes Remote Information Status BD ADDR Remote _Name _Request _Complete 0x07 Remote Name Yes Status Connection Handle Read _Remote _Supported _Features _Complete 0x0B LMP Features Yes Status Connection Handle LMP Version Manufacture Name Read _Remote _Version _Information _Complete 0x0C LMP Subversion Yes Status Connection Handle Page Number Maximum page number Read _Remote _Extended _Features _Complete 0x23 Extended LMP Features Yes b

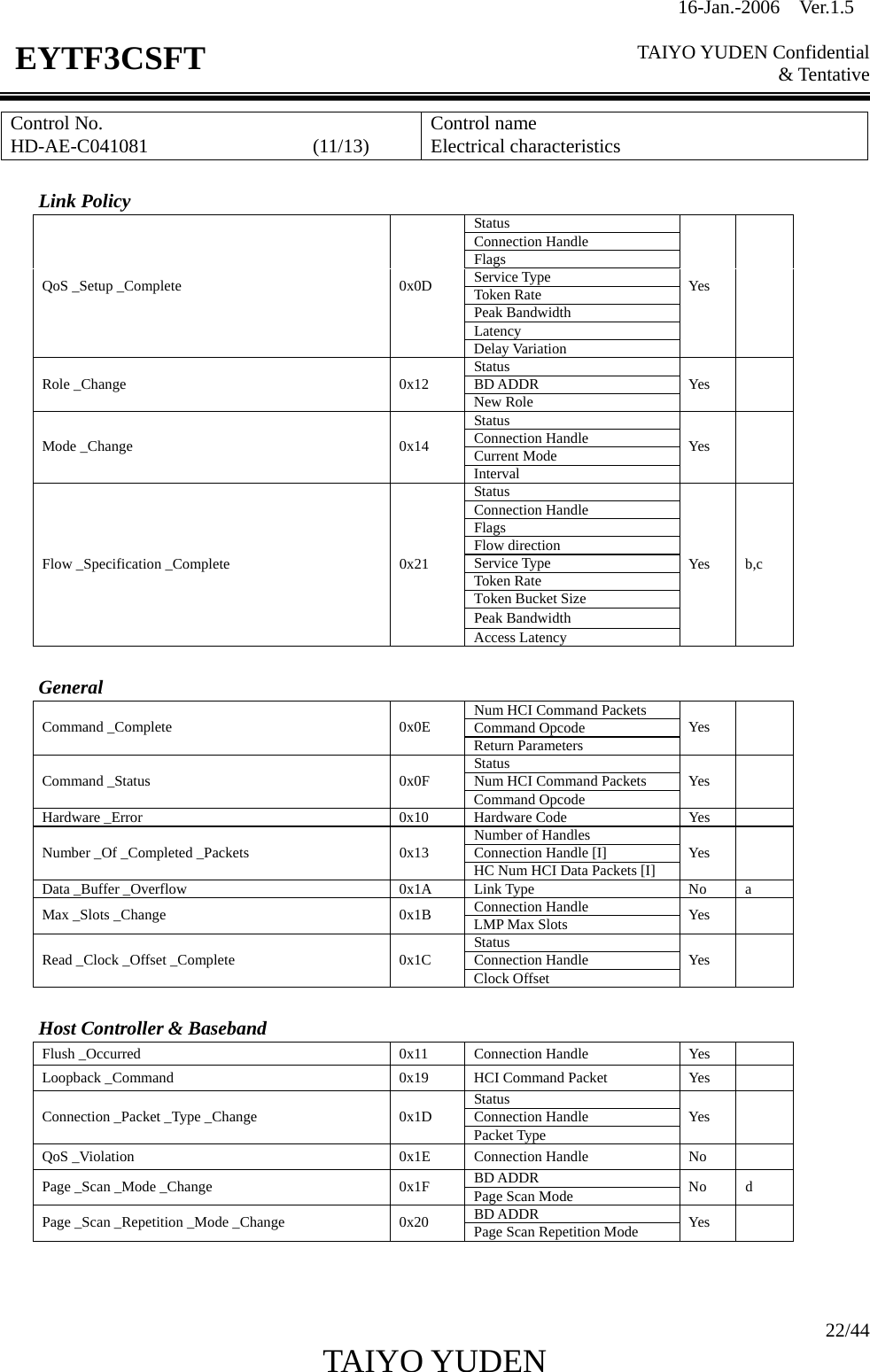

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 22/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-C041081 (11/13) Control name Electrical characteristics Link Policy Status Connection Handle Flags Service Type Token Rate Peak Bandwidth Latency QoS _Setup _Complete 0x0D Delay Variation Yes Status BD ADDR Role _Change 0x12 New Role Yes Status Connection Handle Current Mode Mode _Change 0x14 Interval Yes Status Connection Handle Flags Flow direction Service Type Token Rate Token Bucket Size Peak Bandwidth Flow _Specification _Complete 0x21 Access Latency Yes b,c General Num HCI Command Packets Command Opcode Command _Complete 0x0E Return Parameters Yes Status Num HCI Command Packets Command _Status 0x0F Command Opcode Yes Hardware _Error 0x10 Hardware Code Yes Number of Handles Connection Handle [I] Number _Of _Completed _Packets 0x13 HC Num HCI Data Packets [I] Yes Data _Buffer _Overflow 0x1A Link Type No a Connection Handle Max _Slots _Change 0x1B LMP Max Slots Yes Status Connection Handle Read _Clock _Offset _Complete 0x1C Clock Offset Yes Host Controller & Baseband Flush _Occurred 0x11 Connection Handle Yes Loopback _Command 0x19 HCI Command Packet Yes Status Connection Handle Connection _Packet _Type _Change 0x1D Packet Type Yes QoS _Violation 0x1E Connection Handle No BD ADDR Page _Scan _Mode _Change 0x1F Page Scan Mode No d BD ADDR Page _Scan _Repetition _Mode _Change 0x20 Page Scan Repetition Mode Yes

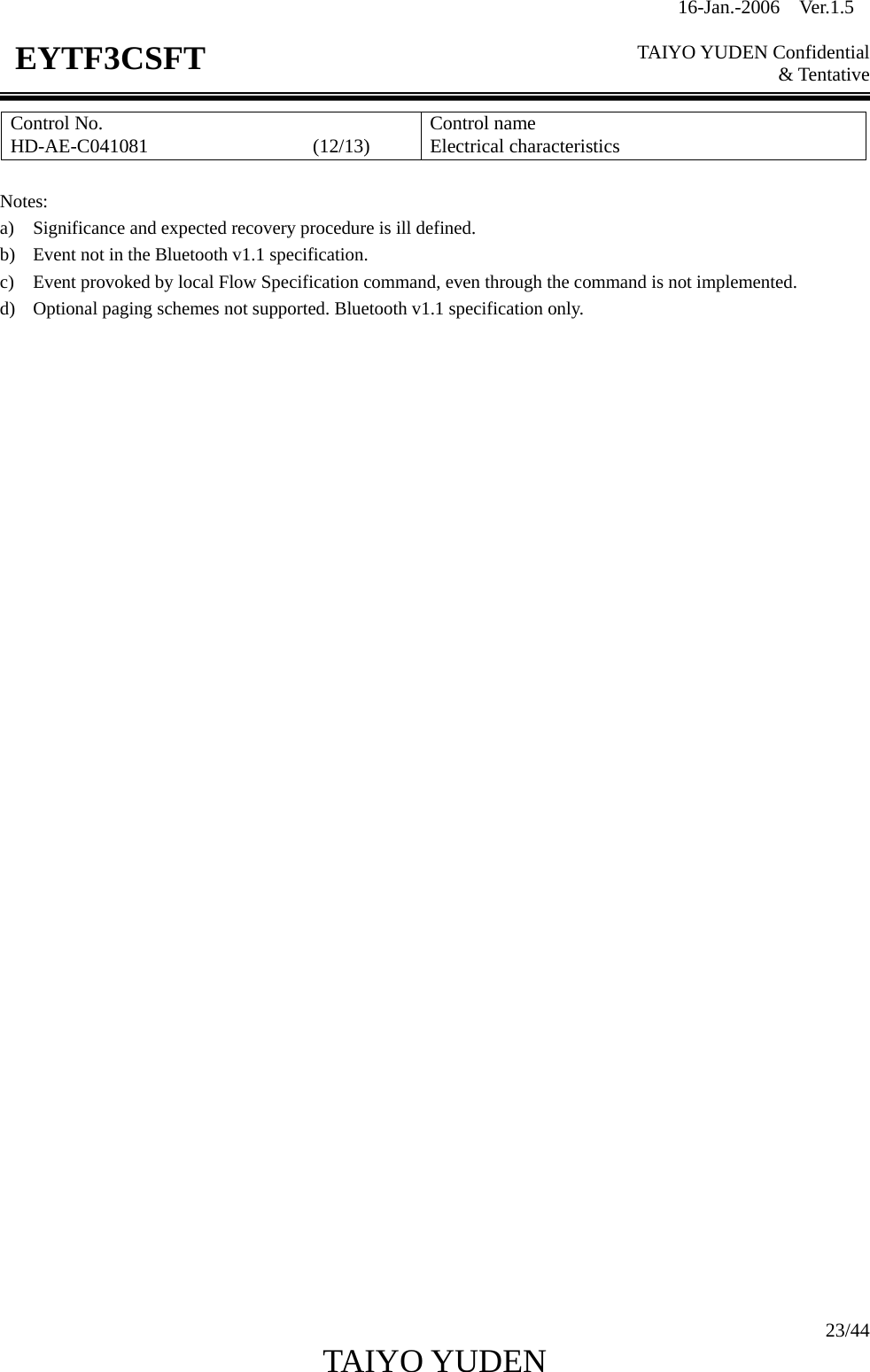

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 23/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-C041081 (12/13) Control name Electrical characteristics Notes: a) Significance and expected recovery procedure is ill defined. b) Event not in the Bluetooth v1.1 specification. c) Event provoked by local Flow Specification command, even through the command is not implemented. d) Optional paging schemes not supported. Bluetooth v1.1 specification only.

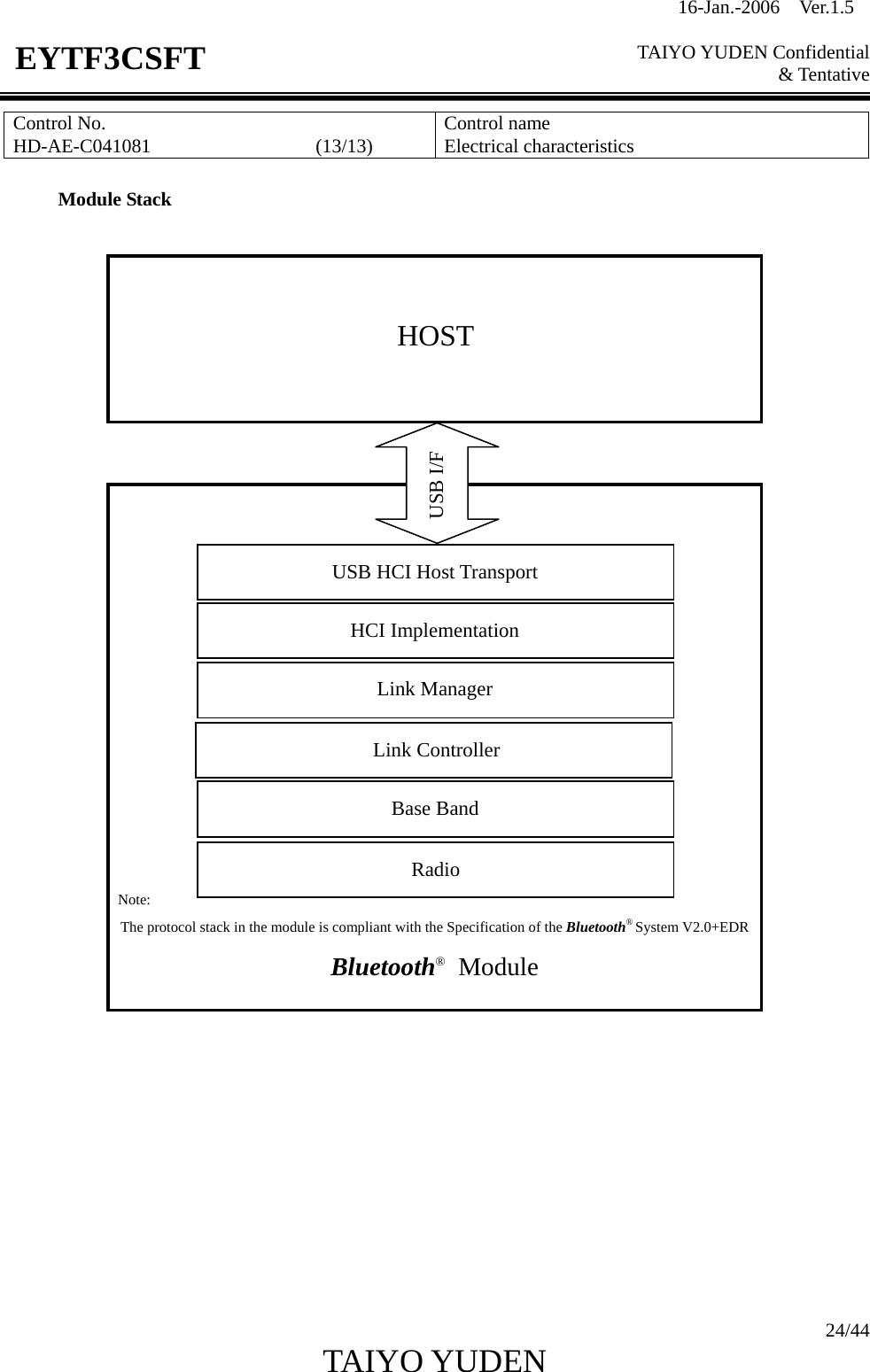

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 24/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-C041081 (13/13) Control name Electrical characteristics Module Stack Note: The protocol stack in the module is compliant with the Specification of the Bluetooth® System V2.0+EDR HOSTUSB I/F USB HCI Host Transport HCI Implementation Link Manager Link ControllerBase Band Radio Bluetooth® Module

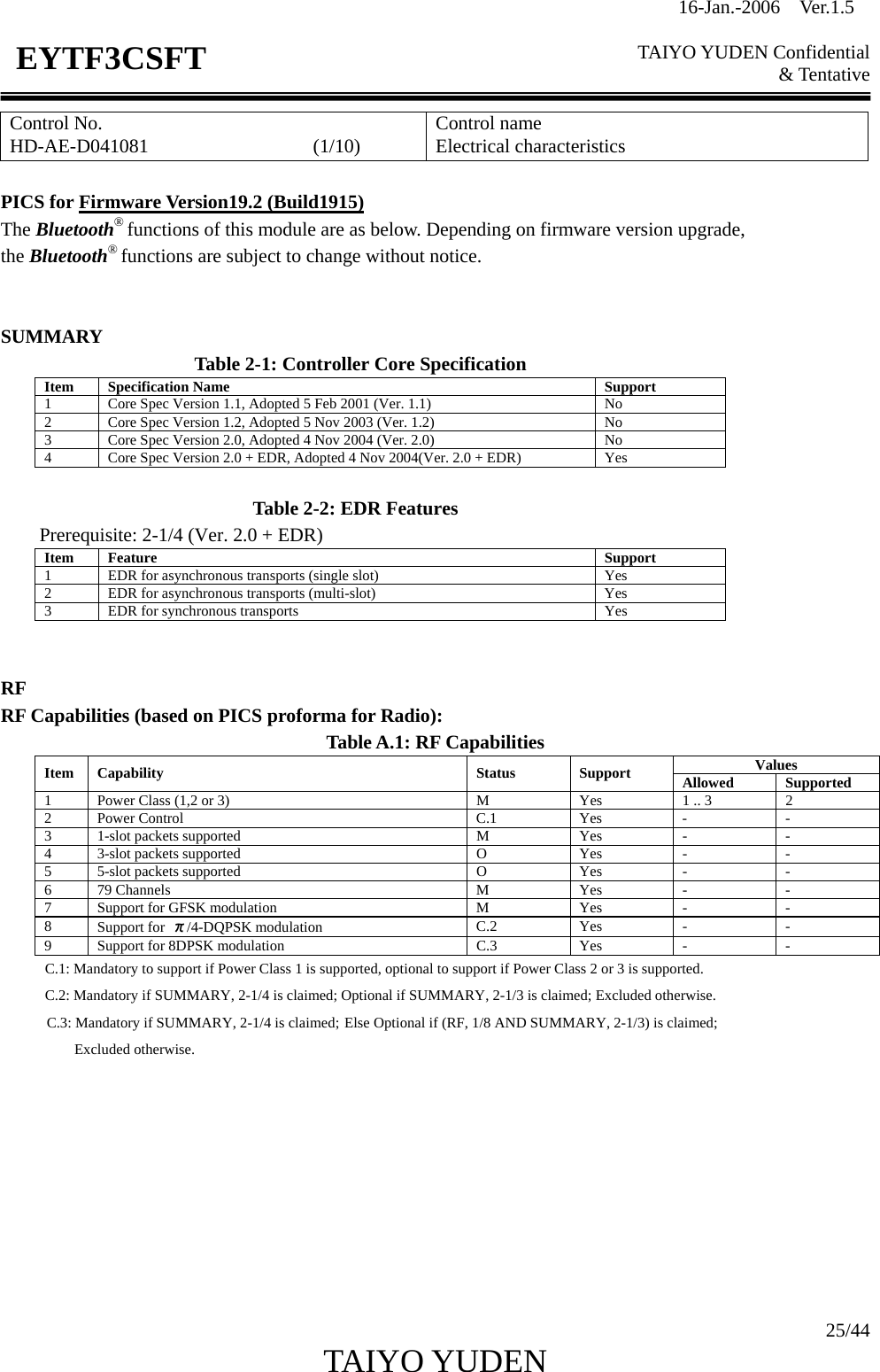

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 25/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-D041081 (1/10) Control name Electrical characteristics PICS for Firmware Version19.2 (Build1915) The Bluetooth® functions of this module are as below. Depending on firmware version upgrade, the Bluetooth® functions are subject to change without notice. SUMMARY Table 2-1: Controller Core Specification Item Specification Name Support 1 Core Spec Version 1.1, Adopted 5 Feb 2001 (Ver. 1.1) No 2 Core Spec Version 1.2, Adopted 5 Nov 2003 (Ver. 1.2) No 3 Core Spec Version 2.0, Adopted 4 Nov 2004 (Ver. 2.0) No 4 Core Spec Version 2.0 + EDR, Adopted 4 Nov 2004(Ver. 2.0 + EDR) Yes Table 2-2: EDR Features Prerequisite: 2-1/4 (Ver. 2.0 + EDR) Item Feature Support 1 EDR for asynchronous transports (single slot) Yes 2 EDR for asynchronous transports (multi-slot) Yes 3 EDR for synchronous transports Yes RF RF Capabilities (based on PICS proforma for Radio): Table A.1: RF Capabilities Values Item Capability Status Support Allowed Supported 1 Power Class (1,2 or 3) M Yes 1 .. 3 2 2 Power Control C.1 Yes - - 3 1-slot packets supported M Yes - - 4 3-slot packets supported O Yes - - 5 5-slot packets supported O Yes - - 6 79 Channels M Yes - - 7 Support for GFSK modulation M Yes - - 8 Support for π/4-DQPSK modulation C.2 Yes - - 9 Support for 8DPSK modulation C.3 Yes - - C.1: Mandatory to support if Power Class 1 is supported, optional to support if Power Class 2 or 3 is supported. C.2: Mandatory if SUMMARY, 2-1/4 is claimed; Optional if SUMMARY, 2-1/3 is claimed; Excluded otherwise. C.3: Mandatory if SUMMARY, 2-1/4 is claimed; Else Optional if (RF, 1/8 AND SUMMARY, 2-1/3) is claimed; Excluded otherwise.

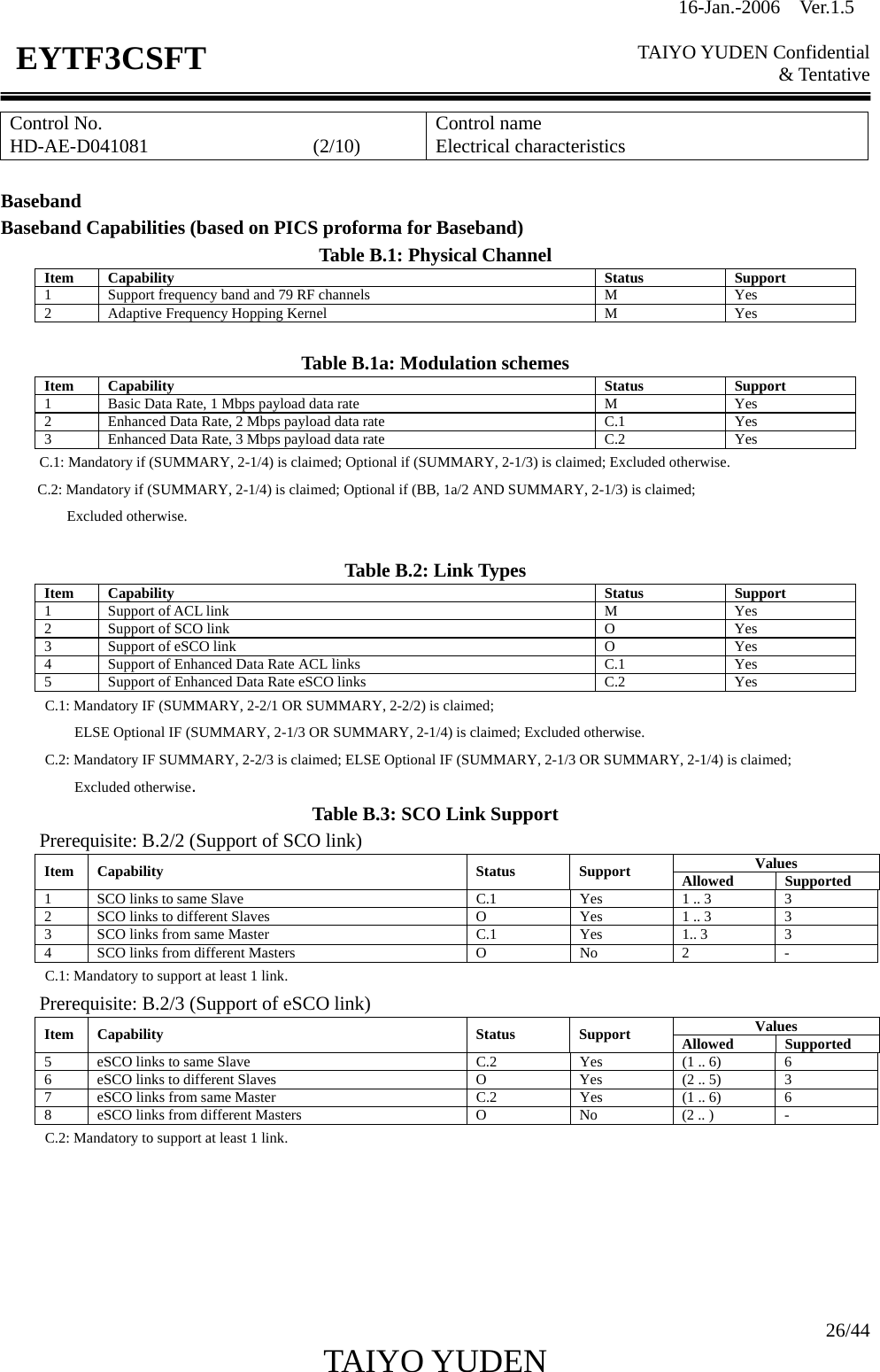

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 26/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-D041081 (2/10) Control name Electrical characteristics Baseband Baseband Capabilities (based on PICS proforma for Baseband) Table B.1: Physical Channel Item Capability Status Support 1 Support frequency band and 79 RF channels M Yes 2 Adaptive Frequency Hopping Kernel M Yes Table B.1a: Modulation schemes Item Capability Status Support 1 Basic Data Rate, 1 Mbps payload data rate M Yes 2 Enhanced Data Rate, 2 Mbps payload data rate C.1 Yes 3 Enhanced Data Rate, 3 Mbps payload data rate C.2 Yes C.1: Mandatory if (SUMMARY, 2-1/4) is claimed; Optional if (SUMMARY, 2-1/3) is claimed; Excluded otherwise. C.2: Mandatory if (SUMMARY, 2-1/4) is claimed; Optional if (BB, 1a/2 AND SUMMARY, 2-1/3) is claimed; Excluded otherwise. Table B.2: Link Types Item Capability Status Support 1 Support of ACL link M Yes 2 Support of SCO link O Yes 3 Support of eSCO link O Yes 4 Support of Enhanced Data Rate ACL links C.1 Yes 5 Support of Enhanced Data Rate eSCO links C.2 Yes C.1: Mandatory IF (SUMMARY, 2-2/1 OR SUMMARY, 2-2/2) is claimed; ELSE Optional IF (SUMMARY, 2-1/3 OR SUMMARY, 2-1/4) is claimed; Excluded otherwise. C.2: Mandatory IF SUMMARY, 2-2/3 is claimed; ELSE Optional IF (SUMMARY, 2-1/3 OR SUMMARY, 2-1/4) is claimed; Excluded otherwise. Table B.3: SCO Link Support Prerequisite: B.2/2 (Support of SCO link) Values Item Capability Status Support Allowed Supported 1 SCO links to same Slave C.1 Yes 1 .. 3 3 2 SCO links to different Slaves O Yes 1 .. 3 3 3 SCO links from same Master C.1 Yes 1.. 3 3 4 SCO links from different Masters O No 2 - C.1: Mandatory to support at least 1 link. Prerequisite: B.2/3 (Support of eSCO link) Values Item Capability Status Support Allowed Supported 5 eSCO links to same Slave C.2 Yes (1 .. 6) 6 6 eSCO links to different Slaves O Yes (2 .. 5) 3 7 eSCO links from same Master C.2 Yes (1 .. 6) 6 8 eSCO links from different Masters O No (2 .. ) - C.2: Mandatory to support at least 1 link.

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 27/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-D041081 (3/10) Control name Electrical characteristics Table B.4: Common Packet Types Item Capability Status Support 1 Support of ID packet type M Yes 2 Support of NULL packet type M Yes 3 Support of POLL packet type M Yes 4 Support of FHS packet type M Yes 5 Support of DM1 packet type M Yes Table B.5: ACL Packet Types Item Capability Status Support 1 Support of DH1 packet type M Yes 2 Support of DM3 packet type O Yes 3 Support of DH3 packet type O Yes 4 Support of DM5 packet type O Yes 5 Support of DH5 packet type O Yes 6 Support of AUX1 packet type O Yes Table B.5a: Enhanced Data Rate ACL packet types Prerequisite: B.2/4 (Support of Enhanced Data Rate ACL links) Item Capability Status Support 1 Support 2-DH1 packet type C.1 Yes 2 Support 2-DH3 packet type C.2 Yes 3 Support 2-DH5 packet type C.2 Yes 4 Support 3-DH1 packet type C.3 Yes 5 Support 3-DH3 packet type C.4 Yes 6 Support 3-DH5 packet type C.5 Yes C.1: Mandatory IF (SUMMARY, 2-2/1 OR SUMMARY, 2-2/2) is claimed; ELSE Optional IF BB, 1a/2 is claimed; Excluded otherwise. C.2: Mandatory IF SUMMARY, 2-2/2 is claimed; ELSE Optional IF BB, 1a/2 is claimed; Excluded otherwise. C.3: Mandatory IF (SUMMARY, 2-2/1 OR SUMMARY, 2-2/2) is claimed; ELSE Optional IF BB 1a/3 is claimed; Excluded otherwise. C.4: Mandatory IF SUMMARY, 2-2/2 is claimed; ELSE Optional IF (BB, 5a/2 AND BB, 5a/4) is claimed; Excluded otherwise. C.5: Mandatory IF SUMMARY 2-2/2 is claimed; ELSE Optional IF (BB, 5a/3 AND BB, 5a/4) is claimed; Excluded otherwise. Table B.6: SCO and eSCO Packet Types Prerequisite for items 1-4: B.2/2 (Support of SCO link) Item Capability Status Support 1 Support of HV1 packet type M Yes 2 Support of HV2 packet type O Yes 3 Support of HV3 packet type O Yes 4 Support of DV packet type M Yes Prerequisite for items 5-7: B.2/3 (Support of eSCO link) Item Capability Status Support 5 Support of EV3 packet type M Yes 6 Support of EV4 packet type O Yes 7 Support of EV5 packet type O Yes

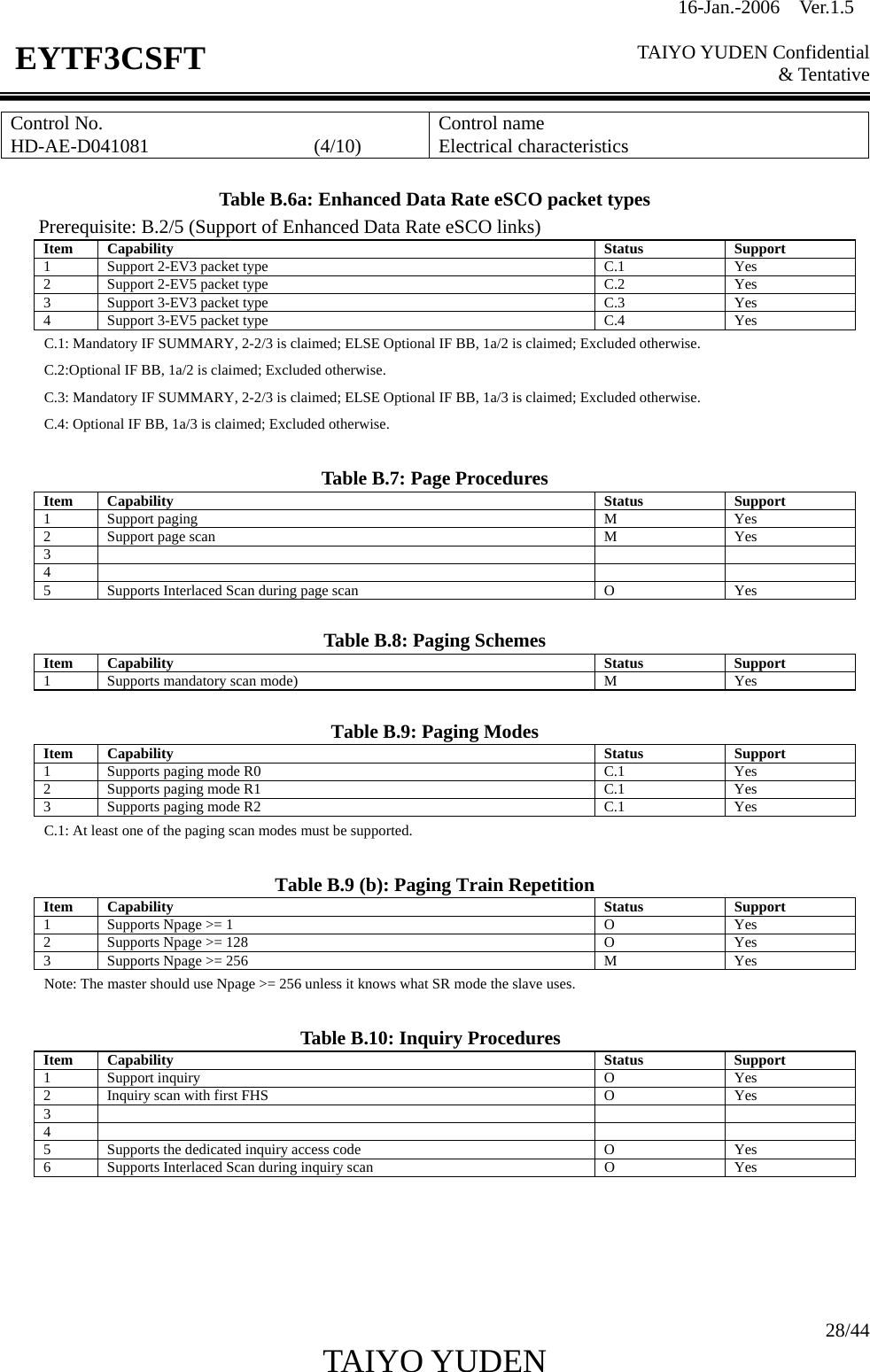

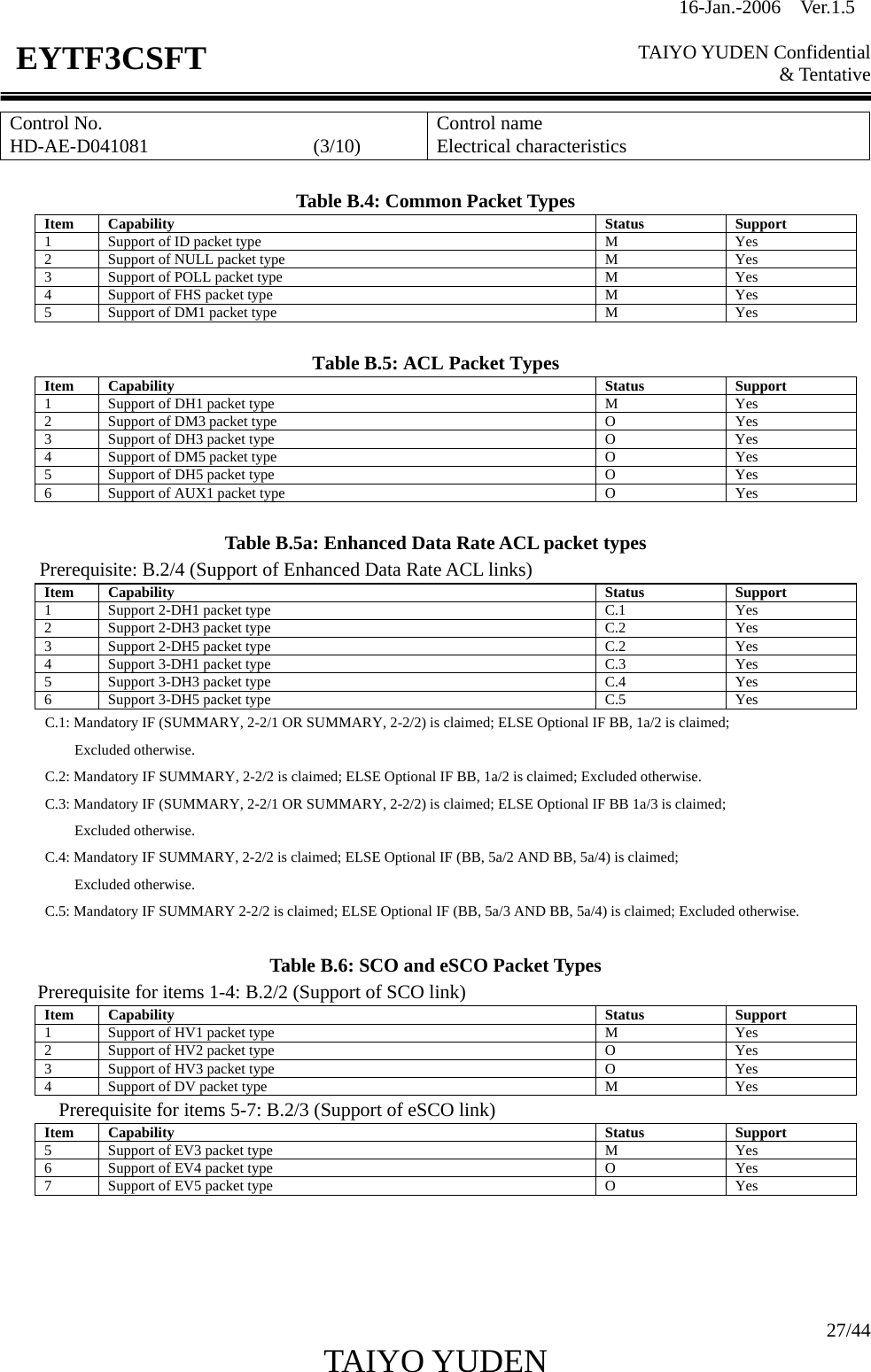

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 28/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-D041081 (4/10) Control name Electrical characteristics Table B.6a: Enhanced Data Rate eSCO packet types Prerequisite: B.2/5 (Support of Enhanced Data Rate eSCO links) Item Capability Status Support 1 Support 2-EV3 packet type C.1 Yes 2 Support 2-EV5 packet type C.2 Yes 3 Support 3-EV3 packet type C.3 Yes 4 Support 3-EV5 packet type C.4 Yes C.1: Mandatory IF SUMMARY, 2-2/3 is claimed; ELSE Optional IF BB, 1a/2 is claimed; Excluded otherwise. C.2:Optional IF BB, 1a/2 is claimed; Excluded otherwise. C.3: Mandatory IF SUMMARY, 2-2/3 is claimed; ELSE Optional IF BB, 1a/3 is claimed; Excluded otherwise. C.4: Optional IF BB, 1a/3 is claimed; Excluded otherwise. Table B.7: Page Procedures Item Capability Status Support 1 Support paging M Yes 2 Support page scan M Yes 3 4 5 Supports Interlaced Scan during page scan O Yes Table B.8: Paging Schemes Item Capability Status Support 1 Supports mandatory scan mode) M Yes Table B.9: Paging Modes Item Capability Status Support 1 Supports paging mode R0 C.1 Yes 2 Supports paging mode R1 C.1 Yes 3 Supports paging mode R2 C.1 Yes C.1: At least one of the paging scan modes must be supported. Table B.9 (b): Paging Train Repetition Item Capability Status Support 1 Supports Npage >= 1 O Yes 2 Supports Npage >= 128 O Yes 3 Supports Npage >= 256 M Yes Note: The master should use Npage >= 256 unless it knows what SR mode the slave uses. Table B.10: Inquiry Procedures Item Capability Status Support 1 Support inquiry O Yes 2 Inquiry scan with first FHS O Yes 3 4 5 Supports the dedicated inquiry access code O Yes 6 Supports Interlaced Scan during inquiry scan O Yes

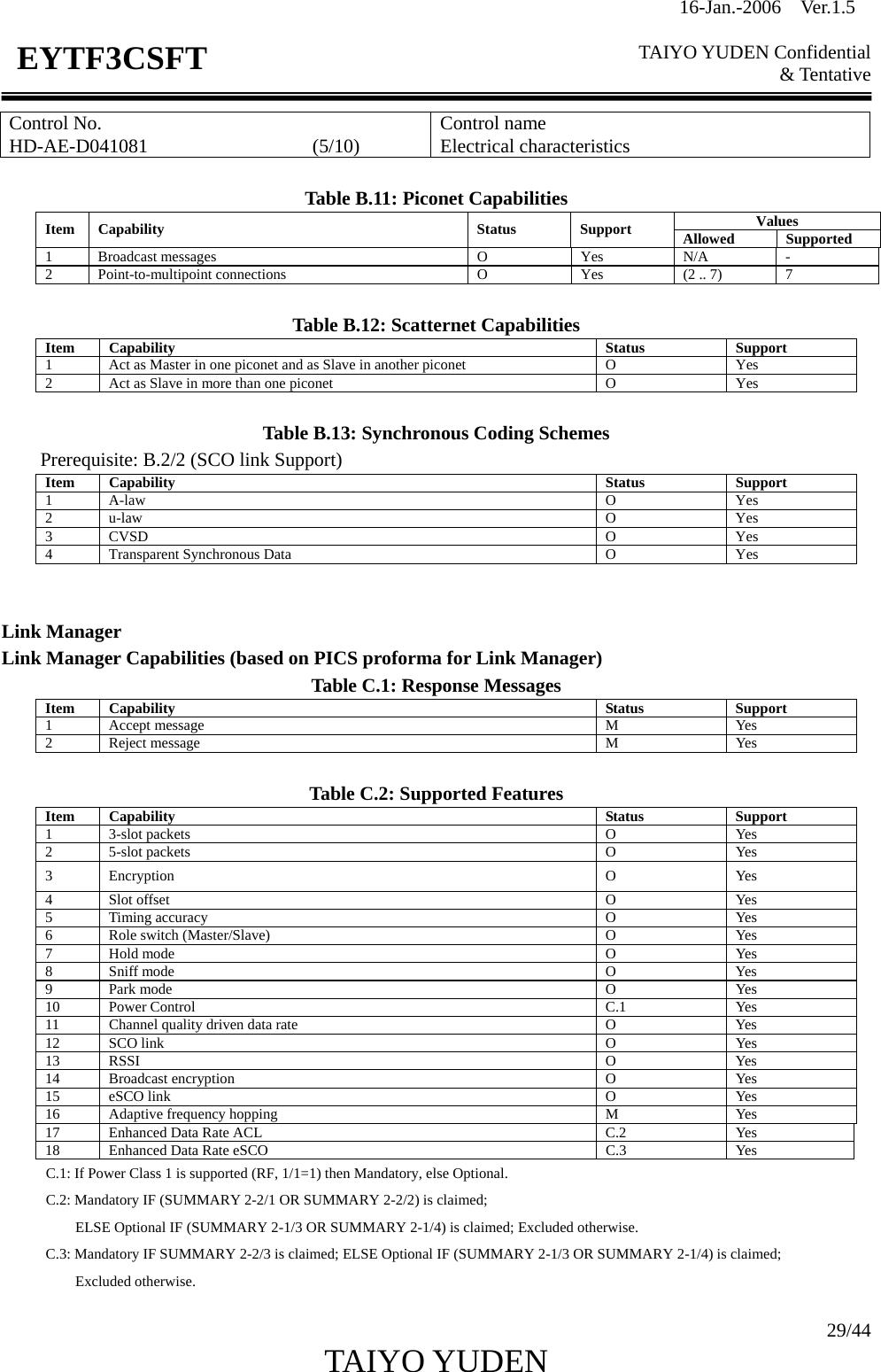

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 29/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-D041081 (5/10) Control name Electrical characteristics Table B.11: Piconet Capabilities Values Item Capability Status Support Allowed Supported 1 Broadcast messages O Yes N/A - 2 Point-to-multipoint connections O Yes (2 .. 7) 7 Table B.12: Scatternet Capabilities Item Capability Status Support 1 Act as Master in one piconet and as Slave in another piconet O Yes 2 Act as Slave in more than one piconet O Yes Table B.13: Synchronous Coding Schemes Prerequisite: B.2/2 (SCO link Support) Item Capability Status Support 1 A-law O Yes 2 u-law O Yes 3 CVSD O Yes 4 Transparent Synchronous Data O Yes Link Manager Link Manager Capabilities (based on PICS proforma for Link Manager) Table C.1: Response Messages Item Capability Status Support 1 Accept message M Yes 2 Reject message M Yes Table C.2: Supported Features Item Capability Status Support 1 3-slot packets O Yes 2 5-slot packets O Yes 3 Encryption O Yes 4 Slot offset O Yes 5 Timing accuracy O Yes 6 Role switch (Master/Slave) O Yes 7 Hold mode O Yes 8 Sniff mode O Yes 9 Park mode O Yes 10 Power Control C.1 Yes 11 Channel quality driven data rate O Yes 12 SCO link O Yes 13 RSSI O Yes 14 Broadcast encryption O Yes 15 eSCO link O Yes 16 Adaptive frequency hopping M Yes 17 Enhanced Data Rate ACL C.2 Yes 18 Enhanced Data Rate eSCO C.3 Yes C.1: If Power Class 1 is supported (RF, 1/1=1) then Mandatory, else Optional. C.2: Mandatory IF (SUMMARY 2-2/1 OR SUMMARY 2-2/2) is claimed; ELSE Optional IF (SUMMARY 2-1/3 OR SUMMARY 2-1/4) is claimed; Excluded otherwise. C.3: Mandatory IF SUMMARY 2-2/3 is claimed; ELSE Optional IF (SUMMARY 2-1/3 OR SUMMARY 2-1/4) is claimed; Excluded otherwise.

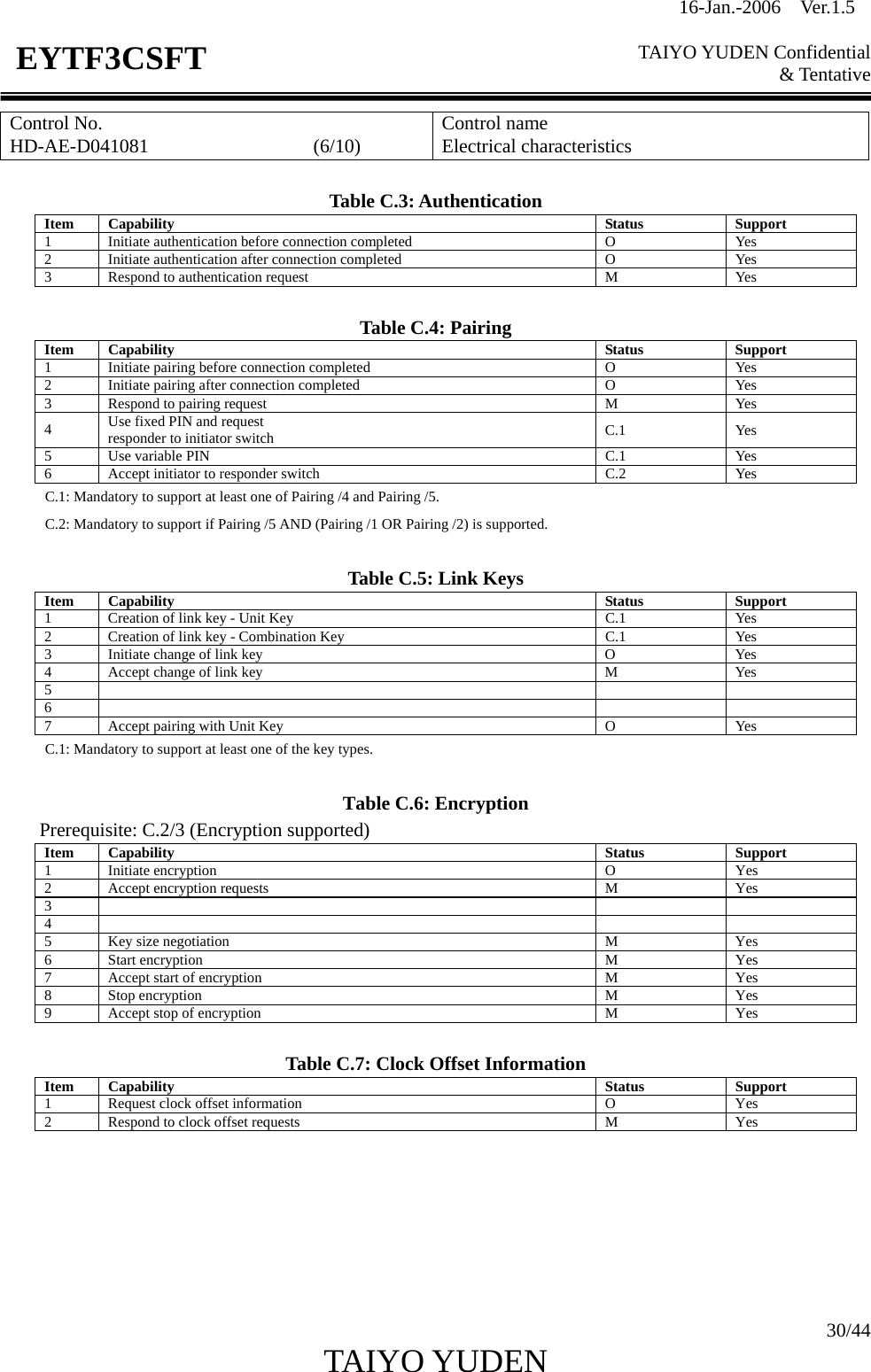

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 30/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-D041081 (6/10) Control name Electrical characteristics Table C.3: Authentication Item Capability Status Support 1 Initiate authentication before connection completed O Yes 2 Initiate authentication after connection completed O Yes 3 Respond to authentication request M Yes Table C.4: Pairing Item Capability Status Support 1 Initiate pairing before connection completed O Yes 2 Initiate pairing after connection completed O Yes 3 Respond to pairing request M Yes 4 Use fixed PIN and request responder to initiator switch C.1 Yes 5 Use variable PIN C.1 Yes 6 Accept initiator to responder switch C.2 Yes C.1: Mandatory to support at least one of Pairing /4 and Pairing /5. C.2: Mandatory to support if Pairing /5 AND (Pairing /1 OR Pairing /2) is supported. Table C.5: Link Keys Item Capability Status Support 1 Creation of link key - Unit Key C.1 Yes 2 Creation of link key - Combination Key C.1 Yes 3 Initiate change of link key O Yes 4 Accept change of link key M Yes 5 6 7 Accept pairing with Unit Key O Yes C.1: Mandatory to support at least one of the key types. Table C.6: Encryption Prerequisite: C.2/3 (Encryption supported) Item Capability Status Support 1 Initiate encryption O Yes 2 Accept encryption requests M Yes 3 4 5 Key size negotiation M Yes 6 Start encryption M Yes 7 Accept start of encryption M Yes 8 Stop encryption M Yes 9 Accept stop of encryption M Yes Table C.7: Clock Offset Information Item Capability Status Support 1 Request clock offset information O Yes 2 Respond to clock offset requests M Yes

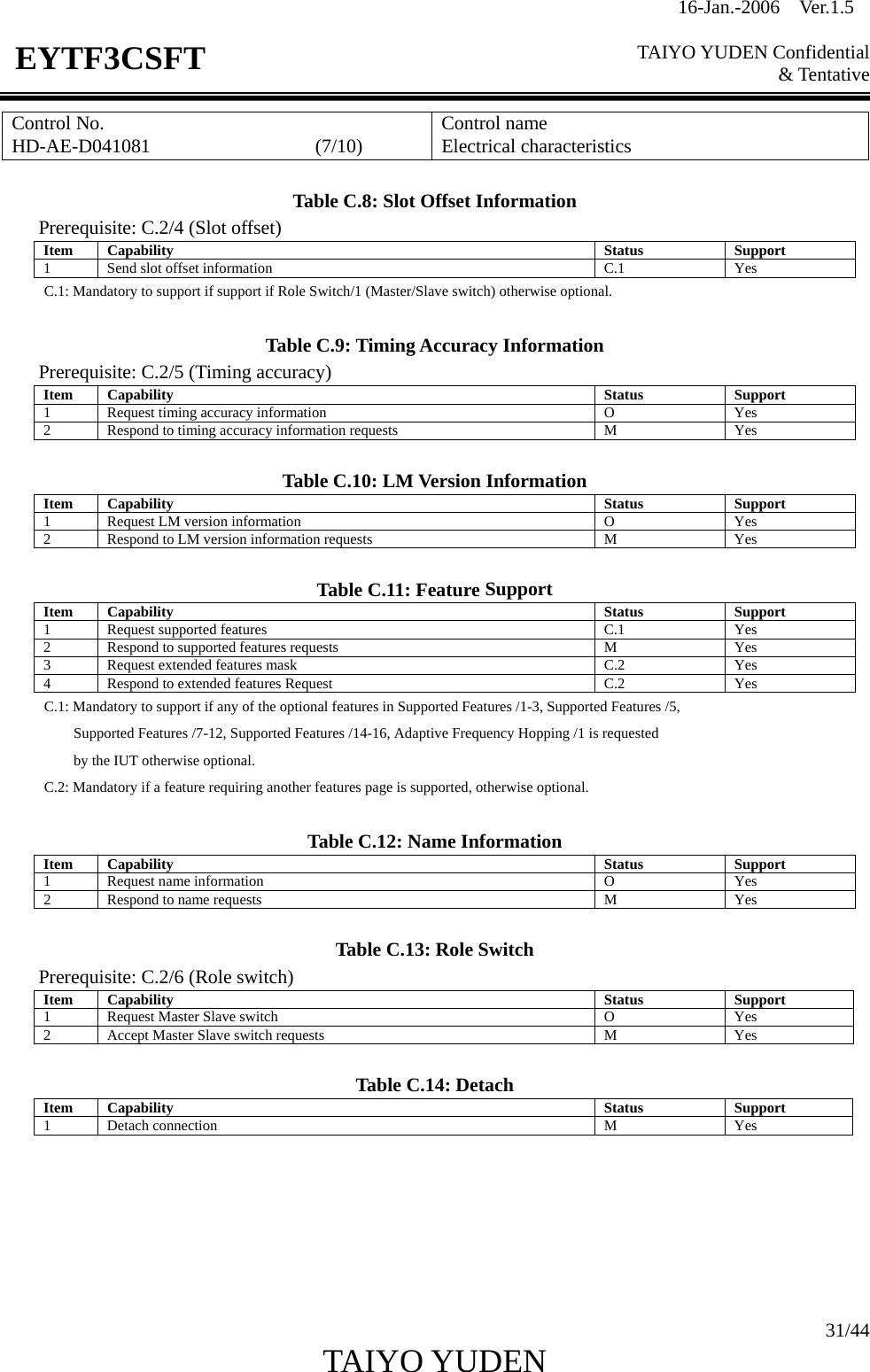

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 31/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-D041081 (7/10) Control name Electrical characteristics Table C.8: Slot Offset Information Prerequisite: C.2/4 (Slot offset) Item Capability Status Support 1 Send slot offset information C.1 Yes C.1: Mandatory to support if support if Role Switch/1 (Master/Slave switch) otherwise optional. Table C.9: Timing Accuracy Information Prerequisite: C.2/5 (Timing accuracy) Item Capability Status Support 1 Request timing accuracy information O Yes 2 Respond to timing accuracy information requests M Yes Table C.10: LM Version Information Item Capability Status Support 1 Request LM version information O Yes 2 Respond to LM version information requests M Yes Table C.11: Feature Support Item Capability Status Support 1 Request supported features C.1 Yes 2 Respond to supported features requests M Yes 3 Request extended features mask C.2 Yes 4 Respond to extended features Request C.2 Yes C.1: Mandatory to support if any of the optional features in Supported Features /1-3, Supported Features /5, Supported Features /7-12, Supported Features /14-16, Adaptive Frequency Hopping /1 is requested by the IUT otherwise optional. C.2: Mandatory if a feature requiring another features page is supported, otherwise optional. Table C.12: Name Information Item Capability Status Support 1 Request name information O Yes 2 Respond to name requests M Yes Table C.13: Role Switch Prerequisite: C.2/6 (Role switch) Item Capability Status Support 1 Request Master Slave switch O Yes 2 Accept Master Slave switch requests M Yes Table C.14: Detach Item Capability Status Support 1 Detach connection M Yes

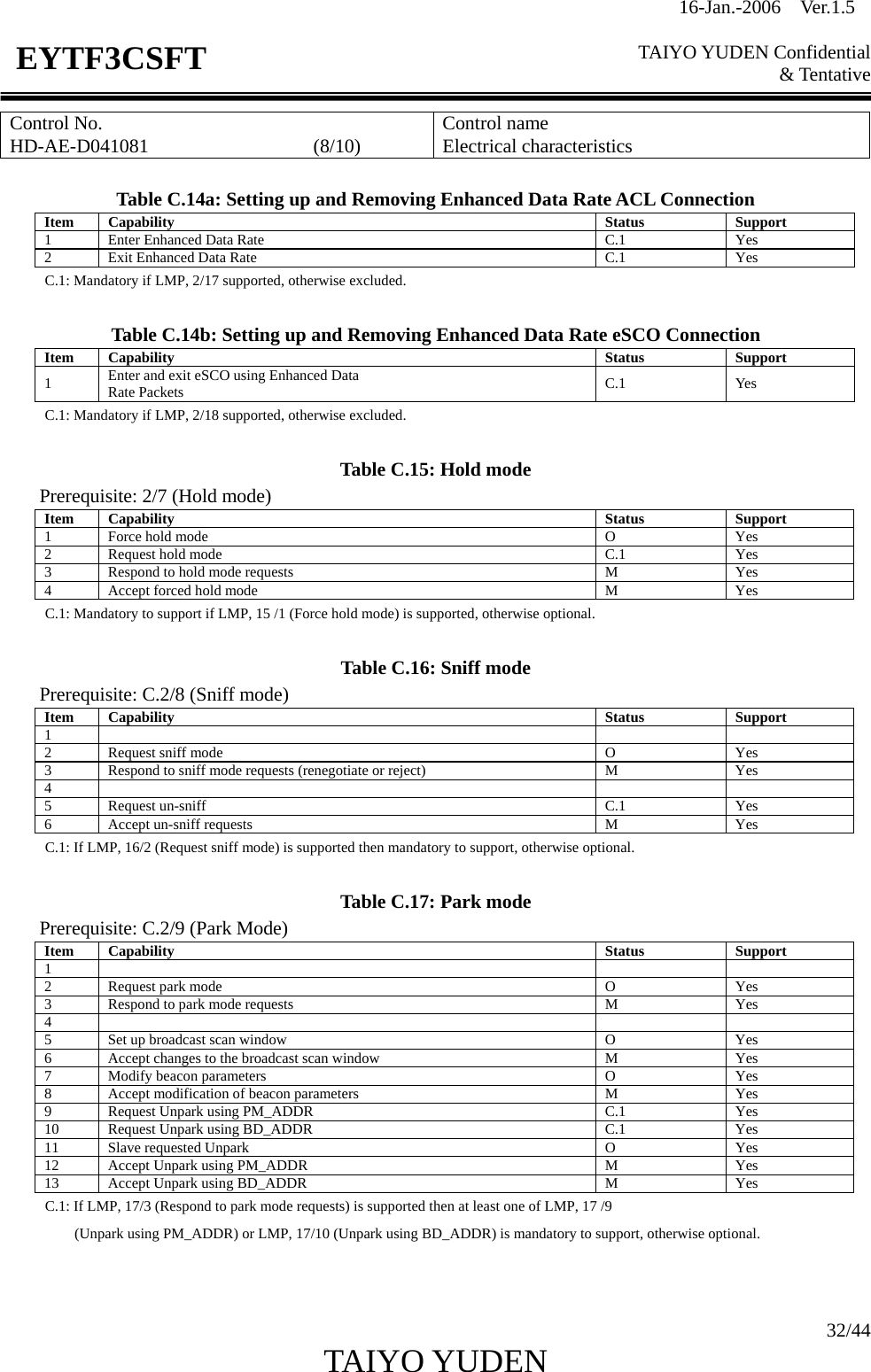

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 32/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-D041081 (8/10) Control name Electrical characteristics Table C.14a: Setting up and Removing Enhanced Data Rate ACL Connection Item Capability Status Support 1 Enter Enhanced Data Rate C.1 Yes 2 Exit Enhanced Data Rate C.1 Yes C.1: Mandatory if LMP, 2/17 supported, otherwise excluded. Table C.14b: Setting up and Removing Enhanced Data Rate eSCO Connection Item Capability Status Support 1 Enter and exit eSCO using Enhanced Data Rate Packets C.1 Yes C.1: Mandatory if LMP, 2/18 supported, otherwise excluded. Table C.15: Hold mode Prerequisite: 2/7 (Hold mode) Item Capability Status Support 1 Force hold mode O Yes 2 Request hold mode C.1 Yes 3 Respond to hold mode requests M Yes 4 Accept forced hold mode M Yes C.1: Mandatory to support if LMP, 15 /1 (Force hold mode) is supported, otherwise optional. Table C.16: Sniff mode Prerequisite: C.2/8 (Sniff mode) Item Capability Status Support 1 2 Request sniff mode O Yes 3 Respond to sniff mode requests (renegotiate or reject) M Yes 4 5 Request un-sniff C.1 Yes 6 Accept un-sniff requests M Yes C.1: If LMP, 16/2 (Request sniff mode) is supported then mandatory to support, otherwise optional. Table C.17: Park mode Prerequisite: C.2/9 (Park Mode) Item Capability Status Support 1 2 Request park mode O Yes 3 Respond to park mode requests M Yes 4 5 Set up broadcast scan window O Yes 6 Accept changes to the broadcast scan window M Yes 7 Modify beacon parameters O Yes 8 Accept modification of beacon parameters M Yes 9 Request Unpark using PM_ADDR C.1 Yes 10 Request Unpark using BD_ADDR C.1 Yes 11 Slave requested Unpark O Yes 12 Accept Unpark using PM_ADDR M Yes 13 Accept Unpark using BD_ADDR M Yes C.1: If LMP, 17/3 (Respond to park mode requests) is supported then at least one of LMP, 17 /9 (Unpark using PM_ADDR) or LMP, 17/10 (Unpark using BD_ADDR) is mandatory to support, otherwise optional.

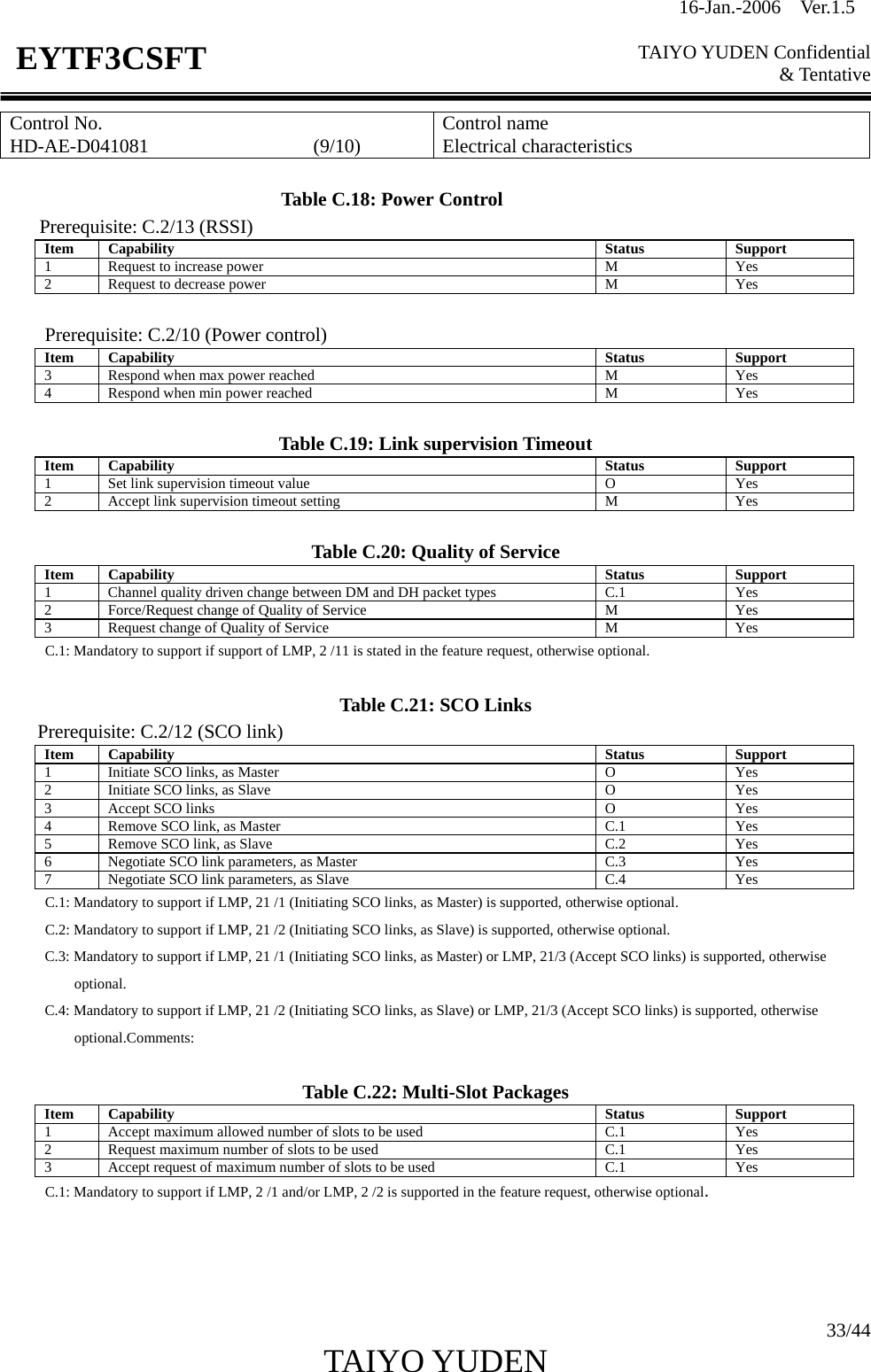

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 33/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-D041081 (9/10) Control name Electrical characteristics Table C.18: Power Control Prerequisite: C.2/13 (RSSI) Item Capability Status Support 1 Request to increase power M Yes 2 Request to decrease power M Yes Prerequisite: C.2/10 (Power control) Item Capability Status Support 3 Respond when max power reached M Yes 4 Respond when min power reached M Yes Table C.19: Link supervision Timeout Item Capability Status Support 1 Set link supervision timeout value O Yes 2 Accept link supervision timeout setting M Yes Table C.20: Quality of Service Item Capability Status Support 1 Channel quality driven change between DM and DH packet types C.1 Yes 2 Force/Request change of Quality of Service M Yes 3 Request change of Quality of Service M Yes C.1: Mandatory to support if support of LMP, 2 /11 is stated in the feature request, otherwise optional. Table C.21: SCO Links Prerequisite: C.2/12 (SCO link) Item Capability Status Support 1 Initiate SCO links, as Master O Yes 2 Initiate SCO links, as Slave O Yes 3 Accept SCO links O Yes 4 Remove SCO link, as Master C.1 Yes 5 Remove SCO link, as Slave C.2 Yes 6 Negotiate SCO link parameters, as Master C.3 Yes 7 Negotiate SCO link parameters, as Slave C.4 Yes C.1: Mandatory to support if LMP, 21 /1 (Initiating SCO links, as Master) is supported, otherwise optional. C.2: Mandatory to support if LMP, 21 /2 (Initiating SCO links, as Slave) is supported, otherwise optional. C.3: Mandatory to support if LMP, 21 /1 (Initiating SCO links, as Master) or LMP, 21/3 (Accept SCO links) is supported, otherwise optional. C.4: Mandatory to support if LMP, 21 /2 (Initiating SCO links, as Slave) or LMP, 21/3 (Accept SCO links) is supported, otherwise optional.Comments: Table C.22: Multi-Slot Packages Item Capability Status Support 1 Accept maximum allowed number of slots to be used C.1 Yes 2 Request maximum number of slots to be used C.1 Yes 3 Accept request of maximum number of slots to be used C.1 Yes C.1: Mandatory to support if LMP, 2 /1 and/or LMP, 2 /2 is supported in the feature request, otherwise optional.

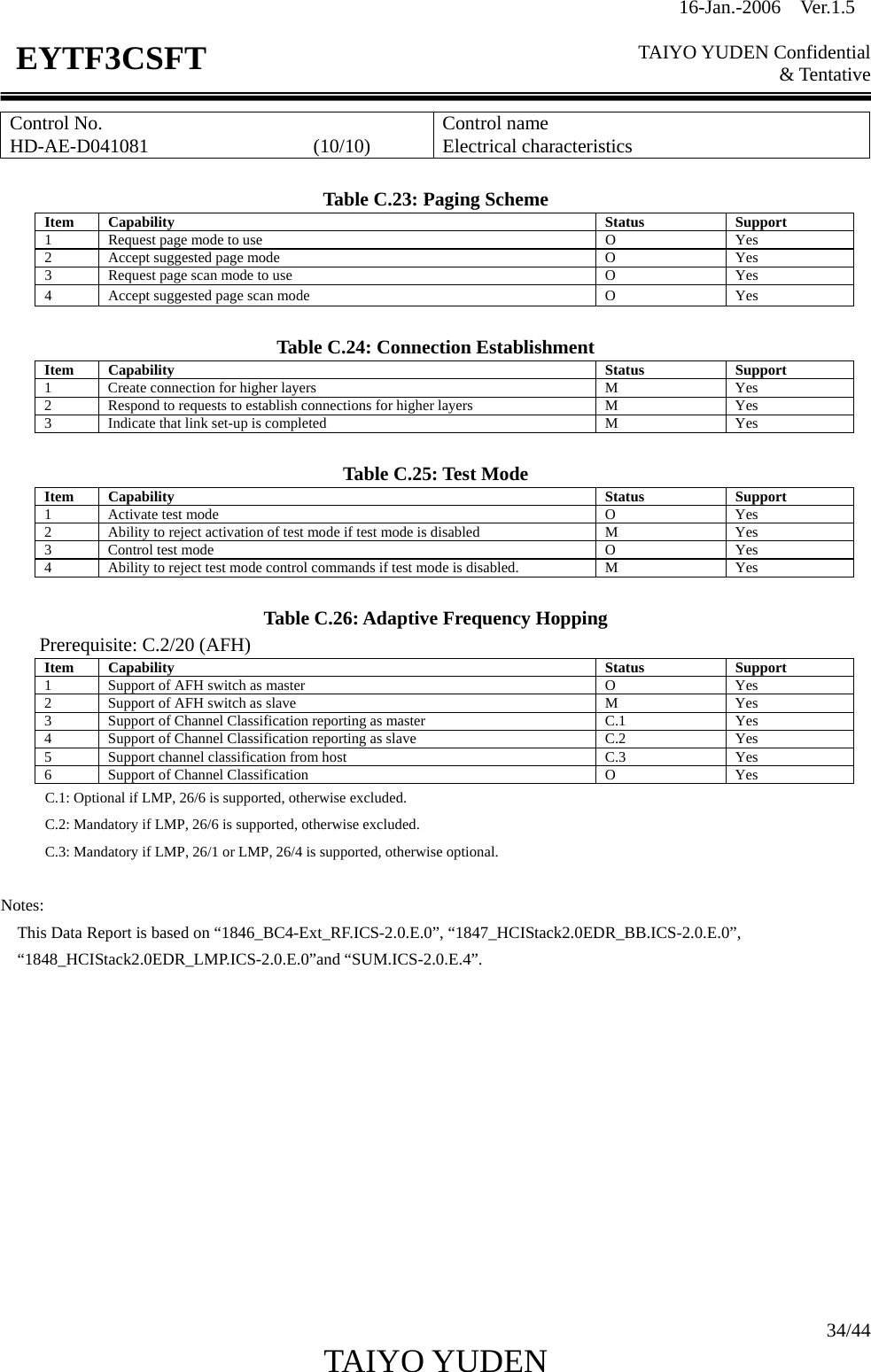

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 34/44 TAIYO YUDEN EYTF3CSFTControl No. HD-AE-D041081 (10/10) Control name Electrical characteristics Table C.23: Paging Scheme Item Capability Status Support 1 Request page mode to use O Yes 2 Accept suggested page mode O Yes 3 Request page scan mode to use O Yes 4 Accept suggested page scan mode O Yes Table C.24: Connection Establishment Item Capability Status Support 1 Create connection for higher layers M Yes 2 Respond to requests to establish connections for higher layers M Yes 3 Indicate that link set-up is completed M Yes Table C.25: Test Mode Item Capability Status Support 1 Activate test mode O Yes 2 Ability to reject activation of test mode if test mode is disabled M Yes 3 Control test mode O Yes 4 Ability to reject test mode control commands if test mode is disabled. M Yes Table C.26: Adaptive Frequency Hopping Prerequisite: C.2/20 (AFH) Item Capability Status Support 1 Support of AFH switch as master O Yes 2 Support of AFH switch as slave M Yes 3 Support of Channel Classification reporting as master C.1 Yes 4 Support of Channel Classification reporting as slave C.2 Yes 5 Support channel classification from host C.3 Yes 6 Support of Channel Classification O Yes C.1: Optional if LMP, 26/6 is supported, otherwise excluded. C.2: Mandatory if LMP, 26/6 is supported, otherwise excluded. C.3: Mandatory if LMP, 26/1 or LMP, 26/4 is supported, otherwise optional. Notes: This Data Report is based on “1846_BC4-Ext_RF.ICS-2.0.E.0”, “1847_HCIStack2.0EDR_BB.ICS-2.0.E.0”, “1848_HCIStack2.0EDR_LMP.ICS-2.0.E.0”and “SUM.ICS-2.0.E.4”.

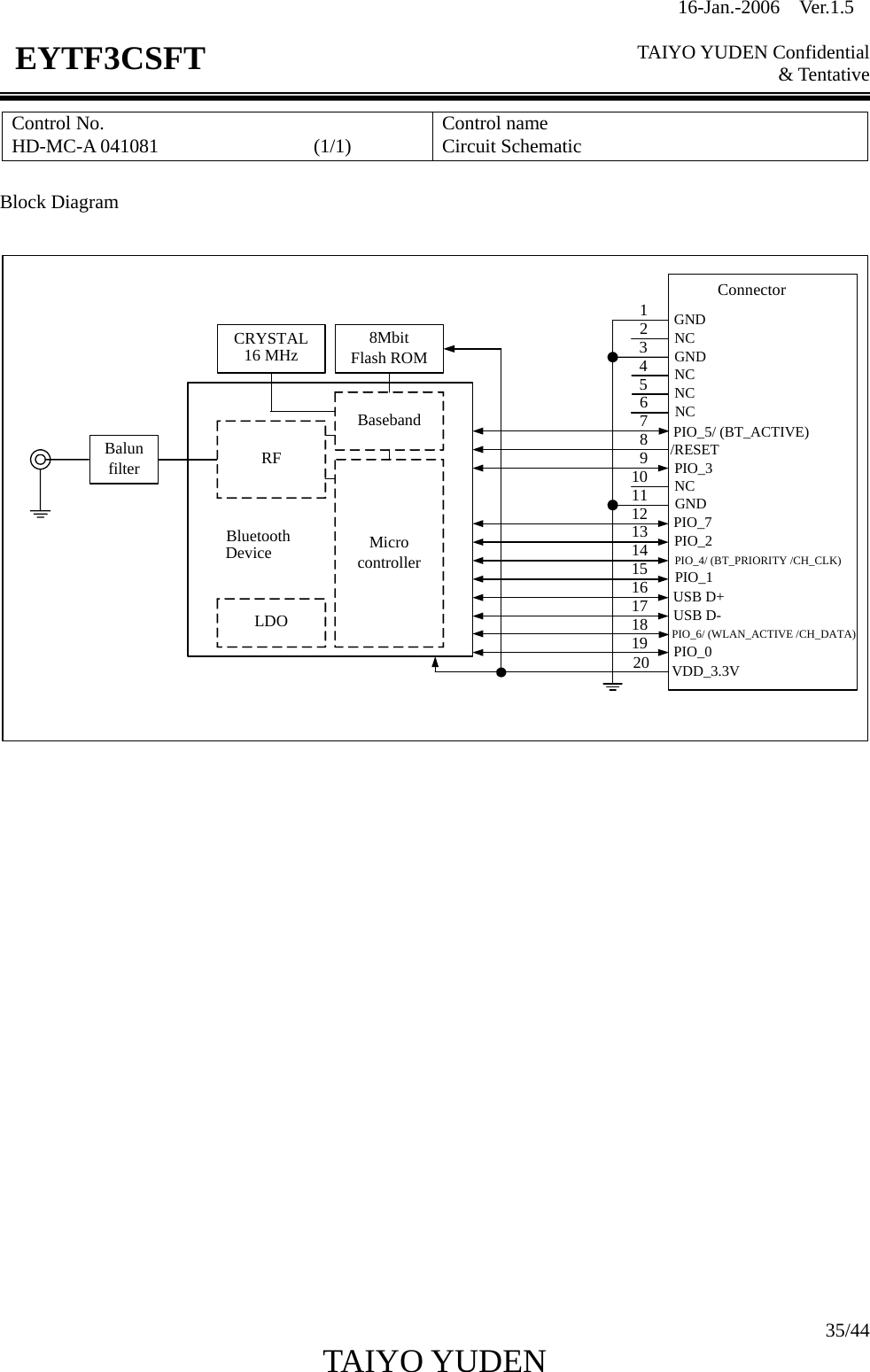

16-Jan.-2006 Ver.1.5 TAIYO YUDEN Confidential & Tentative 35/44 TAIYO YUDEN EYTF3CSFTControl No. HD-MC-A 041081 (1/1) Control name Circuit Schematic Block Diagram USB D+USB D-GNDPIO_3PIO_2VDD_3.3V/RESETGND11617141891320811Connector3NC2NC4NC5NC67NC10PIO_712PIO_115PIO_019GNDBalunfilterBasebandMicrocontroller8MbitFlash ROMCRYSTAL16 MHzRFLDOBluetoothDevice PIO_5/ (BT_ACTIVE)PIO_4/ (BT_PRIORITY /CH_CLK)PIO_6/ (WLAN_ACTIVE /CH_DATA)

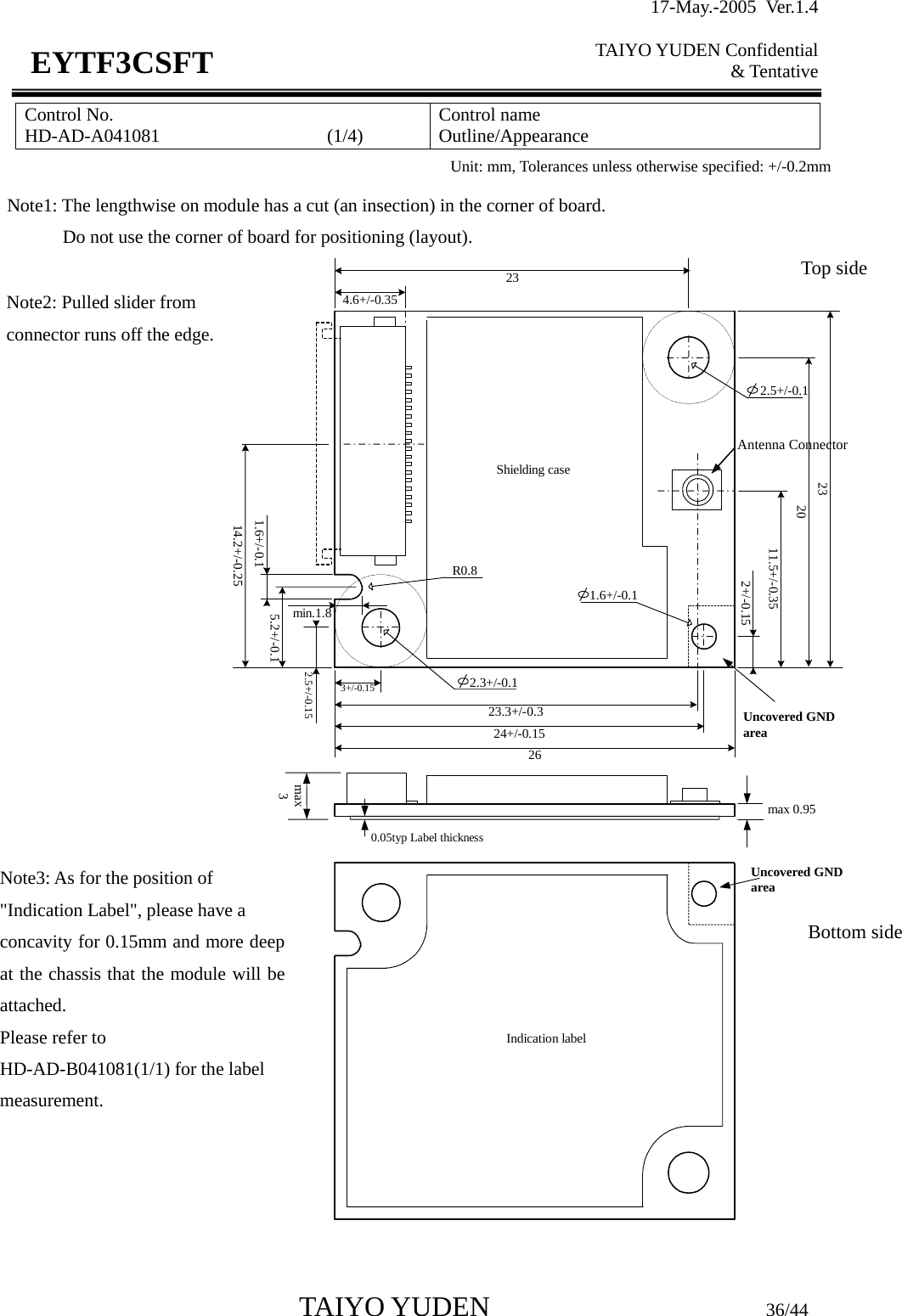

17-May.-2005 Ver.1.4 TAIYO YUDEN Confidential & Tentative TAIYO YUDEN 36/44 EYTF3CSFTControl No. HD-AD-A041081 (1/4) Control name Outline/Appearance 2326max 0.95max33+/-0.1523.3+/-0.320Indication labelShielding case 2.3+/-0.114.2+/-0.2511.5+/-0.354.6+/-0.35235.2+/-0.1 2.5+/-0.1min.1.8R0.8 1.6+/-0.1Uncovered GNDarea1.6+/-0.12+/-0.1524+/-0.152.5+/-0.15Uncovered GNDarea0.05typ Label thickness Unit: mm, Tolerances unless otherwise specified: +/-0.2mm Note1: The lengthwise on module has a cut (an insection) in the corner of board. Do not use the corner of board for positioning (layout). Note2: Pulled slider from connector runs off the edge.Note3: As for the position of "Indication Label", please have a concavity for 0.15mm and more deep at the chassis that the module will be attached. Please refer to HD-AD-B041081(1/1) for the label measurement. Antenna ConnectorTop side Bottom side

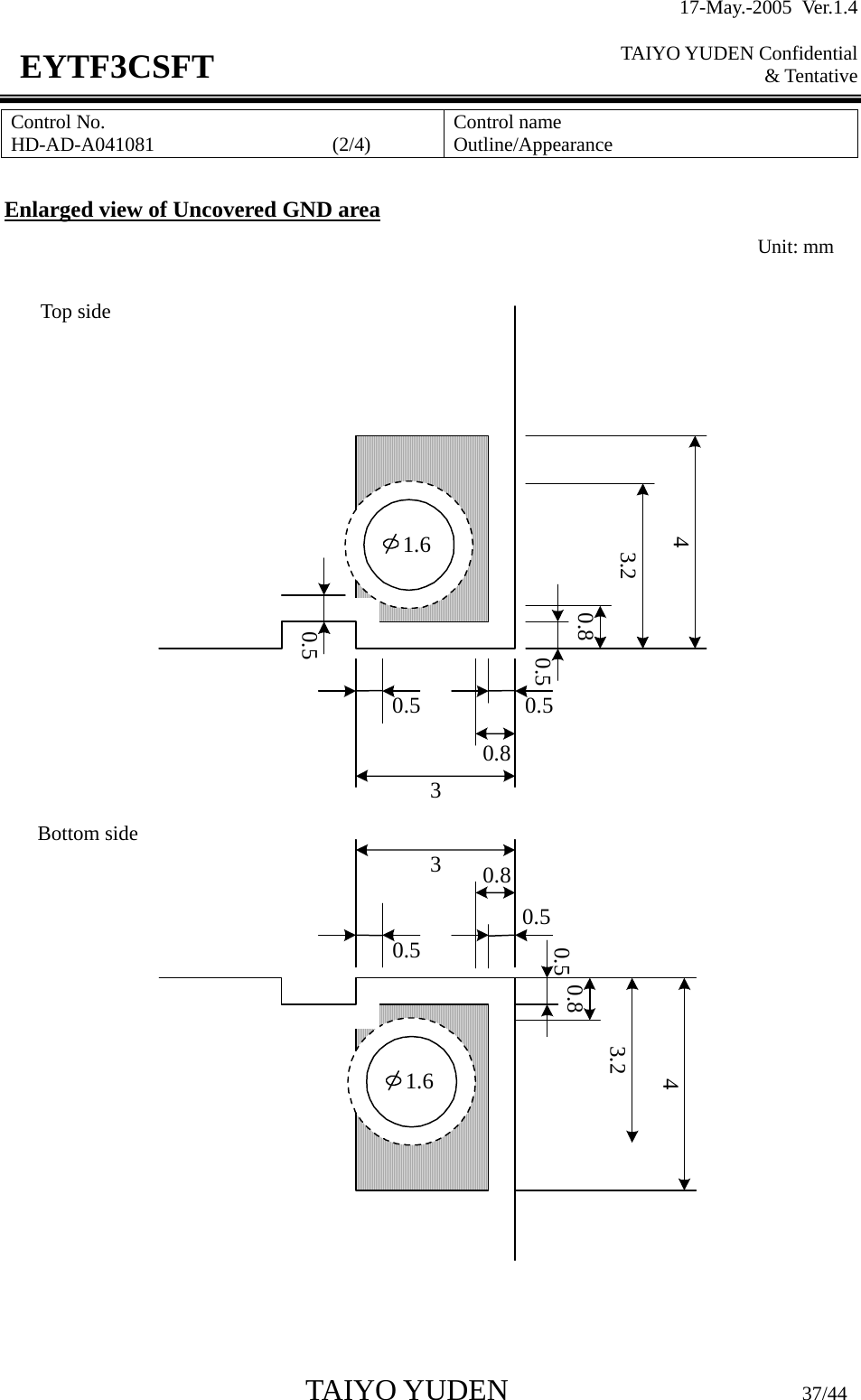

17-May.-2005 Ver.1.4 TAIYO YUDEN Confidential & Tentative TAIYO YUDEN 37/44 EYTF3CSFTControl No. HD-AD-A041081 (2/4) Control name Outline/Appearance Enlarged view of Uncovered GND area 0.50.830.50.50.50.83.241.61.60.50.830.50.5 0.83.24 Unit: mm Top side Bottom side

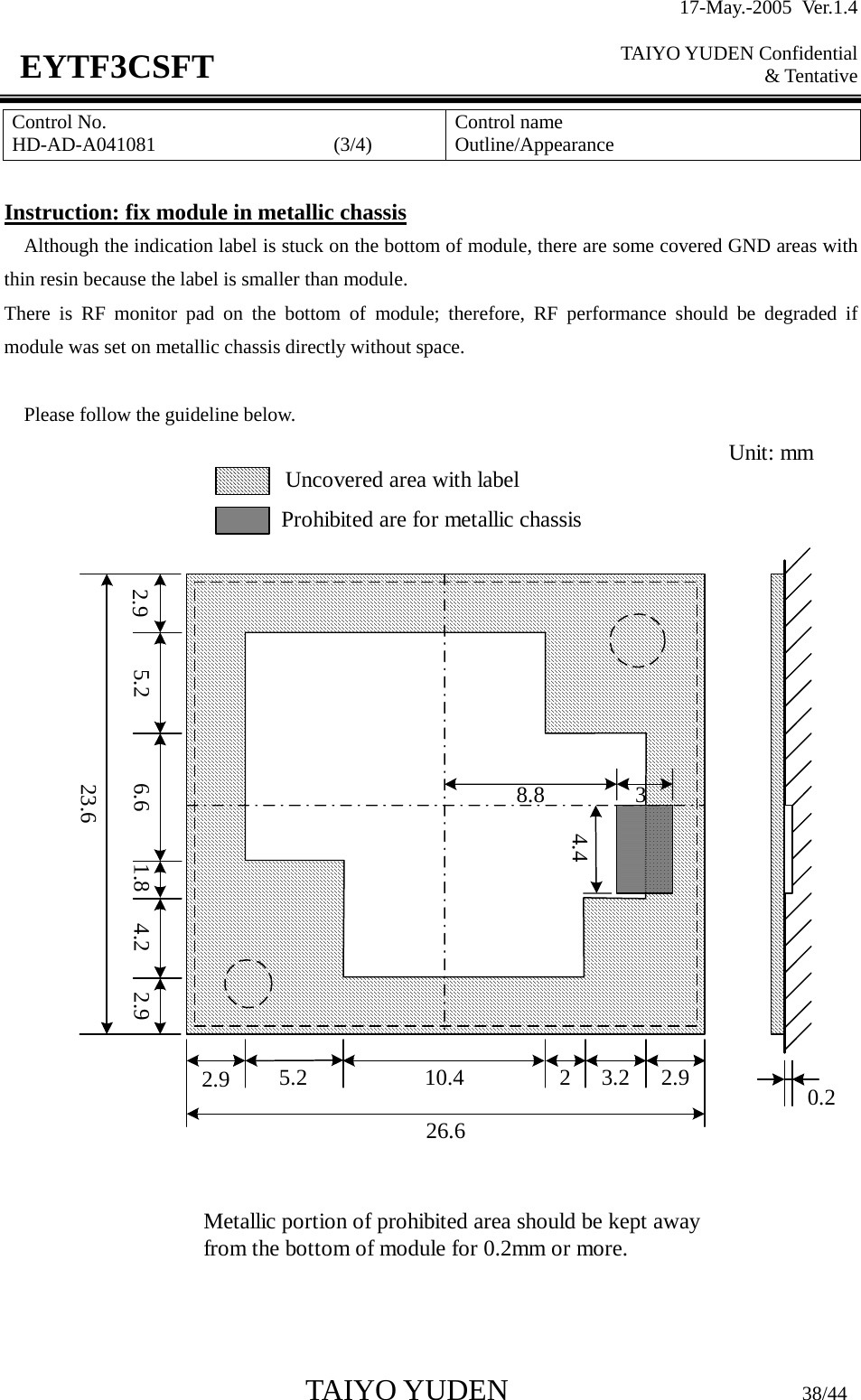

17-May.-2005 Ver.1.4 TAIYO YUDEN Confidential & Tentative TAIYO YUDEN 38/44 EYTF3CSFTControl No. HD-AD-A041081 (3/4) Control name Outline/Appearance Instruction: fix module in metallic chassis Although the indication label is stuck on the bottom of module, there are some covered GND areas with thin resin because the label is smaller than module. There is RF monitor pad on the bottom of module; therefore, RF performance should be degraded if module was set on metallic chassis directly without space. Please follow the guideline below. 2.9 5.2 6.6 1.8 4.2 2.923.62.9 5.2 10.4 2 3.2 2.926.68.8 34.40.2Uncovered area with labelProhibited are for metallic chassisUnit: mmMetallic portion of prohibited area should be kept awayfrom the bottom of module for 0.2mm or more.

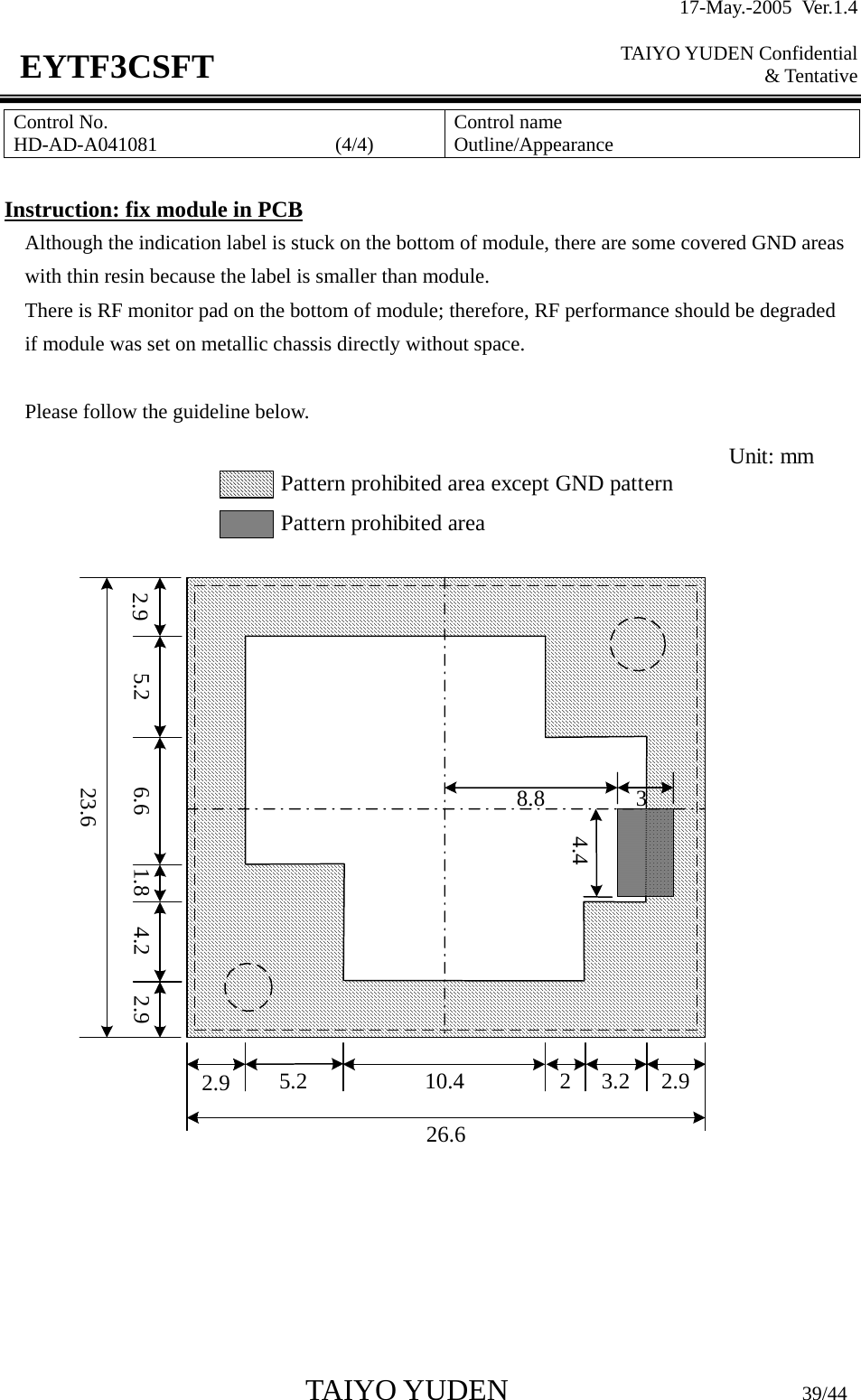

17-May.-2005 Ver.1.4 TAIYO YUDEN Confidential & Tentative TAIYO YUDEN 39/44 EYTF3CSFTControl No. HD-AD-A041081 (4/4) Control name Outline/Appearance Instruction: fix module in PCB Although the indication label is stuck on the bottom of module, there are some covered GND areas with thin resin because the label is smaller than module. There is RF monitor pad on the bottom of module; therefore, RF performance should be degraded if module was set on metallic chassis directly without space. Please follow the guideline below. 2.9 5.2 6.6 1.8 4.2 2.923.62.9 5.2 10.4 2 3.2 2.926.68.8 34.4Pattern prohibited area except GND patternPattern prohibited areaUnit: mm

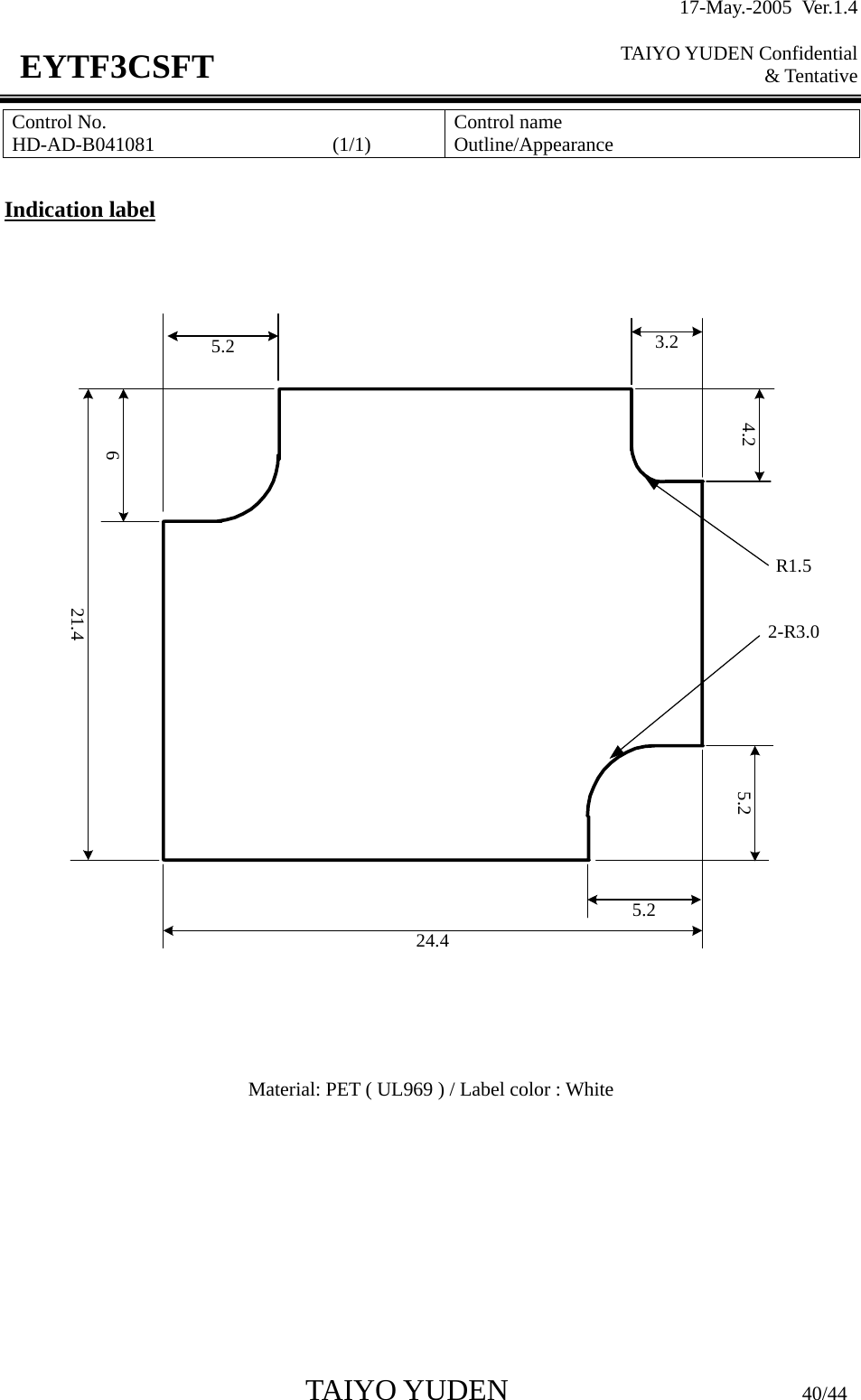

17-May.-2005 Ver.1.4 TAIYO YUDEN Confidential & Tentative TAIYO YUDEN 40/44 EYTF3CSFTControl No. HD-AD-B041081 (1/1) Control name Outline/Appearance Indication label R1.521.462-R3.05.224.45.24.23.25.2 Material: PET ( UL969 ) / Label color : White

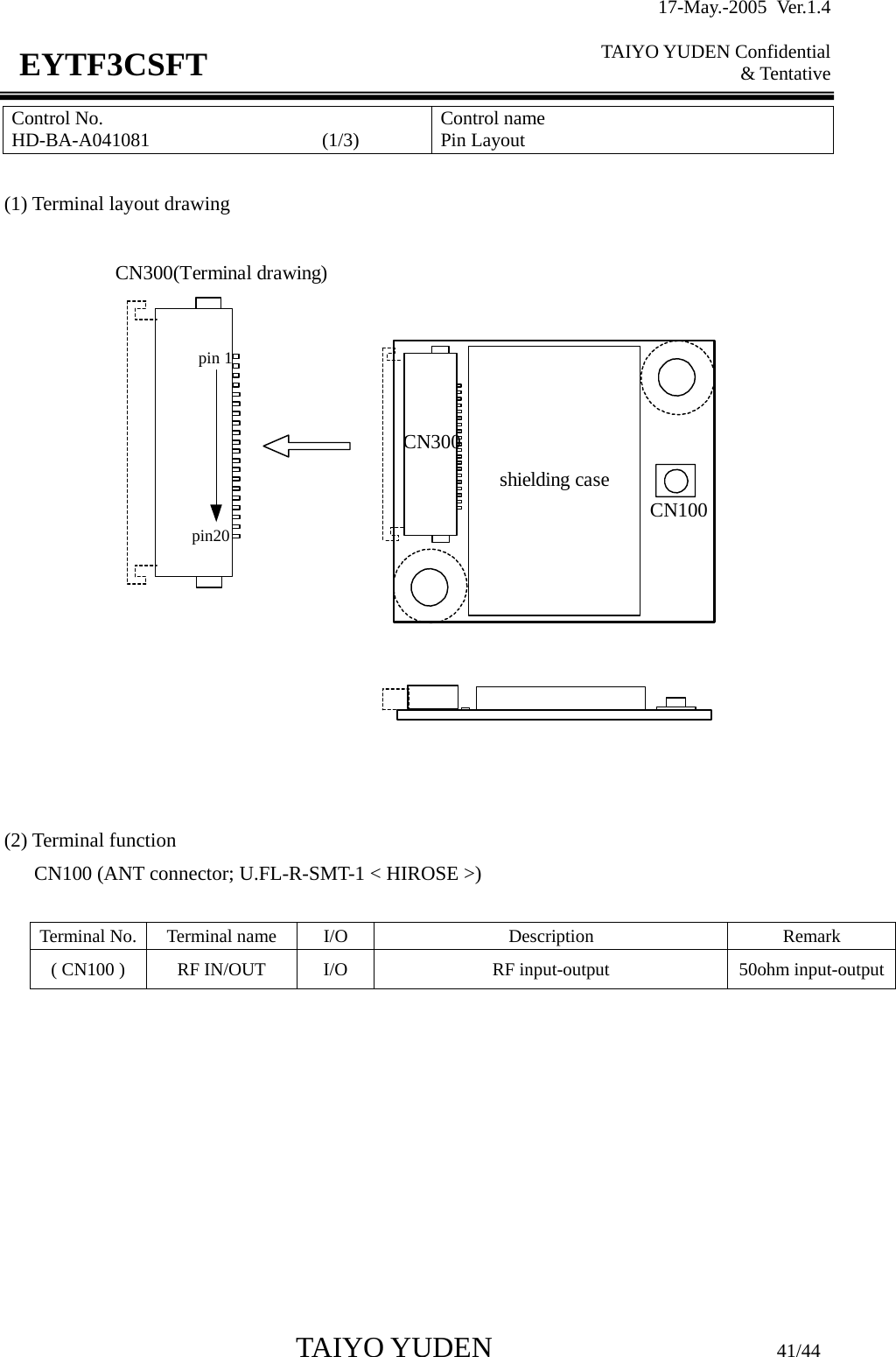

17-May.-2005 Ver.1.4 TAIYO YUDEN Confidential & Tentative TAIYO YUDEN 41/44 EYTF3CSFTControl No. HD-BA-A041081 (1/3) Control name Pin Layout (1) Terminal layout drawing (2) Terminal function CN100 (ANT connector; U.FL-R-SMT-1 < HIROSE >) Terminal No. Terminal name I/O Description Remark ( CN100 ) RF IN/OUT I/O RF input-output 50ohm input-output pin 1pin20CN300(Terminal drawing)shielding caseCN100CN300

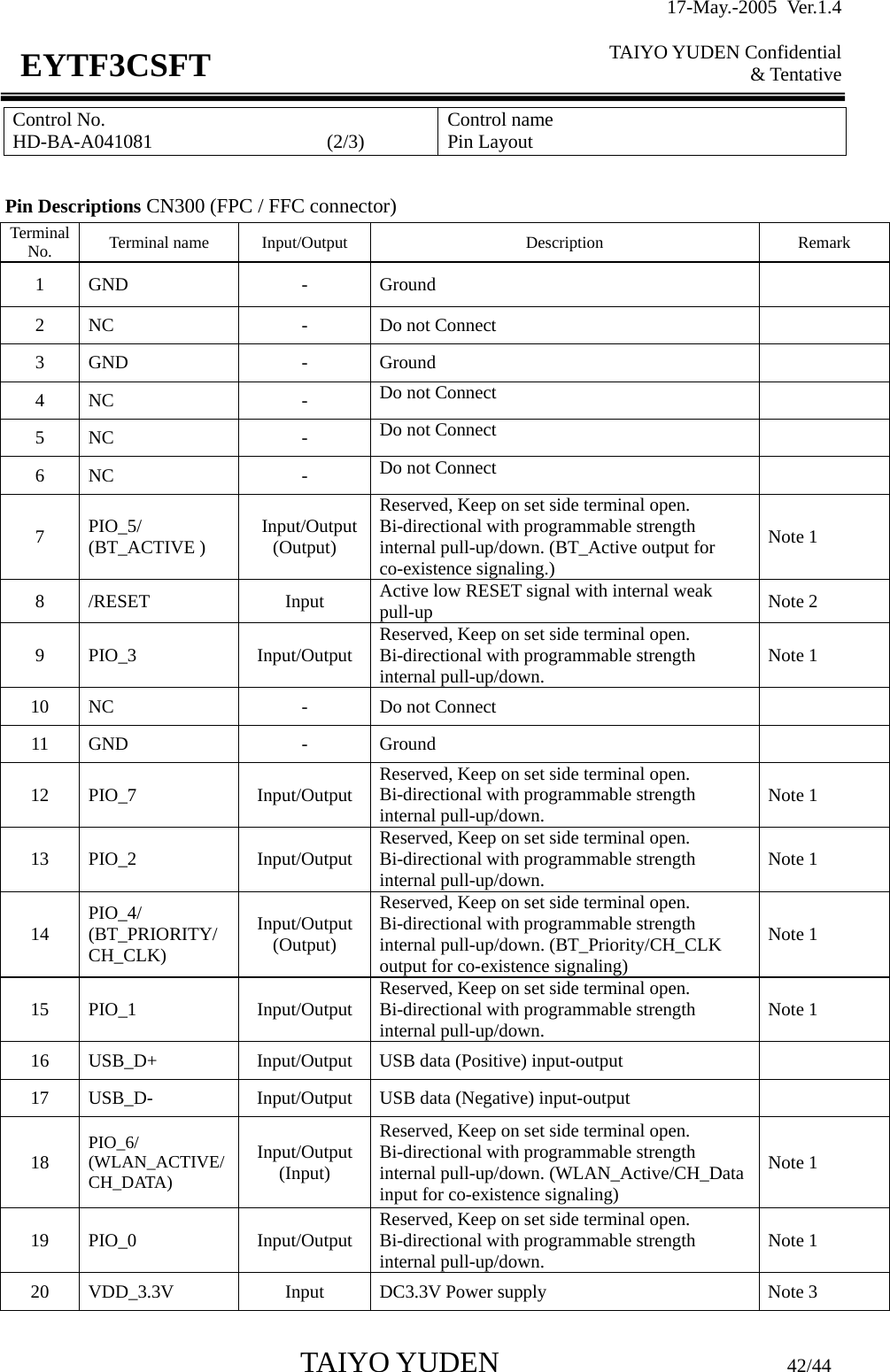

17-May.-2005 Ver.1.4 TAIYO YUDEN Confidential & Tentative TAIYO YUDEN 42/44 EYTF3CSFTControl No. HD-BA-A041081 (2/3) Control name Pin Layout Pin Descriptions CN300 (FPC / FFC connector) Terminal No. Terminal name Input/Output Description Remark 1 GND - Ground 2 NC - Do not Connect 3 GND - Ground 4 NC - Do not Connect 5 NC - Do not Connect 6 NC - Do not Connect 7 PIO_5/ (BT_ACTIVE ) Input/Output(Output) Reserved, Keep on set side terminal open. Bi-directional with programmable strength internal pull-up/down. (BT_Active output for co-existence signaling.) Note 1 8 /RESET Input Active low RESET signal with internal weak pull-up Note 2 9 PIO_3 Input/Output Reserved, Keep on set side terminal open. Bi-directional with programmable strength internal pull-up/down. Note 1 10 NC - Do not Connect 11 GND - Ground 12 PIO_7 Input/Output Reserved, Keep on set side terminal open. Bi-directional with programmable strength internal pull-up/down. Note 1 13 PIO_2 Input/Output Reserved, Keep on set side terminal open. Bi-directional with programmable strength internal pull-up/down. Note 1 14 PIO_4/ (BT_PRIORITY/ CH_CLK) Input/Output (Output) Reserved, Keep on set side terminal open. Bi-directional with programmable strength internal pull-up/down. (BT_Priority/CH_CLK output for co-existence signaling) Note 1 15 PIO_1 Input/Output Reserved, Keep on set side terminal open. Bi-directional with programmable strength internal pull-up/down. Note 1 16 USB_D+ Input/Output USB data (Positive) input-output 17 USB_D- Input/Output USB data (Negative) input-output 18 PIO_6/ (WLAN_ACTIVE/ CH_DATA) Input/Output (Input) Reserved, Keep on set side terminal open. Bi-directional with programmable strength internal pull-up/down. (WLAN_Active/CH_Data input for co-existence signaling) Note 1 19 PIO_0 Input/Output Reserved, Keep on set side terminal open. Bi-directional with programmable strength internal pull-up/down. Note 1 20 VDD_3.3V Input DC3.3V Power supply Note 3

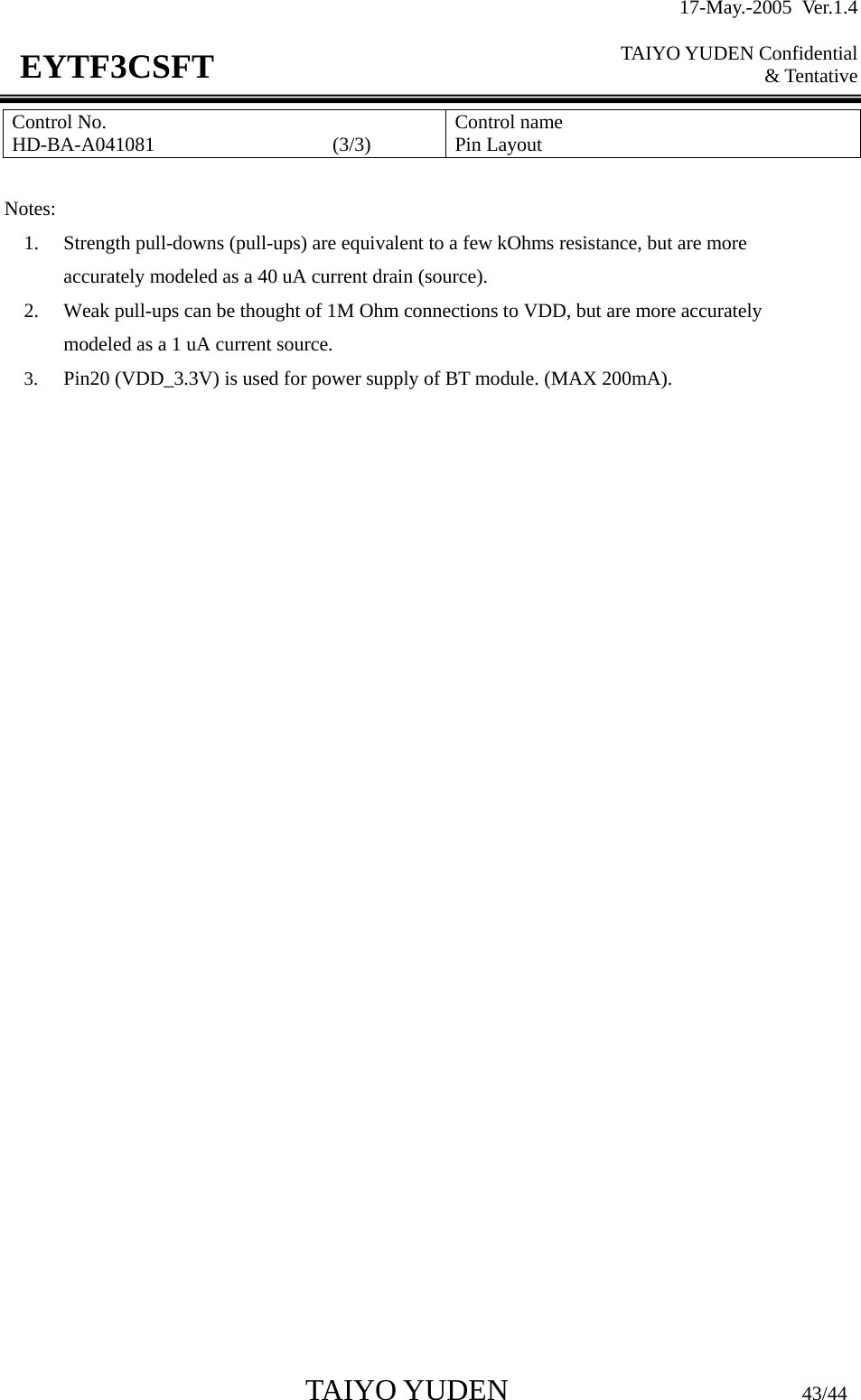

17-May.-2005 Ver.1.4 TAIYO YUDEN Confidential & Tentative TAIYO YUDEN 43/44 EYTF3CSFTControl No. HD-BA-A041081 (3/3) Control name Pin Layout Notes: 1. Strength pull-downs (pull-ups) are equivalent to a few kOhms resistance, but are more accurately modeled as a 40 uA current drain (source). 2. Weak pull-ups can be thought of 1M Ohm connections to VDD, but are more accurately modeled as a 1 uA current source. 3. Pin20 (VDD_3.3V) is used for power supply of BT module. (MAX 200mA).

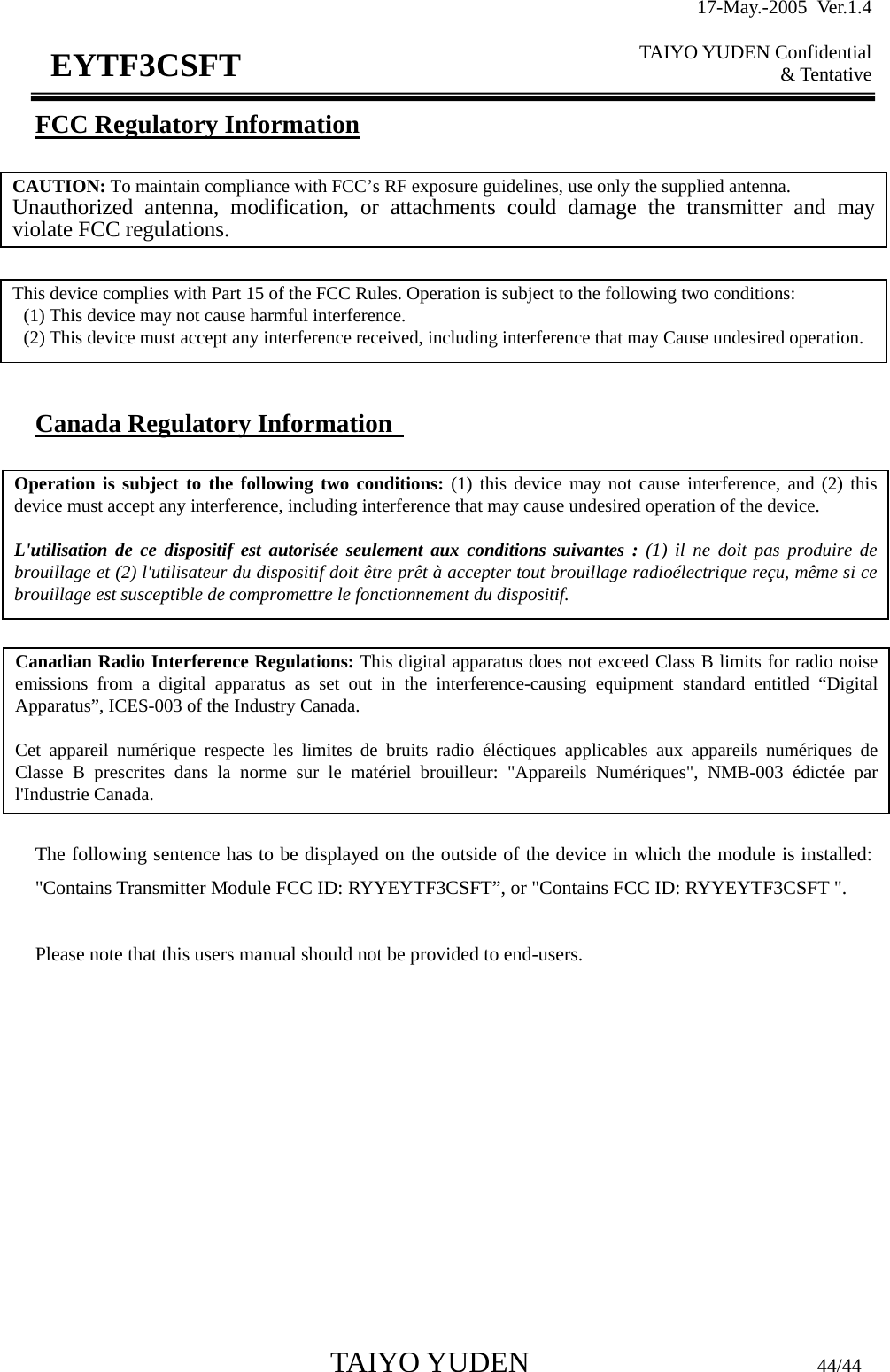

17-May.-2005 Ver.1.4 TAIYO YUDEN Confidential & Tentative TAIYO YUDEN 44/44 EYTF3CSFTFCC Regulatory Information Canada Regulatory Information The following sentence has to be displayed on the outside of the device in which the module is installed: "Contains Transmitter Module FCC ID: RYYEYTF3CSFT”, or "Contains FCC ID: RYYEYTF3CSFT ". Please note that this users manual should not be provided to end-users. CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may Cause undesired operation. Canadian Radio Interference Regulations: This digital apparatus does not exceed Class B limits for radio noise emissions from a digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry Canada. Cet appareil numérique respecte les limites de bruits radio éléctiques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: "Appareils Numériques", NMB-003 édictée par l'Industrie Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes : (1) il ne doit pas produire de brouillage et (2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
