Antenna 2c

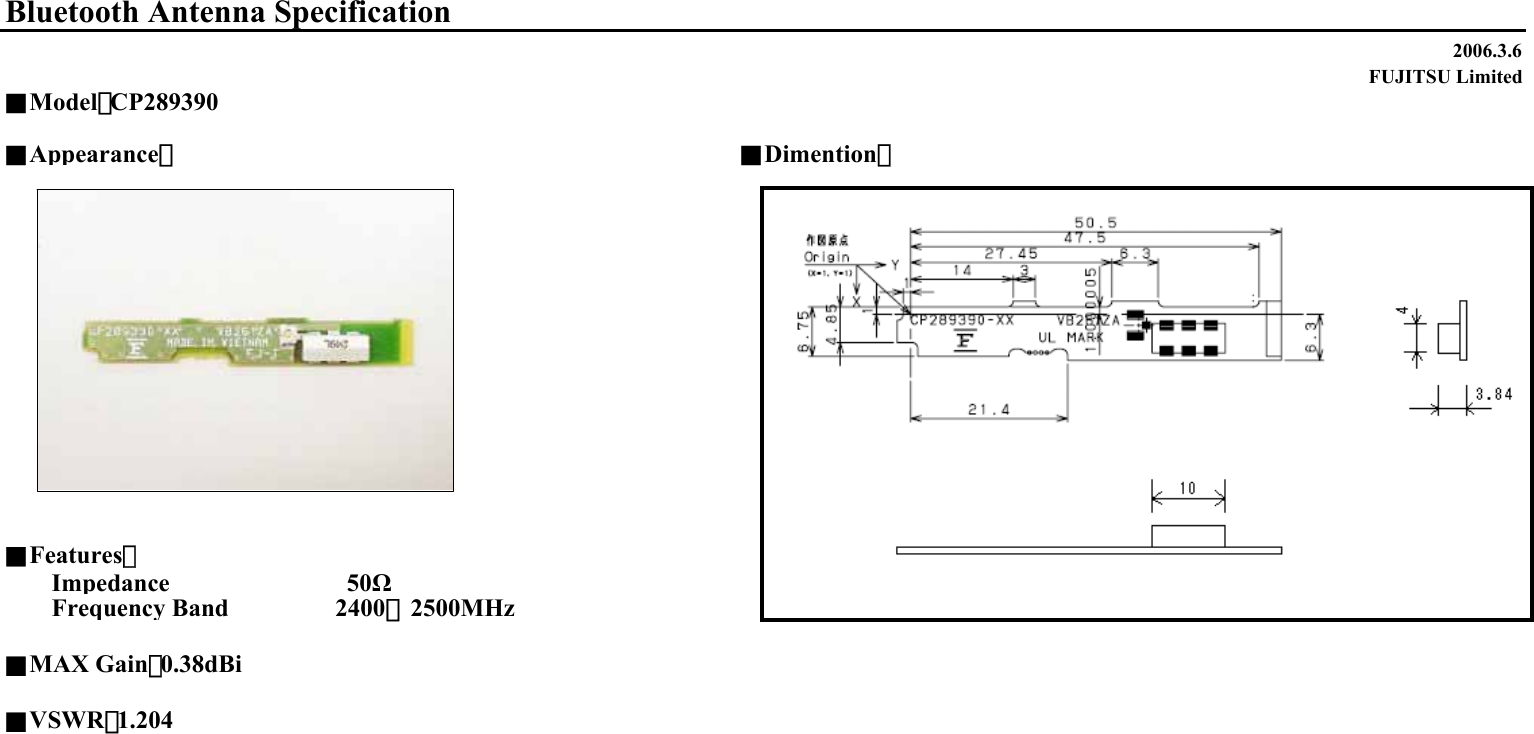

2006.3.6FUJITSU Limited■Appearance：■Dimention：■Features：Impedance     50ΩFrequency Band       2400∼2500MHz■MAX Gain：0.38dBi■VSWR：1.204Bluetooth Antenna Specification■Model：CP289390

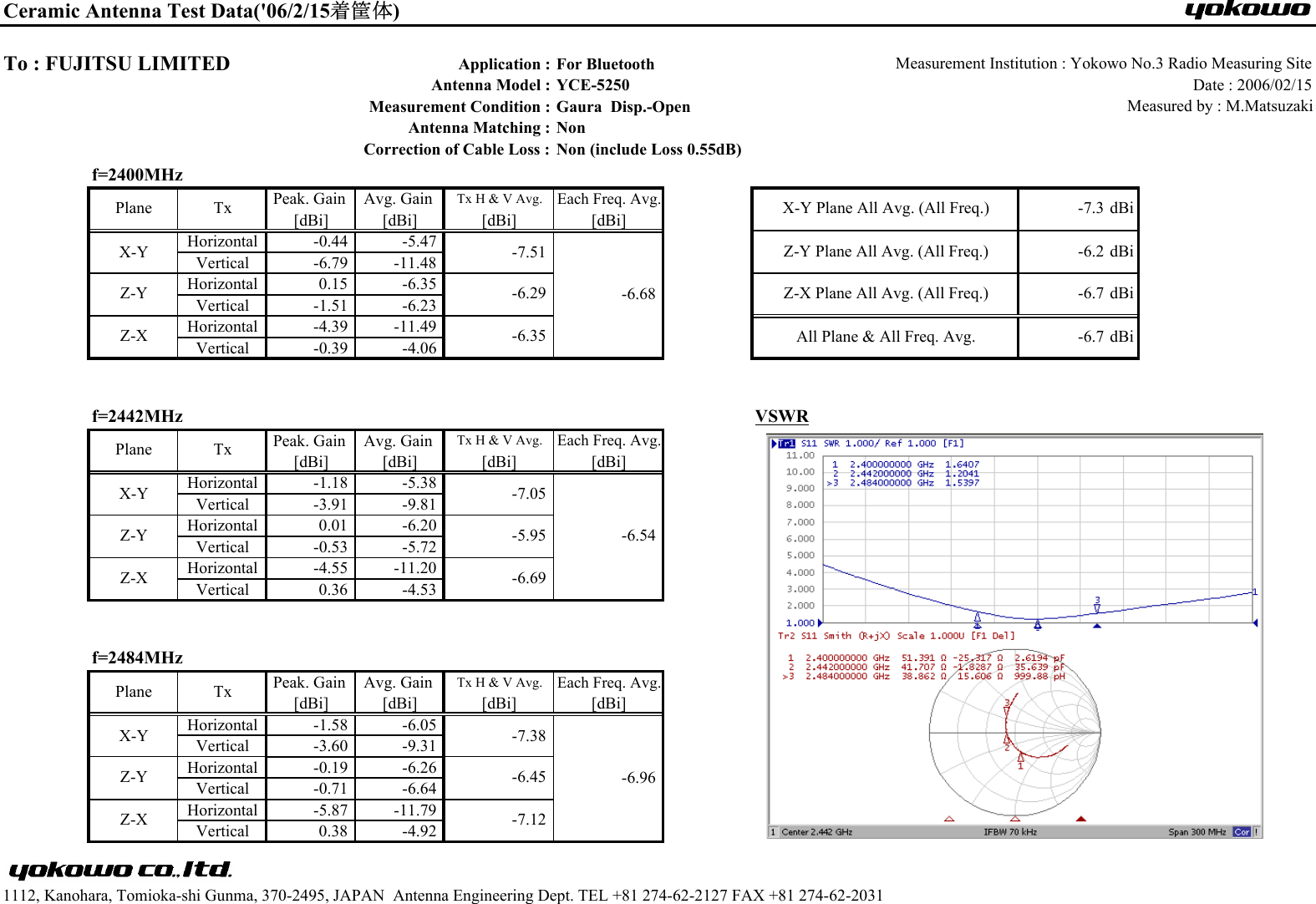

Ceramic Antenna Test Data('06/2/15着筐体)Application : For Bluetooth Measurement Institution : Yokowo No.3 Radio Measuring SiteAntenna Model : YCE-5250 Date : 2006/02/15Measurement Condition : Gaura Disp.-Open Measured by : M.MatsuzakiAntenna Matching : NonCorrection of Cable Loss : Non (include Loss 0.55dB)f=2400MHzPeak. Gain Avg. Gain Tx H & V Avg. Each Freq. Avg.[dBi] [dBi] [dBi] [dBi]Horizontal -0.44 -5.47Vertical -6.79 -11.48Horizontal 0.15 -6.35Vertical -1.51 -6.23Horizontal -4.39 -11.49Vertical -0.39 -4.06f=2442MHz VSWRPeak. Gain Avg. Gain Tx H & V Avg. Each Freq. Avg.[dBi] [dBi] [dBi] [dBi]Horizontal -1.18 -5.38Vertical -3.91 -9.81Horizontal 0.01 -6.20Vertical -0.53 -5.72Horizontal -4.55 -11.20Vertical 0.36 -4.53f=2484MHzPeak. Gain Avg. Gain Tx H & V Avg. Each Freq. Avg.[dBi] [dBi] [dBi] [dBi]Horizontal -1.58 -6.05Vertical -3.60 -9.31Horizontal -0.19 -6.26Vertical -0.71 -6.64Horizontal -5.87 -11.79Vertical 0.38 -4.921112, Kanohara, Tomioka-shi Gunma, 370-2495, JAPAN Antenna Engineering Dept. TEL +81 274-62-2127 FAX +81 274-62-2031-7.3-6.2dBidBidBiZ-Y -5.95dBiTo : FUJITSU LIMITED -6.7-6.7X-Y Plane All Avg. (All Freq.)Z-Y Plane All Avg. (All Freq.)Z-X Plane All Avg. (All Freq.)All Plane & All Freq. Avg.Z-X -6.69Plane TxZ-X -7.12X-Y -7.38Z-Y -6.45-6.35Plane TxX-Y -7.05-6.68-6.54-6.96Plane TxX-Y -7.51Z-Y -6.29Z-X

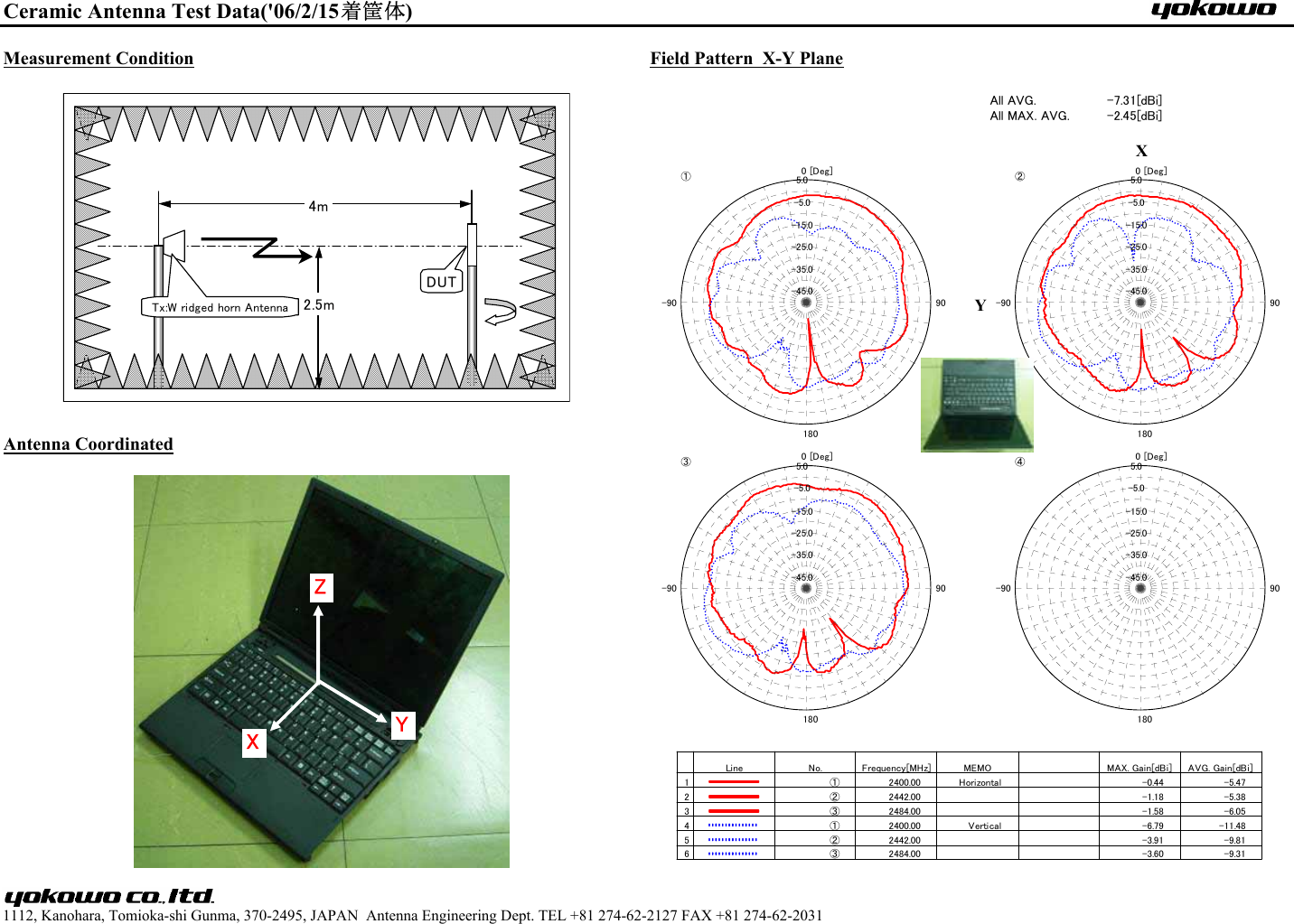

Ceramic Antenna Test Data('06/2/15着筐体)Measurement Condition Field Pattern X-Y PlaneAntenna Coordinated　1112, Kanohara, Tomioka-shi Gunma, 370-2495, JAPAN Antenna Engineering Dept. TEL +81 274-62-2127 FAX +81 274-62-20312.5m4mDUTTx:W ridged horn AntennaXYZYX-45.0-35.0-25.0-15.0-5.05.0 [Deg]0180-90 90①-45.0-35.0-25.0-15.0-5.05.0 [Deg]0180-90 90②-45.0-35.0-25.0-15.0-5.05.0 [Deg]0180-90 90③-45.0-35.0-25.0-15.0-5.05.0 [Deg]0180-90 90④Line No. Frequency[MHz] MEMO MAX. Gain[dBi] AVG. Gain[dBi]1① 2400.00 Horizontal -0.44 -5.472② 2442.00 -1.18 -5.383③ 2484.00 -1.58 -6.054① 2400.00 Vertical -6.79 -11.485② 2442.00 -3.91 -9.816③ 2484.00 -3.60 -9.31All AVG.All MAX. AVG.-7.31[dBi]-2.45[dBi]

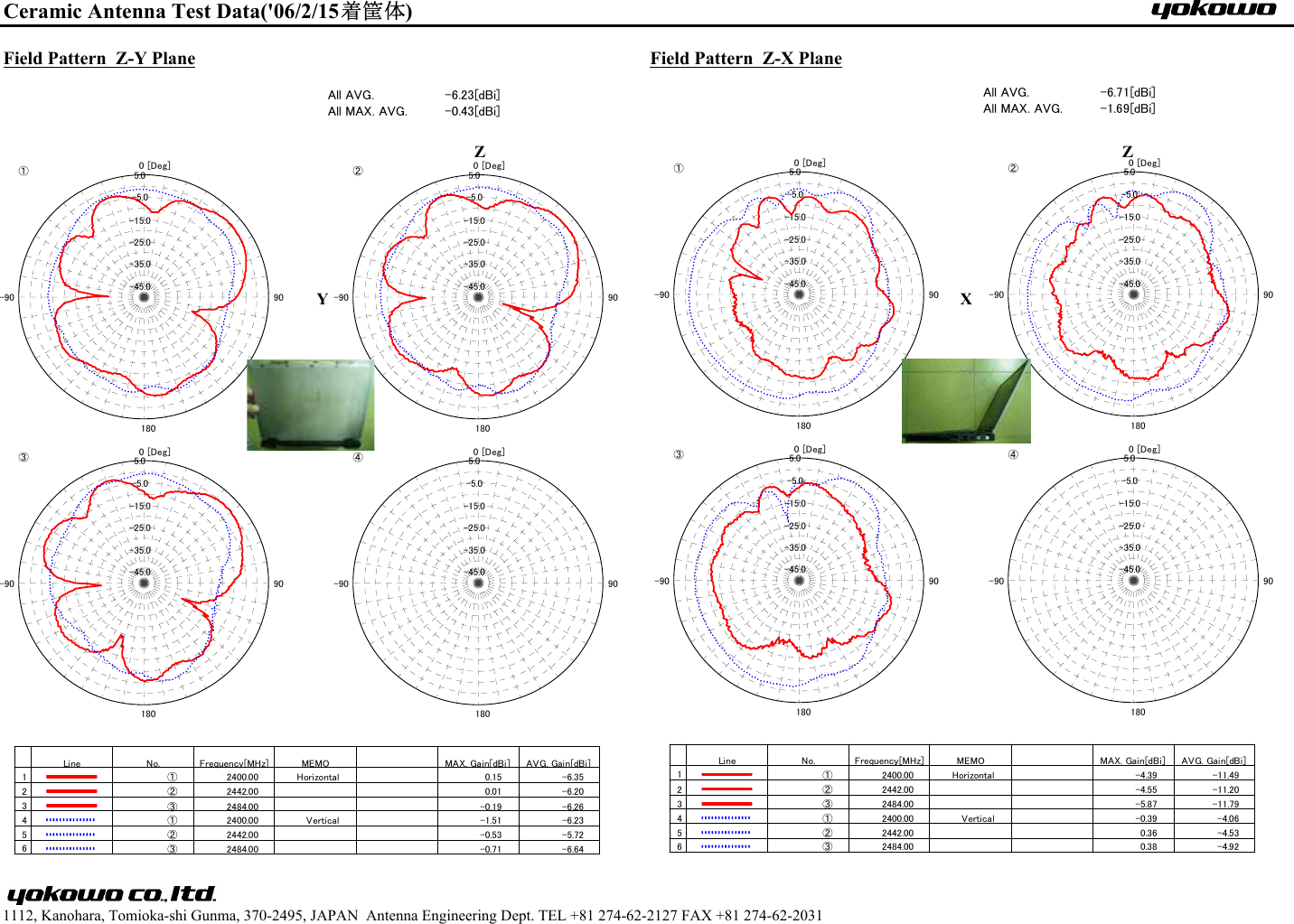

Ceramic Antenna Test Data('06/2/15着筐体)Field Pattern Z-Y Plane Field Pattern Z-X Plane　　　　　　　1112, Kanohara, Tomioka-shi Gunma, 370-2495, JAPAN Antenna Engineering Dept. TEL +81 274-62-2127 FAX +81 274-62-2031YZXZ-45.0-35.0-25.0-15.0-5.05.0 [Deg]0180-90 90①-45.0-35.0-25.0-15.0-5.05.0 [Deg]0180-90 90②-45.0-35.0-25.0-15.0-5.05.0 [Deg]0180-90 90③-45.0-35.0-25.0-15.0-5.05.0 [Deg]0180-90 90④Line No. Frequency[MHz] MEMO MAX. Gain[dBi] AVG. Gain[dBi]1① 2400.00 Horizontal 0.15 -6.352② 2442.00 0.01 -6.203③ 2484.00 -0.19 -6.264① 2400.00 Vertical -1.51 -6.235② 2442.00 -0.53 -5.726③ 2484.00 -0.71 -6.64All AVG.All MAX. AVG.-6.23[dBi]-0.43[dBi]-45.0-35.0-25.0-15.0-5.05.0 [Deg]0180-90 90①-45.0-35.0-25.0-15.0-5.05.0 [Deg]0180-90 90②-45.0-35.0-25.0-15.0-5.05.0 [Deg]0180-90 90③-45.0-35.0-25.0-15.0-5.05.0 [Deg]0180-90 90④Line No. Frequency[MHz] MEMO MAX. Gain[dBi] AVG. Gain[dBi]1① 2400.00 Horizontal -4.39 -11.492② 2442.00 -4.55 -11.203③ 2484.00 -5.87 -11.794① 2400.00 Vertical -0.39 -4.065② 2442.00 0.36 -4.536③ 2484.00 0.38 -4.92All AVG.All MAX. AVG.-6.71[dBi]-1.69[dBi]
