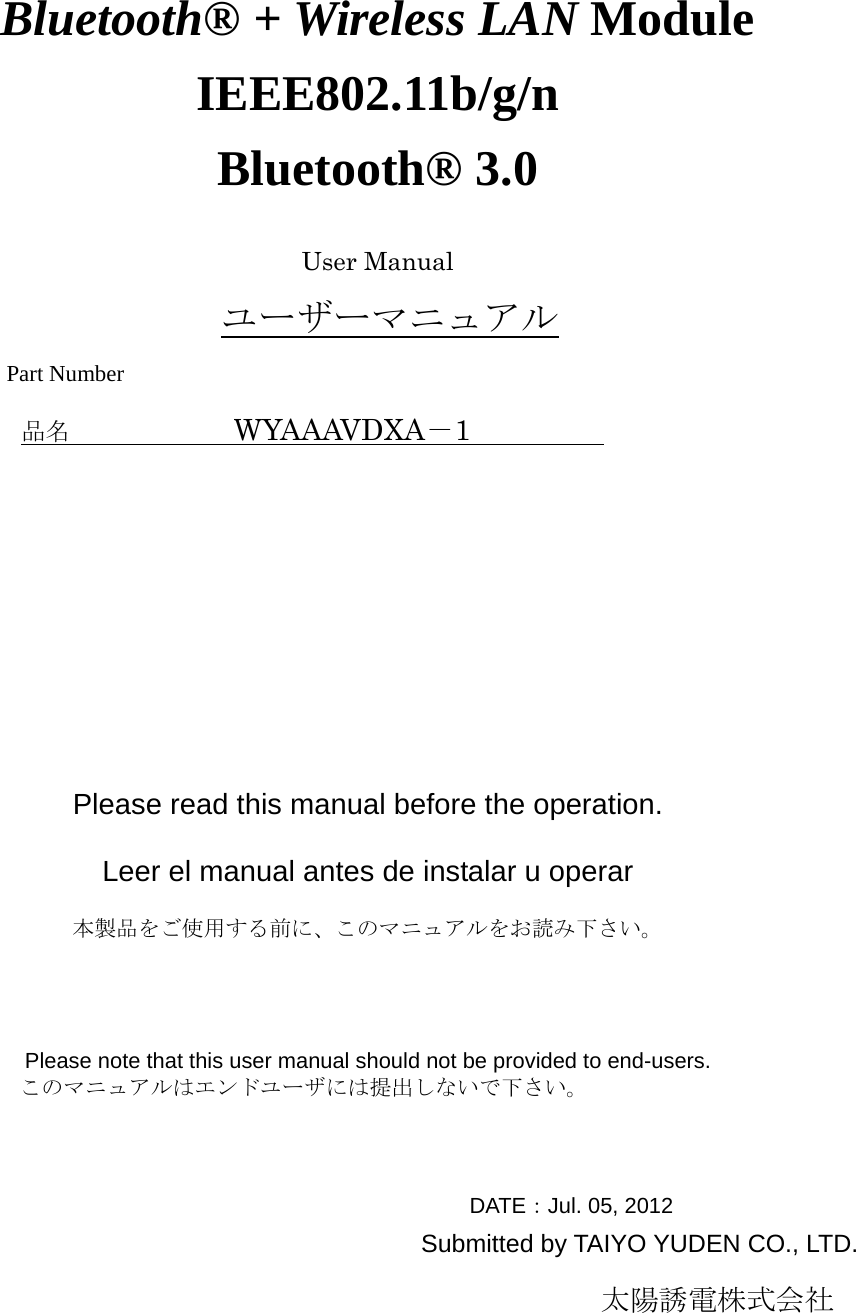

Bluetooth® + Wireless LAN Module IEEE802.11b/g/n Bluetooth® 3.0 User Manual ユーザーマニュアル Part Number 品名 WYAAAVDXA－1 Please read this manual before the operation. Leer el manual antes de instalar u operar 本製品をご使用する前に、このマニュアルをお読み下さい。 Please note that this user manual should not be provided to end-users. このマニュアルはエンドユーザには提出しないで下さい。 DATE：Jul. 05, 2012 Submitted by TAIYO YUDEN CO., LTD. 太陽誘電株式会社

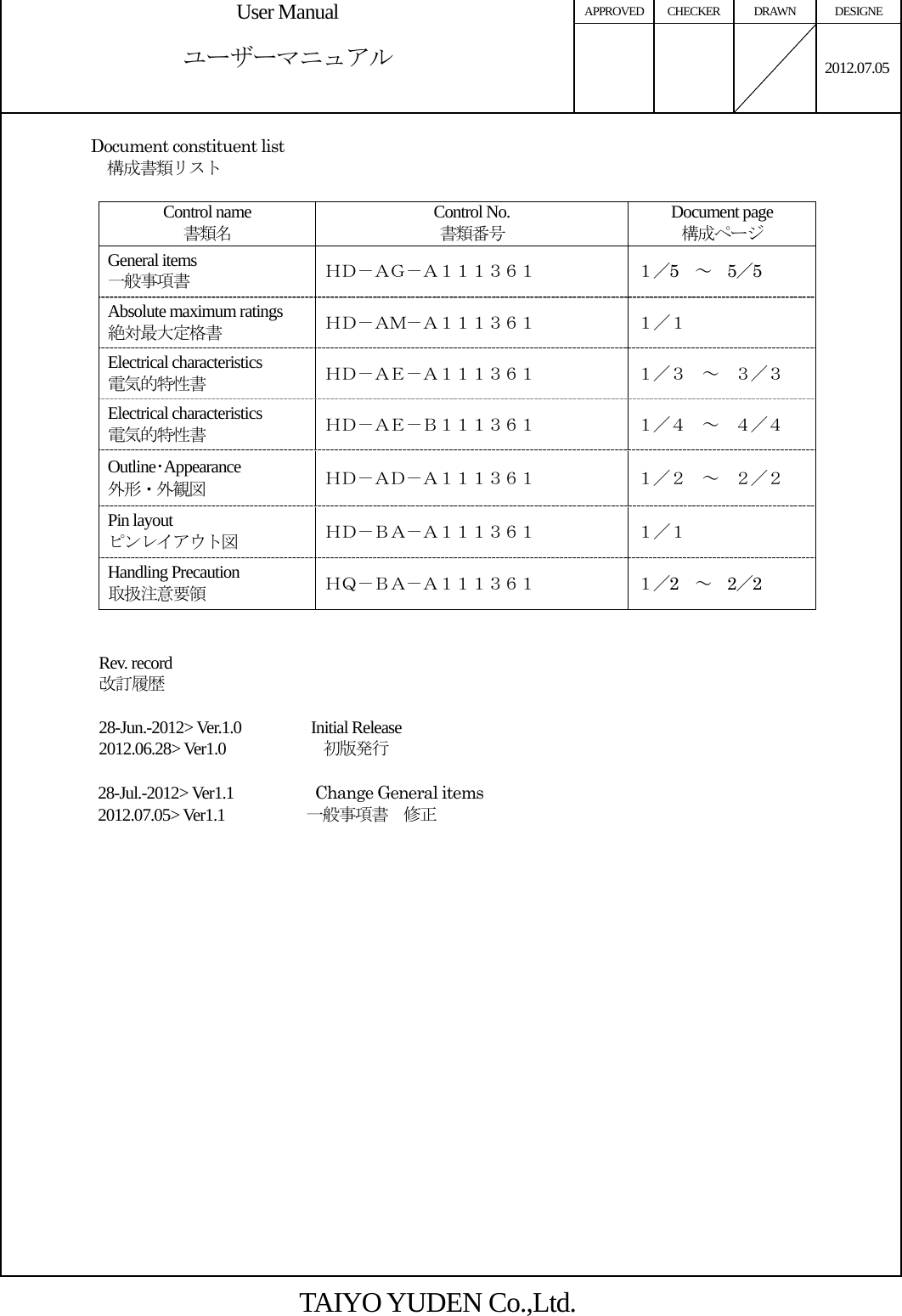

APPROVED CHECKER DRAWN DESIGNE User Manual ユーザーマニュアル 2012.07.05 Document constituent list 構成書類リスト Control name 書類名 Control No. 書類番号 Document page 構成ページ General items 一般事項書ＨＤ－ＡＧ－Ａ１１１３６１１／5 ～ 5／5 Absolute maximum ratings 絶対最大定格書ＨＤ－ＡＭ－Ａ１１１３６１１／１ Electrical characteristics 電気的特性書ＨＤ－ＡＥ－Ａ１１１３６１１／３～３／３ Electrical characteristics 電気的特性書ＨＤ－ＡＥ－Ｂ１１１３６１１／４～４／４ Outline･Appearance 外形・外観図ＨＤ－ＡＤ－Ａ１１１３６１１／２～２／２ Pin layout ピンレイアウト図ＨＤ－ＢＡ－Ａ１１１３６１１／１ Handling Precaution 取扱注意要領ＨＱ－ＢＡ－Ａ１１１３６１１／2 ～ 2／2 Rev. record 改訂履歴 28-Jun.-2012> Ver.1.0 Initial Release 2012.06.28> Ver1.0 初版発行 28-Jul.-2012> Ver1.1 Change General items 2012.07.05> Ver1.1 一般事項書修正 TAIYO YUDEN Co.,Ltd.

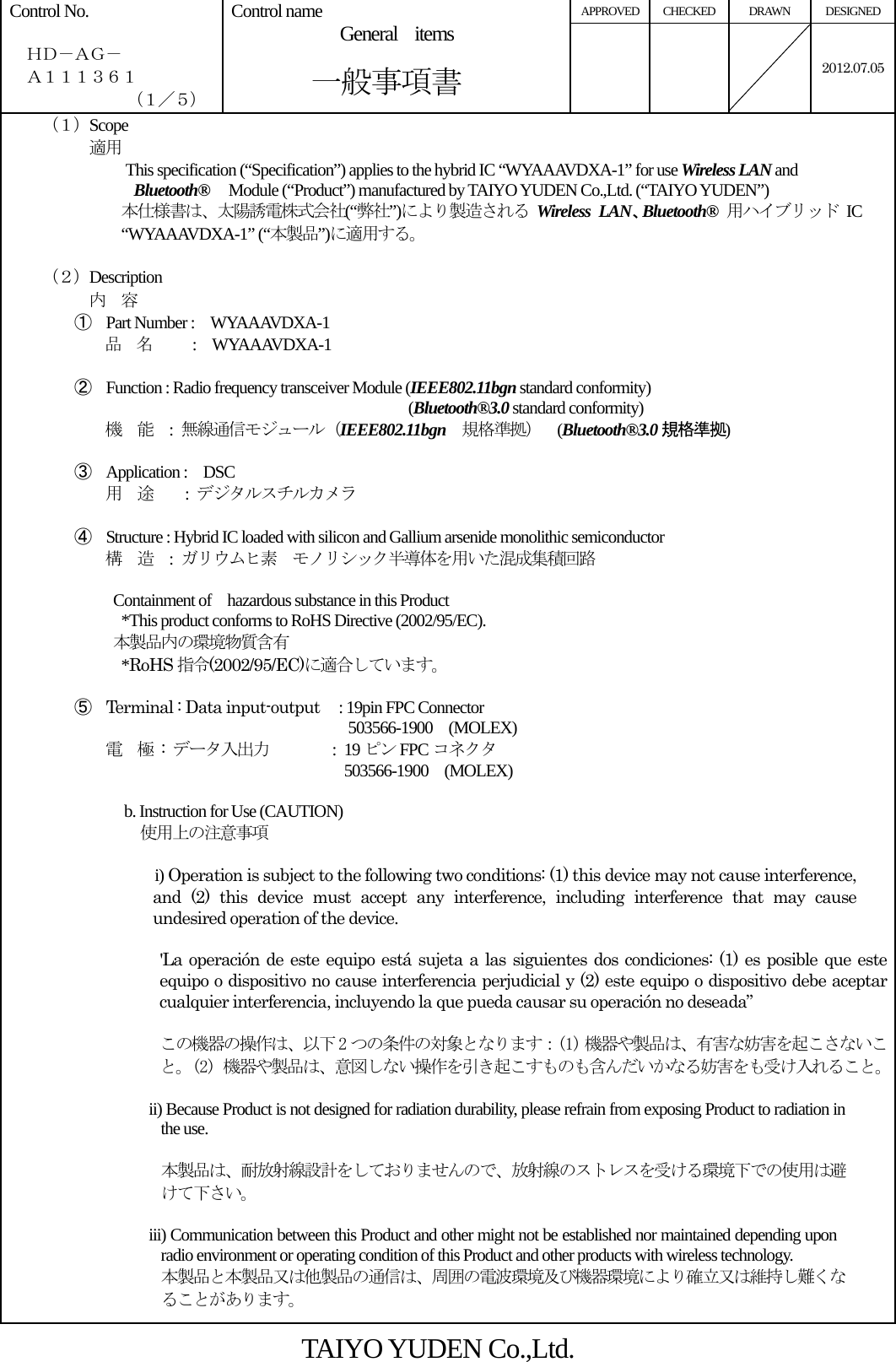

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＧ－Ａ１１１３６１（１／５） Control name General items 一般事項書 2012.07.05 （１）Scope 適用 This specification (“Specification”) applies to the hybrid IC “WYAAAVDXA-1” for use Wireless LAN and Bluetooth® Module (“Product”) manufactured by TAIYO YUDEN Co.,Ltd. (“TAIYO YUDEN”) 本仕様書は、太陽誘電株式会社(“弊社”)により製造される Wireless LAN、Bluetooth® 用ハイブリッド IC “WYAAAVDXA-1” (“本製品”)に適用する。（２）Description 内容 ① Part Number : WYAAAVDXA-1 品名 : WYAAAVDXA-1 ② Function : Radio frequency transceiver Module (IEEE802.11bgn standard conformity) (Bluetooth®3.0 standard conformity) 機能 : 無線通信モジュール（IEEE802.11bgn 規格準拠） (Bluetooth®3.0 規格準拠) ③ Application : DSC 用途 : デジタルスチルカメラ ④ Structure : Hybrid IC loaded with silicon and Gallium arsenide monolithic semiconductor 構造 : ガリウムヒ素モノリシック半導体を用いた混成集積回路 Containment of hazardous substance in this Product *This product conforms to RoHS Directive (2002/95/EC). 本製品内の環境物質含有 *RoHS 指令(2002/95/EC)に適合しています。 ⑤ Terminal : Data input-output : 19pin FPC Connector 503566-1900 (MOLEX) 電極 : データ入出力 : 19 ピン FPC コネクタ 503566-1900 (MOLEX) b. Instruction for Use (CAUTION) 使用上の注意事項 i) Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. 'La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada” この機器の操作は、以下 2 つの条件の対象となります：(1) 機器や製品は、有害な妨害を起こさないこと。(2) 機器や製品は、意図しない操作を引き起こすものも含んだいかなる妨害をも受け入れること。 ii) Because Product is not designed for radiation durability, please refrain from exposing Product to radiation in the use. 本製品は、耐放射線設計をしておりませんので、放射線のストレスを受ける環境下での使用は避けて下さい。 iii) Communication between this Product and other might not be established nor maintained depending upon radio environment or operating condition of this Product and other products with wireless technology. 本製品と本製品又は他製品の通信は、周囲の電波環境及び機器環境により確立又は維持し難くなることがあります。 TAIYO YUDEN Co.,Ltd.

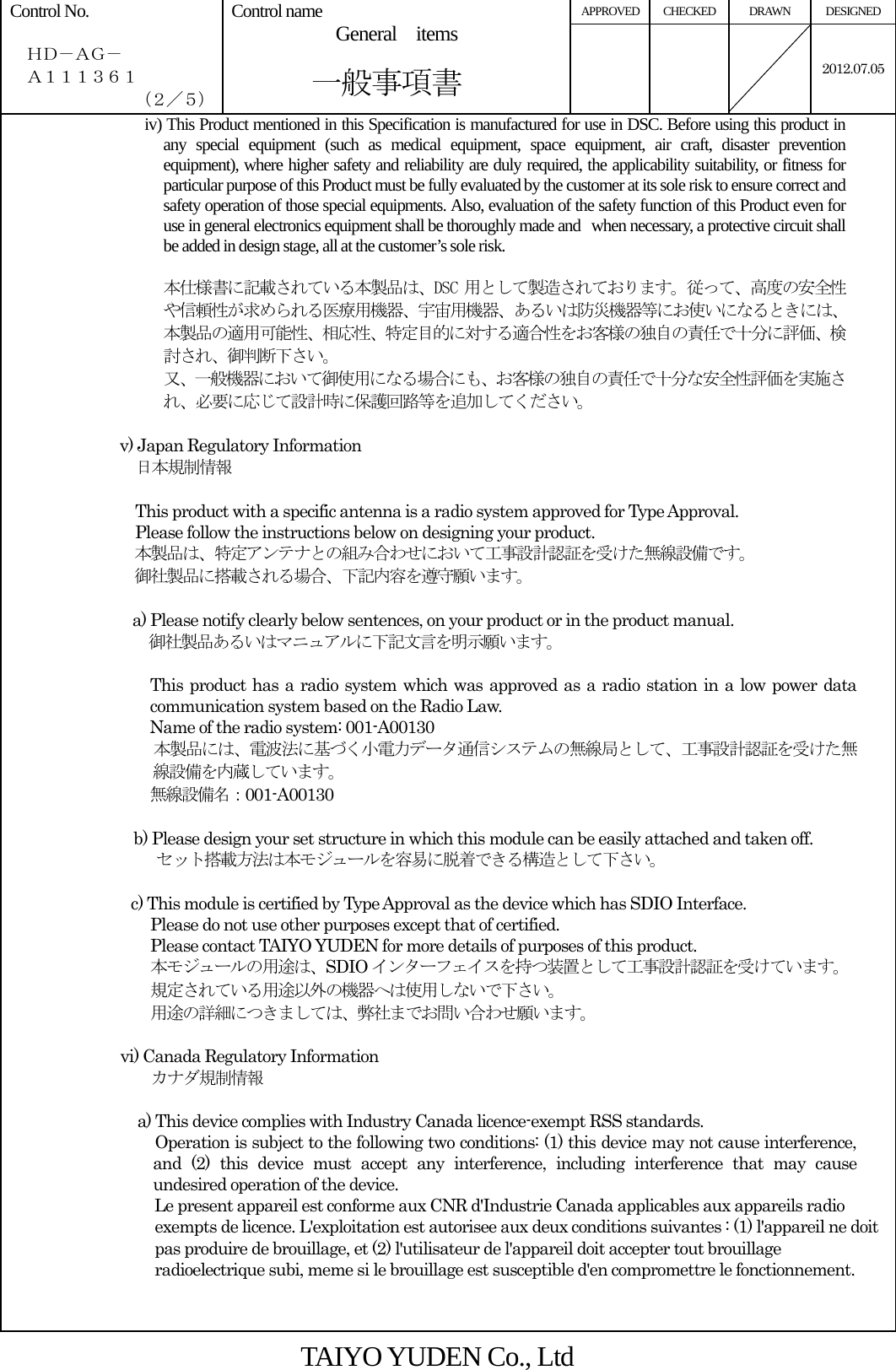

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＧ－Ａ１１１３６１（２／５） Control name General items 一般事項書 2012.07.05iv) This Product mentioned in this Specification is manufactured for use in DSC. Before using this product in any special equipment (such as medical equipment, space equipment, air craft, disaster prevention equipment), where higher safety and reliability are duly required, the applicability suitability, or fitness for particular purpose of this Product must be fully evaluated by the customer at its sole risk to ensure correct and safety operation of those special equipments. Also, evaluation of the safety function of this Product even for use in general electronics equipment shall be thoroughly made and when necessary, a protective circuit shall be added in design stage, all at the customer’s sole risk. 本仕様書に記載されている本製品は、DSC 用として製造されております。従って、高度の安全性や信頼性が求められる医療用機器、宇宙用機器、あるいは防災機器等にお使いになるときには、本製品の適用可能性、相応性、特定目的に対する適合性をお客様の独自の責任で十分に評価、検討され、御判断下さい。又、一般機器において御使用になる場合にも、お客様の独自の責任で十分な安全性評価を実施され、必要に応じて設計時に保護回路等を追加してください。 v) Japan Regulatory Information 日本規制情報 This product with a specific antenna is a radio system approved for Type Approval. Please follow the instructions below on designing your product. 本製品は、特定アンテナとの組み合わせにおいて工事設計認証を受けた無線設備です。御社製品に搭載される場合、下記内容を遵守願います。 a) Please notify clearly below sentences, on your product or in the product manual. 御社製品あるいはマニュアルに下記文言を明示願います。 This product has a radio system which was approved as a radio station in a low power data communication system based on the Radio Law. Name of the radio system: 001-A00130 本製品には、電波法に基づく小電力データ通信システムの無線局として、工事設計認証を受けた無線設備を内蔵しています。無線設備名：001-A00130 b) Please design your set structure in which this module can be easily attached and taken off. セット搭載方法は本モジュールを容易に脱着できる構造として下さい。 c) This module is certified by Type Approval as the device which has SDIO Interface. Please do not use other purposes except that of certified. Please contact TAIYO YUDEN for more details of purposes of this product. 本モジュールの用途は、SDIO インターフェイスを持つ装置として工事設計認証を受けています。規定されている用途以外の機器へは使用しないで下さい。用途の詳細につきましては、弊社までお問い合わせ願います。 vi) Canada Regulatory Information カナダ規制情報 a) This device complies with Industry Canada licence-exempt RSS standards. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisee aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement. TAIYO YUDEN Co., Ltd

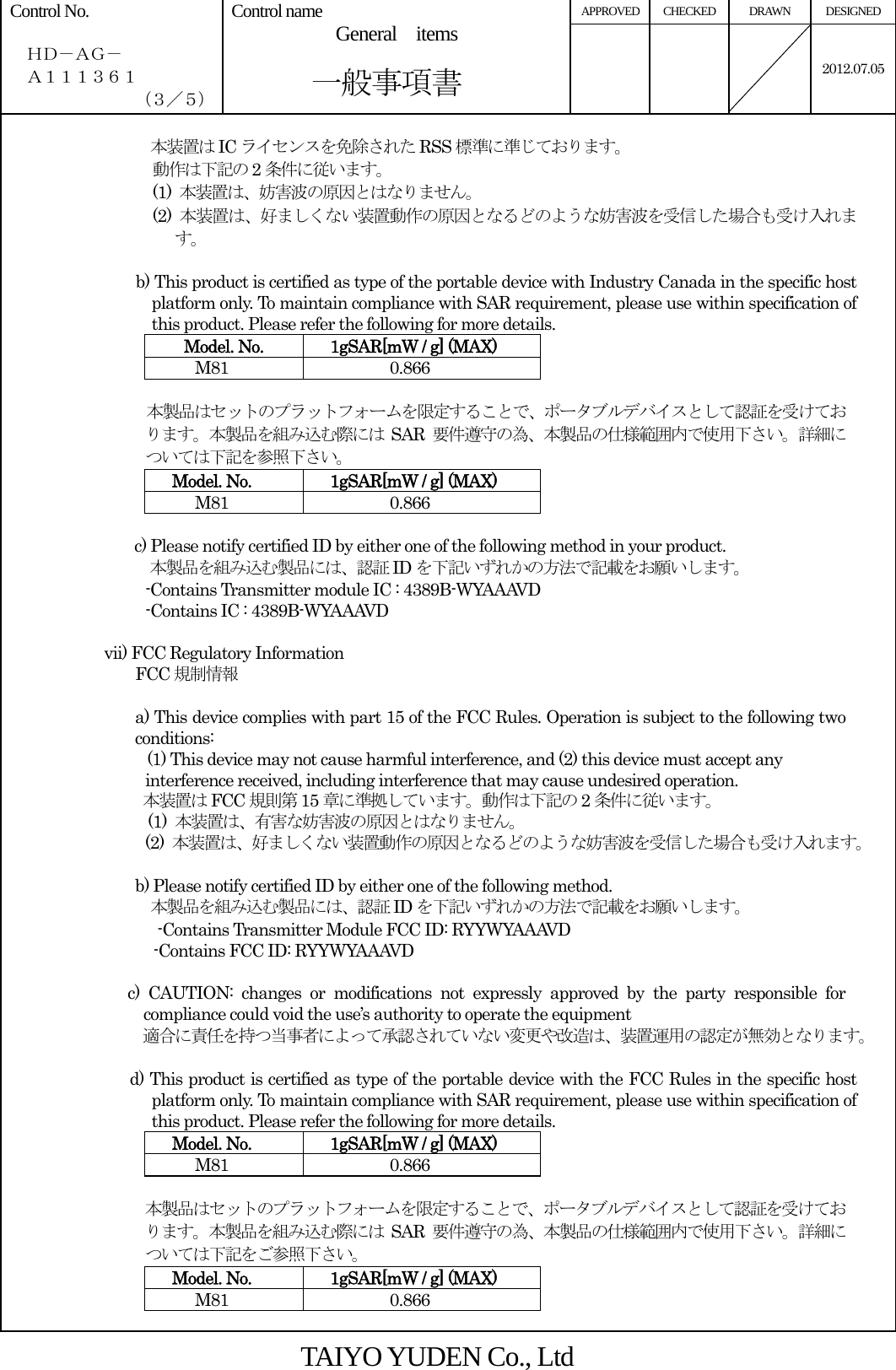

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＧ－Ａ１１１３６１（３／５） Control name General items 一般事項書 2012.07.05 本装置は IC ライセンスを免除された RSS 標準に準じております。動作は下記の 2条件に従います。 (1) 本装置は、妨害波の原因とはなりません。 (2) 本装置は、好ましくない装置動作の原因となるどのような妨害波を受信した場合も受け入れます。 b) This product is certified as type of the portable device with Industry Canada in the specific host platform only. To maintain compliance with SAR requirement, please use within specification of this product. Please refer the following for more details. Model. No. 1gSAR[mW / g] (MAX) M81 0.866 本製品はセットのプラットフォームを限定することで、ポータブルデバイスとして認証を受けております。本製品を組み込む際には SAR 要件遵守の為、本製品の仕様範囲内で使用下さい。詳細については下記を参照下さい。 Model. No. 1gSAR[mW / g] (MAX) M81 0.866 c) Please notify certified ID by either one of the following method in your product. 本製品を組み込む製品には、認証 ID を下記いずれかの方法で記載をお願いします。 -Contains Transmitter module IC : 4389B-WYAAAVD -Contains IC : 4389B-WYAAAVD vii) FCC Regulatory Information FCC 規制情報 a) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 本装置は FCC 規則第 15 章に準拠しています。動作は下記の 2条件に従います。 (1) 本装置は、有害な妨害波の原因とはなりません。 (2) 本装置は、好ましくない装置動作の原因となるどのような妨害波を受信した場合も受け入れます。 b) Please notify certified ID by either one of the following method. 本製品を組み込む製品には、認証 ID を下記いずれかの方法で記載をお願いします。 -Contains Transmitter Module FCC ID: RYYWYAAAVD -Contains FCC ID: RYYWYAAAVD c) CAUTION: changes or modifications not expressly approved by the party responsible for compliance could void the use’s authority to operate the equipment 適合に責任を持つ当事者によって承認されていない変更や改造は、装置運用の認定が無効となります。 d) This product is certified as type of the portable device with the FCC Rules in the specific host platform only. To maintain compliance with SAR requirement, please use within specification of this product. Please refer the following for more details. Model. No. 1gSAR[mW / g] (MAX) M81 0.866 本製品はセットのプラットフォームを限定することで、ポータブルデバイスとして認証を受けております。本製品を組み込む際には SAR 要件遵守の為、本製品の仕様範囲内で使用下さい。詳細については下記をご参照下さい。 Model. No. 1gSAR[mW / g] (MAX) M81 0.866 TAIYO YUDEN Co., Ltd

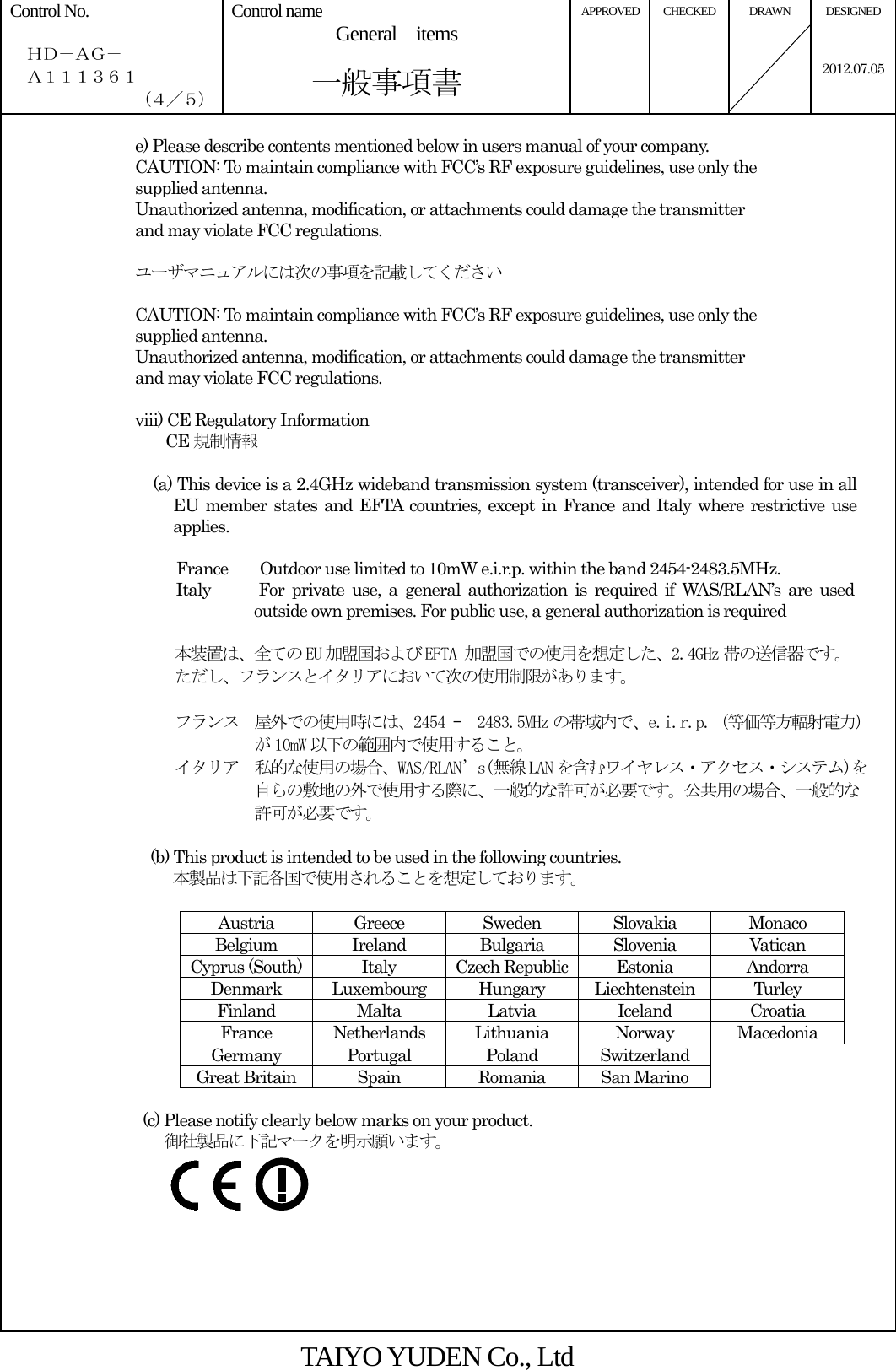

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＧ－Ａ１１１３６１（４／５） Control name General items 一般事項書 2012.07.05 e) Please describe contents mentioned below in users manual of your company. CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. ユーザマニュアルには次の事項を記載してください CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. viii) CE Regulatory Information CE 規制情報 (a) This device is a 2.4GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. France Outdoor use limited to 10mW e.i.r.p. within the band 2454-2483.5MHz. Italy For private use, a general authorization is required if WAS/RLAN’s are used outside own premises. For public use, a general authorization is required 本装置は、全ての EU 加盟国および EFTA 加盟国での使用を想定した、2.4GHz 帯の送信器です。ただし、フランスとイタリアにおいて次の使用制限があります。フランス屋外での使用時には、2454 – 2483.5MHz の帯域内で、e.i.r.p.（等価等方輻射電力）が 10mW 以下の範囲内で使用すること。イタリア私的な使用の場合、WAS/RLAN’s(無線 LAN を含むワイヤレス・アクセス・システム)を自らの敷地の外で使用する際に、一般的な許可が必要です。公共用の場合、一般的な許可が必要です。 (b) This product is intended to be used in the following countries. 本製品は下記各国で使用されることを想定しております。 Austria Greece Sweden Slovakia Monaco Belgium Ireland Bulgaria Slovenia Vatican Cyprus (South) Italy Czech Republic Estonia Andorra Denmark Luxembourg Hungary Liechtenstein Turley Finland Malta Latvia Iceland Croatia France Netherlands Lithuania Norway Macedonia Germany Portugal Poland Switzerland Great Britain Spain Romania San Marino (c) Please notify clearly below marks on your product. 御社製品に下記マークを明示願います。 TAIYO YUDEN Co., Ltd

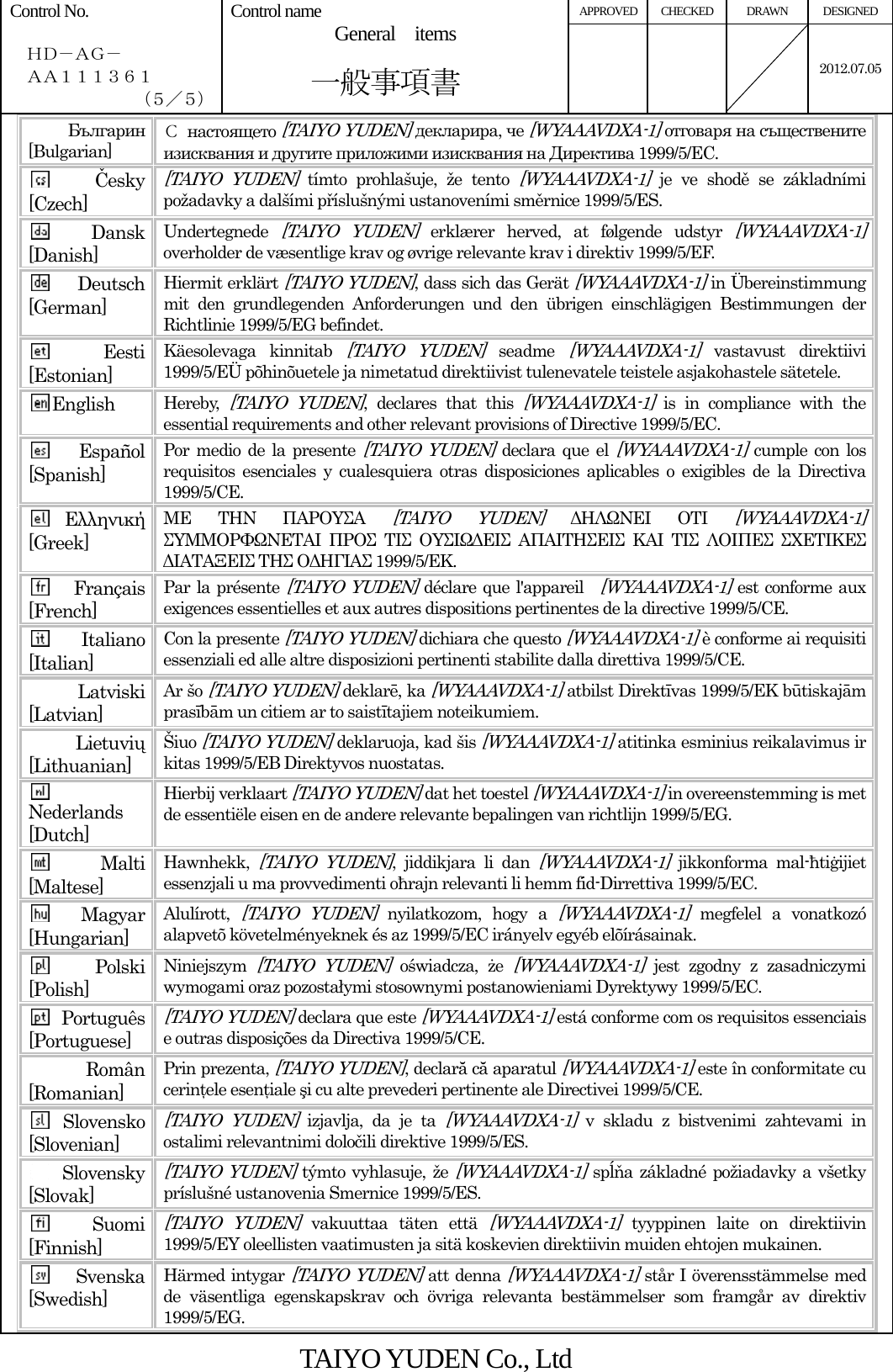

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＧ－ＡＡ１１１３６１（５／５） Control name General items 一般事項書 2012.07.05 Българин [Bulgarian] С настоящето [TAIYO YUDEN] декларира, че [WYAAAVDXA-1] отговаря на съществените изисквания и другите приложими изисквания на Директива 1999/5/ЕС. Česky [Czech] [TAIYO YUDEN] tímto prohlašuje, že tento [WYAAAVDXA-1] je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish] Undertegnede [TAIYO YUDEN] erklærer herved, at følgende udstyr [WYAAAVDXA-1] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt [TAIYO YUDEN], dass sich das Gerät [WYAAAVDXA-1] in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab [TAIYO YUDEN] seadme [WYAAAVDXA-1] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, [TAIYO YUDEN], declares that this [WYAAAVDXA-1] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente [TAIYO YUDEN] declara que el [WYAAAVDXA-1] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [TAIYO YUDEN] ΔΗΛΩΝΕΙ ΟΤΙ [WYAAAVDXA-1] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ. Français [French] Par la présente [TAIYO YUDEN] déclare que l'appareil [WYAAAVDXA-1] est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian] Con la presente [TAIYO YUDEN] dichiara che questo [WYAAAVDXA-1] è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski [Latvian] Ar šo [TAIYO YUDEN] deklarē, ka [WYAAAVDXA-1] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. Lietuvių [Lithuanian] Šiuo [TAIYO YUDEN] deklaruoja, kad šis [WYAAAVDXA-1] atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Nederlands [Dutch] Hierbij verklaart [TAIYO YUDEN] dat het toestel [WYAAAVDXA-1] in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Malti [Maltese] Hawnhekk, [TAIYO YUDEN], jiddikjara li dan [WYAAAVDXA-1] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC. Magyar [Hungarian] Alulírott, [TAIYO YUDEN] nyilatkozom, hogy a [WYAAAVDXA-1] megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Polski [Polish] Niniejszym [TAIYO YUDEN] oświadcza, że [WYAAAVDXA-1] jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC. Português [Portuguese] [TAIYO YUDEN] declara que este [WYAAAVDXA-1] está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Român [Romanian] Prin prezenta, [TAIYO YUDEN], declară că aparatul [WYAAAVDXA-1] este în conformitate cu cerinţele esenţiale şi cu alte prevederi pertinente ale Directivei 1999/5/CE. Slovensko [Slovenian] [TAIYO YUDEN] izjavlja, da je ta [WYAAAVDXA-1] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES. Slovensky [Slovak] [TAIYO YUDEN] týmto vyhlasuje, že [WYAAAVDXA-1] spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES. Suomi [Finnish] [TAIYO YUDEN] vakuuttaa täten että [WYAAAVDXA-1] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Svenska [Swedish] Härmed intygar [TAIYO YUDEN] att denna [WYAAAVDXA-1] står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. TAIYO YUDEN Co., Ltd

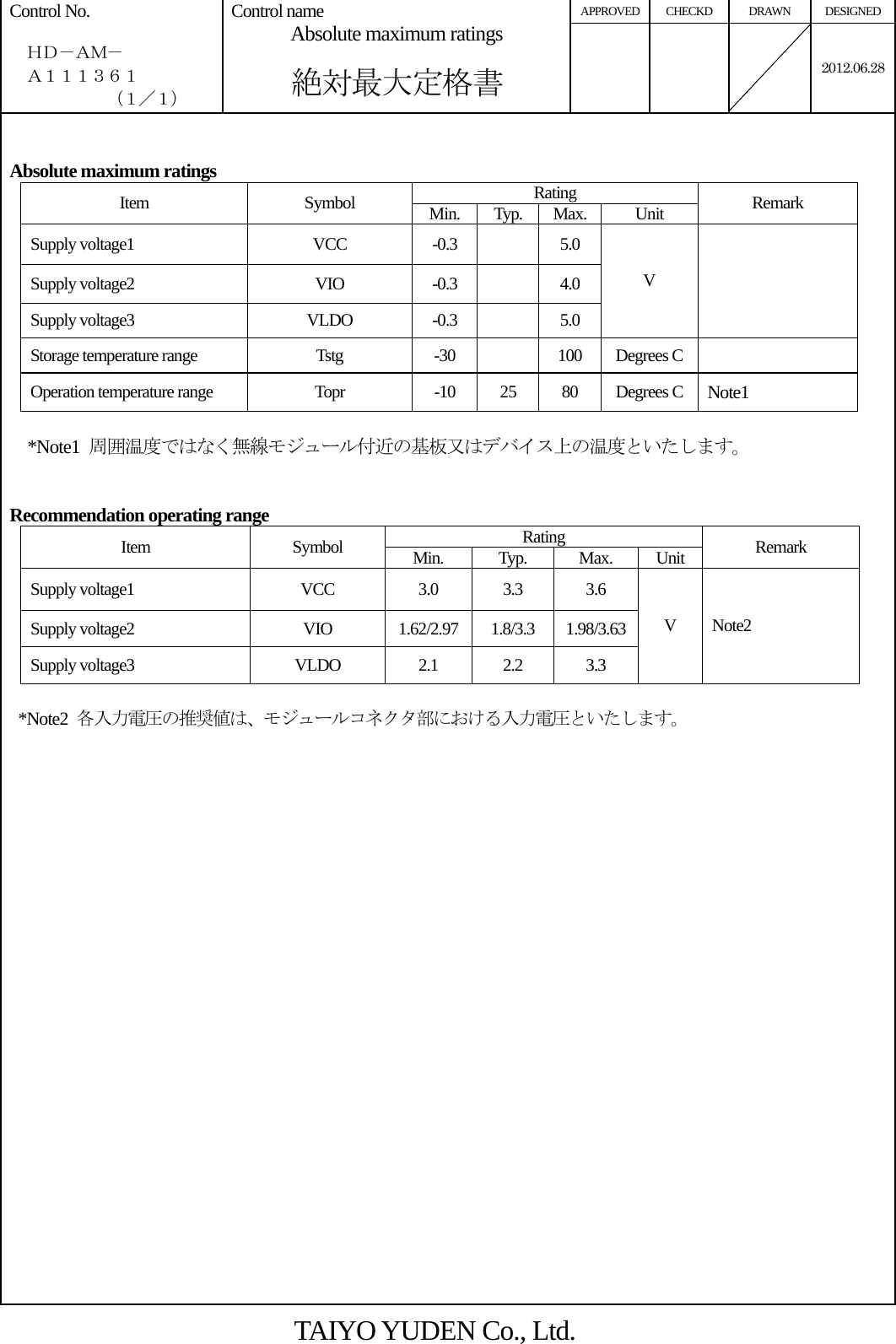

APPROVED CHECKD DRAWN DESIGNED Control No. ＨＤ－ＡＭ－Ａ１１１３６１（１／１） Control name Absolute maximum ratings 絶対最大定格書 2012.06.28 Absolute maximum ratings Rating Item Symbol Min. Typ. Max. Unit Remark Supply voltage1 VCC -0.3 5.0 Supply voltage2 VIO -0.3 4.0 Supply voltage3 VLDO -0.3 5.0 V Storage temperature range Tstg -30 100 Degrees C Operation temperature range Topr -10 25 80 Degrees C Note1 *Note1 周囲温度ではなく無線モジュール付近の基板又はデバイス上の温度といたします。 Recommendation operating range Rating Item Symbol Min. Typ. Max. Unit Remark Supply voltage1 VCC 3.0 3.3 3.6 Supply voltage2 VIO 1.62/2.97 1.8/3.3 1.98/3.63Supply voltage3 VLDO 2.1 2.2 3.3 V Note2 *Note2 各入力電圧の推奨値は、モジュールコネクタ部における入力電圧といたします。 TAIYO YUDEN Co., Ltd.

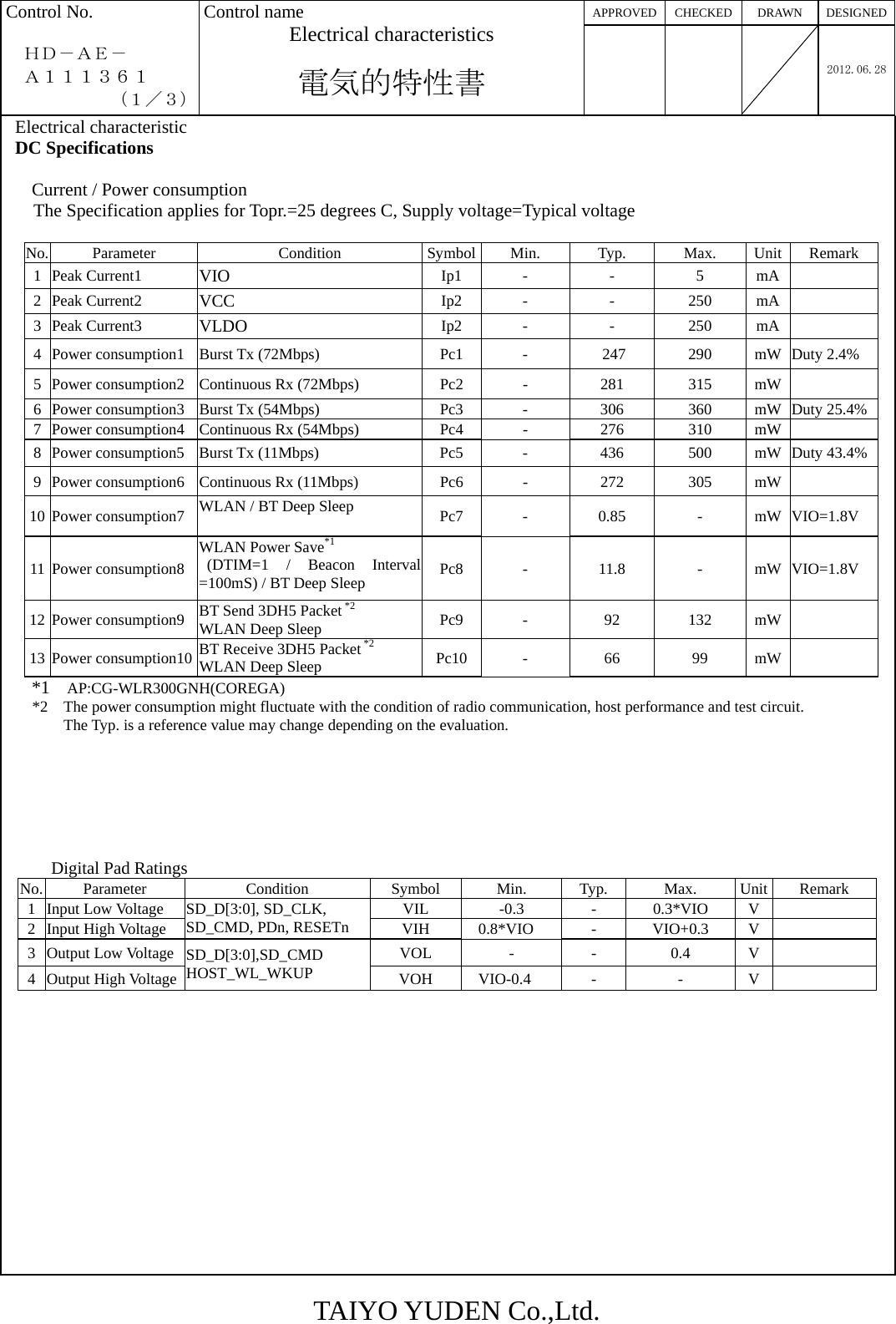

TAIYO YUDEN Co.,Ltd. APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－Ａ１１１３６１（１／３） Control name Electrical characteristics 電気的特性書 2012.06.28Electrical characteristic DC Specifications Current / Power consumption The Specification applies for Topr.=25 degrees C, Supply voltage=Typical voltage No. Parameter Condition Symbol Min. Typ. Max. Unit Remark 1 Peak Current1 VIO Ip1 - - 5 mA 2 Peak Current2 VCC Ip2 - - 250 mA 3 Peak Current3 VLDO Ip2 - - 250 mA 4 Power consumption1 Burst Tx (72Mbps) Pc1 - 247 290 mW Duty 2.4% 5 Power consumption2 Continuous Rx (72Mbps) Pc2 - 281 315 mW 6 Power consumption3 Burst Tx (54Mbps) Pc3 - 306 360 mW Duty 25.4%7 Power consumption4 Continuous Rx (54Mbps) Pc4 - 276 310 mW 8 Power consumption5 Burst Tx (11Mbps) Pc5 - 436 500 mW Duty 43.4% 9 Power consumption6 Continuous Rx (11Mbps) Pc6 - 272 305 mW 10 Power consumption7 WLAN / BT Deep Sleep Pc7 - 0.85 - mW VIO=1.8V 11 Power consumption8 WLAN Power Save*1 (DTIM=1 / Beacon Interval =100mS) / BT Deep Sleep Pc8 - 11.8 - mW VIO=1.8V 12 Power consumption9 BT Send 3DH5 Packet *2 WLAN Deep Sleep Pc9 - 92 132 mW 13 Power consumption10 BT Receive 3DH5 Packet *2 WLAN Deep Sleep Pc10 - 66 99 mW *1 AP:CG-WLR300GNH(COREGA) *2 The power consumption might fluctuate with the condition of radio communication, host performance and test circuit. The Typ. is a reference value may change depending on the evaluation. Digital Pad Ratings No. Parameter Condition Symbol Min. Typ. Max. Unit Remark 1 Input Low Voltage VIL -0.3 - 0.3*VIO V 2 Input High Voltage SD_D[3:0], SD_CLK, SD_CMD, PDn, RESETn VIH 0.8*VIO - VIO+0.3 V 3 Output Low Voltage VOL - - 0.4 V 4 Output High Voltage SD_D[3:0],SD_CMD HOST_WL_WKUP VOH VIO-0.4 - - V

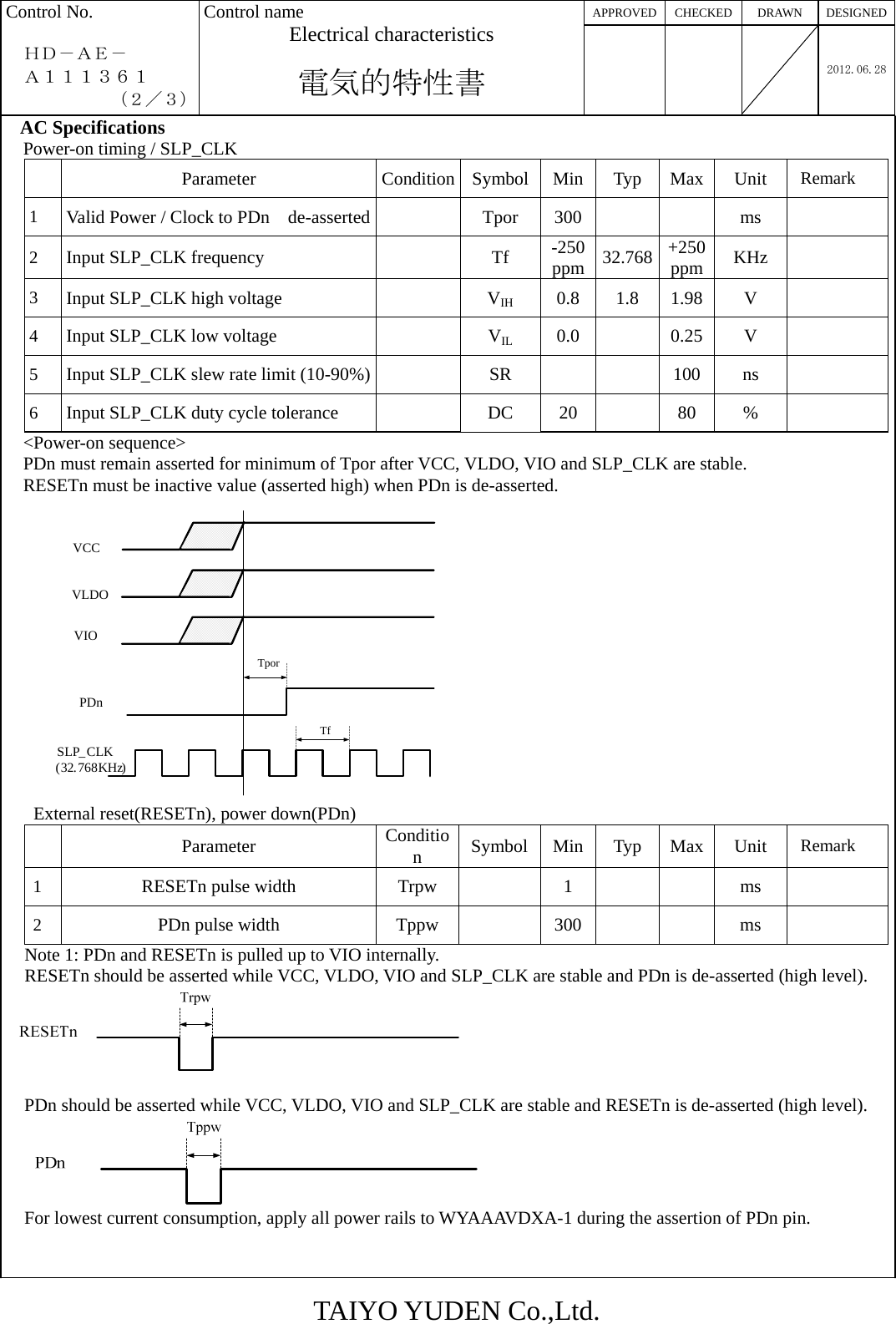

TAIYO YUDEN Co.,Ltd. APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－Ａ１１１３６１（２／３） Control name Electrical characteristics 電気的特性書 2012.06.28 AC Specifications Power-on timing / SLP_CLK Parameter Condition Symbol Min Typ Max Unit Remark 1 Valid Power / Clock to PDn de-asserted Tpor 300 ms 2 Input SLP_CLK frequency Tf -250ppm 32.768 +250 ppm KHz 3 Input SLP_CLK high voltage VIH 0.8 1.8 1.98 V 4 Input SLP_CLK low voltage VIL 0.0 0.25 V 5 Input SLP_CLK slew rate limit (10-90%) SR 100 ns 6 Input SLP_CLK duty cycle tolerance DC 20 80 % <Power-on sequence> PDn must remain asserted for minimum of Tpor after VCC, VLDO, VIO and SLP_CLK are stable. RESETn must be inactive value (asserted high) when PDn is de-asserted. External reset(RESETn), power down(PDn) Parameter Condition Symbol Min Typ Max Unit Remark 1 RESETn pulse width Trpw 1 ms 2 PDn pulse width Tppw 300 ms Note 1: PDn and RESETn is pulled up to VIO internally. RESETn should be asserted while VCC, VLDO, VIO and SLP_CLK are stable and PDn is de-asserted (high level). PDn should be asserted while VCC, VLDO, VIO and SLP_CLK are stable and RESETn is de-asserted (high level). For lowest current consumption, apply all power rails to WYAAAVDXA-1 during the assertion of PDn pin. TporPDnVLDOSLP_CLK(32.768KHz)TfVIOVCC

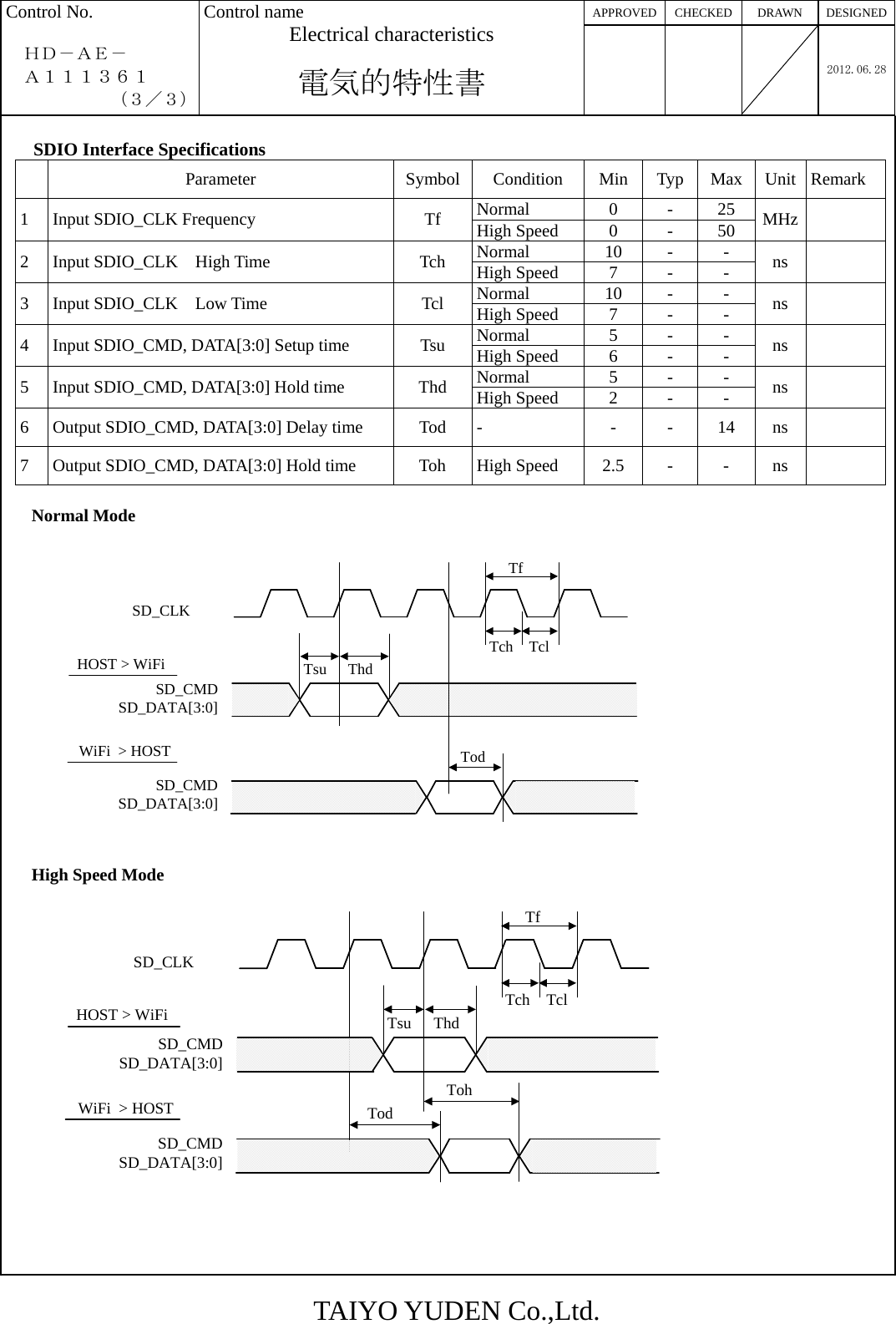

TAIYO YUDEN Co.,Ltd. APPROVED CHECKED DRAWN DESIGNEDControl No. ＨＤ－ＡＥ－Ａ１１１３６１（３／３） Control name Electrical characteristics 電気的特性書 2012.06.28 SDIO Interface Specifications Parameter Symbol Condition Min Typ Max Unit Remark Normal 0 - 25 1 Input SDIO_CLK Frequency Tf High Speed 0 - 50 MHz Normal 10 - - 2 Input SDIO_CLK High Time Tch High Speed 7 - - ns Normal 10 - - 3 Input SDIO_CLK Low Time Tcl High Speed 7 - - ns Normal 5 - - 4 Input SDIO_CMD, DATA[3:0] Setup time Tsu High Speed 6 - - ns Normal 5 - - 5 Input SDIO_CMD, DATA[3:0] Hold time Thd High Speed 2 - - ns 6 Output SDIO_CMD, DATA[3:0] Delay time Tod - - - 14 ns 7 Output SDIO_CMD, DATA[3:0] Hold time Toh High Speed 2.5 - - ns Normal Mode High Speed Mode SD_CLKSD_CMDSD_DATA[3:0]HOST > WiFiWiFi > HOSTTfTch TclTsu ThdTodSD_CMDSD_DATA[3:0]SD_CLKSD_CMDSD_DATA[3:0]HOST > WiFiWiFi > HOSTTfTch TclTsu ThdTodSD_CMDSD_DATA[3:0]Toh

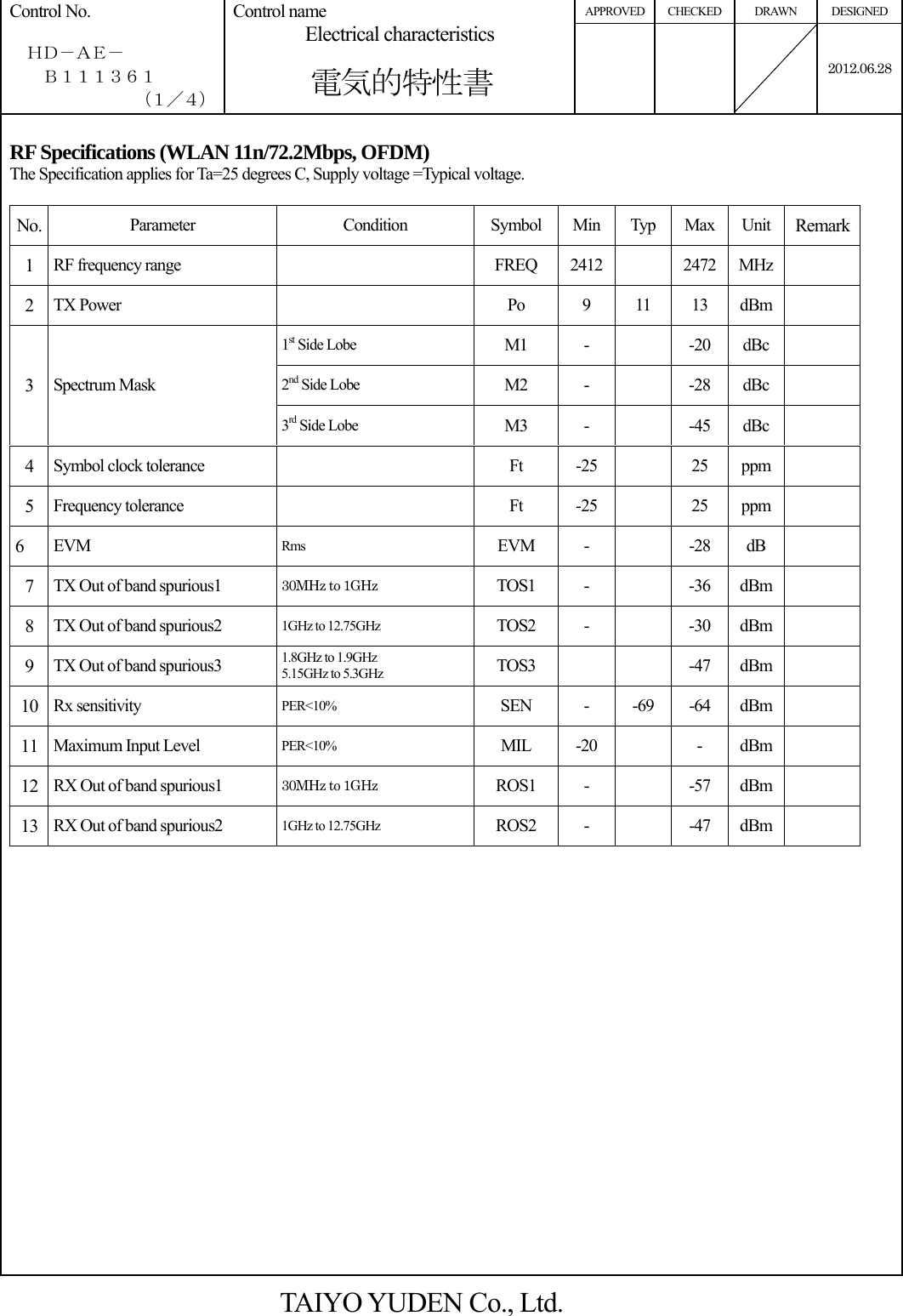

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＥ－Ｂ１１１３６１（１／４） Control name Electrical characteristics 電気的特性書 2012.06.28 RF Specifications (WLAN 11n/72.2Mbps, OFDM) The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage. No. Parameter Condition Symbol Min Typ Max Unit Remark1 RF frequency range FREQ 2412 2472 MHz 2 TX Power Po 9 11 13 dBm 1st Side Lobe M1 - -20 dBc 2nd Side Lobe M2 - -28 dBc 3 Spectrum Mask 3rd Side Lobe M3 - -45 dBc 4 Symbol clock tolerance Ft -25 25 ppm 5 Frequency tolerance Ft -25 25 ppm 6 EVM Rms EVM - -28 dB 7 TX Out of band spurious1 30MHz to 1GHz TOS1 - -36 dBm 8 TX Out of band spurious2 1GHz to 12.75GHz TOS2 - -30 dBm 9 TX Out of band spurious3 1.8GHz to 1.9GHz 5.15GHz to 5.3GHz TOS3 -47 dBm 10 Rx sensitivity PER<10% SEN - -69 -64 dBm 11 Maximum Input Level PER<10% MIL -20 - dBm 12 RX Out of band spurious1 30MHz to 1GHz ROS1 - -57 dBm 13 RX Out of band spurious2 1GHz to 12.75GHz ROS2 - -47 dBm TAIYO YUDEN Co., Ltd.

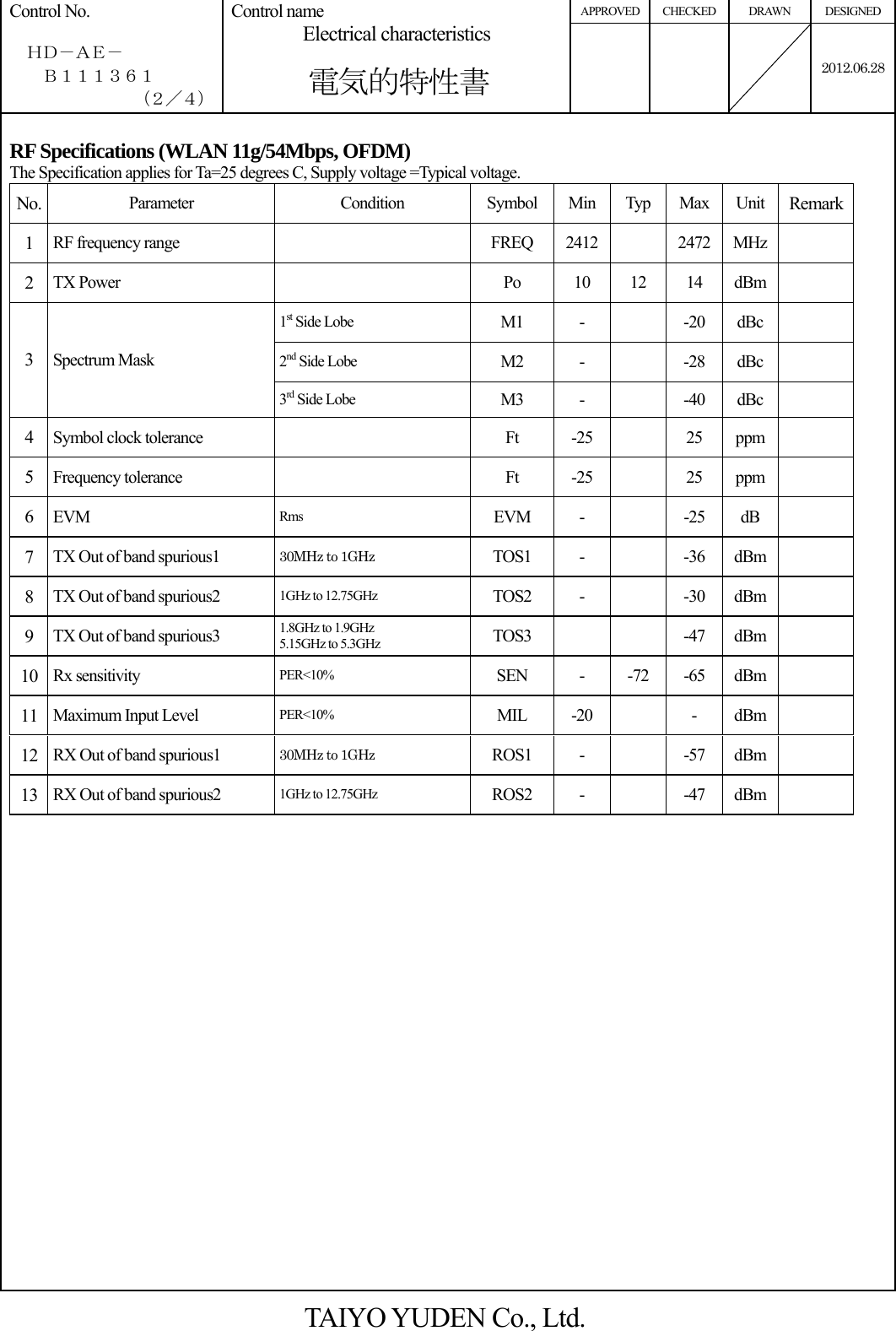

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＥ－Ｂ１１１３６１（２／４） Control name Electrical characteristics 電気的特性書 2012.06.28 RF Specifications (WLAN 11g/54Mbps, OFDM) The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage. No. Parameter Condition Symbol Min Typ Max Unit Remark1 RF frequency range FREQ 2412 2472 MHz 2 TX Power Po 10 12 14 dBm 1st Side Lobe M1 - -20 dBc 2nd Side Lobe M2 - -28 dBc 3 Spectrum Mask 3rd Side Lobe M3 - -40 dBc 4 Symbol clock tolerance Ft -25 25 ppm 5 Frequency tolerance Ft -25 25 ppm 6 EVM Rms EVM - -25 dB 7 TX Out of band spurious1 30MHz to 1GHz TOS1 - -36 dBm 8 TX Out of band spurious2 1GHz to 12.75GHz TOS2 - -30 dBm 9 TX Out of band spurious3 1.8GHz to 1.9GHz 5.15GHz to 5.3GHz TOS3 -47 dBm 10 Rx sensitivity PER<10% SEN - -72 -65 dBm 11 Maximum Input Level PER<10% MIL -20 - dBm 12 RX Out of band spurious1 30MHz to 1GHz ROS1 - -57 dBm 13 RX Out of band spurious2 1GHz to 12.75GHz ROS2 - -47 dBm TAIYO YUDEN Co., Ltd.

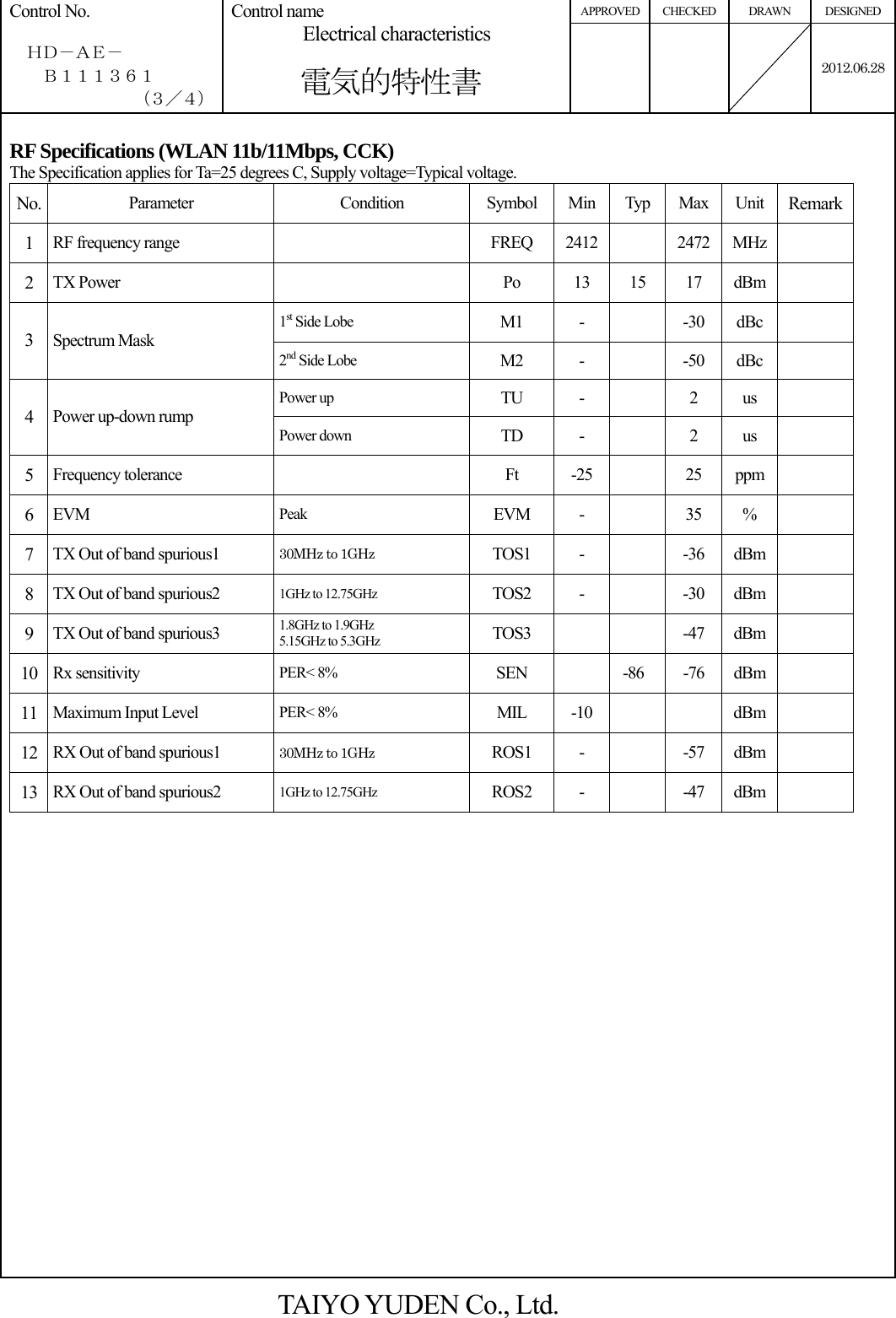

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＥ－Ｂ１１１３６１（３／４） Control name Electrical characteristics 電気的特性書 2012.06.28 RF Specifications (WLAN 11b/11Mbps, CCK) The Specification applies for Ta=25 degrees C, Supply voltage=Typical voltage. No. Parameter Condition Symbol Min Typ Max Unit Remark1 RF frequency range FREQ 2412 2472 MHz 2 TX Power Po 13 15 17 dBm 1st Side Lobe M1 - -30 dBc 3 Spectrum Mask 2nd Side Lobe M2 - -50 dBc Power up TU - 2 us 4 Power up-down rump Power down TD - 2 us 5 Frequency tolerance Ft -25 25 ppm 6 EVM Peak EVM - 35 % 7 TX Out of band spurious1 30MHz to 1GHz TOS1 - -36 dBm 8 TX Out of band spurious2 1GHz to 12.75GHz TOS2 - -30 dBm 9 TX Out of band spurious3 1.8GHz to 1.9GHz 5.15GHz to 5.3GHz TOS3 -47 dBm 10 Rx sensitivity PER< 8% SEN -86 -76 dBm 11 Maximum Input Level PER< 8% MIL -10 dBm 12 RX Out of band spurious1 30MHz to 1GHz ROS1 - -57 dBm 13 RX Out of band spurious2 1GHz to 12.75GHz ROS2 - -47 dBm TAIYO YUDEN Co., Ltd.

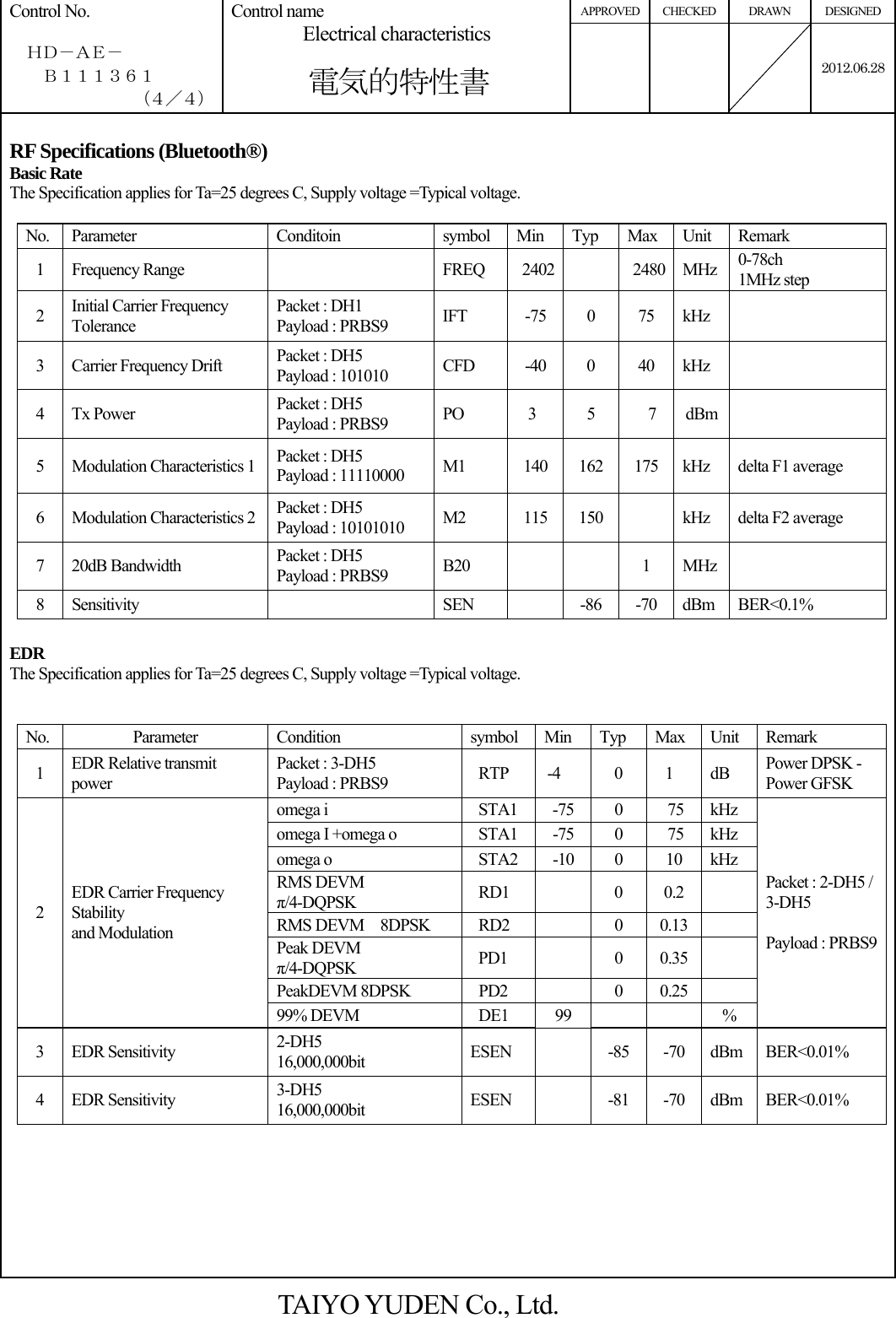

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＡＥ－Ｂ１１１３６１（４／４） Control name Electrical characteristics 電気的特性書 2012.06.28 RF Specifications (Bluetooth®) Basic Rate The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage. No. Parameter Conditoin symbol Min Typ Max Unit Remark 1 Frequency Range FREQ 2402 2480 MHz 0-78ch 1MHz step 2 Initial Carrier Frequency Tolerance Packet : DH1 Payload : PRBS9 IFT -75 0 75 kHz 3 Carrier Frequency Drift Packet : DH5 Payload : 101010 CFD -40 0 40 kHz 4 Tx Power Packet : DH5 Payload : PRBS9 PO 3 5 7 dBm 5 Modulation Characteristics 1 Packet : DH5 Payload : 11110000 M1 140 162 175 kHz delta F1 average 6 Modulation Characteristics 2 Packet : DH5 Payload : 10101010 M2 115 150 kHz delta F2 average 7 20dB Bandwidth Packet : DH5 Payload : PRBS9 B20 1 MHz 8 Sensitivity SEN -86 -70 dBm BER<0.1% EDR The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage. No. Parameter Condition symbol Min Typ Max Unit Remark 1 EDR Relative transmit power Packet : 3-DH5 Payload : PRBS9 RTP -4 0 1 dB Power DPSK - Power GFSK omega i STA1 -75 0 75 kHz omega I +omega o STA1 -75 0 75 kHz omega o STA2 -10 0 10 kHz RMS DEVM π/4-DQPSK RD1 0 0.2 RMS DEVM 8DPSK RD2 0 0.13 Peak DEVM π/4-DQPSK PD1 0 0.35 PeakDEVM 8DPSK PD2 0 0.25 2 EDR Carrier Frequency Stability and Modulation 99% DEVM DE1 99 % Packet : 2-DH5 / 3-DH5 Payload : PRBS93 EDR Sensitivity 2-DH5 16,000,000bit ESEN -85 -70 dBm BER<0.01% 4 EDR Sensitivity 3-DH5 16,000,000bit ESEN -81 -70 dBm BER<0.01% TAIYO YUDEN Co., Ltd.

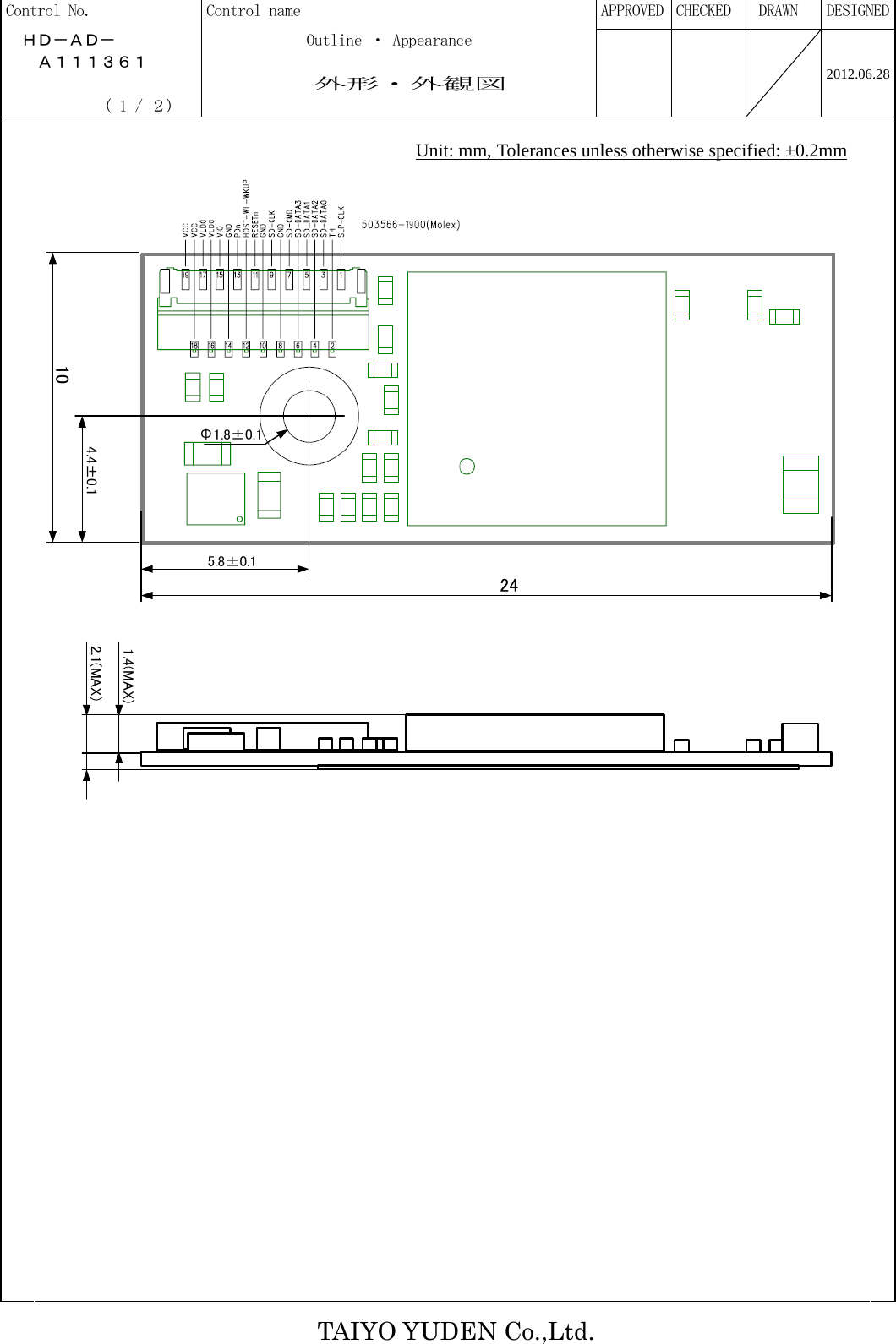

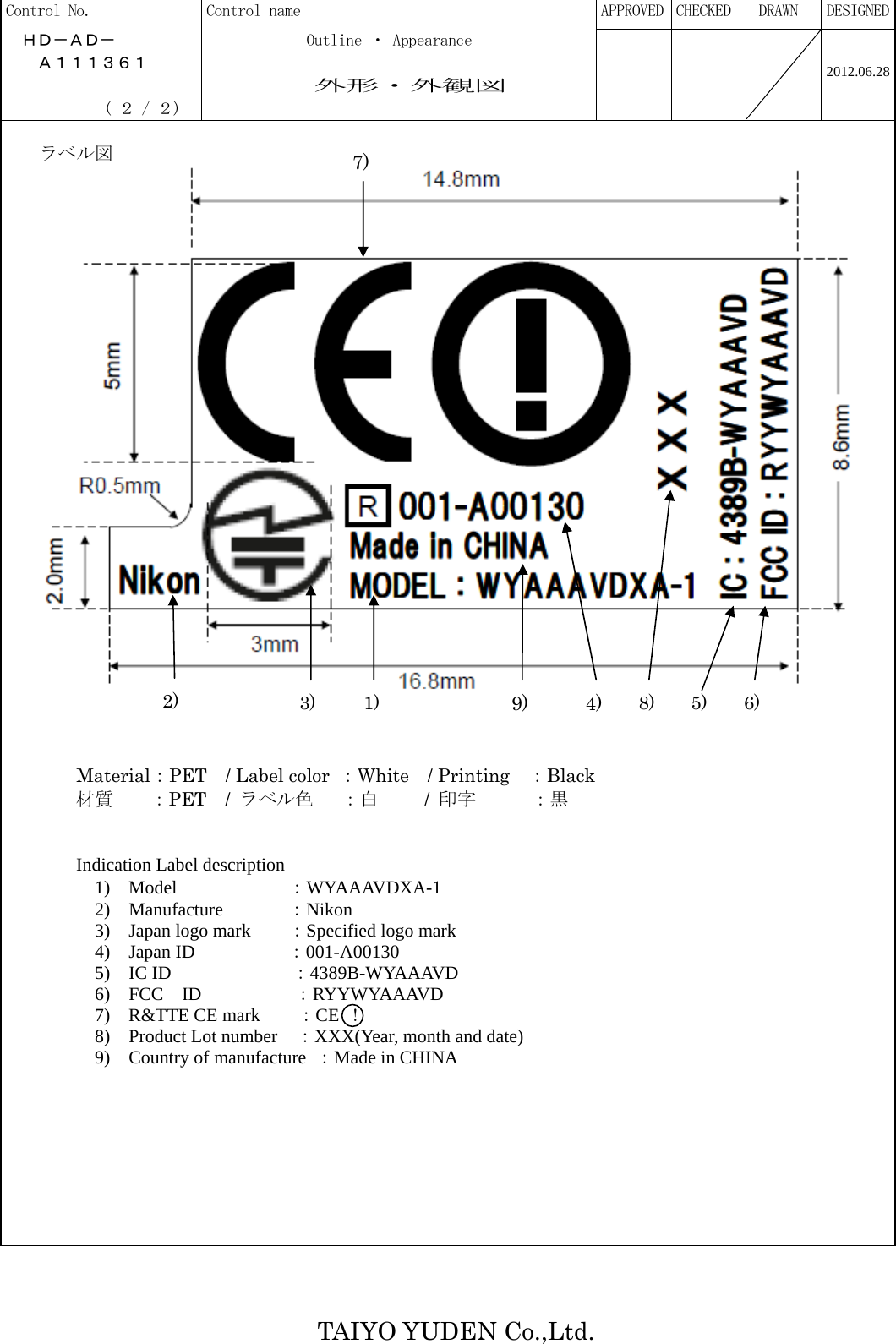

TAIYO YUDEN Co.,Ltd. Control No. Control name APPROVED CHECKED DRAWN DESIGNED ＨＤ－ＡＤ－ Outline ・ Appearance Ａ１１１３６１外形・外観図 ( 1 / ２) 2012.06.28 Unit: mm, Tolerances unless otherwise specified: ±0.2mm 1024Φ1.8±0.15.8±0.14.4±0.11.4(MAX)2.1(MAX)

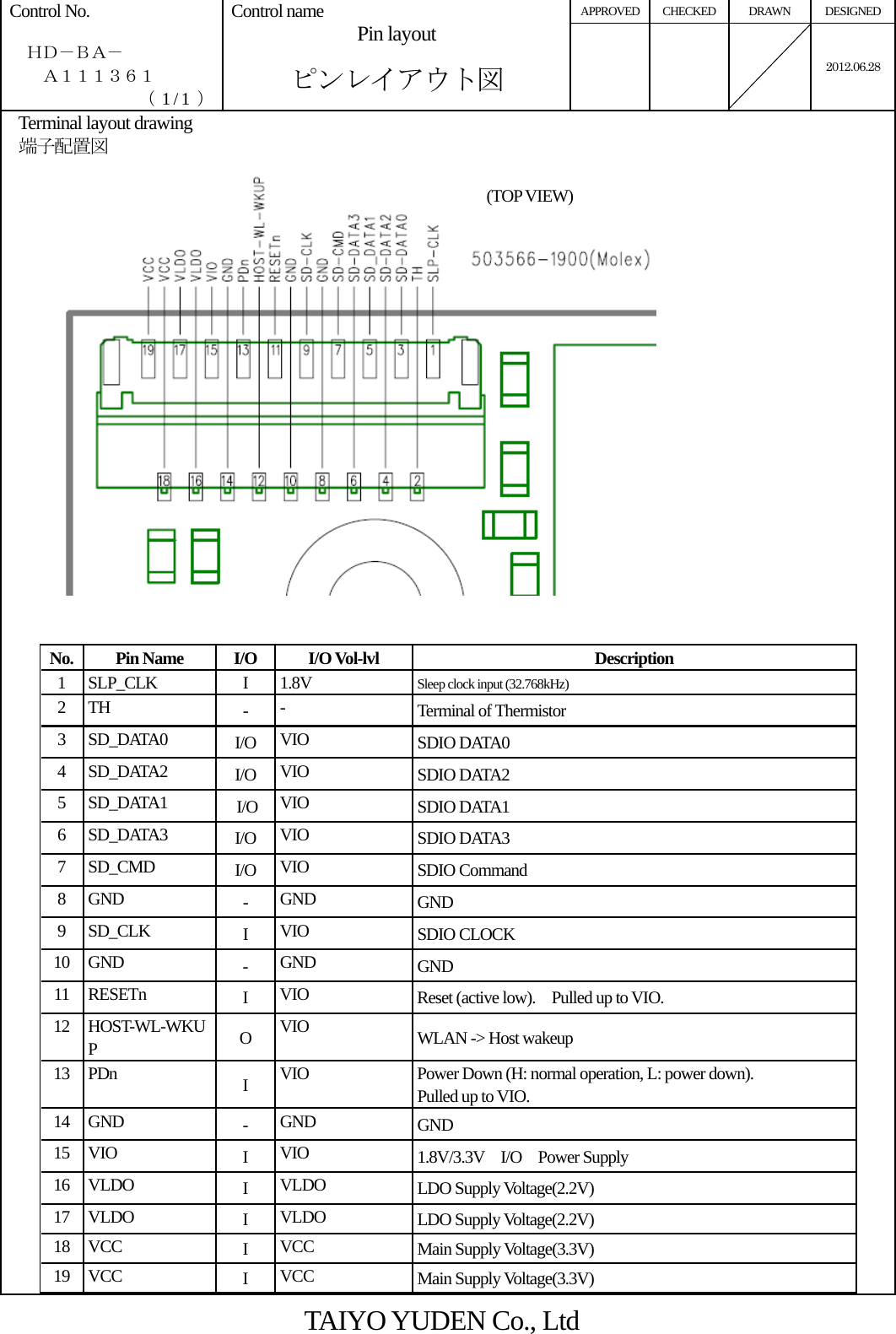

APPROVED CHECKED DRAWN DESIGNED Control No. ＨＤ－ＢＡ－Ａ１１１３６１（ 1 / 1 ） Control name Pin layout ピンレイアウト図 2012.06.28 Terminal layout drawing 端子配置図 No. Pin Name I/O I/O Vol-lvl Description 1 SLP_CLK I 1.8V Sleep clock input (32.768kHz) 2 TH - - Terminal of Thermistor 3 SD_DATA0 I/O VIO SDIO DATA0 4 SD_DATA2 I/O VIO SDIO DATA2 5 SD_DATA1 I/O VIO SDIO DATA1 6 SD_DATA3 I/O VIO SDIO DATA3 7 SD_CMD I/O VIO SDIO Command 8 GND - GND GND 9 SD_CLK I VIO SDIO CLOCK 10 GND - GND GND 11 RESETn I VIO Reset (active low). Pulled up to VIO. 12 HOST-WL-WKUP O VIO WLAN -> Host wakeup 13 PDn I VIO Power Down (H: normal operation, L: power down). Pulled up to VIO. 14 GND - GND GND 15 VIO I VIO 1.8V/3.3V I/O Power Supply 16 VLDO I VLDO LDO Supply Voltage(2.2V) 17 VLDO I VLDO LDO Supply Voltage(2.2V) 18 VCC I VCC Main Supply Voltage(3.3V) 19 VCC I VCC Main Supply Voltage(3.3V) TAIYO YUDEN Co., Ltd (TOP VIEW)

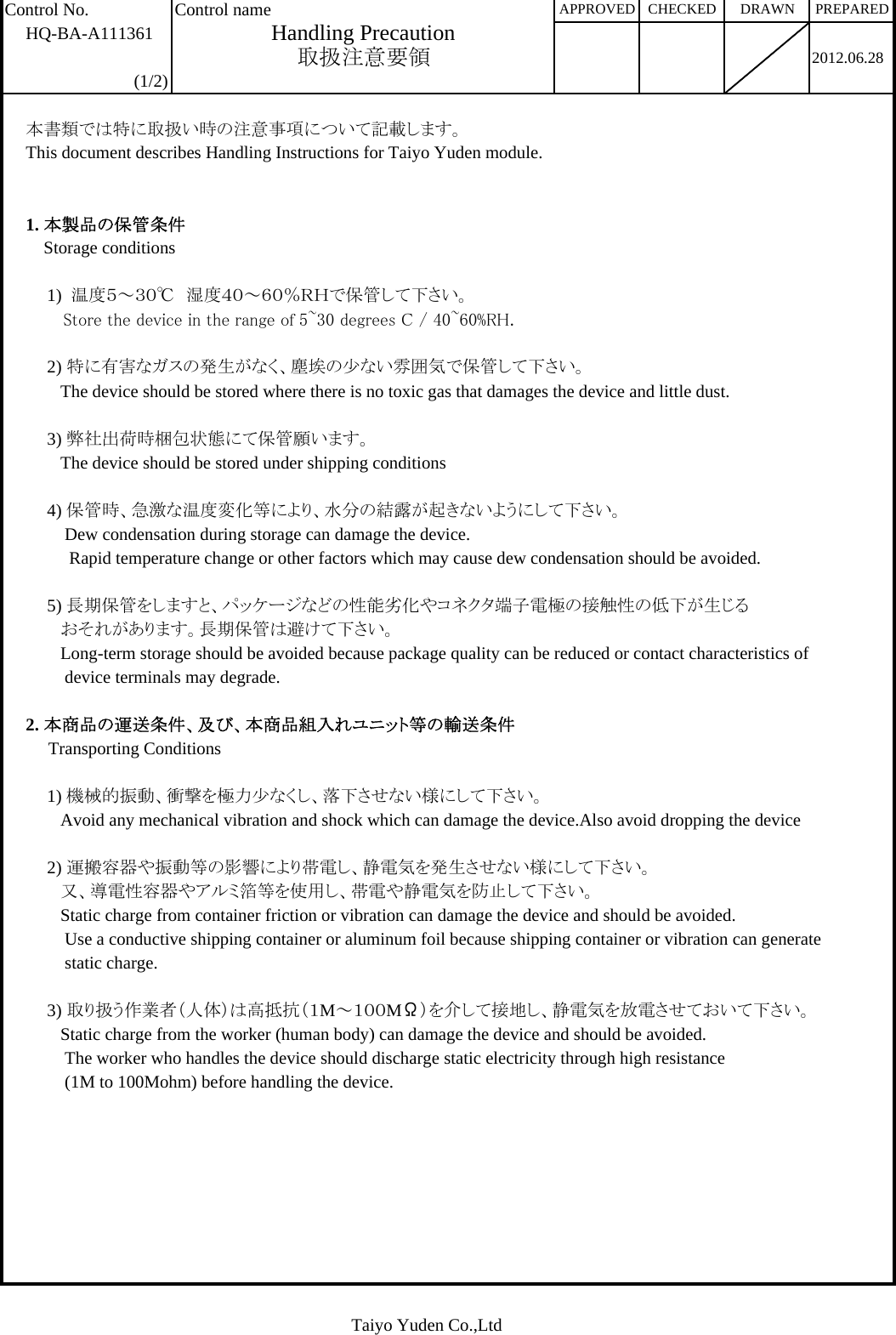

Control No. Control nameHQ-BA-A1113612012.06.28(1/2)本書類では特に取扱い時の注意事項について記載します。This document describes Handling Instructions for Taiyo Yuden module.1. 本製品の保管条件 Storage conditions1) 温度５～３０℃　湿度４０～６０％ＲＨで保管して下さい。 Store the device in the range of 5~30 degrees C / 40~60%RH.2) 特に有害なガスの発生がなく、塵埃の少ない雰囲気で保管して下さい。 The device should be stored where there is no toxic gas that damages the device and little dust.3) 弊社出荷時梱包状態にて保管願います。 The device should be stored under shipping conditions4) 保管時、急激な温度変化等により、水分の結露が起きないようにして下さい。 Dew condensation during storage can damage the device. Rapid temperature change or other factors which may cause dew condensation should be avoided.5) 長期保管をしますと、パッケージなどの性能劣化やコネクタ端子電極の接触性の低下が生じるおそれがあります。長期保管は避けて下さい。 Long-term storage should be avoided because package quality can be reduced or contact characteristics of device terminals may degrade.2. 本商品の運送条件、及び、本商品組入れユニット等の輸送条件 Transporting Conditions1) 機械的振動、衝撃を極力少なくし、落下させない様にして下さい。 Avoid any mechanical vibration and shock which can damage the device.Also avoid dropping the device2) 運搬容器や振動等の影響により帯電し、静電気を発生させない様にして下さい。又、導電性容器やアルミ箔等を使用し、帯電や静電気を防止して下さい。 Static charge from container friction or vibration can damage the device and should be avoided. Use a conductive shipping container or aluminum foil because shipping container or vibration can generate static charge.3) 取り扱う作業者（人体）は高抵抗（１M～１００MΩ）を介して接地し、静電気を放電させておいて下さい。 Static charge from the worker (human body) can damage the device and should be avoided. The worker who handles the device should discharge static electricity through high resistance (1M to 100Mohm) before handling the device.PREPAREDHandling PrecautionAPPROVED CHECKED DRAWN取扱注意要領Taiyo Yuden Co.,Ltd

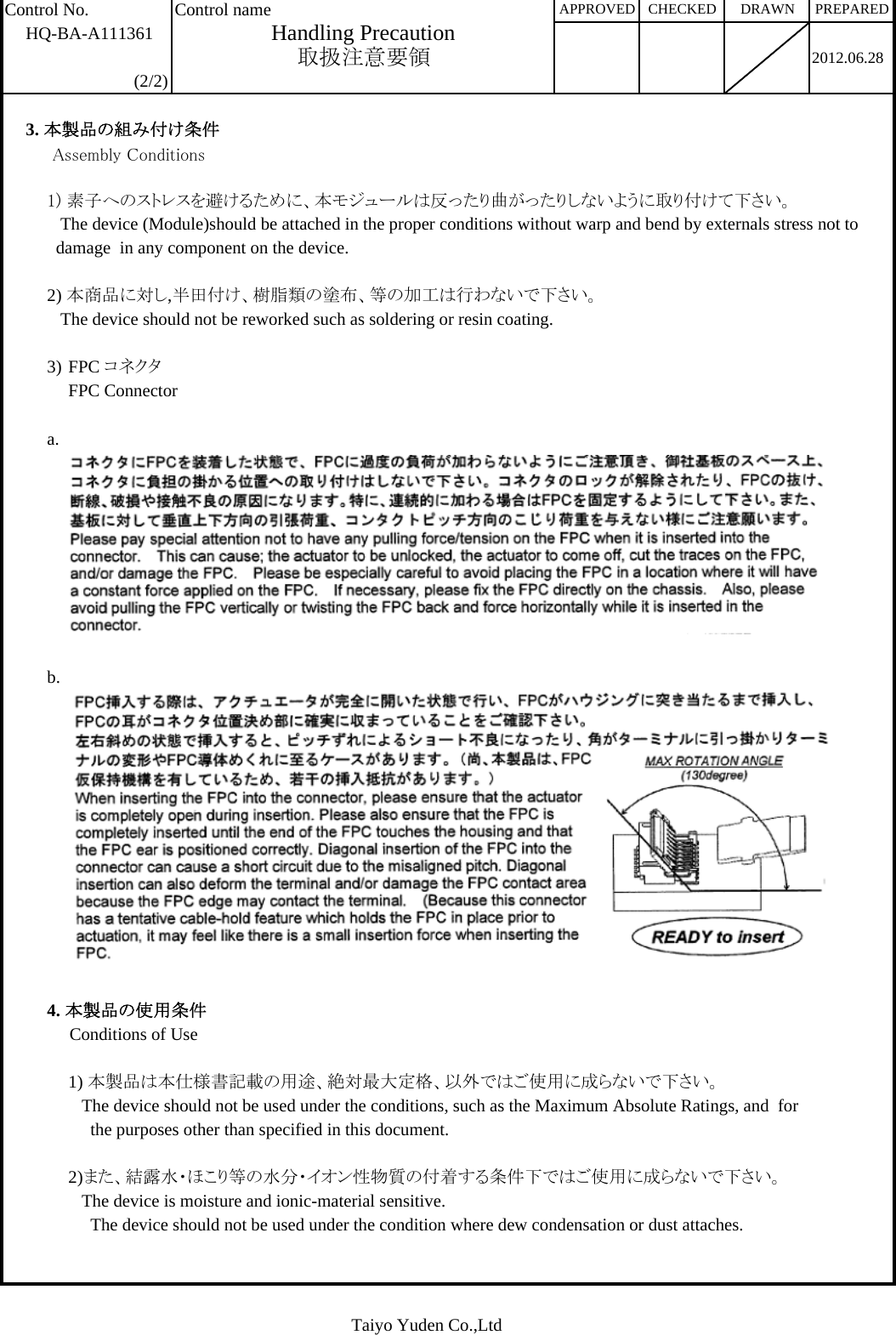

Control No. Control nameHQ-BA-A1113612012.06.28(2/2)3. 本製品の組み付け条件 Assembly Conditions1) 素子へのストレスを避けるために、本モジュールは反ったり曲がったりしないように取り付けて下さい。 The device (Module)should be attached in the proper conditions without warp and bend by externals stress not to damage in any component on the device.2) 本商品に対し,半田付け、樹脂類の塗布、等の加工は行わないで下さい。 The device should not be reworked such as soldering or resin coating.3) FPC コネクタFPC Connectora.b.4. 本製品の使用条件 Conditions of Use1) 本製品は本仕様書記載の用途、絶対最大定格、以外ではご使用に成らないで下さい。 The device should not be used under the conditions, such as the Maximum Absolute Ratings, and for the purposes other than specified in this document.2)また、結露水・ほこり等の水分・イオン性物質の付着する条件下ではご使用に成らないで下さい。 The device is moisture and ionic-material sensitive. The device should not be used under the condition where dew condensation or dust attaches. DRAWN PREPAREDHandling PrecautionAPPROVED取扱注意要領CHECKEDTaiyo Yuden Co.,Ltd
