TAIYO YUDEN WYSAAVDX7 Wireless LAN Module User Manual WYSAAVDX7 110506

Taiyo Yuden Co., Ltd. Wireless LAN Module WYSAAVDX7 110506

Users Manual

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  1/20 WYSAAVDX7          Wireless LAN Module  WYSAAVDX7 (IEEE802.11b/g/n)  User Manual                         In case you adopt this module and design some appliance, pleaseask for the latest specifications from the local sales office. We wish the customer to request the Specification Report when thedesign for the mass production begins because the content of thisData Report might change without a previous notice to the customer.

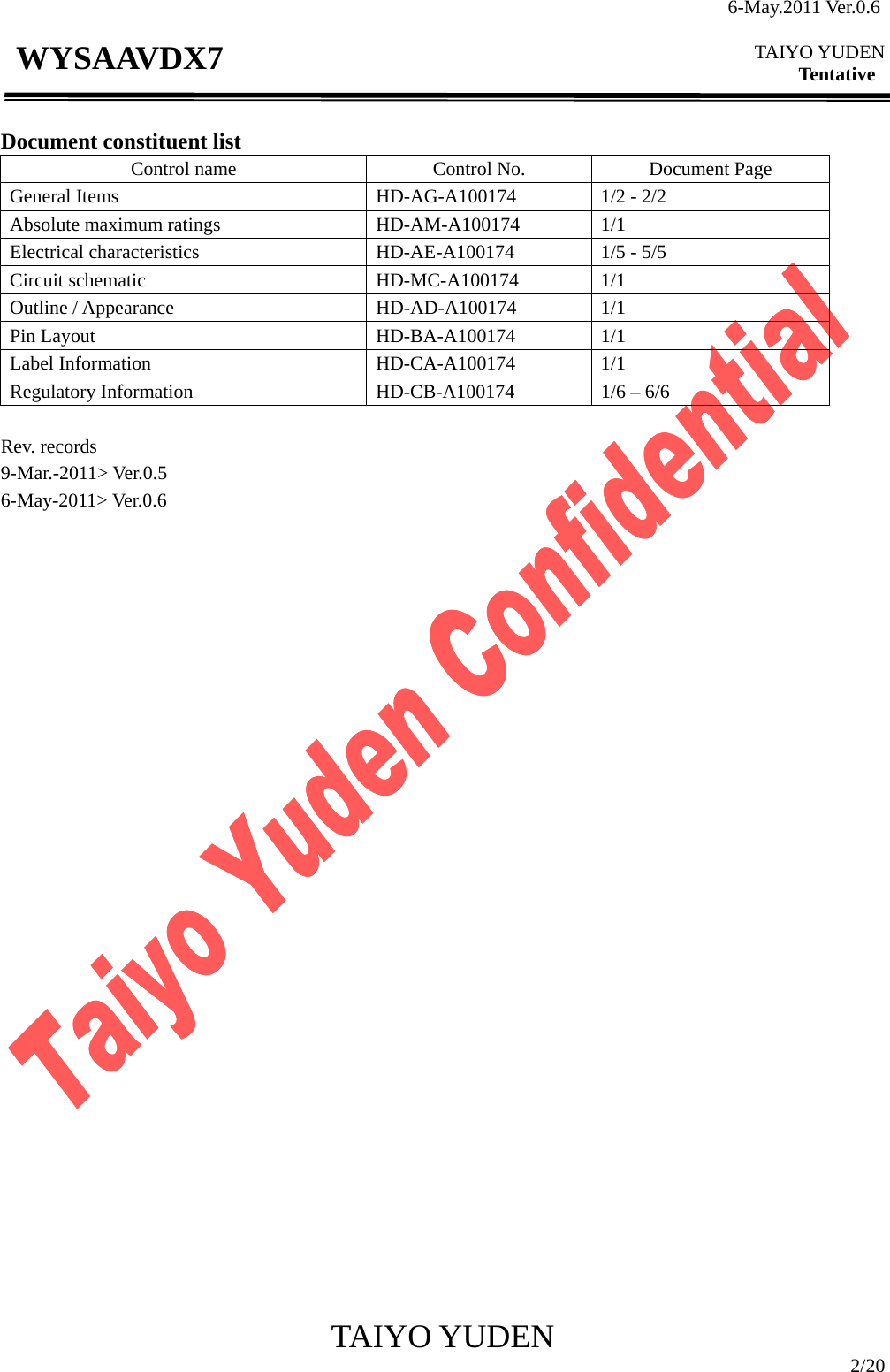

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  2/20 WYSAAVDX7  Document constituent list Control name  Control No.  Document Page General Items  HD-AG-A100174  1/2 - 2/2 Absolute maximum ratings  HD-AM-A100174  1/1 Electrical characteristics  HD-AE-A100174  1/5 - 5/5 Circuit schematic  HD-MC-A100174  1/1 Outline / Appearance  HD-AD-A100174  1/1 Pin Layout  HD-BA-A100174  1/1 Label Information  HD-CA-A100174  1/1 Regulatory Information  HD-CB-A100174  1/6 – 6/6  Rev. records 9-Mar.-2011> Ver.0.5   6-May-2011> Ver.0.6

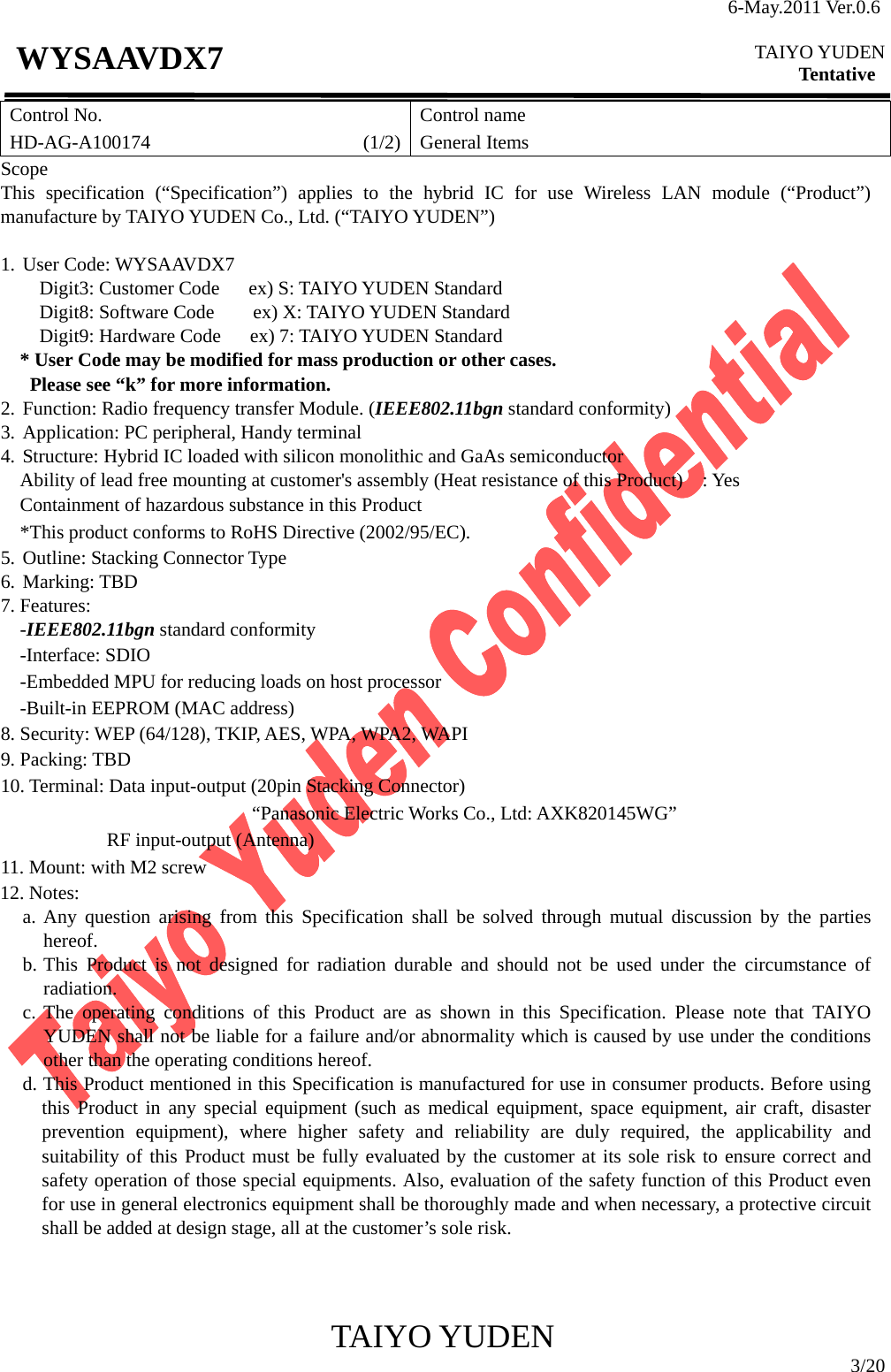

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  3/20 WYSAAVDX7 Control No. HD-AG-A100174                      (1/2)Control name General Items Scope This specification (“Specification”) applies to the hybrid IC for use Wireless LAN module (“Product”) manufacture by TAIYO YUDEN Co., Ltd. (“TAIYO YUDEN”)  1. User Code: WYSAAVDX7     Digit3: Customer Code   ex) S: TAIYO YUDEN Standard     Digit8: Software Code    ex) X: TAIYO YUDEN Standard     Digit9: Hardware Code   ex) 7: TAIYO YUDEN Standard * User Code may be modified for mass production or other cases.   Please see “k” for more information. 2. Function: Radio frequency transfer Module. (IEEE802.11bgn standard conformity) 3. Application: PC peripheral, Handy terminal 4. Structure: Hybrid IC loaded with silicon monolithic and GaAs semiconductor     Ability of lead free mounting at customer's assembly (Heat resistance of this Product)    : Yes Containment of hazardous substance in this Product *This product conforms to RoHS Directive (2002/95/EC). 5. Outline: Stacking Connector Type 6. Marking: TBD 7. Features: -IEEE802.11bgn standard conformity -Interface: SDIO -Embedded MPU for reducing loads on host processor -Built-in EEPROM (MAC address) 8. Security: WEP (64/128), TKIP, AES, WPA, WPA2, WAPI 9. Packing: TBD 10. Terminal: Data input-output (20pin Stacking Connector) “Panasonic Electric Works Co., Ltd: AXK820145WG”            RF input-output (Antenna) 11. Mount: with M2 screw 12. Notes: a. Any question arising from this Specification shall be solved through mutual discussion by the parties    hereof. b. This Product is not designed for radiation durable and should not be used under the circumstance of radiation. c. The operating conditions of this Product are as shown in this Specification. Please note that TAIYO YUDEN shall not be liable for a failure and/or abnormality which is caused by use under the conditions other than the operating conditions hereof. d. This Product mentioned in this Specification is manufactured for use in consumer products. Before using this Product in any special equipment (such as medical equipment, space equipment, air craft, disaster prevention equipment), where higher safety and reliability are duly required, the applicability and suitability of this Product must be fully evaluated by the customer at its sole risk to ensure correct and safety operation of those special equipments. Also, evaluation of the safety function of this Product even for use in general electronics equipment shall be thoroughly made and when necessary, a protective circuit shall be added at design stage, all at the customer’s sole risk.

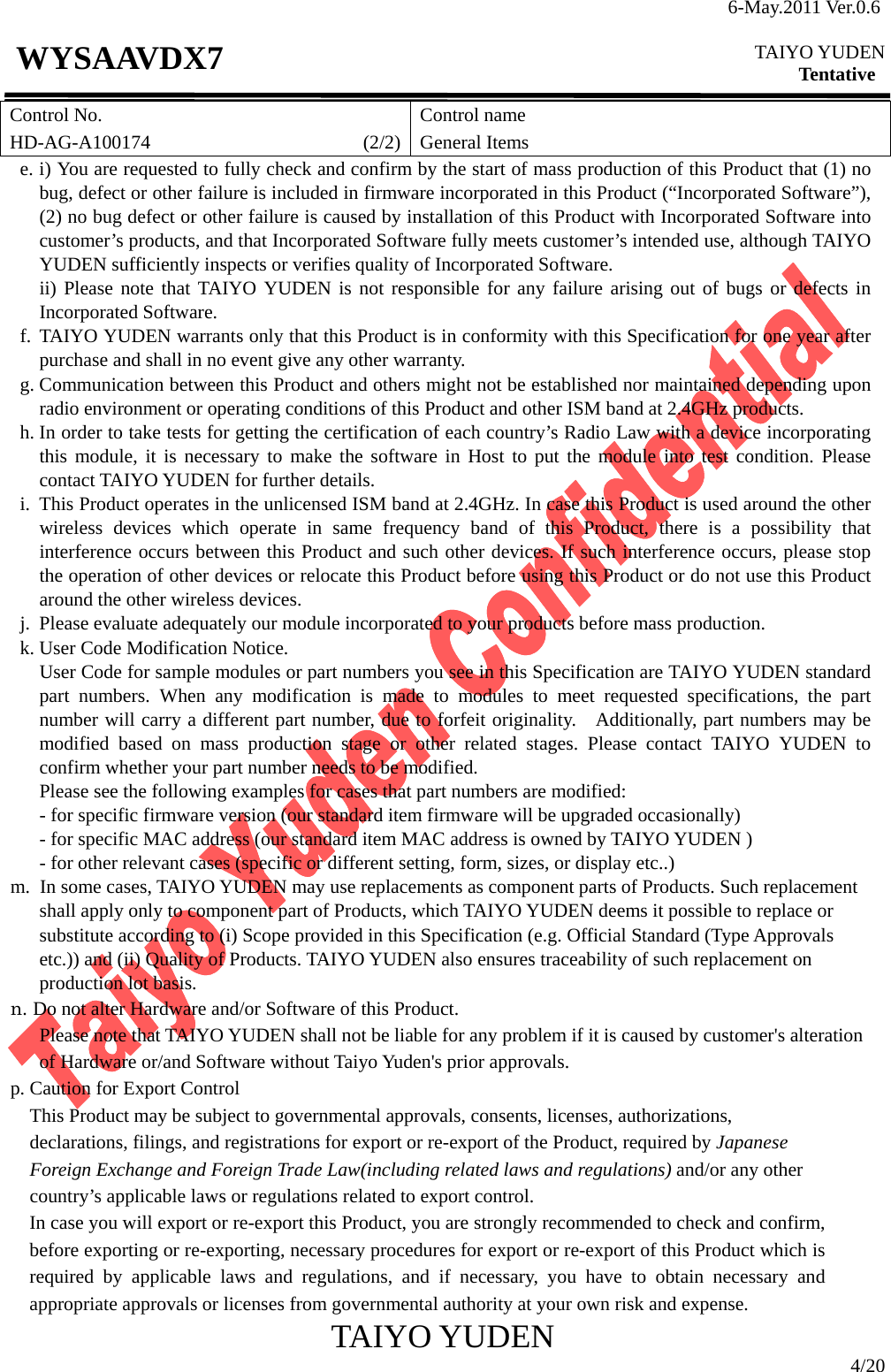

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  4/20 WYSAAVDX7 Control No. HD-AG-A100174                      (2/2)Control name General Items e. i) You are requested to fully check and confirm by the start of mass production of this Product that (1) no bug, defect or other failure is included in firmware incorporated in this Product (“Incorporated Software”), (2) no bug defect or other failure is caused by installation of this Product with Incorporated Software into customer’s products, and that Incorporated Software fully meets customer’s intended use, although TAIYO YUDEN sufficiently inspects or verifies quality of Incorporated Software. ii) Please note that TAIYO YUDEN is not responsible for any failure arising out of bugs or defects in Incorporated Software. f. TAIYO YUDEN warrants only that this Product is in conformity with this Specification for one year after purchase and shall in no event give any other warranty. g. Communication between this Product and others might not be established nor maintained depending upon radio environment or operating conditions of this Product and other ISM band at 2.4GHz products. h. In order to take tests for getting the certification of each country’s Radio Law with a device incorporating this module, it is necessary to make the software in Host to put the module into test condition. Please contact TAIYO YUDEN for further details. i.  This Product operates in the unlicensed ISM band at 2.4GHz. In case this Product is used around the other wireless devices which operate in same frequency band of this Product, there is a possibility that interference occurs between this Product and such other devices. If such interference occurs, please stop the operation of other devices or relocate this Product before using this Product or do not use this Product around the other wireless devices. j.  Please evaluate adequately our module incorporated to your products before mass production. k. User Code Modification Notice. User Code for sample modules or part numbers you see in this Specification are TAIYO YUDEN standard part numbers. When any modification is made to modules to meet requested specifications, the part number will carry a different part number, due to forfeit originality.   Additionally, part numbers may be modified based on mass production stage or other related stages. Please contact TAIYO YUDEN to confirm whether your part number needs to be modified. Please see the following examples for cases that part numbers are modified:         - for specific firmware version (our standard item firmware will be upgraded occasionally)         - for specific MAC address (our standard item MAC address is owned by TAIYO YUDEN )     - for other relevant cases (specific or different setting, form, sizes, or display etc..) m. In some cases, TAIYO YUDEN may use replacements as component parts of Products. Such replacement shall apply only to component part of Products, which TAIYO YUDEN deems it possible to replace or substitute according to (i) Scope provided in this Specification (e.g. Official Standard (Type Approvals etc.)) and (ii) Quality of Products. TAIYO YUDEN also ensures traceability of such replacement on production lot basis. n. Do not alter Hardware and/or Software of this Product.         Please note that TAIYO YUDEN shall not be liable for any problem if it is caused by customer's alteration of Hardware or/and Software without Taiyo Yuden's prior approvals. p. Caution for Export Control This Product may be subject to governmental approvals, consents, licenses, authorizations, declarations, filings, and registrations for export or re-export of the Product, required by Japanese Foreign Exchange and Foreign Trade Law(including related laws and regulations) and/or any other country’s applicable laws or regulations related to export control.   In case you will export or re-export this Product, you are strongly recommended to check and confirm, before exporting or re-exporting, necessary procedures for export or re-export of this Product which is required by applicable laws and regulations, and if necessary, you have to obtain necessary and appropriate approvals or licenses from governmental authority at your own risk and expense.

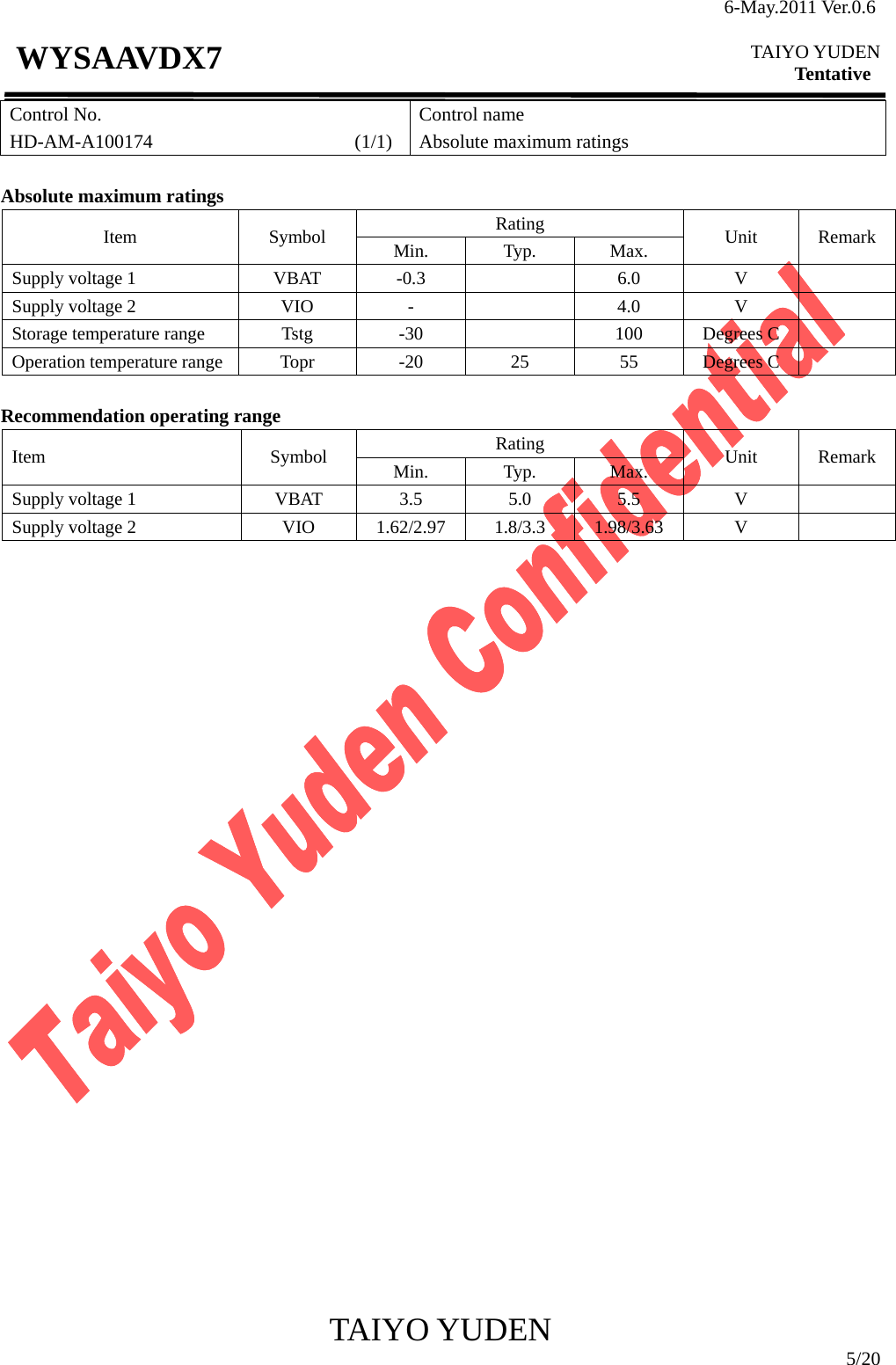

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  5/20 WYSAAVDX7 Control No. HD-AM-A100174                     (1/1) Control name Absolute maximum ratings  Absolute maximum ratings Rating Item Symbol Min. Typ. Max. Unit Remark Supply voltage 1  VBAT  -0.3    6.0  V   Supply voltage 2  VIO  -    4.0  V   Storage temperature range  Tstg  -30    100  Degrees C   Operation temperature range  Topr  -20  25  55  Degrees C    Recommendation operating range Rating Item Symbol Min. Typ. Max. Unit Remark Supply voltage 1  VBAT  3.5  5.0  5.5  V   Supply voltage 2  VIO  1.62/2.97 1.8/3.3 1.98/3.63  V

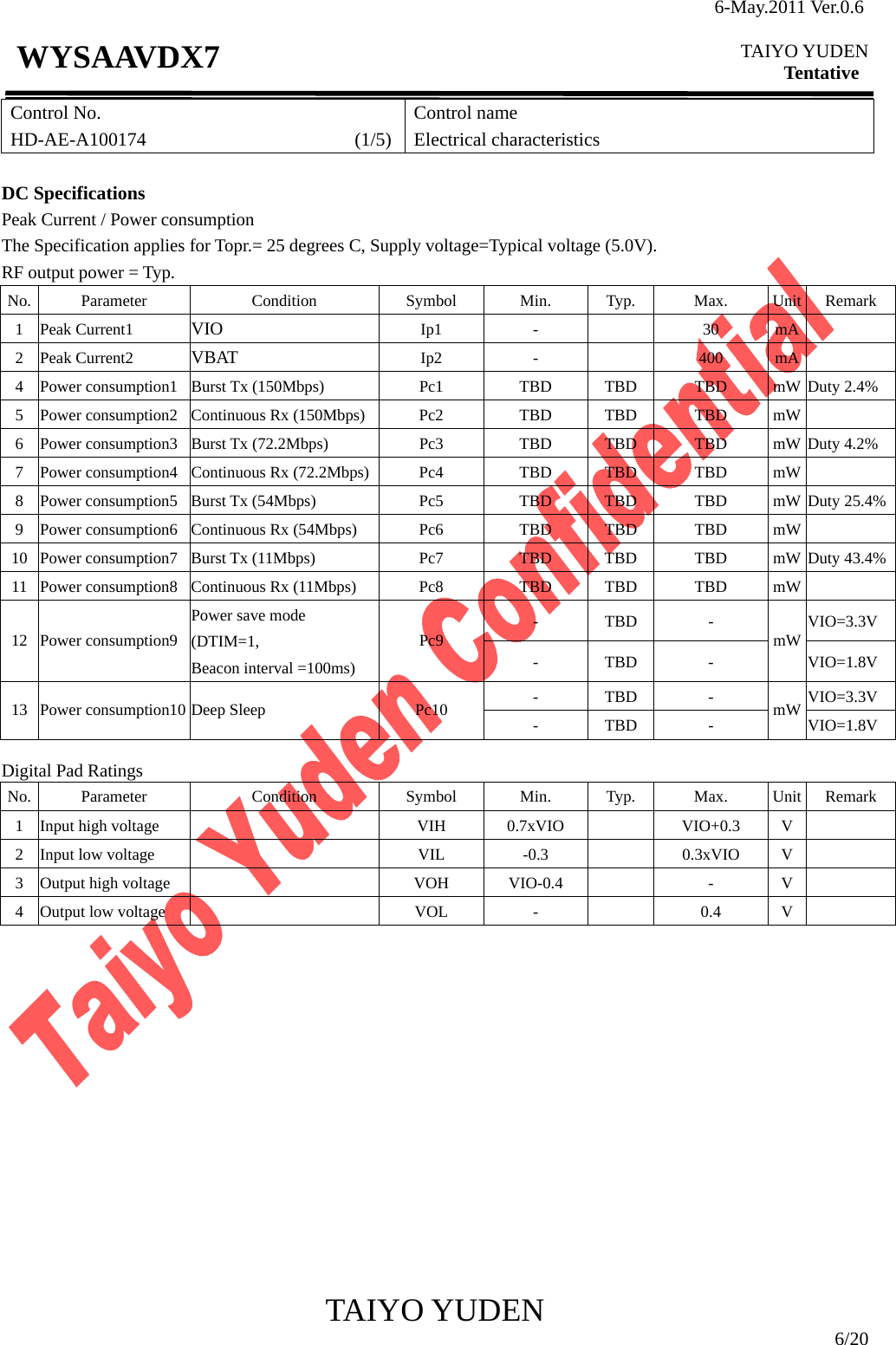

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  6/20 WYSAAVDX7 Control No. HD-AE-A100174                      (1/5)Control name Electrical characteristics  DC Specifications Peak Current / Power consumption The Specification applies for Topr.= 25 degrees C, Supply voltage=Typical voltage (5.0V). RF output power = Typ. No. Parameter  Condition  Symbol  Min. Typ.  Max. Unit Remark 1 Peak Current1  VIO  Ip1 -  30 mA  2 Peak Current2  VBAT  Ip2 -  400 mA  4  Power consumption1  Burst Tx (150Mbps) Pc1 TBD TBD TBD mW Duty 2.4% 5  Power consumption2  Continuous Rx (150Mbps) Pc2  TBD  TBD  TBD  mW  6  Power consumption3  Burst Tx (72.2Mbps) Pc3 TBD TBD TBD mW Duty 4.2% 7  Power consumption4  Continuous Rx (72.2Mbps) Pc4  TBD  TBD  TBD  mW  8  Power consumption5  Burst Tx (54Mbps)  Pc5  TBD  TBD  TBD  mW Duty 25.4%9  Power consumption6  Continuous Rx (54Mbps)  Pc6  TBD  TBD  TBD  mW  10  Power consumption7  Burst Tx (11Mbps)  Pc7  TBD  TBD  TBD  mW Duty 43.4%11  Power consumption8  Continuous Rx (11Mbps)  Pc8  TBD  TBD  TBD  mW  - TBD  -  VIO=3.3V 12 Power consumption9 Power save mode (DTIM=1, Beacon interval =100ms) Pc9 - TBD  - mWVIO=1.8V - TBD  -  VIO=3.3V 13  Power consumption10 Deep Sleep  Pc10  - TBD  - mW VIO=1.8V  Digital Pad Ratings No. Parameter  Condition  Symbol  Min. Typ.  Max. Unit Remark 1  Input high voltage   VIH 0.7xVIO  VIO+0.3 V  2  Input low voltage   VIL -0.3  0.3xVIO V  3  Output high voltage   VOH VIO-0.4   -  V  4  Output low voltage   VOL  -        0.4  V

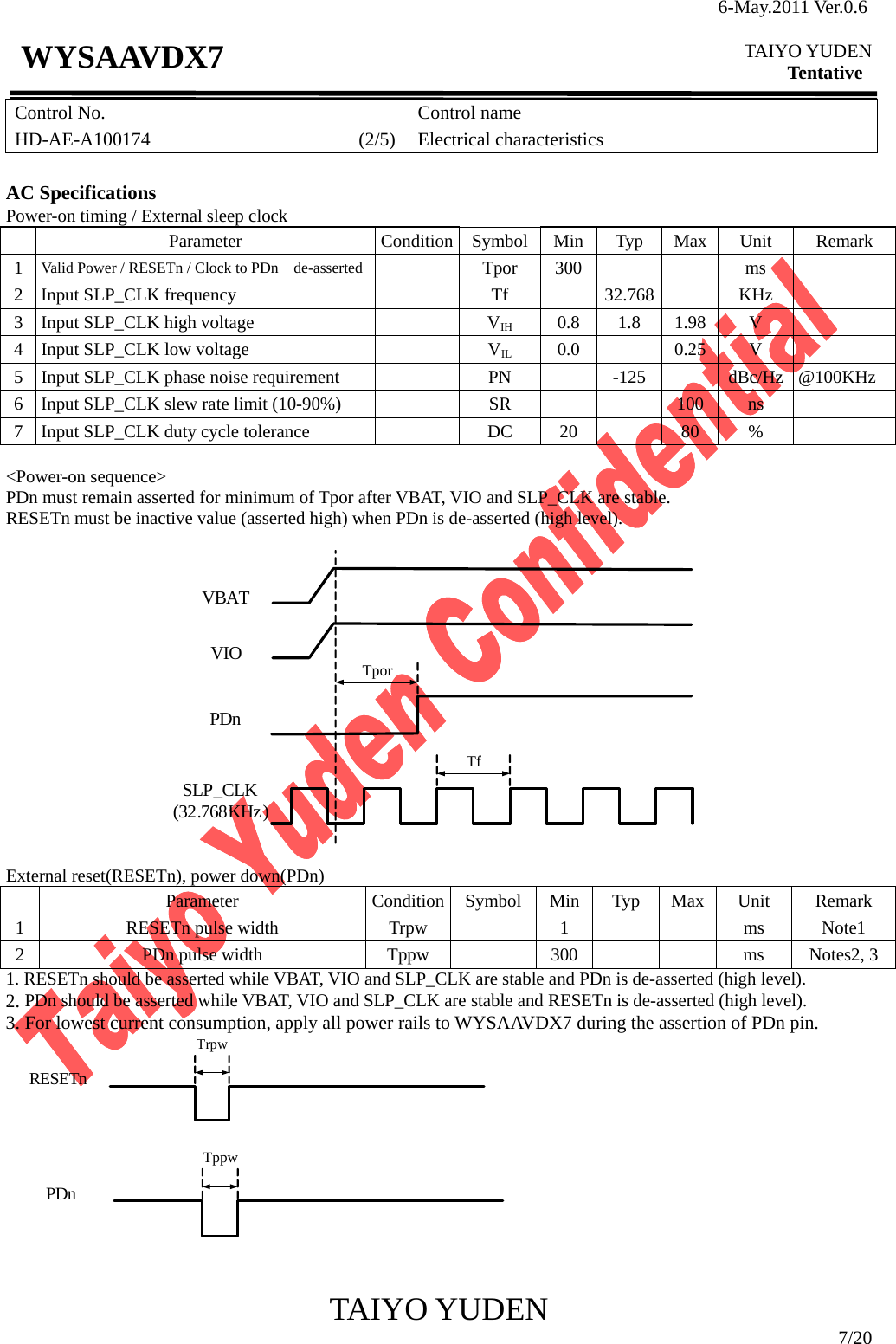

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  7/20 WYSAAVDX7 Control No. HD-AE-A100174                      (2/5)Control name Electrical characteristics  AC Specifications Power-on timing / External sleep clock Parameter Condition Symbol Min Typ Max Unit Remark 1  Valid Power / RESETn / Clock to PDn    de-asserted  Tpor 300    ms  2  Input SLP_CLK frequency    Tf    32.768    KHz   3  Input SLP_CLK high voltage    VIH 0.8 1.8 1.98 V  4  Input SLP_CLK low voltage    VIL 0.0   0.25 V  5  Input SLP_CLK phase noise requirement    PN    -125    dBc/Hz @100KHz 6  Input SLP_CLK slew rate limit (10-90%)    SR      100  ns   7  Input SLP_CLK duty cycle tolerance    DC  20    80  %    <Power-on sequence> PDn must remain asserted for minimum of Tpor after VBAT, VIO and SLP_CLK are stable. RESETn must be inactive value (asserted high) when PDn is de-asserted (high level).  TporPDnVBATSLP_CLK(32.768KHz)TfVIO  External reset(RESETn), power down(PDn) Parameter Condition Symbol Min Typ Max Unit Remark 1  RESETn pulse width  Trpw    1      ms  Note1 2  PDn pulse width  Tppw    300     ms  Notes2, 3 1. RESETn should be asserted while VBAT, VIO and SLP_CLK are stable and PDn is de-asserted (high level).  2. PDn should be asserted while VBAT, VIO and SLP_CLK are stable and RESETn is de-asserted (high level). 3. For lowest current consumption, apply all power rails to WYSAAVDX7 during the assertion of PDn pin. TrpwRESETn  TppwPDn

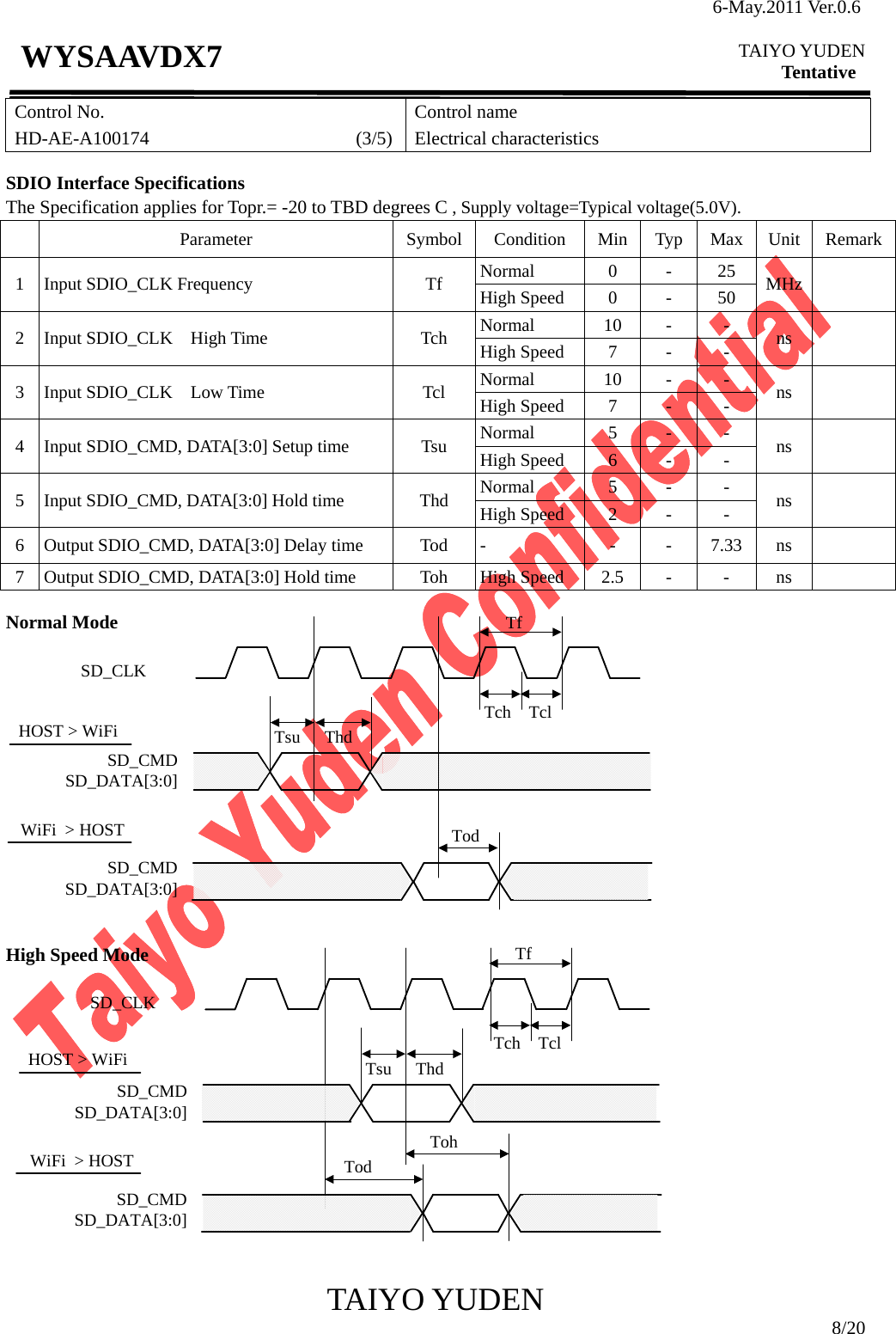

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  8/20 WYSAAVDX7 Control No. HD-AE-A100174                      (3/5)Control name Electrical characteristics  SDIO Interface Specifications The Specification applies for Topr.= -20 to TBD degrees C , Supply voltage=Typical voltage(5.0V). Parameter Symbol Condition Min Typ Max Unit RemarkNormal 0 - 25 1  Input SDIO_CLK Frequency  Tf  High Speed  0  -  50  MHz  Normal 10 - - 2 Input SDIO_CLK  High Time  Tch  High Speed  7  -  -  ns  Normal 10 - - 3  Input SDIO_CLK  Low Time  Tcl  High Speed  7  -  -  ns  Normal 5 - - 4  Input SDIO_CMD, DATA[3:0] Setup time  Tsu  High Speed  6  -  -  ns  Normal 5 - - 5  Input SDIO_CMD, DATA[3:0] Hold time  Thd  High Speed  2  -  -  ns  6  Output SDIO_CMD, DATA[3:0] Delay time    Tod  -  -  -  7.33  ns   7  Output SDIO_CMD, DATA[3:0] Hold time  Toh  High Speed  2.5  -  -  ns    Normal Mode                High Speed Mode                SD_CLKSD_CMDSD_DATA[3:0]HOST > WiFiWiFi  > HOSTTfTch TclTsu ThdTodSD_CMDSD_DATA[3:0]SD_CLKSD_CMDSD_DATA[3:0]HOST > WiFiWiFi  > HOSTTfTch TclTsu ThdTodSD_CMDSD_DATA[3:0]Toh

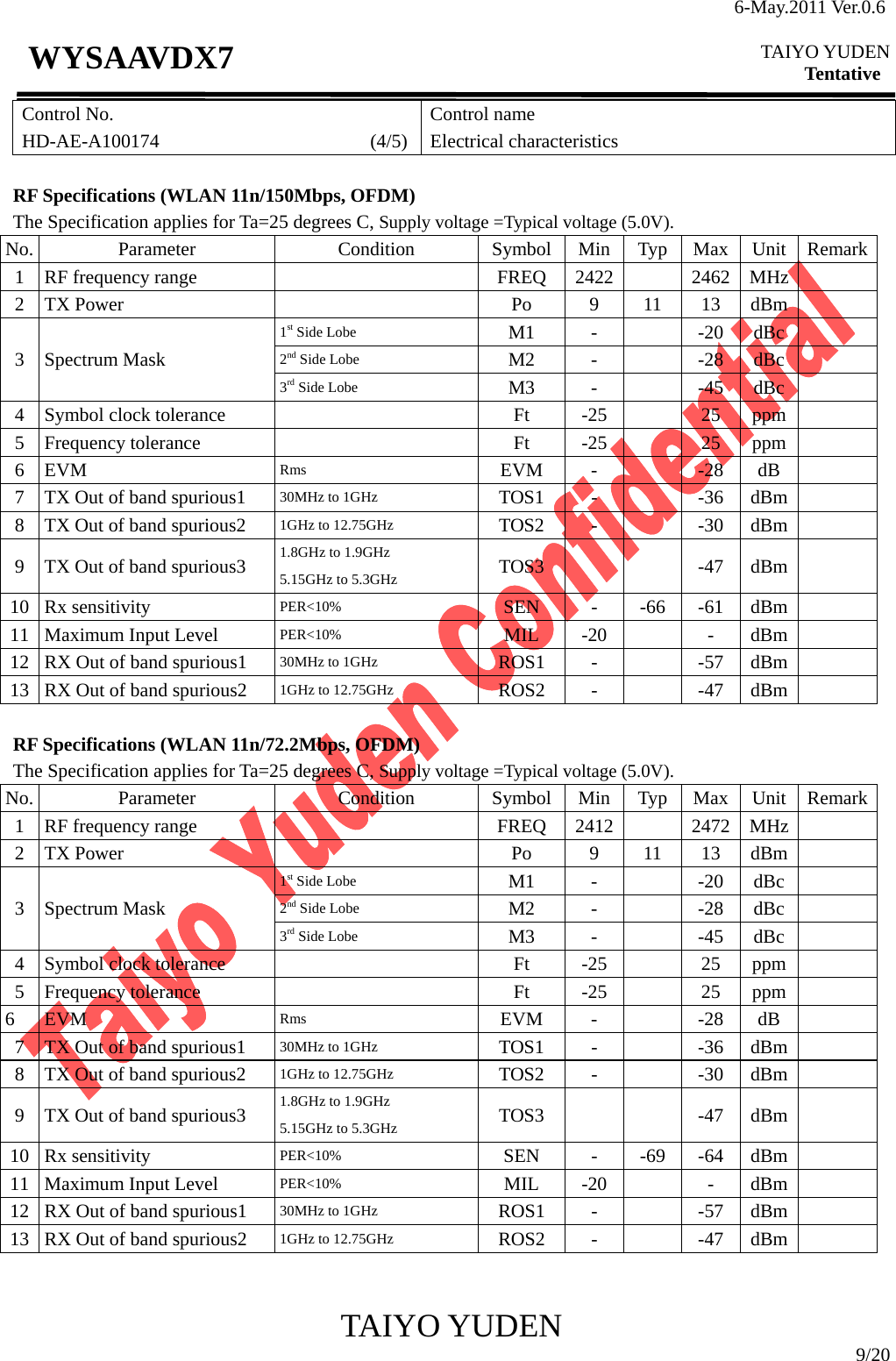

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  9/20 WYSAAVDX7 Control No. HD-AE-A100174                      (4/5)Control name Electrical characteristics  RF Specifications (WLAN 11n/150Mbps, OFDM) The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage (5.0V). No. Parameter  Condition Symbol Min Typ Max Unit Remark1 RF frequency range    FREQ  2422   2462 MHz  2 TX Power   Po 9 11 13 dBm  1st Side Lobe  M1 -  -20 dBc  2nd Side Lobe  M2 -  -28 dBc  3 Spectrum Mask 3rd Side Lobe  M3 -  -45 dBc  4 Symbol clock tolerance   Ft -25  25 ppm  5 Frequency tolerance   Ft -25  25 ppm  6 EVM  Rms  EVM -   -28 dB  7  TX Out of band spurious1  30MHz to 1GHz  TOS1 -   -36 dBm  8  TX Out of band spurious2  1GHz to 12.75GHz  TOS2 -   -30 dBm  9  TX Out of band spurious3  1.8GHz to 1.9GHz 5.15GHz to 5.3GHz  TOS3    -47 dBm  10 Rx sensitivity  PER<10%  SEN - -66 -61 dBm  11  Maximum Input Level  PER<10%  MIL -20   - dBm  12  RX Out of band spurious1  30MHz to 1GHz  ROS1 -   -57 dBm  13  RX Out of band spurious2  1GHz to 12.75GHz  ROS2 -   -47 dBm   RF Specifications (WLAN 11n/72.2Mbps, OFDM) The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage (5.0V). No. Parameter  Condition Symbol Min Typ Max Unit Remark1 RF frequency range    FREQ  2412   2472 MHz  2 TX Power   Po 9 11 13 dBm  1st Side Lobe  M1 -  -20 dBc  2nd Side Lobe  M2 -  -28 dBc  3 Spectrum Mask 3rd Side Lobe  M3 -  -45 dBc  4 Symbol clock tolerance   Ft -25  25 ppm  5 Frequency tolerance   Ft -25  25 ppm  6 EVM  Rms  EVM -   -28 dB  7  TX Out of band spurious1  30MHz to 1GHz  TOS1 -   -36 dBm  8  TX Out of band spurious2  1GHz to 12.75GHz  TOS2 -   -30 dBm  9  TX Out of band spurious3  1.8GHz to 1.9GHz 5.15GHz to 5.3GHz  TOS3    -47 dBm  10 Rx sensitivity  PER<10%  SEN - -69 -64 dBm  11  Maximum Input Level  PER<10%  MIL -20   - dBm  12  RX Out of band spurious1  30MHz to 1GHz  ROS1 -   -57 dBm  13  RX Out of band spurious2  1GHz to 12.75GHz  ROS2 -   -47 dBm

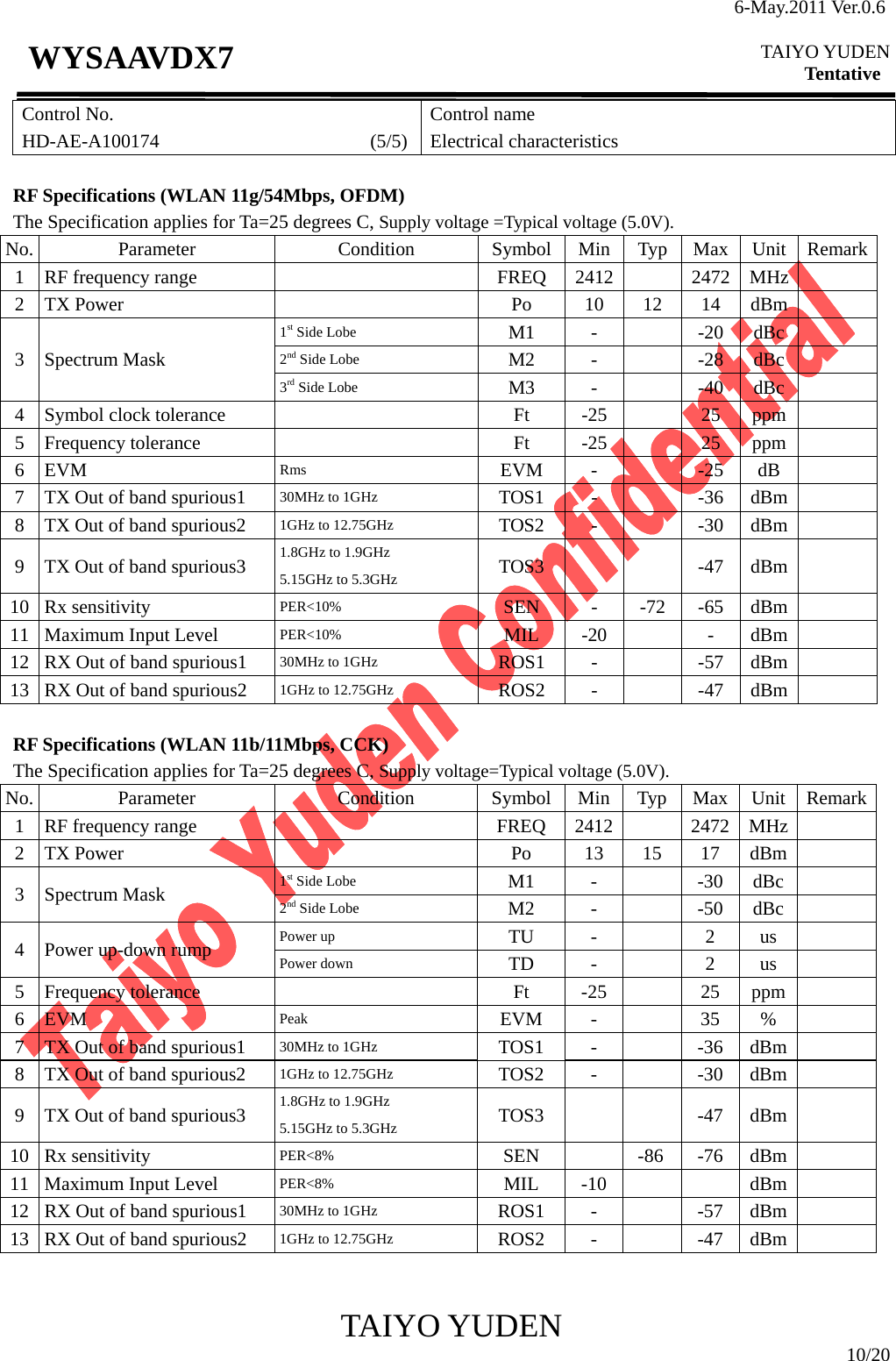

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  10/20 WYSAAVDX7 Control No. HD-AE-A100174                      (5/5)Control name Electrical characteristics  RF Specifications (WLAN 11g/54Mbps, OFDM) The Specification applies for Ta=25 degrees C, Supply voltage =Typical voltage (5.0V). No. Parameter  Condition Symbol Min Typ Max Unit Remark1 RF frequency range    FREQ  2412   2472 MHz  2 TX Power   Po 10 12 14 dBm  1st Side Lobe  M1 -  -20 dBc  2nd Side Lobe  M2 -  -28 dBc  3 Spectrum Mask 3rd Side Lobe  M3 -  -40 dBc  4 Symbol clock tolerance   Ft -25  25 ppm  5 Frequency tolerance   Ft -25  25 ppm  6 EVM  Rms  EVM -   -25 dB  7  TX Out of band spurious1  30MHz to 1GHz  TOS1 -   -36 dBm  8  TX Out of band spurious2  1GHz to 12.75GHz  TOS2 -   -30 dBm  9  TX Out of band spurious3  1.8GHz to 1.9GHz 5.15GHz to 5.3GHz  TOS3    -47 dBm  10 Rx sensitivity  PER<10%  SEN - -72 -65 dBm  11  Maximum Input Level  PER<10%  MIL -20   - dBm  12  RX Out of band spurious1  30MHz to 1GHz  ROS1 -   -57 dBm  13  RX Out of band spurious2  1GHz to 12.75GHz  ROS2 -   -47 dBm   RF Specifications (WLAN 11b/11Mbps, CCK) The Specification applies for Ta=25 degrees C, Supply voltage=Typical voltage (5.0V). No. Parameter  Condition Symbol Min Typ Max Unit Remark1 RF frequency range   FREQ 2412   2472 MHz  2 TX Power   Po 13 15 17 dBm  1st Side Lobe  M1 -  -30 dBc  3 Spectrum Mask  2nd Side Lobe  M2 -  -50 dBc  Power up  TU -  2 us  4  Power up-down rump  Power down  TD -  2 us  5 Frequency tolerance   Ft -25  25 ppm  6 EVM  Peak  EVM -   35 %  7  TX Out of band spurious1  30MHz to 1GHz  TOS1 -   -36 dBm  8  TX Out of band spurious2  1GHz to 12.75GHz  TOS2 -   -30 dBm  9  TX Out of band spurious3  1.8GHz to 1.9GHz 5.15GHz to 5.3GHz  TOS3    -47 dBm  10 Rx sensitivity  PER<8%  SEN  -86 -76 dBm  11  Maximum Input Level  PER<8%  MIL -10    dBm  12  RX Out of band spurious1  30MHz to 1GHz  ROS1 -   -57 dBm  13  RX Out of band spurious2  1GHz to 12.75GHz  ROS2 -   -47 dBm
6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  11/20 WYSAAVDX7 Control No. HD-MC-A100174                      (1/1)Control name Circuit Schematic  Block Diagram    5VSDIOPAAntennaCrystalEEPROM88W8787DCDC3.3VLDO1.8VBPF SP3TTXRXVIOSlow ClockOther (4)Connector

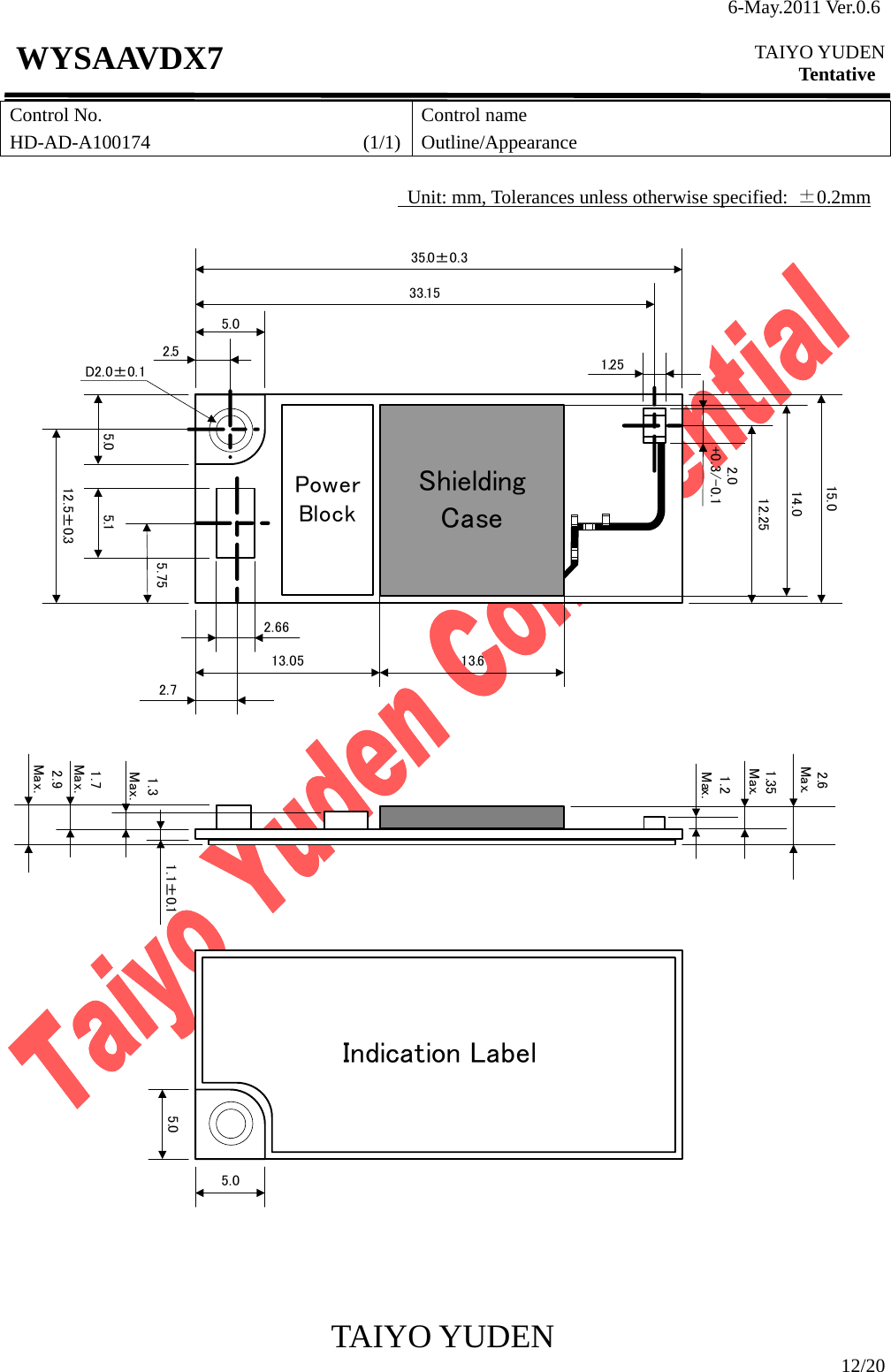

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  12/20 WYSAAVDX7 Control No. HD-AD-A100174                      (1/1)Control name Outline/Appearance            Unit: mm, Tolerances unless otherwise specified: ±0.2mm 15.035.0±0.3D2.0±0.112.5±0.32.71.7Max.1.2Max.2.6Max.2.9Max.5.12.0+0.3/-0.11.35Max.1.1±0.11.3Max.Power Block2.55.75ShieldingCase2.661.25Indication Label13.614.013.055.05.05.05.012.2533.15

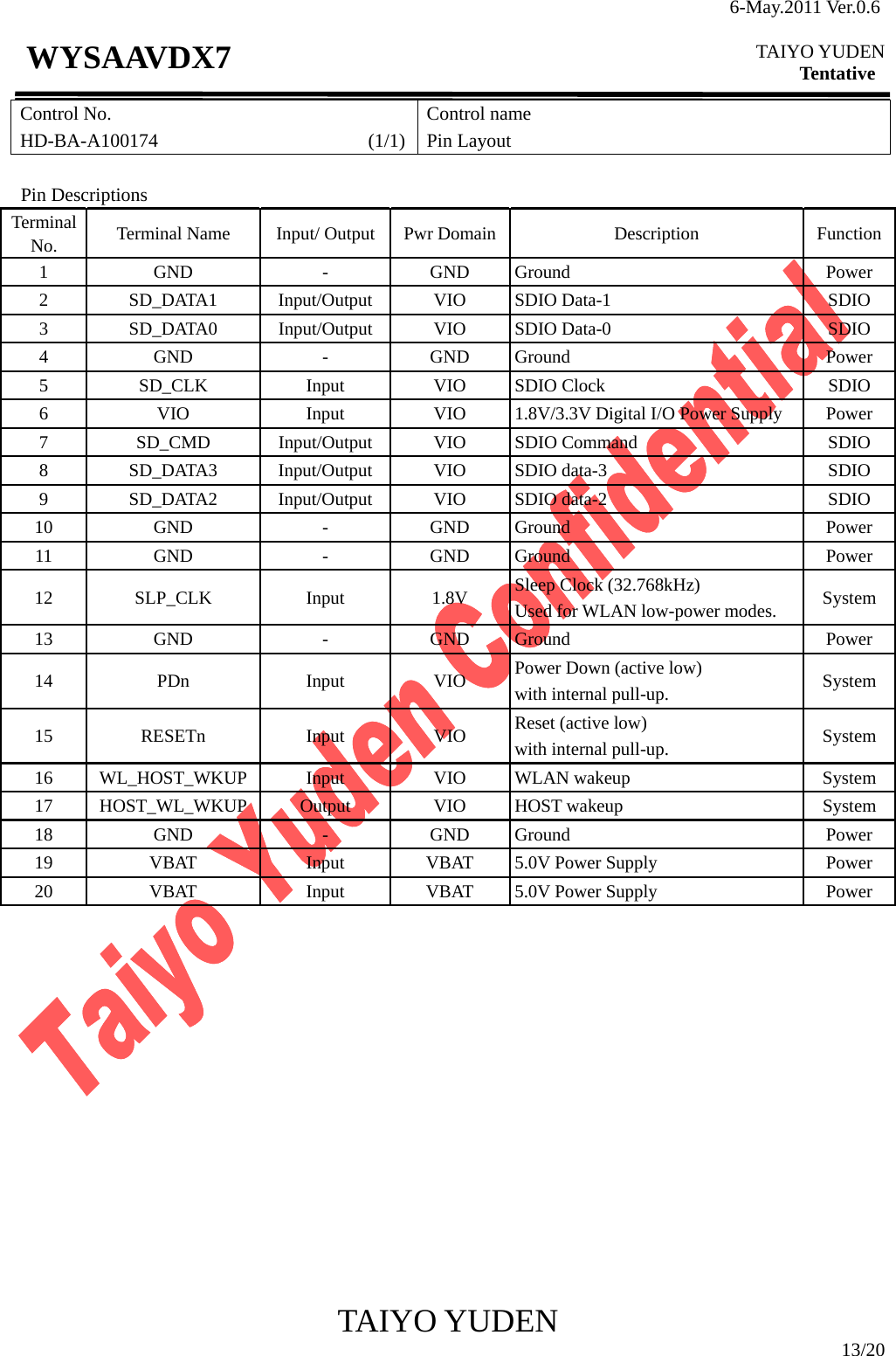

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  13/20 WYSAAVDX7 Control No. HD-BA-A100174                      (1/1)Control name Pin Layout   Pin Descriptions Terminal No.  Terminal Name  Input/ Output Pwr Domain Description  Function1 GND  - GND Ground  Power 2 SD_DATA1 Input/Output VIO SDIO Data-1  SDIO 3 SD_DATA0 Input/Output VIO SDIO Data-0  SDIO 4 GND  - GND Ground  Power 5 SD_CLK  Input VIO SDIO Clock  SDIO 6  VIO  Input  VIO  1.8V/3.3V Digital I/O Power Supply  Power 7 SD_CMD Input/Output VIO SDIO Command  SDIO 8 SD_DATA3 Input/Output VIO SDIO data-3  SDIO 9 SD_DATA2 Input/Output VIO SDIO data-2  SDIO 10 GND  - GND Ground  Power 11 GND  - GND Ground  Power 12 SLP_CLK  Input  1.8V Sleep Clock (32.768kHz) Used for WLAN low-power modes.  System 13 GND  - GND Ground  Power 14 PDn  Input VIO Power Down (active low) with internal pull-up.  System 15 RESETn  Input VIO Reset (active low) with internal pull-up.  System 16 WL_HOST_WKUP  Input  VIO WLAN wakeup  System 17 HOST_WL_WKUP  Output  VIO HOST wakeup   System 18 GND  - GND Ground  Power 19  VBAT  Input  VBAT  5.0V Power Supply  Power 20  VBAT  Input  VBAT  5.0V Power Supply  Power

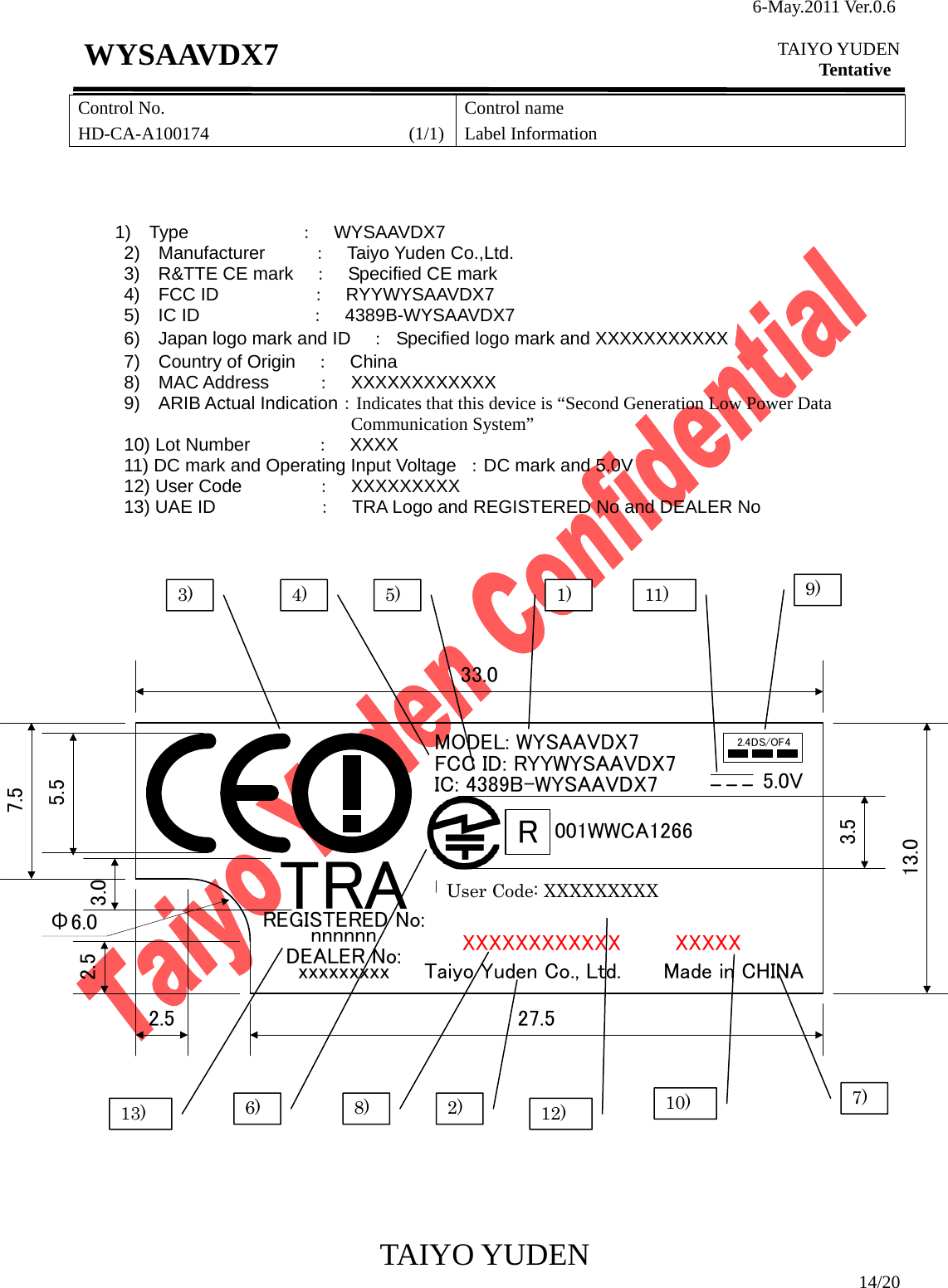

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  14/20 WYSAAVDX7 Control No. HD-CA-A100174                      (1/1)Control name Label Information                                                                       1)  Type            :  WYSAAVDX7 2)  Manufacturer    :  Taiyo Yuden Co.,Ltd. 3) R&TTE CE mark :    Specified CE mark     4)  FCC ID          :  RYYWYSAAVDX7 5)  IC ID            :  4389B-WYSAAVDX7 6)    Japan logo mark and ID    :  Specified logo mark and XXXXXXXXXXX 7)  Country of Origin  :  China 8)  MAC Address     :  XXXXXXXXXXXX 9)  ARIB Actual Indication:Indicates that this device is “Second Generation Low Power Data Communication System” 10) Lot Number       :  XXXX 11) DC mark and Operating Input Voltage  :DC mark and 5.0V 12) User Code        :  XXXXXXXXX 13) UAE ID           :  TRA Logo and REGISTERED No and DEALER No                             1) 2) 3)  4)  5) 6) 7) 8) 9) 10) 11) MODEL: WYSAAVDX7FCC ID: RYYWYSAAVDX7IC: 4389B-WYSAAVDX7 WYSAAVDX7-XE2.4DS/OF45.0VMade in CHINATaiyo Yuden Co., Ltd.XXXXXXXXXXXX XXXXX7.533.013.027.52.52.5Φ6.05.53.0User Code:TRAREGISTERED No:nnnnnnDEALER No:xxxxxxxxxR001WWCA12663.512) 13) User Code: XXXXXXXXX

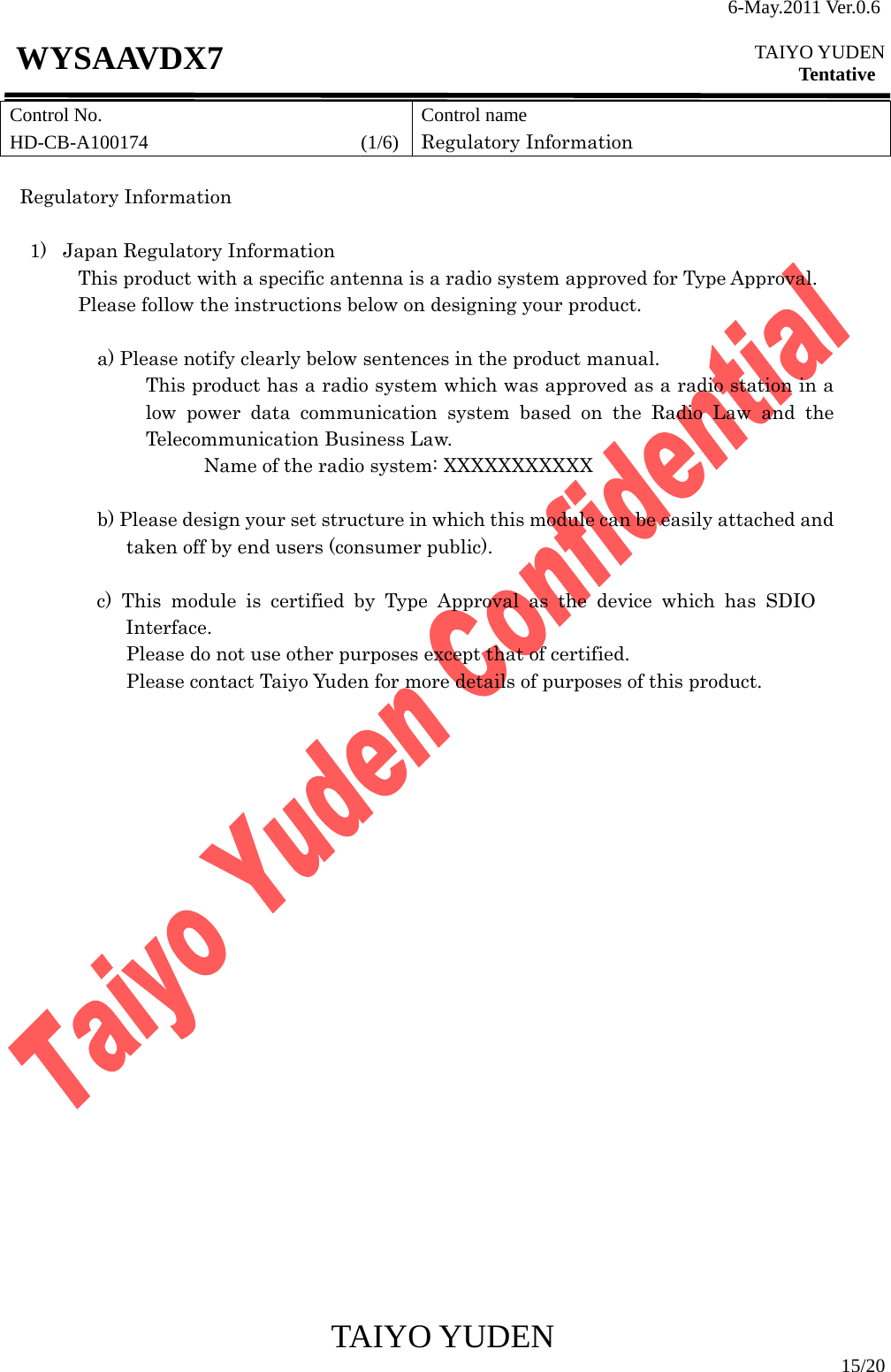

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  15/20 WYSAAVDX7 Control No. HD-CB-A100174                      (1/6)Control name Regulatory Information  Regulatory Information    1)  Japan Regulatory Information This product with a specific antenna is a radio system approved for Type Approval. Please follow the instructions below on designing your product.  a) Please notify clearly below sentences in the product manual. This product has a radio system which was approved as a radio station in a low power data communication system based on the Radio Law and the Telecommunication Business Law. Name of the radio system: XXXXXXXXXXX  b) Please design your set structure in which this module can be easily attached and taken off by end users (consumer public).  c) This module is certified by Type Approval as the device which has SDIO Interface.  Please do not use other purposes except that of certified. Please contact Taiyo Yuden for more details of purposes of this product.

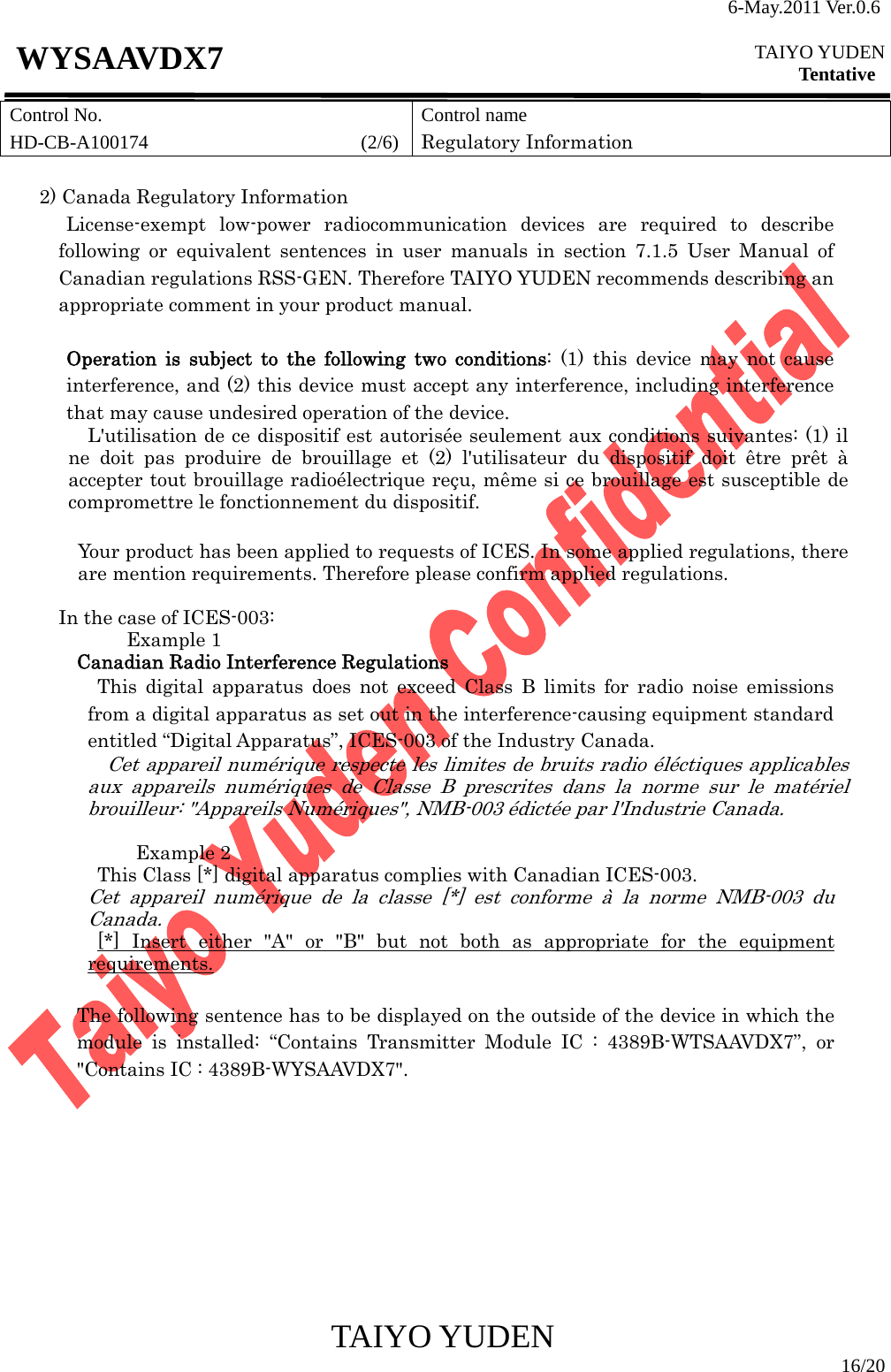

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  16/20 WYSAAVDX7 Control No. HD-CB-A100174                      (2/6)Control name Regulatory Information  2) Canada Regulatory Information  License-exempt low-power radiocommunication devices are required to describe following or equivalent sentences in user manuals in section 7.1.5 User Manual of Canadian regulations RSS-GEN. Therefore TAIYO YUDEN recommends describing an appropriate comment in your product manual.  Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. L'utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il ne doit pas produire de brouillage et (2) l'utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.  Your product has been applied to requests of ICES. In some applied regulations, there are mention requirements. Therefore please confirm applied regulations.  In the case of ICES-003: Example 1 Canadian Radio Interference Regulations This digital apparatus does not exceed Class B limits for radio noise emissions from a digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry Canada. Cet appareil numérique respecte les limites de bruits radio éléctiques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur: "Appareils Numériques", NMB-003 édictée par l'Industrie Canada.  Example 2 This Class [*] digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe [*] est conforme à la norme NMB-003 du Canada. [*] Insert either "A" or "B" but not both as appropriate for the equipment requirements.  The following sentence has to be displayed on the outside of the device in which the module is installed: “Contains Transmitter Module IC : 4389B-WTSAAVDX7”, or "Contains IC : 4389B-WYSAAVDX7".

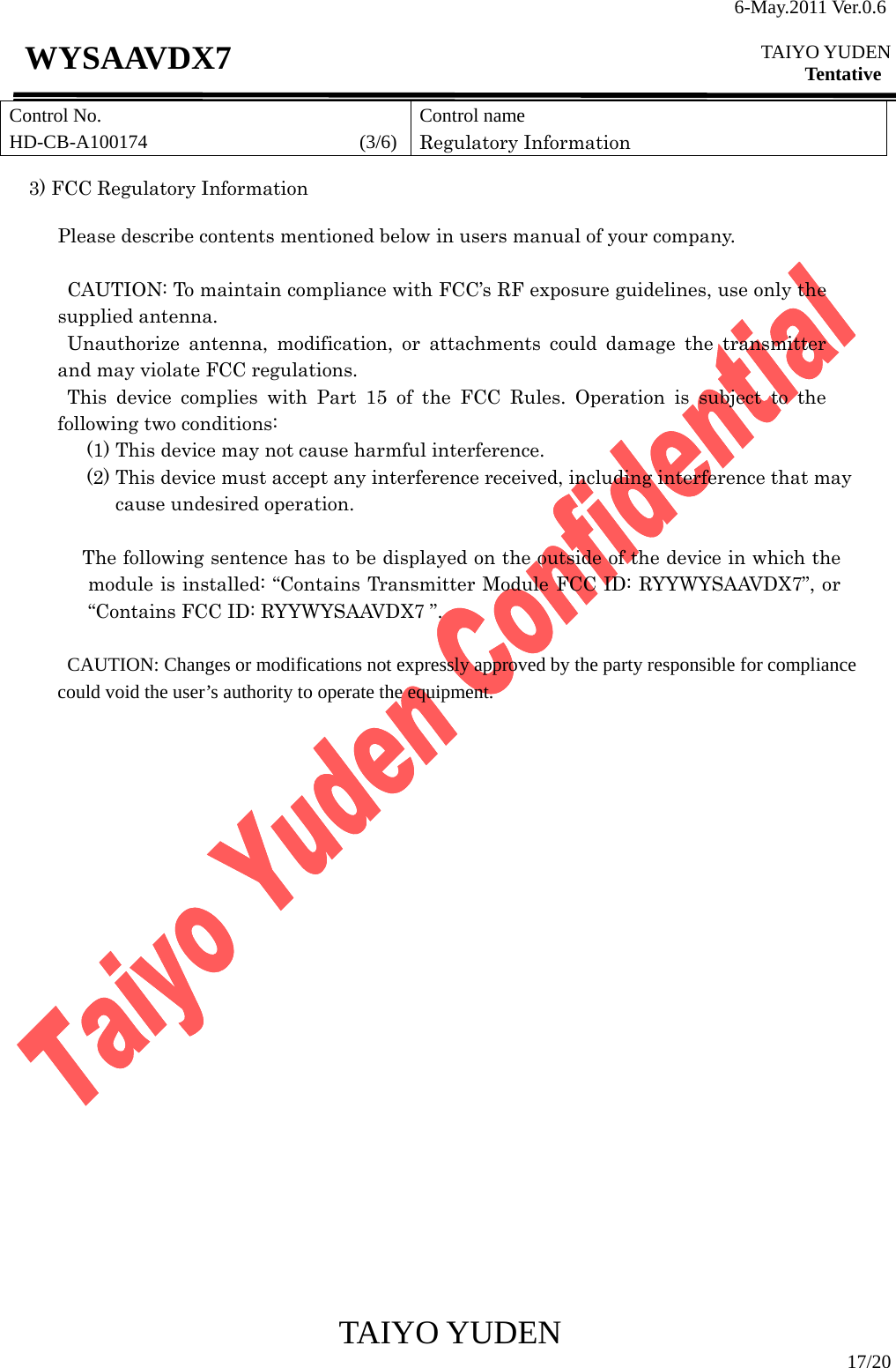

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  17/20 WYSAAVDX7  3) FCC Regulatory Information  Please describe contents mentioned below in users manual of your company.  CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the supplied antenna. Unauthorize antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference.   (2) This device must accept any interference received, including interference that may cause undesired operation.  The following sentence has to be displayed on the outside of the device in which the module is installed: “Contains Transmitter Module FCC ID: RYYWYSAAVDX7”, or “Contains FCC ID: RYYWYSAAVDX7 ”.              CAUTION: Changes or modifications not expressly approved by the party responsible for compliance           could void the user’s authority to operate the equipment.                            Control No. HD-CB-A100174                      (3/6)Control name Regulatory Information

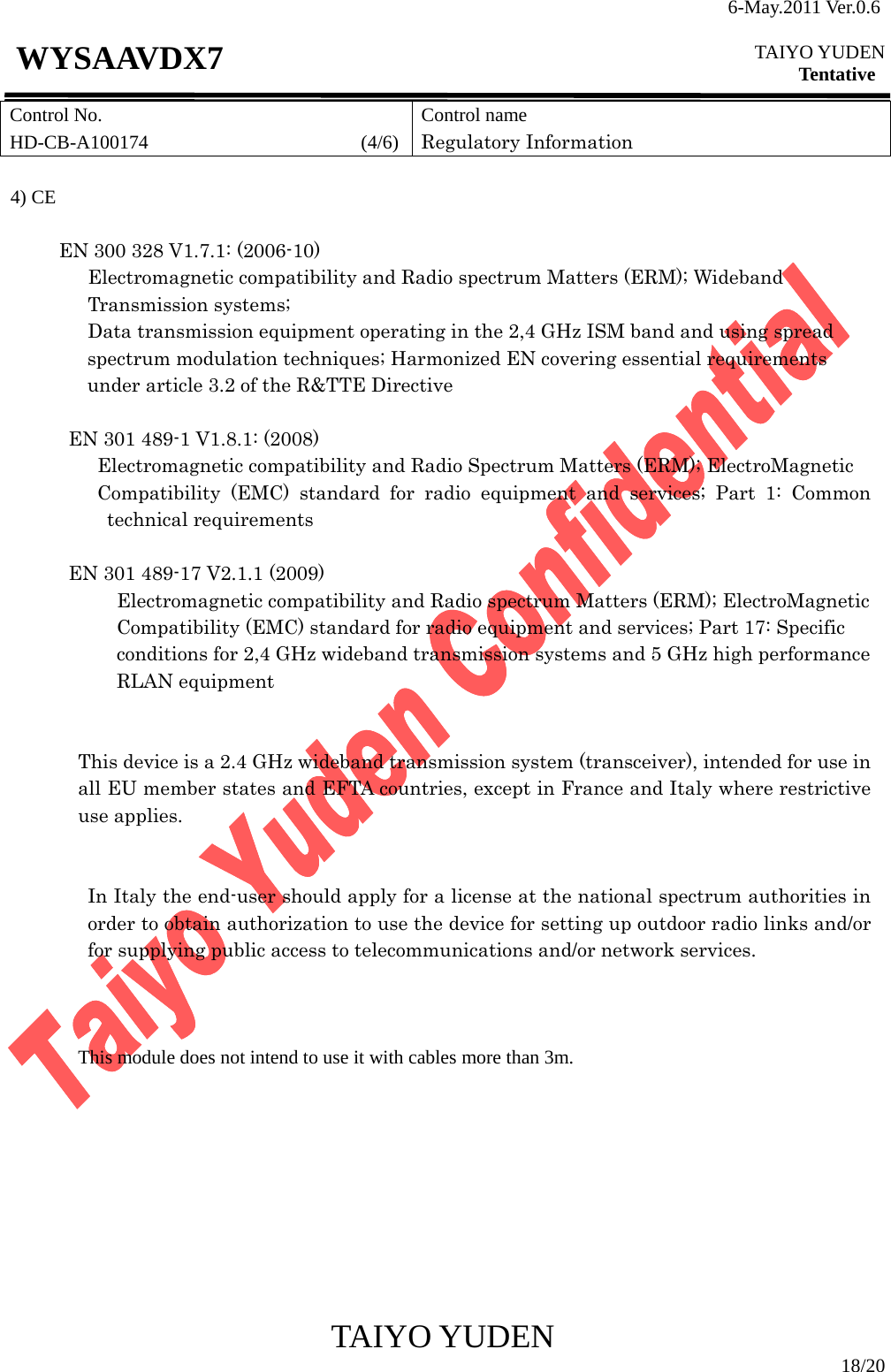

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  18/20 WYSAAVDX7 Control No. HD-CB-A100174                      (4/6)Control name Regulatory Information   4) CE         EN 300 328 V1.7.1: (2006-10)          Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems;                Data transmission equipment operating in the 2,4 GHz ISM band and using spread   spectrum modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive   EN 301 489-1 V1.8.1: (2008) Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements  EN 301 489-17 V2.1.1 (2009)   Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic   Compatibility (EMC) standard for radio equipment and services; Part 17: Specific   conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance   RLAN equipment    This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies.   In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services.                    This module does not intend to use it with cables more than 3m.

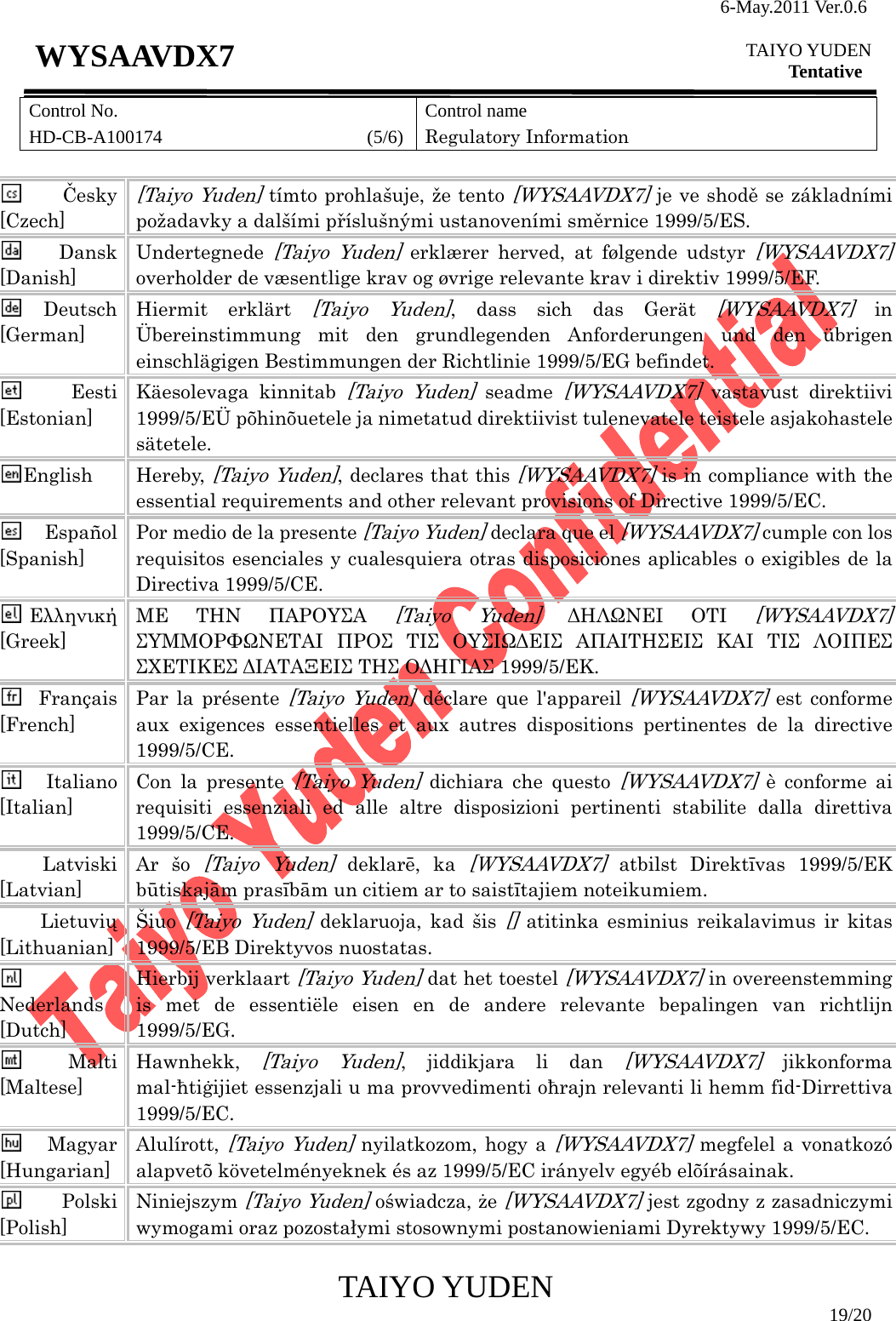

6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  19/20 WYSAAVDX7 Control No. HD-CB-A100174                      (5/6)Control name Regulatory Information  Česky [Czech] [Taiyo Yuden] tímto prohlašuje, že tento [WYSAAVDX7] je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish] Undertegnede [Taiyo Yuden] erklærer herved, at følgende udstyr [WYSAAVDX7] overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German] Hiermit erklärt [Taiyo Yuden], dass sich das Gerät [WYSAAVDX7] in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian] Käesolevaga kinnitab [Taiyo Yuden] seadme [WYSAAVDX7] vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. English Hereby, [Taiyo Yuden], declares that this [WYSAAVDX7] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish] Por medio de la presente [Taiyo Yuden] declara que el [WYSAAVDX7] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek] ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [Taiyo Yuden] ΔΗΛΩΝΕΙ ΟΤΙ [WYSAAVDX7] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ. Français [French] Par la présente [Taiyo Yuden] déclare que l'appareil [WYSAAVDX7] est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian] Con la presente [Taiyo Yuden] dichiara che questo [WYSAAVDX7] è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski [Latvian] Ar šo [Taiyo Yuden] deklarē, ka [WYSAAVDX7] atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. Lietuvių [Lithuanian] Šiuo [Taiyo Yuden] deklaruoja, kad šis [] atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Nederlands [Dutch] Hierbij verklaart [Taiyo Yuden] dat het toestel [WYSAAVDX7] in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Malti [Maltese] Hawnhekk, [Taiyo Yuden], jiddikjara li dan [WYSAAVDX7] jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC. Magyar [Hungarian] Alulírott, [Taiyo Yuden] nyilatkozom, hogy a [WYSAAVDX7] megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Polski [Polish] Niniejszym [Taiyo Yuden] oświadcza, że [WYSAAVDX7] jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
6-May.2011 Ver.0.6  TAIYO YUDEN Tentative TAIYO YUDEN  20/20 WYSAAVDX7 Control No. HD-CB-A100174                      (6/6)Control name Regulatory Information  Português [Portuguese] [Taiyo Yuden] declara que este [WYSAAVDX7] está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Slovensko [Slovenian] [Taiyo Yuden] izjavlja, da je ta [WYAAVDX7] v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES. Slovensky [Slovak] [Taiyo Yuden] týmto vyhlasuje, že [WYSAAVDX7] spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES. Suomi [Finnish] [Taiyo Yuden] vakuuttaa täten että [WYSAAVDX7] tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Svenska [Swedish] Härmed intygar [Taiyo Yuden] att denna [WYSAAVDX7] står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
