TCITY ELECTRONICS TC88 TPMS User Manual

SHENZHEN TCITY ELECTRONICS CO.,LTD TPMS Users Manual

User Manual

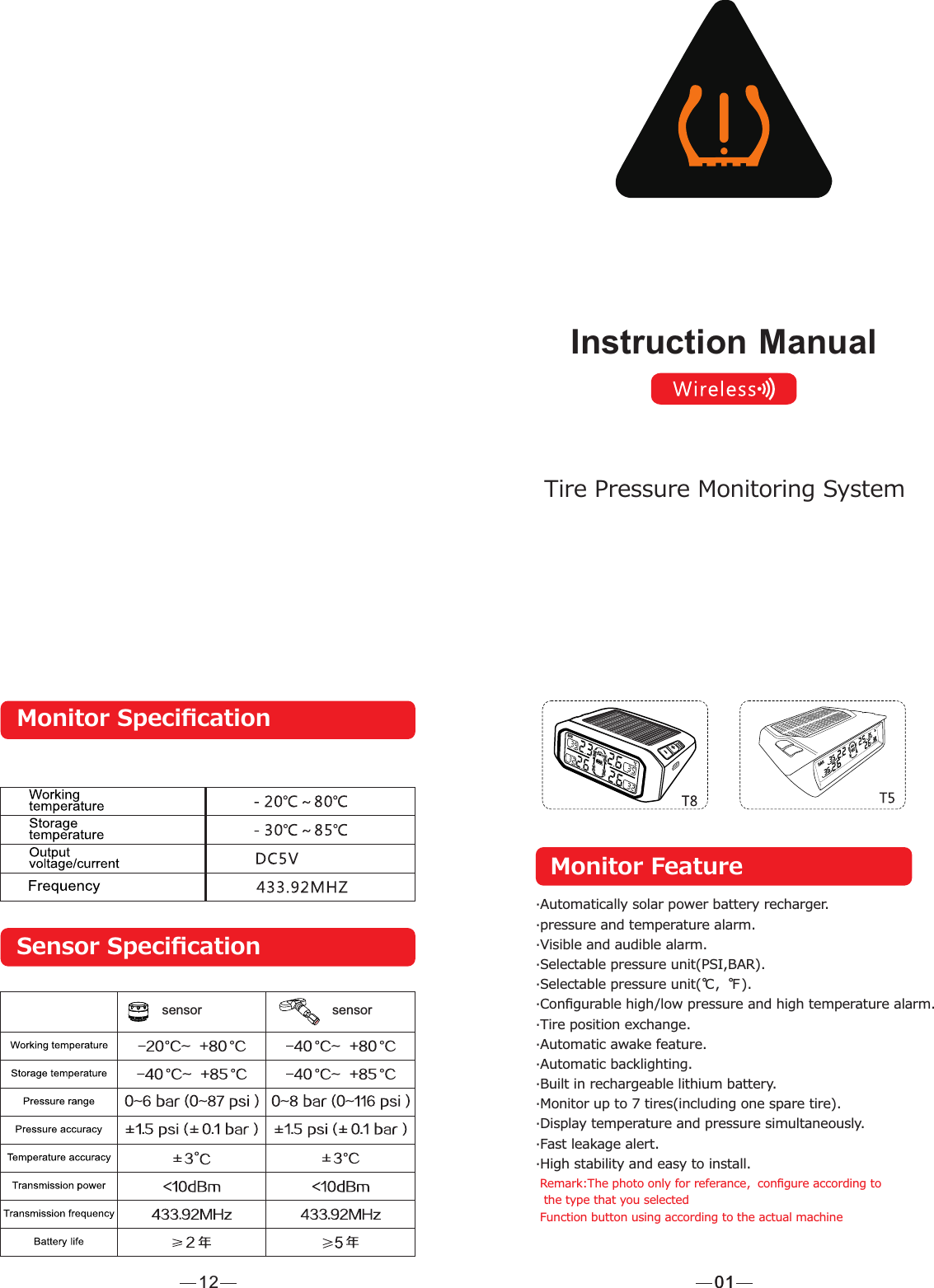

Monitor Feature·Automatically solar power battery recharger.·pressure and temperature alarm.·Visible and audible alarm.·Selectable pressure unit(PSI,BAR).·Selectable pressure unit(℃,℉).·Configurable high/low pressure and high temperature alarm.·Tire position exchange.·Automatic awake feature.·Automatic backlighting.·Built in rechargeable lithium battery.·Monitor up to 7 tires(including one spare tire).·Display temperature and pressure simultaneously.·Fast leakage alert.·High stability and easy to install.Remark:The photo only for referance,configure according to the type that you selectedFunction button using according to the actual machine010112Monitor SpecificationSensor Specificationsensor sensorInstruction ManualTire Pressure Monitoring System
131.Please use system correctly in the right condition. The distributor   is not liable fordamages form the miss-use.2.Installation should follow the instruction guide,if any damage    occurs due to thewrong installation,the distributor is not liable   for it.The content and specification are subject tochange    without prior notice.Pictures  in the article are just for    illustration. 3.Please take the actual product for reference.Internal sensor   installation should be carried out by professional person. Be    wareof the internal sensorswhile reload the tire.4.Please be careful not to damage the    sensor during the removal02Installation Tips Monitor should be installed in appropriate place using the sticky  padorthe magic tape. Recharge the monitor by theDC-DC power adaptor forfirst time and allow continue recharge by solar power  after the firstfull DC rechargeT6、T8、T9 DisplayT5 DisplayPressure unitThe tire temperature numerical displayThe tire pressure numerical displaySolar charging iconTemperature of the unitThe alarm iconSpare tire iconPower displaySensor low electric iconInstallation TipsInstallation Tips11in standby mode, press and hold “+”button andreleaseit afterthe beep sound toenter learning mode ,the tire iconwill flash onthe LCD with “Id”Letter showing the beginning letter of the tire ID code. Short press “-”or “+”to scroll tire position needed to re-code.Once ready, then mount the sensor on to the tire valve(for externalsensor),or inflate the tire(for internal sensor),once the sensor sensed the inflator,the sensorwill send its own ID code to the monitor and the monitor willdisplay itʼssensor code after the beep. Repeat above step to re-code others sensor if needed.Press“   ”or “     ”until Beep sound to ensure new code completed stored intothe monitor.if press “ +” “   ” or “+” “   ”buttons together will not store any new ID and resumeto standby mode.Inflate Code Learnings

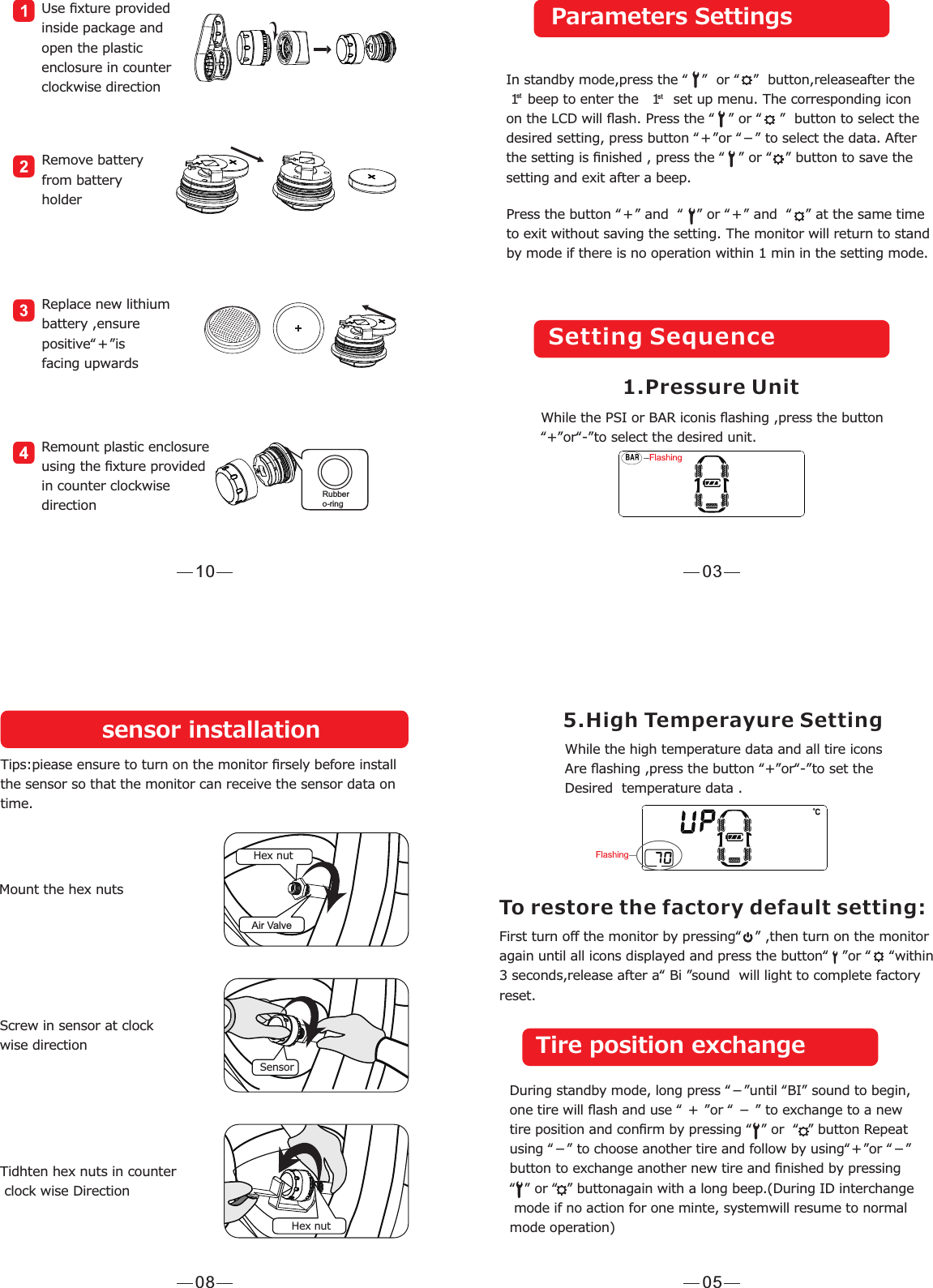

03Press the button “+” and  “   ” or “+” and  “   ” at the same timeto exit without saving the setting. The monitor will return to standby mode if there is no operation within 1 min in the setting mode. In standby mode,press the “   ”  or “   ”  button,releaseafter the  1  beep to enter the   1   set up menu. The corresponding icon on the LCD will flash. Press the “   ” or “    ”  button to select the desired setting, press button “+”or “-” to select the data. After the setting is finished , press the “   ” or “   ” button to save the setting and exit after a beep.   st stParameters SettingsSetting Sequence 1.Pressure Unit While the PSI or BAR iconis flashing ,press the button“+”or“-”to select the desired unit.10Remove battery from batteryholderReplace new lithium battery ,ensure positive“+”isfacing upwardsRemount plastic enclosure using the fixture providedin counter clockwisedirectionUse fixture provided inside package andopen the plastic enclosure in counterclockwise directionRubbero-ring05First turn off the monitor by pressing“   ” ,then turn on the monitoragain until all icons displayed and press the button“   ”or “    “within3 seconds,release after a“ Bi ”sound  will light to complete factoryreset.5.High Temperayure SettingWhile the high temperature data and all tire icons Are flashing ,press the button “+”or“-”to set the Desired  temperature data .To restore the factory default setting:Tire position exchangeDuring standby mode, long press “-”until “BI” sound to begin, one tire will flash and use “ + ”or “ - ” to exchange to a new tire position and confirm by pressing “  ” or  “  ” button Repeat using “-” to choose another tire and follow by using“+”or “-” button to exchange another new tire and finished by pressing  “  ” or “  ” buttonagain with a long beep.(During ID interchange mode if no action for one minte, systemwill resume to normal mode operation)   08Hex nutAir ValveSensorHex nutsensor installationTips:piease ensure to turn on the monitor firsely before installthe sensor so that the monitor can receive the sensor data ontime.Mount the hex nutsScrew in sensor at clock wise directionTidhten hex nuts in counter clock wise Direction

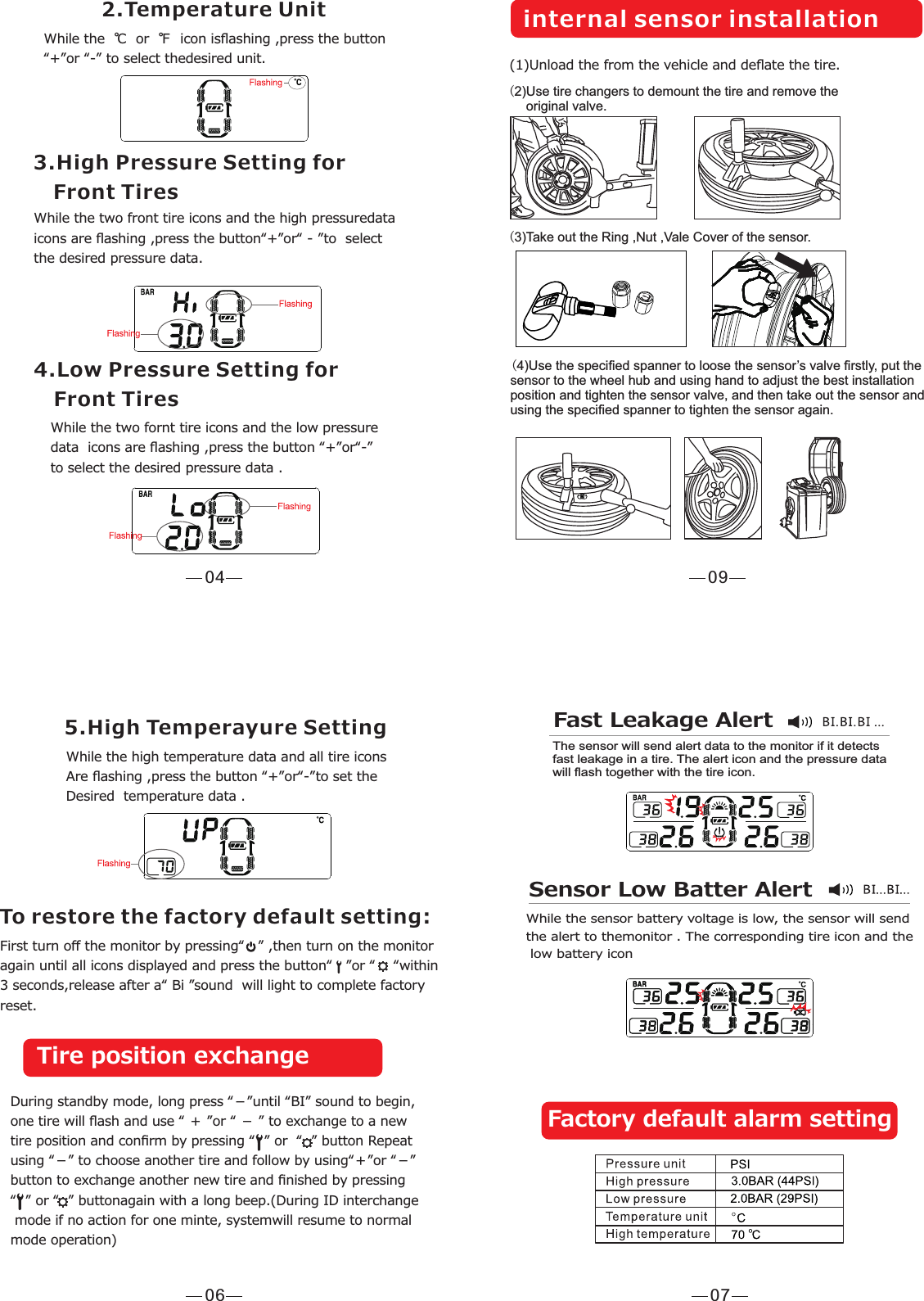

042.Temperature UnitWhile the  ℃  or  ℉  icon isflashing ,press the button“+”or “-” to select thedesired unit.3.High Pressure Setting for    Front TiresWhile the two front tire icons and the high pressuredata icons are flashing ,press the button“+”or“ - ”to  select the desired pressure data.4.Low Pressure Setting for    Front TiresWhile the two fornt tire icons and the low pressuredata  icons are flashing ,press the button “+”or“-”to select the desired pressure data .06First turn off the monitor by pressing“   ” ,then turn on the monitoragain until all icons displayed and press the button“   ”or “    “within3 seconds,release after a“ Bi ”sound  will light to complete factoryreset.5.High Temperayure SettingWhile the high temperature data and all tire icons Are flashing ,press the button “+”or“-”to set the Desired  temperature data .To restore the factory default setting:Tire position exchangeDuring standby mode, long press “-”until “BI” sound to begin, one tire will flash and use “ + ”or “ - ” to exchange to a new tire position and confirm by pressing “  ” or  “  ” button Repeat using “-” to choose another tire and follow by using“+”or “-” button to exchange another new tire and finished by pressing  “  ” or “  ” buttonagain with a long beep.(During ID interchange mode if no action for one minte, systemwill resume to normal mode operation)   07Fast Leakage AlertThe sensor will send alert data to the monitor if it detects fast leakage in a tire. The alert icon and the pressure data will flash together with the tire icon.Sensor Low Batter AlertWhile the sensor battery voltage is low, the sensor will send the alert to themonitor . The corresponding tire icon and the low battery icon Factory default alarm setting09(2) Use tire changers to demount the tire and remove the      original valve.(3) Take out the Ring ,Nut ,Vale Cover of the sensor.internal sensor installation(1) Unload the from the vehicle and deflate the tire.(4) Use the specified spanner to loose the sensor’s valve firstly, put the sensor to the wheel hub and using hand to adjust the best installation position and tighten the sensor valve, and then take out the sensor and using the specified spanner to tighten the sensor again.

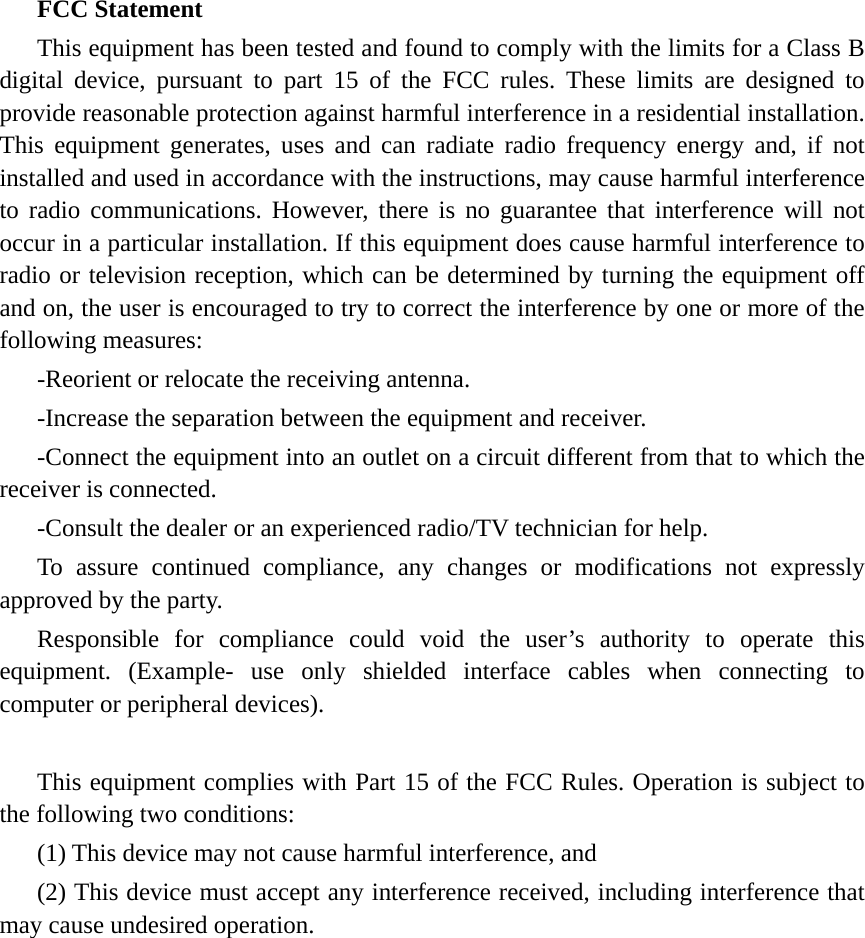

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:     (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
