TCL Delonghi Home Appliances 5005HBS 802.11 b/g/n Wifi module User Manual

TCL Delonghi Home Appliances (zhongshan) Co., Ltd. 802.11 b/g/n Wifi module

User Manual

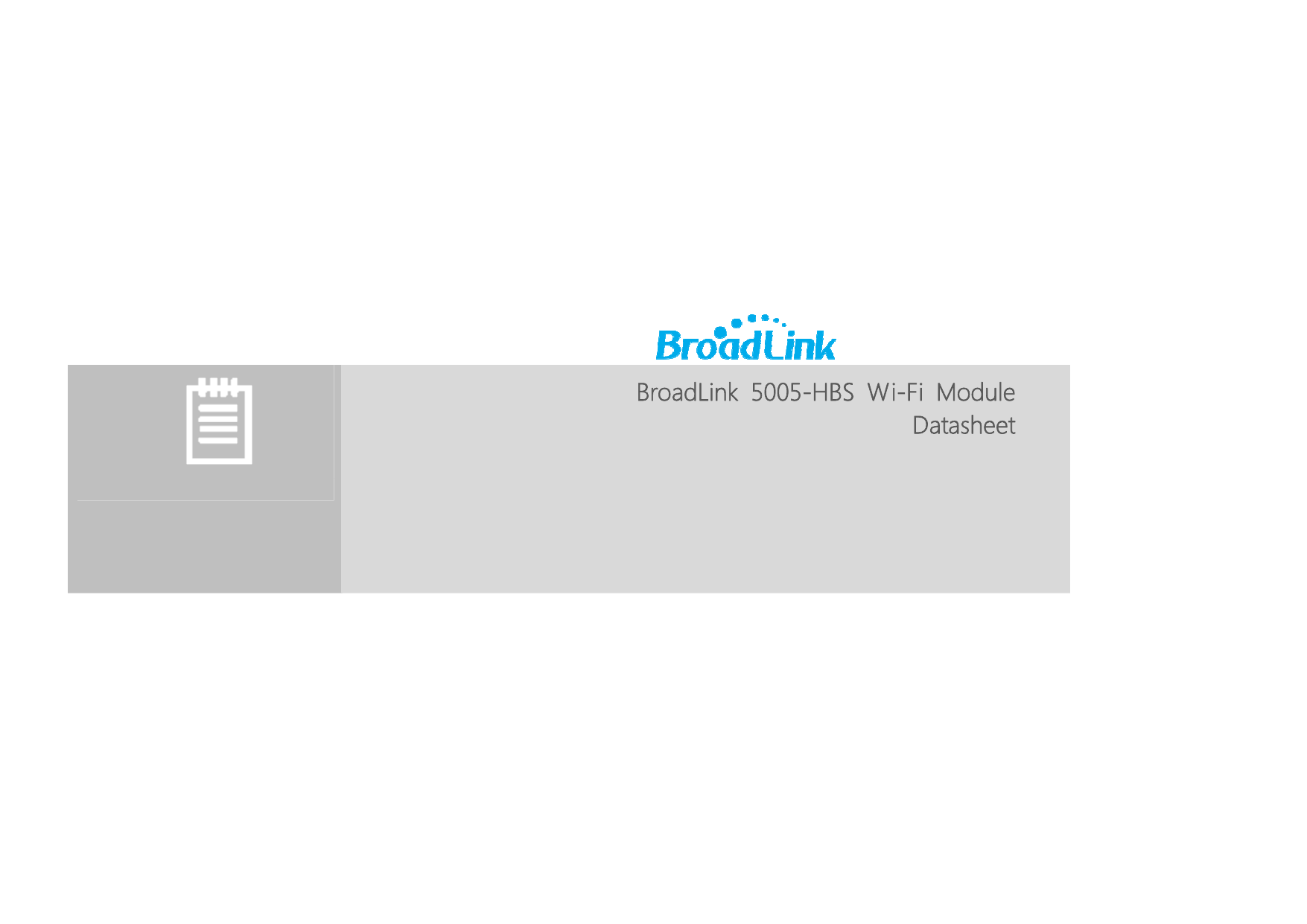

              BroadLink 5005-HBS Wi-Fi Module Datasheet
1. Introduction 1.1 Overview The 5005-HBS is a highly integrated Wi-Fi module, which supportsIEEE802.11b/g/n single stream, providing GPIO for intelligent control, and UART interfaces for device communication.   The 5005-HBS has 8Mbits flash and integrates power amplifier, low noise amplifier, and RF switch to reduce the module size and RF design capability required.   The 5005-HBS embedded ARM Cortex-M4F MCU, the Frequency could reach 200MHz, 512KB SRAM and 8Mbits Flash are included.   5005-HBS block diagram 1.2 Applications  Smart home appliances  Remote Control  Medical/Health Care  Network consumer devices 1.3 Key Features  Single operation voltage: 5V  Power consumption: 80mA for IDLE mode and 1.1mA for Sleep mode  Wi-Fi connectivity     802.11b, 802.11g, 802.11n (single stream) on channel 1-11@2.4GHz  WPA/WPA2 Enterprise  Transmit power: 16dBm@11b, 14dBm@11g,13dBm@11n  Receiver Sensitivity: <-78dBm (802.11b 11Mbs),<-68 dBm (802.11g 54Mbs), <-66dBm (802.11n MCS7)  Max Data rate: 11Mbps@11b,54Mbps@11g, MCS7@11n HT20  Wi-Fi modes: Station and AP  Patent SmartConfig™ technology  On-board PCB antenna, IPEX connector for external antenna  Operating Temperature: -10  ℃ to 70 ℃

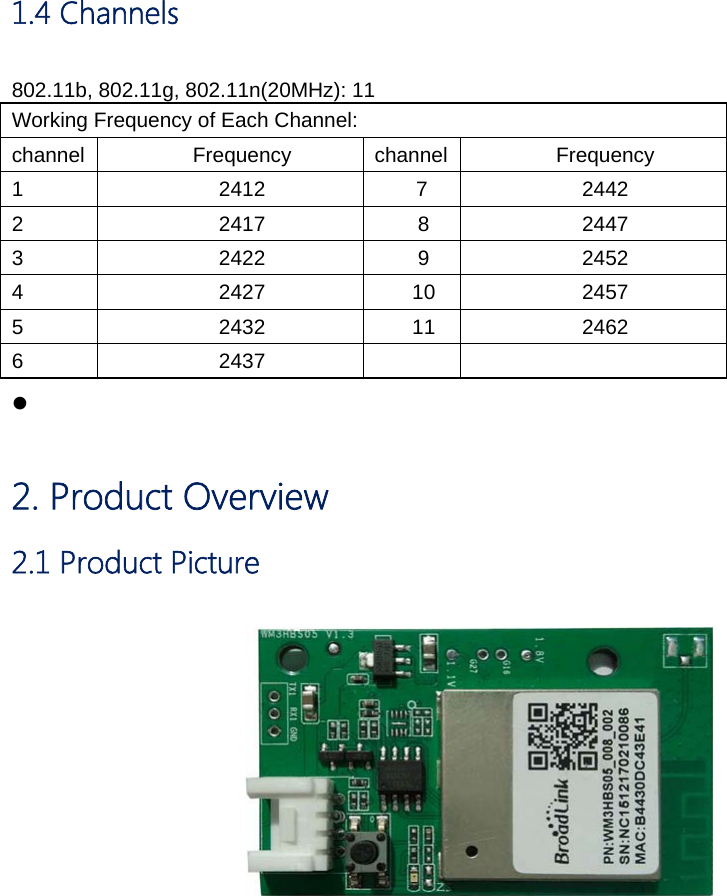

1.4 Channels 802.11b, 802.11g, 802.11n(20MHz): 11 Working Frequency of Each Channel: channel Frequency channel Frequency 1 2412 7 2442 2  2417 8 2447 3  2422 9 2452 4 2427 10 2457 5 2432 11 2462 6 2437     2. Product Overview   2.1 Product Picture

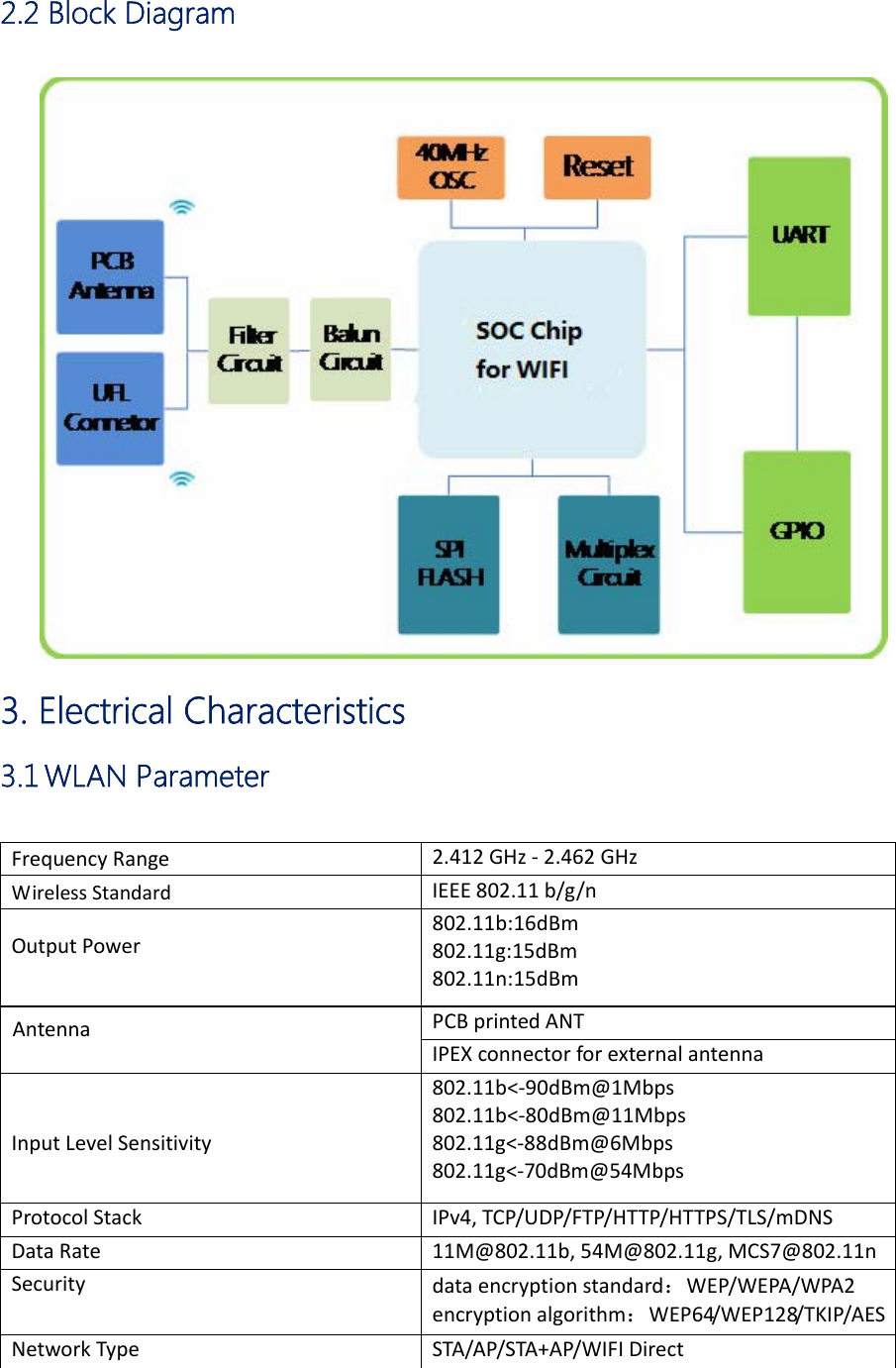

2.2 Block Diagram  3. Electrical Characteristics 3.1 WLAN  Parameter FrequencyRange2.412GHz‐2.462GHzWirelessStandardIEEE802.11b/g/nOutputPower802.11b:16dBm802.11g:15dBm802.11n:15dBmPCBprintedANTAntennaIPEXconnectorforexternalantennaInputLevelSensitivity802.11b<‐90dBm@1Mbps802.11b<‐80dBm@11Mbps802.11g<‐88dBm@6Mbps802.11g<‐70dBm@54MbpsProtocolStackIPv4,TCP/UDP/FTP/HTTP/HTTPS/TLS/mDNSDataRate11M@802.11b,54M@802.11g,MCS7@802.11nSecuritydataencryptionstandard:WEP/WEPA/WPA2encryptionalgorithm:WEP64/WEP128/TKIP/AESNetworkTypeSTA/AP/STA+AP/WIFIDirect

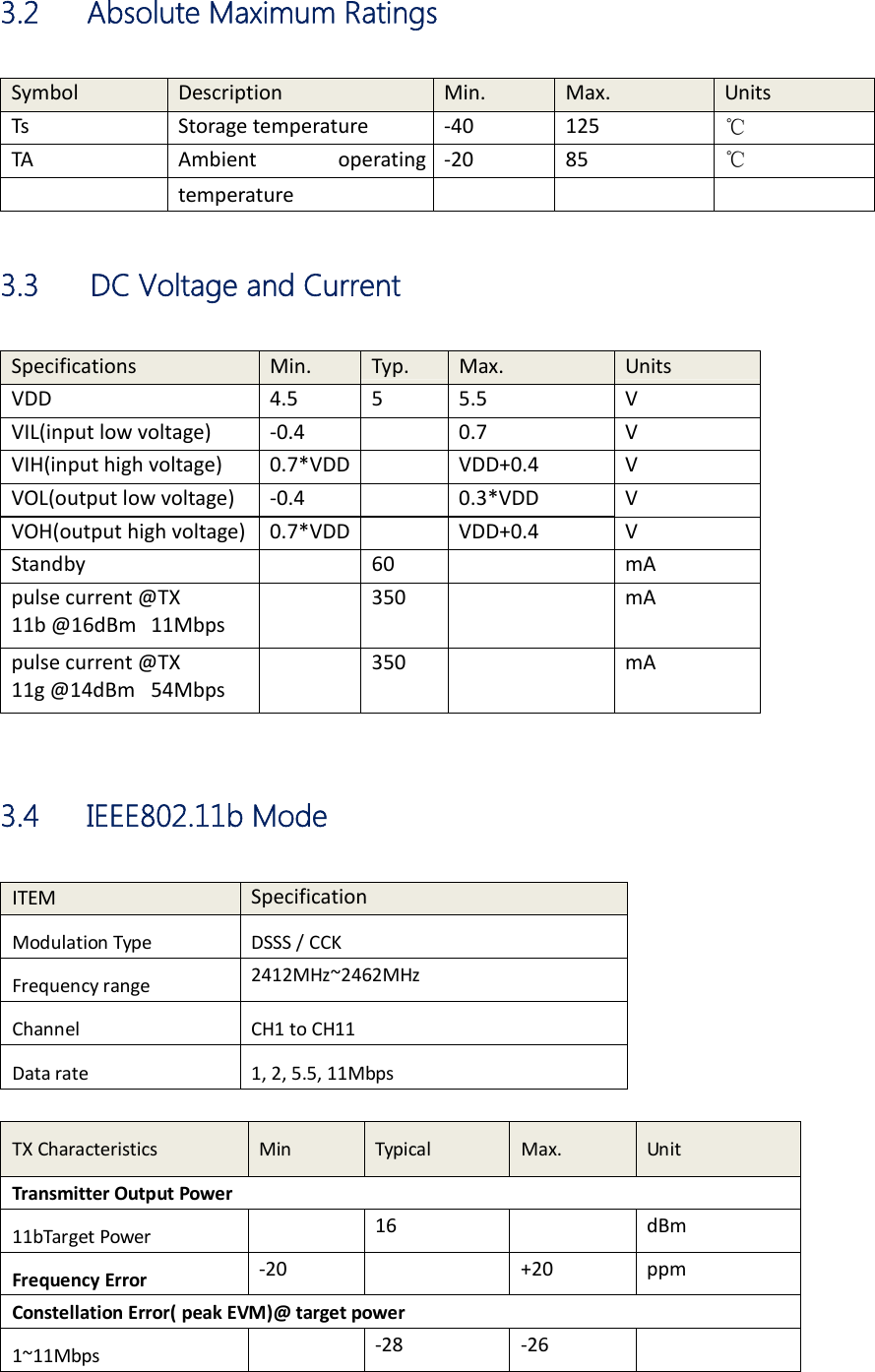

3.2    Absolute Maximum Ratings SymbolDescriptionMin.Max.UnitsTsStoragetemperature‐40125℃TAAmbientoperating ‐2085℃temperature 3.3       DC Voltage and Current SpecificationsMin.Typ.Max.UnitsVDD4.555.5VVIL(inputlowvoltage)‐0.4 0.7VVIH(inputhighvoltage)0.7*VDD VDD+0.4VVOL(outputlowvoltage)‐0.4 0.3*VDDVVOH(outputhighvoltage)0.7*VDD VDD+0.4VStandby60 mApulsecurrent@TX11b@16dBm11Mbps350 mApulsecurrent@TX11g@14dBm54Mbps350 mA  3.4   IEEE802.11b Mode ITEMSpecification ModulationTypeDSSS/CCKFrequencyrange2412MHz~2462MHzChannelCH1toCH11Datarate1,2,5.5,11MbpsTXCharacteristicsMinTypicalMax.UnitTransmitterOutputPower11bTargetPower16dBmFrequencyError‐20+20ppmConstellationError(peakEVM)@targetpower1~11Mbps‐28‐26

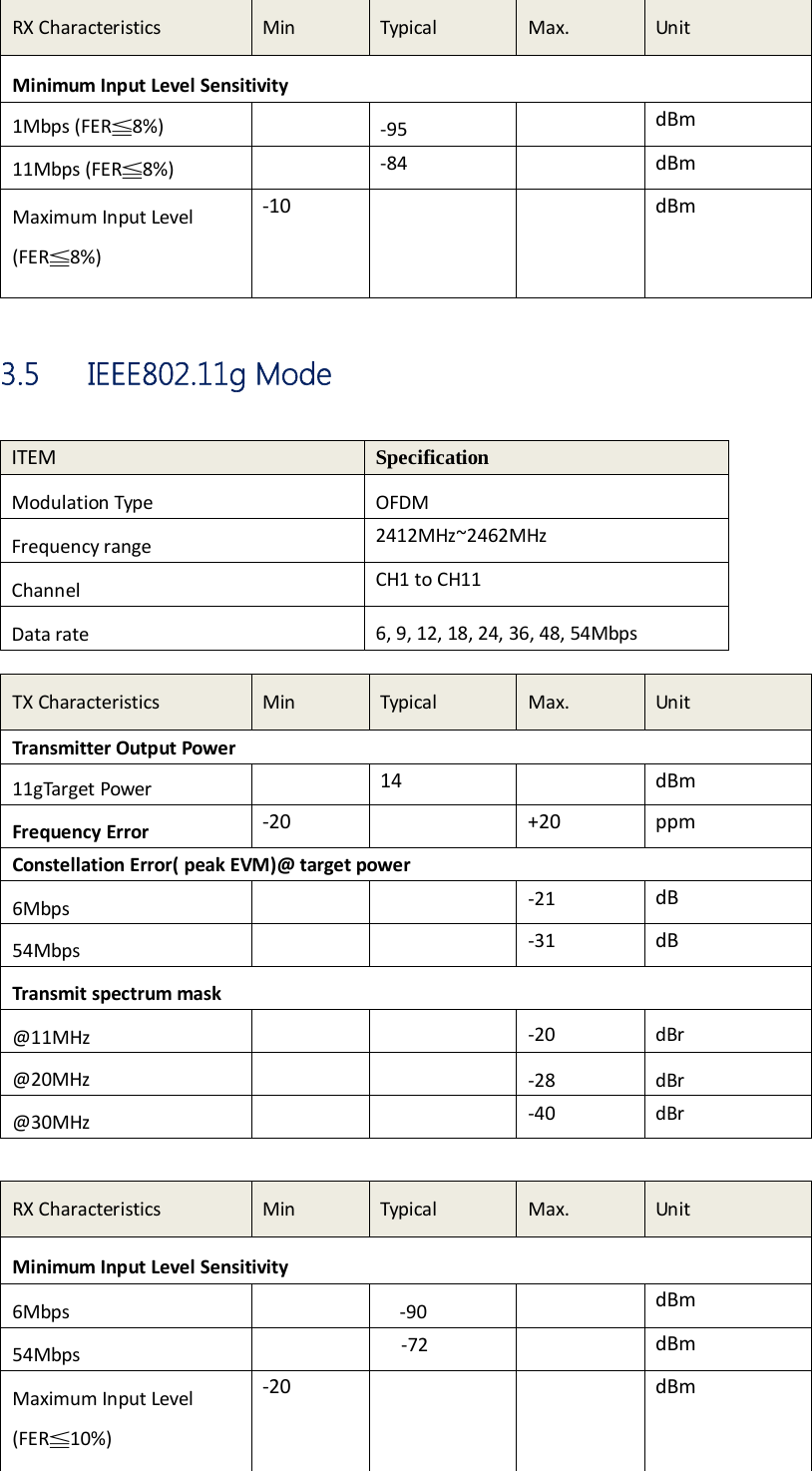

RXCharacteristicsMinTypicalMax.UnitMinimumInputLevelSensitivity1Mbps(FER≦8%)‐95dBm11Mbps(FER≦8%)‐84dBmMaximumInputLevel(FER≦8%)‐10dBm3.5   IEEE802.11g Mode ITEMSpecification ModulationTypeOFDMFrequencyrange2412MHz~2462MHzChannelCH1toCH11Datarate6,9,12,18,24,36,48,54MbpsTXCharacteristicsMinTypicalMax.UnitTransmitterOutputPower11gTargetPower14dBmFrequencyError‐20+20ppmConstellationError(peakEVM)@targetpower6Mbps ‐21dB54Mbps ‐31dBTransmitspectrummask@11MHz ‐20dBr@20MHz ‐28dBr@30MHz ‐40dBrRXCharacteristicsMinTypicalMax.UnitMinimumInputLevelSensitivity6Mbps‐90dBm54Mbps‐72dBmMaximumInputLevel(FER≦10%)‐20dBm

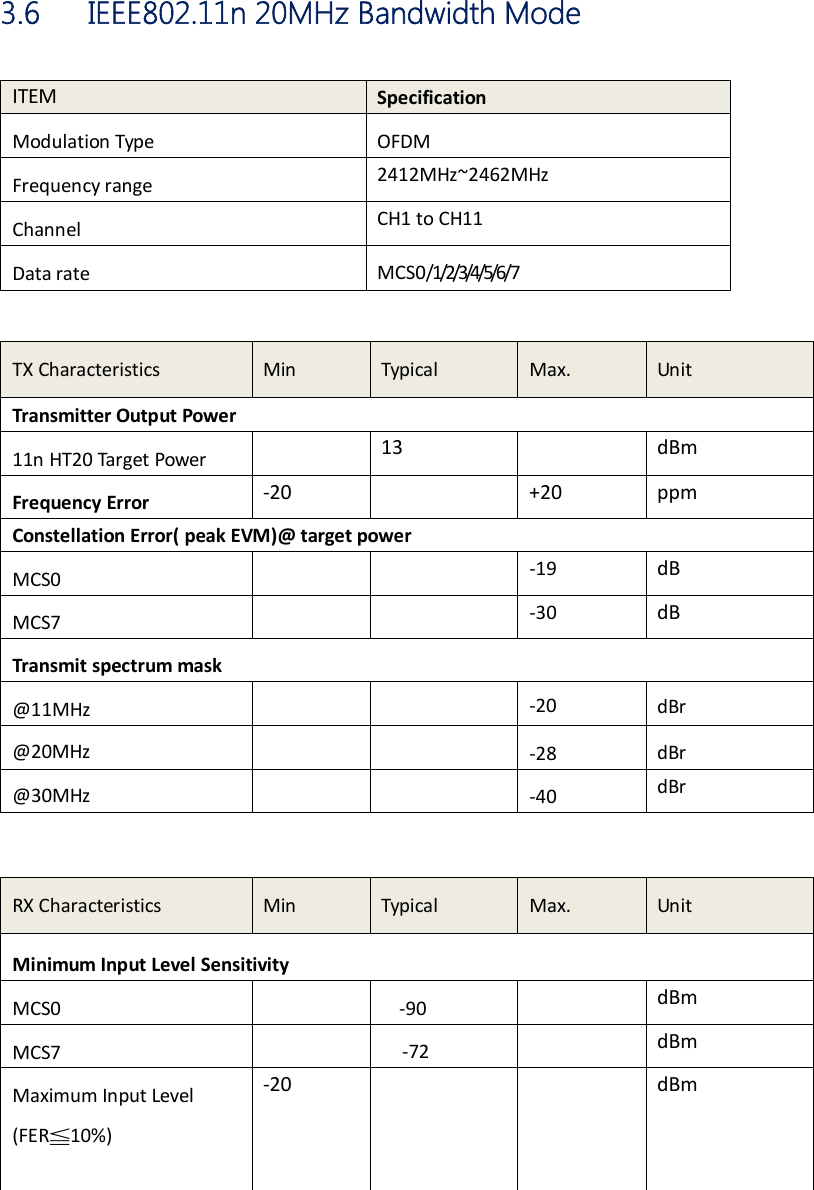

3.6    IEEE802.11n 20MHz Bandwidth Mode ITEMSpecificationModulationTypeOFDMFrequencyrange2412MHz~2462MHzChannelCH1toCH11DatarateM C S 0 /1/2/3/4/5/6/7 TXCharacteristicsMinTypicalMax.UnitTransmitterOutputPower11nHT20Tar getPower13dBmFrequencyError‐20+20ppmConstellationError(peakEVM)@targetpowerMCS0 ‐19dBMCS7 ‐30dBTransmitspectrummask@11MHz ‐20dBr@20MHz ‐28dBr@30MHz ‐40dBrRXCharacteristicsMinTypicalMax.UnitMinimumInputLevelSensitivityMCS0‐90dBmMCS7‐72dBmMaximumInputLevel(FER≦10%)‐20dBm

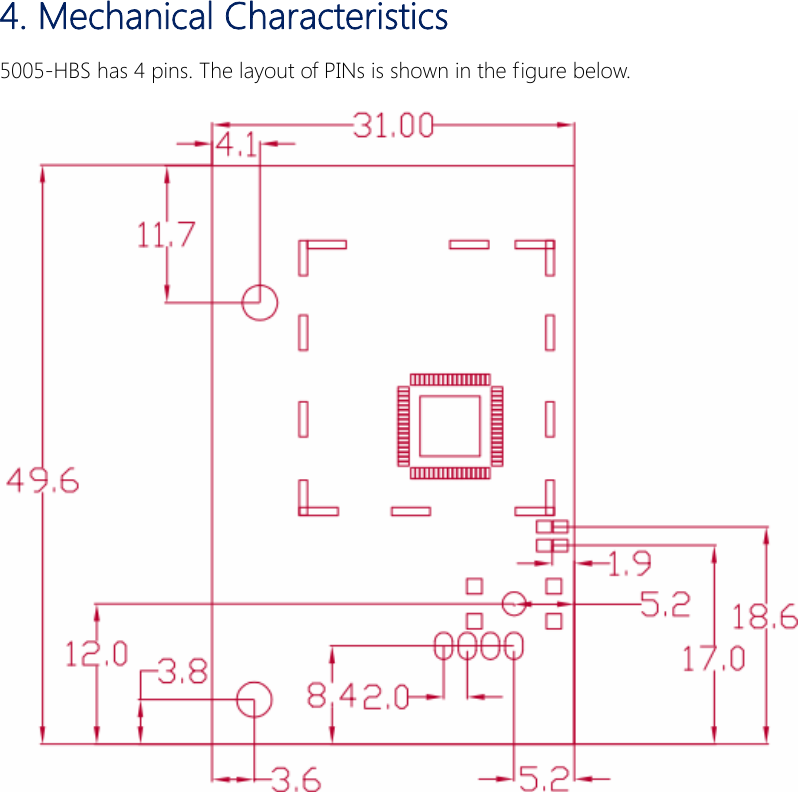

 4. Mechanical Characteristics 5005-HBS has 4 pins. The layout of PINs is shown in the figure below. 

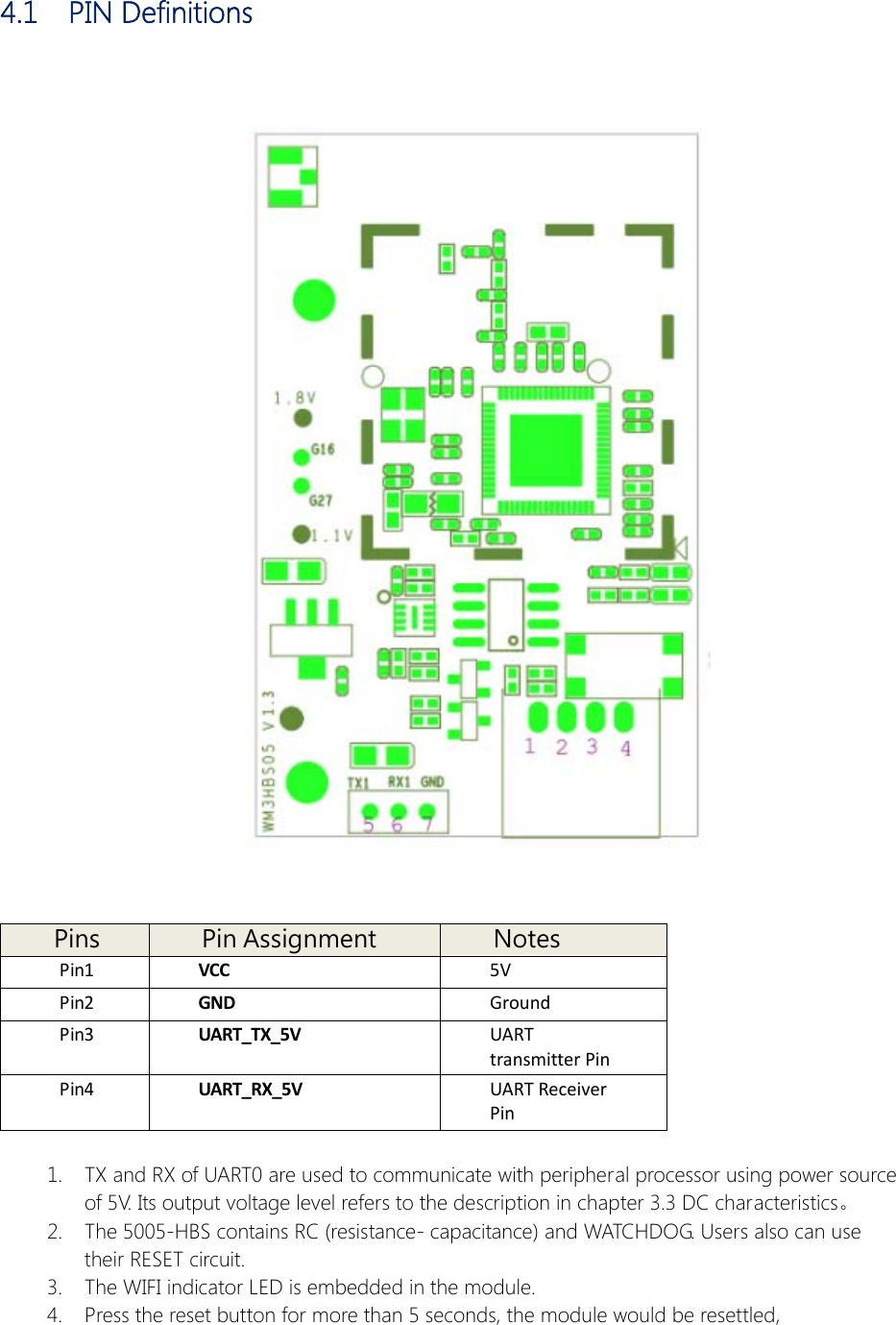

4.1  PIN Definitions      Pins  Pin Assignment  Notes Pin1VCC5VPin2GNDGroundPin3UART_TX_5VUARTtransmitterPinPin4UART_RX_5VUARTReceiverPin1. TX and RX of UART0 are used to communicate with peripheral processor using power source of 5V. Its output voltage level refers to the description in chapter 3.3 DC characteristics。 2. The 5005-HBS contains RC (resistance- capacitance) and WATCHDOG. Users also can use their RESET circuit. 3. The WIFI indicator LED is embedded in the module. 4. Press the reset button for more than 5 seconds, the module would be resettled, 

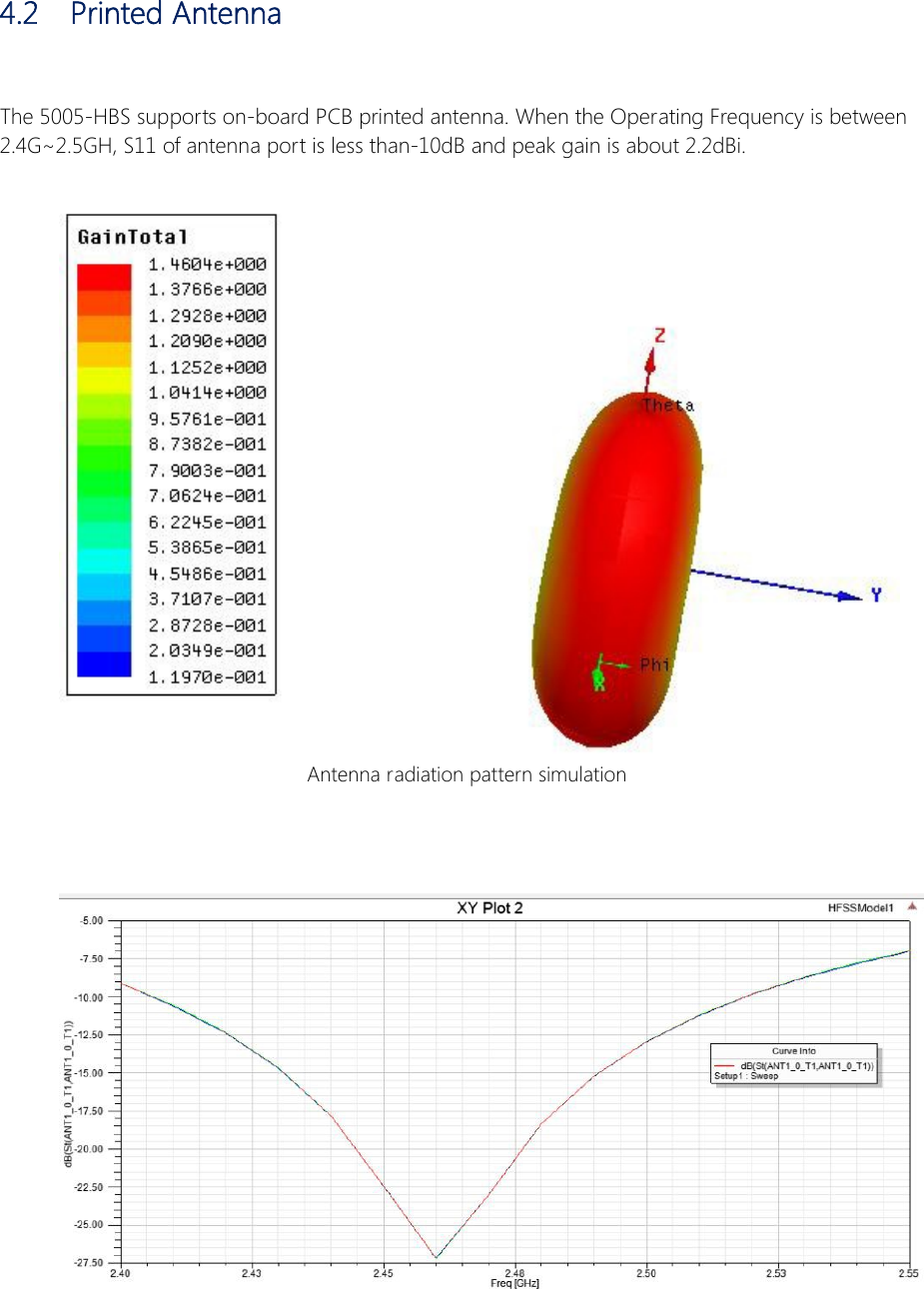

4.2  Printed Antenna The 5005-HBS supports on-board PCB printed antenna. When the Operating Frequency is between 2.4G~2.5GH, S11 of antenna port is less than-10dB and peak gain is about 2.2dBi.   Antenna radiation pattern simulation

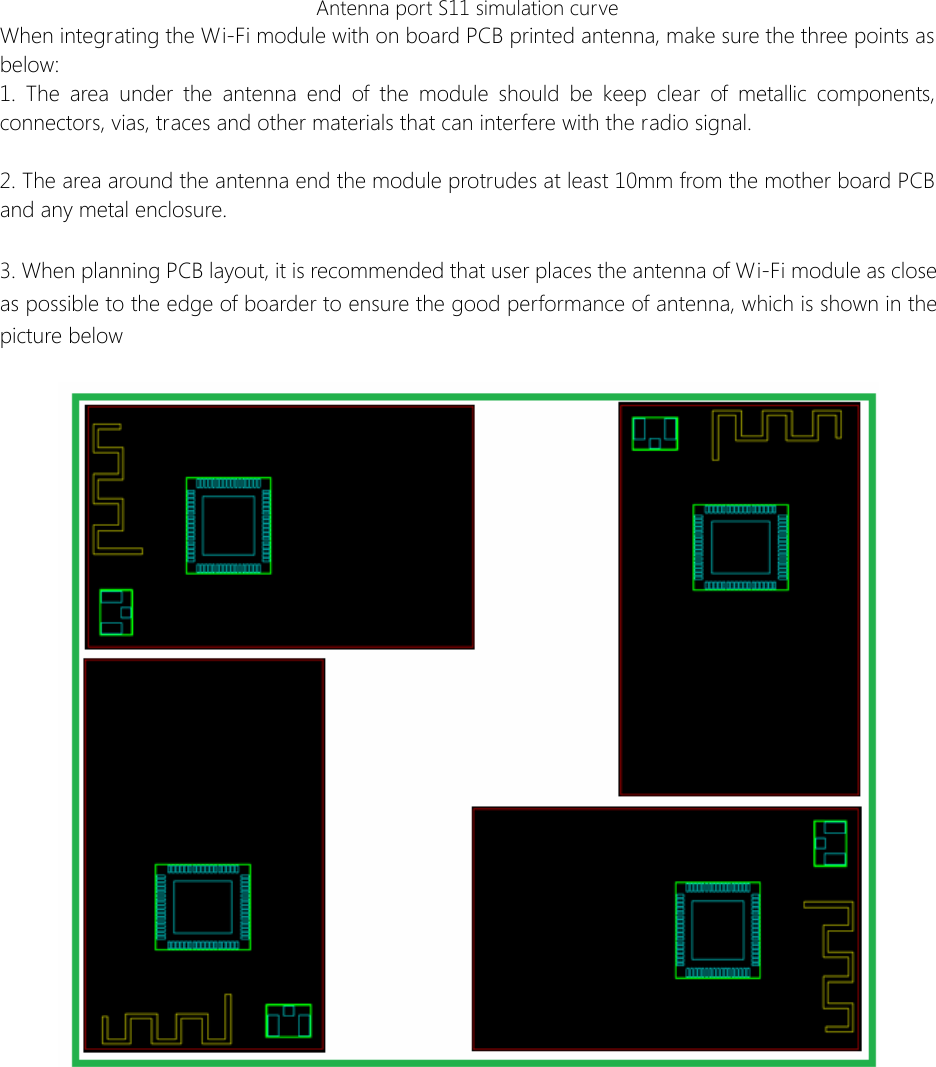

Antenna port S11 simulation curveWhen integrating the Wi-Fi module with on board PCB printed antenna, make sure the three points as below: 1. The area under the antenna end of the module should be keep clear of metallic components, connectors, vias, traces and other materials that can interfere with the radio signal. 2. The area around the antenna end the module protrudes at least 10mm from the mother board PCB and any metal enclosure. 3. When planning PCB layout, it is recommended that user places the antenna of Wi-Fi module as close as possible to the edge of boarder to ensure the good performance of antenna, which is shown in the picture below

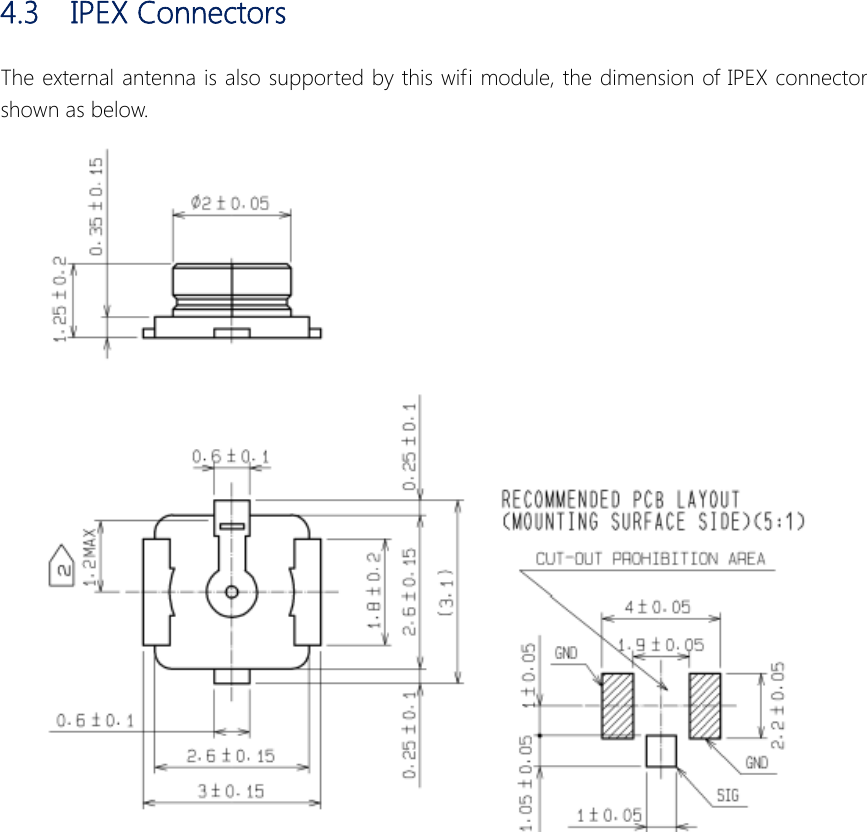

   4.3  IPEX Connectors The external antenna is also supported by this wifi module, the dimension of IPEX connector shown as below. 

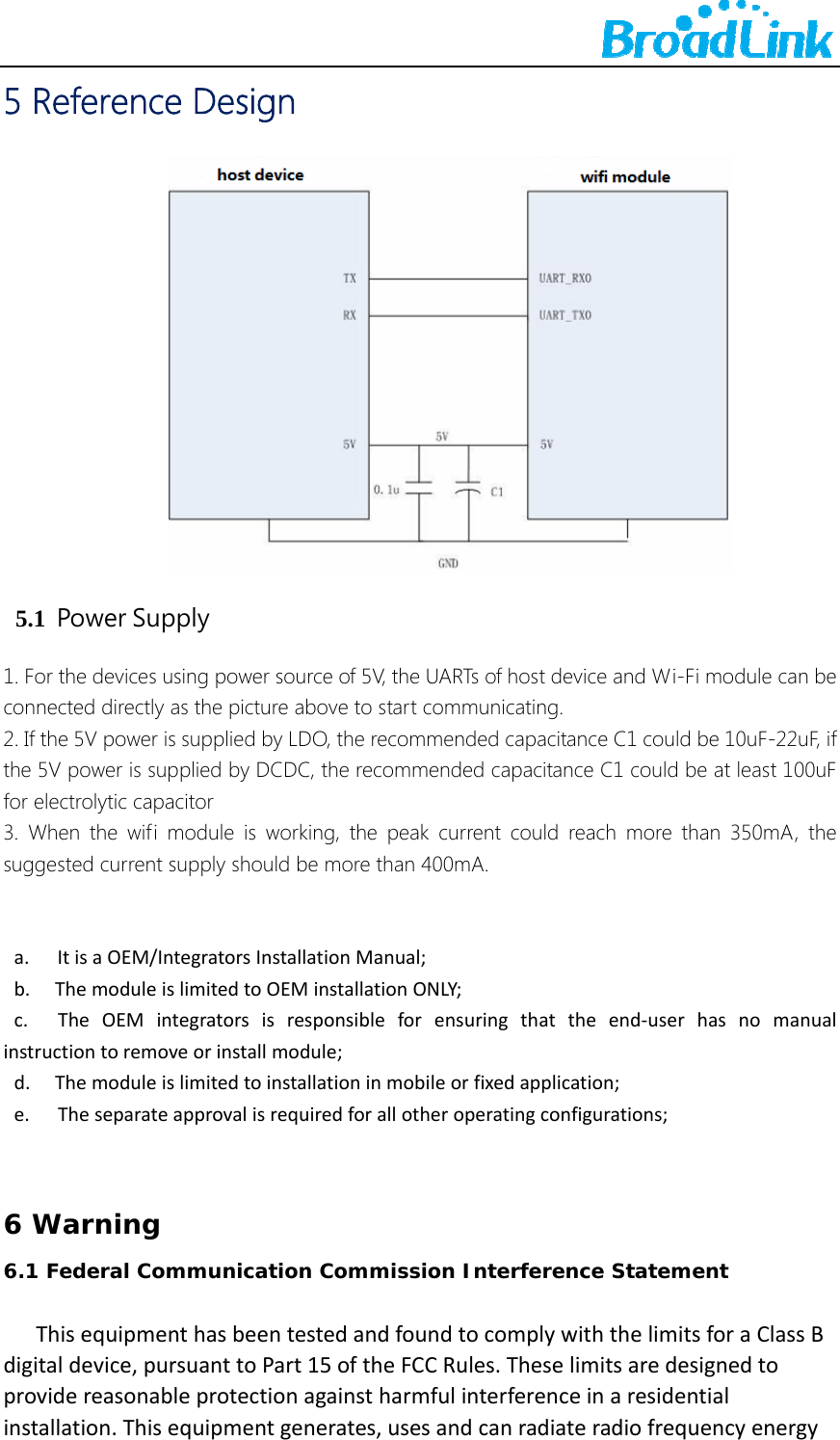

   5 Reference Design  5.1  Power Supply 1. For the devices using power source of 5V, the UARTs of host device and Wi-Fi module can be connected directly as the picture above to start communicating.   2. If the 5V power is supplied by LDO, the recommended capacitance C1 could be 10uF-22uF, if the 5V power is supplied by DCDC, the recommended capacitance C1 could be at least 100uF for electrolytic capacitor 3. When the wifi module is working, the peak current could reach more than 350mA, the suggested current supply should be more than 400mA.   a.        ItisaOEM/IntegratorsInstallationManual;b.       ThemoduleislimitedtoOEMinstallationONLY;c.        TheOEMintegratorsisresponsibleforensuringthattheend‐userhasnomanualinstructiontoremoveorinstallmodule;d.       Themoduleislimitedtoinstallationinmobileorfixedapplication;e.        Theseparateapprovalisrequiredforallotheroperatingconfigurations;  6 Warning6.1 Federal Communication Commission Interference Statement   ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequencyenergy

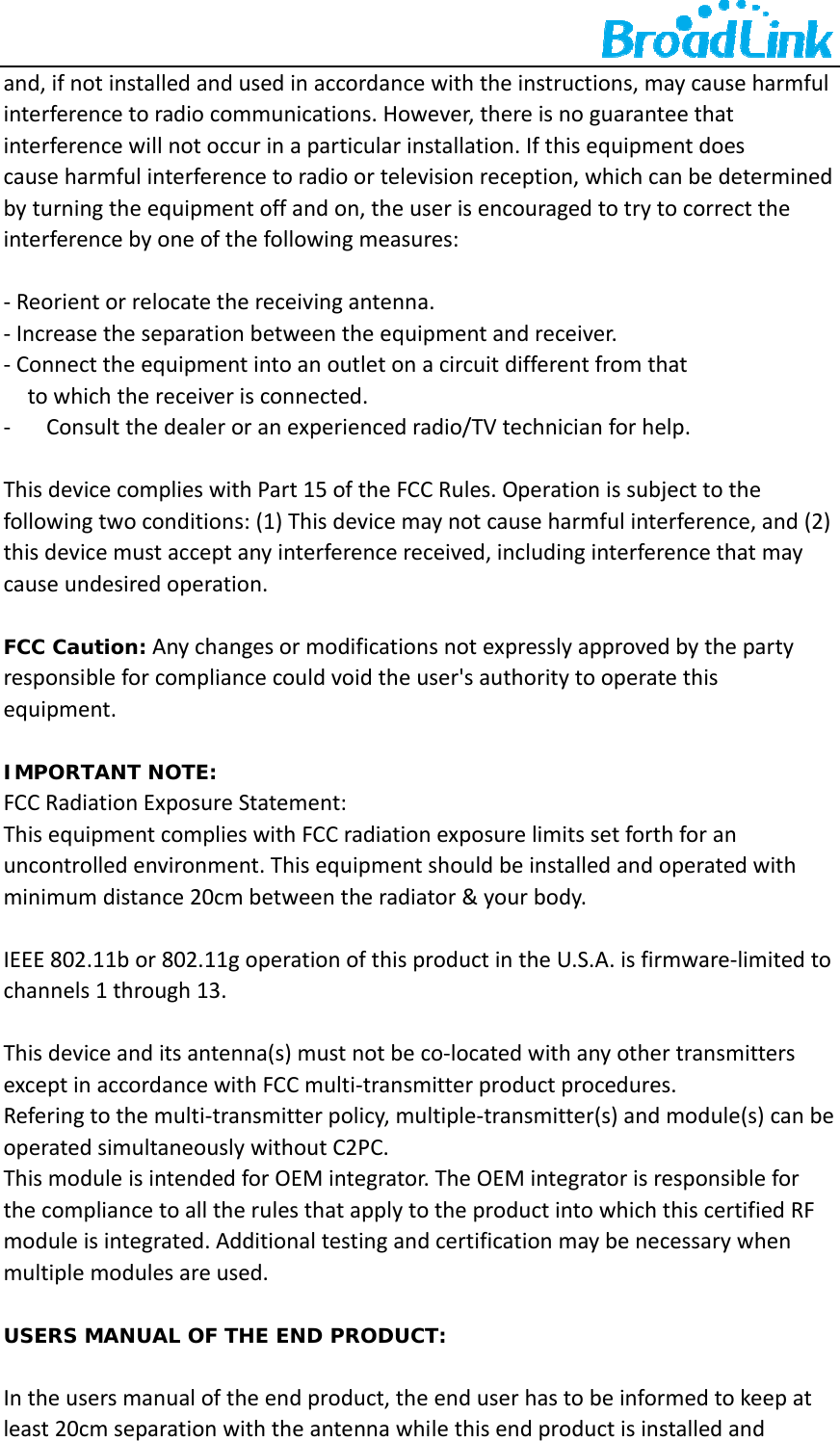

   and,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneofthefollowingmeasures:‐Reorientorrelocatethereceivingantenna.‐Increasetheseparationbetweentheequipmentandreceiver.‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.‐ Consultthedealeroranexperiencedradio/TVtechnicianforhelp.ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.FCC Caution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatethisequipment.IMPORTANT NOTE:FCCRadiationExposureStatement:ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cmbetweentheradiator&yourbody.IEEE802.11bor802.11goperationofthisproductintheU.S.A.isfirmware‐limitedtochannels1through13.Thisdeviceanditsantenna(s)mustnotbeco‐locatedwithanyothertransmittersexceptinaccordancewithFCCmulti‐transmitterproductprocedures.Referingtothemulti‐transmitterpolicy,multiple‐transmitter(s)andmodule(s)canbeoperatedsimultaneouslywithoutC2PC.ThismoduleisintendedforOEMintegrator.TheOEMintegratorisresponsibleforthecompliancetoalltherulesthatapplytotheproductintowhichthiscertifiedRFmoduleisintegrated.Additionaltestingandcertificationmaybenecessarywhenmultiplemodulesareused.USERS MANUAL OF THE END PRODUCT:Intheusersmanualoftheendproduct,theenduserhastobeinformedtokeepatleast20cmseparationwiththeantennawhilethisendproductisinstalledand

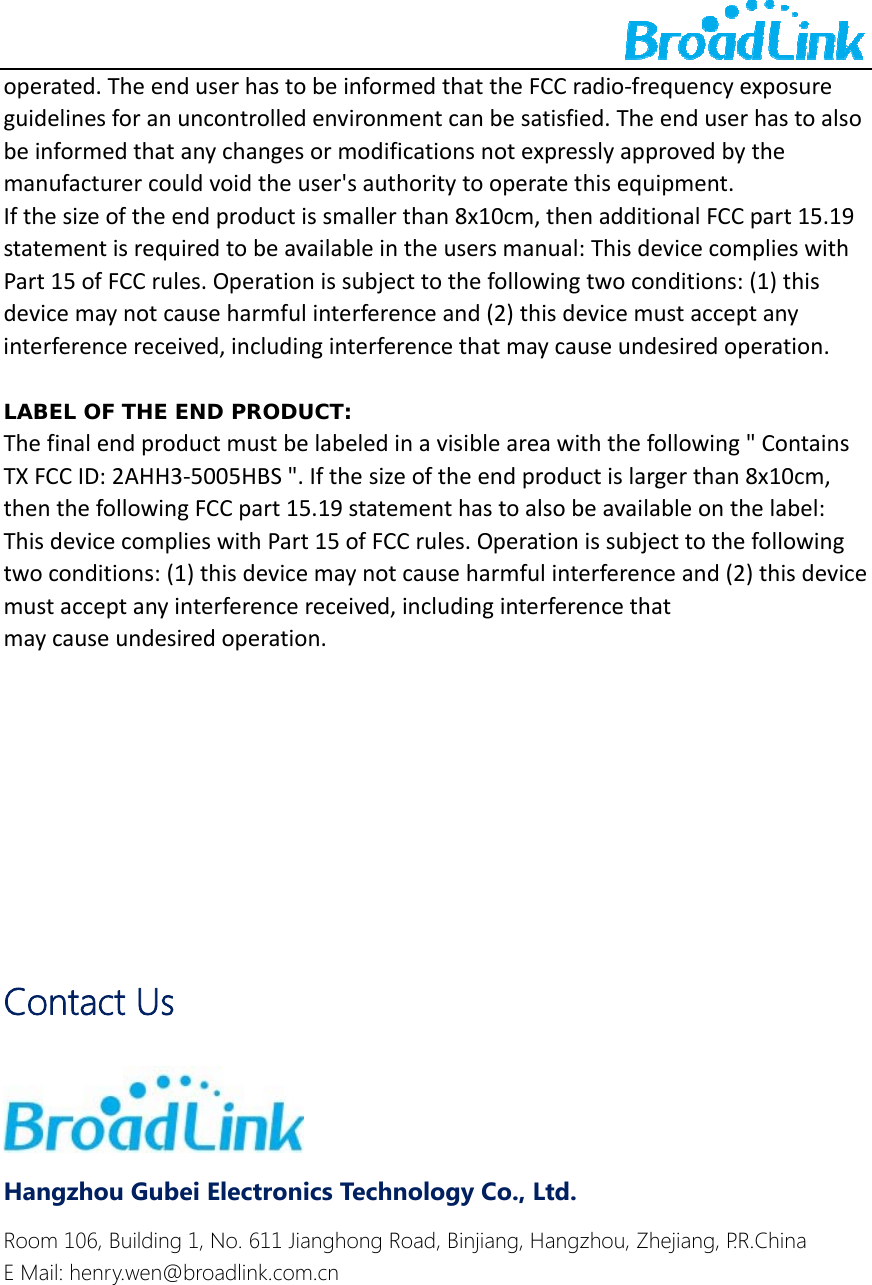

   operated.TheenduserhastobeinformedthattheFCCradio‐frequencyexposureguidelinesforanuncontrolledenvironmentcanbesatisfied.Theenduserhastoalsobeinformedthatanychangesormodificationsnotexpresslyapprovedbythemanufacturercouldvoidtheuser'sauthoritytooperatethisequipment.Ifthesizeoftheendproductissmallerthan8x10cm,thenadditionalFCCpart15.19statementisrequiredtobeavailableintheusersmanual:ThisdevicecomplieswithPart15ofFCCrules.Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseharmfulinterferenceand(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.LABEL OF THE END PRODUCT:Thefinalendproductmustbelabeledinavisibleareawiththefollowing"ContainsTXFCCID:2AHH3‐5005HBS".Ifthesizeoftheendproductislargerthan8x10cm,thenthefollowingFCCpart15.19statementhastoalsobeavailableonthelabel:ThisdevicecomplieswithPart15ofFCCrules.Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseharmfulinterferenceand(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.      Contact Us  Hangzhou Gubei Electronics Technology Co., Ltd. Room 106, Building 1, No. 611 Jianghong Road, Binjiang, Hangzhou, Zhejiang, P.R.China E Mail: henry.wen@broadlink.com.cn
