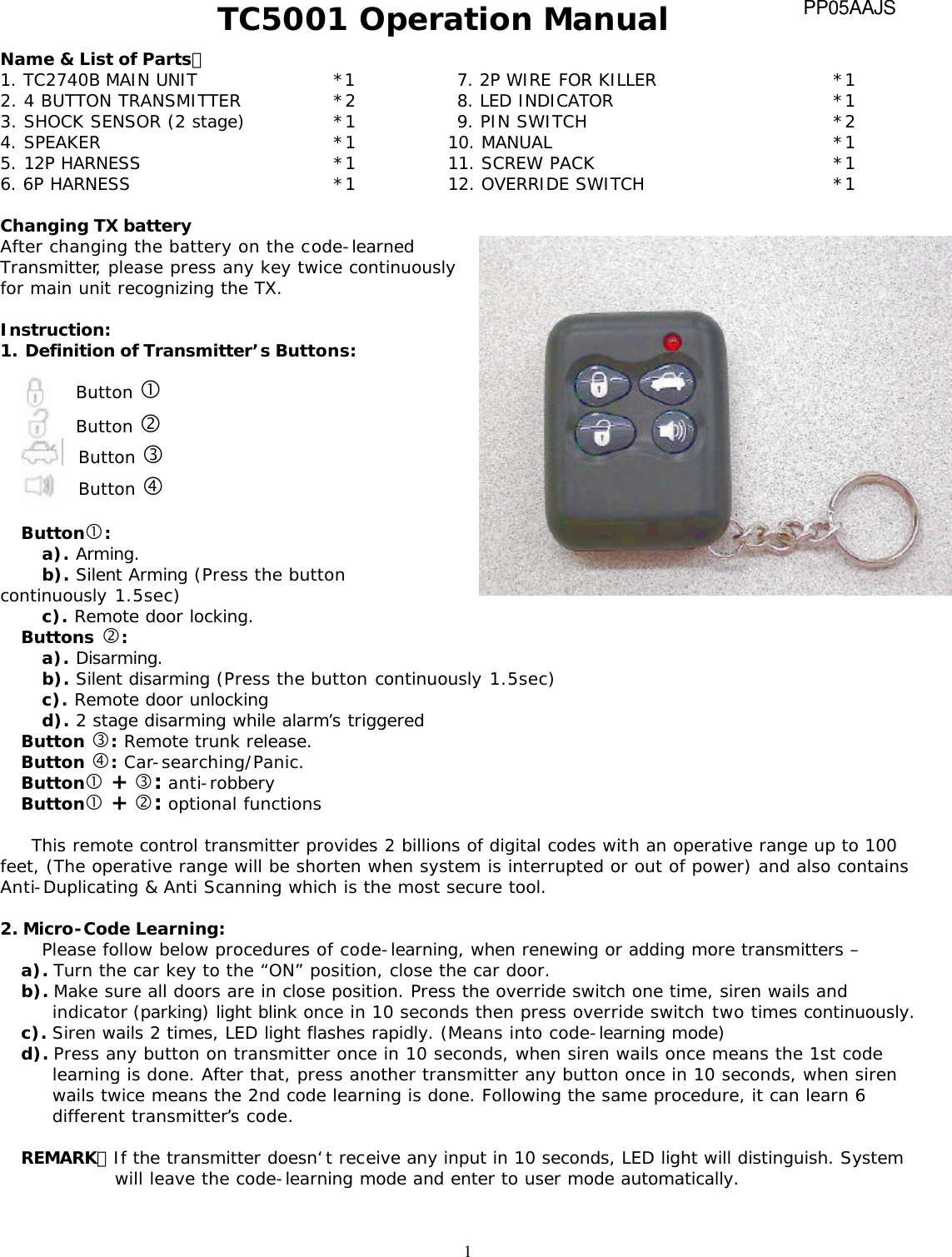

 1TC5001 Operation Manual Name & List of Parts: 1. TC2740B MAIN UNIT *1        7. 2P WIRE FOR KILLER *1 2. 4 BUTTON TRANSMITTER *2   8. LED INDICATOR *1 3. SHOCK SENSOR (2 stage) *1 9. PIN SWITCH *2 4. SPEAKER   *1 10. MANUAL *1 5. 12P HARNESS *1 11. SCREW PACK   *1 6. 6P HARNESS *1 12. OVERRIDE SWITCH  *1  Changing TX battery After changing the battery on the code-learned Transmitter, please press any key twice continuously for main unit recognizing the TX.     Instruction: 1. Definition of Transmitter’s Buttons:   Button • Button ‚ Button ƒ Button „  Button•:  a). Arming.  b). Silent Arming (Press the button continuously 1.5sec) c). Remote door locking. Buttons ‚: a). Disarming.  b). Silent disarming (Press the button continuously 1.5sec) c). Remote door unlocking d). 2 stage disarming while alarm’s triggered Button ƒ: Remote trunk release.  Button „: Car-searching/Panic. Button• + ƒ: anti-robbery    Button• + ‚: optional functions  This remote control transmitter provides 2 billions of digital codes with an operative range up to 100 feet, (The operative range will be shorten when system is interrupted or out of power) and also contains Anti-Duplicating & Anti Scanning which is the most secure tool.  2. Micro-Code Learning: Please follow below procedures of code-learning, when renewing or adding more transmitters – a). Turn the car key to the “ON” position, close the car door.  b). Make sure all doors are in close position. Press the override switch one time, siren wails and indicator (parking) light blink once in 10 seconds then press override switch two times continuously. c). Siren wails 2 times, LED light flashes rapidly. (Means into code-learning mode) d). Press any button on transmitter once in 10 seconds, when siren wails once means the 1st code learning is done. After that, press another transmitter any button once in 10 seconds, when siren wails twice means the 2nd code learning is done. Following the same procedure, it can learn 6 different transmitter’s code.  REMARK:If the transmitter doesn‘t receive any input in 10 seconds, LED light will distinguish. System will leave the code-learning mode and enter to user mode automatically.   PP05AAJS

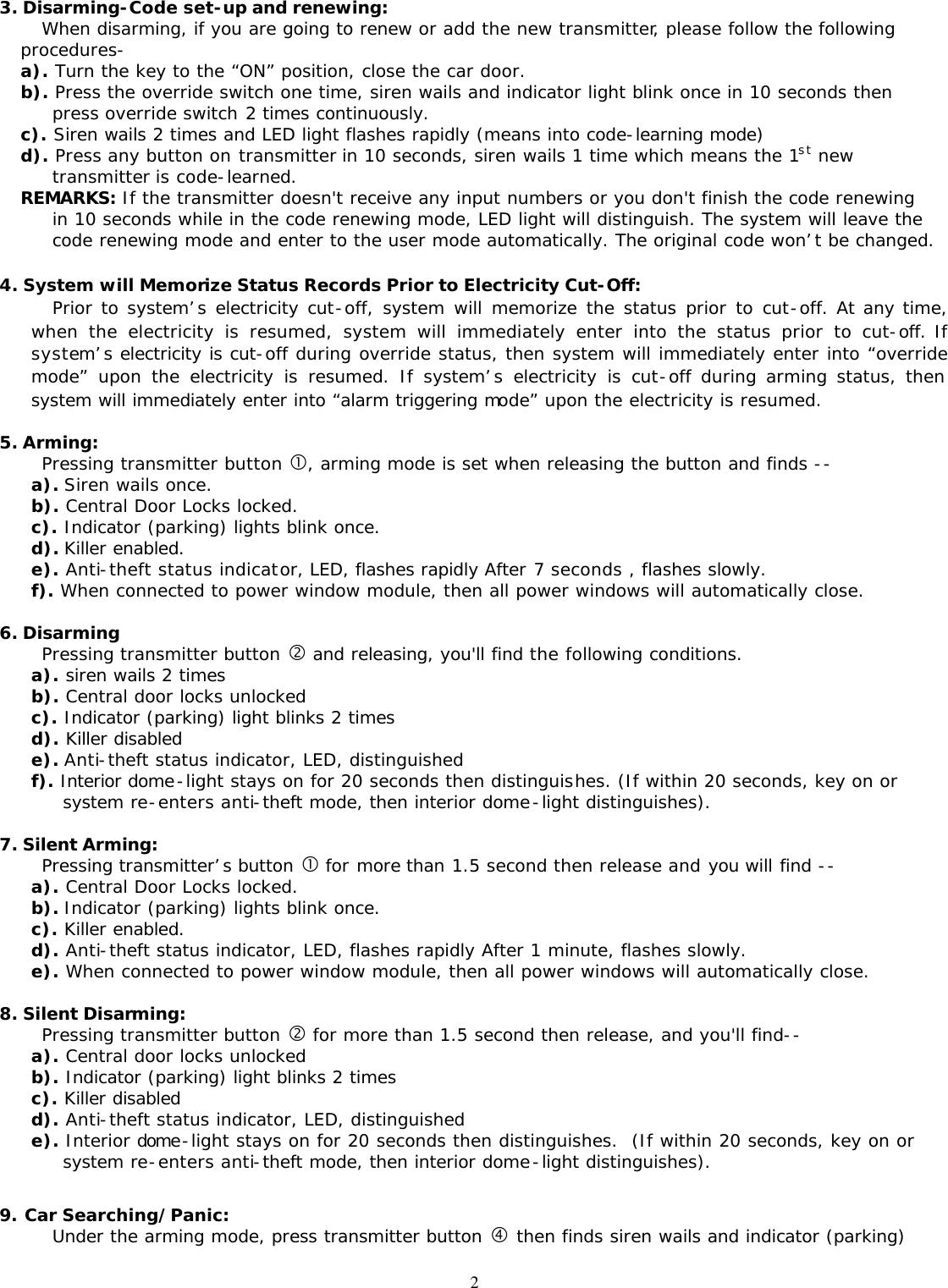

 23. Disarming-Code set-up and renewing: When disarming, if you are going to renew or add the new transmitter, please follow the following procedures- a). Turn the key to the “ON” position, close the car door.   b). Press the override switch one time, siren wails and indicator light blink once in 10 seconds then press override switch 2 times continuously. c). Siren wails 2 times and LED light flashes rapidly (means into code-learning mode) d). Press any button on transmitter in 10 seconds, siren wails 1 time which means the 1st new transmitter is code-learned. REMARKS: If the transmitter doesn't receive any input numbers or you don't finish the code renewing in 10 seconds while in the code renewing mode, LED light will distinguish. The system will leave the code renewing mode and enter to the user mode automatically. The original code won’t be changed.  4. System will Memorize Status Records Prior to Electricity Cut-Off: Prior to system’s electricity cut-off, system will memorize the status prior to cut-off. At any time, when the electricity is resumed, system will immediately enter into the status prior to cut-off. If system’s electricity is cut-off during override status, then system will immediately enter into “override mode” upon the electricity is resumed. If system’s electricity is cut-off during arming status, then system will immediately enter into “alarm triggering mode” upon the electricity is resumed.  5. Arming: Pressing transmitter button •, arming mode is set when releasing the button and finds -- a). Siren wails once. b). Central Door Locks locked. c). Indicator (parking) lights blink once. d). Killer enabled. e). Anti-theft status indicator, LED, flashes rapidly After 7 seconds , flashes slowly. f). When connected to power window module, then all power windows will automatically close.  6. Disarming Pressing transmitter button ‚ and releasing, you'll find the following conditions. a). siren wails 2 times b). Central door locks unlocked c). Indicator (parking) light blinks 2 times d). Killer disabled e). Anti-theft status indicator, LED, distinguished f). Interior dome-light stays on for 20 seconds then distinguishes. (If within 20 seconds, key on or system re-enters anti-theft mode, then interior dome-light distinguishes).  7. Silent Arming:  Pressing transmitter’s button • for more than 1.5 second then release and you will find -- a). Central Door Locks locked. b). Indicator (parking) lights blink once. c). Killer enabled. d). Anti-theft status indicator, LED, flashes rapidly After 1 minute, flashes slowly. e). When connected to power window module, then all power windows will automatically close.  8. Silent Disarming: Pressing transmitter button ‚ for more than 1.5 second then release, and you'll find-- a). Central door locks unlocked b). Indicator (parking) light blinks 2 times c). Killer disabled d). Anti-theft status indicator, LED, distinguished e). Interior dome-light stays on for 20 seconds then distinguishes.  (If within 20 seconds, key on or system re-enters anti-theft mode, then interior dome-light distinguishes).  9. Car Searching/Panic: Under the arming mode, press transmitter button „ then finds siren wails and indicator (parking)

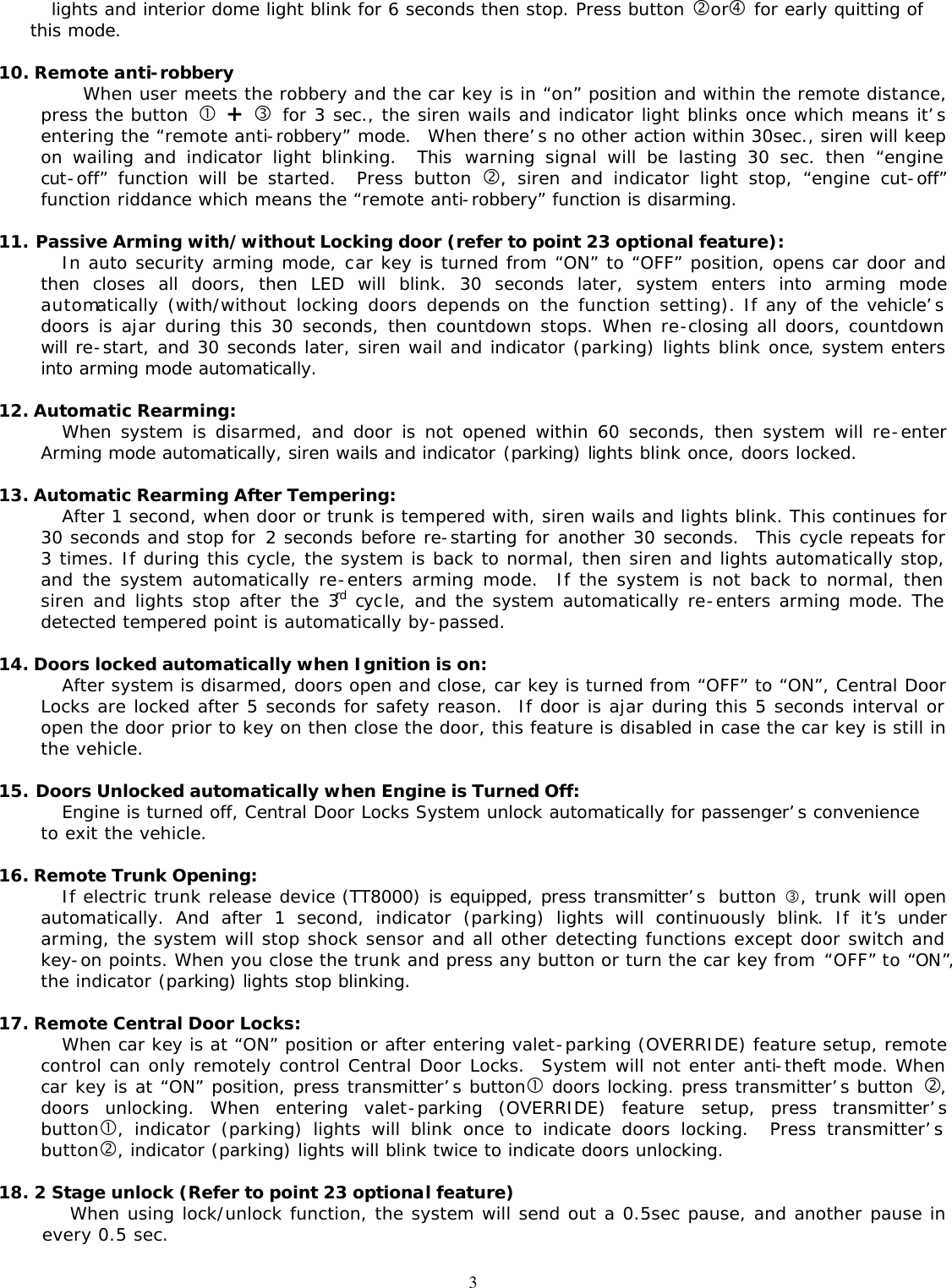

 3lights and interior dome light blink for 6 seconds then stop. Press button ‚or„ for early quitting of this mode.  10. Remote anti-robbery When user meets the robbery and the car key is in “on” position and within the remote distance, press the button • + ƒ for 3 sec., the siren wails and indicator light blinks once which means it’s entering the “remote anti-robbery” mode.  When there’s no other action within 30sec., siren will keep on wailing and indicator light blinking.   This warning signal will be lasting 30 sec. then “engine cut-off” function will be started.   Press button ‚, siren and indicator light stop, “engine cut-off” function riddance which means the “remote anti-robbery” function is disarming.   11. Passive Arming with/without Locking door (refer to point 23 optional feature): In auto security arming mode, car key is turned from “ON” to “OFF” position, opens car door and then closes all doors, then LED will blink. 30 seconds later, system enters into arming mode automatically (with/without locking doors depends on  the function setting). If any of the vehicle’s doors is ajar during this 30 seconds, then countdown stops. When re-closing all doors, countdown will re-start, and 30 seconds later, siren wail and indicator (parking) lights blink once, system enters into arming mode automatically.  12. Automatic Rearming: When system is disarmed, and door is not opened within 60 seconds, then system will re-enter Arming mode automatically, siren wails and indicator (parking) lights blink once, doors locked.  13. Automatic Rearming After Tempering: After 1 second, when door or trunk is tempered with, siren wails and lights blink. This continues for 30 seconds and stop for 2 seconds before re-starting for another 30 seconds.  This cycle repeats for 3 times. If during this cycle, the system is back to normal, then siren and lights automatically stop, and the system automatically re-enters arming mode.  If the system is not back to normal, then siren and lights stop after the 3rd cycle, and the system automatically re-enters arming mode. The detected tempered point is automatically by-passed.  14. Doors locked automatically when Ignition is on: After system is disarmed, doors open and close, car key is turned from “OFF” to “ON”, Central Door Locks are locked after 5 seconds for safety reason.  If door is ajar during this 5 seconds interval or open the door prior to key on then close the door, this feature is disabled in case the car key is still in the vehicle.  15. Doors Unlocked automatically when Engine is Turned Off: Engine is turned off, Central Door Locks System unlock automatically for passenger’s convenience to exit the vehicle.  16. Remote Trunk Opening: If electric trunk release device (TT8000) is equipped, press transmitter’s  button ƒ, trunk will open automatically. And after 1 second, indicator (parking) lights will continuously blink. If it’s under arming, the system will stop shock sensor and all other detecting functions except door switch and key-on points. When you close the trunk and press any button or turn the car key from “OFF” to “ON”, the indicator (parking) lights stop blinking.  17. Remote Central Door Locks: When car key is at “ON” position or after entering valet-parking (OVERRIDE) feature setup, remote control can only remotely control Central Door Locks.  System will not enter anti-theft mode. When car key is at “ON” position, press transmitter’s button• doors locking. press transmitter’s button ‚, doors unlocking. When entering valet-parking (OVERRIDE) feature setup, press transmitter’s button•, indicator (parking) lights will blink once to indicate doors locking.  Press transmitter’s button‚, indicator (parking) lights will blink twice to indicate doors unlocking.  18. 2 Stage unlock (Refer to point 23 optional feature)         When using lock/unlock function, the system will send out a 0.5sec pause, and another pause in every 0.5 sec.

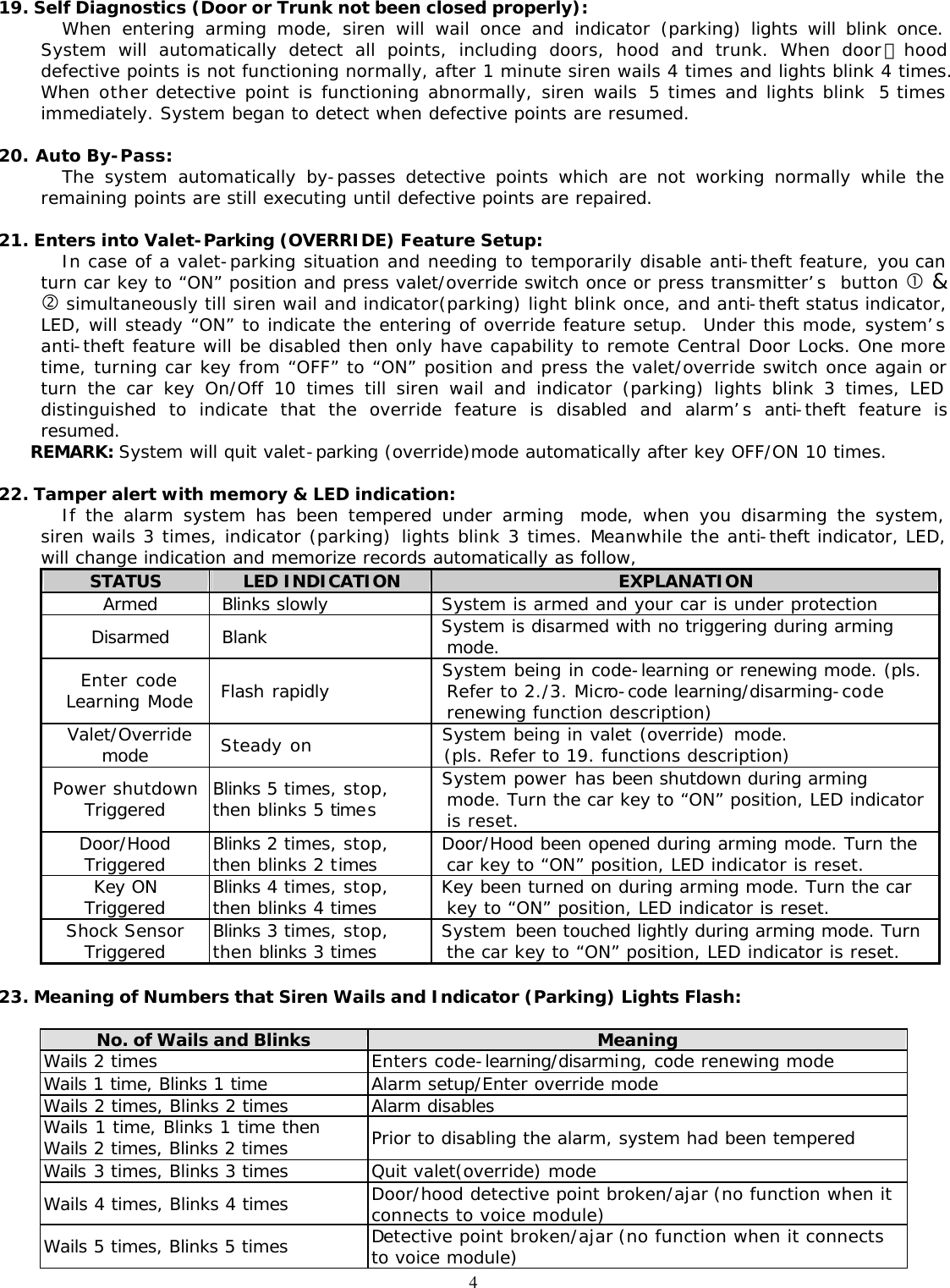

 419. Self Diagnostics (Door or Trunk not been closed properly): When entering arming mode, siren will wail once and indicator (parking) lights will blink once.  System will automatically detect all points, including doors, hood and trunk. When door、hood defective points is not functioning normally, after 1 minute siren wails 4 times and lights blink 4 times. When  other detective point is functioning abnormally, siren wails 5 times and lights blink  5 times immediately. System began to detect when defective points are resumed.  20. Auto By-Pass: The system automatically by-passes detective points which are not working normally while the remaining points are still executing until defective points are repaired.  21. Enters into Valet-Parking (OVERRIDE) Feature Setup: In case of a valet-parking situation and needing to temporarily disable anti-theft feature, you can turn car key to “ON” position and press valet/override switch once or press transmitter’s  button • & ‚ simultaneously till siren wail and indicator(parking) light blink once, and anti-theft status indicator, LED, will steady “ON” to indicate the entering of override feature setup.  Under this mode, system’s anti-theft feature will be disabled then only have capability to remote Central Door Locks. One more time, turning car key from “OFF” to “ON” position and press the valet/override switch once again or turn the car key On/Off 10 times till siren wail and indicator (parking) lights blink 3 times, LED distinguished to indicate that the override feature is disabled and alarm’s anti-theft feature is resumed. REMARK: System will quit valet-parking (override)mode automatically after key OFF/ON 10 times.  22. Tamper alert with memory & LED indication: If the alarm system has been tempered under arming  mode, when you disarming the system, siren wails 3 times, indicator (parking) lights blink 3 times. Meanwhile the anti-theft indicator, LED, will change indication and memorize records automatically as follow,  STATUS LED INDICATION EXPLANATION  Armed  Blinks slowly  System is armed and your car is under protection  Disarmed  Blank  System is disarmed with no triggering during arming mode.  Enter code  Learning Mode  Flash rapidly  System being in code-learning or renewing mode. (pls. Refer to 2./3. Micro-code learning/disarming-code renewing function description)  Valet/Override mode  Steady on  System being in valet (override) mode.              (pls. Refer to 19. functions description) Power shutdown Triggered Blinks 5 times, stop, then blinks 5 times  System power has been shutdown during arming mode. Turn the car key to “ON” position, LED indicator is reset. Door/Hood Triggered Blinks 2 times, stop, then blinks 2 times  Door/Hood been opened during arming mode. Turn the car key to “ON” position, LED indicator is reset. Key ON Triggered Blinks 4 times, stop, then blinks 4 times  Key been turned on during arming mode. Turn the car key to “ON” position, LED indicator is reset. Shock Sensor  Triggered Blinks 3 times, stop, then blinks 3 times  System been touched lightly during arming mode. Turn the car key to “ON” position, LED indicator is reset.  23. Meaning of Numbers that Siren Wails and Indicator (Parking) Lights Flash:  No. of Wails and Blinks Meaning Wails 2 times Enters code-learning/disarming, code renewing mode Wails 1 time, Blinks 1 time Alarm setup/Enter override mode Wails 2 times, Blinks 2 times Alarm disables Wails 1 time, Blinks 1 time then  Wails 2 times, Blinks 2 times Prior to disabling the alarm, system had been tempered Wails 3 times, Blinks 3 times Quit valet(override) mode Wails 4 times, Blinks 4 times Door/hood detective point broken/ajar (no function when it connects to voice module) Wails 5 times, Blinks 5 times Detective point broken/ajar (no function when it connects to voice module)

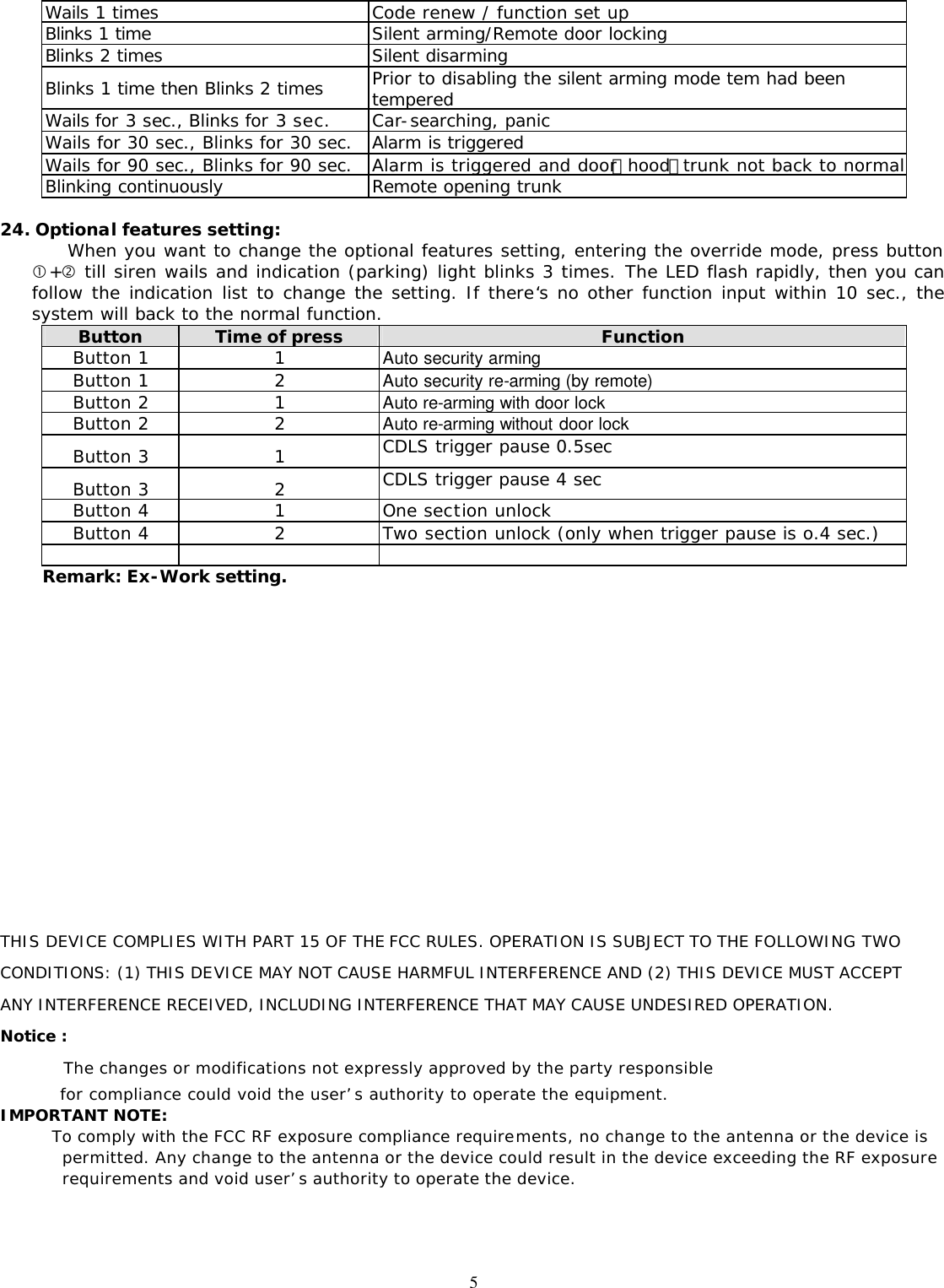

 5Wails 1 times Code renew / function set up Blinks 1 time Silent arming/Remote door locking Blinks 2 times Silent disarming Blinks 1 time then Blinks 2 times Prior to disabling the silent arming mode tem had been tempered Wails for 3 sec., Blinks for 3 sec. Car-searching, panic Wails for 30 sec., Blinks for 30 sec. Alarm is triggered Wails for 90 sec., Blinks for 90 sec. Alarm is triggered and door、hood、trunk not back to normal Blinking continuously Remote opening trunk  24. Optional features setting: When you want to change the optional features setting, entering the override mode, press button •+‚ till siren wails and indication (parking) light blinks 3 times. The LED flash rapidly, then you can follow the indication list to change the setting. If there‘s no other function input within 10 sec., the system will back to the normal function.  Button Time of press Function Button 1 1 Auto security arming Button 1 2 Auto security re-arming (by remote) Button 2 1 Auto re-arming with door lock Button 2 2 Auto re-arming without door lock Button 3 1 CDLS trigger pause 0.5sec Button 3 2 CDLS trigger pause 4 sec Button 4 1 One section unlock Button 4 2 Two section unlock (only when trigger pause is o.4 sec.)      Remark: Ex-Work setting.                 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT  ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Notice :  The changes or modifications not expressly approved by the party responsible    for compliance could void the user’s authority to operate the equipment. IMPORTANT NOTE:  To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device.
