Tekelek Europe 377A Wireless Fuel Oil level monitoring system User Manual 9 5246 02 TEK377A OEM INSTRUCTION pg2of2

Tekelek Europe Ltd Wireless Fuel Oil level monitoring system 9 5246 02 TEK377A OEM INSTRUCTION pg2of2

Contents

User manual page 2

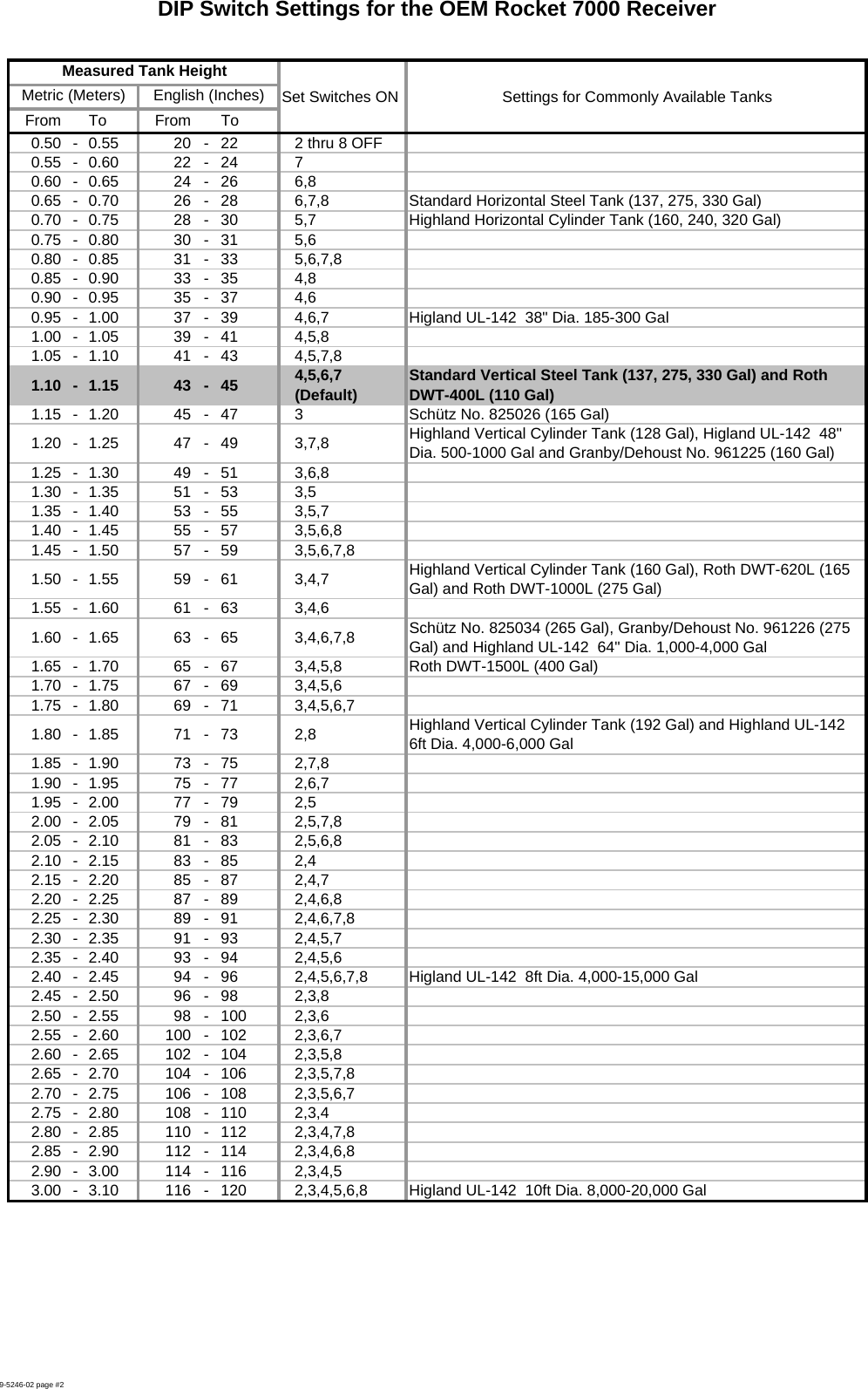

DIP Switch Settings for the OEM Rocket 7000 ReceiverSet Switches ON Settings for Commonly Available TanksFrom To From To0.50 - 0.55 20 - 22 2 thru 8 OFF0.55 - 0.60 22 - 24 70.60 - 0.65 24 - 26 6,80.65 - 0.70 26 - 28 6,7,8 Standard Horizontal Steel Tank (137, 275, 330 Gal)0.70 - 0.75 28 - 30 5,7 Highland Horizontal Cylinder Tank (160, 240, 320 Gal)0.75 - 0.80 30 - 31 5,60.80 - 0.85 31 - 33 5,6,7,80.85 - 0.90 33 - 35 4,80.90 - 0.95 35 - 37 4,60.95 - 1.00 37 - 39 4,6,7 Higland UL-142 38" Dia. 185-300 Gal1.00 - 1.05 39 - 41 4,5,81.05 - 1.10 41 - 43 4,5,7,81.10 - 1.15 43 - 45 4,5,6,7 (Default) Standard Vertical Steel Tank (137, 275, 330 Gal) and Roth DWT-400L (110 Gal)1.15 - 1.20 45 - 47 3 Schütz No. 825026 (165 Gal)1.20 - 1.25 47 - 49 3,7,8 Highland Vertical Cylinder Tank (128 Gal), Higland UL-142 48" Dia. 500-1000 Gal and Granby/Dehoust No. 961225 (160 Gal)1.25 - 1.30 49 - 51 3,6,81.30 - 1.35 51 - 53 3,51.35 - 1.40 53 - 55 3,5,71.40 - 1.45 55 - 57 3,5,6,81.45 - 1.50 57 - 59 3,5,6,7,81.50 - 1.55 59 - 61 3,4,7 Highland Vertical Cylinder Tank (160 Gal), Roth DWT-620L (165 Gal) and Roth DWT-1000L (275 Gal)1.55 - 1.60 61 - 63 3,4,61.60 - 1.65 63 - 65 3,4,6,7,8 Schütz No. 825034 (265 Gal), Granby/Dehoust No. 961226 (275 Gal) and Highland UL-142 64" Dia. 1,000-4,000 Gal1.65 - 1.70 65 - 67 3,4,5,8 Roth DWT-1500L (400 Gal)1.70 - 1.75 67 - 69 3,4,5,61.75 - 1.80 69 - 71 3,4,5,6,71.80 - 1.85 71 - 73 2,8 Highland Vertical Cylinder Tank (192 Gal) and Highland UL-142 6ft Dia. 4,000-6,000 Gal1.85 - 1.90 73 - 75 2,7,81.90 - 1.95 75 - 77 2,6,71.95 - 2.00 77 - 79 2,52.00 - 2.05 79 - 81 2,5,7,82.05 - 2.10 81 - 83 2,5,6,82.10 - 2.15 83 - 85 2,42.15 - 2.20 85 - 87 2,4,72.20 - 2.25 87 - 89 2,4,6,82.25 - 2.30 89 - 91 2,4,6,7,82.30 - 2.35 91 - 93 2,4,5,72.35 - 2.40 93 - 94 2,4,5,62.40 - 2.45 94 - 96 2,4,5,6,7,8 Higland UL-142 8ft Dia. 4,000-15,000 Gal2.45 - 2.50 96 - 98 2,3,82.50 - 2.55 98 - 100 2,3,62.55 - 2.60 100 - 102 2,3,6,72.60 - 2.65 102 - 104 2,3,5,82.65 - 2.70 104 - 106 2,3,5,7,82.70 - 2.75 106 - 108 2,3,5,6,72.75 - 2.80 108 - 110 2,3,42.80 - 2.85 110 - 112 2,3,4,7,82.85 - 2.90 112 - 114 2,3,4,6,82.90 - 3.00 114 - 116 2,3,4,53.00 - 3.10 116 - 120 2,3,4,5,6,8 Higland UL-142 10ft Dia. 8,000-20,000 GalMetric (Meters) English (Inches)Measured Tank Height 9-5246-02 page #2
