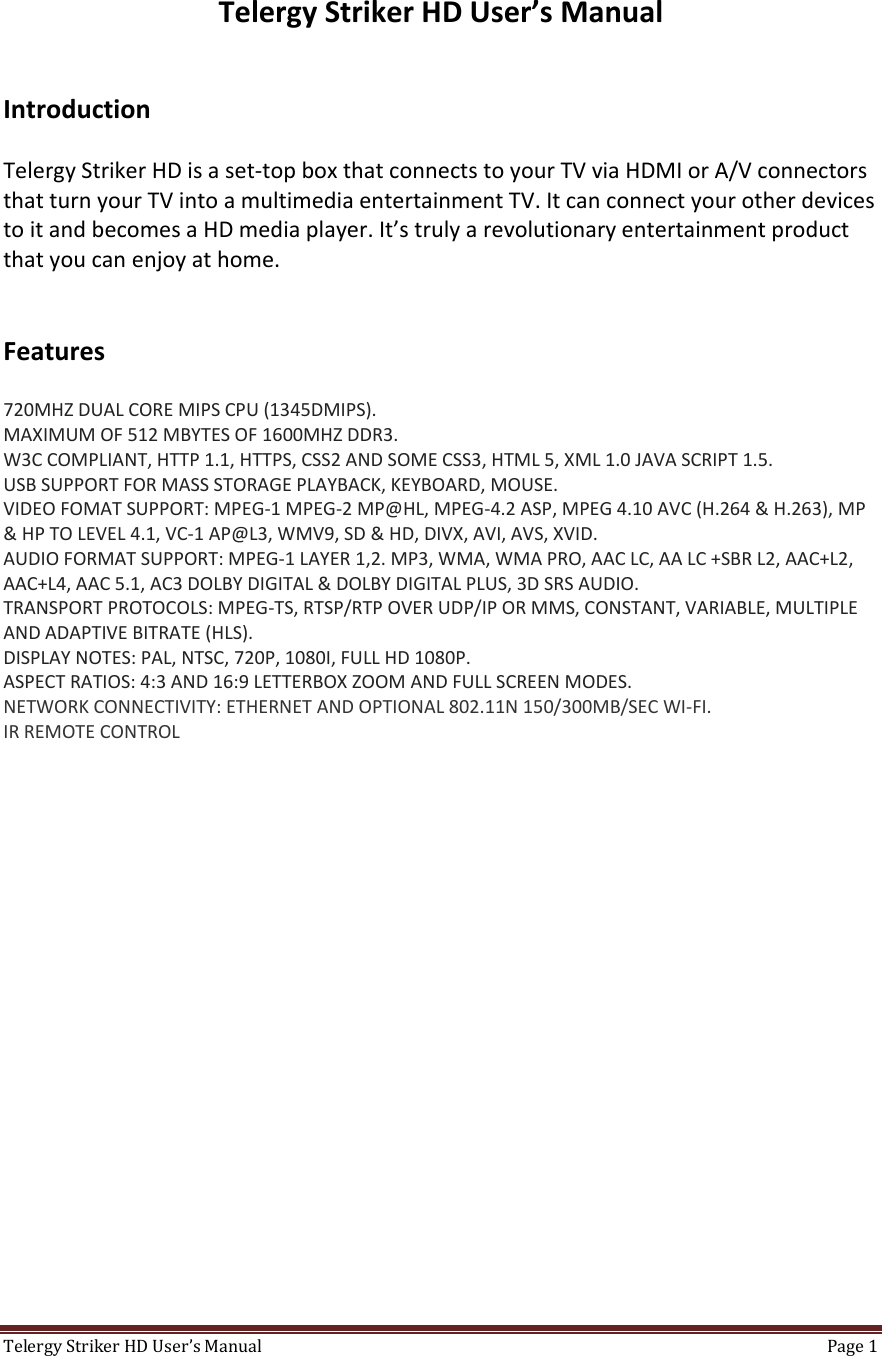

TelergyStrikerHDUser’sManual Page1 TelergyStrikerHDUser’sManualIntroductionTelergyStrikerHDisaset‐topboxthatconnectstoyourTVviaHDMIorA/VconnectorsthatturnyourTVintoamultimediaentertainmentTV.ItcanconnectyourotherdevicestoitandbecomesaHDmediaplayer.It’strulyarevolutionaryentertainmentproductthatyoucanenjoyathome.Features720MHZDUALCOREMIPSCPU(1345DMIPS).MAXIMUMOF512MBYTESOF1600MHZDDR3.W3CCOMPLIANT,HTTP1.1,HTTPS,CSS2ANDSOMECSS3,HTML5,XML1.0JAVASCRIPT1.5.USBSUPPORTFORMASSSTORAGEPLAYBACK,KEYBOARD,MOUSE.VIDEOFOMATSUPPORT:MPEG‐1MPEG‐2MP@HL,MPEG‐4.2ASP,MPEG4.10AVC(H.264&H.263),MP&HPTOLEVEL4.1,VC‐1AP@L3,WMV9,SD&HD,DIVX,AVI,AVS,XVID.AUDIOFORMATSUPPORT:MPEG‐1LAYER1,2.MP3,WMA,WMAPRO,AACLC,AALC+SBRL2,AAC+L2,AAC+L4,AAC5.1,AC3DOLBYDIGITAL&DOLBYDIGITALPLUS,3DSRSAUDIO.TRANSPORTPROTOCOLS:MPEG‐TS,RTSP/RTPOVERUDP/IPORMMS,CONSTANT,VARIABLE,MULTIPLEANDADAPTIVEBITRATE(HLS).DISPLAYNOTES:PAL,NTSC,720P,1080I,FULLHD1080P.ASPECTRATIOS:4:3AND16:9LETTERBOXZOOMANDFULLSCREENMODES.NETWORKCONNECTIVITY:ETHERNETANDOPTIONAL802.11N150/300MB/SECWI‐FI.IRREMOTECONTROL

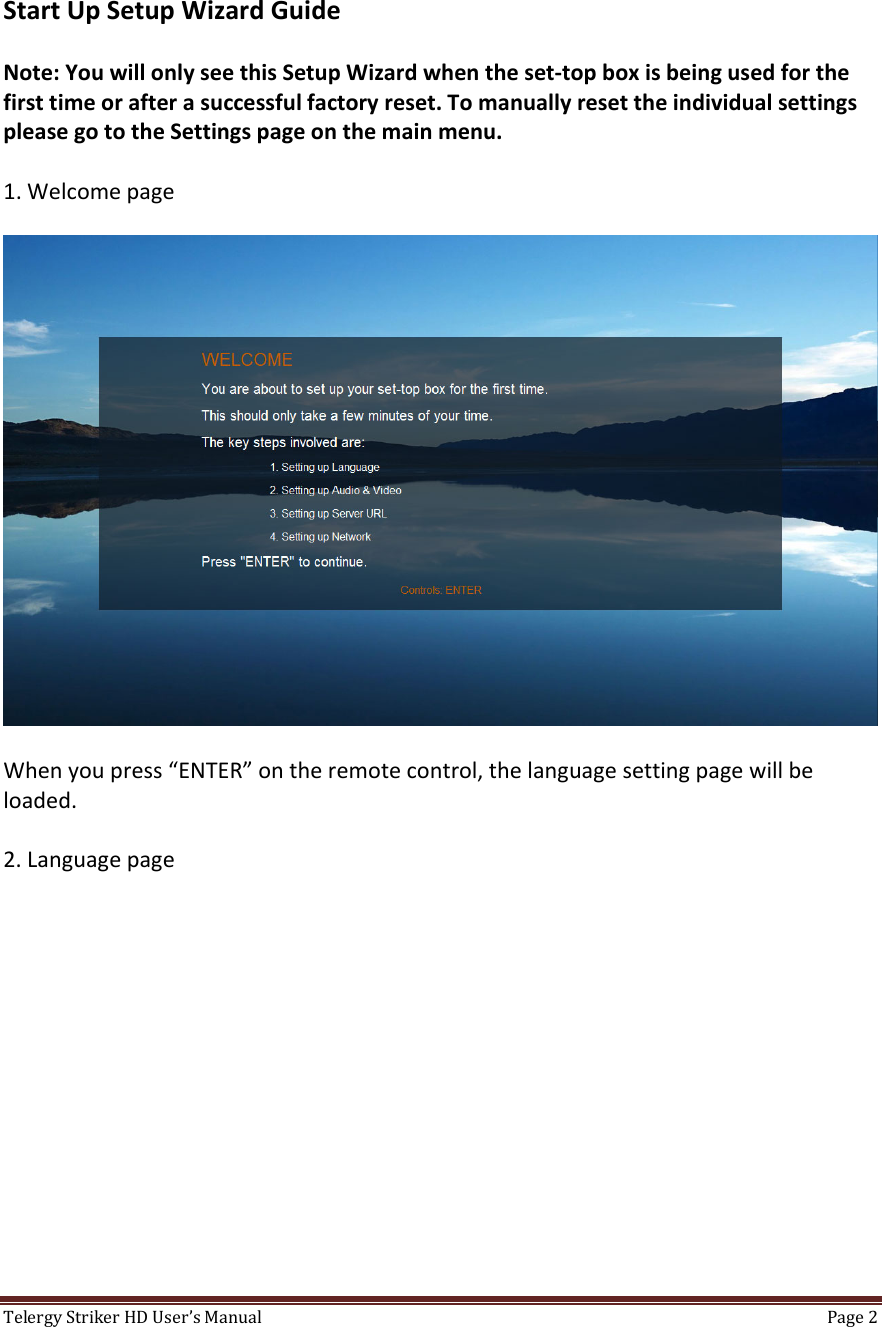

TelergyStrikerHDUser’sManual Page2 StartUpSetupWizardGuideNote:YouwillonlyseethisSetupWizardwhentheset‐topboxisbeingusedforthefirsttimeorafterasuccessfulfactoryreset.TomanuallyresettheindividualsettingspleasegototheSettingspageonthemainmenu.1.WelcomepageWhenyoupress“ENTER”ontheremotecontrol,thelanguagesettingpagewillbeloaded.2.Languagepage

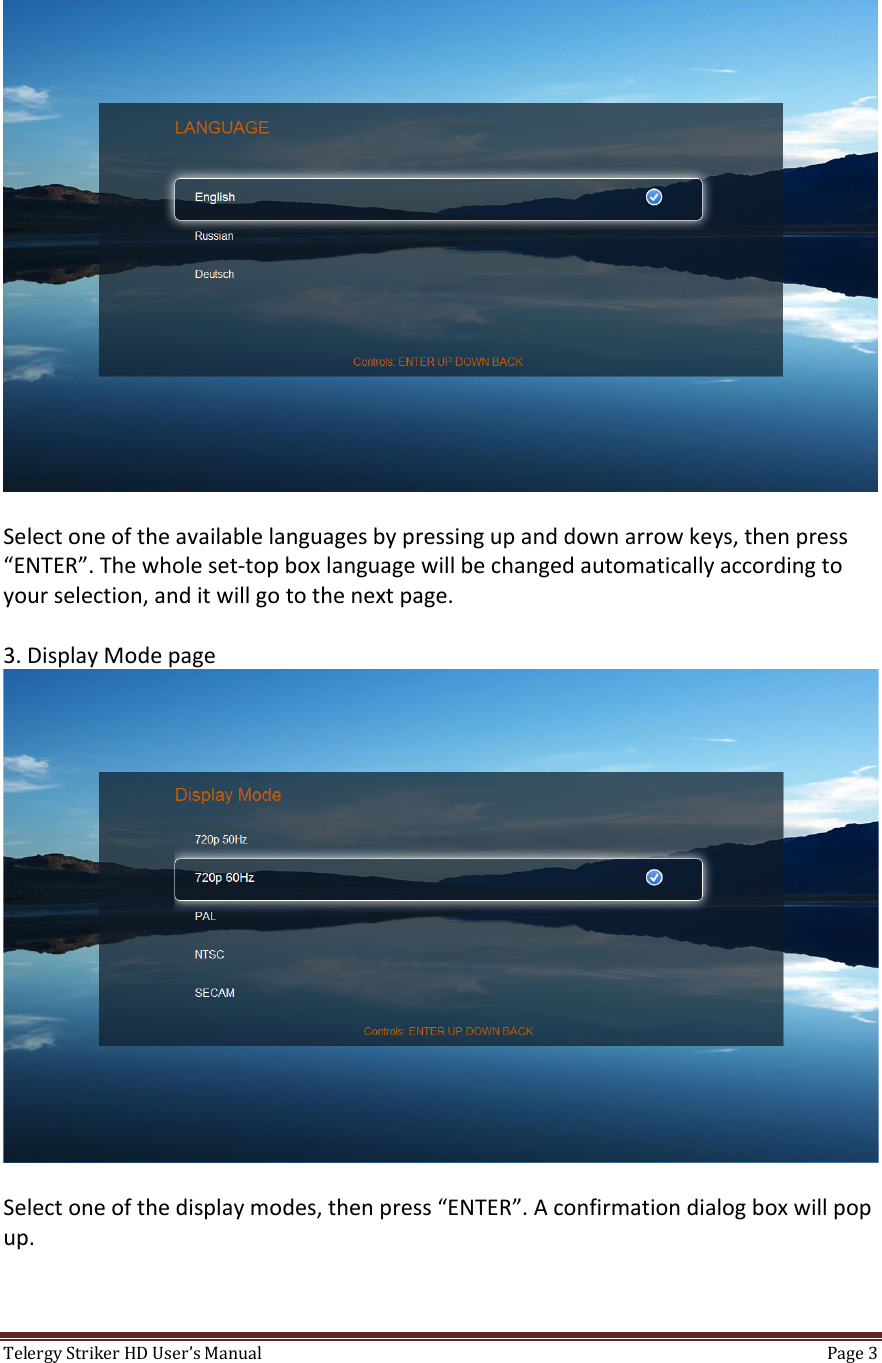

TelergyStrikerHDUser’sManual Page3 Selectoneoftheavailablelanguagesbypressingupanddownarrowkeys,thenpress“ENTER”.Thewholeset‐topboxlanguagewillbechangedautomaticallyaccordingtoyourselection,anditwillgotothenextpage.3.DisplayModepageSelectoneofthedisplaymodes,thenpress“ENTER”.Aconfirmationdialogboxwillpopup.

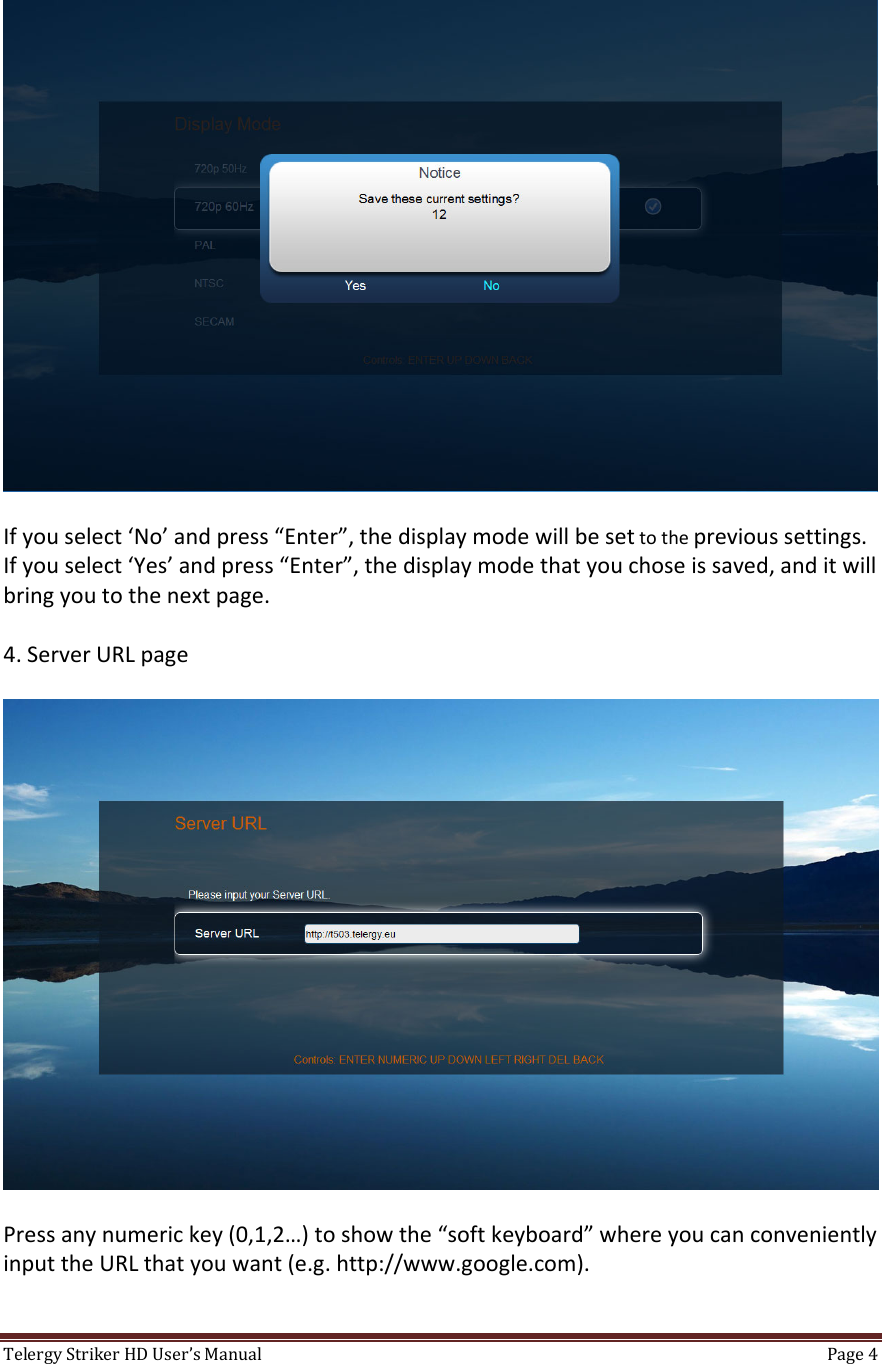

TelergyStrikerHDUser’sManual Page4 Ifyouselect‘No’andpress“Enter”,thedisplaymodewillbesettotheprevioussettings.Ifyouselect‘Yes’andpress“Enter”,thedisplaymodethatyouchoseissaved,anditwillbringyoutothenextpage.4.ServerURLpagePressanynumerickey(0,1,2…)toshowthe“softkeyboard”whereyoucanconvenientlyinputtheURLthatyouwant(e.g.http://www.google.com).

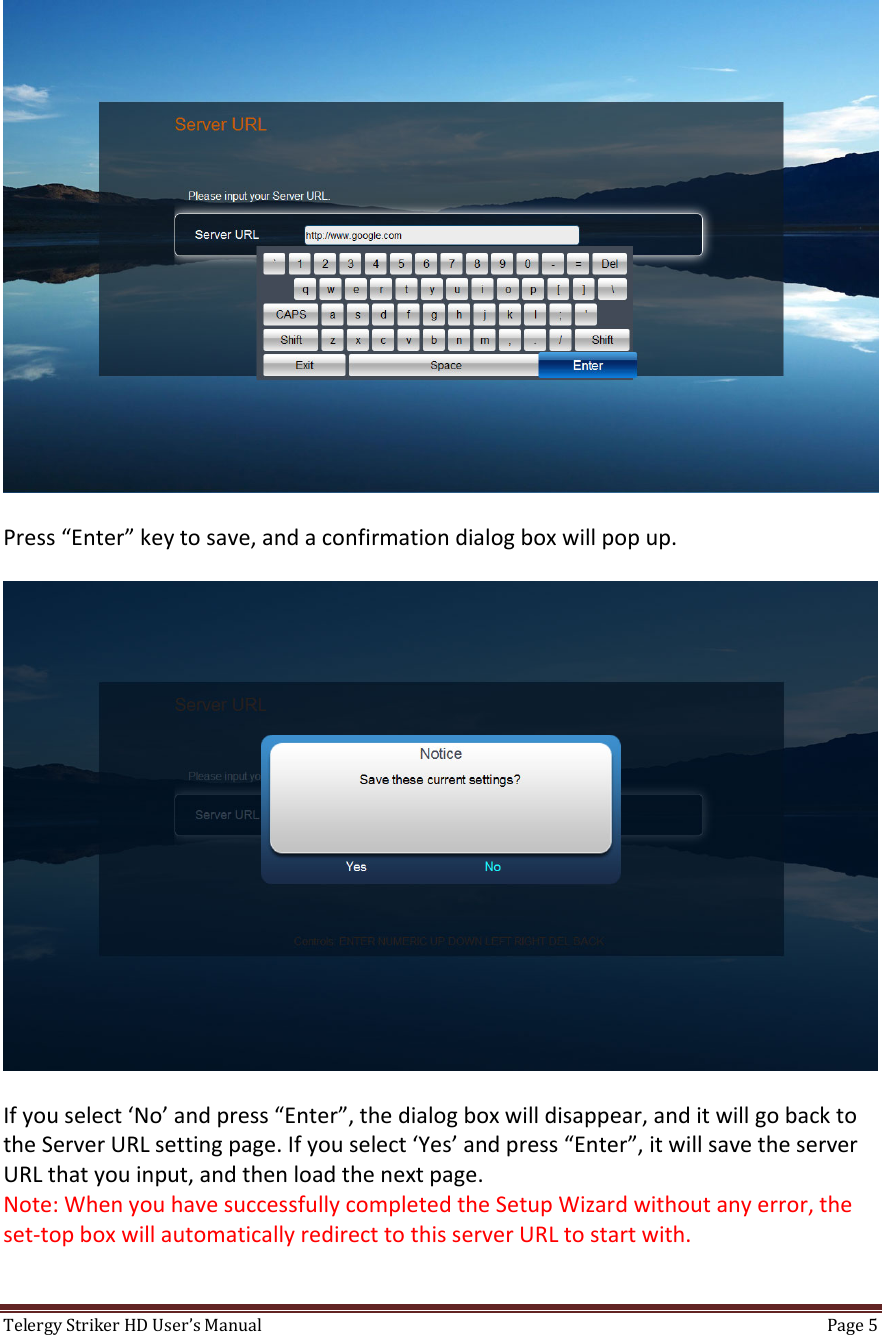

TelergyStrikerHDUser’sManual Page5 Press“Enter”keytosave,andaconfirmationdialogboxwillpopup.Ifyouselect‘No’andpress“Enter”,thedialogboxwilldisappear,anditwillgobacktotheServerURLsettingpage.Ifyouselect‘Yes’andpress“Enter”,itwillsavetheserverURLthatyouinput,andthenloadthenextpage.Note:WhenyouhavesuccessfullycompletedtheSetupWizardwithoutanyerror,theset‐topboxwillautomaticallyredirecttothisserverURLtostartwith.

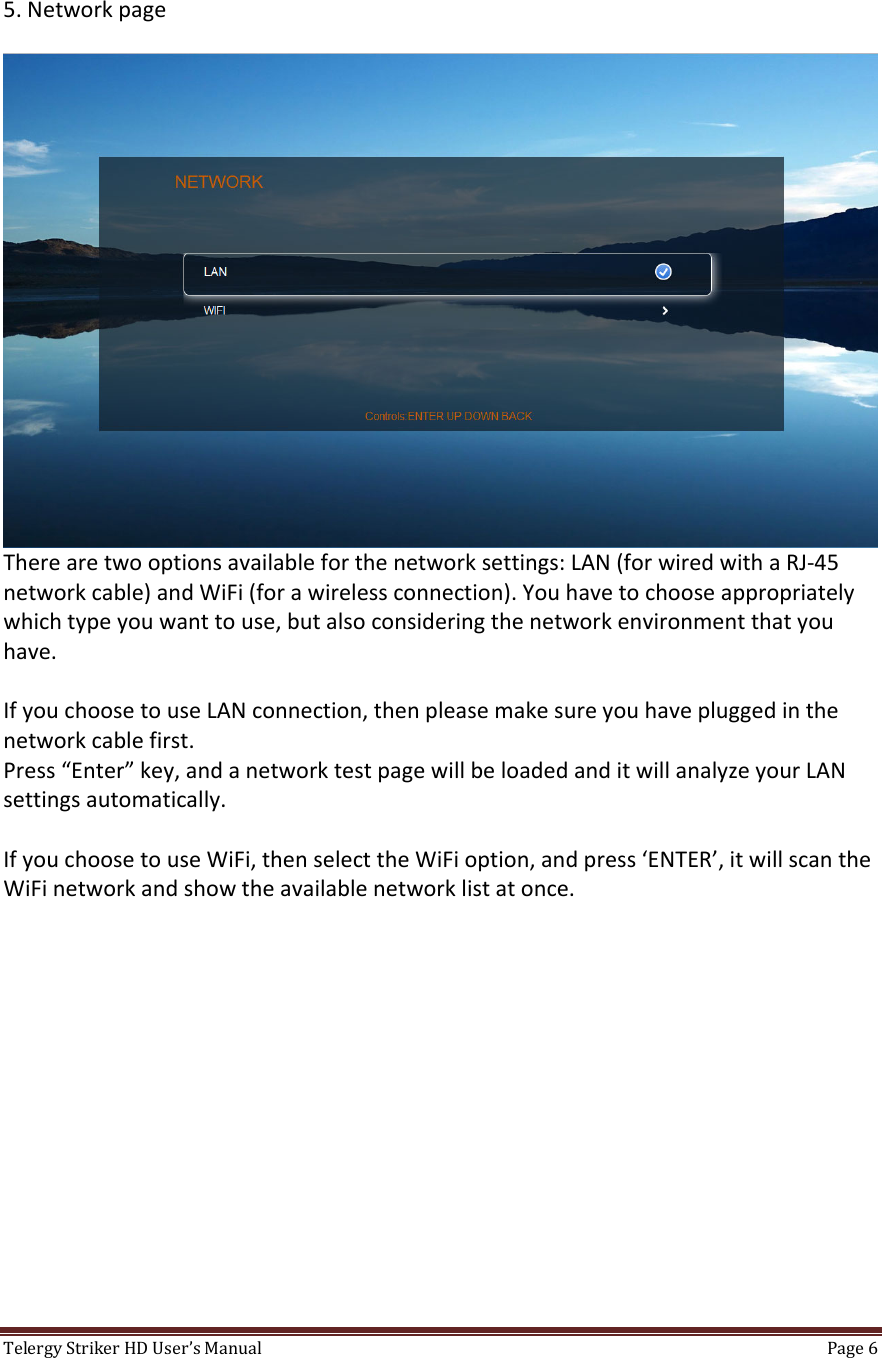

TelergyStrikerHDUser’sManual Page6 5.NetworkpageTherearetwooptionsavailableforthenetworksettings:LAN(forwiredwithaRJ‐45networkcable)andWiFi(forawirelessconnection).Youhavetochooseappropriatelywhichtypeyouwanttouse,butalsoconsideringthenetworkenvironmentthatyouhave.IfyouchoosetouseLANconnection,thenpleasemakesureyouhavepluggedinthenetworkcablefirst.Press“Enter”key,andanetworktestpagewillbeloadedanditwillanalyzeyourLANsettingsautomatically.IfyouchoosetouseWiFi,thenselecttheWiFioption,andpress‘ENTER’,itwillscantheWiFinetworkandshowtheavailablenetworklistatonce.

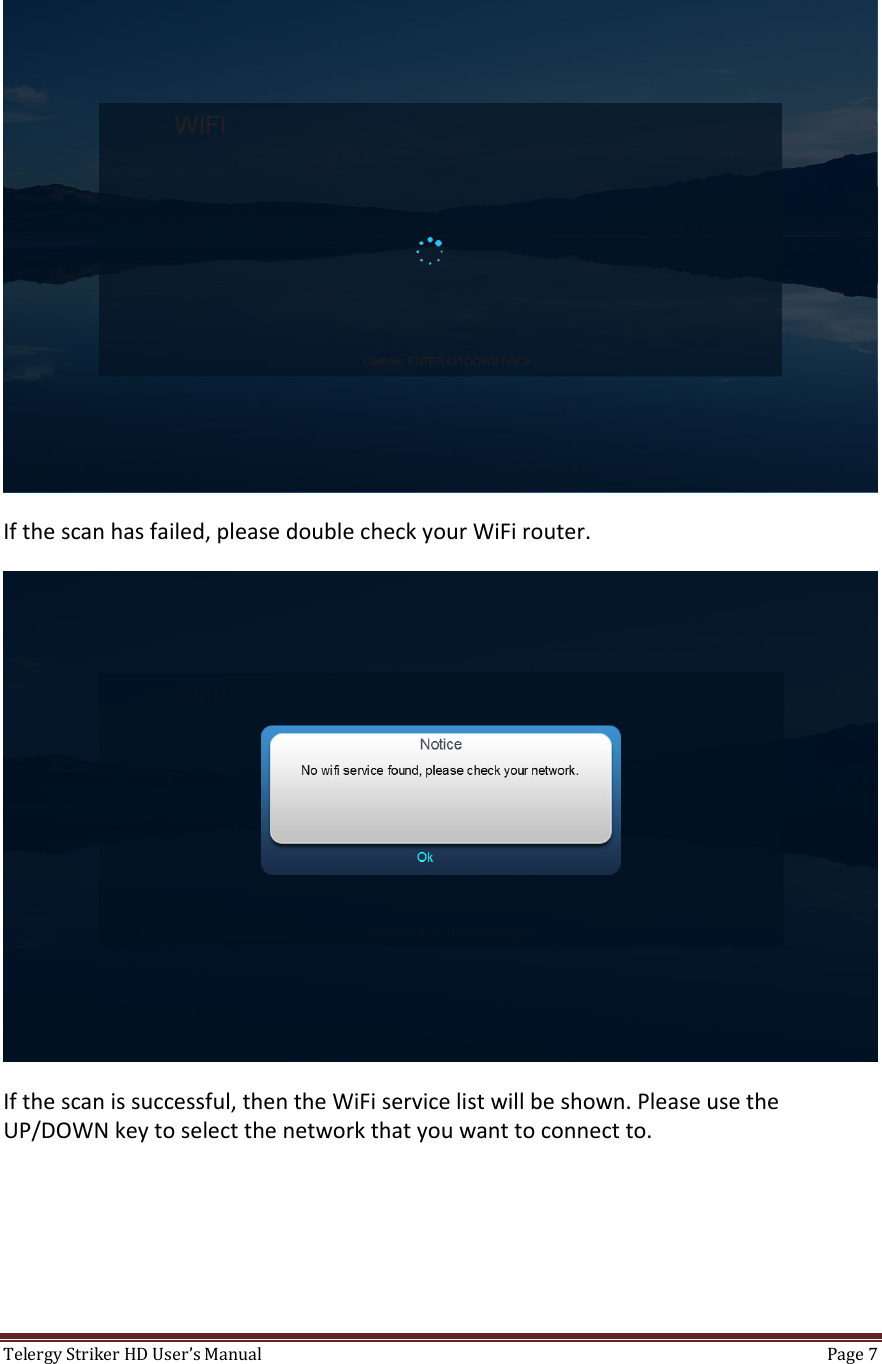

TelergyStrikerHDUser’sManual Page7 Ifthescanhasfailed,pleasedoublecheckyourWiFirouter.Ifthescanissuccessful,thentheWiFiservicelistwillbeshown.PleaseusetheUP/DOWNkeytoselectthenetworkthatyouwanttoconnectto.
TelergyStrikerHDUser’sManual Page8 Press“Enter”keytoconfiguretheWiFisettings.Pleaseinputthecorrectpasswordintheappropriatefield.Ifthere’snopasswordspecified,thenpleaseleaveitblank.Selectandpress‘Enter’keyonthesoftkeyboard,anditwillconnecttothatWiFinetwork.Note:CurrentlytheSTBcan’tverifywhetherthepasswordyou’veenterediscorrectornot,sopleasemakesureyouhaveinputthepasswordcorrectly.

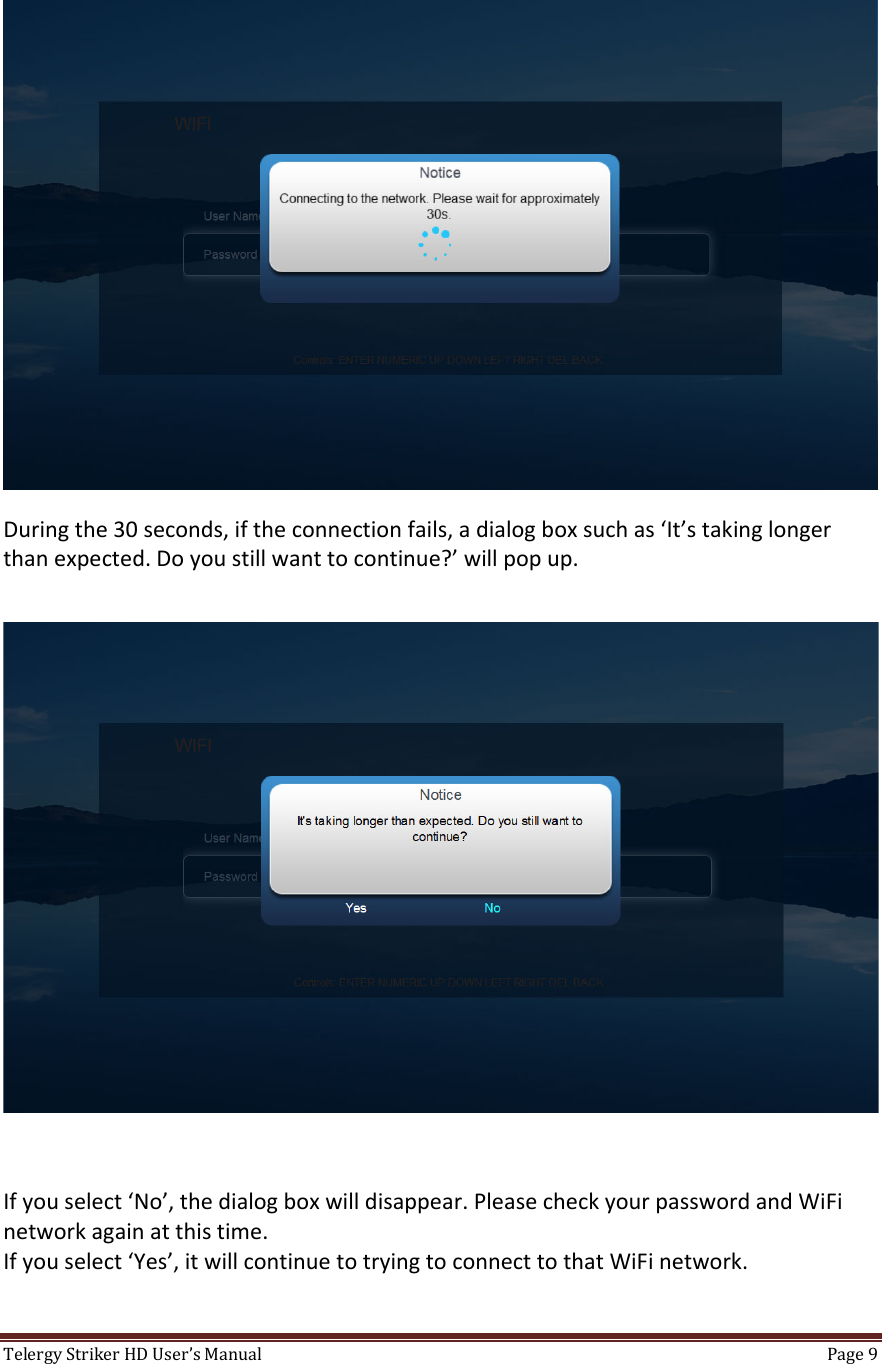

TelergyStrikerHDUser’sManual Page9 Duringthe30seconds,iftheconnectionfails,adialogboxsuchas‘It’stakinglongerthanexpected.Doyoustillwanttocontinue?’willpopup.Ifyouselect‘No’,thedialogboxwilldisappear.PleasecheckyourpasswordandWiFinetworkagainatthistime.Ifyouselect‘Yes’,itwillcontinuetotryingtoconnecttothatWiFinetwork.

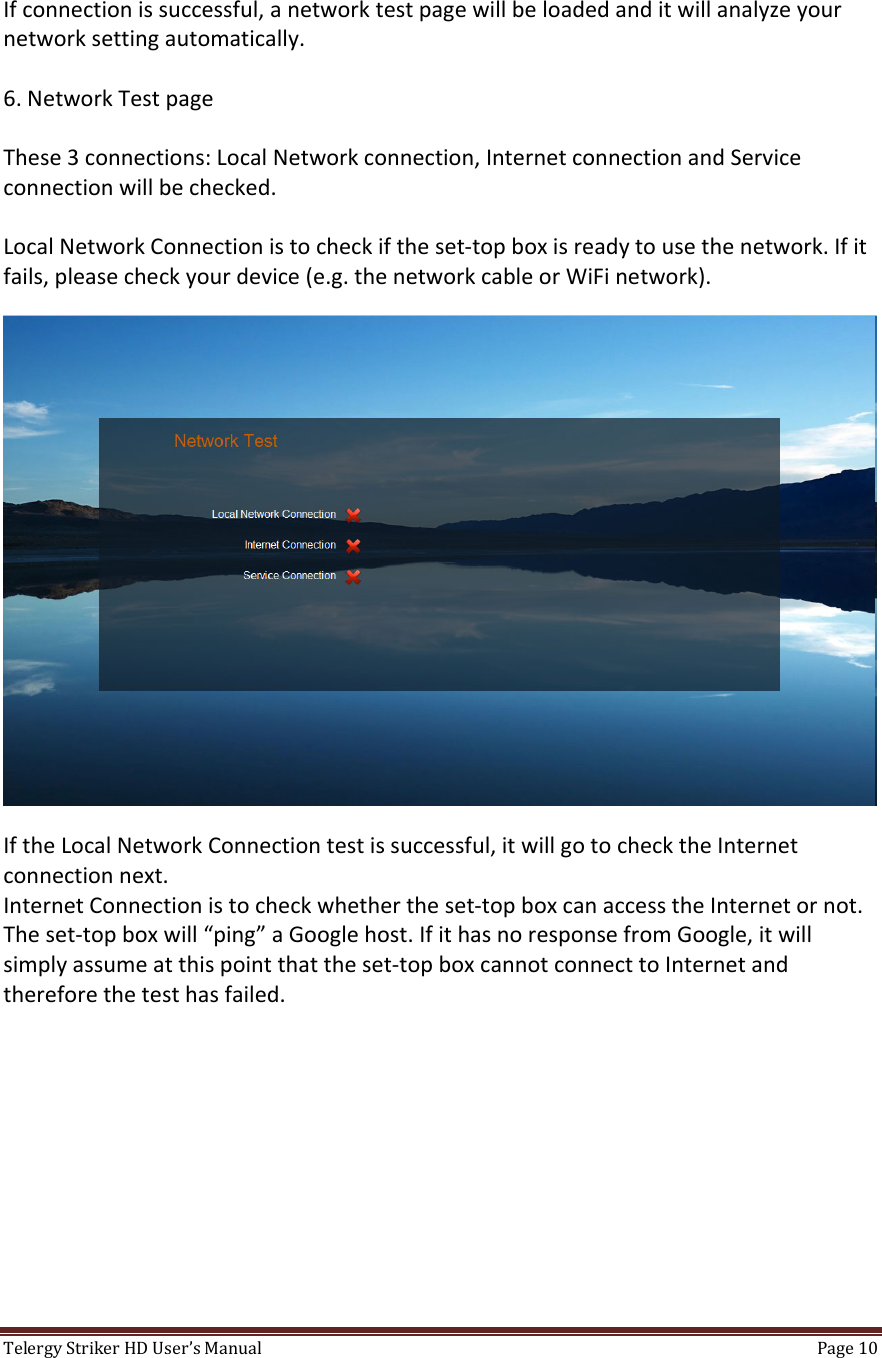

TelergyStrikerHDUser’sManual Page10 Ifconnectionissuccessful,anetworktestpagewillbeloadedanditwillanalyzeyournetworksettingautomatically.6.NetworkTestpageThese3connections:LocalNetworkconnection,InternetconnectionandServiceconnectionwillbechecked.LocalNetworkConnectionistocheckiftheset‐topboxisreadytousethenetwork.Ifitfails,pleasecheckyourdevice(e.g.thenetworkcableorWiFinetwork).IftheLocalNetworkConnectiontestissuccessful,itwillgotochecktheInternetconnectionnext.InternetConnectionistocheckwhethertheset‐topboxcanaccesstheInternetornot.Theset‐topboxwill“ping”aGooglehost.IfithasnoresponsefromGoogle,itwillsimplyassumeatthispointthattheset‐topboxcannotconnecttoInternetandthereforethetesthasfailed.

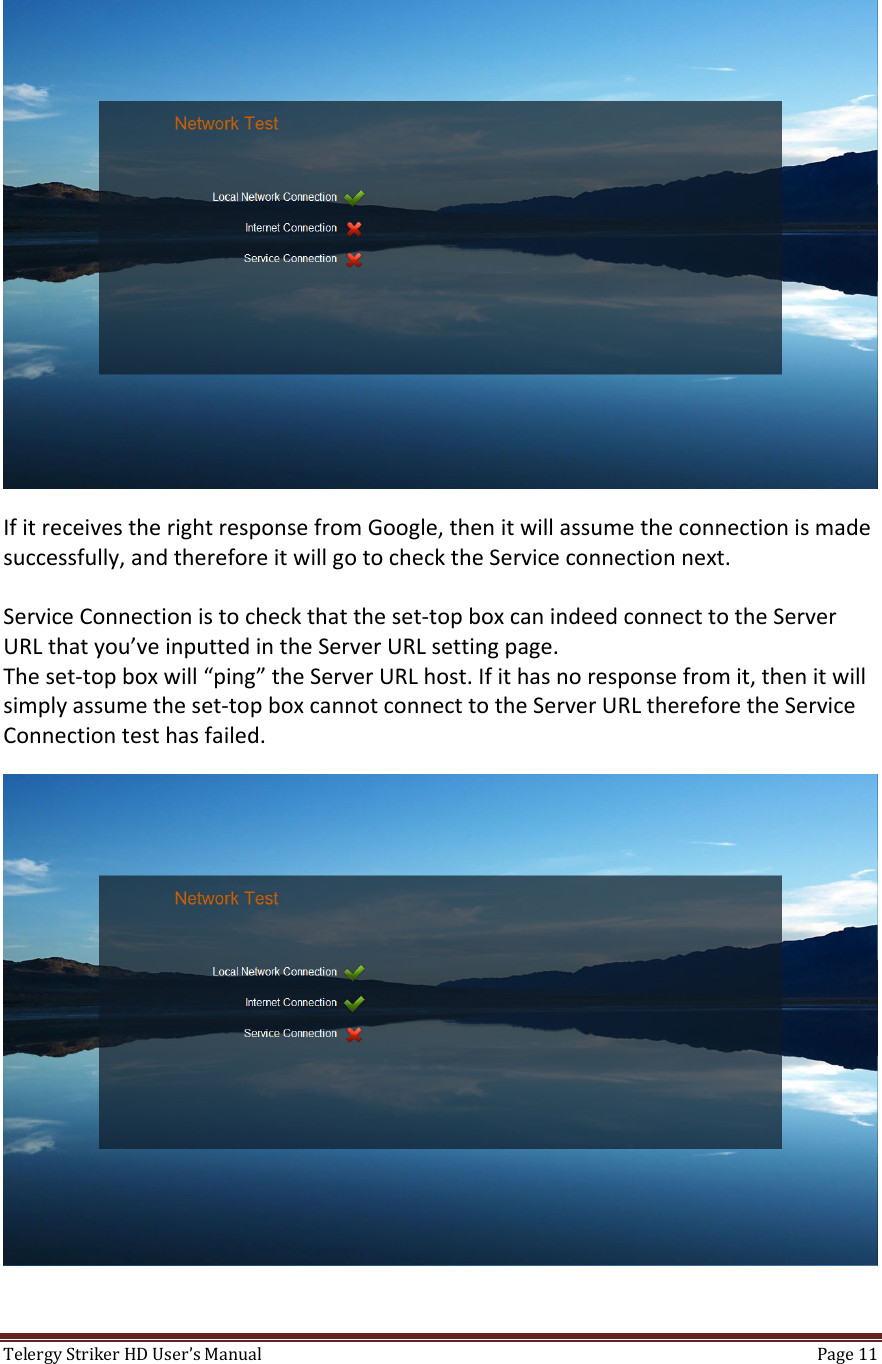

TelergyStrikerHDUser’sManual Page11 IfitreceivestherightresponsefromGoogle,thenitwillassumetheconnectionismadesuccessfully,andthereforeitwillgotochecktheServiceconnectionnext.ServiceConnectionistocheckthattheset‐topboxcanindeedconnecttotheServerURLthatyou’veinputtedintheServerURLsettingpage.Theset‐topboxwill“ping”theServerURLhost.Ifithasnoresponsefromit,thenitwillsimplyassumetheset‐topboxcannotconnecttotheServerURLthereforetheServiceConnectiontesthasfailed.

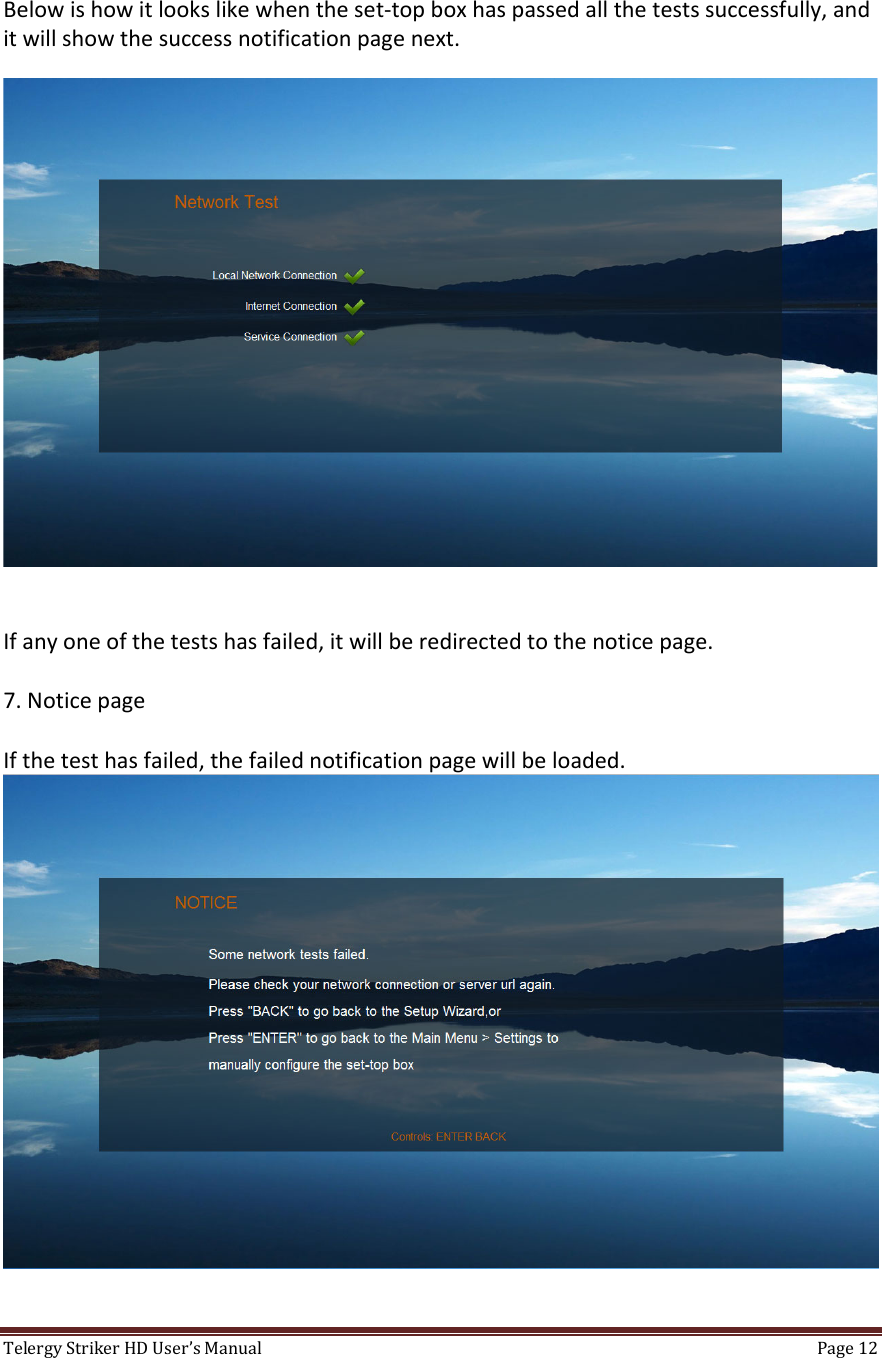

TelergyStrikerHDUser’sManual Page12 Belowishowitlookslikewhentheset‐topboxhaspassedallthetestssuccessfully,anditwillshowthesuccessnotificationpagenext.Ifanyoneofthetestshasfailed,itwillberedirectedtothenoticepage.7.NoticepageIfthetesthasfailed,thefailednotificationpagewillbeloaded.

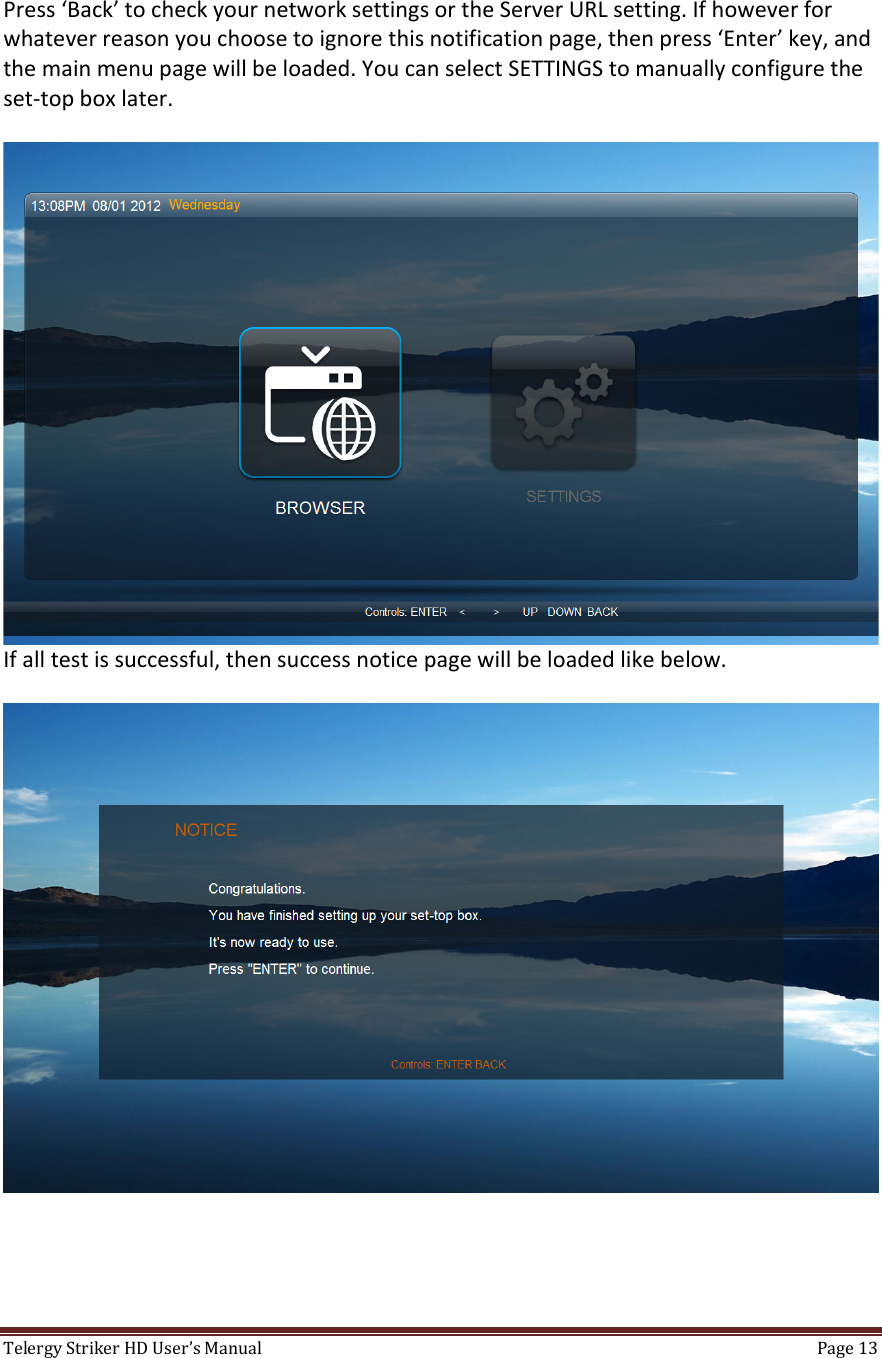

TelergyStrikerHDUser’sManual Page13 Press‘Back’tocheckyournetworksettingsortheServerURLsetting.Ifhoweverforwhateverreasonyouchoosetoignorethisnotificationpage,thenpress‘Enter’key,andthemainmenupagewillbeloaded.YoucanselectSETTINGStomanuallyconfiguretheset‐topboxlater.Ifalltestissuccessful,thensuccessnoticepagewillbeloadedlikebelow.

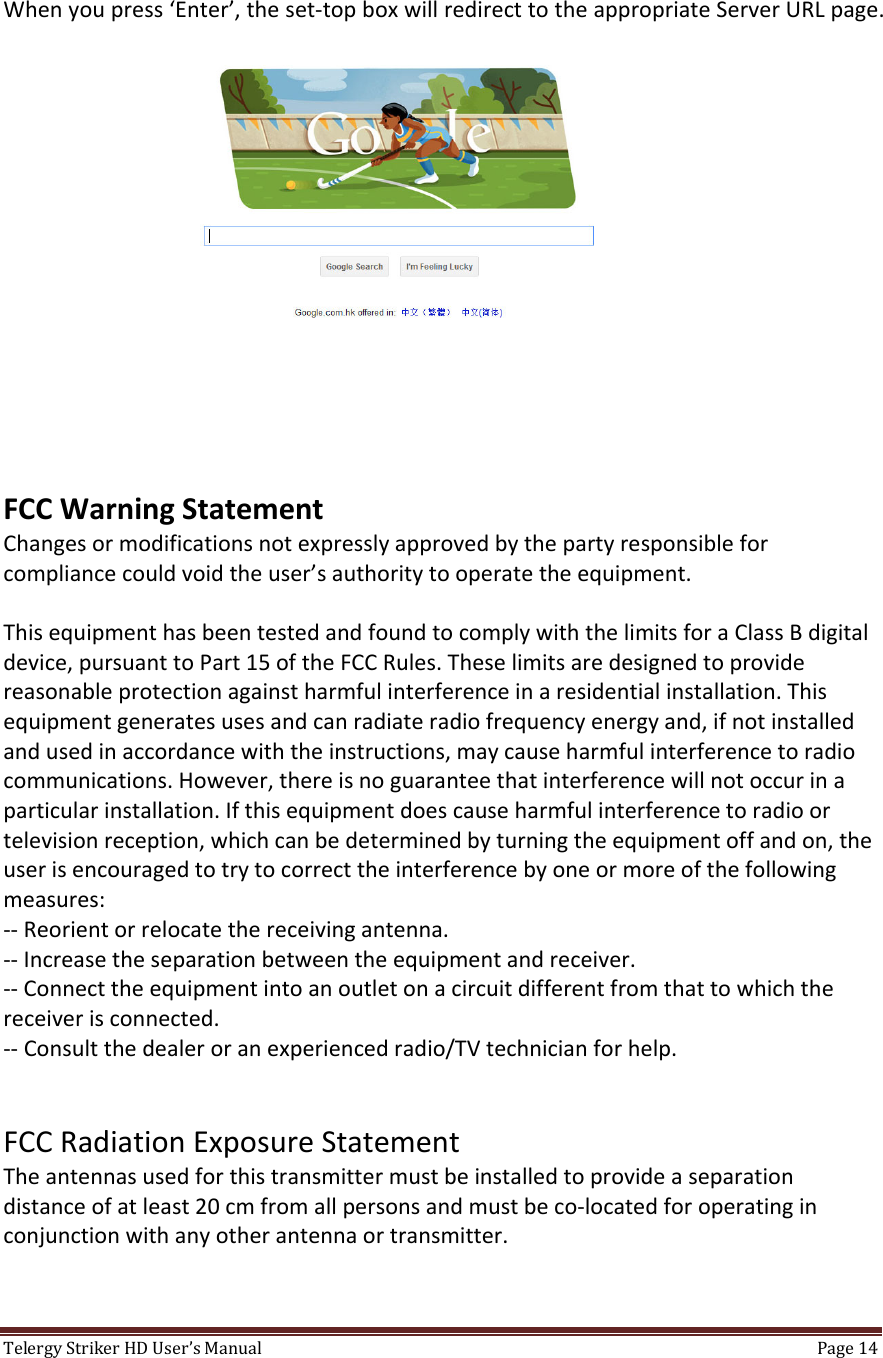

TelergyStrikerHDUser’sManual Page14 Whenyoupress‘Enter’,theset‐topboxwillredirecttotheappropriateServerURLpage.FCCWarningStatementChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatetheequipment.ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:‐‐Reorientorrelocatethereceivingantenna.‐‐Increasetheseparationbetweentheequipmentandreceiver.‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.FCCRadiationExposureStatementTheantennasusedforthistransmittermustbeinstalledtoprovideaseparationdistanceofatleast20cmfromallpersonsandmustbeco‐locatedforoperatinginconjunctionwithanyotherantennaortransmitter.
