Antenna Spec

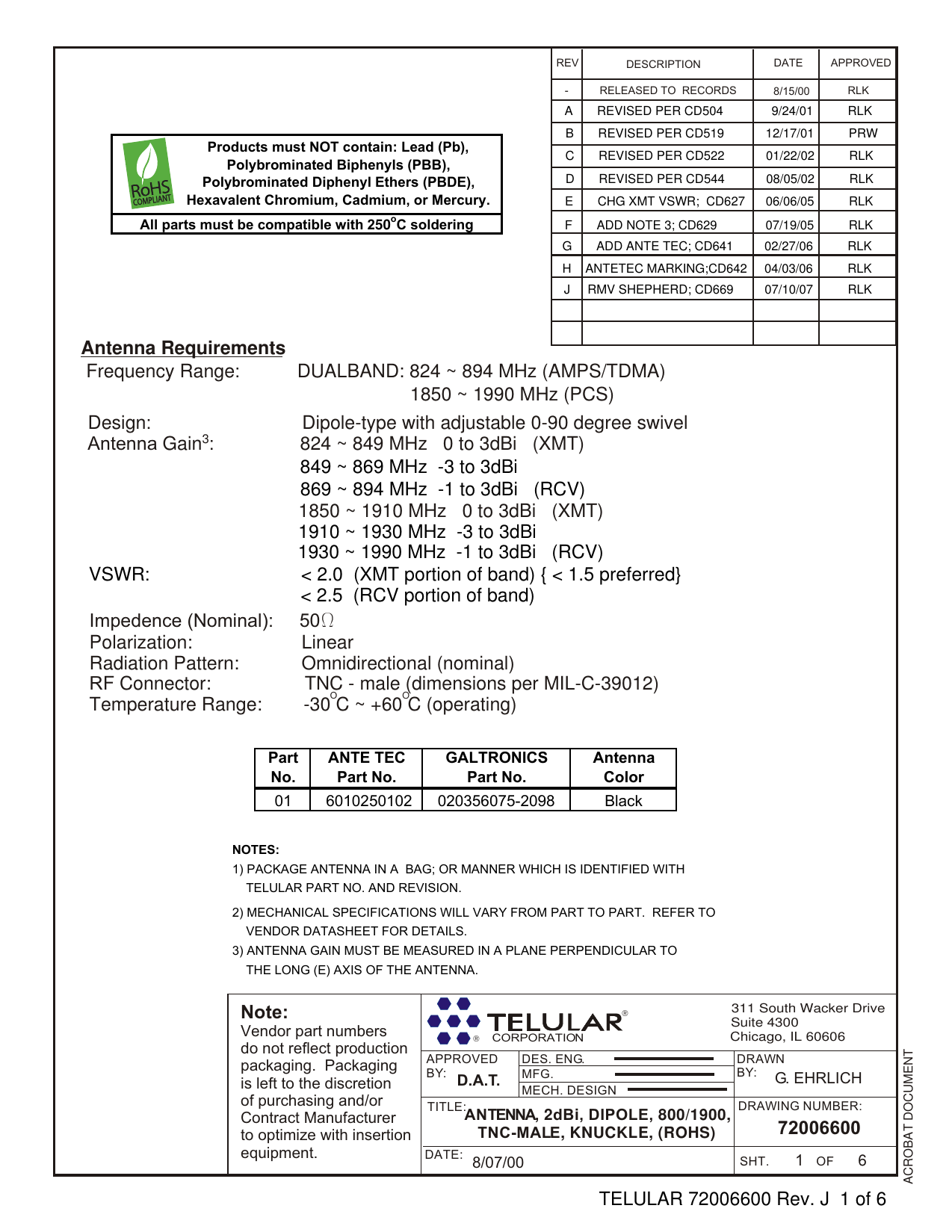

DRAWN BY:DRAWING NUMBER:APPROVEDBY:DES. ENG.MFG.MECH. DESIGNTITLE:DATE: SHT. OFANTENNA, 2dBi, DIPOLE, 800/1900,TNC-MALE, KNUCKLE, (ROHS)G. EHRLICH720066008/07/00 16®®ACROBAT DOCUMENTNote:Vendor part numbersdo not reflect productionpackaging. Packagingis left to the discretionof purchasing and/orContract Manufacturerto optimize with insertionequipment.D.A.T.CORPORATION311 South Wacker DriveSuite 4300Chicago, IL 60606REV DESCRIPTION DATE APPROVED- 8/15/00 RELEASED TO RECORDS RLK1910 ~ 1930 MHz -3 to 3dBi1930 ~ 1990 MHz -1 to 3dBi (RCV)VSWR: < 2.0 (XMT portion of band) { < 1.5 preferred}Antenna RequirementsDesign: Dipole-type with adjustable 0-90 degree swivel 1850 ~ 1910 MHz 0 to 3dBi (XMT) 1850 ~ 1990 MHz (PCS)Impedence (Nominal): 50WPolarization: LinearRadiation Pattern: Omnidirectional (nominal)RF Connector: TNC - male (dimensions per MIL-C-39012)Temperature Range: -30 C ~ +60 C (operating)O O849 ~ 869 MHz -3 to 3dBi869 ~ 894 MHz -1 to 3dBi (RCV)Antenna Gain3: 824 ~ 849 MHz 0 to 3dBi (XMT)Frequency Range: DUALBAND: 824 ~ 894 MHz (AMPS/TDMA)A REVISED PER CD504 9/24/01 RLK < 2.5 (RCV portion of band)B REVISED PER CD519 12/17/01 PRWC REVISED PER CD522 01/22/02 RLKD REVISED PER CD544 08/05/02 RLKE CHG XMT VSWR; CD627 06/06/05 RLKF ADD NOTE 3; CD629 07/19/05 RLKNOTES:1) PACKAGE ANTENNA IN A BAG; OR MANNER WHICH IS IDENTIFIED WITH TELULAR PART NO. AND REVISION.2) MECHANICAL SPECIFICATIONS WILL VARY FROM PART TO PART. REFER TO VENDOR DATASHEET FOR DETAILS.3) ANTENNA GAIN MUST BE MEASURED IN A PLANE PERPENDICULAR TO THE LONG (E) AXIS OF THE ANTENNA.G ADD ANTE TEC; CD641 02/27/06 RLKH ANTETEC MARKING;CD642 04/03/06 RLKJ RMV SHEPHERD; CD669 07/10/07 RLKTELULAR 72006600 Rev. J 1 of 6Part ANTE TEC GALTRONICSAntennaNo. Part No. Part No. Color01 6010250102 020356075-2098 BlackAll parts must be compatible with 250oC solderingProducts must NOT contain: Lead (Pb), Polybrominated Biphenyls (PBB), Polybrominated Diphenyl Ethers (PBDE), Hexavalent Chromium, Cadmium, or Mercury.

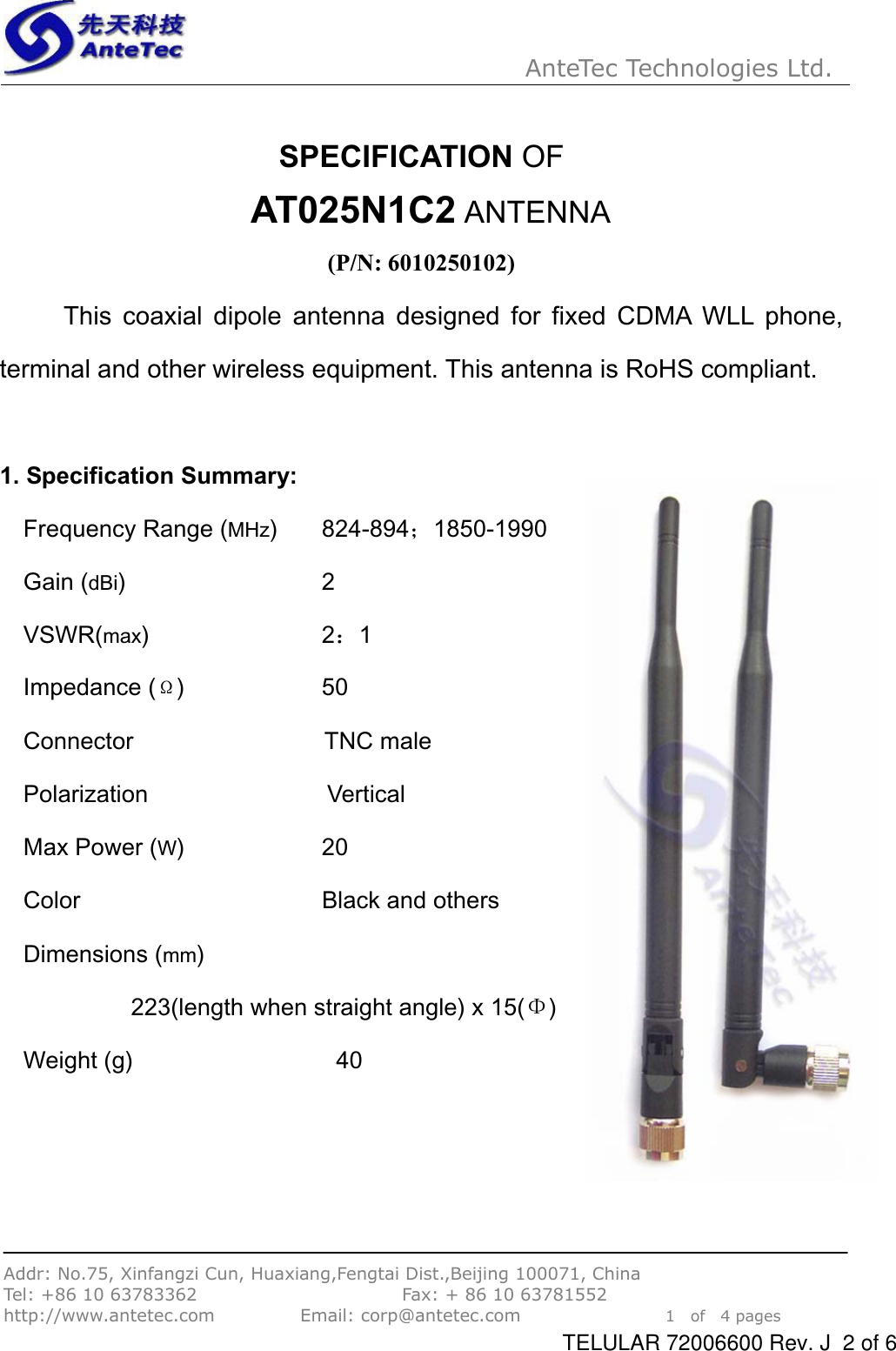

AnteTec Technologies Ltd.Addr: No.75, Xinfangzi Cun, Huaxiang,Fengtai Dist.,Beijing 100071, China Tel: +86 10 63783362 Fax: + 86 10 63781552 http://www.antetec.com Email: corp@antetec.com 1 of 4 pagesSPECIFICATION OF AT025N1C2 ANTENNA(P/N: 6010250102) This coaxial dipole antenna designed for fixed CDMA WLL phone, terminal and other wireless equipment. This antenna is RoHS compliant. 1. Specification Summary: Frequency Range (MHz) 824-894˗1850-1990Gain (dBi) 2 VSWR(max) 2˖1Impedance (¡) 50 Connector TNC male Polarization Vertical Max Power (W) 20 Color Black and others Dimensions (mm) 223(length when straight angle) x 15() Weight (g) 40 TELULAR 72006600 Rev. J 2 of 6

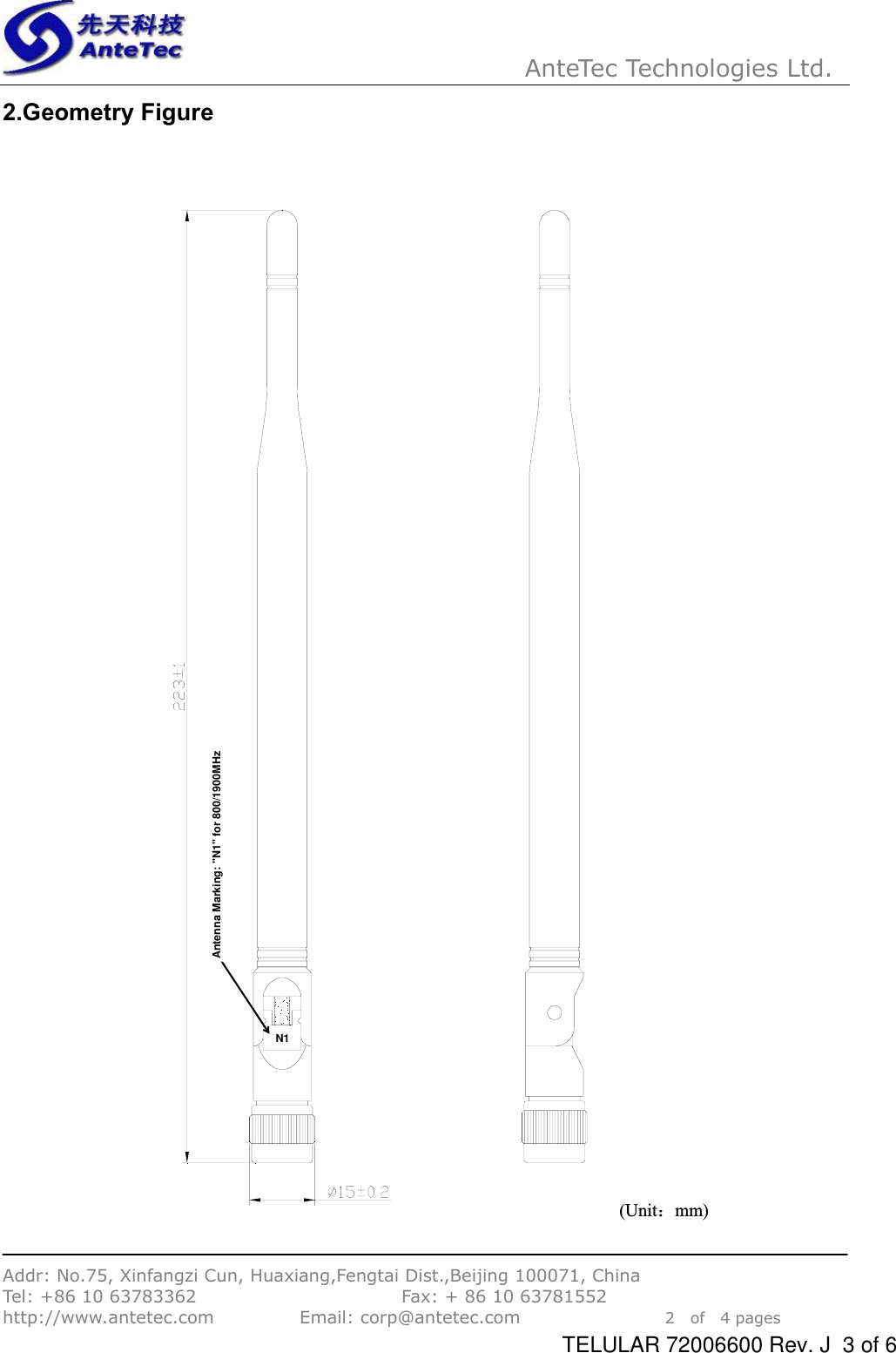

AnteTec Technologies Ltd.Addr: No.75, Xinfangzi Cun, Huaxiang,Fengtai Dist.,Beijing 100071, China Tel: +86 10 63783362 Fax: + 86 10 63781552 http://www.antetec.com Email: corp@antetec.com 2 of 4 pages2.Geometry Figure(Unit˖mm)N1Antenna Marking: "N1" for 800/1900MHzTELULAR 72006600 Rev. J 3 of 6

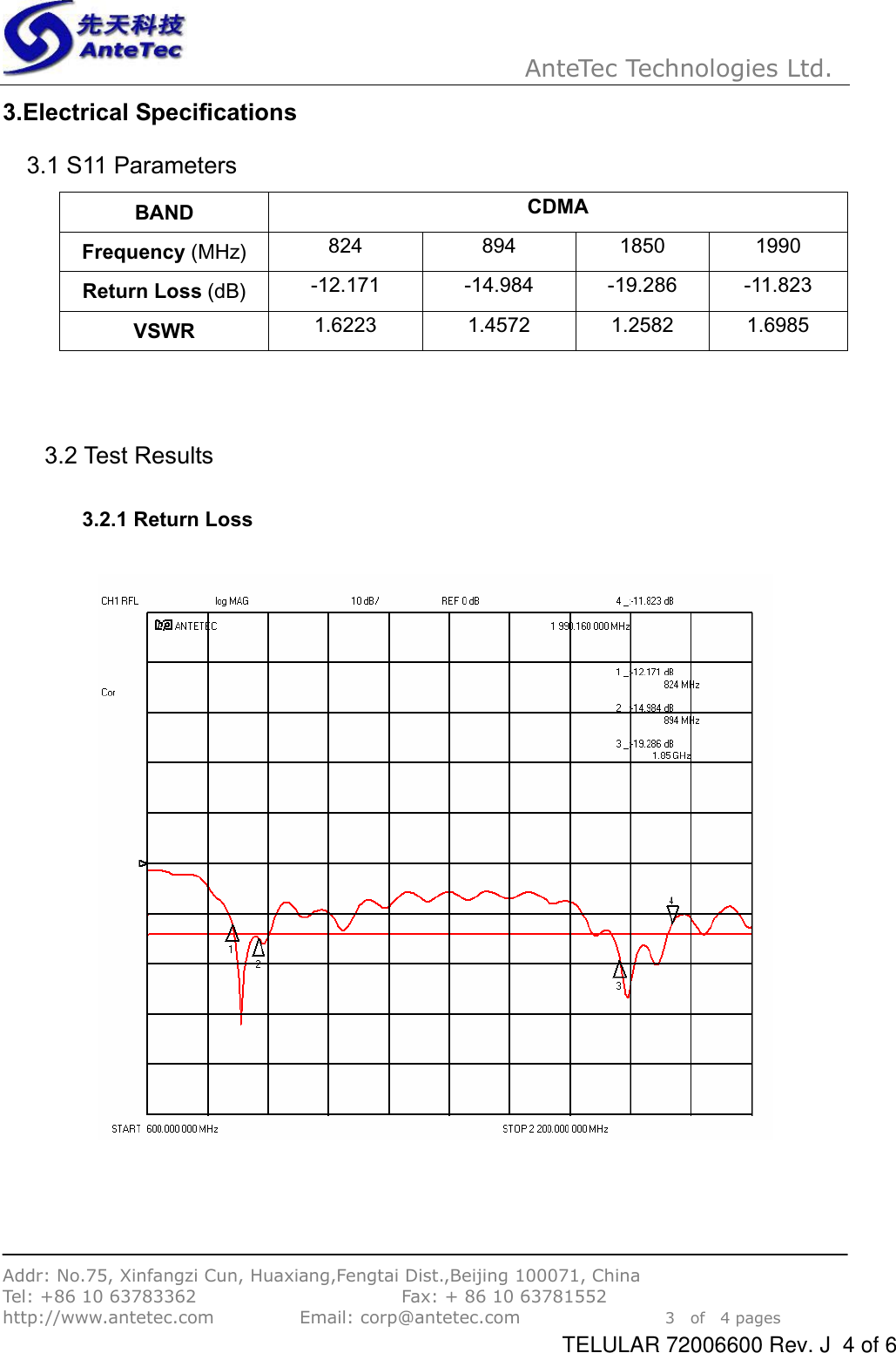

AnteTec Technologies Ltd.Addr: No.75, Xinfangzi Cun, Huaxiang,Fengtai Dist.,Beijing 100071, China Tel: +86 10 63783362 Fax: + 86 10 63781552 http://www.antetec.com Email: corp@antetec.com 3 of 4 pages3.Electrical Specifications3.1 S11 Parameters BAND CDMAFrequency (MHz) 824 894 1850 1990 Return Loss (dB) -12.171 -14.984 -19.286 -11.823 VSWR 1.6223 1.4572 1.2582 1.6985 3.2 Test Results3.2.1 Return Loss TELULAR 72006600 Rev. J 4 of 6

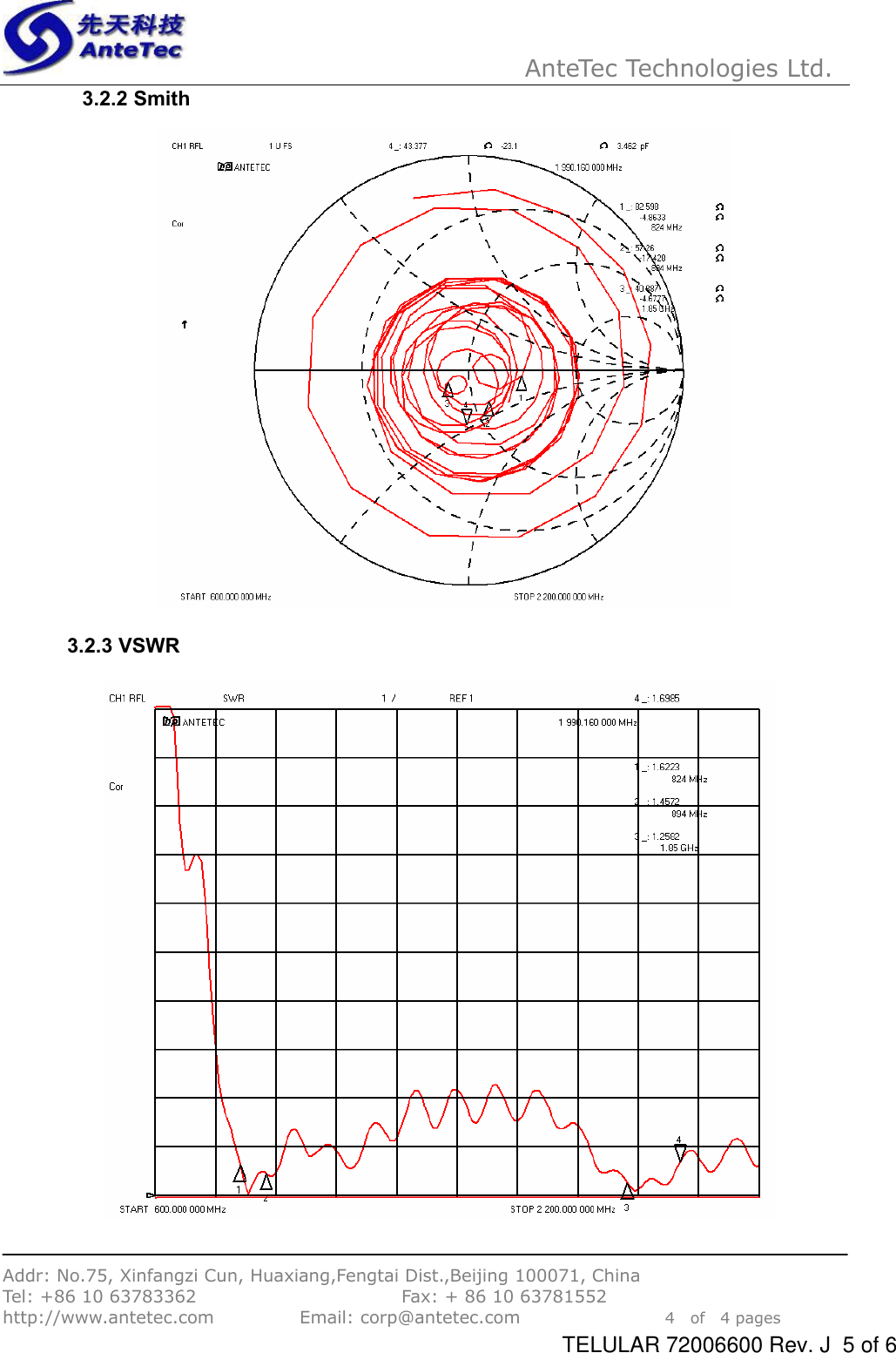

AnteTec Technologies Ltd.Addr: No.75, Xinfangzi Cun, Huaxiang,Fengtai Dist.,Beijing 100071, China Tel: +86 10 63783362 Fax: + 86 10 63781552 http://www.antetec.com Email: corp@antetec.com 4 of 4 pages3.2.2 Smith3.2.3 VSWRTELULAR 72006600 Rev. J 5 of 6

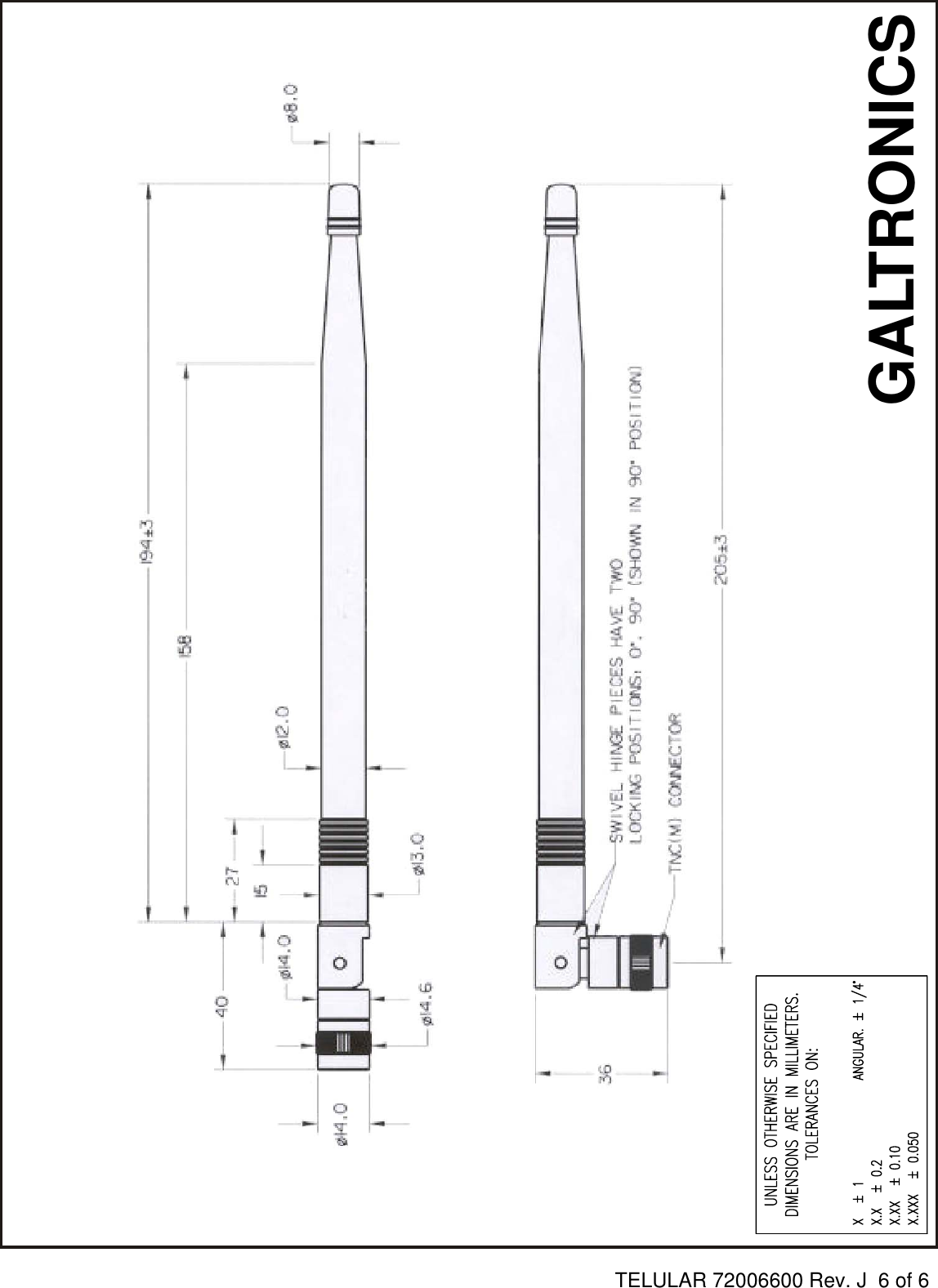

GALTRONICSTELULAR 72006600 Rev. J 6 of 6
