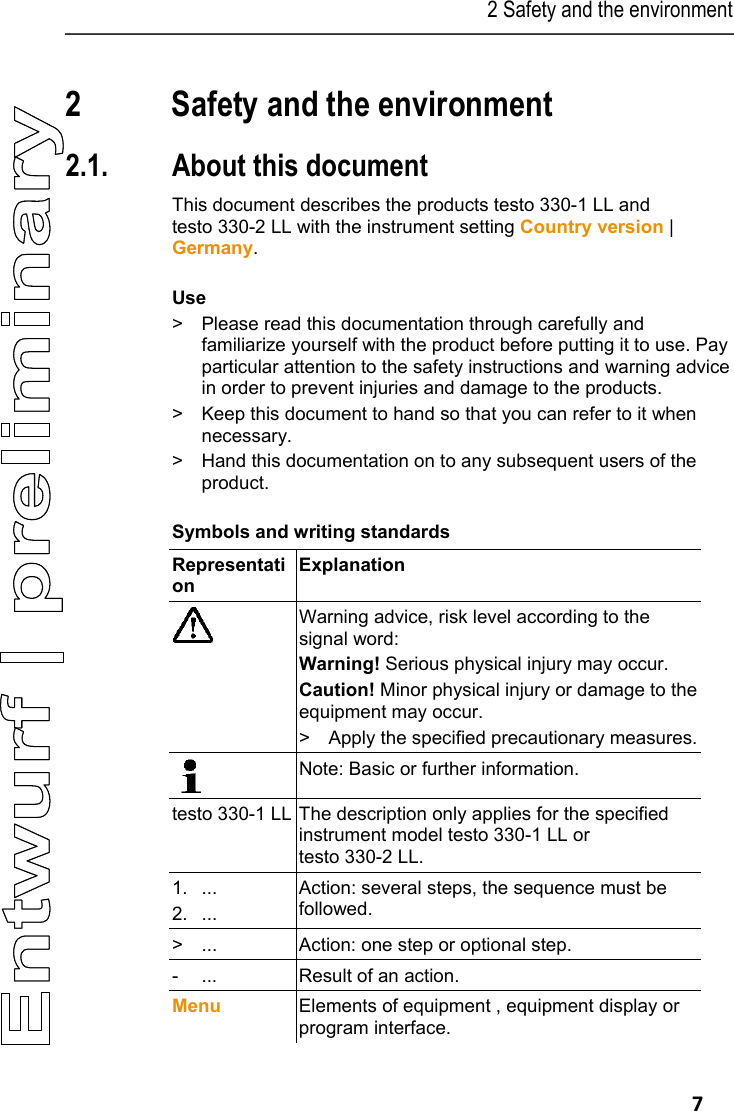

![2 Safety and the environment 7 Pos: 3 /TD/Überschr iften/2. Sicher heit und Umwelt @ 0\mod_11737747 19351_79.docx @ 292 @ 1 @ 1 2 Safety and the environment Pos: 4 /TD/Überschr iften/2.1 Zu diesem Doku ment @ 0\mod_117377525235 1_79.docx @ 346 @ 2 @ 1 2.1. About this document Pos: 5 /TD/Sicherhei t und Umwelt/Zu diesem Doku ment/testo 330 Landes version DE, Sprache en (LV- spezifisch!) @ 7\mod_1284034392317_79. docx @ 72238 @ @ 1 This document describes the products testo 330-1 LL and testo 330-2 LL with the instrument setting Country version | Germany. Pos: 6 /TD/Sicherhei t und Umwelt/Zu diesem Doku ment/Verwendung/Ver wendung (Standard) @ 0\mod_1173775068554_79. docx @ 337 @ 5 @ 1 Use > Please read this documentation through carefully and familiarize yourself with the product before putting it to use. Pay particular attention to the safety instructions and warning advice in order to prevent injuries and damage to the products. > Keep this document to hand so that you can refer to it when necessary. > Hand this documentation on to any subsequent users of the product. Pos: 7 /TD/Sicherhei t und Umwelt/Zu diesem Doku ment/Symbole und Schr eibkonventionen/Sy mbole und Schreibkonv. [ testo 330] @ 6\mod_127866 2875713_79.doc x @ 64907 @ 5 @ 1 Symbols and writing standards Representation Explanation Warning advice, risk level according to the signal word: Warning! Serious physical injury may occur. Caution! Minor physical injury or damage to the equipment may occur. > Apply the specified precautionary measures. Note: Basic or further information. testo 330-1 LL The description only applies for the specified instrument model testo 330-1 LL or testo 330-2 LL. 1. ... 2. ... Action: several steps, the sequence must be followed. > ... Action: one step or optional step. - ... Result of an action. Menu Elements of equipment , equipment display or program interface.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-7.png)

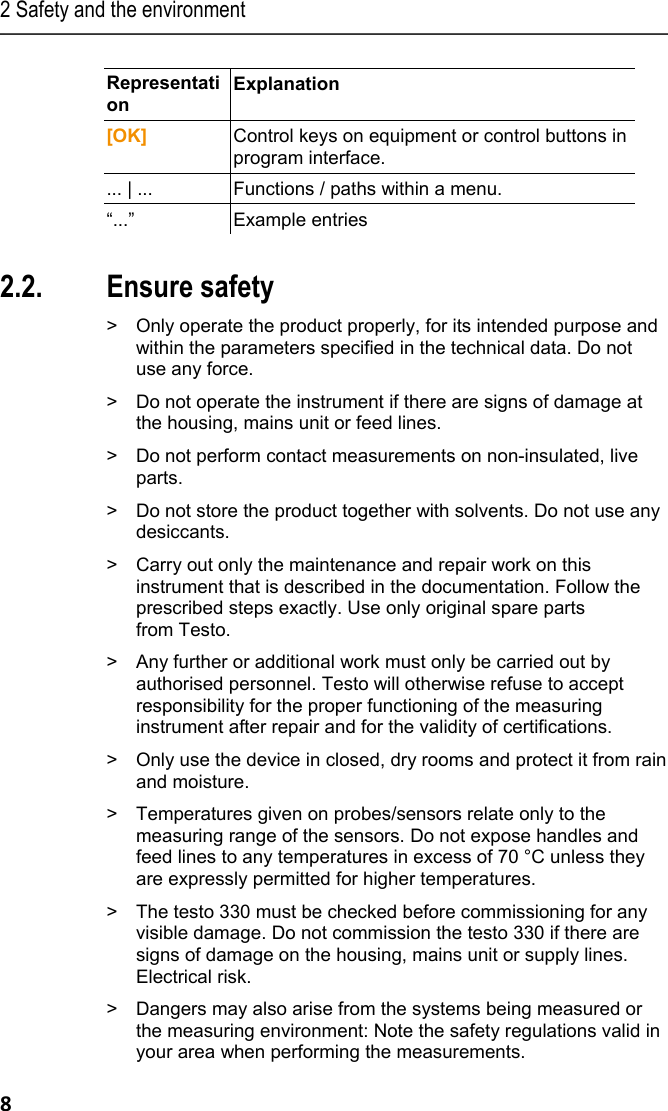

![2 Safety and the environment 8 Representation Explanation [OK] Control keys on equipment or control buttons in program interface. ... | ... Functions / paths within a menu. “...” Example entries Pos: 8 /TD/Überschr iften/2.2 Sicher heit gewährleisten @ 0\mod_1173 780783960_79.doc x @ 366 @ 2 @ 1 2.2. Ensure safety Pos: 9 /TD/Sicherhei t und Umwelt/Sicherhei t gewährleisten/Produ kt bestimmungsge mäß verwenden @ 0\mod_11737 81261848_79.docx @ 38 6 @ @ 1 > Only operate the product properly, for its intended purpose and within the parameters specified in the technical data. Do not use any force. Pos: 10 /TD/Sicherhei t und Umwelt/Sicherhei t gewährleisten/Gerä t bei Beschädigunge n nicht in Betrieb nehmen @ 0\m od_1186985945375_79.doc x @ 2252 @ @ 1 > Do not operate the instrument if there are signs of damage at the housing, mains unit or feed lines. Pos: 11 /TD/Sicherhei t und Umwelt/Sicherhei t gewährleisten/K eine Messung an spannungsfü hrenden Teilen @ 0\mod_ 1175692564164_79. docx @ 592 @ @ 1 > Do not perform contact measurements on non-insulated, live parts. Pos: 12 /TD/Sicherhei t und Umwelt/Sicherhei t gewährleisten/Nic ht mit Lösungsmittel n lagern @ 0\mod_11756923751 79_79.docx @ 583 @ @ 1 > Do not store the product together with solvents. Do not use any desiccants. Pos: 13 /TD/Sicherhei t und Umwelt/Sicherhei t gewährleisten/Nur be schriebene War tungsarbeiten durchführ en @ 0\mod_117569270519 5_79.docx @ 601 @ @ 1 > Carry out only the maintenance and repair work on this instrument that is described in the documentation. Follow the prescribed steps exactly. Use only original spare parts from Testo. Pos: 14 /TD/Sicherhei t und Umwelt/Sicherhei t gewährleisten/tes to 350/testo 350 Sic herheit @ 5\mod_12613858457 35_79.docx @ 53306 @ @ 1 > Any further or additional work must only be carried out by authorised personnel. Testo will otherwise refuse to accept responsibility for the proper functioning of the measuring instrument after repair and for the validity of certifications. Pos: 15 /TD/Sicherhei t und Umwelt/Sicherhei t gewährleisten/Nur i n geschlossenen, troc kenen Räumen betreibe n @ 0\mod_1186985797828_79. docx @ 2243 @ @ 1 > Only use the device in closed, dry rooms and protect it from rain and moisture. Pos: 16 /TD/Sicherhei t und Umwelt/Sicherhei t gewährleisten/Te mperaturangaben auf Son den/Fühlern @ 0\mod_11756 93293070_79.doc x @ 610 @ @ 1 > Temperatures given on probes/sensors relate only to the measuring range of the sensors. Do not expose handles and feed lines to any temperatures in excess of 70 °C unless they are expressly permitted for higher temperatures. Pos: 17 /TD/Sicherhei t und Umwelt/Sicherhei t gewährleisten/tes to 330/Sichtbarer Schaden @ 13\mod_1369999619 300_79.docx @ 162534 @ @ 1 > The testo 330 must be checked before commissioning for any visible damage. Do not commission the testo 330 if there are signs of damage on the housing, mains unit or supply lines. Electrical risk. Pos: 18 /TD/Sicherhei t und Umwelt/Sicherhei t gewährleisten/ vor Ort gültige Sicher heitsbestimmungen beac hten @ 0\mod_118699710732 8_79.docx @ 2298 @ @ 1 > Dangers may also arise from the systems being measured or the measuring environment: Note the safety regulations valid in your area when performing the measurements.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-8.png)
![4 Product description 27 4 Fixing eyelets for carrying strap (left and right) 5 Display 6 Magnetic holders (on rear) WARNINGMagnetic field May be harmful to those with pacemakers. > Keep a minimum distance of 15 cm between pacemaker and instrument. ATTENTION Magnetic field Damage to other devices! > Keep a safe distance away from products which could be damaged by the effects of magnetism (e.g. monitors, computers or credit cards). 7 Keypad 8 Service cover (on rear) 9 Gas outlet 10 Unit connections: flue gas probe, sensor, pressure probe, mains unit 4.3.2. Keypad Key Functions [] Switch measuring instrument on / off [OK] Example Function key (orange, 3x), relevant function is shown on the display [▲] Scroll up, increase value [▼] Scroll down, reduce value [esc] Back, cancel function [] Open main menu [ i ] Open instrument diagnosis menu [] Transmit data to the Testo protocol printer.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-27.png)

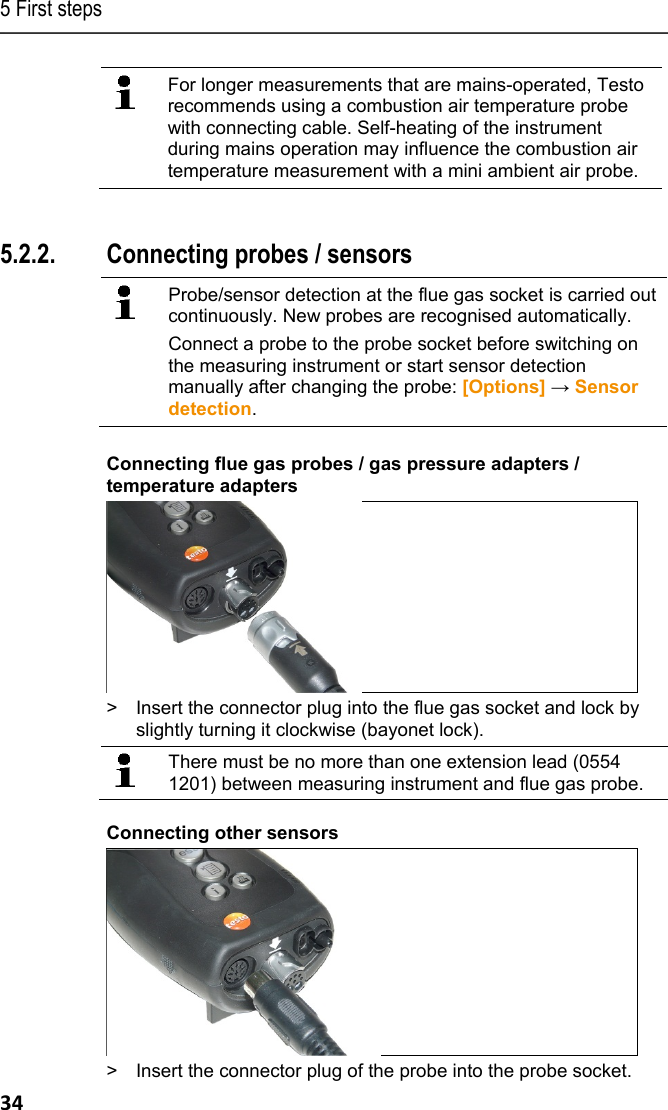

![5 First steps 34 For longer measurements that are mains-operated, Testo recommends using a combustion air temperature probe with connecting cable. Self-heating of the instrument during mains operation may influence the combustion air temperature measurement with a mini ambient air probe. Pos: 39 /TD/Erste Sc hritte/testo 330/test o 330 Produkt kennenlerne n Sonden/Fühler ansch ließen @ 6\mod_127893415 7318_79.docx @ 65268 @ 355 @ 1 5.2.2. Connecting probes / sensors Probe/sensor detection at the flue gas socket is carried out continuously. New probes are recognised automatically. Connect a probe to the probe socket before switching on the measuring instrument or start sensor detection manually after changing the probe: [Options] → Sensor detection. Connecting flue gas probes / gas pressure adapters / temperature adapters > Insert the connector plug into the flue gas socket and lock by slightly turning it clockwise (bayonet lock). There must be no more than one extension lead (0554 1201) between measuring instrument and flue gas probe. Connecting other sensors > Insert the connector plug of the probe into the probe socket.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-34.png)

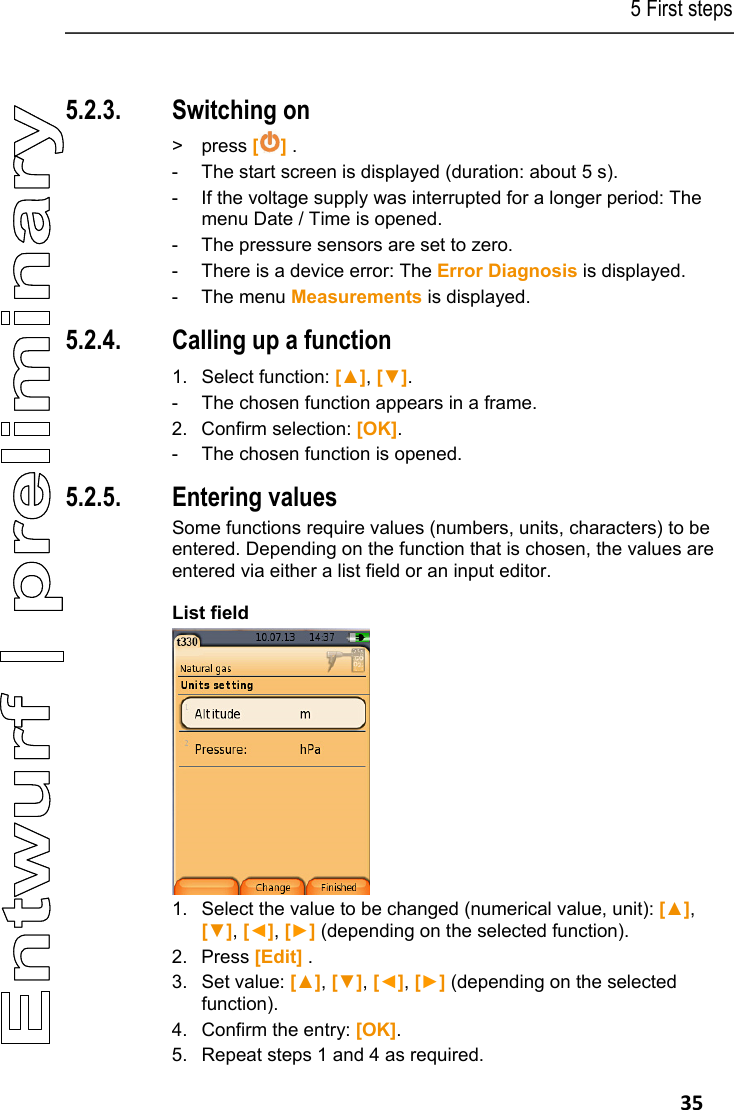

![5 First steps 35 Pos: 40 /TD/Erste Sc hritte/testo 330/test o 330 Produkt kennenlerne n Basisfunktionen ( LV-spezifisch) @ 6\mod_1278935326903_79. docx @ 65300 @ 3535533333 @ 1 5.2.3. Switching on > press [] . - The start screen is displayed (duration: about 5 s). - If the voltage supply was interrupted for a longer period: The menu Date / Time is opened. - The pressure sensors are set to zero. - There is a device error: The Error Diagnosis is displayed. - The menu Measurements is displayed. 5.2.4. Calling up a function 1. Select function: [▲], [▼]. - The chosen function appears in a frame. 2. Confirm selection: [OK]. - The chosen function is opened. 5.2.5. Entering values Some functions require values (numbers, units, characters) to be entered. Depending on the function that is chosen, the values are entered via either a list field or an input editor. List field 1. Select the value to be changed (numerical value, unit): [▲], [▼], [◄], [►] (depending on the selected function). 2. Press [Edit] . 3. Set value: [▲], [▼], [◄], [►] (depending on the selected function). 4. Confirm the entry: [OK]. 5. Repeat steps 1 and 4 as required.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-35.png)

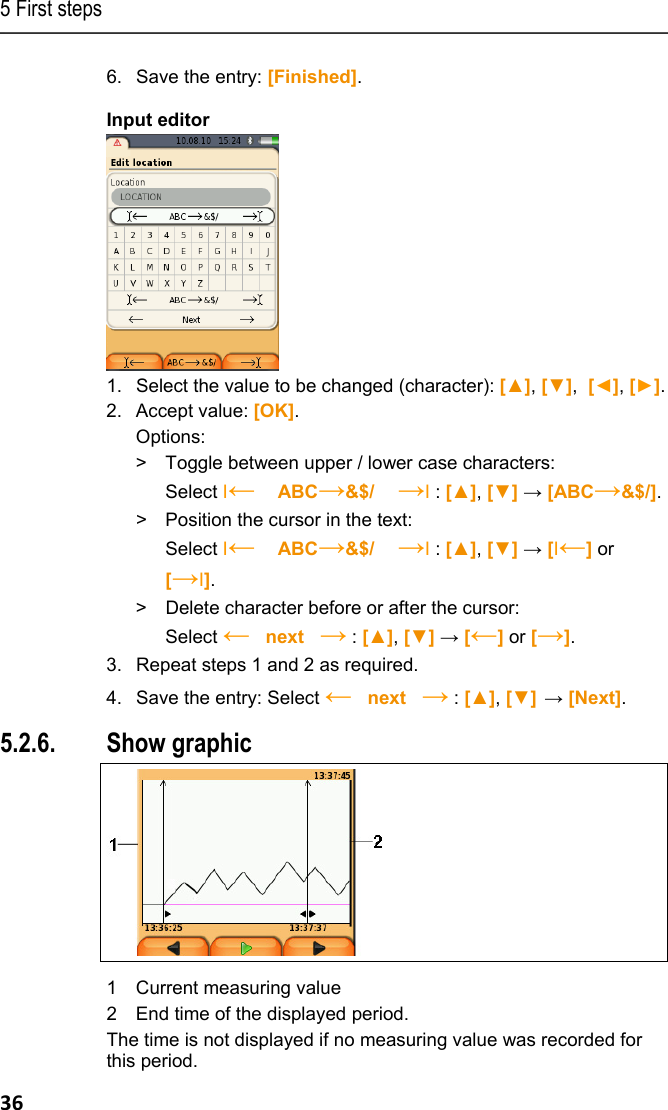

![5 First steps 36 6. Save the entry: [Finished]. Input editor 1. Select the value to be changed (character): [▲], [▼], [◄], [►]. 2. Accept value: [OK]. Options: > Toggle between upper / lower case characters: Select Ι← ABC→&$/ →Ι : [▲], [▼] → [ABC→&$/]. > Position the cursor in the text: Select Ι← ABC→&$/ →Ι : [▲], [▼] → [Ι←] or [→Ι]. > Delete character before or after the cursor: Select ← next → : [▲], [▼] → [←] or [→]. 3. Repeat steps 1 and 2 as required. 4. Save the entry: Select ← next → : [▲], [▼] → [Next]. 5.2.6. Show graphic 1 Current measuring value 2 End time of the displayed period. The time is not displayed if no measuring value was recorded for this period.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-36.png)

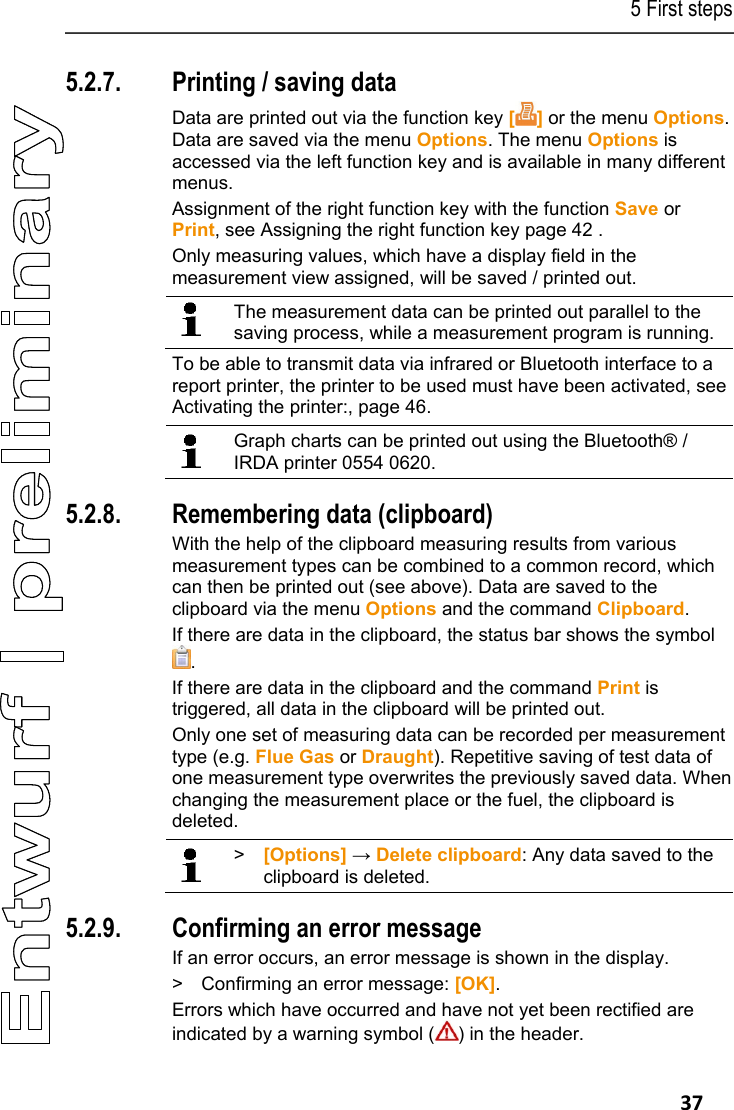

![5 First steps 37 5.2.7. Printing / saving data Data are printed out via the function key [] or the menu Options. Data are saved via the menu Options. The menu Options is accessed via the left function key and is available in many different menus. Assignment of the right function key with the function Save or Print, see Assigning the right function key page 42 . Only measuring values, which have a display field in the measurement view assigned, will be saved / printed out. The measurement data can be printed out parallel to the saving process, while a measurement program is running. To be able to transmit data via infrared or Bluetooth interface to a report printer, the printer to be used must have been activated, see Activating the printer:, page 46. Graph charts can be printed out using the Bluetooth® / IRDA printer 0554 0620. 5.2.8. Remembering data (clipboard) With the help of the clipboard measuring results from various measurement types can be combined to a common record, which can then be printed out (see above). Data are saved to the clipboard via the menu Options and the command Clipboard. If there are data in the clipboard, the status bar shows the symbol . If there are data in the clipboard and the command Print is triggered, all data in the clipboard will be printed out. Only one set of measuring data can be recorded per measurement type (e.g. Flue Gas or Draught). Repetitive saving of test data of one measurement type overwrites the previously saved data. When changing the measurement place or the fuel, the clipboard is deleted. > [Options] → Delete clipboard: Any data saved to the clipboard is deleted. 5.2.9. Confirming an error message If an error occurs, an error message is shown in the display. > Confirming an error message: [OK]. Errors which have occurred and have not yet been rectified are indicated by a warning symbol ( ) in the header.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-37.png)

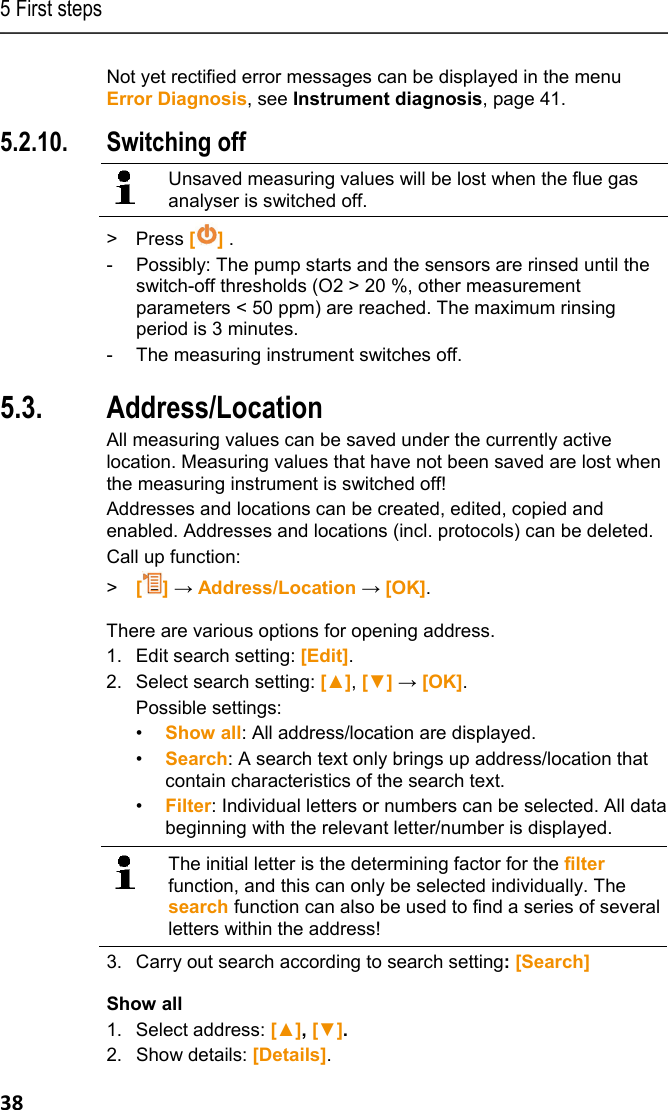

![5 First steps 38 Not yet rectified error messages can be displayed in the menu Error Diagnosis, see Instrument diagnosis, page 41. 5.2.10. Switching off Unsaved measuring values will be lost when the flue gas analyser is switched off. > Press [] . - Possibly: The pump starts and the sensors are rinsed until the switch-off thresholds (O2 > 20 %, other measurement parameters < 50 ppm) are reached. The maximum rinsing period is 3 minutes. - The measuring instrument switches off. Pos: 41 /TD/Erste Sc hritte/testo 330/test o 330 Produkt kennenlerne n Ordner_Messorte @ 6\ mod_1278942335615_79. docx @ 65332 @ 255555555 @ 1 5.3. Address/Location All measuring values can be saved under the currently active location. Measuring values that have not been saved are lost when the measuring instrument is switched off! Addresses and locations can be created, edited, copied and enabled. Addresses and locations (incl. protocols) can be deleted. Call up function: > [] → Address/Location → [OK]. There are various options for opening address. 1. Edit search setting: [Edit]. 2. Select search setting: [▲], [▼] → [OK]. Possible settings: • Show all: All address/location are displayed. • Search: A search text only brings up address/location that contain characteristics of the search text. • Filter: Individual letters or numbers can be selected. All data beginning with the relevant letter/number is displayed. The initial letter is the determining factor for the filter function, and this can only be selected individually. The search function can also be used to find a series of several letters within the address! 3. Carry out search according to search setting: [Search] Show all 1. Select address: [▲], [▼]. 2. Show details: [Details].](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-38.png)

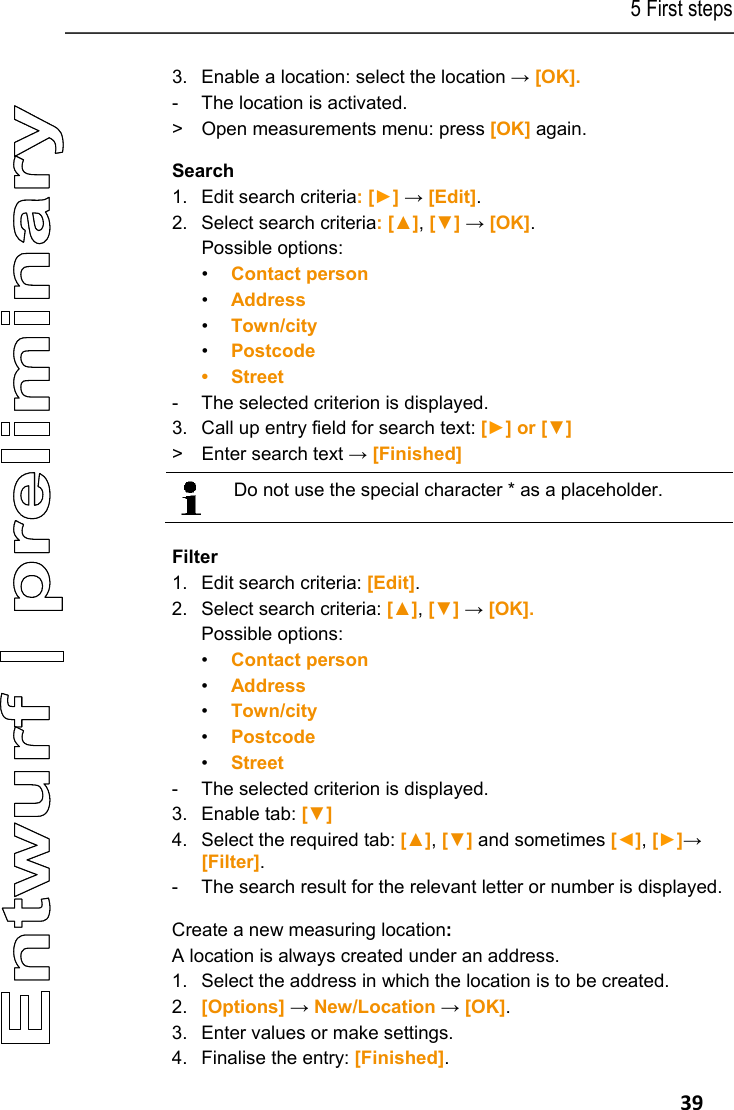

![5 First steps 39 3. Enable a location: select the location → [OK]. - The location is activated. > Open measurements menu: press [OK] again. Search 1. Edit search criteria: [►] → [Edit]. 2. Select search criteria: [▲], [▼] → [OK]. Possible options: • Contact person • Address • Town/city • Postcode • Street - The selected criterion is displayed. 3. Call up entry field for search text: [►] or [▼] > Enter search text → [Finished] Do not use the special character * as a placeholder. Filter 1. Edit search criteria: [Edit]. 2. Select search criteria: [▲], [▼] → [OK]. Possible options: • Contact person • Address • Town/city • Postcode • Street - The selected criterion is displayed. 3. Enable tab: [▼] 4. Select the required tab: [▲], [▼] and sometimes [◄], [►]→ [Filter]. - The search result for the relevant letter or number is displayed. Create a new measuring location: A location is always created under an address. 1. Select the address in which the location is to be created. 2. [Options] → New/Location → [OK]. 3. Enter values or make settings. 4. Finalise the entry: [Finished].](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-39.png)

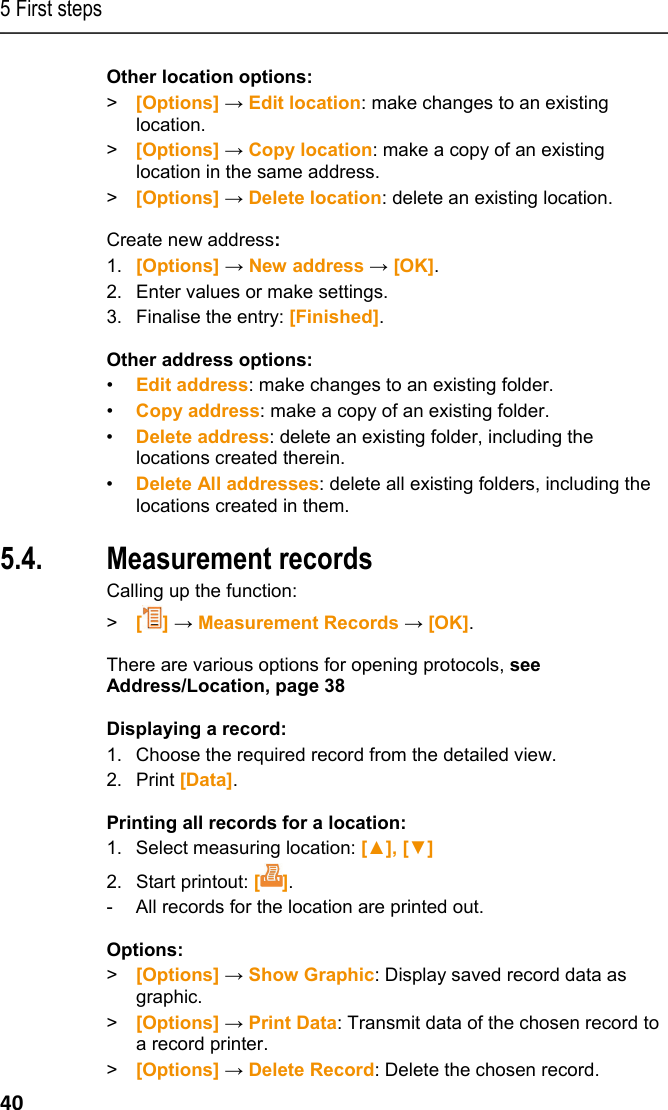

![5 First steps 40 Other location options: > [Options] → Edit location: make changes to an existing location. > [Options] → Copy location: make a copy of an existing location in the same address. > [Options] → Delete location: delete an existing location. Create new address: 1. [Options] → New address → [OK]. 2. Enter values or make settings. 3. Finalise the entry: [Finished]. Other address options: • Edit address: make changes to an existing folder. • Copy address: make a copy of an existing folder. • Delete address: delete an existing folder, including the locations created therein. • Delete All addresses: delete all existing folders, including the locations created in them. Pos: 42 /TD/Erste Sc hritte/testo 330/test o 330 Produkt kennenlerne n Protokolle @ 6\mod_1279 004185634_79.doc x @ 65363 @ 1555 @ 1 5.4. Measurement records Calling up the function: > [] → Measurement Records → [OK]. There are various options for opening protocols, see Address/Location, page 38 Displaying a record: 1. Choose the required record from the detailed view. 2. Print [Data]. Printing all records for a location: 1. Select measuring location: [▲], [▼] 2. Start printout: []. - All records for the location are printed out. Options: > [Options] → Show Graphic: Display saved record data as graphic. > [Options] → Print Data: Transmit data of the chosen record to a record printer. > [Options] → Delete Record: Delete the chosen record.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-40.png)

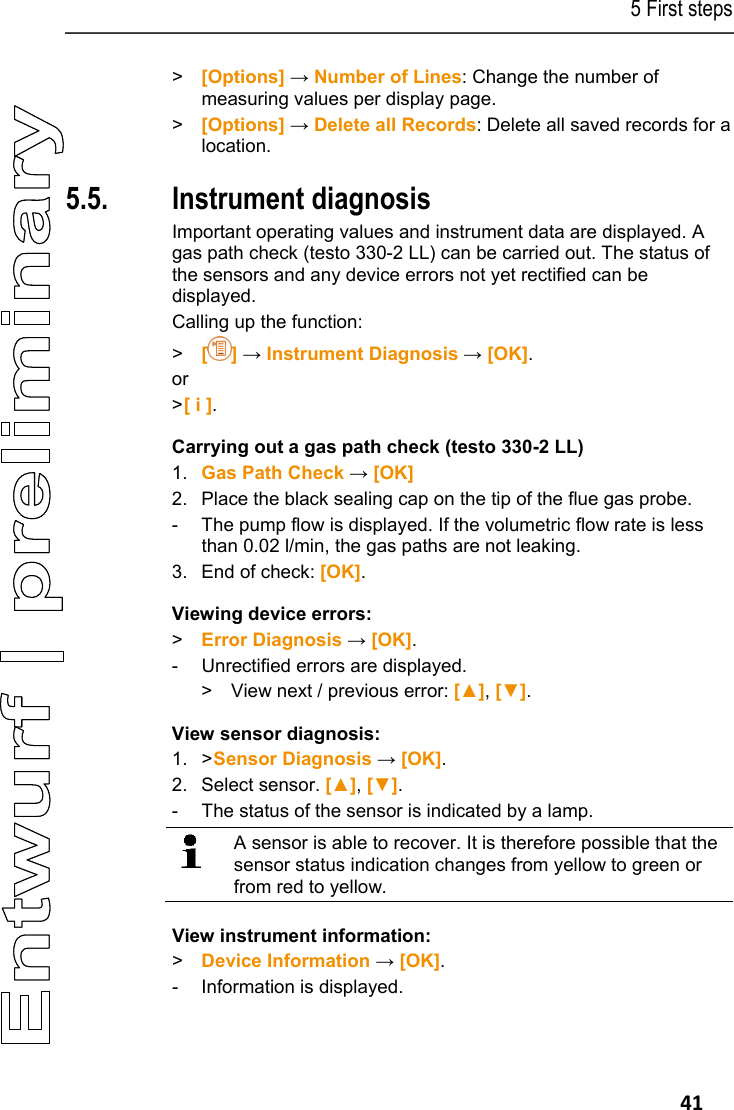

![5 First steps 41 > [Options] → Number of Lines: Change the number of measuring values per display page. > [Options] → Delete all Records: Delete all saved records for a location. Pos: 43 /TD/Erste Sc hritte/testo 330/test o 330 Produkt kennenlerne n Gerätediagnose @ 6\ mod_1279004297026_79. docx @ 65394 @ 25555 @ 1 5.5. Instrument diagnosis Important operating values and instrument data are displayed. A gas path check (testo 330-2 LL) can be carried out. The status of the sensors and any device errors not yet rectified can be displayed. Calling up the function: > [] → Instrument Diagnosis → [OK]. or > [ i ]. Carrying out a gas path check (testo 330-2 LL) 1. Gas Path Check → [OK] 2. Place the black sealing cap on the tip of the flue gas probe. - The pump flow is displayed. If the volumetric flow rate is less than 0.02 l/min, the gas paths are not leaking. 3. End of check: [OK]. Viewing device errors: > Error Diagnosis → [OK]. - Unrectified errors are displayed. > View next / previous error: [▲], [▼]. View sensor diagnosis: 1. > Sensor Diagnosis → [OK]. 2. Select sensor. [▲], [▼]. - The status of the sensor is indicated by a lamp. A sensor is able to recover. It is therefore possible that the sensor status indication changes from yellow to green or from red to yellow. View instrument information: > Device Information → [OK]. - Information is displayed.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-41.png)

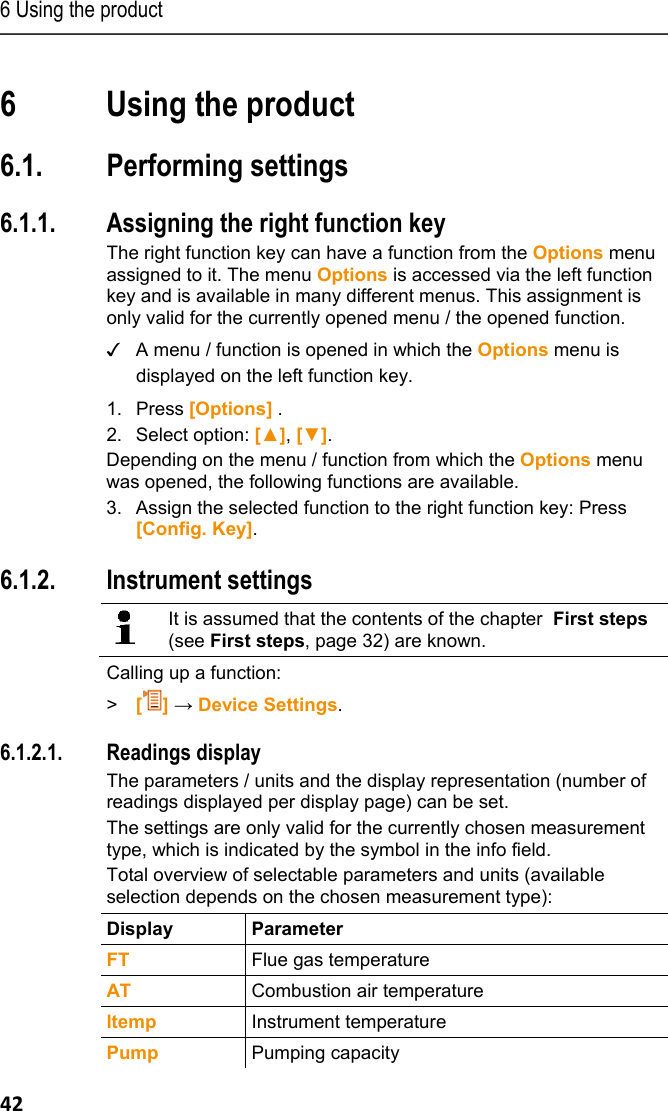

![6 Using the product 42 Pos: 44 /TD/Überschr iften/6. Produkt ver wenden @ 0\mod_117377492855 4_79.docx @ 328 @ 3 @ 1 6 Using the product Pos: 45 /TD/Überschr iften/6.1 Einstellun gen vornehmen @ 0\mod_11845 84321421_79.doc x @ 1863 @ 3 @ 1 6.1. Performing settings Pos: 46 /TD/Produkt ver wenden/testo 330/tes to 330 Rechte Funktions taste belegen @ 6\mod_127928 3093786_79.doc x @ 67168 @ 3 @ 1 6.1.1. Assigning the right function key The right function key can have a function from the Options menu assigned to it. The menu Options is accessed via the left function key and is available in many different menus. This assignment is only valid for the currently opened menu / the opened function. ✓ A menu / function is opened in which the Options menu is displayed on the left function key. 1. Press [Options] . 2. Select option: [▲], [▼]. Depending on the menu / function from which the Options menu was opened, the following functions are available. 3. Assign the selected function to the right function key: Press [Config. Key]. Pos: 47 /TD/Produkt verwenden/testo 350 neu/te sto 350 Geräteeinste llungen CU/testo 350 Ger äteeinstellungen_ Ueberschrift @ 5\ mod_1266322627982_79.doc x @ 58663 @ 3 @ 1 6.1.2. Instrument settings Pos: 48 /TD/Produkt verwenden/testo 330/tes to 330 Geräteeinstel lungen aufrufen @ 6\mod_1 279008333499_79.doc x @ 65426 @ @ 1 It is assumed that the contents of the chapter First steps (see First steps, page 32) are known. Calling up a function: > [] → Device Settings. Pos: 49 /TD/Produkt verwenden/testo 330/tes to 330 Messwertanzeige D E, Sprache en (LV-spezi fisch!) @ 7\mod_1284035 052608_79.docx @ 72271 @ 4555 @ 1 6.1.2.1. Readings display The parameters / units and the display representation (number of readings displayed per display page) can be set. The settings are only valid for the currently chosen measurement type, which is indicated by the symbol in the info field. Total overview of selectable parameters and units (available selection depends on the chosen measurement type): Display Parameter FT Flue gas temperature AT Combustion air temperature ltemp Instrument temperature Pump Pumping capacity](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-42.png)

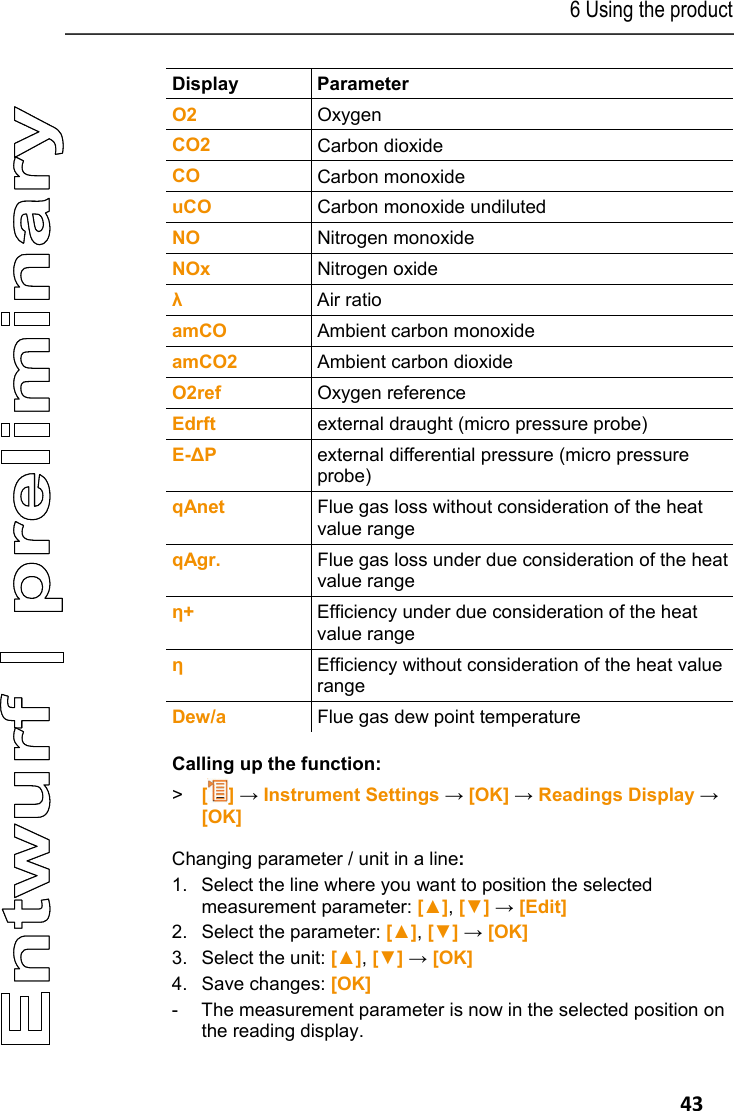

![6 Using the product 43 Display Parameter O2 Oxygen CO2 Carbon dioxide CO Carbon monoxide uCO Carbon monoxide undiluted NO Nitrogen monoxide NOx Nitrogen oxide λ Air ratio amCO Ambient carbon monoxide amCO2 Ambient carbon dioxide O2ref Oxygen reference Edrft external draught (micro pressure probe) E-∆P external differential pressure (micro pressure probe) qAnet Flue gas loss without consideration of the heat value range qAgr. Flue gas loss under due consideration of the heat value range η+ Efficiency under due consideration of the heat value range η Efficiency without consideration of the heat value range Dew/a Flue gas dew point temperature Calling up the function: > [] → Instrument Settings → [OK] → Readings Display → [OK] Changing parameter / unit in a line: 1. Select the line where you want to position the selected measurement parameter: [▲], [▼] → [Edit] 2. Select the parameter: [▲], [▼] → [OK] 3. Select the unit: [▲], [▼] → [OK] 4. Save changes: [OK] - The measurement parameter is now in the selected position on the reading display.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-43.png)

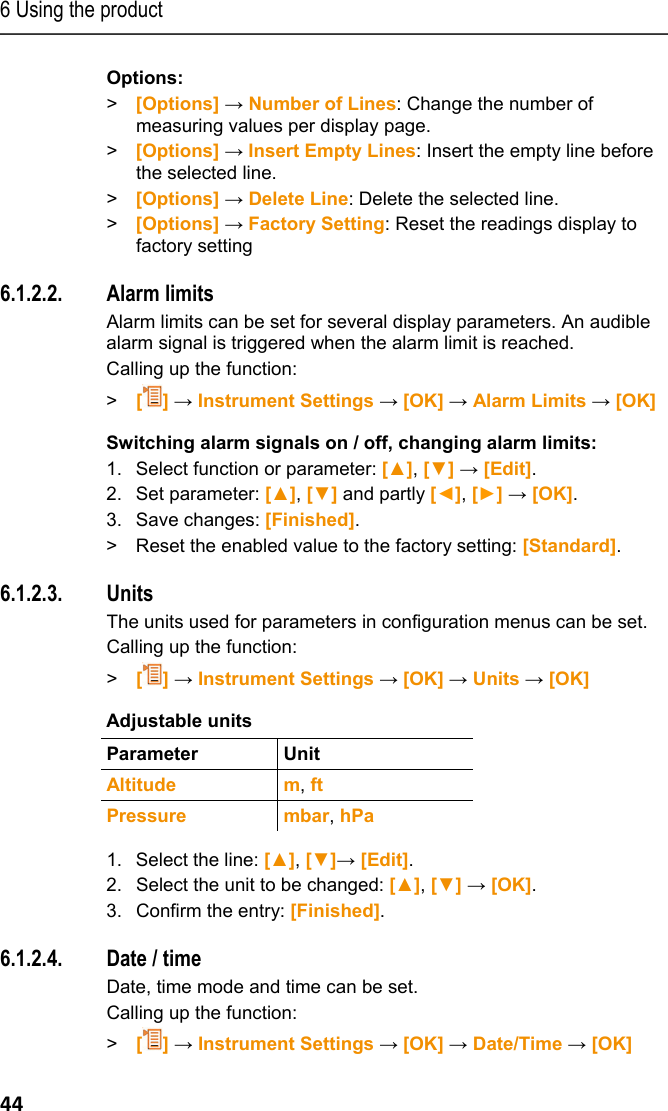

![6 Using the product 44 Options: > [Options] → Number of Lines: Change the number of measuring values per display page. > [Options] → Insert Empty Lines: Insert the empty line before the selected line. > [Options] → Delete Line: Delete the selected line. > [Options] → Factory Setting: Reset the readings display to factory setting Pos: 50 /TD/Produkt verwenden/testo 330/tes to 330 Alarschwellen @ 6\ mod_1279021018511_79. docx @ 65490 @ 45 @ 1 6.1.2.2. Alarm limits Alarm limits can be set for several display parameters. An audible alarm signal is triggered when the alarm limit is reached. Calling up the function: > [] → Instrument Settings → [OK] → Alarm Limits → [OK] Switching alarm signals on / off, changing alarm limits: 1. Select function or parameter: [▲], [▼] → [Edit]. 2. Set parameter: [▲], [▼] and partly [◄], [►] → [OK]. 3. Save changes: [Finished]. > Reset the enabled value to the factory setting: [Standard]. Pos: 51 /TD/Produkt verwenden/testo 330/tes to 330 Einheiten @ 6\mod_127 9022297845_79.doc x @ 65521 @ 45 @ 1 6.1.2.3. Units The units used for parameters in configuration menus can be set. Calling up the function: > [] → Instrument Settings → [OK] → Units → [OK] Adjustable units Parameter Unit Altitude m, ft Pressure mbar, hPa 1. Select the line: [▲], [▼]→ [Edit]. 2. Select the unit to be changed: [▲], [▼] → [OK]. 3. Confirm the entry: [Finished]. Pos: 52 /TD/Produkt verwenden/testo 330/tes to 330 Datum_Uhrzeit @ 6\m od_1279023342203_79.d ocx @ 65553 @ 45 @ 1 6.1.2.4. Date / time Date, time mode and time can be set. Calling up the function: > [] → Instrument Settings → [OK] → Date/Time → [OK]](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-44.png)

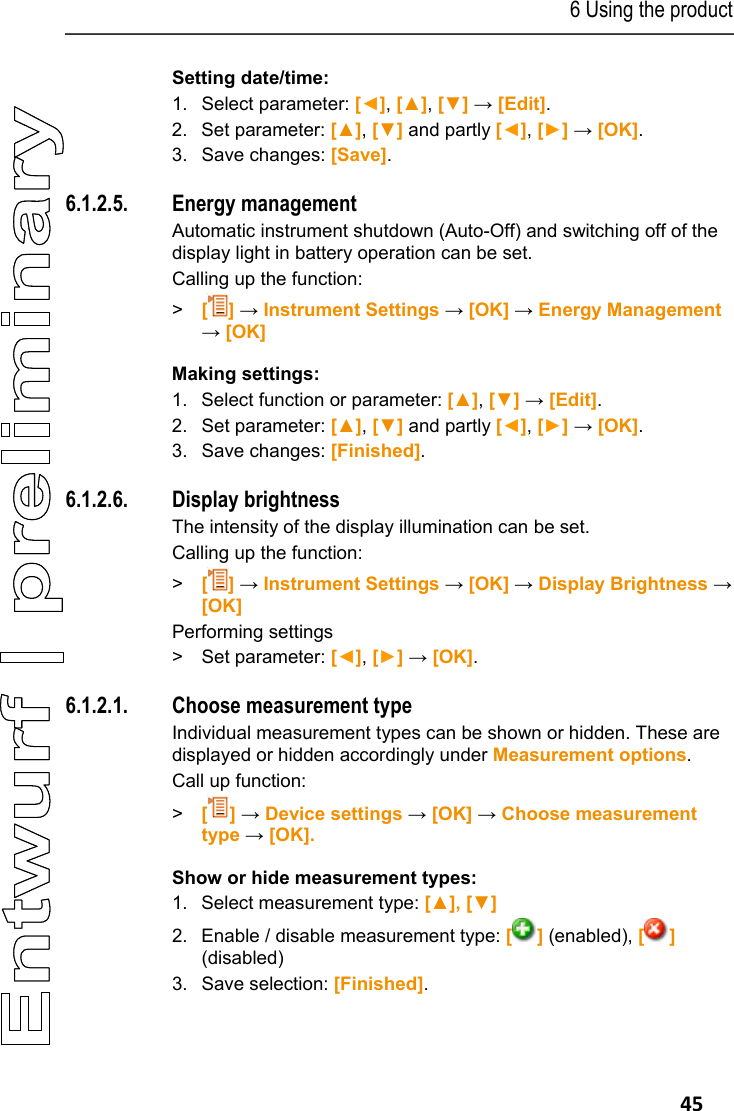

![6 Using the product 45 Setting date/time: 1. Select parameter: [◄], [▲], [▼] → [Edit]. 2. Set parameter: [▲], [▼] and partly [◄], [►] → [OK]. 3. Save changes: [Save]. Pos: 53 /TD/Produkt verwenden/testo 330/Test o 330 Energieverwaltu ng @ 6\mod_1279023810346_ 79.docx @ 65585 @ 45 @ 1 6.1.2.5. Energy management Automatic instrument shutdown (Auto-Off) and switching off of the display light in battery operation can be set. Calling up the function: > [] → Instrument Settings → [OK] → Energy Management → [OK] Making settings: 1. Select function or parameter: [▲], [▼] → [Edit]. 2. Set parameter: [▲], [▼] and partly [◄], [►] → [OK]. 3. Save changes: [Finished]. Pos: 54 /TD/Produkt verwenden/testo 330/tes to 330 Display @ 6\mod_12790256 03358_79.docx @ 65617 @ 4 @ 1 6.1.2.6. Display brightness The intensity of the display illumination can be set. Calling up the function: > [] → Instrument Settings → [OK] → Display Brightness → [OK] Performing settings > Set parameter: [◄], [►] → [OK]. Pos: 55 /TD/Produkt verwenden/testo 330/tes to 330 Auswahl_Messar t @ 15\mod_1386331304928 _79.docx @ 179731 @ 45 @ 1 6.1.2.1. Choose measurement type Individual measurement types can be shown or hidden. These are displayed or hidden accordingly under Measurement options. Call up function: > [] → Device settings → [OK] → Choose measurement type → [OK]. Show or hide measurement types: 1. Select measurement type: [▲], [▼] 2. Enable / disable measurement type: [] (enabled), [] (disabled) 3. Save selection: [Finished].](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-45.png)

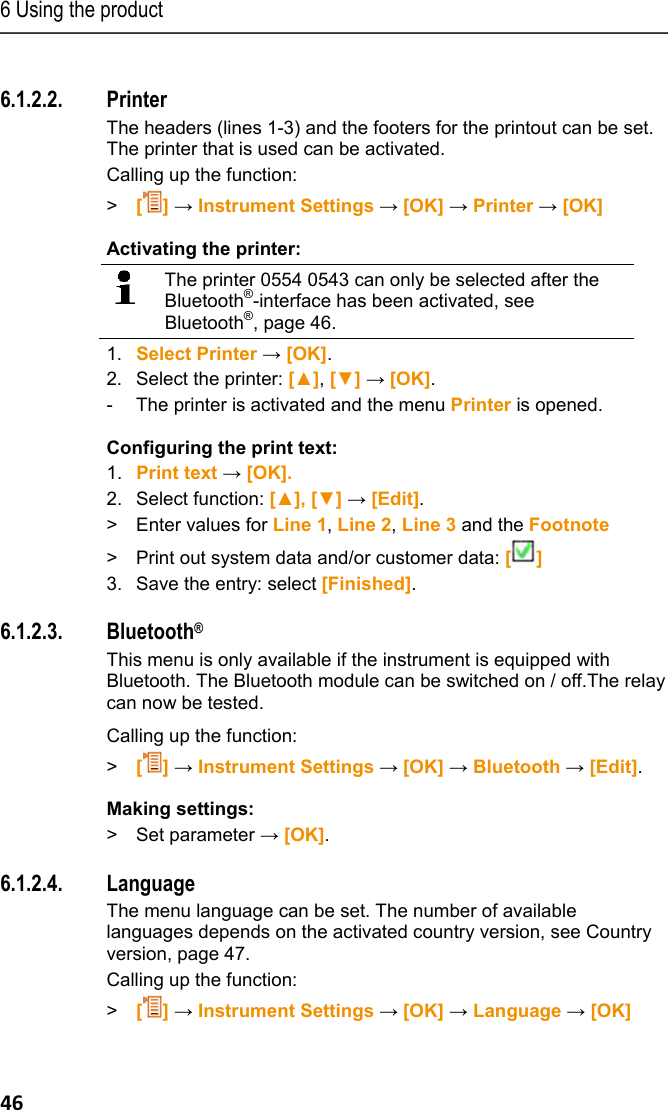

![6 Using the product 46 Pos: 56 /TD/Produkt verwenden/testo 330/Test o 330 Drucker @ 6\mod_12790 25854485_79.doc x @ 65649 @ 455 @ 1 6.1.2.2. Printer The headers (lines 1-3) and the footers for the printout can be set. The printer that is used can be activated. Calling up the function: > [] → Instrument Settings → [OK] → Printer → [OK] Activating the printer: The printer 0554 0543 can only be selected after the Bluetooth®-interface has been activated, see Bluetooth®, page 46. 1. Select Printer → [OK]. 2. Select the printer: [▲], [▼] → [OK]. - The printer is activated and the menu Printer is opened. Configuring the print text: 1. Print text → [OK]. 2. Select function: [▲], [▼] → [Edit]. > Enter values for Line 1, Line 2, Line 3 and the Footnote > Print out system data and/or customer data: [] 3. Save the entry: select [Finished]. Pos: 57 /TD/Produkt verwenden/testo 330/tes to 330 Bluetooth @ 6\mod_127 9026530745_79.doc x @ 65681 @ 45 @ 1 6.1.2.3. Bluetooth® This menu is only available if the instrument is equipped with Bluetooth. The Bluetooth module can be switched on / off.The relay can now be tested. Calling up the function: > [] → Instrument Settings → [OK] → Bluetooth → [Edit]. Making settings: > Set parameter → [OK]. Pos: 58 /TD/Produkt verwenden/testo 330/tes to 330 Sprache @ 6\mod_12790 26896670_79.doc x @ 65713 @ 45 @ 1 6.1.2.4. Language The menu language can be set. The number of available languages depends on the activated country version, see Country version, page 47. Calling up the function: > [] → Instrument Settings → [OK] → Language → [OK]](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-46.png)

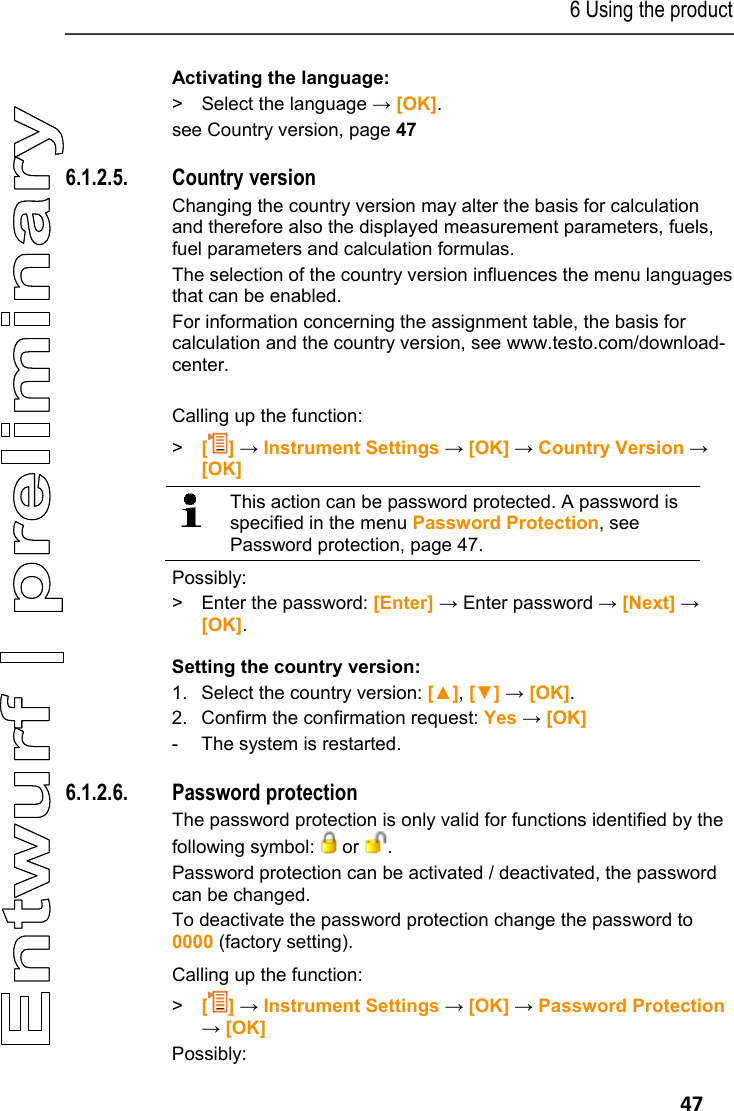

![6 Using the product 47 Activating the language: > Select the language → [OK]. see Country version, page 47 Pos: 59 /TD/Produkt verwenden/testo 330/tes to 330 Landesversion @ 6\ mod_1279026924467_79. docx @ 65745 @ 45 @ 1 6.1.2.5. Country version Changing the country version may alter the basis for calculation and therefore also the displayed measurement parameters, fuels, fuel parameters and calculation formulas. The selection of the country version influences the menu languages that can be enabled. For information concerning the assignment table, the basis for calculation and the country version, see www.testo.com/download-center. Calling up the function: > [] → Instrument Settings → [OK] → Country Version → [OK] This action can be password protected. A password is specified in the menu Password Protection, see Password protection, page 47. Possibly: > Enter the password: [Enter] → Enter password → [Next] → [OK]. Setting the country version: 1. Select the country version: [▲], [▼] → [OK]. 2. Confirm the confirmation request: Yes → [OK] - The system is restarted. Pos: 60 /TD/Produkt verwenden/testo 330/tes to 330 Passwortschu tz @ 6\mod_1279028157194_ 79.docx @ 65809 @ 45 @ 1 6.1.2.6. Password protection The password protection is only valid for functions identified by the following symbol: or . Password protection can be activated / deactivated, the password can be changed. To deactivate the password protection change the password to 0000 (factory setting). Calling up the function: > [] → Instrument Settings → [OK] → Password Protection → [OK] Possibly:](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-47.png)

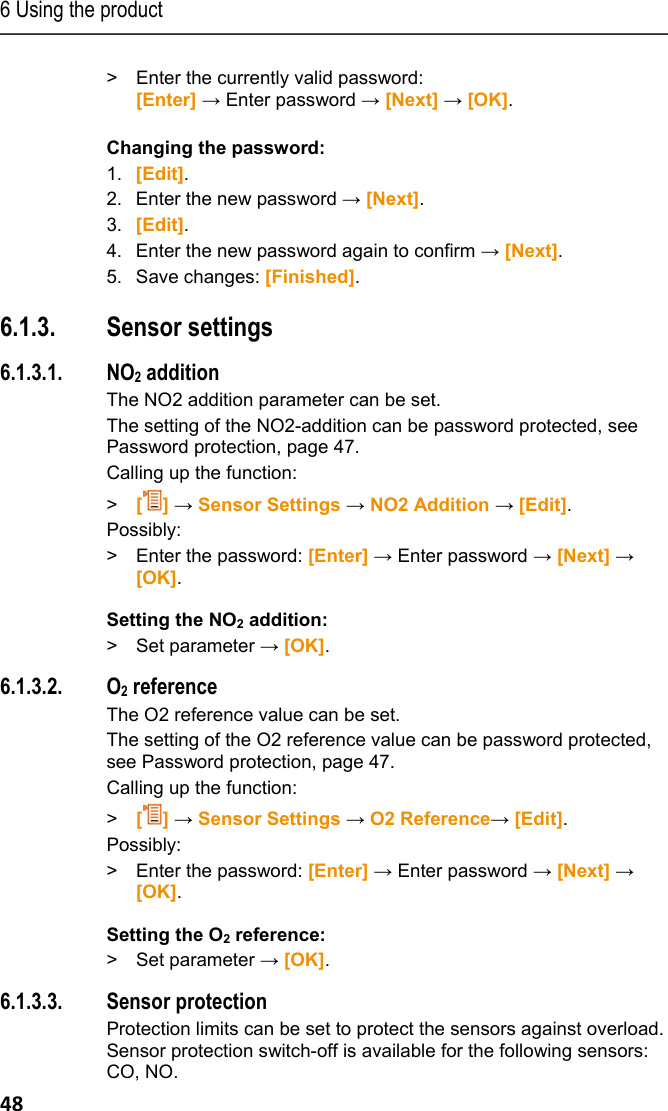

![6 Using the product 48 > Enter the currently valid password: [Enter] → Enter password → [Next] → [OK]. Changing the password: 1. [Edit]. 2. Enter the new password → [Next]. 3. [Edit]. 4. Enter the new password again to confirm → [Next]. 5. Save changes: [Finished]. Pos: 61 /TD/Produkt verwenden/testo 330/tes to 330 Sensoreinstel lungen @ 6\mod_127909571 3244_79.docx @ 65843 @ 345454 545 @ 1 6.1.3. Sensor settings 6.1.3.1. NO2 addition The NO2 addition parameter can be set. The setting of the NO2-addition can be password protected, see Password protection, page 47. Calling up the function: > [] → Sensor Settings → NO2 Addition → [Edit]. Possibly: > Enter the password: [Enter] → Enter password → [Next] → [OK]. Setting the NO2 addition: > Set parameter → [OK]. 6.1.3.2. O2 reference The O2 reference value can be set. The setting of the O2 reference value can be password protected, see Password protection, page 47. Calling up the function: > [] → Sensor Settings → O2 Reference→ [Edit]. Possibly: > Enter the password: [Enter] → Enter password → [Next] → [OK]. Setting the O2 reference: > Set parameter → [OK]. 6.1.3.3. Sensor protection Protection limits can be set to protect the sensors against overload. Sensor protection switch-off is available for the following sensors: CO, NO.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-48.png)

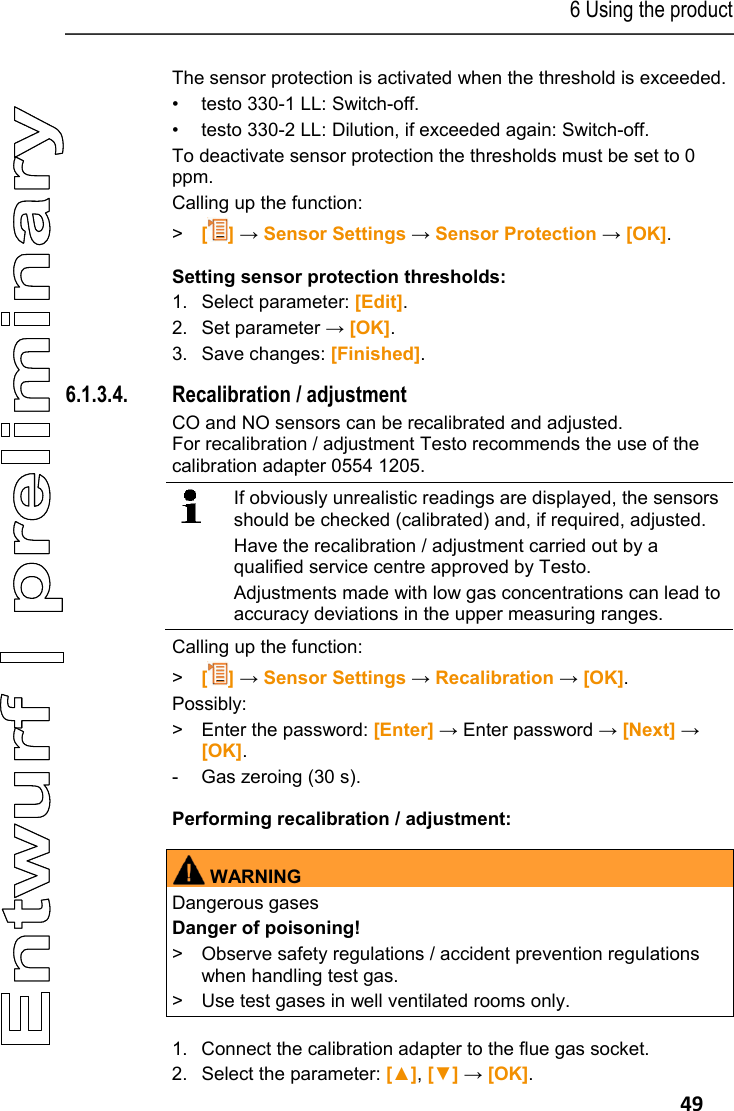

![6 Using the product 49 The sensor protection is activated when the threshold is exceeded. • testo 330-1 LL: Switch-off. • testo 330-2 LL: Dilution, if exceeded again: Switch-off. To deactivate sensor protection the thresholds must be set to 0 ppm. Calling up the function: > [] → Sensor Settings → Sensor Protection → [OK]. Setting sensor protection thresholds: 1. Select parameter: [Edit]. 2. Set parameter → [OK]. 3. Save changes: [Finished]. 6.1.3.4. Recalibration / adjustment CO and NO sensors can be recalibrated and adjusted. For recalibration / adjustment Testo recommends the use of the calibration adapter 0554 1205. If obviously unrealistic readings are displayed, the sensors should be checked (calibrated) and, if required, adjusted. Have the recalibration / adjustment carried out by a qualified service centre approved by Testo. Adjustments made with low gas concentrations can lead to accuracy deviations in the upper measuring ranges. Calling up the function: > [] → Sensor Settings → Recalibration → [OK]. Possibly: > Enter the password: [Enter] → Enter password → [Next] → [OK]. - Gas zeroing (30 s). Performing recalibration / adjustment: WARNINGDangerous gases Danger of poisoning! > Observe safety regulations / accident prevention regulations when handling test gas. > Use test gases in well ventilated rooms only. 1. Connect the calibration adapter to the flue gas socket. 2. Select the parameter: [▲], [▼] → [OK].](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-49.png)

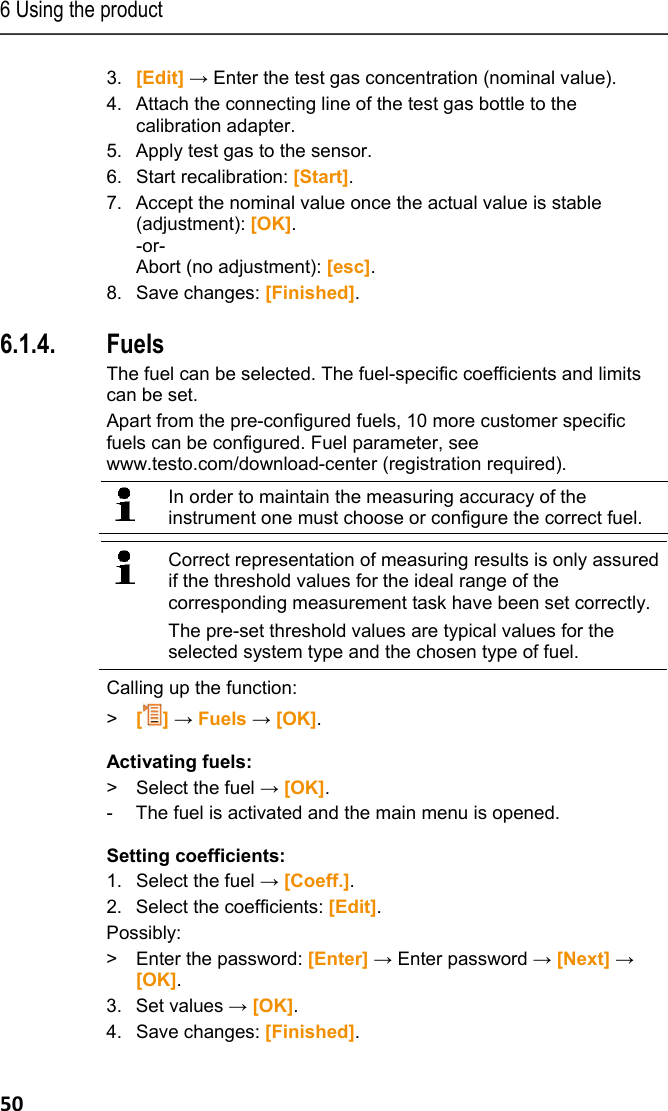

![6 Using the product 50 3. [Edit] → Enter the test gas concentration (nominal value). 4. Attach the connecting line of the test gas bottle to the calibration adapter. 5. Apply test gas to the sensor. 6. Start recalibration: [Start]. 7. Accept the nominal value once the actual value is stable (adjustment): [OK]. -or- Abort (no adjustment): [esc]. 8. Save changes: [Finished]. Pos: 62 /TD/Produkt verwenden/testo 330/tes to 330 Brennstoffe @ 6\ mod_1279096803274_79. docx @ 65875 @ 3555 @ 1 6.1.4. Fuels The fuel can be selected. The fuel-specific coefficients and limits can be set. Apart from the pre-configured fuels, 10 more customer specific fuels can be configured. Fuel parameter, see www.testo.com/download-center (registration required). In order to maintain the measuring accuracy of the instrument one must choose or configure the correct fuel. Correct representation of measuring results is only assured if the threshold values for the ideal range of the corresponding measurement task have been set correctly. The pre-set threshold values are typical values for the selected system type and the chosen type of fuel. Calling up the function: > [] → Fuels → [OK]. Activating fuels: > Select the fuel → [OK]. - The fuel is activated and the main menu is opened. Setting coefficients: 1. Select the fuel → [Coeff.]. 2. Select the coefficients: [Edit]. Possibly: > Enter the password: [Enter] → Enter password → [Next] → [OK]. 3. Set values → [OK]. 4. Save changes: [Finished].](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-50.png)
![6 Using the product 51 Setting limits: 1. Select limit → [Edit]. 2. Set values → [OK]. 3. Save changes: [Finished]. Pos: 63 /TD/Produkt verwenden/testo 330/tes to 330 Programme @ 6\mod_12790 96840212_79.doc x @ 65907 @ 355 @ 1 6.1.5. Programs Five measuring programs for different measurement types can be configured and activated. The measuring programs serve the purpose of saving and representing measuring sequences. After the end of the measuring process the readings of a measuring program are automatically saved in a record. Only one measuring program can be activated in the instrument. Calling up the function: > [] → Programs → [OK]. Activating / deactivating a program: > Select the program: [▲], [▼] → [Enable] or [Disable]. - When activating a program: The program is activated and the measurement type matching the program is opened. Configuring the program: The measuring cycle takes 1s and cannot be changed. An activated program cannot be configured. 1. Select the program: [▲], [▼] → [Edit]. 2. Select parameters program name, measurement type, gas phase: [▲], [▼] → [Edit]. 3. Set parameters or enter values: [▲], [▼] and partly [◄], [►]→ [OK]. 4. Save changes: [Finished]. Pos: 64 /TD/Überschr iften/6.3 Messungen durc hführen @ 0\mod_118458 4650078_79.doc x @ 1872 @ 2 @ 1 6.2. Measuring Pos: 65 /TD/Produkt verwenden/testo 330/tes to 330 Messung vorbereit en @ 6\mod_1279108120992_ 79.docx @ 65971 @ 3455545544 @ 1 6.2.1. Preparing for measurement It is assumed that the contents of the chapter First steps (see First steps, page 32) are known.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-51.png)

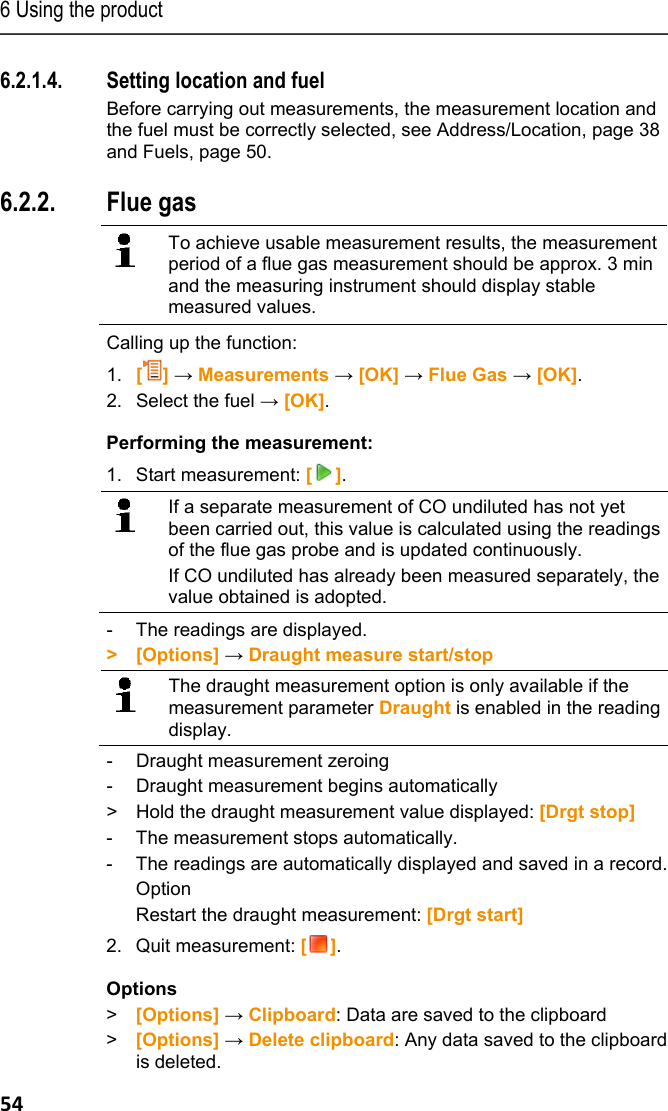

![6 Using the product 54 6.2.1.4. Setting location and fuel Before carrying out measurements, the measurement location and the fuel must be correctly selected, see Address/Location, page 38 and Fuels, page 50. Pos: 66 /TD/Produkt verwenden/testo 330/tes to 330 Abgasmessung @ 6\mod_12 79108000429_79.doc x @ 65939 @ 35555 @ 1 6.2.2. Flue gas To achieve usable measurement results, the measurement period of a flue gas measurement should be approx. 3 min and the measuring instrument should display stable measured values. Calling up the function: 1. [] → Measurements → [OK] → Flue Gas → [OK]. 2. Select the fuel → [OK]. Performing the measurement: 1. Start measurement: []. If a separate measurement of CO undiluted has not yet been carried out, this value is calculated using the readings of the flue gas probe and is updated continuously. If CO undiluted has already been measured separately, the value obtained is adopted. - The readings are displayed. > [Options] → Draught measure start/stop The draught measurement option is only available if the measurement parameter Draught is enabled in the reading display. - Draught measurement zeroing - Draught measurement begins automatically > Hold the draught measurement value displayed: [Drgt stop] - The measurement stops automatically. - The readings are automatically displayed and saved in a record. Option Restart the draught measurement: [Drgt start] 2. Quit measurement: []. Options > [Options] → Clipboard: Data are saved to the clipboard > [Options] → Delete clipboard: Any data saved to the clipboard is deleted.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-54.png)

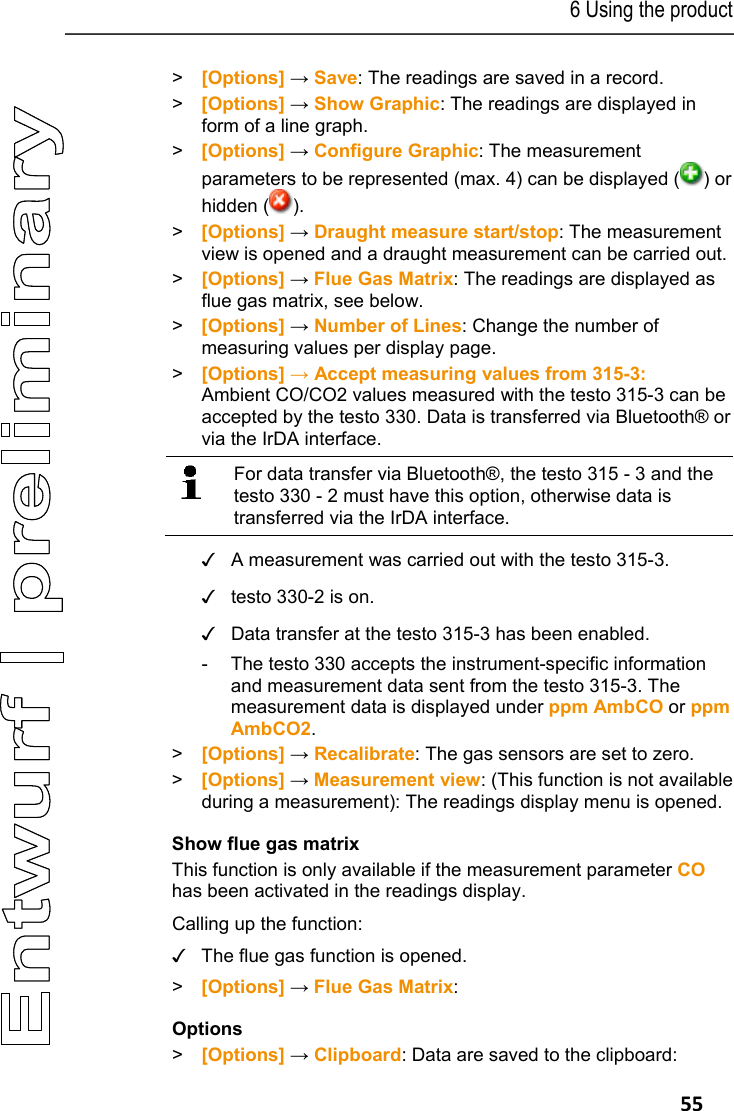

![6 Using the product 55 > [Options] → Save: The readings are saved in a record. > [Options] → Show Graphic: The readings are displayed in form of a line graph. > [Options] → Configure Graphic: The measurement parameters to be represented (max. 4) can be displayed ( ) or hidden ( ). > [Options] → Draught measure start/stop: The measurement view is opened and a draught measurement can be carried out. > [Options] → Flue Gas Matrix: The readings are displayed as flue gas matrix, see below. > [Options] → Number of Lines: Change the number of measuring values per display page. > [Options] → Accept measuring values from 315-3: Ambient CO/CO2 values measured with the testo 315-3 can be accepted by the testo 330. Data is transferred via Bluetooth® or via the IrDA interface. For data transfer via Bluetooth®, the testo 315 - 3 and the testo 330 - 2 must have this option, otherwise data is transferred via the IrDA interface. ✓ A measurement was carried out with the testo 315-3. ✓ testo 330-2 is on. ✓ Data transfer at the testo 315-3 has been enabled. - The testo 330 accepts the instrument-specific information and measurement data sent from the testo 315-3. The measurement data is displayed under ppm AmbCO or ppm AmbCO2. > [Options] → Recalibrate: The gas sensors are set to zero. > [Options] → Measurement view: (This function is not available during a measurement): The readings display menu is opened. Show flue gas matrix This function is only available if the measurement parameter CO has been activated in the readings display. Calling up the function: ✓ The flue gas function is opened. > [Options] → Flue Gas Matrix: Options > [Options] → Clipboard: Data are saved to the clipboard:](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-55.png)

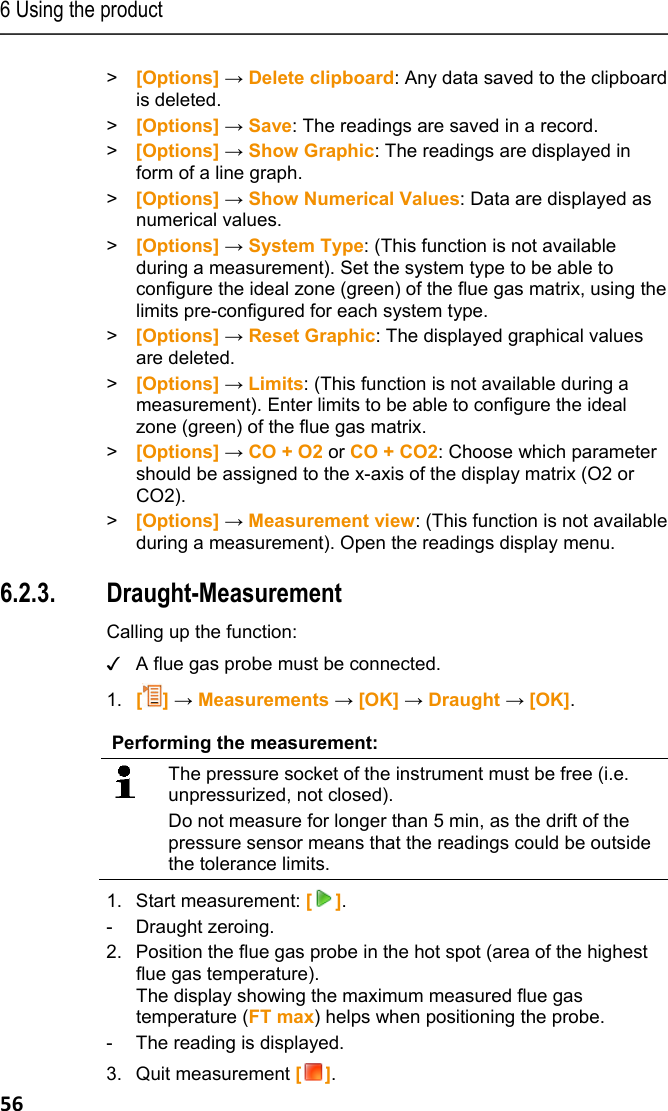

![6 Using the product 56 > [Options] → Delete clipboard: Any data saved to the clipboard is deleted. > [Options] → Save: The readings are saved in a record. > [Options] → Show Graphic: The readings are displayed in form of a line graph. > [Options] → Show Numerical Values: Data are displayed as numerical values. > [Options] → System Type: (This function is not available during a measurement). Set the system type to be able to configure the ideal zone (green) of the flue gas matrix, using the limits pre-configured for each system type. > [Options] → Reset Graphic: The displayed graphical values are deleted. > [Options] → Limits: (This function is not available during a measurement). Enter limits to be able to configure the ideal zone (green) of the flue gas matrix. > [Options] → CO + O2 or CO + CO2: Choose which parameter should be assigned to the x-axis of the display matrix (O2 or CO2). > [Options] → Measurement view: (This function is not available during a measurement). Open the readings display menu. Pos: 67 /TD/Produkt verwenden/testo 330/tes to 330_Zugmessung @ 6\mod_1 279111642510_79.doc x @ 66034 @ 355 @ 1 3. 6.2.3. Draught-Measurement Calling up the function: ✓ A flue gas probe must be connected. 1. [] → Measurements → [OK] → Draught → [OK]. Performing the measurement: The pressure socket of the instrument must be free (i.e. unpressurized, not closed). Do not measure for longer than 5 min, as the drift of the pressure sensor means that the readings could be outside the tolerance limits. 1. Start measurement: []. - Draught zeroing. 2. Position the flue gas probe in the hot spot (area of the highest flue gas temperature). The display showing the maximum measured flue gas temperature (FT max) helps when positioning the probe. - The reading is displayed. 3. Quit measurement [].](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-56.png)

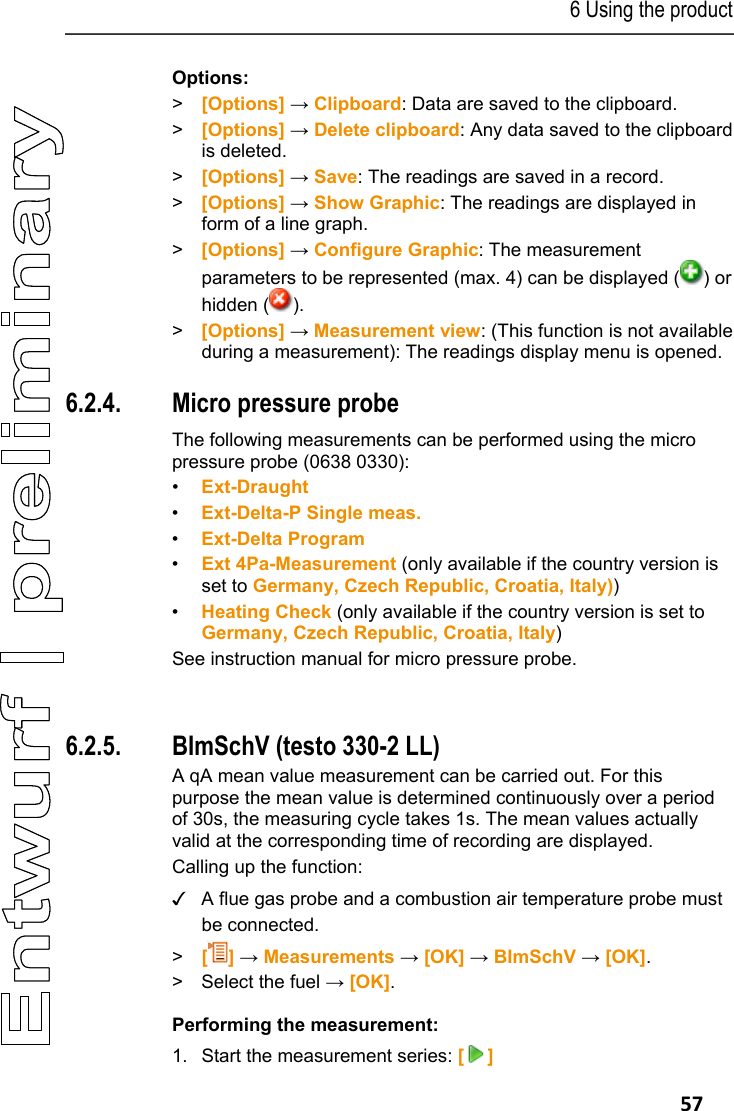

![6 Using the product 57 Options: > [Options] → Clipboard: Data are saved to the clipboard. > [Options] → Delete clipboard: Any data saved to the clipboard is deleted. > [Options] → Save: The readings are saved in a record. > [Options] → Show Graphic: The readings are displayed in form of a line graph. > [Options] → Configure Graphic: The measurement parameters to be represented (max. 4) can be displayed ( ) or hidden ( ). > [Options] → Measurement view: (This function is not available during a measurement): The readings display menu is opened. Pos: 68 /TD/Produkt verwenden/testo 330/tes to 330_Feinstdruc ksonde (Landesversion DE und I T) @ 6\mod_1279112733313 _79.docx @ 66066 @ 3 @ 1 4. 6.2.4. Micro pressure probe The following measurements can be performed using the micro pressure probe (0638 0330): • Ext-Draught • Ext-Delta-P Single meas. • Ext-Delta Program • Ext 4Pa-Measurement (only available if the country version is set to Germany, Czech Republic, Croatia, Italy)) • Heating Check (only available if the country version is set to Germany, Czech Republic, Croatia, Italy) See instruction manual for micro pressure probe. Pos: 69 /TD/Produkt verwenden/testo 330/tes to 330_BIMSCHV @ 6\mod_127 9112787548_79.doc x @ 66098 @ 35 @ 1 5. 6.2.5. BImSchV (testo 330-2 LL) A qA mean value measurement can be carried out. For this purpose the mean value is determined continuously over a period of 30s, the measuring cycle takes 1s. The mean values actually valid at the corresponding time of recording are displayed. Calling up the function: ✓ A flue gas probe and a combustion air temperature probe must be connected. > [] → Measurements → [OK] → BImSchV → [OK]. > Select the fuel → [OK]. Performing the measurement: 1. Start the measurement series: []](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-57.png)

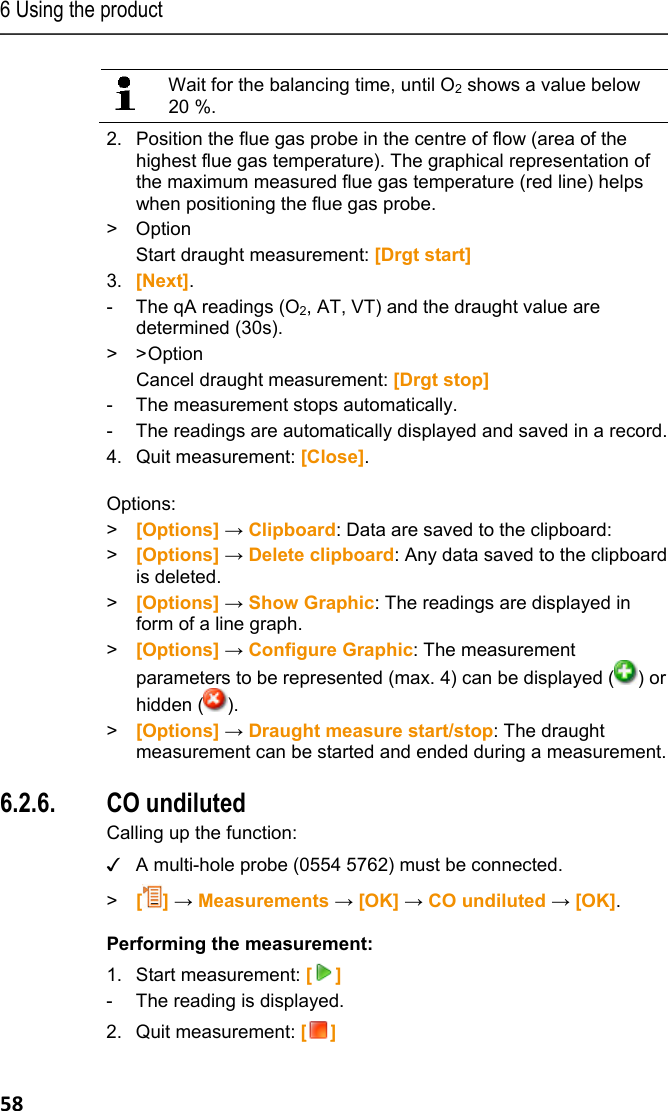

![6 Using the product 58 Wait for the balancing time, until O2 shows a value below 20 %. 2. Position the flue gas probe in the centre of flow (area of the highest flue gas temperature). The graphical representation of the maximum measured flue gas temperature (red line) helps when positioning the flue gas probe. > Option Start draught measurement: [Drgt start] 3. [Next]. - The qA readings (O2, AT, VT) and the draught value are determined (30s). > > Option Cancel draught measurement: [Drgt stop] - The measurement stops automatically. - The readings are automatically displayed and saved in a record. 4. Quit measurement: [Close]. Options: > [Options] → Clipboard: Data are saved to the clipboard: > [Options] → Delete clipboard: Any data saved to the clipboard is deleted. > [Options] → Show Graphic: The readings are displayed in form of a line graph. > [Options] → Configure Graphic: The measurement parameters to be represented (max. 4) can be displayed ( ) or hidden ( ). > [Options] → Draught measure start/stop: The draught measurement can be started and ended during a measurement. Pos: 70 /TD/Produkt verwenden/testo 330/tes to 330_CO unverdünnt @ 6\ mod_1279115457876_79. docx @ 66130 @ 355 @ 1 5. 6.2.6. CO undiluted Calling up the function: ✓ A multi-hole probe (0554 5762) must be connected. > [] → Measurements → [OK] → CO undiluted → [OK]. Performing the measurement: 1. Start measurement: [] - The reading is displayed. 2. Quit measurement: []](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-58.png)

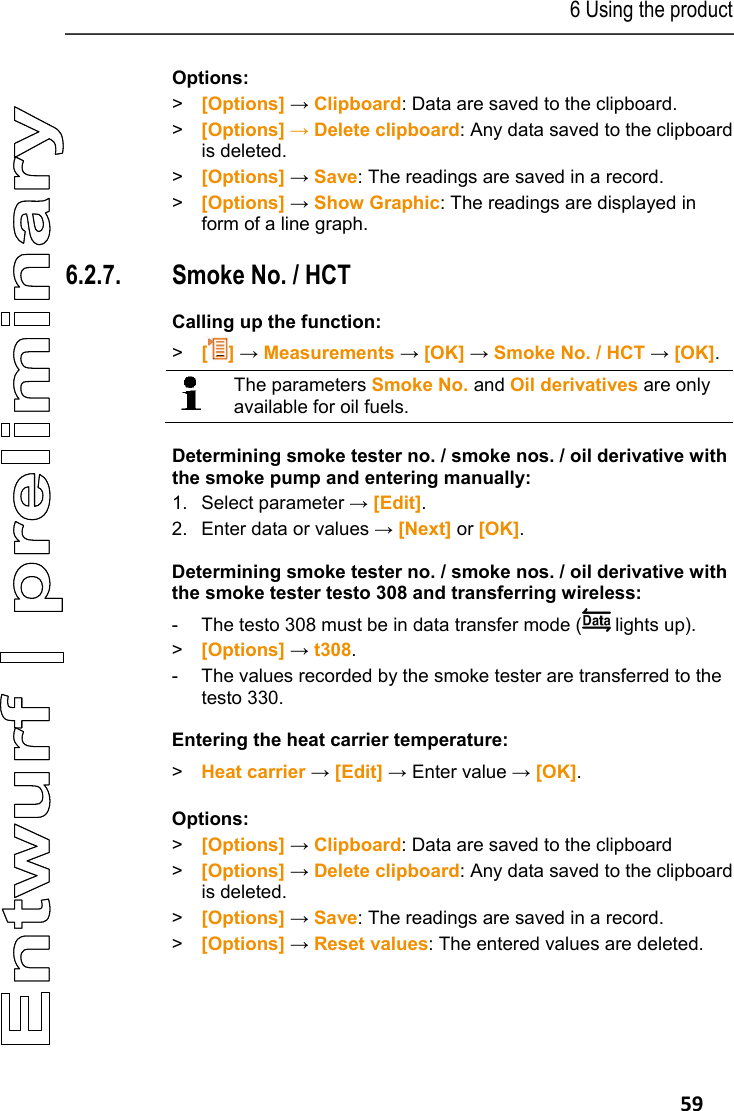

![6 Using the product 59 Options: > [Options] → Clipboard: Data are saved to the clipboard. > [Options] → Delete clipboard: Any data saved to the clipboard is deleted. > [Options] → Save: The readings are saved in a record. > [Options] → Show Graphic: The readings are displayed in form of a line graph. Pos: 71 /TD/Produkt verwenden/testo 330/tes to 330 Rußzahl/WTT (LV- spezifisch!) @ 6\ mod_1279178971921_79.doc x @ 66163 @ 355555 @ 1 6.2.7. Smoke No. / HCT Calling up the function: > [] → Measurements → [OK] → Smoke No. / HCT → [OK]. The parameters Smoke No. and Oil derivatives are only available for oil fuels. Determining smoke tester no. / smoke nos. / oil derivative with the smoke pump and entering manually: 1. Select parameter → [Edit]. 2. Enter data or values → [Next] or [OK]. Determining smoke tester no. / smoke nos. / oil derivative with the smoke tester testo 308 and transferring wireless: - The testo 308 must be in data transfer mode ( lights up). > [Options] → t308. - The values recorded by the smoke tester are transferred to the testo 330. Entering the heat carrier temperature: > Heat carrier → [Edit] → Enter value → [OK]. Options: > [Options] → Clipboard: Data are saved to the clipboard > [Options] → Delete clipboard: Any data saved to the clipboard is deleted. > [Options] → Save: The readings are saved in a record. > [Options] → Reset values: The entered values are deleted.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-59.png)

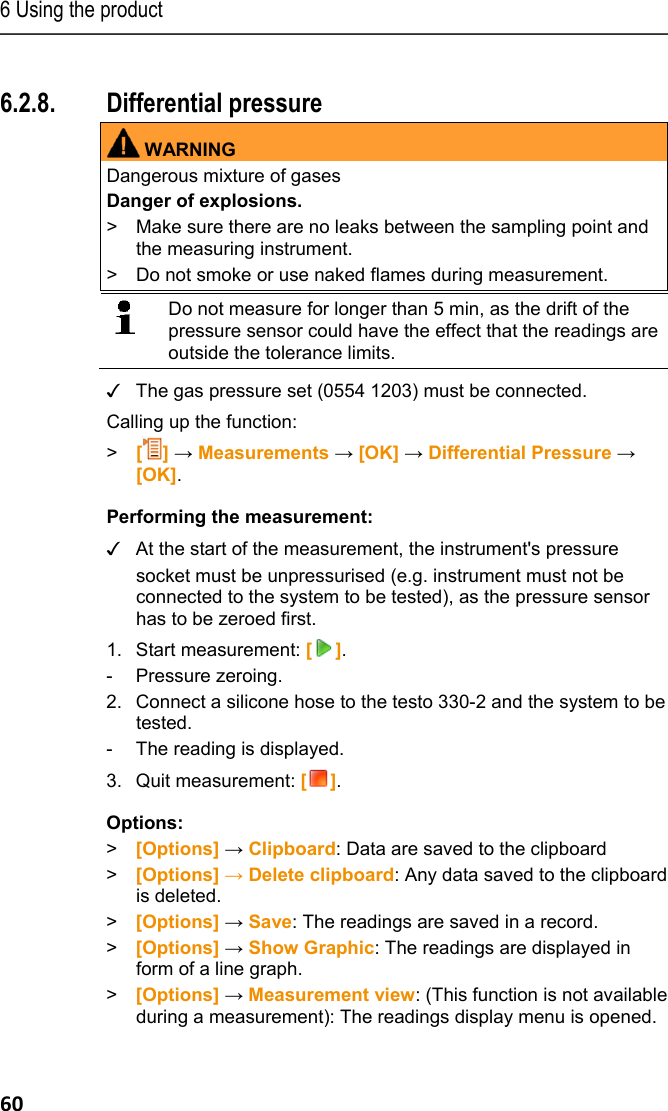

![6 Using the product 60 Pos: 72 /TD/Produkt verwenden/testo 330/tes to 330 Differenzdr uckmessung @ 6\mod_12791811 06594_79.docx @ 66195 @ 355 @ 1 6.2.8. Differential pressure WARNINGDangerous mixture of gases Danger of explosions. > Make sure there are no leaks between the sampling point and the measuring instrument. > Do not smoke or use naked flames during measurement. Do not measure for longer than 5 min, as the drift of the pressure sensor could have the effect that the readings are outside the tolerance limits. ✓ The gas pressure set (0554 1203) must be connected. Calling up the function: > [] → Measurements → [OK] → Differential Pressure → [OK]. Performing the measurement: ✓ At the start of the measurement, the instrument's pressure socket must be unpressurised (e.g. instrument must not be connected to the system to be tested), as the pressure sensor has to be zeroed first. 1. Start measurement: []. - Pressure zeroing. 2. Connect a silicone hose to the testo 330-2 and the system to be tested. - The reading is displayed. 3. Quit measurement: []. Options: > [Options] → Clipboard: Data are saved to the clipboard > [Options] → Delete clipboard: Any data saved to the clipboard is deleted. > [Options] → Save: The readings are saved in a record. > [Options] → Show Graphic: The readings are displayed in form of a line graph. > [Options] → Measurement view: (This function is not available during a measurement): The readings display menu is opened.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-60.png)

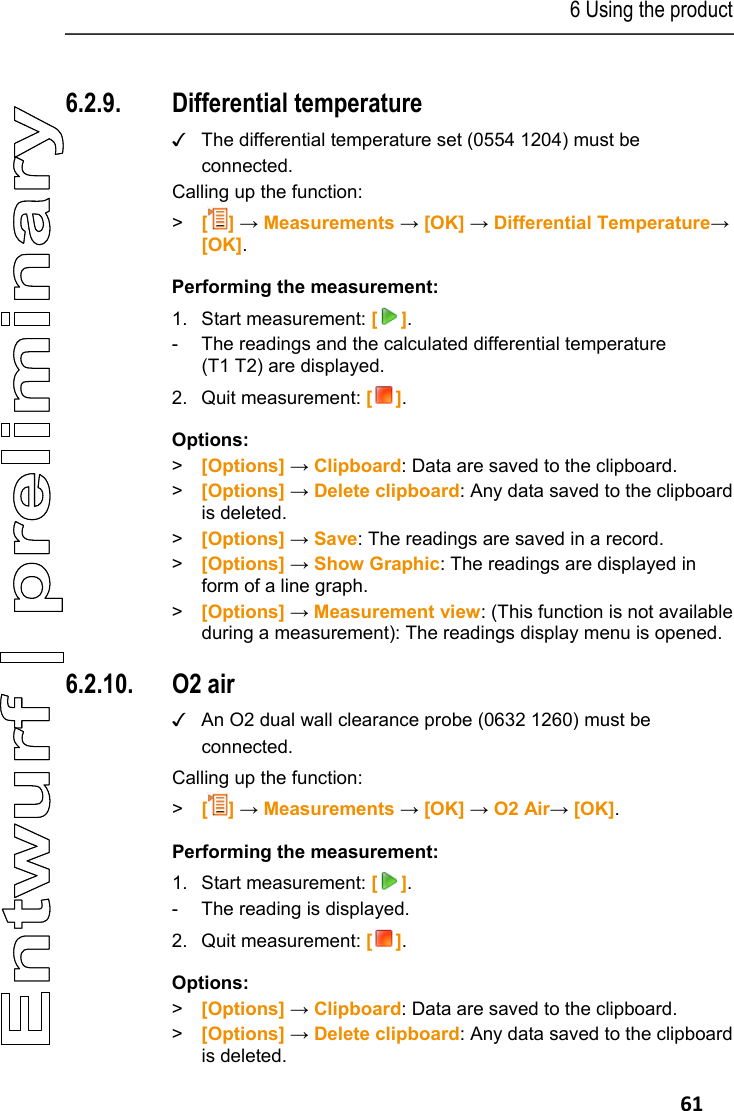

![6 Using the product 61 Pos: 73 /TD/Produkt verwenden/testo 330/tes to 330 Diff_Temperatur messung @ 6\mod_127918120 1625_79.docx @ 66227 @ 355 @ 1 6.2.9. Differential temperature ✓ The differential temperature set (0554 1204) must be connected. Calling up the function: > [] → Measurements → [OK] → Differential Temperature→ [OK]. Performing the measurement: 1. Start measurement: []. - The readings and the calculated differential temperature (T1 T2) are displayed. 2. Quit measurement: []. Options: > [Options] → Clipboard: Data are saved to the clipboard. > [Options] → Delete clipboard: Any data saved to the clipboard is deleted. > [Options] → Save: The readings are saved in a record. > [Options] → Show Graphic: The readings are displayed in form of a line graph. > [Options] → Measurement view: (This function is not available during a measurement): The readings display menu is opened. Pos: 74 /TD/Produkt ver wenden/testo 330/tes to 330 Zuluft @ 6\mod_127918 3710311_79.doc x @ 66259 @ 355 @ 1 6.2.10. O2 air ✓ An O2 dual wall clearance probe (0632 1260) must be connected. Calling up the function: > [] → Measurements → [OK] → O2 Air→ [OK]. Performing the measurement: 1. Start measurement: []. - The reading is displayed. 2. Quit measurement: []. Options: > [Options] → Clipboard: Data are saved to the clipboard. > [Options] → Delete clipboard: Any data saved to the clipboard is deleted.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-61.png)

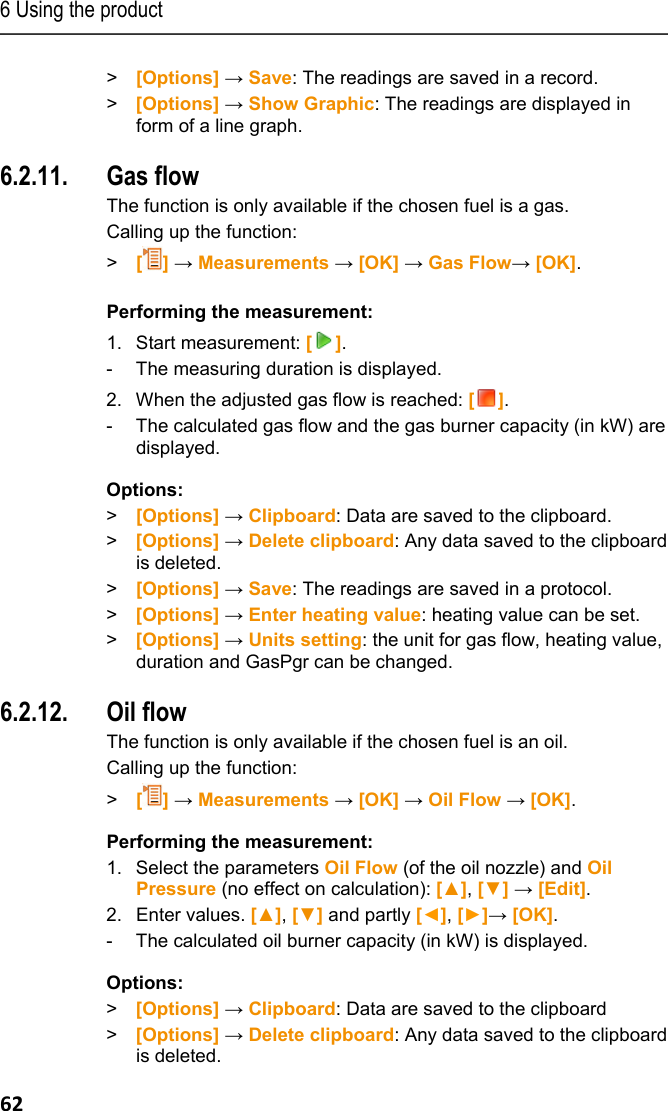

![6 Using the product 62 > [Options] → Save: The readings are saved in a record. > [Options] → Show Graphic: The readings are displayed in form of a line graph. Pos: 75 /TD/Produkt verwenden/testo 330/tes to 330_Gasdurchsatz @ 6\mod_1279183937795_ 79.docx @ 66291 @ 355 @ 1 6.2.11. Gas flow The function is only available if the chosen fuel is a gas. Calling up the function: > [] → Measurements → [OK] → Gas Flow→ [OK]. Performing the measurement: 1. Start measurement: []. - The measuring duration is displayed. 2. When the adjusted gas flow is reached: []. - The calculated gas flow and the gas burner capacity (in kW) are displayed. Options: > [Options] → Clipboard: Data are saved to the clipboard. > [Options] → Delete clipboard: Any data saved to the clipboard is deleted. > [Options] → Save: The readings are saved in a protocol. > [Options] → Enter heating value: heating value can be set. > [Options] → Units setting: the unit for gas flow, heating value, duration and GasPgr can be changed. Pos: 76 /TD/Produkt verwenden/testo 330/tes to 330 Öldurchsatz @ 6\mod_12 79183991201_79.doc x @ 66323 @ 355 @ 1 6.2.12. Oil flow The function is only available if the chosen fuel is an oil. Calling up the function: > [] → Measurements → [OK] → Oil Flow → [OK]. Performing the measurement: 1. Select the parameters Oil Flow (of the oil nozzle) and Oil Pressure (no effect on calculation): [▲], [▼] → [Edit]. 2. Enter values. [▲], [▼] and partly [◄], [►]→ [OK]. - The calculated oil burner capacity (in kW) is displayed. Options: > [Options] → Clipboard: Data are saved to the clipboard > [Options] → Delete clipboard: Any data saved to the clipboard is deleted.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-62.png)

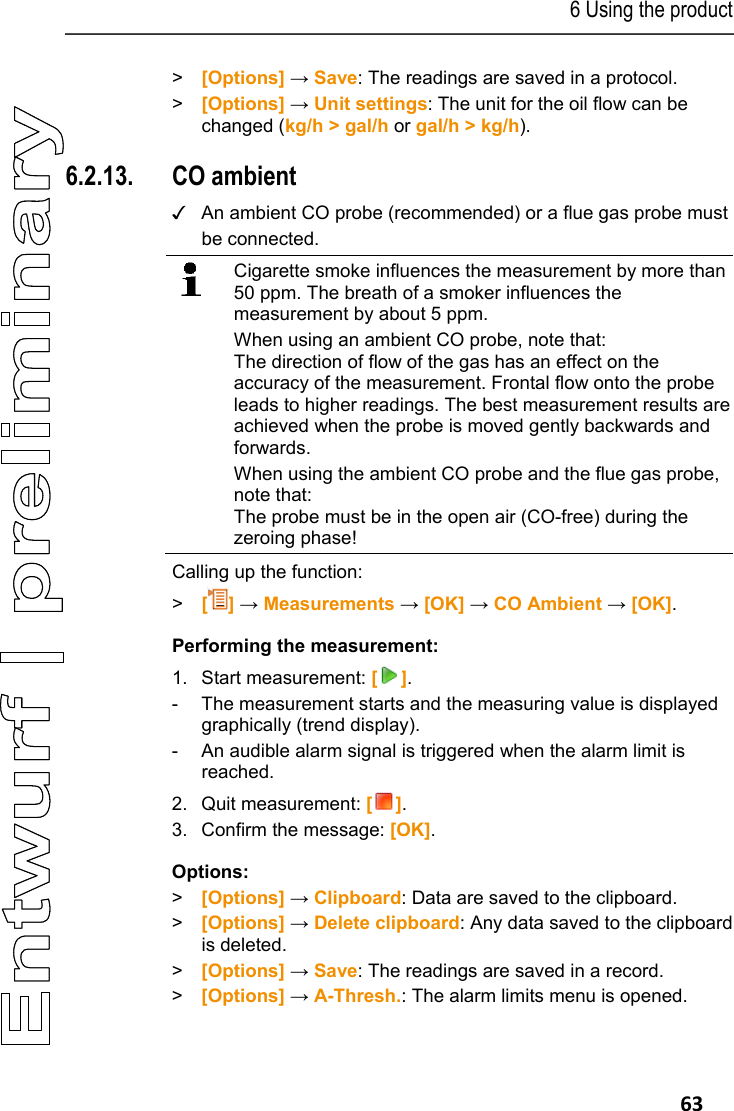

![6 Using the product 63 > [Options] → Save: The readings are saved in a protocol. > [Options] → Unit settings: The unit for the oil flow can be changed (kg/h > gal/h or gal/h > kg/h). Pos: 77 /TD/Produkt verwenden/testo 330/tes to 330 CO-Umgebung @ 6\mod_1 279194419538_79.doc x @ 66387 @ 355 @ 1 6.2.13. CO ambient ✓ An ambient CO probe (recommended) or a flue gas probe must be connected. Cigarette smoke influences the measurement by more than 50 ppm. The breath of a smoker influences the measurement by about 5 ppm. When using an ambient CO probe, note that: The direction of flow of the gas has an effect on the accuracy of the measurement. Frontal flow onto the probe leads to higher readings. The best measurement results are achieved when the probe is moved gently backwards and forwards. When using the ambient CO probe and the flue gas probe, note that: The probe must be in the open air (CO-free) during the zeroing phase! Calling up the function: > [] → Measurements → [OK] → CO Ambient → [OK]. Performing the measurement: 1. Start measurement: []. - The measurement starts and the measuring value is displayed graphically (trend display). - An audible alarm signal is triggered when the alarm limit is reached. 2. Quit measurement: []. 3. Confirm the message: [OK]. Options: > [Options] → Clipboard: Data are saved to the clipboard. > [Options] → Delete clipboard: Any data saved to the clipboard is deleted. > [Options] → Save: The readings are saved in a record. > [Options] → A-Thresh.: The alarm limits menu is opened.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-63.png)

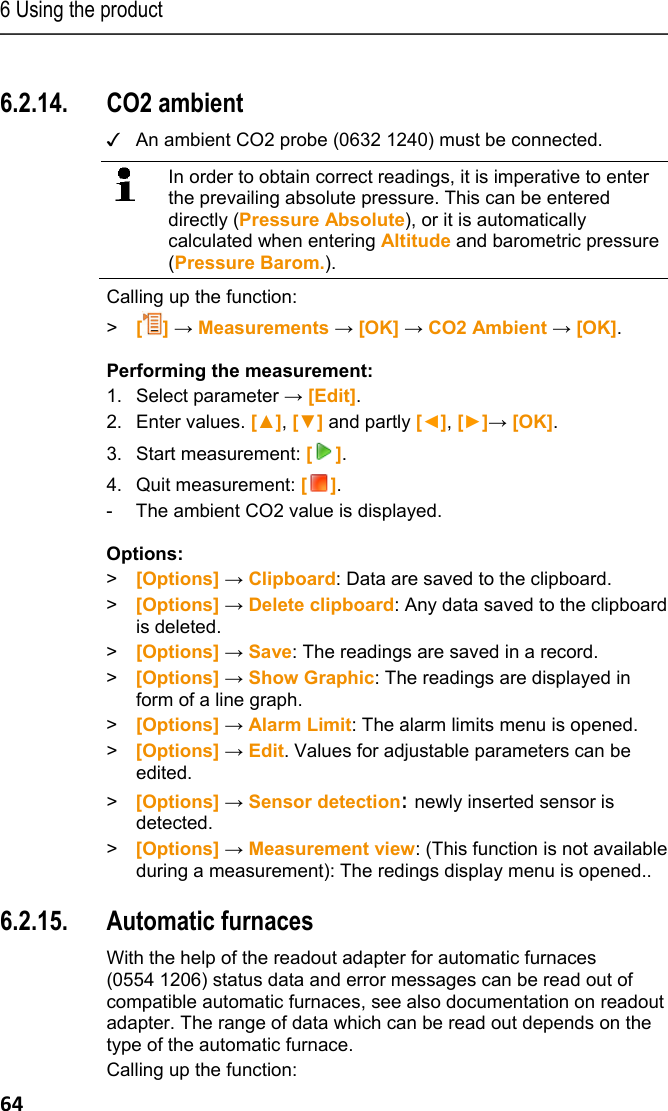

![6 Using the product 64 Pos: 78 /TD/Produkt verwenden/testo 330/tes to 330 CO2-Umgebung @ 6\mod_ 1279194467663_79.doc x @ 66419 @ 355 @ 1 6.2.14. CO2 ambient ✓ An ambient CO2 probe (0632 1240) must be connected. In order to obtain correct readings, it is imperative to enter the prevailing absolute pressure. This can be entered directly (Pressure Absolute), or it is automatically calculated when entering Altitude and barometric pressure (Pressure Barom.). Calling up the function: > [] → Measurements → [OK] → CO2 Ambient → [OK]. Performing the measurement: 1. Select parameter → [Edit]. 2. Enter values. [▲], [▼] and partly [◄], [►]→ [OK]. 3. Start measurement: []. 4. Quit measurement: []. - The ambient CO2 value is displayed. Options: > [Options] → Clipboard: Data are saved to the clipboard. > [Options] → Delete clipboard: Any data saved to the clipboard is deleted. > [Options] → Save: The readings are saved in a record. > [Options] → Show Graphic: The readings are displayed in form of a line graph. > [Options] → Alarm Limit: The alarm limits menu is opened. > [Options] → Edit. Values for adjustable parameters can be edited. > [Options] → Sensor detection: newly inserted sensor is detected. > [Options] → Measurement view: (This function is not available during a measurement): The redings display menu is opened.. Pos: 79 /TD/Produkt verwenden/testo 330/tes to 330 Feuerungsautom at @ 6\mod_1279197122511 _79.docx @ 66451 @ 355 @ 1 6.2.15. Automatic furnaces With the help of the readout adapter for automatic furnaces (0554 1206) status data and error messages can be read out of compatible automatic furnaces, see also documentation on readout adapter. The range of data which can be read out depends on the type of the automatic furnace. Calling up the function:](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-64.png)

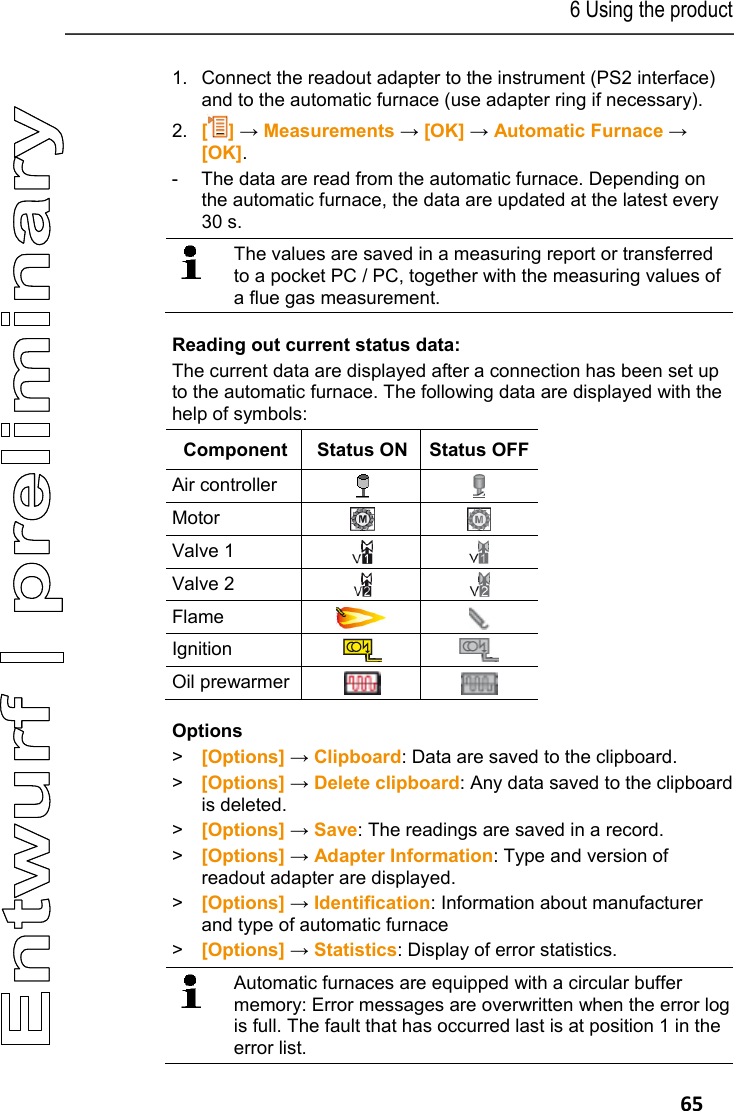

![6 Using the product 65 1. Connect the readout adapter to the instrument (PS2 interface) and to the automatic furnace (use adapter ring if necessary). 2. [] → Measurements → [OK] → Automatic Furnace → [OK]. - The data are read from the automatic furnace. Depending on the automatic furnace, the data are updated at the latest every 30 s. The values are saved in a measuring report or transferred to a pocket PC / PC, together with the measuring values of a flue gas measurement. Reading out current status data: The current data are displayed after a connection has been set up to the automatic furnace. The following data are displayed with the help of symbols: Component Status ON Status OFFAir controller Motor Valve 1 Valve 2 Flame Ignition Oil prewarmer Options > [Options] → Clipboard: Data are saved to the clipboard. > [Options] → Delete clipboard: Any data saved to the clipboard is deleted. > [Options] → Save: The readings are saved in a record. > [Options] → Adapter Information: Type and version of readout adapter are displayed. > [Options] → Identification: Information about manufacturer and type of automatic furnace > [Options] → Statistics: Display of error statistics. Automatic furnaces are equipped with a circular buffer memory: Error messages are overwritten when the error log is full. The fault that has occurred last is at position 1 in the error list.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-65.png)

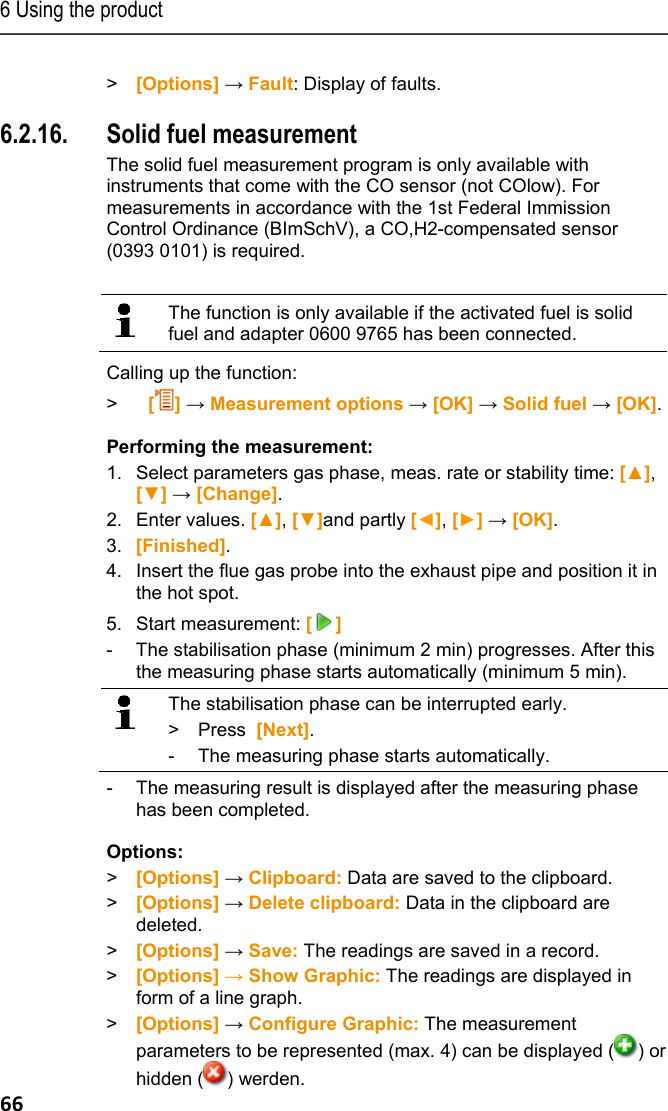

![6 Using the product 66 > [Options] → Fault: Display of faults. Pos: 80 /TD/Produkt verwenden/testo 330/tes to 330 Festbrennstof f @ 8\mod_1297327823279_ 79.docx @ 76933 @ 355 @ 1 6.2.16. Solid fuel measurement The solid fuel measurement program is only available with instruments that come with the CO sensor (not COlow). For measurements in accordance with the 1st Federal Immission Control Ordinance (BImSchV), a CO,H2-compensated sensor (0393 0101) is required. The function is only available if the activated fuel is solid fuel and adapter 0600 9765 has been connected. Calling up the function: > [] → Measurement options → [OK] → Solid fuel → [OK]. Performing the measurement: 1. Select parameters gas phase, meas. rate or stability time: [▲], [▼] → [Change]. 2. Enter values. [▲], [▼]and partly [◄], [►] → [OK]. 3. [Finished]. 4. Insert the flue gas probe into the exhaust pipe and position it in the hot spot. 5. Start measurement: [] - The stabilisation phase (minimum 2 min) progresses. After this the measuring phase starts automatically (minimum 5 min). The stabilisation phase can be interrupted early. > Press [Next]. - The measuring phase starts automatically. - The measuring result is displayed after the measuring phase has been completed. Options: > [Options] → Clipboard: Data are saved to the clipboard. > [Options] → Delete clipboard: Data in the clipboard are deleted. > [Options] → Save: The readings are saved in a record. > [Options] → Show Graphic: The readings are displayed in form of a line graph. > [Options] → Configure Graphic: The measurement parameters to be represented (max. 4) can be displayed ( ) or hidden ( ) werden.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-66.png)

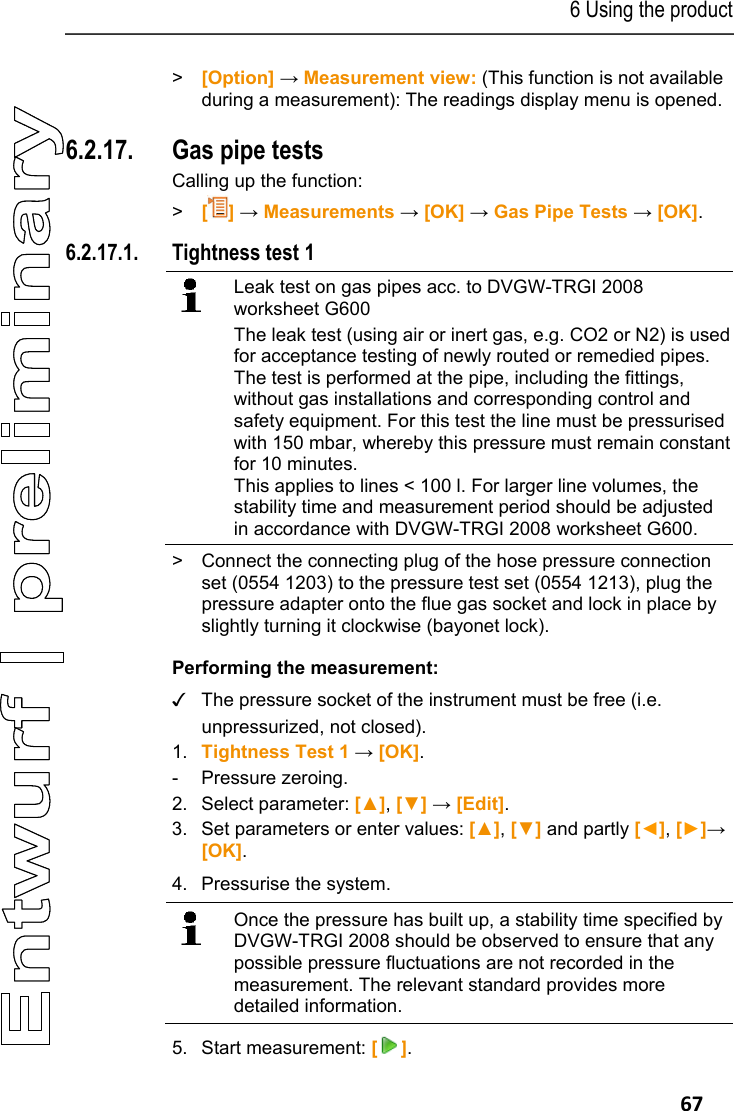

![6 Using the product 67 > [Option] → Measurement view: (This function is not available during a measurement): The readings display menu is opened. Pos: 81 /TD/Produkt verwenden/testo 330/tes to 330 Gasleitungspr üfungen @ 6\mod_12791993 18613_79.docx @ 66483 @ 34545 45455 @ 1 6.2.17. Gas pipe tests Calling up the function: > [] → Measurements → [OK] → Gas Pipe Tests → [OK]. 6.2.17.1. Tightness test 1 Leak test on gas pipes acc. to DVGW-TRGI 2008 worksheet G600 The leak test (using air or inert gas, e.g. CO2 or N2) is used for acceptance testing of newly routed or remedied pipes. The test is performed at the pipe, including the fittings, without gas installations and corresponding control and safety equipment. For this test the line must be pressurised with 150 mbar, whereby this pressure must remain constant for 10 minutes. This applies to lines < 100 l. For larger line volumes, the stability time and measurement period should be adjusted in accordance with DVGW-TRGI 2008 worksheet G600. > Connect the connecting plug of the hose pressure connection set (0554 1203) to the pressure test set (0554 1213), plug the pressure adapter onto the flue gas socket and lock in place by slightly turning it clockwise (bayonet lock). Performing the measurement: ✓ The pressure socket of the instrument must be free (i.e. unpressurized, not closed). 1. Tightness Test 1 → [OK]. - Pressure zeroing. 2. Select parameter: [▲], [▼] → [Edit]. 3. Set parameters or enter values: [▲], [▼] and partly [◄], [►]→ [OK]. 4. Pressurise the system. Once the pressure has built up, a stability time specified by DVGW-TRGI 2008 should be observed to ensure that any possible pressure fluctuations are not recorded in the measurement. The relevant standard provides more detailed information. 5. Start measurement: [].](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-67.png)

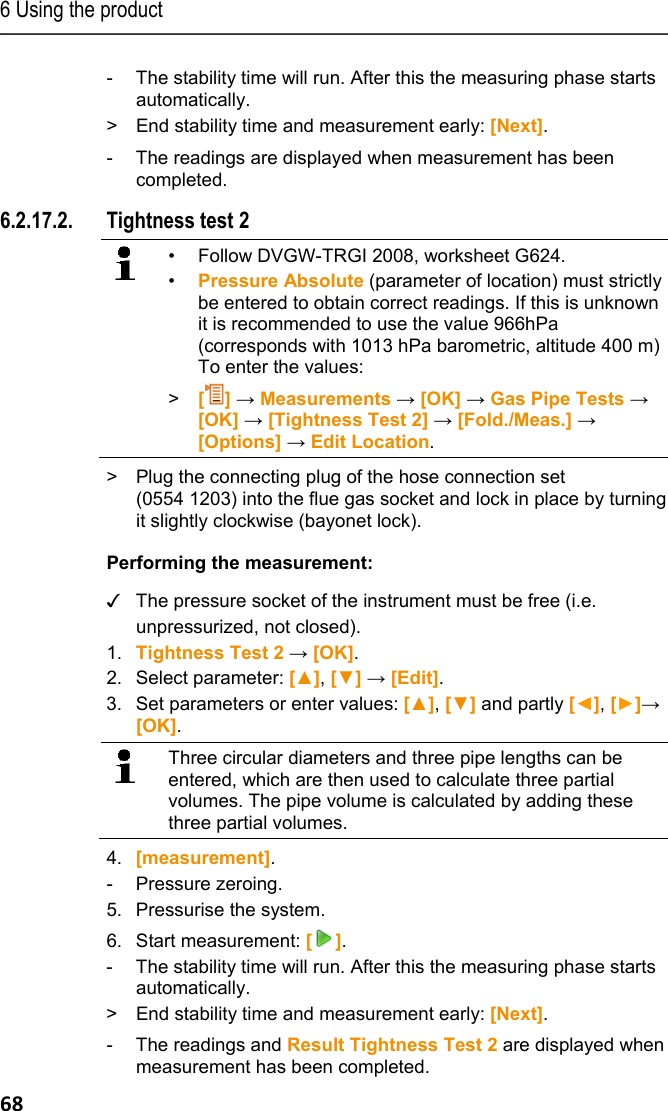

![6 Using the product 68 - The stability time will run. After this the measuring phase starts automatically. > End stability time and measurement early: [Next]. - The readings are displayed when measurement has been completed. 6.2.17.2. Tightness test 2 • Follow DVGW-TRGI 2008, worksheet G624. • Pressure Absolute (parameter of location) must strictly be entered to obtain correct readings. If this is unknown it is recommended to use the value 966hPa (corresponds with 1013 hPa barometric, altitude 400 m) To enter the values: > [] → Measurements → [OK] → Gas Pipe Tests → [OK] → [Tightness Test 2] → [Fold./Meas.] → [Options] → Edit Location. > Plug the connecting plug of the hose connection set (0554 1203) into the flue gas socket and lock in place by turning it slightly clockwise (bayonet lock). Performing the measurement: ✓ The pressure socket of the instrument must be free (i.e. unpressurized, not closed). 1. Tightness Test 2 → [OK]. 2. Select parameter: [▲], [▼] → [Edit]. 3. Set parameters or enter values: [▲], [▼] and partly [◄], [►]→ [OK]. Three circular diameters and three pipe lengths can be entered, which are then used to calculate three partial volumes. The pipe volume is calculated by adding these three partial volumes. 4. [measurement]. - Pressure zeroing. 5. Pressurise the system. 6. Start measurement: []. - The stability time will run. After this the measuring phase starts automatically. > End stability time and measurement early: [Next]. - The readings and Result Tightness Test 2 are displayed when measurement has been completed.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-68.png)

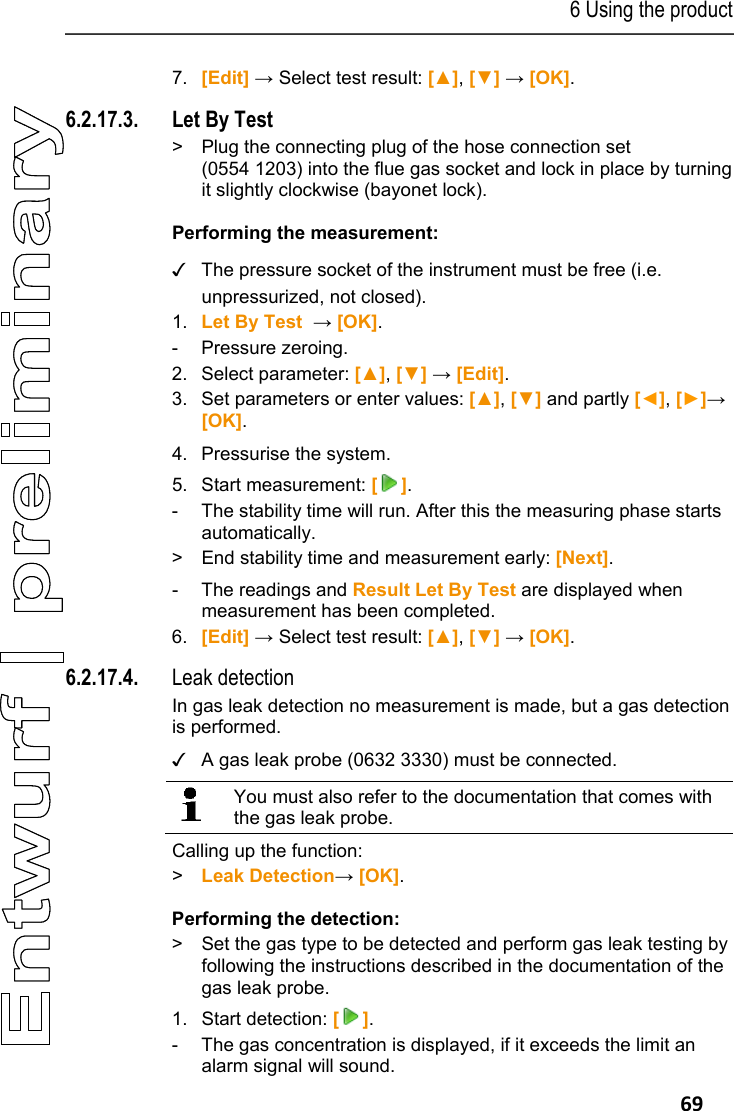

![6 Using the product 69 7. [Edit] → Select test result: [▲], [▼] → [OK]. 6.2.17.3. Let By Test > Plug the connecting plug of the hose connection set (0554 1203) into the flue gas socket and lock in place by turning it slightly clockwise (bayonet lock). Performing the measurement: ✓ The pressure socket of the instrument must be free (i.e. unpressurized, not closed). 1. Let By Test → [OK]. - Pressure zeroing. 2. Select parameter: [▲], [▼] → [Edit]. 3. Set parameters or enter values: [▲], [▼] and partly [◄], [►]→ [OK]. 4. Pressurise the system. 5. Start measurement: []. - The stability time will run. After this the measuring phase starts automatically. > End stability time and measurement early: [Next]. - The readings and Result Let By Test are displayed when measurement has been completed. 6. [Edit] → Select test result: [▲], [▼] → [OK]. 6.2.17.4. Leak detection In gas leak detection no measurement is made, but a gas detection is performed. ✓ A gas leak probe (0632 3330) must be connected. You must also refer to the documentation that comes with the gas leak probe. Calling up the function: > Leak Detection→ [OK]. Performing the detection: > Set the gas type to be detected and perform gas leak testing by following the instructions described in the documentation of the gas leak probe. 1. Start detection: []. - The gas concentration is displayed, if it exceeds the limit an alarm signal will sound.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-69.png)

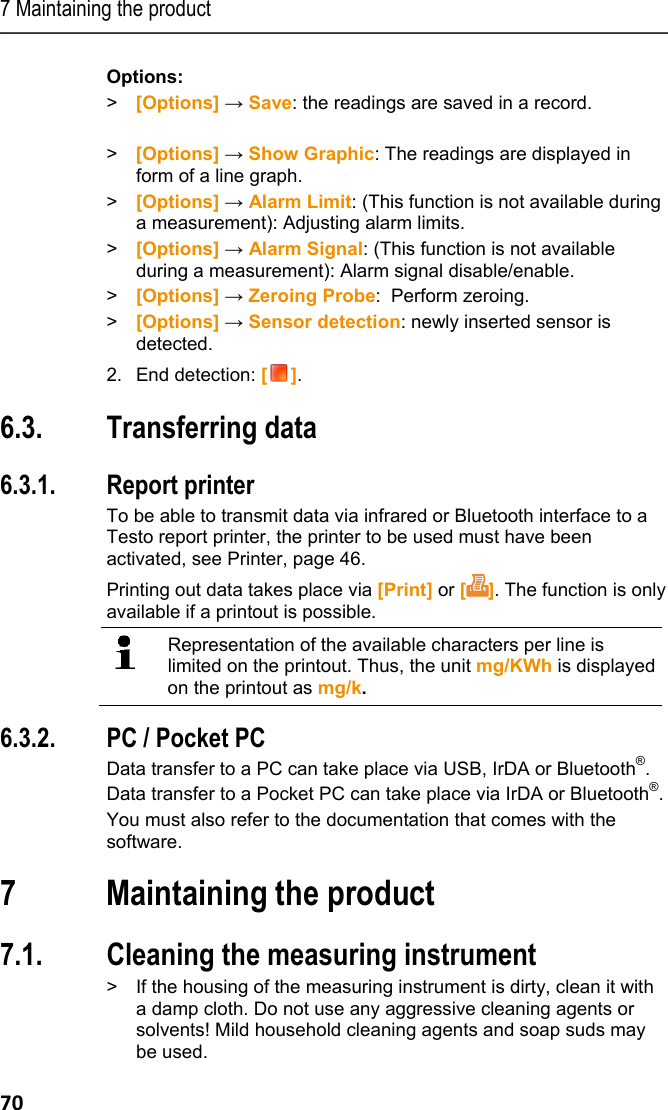

![7 Maintaining the product 70 Options: > [Options] → Save: the readings are saved in a record. > [Options] → Show Graphic: The readings are displayed in form of a line graph. > [Options] → Alarm Limit: (This function is not available during a measurement): Adjusting alarm limits. > [Options] → Alarm Signal: (This function is not available during a measurement): Alarm signal disable/enable. > [Options] → Zeroing Probe: Perform zeroing. > [Options] → Sensor detection: newly inserted sensor is detected. 2. End detection: []. Pos: 82 /TD/Produkt verwenden/testo 330/tes to 330 Überschrif t Daten übertragen @ 6\mod_12792 58550805_79.doc x @ 66583 @ 2 @ 1 6.3. Transferring data Pos: 83 /TD/Produkt verwenden/testo 330/tes to 330 Daten übertragen @ 6\ mod_1279258680964_79. docx @ 66614 @ 33 @ 1 6.3.1. Report printer To be able to transmit data via infrared or Bluetooth interface to a Testo report printer, the printer to be used must have been activated, see Printer, page 46. Printing out data takes place via [Print] or []. The function is only available if a printout is possible. Representation of the available characters per line is limited on the printout. Thus, the unit mg/KWh is displayed on the printout as mg/k. 6.3.2. PC / Pocket PC Data transfer to a PC can take place via USB, IrDA or Bluetooth®. Data transfer to a Pocket PC can take place via IrDA or Bluetooth®. You must also refer to the documentation that comes with the software. Pos: 84 /TD/Überschr iften/7. Produkt ins tand halten @ 0\mod_1173789 831362_79.doc x @ 397 @ 1 @ 1 7 Maintaining the product Pos: 85 /TD/Produkt ins tand halten/testo 33 0/testo 330 Instandhal tung_Messgerät rei nigen @ 6\mod_1279260289 656_79.docx @ 66679 @ 2 @ 1 7.1. Cleaning the measuring instrument > If the housing of the measuring instrument is dirty, clean it with a damp cloth. Do not use any aggressive cleaning agents or solvents! Mild household cleaning agents and soap suds may be used.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-70.png)

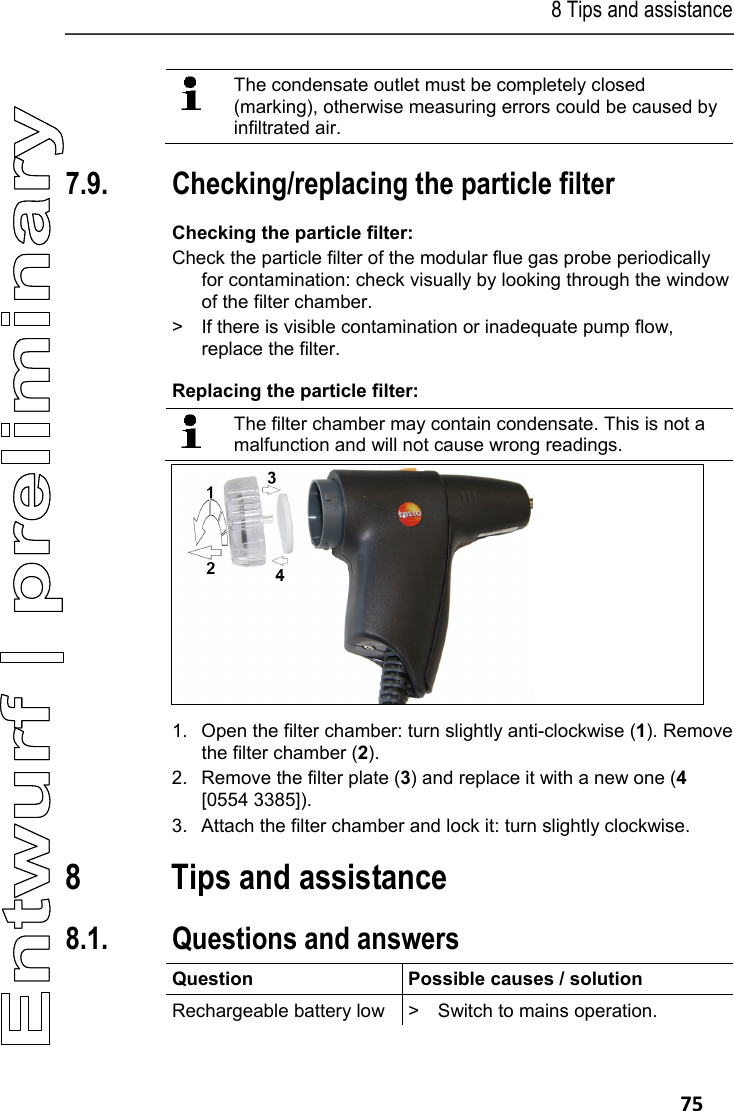

![8 Tips and assistance 75 The condensate outlet must be completely closed (marking), otherwise measuring errors could be caused by infiltrated air. Pos: 92 /TD/Produkt ins tand halten/testo 330/ testo 330 Instandhal tung Partikelfil ter prüfen @ 6\mod_12792655 18333_79.docx @ 66943 @ 255 @ 1 7.9. Checking/replacing the particle filter Checking the particle filter: Check the particle filter of the modular flue gas probe periodically for contamination: check visually by looking through the window of the filter chamber. > If there is visible contamination or inadequate pump flow, replace the filter. Replacing the particle filter: The filter chamber may contain condensate. This is not a malfunction and will not cause wrong readings. 1. Open the filter chamber: turn slightly anti-clockwise (1). Remove the filter chamber (2). 2. Remove the filter plate (3) and replace it with a new one (4 [0554 3385]). 3. Attach the filter chamber and lock it: turn slightly clockwise. Pos: 93 /TD/Überschr iften/8. Tipps und Hilfe @ 0\mod_1173789887985 _79.docx @ 406 @ 1 @ 1 8 Tips and assistance Pos: 94 /TD/Überschr iften/8.1 Fragen und Ant worten @ 0\mod_117740201 7078_79.docx @ 1093 @ 2 @ 1 8.1. Questions and answers Pos: 95 /TD/Tipps und Hilf e/Fragen und Antworten/ testo 330 Fragen und Anwor ten @ 6\mod_127926654784 4_79.docx @ 66975 @ @ 1 Question Possible causes / solution Rechargeable battery low > Switch to mains operation.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-75.png)

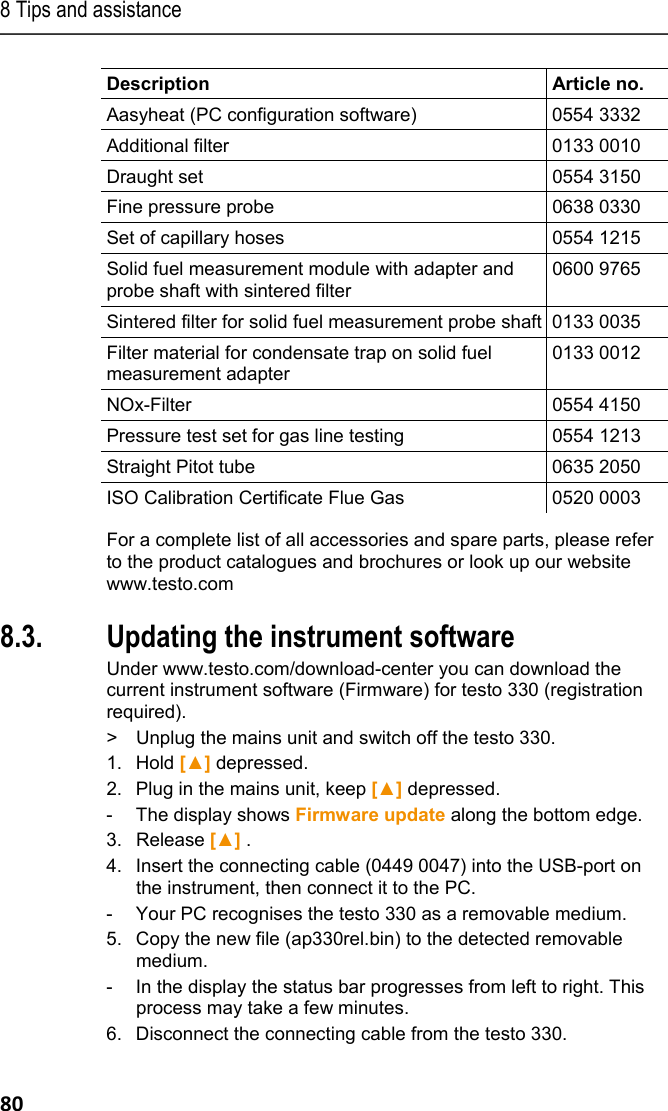

![8 Tips and assistance 80 Description Article no. Aasyheat (PC configuration software) 0554 3332 Additional filter 0133 0010 Draught set 0554 3150 Fine pressure probe 0638 0330 Set of capillary hoses 0554 1215 Solid fuel measurement module with adapter and probe shaft with sintered filter 0600 9765 Sintered filter for solid fuel measurement probe shaft 0133 0035 Filter material for condensate trap on solid fuel measurement adapter 0133 0012 NOx-Filter 0554 4150 Pressure test set for gas line testing 0554 1213 Straight Pitot tube 0635 2050 ISO Calibration Certificate Flue Gas 0520 0003 For a complete list of all accessories and spare parts, please refer to the product catalogues and brochures or look up our website www.testo.com Pos: 98 /TD/Tipps und Hi lfe/testo 330 Instand haltung Update Firmwar e @ 6\mod_1279805277750_79. docx @ 67273 @ 2 @ 1 8.3. Updating the instrument software Under www.testo.com/download-center you can download the current instrument software (Firmware) for testo 330 (registration required). > Unplug the mains unit and switch off the testo 330. 1. Hold [▲] depressed. 2. Plug in the mains unit, keep [▲] depressed. - The display shows Firmware update along the bottom edge. 3. Release [▲] . 4. Insert the connecting cable (0449 0047) into the USB-port on the instrument, then connect it to the PC. - Your PC recognises the testo 330 as a removable medium. 5. Copy the new file (ap330rel.bin) to the detected removable medium. - In the display the status bar progresses from left to right. This process may take a few minutes. 6. Disconnect the connecting cable from the testo 330.](https://usermanual.wiki/Testo-SE-and-KGaA/2016T330/User-Guide-2938501-Page-80.png)
