G2Z-NCAP User Guide

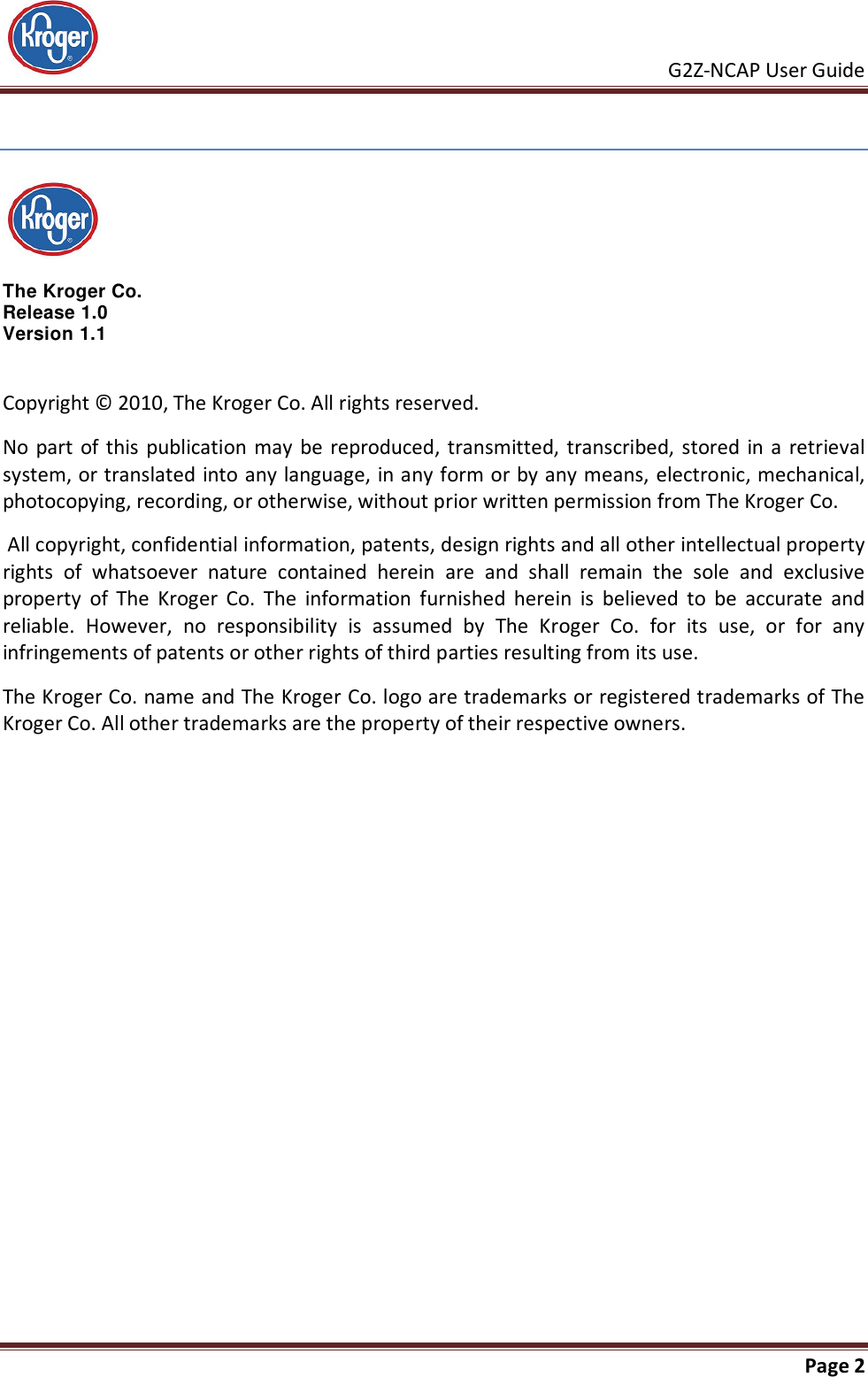

    G2Z-NCAP User Guide       Page 2    The Kroger Co.  Release 1.0 Version 1.1 Copyright © 2010, The Kroger Co. All rights reserved.  No part of this  publication  may be reproduced,  transmitted,  transcribed, stored in a  retrieval system, or translated into any language, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission from The Kroger Co.  All copyright, confidential information, patents, design rights and all other intellectual property rights  of  whatsoever  nature  contained  herein  are  and  shall  remain  the  sole  and  exclusive property  of  The  Kroger  Co.  The  information  furnished  herein  is  believed  to  be  accurate  and reliable.  However,  no  responsibility  is  assumed  by  The  Kroger  Co.  for  its  use,  or  for  any infringements of patents or other rights of third parties resulting from its use. The Kroger Co. name and The Kroger Co. logo are trademarks or registered trademarks of The Kroger Co. All other trademarks are the property of their respective owners.

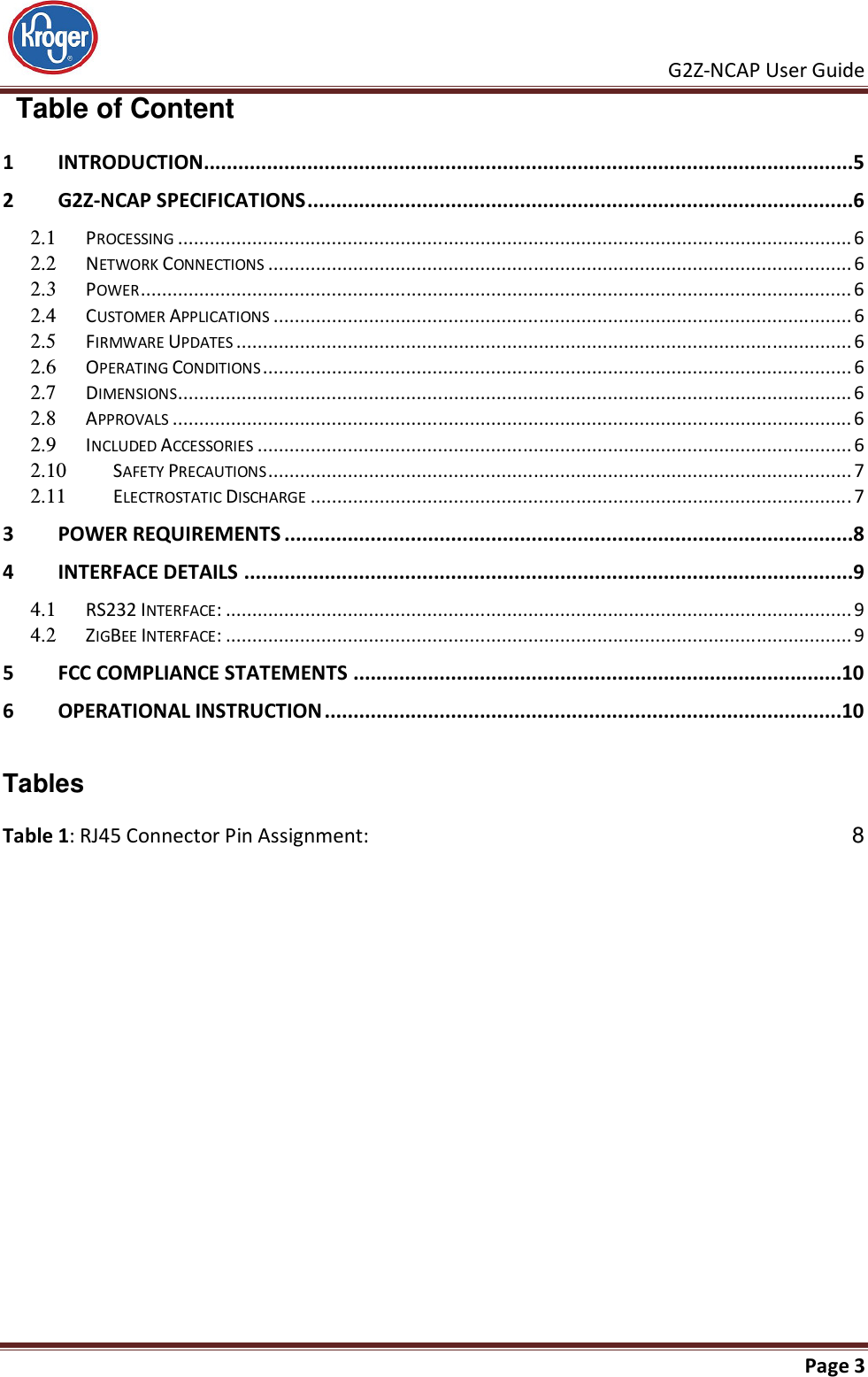

    G2Z-NCAP User Guide       Page 3    Table of Content 1 INTRODUCTION .................................................................................................................5 2 G2Z-NCAP SPECIFICATIONS ...............................................................................................6 2.1  PROCESSING ............................................................................................................................... 6 2.2  NETWORK CONNECTIONS .............................................................................................................. 6 2.3  POWER ...................................................................................................................................... 6 2.4  CUSTOMER APPLICATIONS ............................................................................................................. 6 2.5  FIRMWARE UPDATES .................................................................................................................... 6 2.6  OPERATING CONDITIONS ............................................................................................................... 6 2.7  DIMENSIONS ............................................................................................................................... 6 2.8  APPROVALS ................................................................................................................................ 6 2.9  INCLUDED ACCESSORIES ................................................................................................................ 6 2.10  SAFETY PRECAUTIONS .............................................................................................................. 7 2.11  ELECTROSTATIC DISCHARGE ...................................................................................................... 7 3 POWER REQUIREMENTS ...................................................................................................8 4 INTERFACE DETAILS ..........................................................................................................9 4.1  RS232 INTERFACE: ...................................................................................................................... 9 4.2  ZIGBEE INTERFACE: ...................................................................................................................... 9 5 FCC COMPLIANCE STATEMENTS .....................................................................................10 6 OPERATIONAL INSTRUCTION ..........................................................................................10   Tables Table 1: RJ45 Connector Pin Assignment:  8

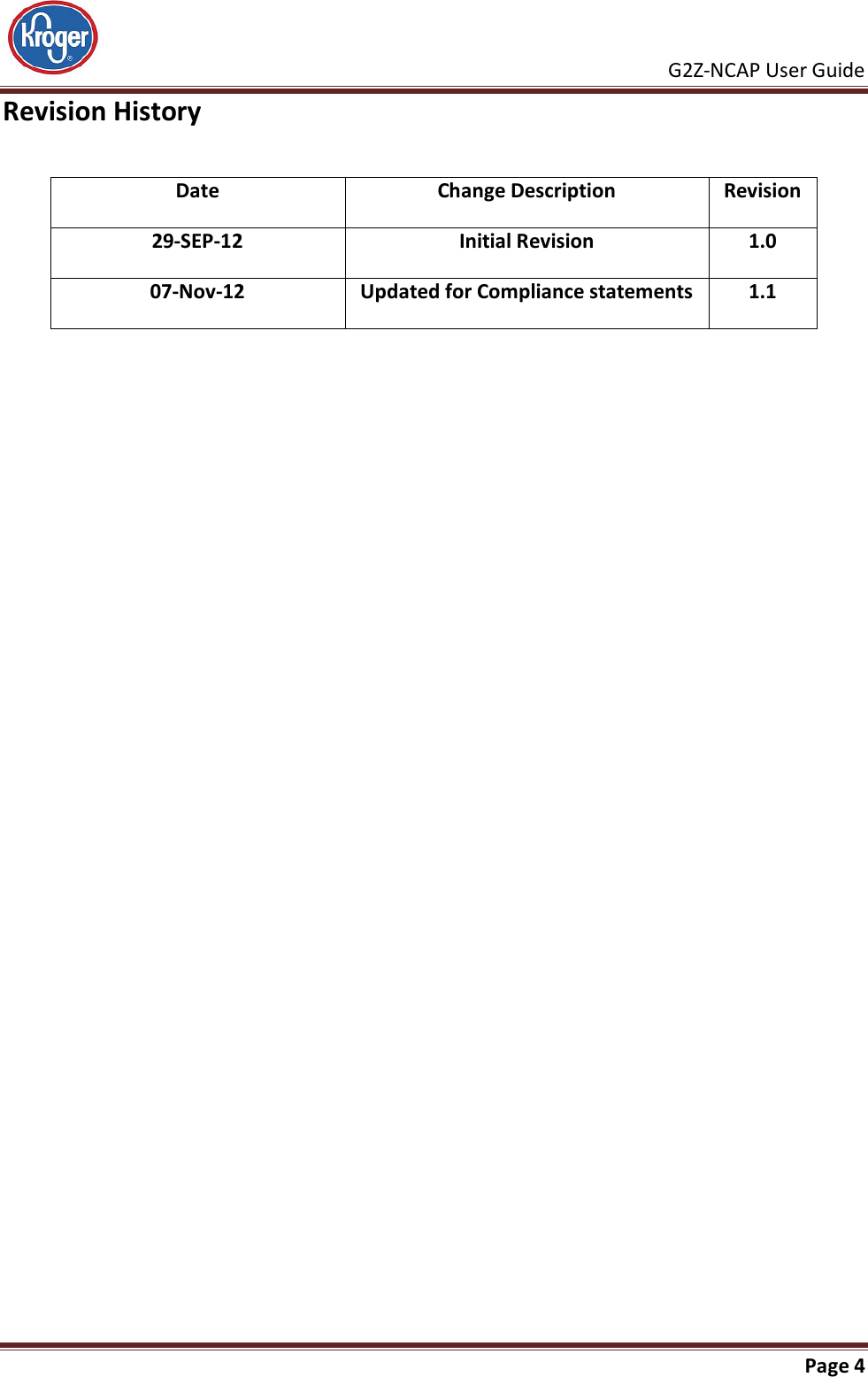

    G2Z-NCAP User Guide       Page 4  Revision History  Date Change Description Revision 29-SEP-12 Initial Revision 1.0 07-Nov-12 Updated for Compliance statements 1.1

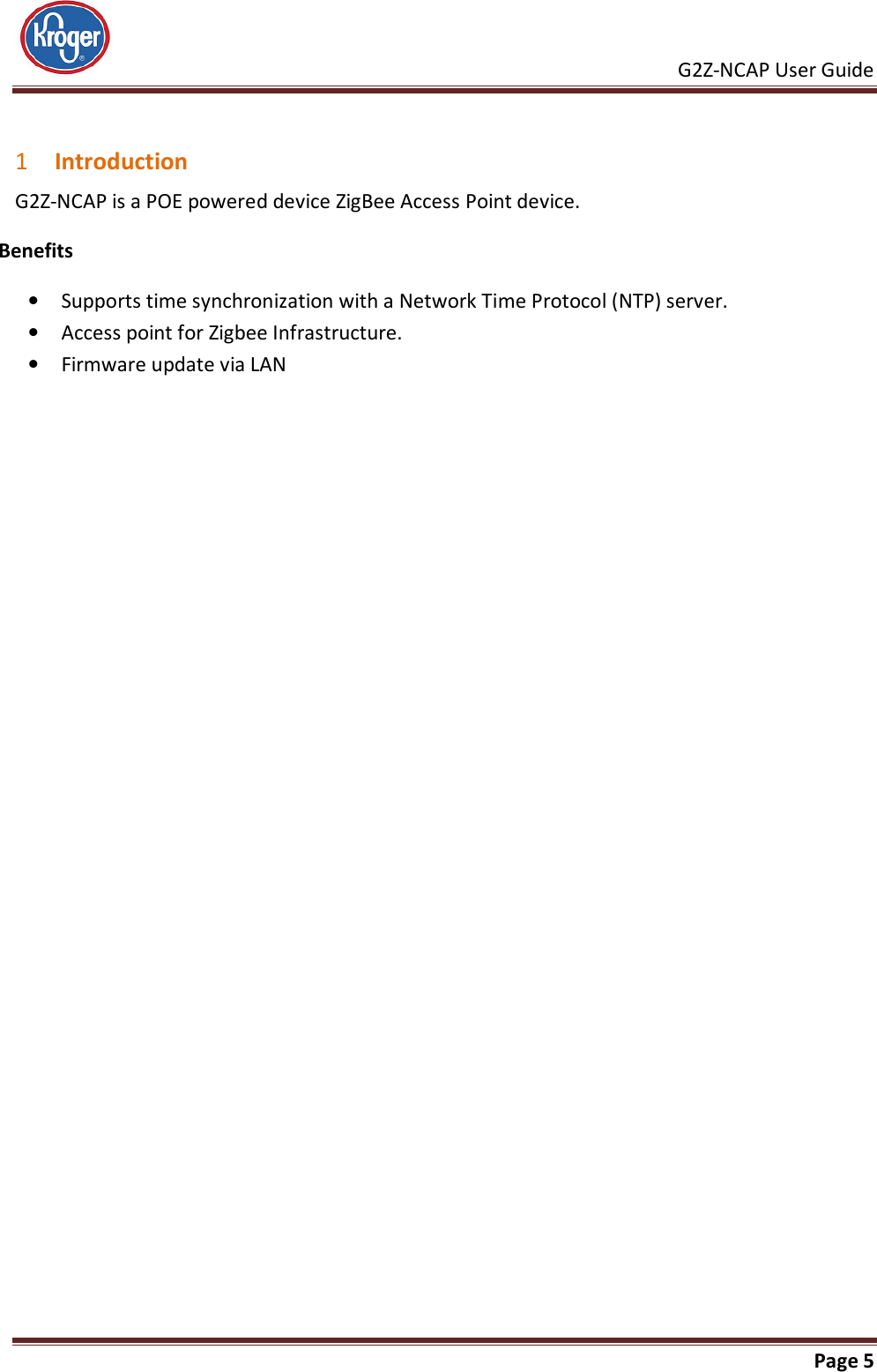

    G2Z-NCAP User Guide       Page 5   1 Introduction G2Z-NCAP is a POE powered device ZigBee Access Point device. Benefits • Supports time synchronization with a Network Time Protocol (NTP) server. • Access point for Zigbee Infrastructure. • Firmware update via LAN

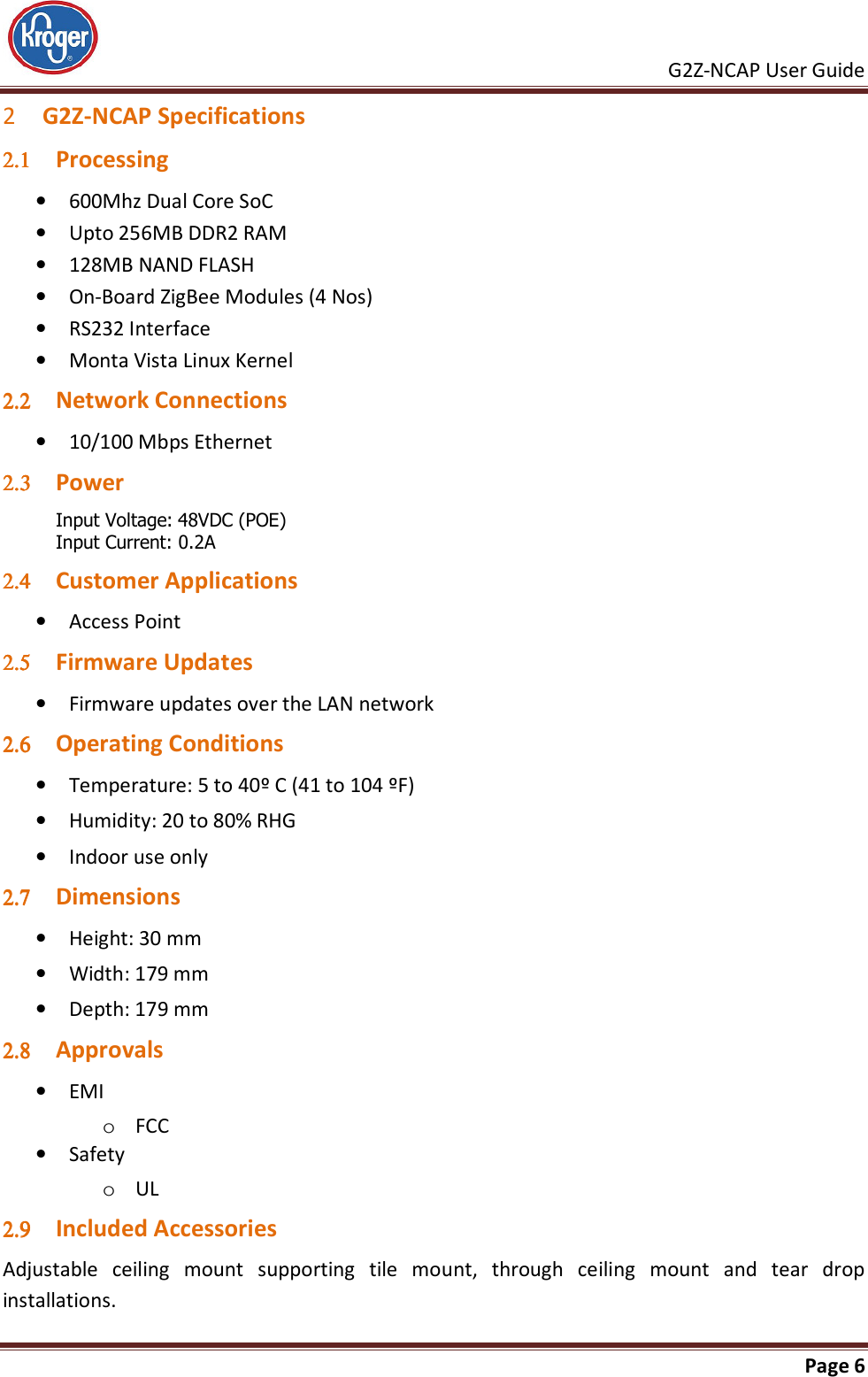

    G2Z-NCAP User Guide       Page 6  2 G2Z-NCAP Specifications 2.12.12.12.1 Processing • 600Mhz Dual Core SoC • Upto 256MB DDR2 RAM • 128MB NAND FLASH • On-Board ZigBee Modules (4 Nos) • RS232 Interface • Monta Vista Linux Kernel 2.22.22.22.2 Network Connections • 10/100 Mbps Ethernet 2.32.32.32.3 Power  Input Voltage: 48VDC (POE) Input Current: 0.2A 2.42.42.42.4 Customer Applications • Access Point 2.52.52.52.5 Firmware Updates • Firmware updates over the LAN network 2.62.62.62.6 Operating Conditions • Temperature: 5 to 40º C (41 to 104 ºF) • Humidity: 20 to 80% RHG • Indoor use only 2.72.72.72.7 Dimensions • Height: 30 mm • Width: 179 mm • Depth: 179 mm 2.82.82.82.8 Approvals • EMI o FCC  • Safety o UL 2.92.92.92.9 Included Accessories Adjustable  ceiling  mount  supporting  tile  mount,  through  ceiling  mount  and  tear  drop installations.

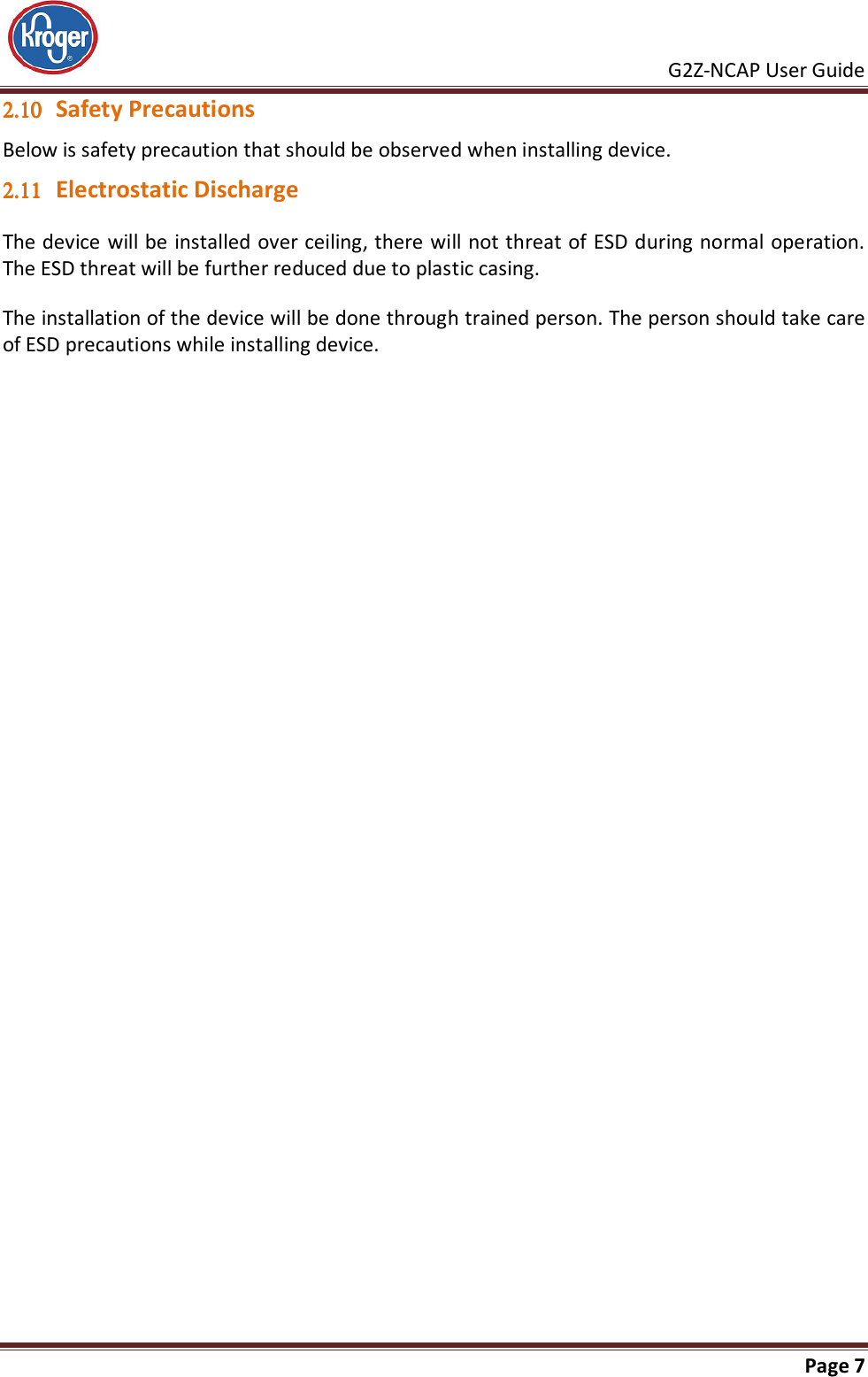

    G2Z-NCAP User Guide       Page 7  2.102.102.102.10 Safety Precautions Below is safety precaution that should be observed when installing device. 2.112.112.112.11 Electrostatic Discharge The device will be installed over ceiling, there will not threat of ESD during normal operation. The ESD threat will be further reduced due to plastic casing. The installation of the device will be done through trained person. The person should take care of ESD precautions while installing device.

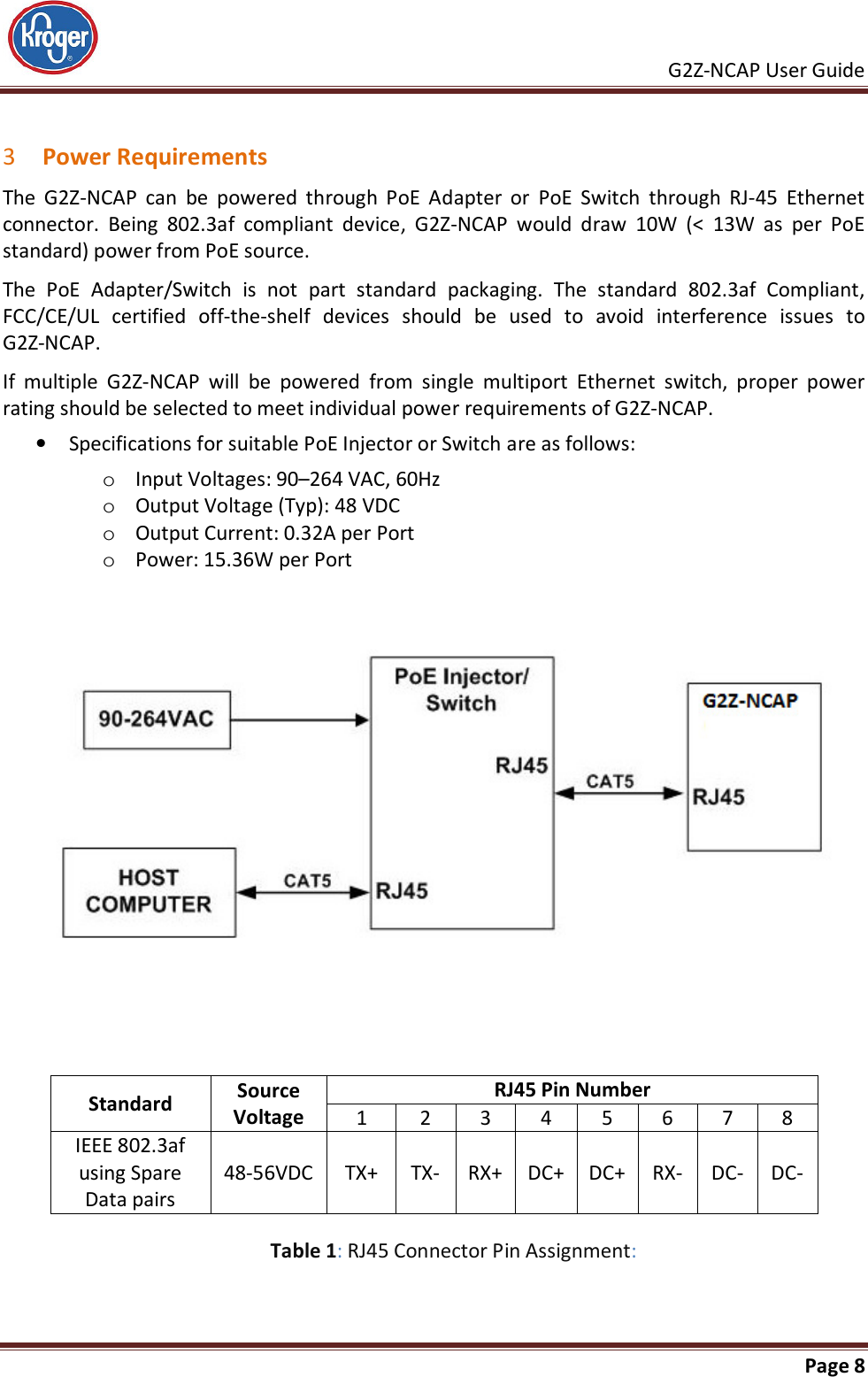

    G2Z-NCAP User Guide       Page 8   3 Power Requirements The  G2Z-NCAP  can  be  powered  through  PoE  Adapter  or  PoE  Switch  through  RJ-45  Ethernet connector.  Being  802.3af  compliant  device,  G2Z-NCAP  would  draw  10W  (<  13W  as  per  PoE standard) power from PoE source. The  PoE  Adapter/Switch  is  not  part  standard  packaging.  The  standard  802.3af  Compliant, FCC/CE/UL  certified  off-the-shelf  devices  should  be  used  to  avoid  interference  issues  to         G2Z-NCAP. If  multiple  G2Z-NCAP  will  be  powered  from  single  multiport  Ethernet  switch,  proper  power rating should be selected to meet individual power requirements of G2Z-NCAP. • Specifications for suitable PoE Injector or Switch are as follows: o Input Voltages: 90–264 VAC, 60Hz o Output Voltage (Typ): 48 VDC o Output Current: 0.32A per Port o Power: 15.36W per Port       Standard  Source Voltage RJ45 Pin Number 1  2  3  4  5  6  7  8 IEEE 802.3af using Spare Data pairs 48-56VDC  TX+  TX-  RX+  DC+  DC+  RX-  DC-  DC-  Table 1: RJ45 Connector Pin Assignment:

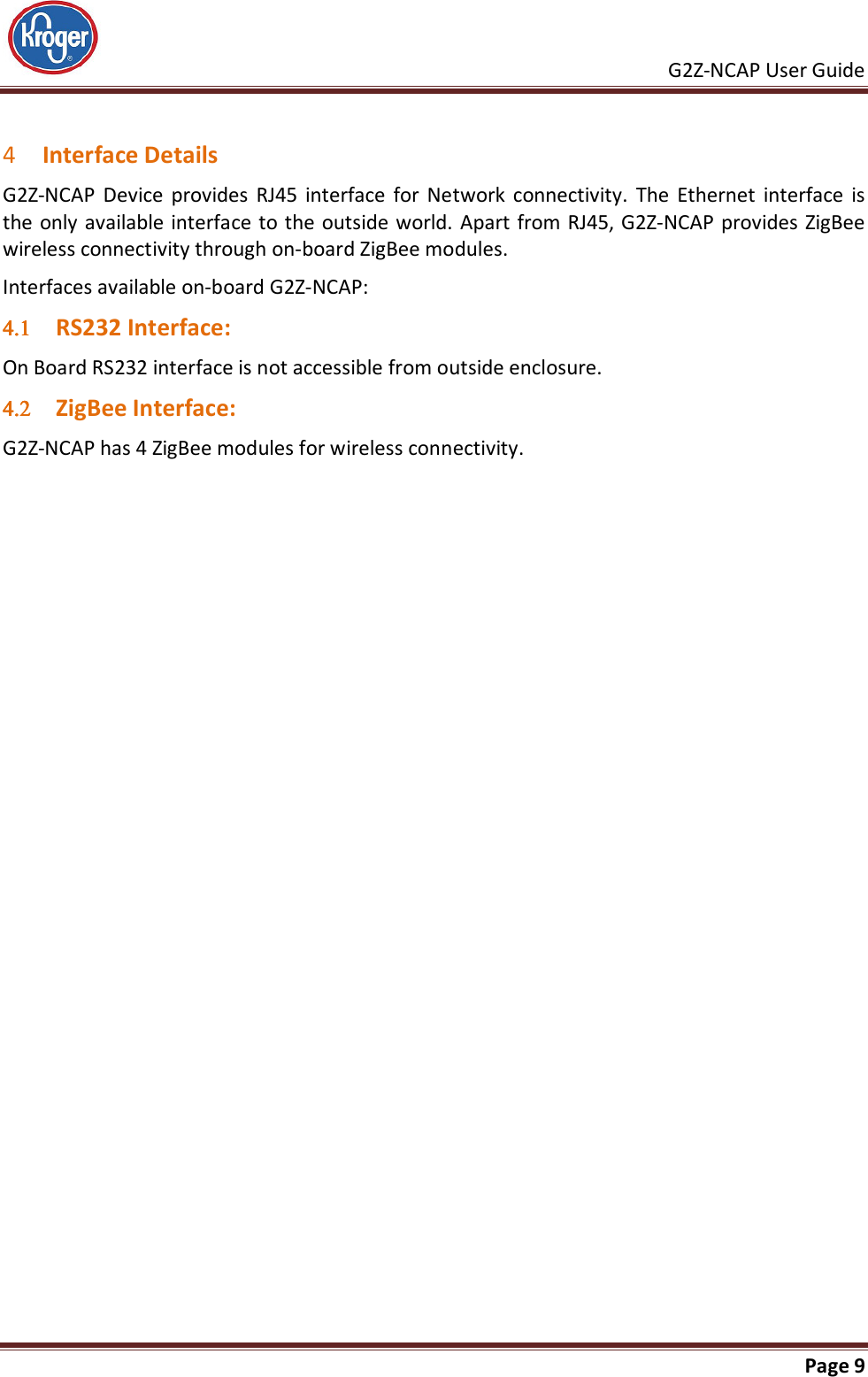

    G2Z-NCAP User Guide       Page 9   4 Interface Details G2Z-NCAP  Device  provides  RJ45  interface  for  Network  connectivity.  The  Ethernet  interface  is the only available interface  to the outside world. Apart from RJ45, G2Z-NCAP provides ZigBee wireless connectivity through on-board ZigBee modules. Interfaces available on-board G2Z-NCAP: 4.14.14.14.1 RS232 Interface: On Board RS232 interface is not accessible from outside enclosure. 4.24.24.24.2 ZigBee Interface: G2Z-NCAP has 4 ZigBee modules for wireless connectivity.

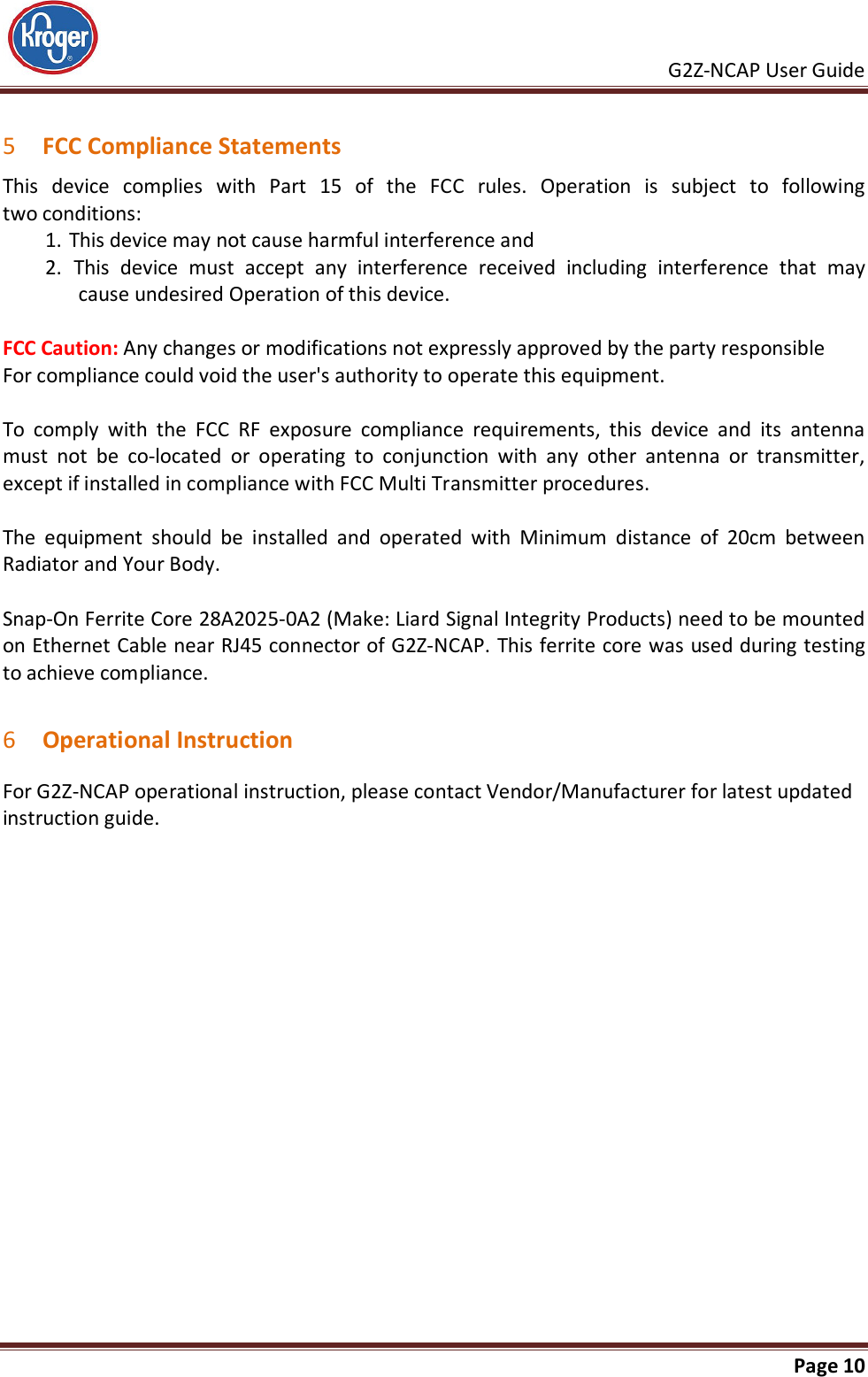

    G2Z-NCAP User Guide       Page 10   5 FCC Compliance Statements This  device  complies  with  Part  15  of  the  FCC  rules.  Operation  is  subject  to  following  two conditions: 1. This device may not cause harmful interference and  2.  This  device  must  accept  any  interference  received  including  interference  that  may cause undesired Operation of this device.  FCC Caution: Any changes or modifications not expressly approved by the party responsible For compliance could void the user's authority to operate this equipment.  To  comply  with  the  FCC  RF  exposure  compliance  requirements,  this  device  and  its  antenna must  not  be  co-located  or  operating  to  conjunction  with  any  other  antenna  or  transmitter, except if installed in compliance with FCC Multi Transmitter procedures.   The  equipment  should  be  installed  and  operated  with  Minimum  distance  of  20cm  between Radiator and Your Body.  Snap-On Ferrite Core 28A2025-0A2 (Make: Liard Signal Integrity Products) need to be mounted on Ethernet Cable near RJ45 connector of G2Z-NCAP. This ferrite core was used during testing to achieve compliance.  6 Operational Instruction For G2Z-NCAP operational instruction, please contact Vendor/Manufacturer for latest updated instruction guide.
