The Kroger SZMDLM3BR1 CC2538-CC2592 Zigbee Module User Manual SREXRG Module

The Kroger Co. CC2538-CC2592 Zigbee Module SREXRG Module

Manual

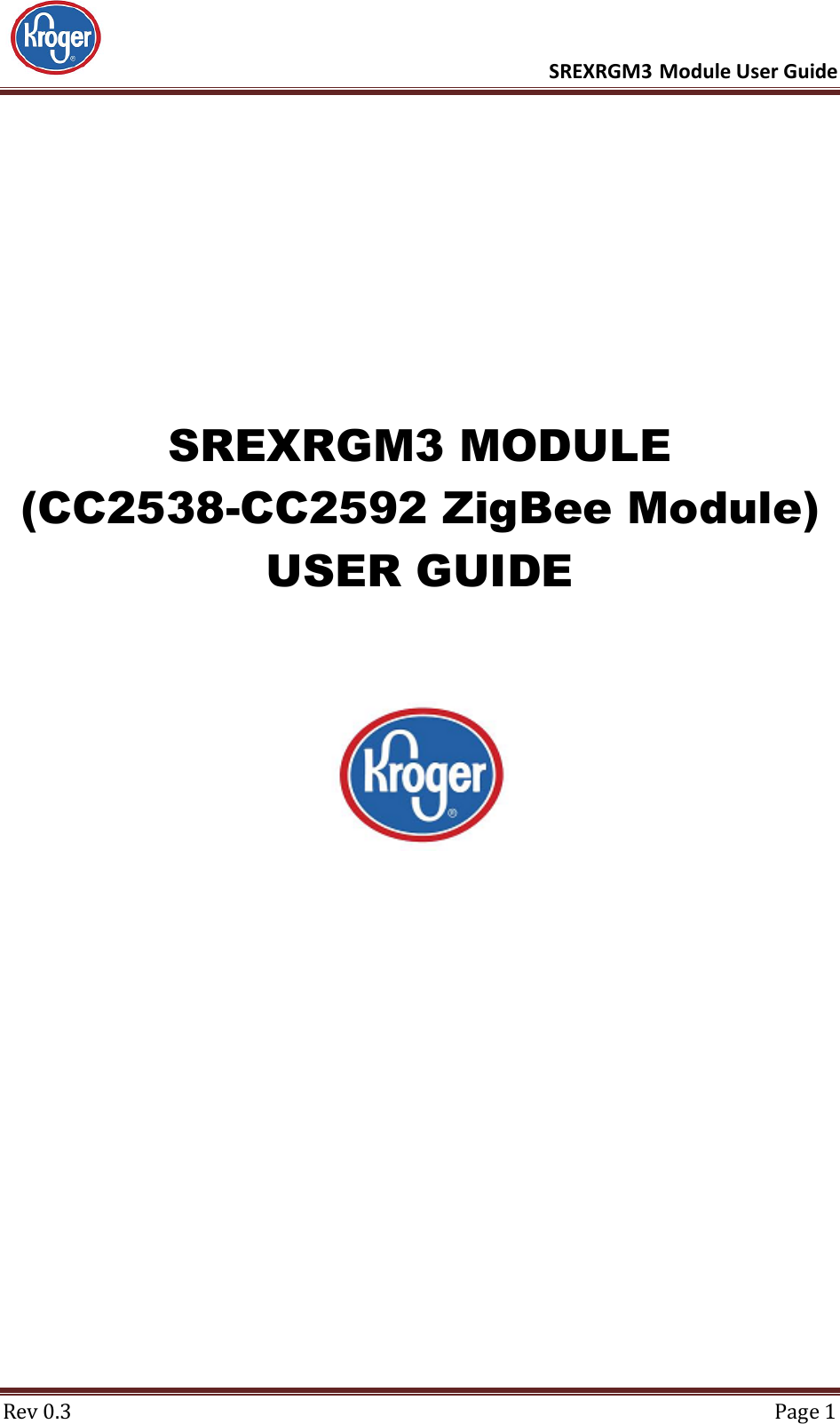

     SREXRGM3 Module User Guide  Rev 0.3  Page 1     SREXRGM3 MODULE (CC2538-CC2592 ZigBee Module) USER GUIDE

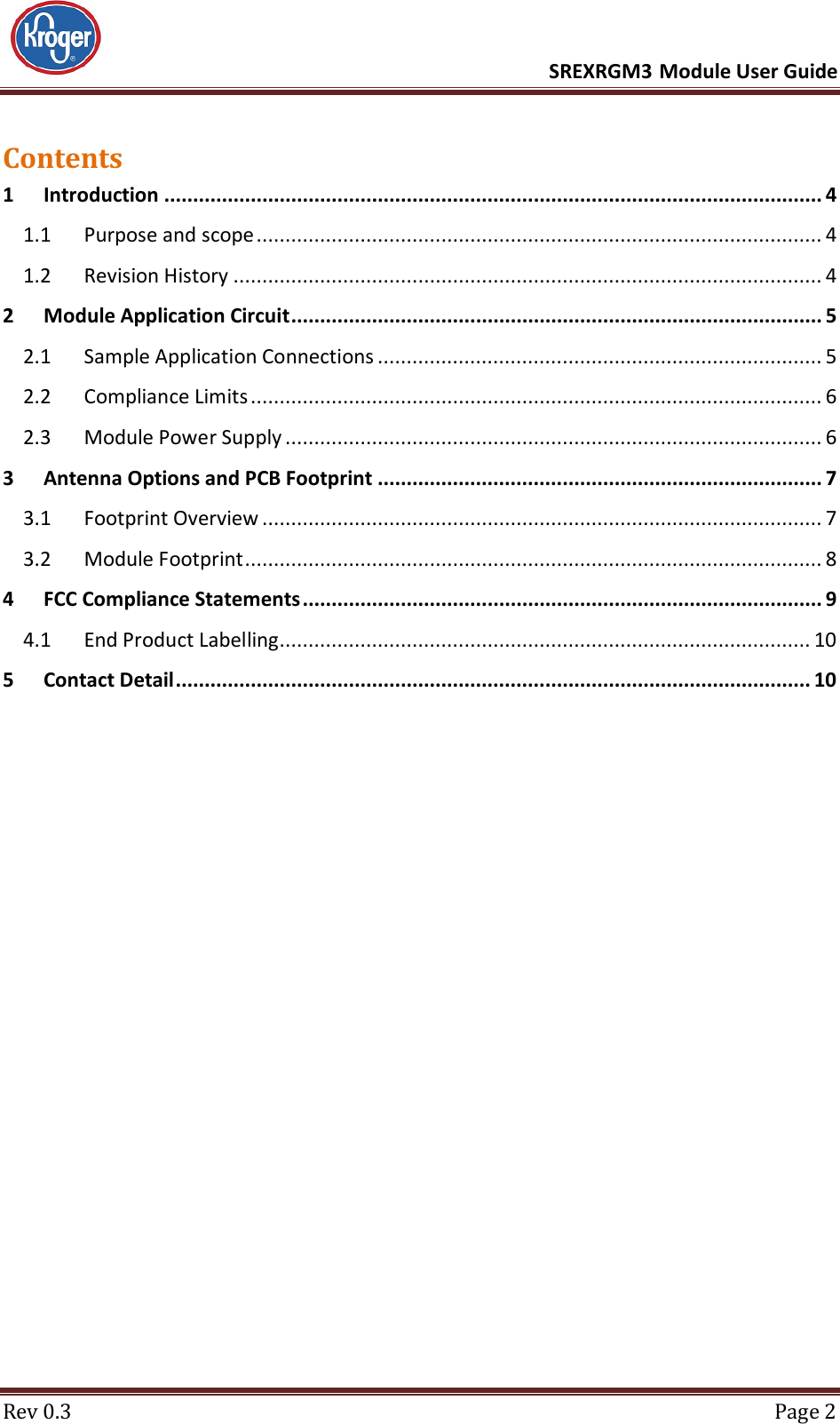

     SREXRGM3 Module User Guide  Rev 0.3  Page 2 Contents 1 Introduction .................................................................................................................. 4 1.1 Purpose and scope .................................................................................................. 4 1.2 Revision History ...................................................................................................... 4 2 Module Application Circuit ............................................................................................ 5 2.1 Sample Application Connections ............................................................................. 5 2.2 Compliance Limits ................................................................................................... 6 2.3 Module Power Supply ............................................................................................. 6 3 Antenna Options and PCB Footprint ............................................................................. 7 3.1 Footprint Overview ................................................................................................. 7 3.2 Module Footprint .................................................................................................... 8 4 FCC Compliance Statements .......................................................................................... 9 4.1 End Product Labelling............................................................................................ 10 5 Contact Detail .............................................................................................................. 10

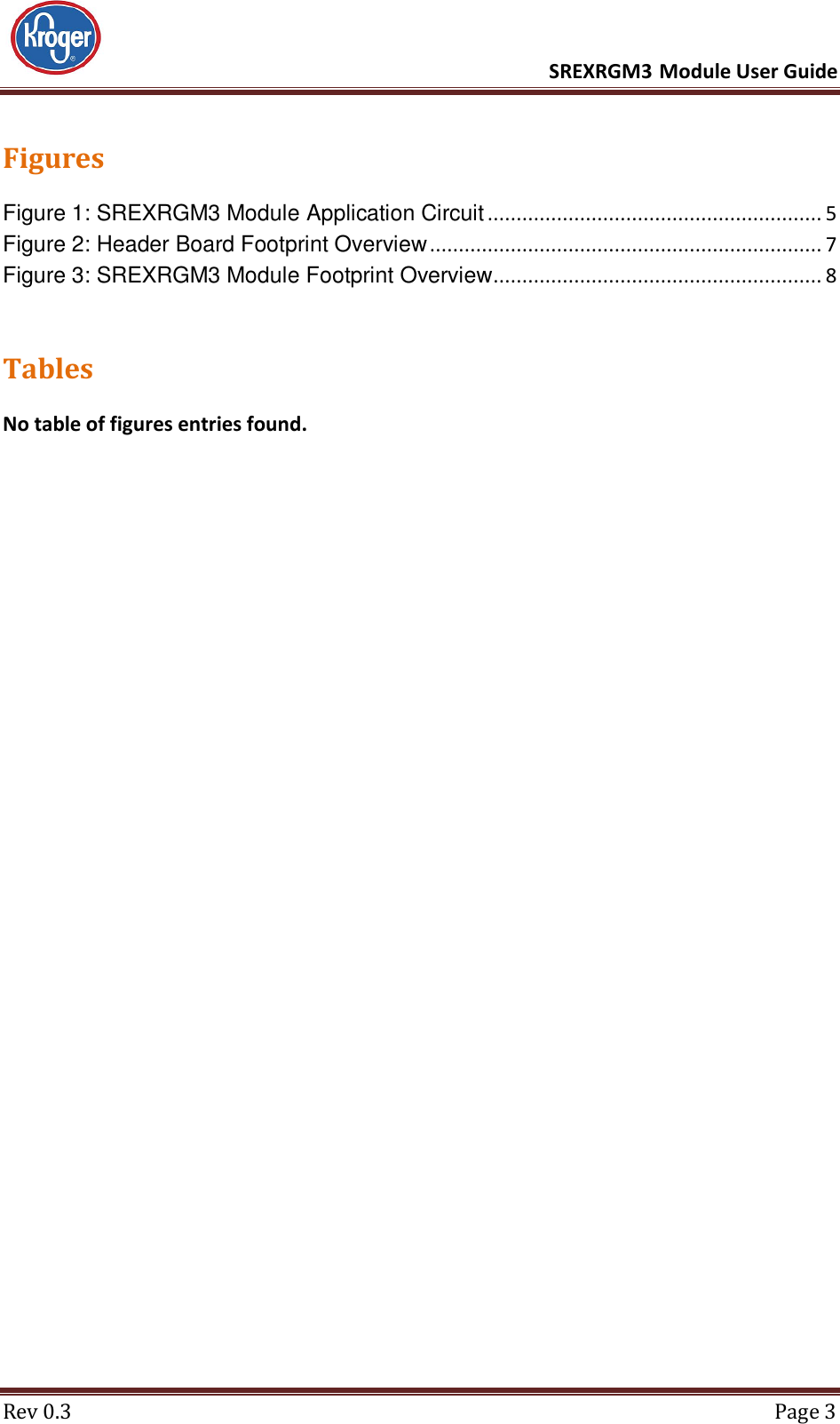

     SREXRGM3 Module User Guide  Rev 0.3  Page 3 Figures Figure 1: SREXRGM3 Module Application Circuit .......................................................... 5 Figure 2: Header Board Footprint Overview .................................................................... 7 Figure 3: SREXRGM3 Module Footprint Overview ......................................................... 8  Tables No table of figures entries found.

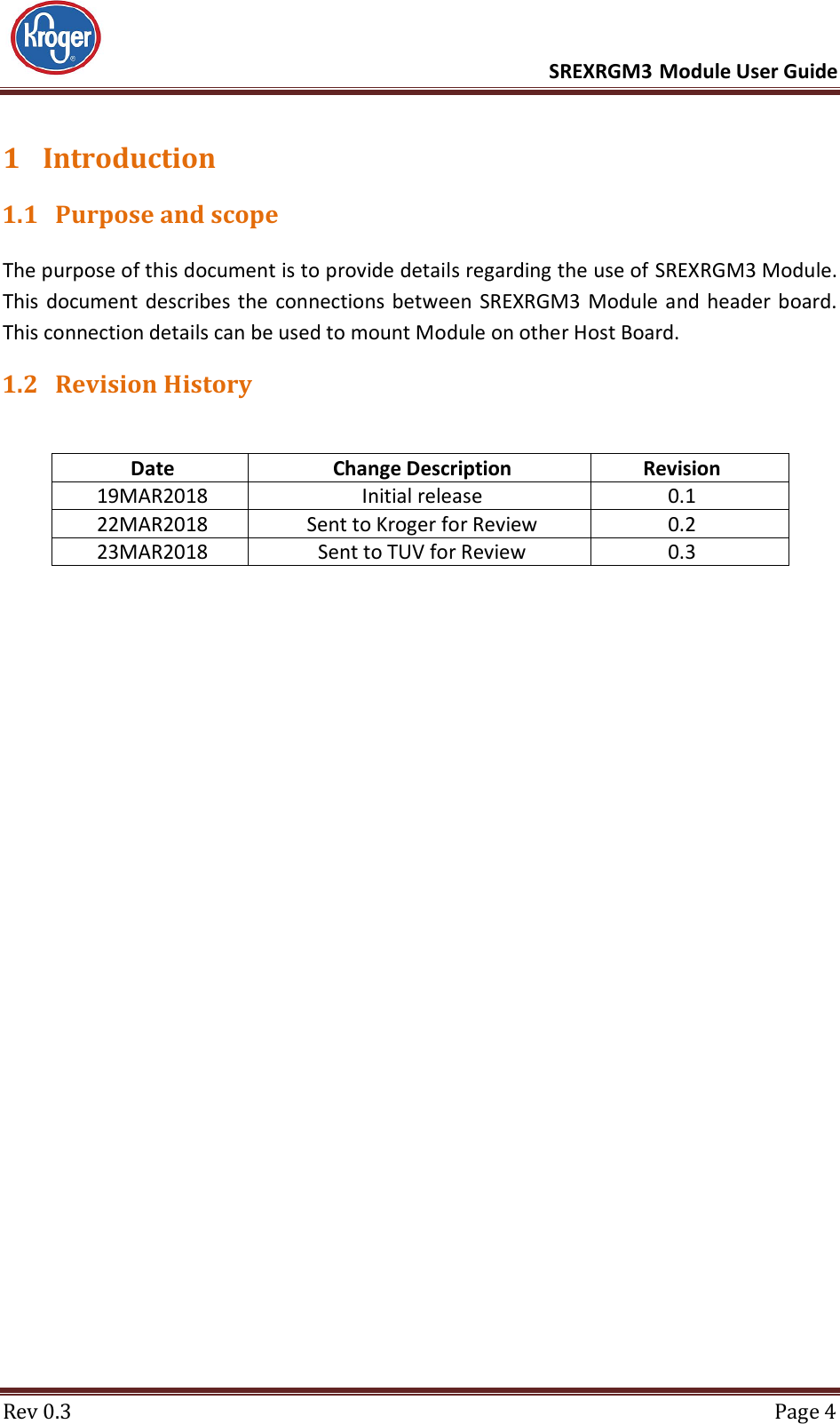

     SREXRGM3 Module User Guide  Rev 0.3  Page 4 1 Introduction 1.1 Purpose and scope The purpose of this document is to provide details regarding the use of SREXRGM3 Module. This  document describes the connections between  SREXRGM3 Module and header board. This connection details can be used to mount Module on other Host Board. 1.2 Revision History  Date Change Description Revision 19MAR2018 Initial release 0.1 22MAR2018 Sent to Kroger for Review 0.2 23MAR2018 Sent to TUV for Review 0.3

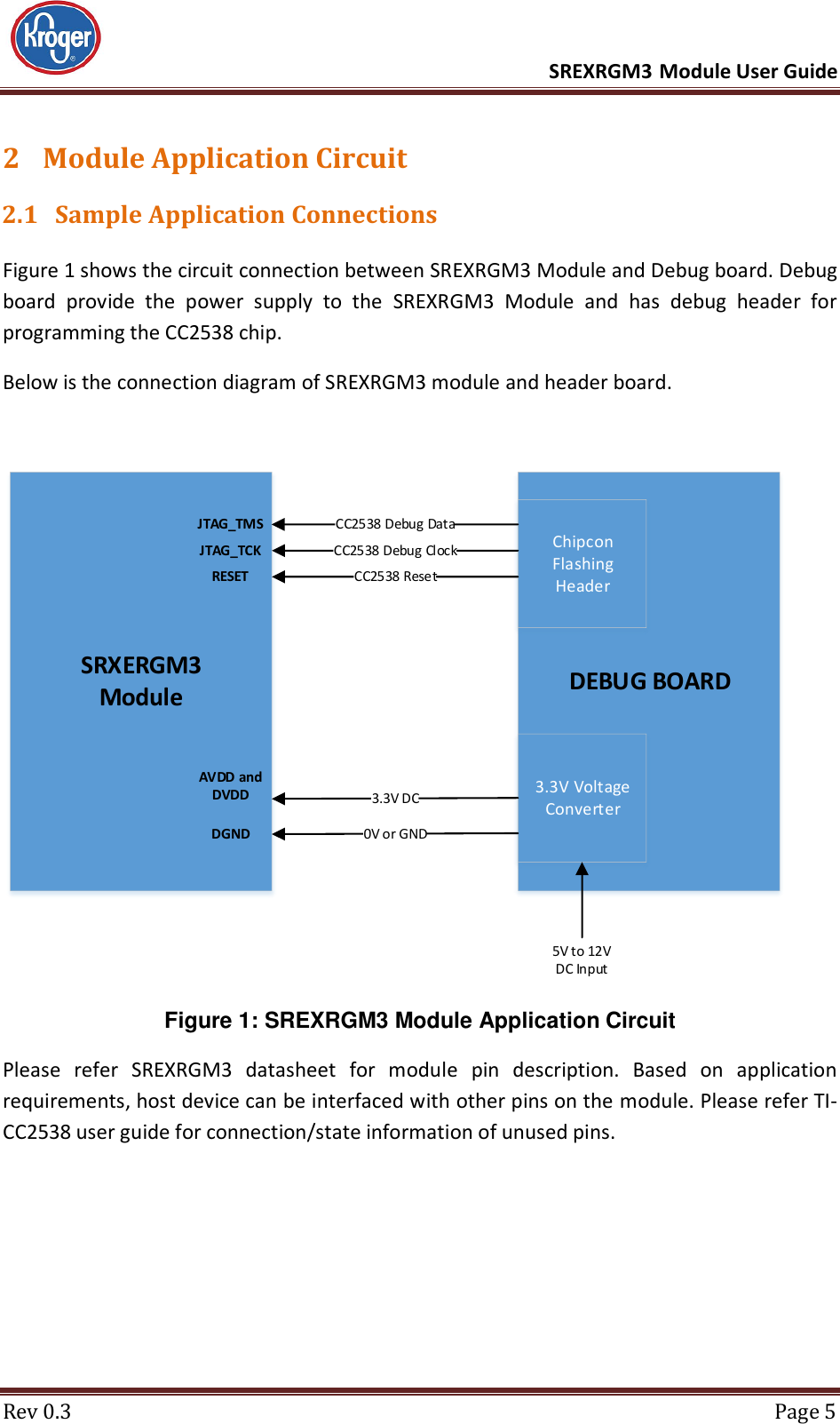

     SREXRGM3 Module User Guide  Rev 0.3  Page 5 2 Module Application Circuit 2.1 Sample Application Connections Figure 1 shows the circuit connection between SREXRGM3 Module and Debug board. Debug board  provide  the  power  supply  to  the  SREXRGM3  Module  and  has  debug  header  for programming the CC2538 chip. Below is the connection diagram of SREXRGM3 module and header board.  SRXERGM3ModuleJTAG_TMSJTAG_TCKRESETAVDD and DVDDDGNDDEBUG BOARDChipcon Flashing Header3.3V Voltage ConverterCC2538 Debug DataCC2538 Debug ClockCC2538 Reset3.3V DC0V or GND5V to 12V DC Input Figure 1: SREXRGM3 Module Application Circuit  Please  refer  SREXRGM3  datasheet  for  module  pin  description.  Based  on  application requirements, host device can be interfaced with other pins on the module. Please refer TI- CC2538 user guide for connection/state information of unused pins.

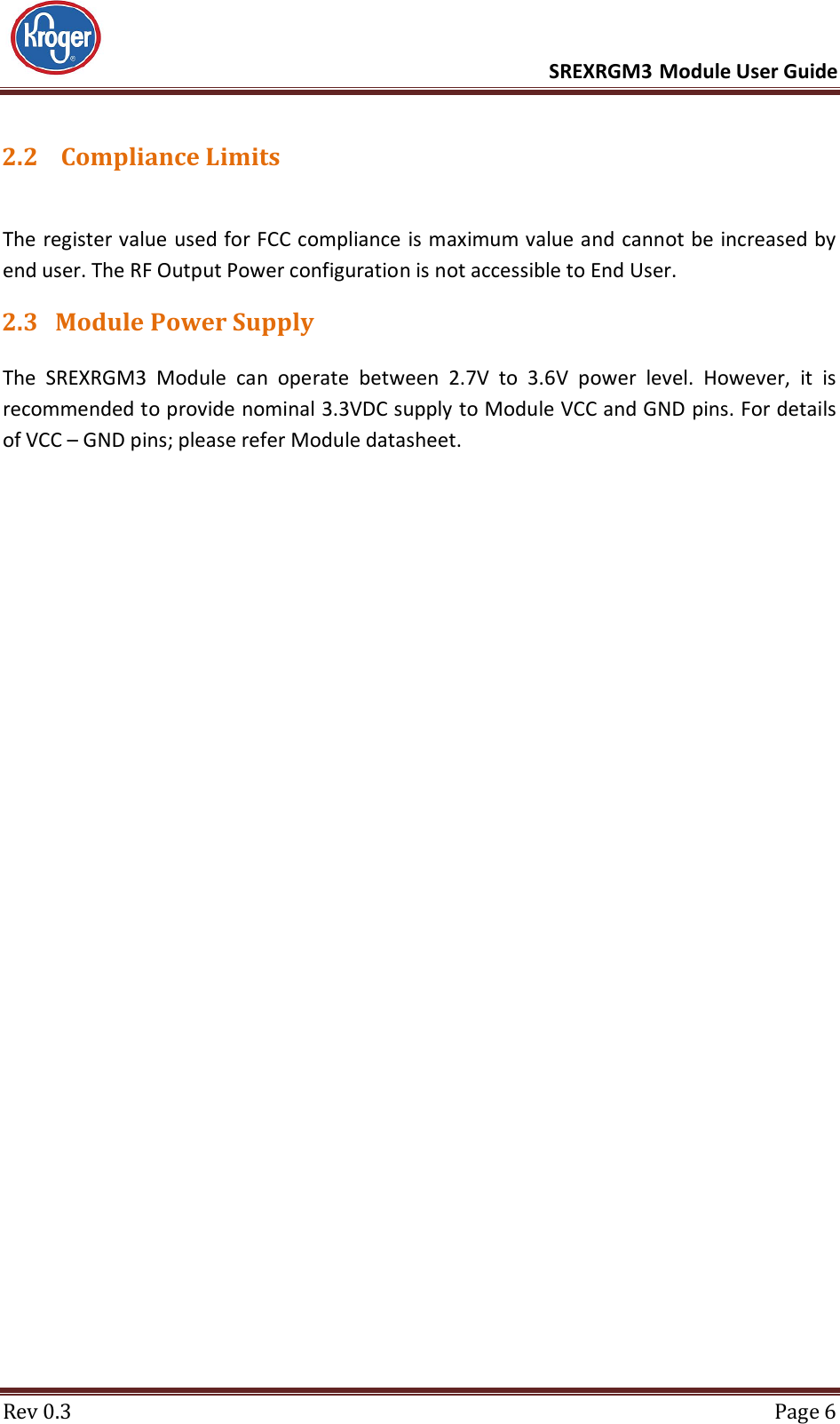

     SREXRGM3 Module User Guide  Rev 0.3  Page 6 2.2  Compliance Limits  The register value used for FCC compliance is maximum value and cannot be increased by end user. The RF Output Power configuration is not accessible to End User. 2.3 Module Power Supply The  SREXRGM3  Module  can  operate  between  2.7V  to  3.6V  power  level.  However,  it  is recommended to provide nominal 3.3VDC supply to Module VCC and GND pins. For details of VCC – GND pins; please refer Module datasheet.

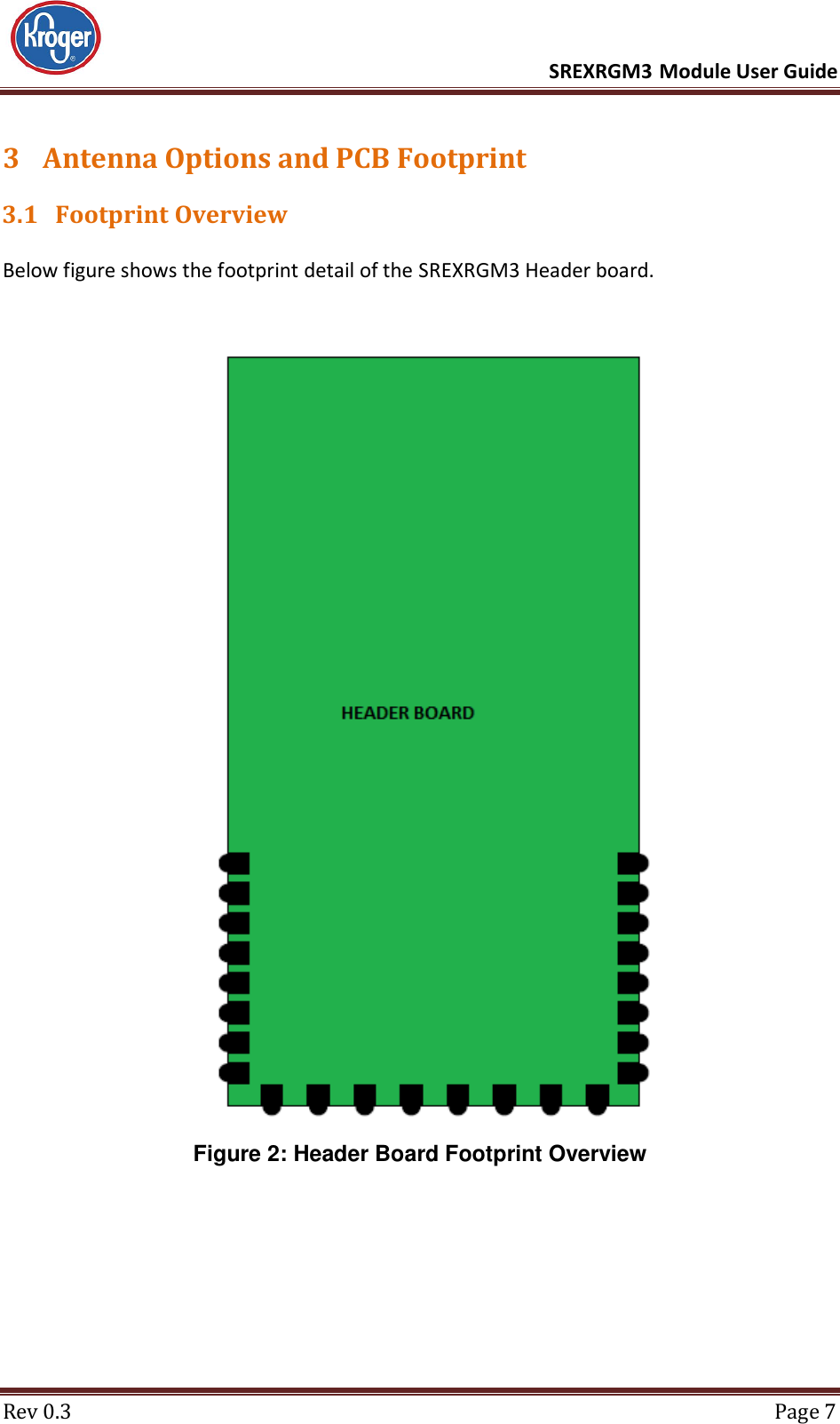

     SREXRGM3 Module User Guide  Rev 0.3  Page 7 3 Antenna Options and PCB Footprint 3.1 Footprint Overview Below figure shows the footprint detail of the SREXRGM3 Header board.   Figure 2: Header Board Footprint Overview

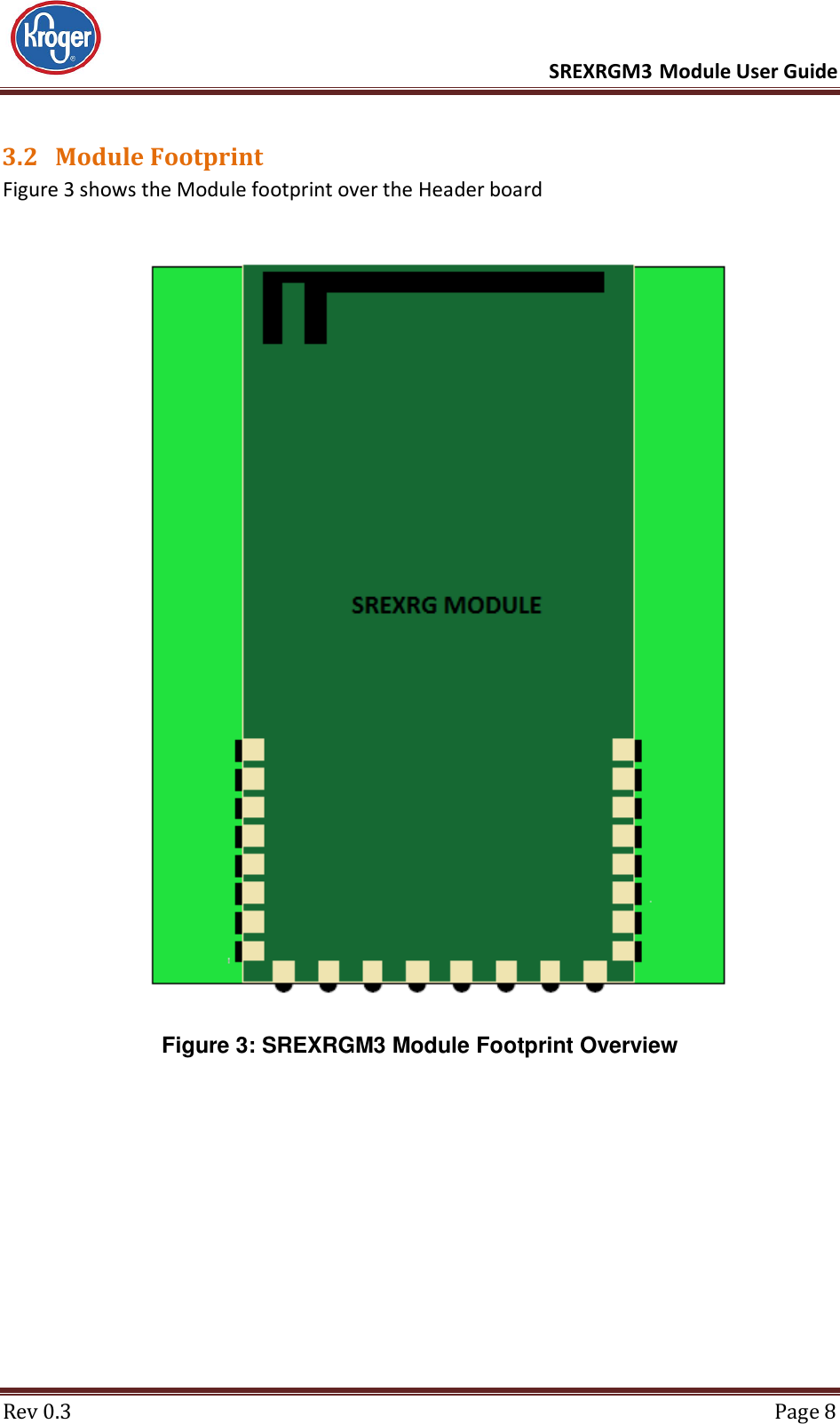

     SREXRGM3 Module User Guide  Rev 0.3  Page 8 3.2 Module Footprint Figure 3 shows the Module footprint over the Header board  Figure 3: SREXRGM3 Module Footprint Overview

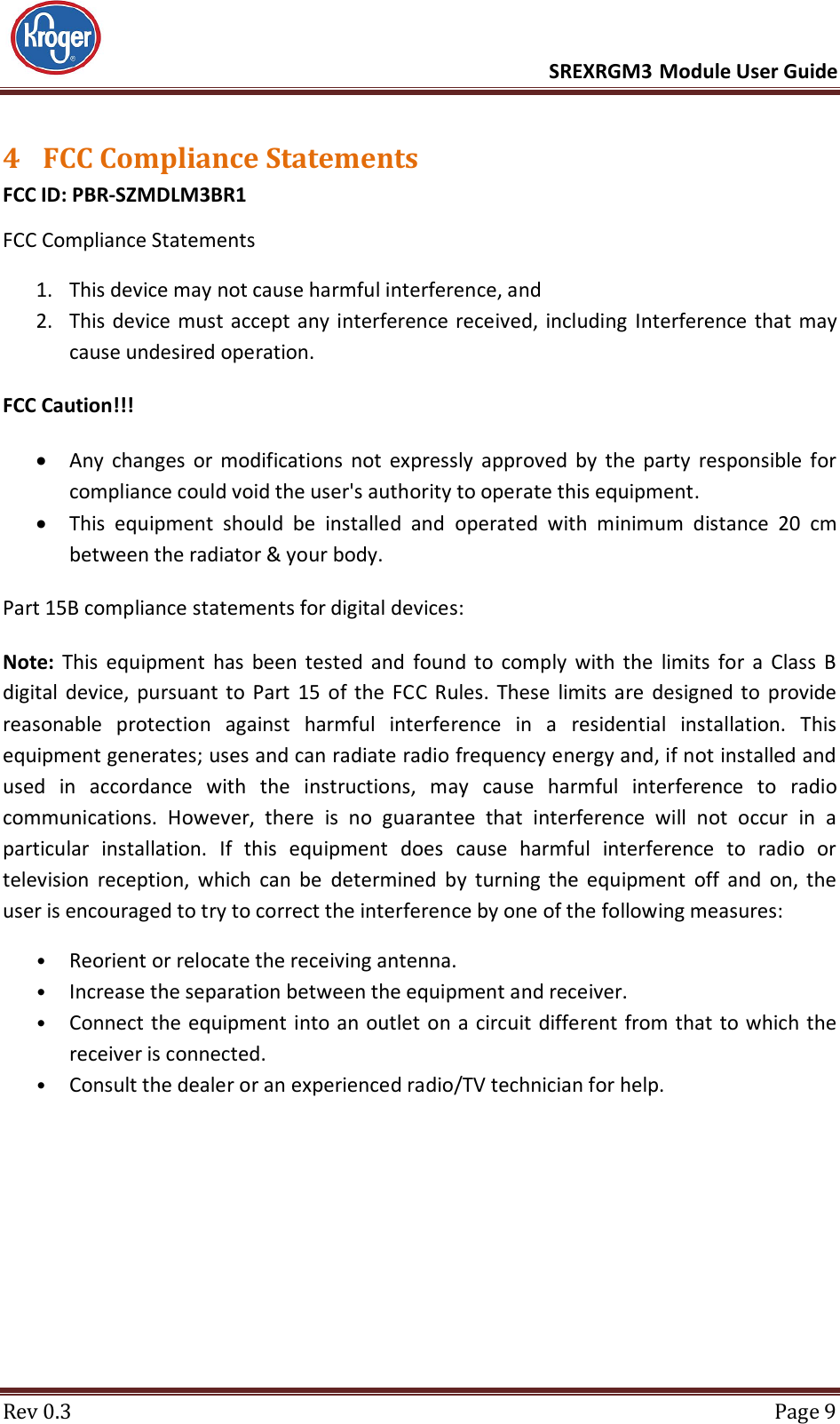

     SREXRGM3 Module User Guide  Rev 0.3  Page 9 4 FCC Compliance Statements FCC ID: PBR-SZMDLM3BR1 FCC Compliance Statements 1. This device may not cause harmful interference, and   2. This device must  accept any interference received, including  Interference that  may cause undesired operation. FCC Caution!!!  Any  changes  or  modifications  not  expressly  approved  by  the  party  responsible  for compliance could void the user's authority to operate this equipment.  This  equipment  should  be  installed  and  operated  with  minimum  distance  20  cm between the radiator & your body. Part 15B compliance statements for digital devices:  Note:  This  equipment  has  been  tested  and  found  to  comply  with  the  limits  for  a  Class  B digital device,  pursuant  to  Part  15 of the  FCC  Rules.  These  limits  are  designed to provide reasonable  protection  against  harmful  interference  in  a  residential  installation.  This equipment generates; uses and can radiate radio frequency energy and, if not installed and used  in  accordance  with  the  instructions,  may  cause  harmful  interference  to  radio communications.  However,  there  is  no  guarantee  that  interference  will  not  occur  in  a particular  installation.  If  this  equipment  does  cause  harmful  interference  to  radio  or television  reception,  which  can  be  determined  by  turning  the  equipment  off  and  on,  the user is encouraged to try to correct the interference by one of the following measures:  • Reorient or relocate the receiving antenna.  • Increase the separation between the equipment and receiver.  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  • Consult the dealer or an experienced radio/TV technician for help.

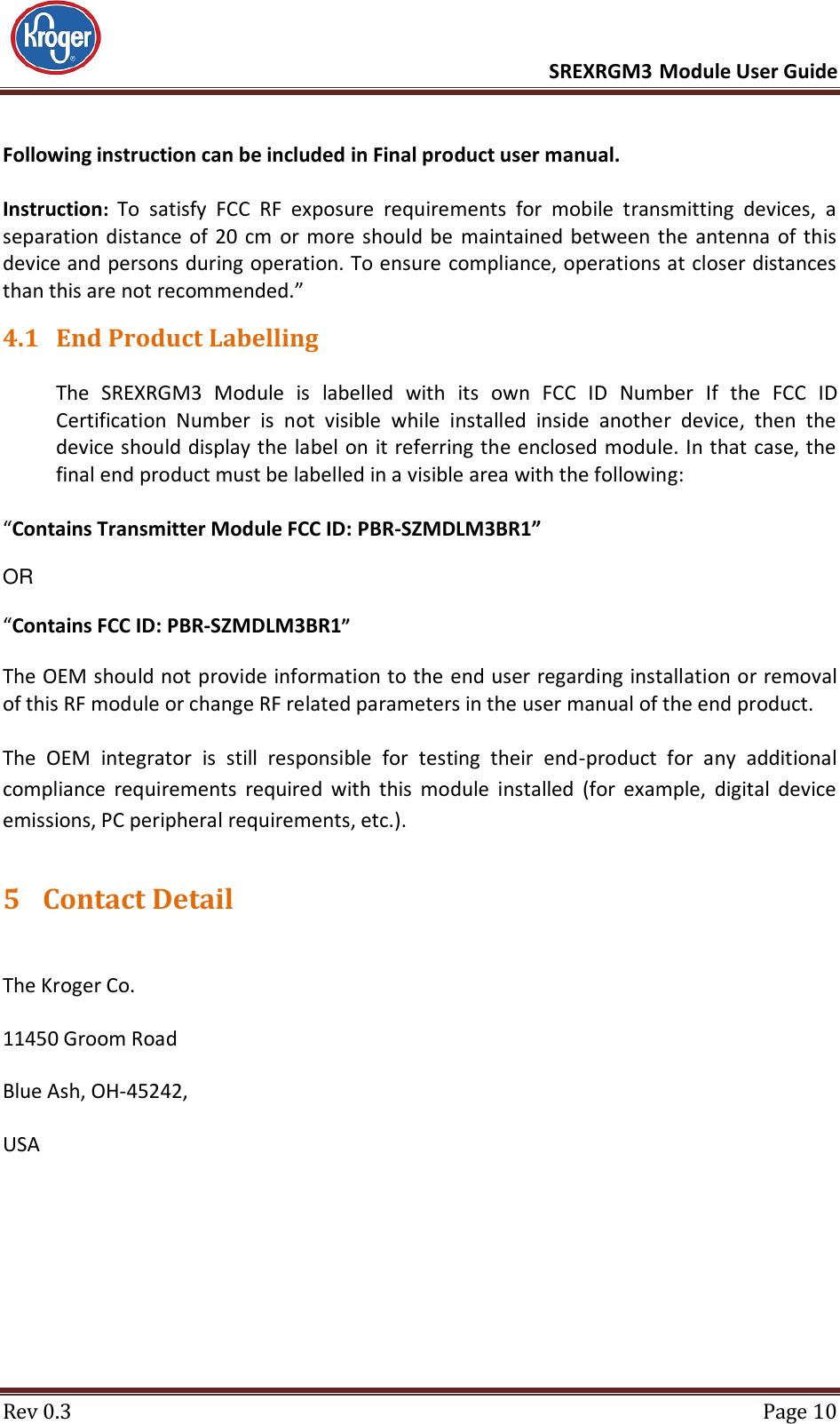

     SREXRGM3 Module User Guide  Rev 0.3  Page 10 Following instruction can be included in Final product user manual.  Instruction: To  satisfy  FCC  RF  exposure  requirements  for  mobile  transmitting  devices,  a separation distance  of 20 cm  or more  should be maintained between  the antenna  of  this device and persons during operation. To ensure compliance, operations at closer distances than this are not recommended.” 4.1 End Product Labelling  The  SREXRGM3  Module  is  labelled  with  its  own  FCC  ID  Number  If  the  FCC  ID Certification  Number  is  not  visible  while  installed  inside  another  device,  then  the device should display the label on it referring the enclosed module. In that case, the final end product must be labelled in a visible area with the following:   “Contains Transmitter Module FCC ID: PBR-SZMDLM3BR1”   OR   “Contains FCC ID: PBR-SZMDLM3BR1”   The OEM should not provide information to the end user regarding installation or removal of this RF module or change RF related parameters in the user manual of the end product.  The  OEM  integrator  is  still  responsible  for  testing  their  end-product  for  any  additional compliance  requirements  required  with  this  module  installed  (for  example,  digital  device emissions, PC peripheral requirements, etc.). 5 Contact Detail  The Kroger Co. 11450 Groom Road Blue Ash, OH-45242, USA
