TopSeed Technology TSBQ-2401 2.4 GHz Wireless Remote Pointer User Manual M32BQ002 E
TopSeed Technology Corp. 2.4 GHz Wireless Remote Pointer M32BQ002 E
Users Manual
Wireless Remote Control User Manual
(Remote & Reviever 2 in 1)
How to use the remote:
1. Insert battery in RF Wireless remote control.

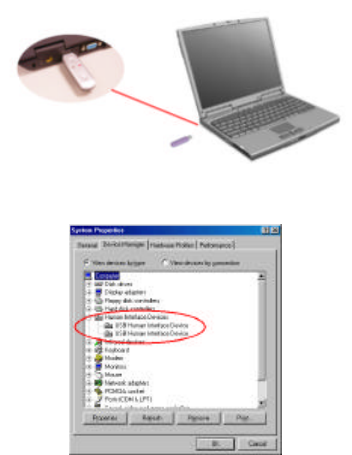

2. Plug the receiver unit into any USB port.
3. Your operation system will start to setup the receiver unit
automatically. And you can see the information as below display
in you computer.

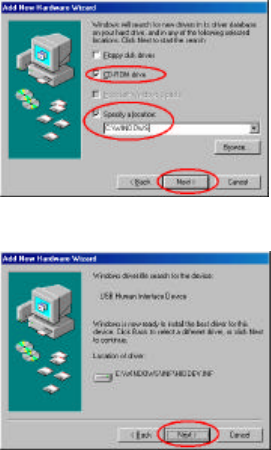

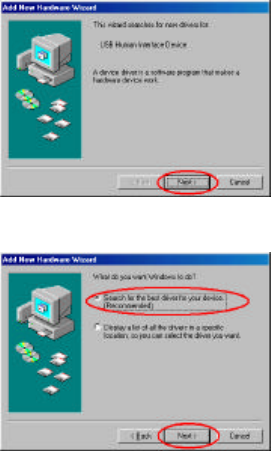

4. But in Win98/Me operation system you need to follow the
dialog boxes on your screen. During the install process, the O/S
may ask you to put Win98 CD into the CD-ROM.
5. Finish the install process; you can use the remote.
Notice:
1. If the remote is not working or interference with another:

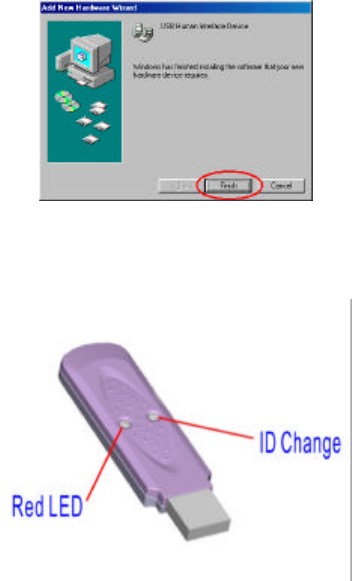

1-1. Press the receiver ID Change button (LED will be on and
Stand by to learn the new ID).
1-2 When the remote near the receiver, press the M-key and
Composite Switch together at least 5 seconds (The M-key
green LED and Receiver‘s red LED will be flash then
already change a new ID).
2. If you had change ID before, remove the battery or the remote
does not work, repeat the steps 1-1 to 1-2.
3. Any key will be not on any more after it is kept working 40
seconds.
4. When the receiver red button is pressed more than 5
seconds, the receiver will not receive any code. Then you
have to do the steps 1-1 to 1-2 to start the remote.

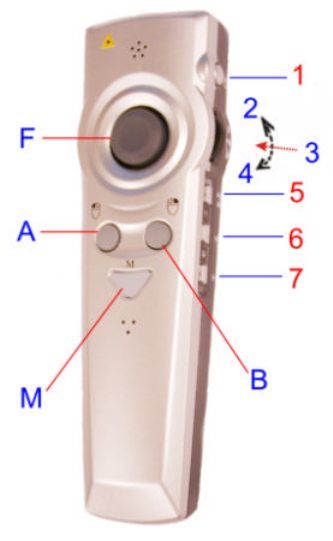

Functions introduction
Mode-1 Mode-2 (Multimedia)
Key Function (Multimedia)
1
Laser ON/Off
Power
2.
Line Up
Volume Up
3
Drag Mute
4
Line Down Volume Down
5
F5 Play?Pause / Stop (> 3 Sec)
6
B Previous track
7
ESC Nest track
F
Mouse X-Y Mouse X-Y Mouse Curse control
A
LM LM Mouse left key
B
RM RM Mouse right key
Notice:

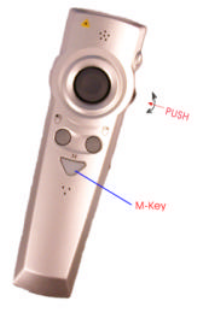

1) Press M-Key to change mode.
2)
M+1
Laser ON/Off
Push
together and more than 3 secs (RED Led
will be flash)
M+3. (Change ID)
Push together and more than 3-
5 secs (Green
Led will be flash)
M+4
M+4 (ALT+Tab)
Push together
M+5
Power On/Off
Push together and more than 3 secs (Green
Led will be flash)
Mode change (M key)
Mode 1: Standard
Mode 2: Multimedia
Mode-1?Mode-2(Push M key >1 sec; Green
LED on)
On mode 2, Push M Key will return to Mode 1
3) For safety consideration
, in the laser pointer button is enable to use
situation, the M-key red LED flash 1
time per 2 seconds. Besides, after
you stop using laser pointer about 30 minutes, the laser pointer
function will be disable.
4) Power：DC-3V 2XAAA Battery
5) Laser poses danger to eyes! Do not stare into beam,
and be sure to avoid your child getting the remote.
◎Wireless Remote Hot Keys for media player
No.
Hot key
Key Function
98 SE
ME
2000
XP
Note
1
Power key Ｘ Ｖ
Ｘ
Ｖ
2
Previous track
Ｘ Ｖ
Ｘ
Ｖ
3
Next track Ｘ Ｖ
Ｘ
Ｖ
4
Play/Pause Ｘ Ｖ
Ｘ
Ｖ
5
Stop Ｘ Ｖ
Ｘ
Ｖ
6
Volume up Ｖ Ｖ
Ｖ
Ｖ
7
Volume down
Ｖ Ｖ
Ｖ
Ｖ
8
Mute Ｖ Ｖ
Ｖ
Ｖ
CD
control
keys
PS: In Windows 98 SE and Win 2K O/S, you need to update the
Media player AP from Microsoft Website, and then the item
(2-5) can be work fine except Power key.
◎Certification:
1) FCC:
FCC Guideline:
This device complies with part 15 of the FCC Rules.
(1) This device may not cause harmful interference and
(2) This device must accept any interference received,
Including interference that may cause undesired operation
2) CE:
3) DGT:
4) BSMI:
Information to User:
The users manual or instruction manual for an intentional or
unintentional radiator shall caution the user that changes or
modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Part No.: TS-M32BQ002-E
Doc No.: JY030801 Rev.1
