Topeak SC03 Duoband Speed & Cadence Sensor User Manual M TPB SC03 EN 09 16 kc

Topeak, Inc. Duoband Speed & Cadence Sensor M TPB SC03 EN 09 16 kc

Users Manual

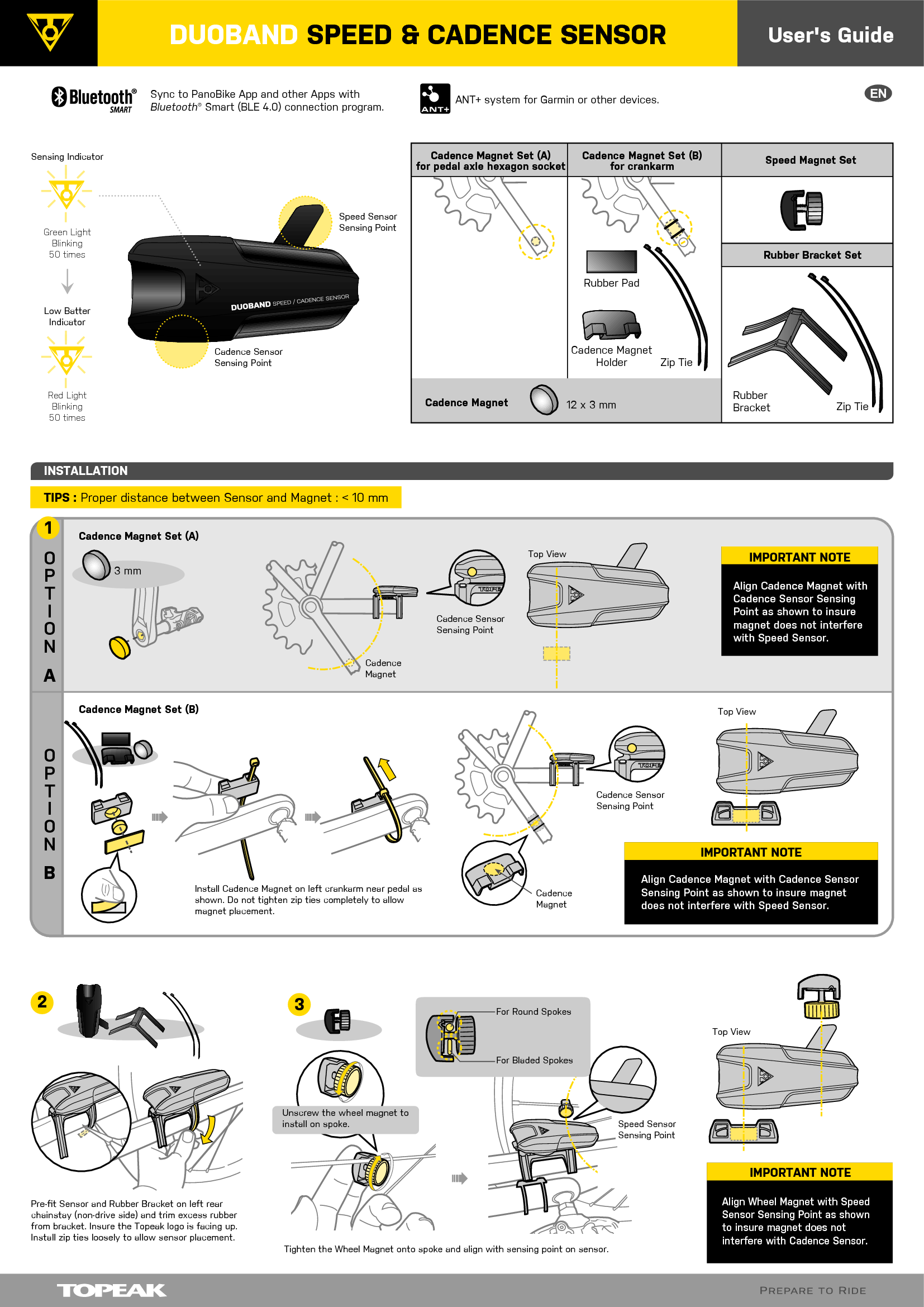

Tighten the Wheel Magnet onto spoke and align with sensing point on sensor.3Unscrew the wheel magnet to install on spoke.Pre-fit Sensor and Rubber Bracket on left rear chainstay (non-drive side) and trim excess rubber from bracket. Insure the Topeak logo is facing up. Install zip ties loosely to allow sensor placement. 2ENCadence Sensor Sensing PointSpeed Sensor Sensing PointGreen LightBlinking50 timesSensing IndicatorLow BatterIndicatorCadence MagnetHolderZip TieRubber BracketCadence Magnet Set (A)for pedal axle hexagon socket Speed Magnet SetRubber Bracket SetCadence Magnet Set (B)for crankarmZip TieRubber PadSync to PanoBike App and other Apps with Bluetooth® Smart (BLE 4.0) connection program. ANT+ system for Garmin or other devices.INSTALLATIONTIPS : Proper distance between Sensor and Magnet : < 10 mmInstall Cadence Magnet on left crankarm near pedal as shown. Do not tighten zip ties completely to allow magnet placement.Cadence Magnet Set (B) Top View1IMPORTANT NOTEAlign Wheel Magnet with Speed Sensor Sensing Point as shown to insure magnet does not interfere with Cadence Sensor.IMPORTANT NOTEAlign Cadence Magnet with Cadence Sensor Sensing Point as shown to insure magnet does not interfere with Speed Sensor.Speed SensorSensing Point Top ViewCadenceMagnetCadence SensorSensing Point Cadence SensorSensing Point CadenceMagnetUser's GuideDUOBAND SPEED & CADENCE SENSORTop ViewCadence Magnet Set (A)IMPORTANT NOTEAlign Cadence Magnet with Cadence Sensor Sensing Point as shown to insure magnet does not interfere with Speed Sensor.For Round SpokesFor Bladed Spokes12 x 3 mmCadence Magnet3 mmRed LightBlinking50 times
