TMANIII/ISI_1 TrackMan™ “TMAN III” Installation and Safety Instructions     Issue 1, December 2012             Page 1 of 12    TrackMan™ Radar Unit Installation and Safety Instruction   Model: TMAN III

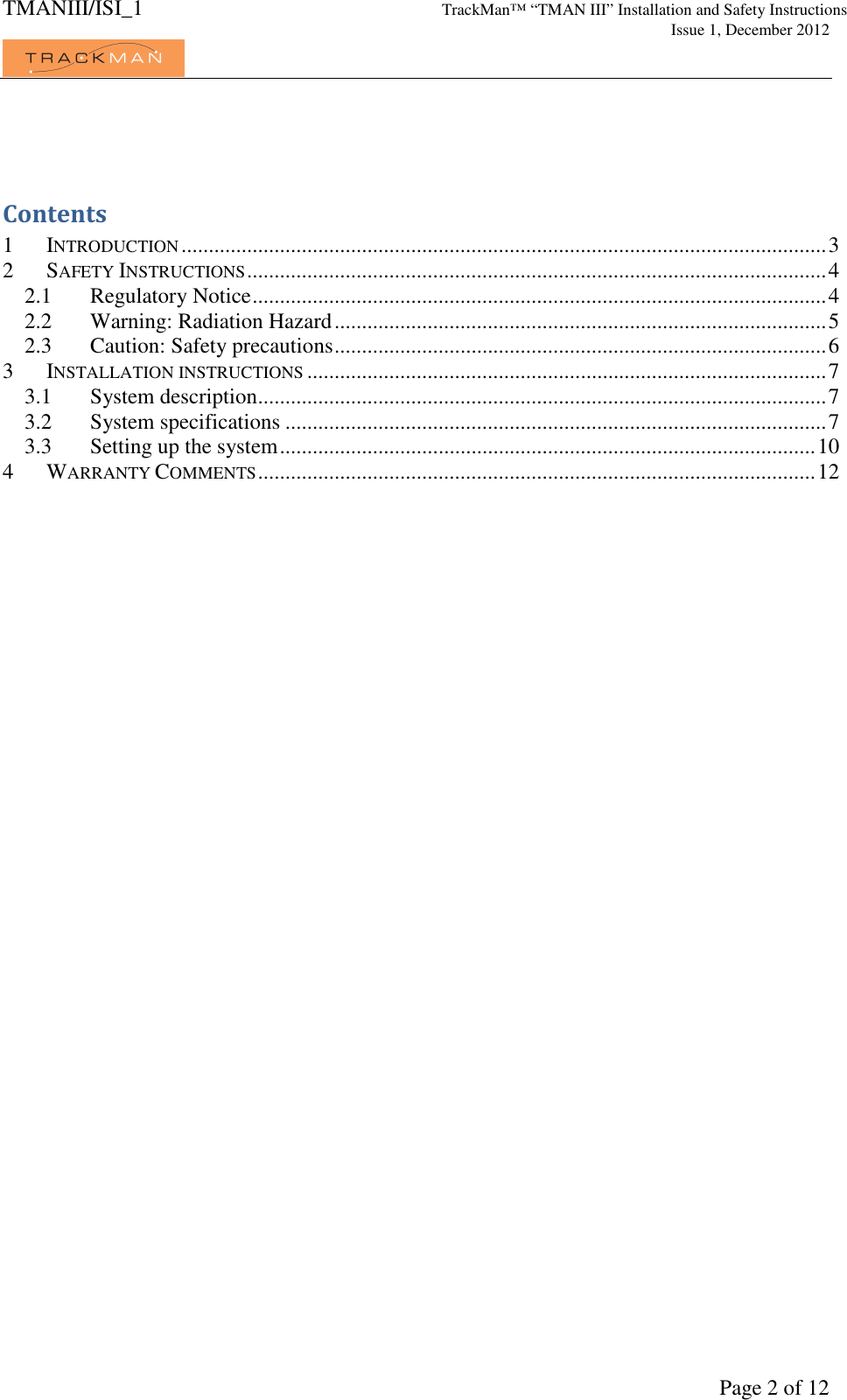

TMANIII/ISI_1 TrackMan™ “TMAN III” Installation and Safety Instructions     Issue 1, December 2012             Page 2 of 12  Contents 1 INTRODUCTION ...................................................................................................................... 3 2 SAFETY INSTRUCTIONS .......................................................................................................... 4 2.1 Regulatory Notice ......................................................................................................... 4 2.2 Warning: Radiation Hazard .......................................................................................... 5 2.3 Caution: Safety precautions .......................................................................................... 6 3 INSTALLATION INSTRUCTIONS ............................................................................................... 7 3.1 System description ........................................................................................................ 7 3.2 System specifications ................................................................................................... 7 3.3 Setting up the system .................................................................................................. 10 4 WARRANTY COMMENTS ...................................................................................................... 12

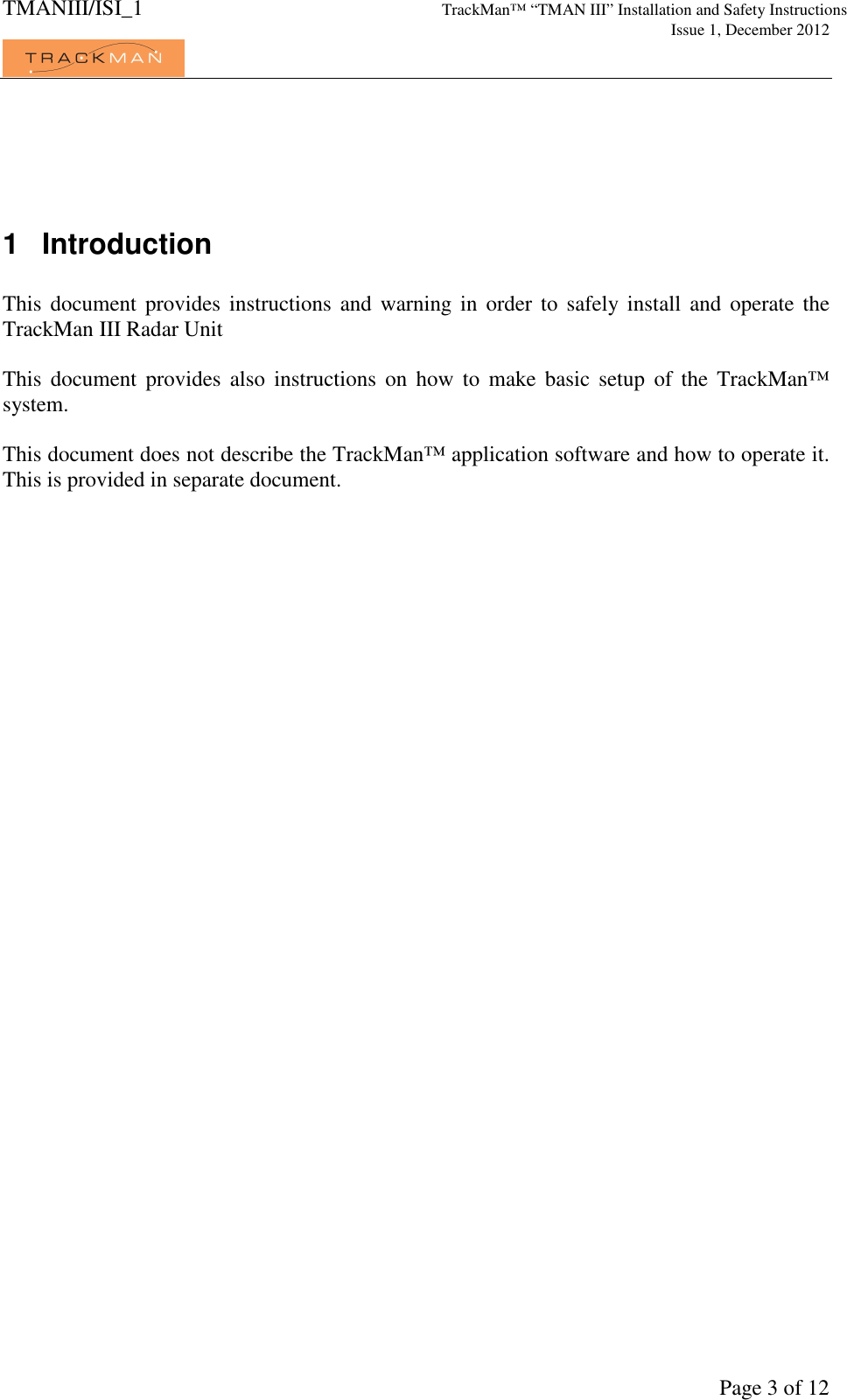

TMANIII/ISI_1 TrackMan™ “TMAN III” Installation and Safety Instructions     Issue 1, December 2012             Page 3 of 12   1  Introduction  This  document provides instructions and warning in order to  safely install  and  operate the TrackMan III Radar Unit  This  document  provides  also  instructions  on  how  to  make  basic  setup  of  the  TrackMan™ system.  This document does not describe the TrackMan™ application software and how to operate it. This is provided in separate document.

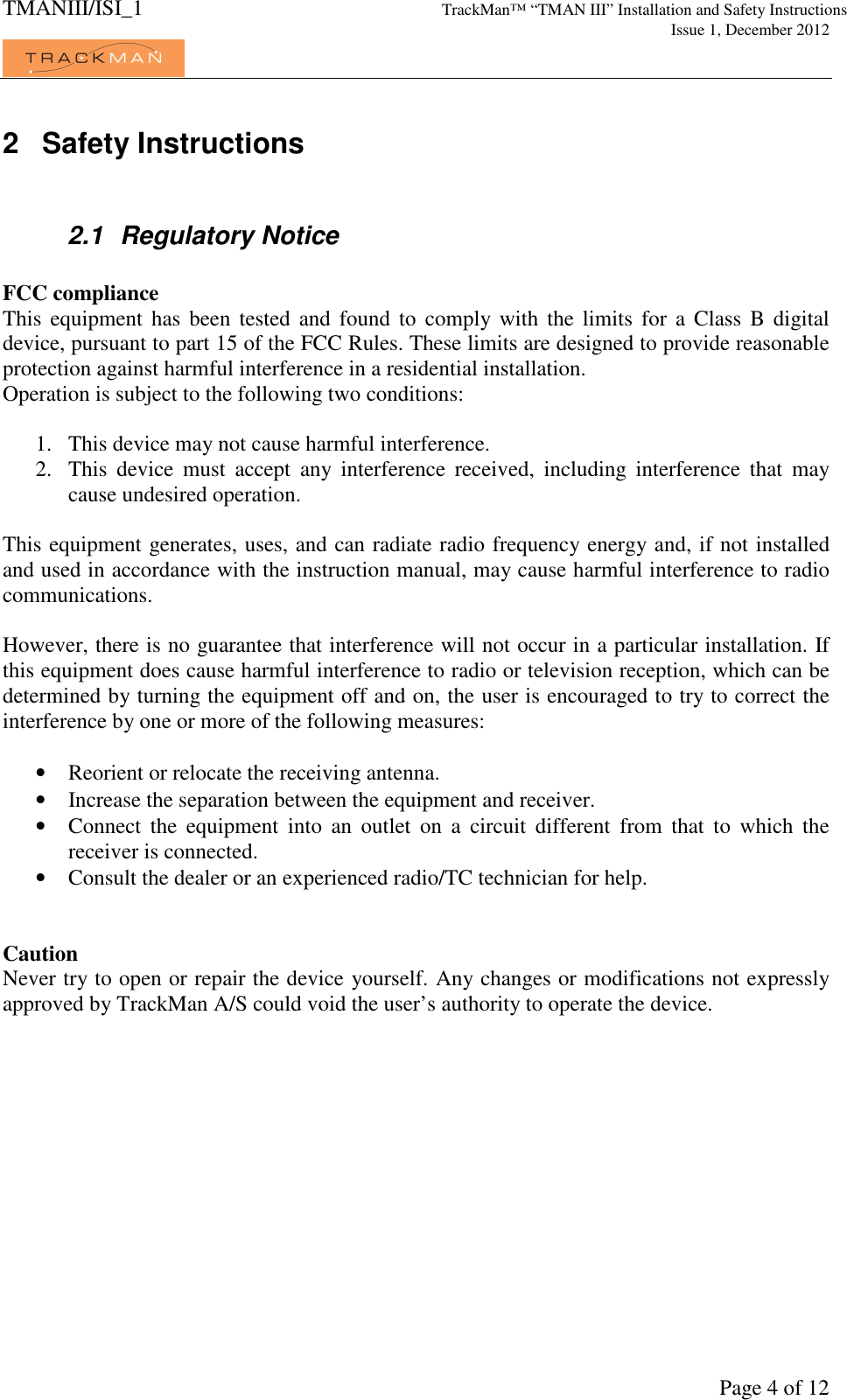

TMANIII/ISI_1 TrackMan™ “TMAN III” Installation and Safety Instructions     Issue 1, December 2012             Page 4 of 12 2  Safety Instructions  2.1  Regulatory Notice  FCC compliance This  equipment  has  been  tested  and  found  to  comply with  the  limits  for  a  Class  B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Operation is subject to the following two conditions:  1. This device may not cause harmful interference.  2. This  device  must  accept  any  interference  received,  including  interference  that  may cause undesired operation.  This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.  However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect  the  equipment  into  an  outlet  on  a  circuit  different  from  that  to  which  the receiver is connected. • Consult the dealer or an experienced radio/TC technician for help.   Caution Never try to open or repair the device yourself. Any changes or modifications not expressly approved by TrackMan A/S could void the user’s authority to operate the device.

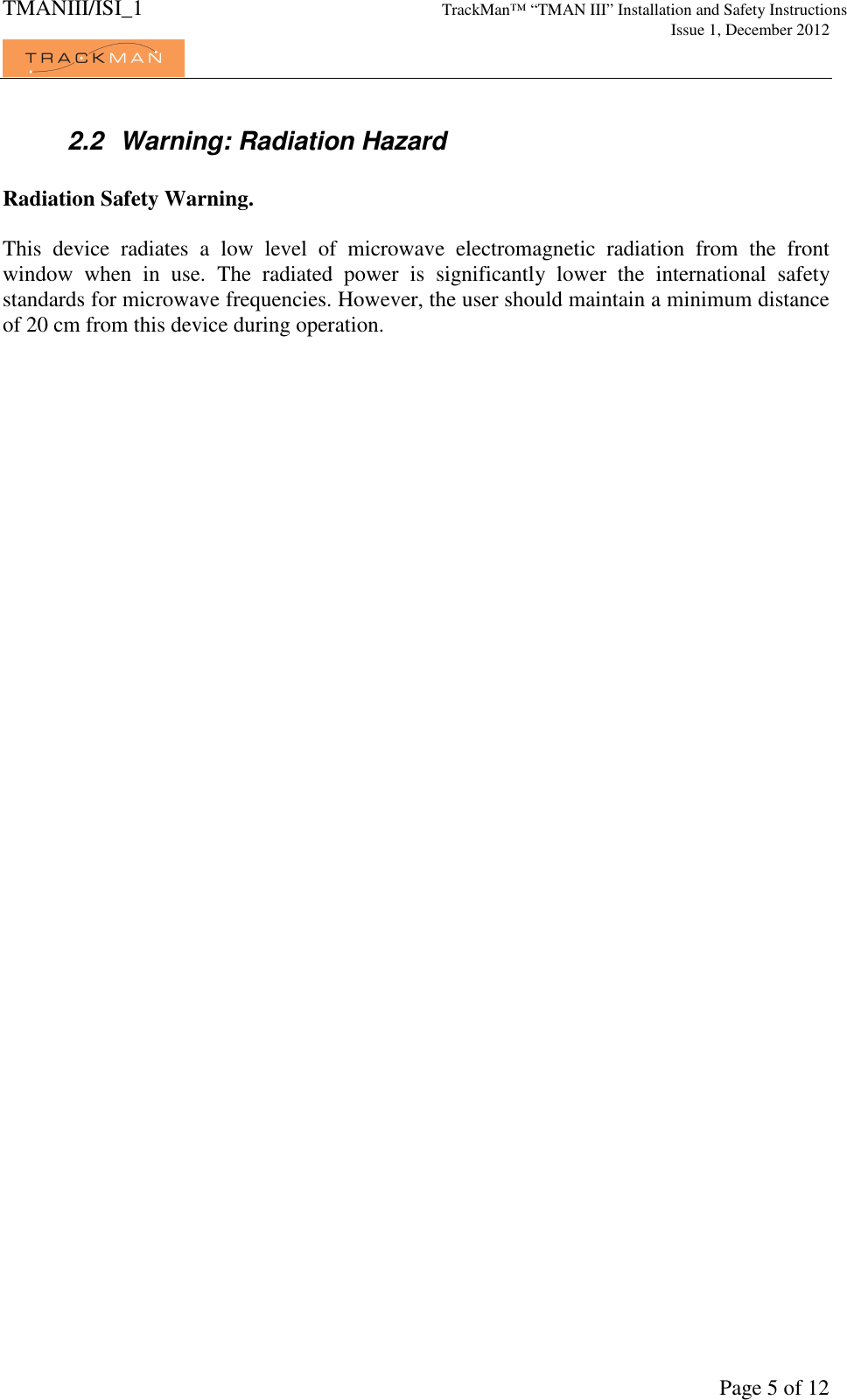

TMANIII/ISI_1 TrackMan™ “TMAN III” Installation and Safety Instructions     Issue 1, December 2012             Page 5 of 12 2.2  Warning: Radiation Hazard  Radiation Safety Warning.  This  device  radiates  a  low  level  of  microwave  electromagnetic  radiation  from  the  front window  when  in  use.  The  radiated  power  is  significantly  lower  the  international  safety standards for microwave frequencies. However, the user should maintain a minimum distance of 20 cm from this device during operation.

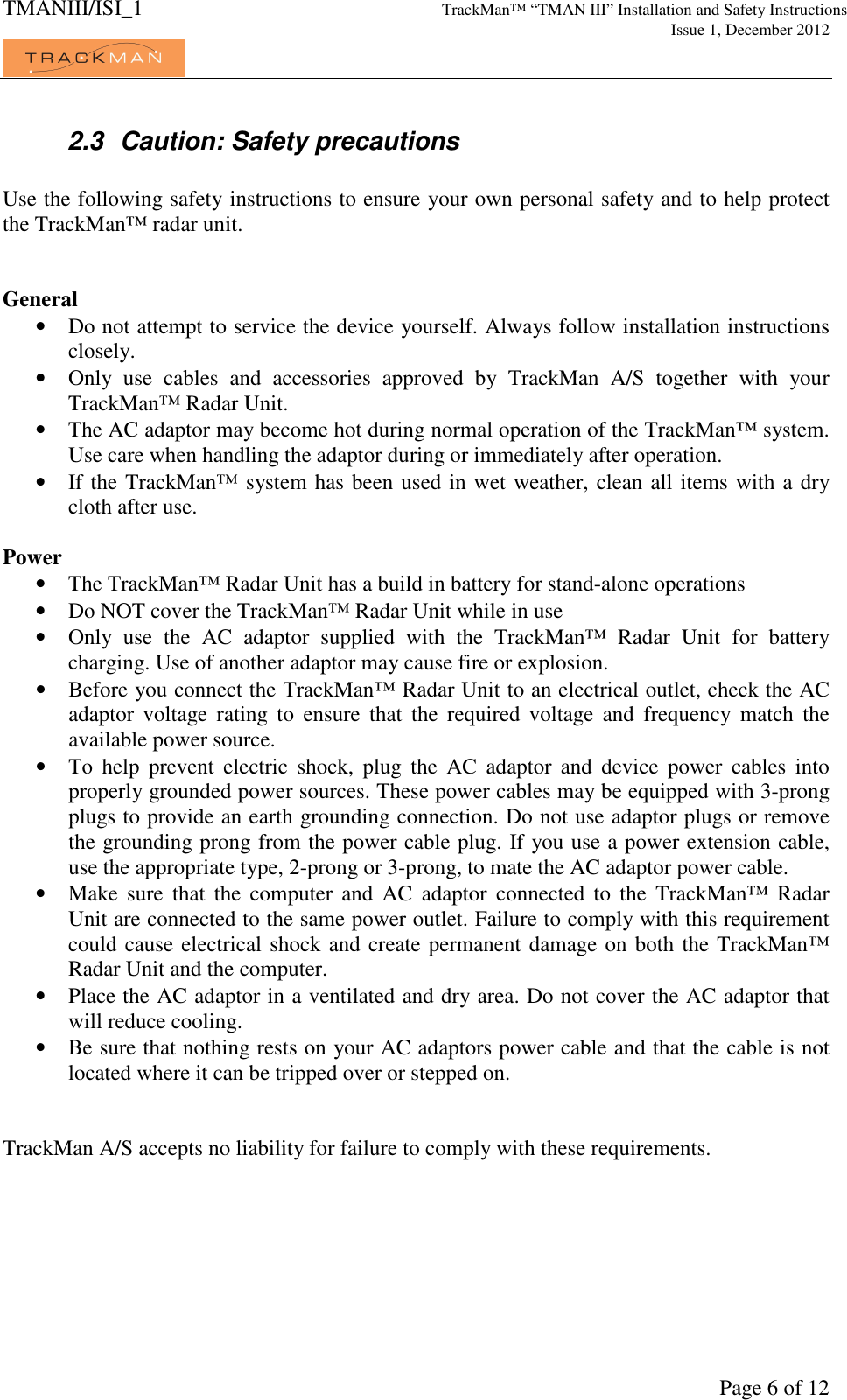

TMANIII/ISI_1 TrackMan™ “TMAN III” Installation and Safety Instructions     Issue 1, December 2012             Page 6 of 12 2.3  Caution: Safety precautions  Use the following safety instructions to ensure your own personal safety and to help protect the TrackMan™ radar unit.   General • Do not attempt to service the device yourself. Always follow installation instructions closely. • Only  use  cables  and  accessories  approved  by  TrackMan  A/S  together  with  your TrackMan™ Radar Unit. • The AC adaptor may become hot during normal operation of the TrackMan™ system. Use care when handling the adaptor during or immediately after operation. • If the TrackMan™ system has been used in wet weather, clean all items with a dry cloth after use.   Power • The TrackMan™ Radar Unit has a build in battery for stand-alone operations • Do NOT cover the TrackMan™ Radar Unit while in use • Only  use  the  AC  adaptor  supplied  with  the  TrackMan™  Radar  Unit  for  battery charging. Use of another adaptor may cause fire or explosion. • Before you connect the TrackMan™ Radar Unit to an electrical outlet, check the AC adaptor  voltage  rating  to  ensure  that  the  required  voltage  and  frequency  match  the available power source. • To  help  prevent  electric  shock,  plug  the  AC  adaptor  and  device  power  cables  into properly grounded power sources. These power cables may be equipped with 3-prong plugs to provide an earth grounding connection. Do not use adaptor plugs or remove the grounding prong from the power cable plug. If you use a power extension cable, use the appropriate type, 2-prong or 3-prong, to mate the AC adaptor power cable. • Make  sure  that  the  computer  and  AC  adaptor  connected  to  the  TrackMan™  Radar Unit are connected to the same power outlet. Failure to comply with this requirement could cause electrical shock and create permanent damage on both the TrackMan™ Radar Unit and the computer. • Place the AC adaptor in a ventilated and dry area. Do not cover the AC adaptor that will reduce cooling. • Be sure that nothing rests on your AC adaptors power cable and that the cable is not located where it can be tripped over or stepped on.   TrackMan A/S accepts no liability for failure to comply with these requirements.

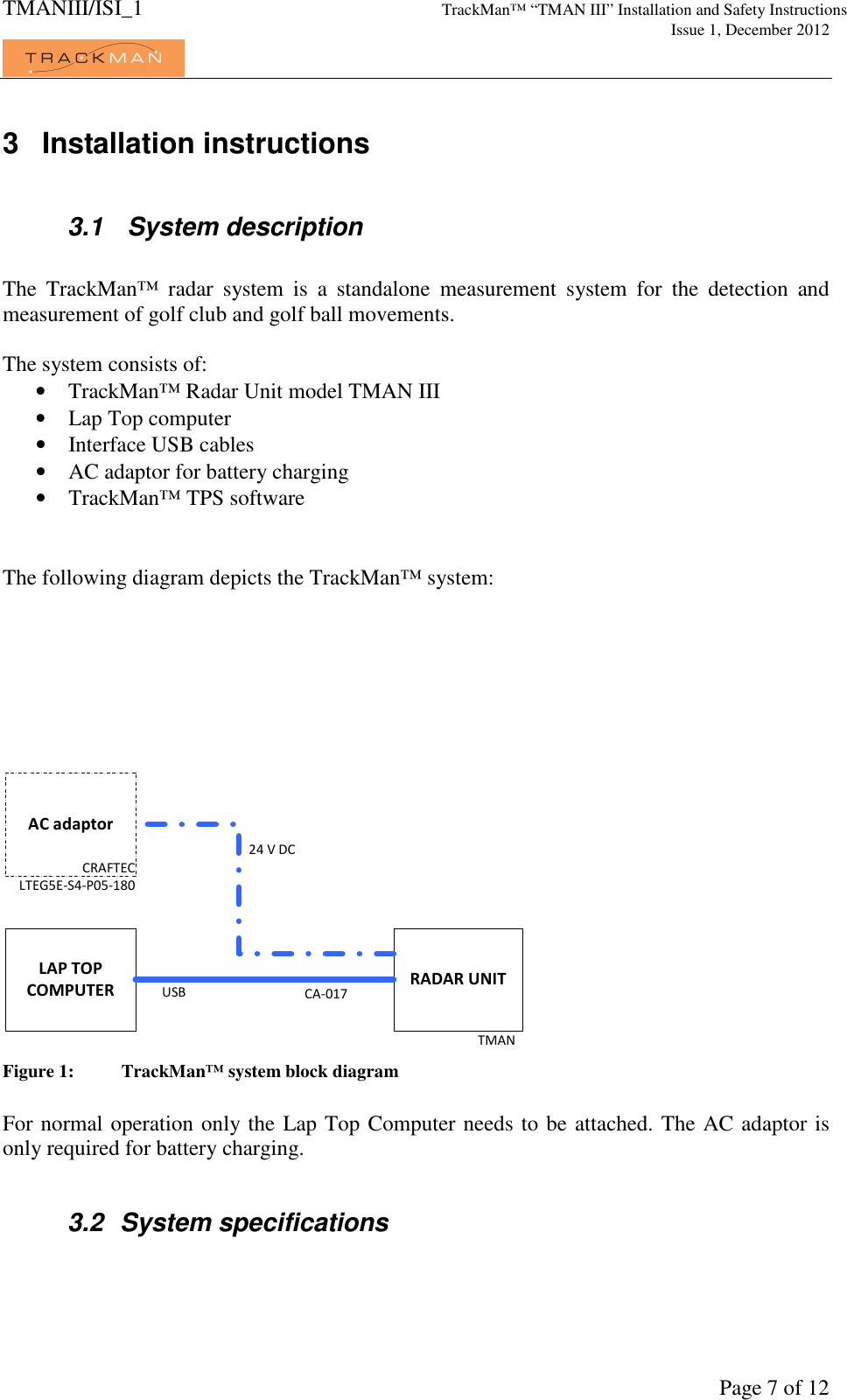

TMANIII/ISI_1 TrackMan™ “TMAN III” Installation and Safety Instructions     Issue 1, December 2012             Page 7 of 12 3  Installation instructions  3.1   System description  The  TrackMan™  radar  system  is  a  standalone  measurement  system  for  the  detection  and measurement of golf club and golf ball movements.  The system consists of: • TrackMan™ Radar Unit model TMAN III • Lap Top computer • Interface USB cables • AC adaptor for battery charging • TrackMan™ TPS software   The following diagram depicts the TrackMan™ system:  AC adaptorRADAR UNITTMANLAP TOPCOMPUTERCRAFTECLTEG5E-S4-P05-180CA-017USB 24 V DC Figure 1:  TrackMan™ system block diagram  For normal operation only the Lap Top Computer needs to be attached. The AC adaptor is only required for battery charging.  3.2  System specifications

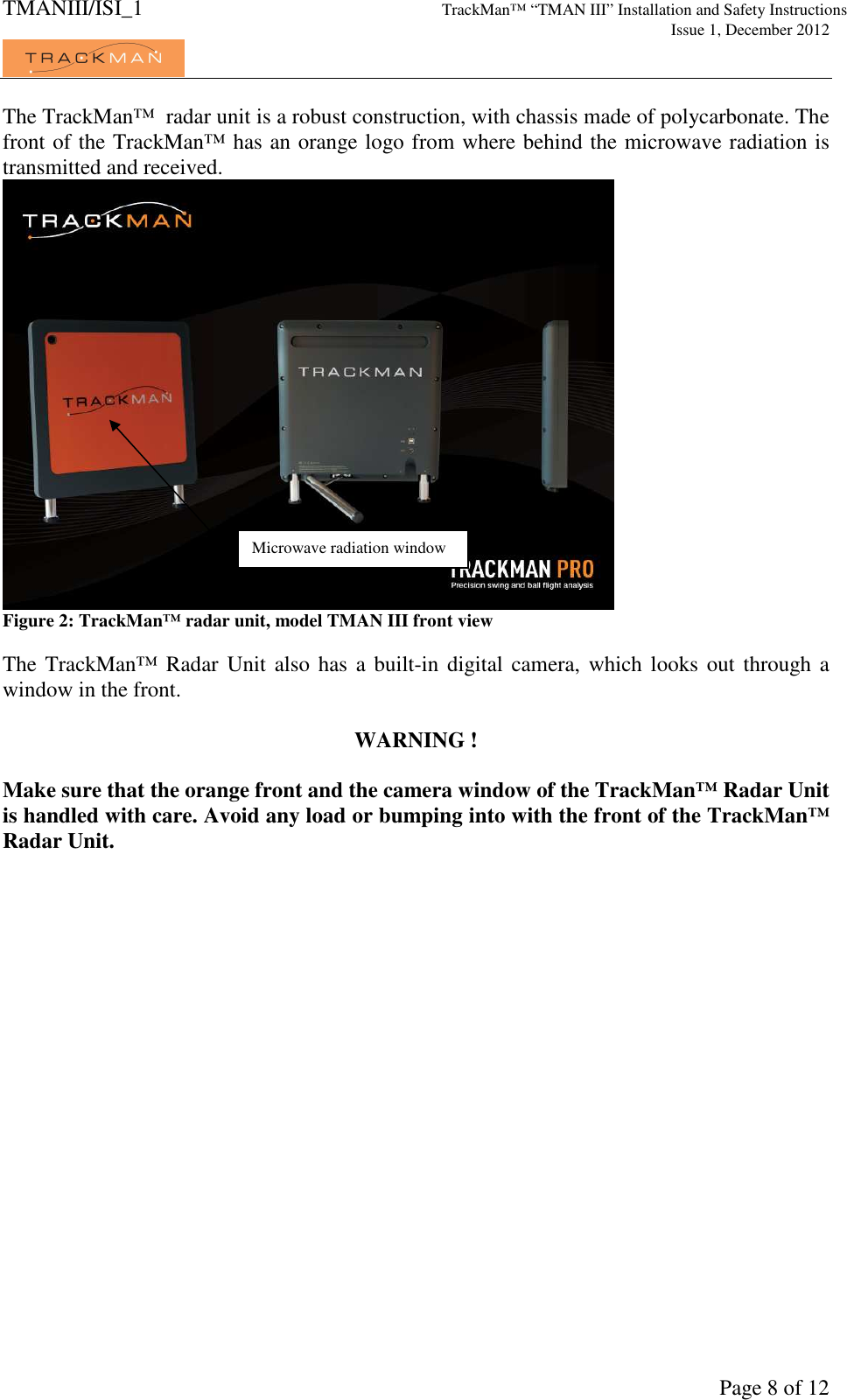

TMANIII/ISI_1 TrackMan™ “TMAN III” Installation and Safety Instructions     Issue 1, December 2012             Page 8 of 12 The TrackMan™  radar unit is a robust construction, with chassis made of polycarbonate. The front of the TrackMan™ has an orange logo from where behind the microwave radiation is transmitted and received.   Figure 2: TrackMan™ radar unit, model TMAN III front view  The TrackMan™ Radar Unit  also has a  built-in digital  camera, which looks  out through a window in the front.  WARNING !  Make sure that the orange front and the camera window of the TrackMan™ Radar Unit is handled with care. Avoid any load or bumping into with the front of the TrackMan™ Radar Unit.  Microwave radiation window

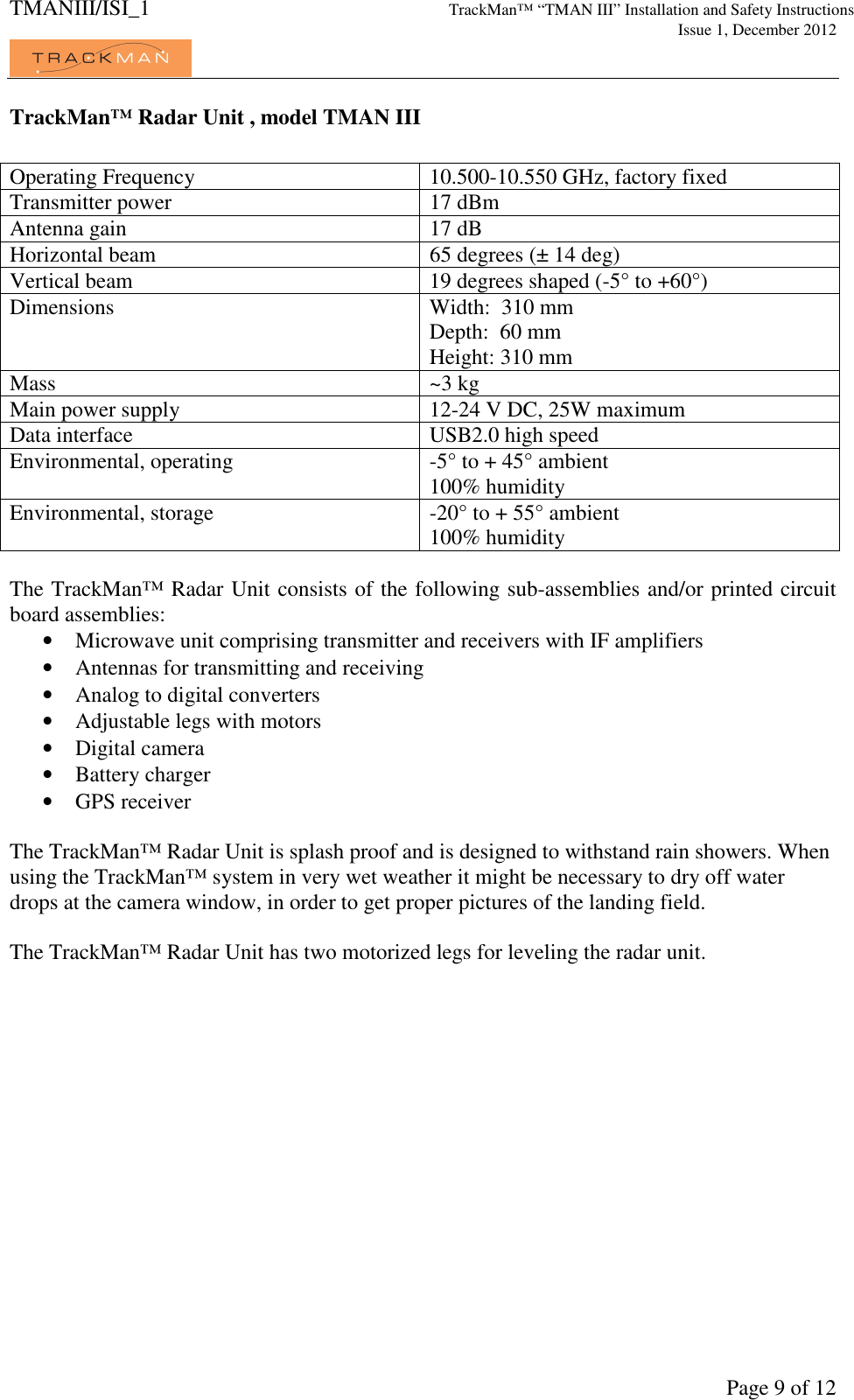

TMANIII/ISI_1 TrackMan™ “TMAN III” Installation and Safety Instructions     Issue 1, December 2012             Page 9 of 12 TrackMan™ Radar Unit , model TMAN III  Operating Frequency  10.500-10.550 GHz, factory fixed Transmitter power  17 dBm Antenna gain  17 dB Horizontal beam  65 degrees (± 14 deg) Vertical beam  19 degrees shaped (-5° to +60°) Dimensions  Width:  310 mm Depth:  60 mm Height: 310 mm Mass  ~3 kg  Main power supply  12-24 V DC, 25W maximum Data interface  USB2.0 high speed Environmental, operating  -5° to + 45° ambient 100% humidity Environmental, storage  -20° to + 55° ambient 100% humidity  The TrackMan™ Radar Unit consists of the following sub-assemblies and/or printed circuit board assemblies: • Microwave unit comprising transmitter and receivers with IF amplifiers • Antennas for transmitting and receiving • Analog to digital converters • Adjustable legs with motors • Digital camera • Battery charger • GPS receiver  The TrackMan™ Radar Unit is splash proof and is designed to withstand rain showers. When using the TrackMan™ system in very wet weather it might be necessary to dry off water drops at the camera window, in order to get proper pictures of the landing field.   The TrackMan™ Radar Unit has two motorized legs for leveling the radar unit.

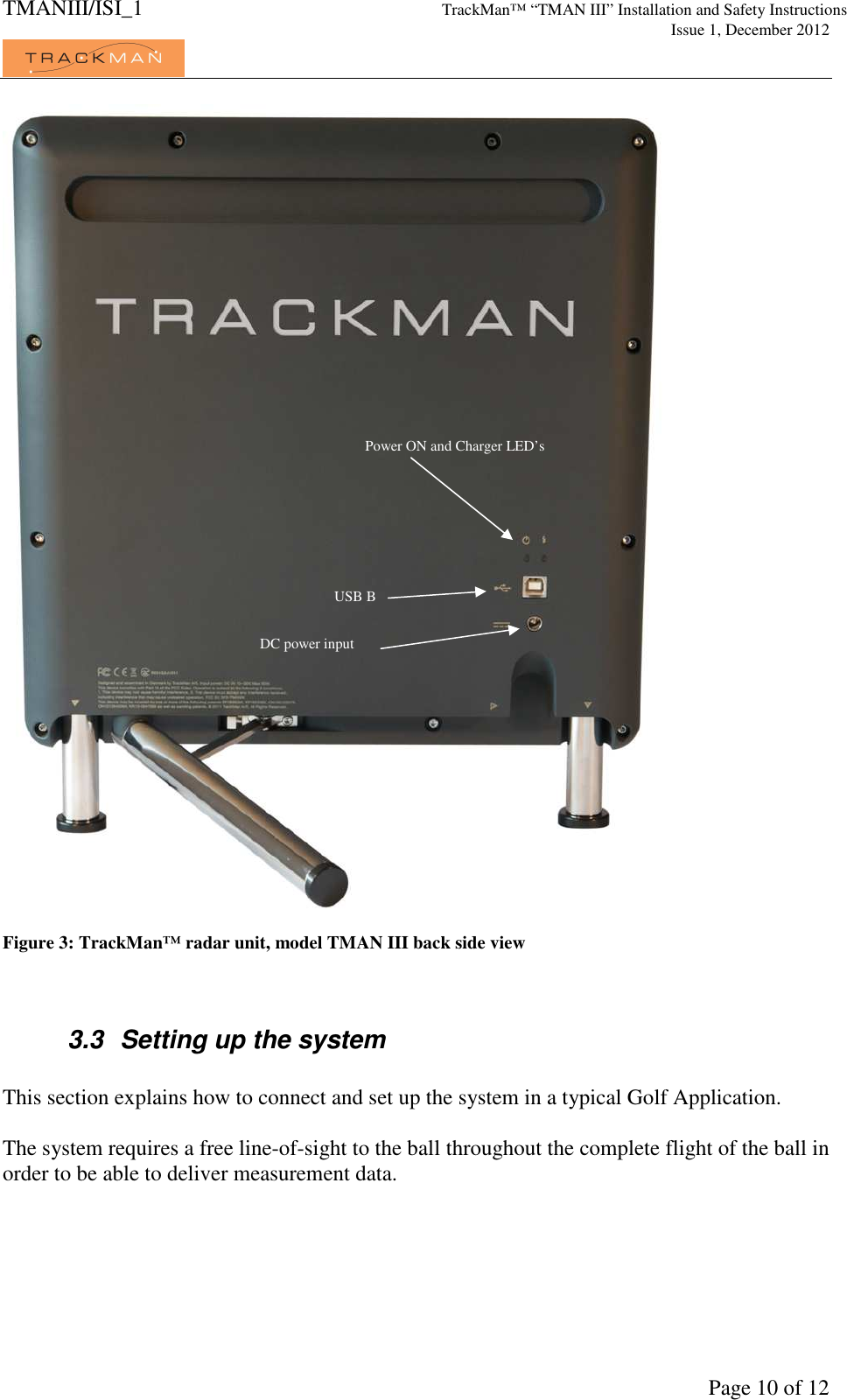

TMANIII/ISI_1 TrackMan™ “TMAN III” Installation and Safety Instructions     Issue 1, December 2012             Page 10 of 12   Figure 3: TrackMan™ radar unit, model TMAN III back side view   3.3  Setting up the system  This section explains how to connect and set up the system in a typical Golf Application.  The system requires a free line-of-sight to the ball throughout the complete flight of the ball in order to be able to deliver measurement data.  Power ON and Charger LED’s USB B DC power input

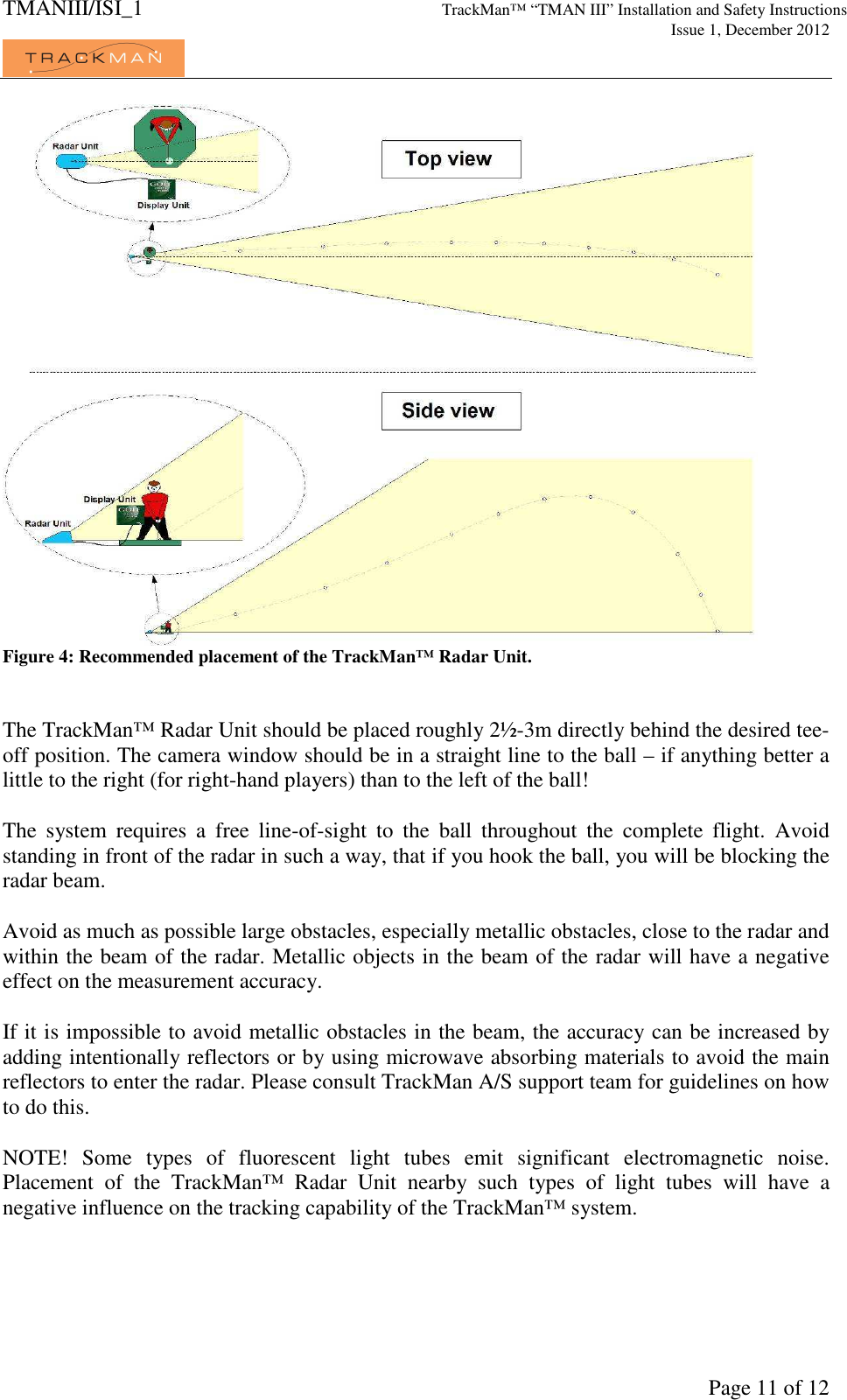

TMANIII/ISI_1 TrackMan™ “TMAN III” Installation and Safety Instructions     Issue 1, December 2012             Page 11 of 12  Figure 4: Recommended placement of the TrackMan™ Radar Unit.   The TrackMan™ Radar Unit should be placed roughly 2½-3m directly behind the desired tee-off position. The camera window should be in a straight line to the ball – if anything better a little to the right (for right-hand players) than to the left of the ball!  The  system  requires  a  free  line-of-sight  to  the  ball  throughout  the  complete  flight.  Avoid standing in front of the radar in such a way, that if you hook the ball, you will be blocking the radar beam.   Avoid as much as possible large obstacles, especially metallic obstacles, close to the radar and within the beam of the radar. Metallic objects in the beam of the radar will have a negative effect on the measurement accuracy.   If it is impossible to avoid metallic obstacles in the beam, the accuracy can be increased by adding intentionally reflectors or by using microwave absorbing materials to avoid the main reflectors to enter the radar. Please consult TrackMan A/S support team for guidelines on how to do this.  NOTE!  Some  types  of  fluorescent  light  tubes  emit  significant  electromagnetic  noise. Placement  of  the  TrackMan™  Radar  Unit  nearby  such  types  of  light  tubes  will  have  a negative influence on the tracking capability of the TrackMan™ system.
TMANIII/ISI_1 TrackMan™ “TMAN III” Installation and Safety Instructions     Issue 1, December 2012             Page 12 of 12 4  Warranty Comments  The TrackMan™ Radar Unit contains no user serviceable parts inside. In case of defect or malfunctioning  TrackMan™  Radar  Unit,  the  unit  must  be  repaired  by  TrackMan  A/S authorized personal ONLY.   IMPORTANT  The  box  is  sealed  to  prevent  unauthorized  access  to  the  inside  of  the TrackMan™  Radar  Unit.  If  the  sealed  is  broken  any  warranty  agreement  will  terminate immediately. Warranty will also terminate immediately if:  • Use of non-approved AC adaptor or incorrect direct applied DC voltage • Use of non-approved cables between the TrackMan™ Radar Unit and the computer • If  the  TrackMan™  Radar  Unit  is  not  installed  or  operated  in  compliance  with  this manual.  For full description of the warranty and the scope hereof, reference is made to the warranty agreement between the user and TrackMan A/S.
