TriMark ERX e-FOB RF KEYLESS-ENTRY SYSTEM User Manual FF eFOB 032706

TriMark Corporation e-FOB RF KEYLESS-ENTRY SYSTEM FF eFOB 032706

USERS MANUAL

e-ASK Electronic Access Security Keyless-entry e-FOB RF Keyless-entry System Instructions FCC ID: TV2EFOB1

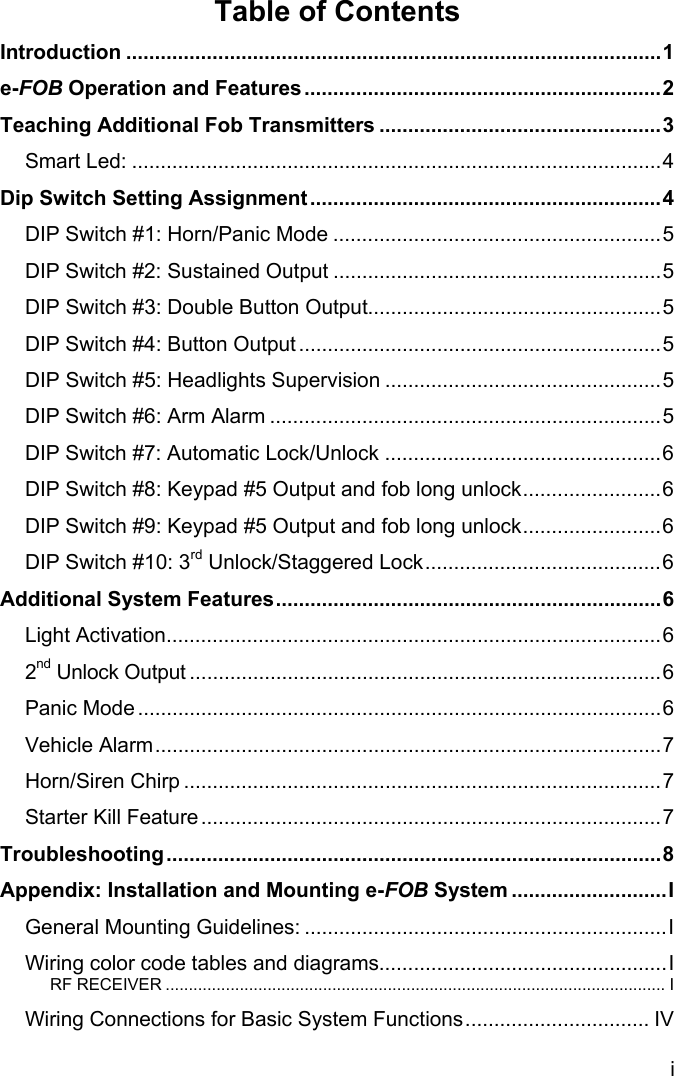

i Table of Contents Introduction .............................................................................................1 e-FOB Operation and Features..............................................................2 Teaching Additional Fob Transmitters .................................................3 Smart Led: ............................................................................................4 Dip Switch Setting Assignment.............................................................4 DIP Switch #1: Horn/Panic Mode .........................................................5 DIP Switch #2: Sustained Output .........................................................5 DIP Switch #3: Double Button Output...................................................5 DIP Switch #4: Button Output ...............................................................5 DIP Switch #5: Headlights Supervision ................................................5 DIP Switch #6: Arm Alarm ....................................................................5 DIP Switch #7: Automatic Lock/Unlock ................................................6 DIP Switch #8: Keypad #5 Output and fob long unlock........................6 DIP Switch #9: Keypad #5 Output and fob long unlock........................6 DIP Switch #10: 3rd Unlock/Staggered Lock.........................................6 Additional System Features...................................................................6 Light Activation......................................................................................6 2nd Unlock Output ..................................................................................6 Panic Mode ...........................................................................................6 Vehicle Alarm........................................................................................7 Horn/Siren Chirp ...................................................................................7 Starter Kill Feature................................................................................7 Troubleshooting......................................................................................8 Appendix: Installation and Mounting e-FOB System ...........................I General Mounting Guidelines: ...............................................................I Wiring color code tables and diagrams..................................................I RF RECEIVER ............................................................................................................ I Wiring Connections for Basic System Functions................................ IV

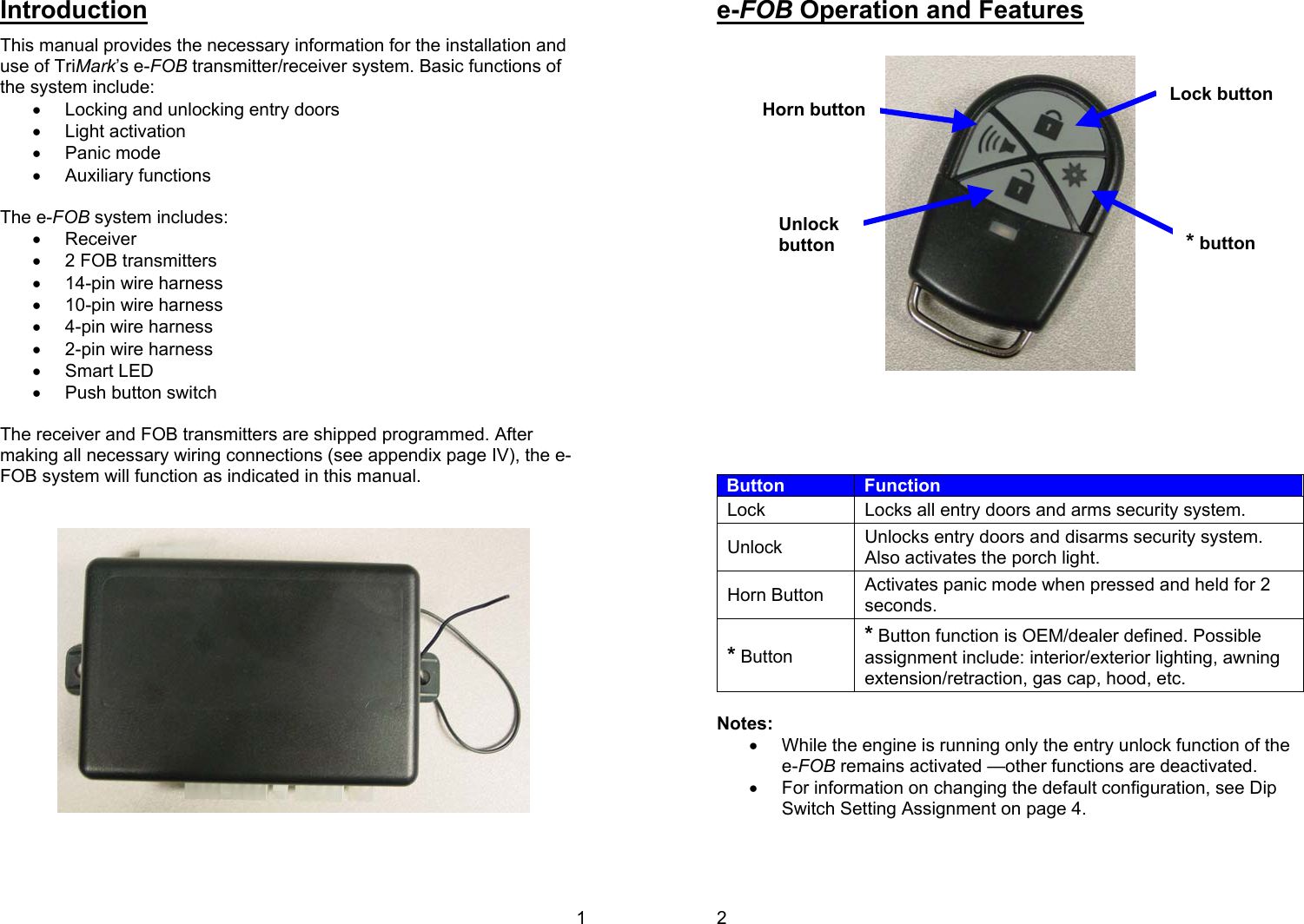

1 Introduction This manual provides the necessary information for the installation and use of TriMark’s e-FOB transmitter/receiver system. Basic functions of the system include: • Locking and unlocking entry doors • Light activation • Panic mode • Auxiliary functions The e-FOB system includes: • Receiver • 2 FOB transmitters • 14-pin wire harness • 10-pin wire harness • 4-pin wire harness • 2-pin wire harness • Smart LED • Push button switch The receiver and FOB transmitters are shipped programmed. After making all necessary wiring connections (see appendix page IV), the e-FOB system will function as indicated in this manual. 2 e-FOB Operation and Features Button Function Lock Locks all entry doors and arms security system. Unlock Unlocks entry doors and disarms security system. Also activates the porch light. Horn Button Activates panic mode when pressed and held for 2 seconds. * Button * Button function is OEM/dealer defined. Possible assignment include: interior/exterior lighting, awning extension/retraction, gas cap, hood, etc. Notes: • While the engine is running only the entry unlock function of the e-FOB remains activated —other functions are deactivated. • For information on changing the default configuration, see Dip Switch Setting Assignment on page 4. Lock button Unlock button Horn button*button

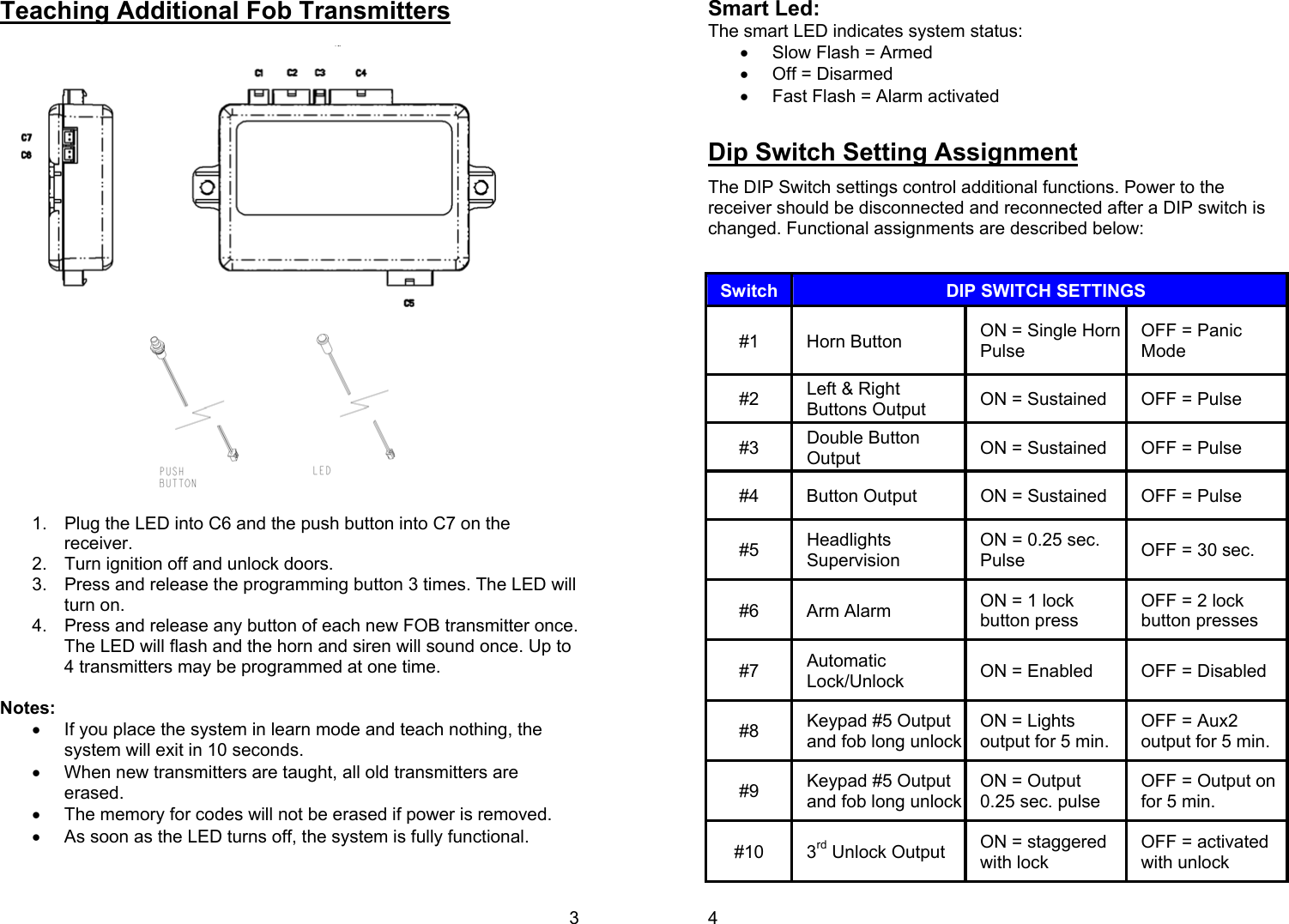

3 Teaching Additional Fob Transmitters 1. Plug the LED into C6 and the push button into C7 on the receiver. 2. Turn ignition off and unlock doors. 3. Press and release the programming button 3 times. The LED will turn on. 4. Press and release any button of each new FOB transmitter once. The LED will flash and the horn and siren will sound once. Up to 4 transmitters may be programmed at one time. Notes: • If you place the system in learn mode and teach nothing, the system will exit in 10 seconds. • When new transmitters are taught, all old transmitters are erased. • The memory for codes will not be erased if power is removed. • As soon as the LED turns off, the system is fully functional. 4 Smart Led: The smart LED indicates system status: • Slow Flash = Armed • Off = Disarmed • Fast Flash = Alarm activated Dip Switch Setting Assignment The DIP Switch settings control additional functions. Power to the receiver should be disconnected and reconnected after a DIP switch is changed. Functional assignments are described below: Switch DIP SWITCH SETTINGS #1 Horn Button ON = Single Horn Pulse OFF = Panic Mode #2 Left & Right Buttons Output ON = Sustained OFF = Pulse #3 Double Button Output ON = Sustained OFF = Pulse #4 Button Output ON = Sustained OFF = Pulse #5 Headlights Supervision ON = 0.25 sec. Pulse OFF = 30 sec. #6 Arm Alarm ON = 1 lock button press OFF = 2 lock button presses #7 Automatic Lock/Unlock ON = Enabled OFF = Disabled #8 Keypad #5 Output and fob long unlock ON = Lights output for 5 min. OFF = Aux2 output for 5 min. #9 Keypad #5 Output and fob long unlock ON = Output 0.25 sec. pulse OFF = Output on for 5 min. #10 3rd Unlock Output ON = staggered with lock OFF = activated with unlock

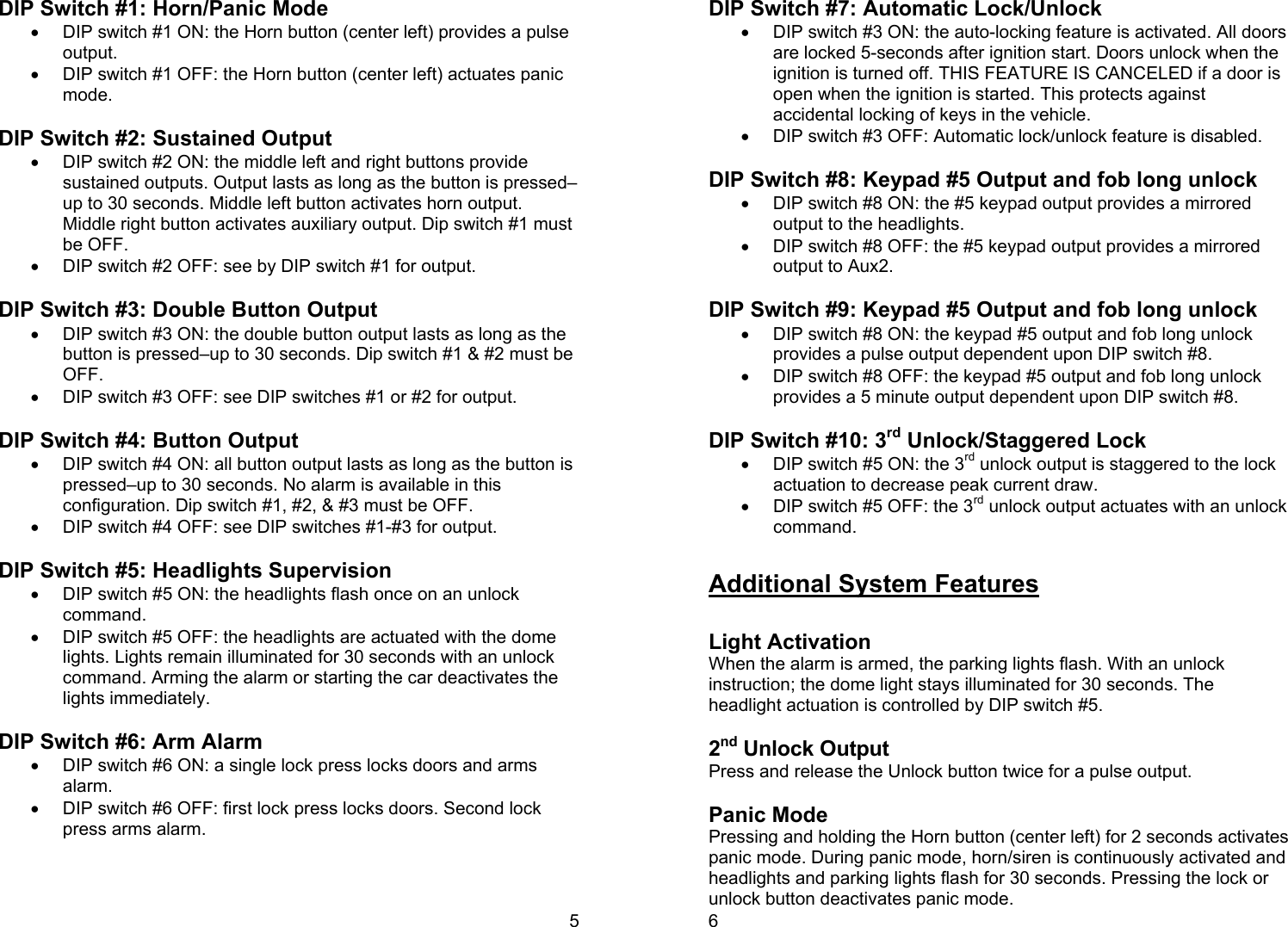

5 DIP Switch #1: Horn/Panic Mode • DIP switch #1 ON: the Horn button (center left) provides a pulse output. • DIP switch #1 OFF: the Horn button (center left) actuates panic mode. DIP Switch #2: Sustained Output • DIP switch #2 ON: the middle left and right buttons provide sustained outputs. Output lasts as long as the button is pressed–up to 30 seconds. Middle left button activates horn output. Middle right button activates auxiliary output. Dip switch #1 must be OFF. • DIP switch #2 OFF: see by DIP switch #1 for output. DIP Switch #3: Double Button Output • DIP switch #3 ON: the double button output lasts as long as the button is pressed–up to 30 seconds. Dip switch #1 & #2 must be OFF. • DIP switch #3 OFF: see DIP switches #1 or #2 for output. DIP Switch #4: Button Output • DIP switch #4 ON: all button output lasts as long as the button is pressed–up to 30 seconds. No alarm is available in this configuration. Dip switch #1, #2, & #3 must be OFF. • DIP switch #4 OFF: see DIP switches #1-#3 for output. DIP Switch #5: Headlights Supervision • DIP switch #5 ON: the headlights flash once on an unlock command. • DIP switch #5 OFF: the headlights are actuated with the dome lights. Lights remain illuminated for 30 seconds with an unlock command. Arming the alarm or starting the car deactivates the lights immediately. DIP Switch #6: Arm Alarm • DIP switch #6 ON: a single lock press locks doors and arms alarm. • DIP switch #6 OFF: first lock press locks doors. Second lock press arms alarm. 6 DIP Switch #7: Automatic Lock/Unlock • DIP switch #3 ON: the auto-locking feature is activated. All doors are locked 5-seconds after ignition start. Doors unlock when the ignition is turned off. THIS FEATURE IS CANCELED if a door is open when the ignition is started. This protects against accidental locking of keys in the vehicle. • DIP switch #3 OFF: Automatic lock/unlock feature is disabled. DIP Switch #8: Keypad #5 Output and fob long unlock • DIP switch #8 ON: the #5 keypad output provides a mirrored output to the headlights. • DIP switch #8 OFF: the #5 keypad output provides a mirrored output to Aux2. DIP Switch #9: Keypad #5 Output and fob long unlock • DIP switch #8 ON: the keypad #5 output and fob long unlock provides a pulse output dependent upon DIP switch #8. • DIP switch #8 OFF: the keypad #5 output and fob long unlock provides a 5 minute output dependent upon DIP switch #8. DIP Switch #10: 3rd Unlock/Staggered Lock • DIP switch #5 ON: the 3rd unlock output is staggered to the lock actuation to decrease peak current draw. • DIP switch #5 OFF: the 3rd unlock output actuates with an unlock command. Additional System Features Light Activation When the alarm is armed, the parking lights flash. With an unlock instruction; the dome light stays illuminated for 30 seconds. The headlight actuation is controlled by DIP switch #5. 2nd Unlock Output Press and release the Unlock button twice for a pulse output. Panic Mode Pressing and holding the Horn button (center left) for 2 seconds activates panic mode. During panic mode, horn/siren is continuously activated and headlights and parking lights flash for 30 seconds. Pressing the lock or unlock button deactivates panic mode.

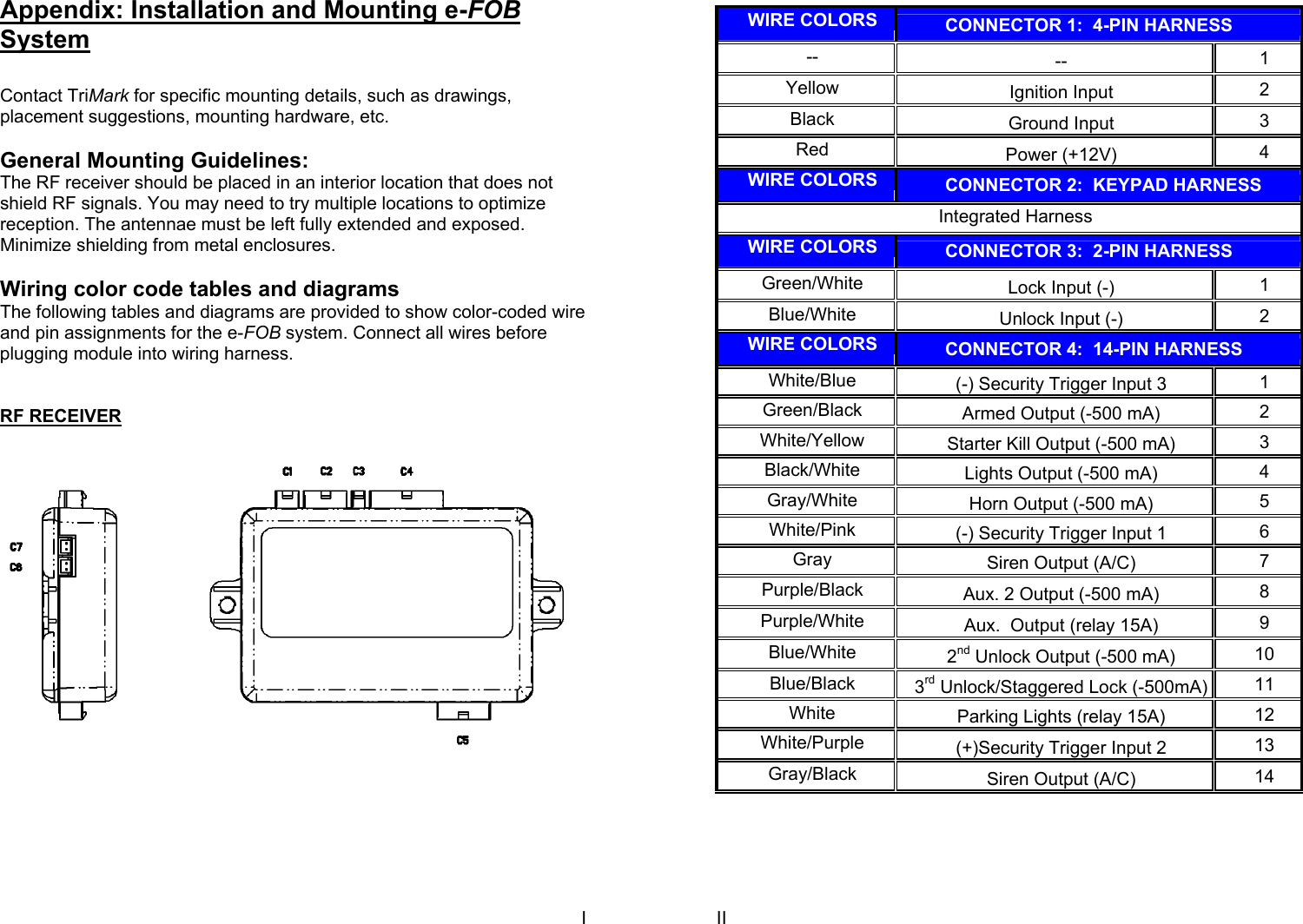

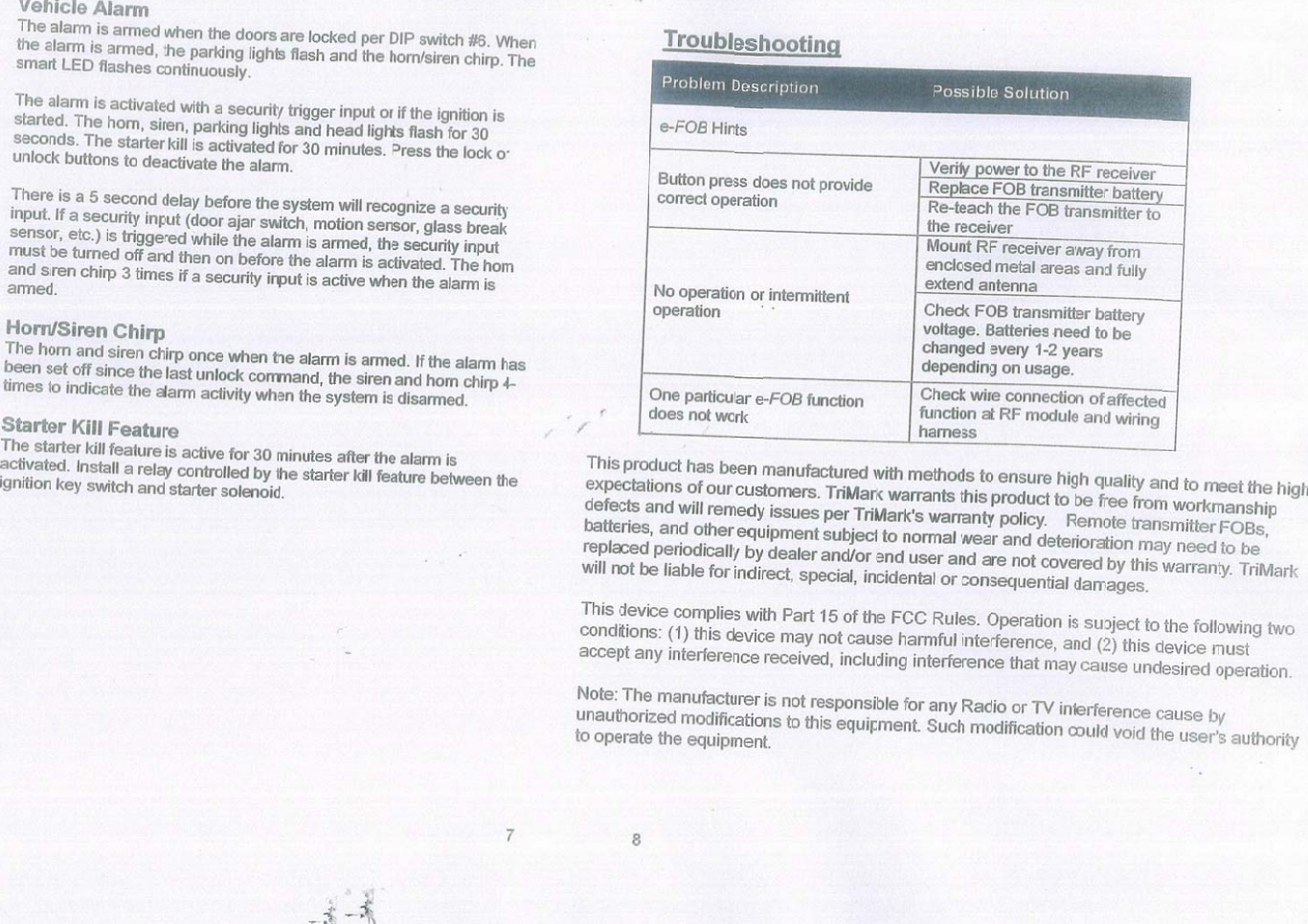

I Appendix: Installation and Mounting e-FOB System Contact TriMark for specific mounting details, such as drawings, placement suggestions, mounting hardware, etc. General Mounting Guidelines: The RF receiver should be placed in an interior location that does not shield RF signals. You may need to try multiple locations to optimize reception. The antennae must be left fully extended and exposed. Minimize shielding from metal enclosures. Wiring color code tables and diagrams The following tables and diagrams are provided to show color-coded wire and pin assignments for the e-FOB system. Connect all wires before plugging module into wiring harness. RF RECEIVER II WIRE COLORS CONNECTOR 1: 4-PIN HARNESS -- -- 1 Yellow Ignition Input 2 Black Ground Input 3 Red Power (+12V) 4 WIRE COLORS CONNECTOR 2: KEYPAD HARNESS Integrated Harness WIRE COLORS CONNECTOR 3: 2-PIN HARNESS Green/White Lock Input (-) 1 Blue/White Unlock Input (-) 2 WIRE COLORS CONNECTOR 4: 14-PIN HARNESS White/Blue (-) Security Trigger Input 3 1 Green/Black Armed Output (-500 mA) 2 White/Yellow Starter Kill Output (-500 mA) 3 Black/White Lights Output (-500 mA) 4 Gray/White Horn Output (-500 mA) 5 White/Pink (-) Security Trigger Input 1 6 Gray Siren Output (A/C) 7 Purple/Black Aux. 2 Output (-500 mA) 8 Purple/White Aux. Output (relay 15A) 9 Blue/White 2nd Unlock Output (-500 mA) 10 Blue/Black 3rd Unlock/Staggered Lock (-500mA) 11 White Parking Lights (relay 15A) 12 White/Purple (+)Security Trigger Input 2 13 Gray/Black Siren Output (A/C) 14

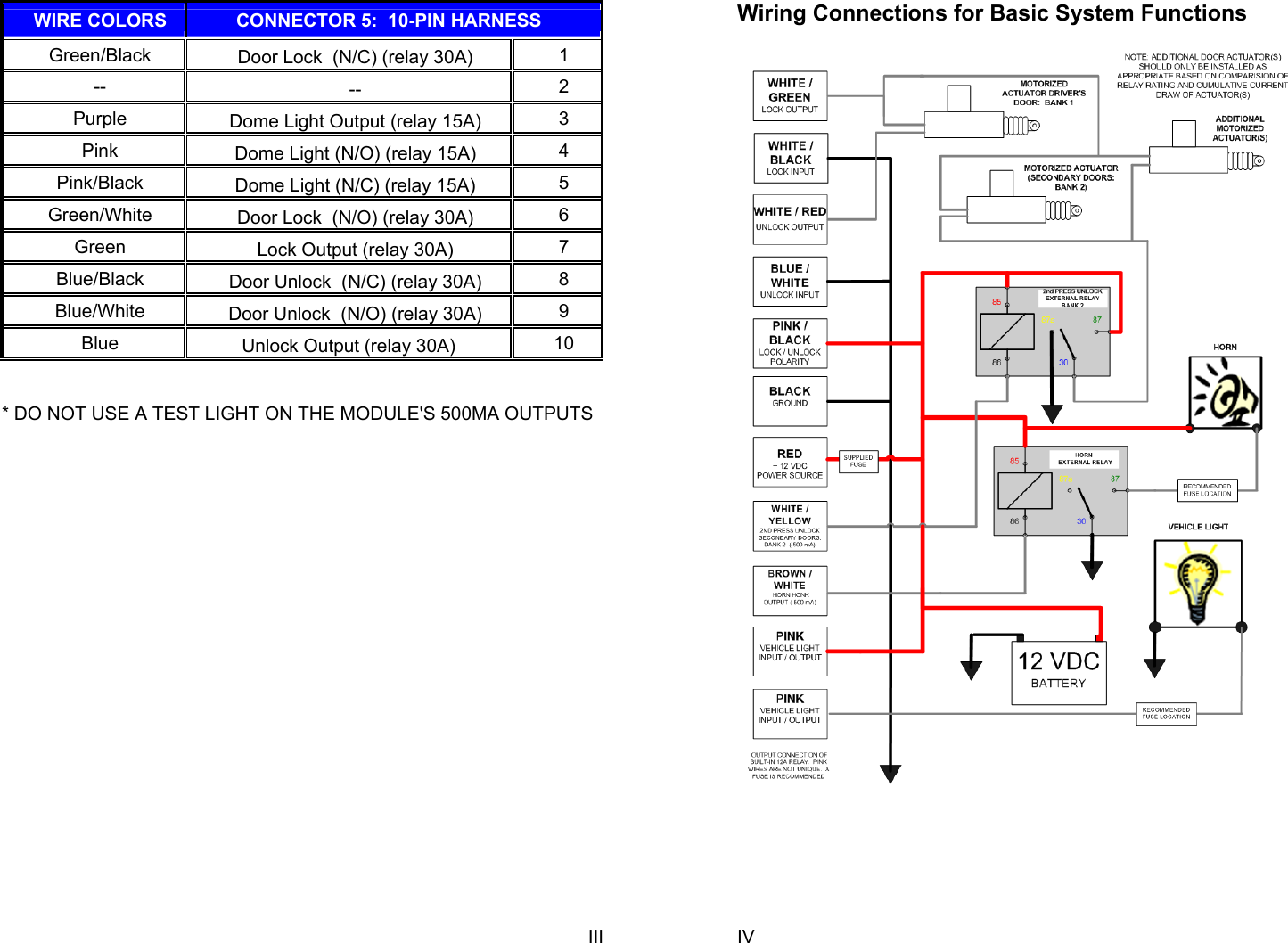

III WIRE COLORS CONNECTOR 5: 10-PIN HARNESS Green/Black Door Lock (N/C) (relay 30A) 1 -- -- 2 Purple Dome Light Output (relay 15A) 3 Pink Dome Light (N/O) (relay 15A) 4 Pink/Black Dome Light (N/C) (relay 15A) 5 Green/White Door Lock (N/O) (relay 30A) 6 Green Lock Output (relay 30A) 7 Blue/Black Door Unlock (N/C) (relay 30A) 8 Blue/White Door Unlock (N/O) (relay 30A) 9 Blue Unlock Output (relay 30A) 10 * DO NOT USE A TEST LIGHT ON THE MODULE'S 500MA OUTPUTS IV Wiring Connections for Basic System Functions
