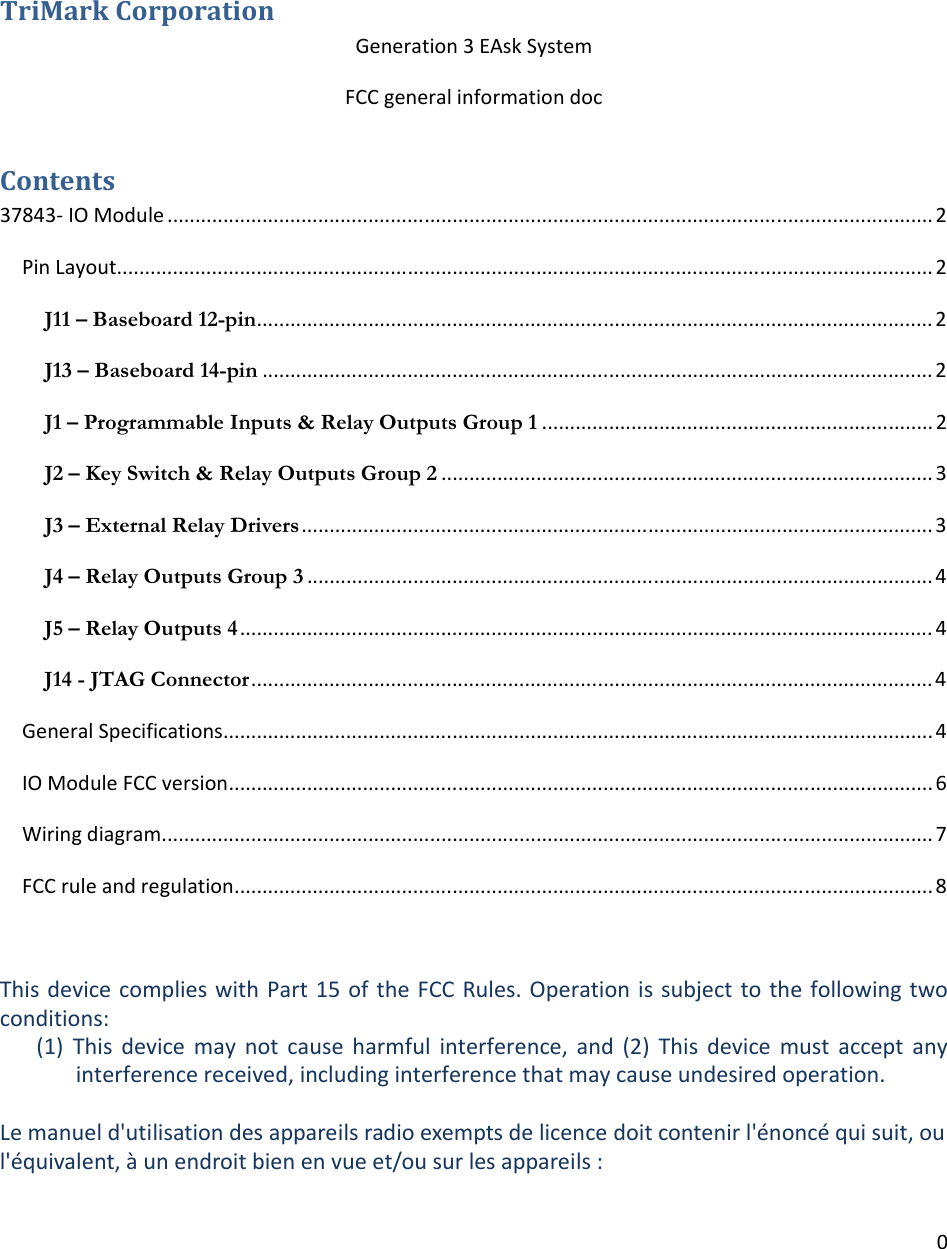

0TriMarkCorporationGeneration3EAskSystemFCCgeneralinformationdocContents37843‐IOModule.........................................................................................................................................2PinLayout..................................................................................................................................................2J11 – Baseboard 12-pin.........................................................................................................................2J13 – Baseboard 14-pin........................................................................................................................2J1 – Programmable Inputs & Relay Outputs Group 1......................................................................2J2 – Key Switch & Relay Outputs Group 2........................................................................................3J3 – External Relay Drivers.................................................................................................................3J4 – Relay Outputs Group 3................................................................................................................4J5 – Relay Outputs 4............................................................................................................................4J14 - JTAG Connector..........................................................................................................................4GeneralSpecifications...............................................................................................................................4IOModuleFCCversion..............................................................................................................................6Wiringdiagram..........................................................................................................................................7FCCruleandregulation.............................................................................................................................8ThisdevicecomplieswithPart15oftheFCCRules.Operationis subjecttothefollowing twoconditions:(1) This device may not cause harmful interference, and (2) This device must accept anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.Lemanueld'utilisationdesappareilsradioexemptsdelicencedoitcontenirl'énoncéquisuit,oul'équivalent,àunendroitbienenvueet/ousurlesappareils:

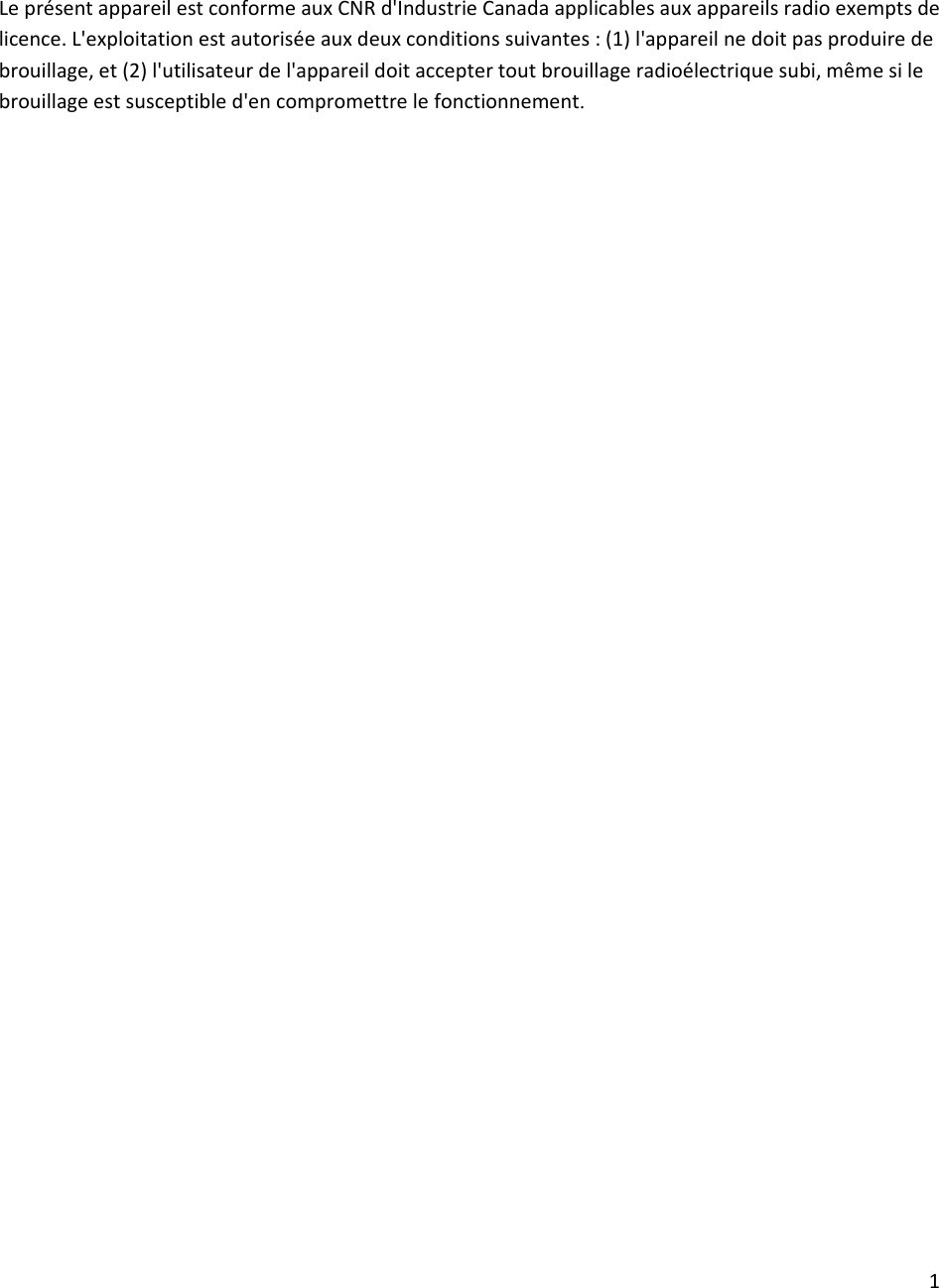

1LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexemptsdelicence.L'exploitationestautoriséeauxdeuxconditionssuivantes:(1)l'appareilnedoitpasproduiredebrouillage,et(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageestsusceptibled'encompromettrelefonctionnement.

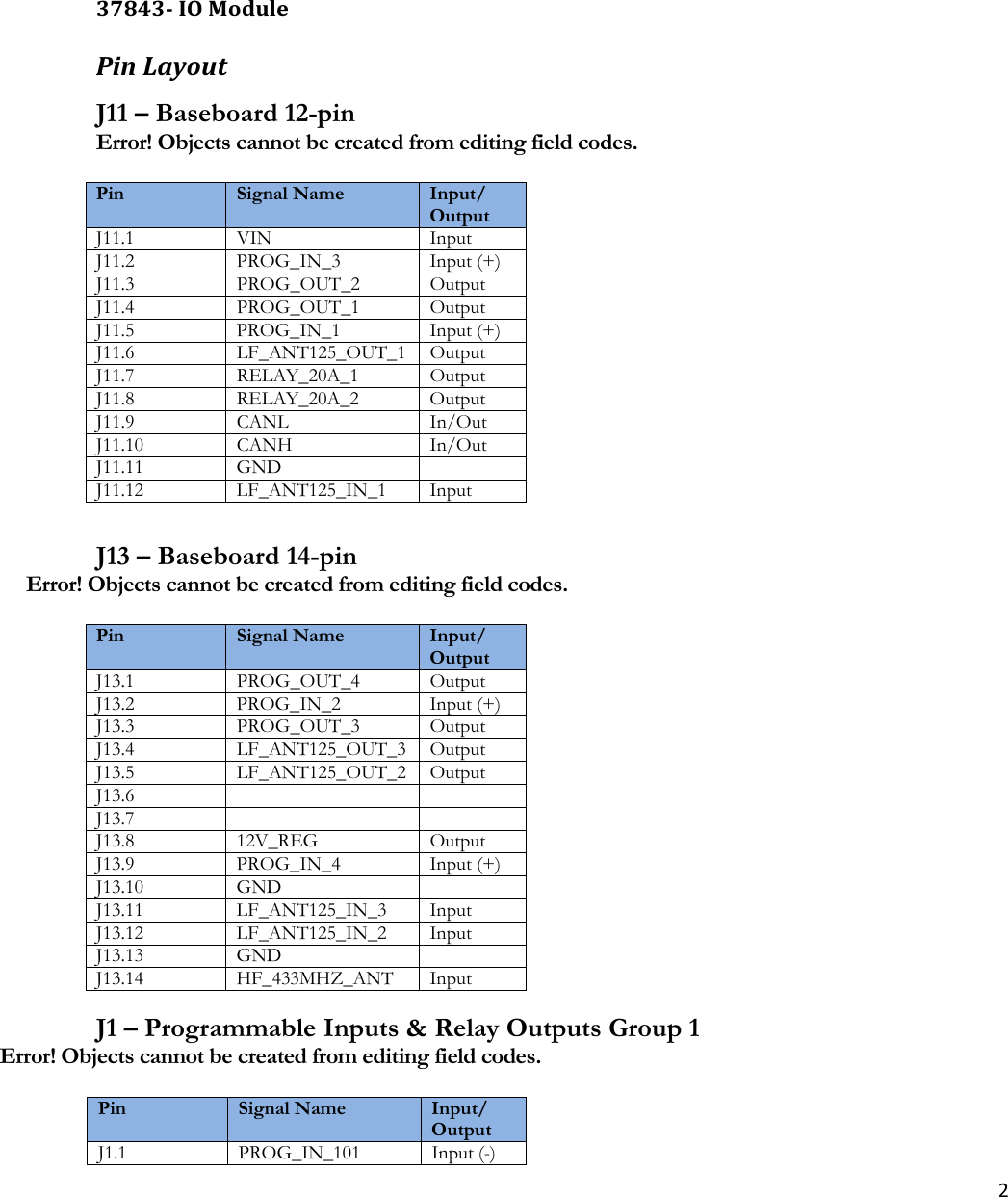

237843‐IOModulePinLayoutJ11 – Baseboard 12-pin Error! Objects cannot be created from editing field codes. Pin Signal Name Input/Output J11.1 VIN InputJ11.2 PROG_IN_3 Input (+)J11.3 PROG_OUT_2 OutputJ11.4 PROG_OUT_1 OutputJ11.5 PROG_IN_1 Input (+)J11.6 LF_ANT125_OUT_1 OutputJ11.7 RELAY_20A_1 OutputJ11.8 RELAY_20A_2 OutputJ11.9 CANL In/OutJ11.10 CANH In/OutJ11.11 GND J11.12 LF_ANT125_IN_1 Input J13 – Baseboard 14-pin Error! Objects cannot be created from editing field codes. Pin Signal Name Input/Output J13.1 PROG_OUT_4 OutputJ13.2 PROG_IN_2 Input (+)J13.3 PROG_OUT_3 OutputJ13.4 LF_ANT125_OUT_3 OutputJ13.5 LF_ANT125_OUT_2 OutputJ13.6 J13.7 J13.8 12V_REG OutputJ13.9 PROG_IN_4 Input (+)J13.10 GND J13.11 LF_ANT125_IN_3 InputJ13.12 LF_ANT125_IN_2 InputJ13.13 GND J13.14 HF_433MHZ_ANT Input J1 – Programmable Inputs & Relay Outputs Group 1 Error! Objects cannot be created from editing field codes. Pin Signal Name Input/ Output J1.1 PROG_IN_101 Input (-)

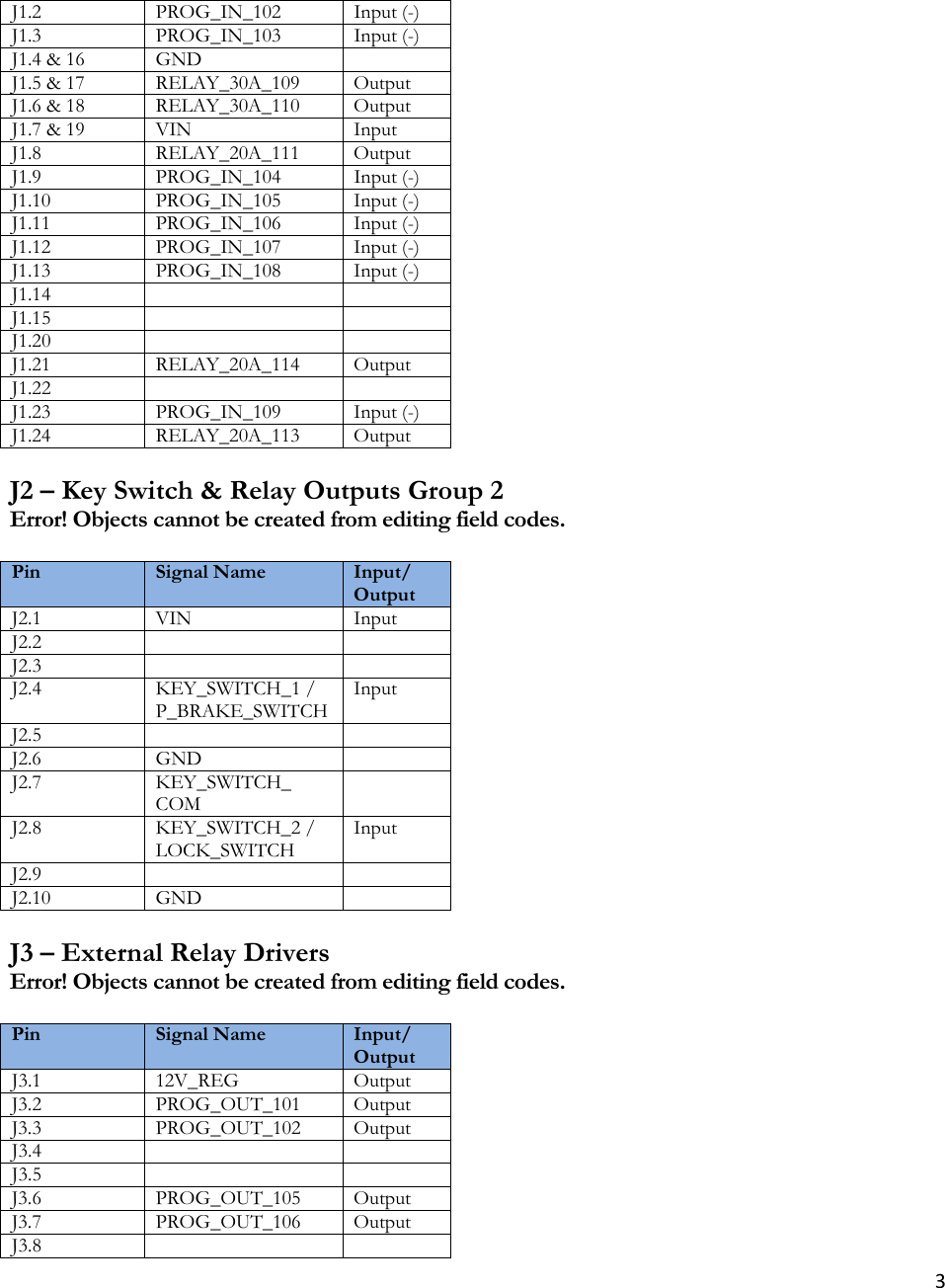

3J1.2 PROG_IN_102 Input(-)J1.3 PROG_IN_103 Input (-)J1.4 & 16 GND J1.5 & 17 RELAY_30A_109 OutputJ1.6 & 18 RELAY_30A_110 OutputJ1.7 & 19 VIN InputJ1.8 RELAY_20A_111 Output J1.9 PROG_IN_104 Input (-)J1.10 PROG_IN_105 Input (-)J1.11 PROG_IN_106 Input (-)J1.12 PROG_IN_107 Input (-)J1.13 PROG_IN_108 Input (-)J1.14 J1.15 J1.20 J1.21 RELAY_20A_114 OutputJ1.22 J1.23 PROG_IN_109 Input (-)J1.24 RELAY_20A_113 Output J2 – Key Switch & Relay Outputs Group 2 Error! Objects cannot be created from editing field codes. Pin Signal Name Input/ Output J2.1 VIN InputJ2.2 J2.3 J2.4 KEY_SWITCH_1 / P_BRAKE_SWITCH InputJ2.5 J2.6 GND J2.7 KEY_SWITCH_ COM J2.8 KEY_SWITCH_2 / LOCK_SWITCH InputJ2.9 J2.10 GND J3 – External Relay Drivers Error! Objects cannot be created from editing field codes. Pin Signal Name Input/Output J3.1 12V_REG OutputJ3.2 PROG_OUT_101 OutputJ3.3 PROG_OUT_102 OutputJ3.4 J3.5 J3.6 PROG_OUT_105 OutputJ3.7 PROG_OUT_106 OutputJ3.8

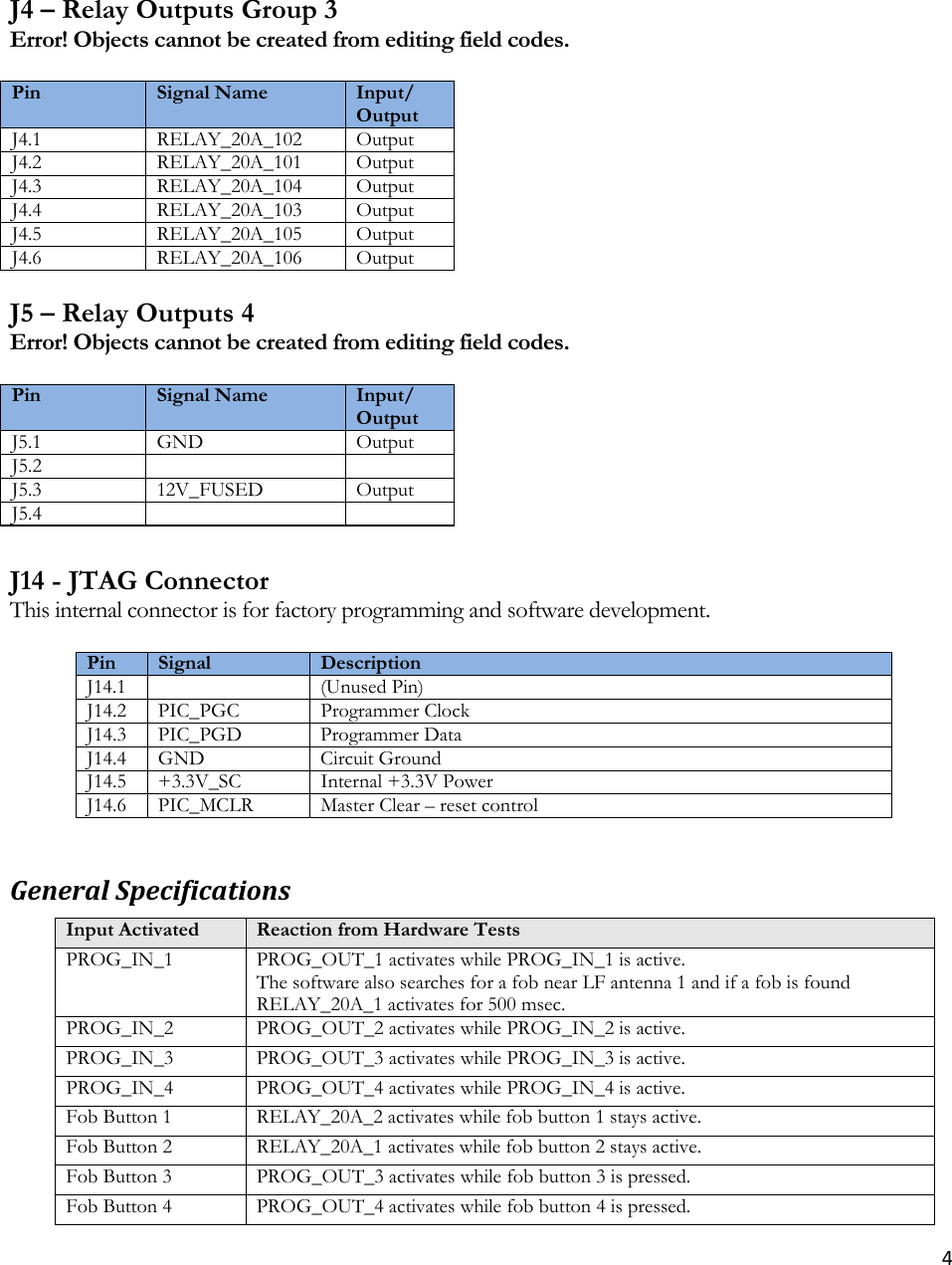

4 J4 – Relay Outputs Group 3 Error! Objects cannot be created from editing field codes. Pin Signal Name Input/Output J4.1 RELAY_20A_102 Output J4.2 RELAY_20A_101 OutputJ4.3 RELAY_20A_104 OutputJ4.4 RELAY_20A_103 OutputJ4.5 RELAY_20A_105 OutputJ4.6 RELAY_20A_106 Output J5 – Relay Outputs 4 Error! Objects cannot be created from editing field codes. Pin Signal Name Input/Output J5.1 GND OutputJ5.2 J5.3 12V_FUSED OutputJ5.4 J14 - JTAG Connector This internal connector is for factory programming and software development. Pin Signal DescriptionJ14.1 (Unused Pin)J14.2 PIC_PGC Programmer ClockJ14.3 PIC_PGD Programmer DataJ14.4 GND Circuit GroundJ14.5 +3.3V_SC Internal +3.3V PowerJ14.6 PIC_MCLR Master Clear –reset controlGeneralSpecificationsInput Activated Reaction from Hardware TestsPROG_IN_1 PROG_OUT_1 activates while PROG_IN_1 is active.The software also searches for a fob near LF antenna 1 and if a fob is found RELAY_20A_1 activates for 500 msec. PROG_IN_2 PROG_OUT_2 activates while PROG_IN_2 is active.PROG_IN_3 PROG_OUT_3 activates while PROG_IN_3 is active.PROG_IN_4 PROG_OUT_4 activates while PROG_IN_4 is active.Fob Button 1 RELAY_20A_2 activates while fob button 1 stays active.Fob Button 2 RELAY_20A_1 activates while fob button 2 stays active.Fob Button 3 PROG_OUT_3 activates while fob button 3 is pressed.Fob Button 4 PROG_OUT_4 activates while fob button 4 is pressed.

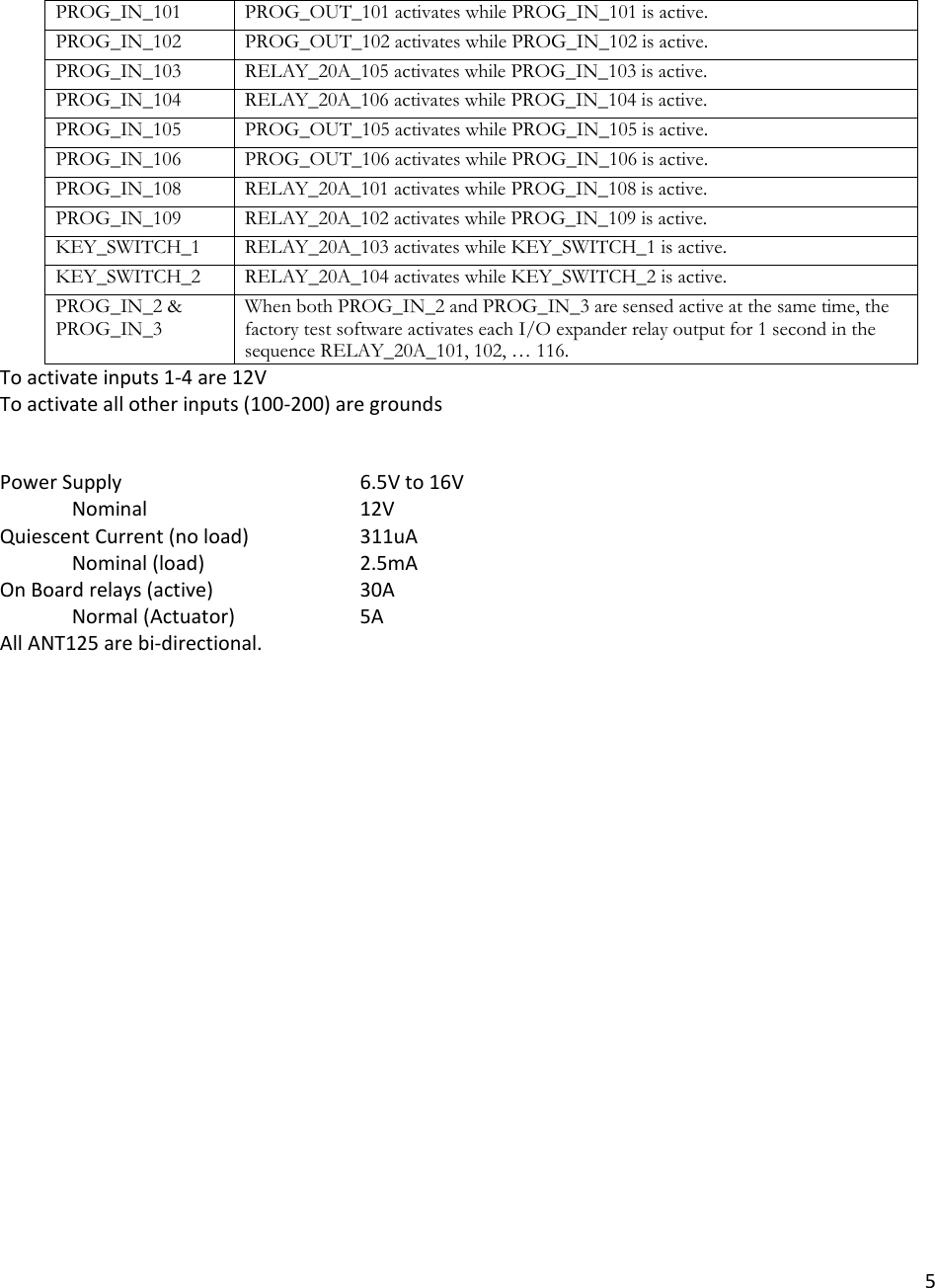

5PROG_IN_101 PROG_OUT_101 activates while PROG_IN_101 is active.PROG_IN_102 PROG_OUT_102 activates while PROG_IN_102 is active.PROG_IN_103 RELAY_20A_105 activates while PROG_IN_103 is active.PROG_IN_104 RELAY_20A_106 activates while PROG_IN_104 is active.PROG_IN_105 PROG_OUT_105 activates while PROG_IN_105 is active.PROG_IN_106 PROG_OUT_106 activates while PROG_IN_106 is active.PROG_IN_108 RELAY_20A_101 activates while PROG_IN_108 is active.PROG_IN_109 RELAY_20A_102 activates while PROG_IN_109 is active.KEY_SWITCH_1 RELAY_20A_103 activates while KEY_SWITCH_1 is active. KEY_SWITCH_2 RELAY_20A_104 activates while KEY_SWITCH_2 is active. PROG_IN_2 & PROG_IN_3 When both PROG_IN_2 and PROG_IN_3 are sensed active at the same time, the factory test software activates each I/O expander relay output for 1 second in the sequence RELAY_20A_101, 102, … 116. Toactivateinputs1‐4are12VToactivateallotherinputs(100‐200)aregroundsPowerSupply    6.5Vto16VNominal12VQuiescentCurrent(noload)  311uA Nominal(load)   2.5mA OnBoardrelays(active)  30A Normal(Actuator)  5AAllANT125arebi‐directional.

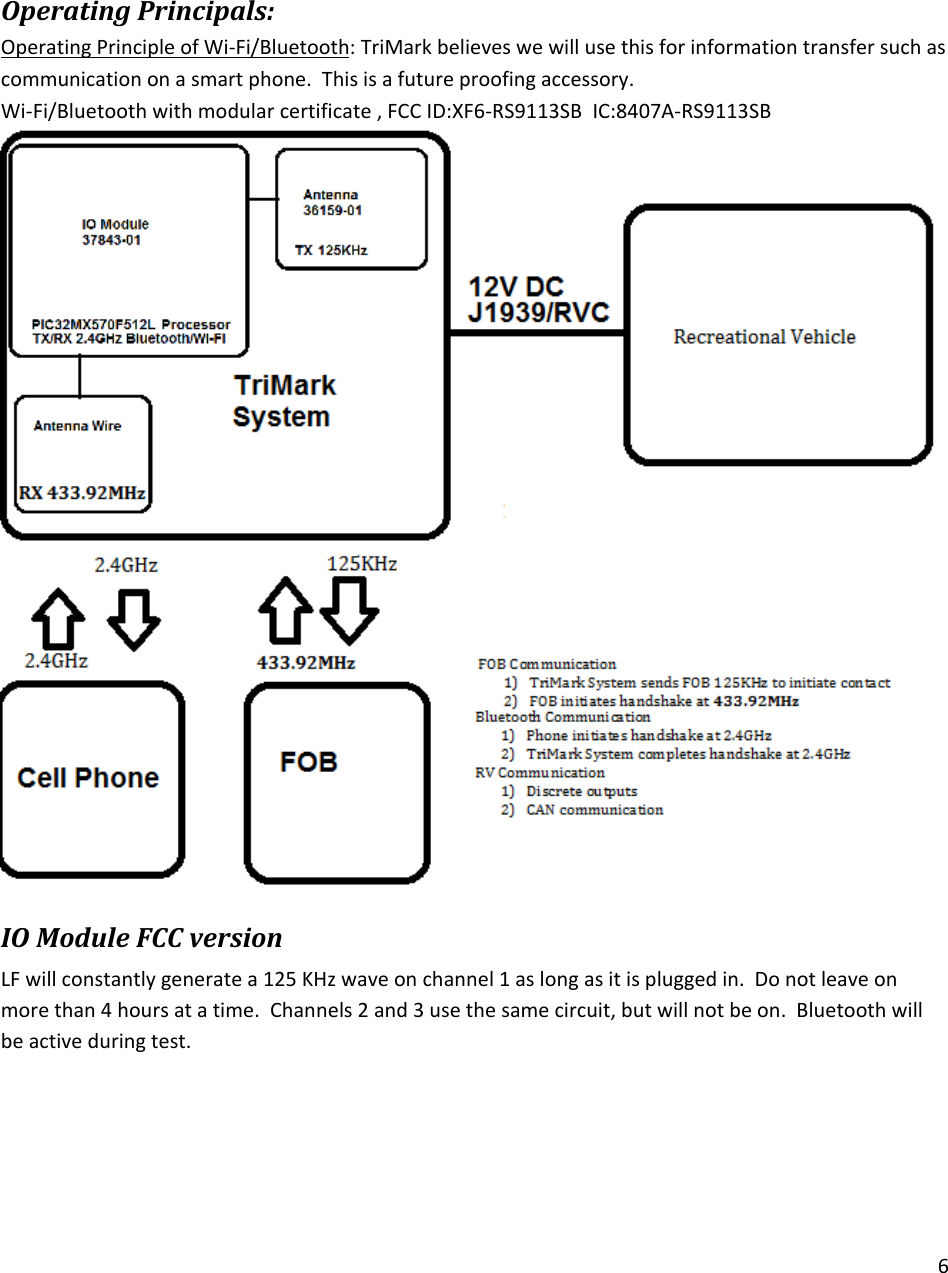

6OperatingPrincipals:OperatingPrincipleofWi‐Fi/Bluetooth:TriMarkbelieveswewillusethisforinformationtransfersuchascommunicationonasmartphone.Thisisafutureproofingaccessory.Wi-Fi/Bluetooth with modular certificate , FCC ID:XF6-RS9113SB IC:8407A-RS9113SBIOModuleFCCversionLFwillconstantlygeneratea125KHzwaveonchannel1aslongasitispluggedin.Donotleaveonmorethan4hoursatatime.Channels2and3usethesamecircuit,butwillnotbeon.Bluetoothwillbeactiveduringtest.

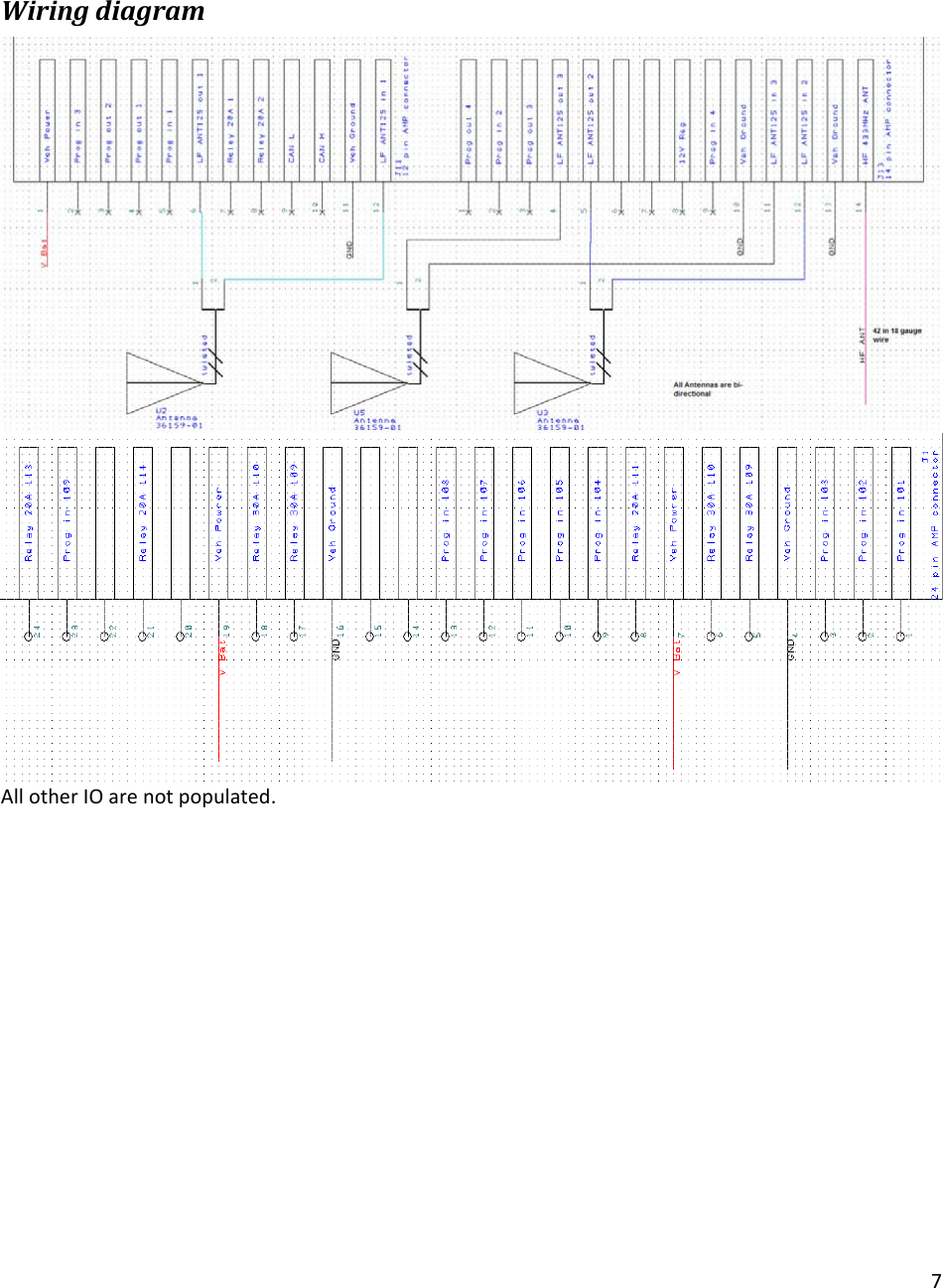

7WiringdiagramAllotherIOarenotpopulated.

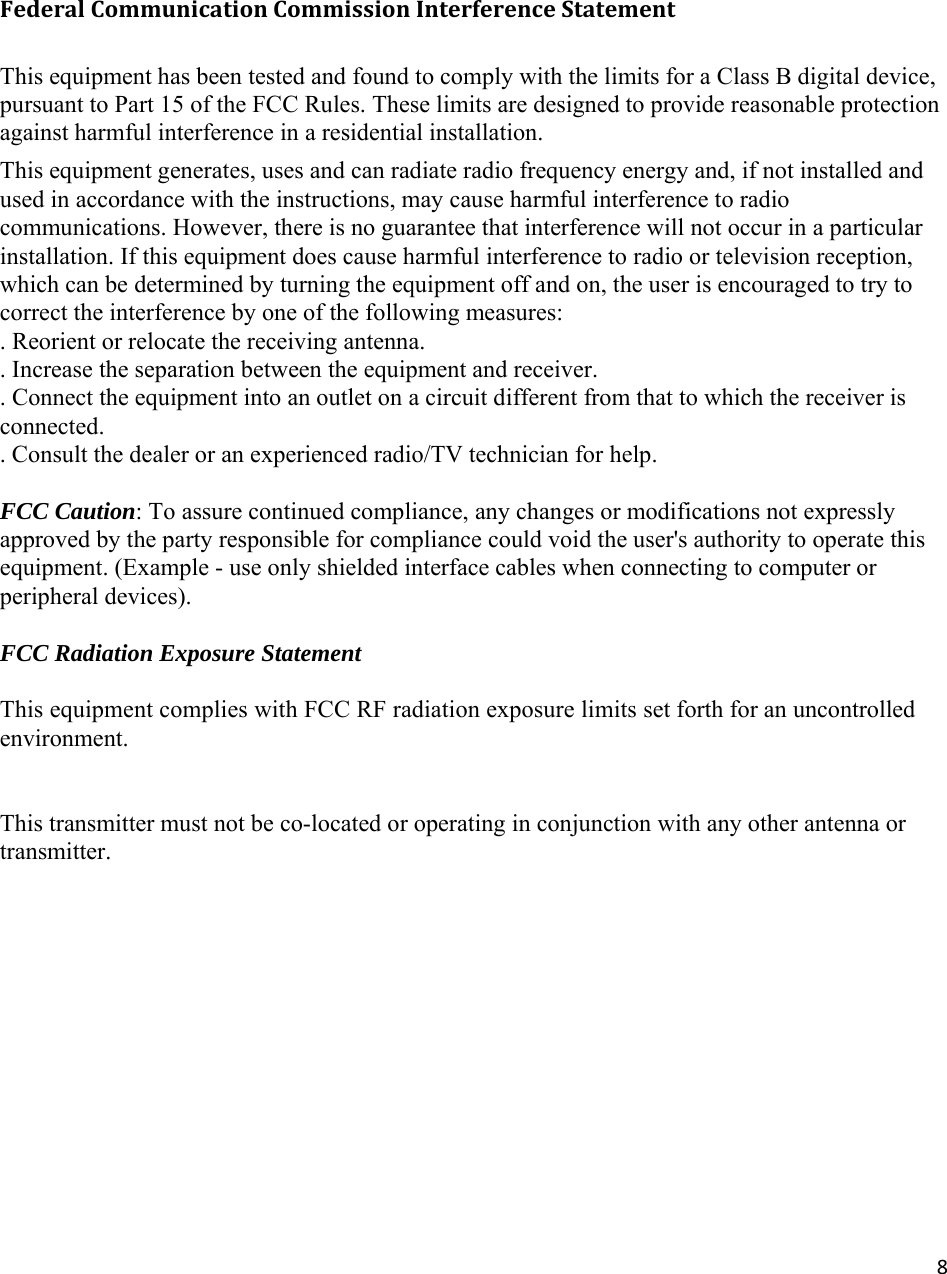

8FederalCommunicationCommissionInterferenceStatementThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

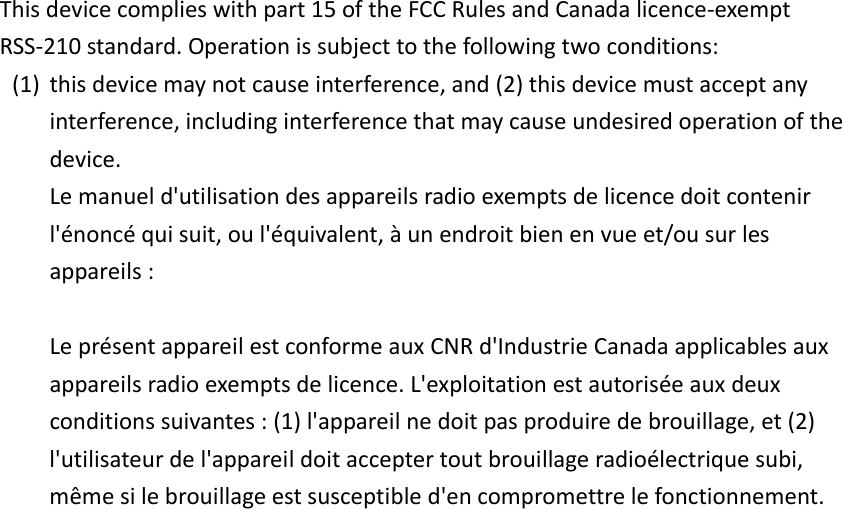

Thisdevicecomplieswithpart15oftheFCCRulesandCanadalicence‐exemptRSS‐210standard.Operationissubjecttothefollowingtwoconditions:(1) thisdevicemaynotcauseinterference,and(2)thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationofthedevice.Lemanueld'utilisationdesappareilsradioexemptsdelicencedoitcontenirl'énoncéquisuit,oul'équivalent,àunendroitbienenvueet/ousurlesappareils:LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexemptsdelicence.L'exploitationestautoriséeauxdeuxconditionssuivantes:(1)l'appareilnedoitpasproduiredebrouillage,et(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageestsusceptibled'encompromettrelefonctionnement.
