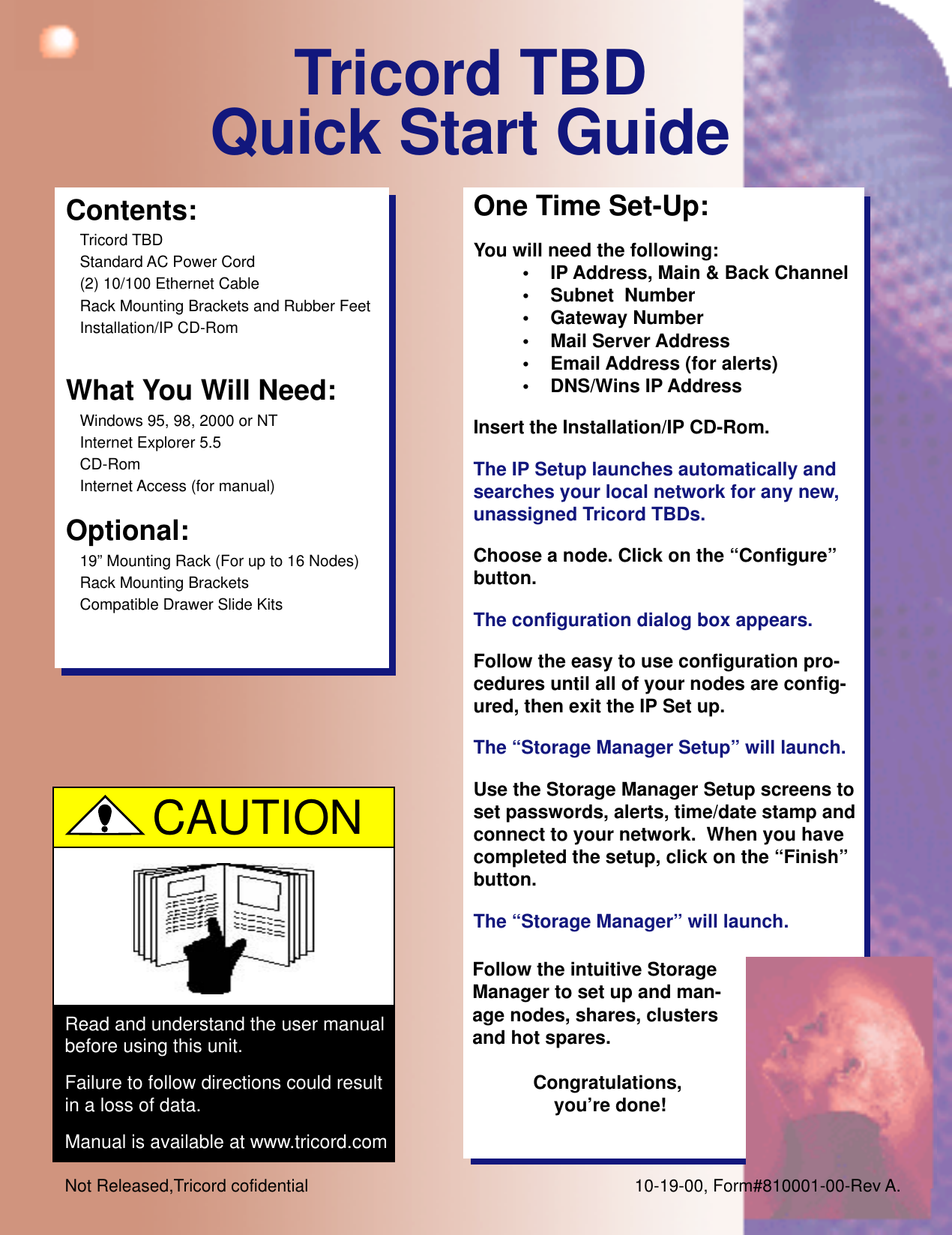

Tricord TBDQuick Start GuideContents:Tricord TBDStandard AC Power Cord(2) 10/100 Ethernet CableRack Mounting Brackets and Rubber FeetInstallation/IP CD-RomWhat You Will Need:Windows 95, 98, 2000 or NTInternet Explorer 5.5CD-RomInternet Access (for manual)Optional:19” Mounting Rack (For up to 16 Nodes)Rack Mounting BracketsCompatible Drawer Slide KitsOne Time Set-Up:You will need the following:• IP Address, Main & Back Channel• Subnet Number• Gateway Number• Mail Server Address• Email Address (for alerts)• DNS/Wins IP AddressInsert the Installation/IP CD-Rom.The IP Setup launches automatically andsearches your local network for any new,unassigned Tricord TBDs.Choose a node. Click on the “Configure”button.The configuration dialog box appears.Follow the easy to use configuration pro-cedures until all of your nodes are config-ured, then exit the IP Set up.The “Storage Manager Setup” will launch.Use the Storage Manager Setup screens toset passwords, alerts, time/date stamp andconnect to your network. When you havecompleted the setup, click on the “Finish”button.The “Storage Manager” will launch.Read and understand the user manualbefore using this unit.Failure to follow directions could resultin a loss of data.Manual is available at www.tricord.comCAUTIONFollow the intuitive StorageManager to set up and man-age nodes, shares, clustersand hot spares.Congratulations, you’re done!Not Released,Tricord cofidential 10-19-00, Form#810001-00-Rev A.

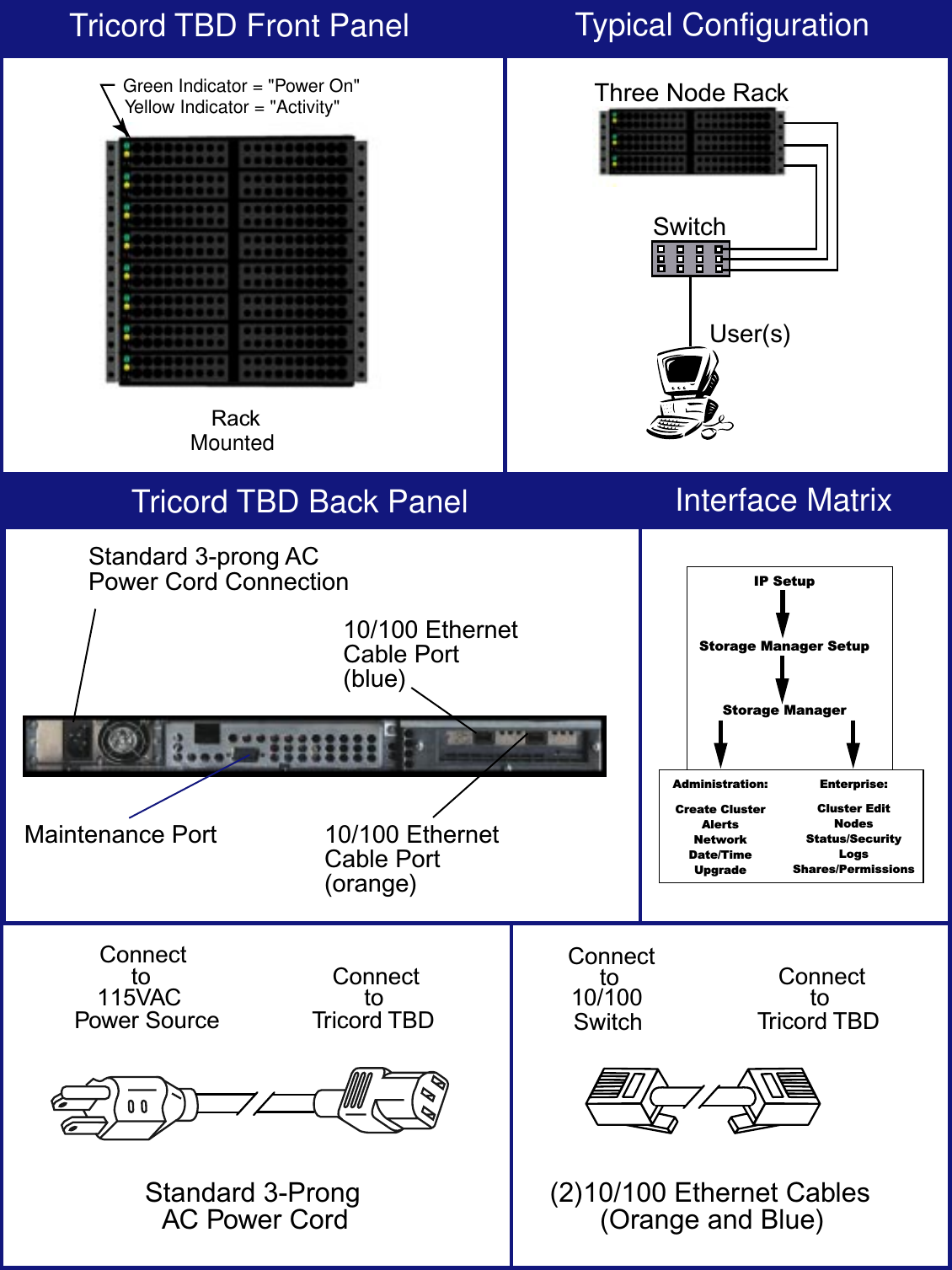

Tricord TBD Back Panel Interface MatrixStandard 3-prong ACPower Cord Connection10/100 EthernetCable Port(orange)10/100 EthernetCable Port(blue)IP SetupStorage Manager SetupStorage ManagerAdministration:Create ClusterAlertsNetworkDate/TimeUpgradeEnterprise:Cluster EditNodesStatus/SecurityLogsShares/PermissionsMaintenance PortConnectTricord TBDStandard 3-ProngAC Power CordPower Source115VACto Connectto 10/100Tricord TBD(2)10/100 Ethernet Cables(Orange and Blue)SwitchConnectto ConnecttoTricord TBD Front Panel Typical ConfigurationMountedGreen Indicator = "Power On"RackYellow Indicator = "Activity"SwitchThree Node RackUser(s)
