Users Manual

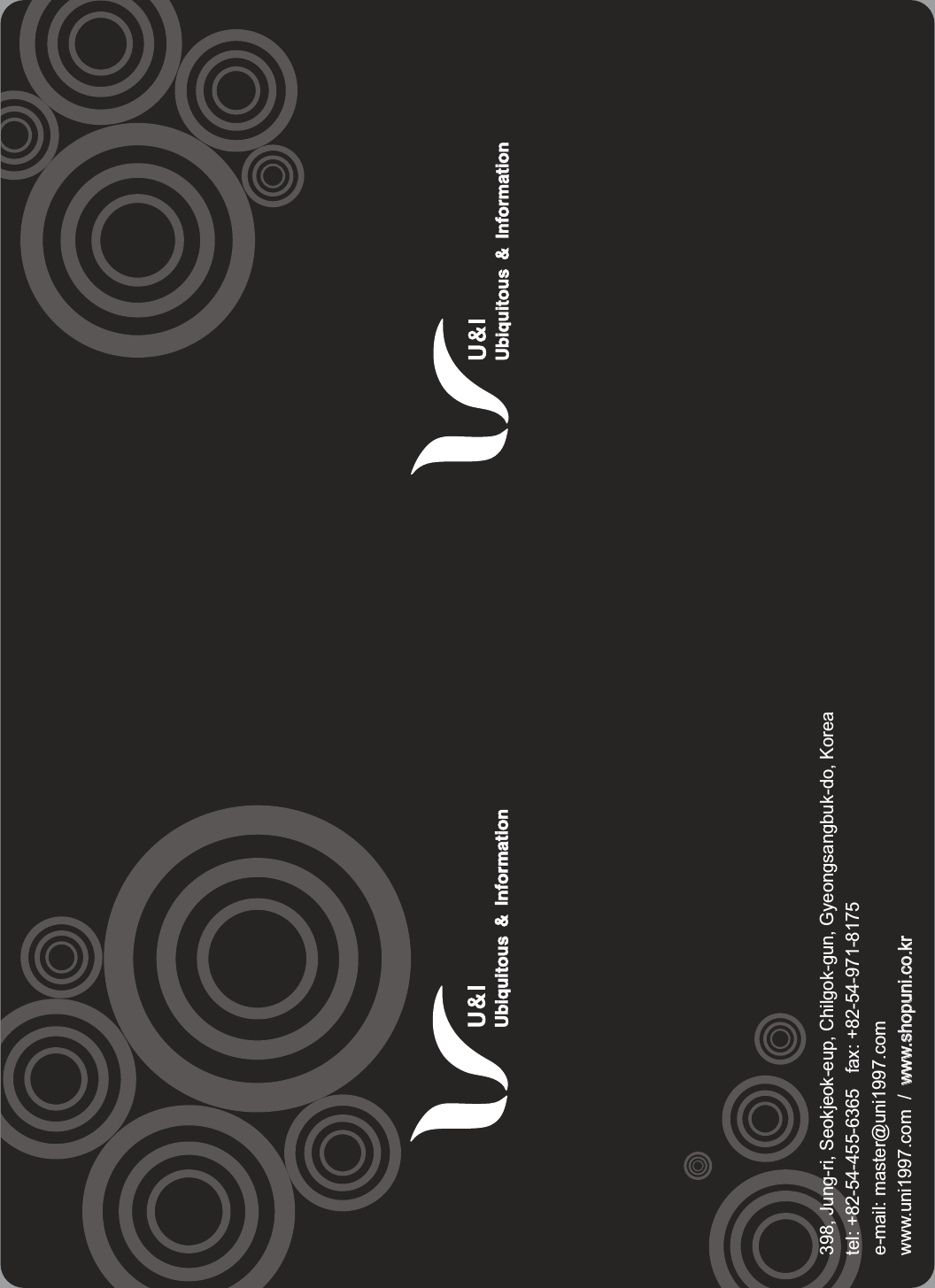

398, Jung-ri, Seokjeok-eup, Chilgok-gun, Gyeongsangbuk-do, Koreatel: +82-54-455-6365 fax: +82-54-971-8175e-mail: master@uni1997.comwww.uni1997.com / www.shopuni.co.kr

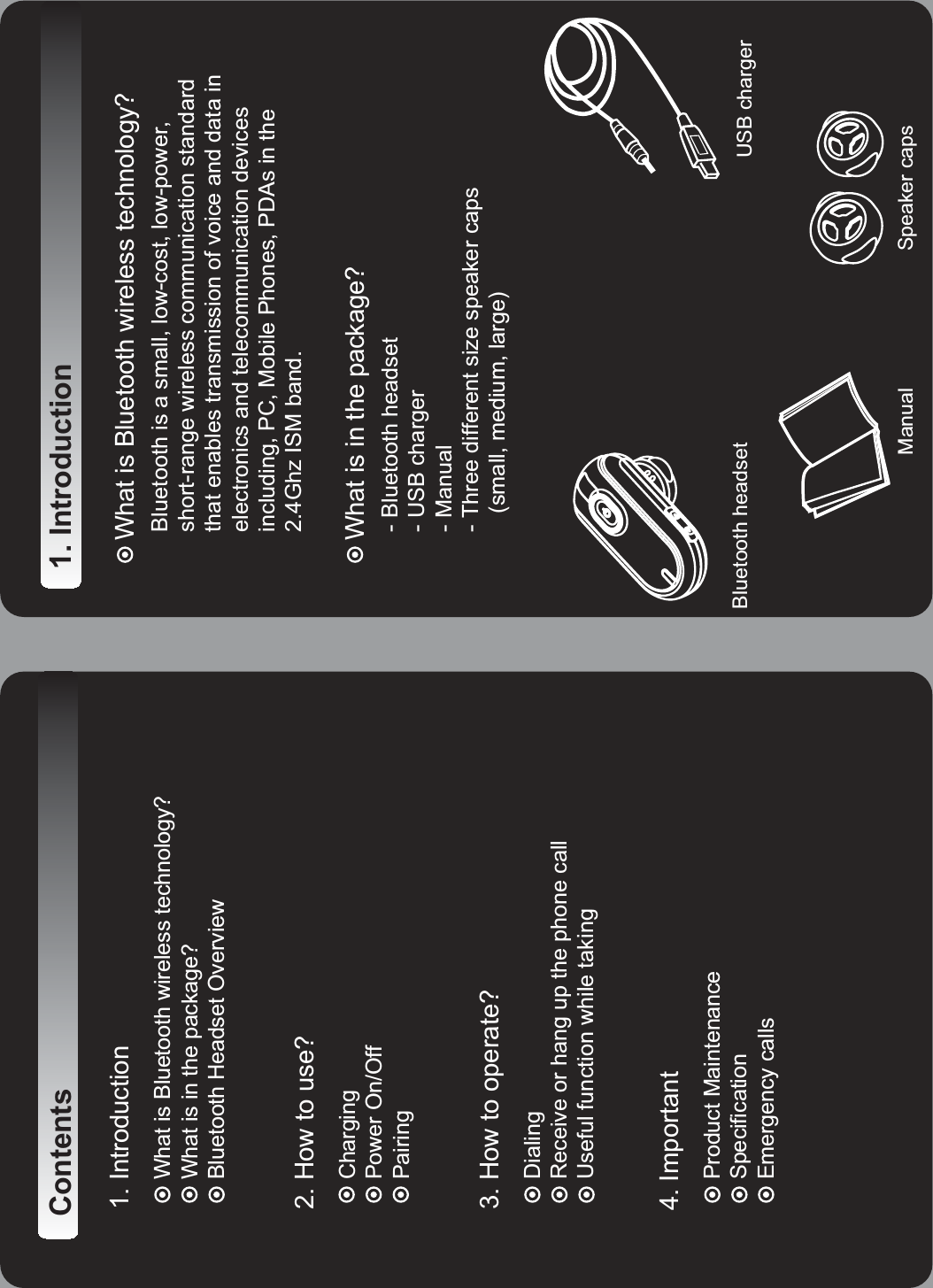

Contents 1. IntroductionWhat is Bluetooth wireless technology?What is in the package?Bluetooth Headset Overview 2. How to use?ChargingPower On/OffPairing 3. How to operate? Dialing Receive or hang up the phone call Useful function while taking4. ImportantProduct MaintenanceSpecificationEmergency calls Manual Speaker capsBluetooth headset USB charger1. IntroductionWhat is Bluetooth wireless technology?Bluetooth is a small, low-cost, low-power,short-range wireless communication standardthat enables transmission of voice and data in electronics and telecommunication devices including, PC, Mobile Phones, PDAs in the 2.4Ghz ISM band.What is in the package?- Bluetooth headset-USBcharger - Manual - Three different size speaker caps (small, medium, large)

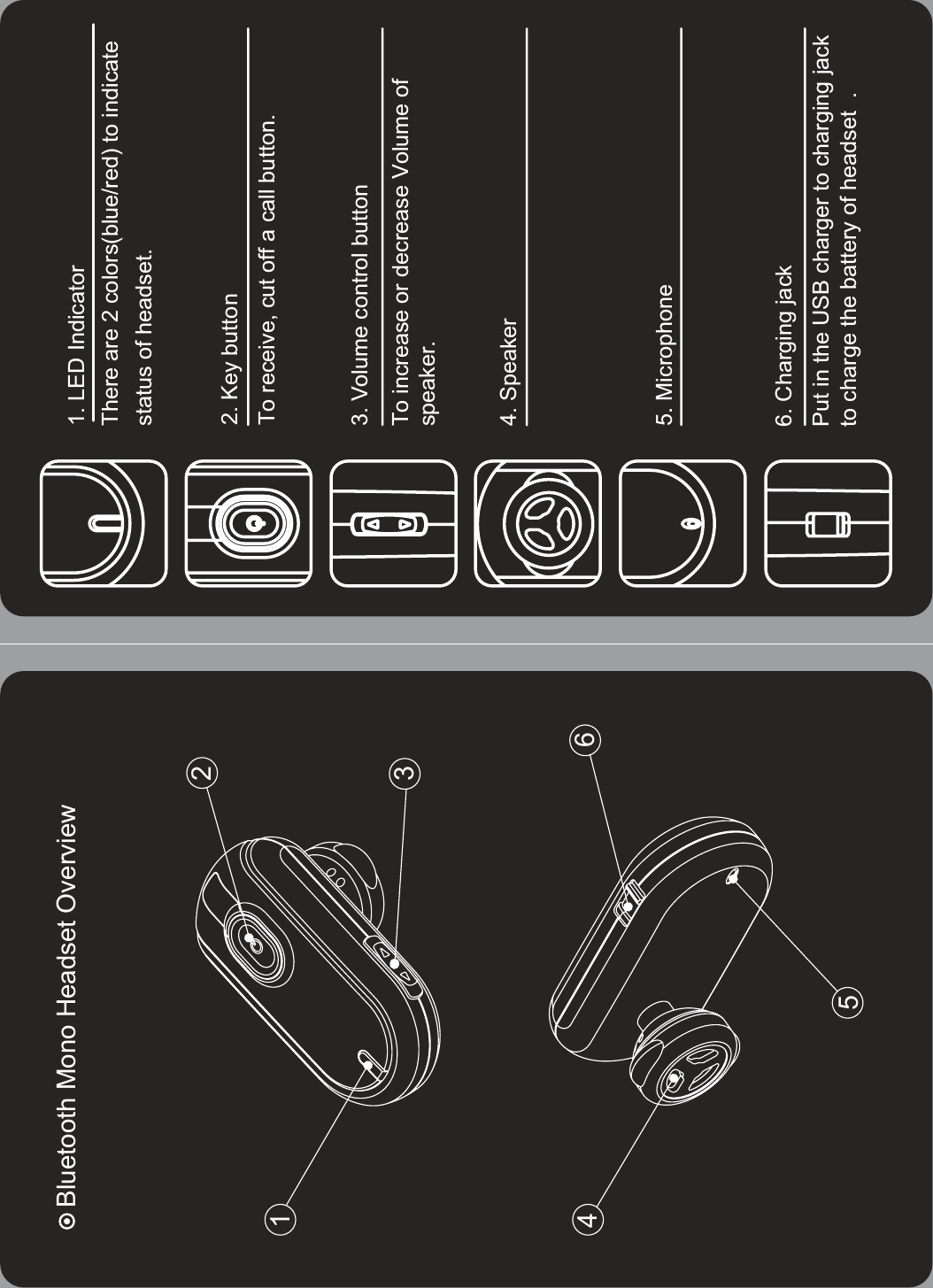

Bluetooth Mono Headset Overview2365141. LED IndicatorThere are 2 colors(blue/red) to indicate status of headset.3. Volume control buttonTo increase or decrease Volume of speaker.2. Key buttonTo receive, cut off a call button. 5. Microphone4. Speaker6. Charging jackPut in the USB charger to charging jack to charge the battery of headset .

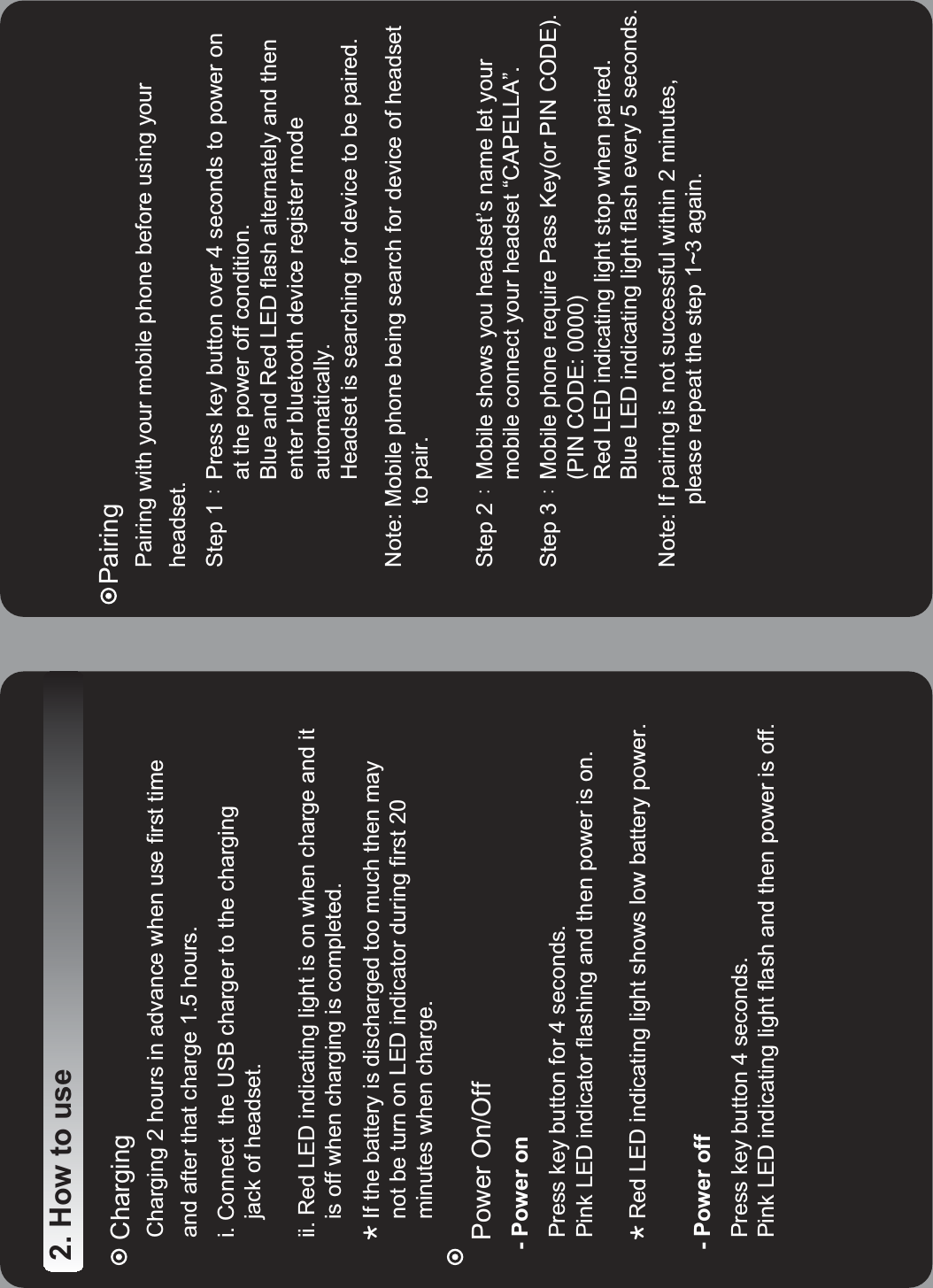

2. How to use Charging Charging 2 hours in advance when use first time and after that charge 1.5 hours. i. Connect the USB charger to the charging jack of headset. ii. Red LED indicating light is on when charge and it is off when charging is completed. If the battery is discharged too much then may not be turn on LED indicator during first 20 minutes when charge. Power On/Off- Power on Press key button for 4 seconds. Pink LED indicator flashing and then power is on. Red LED indicating light shows low battery power.- Power off Press key button 4 seconds. Pink LED indicating light flash and then power is off.QQ Pairing Pairing with your mobile phone before using your headset. Step 1ஔPress key button over 4 seconds to power on at the power off condition. Blue and Red LED flash alternately and then enter bluetooth device register mode automatically. Headset is searching for device to be paired. Note: Mobile phone being search for device of headset to pair. Step 2ஔMobile shows you headset’s name let your mobile connect your headset “CAPELLA”. Step 3ஔMobile phone require Pass Key(or PIN CODE). (PIN CODE: 0000) Red LED indicating light stop when paired. Blue LED indicating light flash every 5 seconds. Note: If pairing is not successful within 2 minutes, please repeat the step 1~3 again.

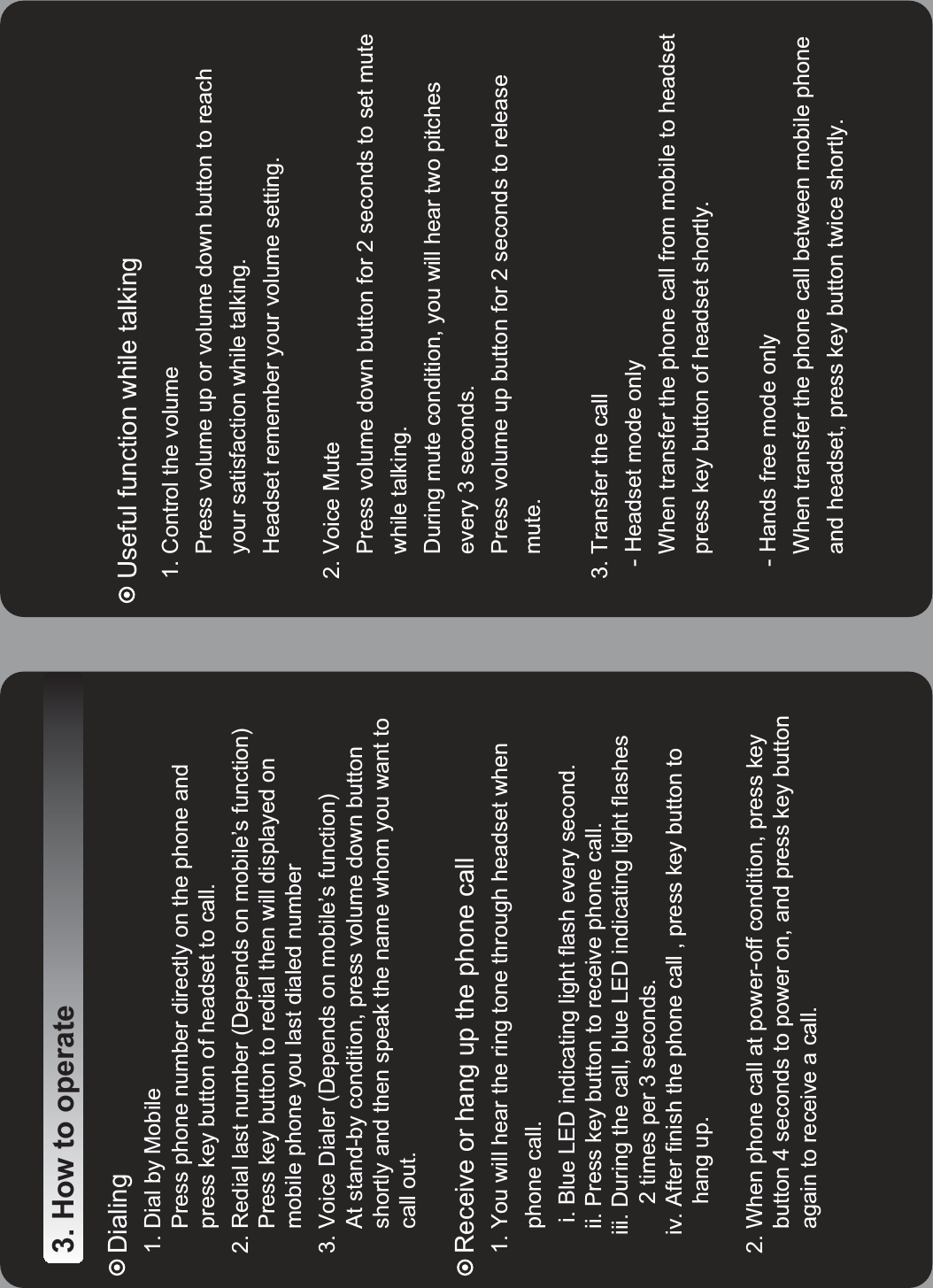

Useful function while talking1. Control the volume Press volume up or volume down button to reach your satisfaction while talking. Headset remember your volume setting.2. Voice Mute Press volume down button for 2 seconds to set mute while talking. During mute condition, you will hear two pitches every 3 seconds. Press volume up button for 2 seconds to release mute.3. Transfer the call - Headset mode only When transfer the phone call from mobile to headset press key button of headset shortly. - Hands free mode only When transfer the phone call between mobile phone and headset, press key button twice shortly.3. How to operateDialing1. Dial by Mobile Press phone number directly on the phone and press key button of headset to call.2. Redial last number (Depends on mobile’s function) Press key button to redial then will displayed on mobile phone you last dialed number3. Voice Dialer (Depends on mobile’s function) At stand-by condition, press volume down button shortly and then speak the name whom you want to call out.Receive or hang up the phone call1. You will hear the ring tone through headset when phone call. i. Blue LED indicating light flash every second. ii. Press key button to receive phone call. iii. During the call, blue LED indicating light flashes 2 times per 3 seconds. iv. After finish the phone call , press key button to hang up.2. When phone call at power-off condition, press key button 4 seconds to power on, and press key button again to receive a call.

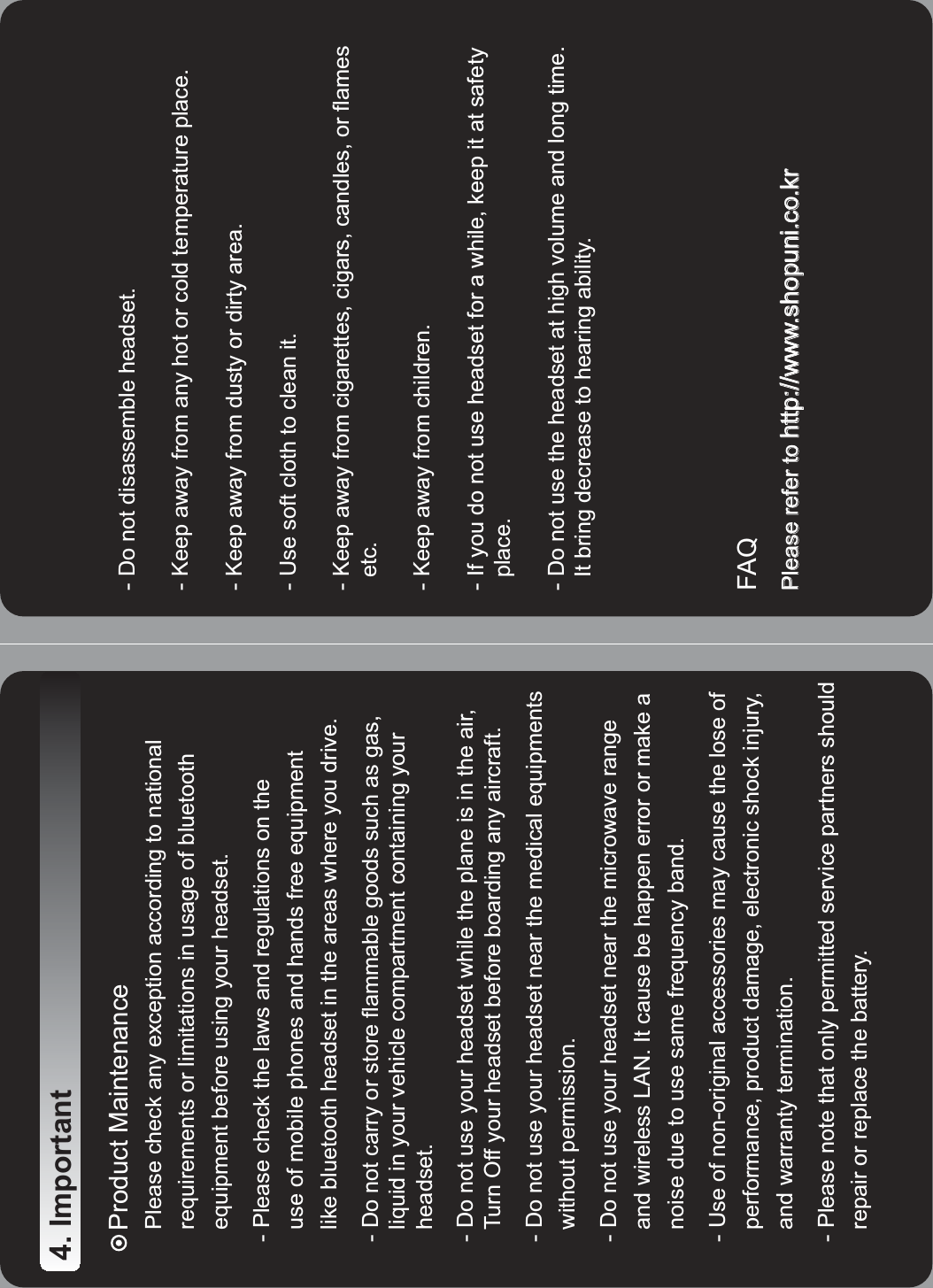

- Do not disassemble headset.- Keep away from any hot or cold temperature place.- Keep away from dusty or dirty area. - Use soft cloth to clean it.- Keep away from cigarettes, cigars, candles, or flames etc.- Keep away from children.- If you do not use headset for a while, keep it at safety place.- Do not use the headset at high volume and long time. It bring decrease to hearing ability.FAQPlease refer to http://www.shopuni.co.kr4. ImportantProduct Maintenance Please check any exception according to national requirements or limitations in usage of bluetooth equipment before using your headset. - Please check the laws and regulations on the use of mobile phones and hands free equipment like bluetooth headset in the areas where you drive. - Do not carry or store flammable goods such as gas, liquid in your vehicle compartment containing your headset. - Do not use your headset while the plane is in the air,Turn Off your headset before boarding any aircraft. - Do not use your headset near the medical equipments without permission. - Do not use your headset near the microwave range and wireless LAN. It cause be happen error or make a noise due to use same frequency band. - Use of non-original accessories may cause the lose of performance, product damage, electronic shock injury, and warranty termination. - Please note that only permitted service partners should repair or replace the battery.
