UniKit Electronics UX300 LOW POWER BROADCAST FM User Manual UX300 Instruction Manual USA

UniKit Electronics Corporation LOW POWER BROADCAST FM UX300 Instruction Manual USA

USERS MANUAL

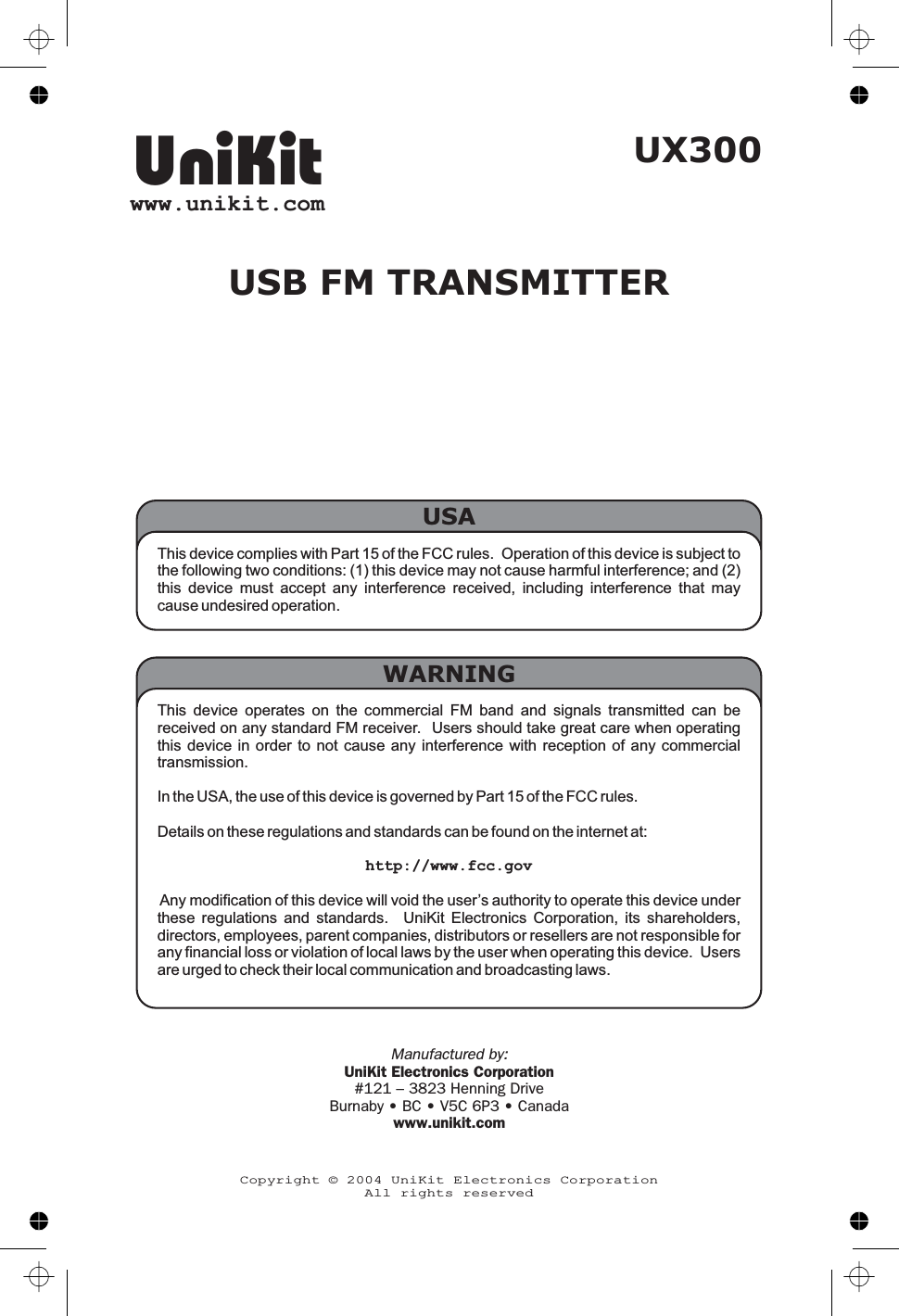

This device complies with Part 15 of the FCC rules. Operation of this device is subject tothe following two conditions: (1) this device may not cause harmful interference; and (2)this device must accept any interference received, including interference that maycause undesired operation.USAUX300USB FM TRANSMITTERThis device operates on the commercial FM band and signals transmitted can bereceived on any standard FM receiver. Users should take great care when operatingthis device in order to not cause any interference with reception of any commercialtransmission.In the USA, the use of this device is governed by Part 15 of the FCC rules.Details on these regulations and standards can be found on the internet at:http://www.fcc.govAny modification of this device will void the user’s authority to operate this device underthese regulations and standards. UniKit Electronics Corporation, its shareholders,directors, employees, parent companies, distributors or resellers are not responsible forany financial loss or violation of local laws by the user when operating this device. Usersare urged to check their local communication and broadcasting laws.WARNINGUniKitwww.unikit.comCopyright © 2004 UniKit Electronics CorporationAll rights reservedManufactured by:UniKit Electronics Corporation#121 – 3823 Henning DriveBurnaby • BC • V5C 6P3 • Canadawww.unikit.com

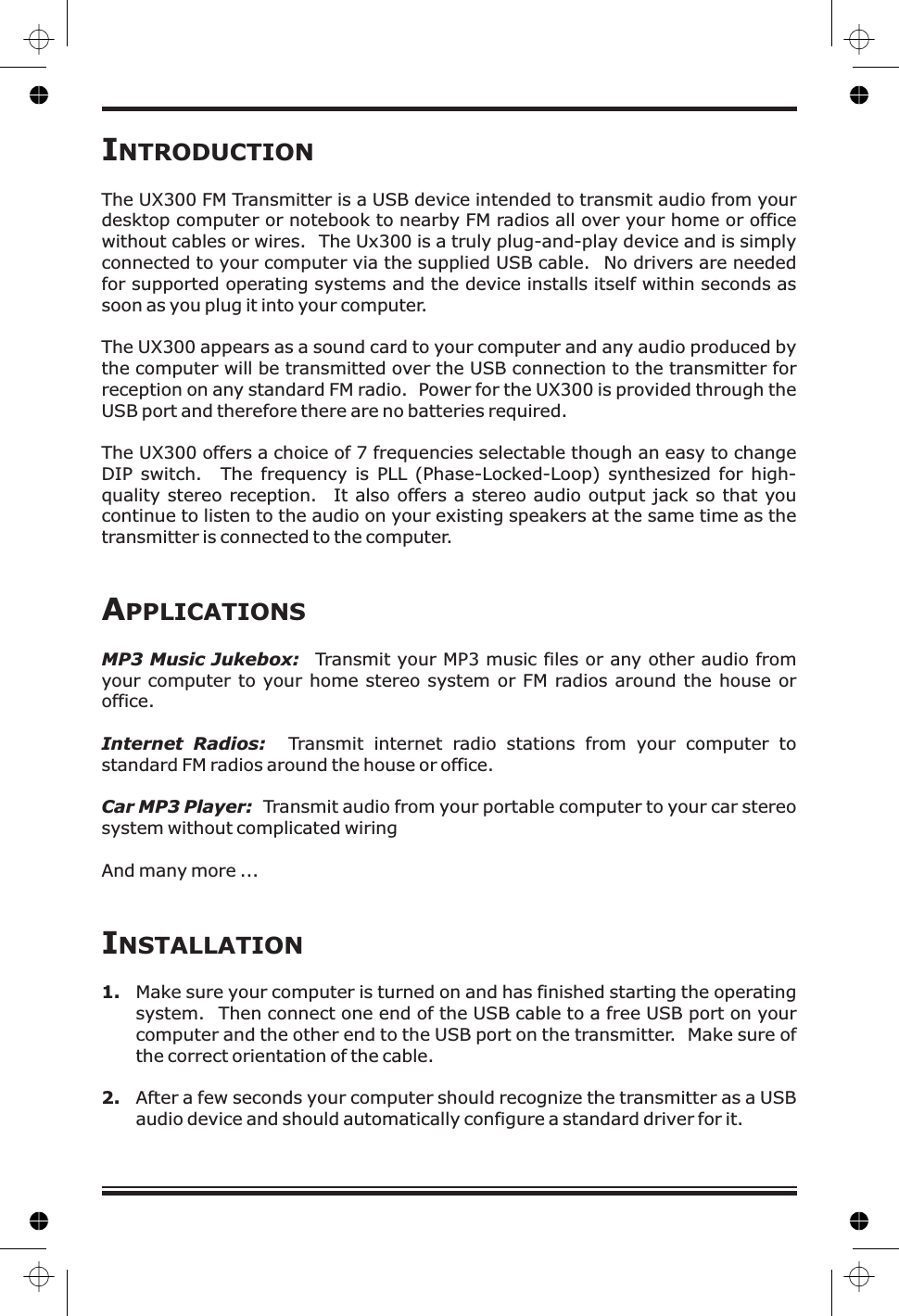

IINTRODUCTIONNSTALLATIONThe UX300 FM Transmitter is a USB device intended to transmit audio from yourdesktop computer or notebook to nearby FM radios all over your home or officewithout cables or wires.The UX300 appears as a sound card to your computer and any audio produced bythe computer will be transmitted over the USB connection to the transmitter forreception on any standard FM radio. Power for the UX300 is provided through theUSB port and therefore there are no batteries required.The UX300 offers a choice of 7 frequencies selectable though an easy to changeDIP switch. The frequency is PLL (Phase-Locked-Loop) synthesized for high-quality stereo reception. It also offers a stereo audio output jack so that youcontinue to listen to the audio on your existing speakers at the same time as thetransmitter is connected to the computer.Make sure your computer is turned on and has finished starting the operatingsystem. Then connect one end of the USB cable to a free USB port on yourcomputer and the other end to the USB port on the transmitter. Make sure ofthe correct orientation of the cable.The Ux300 is a truly plug-and-play device and is simplyconnected to your computer via the supplied USB cable. No drivers are neededfor supported operating systems and the device installs itself within seconds assoon as you plug it into your computer.Transmit your MP3 music files or any other audio fromyour computer to your home stereo system or FM radios around the house oroffice.Transmit internet radio stations from your computer tostandard FM radios around the house or office.Transmit audio from your portable computer to your car stereosystem without complicated wiringAnd many more ...After a few seconds your computer should recognize the transmitter as a USBaudio device and should automatically configure a standard driver for it.APPLICATIONSMP3 Music Jukebox:Internet Radios:Car MP3 Player:1.2.

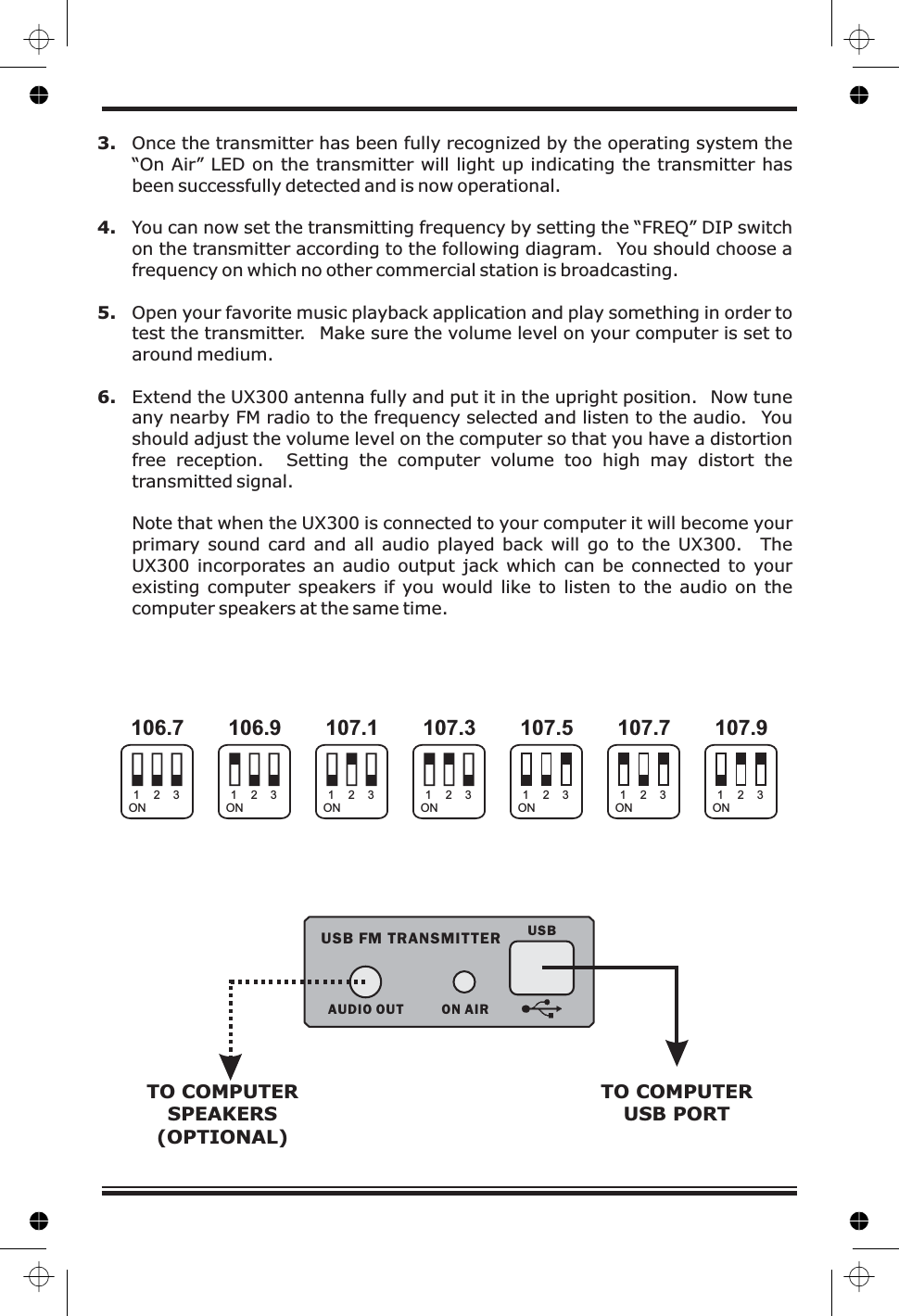

3.4.5.6.Once the transmitter has been fully recognized by the operating system the“On Air” LED on the transmitter will light up indicating the transmitter hasbeen successfully detected and is now operational.You can now set the transmitting frequency by setting the “FREQ” DIP switchon the transmitter according to the following diagram. You should choose afrequency on which no other commercial station is broadcasting.Open your favorite music playback application and play something in order totest the transmitter. Make sure the volume level on your computer is set toaround medium.Extend the UX300 antenna fully and put it in the upright position. Now tuneany nearby FM radio to the frequency selected and listen to the audio. Youshould adjust the volume level on the computer so that you have a distortionfree reception. Setting the computer volume too high may distort thetransmitted signal.Note that when the UX300 is connected to your computer it will become yourprimary sound card and all audio played back will go to the UX300. TheUX300 incorporates an audio output jack which can be connected to yourexisting computer speakers if you would like to listen to the audio on thecomputer speakers at the same time.106.7 106.9 107.1 107.3 107.9107.7107.5ON ON ON ON ONONON1111 1112222 2223333 333ON AIRUSBAUDIO OUTUSB FM TRANSMITTERTO COMPUTERUSB PORTTO COMPUTERSPEAKERS(OPTIONAL)

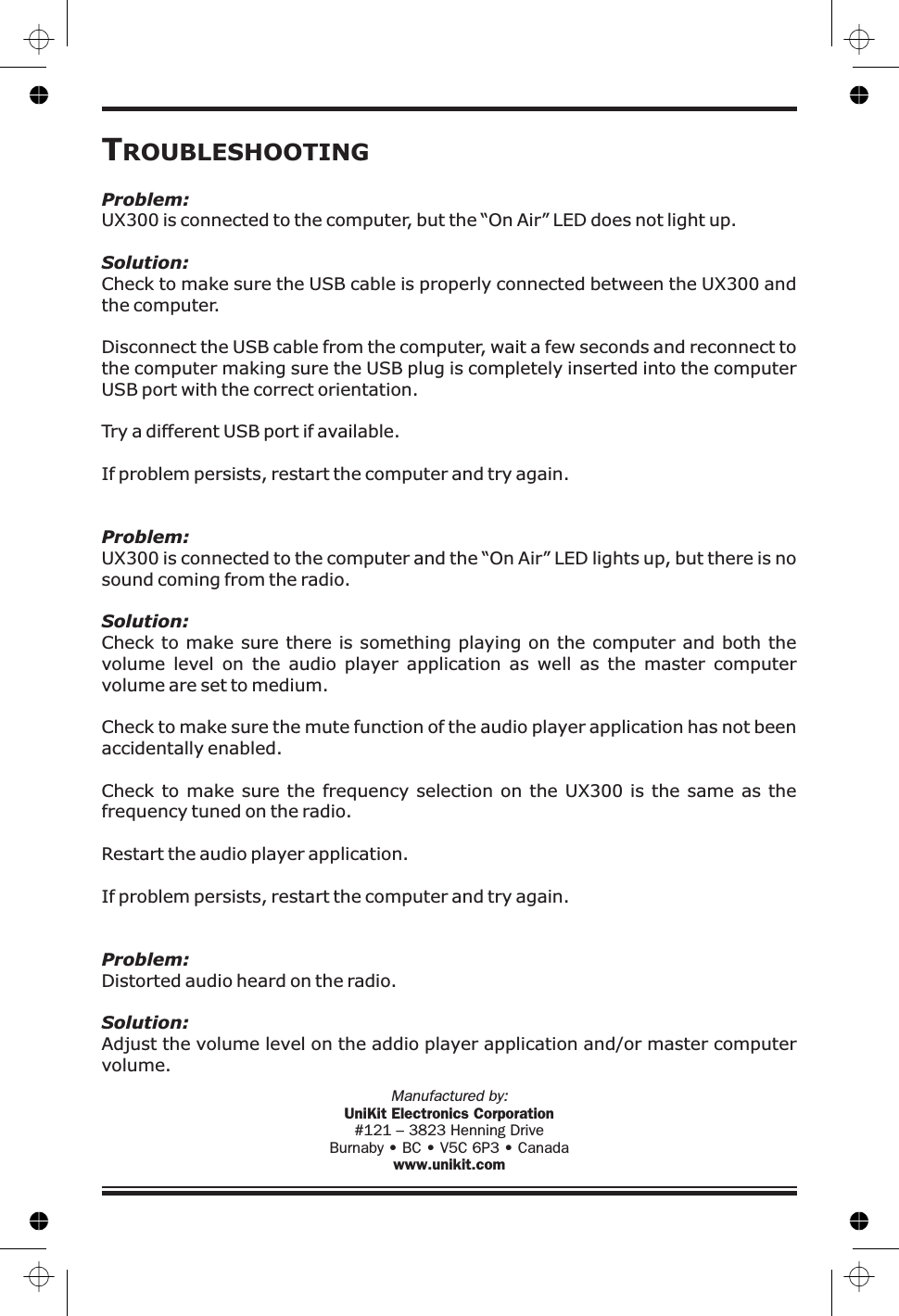

TROUBLESHOOTINGProblem:Solution:Problem:Solution:Problem:Solution:UX300 is connected to the computer, but the “On Air” LED does not light up.Check to make sure the USB cable is properly connected between the UX300 andthe computer.Disconnect the USB cable from the computer, wait a few seconds and reconnect tothe computer making sure the USB plug is completely inserted into the computerUSB port with the correct orientation.Try a different USB port if available.If problem persists, restart the computer and try again.UX300 is connected to the computer and the “On Air” LED lights up, but there is nosound coming from the radio.Check to make sure there is something playing on the computer and both thevolume level on the audio player application as well as the master computervolume are set to medium.Check to make sure the mute function of the audio player application has not beenaccidentally enabled.Check to make sure the frequency selection on the UX300 is the same as thefrequency tuned on the radio.Restart the audio player application.If problem persists, restart the computer and try again.Distorted audio heard on the radio.Adjust the volume level on the addio player application and/or master computervolume.Manufactured by:UniKit Electronics Corporation#121 – 3823 Henning DriveBurnaby • BC • V5C 6P3 • Canadawww.unikit.com
