Unigen UGWM1USHN33A WIRELESS USB User Manual USBWM1US v091

Unigen Corporation WIRELESS USB USBWM1US v091

USERS MANUAL

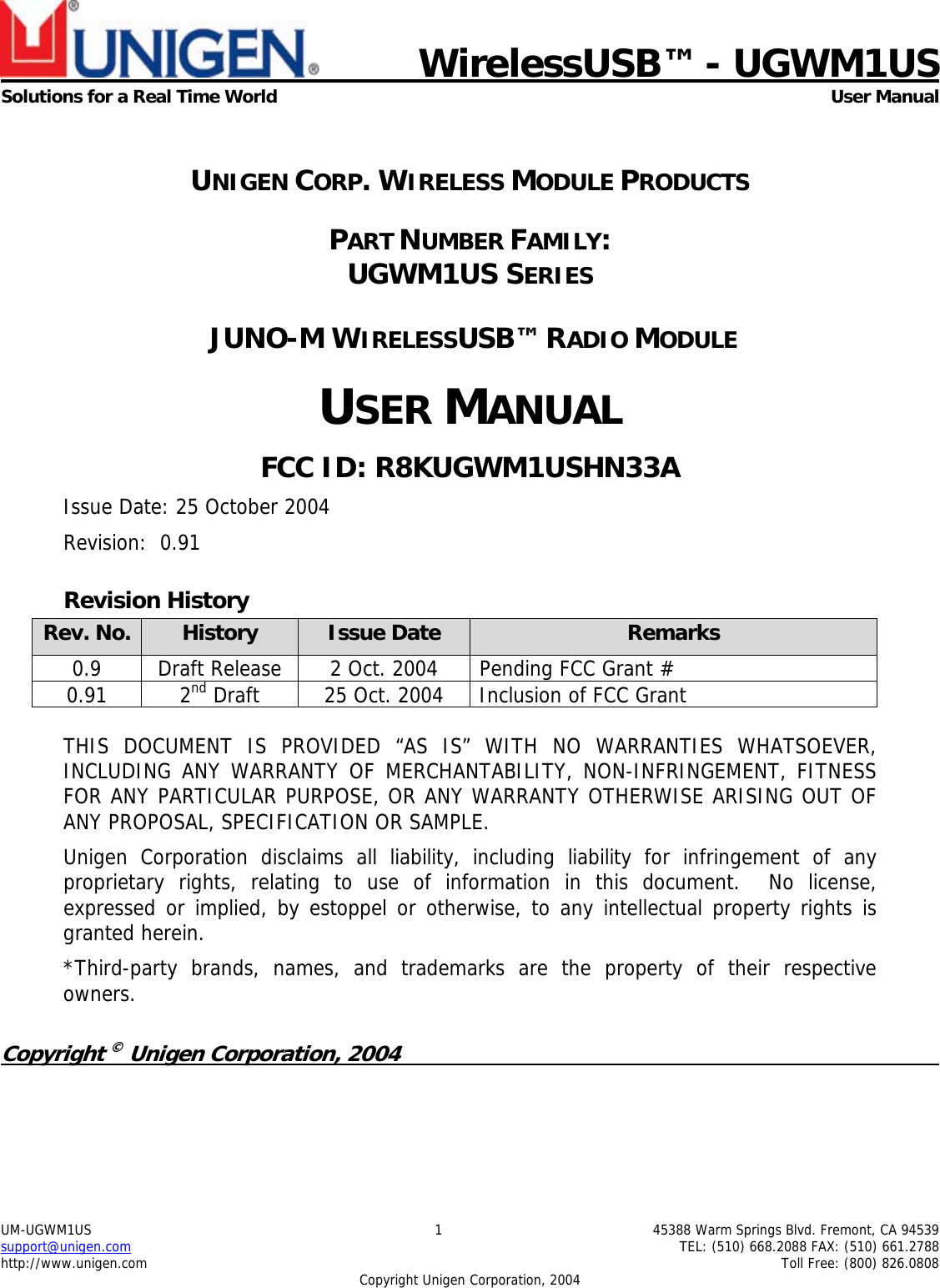

          WirelessUSB™ - UGWM1USSolutions for a Real Time World User ManualUM-UGWM1US 1 45388 Warm Springs Blvd. Fremont, CA 94539support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788http://www.unigen.com Toll Free: (800) 826.0808Copyright Unigen Corporation, 2004UNIGEN CORP. WIRELESS MODULE PRODUCTSPART NUMBER FAMILY:UGWM1US SERIES JUNO-M WIRELESSUSB™ RADIO MODULEUSER MANUALFCC ID: R8KUGWM1USHN33AIssue Date: 25 October 2004Revision:  0.91Revision HistoryRev. No. History Issue Date Remarks0.9 Draft Release 2 Oct. 2004 Pending FCC Grant #0.91 2nd Draft 25 Oct. 2004 Inclusion of FCC GrantTHIS DOCUMENT IS PROVIDED “AS IS” WITH NO WARRANTIES WHATSOEVER,INCLUDING ANY WARRANTY OF MERCHANTABILITY, NON-INFRINGEMENT, FITNESSFOR ANY PARTICULAR PURPOSE, OR ANY WARRANTY OTHERWISE ARISING OUT OFANY PROPOSAL, SPECIFICATION OR SAMPLE.Unigen Corporation disclaims all liability, including liability for infringement of anyproprietary rights, relating to use of information in this document.  No license,expressed or implied, by estoppel or otherwise, to any intellectual property rights isgranted herein.*Third-party brands, names, and trademarks are the property of their respectiveowners.Copyright © Unigen Corporation, 2004

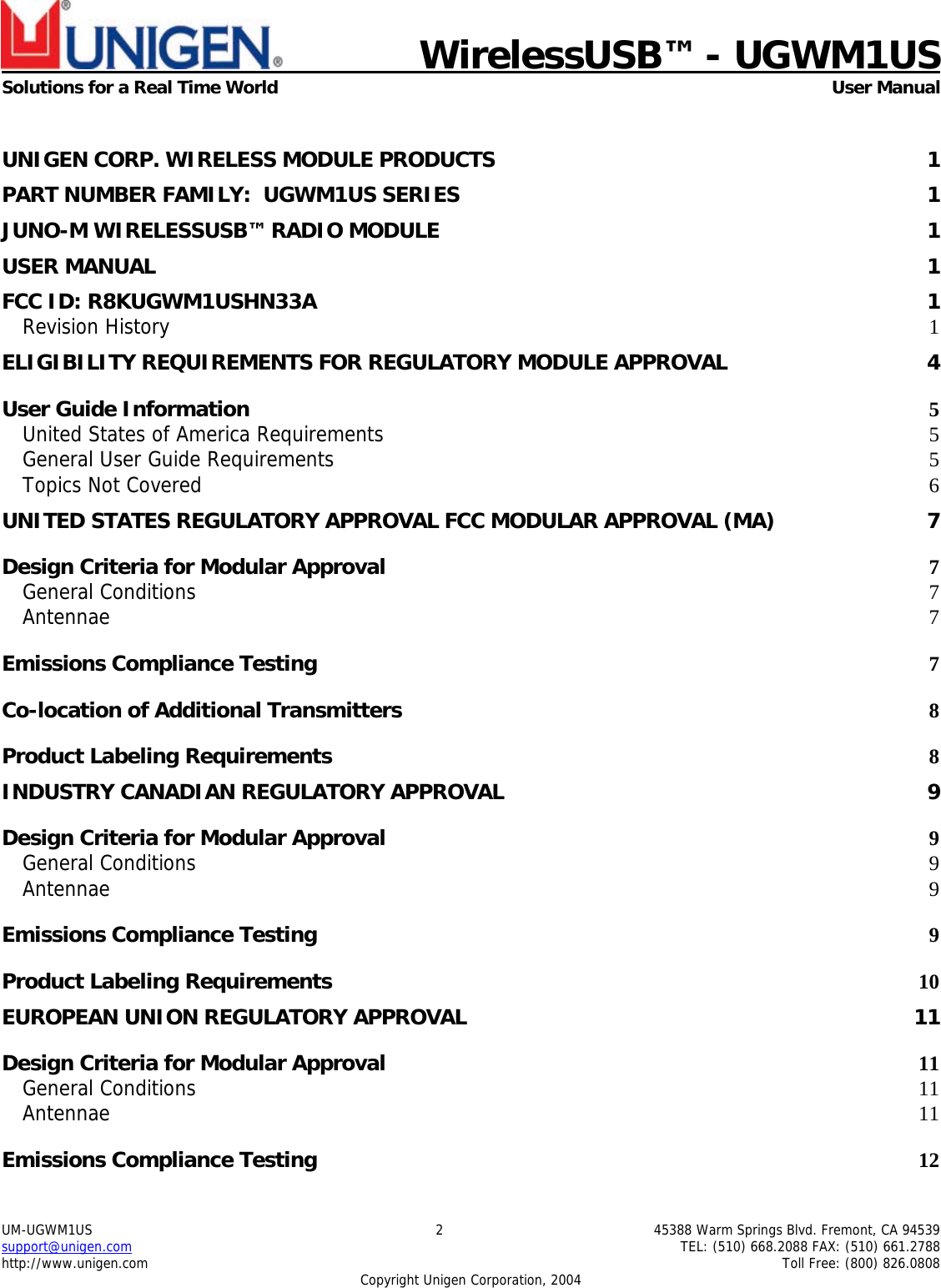

                            WirelessUSB™ - UGWM1USSolutions for a Real Time World  User ManualUM-UGWM1US 2 45388 Warm Springs Blvd. Fremont, CA 94539support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788http://www.unigen.com Toll Free: (800) 826.0808Copyright Unigen Corporation, 2004UNIGEN CORP. WIRELESS MODULE PRODUCTS 1PART NUMBER FAMILY:  UGWM1US SERIES 1JUNO-M WIRELESSUSB™ RADIO MODULE 1USER MANUAL 1FCC ID: R8KUGWM1USHN33A 1Revision History 1ELIGIBILITY REQUIREMENTS FOR REGULATORY MODULE APPROVAL 4User Guide Information 5United States of America Requirements 5General User Guide Requirements 5Topics Not Covered 6UNITED STATES REGULATORY APPROVAL FCC MODULAR APPROVAL (MA) 7Design Criteria for Modular Approval 7General Conditions 7Antennae 7Emissions Compliance Testing 7Co-location of Additional Transmitters 8Product Labeling Requirements 8INDUSTRY CANADIAN REGULATORY APPROVAL 9Design Criteria for Modular Approval 9General Conditions 9Antennae 9Emissions Compliance Testing 9Product Labeling Requirements 10EUROPEAN UNION REGULATORY APPROVAL 11Design Criteria for Modular Approval 11General Conditions 11Antennae 11Emissions Compliance Testing 12

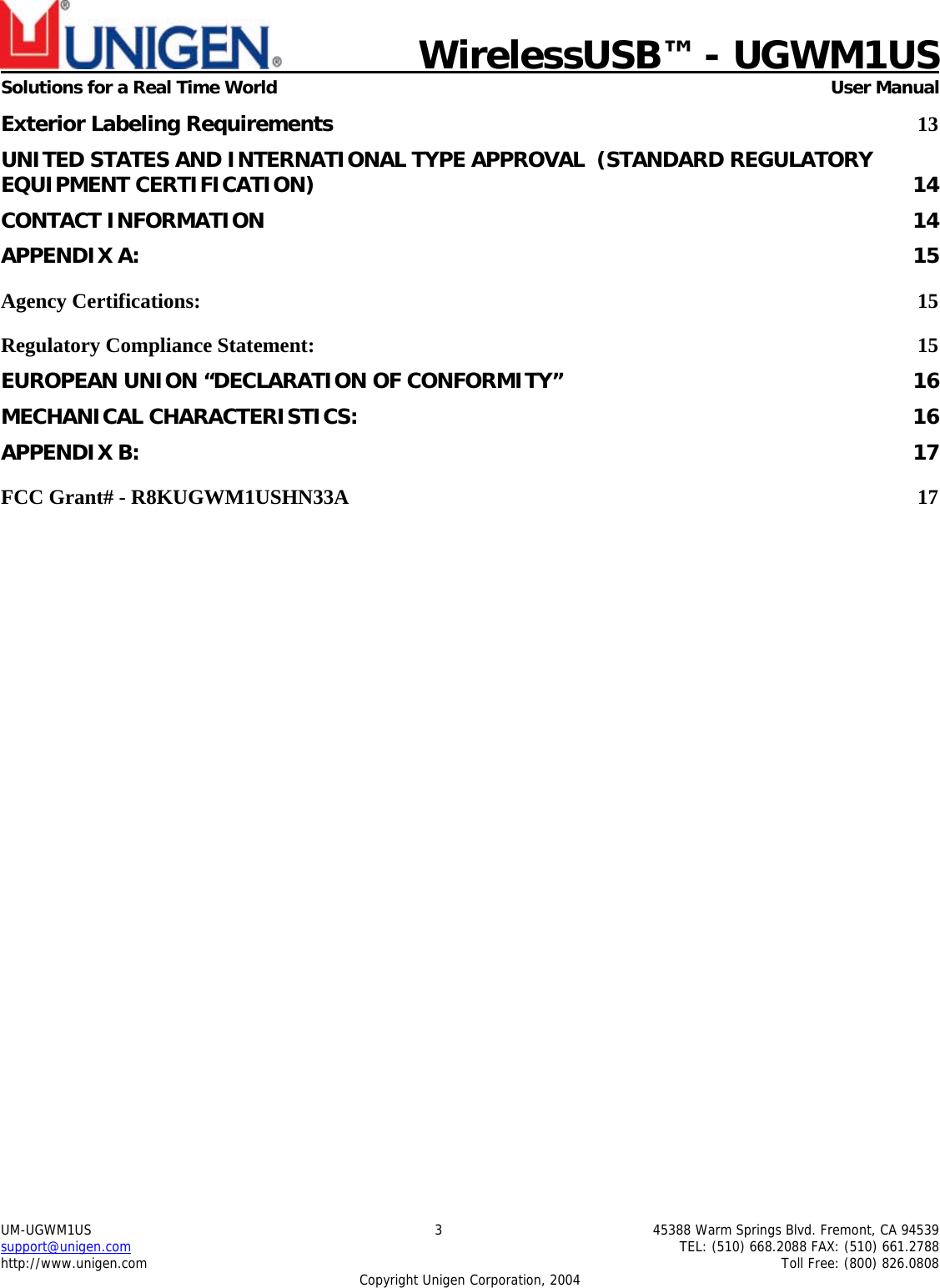

                            WirelessUSB™ - UGWM1USSolutions for a Real Time World  User ManualUM-UGWM1US 3 45388 Warm Springs Blvd. Fremont, CA 94539support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788http://www.unigen.com Toll Free: (800) 826.0808Copyright Unigen Corporation, 2004Exterior Labeling Requirements 13UNITED STATES AND INTERNATIONAL TYPE APPROVAL  (STANDARD REGULATORYEQUIPMENT CERTIFICATION) 14CONTACT INFORMATION 14APPENDIX A: 15Agency Certifications: 15Regulatory Compliance Statement: 15EUROPEAN UNION “DECLARATION OF CONFORMITY” 16MECHANICAL CHARACTERISTICS: 16APPENDIX B: 17FCC Grant# - R8KUGWM1USHN33A 17

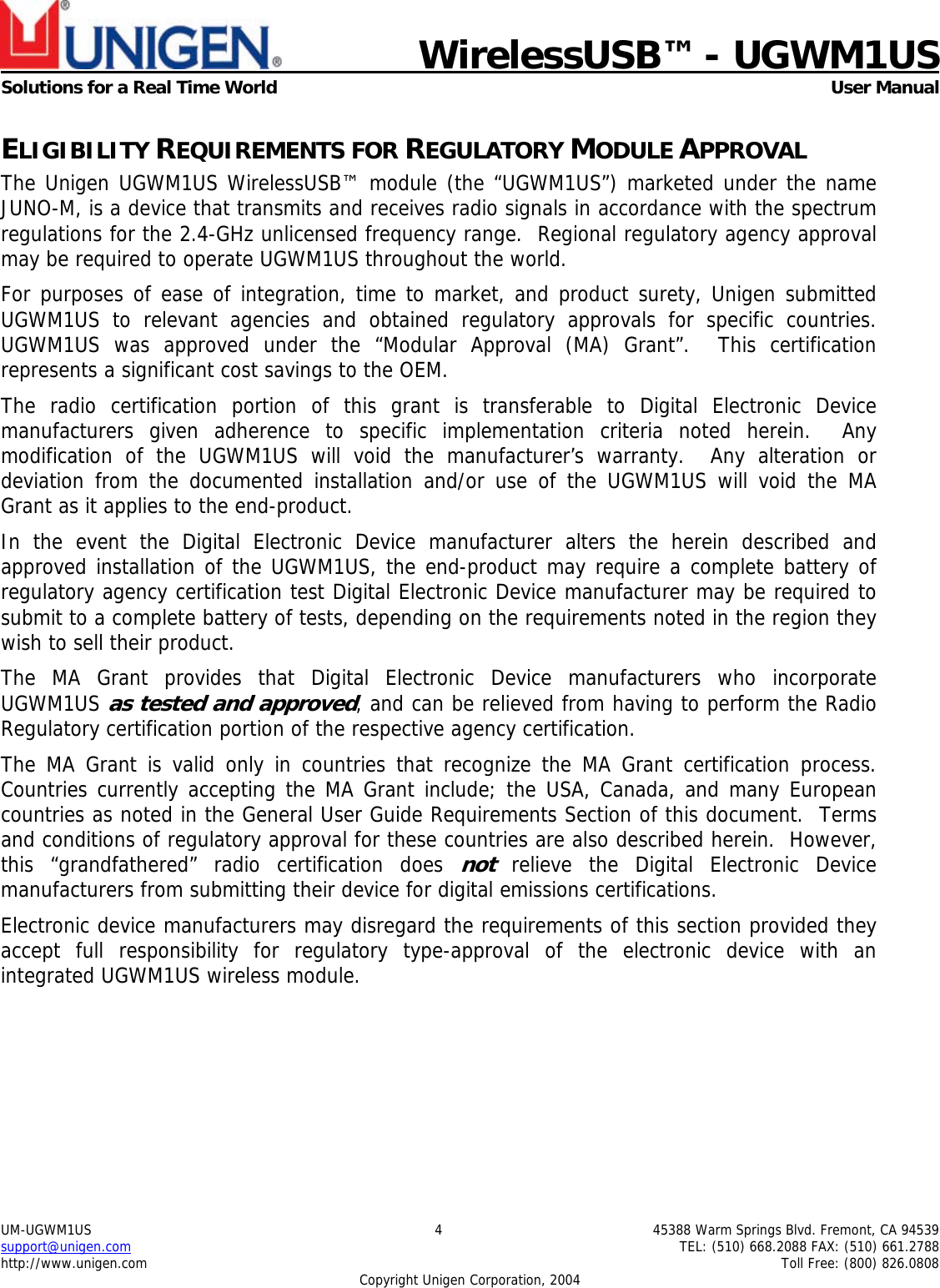

                            WirelessUSB™ - UGWM1USSolutions for a Real Time World  User ManualUM-UGWM1US 4 45388 Warm Springs Blvd. Fremont, CA 94539support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788http://www.unigen.com Toll Free: (800) 826.0808Copyright Unigen Corporation, 2004ELIGIBILITY REQUIREMENTS FOR REGULATORY MODULE APPROVALThe Unigen UGWM1US WirelessUSB™ module (the “UGWM1US”) marketed under the nameJUNO-M, is a device that transmits and receives radio signals in accordance with the spectrumregulations for the 2.4-GHz unlicensed frequency range.  Regional regulatory agency approvalmay be required to operate UGWM1US throughout the world.For purposes of ease of integration, time to market, and product surety, Unigen submittedUGWM1US to relevant agencies and obtained regulatory approvals for specific countries.UGWM1US was approved under the “Modular Approval (MA) Grant”.  This certificationrepresents a significant cost savings to the OEM.The radio certification portion of this grant is transferable to Digital Electronic Devicemanufacturers given adherence to specific implementation criteria noted herein.  Anymodification of the UGWM1US will void the manufacturer’s warranty.  Any alteration ordeviation from the documented installation and/or use of the UGWM1US will void the MAGrant as it applies to the end-product.In the event the Digital Electronic Device manufacturer alters the herein described andapproved installation of the UGWM1US, the end-product may require a complete battery ofregulatory agency certification test Digital Electronic Device manufacturer may be required tosubmit to a complete battery of tests, depending on the requirements noted in the region theywish to sell their product.The MA Grant provides that Digital Electronic Device manufacturers who incorporateUGWM1US as tested and approved, and can be relieved from having to perform the RadioRegulatory certification portion of the respective agency certification.The MA Grant is valid only in countries that recognize the MA Grant certification process.Countries currently accepting the MA Grant include; the USA, Canada, and many Europeancountries as noted in the General User Guide Requirements Section of this document.  Termsand conditions of regulatory approval for these countries are also described herein.  However,this “grandfathered” radio certification does not relieve the Digital Electronic Devicemanufacturers from submitting their device for digital emissions certifications.Electronic device manufacturers may disregard the requirements of this section provided theyaccept full responsibility for regulatory type-approval of the electronic device with anintegrated UGWM1US wireless module.

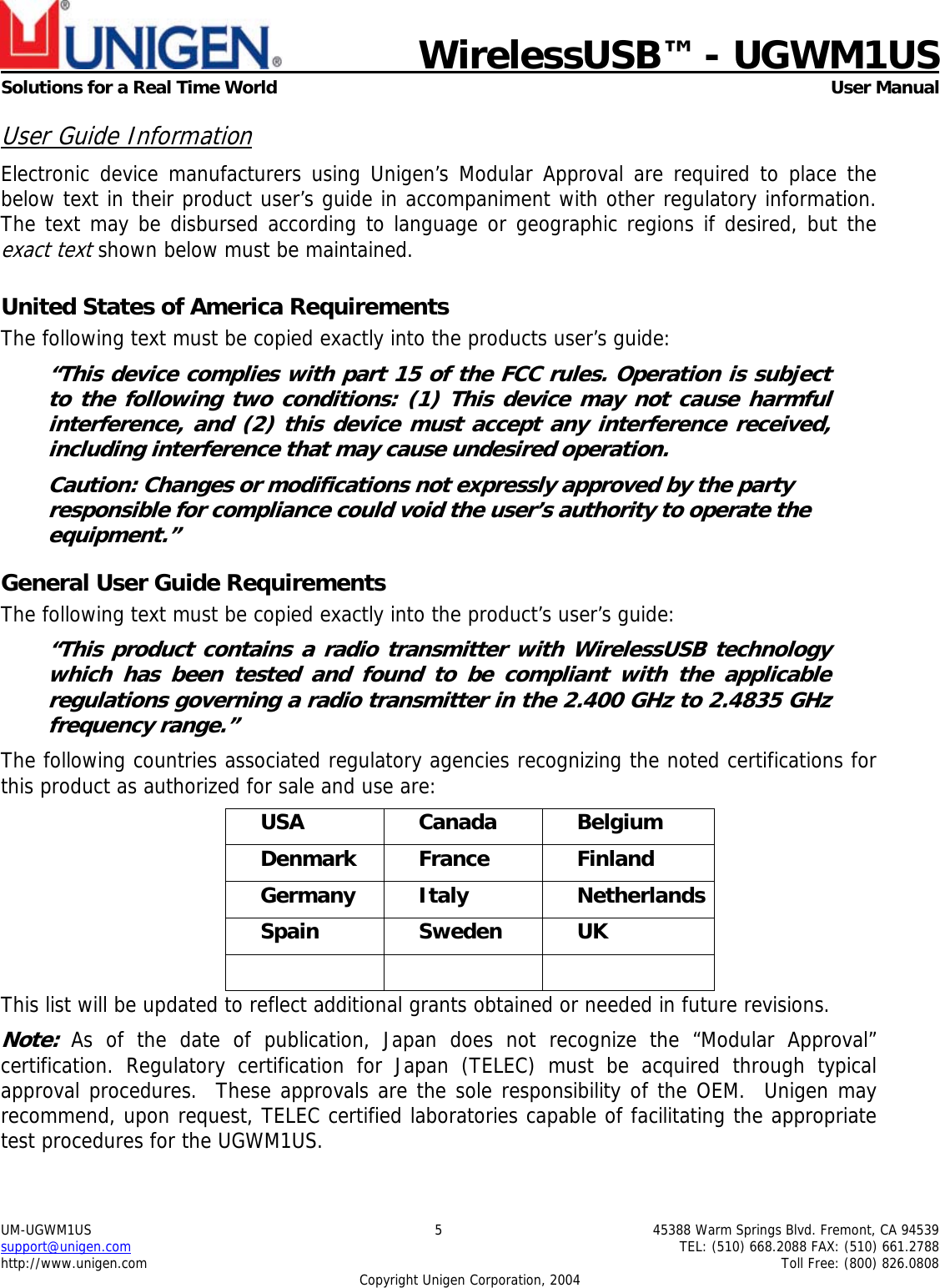

                            WirelessUSB™ - UGWM1USSolutions for a Real Time World  User ManualUM-UGWM1US 5 45388 Warm Springs Blvd. Fremont, CA 94539support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788http://www.unigen.com Toll Free: (800) 826.0808Copyright Unigen Corporation, 2004User Guide InformationElectronic device manufacturers using Unigen’s Modular Approval are required to place thebelow text in their product user’s guide in accompaniment with other regulatory information.The text may be disbursed according to language or geographic regions if desired, but theexact text shown below must be maintained.United States of America RequirementsThe following text must be copied exactly into the products user’s guide:“This device complies with part 15 of the FCC rules. Operation is subjectto the following two conditions: (1) This device may not cause harmfulinterference, and (2) this device must accept any interference received,including interference that may cause undesired operation.Caution: Changes or modifications not expressly approved by the partyresponsible for compliance could void the user’s authority to operate theequipment.”General User Guide RequirementsThe following text must be copied exactly into the product’s user’s guide:“This product contains a radio transmitter with WirelessUSB technologywhich has been tested and found to be compliant with the applicableregulations governing a radio transmitter in the 2.400 GHz to 2.4835 GHzfrequency range.”The following countries associated regulatory agencies recognizing the noted certifications forthis product as authorized for sale and use are:USA Canada BelgiumDenmark France FinlandGermany Italy NetherlandsSpain Sweden UKThis list will be updated to reflect additional grants obtained or needed in future revisions.Note: As of the date of publication, Japan does not recognize the “Modular Approval”certification. Regulatory certification for Japan (TELEC) must be acquired through typicalapproval procedures.  These approvals are the sole responsibility of the OEM.  Unigen mayrecommend, upon request, TELEC certified laboratories capable of facilitating the appropriatetest procedures for the UGWM1US.

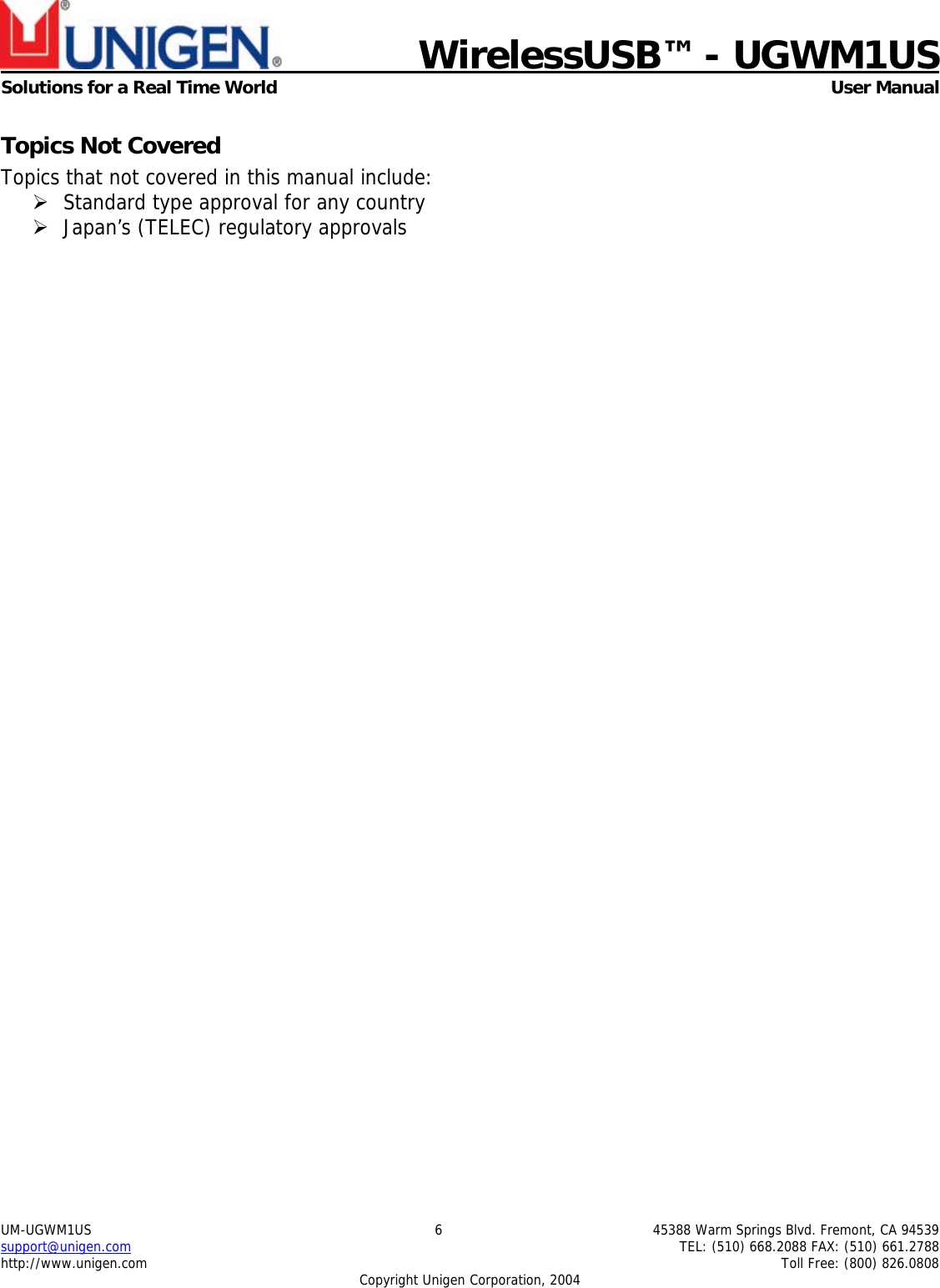

                            WirelessUSB™ - UGWM1USSolutions for a Real Time World  User ManualUM-UGWM1US 6 45388 Warm Springs Blvd. Fremont, CA 94539support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788http://www.unigen.com Toll Free: (800) 826.0808Copyright Unigen Corporation, 2004Topics Not CoveredTopics that not covered in this manual include:¾ Standard type approval for any country¾ Japan’s (TELEC) regulatory approvals

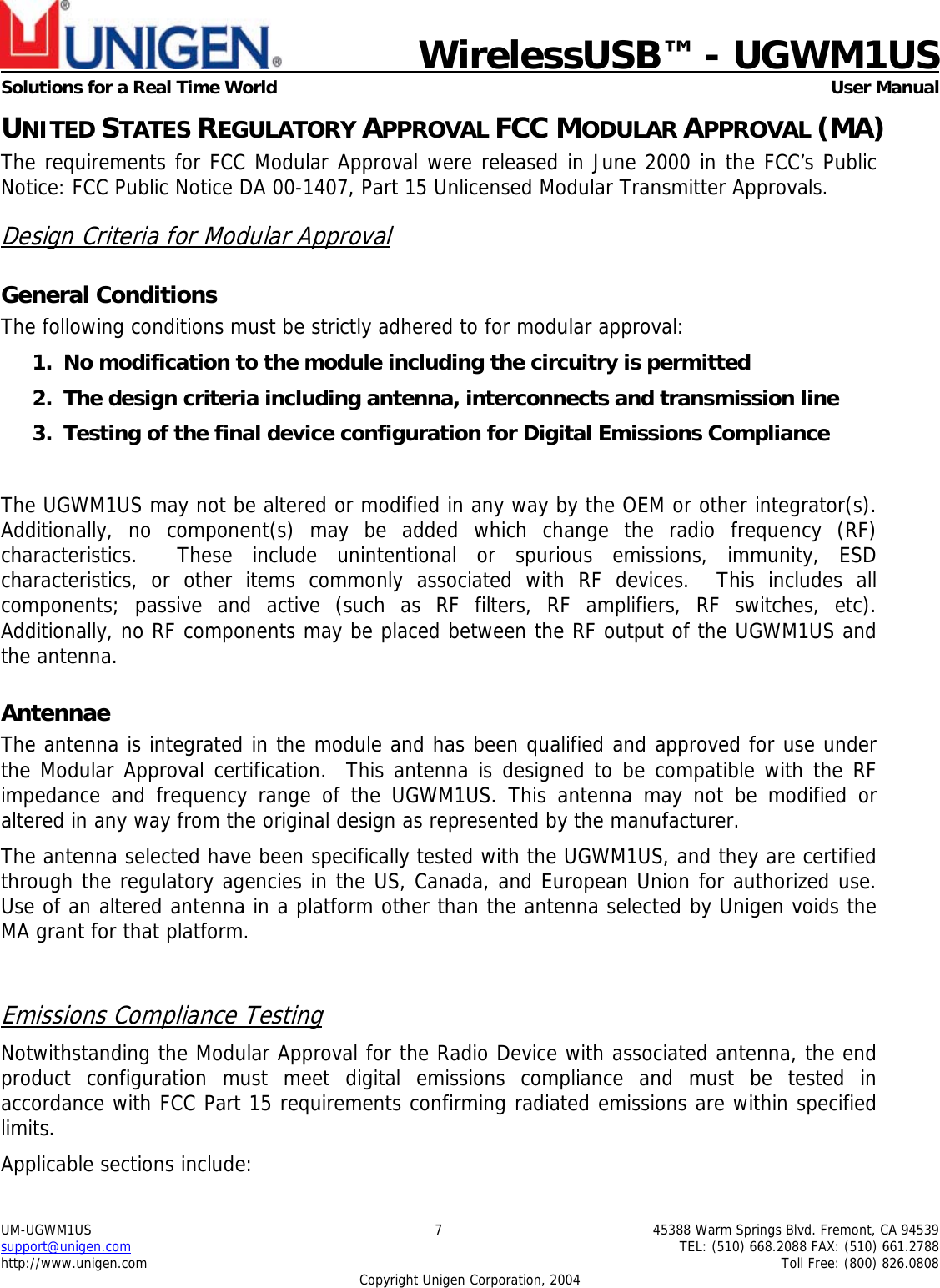

                            WirelessUSB™ - UGWM1USSolutions for a Real Time World  User ManualUM-UGWM1US 7 45388 Warm Springs Blvd. Fremont, CA 94539support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788http://www.unigen.com Toll Free: (800) 826.0808Copyright Unigen Corporation, 2004UNITED STATES REGULATORY APPROVAL FCC MODULAR APPROVAL (MA)The requirements for FCC Modular Approval were released in June 2000 in the FCC’s PublicNotice: FCC Public Notice DA 00-1407, Part 15 Unlicensed Modular Transmitter Approvals.Design Criteria for Modular ApprovalGeneral ConditionsThe following conditions must be strictly adhered to for modular approval:1. No modification to the module including the circuitry is permitted2. The design criteria including antenna, interconnects and transmission line3. Testing of the final device configuration for Digital Emissions ComplianceThe UGWM1US may not be altered or modified in any way by the OEM or other integrator(s).Additionally, no component(s) may be added which change the radio frequency (RF)characteristics.  These include unintentional or spurious emissions, immunity, ESDcharacteristics, or other items commonly associated with RF devices.  This includes allcomponents; passive and active (such as RF filters, RF amplifiers, RF switches, etc).Additionally, no RF components may be placed between the RF output of the UGWM1US andthe antenna.AntennaeThe antenna is integrated in the module and has been qualified and approved for use underthe Modular Approval certification.  This antenna is designed to be compatible with the RFimpedance and frequency range of the UGWM1US. This antenna may not be modified oraltered in any way from the original design as represented by the manufacturer.The antenna selected have been specifically tested with the UGWM1US, and they are certifiedthrough the regulatory agencies in the US, Canada, and European Union for authorized use.Use of an altered antenna in a platform other than the antenna selected by Unigen voids theMA grant for that platform.Emissions Compliance TestingNotwithstanding the Modular Approval for the Radio Device with associated antenna, the endproduct configuration must meet digital emissions compliance and must be tested inaccordance with FCC Part 15 requirements confirming radiated emissions are within specifiedlimits.Applicable sections include:

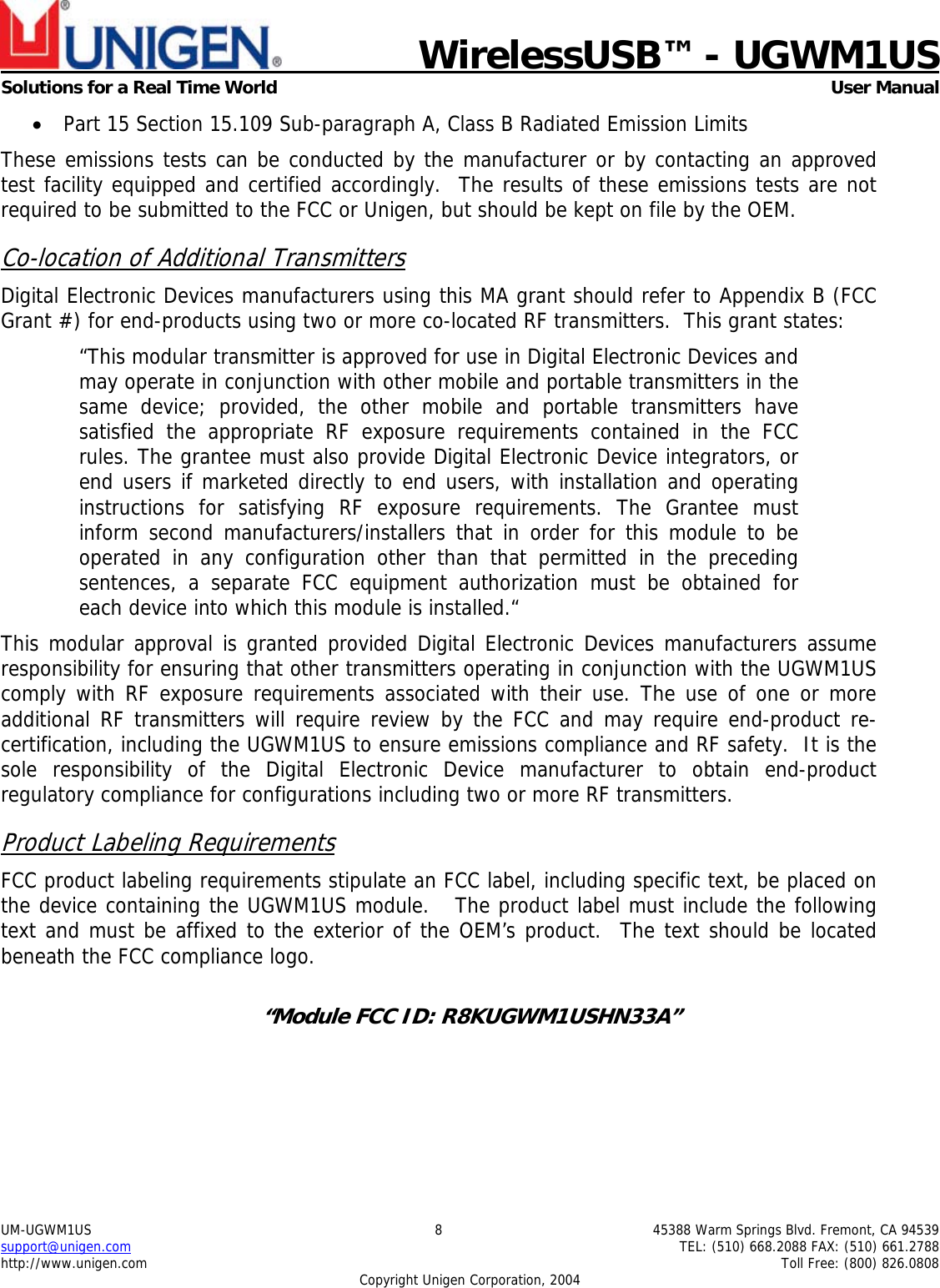

                            WirelessUSB™ - UGWM1USSolutions for a Real Time World  User ManualUM-UGWM1US 8 45388 Warm Springs Blvd. Fremont, CA 94539support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788http://www.unigen.com Toll Free: (800) 826.0808Copyright Unigen Corporation, 2004• Part 15 Section 15.109 Sub-paragraph A, Class B Radiated Emission LimitsThese emissions tests can be conducted by the manufacturer or by contacting an approvedtest facility equipped and certified accordingly.  The results of these emissions tests are notrequired to be submitted to the FCC or Unigen, but should be kept on file by the OEM.Co-location of Additional TransmittersDigital Electronic Devices manufacturers using this MA grant should refer to Appendix B (FCCGrant #) for end-products using two or more co-located RF transmitters.  This grant states:“This modular transmitter is approved for use in Digital Electronic Devices andmay operate in conjunction with other mobile and portable transmitters in thesame device; provided, the other mobile and portable transmitters havesatisfied the appropriate RF exposure requirements contained in the FCCrules. The grantee must also provide Digital Electronic Device integrators, orend users if marketed directly to end users, with installation and operatinginstructions for satisfying RF exposure requirements. The Grantee mustinform second manufacturers/installers that in order for this module to beoperated in any configuration other than that permitted in the precedingsentences, a separate FCC equipment authorization must be obtained foreach device into which this module is installed.“This modular approval is granted provided Digital Electronic Devices manufacturers assumeresponsibility for ensuring that other transmitters operating in conjunction with the UGWM1UScomply with RF exposure requirements associated with their use. The use of one or moreadditional RF transmitters will require review by the FCC and may require end-product re-certification, including the UGWM1US to ensure emissions compliance and RF safety.  It is thesole responsibility of the Digital Electronic Device manufacturer to obtain end-productregulatory compliance for configurations including two or more RF transmitters.Product Labeling RequirementsFCC product labeling requirements stipulate an FCC label, including specific text, be placed onthe device containing the UGWM1US module.   The product label must include the followingtext and must be affixed to the exterior of the OEM’s product.  The text should be locatedbeneath the FCC compliance logo.“Module FCC ID: R8KUGWM1USHN33A”

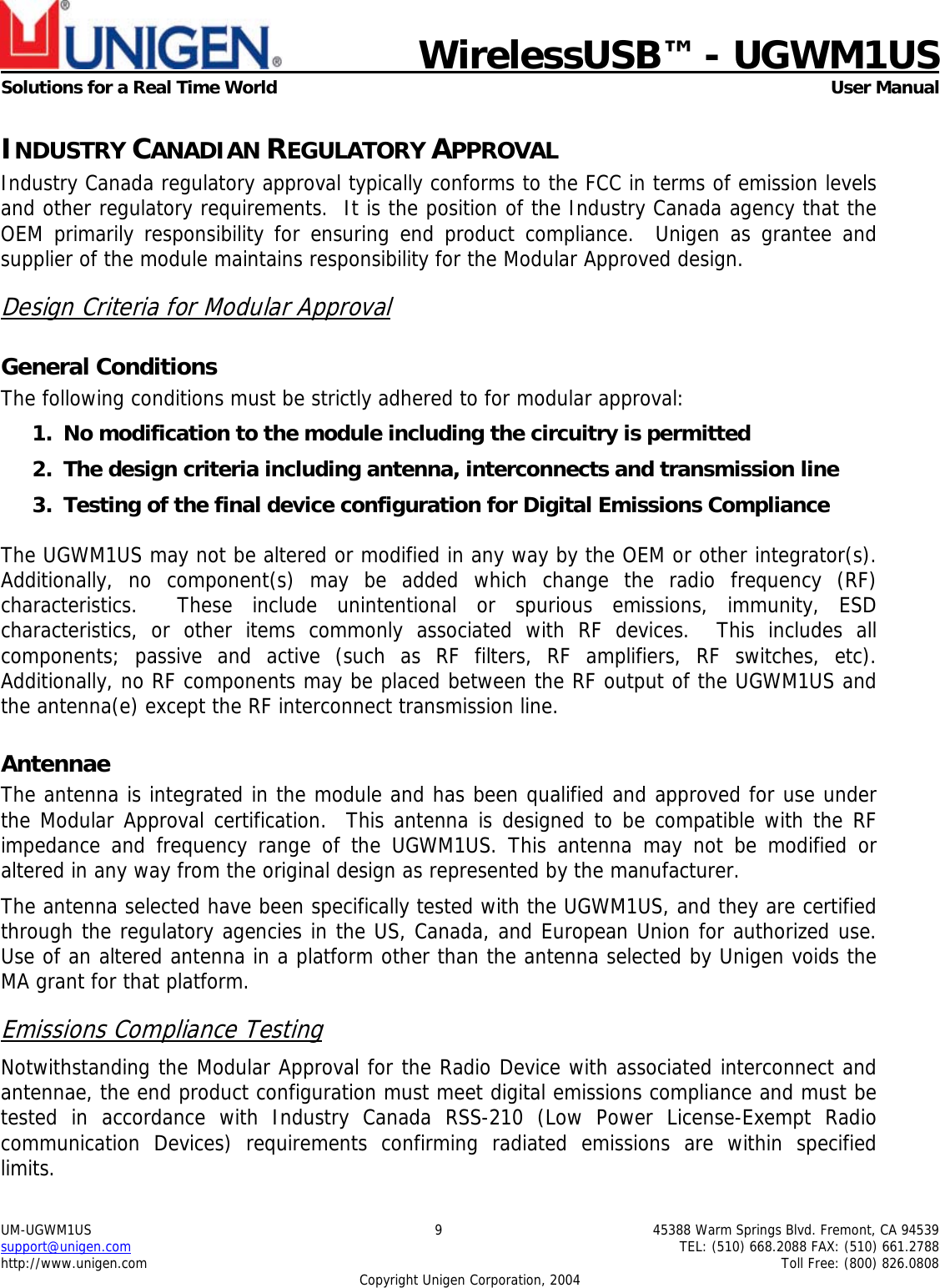

                            WirelessUSB™ - UGWM1USSolutions for a Real Time World  User ManualUM-UGWM1US 9 45388 Warm Springs Blvd. Fremont, CA 94539support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788http://www.unigen.com Toll Free: (800) 826.0808Copyright Unigen Corporation, 2004INDUSTRY CANADIAN REGULATORY APPROVALIndustry Canada regulatory approval typically conforms to the FCC in terms of emission levelsand other regulatory requirements.  It is the position of the Industry Canada agency that theOEM primarily responsibility for ensuring end product compliance.  Unigen as grantee andsupplier of the module maintains responsibility for the Modular Approved design.Design Criteria for Modular ApprovalGeneral ConditionsThe following conditions must be strictly adhered to for modular approval:1. No modification to the module including the circuitry is permitted2. The design criteria including antenna, interconnects and transmission line3. Testing of the final device configuration for Digital Emissions ComplianceThe UGWM1US may not be altered or modified in any way by the OEM or other integrator(s).Additionally, no component(s) may be added which change the radio frequency (RF)characteristics.  These include unintentional or spurious emissions, immunity, ESDcharacteristics, or other items commonly associated with RF devices.  This includes allcomponents; passive and active (such as RF filters, RF amplifiers, RF switches, etc).Additionally, no RF components may be placed between the RF output of the UGWM1US andthe antenna(e) except the RF interconnect transmission line.AntennaeThe antenna is integrated in the module and has been qualified and approved for use underthe Modular Approval certification.  This antenna is designed to be compatible with the RFimpedance and frequency range of the UGWM1US. This antenna may not be modified oraltered in any way from the original design as represented by the manufacturer.The antenna selected have been specifically tested with the UGWM1US, and they are certifiedthrough the regulatory agencies in the US, Canada, and European Union for authorized use.Use of an altered antenna in a platform other than the antenna selected by Unigen voids theMA grant for that platform.Emissions Compliance TestingNotwithstanding the Modular Approval for the Radio Device with associated interconnect andantennae, the end product configuration must meet digital emissions compliance and must betested in accordance with Industry Canada RSS-210 (Low Power License-Exempt Radiocommunication Devices) requirements confirming radiated emissions are within specifiedlimits.

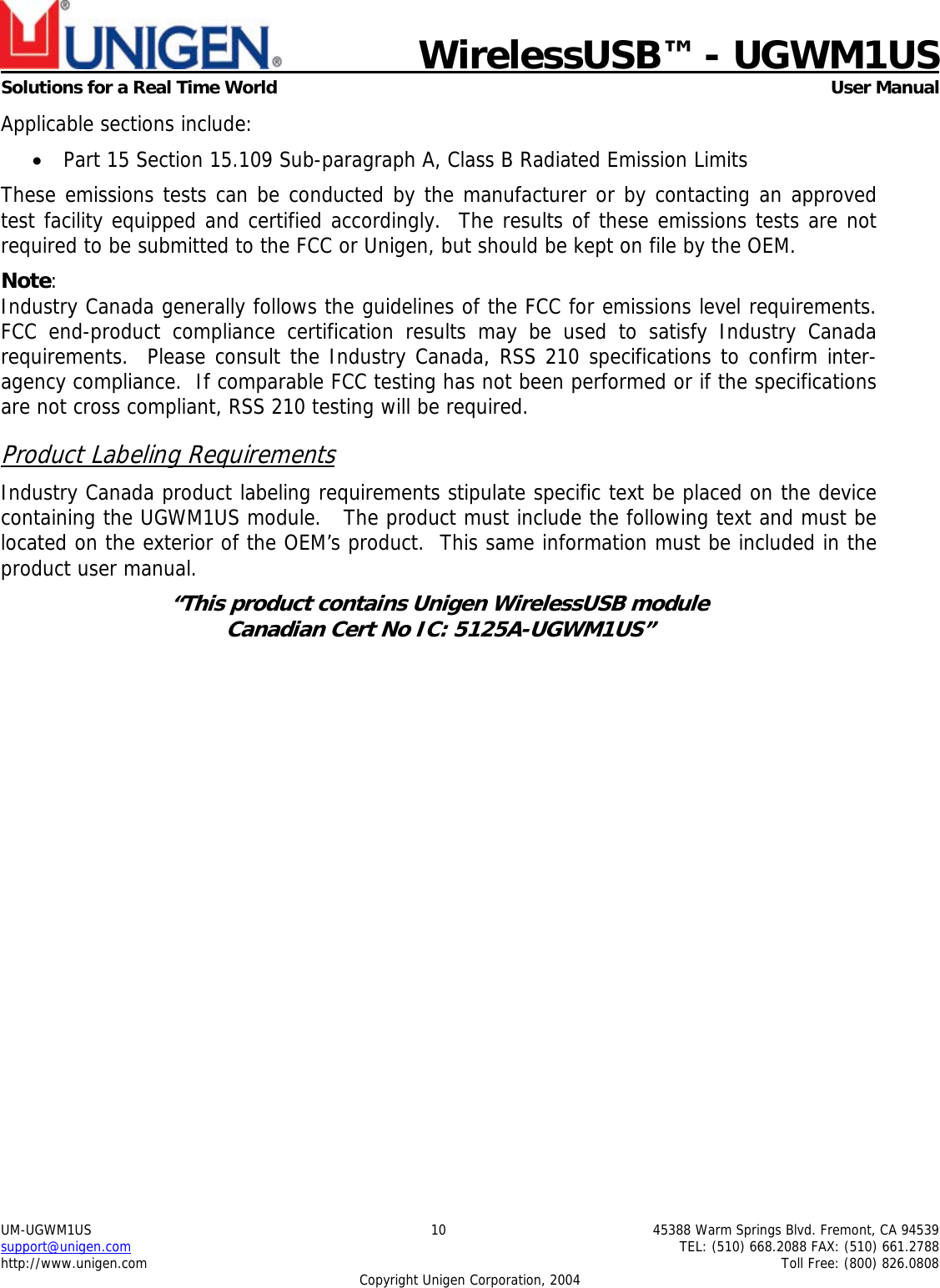

                            WirelessUSB™ - UGWM1USSolutions for a Real Time World  User ManualUM-UGWM1US 10 45388 Warm Springs Blvd. Fremont, CA 94539support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788http://www.unigen.com Toll Free: (800) 826.0808Copyright Unigen Corporation, 2004Applicable sections include:• Part 15 Section 15.109 Sub-paragraph A, Class B Radiated Emission LimitsThese emissions tests can be conducted by the manufacturer or by contacting an approvedtest facility equipped and certified accordingly.  The results of these emissions tests are notrequired to be submitted to the FCC or Unigen, but should be kept on file by the OEM.Note:Industry Canada generally follows the guidelines of the FCC for emissions level requirements.FCC end-product compliance certification results may be used to satisfy Industry Canadarequirements.  Please consult the Industry Canada, RSS 210 specifications to confirm inter-agency compliance.  If comparable FCC testing has not been performed or if the specificationsare not cross compliant, RSS 210 testing will be required.Product Labeling RequirementsIndustry Canada product labeling requirements stipulate specific text be placed on the devicecontaining the UGWM1US module.   The product must include the following text and must belocated on the exterior of the OEM’s product.  This same information must be included in theproduct user manual.“This product contains Unigen WirelessUSB moduleCanadian Cert No IC: 5125A-UGWM1US”

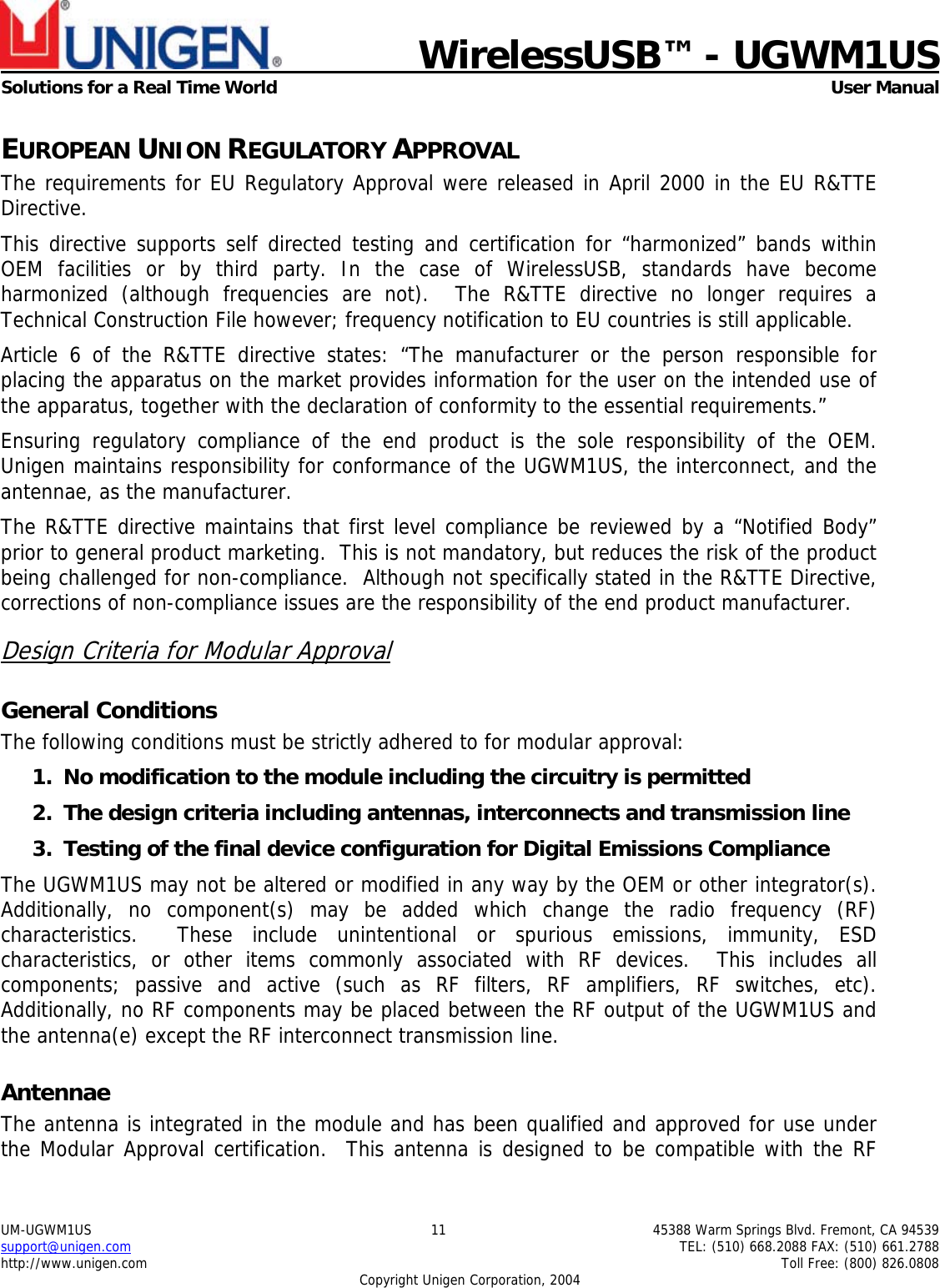

                            WirelessUSB™ - UGWM1USSolutions for a Real Time World  User ManualUM-UGWM1US 11 45388 Warm Springs Blvd. Fremont, CA 94539support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788http://www.unigen.com Toll Free: (800) 826.0808Copyright Unigen Corporation, 2004EUROPEAN UNION REGULATORY APPROVALThe requirements for EU Regulatory Approval were released in April 2000 in the EU R&TTEDirective.This directive supports self directed testing and certification for “harmonized” bands withinOEM facilities or by third party. In the case of WirelessUSB, standards have becomeharmonized (although frequencies are not).  The R&TTE directive no longer requires aTechnical Construction File however; frequency notification to EU countries is still applicable.Article 6 of the R&TTE directive states: “The manufacturer or the person responsible forplacing the apparatus on the market provides information for the user on the intended use ofthe apparatus, together with the declaration of conformity to the essential requirements.”Ensuring regulatory compliance of the end product is the sole responsibility of the OEM.Unigen maintains responsibility for conformance of the UGWM1US, the interconnect, and theantennae, as the manufacturer.The R&TTE directive maintains that first level compliance be reviewed by a “Notified Body”prior to general product marketing.  This is not mandatory, but reduces the risk of the productbeing challenged for non-compliance.  Although not specifically stated in the R&TTE Directive,corrections of non-compliance issues are the responsibility of the end product manufacturer.Design Criteria for Modular ApprovalGeneral ConditionsThe following conditions must be strictly adhered to for modular approval:1. No modification to the module including the circuitry is permitted2. The design criteria including antennas, interconnects and transmission line3. Testing of the final device configuration for Digital Emissions ComplianceThe UGWM1US may not be altered or modified in any way by the OEM or other integrator(s).Additionally, no component(s) may be added which change the radio frequency (RF)characteristics.  These include unintentional or spurious emissions, immunity, ESDcharacteristics, or other items commonly associated with RF devices.  This includes allcomponents; passive and active (such as RF filters, RF amplifiers, RF switches, etc).Additionally, no RF components may be placed between the RF output of the UGWM1US andthe antenna(e) except the RF interconnect transmission line.AntennaeThe antenna is integrated in the module and has been qualified and approved for use underthe Modular Approval certification.  This antenna is designed to be compatible with the RF

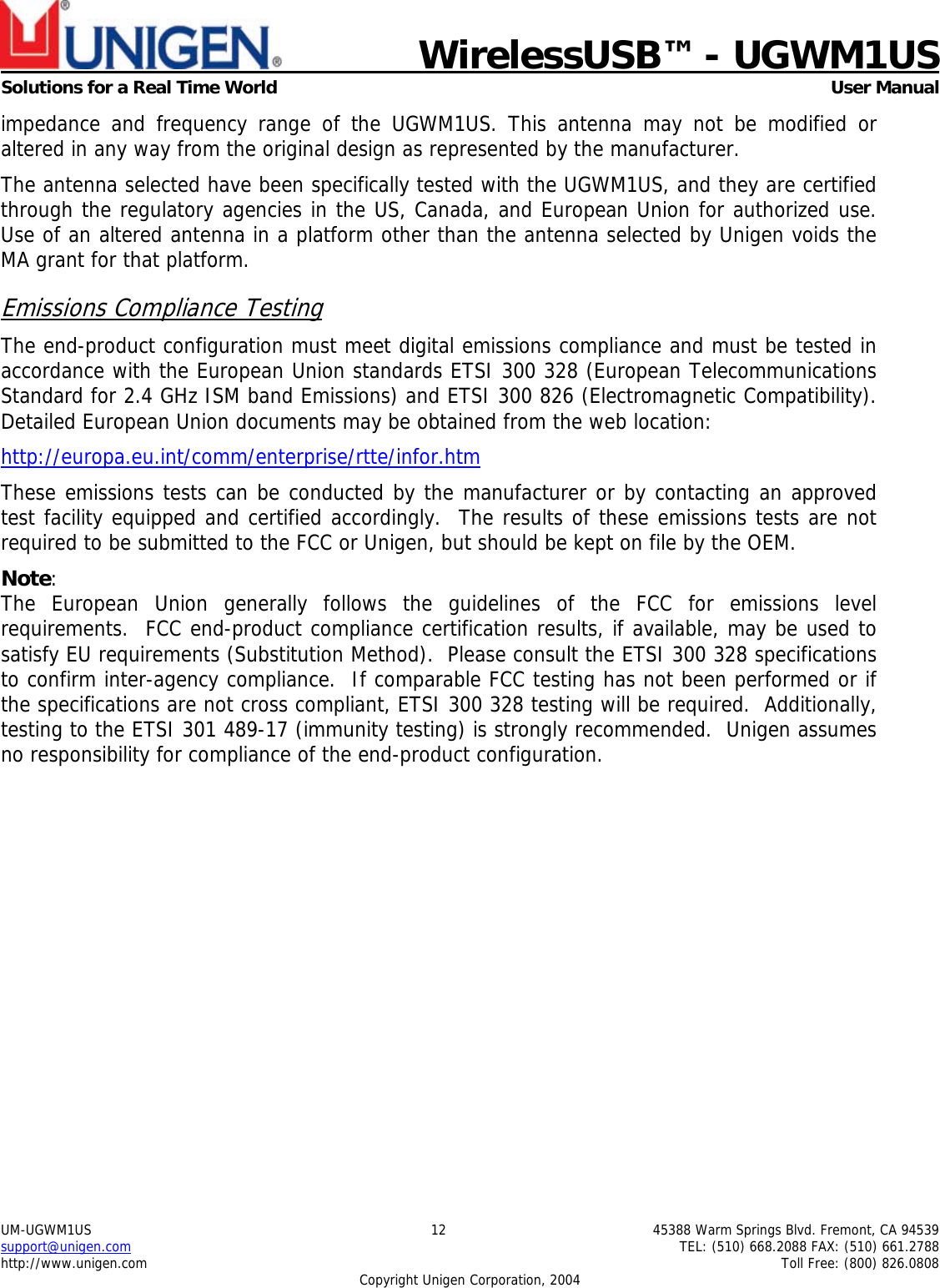

                            WirelessUSB™ - UGWM1USSolutions for a Real Time World  User ManualUM-UGWM1US 12 45388 Warm Springs Blvd. Fremont, CA 94539support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788http://www.unigen.com Toll Free: (800) 826.0808Copyright Unigen Corporation, 2004impedance and frequency range of the UGWM1US. This antenna may not be modified oraltered in any way from the original design as represented by the manufacturer.The antenna selected have been specifically tested with the UGWM1US, and they are certifiedthrough the regulatory agencies in the US, Canada, and European Union for authorized use.Use of an altered antenna in a platform other than the antenna selected by Unigen voids theMA grant for that platform.Emissions Compliance TestingThe end-product configuration must meet digital emissions compliance and must be tested inaccordance with the European Union standards ETSI 300 328 (European TelecommunicationsStandard for 2.4 GHz ISM band Emissions) and ETSI 300 826 (Electromagnetic Compatibility).Detailed European Union documents may be obtained from the web location:http://europa.eu.int/comm/enterprise/rtte/infor.htmThese emissions tests can be conducted by the manufacturer or by contacting an approvedtest facility equipped and certified accordingly.  The results of these emissions tests are notrequired to be submitted to the FCC or Unigen, but should be kept on file by the OEM.Note:The European Union generally follows the guidelines of the FCC for emissions levelrequirements.  FCC end-product compliance certification results, if available, may be used tosatisfy EU requirements (Substitution Method).  Please consult the ETSI 300 328 specificationsto confirm inter-agency compliance.  If comparable FCC testing has not been performed or ifthe specifications are not cross compliant, ETSI 300 328 testing will be required.  Additionally,testing to the ETSI 301 489-17 (immunity testing) is strongly recommended.  Unigen assumesno responsibility for compliance of the end-product configuration.

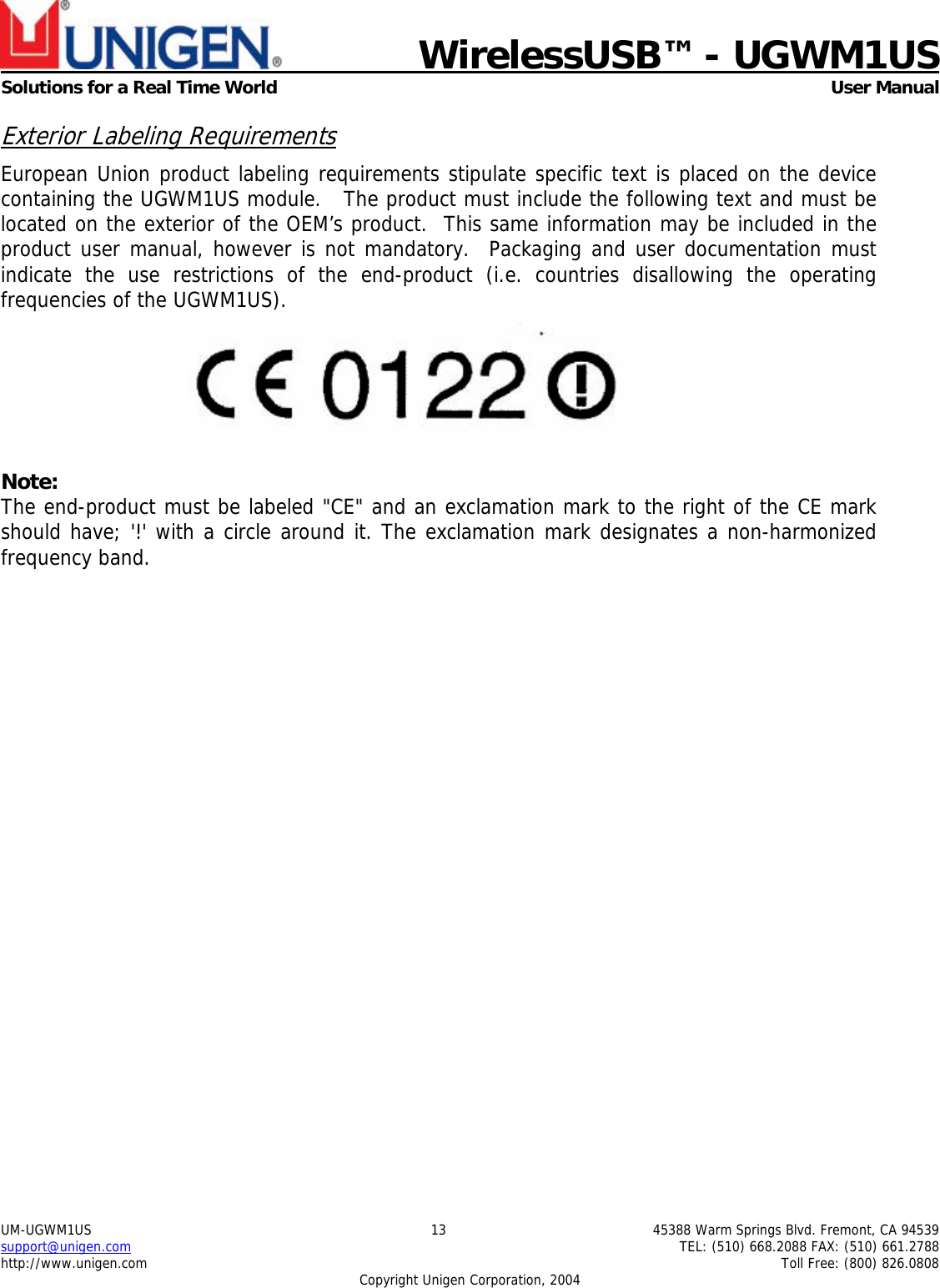

                            WirelessUSB™ - UGWM1USSolutions for a Real Time World  User ManualUM-UGWM1US 13 45388 Warm Springs Blvd. Fremont, CA 94539support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788http://www.unigen.com Toll Free: (800) 826.0808Copyright Unigen Corporation, 2004Exterior Labeling RequirementsEuropean Union product labeling requirements stipulate specific text is placed on the devicecontaining the UGWM1US module.   The product must include the following text and must belocated on the exterior of the OEM’s product.  This same information may be included in theproduct user manual, however is not mandatory.  Packaging and user documentation mustindicate the use restrictions of the end-product (i.e. countries disallowing the operatingfrequencies of the UGWM1US).Note:The end-product must be labeled "CE" and an exclamation mark to the right of the CE markshould have; '!' with a circle around it. The exclamation mark designates a non-harmonizedfrequency band.

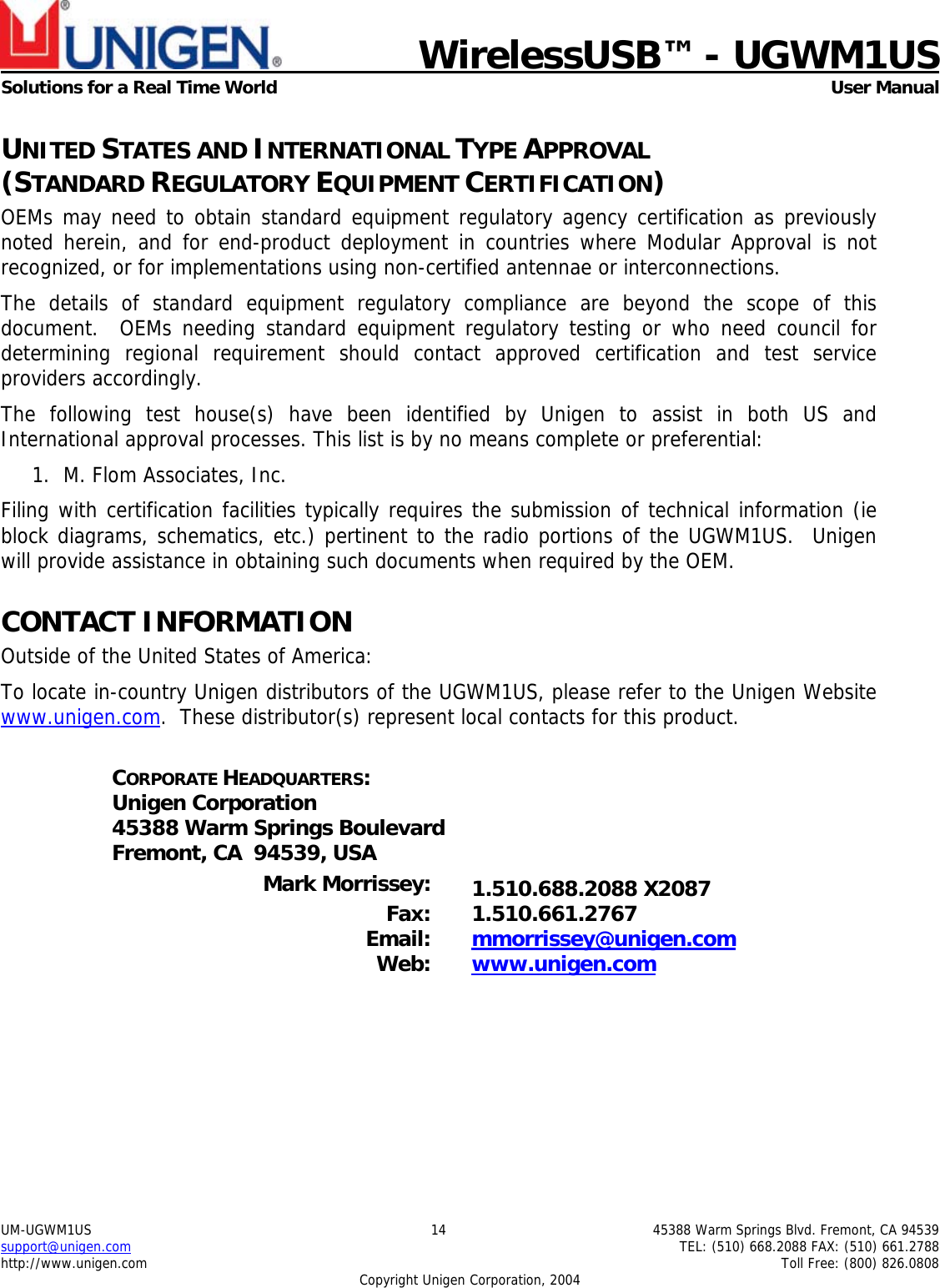

                            WirelessUSB™ - UGWM1USSolutions for a Real Time World  User ManualUM-UGWM1US 14 45388 Warm Springs Blvd. Fremont, CA 94539support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788http://www.unigen.com Toll Free: (800) 826.0808Copyright Unigen Corporation, 2004UNITED STATES AND INTERNATIONAL TYPE APPROVAL(STANDARD REGULATORY EQUIPMENT CERTIFICATION)OEMs may need to obtain standard equipment regulatory agency certification as previouslynoted herein, and for end-product deployment in countries where Modular Approval is notrecognized, or for implementations using non-certified antennae or interconnections.The details of standard equipment regulatory compliance are beyond the scope of thisdocument.  OEMs needing standard equipment regulatory testing or who need council fordetermining regional requirement should contact approved certification and test serviceproviders accordingly.The following test house(s) have been identified by Unigen to assist in both US andInternational approval processes. This list is by no means complete or preferential:1. M. Flom Associates, Inc.Filing with certification facilities typically requires the submission of technical information (ieblock diagrams, schematics, etc.) pertinent to the radio portions of the UGWM1US.  Unigenwill provide assistance in obtaining such documents when required by the OEM.CONTACT INFORMATIONOutside of the United States of America:To locate in-country Unigen distributors of the UGWM1US, please refer to the Unigen Websitewww.unigen.com.  These distributor(s) represent local contacts for this product.CORPORATE HEADQUARTERS:Unigen Corporation45388 Warm Springs BoulevardFremont, CA  94539, USAMark Morrissey: 1.510.688.2088 X2087Fax: 1.510.661.2767Email: mmorrissey@unigen.comWeb: www.unigen.com

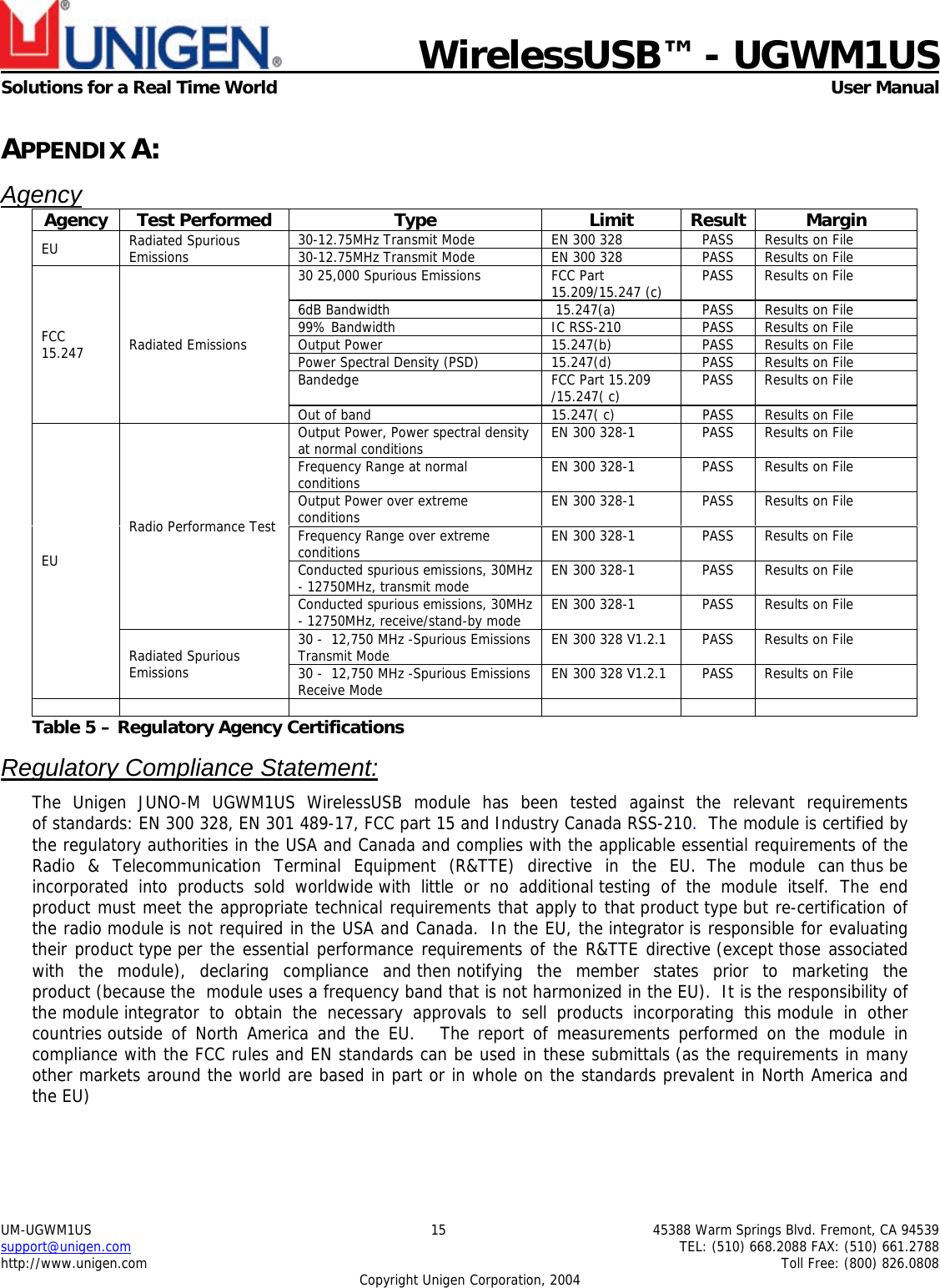

                            WirelessUSB™ - UGWM1USSolutions for a Real Time World  User ManualUM-UGWM1US 15 45388 Warm Springs Blvd. Fremont, CA 94539support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788http://www.unigen.com Toll Free: (800) 826.0808Copyright Unigen Corporation, 2004APPENDIX A:AgencyAgency Test Performed Type Limit Result Margin30-12.75MHz Transmit Mode EN 300 328 PASS Results on FileEU Radiated SpuriousEmissions 30-12.75MHz Transmit Mode EN 300 328 PASS Results on File30 25,000 Spurious Emissions FCC Part15.209/15.247 (c) PASS Results on File6dB Bandwidth  15.247(a) PASS Results on File99% Bandwidth IC RSS-210 PASS Results on FileOutput Power 15.247(b) PASS Results on FilePower Spectral Density (PSD) 15.247(d) PASS Results on FileBandedge FCC Part 15.209/15.247( c) PASS Results on FileFCC15.247 Radiated EmissionsOut of band 15.247( c) PASS Results on FileOutput Power, Power spectral densityat normal conditions EN 300 328-1 PASS Results on FileFrequency Range at normalconditions EN 300 328-1 PASS Results on FileOutput Power over extremeconditions EN 300 328-1 PASS Results on FileFrequency Range over extremeconditions EN 300 328-1 PASS Results on FileConducted spurious emissions, 30MHz- 12750MHz, transmit mode EN 300 328-1 PASS Results on FileRadio Performance TestConducted spurious emissions, 30MHz- 12750MHz, receive/stand-by mode EN 300 328-1 PASS Results on File30 -  12,750 MHz -Spurious EmissionsTransmit Mode EN 300 328 V1.2.1 PASS Results on FileEURadiated SpuriousEmissions 30 -  12,750 MHz -Spurious EmissionsReceive Mode EN 300 328 V1.2.1 PASS Results on FileTable 5 – Regulatory Agency CertificationsRegulatory Compliance Statement:The Unigen JUNO-M UGWM1US WirelessUSB module has been tested against the relevant requirementsof standards: EN 300 328, EN 301 489-17, FCC part 15 and Industry Canada RSS-210.  The module is certified bythe regulatory authorities in the USA and Canada and complies with the applicable essential requirements of theRadio & Telecommunication Terminal Equipment (R&TTE) directive in the EU.  The module can thus beincorporated into products sold worldwide with little or no additional testing of the module itself.  The endproduct must meet the appropriate technical requirements that apply to that product type but re-certification ofthe radio module is not required in the USA and Canada.  In the EU, the integrator is responsible for evaluatingtheir product type per the essential performance requirements of the R&TTE directive (except those associatedwith the module), declaring compliance and then notifying the member states prior to marketing theproduct (because the  module uses a frequency band that is not harmonized in the EU).  It is the responsibility ofthe module integrator to obtain the necessary approvals to sell products incorporating this module in othercountries outside of North America and the EU.    The report of measurements performed on the module incompliance with the FCC rules and EN standards can be used in these submittals (as the requirements in manyother markets around the world are based in part or in whole on the standards prevalent in North America andthe EU)

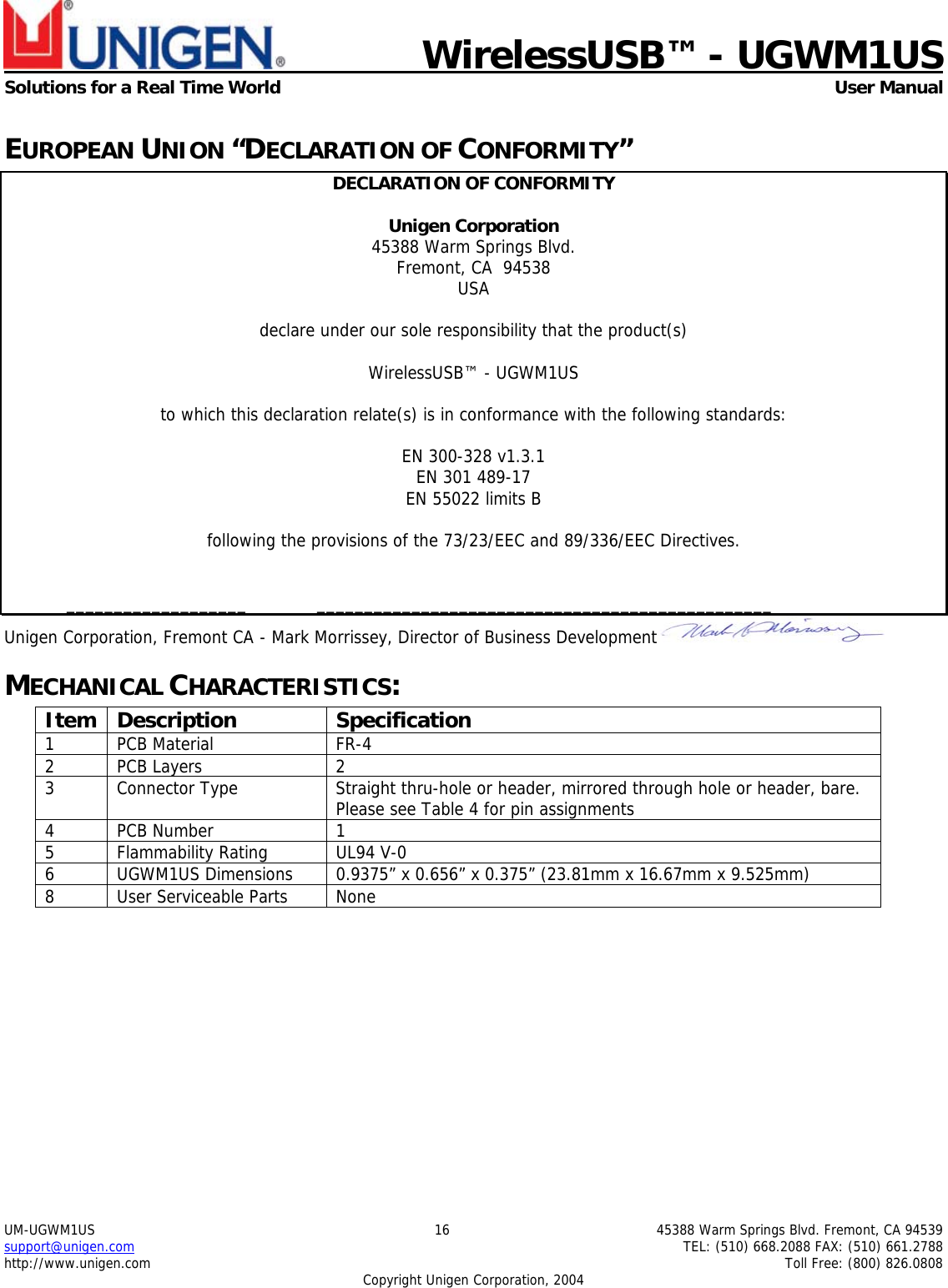

                            WirelessUSB™ - UGWM1USSolutions for a Real Time World  User ManualUM-UGWM1US 16 45388 Warm Springs Blvd. Fremont, CA 94539support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788http://www.unigen.com Toll Free: (800) 826.0808Copyright Unigen Corporation, 2004EUROPEAN UNION “DECLARATION OF CONFORMITY”DECLARATION OF CONFORMITYUnigen Corporation45388 Warm Springs Blvd.Fremont, CA  94538USAdeclare under our sole responsibility that the product(s)WirelessUSB™ - UGWM1USto which this declaration relate(s) is in conformance with the following standards:EN 300-328 v1.3.1EN 301 489-17EN 55022 limits Bfollowing the provisions of the 73/23/EEC and 89/336/EEC Directives.___________________ ________________________________________________Unigen Corporation, Fremont CA - Mark Morrissey, Director of Business DevelopmentMECHANICAL CHARACTERISTICS:Item Description Specification1 PCB Material FR-42 PCB Layers 23 Connector Type Straight thru-hole or header, mirrored through hole or header, bare.Please see Table 4 for pin assignments4PCB Number 15 Flammability Rating UL94 V-06 UGWM1US Dimensions 0.9375” x 0.656” x 0.375” (23.81mm x 16.67mm x 9.525mm)8 User Serviceable Parts None

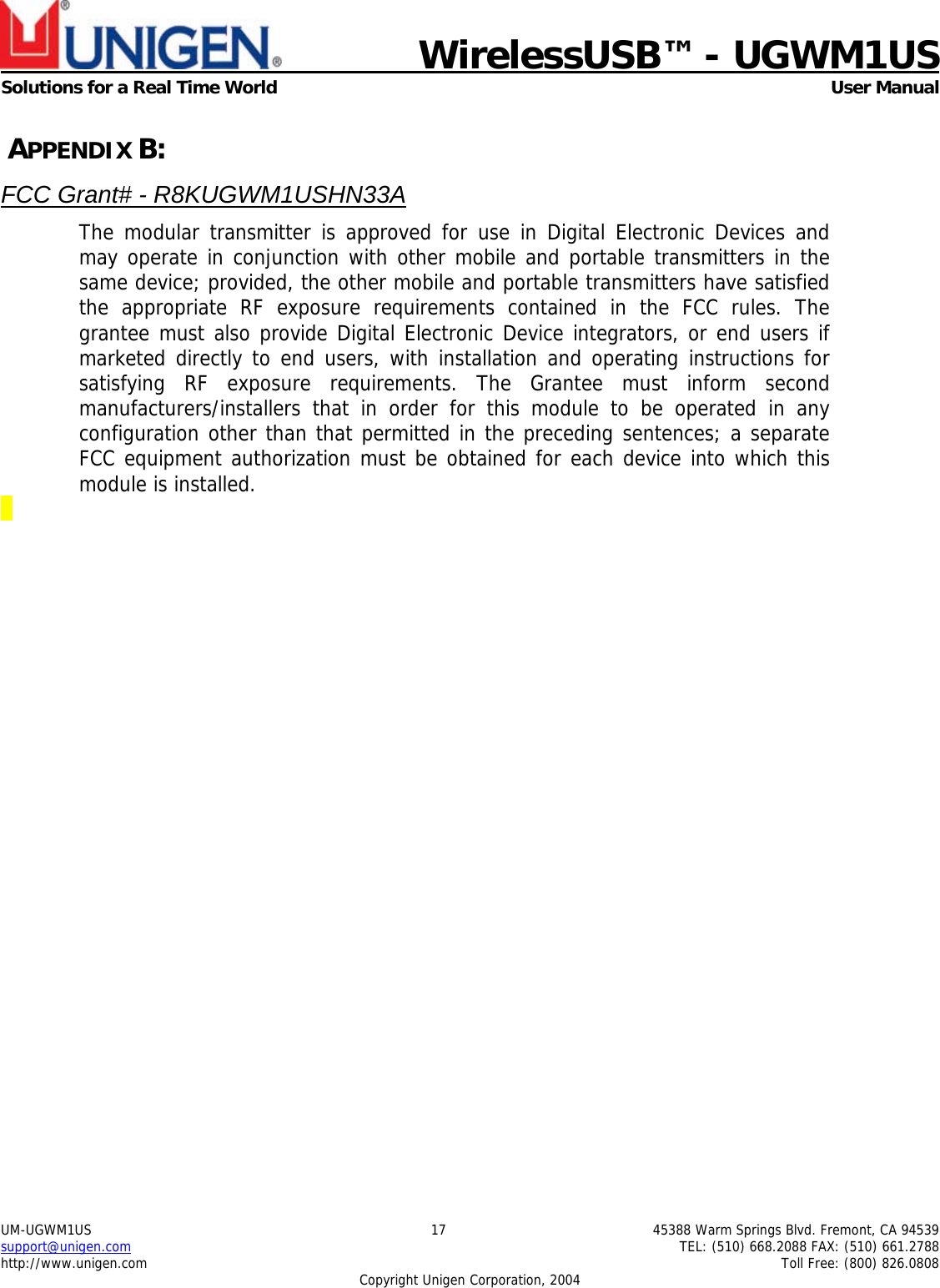

                            WirelessUSB™ - UGWM1USSolutions for a Real Time World  User ManualUM-UGWM1US 17 45388 Warm Springs Blvd. Fremont, CA 94539support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788http://www.unigen.com Toll Free: (800) 826.0808Copyright Unigen Corporation, 2004 APPENDIX B:FCC Grant# - R8KUGWM1USHN33AThe modular transmitter is approved for use in Digital Electronic Devices andmay operate in conjunction with other mobile and portable transmitters in thesame device; provided, the other mobile and portable transmitters have satisfiedthe appropriate RF exposure requirements contained in the FCC rules. Thegrantee must also provide Digital Electronic Device integrators, or end users ifmarketed directly to end users, with installation and operating instructions forsatisfying RF exposure requirements. The Grantee must inform secondmanufacturers/installers that in order for this module to be operated in anyconfiguration other than that permitted in the preceding sentences; a separateFCC equipment authorization must be obtained for each device into which thismodule is installed.
