Unigen UGWT1BL1 TETRA Dual Mode Bluetooth Radio Module User Manual TETRA Datasheet UGWT1BL2FLA233A

Unigen Corporation TETRA Dual Mode Bluetooth Radio Module TETRA Datasheet UGWT1BL2FLA233A

Manual

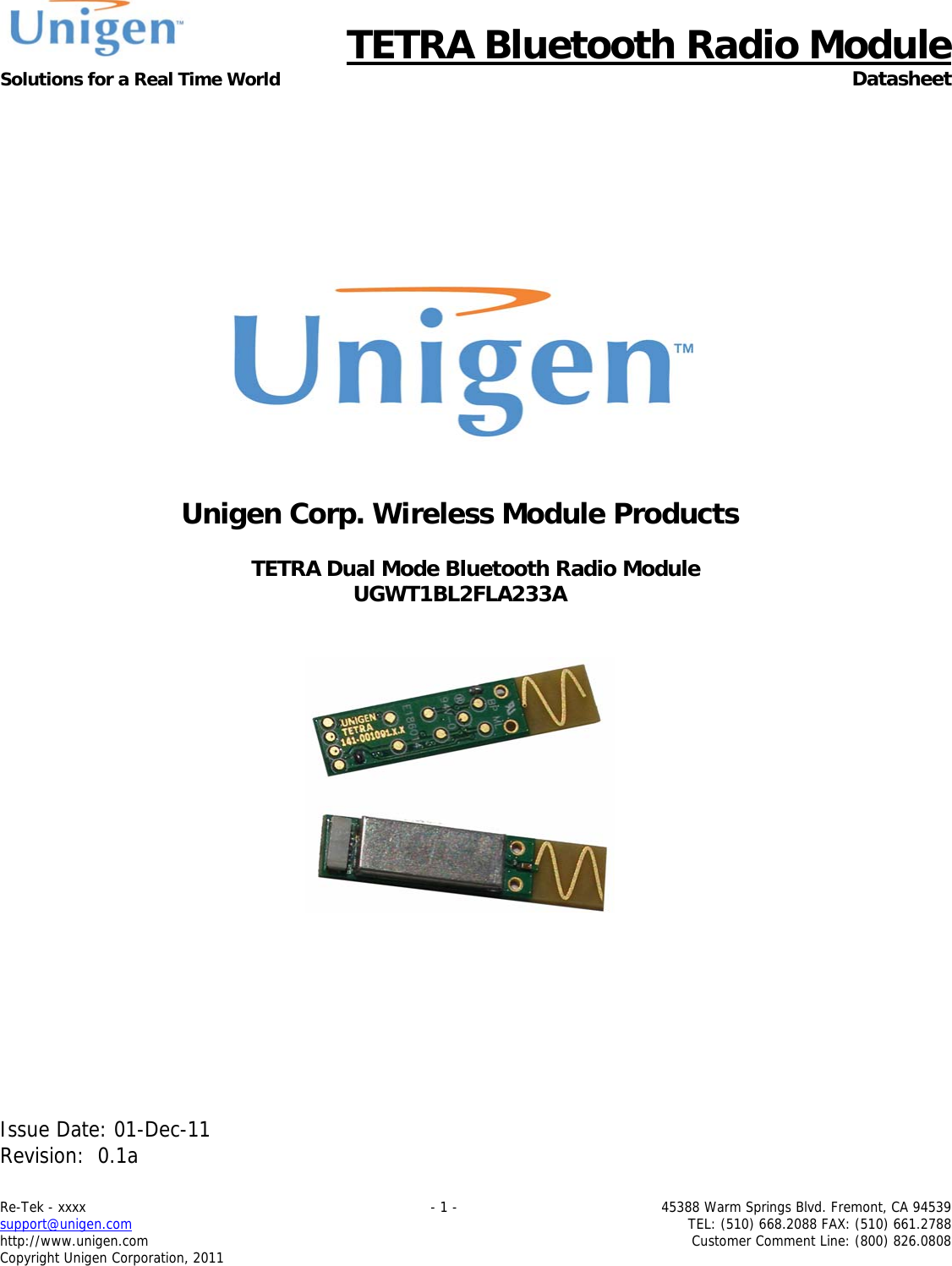

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 1 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 Unigen Corp. Wireless Module Products TETRA Dual Mode Bluetooth Radio Module UGWT1BL2FLA233A Issue Date: 01-Dec-11 Revision: 0.1a

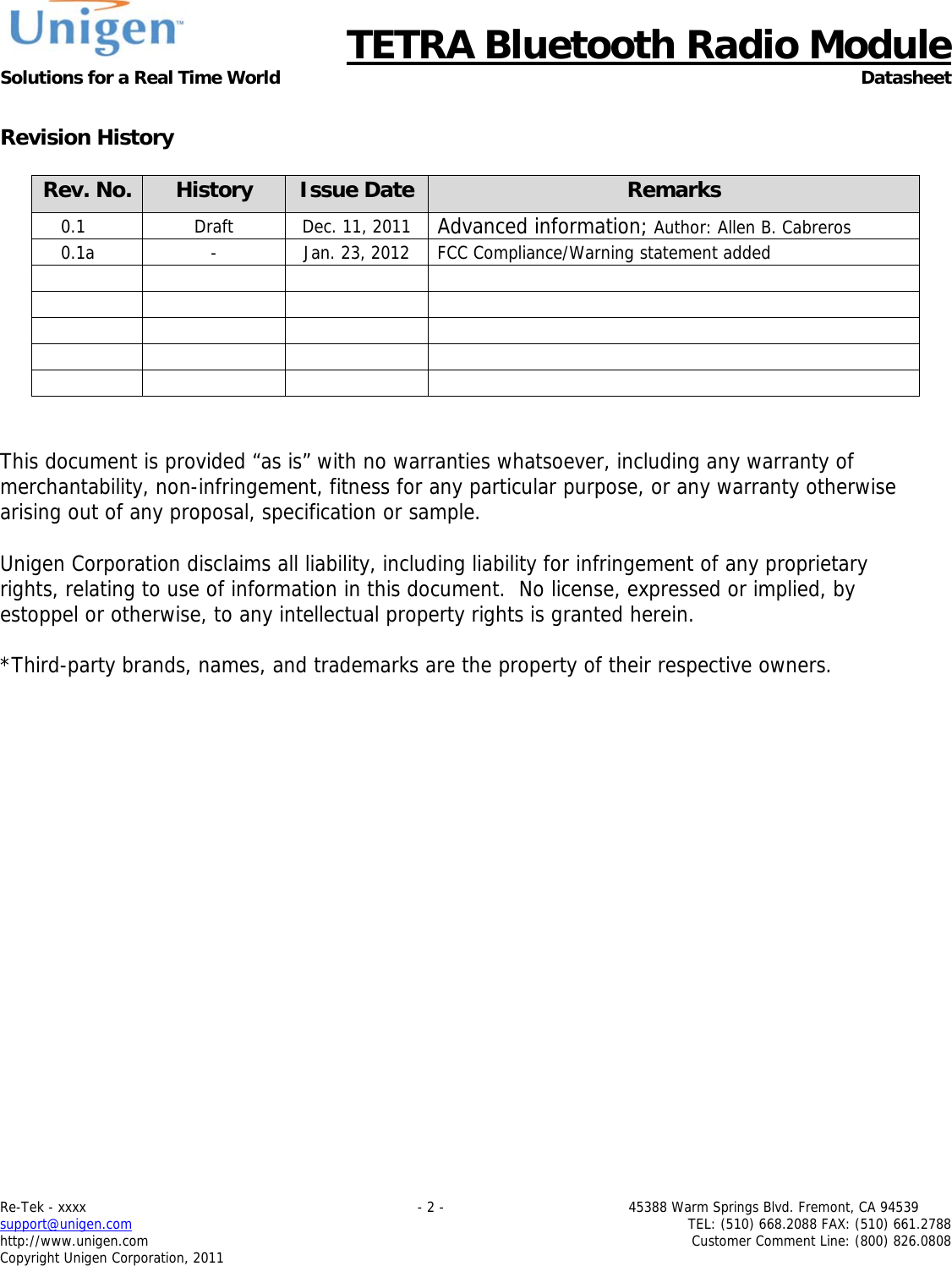

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 2 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 Revision History Rev. No. History Issue Date Remarks 0.1 Draft Dec. 11, 2011 Advanced information; Author: Allen B. Cabreros 0.1a - Jan. 23, 2012 FCC Compliance/Warning statement added This document is provided “as is” with no warranties whatsoever, including any warranty of merchantability, non-infringement, fitness for any particular purpose, or any warranty otherwise arising out of any proposal, specification or sample. Unigen Corporation disclaims all liability, including liability for infringement of any proprietary rights, relating to use of information in this document. No license, expressed or implied, by estoppel or otherwise, to any intellectual property rights is granted herein. *Third-party brands, names, and trademarks are the property of their respective owners.

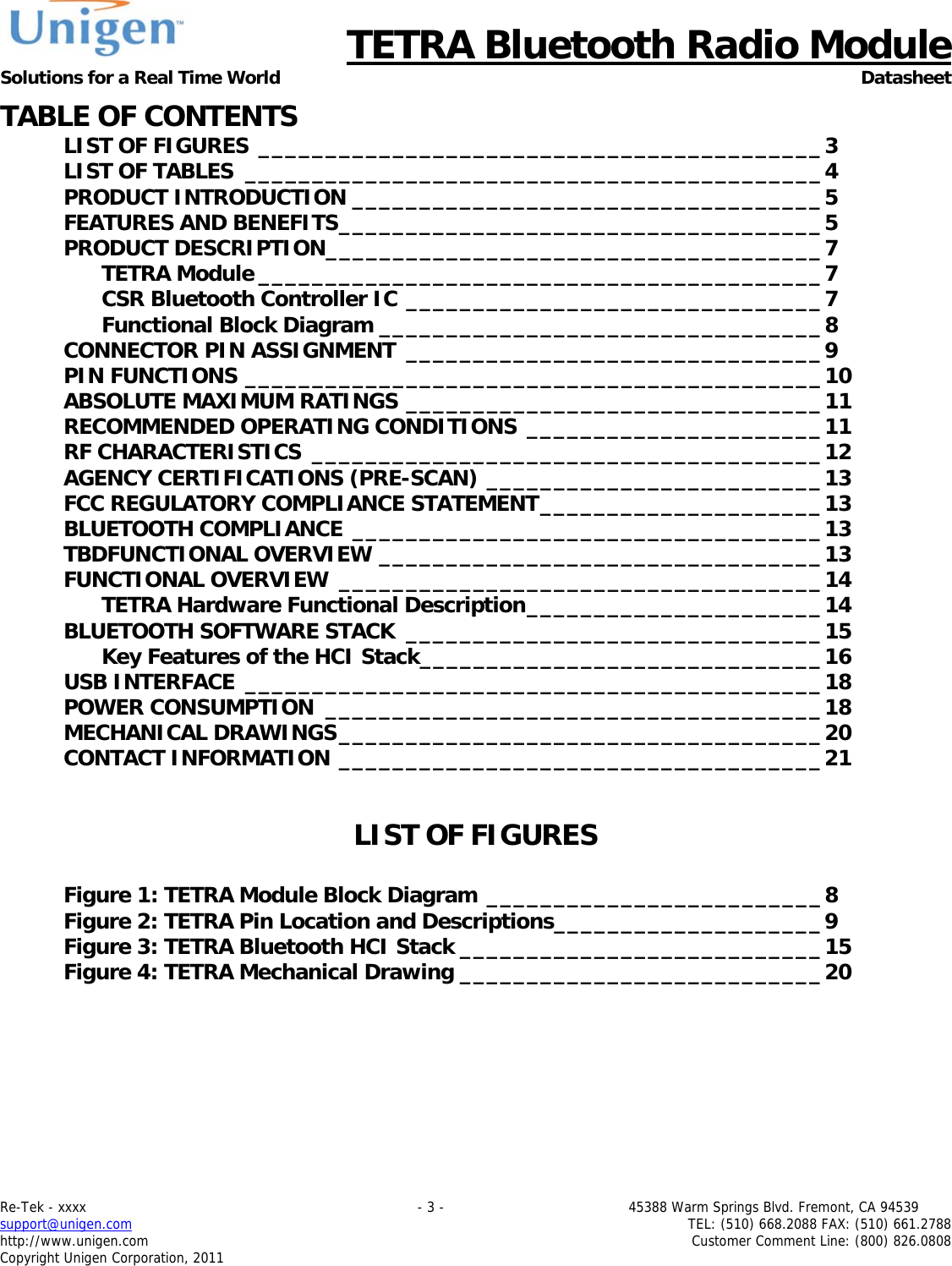

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 3 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 TABLE OF CONTENTS LIST OF FIGURES __________________________________________ 3LIST OF TABLES ___________________________________________ 4PRODUCT INTRODUCTION ___________________________________ 5FEATURES AND BENEFITS ____________________________________ 5PRODUCT DESCRIPTION _____________________________________ 7TETRA Module __________________________________________ 7CSR Bluetooth Controller IC _______________________________ 7Functional Block Diagram _________________________________ 8CONNECTOR PIN ASSIGNMENT _______________________________ 9PIN FUNCTIONS ___________________________________________ 10ABSOLUTE MAXIMUM RATINGS _______________________________ 11RECOMMENDED OPERATING CONDITIONS ______________________ 11RF CHARACTERISTICS ______________________________________ 12AGENCY CERTIFICATIONS (PRE-SCAN) _________________________ 13FCC REGULATORY COMPLIANCE STATEMENT _____________________ 13BLUETOOTH COMPLIANCE ___________________________________ 13TBDFUNCTIONAL OVERVIEW _________________________________ 13FUNCTIONAL OVERVIEW ____________________________________ 14TETRA Hardware Functional Description ______________________ 14BLUETOOTH SOFTWARE STACK _______________________________ 15Key Features of the HCI Stack ______________________________ 16USB INTERFACE ___________________________________________ 18POWER CONSUMPTION _____________________________________ 18MECHANICAL DRAWINGS ____________________________________ 20CONTACT INFORMATION ____________________________________ 21 LIST OF FIGURES Figure 1: TETRA Module Block Diagram _________________________ 8Figure 2: TETRA Pin Location and Descriptions ____________________ 9Figure 3: TETRA Bluetooth HCI Stack ___________________________ 15Figure 4: TETRA Mechanical Drawing ___________________________ 20

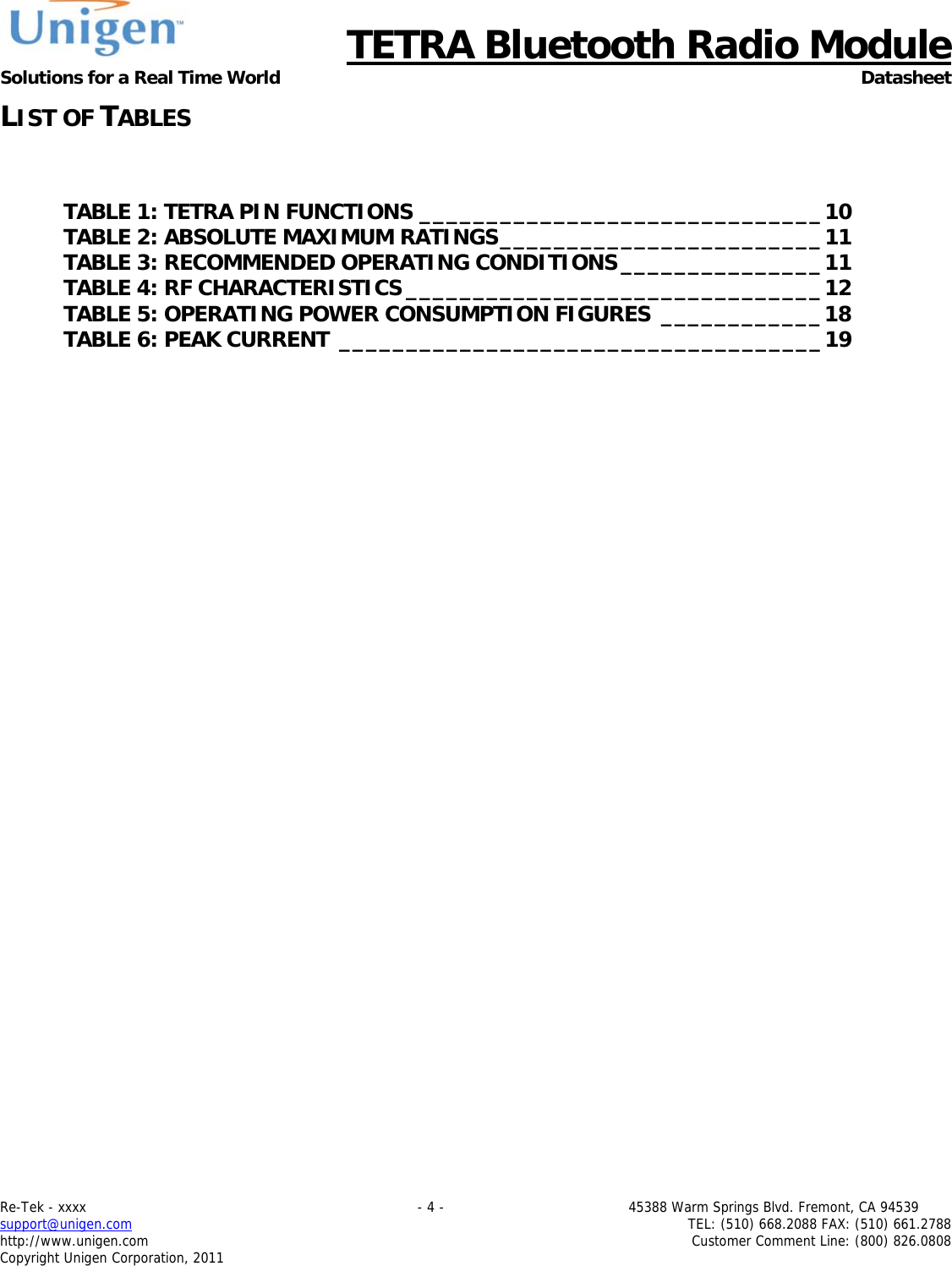

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 4 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 LIST OF TABLES TABLE 1: TETRA PIN FUNCTIONS ______________________________ 10TABLE 2: ABSOLUTE MAXIMUM RATINGS ________________________ 11TABLE 3: RECOMMENDED OPERATING CONDITIONS _______________ 11TABLE 4: RF CHARACTERISTICS _______________________________ 12TABLE 5: OPERATING POWER CONSUMPTION FIGURES ____________ 18TABLE 6: PEAK CURRENT ____________________________________ 19

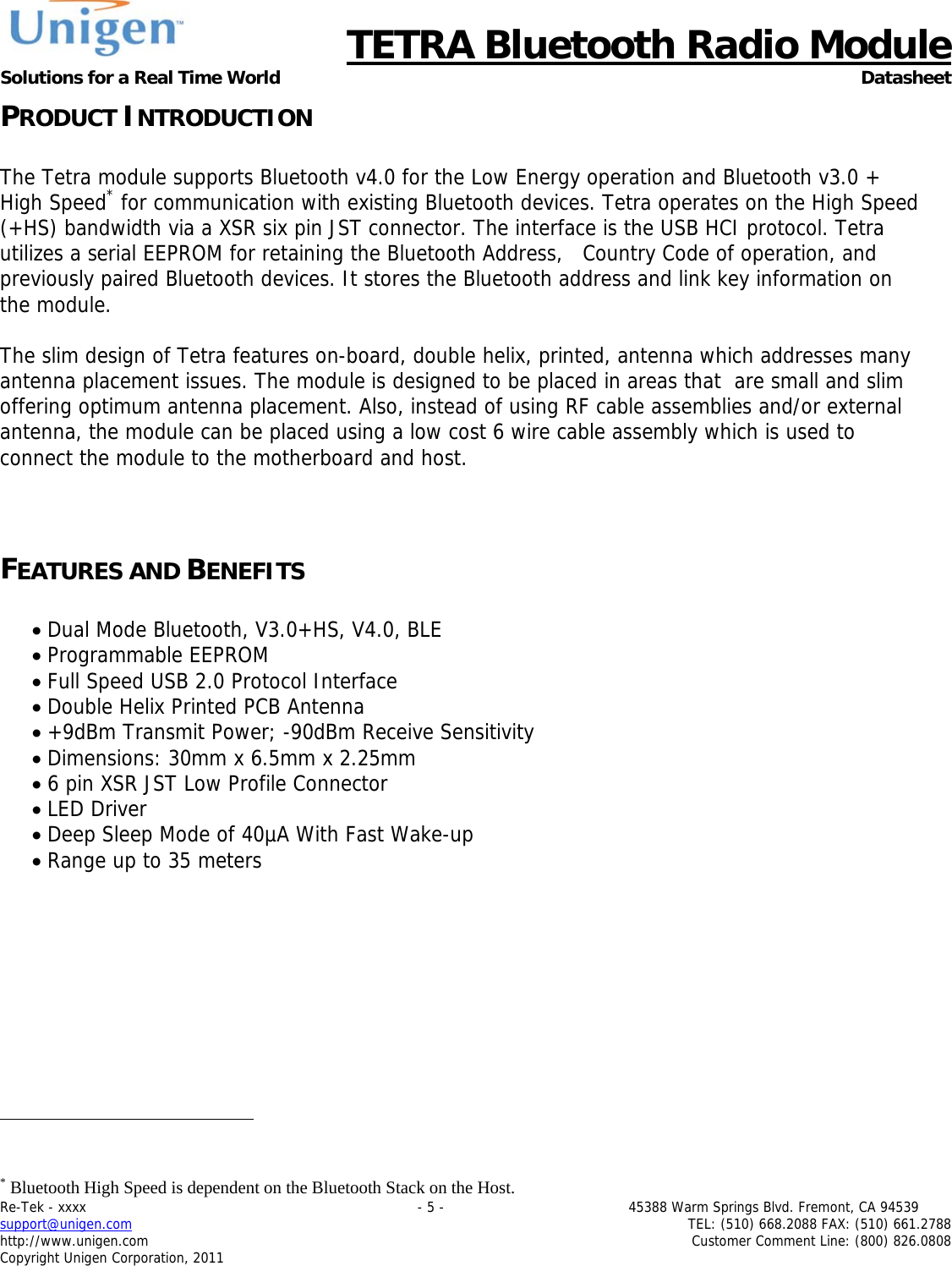

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 5 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 PRODUCT INTRODUCTION The Tetra module supports Bluetooth v4.0 for the Low Energy operation and Bluetooth v3.0 + High Speed* for communication with existing Bluetooth devices. Tetra operates on the High Speed (+HS) bandwidth via a XSR six pin JST connector. The interface is the USB HCI protocol. Tetra utilizes a serial EEPROM for retaining the Bluetooth Address, Country Code of operation, and previously paired Bluetooth devices. It stores the Bluetooth address and link key information on the module. The slim design of Tetra features on-board, double helix, printed, antenna which addresses many antenna placement issues. The module is designed to be placed in areas that are small and slim offering optimum antenna placement. Also, instead of using RF cable assemblies and/or external antenna, the module can be placed using a low cost 6 wire cable assembly which is used to connect the module to the motherboard and host. FEATURES AND BENEFITS  Dual Mode Bluetooth, V3.0+HS, V4.0, BLE  Programmable EEPROM  Full Speed USB 2.0 Protocol Interface  Double Helix Printed PCB Antenna  +9dBm Transmit Power; -90dBm Receive Sensitivity  Dimensions: 30mm x 6.5mm x 2.25mm  6 pin XSR JST Low Profile Connector  LED Driver  Deep Sleep Mode of 40µA With Fast Wake-up  Range up to 35 meters * Bluetooth High Speed is dependent on the Bluetooth Stack on the Host.

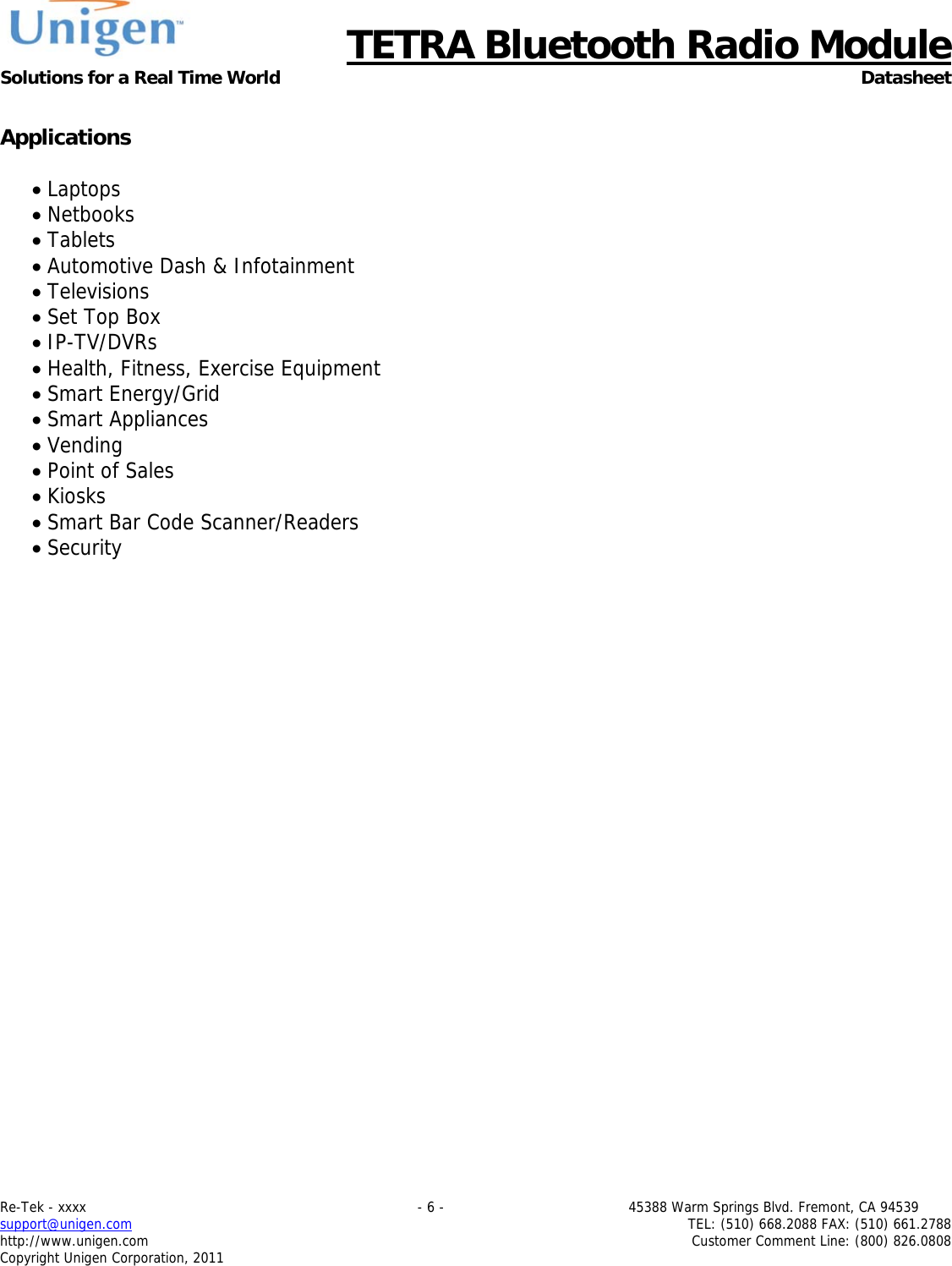

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 6 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 Applications  Laptops  Netbooks  Tablets  Automotive Dash & Infotainment  Televisions  Set Top Box  IP-TV/DVRs  Health, Fitness, Exercise Equipment  Smart Energy/Grid  Smart Appliances  Vending  Point of Sales  Kiosks  Smart Bar Code Scanner/Readers  Security

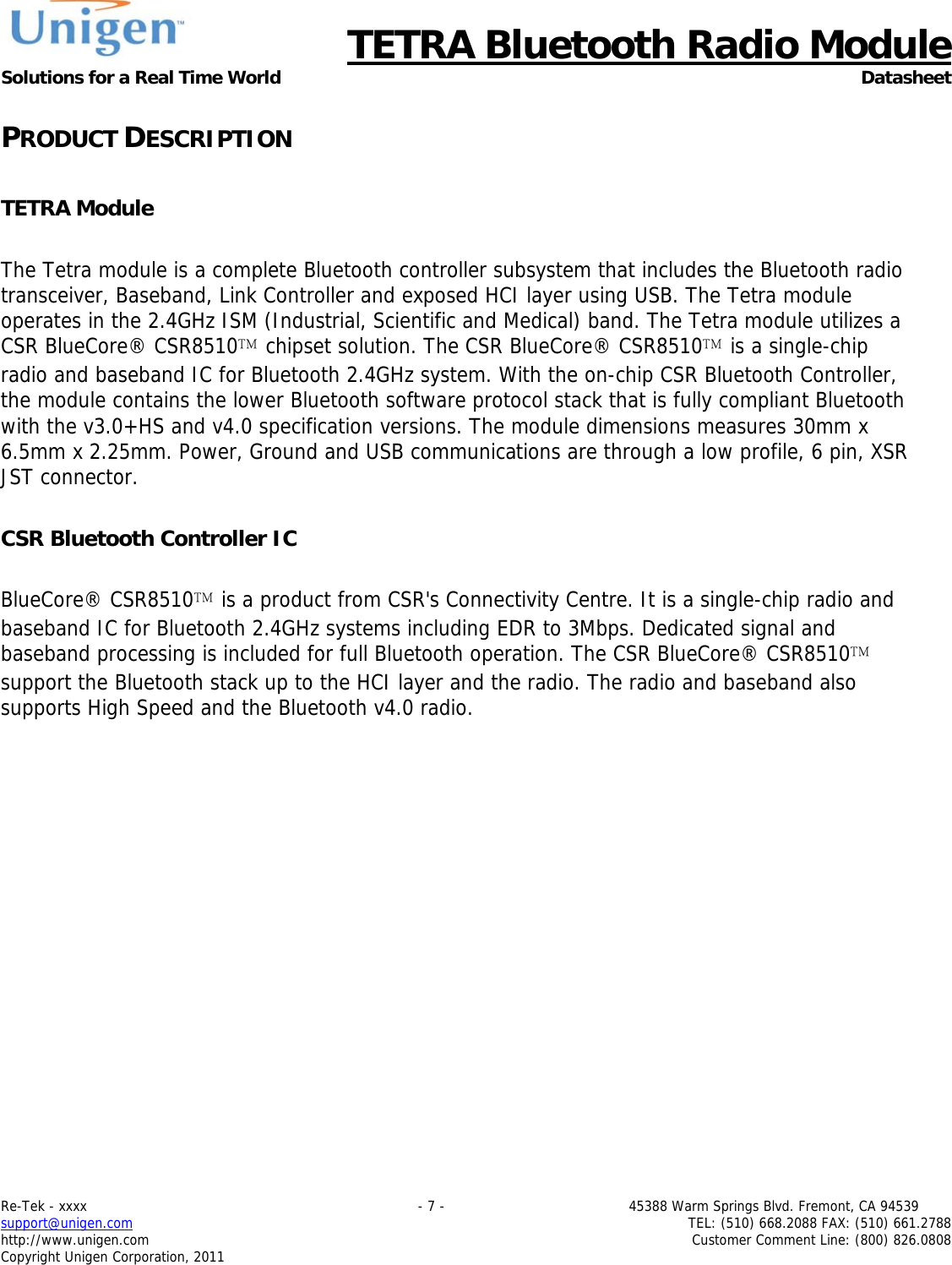

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 7 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 PRODUCT DESCRIPTION TETRA Module The Tetra module is a complete Bluetooth controller subsystem that includes the Bluetooth radio transceiver, Baseband, Link Controller and exposed HCI layer using USB. The Tetra module operates in the 2.4GHz ISM (Industrial, Scientific and Medical) band. The Tetra module utilizes a CSR BlueCore® CSR8510 chipset solution. The CSR BlueCore® CSR8510 is a single-chip radio and baseband IC for Bluetooth 2.4GHz system. With the on-chip CSR Bluetooth Controller, the module contains the lower Bluetooth software protocol stack that is fully compliant Bluetooth with the v3.0+HS and v4.0 specification versions. The module dimensions measures 30mm x 6.5mm x 2.25mm. Power, Ground and USB communications are through a low profile, 6 pin, XSR JST connector. CSR Bluetooth Controller IC BlueCore® CSR8510 is a product from CSR's Connectivity Centre. It is a single-chip radio and baseband IC for Bluetooth 2.4GHz systems including EDR to 3Mbps. Dedicated signal and baseband processing is included for full Bluetooth operation. The CSR BlueCore® CSR8510 support the Bluetooth stack up to the HCI layer and the radio. The radio and baseband also supports High Speed and the Bluetooth v4.0 radio.

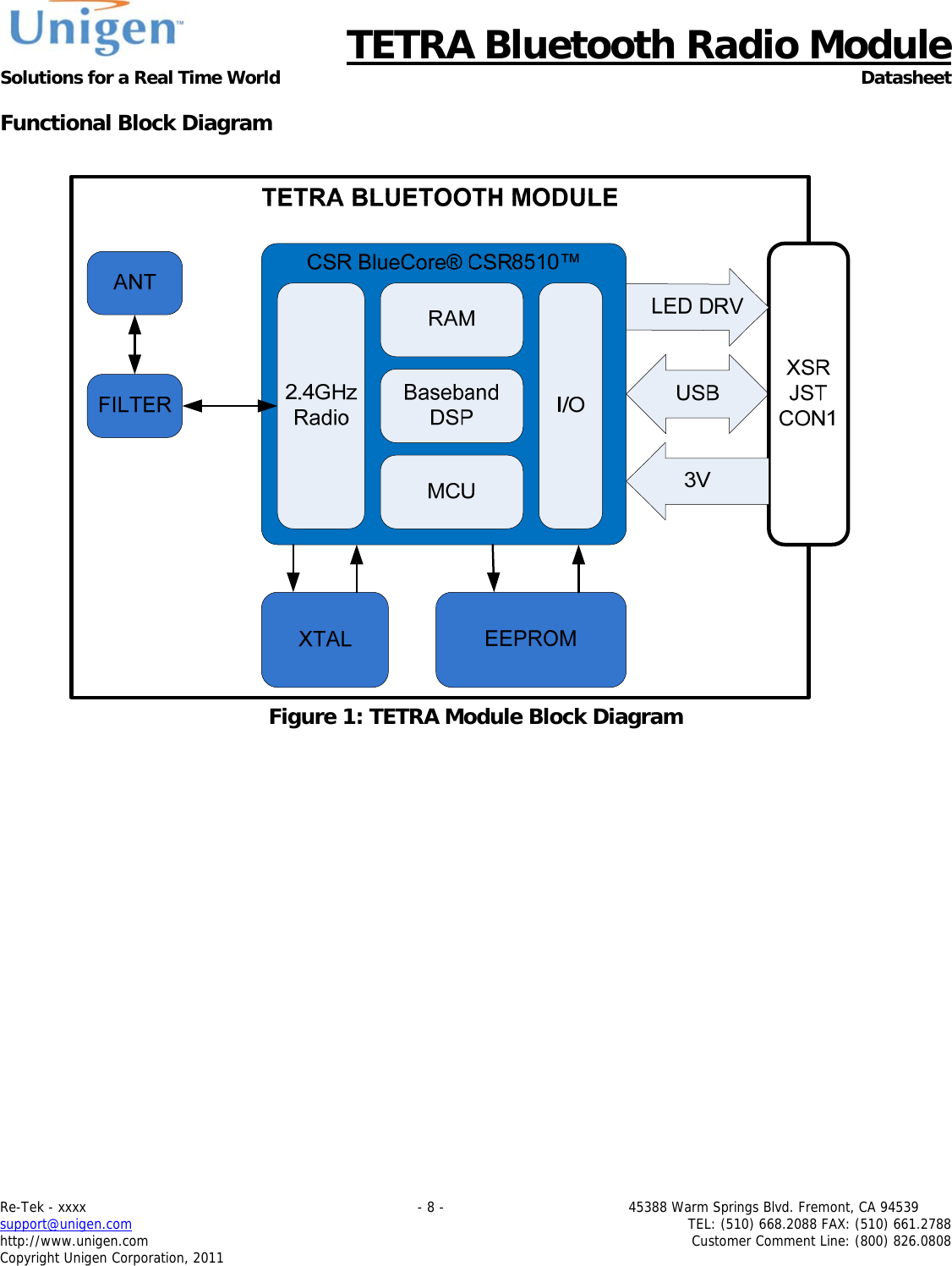

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 8 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 Functional Block Diagram Figure 1: TETRA Module Block Diagram

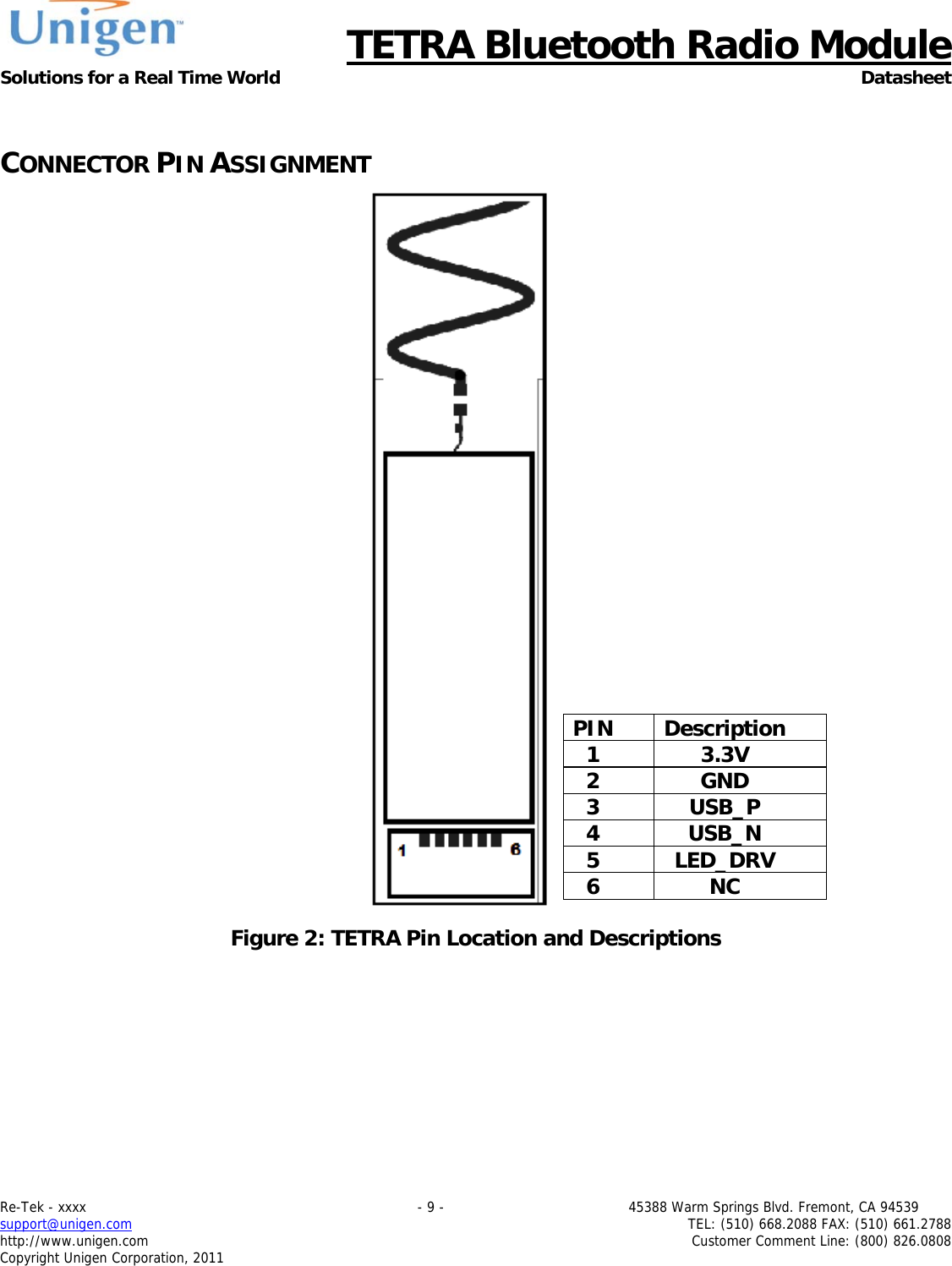

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 9 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 CONNECTOR PIN ASSIGNMENT Figure 2: TETRA Pin Location and Descriptions PIN Description 1 3.3V 2 GND 3 USB_P 4 USB_N 5 LED_DRV 6 NC

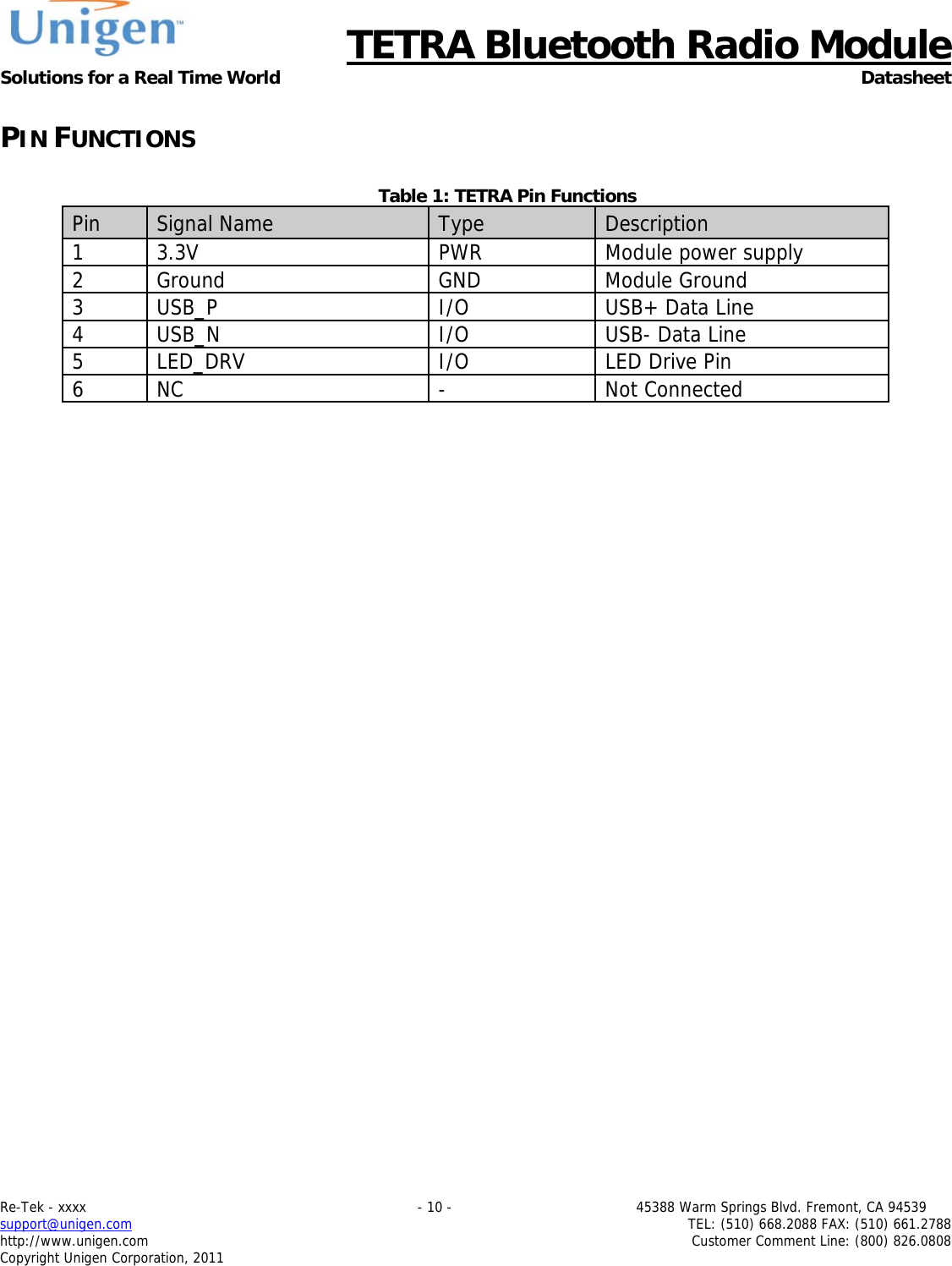

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 10 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 PIN FUNCTIONS Table 1: TETRA Pin Functions Pin Signal Name Type Description 1 3.3V PWR Module power supply 2 Ground GND Module Ground 3 USB_P I/O USB+ Data Line 4 USB_N I/O USB- Data Line 5 LED_DRV I/O LED Drive Pin 6 NC - Not Connected

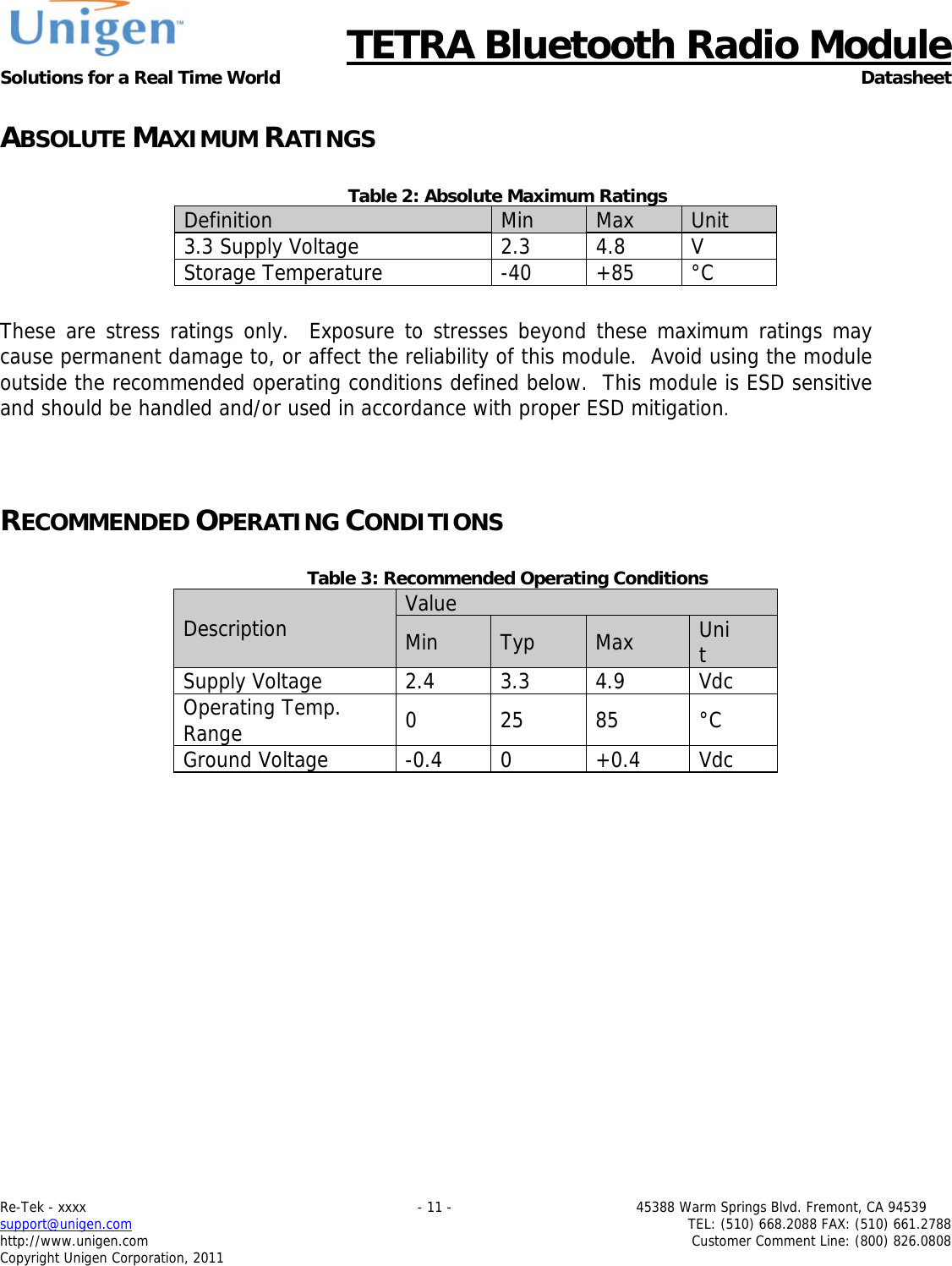

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 11 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 ABSOLUTE MAXIMUM RATINGS Table 2: Absolute Maximum Ratings Definition Min Max Unit 3.3 Supply Voltage 2.3 4.8 V Storage Temperature -40 +85 °C These are stress ratings only. Exposure to stresses beyond these maximum ratings may cause permanent damage to, or affect the reliability of this module. Avoid using the module outside the recommended operating conditions defined below. This module is ESD sensitive and should be handled and/or used in accordance with proper ESD mitigation. RECOMMENDED OPERATING CONDITIONS Table 3: Recommended Operating Conditions Description Value Min Typ Max Unit Supply Voltage 2.4 3.3 4.9 Vdc Operating Temp. Range 0 25 85 °C Ground Voltage -0.4 0 +0.4 Vdc

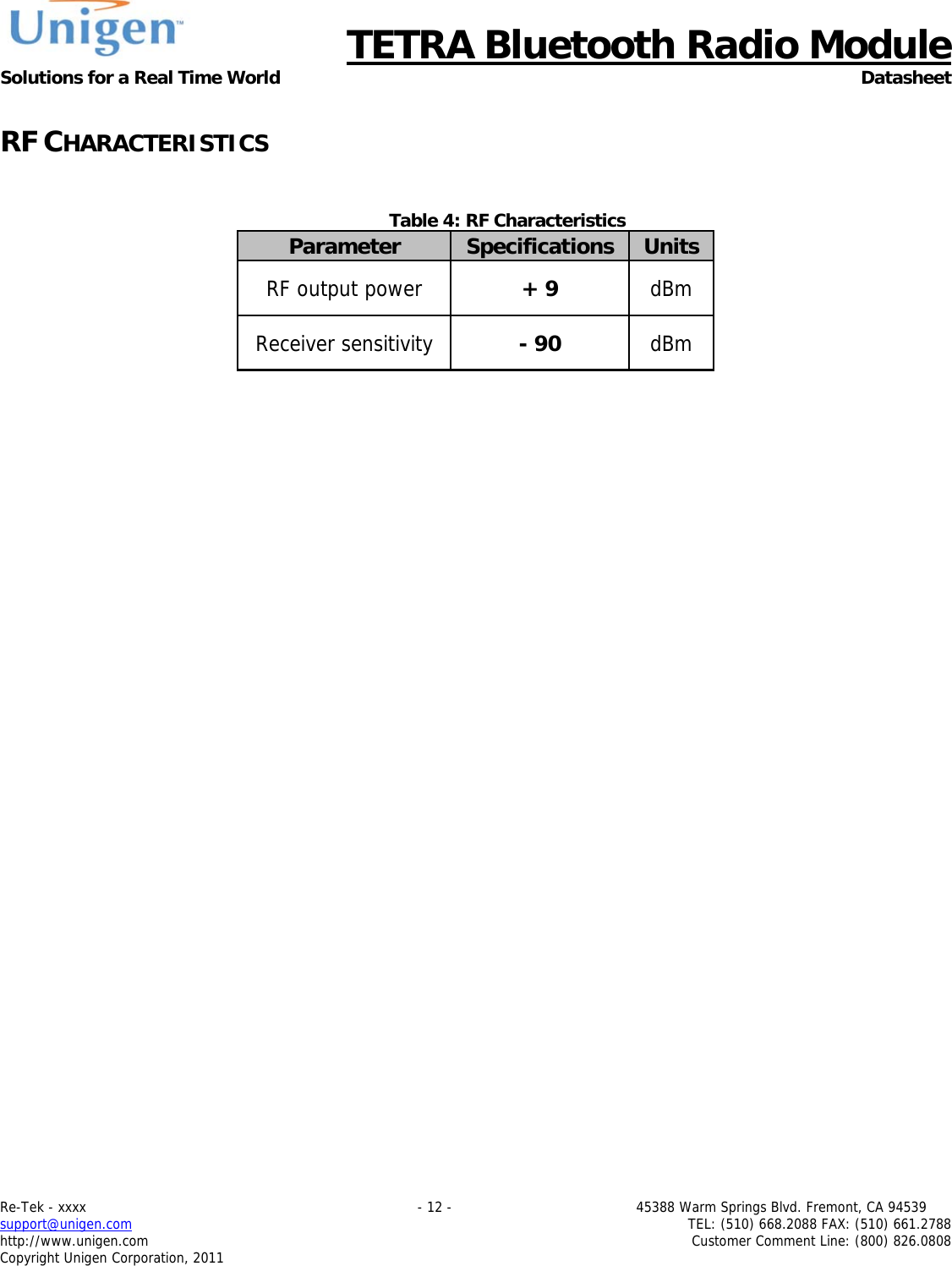

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 12 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 RF CHARACTERISTICS Table 4: RF Characteristics Parameter Specifications Units RF output power + 9 dBm Receiver sensitivity - 90 dBm

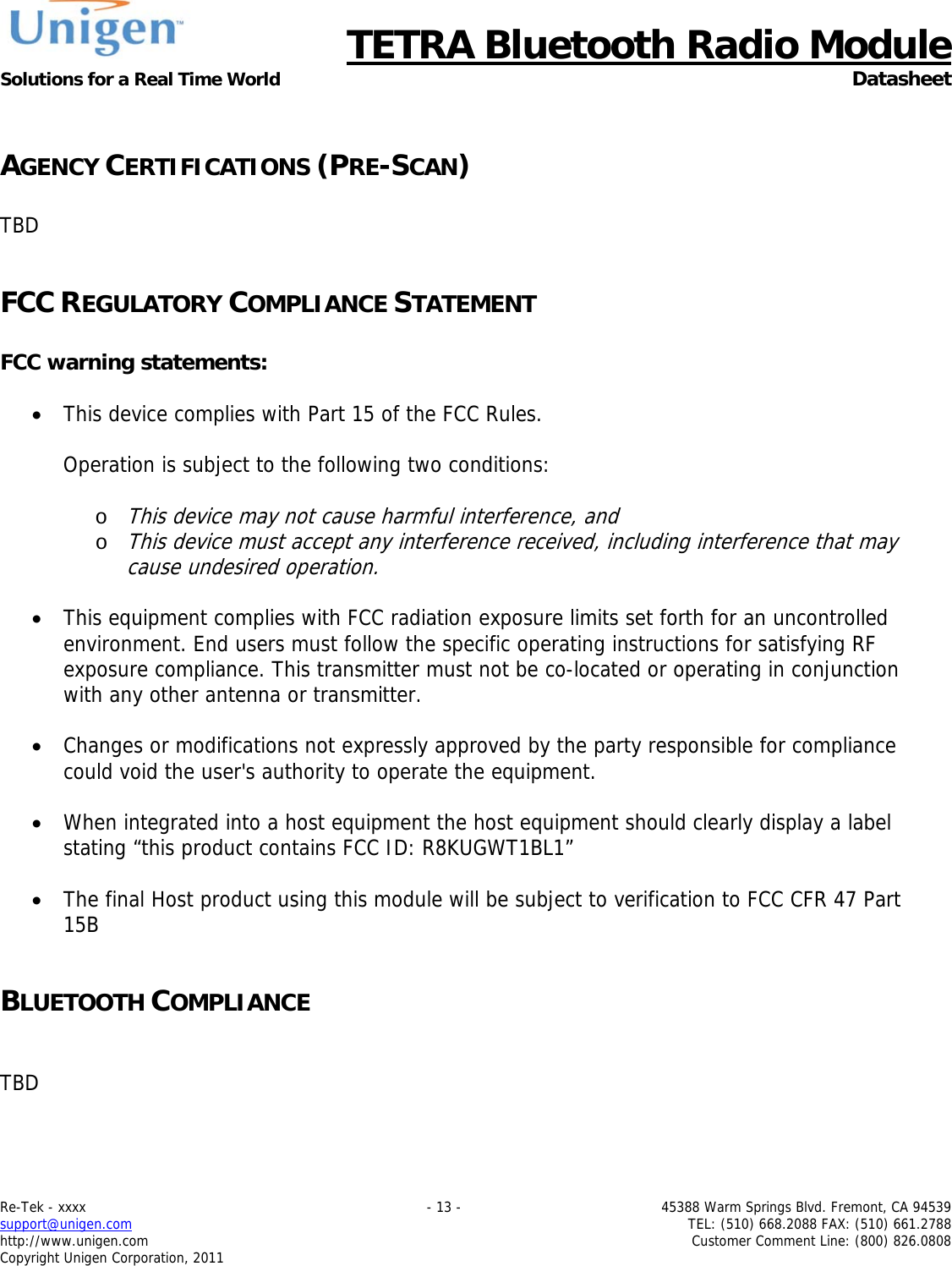

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 13 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 AGENCY CERTIFICATIONS (PRE-SCAN) TBD FCC REGULATORY COMPLIANCE STATEMENT FCC warning statements:  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: o This device may not cause harmful interference, and o This device must accept any interference received, including interference that may cause undesired operation.  This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.  Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.  When integrated into a host equipment the host equipment should clearly display a label stating “this product contains FCC ID: R8KUGWT1BL1”  The final Host product using this module will be subject to verification to FCC CFR 47 Part 15B BLUETOOTH COMPLIANCE TBD

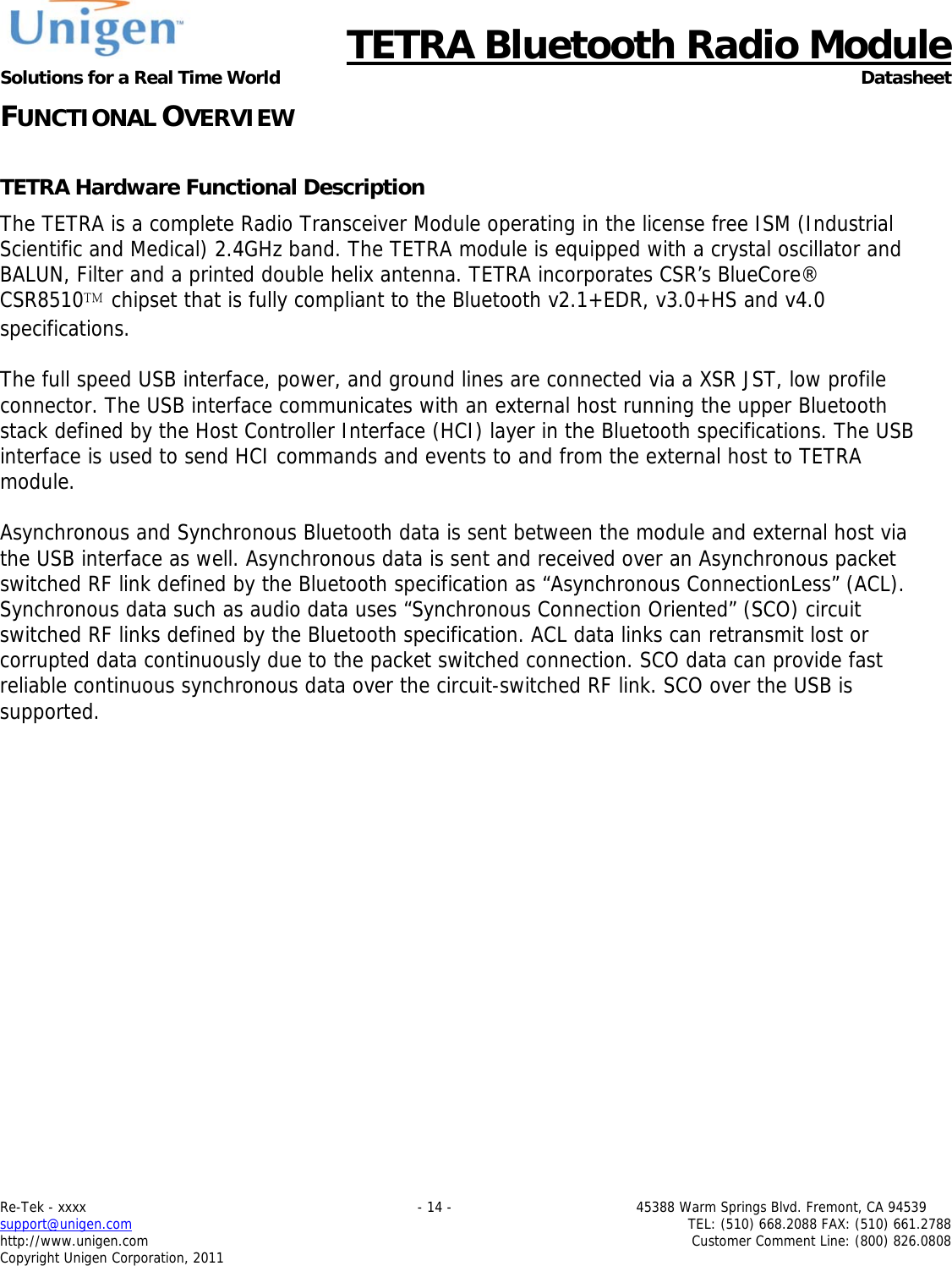

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 14 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 FUNCTIONAL OVERVIEW TETRA Hardware Functional Description The TETRA is a complete Radio Transceiver Module operating in the license free ISM (Industrial Scientific and Medical) 2.4GHz band. The TETRA module is equipped with a crystal oscillator and BALUN, Filter and a printed double helix antenna. TETRA incorporates CSR’s BlueCore® CSR8510 chipset that is fully compliant to the Bluetooth v2.1+EDR, v3.0+HS and v4.0 specifications. The full speed USB interface, power, and ground lines are connected via a XSR JST, low profile connector. The USB interface communicates with an external host running the upper Bluetooth stack defined by the Host Controller Interface (HCI) layer in the Bluetooth specifications. The USB interface is used to send HCI commands and events to and from the external host to TETRA module. Asynchronous and Synchronous Bluetooth data is sent between the module and external host via the USB interface as well. Asynchronous data is sent and received over an Asynchronous packet switched RF link defined by the Bluetooth specification as “Asynchronous ConnectionLess” (ACL). Synchronous data such as audio data uses “Synchronous Connection Oriented” (SCO) circuit switched RF links defined by the Bluetooth specification. ACL data links can retransmit lost or corrupted data continuously due to the packet switched connection. SCO data can provide fast reliable continuous synchronous data over the circuit-switched RF link. SCO over the USB is supported.

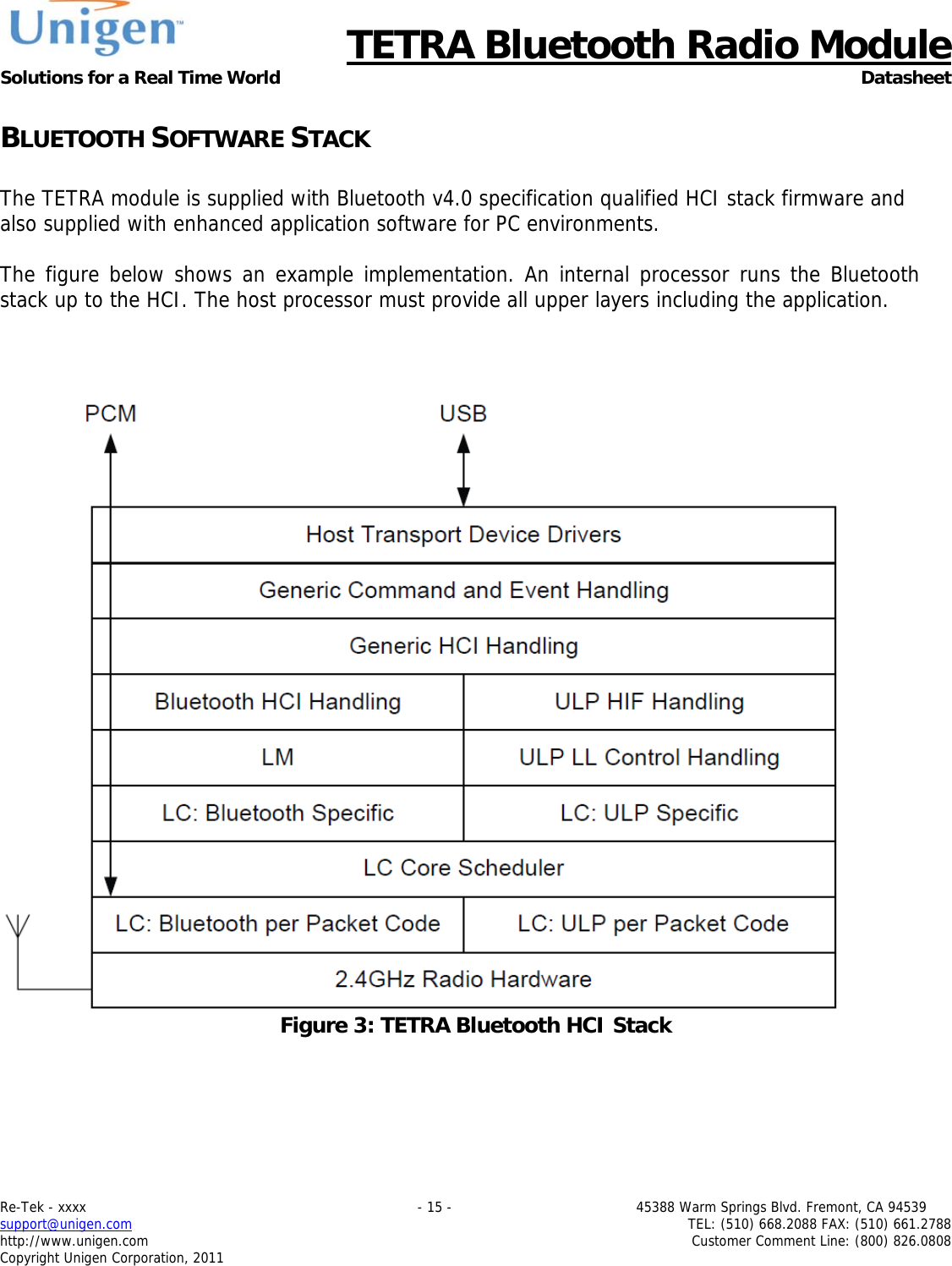

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 15 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 BLUETOOTH SOFTWARE STACK The TETRA module is supplied with Bluetooth v4.0 specification qualified HCI stack firmware and also supplied with enhanced application software for PC environments. The figure below shows an example implementation. An internal processor runs the Bluetooth stack up to the HCI. The host processor must provide all upper layers including the application. Figure 3: TETRA Bluetooth HCI Stack

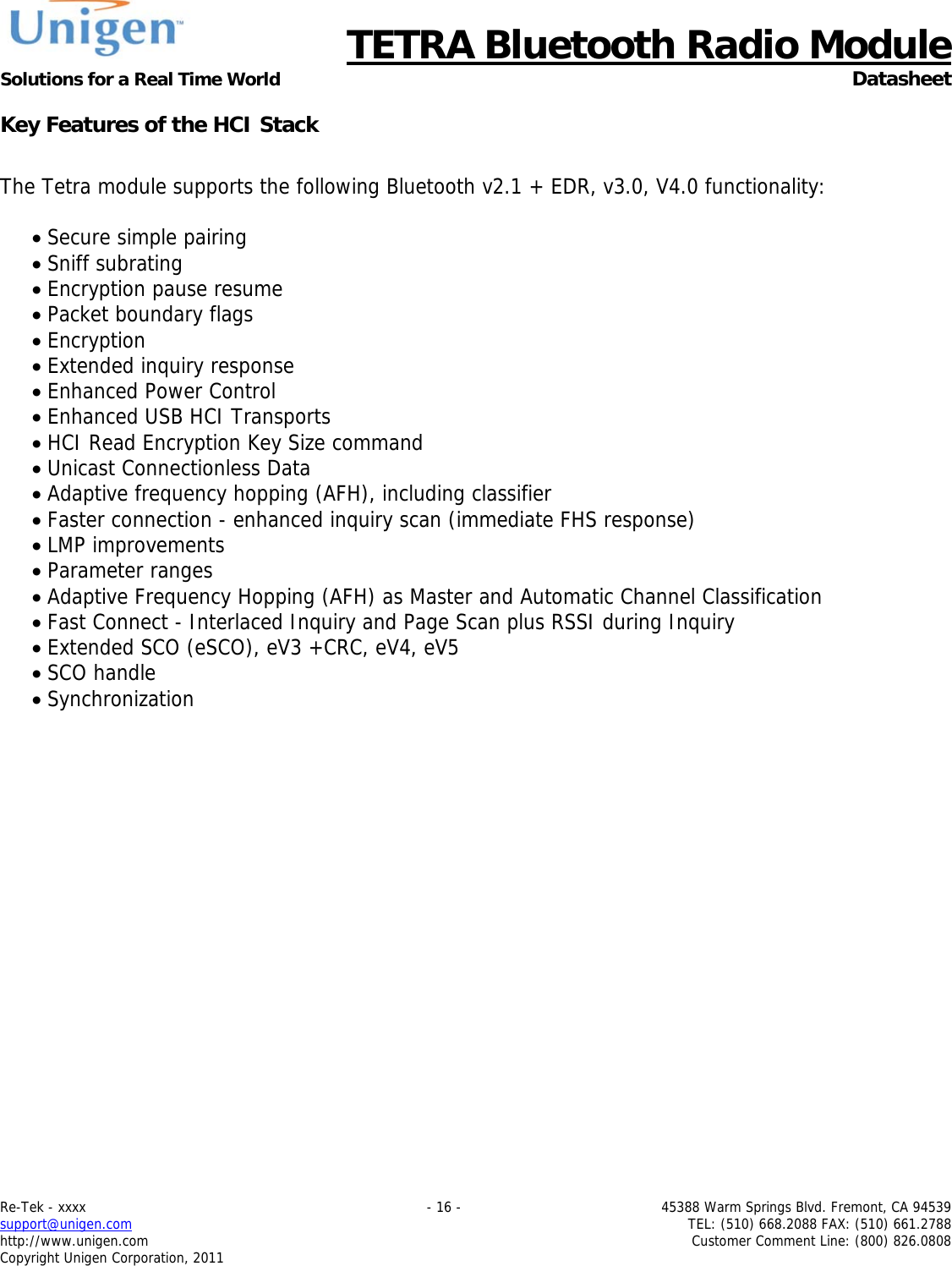

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 16 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 Key Features of the HCI Stack The Tetra module supports the following Bluetooth v2.1 + EDR, v3.0, V4.0 functionality:  Secure simple pairing  Sniff subrating  Encryption pause resume  Packet boundary flags  Encryption  Extended inquiry response  Enhanced Power Control  Enhanced USB HCI Transports  HCI Read Encryption Key Size command  Unicast Connectionless Data  Adaptive frequency hopping (AFH), including classifier  Faster connection - enhanced inquiry scan (immediate FHS response)  LMP improvements  Parameter ranges  Adaptive Frequency Hopping (AFH) as Master and Automatic Channel Classification  Fast Connect - Interlaced Inquiry and Page Scan plus RSSI during Inquiry  Extended SCO (eSCO), eV3 +CRC, eV4, eV5  SCO handle  Synchronization

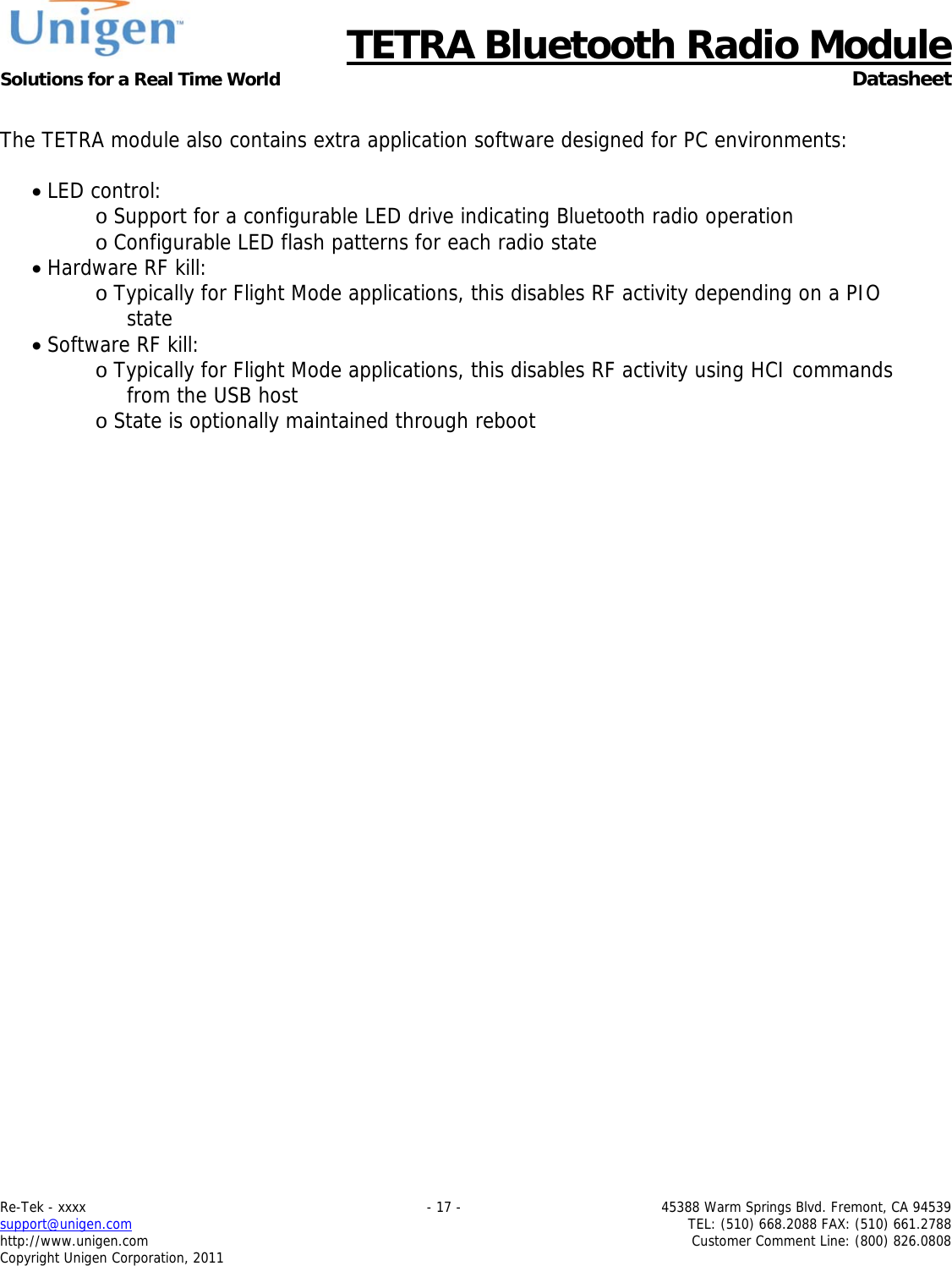

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 17 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 The TETRA module also contains extra application software designed for PC environments:  LED control: o Support for a configurable LED drive indicating Bluetooth radio operation o Configurable LED flash patterns for each radio state  Hardware RF kill: o Typically for Flight Mode applications, this disables RF activity depending on a PIO state  Software RF kill: o Typically for Flight Mode applications, this disables RF activity using HCI commands from the USB host o State is optionally maintained through reboot

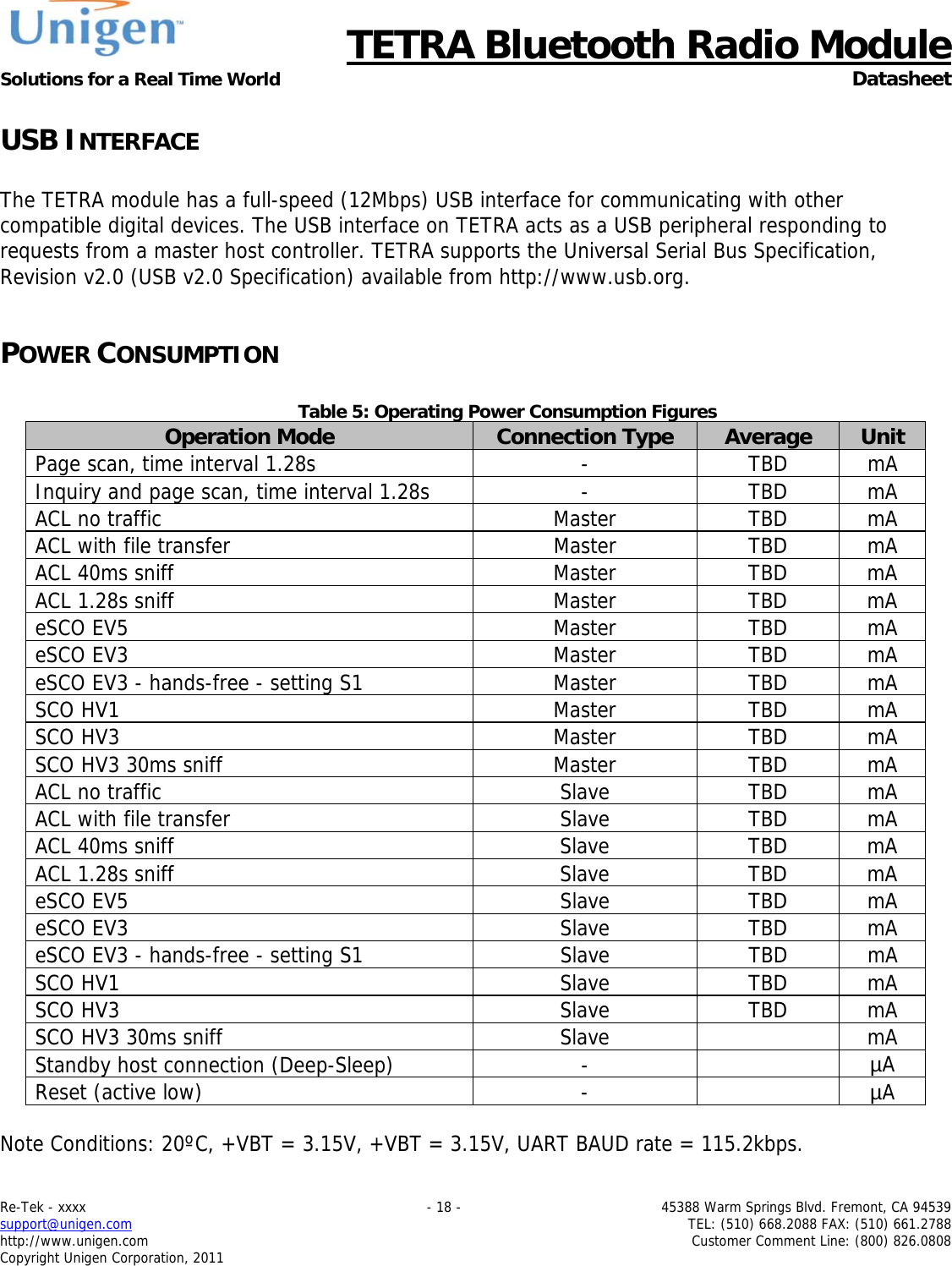

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 18 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 USB INTERFACE The TETRA module has a full-speed (12Mbps) USB interface for communicating with other compatible digital devices. The USB interface on TETRA acts as a USB peripheral responding to requests from a master host controller. TETRA supports the Universal Serial Bus Specification, Revision v2.0 (USB v2.0 Specification) available from http://www.usb.org. POWER CONSUMPTION Table 5: Operating Power Consumption Figures Operation Mode Connection Type Average Unit Page scan, time interval 1.28s - TBD mA Inquiry and page scan, time interval 1.28s - TBD mA ACL no traffic Master TBD mA ACL with file transfer Master TBD mA ACL 40ms sniff Master TBD mA ACL 1.28s sniff Master TBD mA eSCO EV5 Master TBD mA eSCO EV3 Master TBD mA eSCO EV3 - hands-free - setting S1 Master TBD mA SCO HV1 Master TBD mA SCO HV3 Master TBD mA SCO HV3 30ms sniff Master TBD mA ACL no traffic Slave TBD mA ACL with file transfer Slave TBD mA ACL 40ms sniff Slave TBD mA ACL 1.28s sniff Slave TBD mA eSCO EV5 Slave TBD mA eSCO EV3 Slave TBD mA eSCO EV3 - hands-free - setting S1 Slave TBD mA SCO HV1 Slave TBD mA SCO HV3 Slave TBD mA SCO HV3 30ms sniff Slave mA Standby host connection (Deep-Sleep) - µA Reset (active low) - µA Note Conditions: 20ºC, +VBT = 3.15V, +VBT = 3.15V, UART BAUD rate = 115.2kbps.

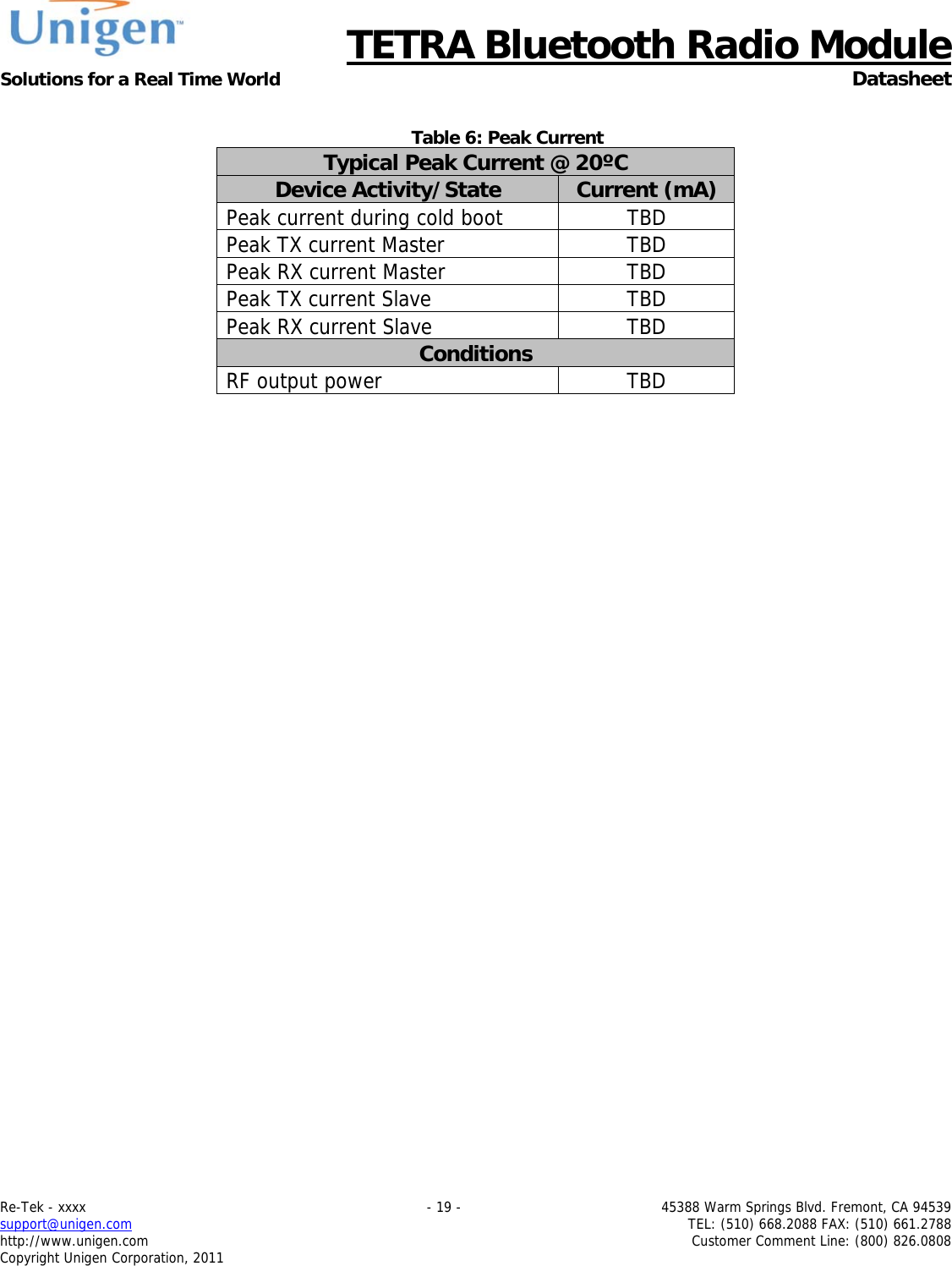

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 19 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 Table 6: Peak Current Typical Peak Current @ 20ºC Device Activity/State Current (mA) Peak current during cold boot TBD Peak TX current Master TBD Peak RX current Master TBD Peak TX current Slave TBD Peak RX current Slave TBD Conditions RF output power TBD

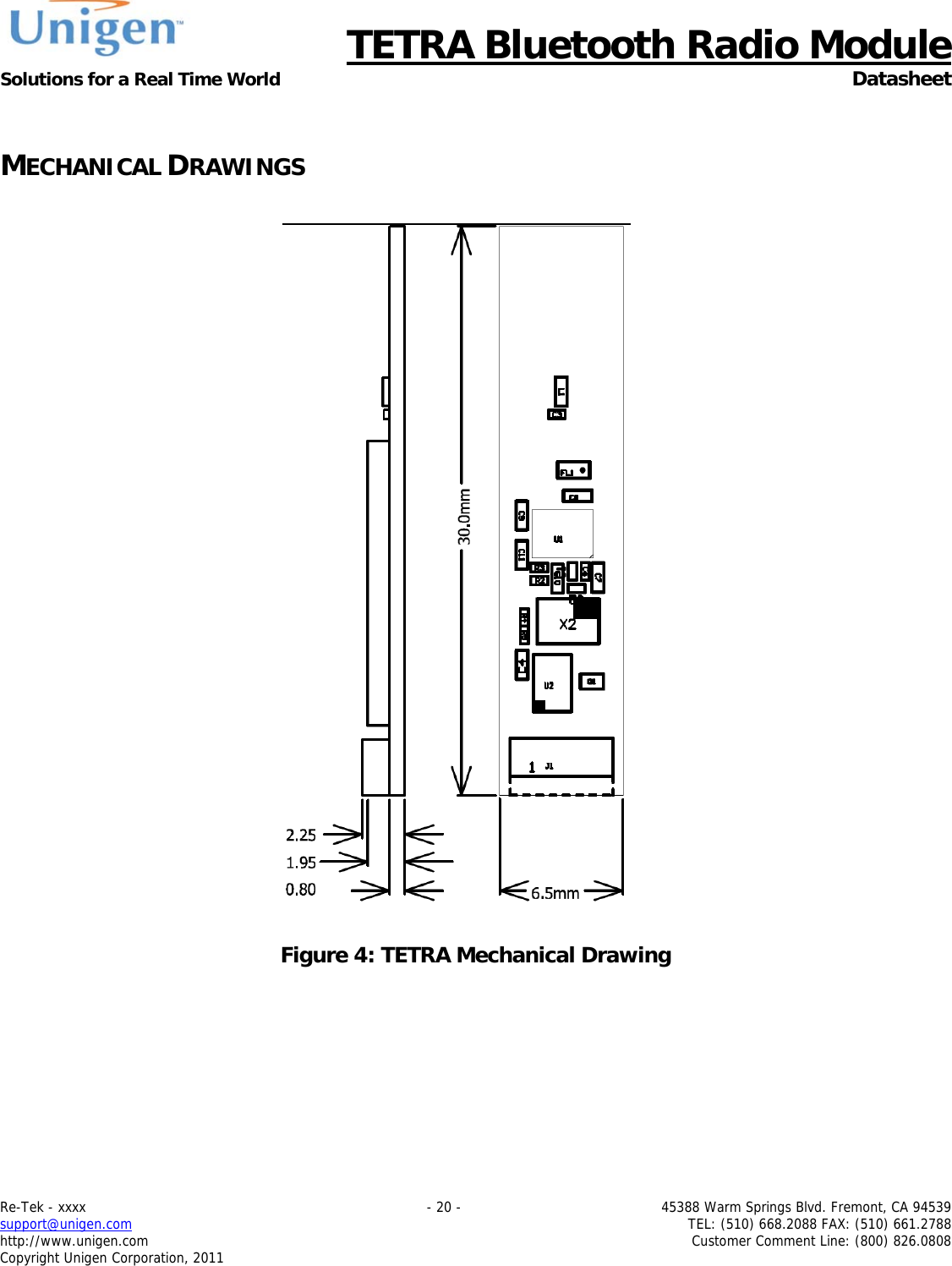

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 20 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 MECHANICAL DRAWINGS Figure 4: TETRA Mechanical Drawing

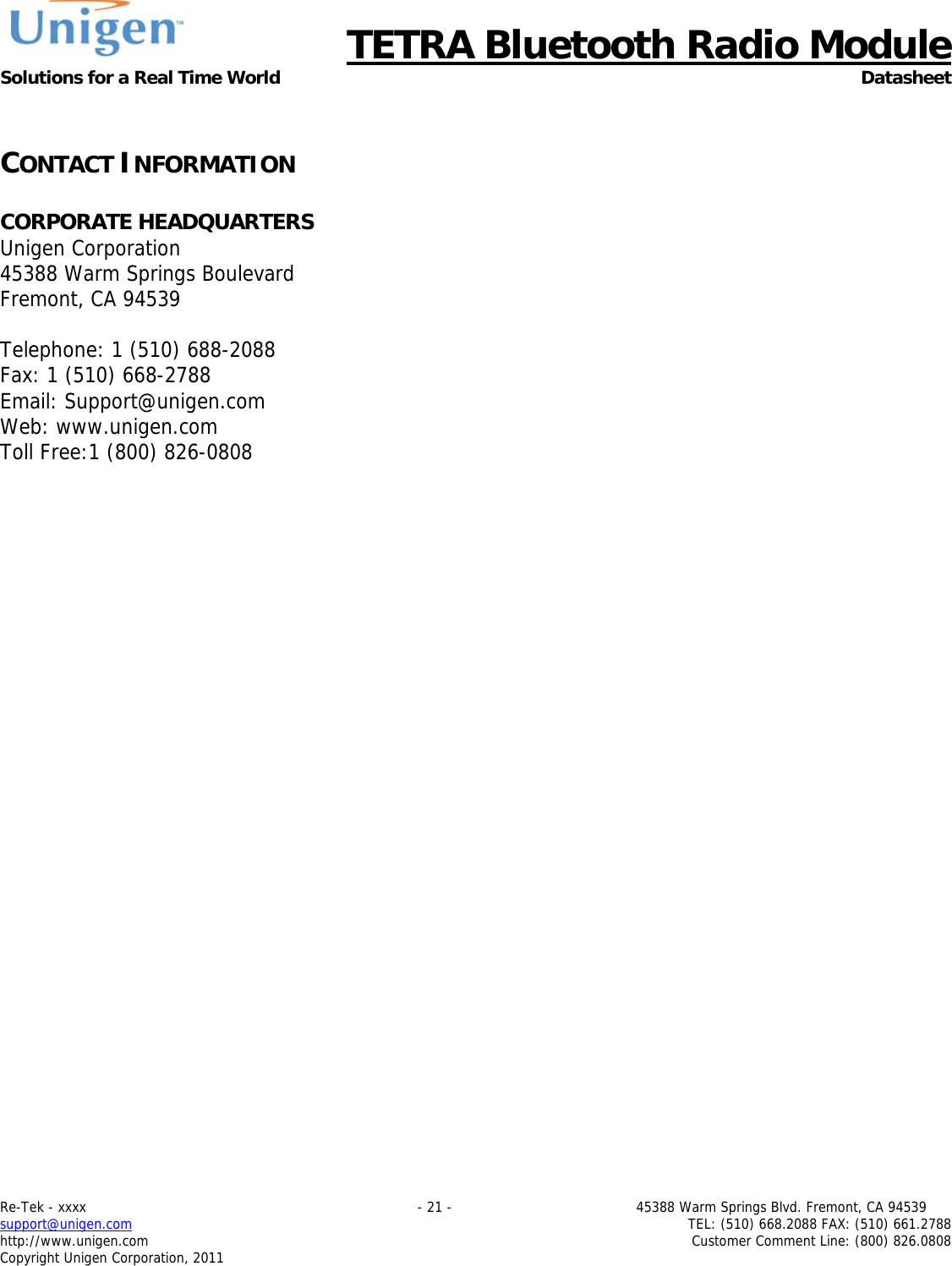

TETRA Bluetooth Radio Module Solutions for a Real Time World Datasheet Re-Tek - xxxx - 21 - 45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com Customer Comment Line: (800) 826.0808 Copyright Unigen Corporation, 2011 CONTACT INFORMATION CORPORATE HEADQUARTERS Unigen Corporation 45388 Warm Springs Boulevard Fremont, CA 94539 Telephone: 1 (510) 688-2088 Fax: 1 (510) 668-2788 Email: Support@unigen.com Web: www.unigen.com Toll Free:1 (800) 826-0808
