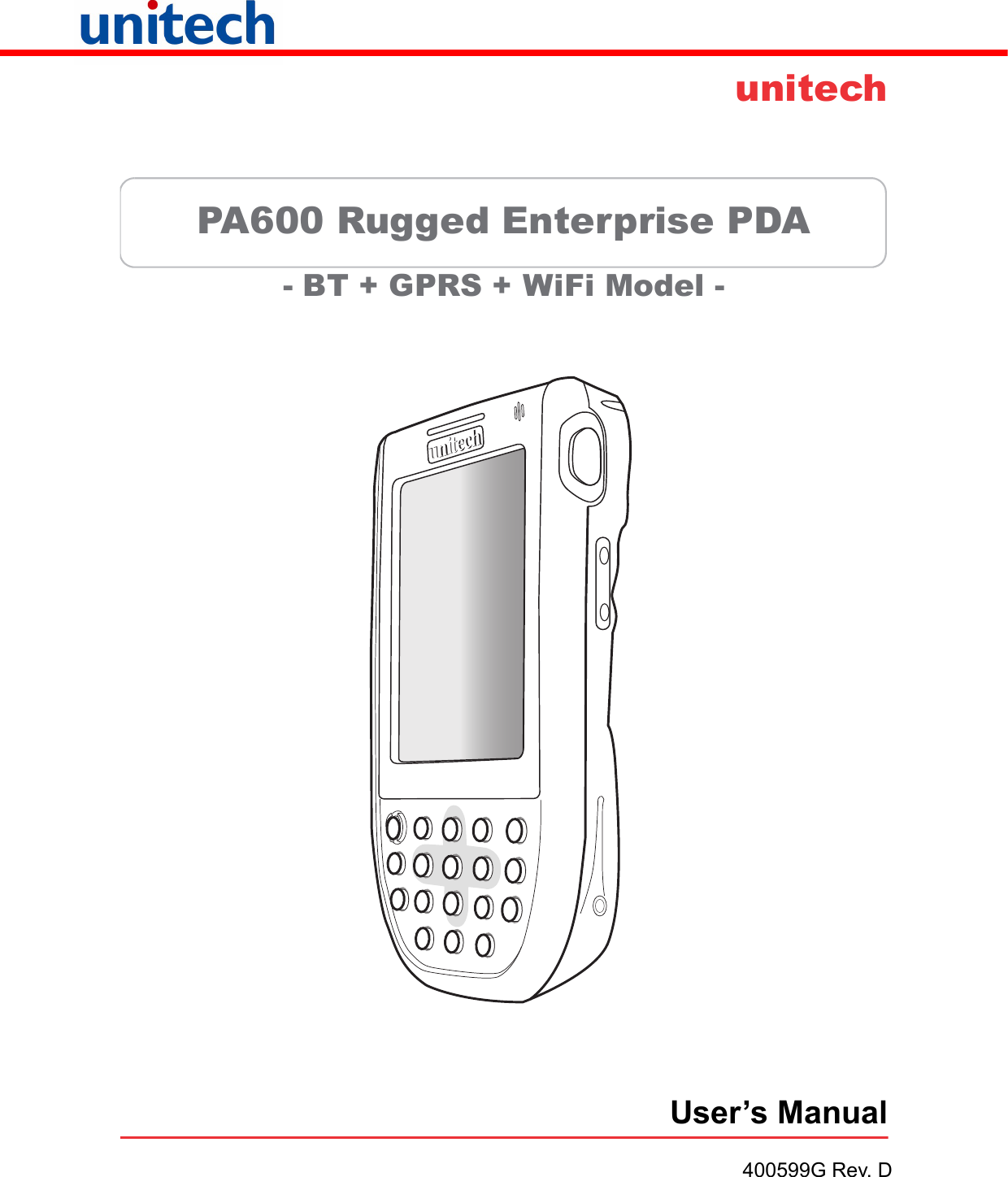

unitechPA600 Rugged Enterprise PDA- BT + GPRS + WiFi Model -User’s Manualunitech unitech 400599G Rev. D

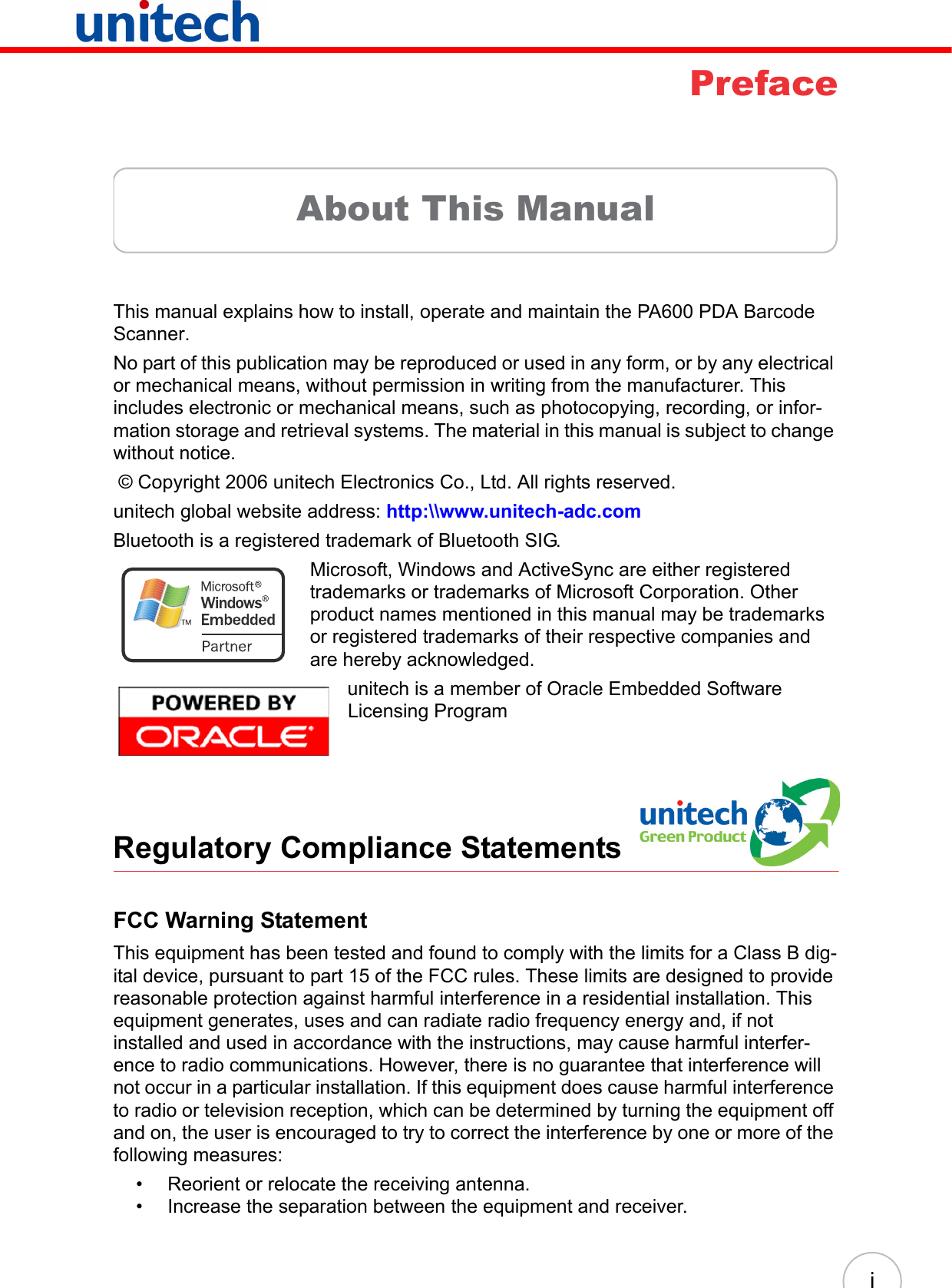

iPrefaceAbout This ManualThis manual explains how to install, operate and maintain the PA600 PDA Barcode Scanner. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission in writing from the manufacturer. This includes electronic or mechanical means, such as photocopying, recording, or infor-mation storage and retrieval systems. The material in this manual is subject to change without notice. © Copyright 2006 unitech Electronics Co., Ltd. All rights reserved.unitech global website address: http:\\www.unitech-adc.comBluetooth is a registered trademark of Bluetooth SIG. Microsoft, Windows and ActiveSync are either registered trademarks or trademarks of Microsoft Corporation. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged.unitech is a member of Oracle Embedded Software Licensing ProgramRegulatory Compliance StatementsFCC Warning StatementThis equipment has been tested and found to comply with the limits for a Class B dig-ital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer-ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.

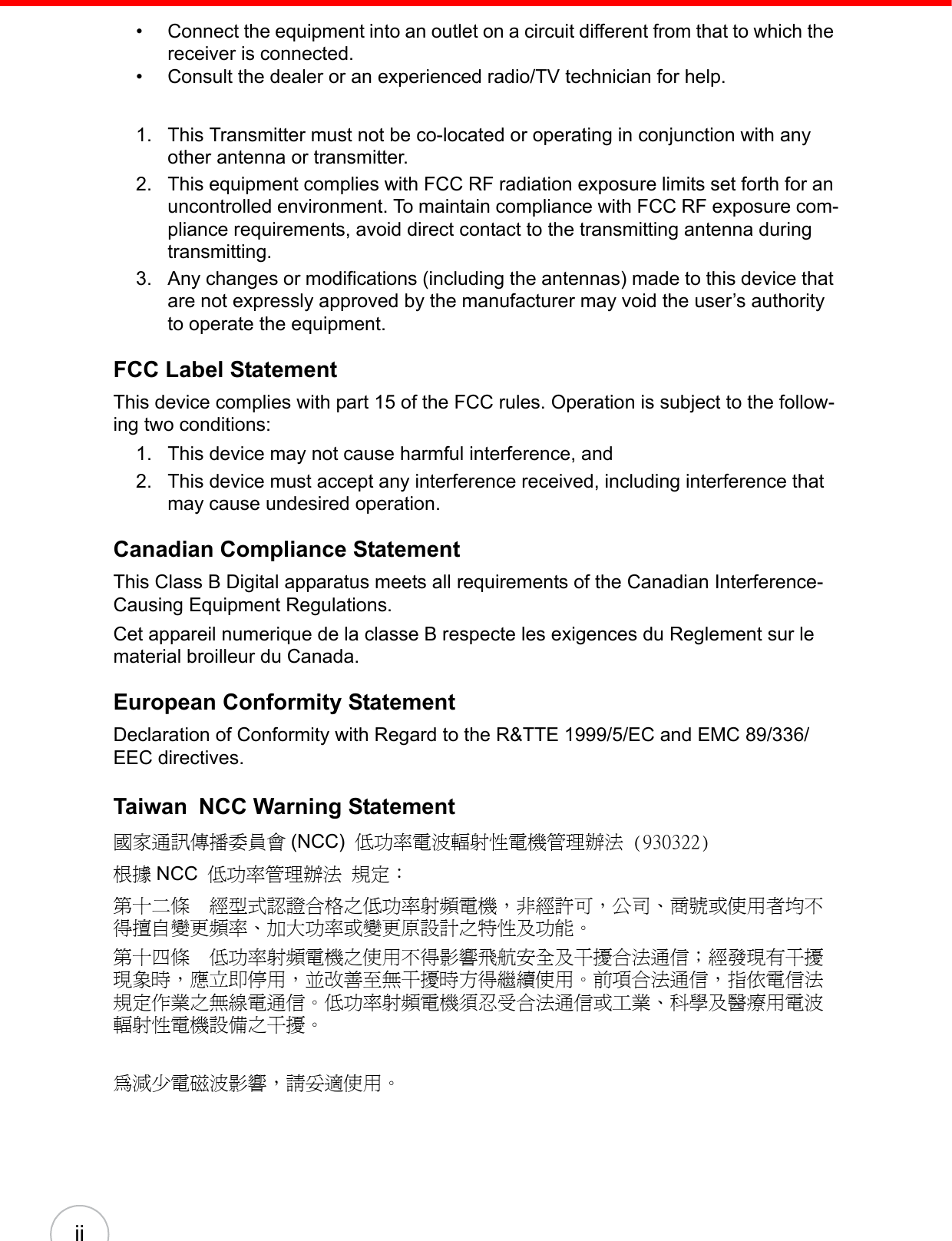

ii• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure com-pliance requirements, avoid direct contact to the transmitting antenna during transmitting.3. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment.FCC Label StatementThis device complies with part 15 of the FCC rules. Operation is subject to the follow-ing two conditions:1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.Canadian Compliance StatementThis Class B Digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.Cet appareil numerique de la classe B respecte les exigences du Reglement sur le material broilleur du Canada.European Conformity StatementDeclaration of Conformity with Regard to the R&TTE 1999/5/EC and EMC 89/336/ EEC directives.Taiwan NCC Warning Statement國家通訊傳播委員會 (NCC) 低功率電波輻射性電機管理辦法 (930322)根據 NCC 低功率管理辦法 規定：第十二條　經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。第十四條　低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。為減少電磁波影響，請妥適使用。

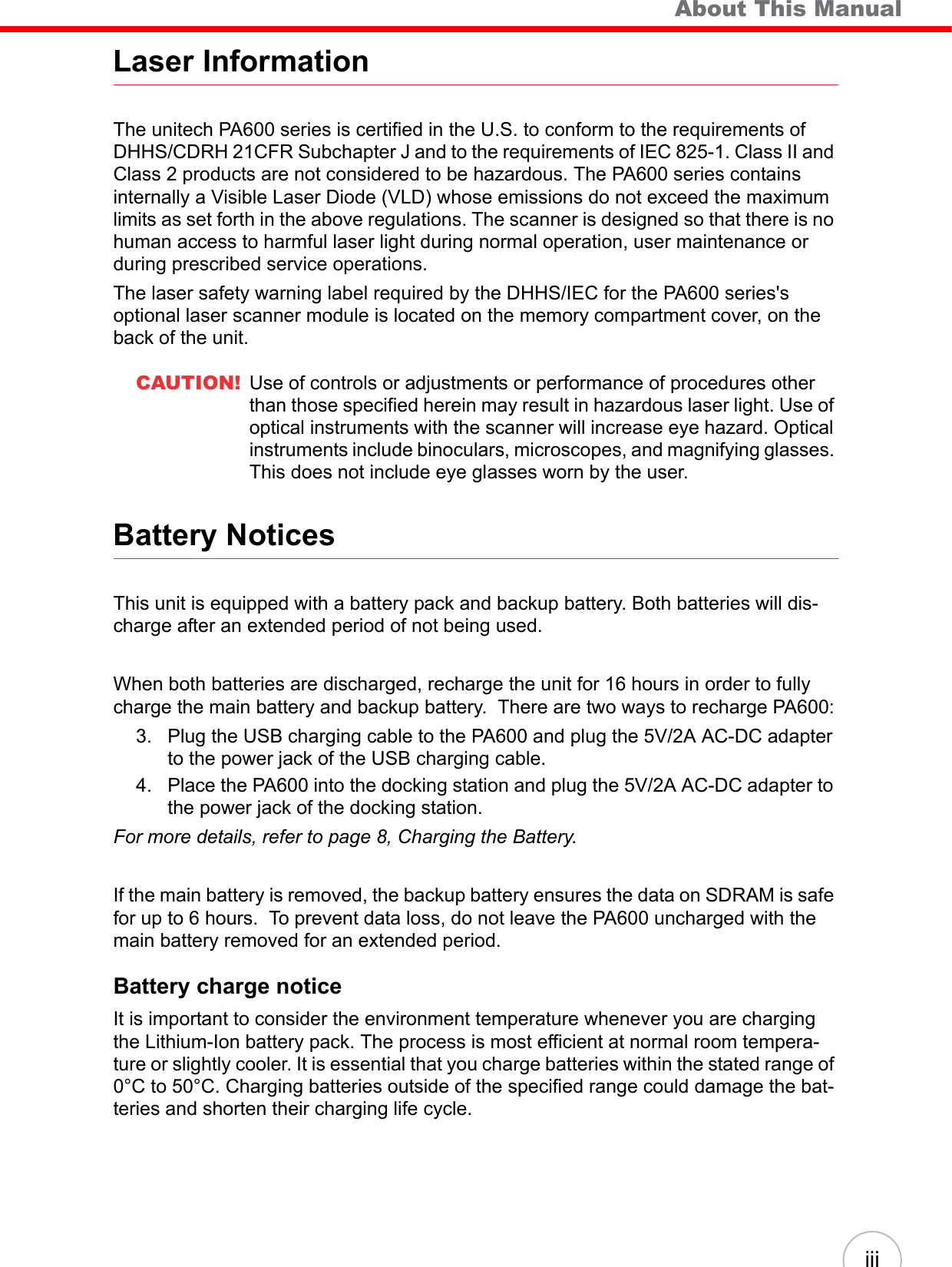

About This ManualiiiLaser InformationThe unitech PA600 series is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 825-1. Class II and Class 2 products are not considered to be hazardous. The PA600 series contains internally a Visible Laser Diode (VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations. The scanner is designed so that there is no human access to harmful laser light during normal operation, user maintenance or during prescribed service operations.The laser safety warning label required by the DHHS/IEC for the PA600 series's optional laser scanner module is located on the memory compartment cover, on the back of the unit.CAUTION! Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser light. Use of optical instruments with the scanner will increase eye hazard. Optical instruments include binoculars, microscopes, and magnifying glasses. This does not include eye glasses worn by the user.Battery NoticesThis unit is equipped with a battery pack and backup battery. Both batteries will dis-charge after an extended period of not being used.When both batteries are discharged, recharge the unit for 16 hours in order to fully charge the main battery and backup battery. There are two ways to recharge PA600:3. Plug the USB charging cable to the PA600 and plug the 5V/2A AC-DC adapter to the power jack of the USB charging cable.4. Place the PA600 into the docking station and plug the 5V/2A AC-DC adapter to the power jack of the docking station.For more details, refer to page 8, Charging the Battery.If the main battery is removed, the backup battery ensures the data on SDRAM is safe for up to 6 hours. To prevent data loss, do not leave the PA600 uncharged with the main battery removed for an extended period.Battery charge noticeIt is important to consider the environment temperature whenever you are charging the Lithium-Ion battery pack. The process is most efficient at normal room tempera-ture or slightly cooler. It is essential that you charge batteries within the stated range of 0°C to 50°C. Charging batteries outside of the specified range could damage the bat-teries and shorten their charging life cycle.

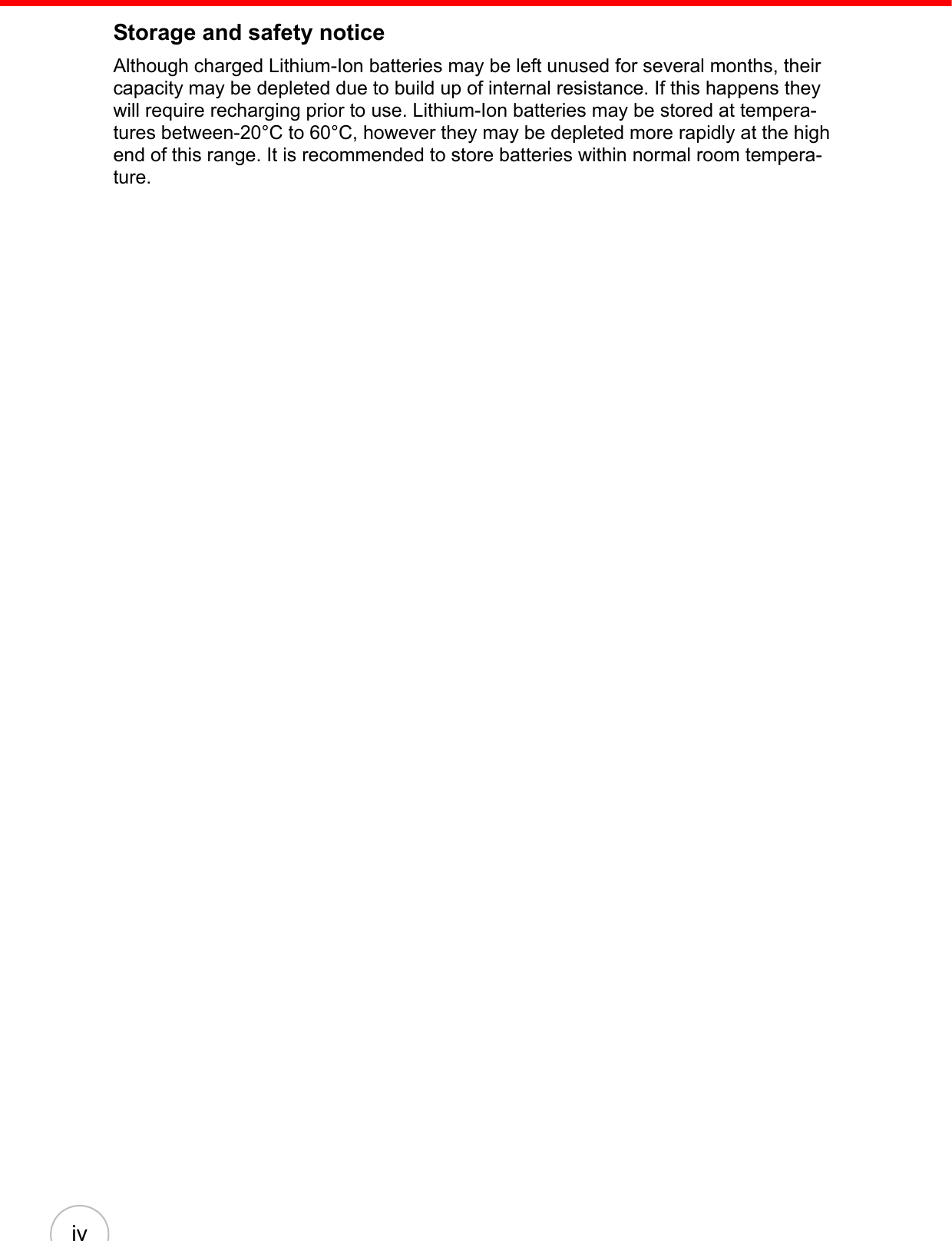

ivStorage and safety noticeAlthough charged Lithium-Ion batteries may be left unused for several months, their capacity may be depleted due to build up of internal resistance. If this happens they will require recharging prior to use. Lithium-Ion batteries may be stored at tempera-tures between-20°C to 60°C, however they may be depleted more rapidly at the high end of this range. It is recommended to store batteries within normal room tempera-ture.

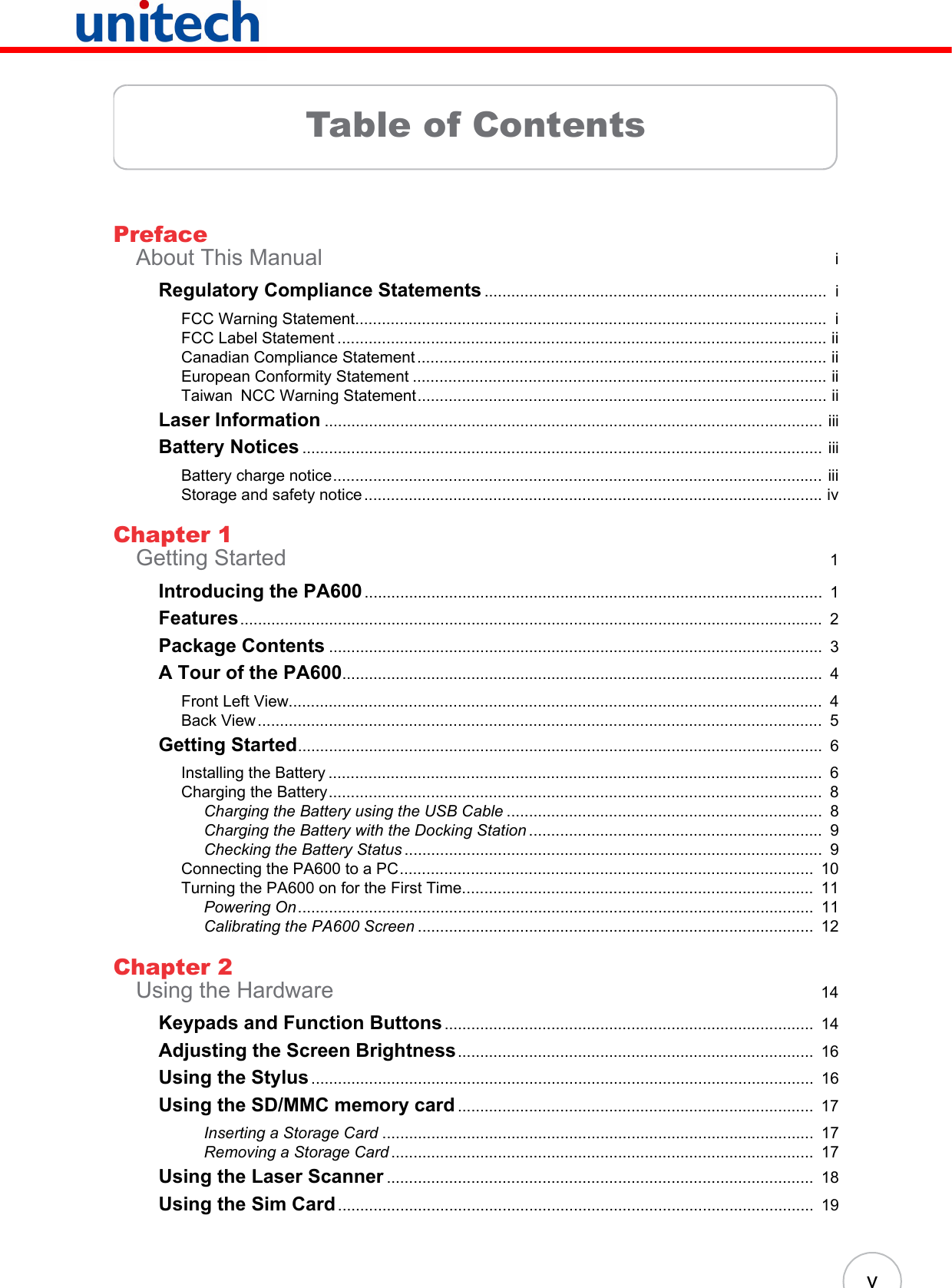

vTable of ContentsPrefaceAbout This Manual iRegulatory Compliance Statements ............................................................................. iFCC Warning Statement.......................................................................................................... iFCC Label Statement .............................................................................................................. iiCanadian Compliance Statement ............................................................................................ iiEuropean Conformity Statement ............................................................................................. iiTaiwan NCC Warning Statement............................................................................................ iiLaser Information ................................................................................................................ iiiBattery Notices ..................................................................................................................... iiiBattery charge notice.............................................................................................................. iiiStorage and safety notice ....................................................................................................... ivChapter 1Getting Started 1Introducing the PA600....................................................................................................... 1Features................................................................................................................................... 2Package Contents ............................................................................................................... 3A Tour of the PA600............................................................................................................ 4Front Left View........................................................................................................................ 4Back View ............................................................................................................................... 5Getting Started...................................................................................................................... 6Installing the Battery ............................................................................................................... 6Charging the Battery............................................................................................................... 8Charging the Battery using the USB Cable ....................................................................... 8Charging the Battery with the Docking Station .................................................................. 9Checking the Battery Status .............................................................................................. 9Connecting the PA600 to a PC............................................................................................. 10Turning the PA600 on for the First Time............................................................................... 11Powering On.................................................................................................................... 11Calibrating the PA600 Screen ......................................................................................... 12Chapter 2Using the Hardware 14Keypads and Function Buttons ................................................................................... 14Adjusting the Screen Brightness................................................................................ 16Using the Stylus................................................................................................................. 16Using the SD/MMC memory card ................................................................................ 17Inserting a Storage Card ................................................................................................. 17Removing a Storage Card ............................................................................................... 17Using the Laser Scanner ................................................................................................ 18Using the Sim Card........................................................................................................... 19

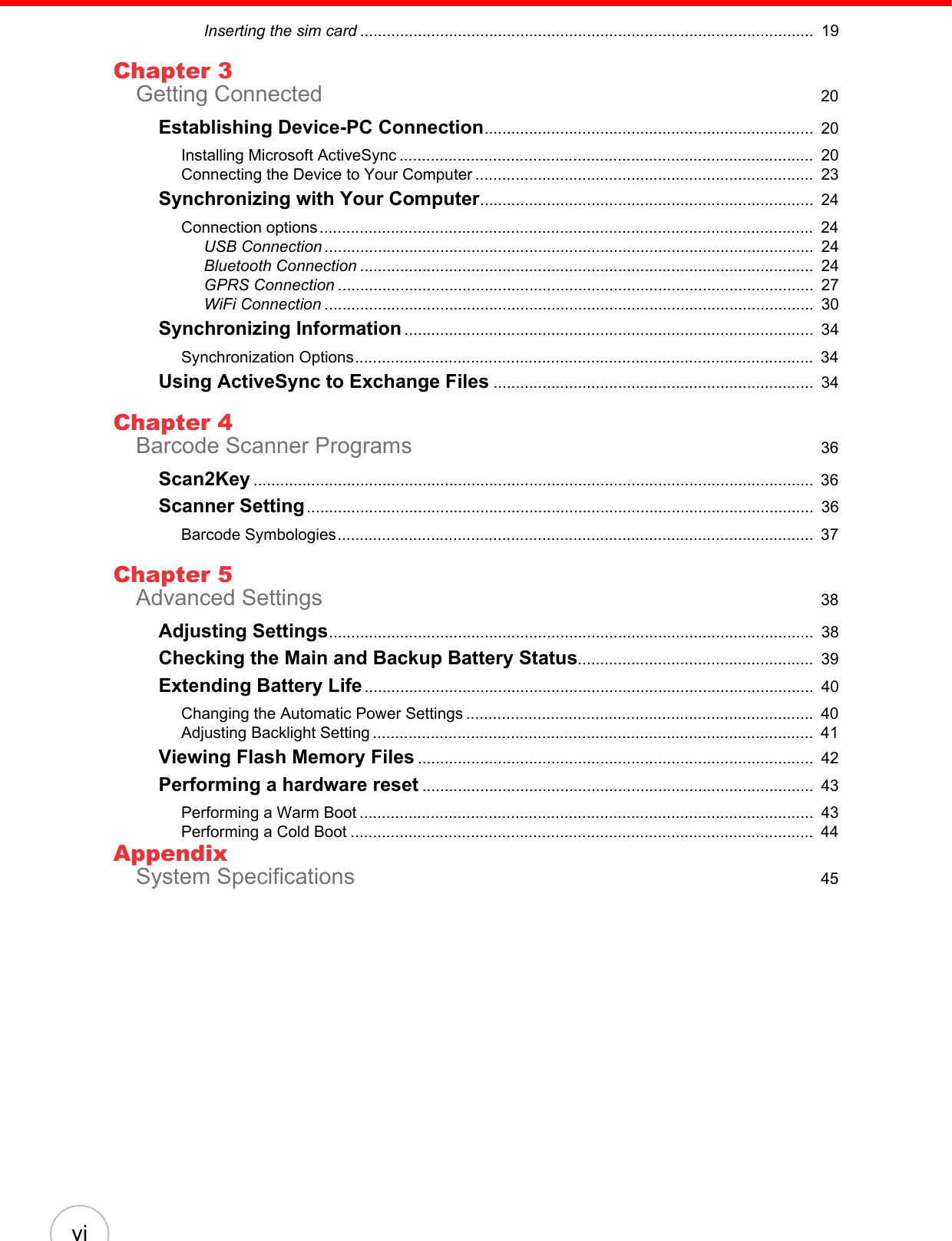

viInserting the sim card ...................................................................................................... 19Chapter 3Getting Connected 20Establishing Device-PC Connection.......................................................................... 20Installing Microsoft ActiveSync ............................................................................................. 20Connecting the Device to Your Computer ............................................................................ 23Synchronizing with Your Computer........................................................................... 24Connection options ............................................................................................................... 24USB Connection .............................................................................................................. 24Bluetooth Connection ...................................................................................................... 24GPRS Connection ........................................................................................................... 27WiFi Connection .............................................................................................................. 30Synchronizing Information ............................................................................................ 34Synchronization Options....................................................................................................... 34Using ActiveSync to Exchange Files ........................................................................ 34Chapter 4Barcode Scanner Programs 36Scan2Key .............................................................................................................................. 36Scanner Setting.................................................................................................................. 36Barcode Symbologies........................................................................................................... 37Chapter 5Advanced Settings 38Adjusting Settings............................................................................................................. 38Checking the Main and Backup Battery Status..................................................... 39Extending Battery Life..................................................................................................... 40Changing the Automatic Power Settings .............................................................................. 40Adjusting Backlight Setting ................................................................................................... 41Viewing Flash Memory Files ......................................................................................... 42Performing a hardware reset ........................................................................................ 43Performing a Warm Boot ...................................................................................................... 43Performing a Cold Boot ........................................................................................................ 44AppendixSystem Specifications 45

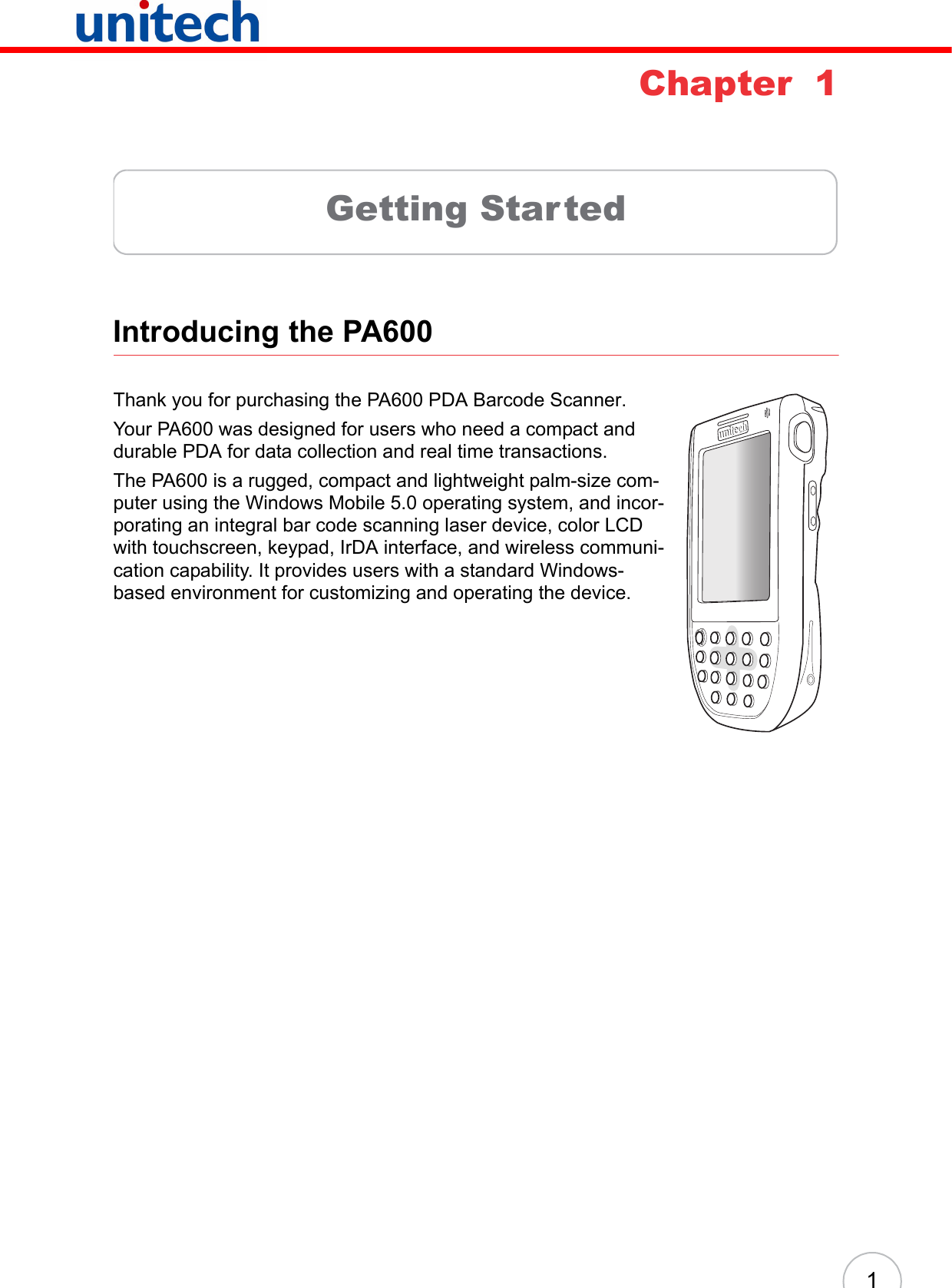

1Chapter 1Getting StartedIntroducing the PA600 Thank you for purchasing the PA600 PDA Barcode Scanner.Your PA600 was designed for users who need a compact and durable PDA for data collection and real time transactions. The PA600 is a rugged, compact and lightweight palm-size com-puter using the Windows Mobile 5.0 operating system, and incor-porating an integral bar code scanning laser device, color LCD with touchscreen, keypad, IrDA interface, and wireless communi-cation capability. It provides users with a standard Windows-based environment for customizing and operating the device.unitech unitech

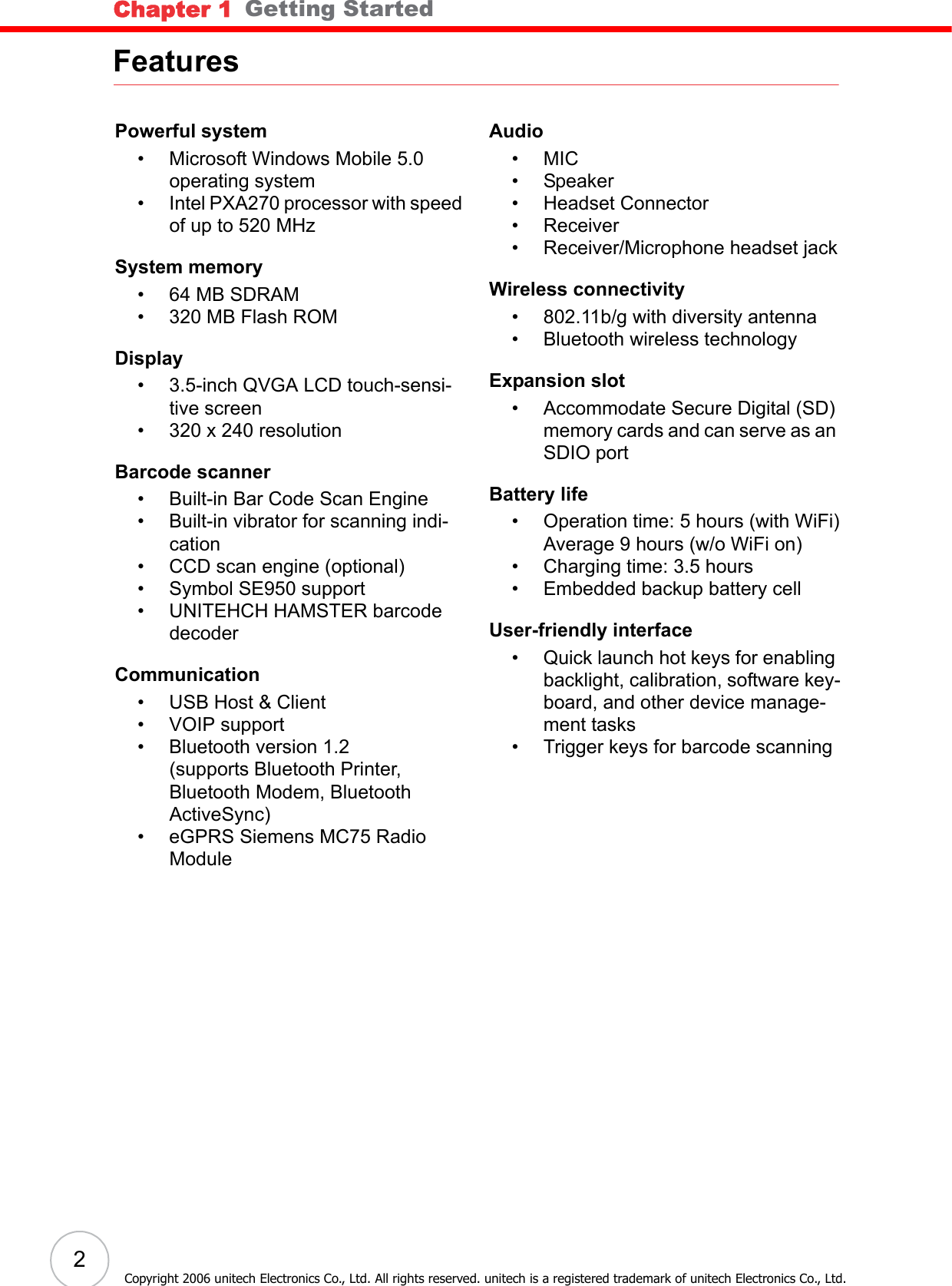

Chapter 1 Getting Started2Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.FeaturesPowerful system• Microsoft Windows Mobile 5.0 operating system• Intel PXA270 processor with speed of up to 520 MHzSystem memory•64 MB SDRAM• 320 MB Flash ROMDisplay• 3.5-inch QVGA LCD touch-sensi-tive screen• 320 x 240 resolutionBarcode scanner• Built-in Bar Code Scan Engine• Built-in vibrator for scanning indi-cation• CCD scan engine (optional)• Symbol SE950 support• UNITEHCH HAMSTER barcode decoderCommunication• USB Host & Client• VOIP support• Bluetooth version 1.2(supports Bluetooth Printer, Bluetooth Modem, Bluetooth ActiveSync)• eGPRS Siemens MC75 Radio ModuleAudio•MIC• Speaker• Headset Connector• Receiver• Receiver/Microphone headset jackWireless connectivity• 802.11b/g with diversity antenna• Bluetooth wireless technologyExpansion slot• Accommodate Secure Digital (SD) memory cards and can serve as an SDIO portBattery life• Operation time: 5 hours (with WiFi)Average 9 hours (w/o WiFi on)• Charging time: 3.5 hours• Embedded backup battery cellUser-friendly interface• Quick launch hot keys for enabling backlight, calibration, software key-board, and other device manage-ment tasks• Trigger keys for barcode scanning

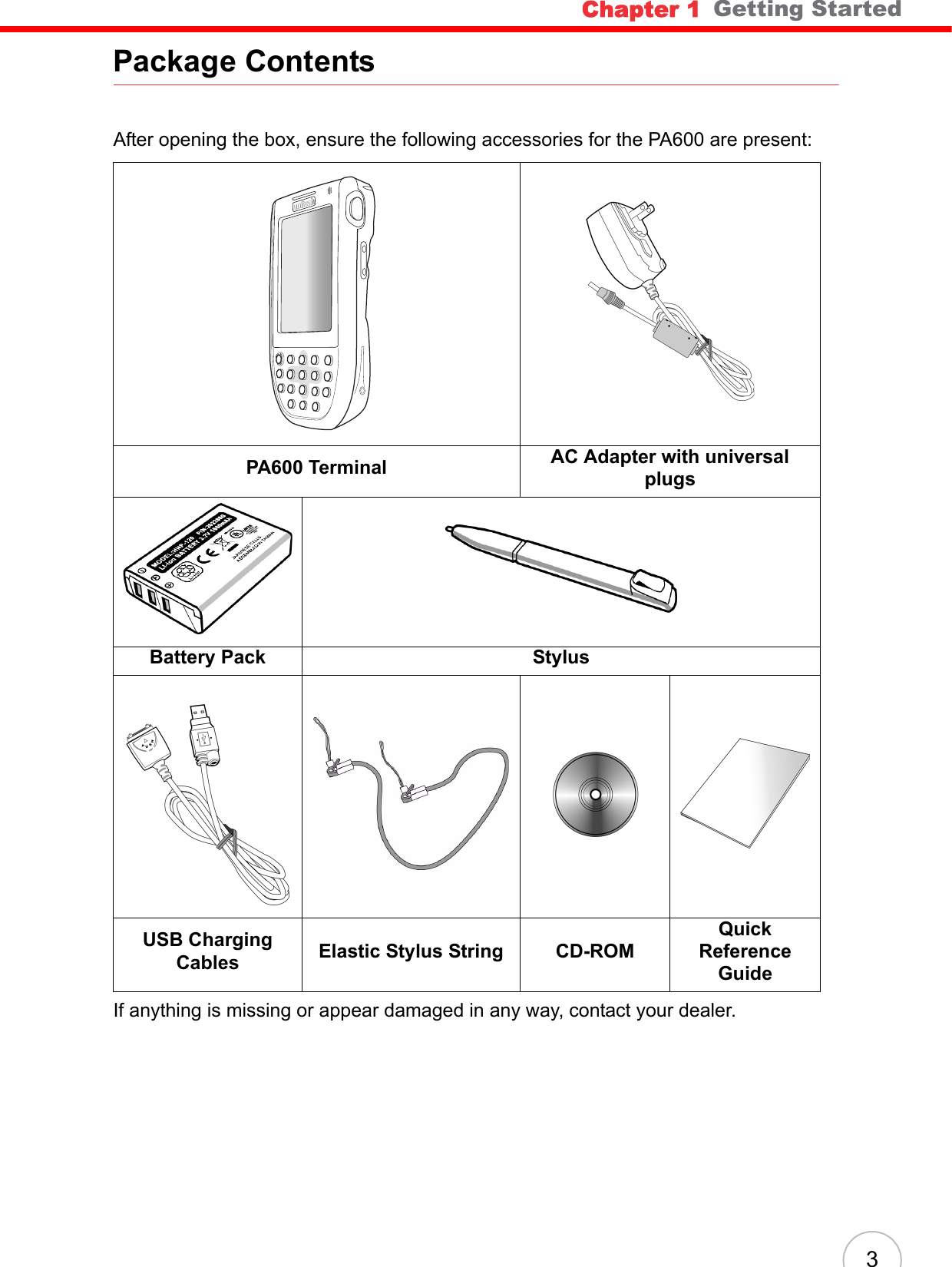

Chapter 1 Getting Started3Package ContentsAfter opening the box, ensure the following accessories for the PA600 are present:If anything is missing or appear damaged in any way, contact your dealer.PA600 Terminal AC Adapter with universal plugsBattery Pack Stylus USB Charging Cables Elastic Stylus String CD-ROMQuick Reference Guideunitech unitech

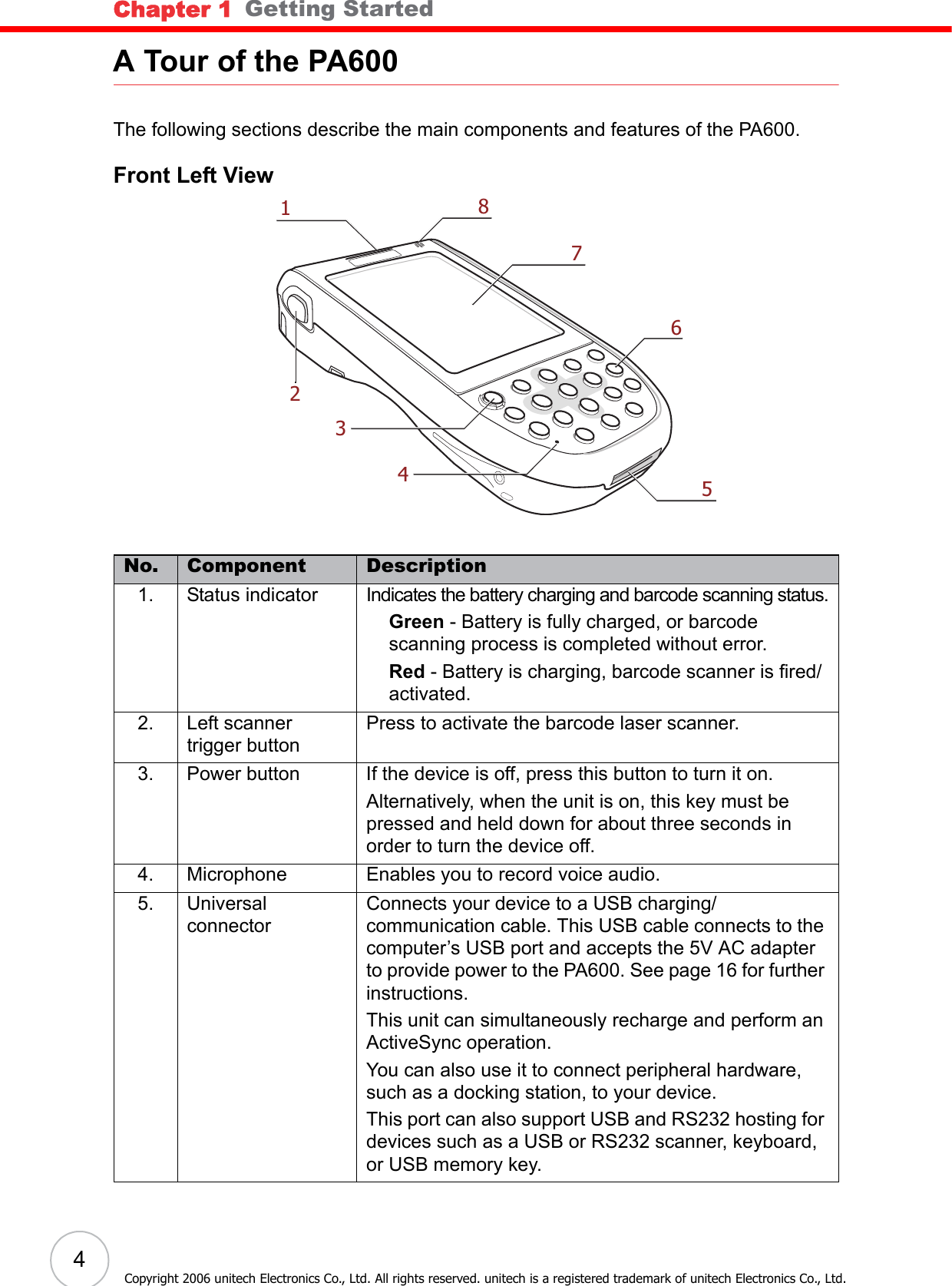

Chapter 1 Getting Started4Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.A Tour of the PA600The following sections describe the main components and features of the PA600.Front Left ViewNo. Component Description1. Status indicator Indicates the battery charging and barcode scanning status.Green - Battery is fully charged, or barcode scanning process is completed without error.Red - Battery is charging, barcode scanner is fired/activated.2. Left scanner trigger buttonPress to activate the barcode laser scanner. 3. Power button If the device is off, press this button to turn it on.Alternatively, when the unit is on, this key must be pressed and held down for about three seconds in order to turn the device off.4. Microphone Enables you to record voice audio.5. Universal connectorConnects your device to a USB charging/ communication cable. This USB cable connects to the computer’s USB port and accepts the 5V AC adapter to provide power to the PA600. See page 16 for further instructions.This unit can simultaneously recharge and perform an ActiveSync operation.You can also use it to connect peripheral hardware, such as a docking station, to your device.This port can also support USB and RS232 hosting for devices such as a USB or RS232 scanner, keyboard, or USB memory key.1 2 4 3 5 6 7 8

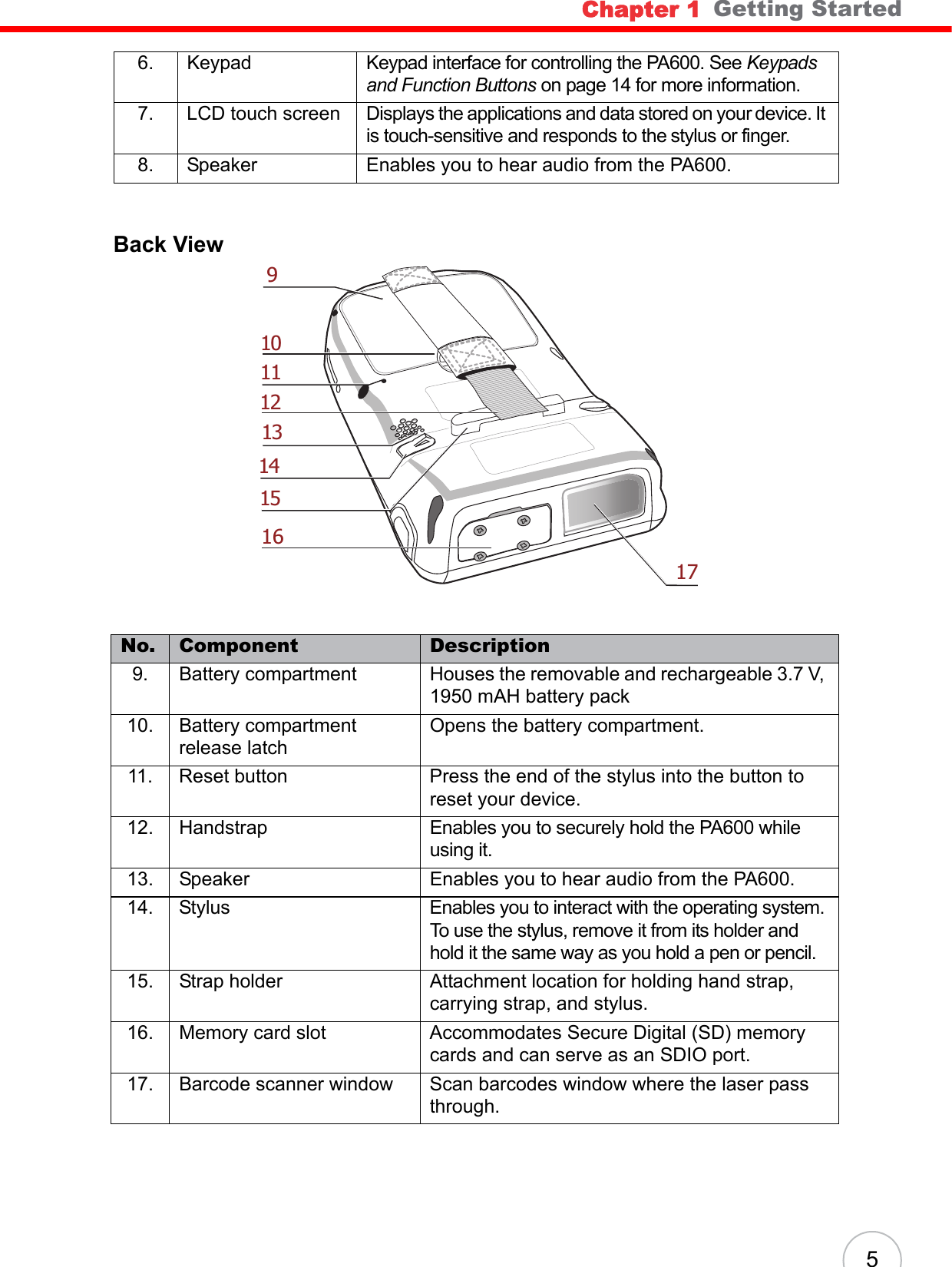

Chapter 1 Getting Started5Back View6. Keypad Keypad interface for controlling the PA600. See Keypads and Function Buttons on page 14 for more information.7. LCD touch screen Displays the applications and data stored on your device. It is touch-sensitive and responds to the stylus or finger.8. Speaker Enables you to hear audio from the PA600.No. Component Description9. Battery compartment Houses the removable and rechargeable 3.7 V, 1950 mAH battery pack10. Battery compartment release latchOpens the battery compartment.11. Reset button Press the end of the stylus into the button to reset your device.12. Handstrap Enables you to securely hold the PA600 while using it.13. Speaker Enables you to hear audio from the PA600.14. Stylus Enables you to interact with the operating system. To use the stylus, remove it from its holder and hold it the same way as you hold a pen or pencil.15. Strap holder Attachment location for holding hand strap, carrying strap, and stylus.16. Memory card slot Accommodates Secure Digital (SD) memory cards and can serve as an SDIO port.17. Barcode scanner window Scan barcodes window where the laser pass through.91011131514121617

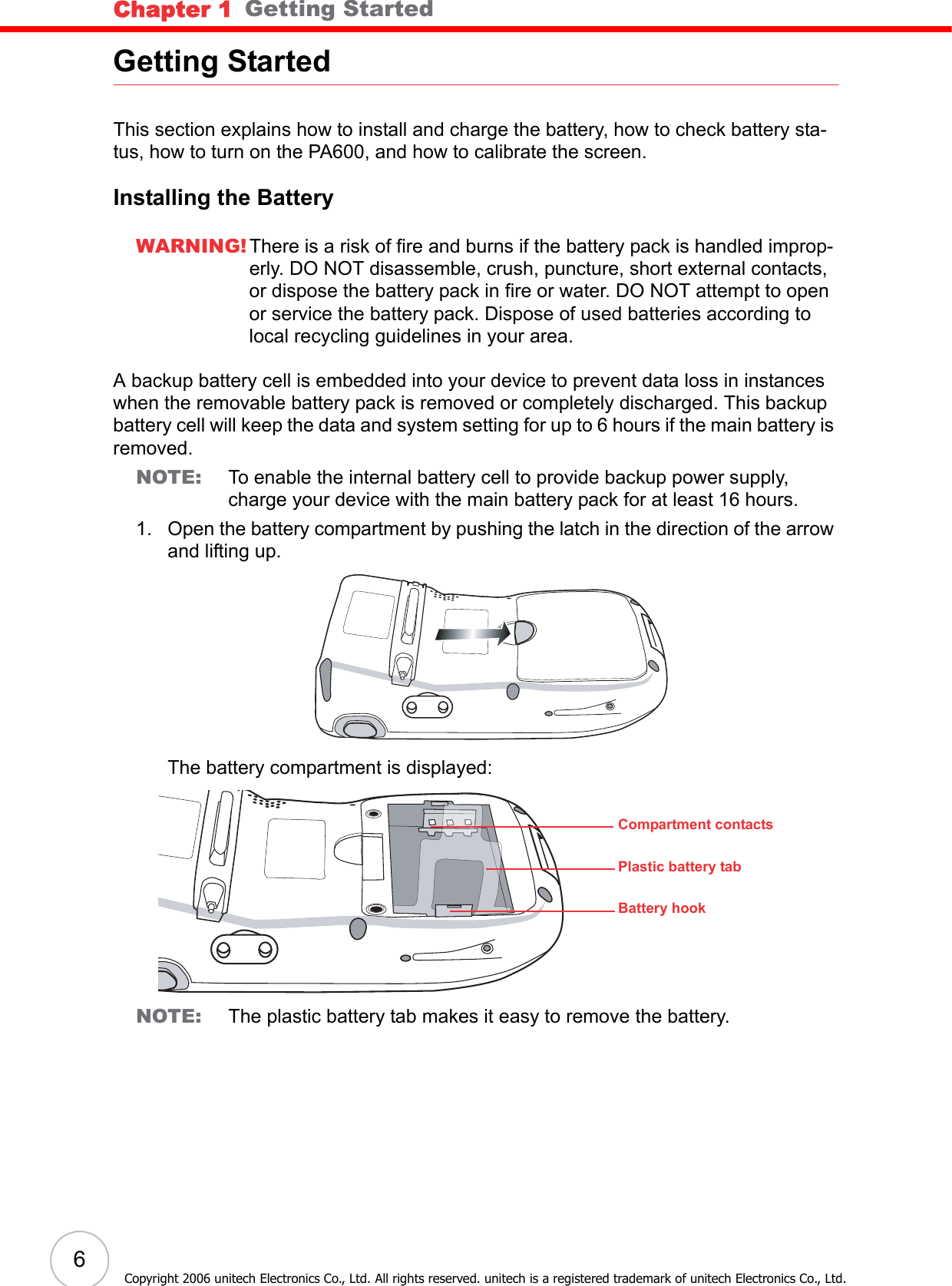

Chapter 1 Getting Started6Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.Getting StartedThis section explains how to install and charge the battery, how to check battery sta-tus, how to turn on the PA600, and how to calibrate the screen.Installing the BatteryWARNING! There is a risk of fire and burns if the battery pack is handled improp-erly. DO NOT disassemble, crush, puncture, short external contacts, or dispose the battery pack in fire or water. DO NOT attempt to open or service the battery pack. Dispose of used batteries according to local recycling guidelines in your area.A backup battery cell is embedded into your device to prevent data loss in instances when the removable battery pack is removed or completely discharged. This backup battery cell will keep the data and system setting for up to 6 hours if the main battery is removed.NOTE: To enable the internal battery cell to provide backup power supply, charge your device with the main battery pack for at least 16 hours.1. Open the battery compartment by pushing the latch in the direction of the arrow and lifting up.The battery compartment is displayed:NOTE: The plastic battery tab makes it easy to remove the battery.Compartment contactsPlastic battery tabBattery hook

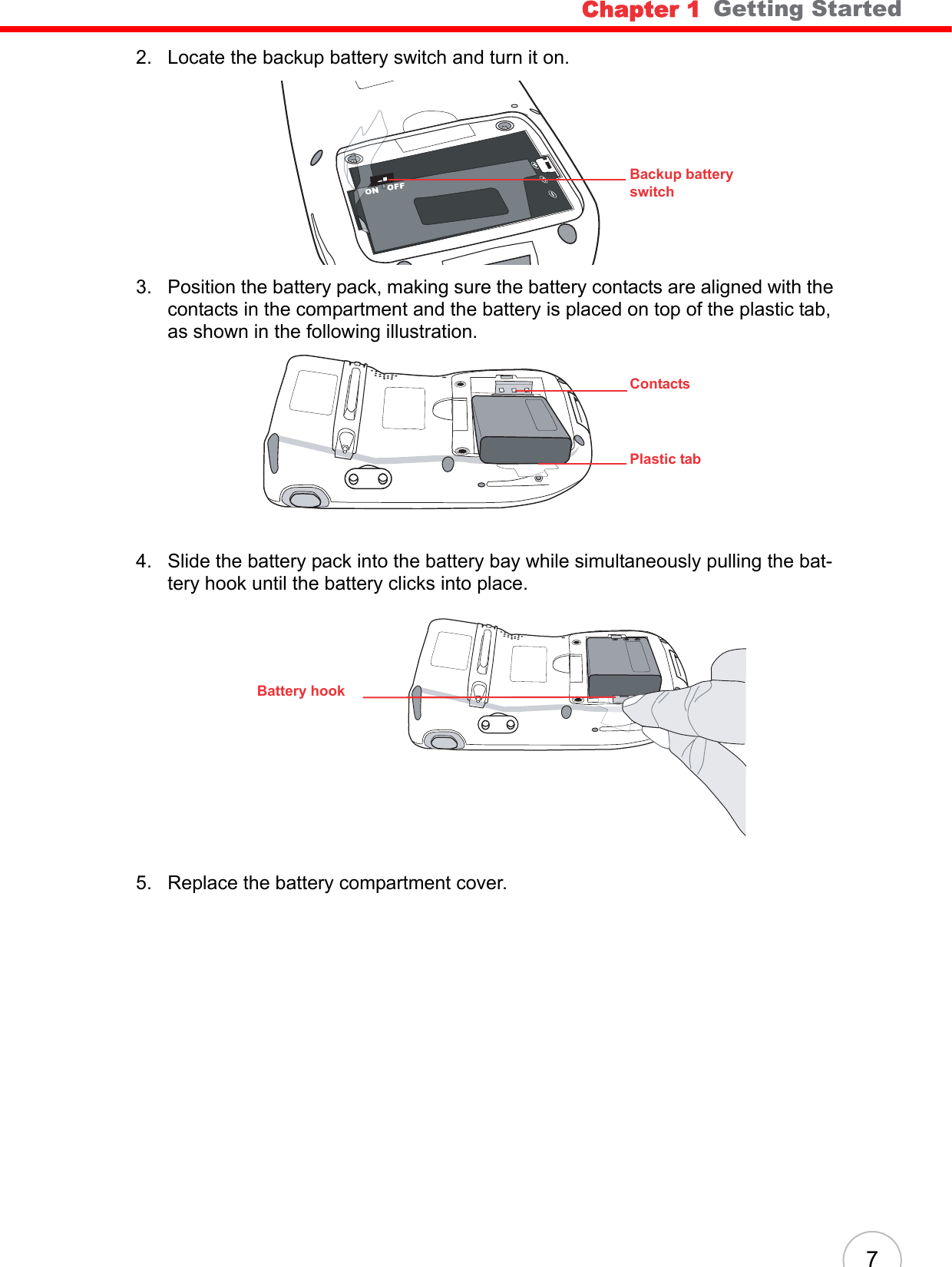

Chapter 1 Getting Started72. Locate the backup battery switch and turn it on.3. Position the battery pack, making sure the battery contacts are aligned with the contacts in the compartment and the battery is placed on top of the plastic tab, as shown in the following illustration.4. Slide the battery pack into the battery bay while simultaneously pulling the bat-tery hook until the battery clicks into place.5. Replace the battery compartment cover.Backup battery switchContactsPlastic tabBattery hook

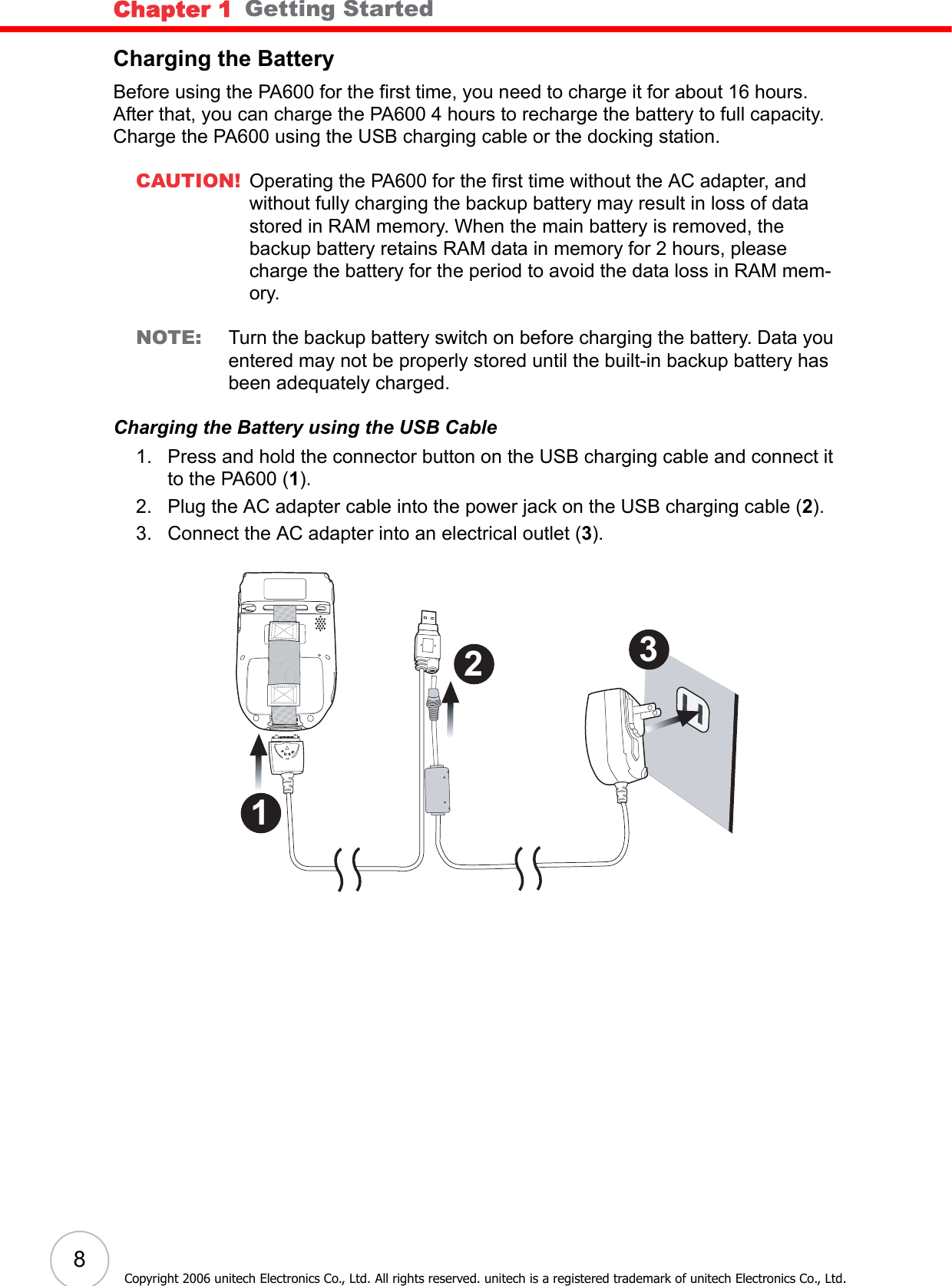

Chapter 1 Getting Started8Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.Charging the BatteryBefore using the PA600 for the first time, you need to charge it for about 16 hours. After that, you can charge the PA600 4 hours to recharge the battery to full capacity. Charge the PA600 using the USB charging cable or the docking station.CAUTION! Operating the PA600 for the first time without the AC adapter, and without fully charging the backup battery may result in loss of data stored in RAM memory. When the main battery is removed, the backup battery retains RAM data in memory for 2 hours, please charge the battery for the period to avoid the data loss in RAM mem-ory.NOTE: Turn the backup battery switch on before charging the battery. Data you entered may not be properly stored until the built-in backup battery has been adequately charged.Charging the Battery using the USB Cable1. Press and hold the connector button on the USB charging cable and connect it to the PA600 (1).2. Plug the AC adapter cable into the power jack on the USB charging cable (2).3. Connect the AC adapter into an electrical outlet (3). 3 2 1

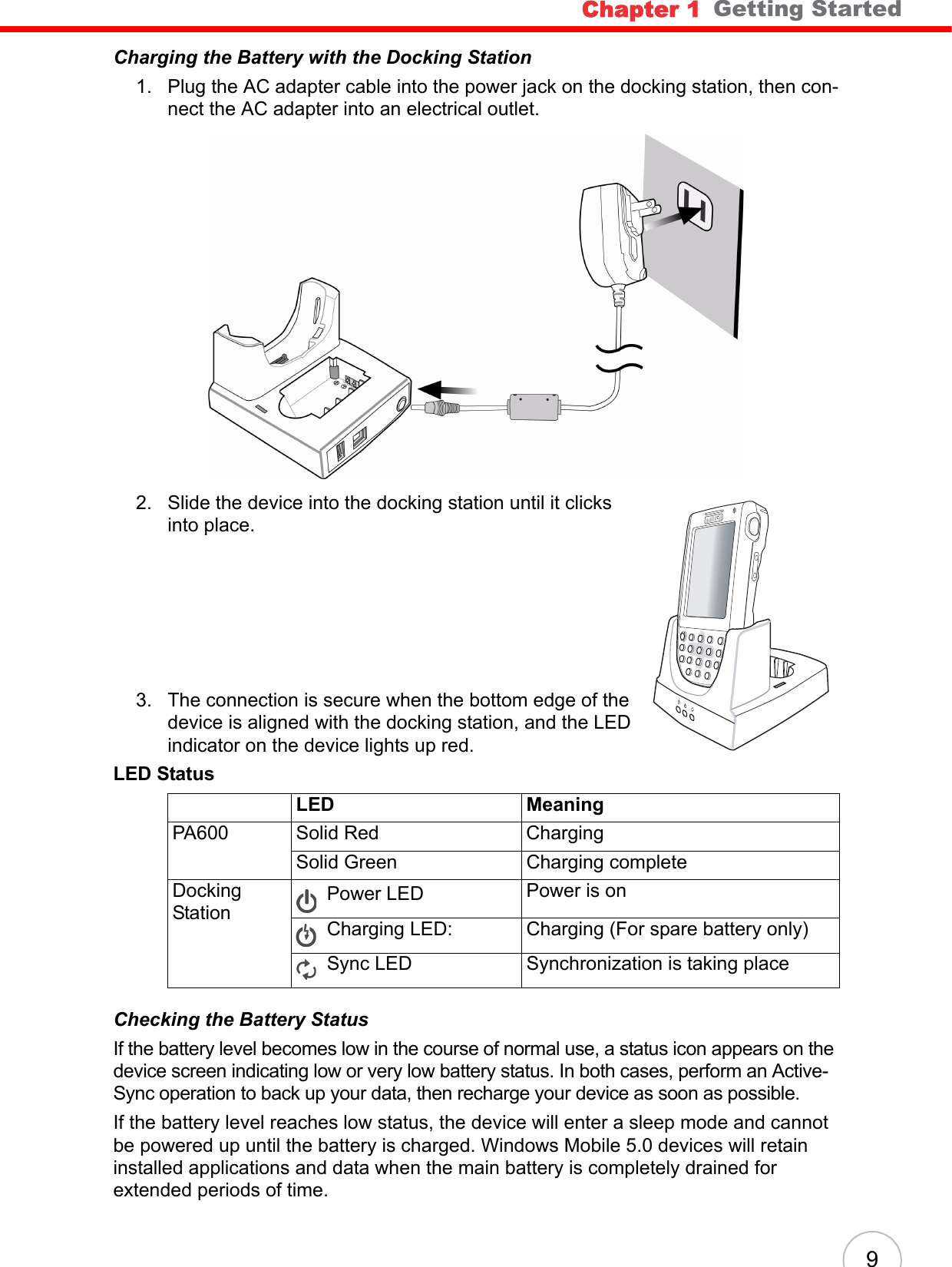

Chapter 1 Getting Started9Charging the Battery with the Docking Station1. Plug the AC adapter cable into the power jack on the docking station, then con-nect the AC adapter into an electrical outlet.2. Slide the device into the docking station until it clicks into place. 3. The connection is secure when the bottom edge of the device is aligned with the docking station, and the LED indicator on the device lights up red.Checking the Battery StatusIf the battery level becomes low in the course of normal use, a status icon appears on the device screen indicating low or very low battery status. In both cases, perform an Active-Sync operation to back up your data, then recharge your device as soon as possible.If the battery level reaches low status, the device will enter a sleep mode and cannot be powered up until the battery is charged. Windows Mobile 5.0 devices will retain installed applications and data when the main battery is completely drained for extended periods of time.LED StatusLED MeaningPA600 Solid Red ChargingSolid Green Charging completeDocking StationPower LED Power is onCharging LED: Charging (For spare battery only)Sync LED Synchronization is taking placeunitechunitech

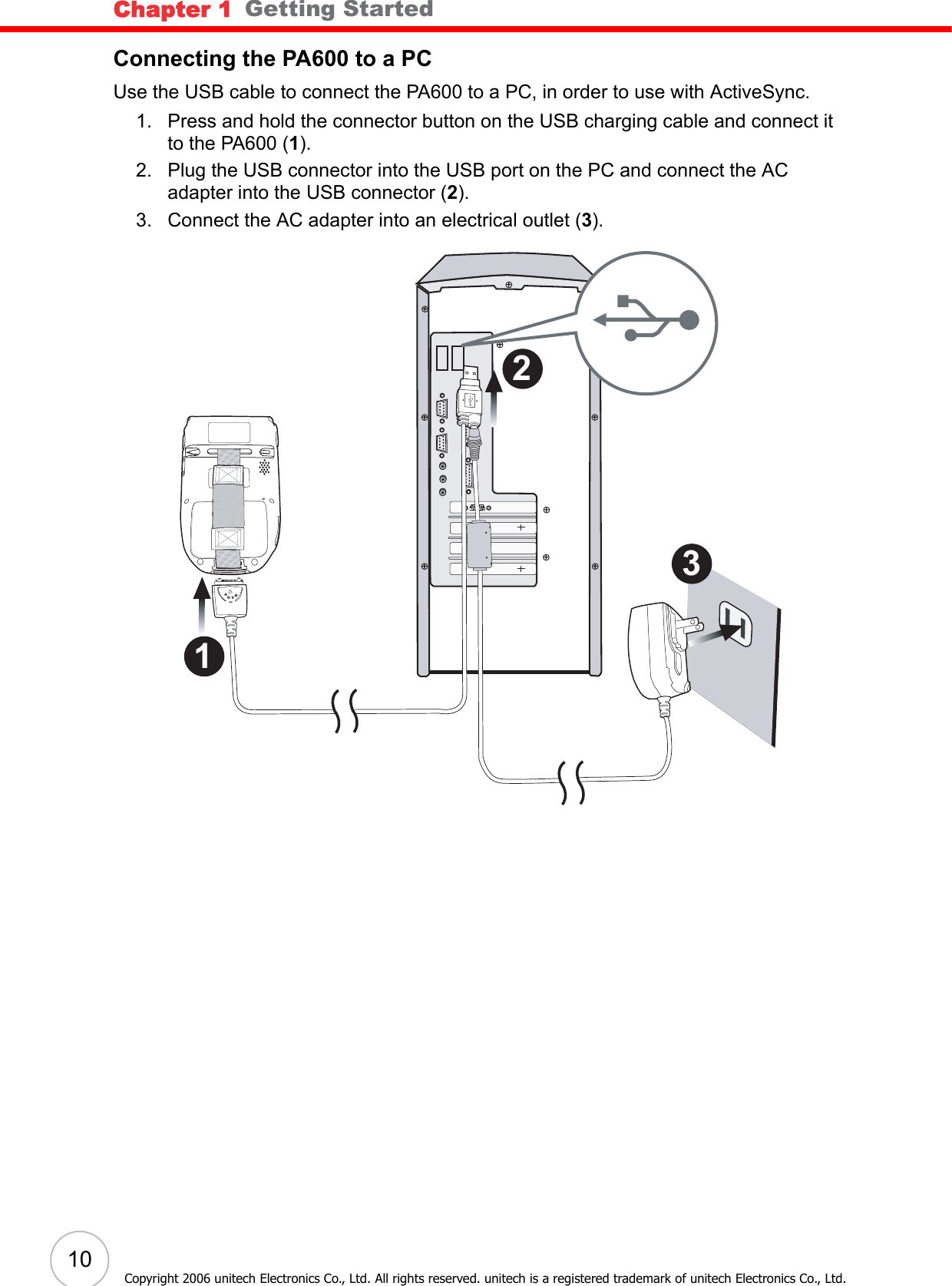

Chapter 1 Getting Started10Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.Connecting the PA600 to a PCUse the USB cable to connect the PA600 to a PC, in order to use with ActiveSync.1. Press and hold the connector button on the USB charging cable and connect it to the PA600 (1).2. Plug the USB connector into the USB port on the PC and connect the AC adapter into the USB connector (2).3. Connect the AC adapter into an electrical outlet (3). 3 2 1

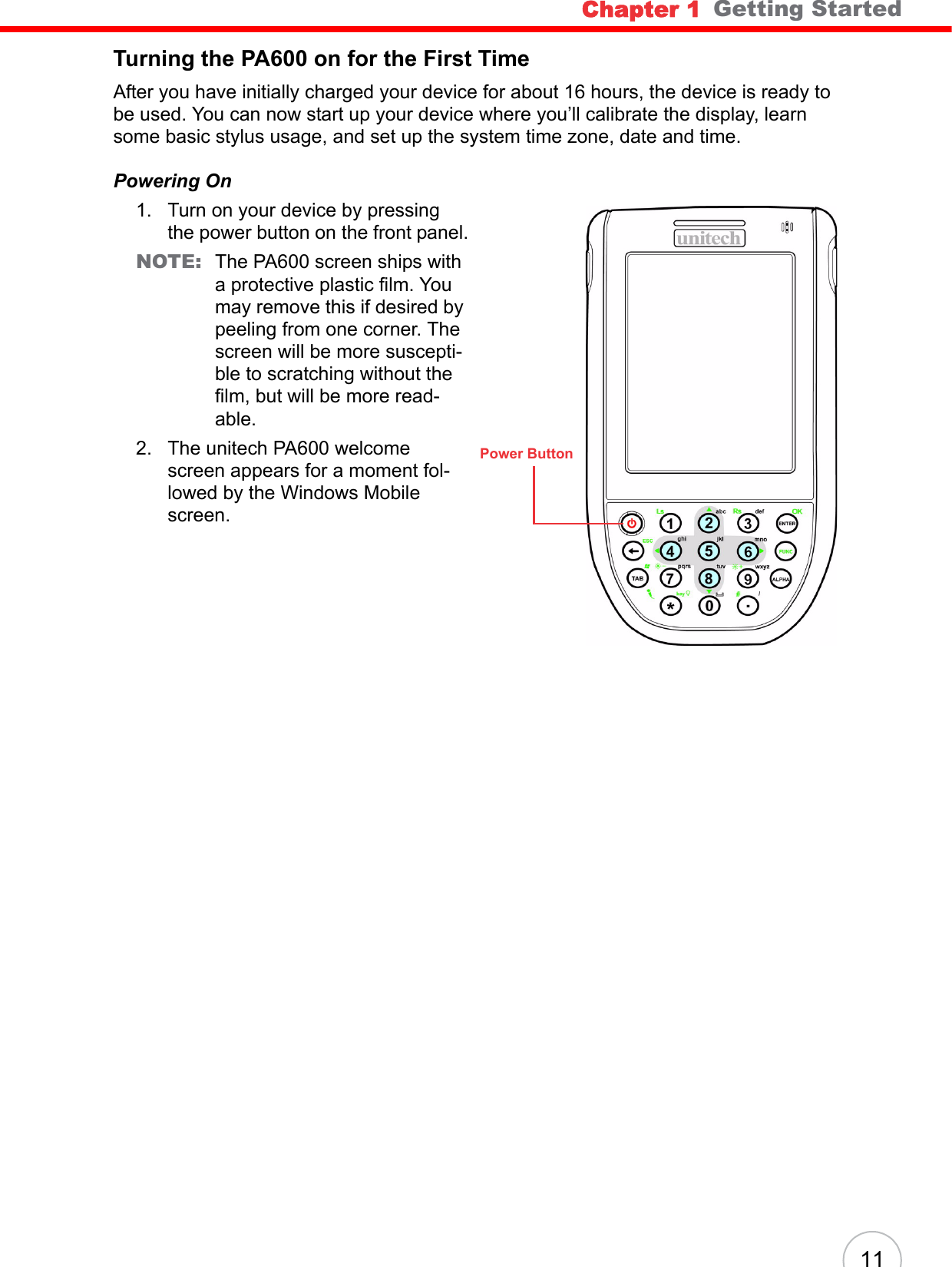

Chapter 1 Getting Started11Turning the PA600 on for the First TimeAfter you have initially charged your device for about 16 hours, the device is ready to be used. You can now start up your device where you’ll calibrate the display, learn some basic stylus usage, and set up the system time zone, date and time.Powering On1. Turn on your device by pressing the power button on the front panel.NOTE: The PA600 screen ships with a protective plastic film. You may remove this if desired by peeling from one corner. The screen will be more suscepti-ble to scratching without the film, but will be more read-able.2. The unitech PA600 welcome screen appears for a moment fol-lowed by the Windows Mobile screen.Power Button

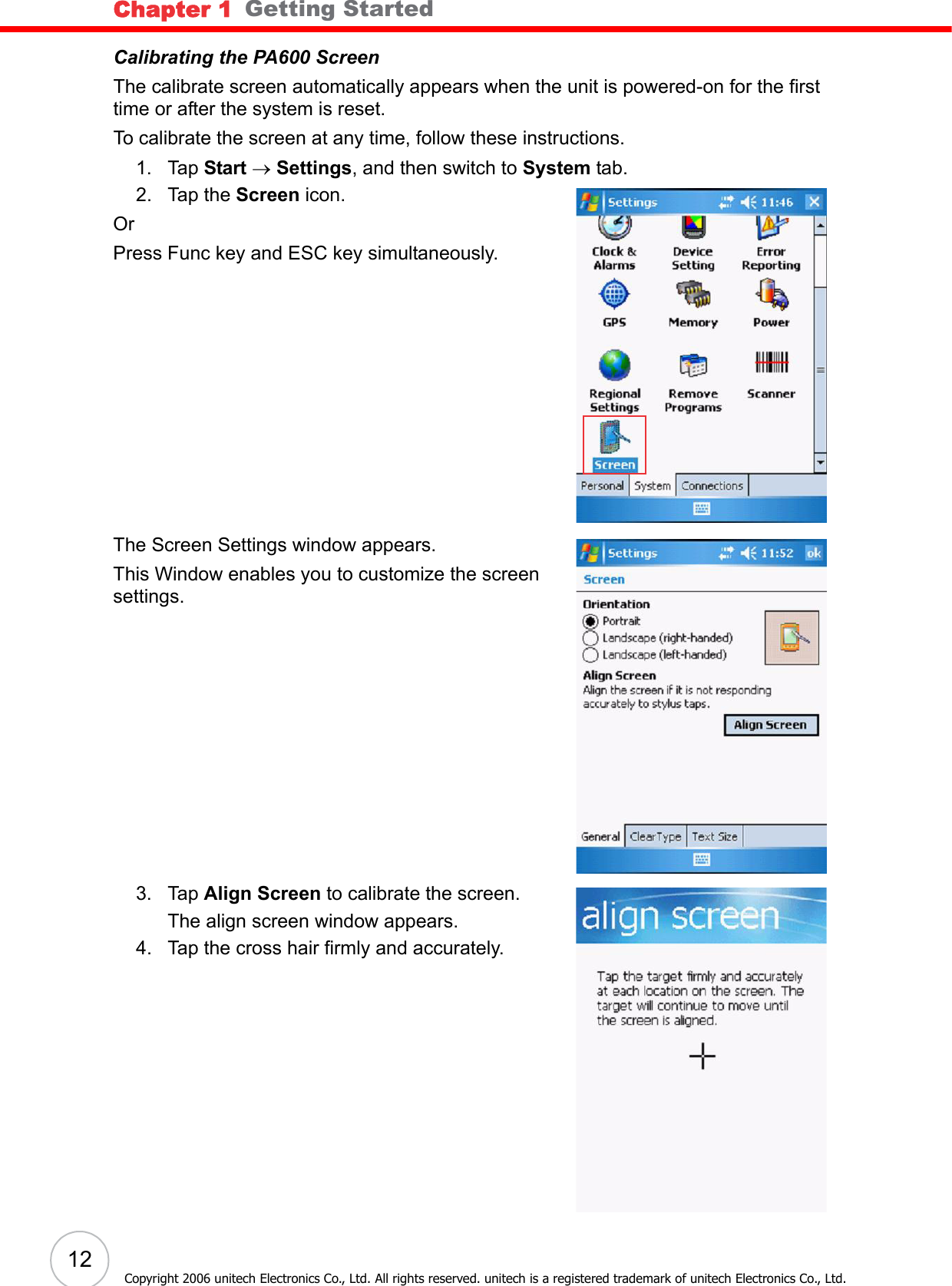

Chapter 1 Getting Started12Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.Calibrating the PA600 ScreenThe calibrate screen automatically appears when the unit is powered-on for the first time or after the system is reset. To calibrate the screen at any time, follow these instructions. 1. Tap Start → Settings, and then switch to System tab.2. Tap the Screen icon. OrPress Func key and ESC key simultaneously.The Screen Settings window appears.This Window enables you to customize the screen settings.3. Tap Align Screen to calibrate the screen. The align screen window appears.4. Tap the cross hair firmly and accurately.

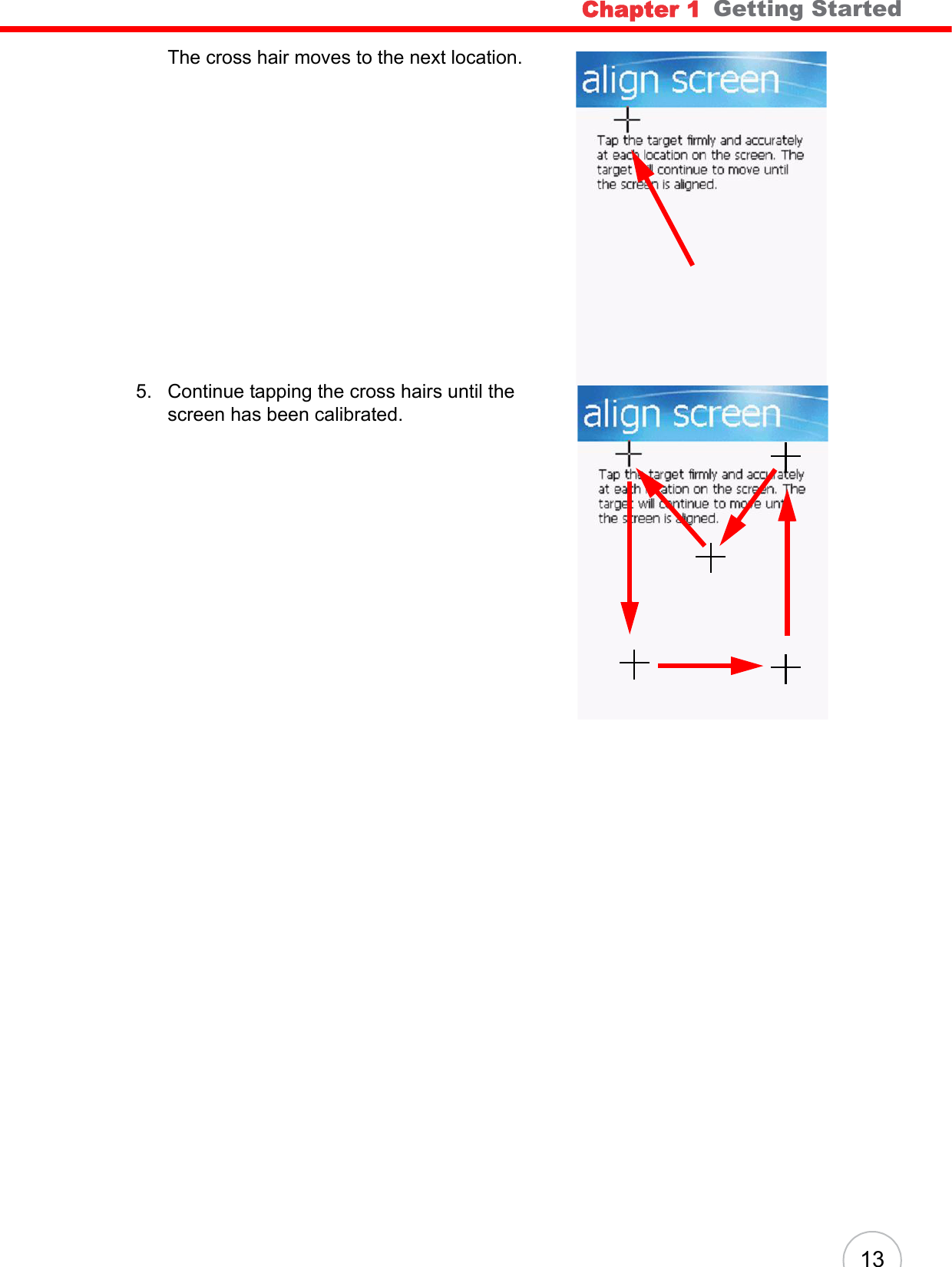

Chapter 1 Getting Started13The cross hair moves to the next location.5. Continue tapping the cross hairs until the screen has been calibrated.

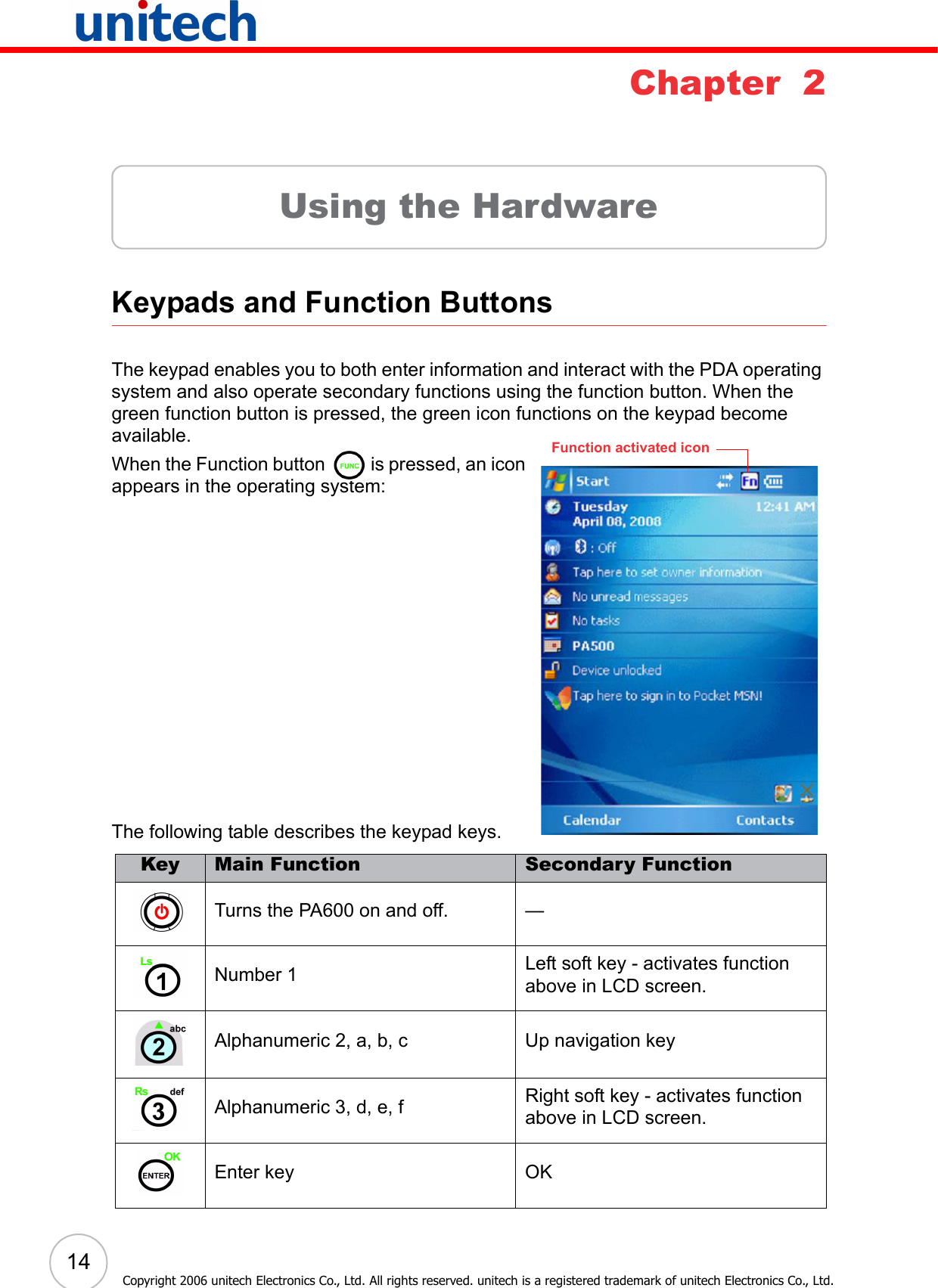

14Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.Chapter 2Using the HardwareKeypads and Function ButtonsThe keypad enables you to both enter information and interact with the PDA operating system and also operate secondary functions using the function button. When the green function button is pressed, the green icon functions on the keypad become available. When the Function button is pressed, an icon appears in the operating system:The following table describes the keypad keys.Key Main Function Secondary FunctionTurns the PA600 on and off. —Number 1 Left soft key - activates function above in LCD screen.Alphanumeric 2, a, b, c Up navigation keyAlphanumeric 3, d, e, f Right soft key - activates function above in LCD screen.Enter key OKFunction activated icon

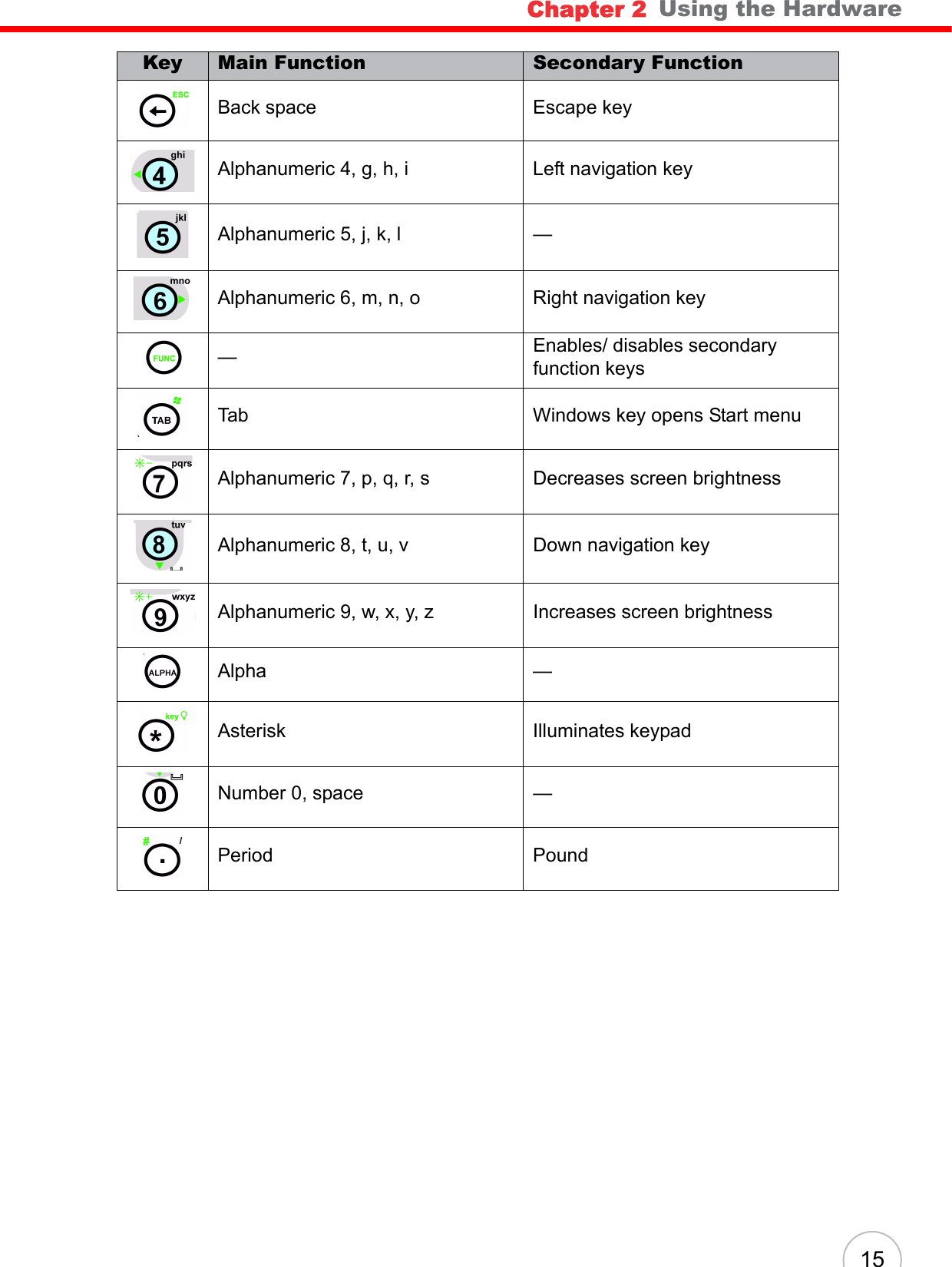

Chapter 2 Using the Hardware15Back space Escape keyAlphanumeric 4, g, h, i Left navigation keyAlphanumeric 5, j, k, l —Alphanumeric 6, m, n, o Right navigation key—Enables/ disables secondary function keysTab Windows key opens Start menuAlphanumeric 7, p, q, r, s Decreases screen brightnessAlphanumeric 8, t, u, v Down navigation keyAlphanumeric 9, w, x, y, z Increases screen brightnessAlpha —Asterisk Illuminates keypadNumber 0, space —Period PoundKey Main Function Secondary Function

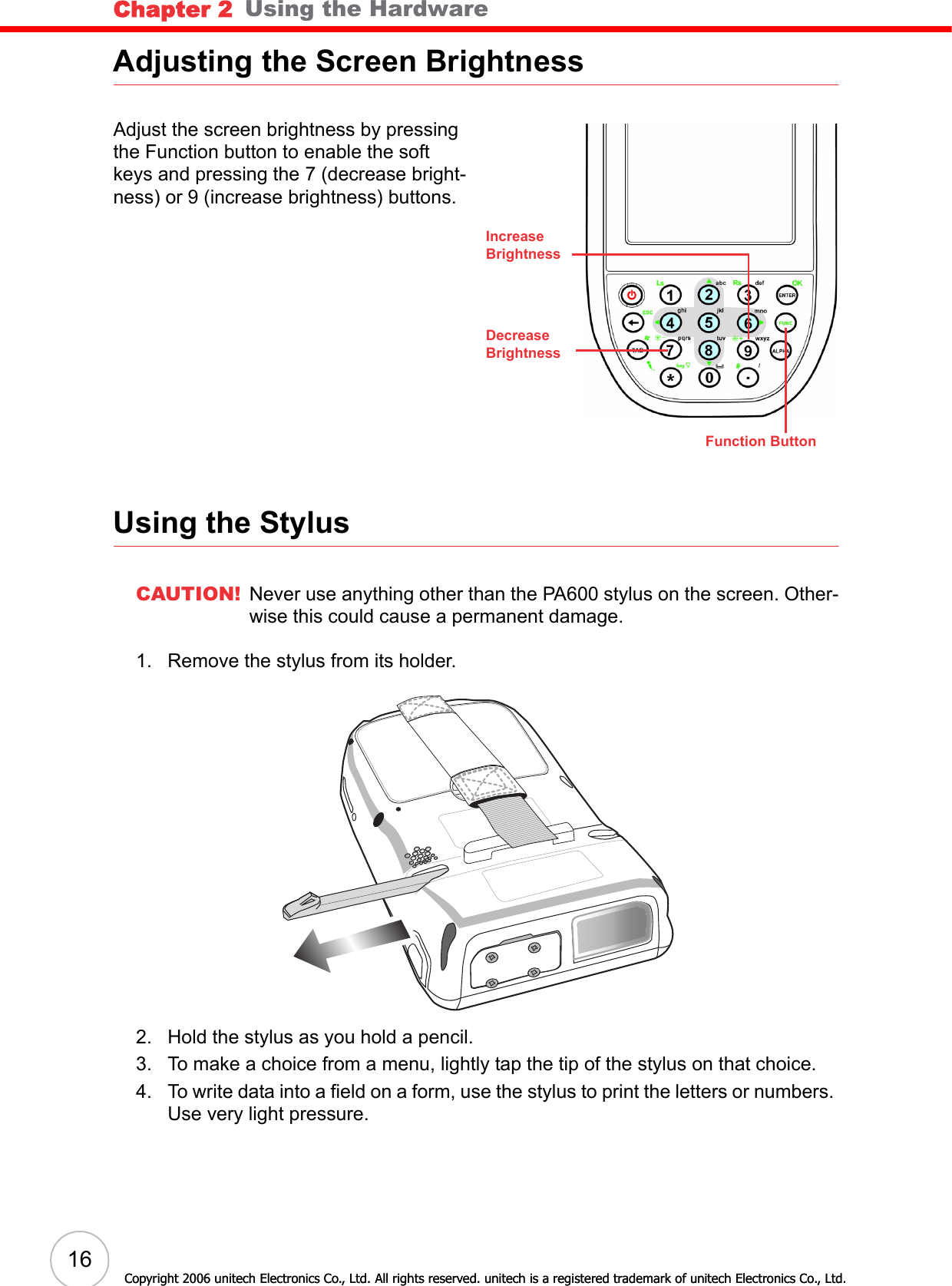

Chapter 2 Using the Hardware16Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.Adjusting the Screen BrightnessAdjust the screen brightness by pressing the Function button to enable the soft keys and pressing the 7 (decrease bright-ness) or 9 (increase brightness) buttons.Using the StylusCAUTION! Never use anything other than the PA600 stylus on the screen. Other-wise this could cause a permanent damage.1. Remove the stylus from its holder.2. Hold the stylus as you hold a pencil.3. To make a choice from a menu, lightly tap the tip of the stylus on that choice.4. To write data into a field on a form, use the stylus to print the letters or numbers. Use very light pressure.Function ButtonIncreaseBrightnessDecreaseBrightnessCopyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

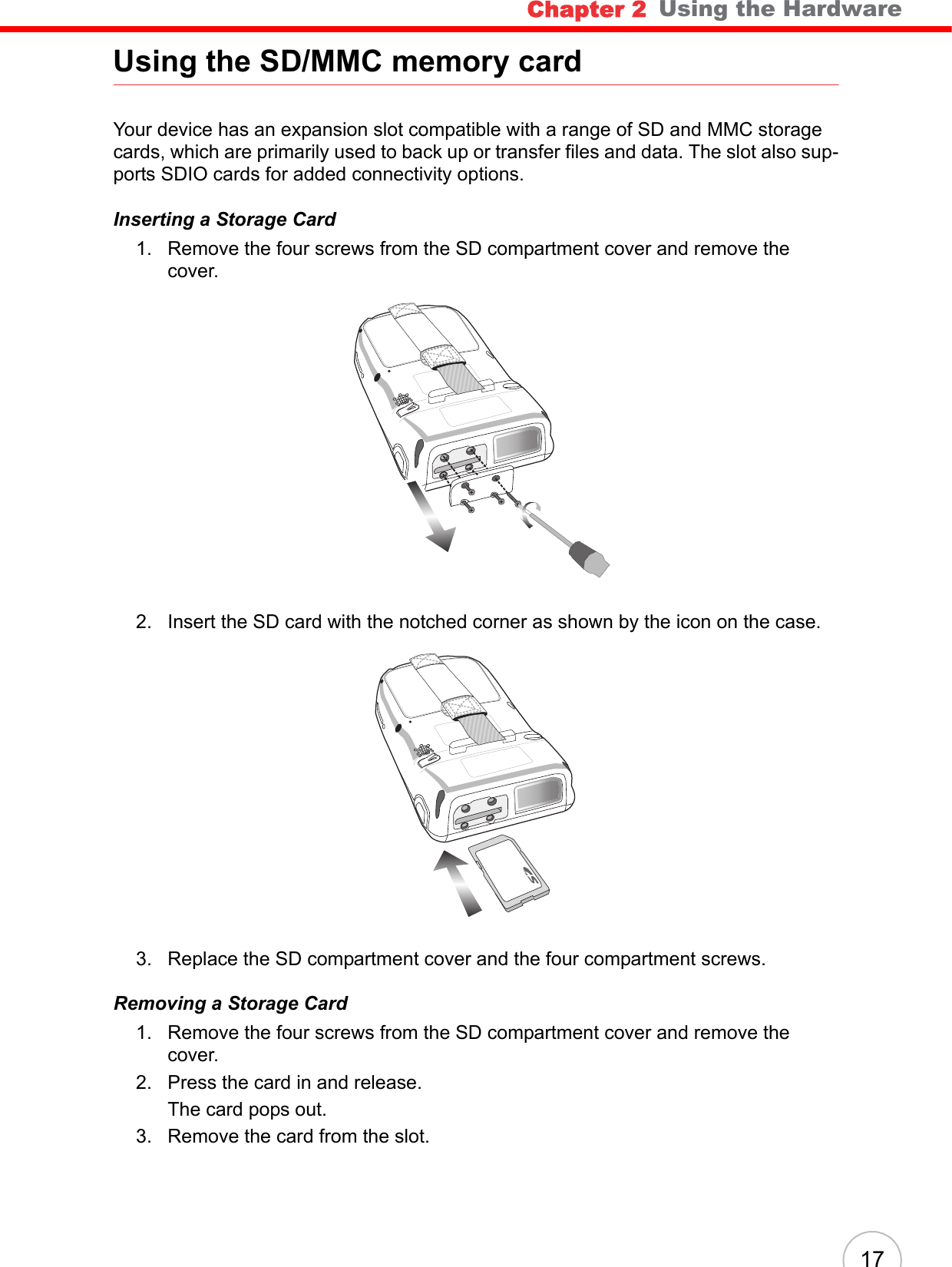

Chapter 2 Using the Hardware17Using the SD/MMC memory cardYour device has an expansion slot compatible with a range of SD and MMC storage cards, which are primarily used to back up or transfer files and data. The slot also sup-ports SDIO cards for added connectivity options.Inserting a Storage Card1. Remove the four screws from the SD compartment cover and remove the cover.2. Insert the SD card with the notched corner as shown by the icon on the case.3. Replace the SD compartment cover and the four compartment screws.Removing a Storage Card1. Remove the four screws from the SD compartment cover and remove the cover.2. Press the card in and release.The card pops out.3. Remove the card from the slot.

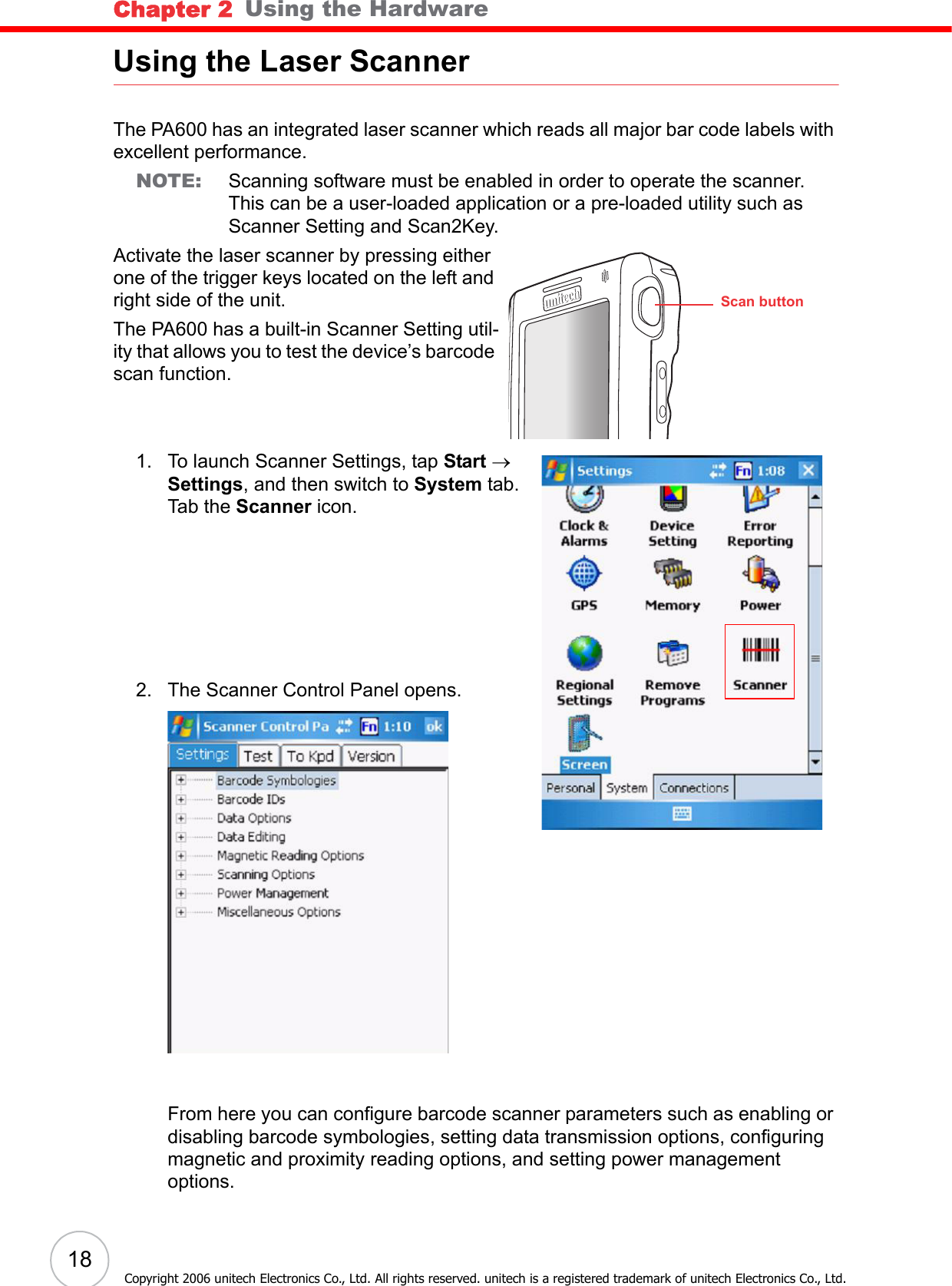

Chapter 2 Using the Hardware18Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.Using the Laser ScannerThe PA600 has an integrated laser scanner which reads all major bar code labels with excellent performance.NOTE: Scanning software must be enabled in order to operate the scanner. This can be a user-loaded application or a pre-loaded utility such as Scanner Setting and Scan2Key.Activate the laser scanner by pressing either one of the trigger keys located on the left and right side of the unit.The PA600 has a built-in Scanner Setting util-ity that allows you to test the device’s barcode scan function.1. To launch Scanner Settings, tap Start → Settings, and then switch to System tab.Tab the Scanner icon.2. The Scanner Control Panel opens.From here you can configure barcode scanner parameters such as enabling or disabling barcode symbologies, setting data transmission options, configuring magnetic and proximity reading options, and setting power management options. unitech unitech Scan button

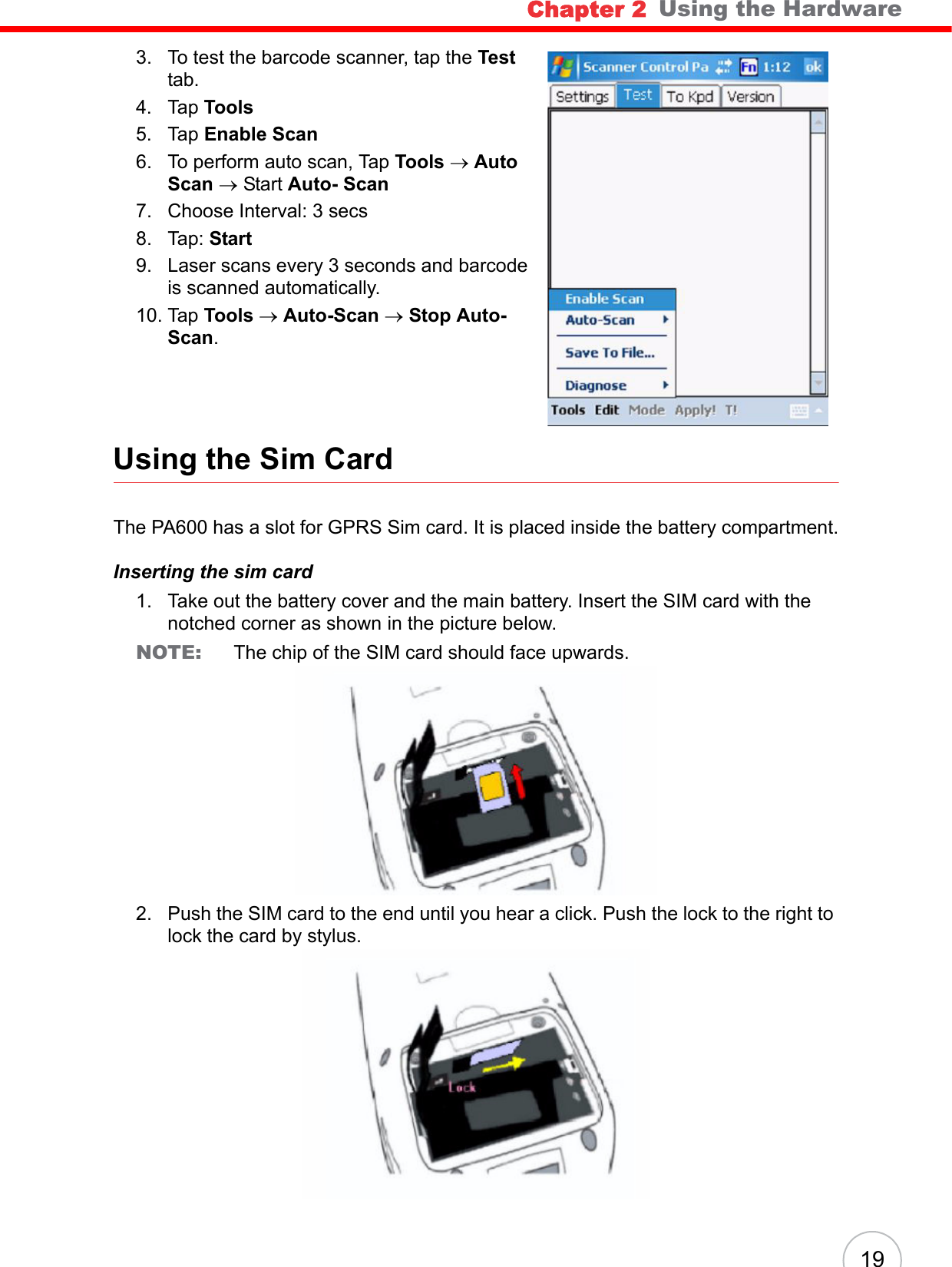

Chapter 2 Using the Hardware193. To test the barcode scanner, tap the Test tab.4. Tap Tools5. Tap Enable Scan6. To perform auto scan, Tap Tools → Auto Scan → Start Auto- Scan 7. Choose Interval: 3 secs8. Tap: Start9. Laser scans every 3 seconds and barcode is scanned automatically.10. Tap Tools → Auto-Scan → Stop Auto-Scan.Using the Sim CardThe PA600 has a slot for GPRS Sim card. It is placed inside the battery compartment.Inserting the sim card1. Take out the battery cover and the main battery. Insert the SIM card with the notched corner as shown in the picture below.NOTE: The chip of the SIM card should face upwards.2. Push the SIM card to the end until you hear a click. Push the lock to the right to lock the card by stylus.

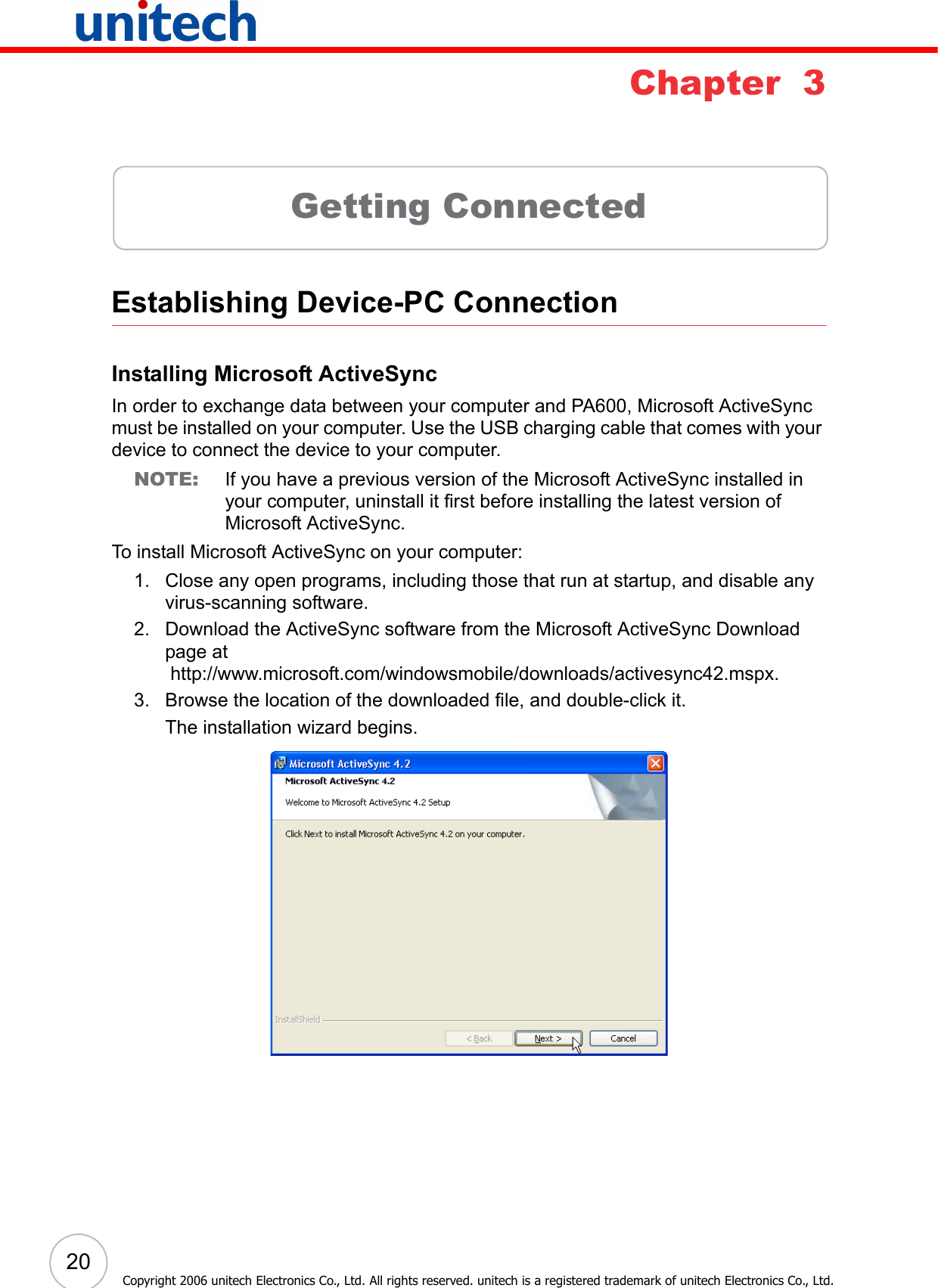

20Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.Chapter 3Getting ConnectedEstablishing Device-PC ConnectionInstalling Microsoft ActiveSyncIn order to exchange data between your computer and PA600, Microsoft ActiveSync must be installed on your computer. Use the USB charging cable that comes with your device to connect the device to your computer.NOTE: If you have a previous version of the Microsoft ActiveSync installed in your computer, uninstall it first before installing the latest version of Microsoft ActiveSync.To install Microsoft ActiveSync on your computer:1. Close any open programs, including those that run at startup, and disable any virus-scanning software.2. Download the ActiveSync software from the Microsoft ActiveSync Download page at http://www.microsoft.com/windowsmobile/downloads/activesync42.mspx.3. Browse the location of the downloaded file, and double-click it. The installation wizard begins.

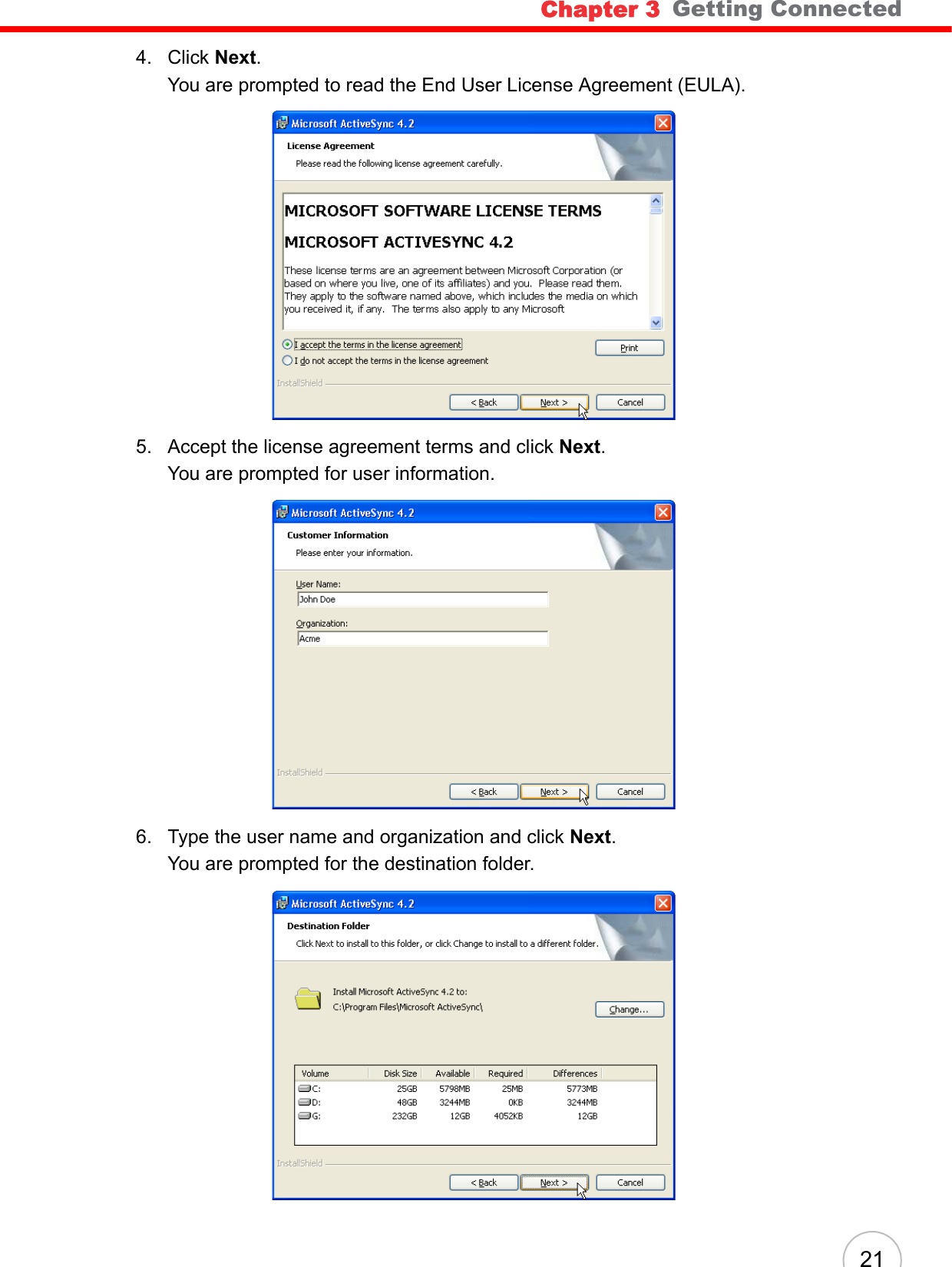

Chapter 3 Getting Connected214. Click Next.You are prompted to read the End User License Agreement (EULA).5. Accept the license agreement terms and click Next.You are prompted for user information.6. Type the user name and organization and click Next.You are prompted for the destination folder.

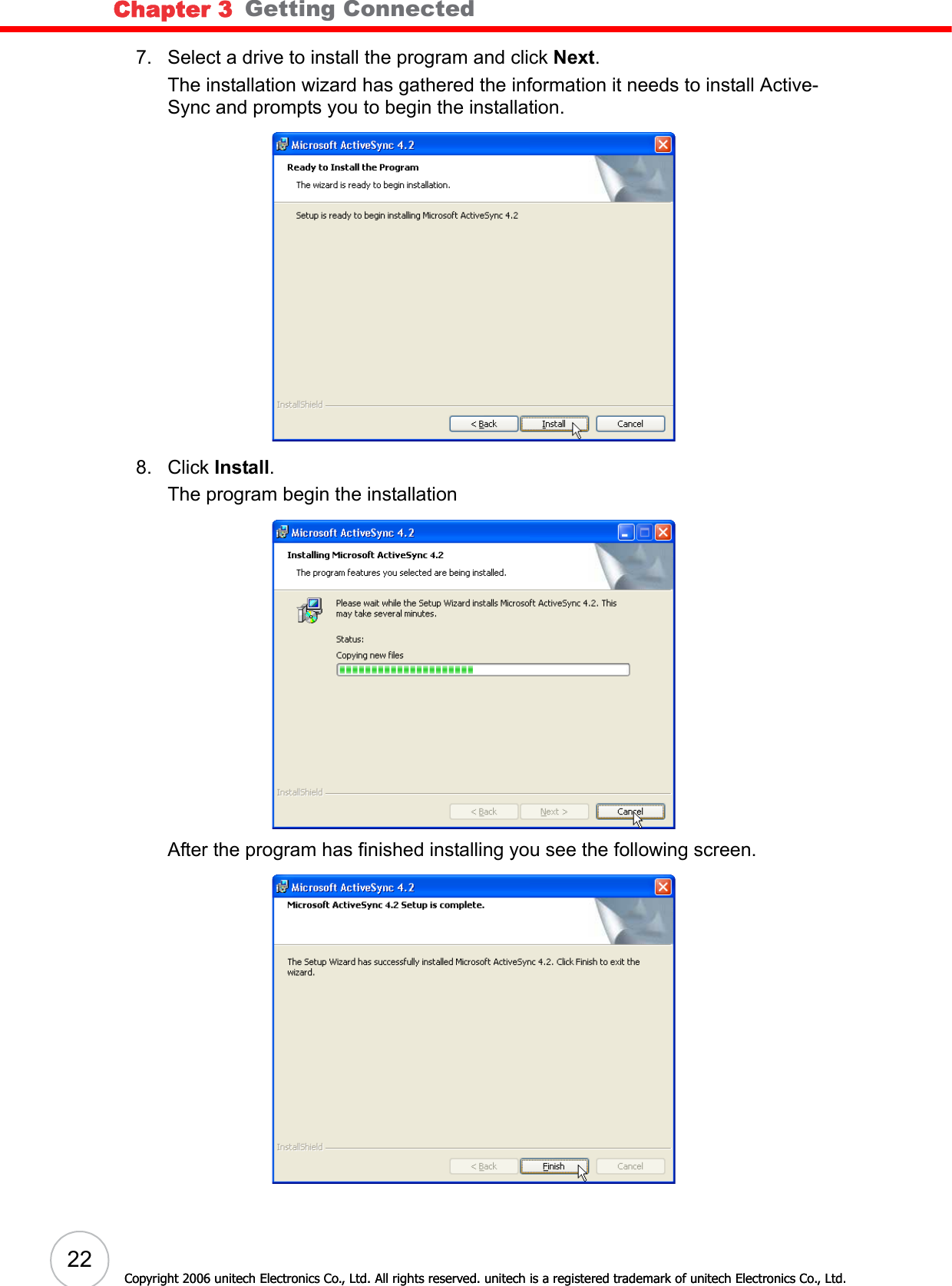

Chapter 3 Getting Connected22Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.7. Select a drive to install the program and click Next.The installation wizard has gathered the information it needs to install Active-Sync and prompts you to begin the installation.8. Click Install. The program begin the installationAfter the program has finished installing you see the following screen.Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

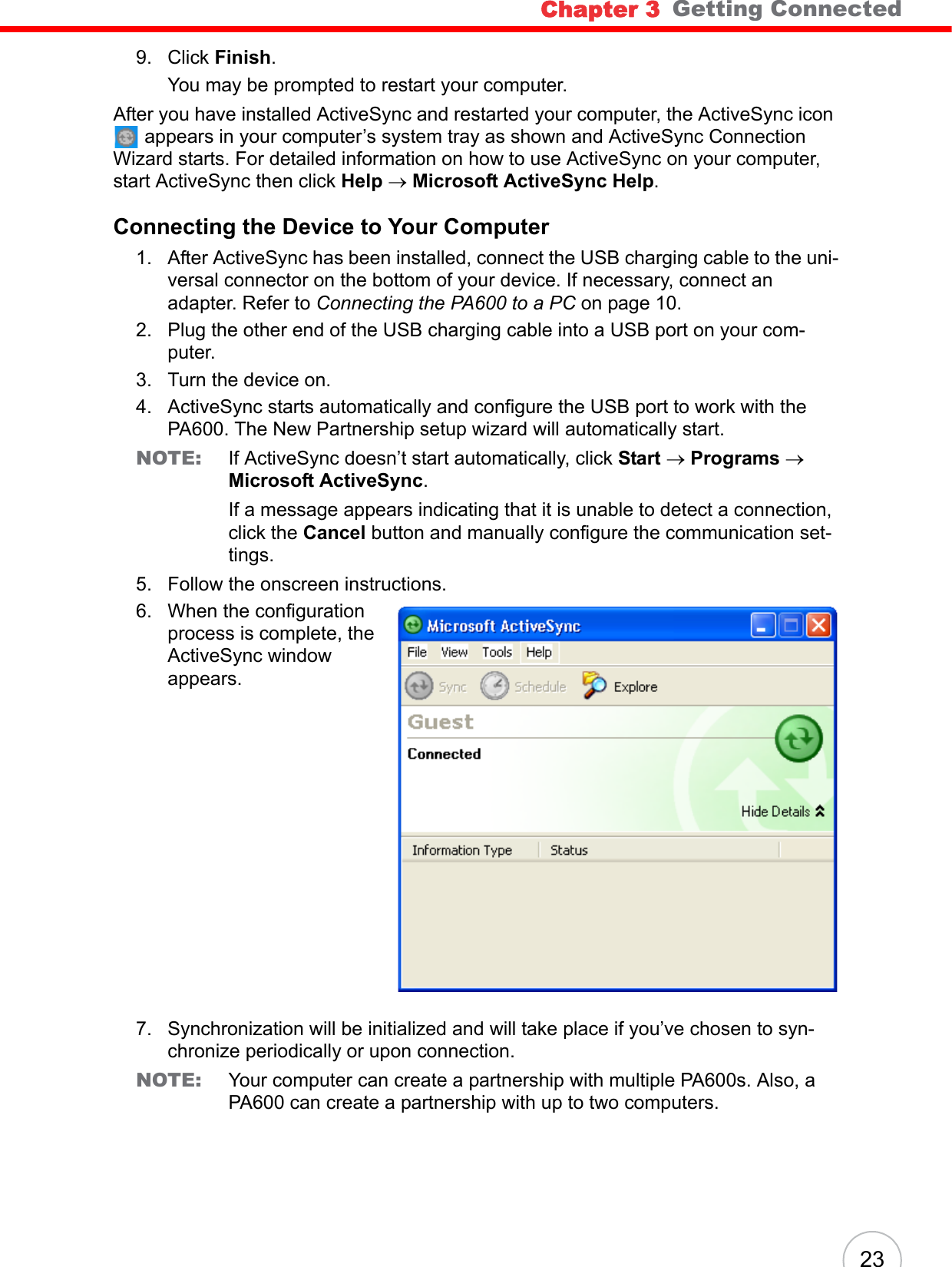

Chapter 3 Getting Connected239. Click Finish. You may be prompted to restart your computer.After you have installed ActiveSync and restarted your computer, the ActiveSync icon appears in your computer’s system tray as shown and ActiveSync Connection Wizard starts. For detailed information on how to use ActiveSync on your computer, start ActiveSync then click Help → Microsoft ActiveSync Help.Connecting the Device to Your Computer1. After ActiveSync has been installed, connect the USB charging cable to the uni-versal connector on the bottom of your device. If necessary, connect an adapter. Refer to Connecting the PA600 to a PC on page 10.2. Plug the other end of the USB charging cable into a USB port on your com-puter.3. Turn the device on.4. ActiveSync starts automatically and configure the USB port to work with the PA600. The New Partnership setup wizard will automatically start.NOTE: If ActiveSync doesn’t start automatically, click Start → Programs → Microsoft ActiveSync.If a message appears indicating that it is unable to detect a connection, click the Cancel button and manually configure the communication set-tings. 5. Follow the onscreen instructions.6. When the configuration process is complete, the ActiveSync window appears.7. Synchronization will be initialized and will take place if you’ve chosen to syn-chronize periodically or upon connection.NOTE: Your computer can create a partnership with multiple PA600s. Also, a PA600 can create a partnership with up to two computers.

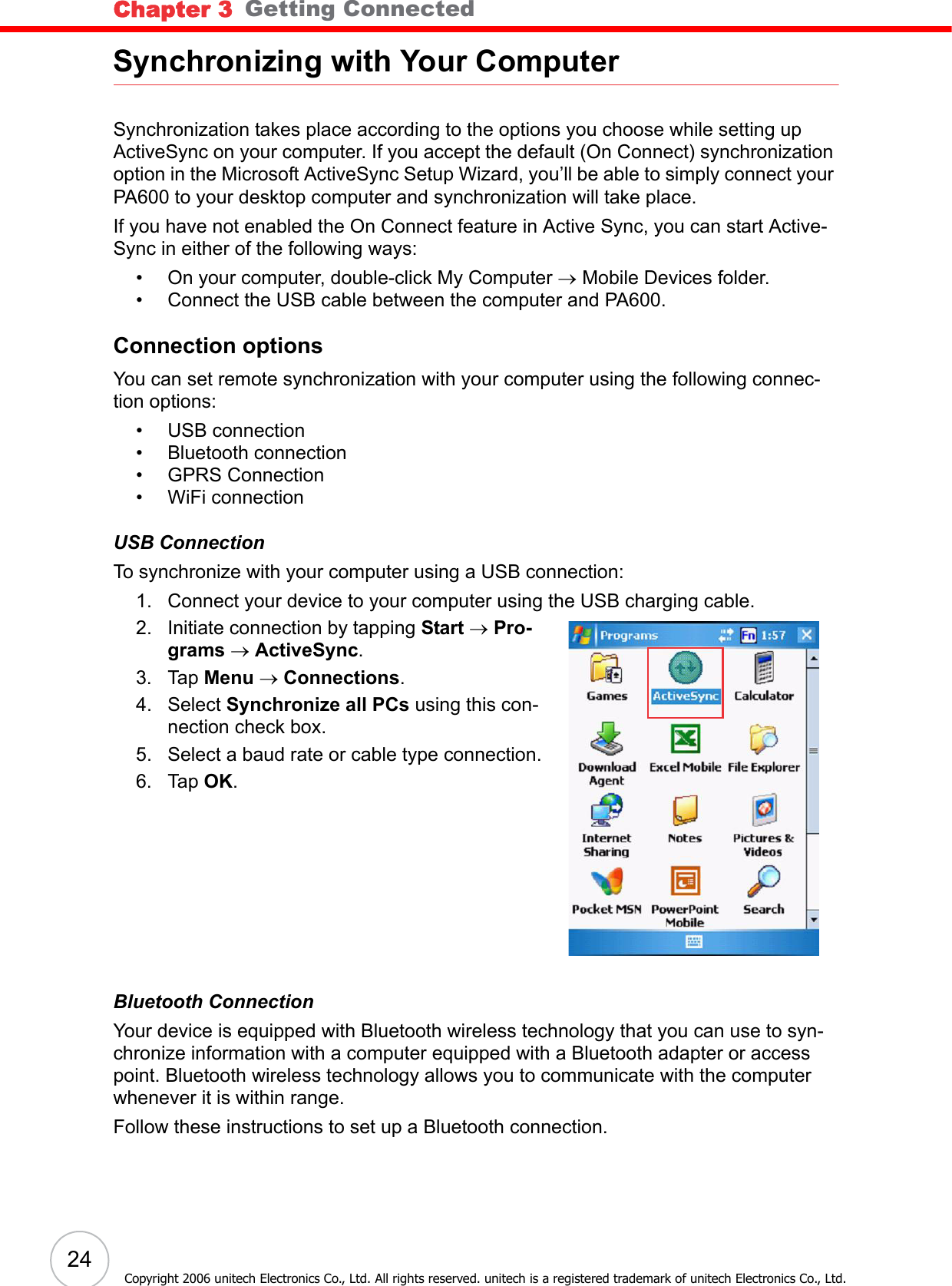

Chapter 3 Getting Connected24Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.Synchronizing with Your ComputerSynchronization takes place according to the options you choose while setting up ActiveSync on your computer. If you accept the default (On Connect) synchronization option in the Microsoft ActiveSync Setup Wizard, you’ll be able to simply connect your PA600 to your desktop computer and synchronization will take place.If you have not enabled the On Connect feature in Active Sync, you can start Active-Sync in either of the following ways:• On your computer, double-click My Computer → Mobile Devices folder.• Connect the USB cable between the computer and PA600.Connection optionsYou can set remote synchronization with your computer using the following connec-tion options:• USB connection• Bluetooth connection• GPRS Connection• WiFi connectionUSB ConnectionTo synchronize with your computer using a USB connection:1. Connect your device to your computer using the USB charging cable.2. Initiate connection by tapping Start → Pro-grams → ActiveSync.3. Tap Menu → Connections.4. Select Synchronize all PCs using this con-nection check box.5. Select a baud rate or cable type connection.6. Tap OK.Bluetooth ConnectionYour device is equipped with Bluetooth wireless technology that you can use to syn-chronize information with a computer equipped with a Bluetooth adapter or access point. Bluetooth wireless technology allows you to communicate with the computer whenever it is within range.Follow these instructions to set up a Bluetooth connection.

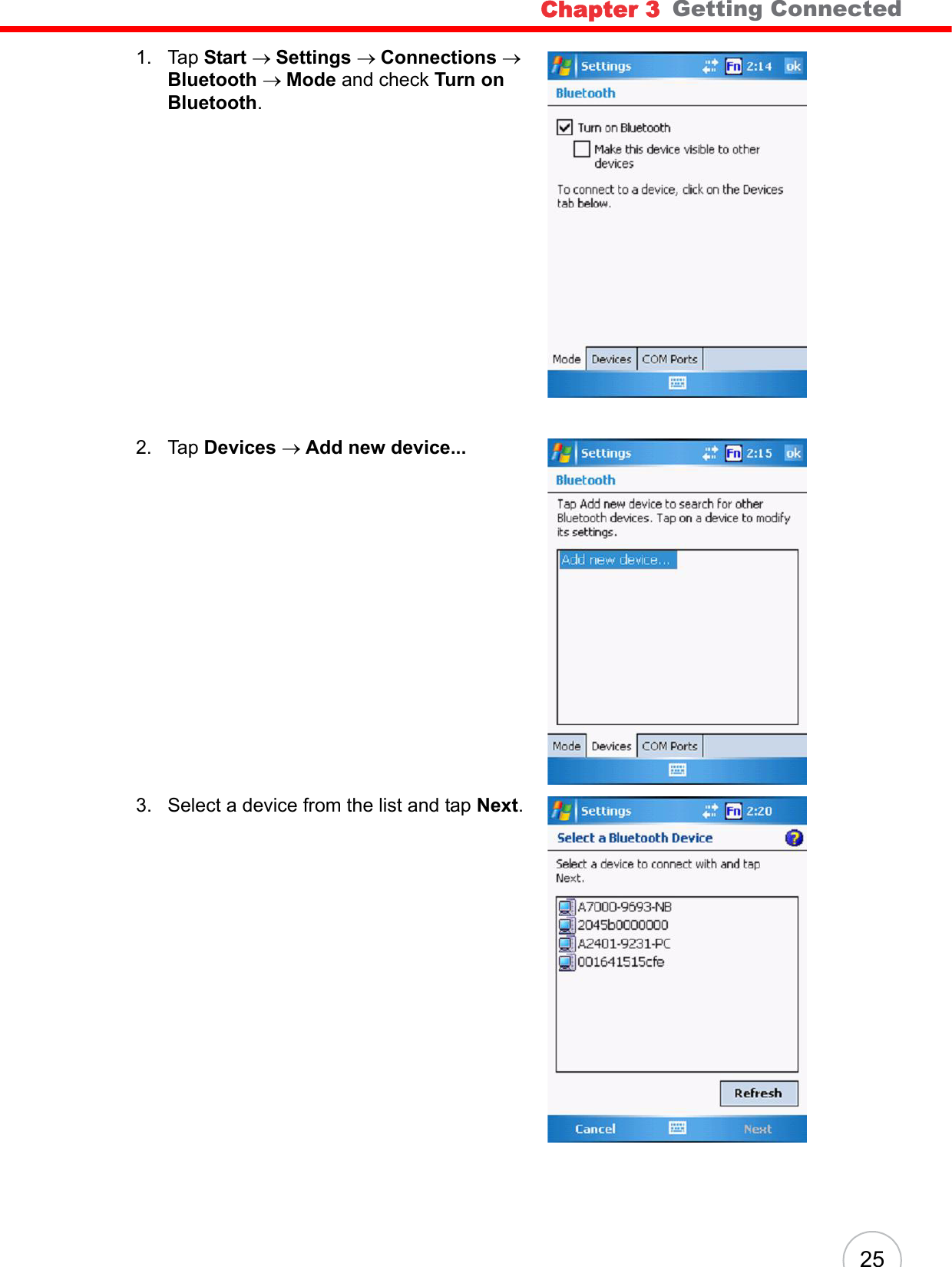

Chapter 3 Getting Connected251. Tap Start → Settings → Connections → Bluetooth → Mode and check Turn on Bluetooth.2. Tap Devices → Add new device...3. Select a device from the list and tap Next.

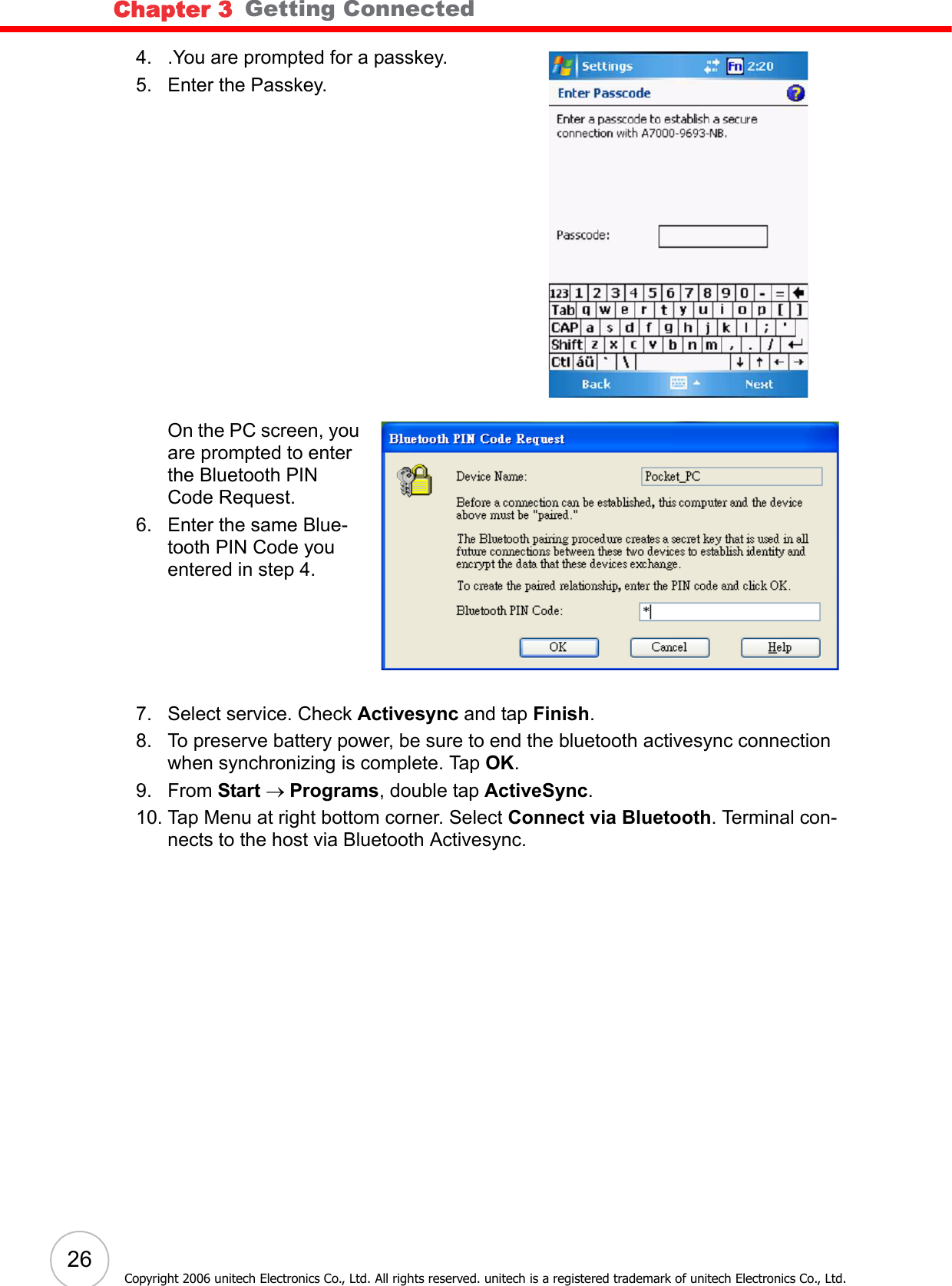

Chapter 3 Getting Connected26Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.4. .You are prompted for a passkey. 5. Enter the Passkey. On the PC screen, you are prompted to enter the Bluetooth PIN Code Request.6. Enter the same Blue-tooth PIN Code you entered in step 4.7. Select service. Check Activesync and tap Finish.8. To preserve battery power, be sure to end the bluetooth activesync connection when synchronizing is complete. Tap OK.9. From Start → Programs, double tap ActiveSync.10. Tap Menu at right bottom corner. Select Connect via Bluetooth. Terminal con-nects to the host via Bluetooth Activesync.

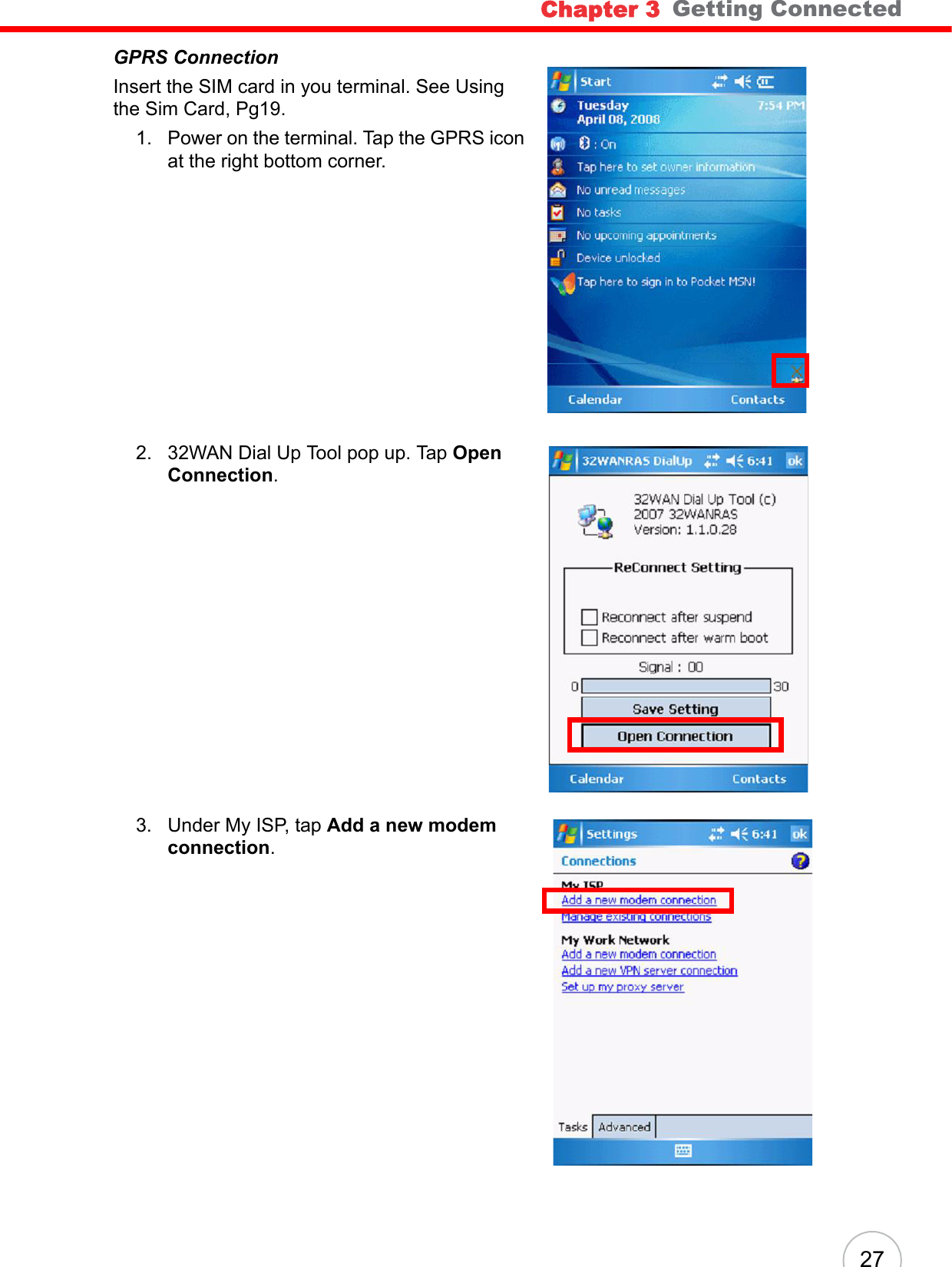

Chapter 3 Getting Connected27GPRS ConnectionInsert the SIM card in you terminal. See Using the Sim Card, Pg19.1. Power on the terminal. Tap the GPRS icon at the right bottom corner.2. 32WAN Dial Up Tool pop up. Tap Open Connection.3. Under My ISP, tap Add a new modem connection.

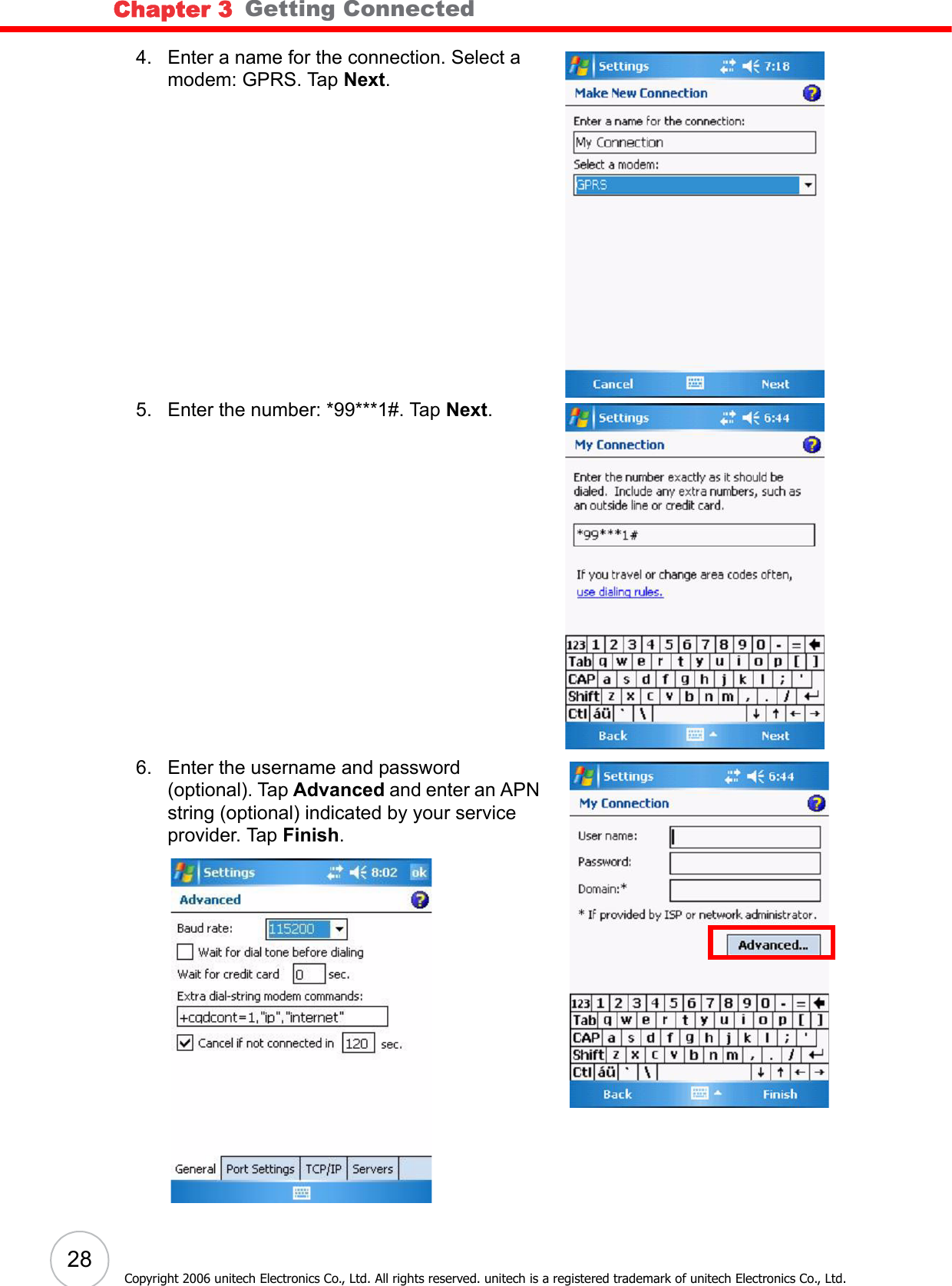

Chapter 3 Getting Connected28Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.4. Enter a name for the connection. Select a modem: GPRS. Tap Next.5. Enter the number: *99***1#. Tap Next.6. Enter the username and password (optional). Tap Advanced and enter an APN string (optional) indicated by your service provider. Tap Finish.

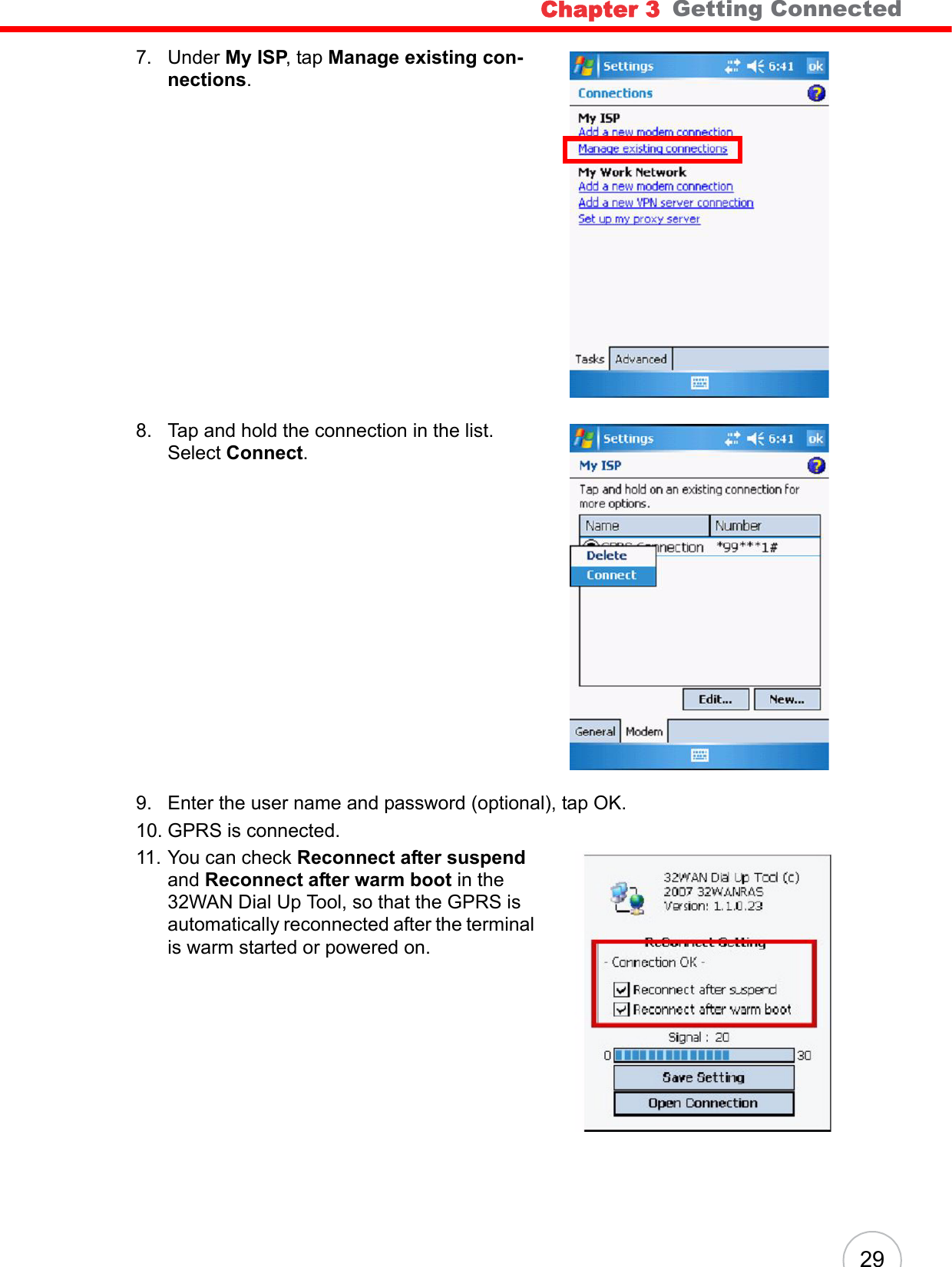

Chapter 3 Getting Connected297. Under My ISP, tap Manage existing con-nections.8. Tap and hold the connection in the list. Select Connect.9. Enter the user name and password (optional), tap OK.10. GPRS is connected.11. You can check Reconnect after suspend and Reconnect after warm boot in the 32WAN Dial Up Tool, so that the GPRS is automatically reconnected after the terminal is warm started or powered on.

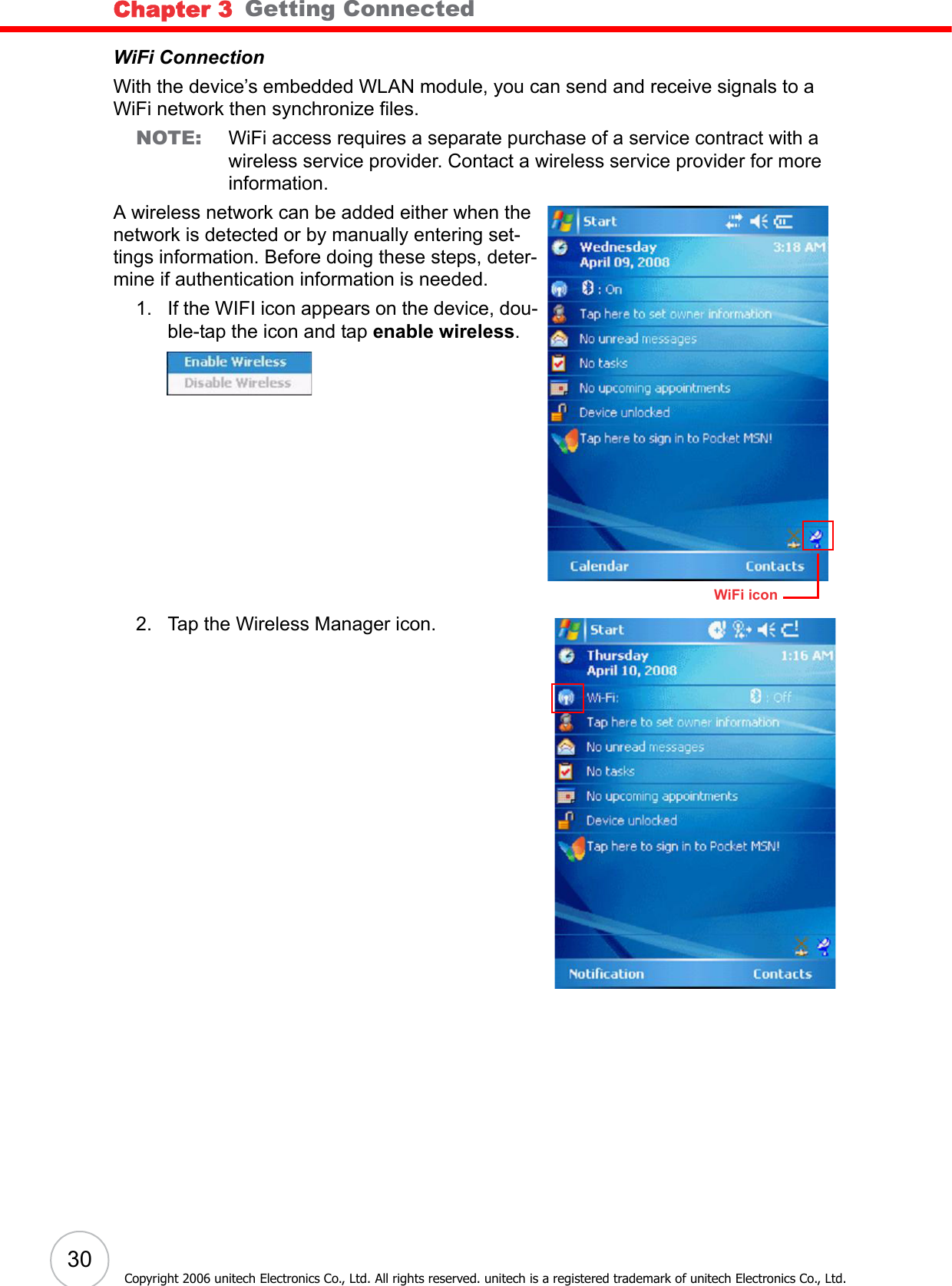

Chapter 3 Getting Connected30Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.WiFi ConnectionWith the device’s embedded WLAN module, you can send and receive signals to a WiFi network then synchronize files.NOTE: WiFi access requires a separate purchase of a service contract with a wireless service provider. Contact a wireless service provider for more information.A wireless network can be added either when the network is detected or by manually entering set-tings information. Before doing these steps, deter-mine if authentication information is needed.1. If the WIFI icon appears on the device, dou-ble-tap the icon and tap enable wireless.2. Tap the Wireless Manager icon.WiFi icon

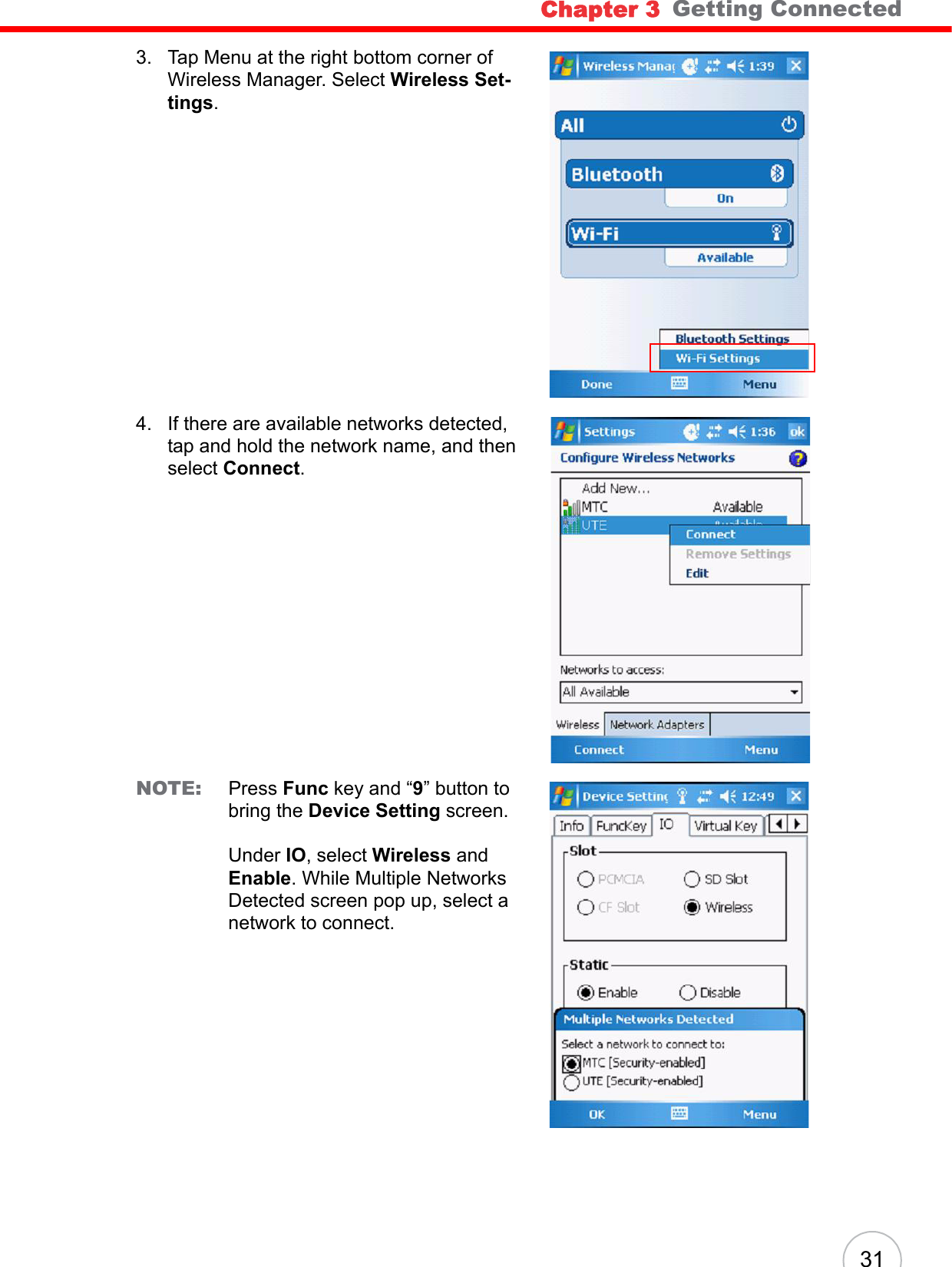

Chapter 3 Getting Connected313. Tap Menu at the right bottom corner of Wireless Manager. Select Wireless Set-tings.4. If there are available networks detected, tap and hold the network name, and then select Connect.NOTE: Press Func key and “9” button to bring the Device Setting screen.Under IO, select Wireless and Enable. While Multiple Networks Detected screen pop up, select a network to connect.

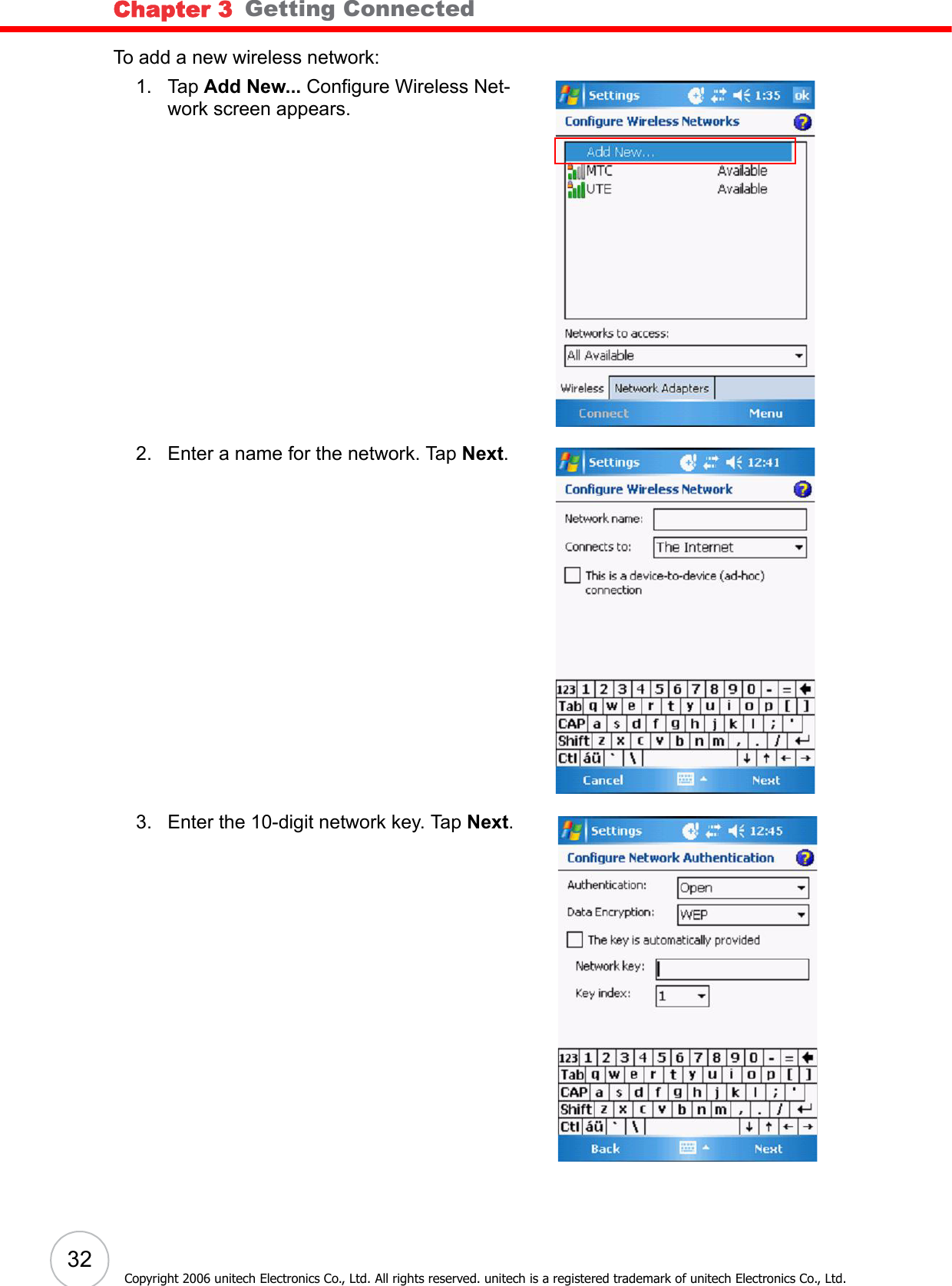

Chapter 3 Getting Connected32Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.To add a new wireless network:1. Tap Add New... Configure Wireless Net-work screen appears.2. Enter a name for the network. Tap Next.3. Enter the 10-digit network key. Tap Next.

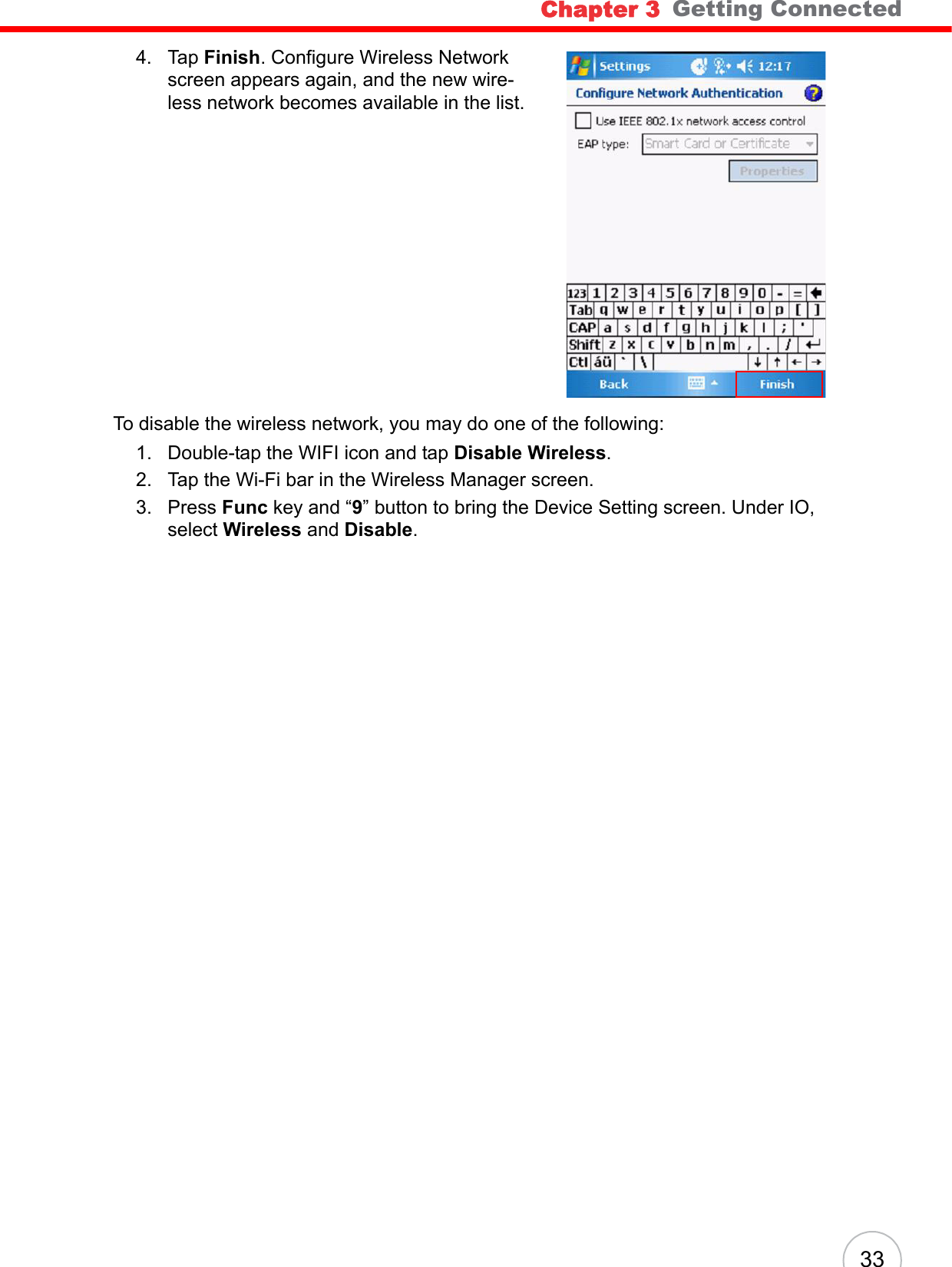

Chapter 3 Getting Connected334. Tap Finish. Configure Wireless Network screen appears again, and the new wire-less network becomes available in the list.To disable the wireless network, you may do one of the following:1. Double-tap the WIFI icon and tap Disable Wireless.2. Tap the Wi-Fi bar in the Wireless Manager screen.3. Press Func key and “9” button to bring the Device Setting screen. Under IO, select Wireless and Disable.

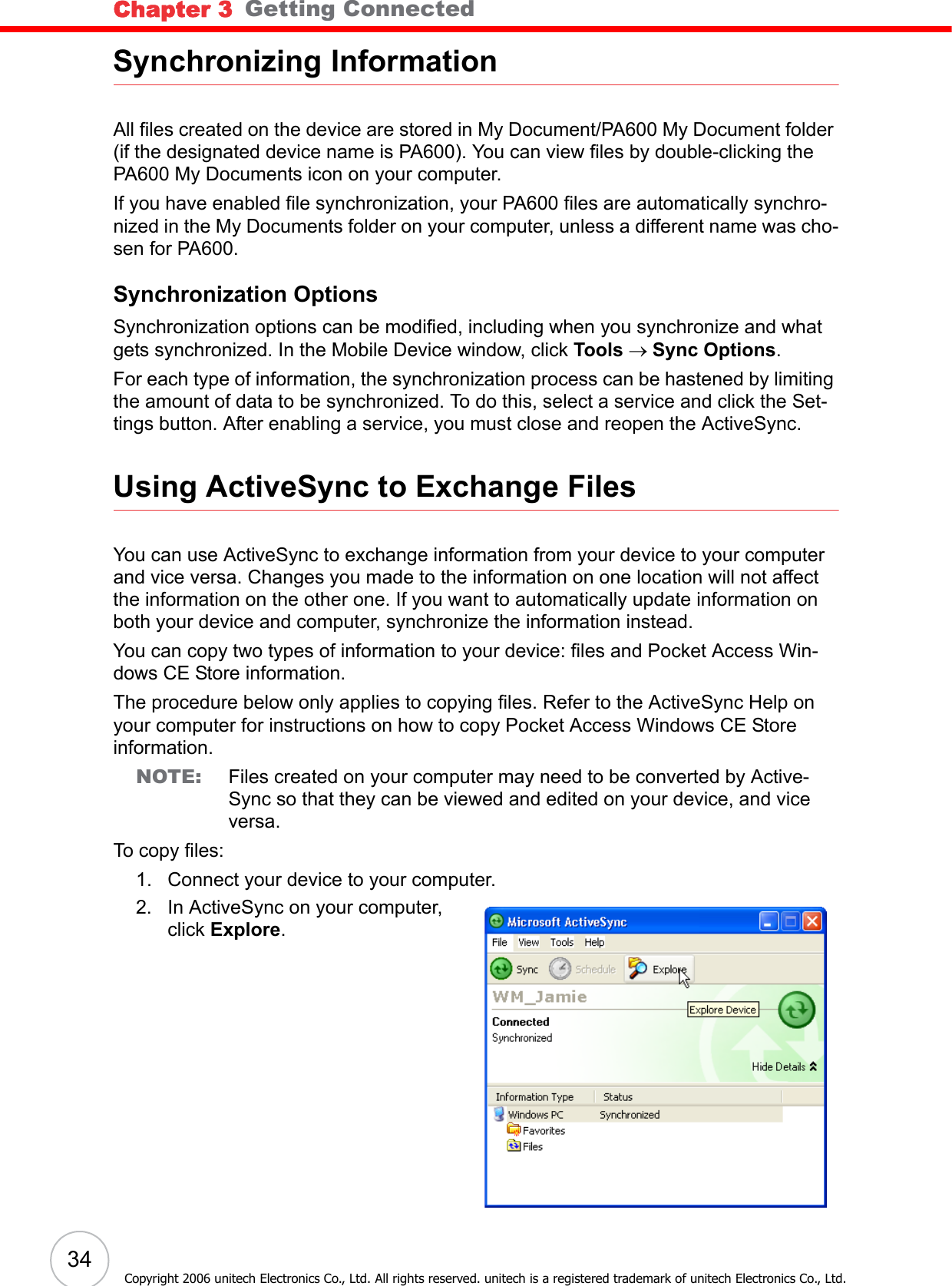

Chapter 3 Getting Connected34Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.Synchronizing InformationAll files created on the device are stored in My Document/PA600 My Document folder (if the designated device name is PA600). You can view files by double-clicking the PA600 My Documents icon on your computer.If you have enabled file synchronization, your PA600 files are automatically synchro-nized in the My Documents folder on your computer, unless a different name was cho-sen for PA600.Synchronization OptionsSynchronization options can be modified, including when you synchronize and what gets synchronized. In the Mobile Device window, click Tools → Sync Options.For each type of information, the synchronization process can be hastened by limiting the amount of data to be synchronized. To do this, select a service and click the Set-tings button. After enabling a service, you must close and reopen the ActiveSync.Using ActiveSync to Exchange FilesYou can use ActiveSync to exchange information from your device to your computer and vice versa. Changes you made to the information on one location will not affect the information on the other one. If you want to automatically update information on both your device and computer, synchronize the information instead.You can copy two types of information to your device: files and Pocket Access Win-dows CE Store information.The procedure below only applies to copying files. Refer to the ActiveSync Help on your computer for instructions on how to copy Pocket Access Windows CE Store information.NOTE: Files created on your computer may need to be converted by Active-Sync so that they can be viewed and edited on your device, and vice versa.To copy files:1. Connect your device to your computer.2. In ActiveSync on your computer, click Explore.

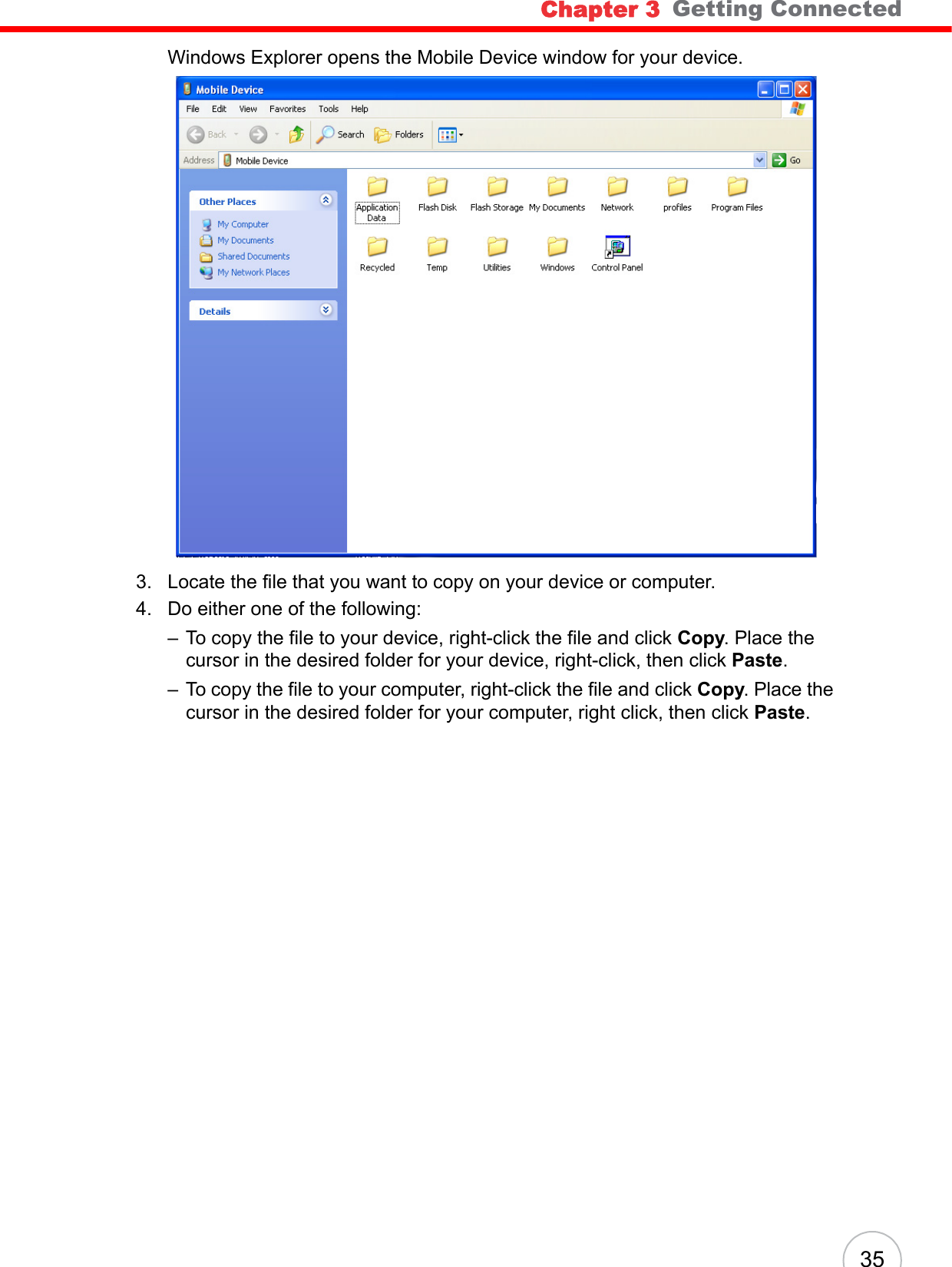

Chapter 3 Getting Connected35Windows Explorer opens the Mobile Device window for your device.3. Locate the file that you want to copy on your device or computer.4. Do either one of the following:– To copy the file to your device, right-click the file and click Copy. Place the cursor in the desired folder for your device, right-click, then click Paste.– To copy the file to your computer, right-click the file and click Copy. Place the cursor in the desired folder for your computer, right click, then click Paste.

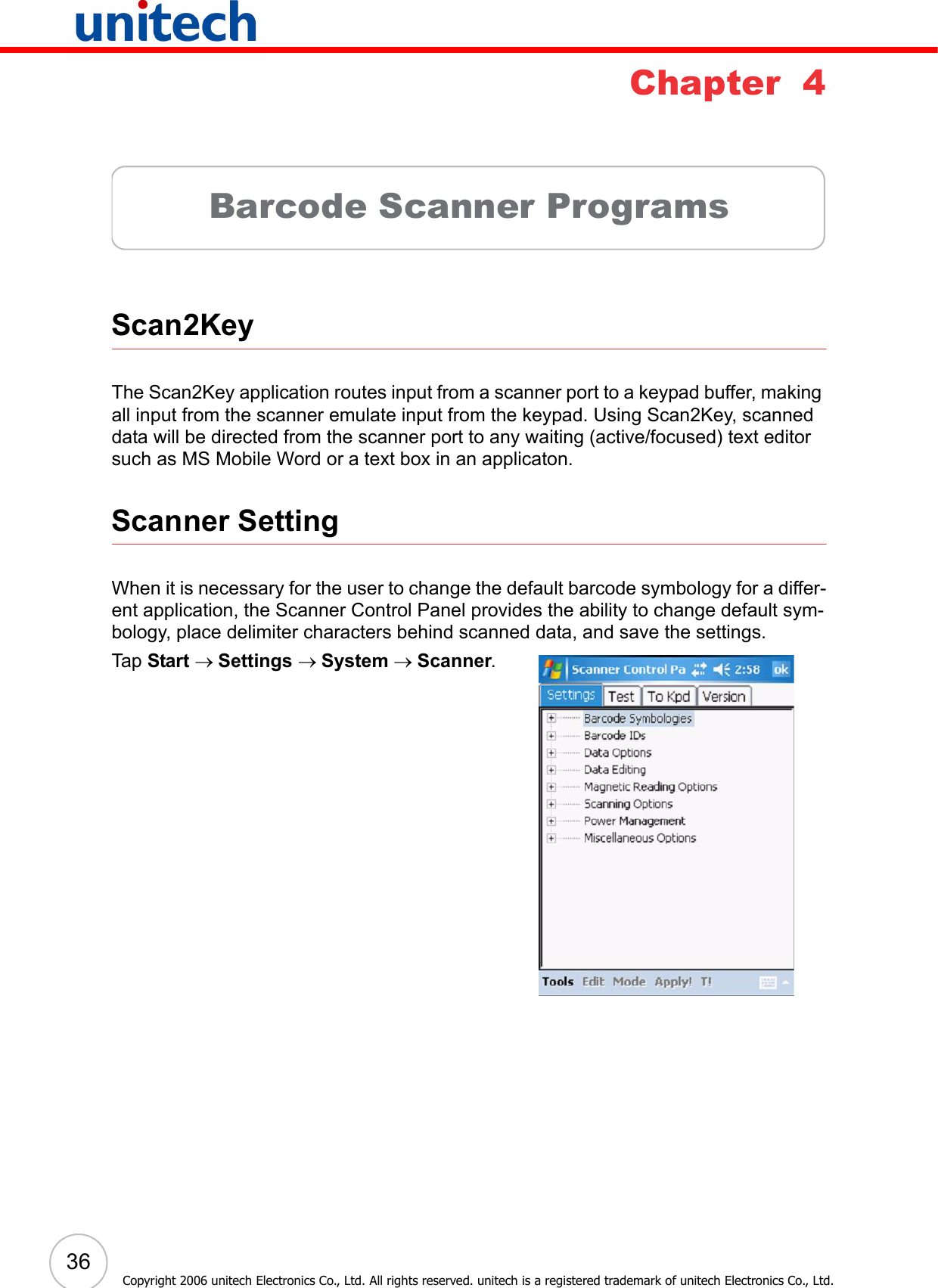

36Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.Chapter 4Barcode Scanner ProgramsScan2KeyThe Scan2Key application routes input from a scanner port to a keypad buffer, making all input from the scanner emulate input from the keypad. Using Scan2Key, scanned data will be directed from the scanner port to any waiting (active/focused) text editor such as MS Mobile Word or a text box in an applicaton.Scanner SettingWhen it is necessary for the user to change the default barcode symbology for a differ-ent application, the Scanner Control Panel provides the ability to change default sym-bology, place delimiter characters behind scanned data, and save the settings.Tap Start → Settings → System → Scanner.

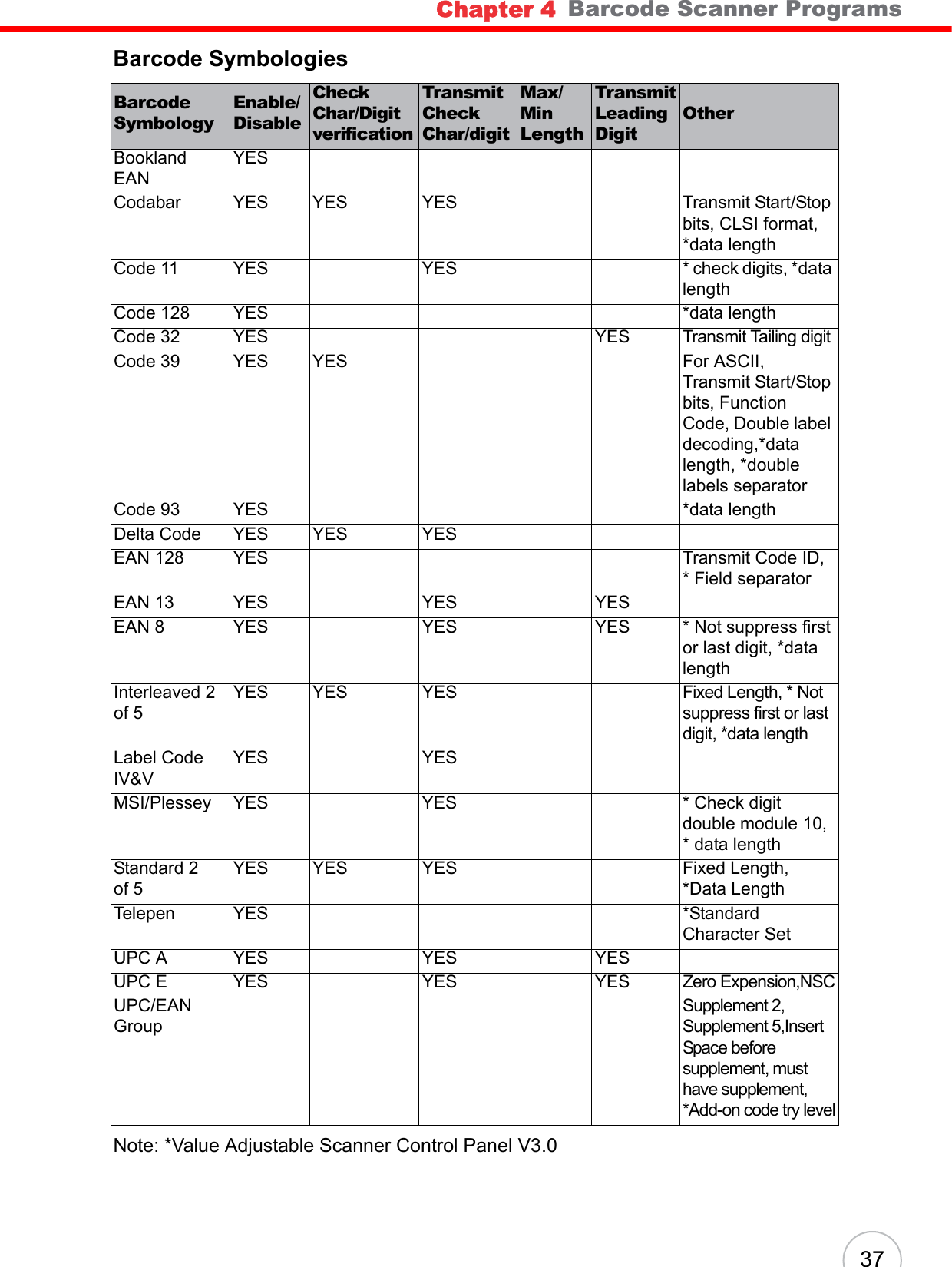

Chapter 4 Barcode Scanner Programs37Barcode SymbologiesNote: *Value Adjustable Scanner Control Panel V3.0Barcode SymbologyEnable/DisableCheck Char/Digit verificationTransmit Check Char/digitMax/Min LengthTransmit Leading DigitOtherBookland EANYESCodabar YES YES YES Transmit Start/Stop bits, CLSI format, *data lengthCode 11 YES YES * check digits, *data lengthCode 128 YES *data lengthCode 32 YES YES Transmit Tailing digitCode 39 YES YES For ASCII, Transmit Start/Stop bits, Function Code, Double label decoding,*data length, *double labels separatorCode 93 YES *data lengthDelta Code YES YES YESEAN 128 YES Transmit Code ID, * Field separatorEAN 13 YES YES YESEAN 8 YES YES YES * Not suppress first or last digit, *data lengthInterleaved 2 of 5YES YES YES Fixed Length, * Not suppress first or last digit, *data lengthLabel Code IV&VYES YESMSI/Plessey YES YES * Check digit double module 10, * data lengthStandard 2 of 5YES YES YES Fixed Length, *Data LengthTelepen YES *Standard Character SetUPC A YES YES YESUPC E YES YES YES Zero Expension,NSCUPC/EAN GroupSupplement 2, Supplement 5,Insert Space before supplement, must have supplement, *Add-on code try level

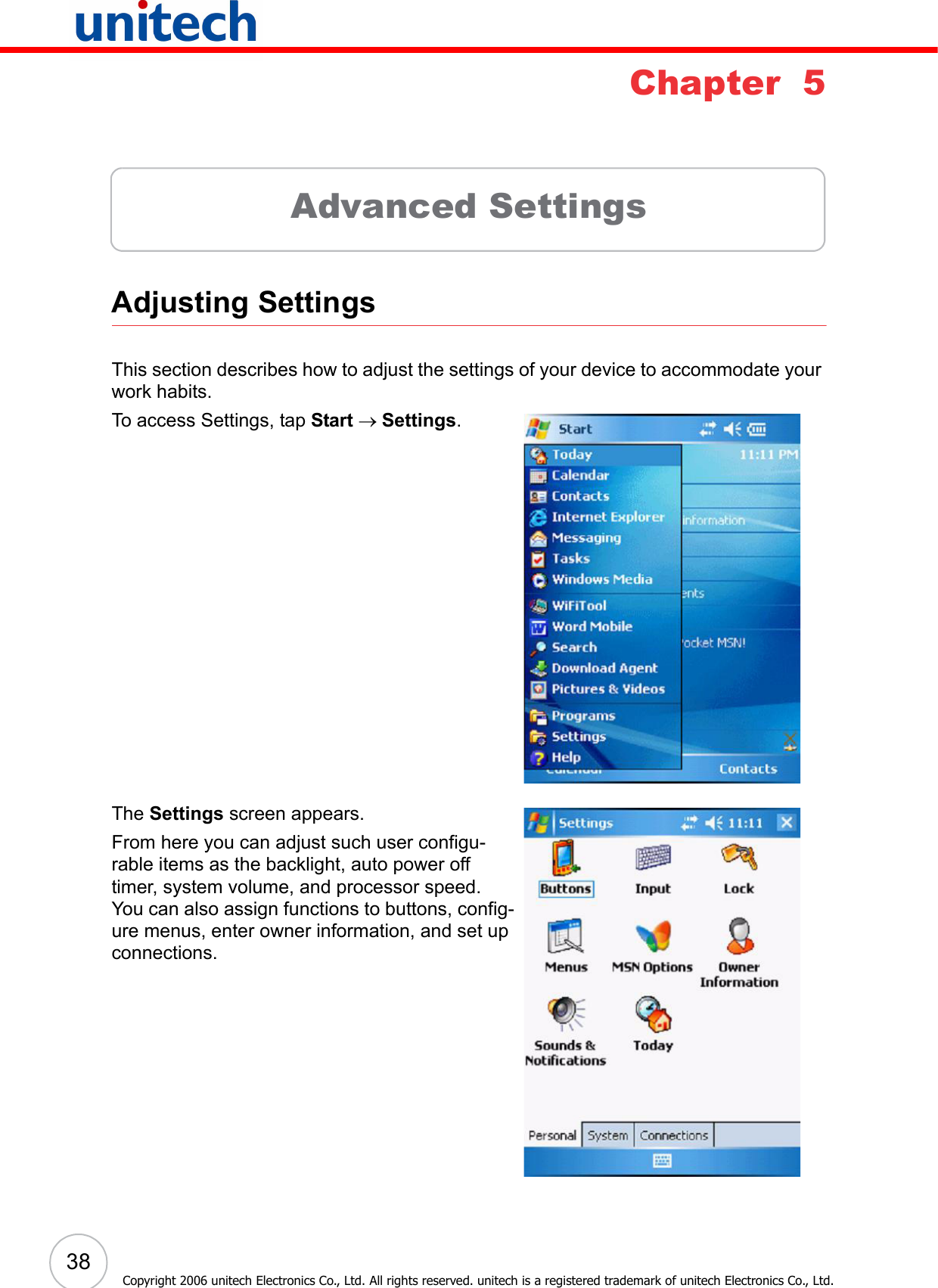

38Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.Chapter 5Advanced SettingsAdjusting SettingsThis section describes how to adjust the settings of your device to accommodate your work habits. To access Settings, tap Start → Settings.The Settings screen appears.From here you can adjust such user configu-rable items as the backlight, auto power off timer, system volume, and processor speed. You can also assign functions to buttons, config-ure menus, enter owner information, and set up connections.

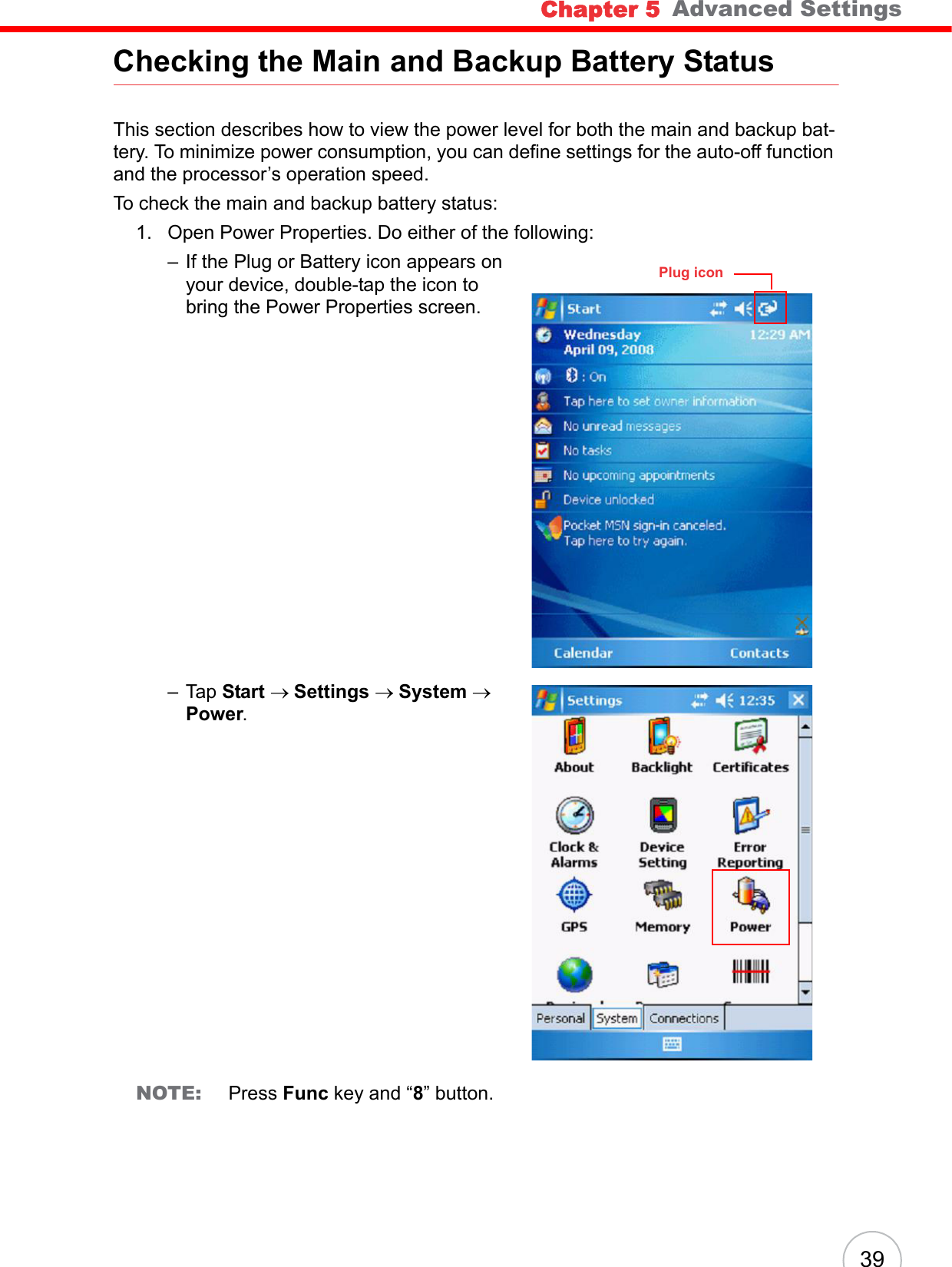

Chapter 5 Advanced Settings39Checking the Main and Backup Battery StatusThis section describes how to view the power level for both the main and backup bat-tery. To minimize power consumption, you can define settings for the auto-off function and the processor’s operation speed.To check the main and backup battery status:1. Open Power Properties. Do either of the following:– If the Plug or Battery icon appears on your device, double-tap the icon to bring the Power Properties screen.– Tap Start → Settings → System → Power.NOTE: Press Func key and “8” button.Plug icon

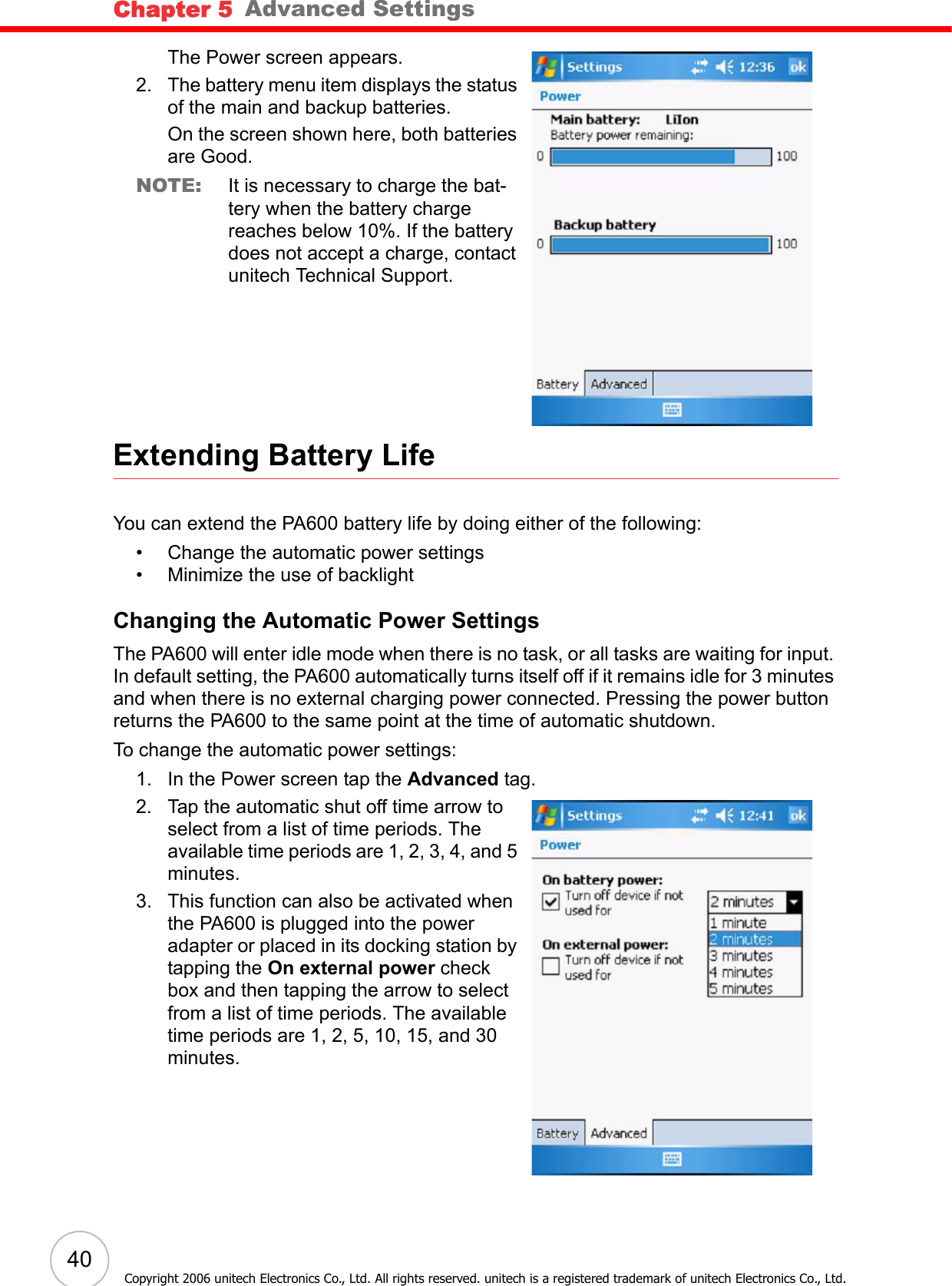

Chapter 5 Advanced Settings40Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.The Power screen appears.2. The battery menu item displays the status of the main and backup batteries. On the screen shown here, both batteries are Good.NOTE: It is necessary to charge the bat-tery when the battery charge reaches below 10%. If the battery does not accept a charge, contact unitech Technical Support.Extending Battery LifeYou can extend the PA600 battery life by doing either of the following:• Change the automatic power settings• Minimize the use of backlightChanging the Automatic Power SettingsThe PA600 will enter idle mode when there is no task, or all tasks are waiting for input. In default setting, the PA600 automatically turns itself off if it remains idle for 3 minutes and when there is no external charging power connected. Pressing the power button returns the PA600 to the same point at the time of automatic shutdown.To change the automatic power settings:1. In the Power screen tap the Advanced tag. 2. Tap the automatic shut off time arrow to select from a list of time periods. The available time periods are 1, 2, 3, 4, and 5 minutes.3. This function can also be activated when the PA600 is plugged into the power adapter or placed in its docking station by tapping the On external power check box and then tapping the arrow to select from a list of time periods. The available time periods are 1, 2, 5, 10, 15, and 30 minutes.

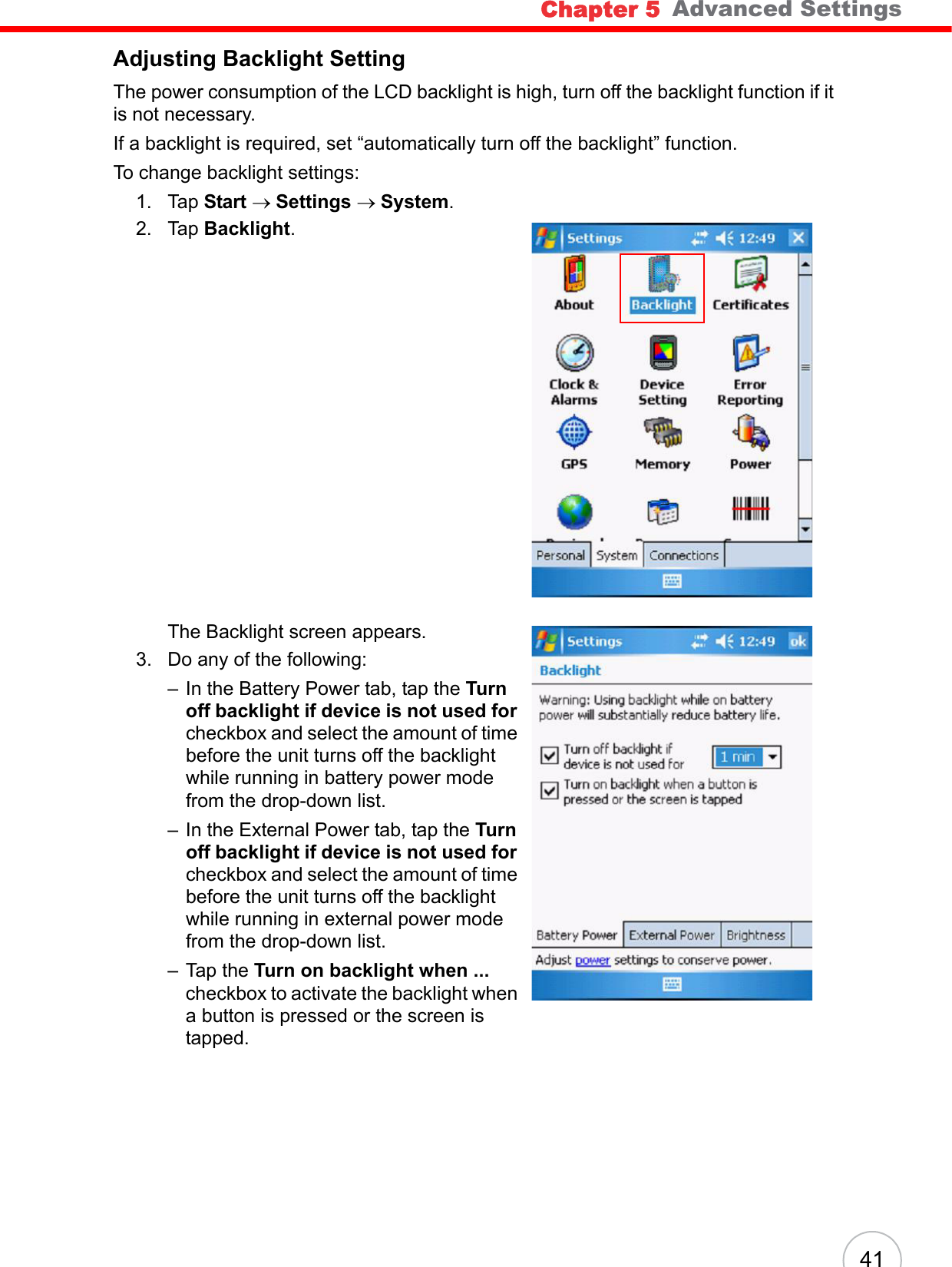

Chapter 5 Advanced Settings41Adjusting Backlight SettingThe power consumption of the LCD backlight is high, turn off the backlight function if it is not necessary.If a backlight is required, set “automatically turn off the backlight” function.To change backlight settings:1. Tap Start → Settings → System.2. Tap Backlight.The Backlight screen appears.3. Do any of the following:– In the Battery Power tab, tap the Turn off backlight if device is not used for checkbox and select the amount of time before the unit turns off the backlight while running in battery power mode from the drop-down list.– In the External Power tab, tap the Turn off backlight if device is not used for checkbox and select the amount of time before the unit turns off the backlight while running in external power mode from the drop-down list.– Tap the Turn on backlight when ... checkbox to activate the backlight when a button is pressed or the screen is tapped.

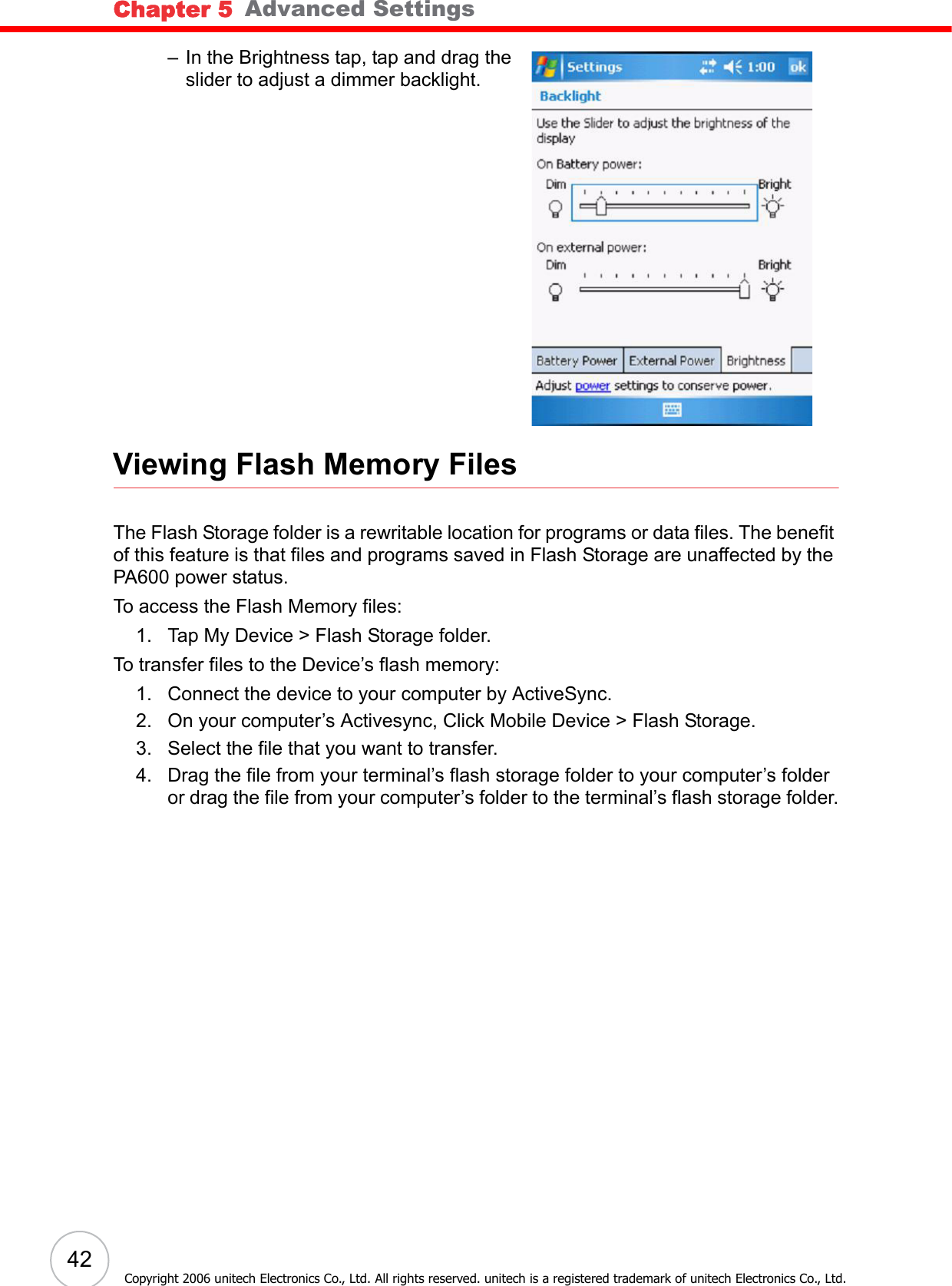

Chapter 5 Advanced Settings42Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.– In the Brightness tap, tap and drag the slider to adjust a dimmer backlight.Viewing Flash Memory FilesThe Flash Storage folder is a rewritable location for programs or data files. The benefit of this feature is that files and programs saved in Flash Storage are unaffected by the PA600 power status.To access the Flash Memory files:1. Tap My Device > Flash Storage folder.To transfer files to the Device’s flash memory:1. Connect the device to your computer by ActiveSync.2. On your computer’s Activesync, Click Mobile Device > Flash Storage.3. Select the file that you want to transfer.4. Drag the file from your terminal’s flash storage folder to your computer’s folder or drag the file from your computer’s folder to the terminal’s flash storage folder.

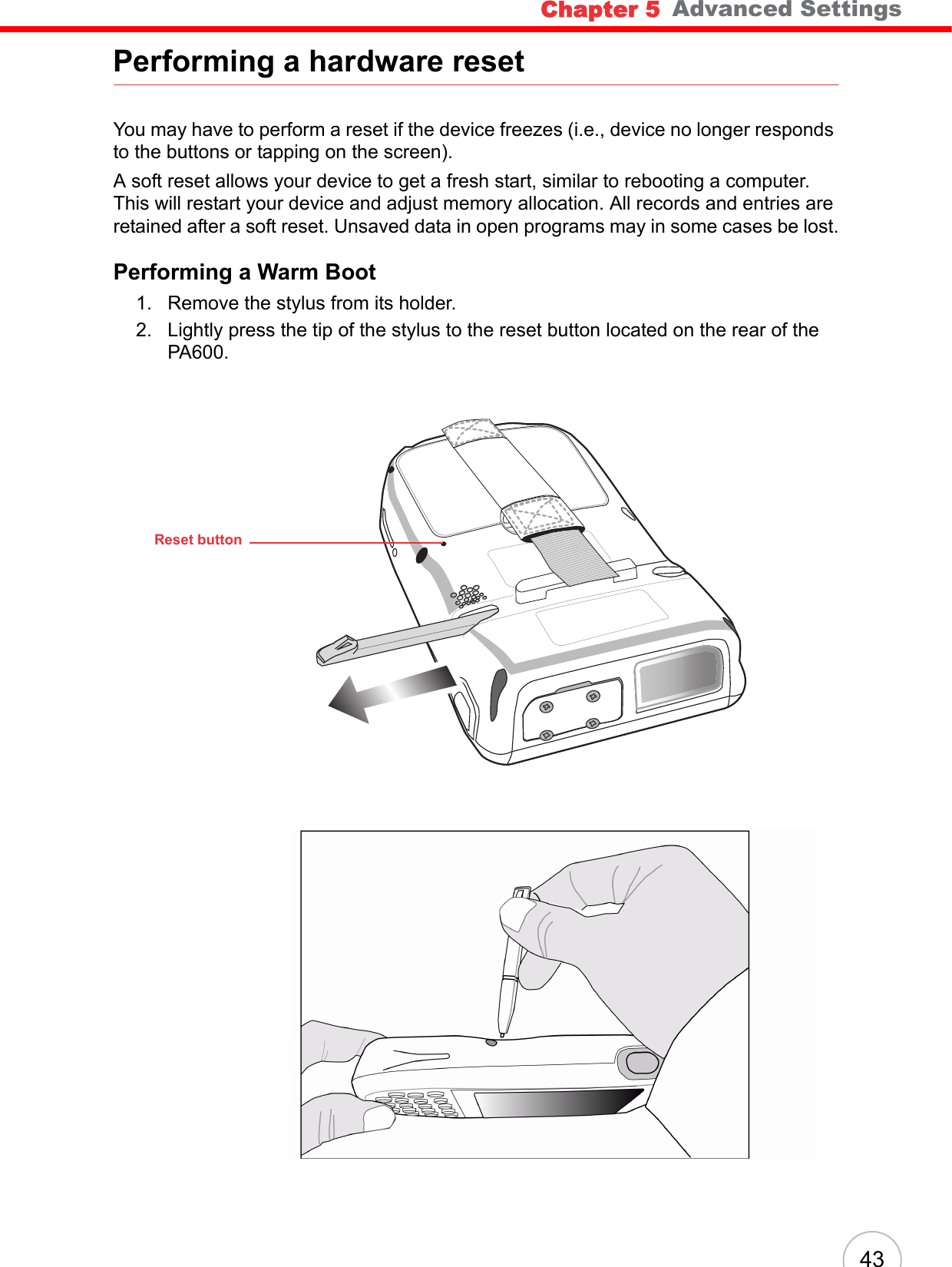

Chapter 5 Advanced Settings43Performing a hardware resetYou may have to perform a reset if the device freezes (i.e., device no longer responds to the buttons or tapping on the screen).A soft reset allows your device to get a fresh start, similar to rebooting a computer. This will restart your device and adjust memory allocation. All records and entries are retained after a soft reset. Unsaved data in open programs may in some cases be lost.Performing a Warm Boot1. Remove the stylus from its holder.2. Lightly press the tip of the stylus to the reset button located on the rear of the PA600.Reset button

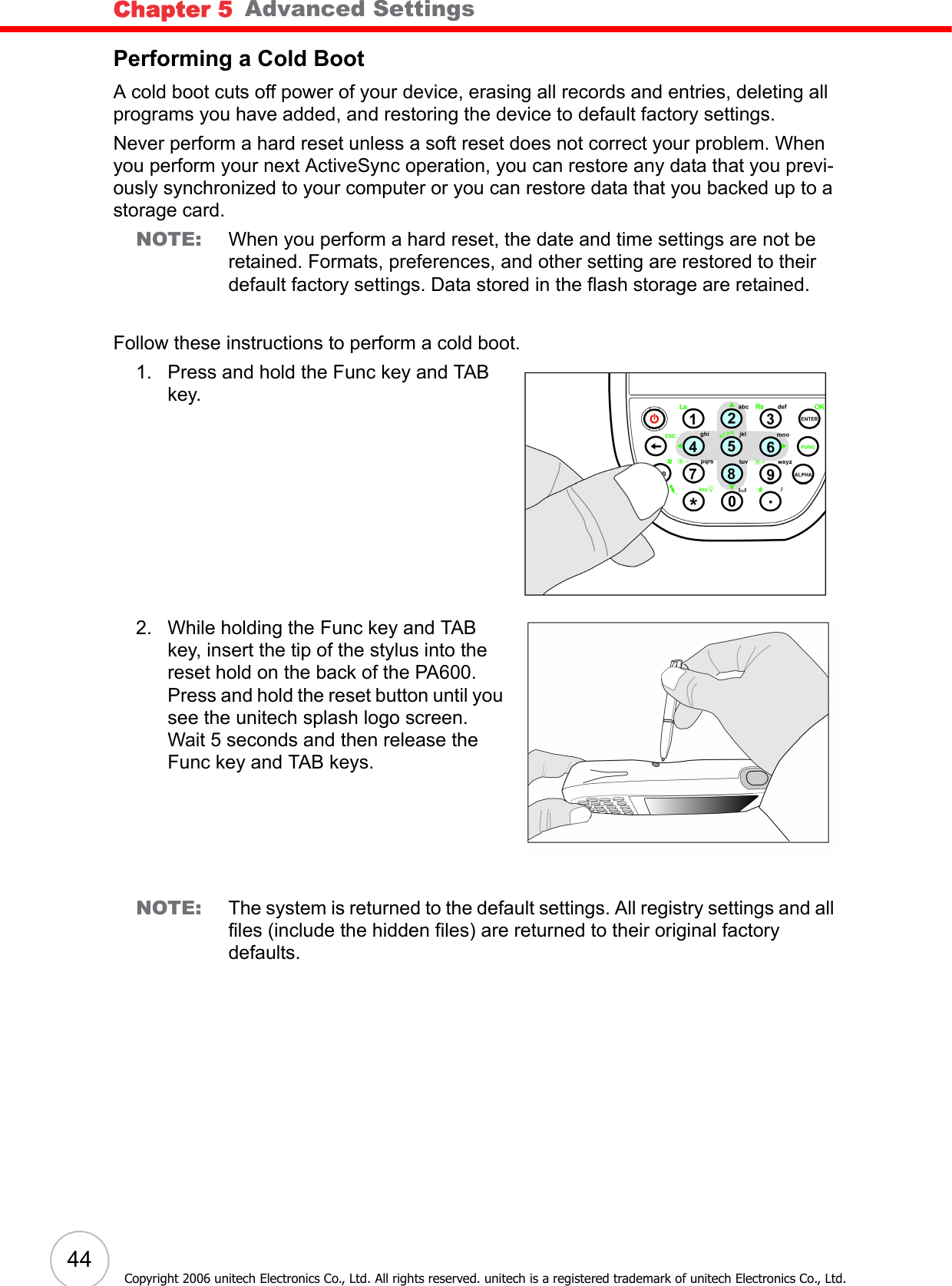

Chapter 5 Advanced Settings44Copyright 2006 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.Performing a Cold BootA cold boot cuts off power of your device, erasing all records and entries, deleting all programs you have added, and restoring the device to default factory settings.Never perform a hard reset unless a soft reset does not correct your problem. When you perform your next ActiveSync operation, you can restore any data that you previ-ously synchronized to your computer or you can restore data that you backed up to a storage card.NOTE: When you perform a hard reset, the date and time settings are not be retained. Formats, preferences, and other setting are restored to their default factory settings. Data stored in the flash storage are retained.Follow these instructions to perform a cold boot.1. Press and hold the Func key and TAB key.2. While holding the Func key and TAB key, insert the tip of the stylus into the reset hold on the back of the PA600. Press and hold the reset button until you see the unitech splash logo screen. Wait 5 seconds and then release the Func key and TAB keys.NOTE: The system is returned to the default settings. All registry settings and all files (include the hidden files) are returned to their original factory defaults.

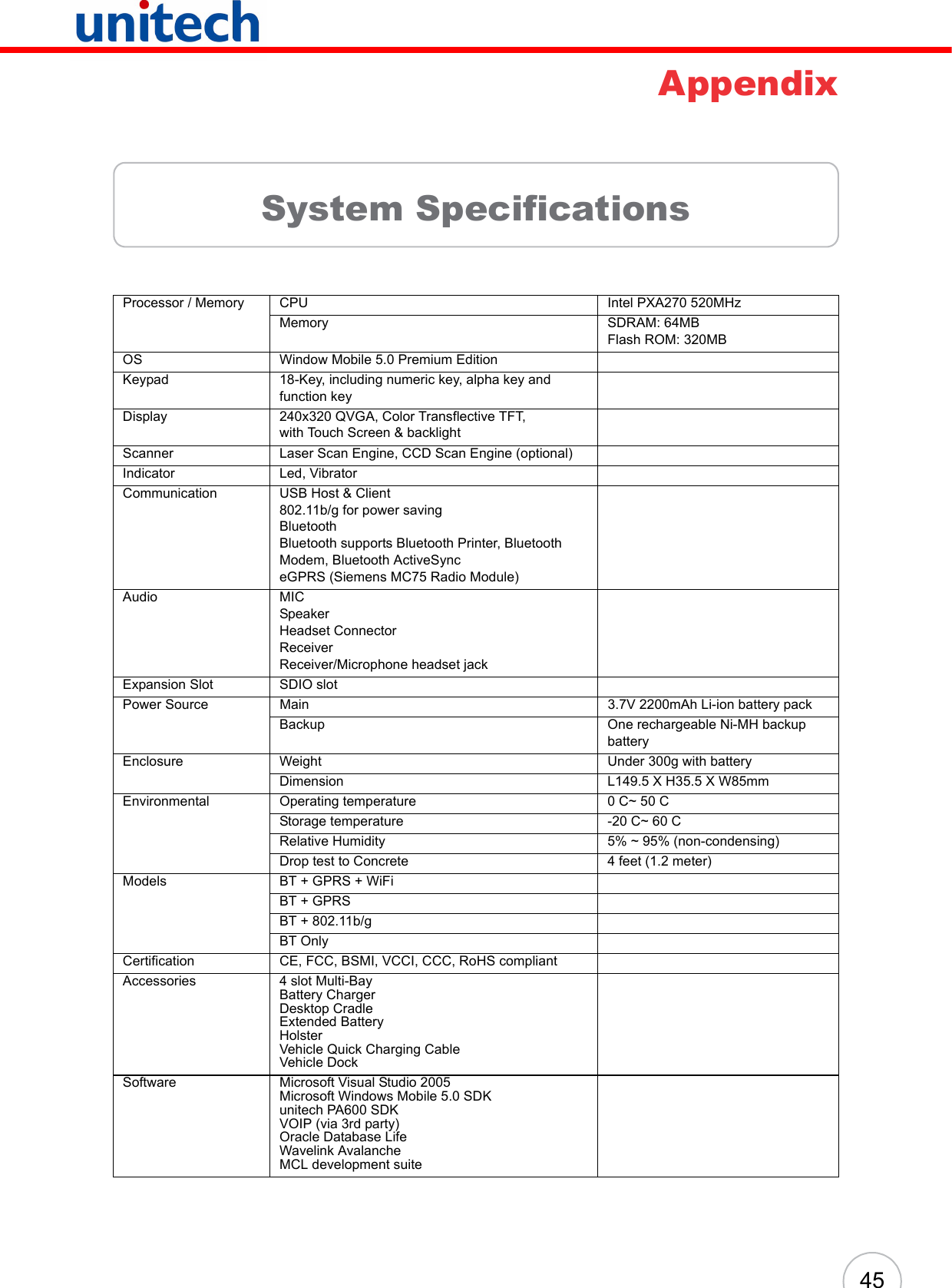

45AppendixSystem SpecificationsProcessor / Memory CPU Intel PXA270 520MHzMemory SDRAM: 64MB Flash ROM: 320MBOS Window Mobile 5.0 Premium EditionKeypad 18-Key, including numeric key, alpha key and function keyDisplay 240x320 QVGA, Color Transflective TFT,with Touch Screen & backlightScanner Laser Scan Engine, CCD Scan Engine (optional)Indicator Led, VibratorCommunication USB Host & Client802.11b/g for power savingBluetoothBluetooth supports Bluetooth Printer, Bluetooth Modem, Bluetooth ActiveSynceGPRS (Siemens MC75 Radio Module)Audio MICSpeakerHeadset ConnectorReceiverReceiver/Microphone headset jackExpansion Slot SDIO slotPower Source Main 3.7V 2200mAh Li-ion battery packBackup One rechargeable Ni-MH backup batteryEnclosure Weight Under 300g with batteryDimension L149.5 X H35.5 X W85mmEnvironmental Operating temperature 0 C~ 50 CStorage temperature -20 C~ 60 CRelative Humidity 5% ~ 95% (non-condensing)Drop test to Concrete 4 feet (1.2 meter)Models BT + GPRS + WiFiBT + GPRSBT + 802.11b/gBT OnlyCertification CE, FCC, BSMI, VCCI, CCC, RoHS compliantAccessories 4 slot Multi-BayBattery ChargerDesktop CradleExtended BatteryHolsterVehicle Quick Charging CableVehicle DockSoftware Microsoft Visual Studio 2005Microsoft Windows Mobile 5.0 SDKunitech PA600 SDKVOIP (via 3rd party)Oracle Database LifeWavelink AvalancheMCL development suite
