Unitech Electronics TB160BTNFL TABLET PC User Manual

Unitech Electronics Co., Ltd. TABLET PC Users Manual

Users Manual

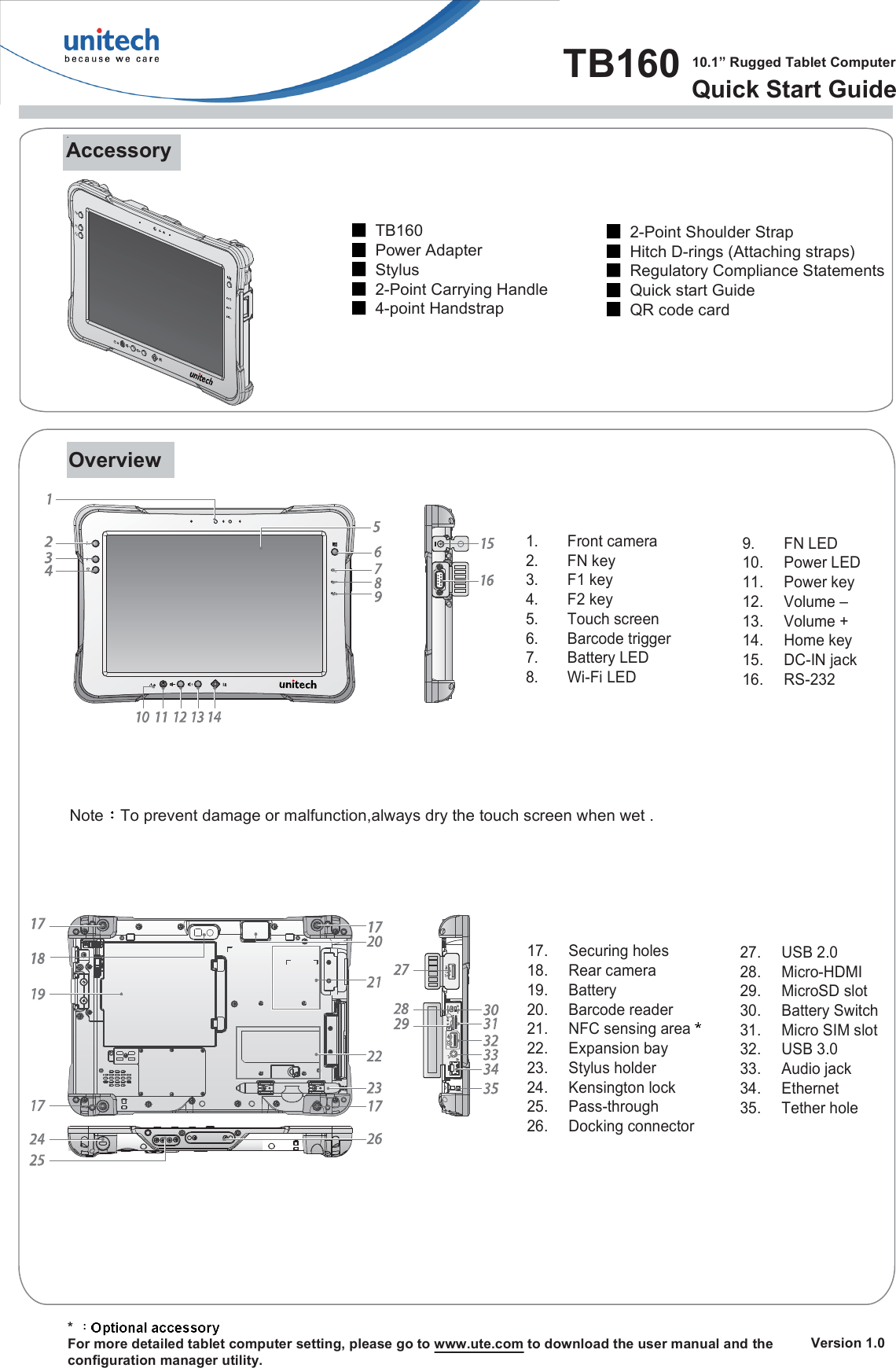

TB160 10.1” Rugged Tablet ComputerQuick Start Guide Version 1.0AccessoryTB160Power AdapterStylus2-Point Carrying Handle4-point Handstrap * For more detailed tablet computer setting, please go to www.ute.com to download the user manual and theconfiguration manager utility.Overview1. Front camera2. FN key3. F1 key4. F2 key5. Touch screen6. Barcode trigger7. Battery LED8. Wi-Fi LED9. FN LED10. Power LED11. Power key12. Volume –13. Volume +14. Home key15. DC-IN jack16. RS-23217. Securing holes18. Rear camera19. Battery 20. Barcode reader 21. NFC sensing area22. Expansion bay23. Stylus holder24. Kensington lock25. Pass-through26. Docking connector 27. USB 2.028. Micro-HDMI29. MicroSD slot30. Battery Switch 31. Micro SIM slot32. USB 3.033. Audio jack34. Ethernet35. Tether holeNote To prevent damage or malfunction,always dry the touch screen when wet .2-Point Shoulder StrapHitch D-rings (Attaching straps)Regulatory Compliance StatementsQuick start GuideQR code card

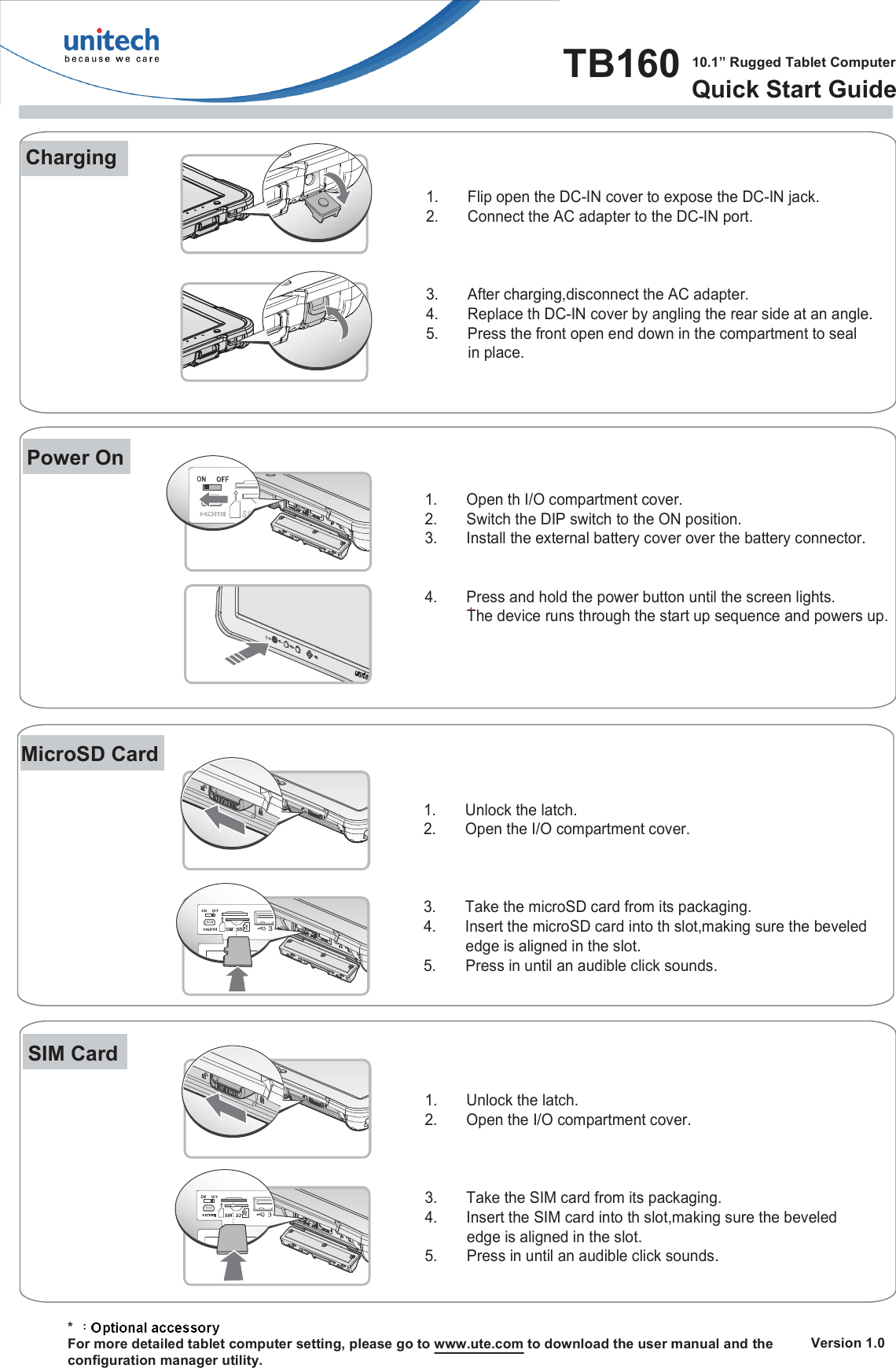

TB160 10.1” Rugged Tablet ComputerQuick Start Guide Version 1.0Charging * For more detailed tablet computer setting, please go to www.ute.com to download the user manual and theconfiguration manager utility.Power On1. Flip open the DC-IN cover to expose the DC-IN jack.2. Connect the AC adapter to the DC-IN port.3. After charging,disconnect the AC adapter.4. Replace th DC-IN cover by angling the rear side at an angle.5. Press the front open end down in the compartment to seal in place.MicroSD CardSIM Card1. Open th I/O compartment cover.2. Switch the DIP switch to the ON position.3. Install the external battery cover over the battery connector.4. Press and hold the power button until the screen lights. The device runs through the start up sequence and powers up.1. Unlock the latch.2. Open the I/O compartment cover.3. Take the microSD card from its packaging.4. Insert the microSD card into th slot,making sure the beveled edge is aligned in the slot.5. Press in until an audible click sounds.1. Unlock the latch.2. Open the I/O compartment cover.3. Take the SIM card from its packaging.4. Insert the SIM card into th slot,making sure the beveled edge is aligned in the slot.5. Press in until an audible click sounds.

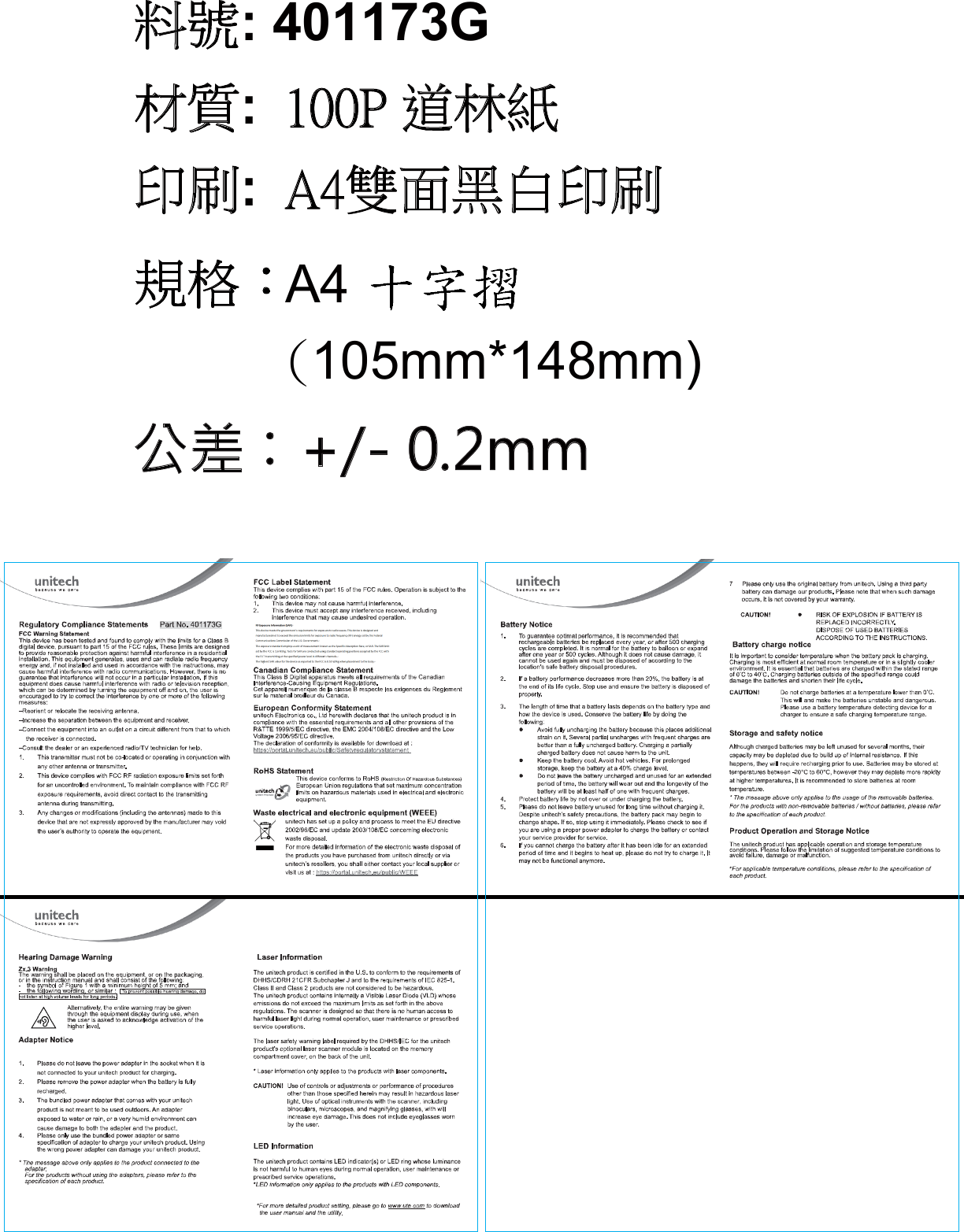

: 40A4 (105mm*148mm)1173G: : +/- 0.2mm :
