VDWALL LVP909F LED Video Processor User Manual 1 10

Shenzhen VDWALL Co., Ltd LED Video Processor 1 10

User Manual

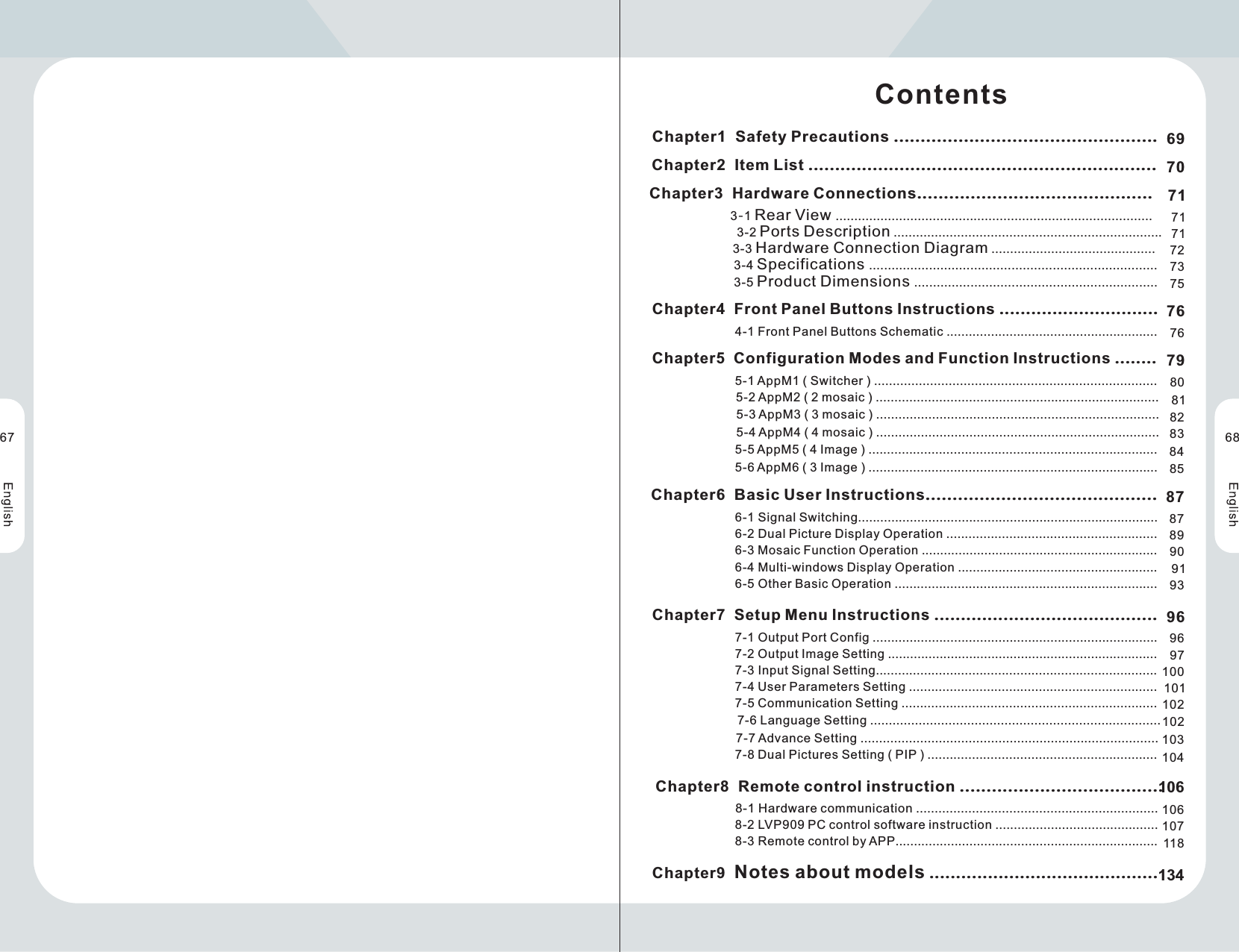

ContentsChapter1 Safety Precautions .................................................Chapter2 Item List .................................................................Chapter3 Hardware Connections............................................ 3-1 Rear View ................................................................ . .............. ... ... 3-2 Ports Description ........................................................................ 3-3 Hardware Connection Diagram ............................................ 3-4 Specifications ............................................................................. 3-5 Product Dimensions .................................................................Chapter4 Front Panel Buttons Instructions .............................. 4-1 Front Panel Buttons Schematic .........................................................697071717172737576765-1 AppM1 ( Switcher ) ............................................................................5-2 AppM2 ( 2 mosaic ) ............................................................................5-3 AppM3 ( 3 mosaic ) ......................................................... ....... ....... .....Chapter5 Configuration Modes and Function Instructions ........798081825-4 AppM4 ( 4 mosaic ) ............................................................................ 835-5 AppM5 ( 4 Image ) ......................................................... .....................845-6 AppM6 ( 3 Image ) ......................................................... .....................85Chapter6 Basic User Instructions...........................................87 6-1 Signal Switching................................................................................. 6-2 Dual Picture Display Operation ......................................................... 6-3 Mosaic Function Operation ................................................................ 6-4 Multi-windows Display Operation ...................................................... 6-5 Other Basic Operation .......................................................................Chapter7 Setup Menu Instructions ..........................................96Chapter8 Remote control instruction ......................................106Chapter9 ....................................Notes about models .......1348789909193 7-1 Output Port Config .............................................................................96 7-2 Output Image Setting .......................................................... ............ ...97 7-3 Input Signal Setting................................................... .........................100 8-1 Hardware communication ................................................................. 106 8-2 LVP909 PC control software instruction ............................................107 8-3 Remote control by APP................................................... ....................118 7-4 User Parameters Setting ...................................................................101 7-5 Communication Setting .....................................................................102 7-6 Language Setting ................................................... ......................... .. 10210468 7-7 Advance Setting ................................................... ......................... .... 103 7-8 Dual Pictures Setting ( PIP ) ..............................................................67

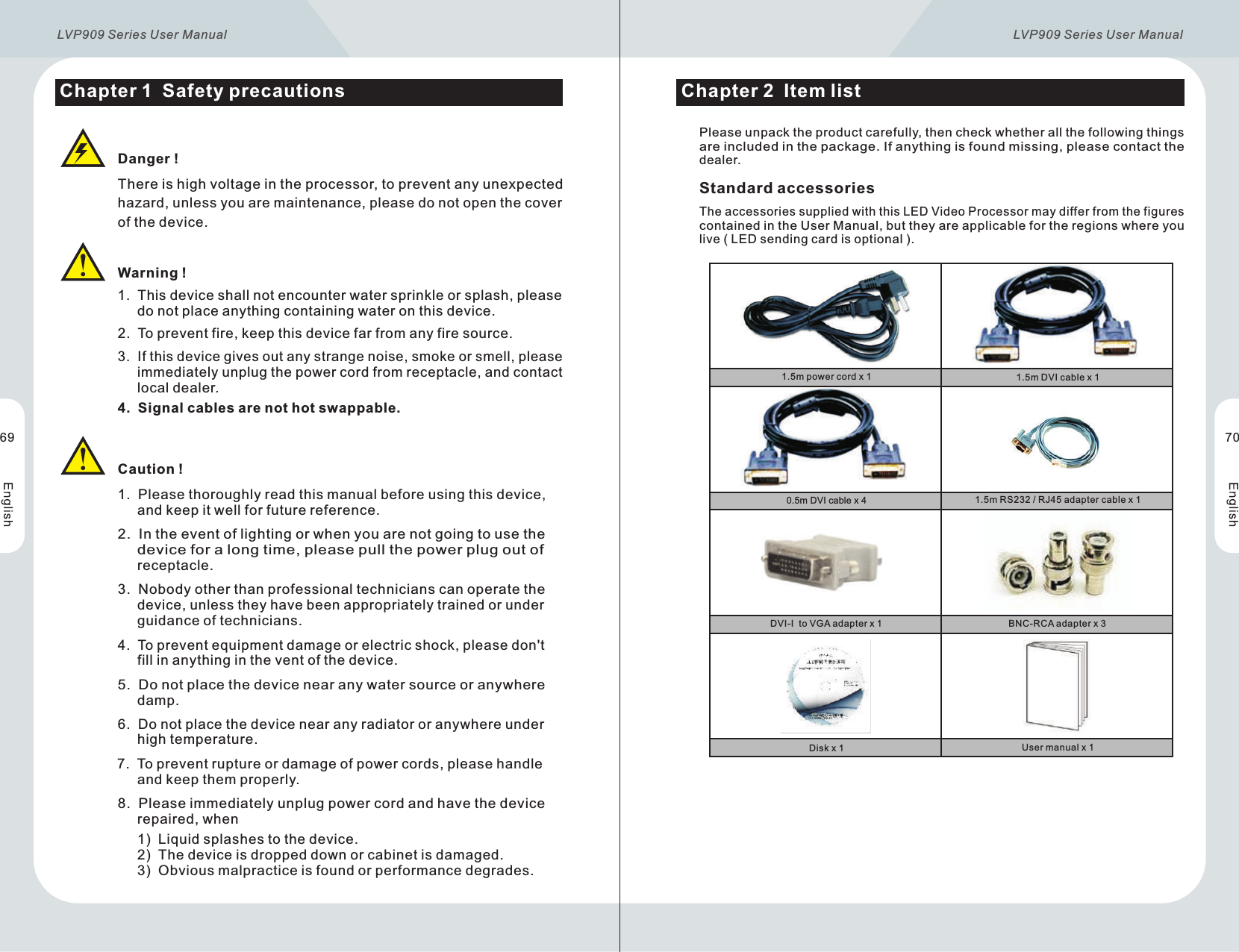

69 70Danger !Warning !Caution !There is high voltage in the processor, to prevent any unexpectedhazard, unless you are maintenance, please do not open the cover of the device.1. Please thoroughly read this manual before using this device, and keep it well for future reference.2. In the event of lighting or when you are not going to use the device for a long time, please pull the power plug out of receptacle.3. Nobody other than professional technicians can operate the device, unless they have been appropriately trained or under guidance of technicians.4. To prevent equipment damage or electric shock, please don't fill in anything in the vent of the device.5. Do not place the device near any water source or anywhere damp.6. Do not place the device near any radiator or anywhere under high temperature.7. To prevent rupture or damage of power cords, please handle and keep them properly.8. Please immediately unplug power cord and have the device repaired, when 1) Liquid splashes to the device. 2) The device is dropped down or cabinet is damaged. 3) Obvious malpractice is found or performance degrades.1. This device shall not encounter water sprinkle or splash, please do not place anything containing water on this device.2. To prevent fire, keep this device far from any fire source.3. If this device gives out any strange noise, smoke or smell, please immediately unplug the power cord from receptacle, and contact local dealer.4. Signal cables are not hot swappable.Chapter 1 Safety precautionsStandard accessoriesChapter 2 Item listPlease unpack the product carefully, then check whether all the following things are included in the package. If anything is found missing, please contact the dealer.0.5m DVI cable x 4DVI-I to VGA adapter x 1The accessories supplied with this LED Video Processor may differ from the figures contained in the User Manual, but they are applicable for the regions where you live ( LED sending card is optional ).1.5m power cord x 1 1.5m DVI cable x 11.5m RS232 / RJ45 adapter cable x 1BNC-RCA adapter x 3User manual x 1Disk x 1LVP909 Series User Manual LVP909 User Manual Series
Chapter3 Hardware Connections3-1 Rear View3-2 Ports Description1 Video Signal Inputs Inputs. （ ） LVP909 supports 6 video signals input as follows：V1、V2VGA2 channels Composite video (PAL/ NTSC)1 channels PC analog signal inputDVIHDMISDIChannel DVI ( PC digital signal )1 channel HDMI ( HD digital signal )1 channel SDI digital serial signal inputPorts Description2 Video Signal Outputs ( Outputs ). 4 channels DVI output ports to connect LED sending cards or monitor.And Out 4 is DVI-I port including VGA output port. Out1 ~ Out4Ports Description 3-1 Rear Panel Signal Ports Diagram71 72LANUSBPortsRS 232 INRS 232 LOOPTCP/IP local area network control interfaceUSB communication portDescriptionSerial communication interface, used to connect theRS232 port of PC to realize PC software control.Serial communication cascading output for connecting the RS232 IN of next unit, through single PC can control all units.3. Communication Ports23143-3 Hardware Connection DiagramPic 3-2 hardware connection diagramLVP909 Series User Manual LVP909 User Manual Series
3-4 SpecificationsInputsVideo systemComposite VideoAmplitude ImpedanceNumber / type2×Video1×VGA（RGBHV）1×DVI（VESA / CEA-861）1×HDMI（VESA / CEA-861）1×SDIPAL / NTSC1V ( p_p ) / 75ΩOutput connectors DVI OUT：24+5 DVI_I≤45WOthersControl portInput voltagePower consumptionEnvironment TemperatureRS 232 / USB / LAN100~240VAC 50 / 60Hz0-45 ℃Environment Humidity 15-85%Product size 483( L ) x 274( W ) x 66.6( H ) mm Packing size 520( L ) x 350( W ) x 130( H ) mmweight G.W.: 5.9Kg, N.W.: 4.2Kg≤2048 x 1152_60HzVGA formatVGA Amplitude ImpedancePC ( VESA standard )R、G、B = 0.7 V ( p_p ) / 75Ω≤1920×1200_60Hz≤1920 x 1200_60HzOutputsNumber / typeDVI formatHDMI formatPC ( VESA standard )PC ( VESA standard )HDMI 1.3 ( CEA-861 )HDMI 1.3 ( CEA-861 )Input connectorsSDI formatSMPTE 259M-C SMPTE 292MSMPTE 274M / 296MSMPTE 424M / 425M480i_60Hz576i_50Hz720p、1080i、1080pVideo：BNCVGA：15pin D_Sub( Female )DVI：24+1 DVI_DSDI：BNC / 75ΩHDMI：HDMI port A type4×DVI,1×VGA ( RGBHV ) ( Out4 )VGA / DVI format1024×768_60Hz1280×1024_60Hz1440x1440_60Hz1920×1080p_50Hz / 60Hz 1920×1200_60Hz73 74LVP909 Series User Manual LVP909 User Manual Series

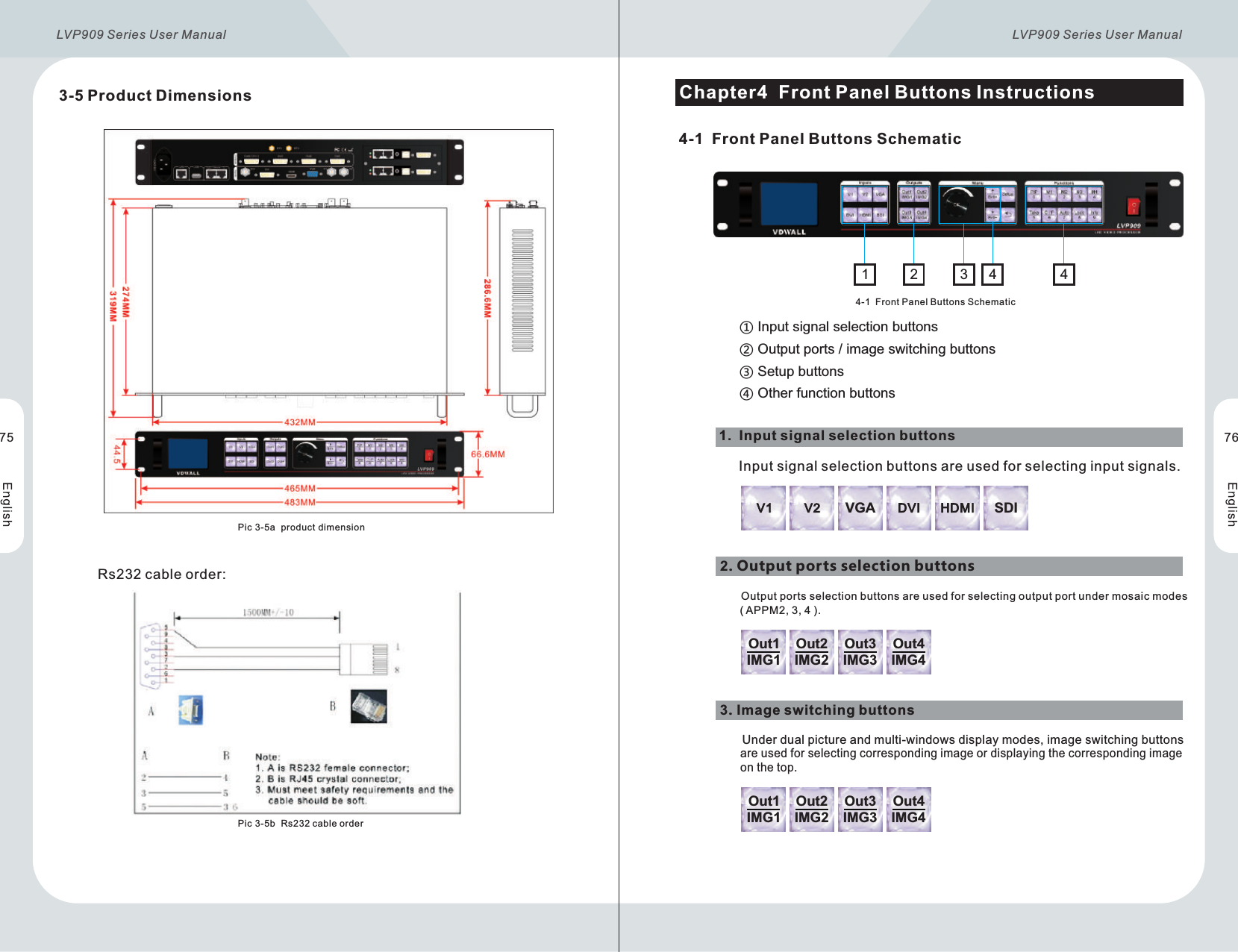

3-5 Product Dimensions4-1 Front Panel Buttons SchematicPic 3-5a product dimensionPic 3-5b Rs232 cable orderRs232 cable order:Chapter4 Front Panel Buttons Instructions4-1 Front Panel Buttons Schematic41 2 34① Input signal selection buttons② Output ports / image switching buttons③ Setup buttons④ Other function buttons Input signal selection buttons are used for selecting input signals.1 Input signal selection buttons. VGA SDI Output ports selection buttons are used for selecting output port under mosaic modes ( APPM2, 3, 4 ).2. Output ports selection buttonsOut1IMG1Out2IMG2Out3IMG3Out4IMG4 Under dual picture and multi-windows display modes, image switching buttons are used for selecting corresponding image or displaying the corresponding image on the top. 3. Image switching buttonsOut1IMG1Out2IMG2Out3IMG3Out4IMG475 76LVP909 Series User Manual LVP909 User Manual Series

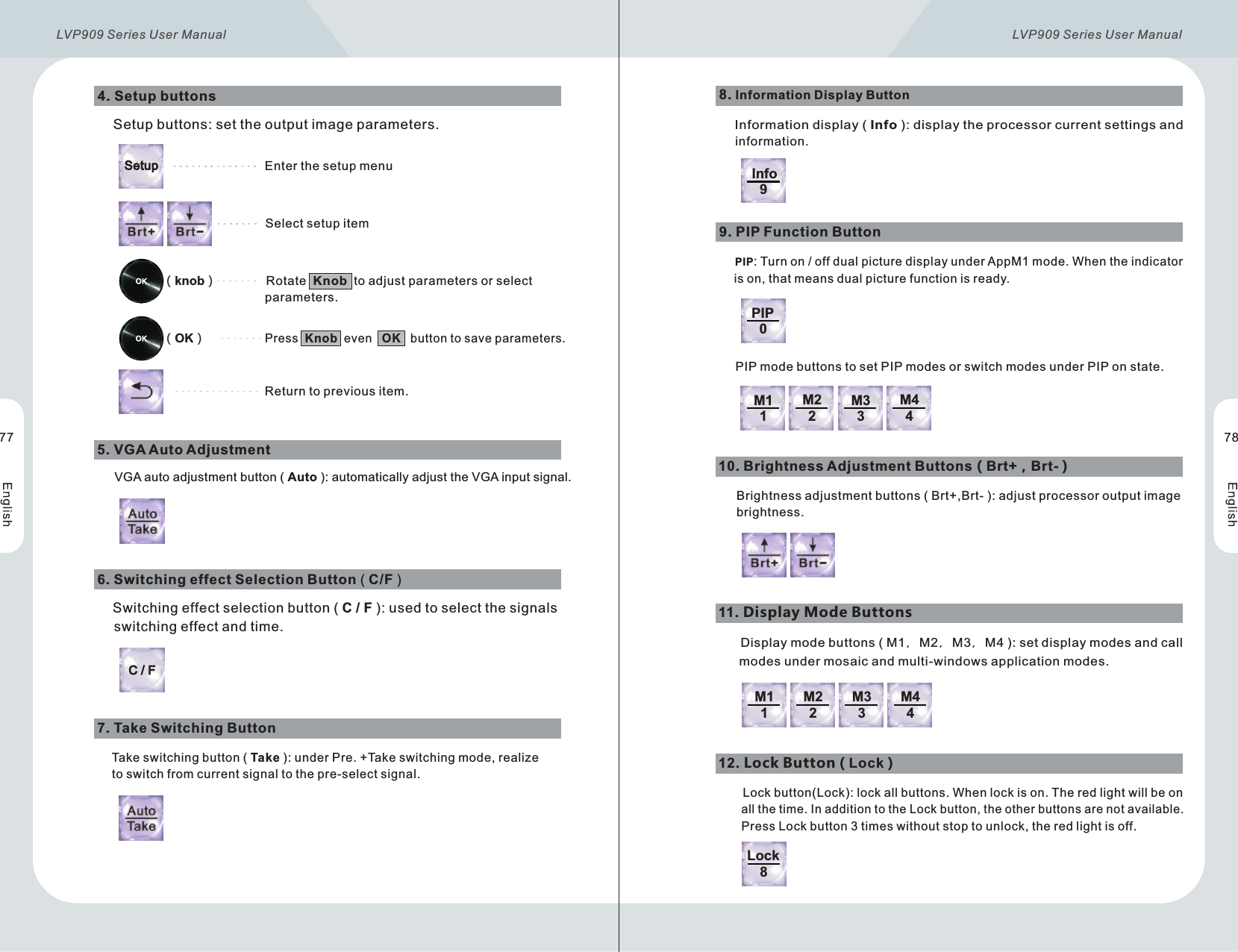

Information display ( Info ): display the processor current settings and information.8. Information Display Button Setup buttons: set the output image parameters.4. Setup buttons Enter the setup menu Select setup item Return to previous item. VGA auto adjustment button ( Auto ): automatically adjust the VGA input signal.5. VGA Auto Adjustment Switching effect selection button ( C / F ): used to select the signals switching effect and time. 6. Switching effect Selection Button C/F ( ) Take switching button ( Take ): under Pre. +Take switching mode, realize to switch from current signal to the pre-select signal.7 Take Switching Button .9. PIP Function Button PIP: Turn on / off dual picture display under AppM1 mode. When the indicator is on, that means dual picture function is ready.Info9 PIP mode buttons to set PIP modes or switch modes under PIP on state.10.Brightness Adjustment Buttons Brt+ Brt- （ ， ) Brightness adjustment buttons ( Brt+,Brt- ): adjust processor output image brightness.PIP0M11M22M33M441( )2. Lock Button Lock Lock button(Lock): lock all buttons. When lock is on. The red light will be on all the time. In addition to the Lock button, the other buttons are not available. Press Lock button 3 times without stop to unlock, the red light is off.11. Display Mode Buttons Display mode buttons ( M1，M2，M3，M4 ): set display modes and call modes under mosaic and multi-windows application modes. M11Lock8M22M33M44（knob）（OK） Rotate Knob to adjust parameters or select parameters.Press Knob even OK button to save parameters.77 78LVP909 Series User Manual LVP909 User Manual Series

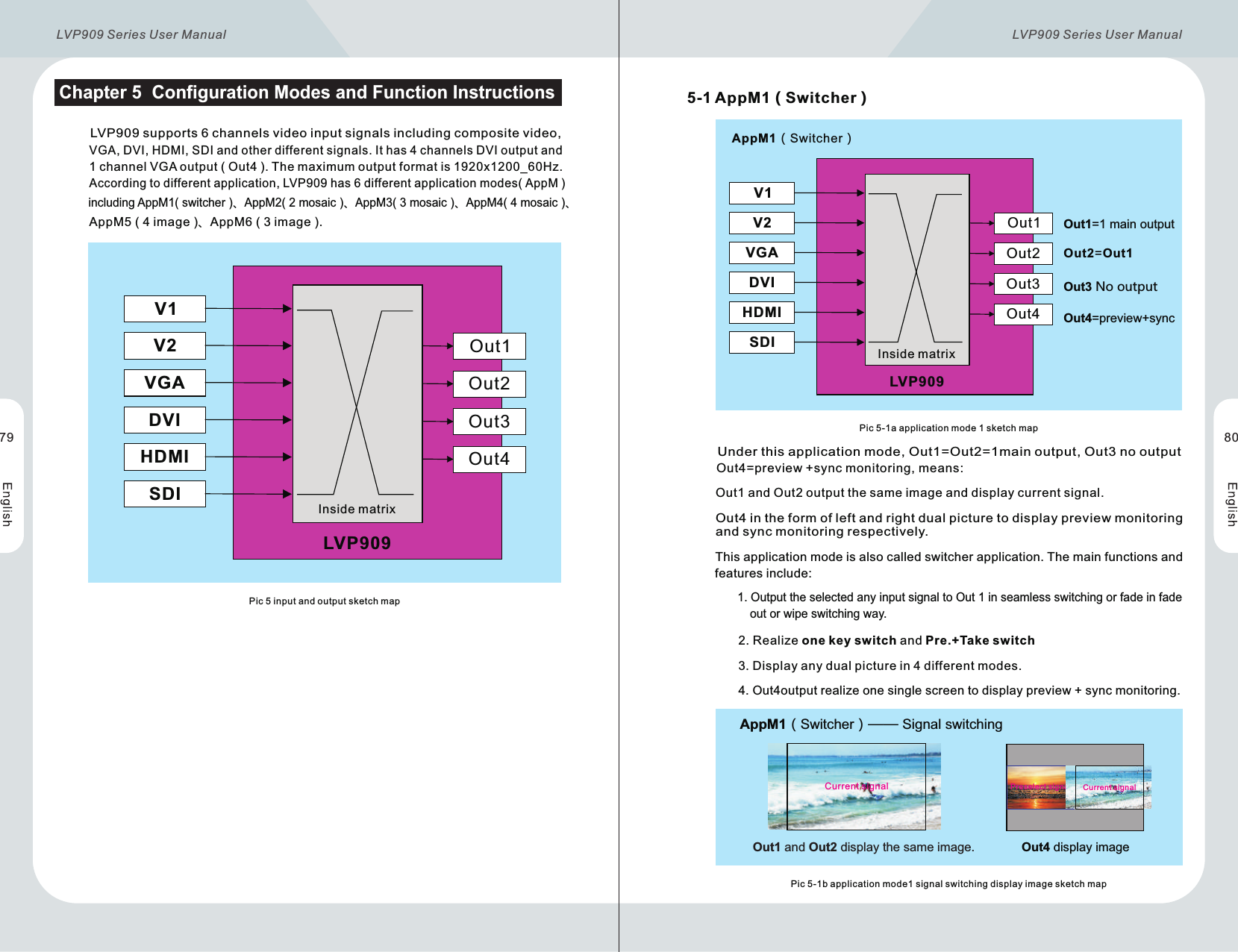

Chapter 5 Configuration Modes and Function Instructions LVP909 supports 6 channels video input signals including composite video,VGA, DVI, HDMI, SDI and other different signals. It has 4 channels DVI output and 1 channel VGA output ( Out4 ). The maximum output format is 1920x1200_60Hz. According to different application, LVP909 has 6 different application modes( AppM )including AppM1( switcher )、AppM2( 2 mosaic )、AppM3( 3 mosaic )、AppM4( 4 mosaic )、AppM5 ( 4 image )、AppM6 ( 3 image ).Inside matrixLVP909V1V2VGADVIHDMISDIOut1Out2Out3Out4Pic 5 input and output sketch map5-1 AppM1 ( Switcher )Pic 5-1a application mode 1 sketch mapInside matrixLVP909V1V2VGADVIHDMISDIOut1Out2Out3Out4Out1=1 main outputOut2=Out1Out3 No outputOut4=preview+syncAppM1（Switcher） This application mode is also called switcher application. The main functions and features include:Under this application mode, Out1=Out2=1main output, Out3 no outputOut4=preview +sync monitoring, means:Out1 and Out2 output the same image and display current signal.Out4 in the form of left and right dual picture to display preview monitoring and sync monitoring respectively. 1. Output the selected any input signal to Out 1 in seamless switching or fade in fade out or wipe switching way. 2. Realize one key switch and Pre.+Take switch3. Display any dual picture in 4 different modes.4. Out4output realize one single screen to display preview + sync monitoring.AppM1（Switcher）—— Signal switchingPic 5-1b application mode1 signal switching display image sketch mapOut4 display imagePreselect signal Current signalCurrent signalOut1 and Out2 display the same image.79 80LVP909 Series User Manual LVP909 User Manual Series
5-2 AppM2 ( 2 mosaic ) 5-3 AppM3 ( 3 mosaic )Pic 5-2a application mode 2 sketch mapInside matrixLVP909V1V2VGADVIHDMISDIOut1Out2Out3Out4Out1、Out2 Mosaic to display any input signalOut3 No outputOut4=Preview+syncAppM2 ( 2 mosaic )Pic 5-3a application mode 3 sketch mapInside matrixLVP909V1V2VGADVIHDMISDIOut1Out2Out3Out4Out1、Out2、Out3 mosaic to display any input signalOut4=preview or syncAppM3（3 mosaic）Under this application mode, Out1=Out2=current input signal, Out4=preview+sync monitoring, means: Out1 and Out2 display current signal and can be used for mosaic. Out4 in the form of left and right dual picture to display. AppM1 ( Switcher )-Dual picture display AppM2（2 mosaic）Pic 5-1c application mode 1 dual picture display output image sketch map Pic 5-2b application mode 2 display image sketch mapOut1 and Out2 used as mosaicOut4 display image Out4 display image This application mode is mainly used as mosaic of 2 output ports to realize seamless switching between input signals. Out4 display preview image and sync monitoring image. Under this application mode，Out1=Out2=Out3= current signal, Out4=current signal or monitoring signal，means： Out1，Out2 and Out3 display current signal and can be used for mosaic. Out4 display current signal or preselect signal.This application mode is mainly used as mosaic for 3 output ports to realize seamless switching. Out4 display current signal under one key switch state and display preselect signal under Pre.+take switch state.Out1 Out2Image 1Image 2 Image 1 Image 2 Preselect signal Current signalCurrent signalOut1 and Out2 display the same image81 82LVP909 Series User Manual LVP909 User Manual Series

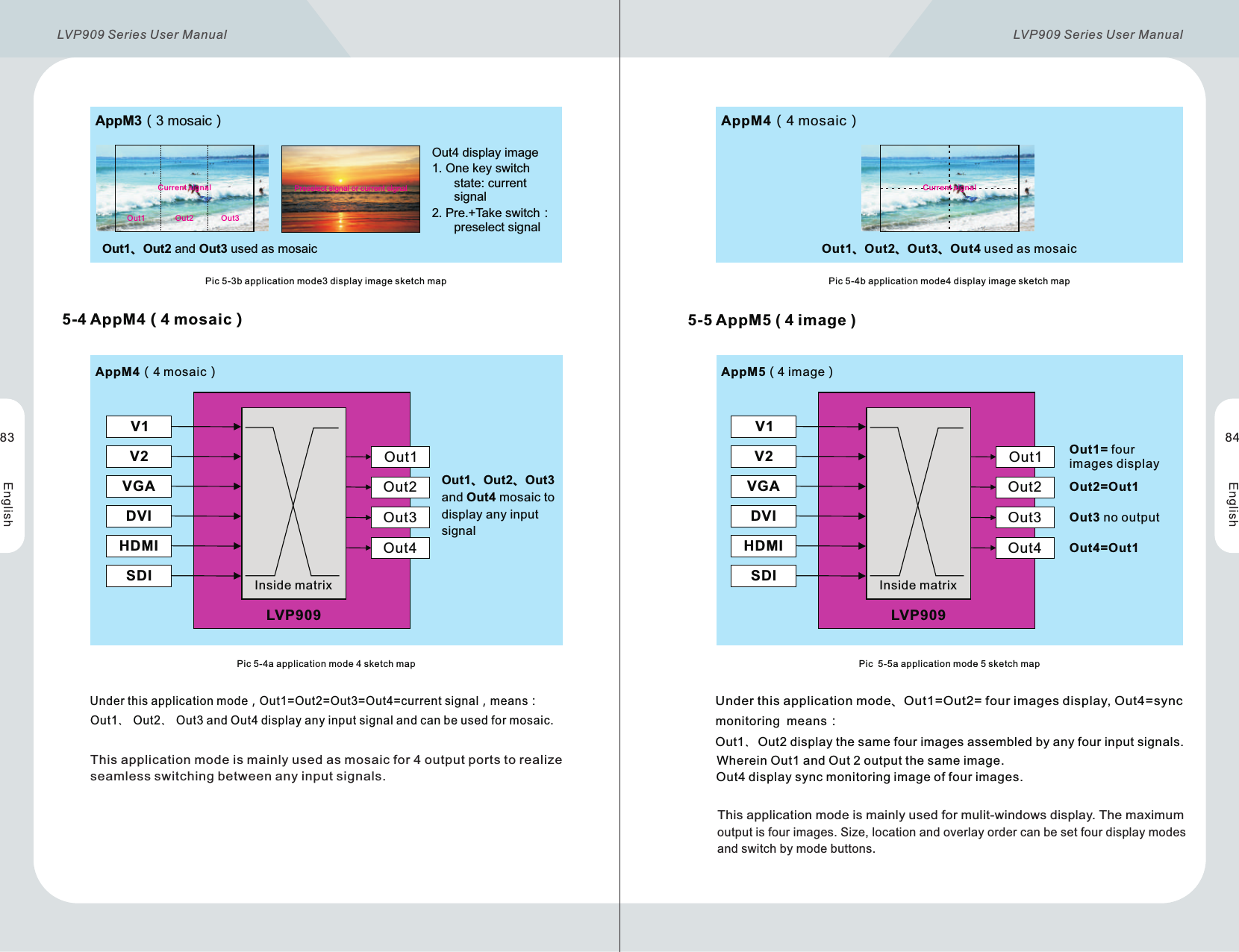

5-4 AppM4（4 mosaic）5-5 AppM5 ( 4 image )Pic 5-4a application mode 4 sketch mapInside matrixLVP909V1V2VGADVIHDMISDIOut1Out2Out3Out4Out1、Out2、Out3 and Out4 mosaic to display any input signalAppM4（4 mosaic）Pic 5-5a application mode 5 sketch mapInside matrixLVP909V1V2VGADVIHDMISDIOut1Out2Out3Out4 Out4=Out1Out3 no outputOut2=Out1Out1= four images displayAppM5（4 image） Under this application mode，Out1=Out2=Out3=Out4=current signal，means：Out1、 Out2、 Out3 and Out4 display any input signal and can be used for mosaic.AppM3（3 mosaic）AppM4（4 mosaic）Pic 5-3b application mode3 display image sketch map Pic 5-4b application mode4 display image sketch mapOut1、Out2 and Out3 used as mosaic Out1、Out2、Out3、Out4 used as mosaic Out4 display image 1. One key switch state: current signal 2. Pre.+Take switch： preselect signalThis application mode is mainly used as mosaic for 4 output ports to realize seamless switching between any input signals. Under this application mode、Out1=Out2= four images display, Out4=sync monitoring means： Out1、Out2 display the same four images assembled by any four input signals.Wherein Out1 and Out 2 output the same image. Out4 display sync monitoring image of four images. This application mode is mainly used for mulit-windows display. The maximum output is four images. Size, location and overlay order can be set four display modes and switch by mode buttons. Preselect signal or current signal Current signalOut1 Out2 Out3Current signal83 84LVP909 Series User Manual LVP909 User Manual Series

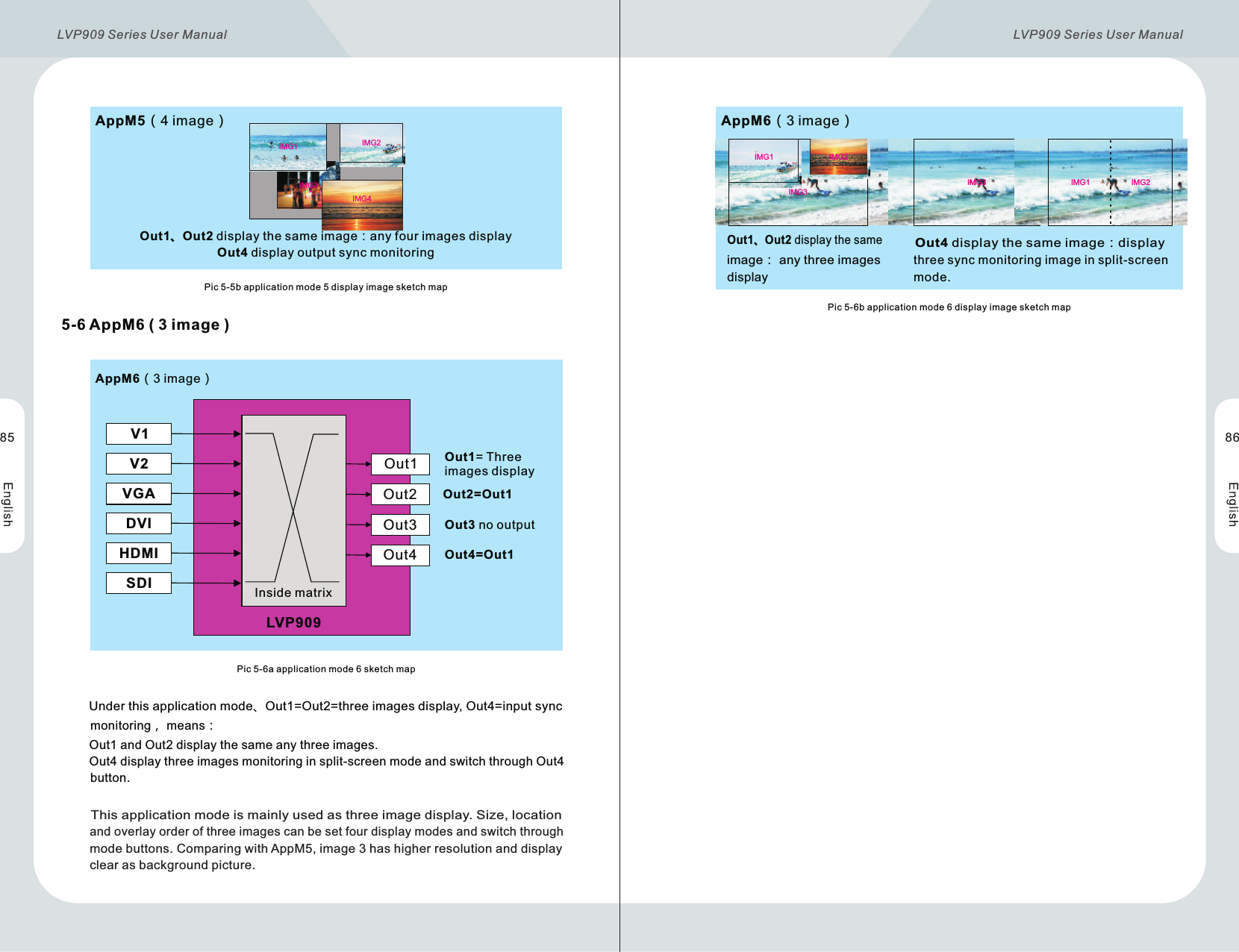

AppM5（4 image）AppM6（3 image）Pic 5-5b application mode 5 display image sketch mapPic 5-6b application mode 6 display image sketch mapOut1、Out2 display the same image：any four images displayOut4 display output sync monitoring Out4 display the same image：display three sync monitoring image in split-screen mode. Out1、Out2 display the same image： any three images display5-6 AppM6 ( 3 image )Pic 5-6a application mode 6 sketch map Inside matrixLVP909V1V2VGADVIHDMISDIOut1Out2Out3Out4AppM6（3 image）Out4=Out1Out3 no outputOut2=Out1Out1= Three images display Under this application mode、Out1=Out2=three images display, Out4=input sync monitoring， means： Out1 and Out2 display the same any three images. Out4 display three images monitoring in split-screen mode and switch through Out4 button. This application mode is mainly used as three image display. Size, locationand overlay order of three images can be set four display modes and switch through mode buttons. Comparing with AppM5, image 3 has higher resolution and display clear as background picture. IMG1 IMG2IMG3IMG4IMG1 IMG2IMG1IMG1IMG2IMG2IMG3IMG3IMG185 86LVP909 Series User Manual LVP909 User Manual Series

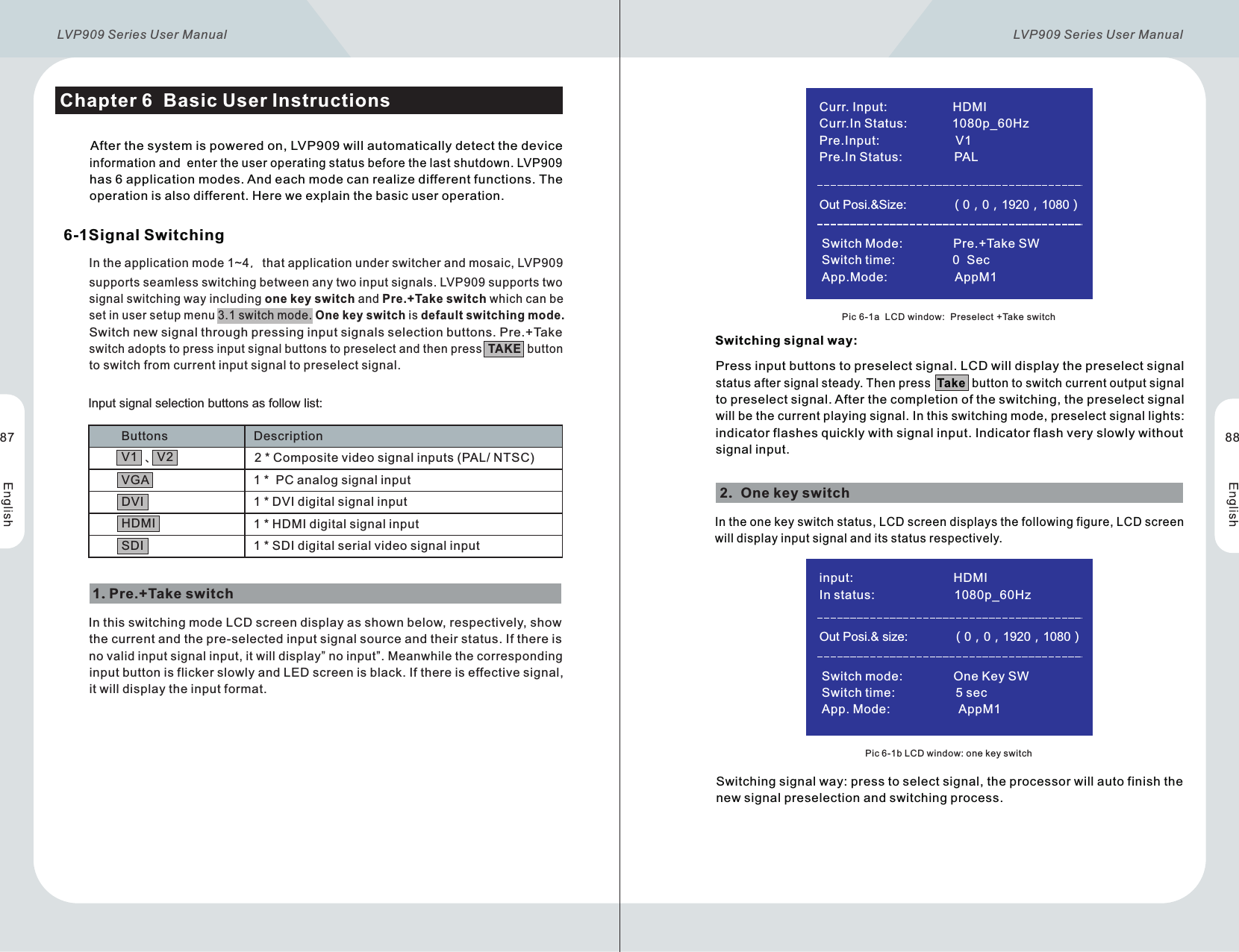

Chapter 6 Basic User Instructions After the system is powered on, LVP909 will automatically detect the device information and enter the user operating status before the last shutdown. LVP909has 6 application modes. And each mode can realize different functions. The operation is also different. Here we explain the basic user operation.6-1Signal Switching In this switching mode LCD screen display as shown below, respectively, show the current and the pre-selected input signal source and their status. If there is no valid input signal input, it will display” no input”. Meanwhile the corresponding input button is flicker slowly and LED screen is black. If there is effective signal, it will display the input format. 1. Pre.+Take switchInput signal selection buttons as follow list:V1 、V2VGA2 * Composite video signal inputs (PAL/ NTSC)1 * PC analog signal inputDVIHDMISDI1 * DVI digital signal input1 * HDMI digital signal input1 * SDI digital serial video signal inputButtons Description In the application mode 1~4，that application under switcher and mosaic, LVP909 supports seamless switching between any two input signals. LVP909 supports two signal switching way including one key switch and Pre.+Take switch which can be set in user setup menu 3.1 switch mode. One key switch is default switching mode. Switch new signal through pressing input signals selection buttons. Pre.+Take switch adopts to press input signal buttons to preselect and then press TAKE button to switch from current input signal to preselect signal. Switching signal way: Press input buttons to preselect signal. LCD will display the preselect signal status after signal steady. Then press Take button to switch current output signal to preselect signal. After the completion of the switching, the preselect signal will be the current playing signal. In this switching mode, preselect signal lights: indicator flashes quickly with signal input. Indicator flash very slowly without signal input. Curr. Input: HDMI Curr.In Status: 1080p_60HzPre.Input: V1Pre.In Status: PAL Switch Mode Pre.+Take SWSwitch time: 0 SecApp.Mode: AppM1 : Out Posi.&Size: （0，0，1920，1080）Pic 6-1a LCD window: Preselect +Take switchIn the one key switch status, LCD screen displays the following figure, LCD screenwill display input signal and its status respectively. 2. One key switchSwitching signal way: press to select signal, the processor will auto finish the new signal preselection and switching process. input: HDMI In status: 1080p_60HzSwitch mode: One Key SWSwitch time: 5 secApp. Mode: AppM1 Out Posi.& size: （0，0，1920，1080）Pic 6-1b LCD window: one key switch87 88LVP909 Series User Manual LVP909 User Manual Series
3. Switch effect selection ( C / F )Switch effect: Cut Switch time: 0sec 1sec 2secCut FadeSlip: R->L Slip：L->RSlip: LU->RDD. PIP AppM1 M3 D. 3 output image >>D.1 Image_1 source HDMI V1 V2 VGA DVI SDID. 2 Image_2 source V1 V2 VGA DVI SDI HDMI Switch dual picture display mode: when dual picture mode is on, press mode buttons directly （ M1 、 M2 、 M3 、M4 ） to fast switch to corresponding display modes.This function is only available for non mosaic mode. Specific effects are as follow: 1. In AppM1 signal switching state, press C / F button, the LCD will display the above menu and rotate knob to select Cut, Fade or Slip switching effect and switching time. 2. In AppM1 PIP display mode and App5 and App6 multi-windows display modes, press C / F to switch Image overlay fade time including 0 sec ( CUT ) , 1 sec and 2 sec. Pic 6-1c LCD window: switch effect selection Pic 6-2b LCD window: dual picture setting In AppM1 state, LVP909 can realize two pictures display. The two input signals can be any selection. And the position, size and overlay order can be preset four modes.6-2 Dual Picture Display OperationImage_1 source: HDMI Image_1 status 1080p_60Hz : Image_2 source: V1 Image_2 status: PALImage_1 Posi.&Size: ( 0、0、1920、1080）Image_2 Posi.&Size: （64、32、640、360）Display Mode: M2App. Mode: AppM1 Image2->1: 2 S Enter dual picture display mode: press PIP button and the indicator is on, lvp909 will enter dual picture display mode. Then press Setup button to enter setup menu to operate PIP( like the following figure ). The specific operation methods are as follow: Pic 6-2a LCD window: dual picture operation Change image source: when dual picture mode is on, enter setup menu D.1 Image_1 source or D.2 Image_2 source and rotate knob to select corresponding input signal and press OK to save. Change image overlay order switching time: Press C / F to select Image overlay switching time including 0 sec ( Cut ), 1 sec and 2 sec. Change image overlay order: when dual picture mode is on, press IMG1 or IMG2 button. And then the selected signal will display on the top. The AppM2, 3, 4 of LVP909 are mosaic mode. The corresponding output ports can splice together to drive huge LED screen. In the mosaic application modes, in addition to signal switching operation, users can call mosaic modes, check mosaic parameters and do other operation. 6-3 Mosaic function operationInput: HDMI In Status: 1080p_60HzOUT1 out posi.& size: (0, 0, 1920,1080 )OUT1 in posi.&size: (0, 0, 1920,1080 )Switch mode: One Key SW.App. Mode: AppM4 Pic 6-3a LCD window: mosaic application mode Set output image: when dual picture mode is on, enter setup menu D.3 output image, press ↑ or ↓ to select corresponding setting and rotate knob to change parameters. Press OK to save.89 90LVP909 Series User Manual LVP909 User Manual Series

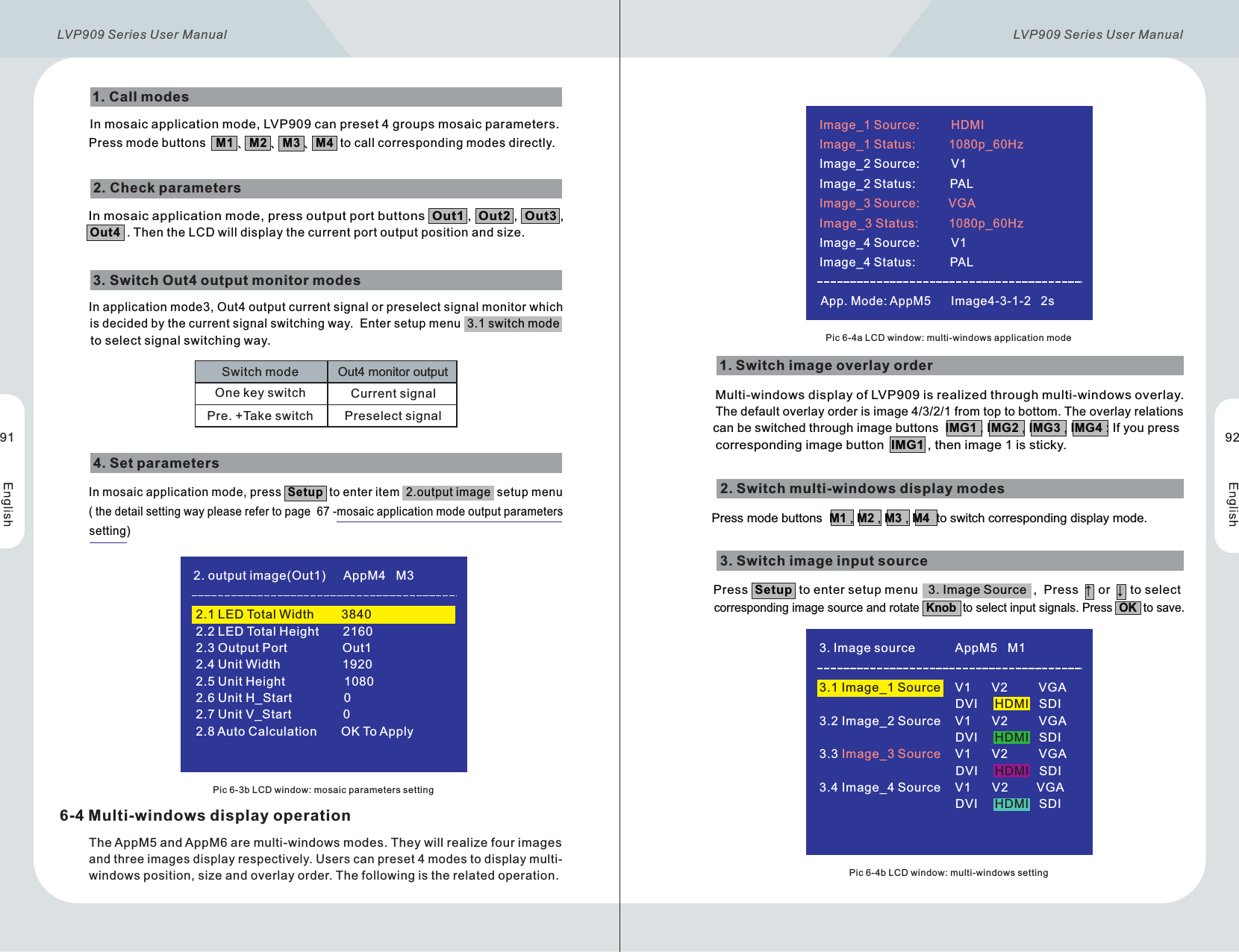

1. Call modesImage_3 Status: Image_1 Source: HDMI Image_1 Status: 1080p_60HzImage_2 Source: V1 Image_2 Status: PALImage_3 Source: VGA 1080p_60HzImage_4 Source: V1 Image_4 Status: PAL App. Mode: AppM5 Image4-3-1-2 2s2. Check parameters In mosaic application mode, press output port buttons Out1 , Out2 , Out3 ,Out4 . Then the LCD will display the current port output position and size.3. Switch Out4 output monitor modes In application mode3, Out4 output current signal or preselect signal monitor which is decided by the current signal switching way. Enter setup menu 3.1 switch mode to select signal switching way. In mosaic application mode, LVP909 can preset 4 groups mosaic parameters. Press mode buttons M1 、M2 、M3 、M4 to call corresponding modes directly.1. Switch image overlay order Multi-windows display of LVP909 is realized through multi-windows overlay.The default overlay order is image 4/3/2/1 from top to bottom. The overlay relations can be switched through image buttons IMG1 , IMG2 , IMG3 , IMG4 : If you press corresponding image button IMG1 , then image 1 is sticky. One key switchPre. +Take switchCurrent signalPreselect signalSwitch mode Out4 monitor outputsetting)4. Set parameters In mosaic application mode, press Setup to enter item 2.output image setup menu( the detail setting way please refer to page 67 -mosaic application mode output parameters 2. output image(Out1) AppM4 M3 The AppM5 and AppM6 are multi-windows modes. They will realize four images and three images display respectively. Users can preset 4 modes to display multi-windows position, size and overlay order. The following is the related operation. 6-4 Multi-windows display operation2.1 LED Total Width 3840 2.2 LED Total Height 21602.3 Output Port Out12.4 Unit Width 19202.5 Unit Height 10802.6 Unit H_Start 02.7 Unit V_Start 02.8 Auto Calculation OK To Apply Pic 6-3b LCD window: mosaic parameters setting Pic 6-4a LCD window: multi-windows application mode3. Image source AppM5 M1 2. Switch multi-windows display modes3. Switch image input source Press mode buttons M1 , M2 , M3 , M4 to switch corresponding display mode. Press Setup to enter setup menu 3. Image Source , Press ↑ or ↓ to select corresponding image source and rotate Knob to select input signals. Press OK to save. Pic 6-4b LCD window: multi-windows setting 91 923.1 Image_1 Source V1 V2 VGA DVI SDI HDMI3.2 Image_2 Source V1 V2 VGA DVI SDI HDMI3.3 Image_3 Source V1 V2 VGA DVI SDI HDMI3.4 Image_4 Source V1 V2 VGA DVI SDI HDMILVP909 Series User Manual LVP909 User Manual Series

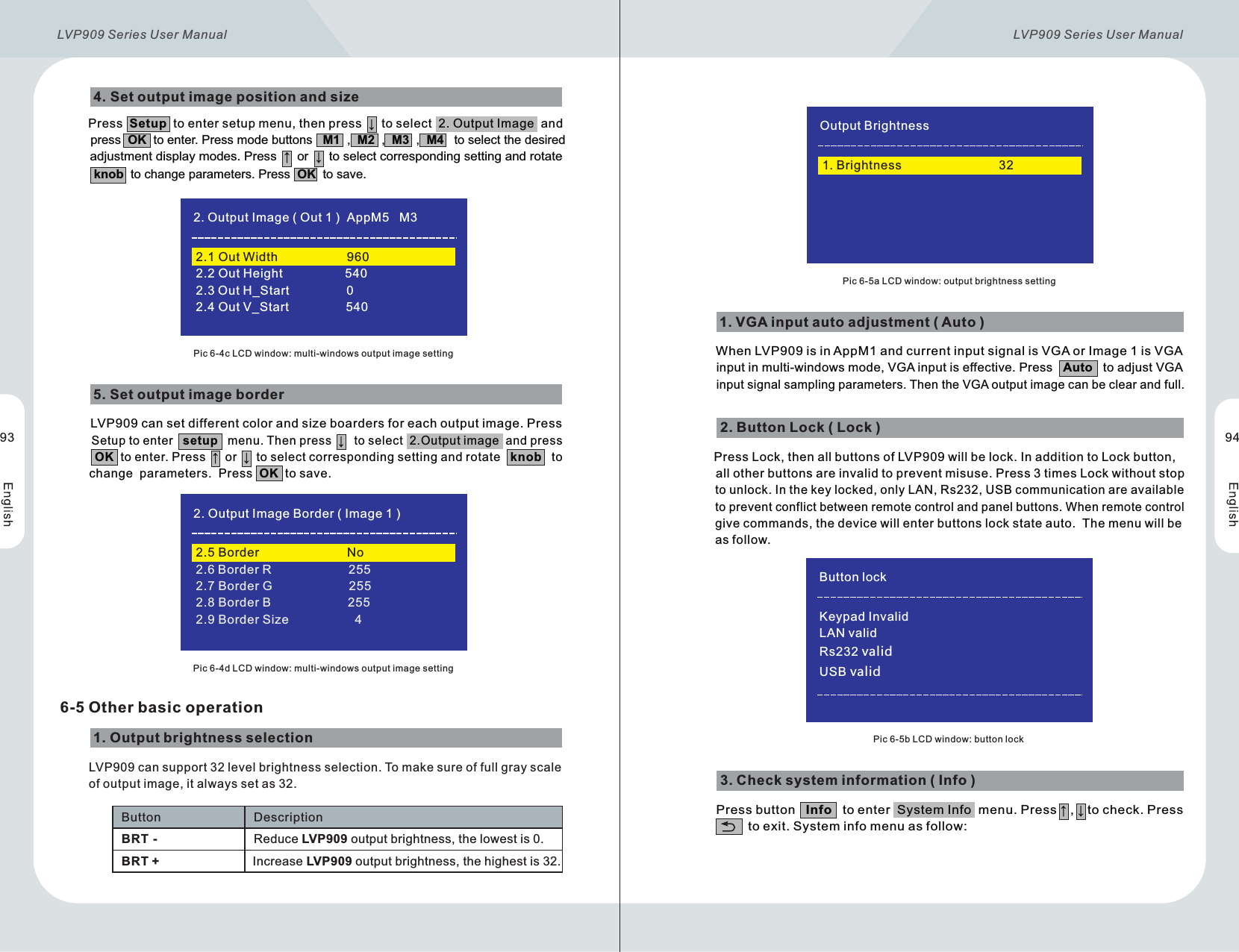

Output Brightness 1. Brightness 32 4. Set output image position and size Press Setup to enter setup menu, then press ↓ to select 2. Output Image and press OK to enter. Press mode buttons M1 , M2 , M3 , M4 to select the desired adjustment display modes. Press ↑ or ↓ to select corresponding setting and rotate knob to change parameters. Press OK to save.1. VGA input auto adjustment ( Auto ) When LVP909 is in AppM1 and current input signal is VGA or Image 1 is VGA input in multi-windows mode, VGA input is effective. Press Auto to adjust VGA input signal sampling parameters. Then the VGA output image can be clear and full. Pic 6-5a LCD window: output brightness setting 2. Button Lock ( Lock ) Press Lock, then all buttons of LVP909 will be lock. In addition to Lock button, all other buttons are invalid to prevent misuse. Press 3 times Lock without stop to unlock. In the key locked, only LAN, Rs232, USB communication are available to prevent conflict between remote control and panel buttons. When remote control give commands, the device will enter buttons lock state auto. The menu will be as follow.3. Check system information ( Info ) Press button Info to enter System Info menu. Press ↑ , ↓ to check. Press to exit. System info menu as follow: Button lockKeypad InvalidLAN validRs232 validUSB valid Pic 6-5b LCD window: button lock2. Output Image ( Out 1 ) AppM5 M3 2.1 Out Width 960 2.2 Out Height 5402.3 Out H_Start 02.4 Out V_Start 5405. Set output image border LVP909 can set different color and size boarders for each output image. Press Setup to enter setup menu. Then press ↓ to select 2.Output image and press OK to enter. Press ↑ or ↓ to select corresponding setting and rotate knob to change parameters. Press OK to save. Pic 6-4c LCD window: multi-windows output image setting LVP909 can support 32 level brightness selection. To make sure of full gray scale of output image, it always set as 32.6-5 Other basic operation1. Output brightness selectionBRT -BRT +Reduce LVP909 output brightness, the lowest is 0.Increase LVP909 output brightness, the highest is 32.Button Description2. Output Image Border ( Image 1 )2.5 Border No 2.6 Border R 2552.7 Border G 2552.8 Border B 2552.9 Border Size 4 Pic 6-4d LCD window: multi-windows output image setting 93 94LVP909 Series User Manual LVP909 User Manual Series

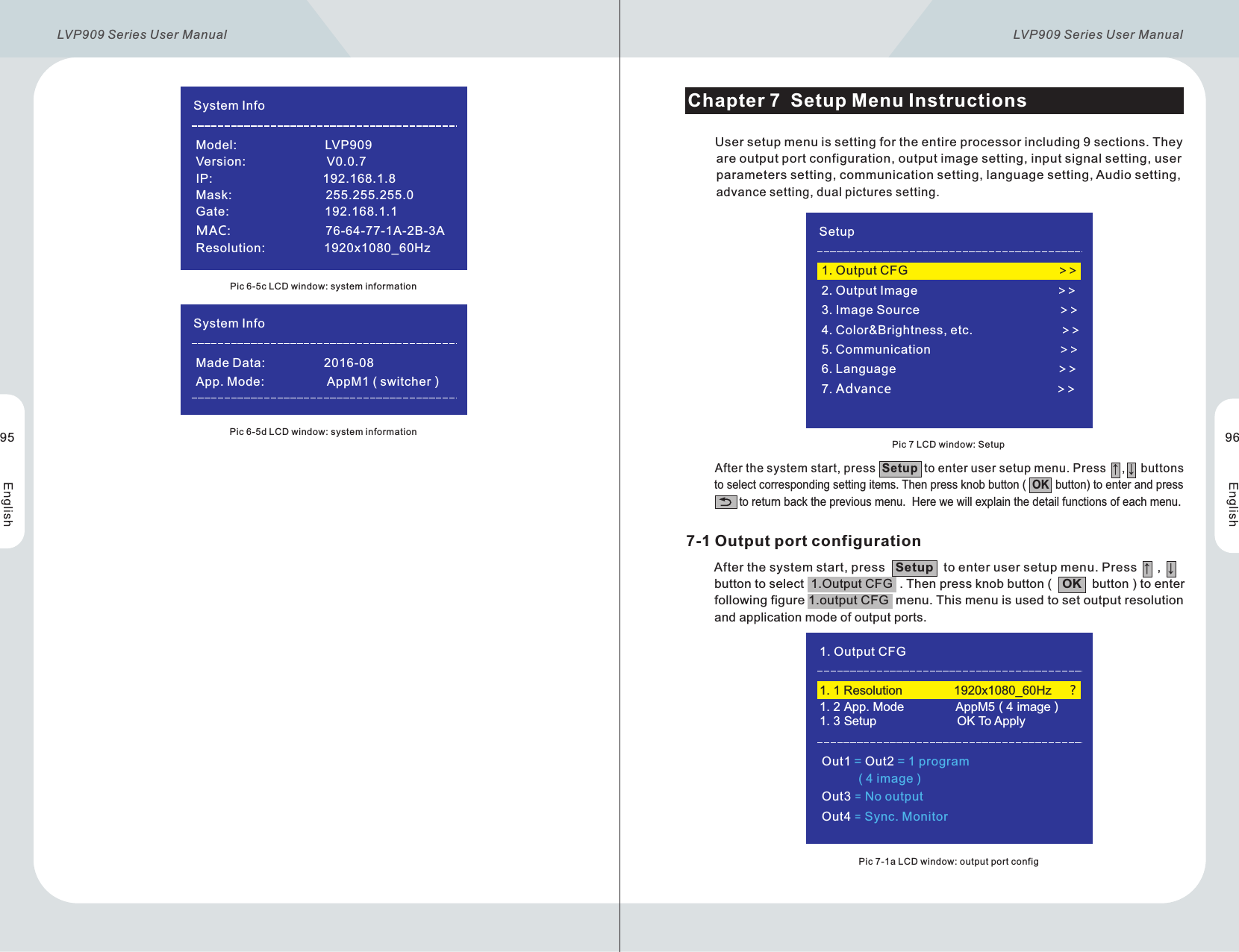

System InfoModel: LVP909Version: V0.0.7IP: 192.168.1.8Mask: 255.255.255.0Gate: 192.168.1.1MAC: 76-64-77-1A-2B-3AResolution: 1920x1080_60HzSystem Info Made Data: 2016-08App. Mode: AppM1 ( switcher） Pic 6-5c LCD window: system information Pic 6-5d LCD window: system information User setup menu is setting for the entire processor including 9 sections. They are output port configuration, output image setting, input signal setting, user parameters setting, communication setting, language setting, Audio setting, advance setting, dual pictures setting. Chapter 7 Setup Menu Instructions Pic 7 LCD window: Setup Setup 1. Output CFG >> 2. Output Image >>3. Image Source >>4. Color&Brightness, etc. >>5. Communication >>6. Language >>7. Advance >>to select corresponding setting items. Then press knob button ( OK button) to enter and press to return back the previous menu. Here we will explain the detail functions of each menu. After the system start, press Setup to enter user setup menu. Press ↑ , ↓ buttons 7-1 Output port configuration After the system start, press Setup to enter user setup menu. Press ↑ , ↓ button to select 1.Output CFG . Then press knob button ( OK button ) to enter following figure 1.output CFG menu. This menu is used to set output resolution and application mode of output ports.1. Output CFG Out1 Out2 = = 1 program ( 4 image )Out3 = No outputOut4 = Sync. Monitor1. 1 Resolution 1920x1080_60Hz ? 1. 2 App. Mode AppM5 ( 4 image )1. 3 Setup OK To Apply Pic 7-1a LCD window: output port config95 96LVP909 Series User Manual LVP909 User Manual Series

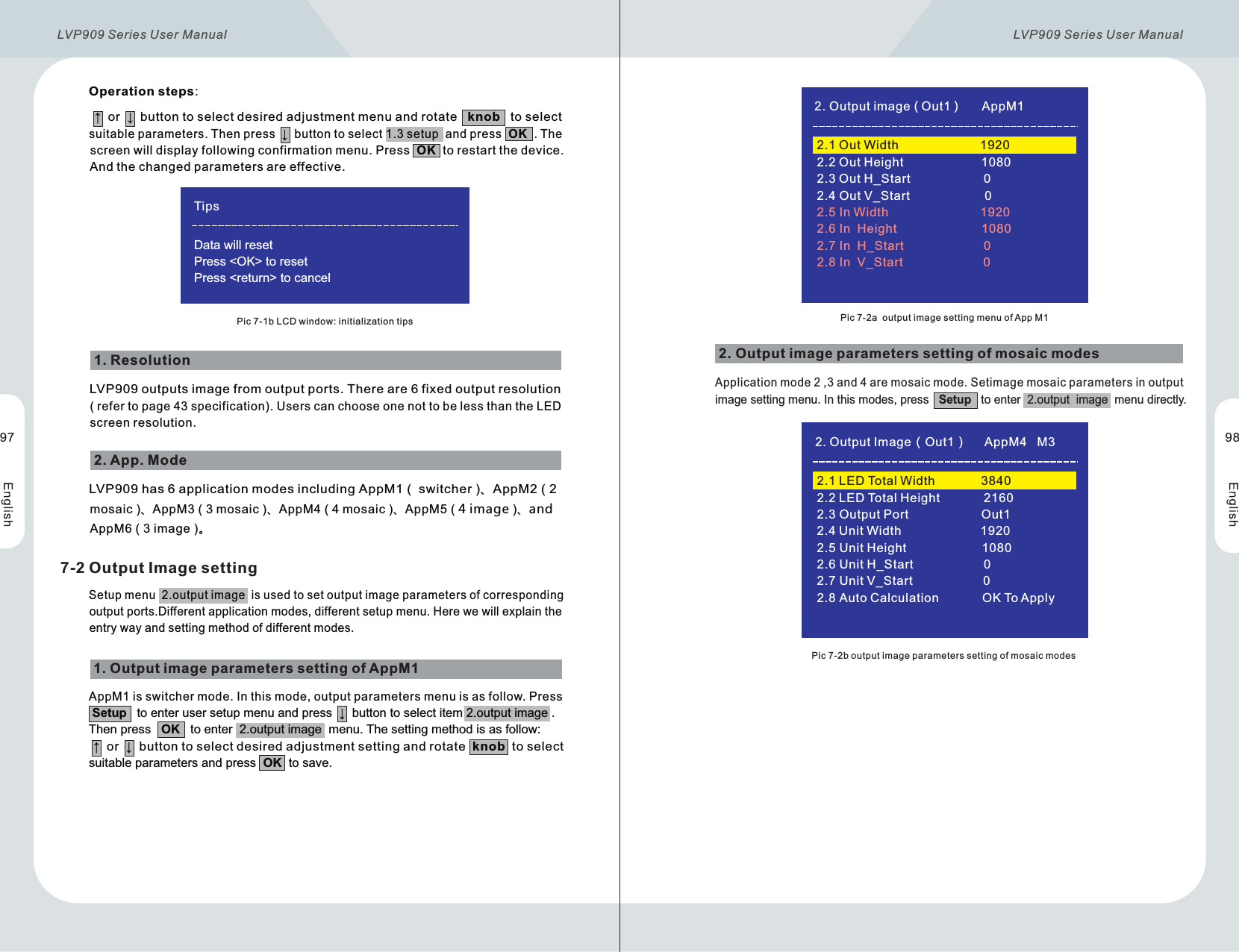

97 98Operation steps: ↑ or ↓ button to select desired adjustment menu and rotate knob to select suitable parameters. Then press ↓ button to select 1.3 setup and press OK . The screen will display following confirmation menu. Press OK to restart the device. And the changed parameters are effective.TipsData will resetPress <OK> to resetPress <return> to cancel LVP909 outputs image from output ports. There are 6 fixed output resolution( refer to page 43 specification). Users can choose one not to be less than the LEDscreen resolution.1. Resolution LVP909 has 6 application modes including AppM1 ( switcher )、AppM2 ( 2 mosaic )、AppM3 ( 3 mosaic )、AppM4 ( 4 mosaic )、AppM5 ( 4 image )、and AppM6 ( 3 image )。2. App. Mode Pic 7-1b LCD window: initialization tips1. Output image parameters setting of AppM1 AppM1 is switcher mode. In this mode, output parameters menu is as follow. Press Setup to enter user setup menu and press ↓ button to select item 2.output image . Then press OK to enter 2.output image menu. The setting method is as follow: ↑ or ↓ button to select desired adjustment setting and rotate knob to select suitable parameters and press OK to save. Setup menu 2.output image is used to set output image parameters of corresponding output ports.Different application modes, different setup menu. Here we will explain theentry way and setting method of different modes. 7-2 Output Image settingPic 7-2a output image setting menu of App M12. Output image ( Out1 ) AppM1 2.1 Out Width 1920 2.2 Out Height 10802.3 Out H_Start 02.4 Out V_Start 02.5 In Width 19202.6 In Height 10802.7 In H_Start 02.8 In V_Start 0Pic 7-2b output image parameters setting of mosaic modes2. Output Image（Out1） AppM4 M3 2.1 LED Total Width 3840 2.2 LED Total Height 21602.3 Output Port Out12.4 Unit Width 19202.5 Unit Height 10802.6 Unit H_Start 02.7 Unit V_Start 02.8 Auto Calculation OK To Apply Application mode 2 ,3 and 4 are mosaic mode. Setimage mosaic parameters in output image setting menu. In this modes, press Setup to enter 2.output image menu directly. 2. Output image parameters setting of mosaic modesLVP909 Series User Manual LVP909 User Manual Series

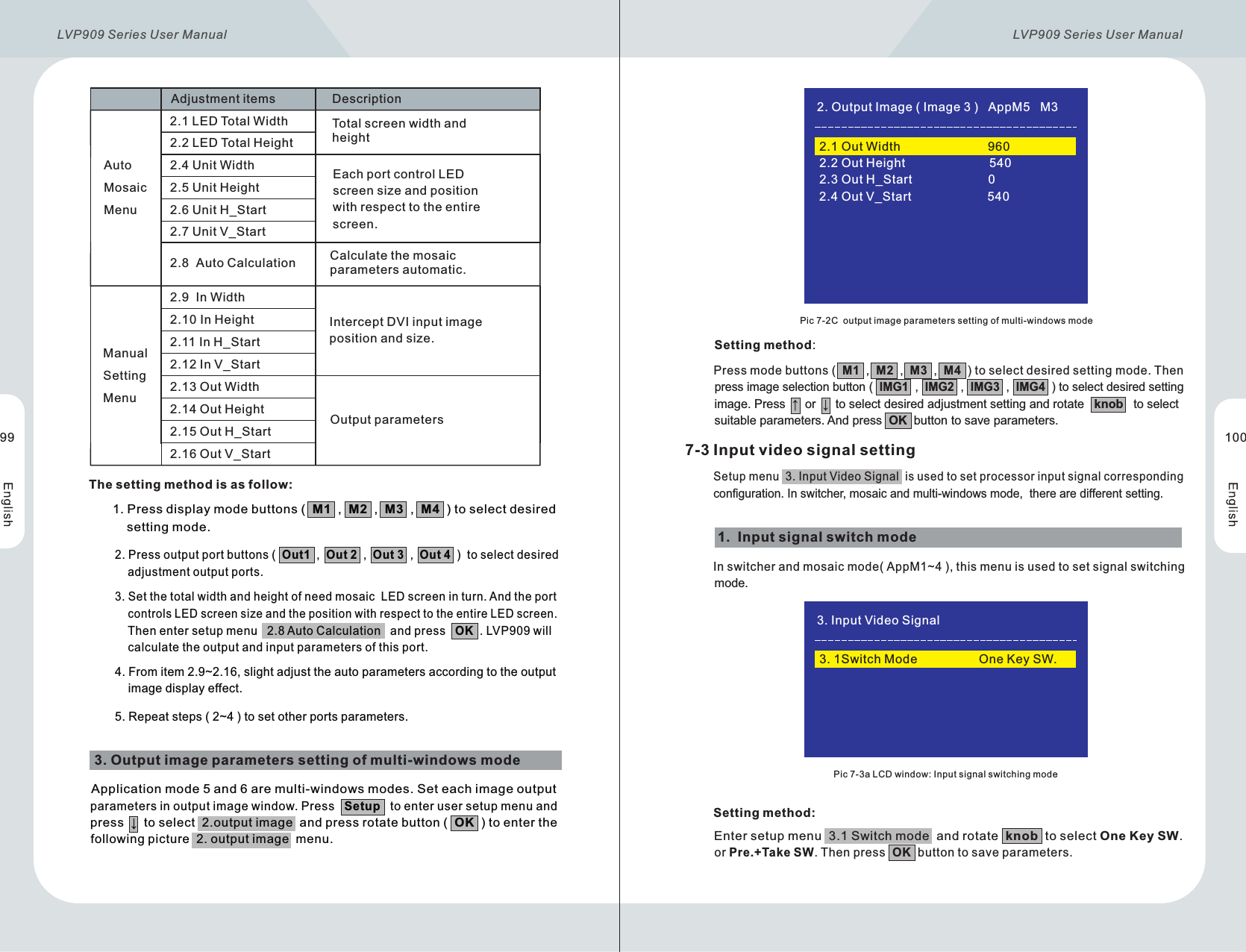

99 100AutoMosaic MenuTotal screen width and heightCalculate the mosaicparameters automatic.Each port control LED screen size and position with respect to the entire screen. 2.1 LED Total Width2.2 LED Total Height2.4 Unit Width2.5 Unit Height2.6 Unit H_Start2.7 Unit V_Start2.8 Auto CalculationDescriptionAdjustment itemsManualSettingMenuIntercept DVI input image position and size.Output parameters2.9 In Width2.10 In Height2.11 In H_Start2.12 In V_Start2.13 Out Width2.14 Out Height2.15 Out H_Start2.16 Out V_StartThe setting method is as follow: 1. Press display mode buttons ( M1 , M2 , M3 , M4 ) to select desired setting mode. 2. Press output port buttons ( Out1 , Out 2 , Out 3 , Out 4 ) to select desired adjustment output ports. 3. Set the total width and height of need mosaic LED screen in turn. And the port controls LED screen size and the position with respect to the entire LED screen. Then enter setup menu 2.8 Auto Calculation and press OK . LVP909 will calculate the output and input parameters of this port. 4. From item 2.9~2.16, slight adjust the auto parameters according to the output image display effect. 5. Repeat steps ( 2~4 ) to set other ports parameters.3. Output image parameters setting of multi-windows mode Application mode 5 and 6 are multi-windows modes. Set each image output parameters in output image window. Press Setup to enter user setup menu and press ↓ to select 2.output image and press rotate button ( OK ) to enter the following picture 2. output image menu.2. Output Image ( Image 3 ) AppM5 M3 2.1 Out Width 960 2.2 Out Height 5402.3 Out H_Start 02.4 Out V_Start 540 Pic 7-2C output image parameters setting of multi-windows modeSetting method: Setup menu 3. Input Video Signal is used to set processor input signal corresponding configuration. In switcher, mosaic and multi-windows mode, there are different setting.7-3 Input video signal setting Press mode buttons ( M1 , M2 , M3 , M4 ) to select desired setting mode. Then press image selection button ( IMG1 , IMG2 , IMG3 , IMG4 ) to select desired setting image. Press ↑ or ↓ to select desired adjustment setting and rotate knob to select suitable parameters. And press OK button to save parameters. Pic 7-3a LCD window: Input signal switching mode3. Input Video Signal 3. 1Switch Mode One Key SW. In switcher and mosaic mode( AppM1~4 ), this menu is used to set signal switchingmode.1. Input signal switch modeSetting method: Enter setup menu 3.1 Switch mode and rotate knob to select One Key SW. or Pre.+Take SW. Then press OK button to save parameters.LVP909 Series User Manual LVP909 User Manual Series

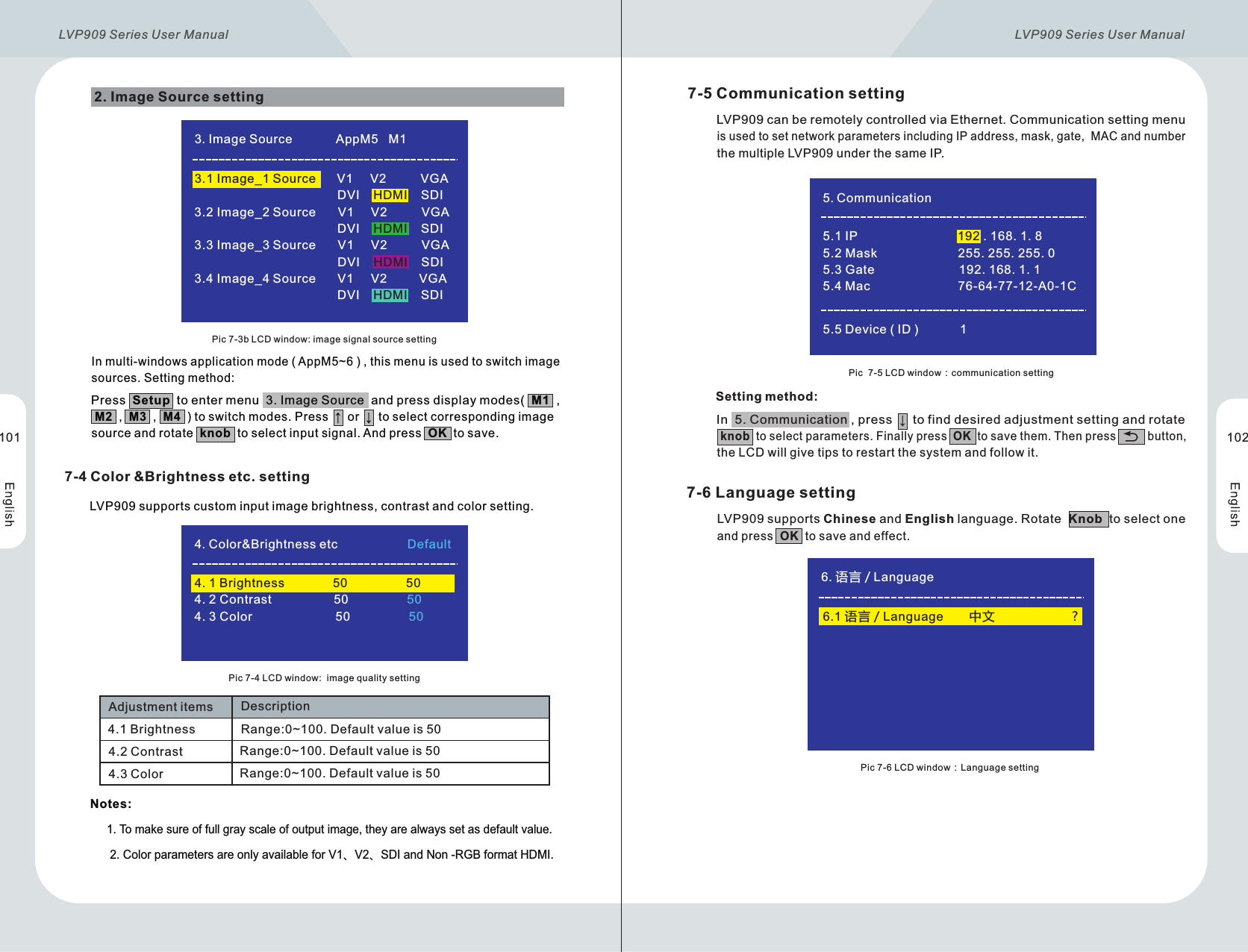

101 1022. Image Source setting3. Image Source AppM5 M1 3.1 Image_1 Source HDMIHDMIHDMIHDMI V1 V2 VGA DVI SDI 3.2 Image_2 Source V1 V2 VGA DVI SDI 3.3 Image_3 Source V1 V2 VGA DVI SDI3.4 Image_4 Source V1 V2 VGA DVI SDI Pic 7-3b LCD window: image signal source setting In multi-windows application mode ( AppM5~6 ) , this menu is used to switch image sources. Setting method: Press Setup to enter menu 3. Image Source and press display modes( M1 , M2 , M3 , M4 ) to switch modes. Press ↑ or ↓ to select corresponding image source and rotate knob to select input signal. And press OK to save. Pic 7-4 LCD window: image quality settingLVP909 supports custom input image brightness, contrast and color setting.7-4 Color &Brightness etc. setting4. Color&Brightness etc Default4. 1 Brightness 50 50 4. 2 Contrast 50 4. 3 Color 50 5050 1. To make sure of full gray scale of output image, they are always set as default value. 2. Color parameters are only available for V1、V2、SDI and Non -RGB format HDMI. Notes:4.1 Brightness Range:0~100. Default value is 504.2 Contrast Range:0~100. Default value is 504.3 Color Range:0~100. Default value is 50Adjustment items Description7-5 Communication setting LVP909 can be remotely controlled via Ethernet. Communication setting menuis used to set network parameters including IP address, mask, gate, MAC and numberthe multiple LVP909 under the same IP. 5. Communication 5.5 Device ( ID ) 15.1 IP . 168. 1. 8 5.2 Mask 255. 255. 255. 0 5.3 Gate 192. 168. 1. 15.4 Mac 76-64-77-12-A0-1C 192 Setting method: Pic 7-5 LCD window：communication setting In 5. Communication , press ↓ to find desired adjustment setting and rotate knob to select parameters. Finally press OK to save them. Then press button, the LCD will give tips to restart the system and follow it. 6. 语言 / Language 6.1 语言 / Language 中文 ?7-6 Language setting LVP909 supports Chinese and English language. Rotate Knob to select one and press OK to save and effect. Pic 7-6 LCD window：Language settingLVP909 Series User Manual LVP909 User Manual Series

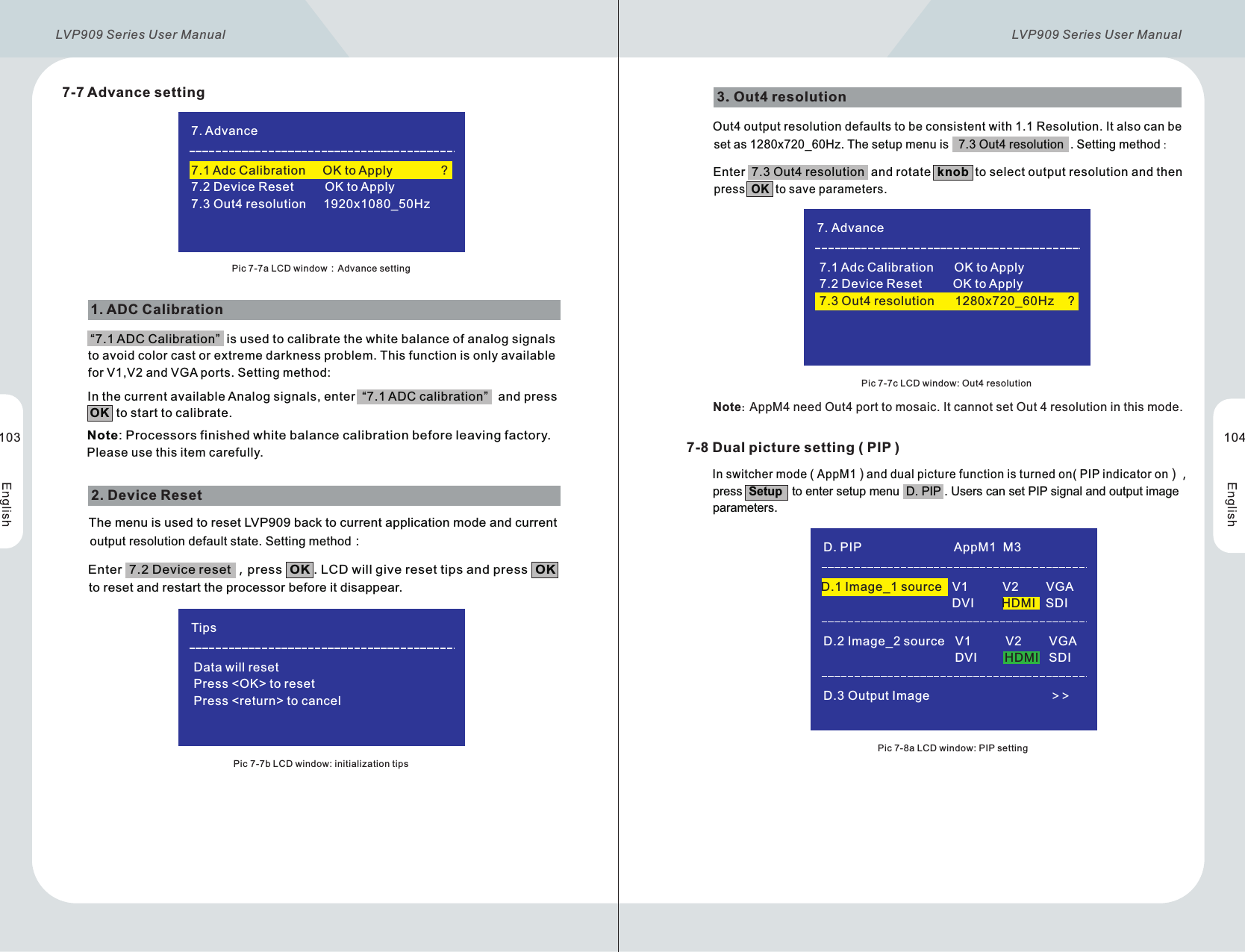

103 1047-7 Advance setting7. Advance 7.1 Adc Calibration OK to Apply ?7.2 Device Reset OK to Apply7.3 Out4 resolution 1920x1080_50Hz Note: Processors finished white balance calibration before leaving factory. Please use this item carefully.1. ADC Calibration In the current available Analog signals, enter “7.1 ADC calibration” and press OK to start to calibrate. Pic 7-7a LCD window：Advance setting “7.1 ADC Calibration” is used to calibrate the white balance of analog signals to avoid color cast or extreme darkness problem. This function is only available for V1,V2 and VGA ports. Setting method:2. Device ResetTipsData will resetPress <OK> to resetPress <return> to cancel The menu is used to reset LVP909 back to current application mode and current output resolution default state. Setting method： Enter 7.2 Device reset ，press OK . LCD will give reset tips and press OK to reset and restart the processor before it disappear. Pic 7-7b LCD window: initialization tips3. Out4 resolution Out4 output resolution defaults to be consistent with 1.1 Resolution. It also can be set as 1280x720_60Hz. The setup menu is 7.3 Out4 resolution . Setting method： Enter 7.3 Out4 resolution and rotate knob to select output resolution and thenpress OK to save parameters.7. Advance7.1 Adc Calibration OK to Apply 7.2 Device Reset OK to Apply 7.3 Out4 resolution 1280x720_60Hz ? Note: AppM4 need Out4 port to mosaic. It cannot set Out 4 resolution in this mode. 7-8 Dual picture setting ( PIP ) In switcher mode ( AppM1 and dual picture function is turned on( PIP indicator on ，) )press Setup to enter setup menu D. PIP . Users can set PIP signal and output image parameters. Pic 7-7c LCD window: Out4 resolutionD. PIP AppM1 M3 D.3 Output Image >>D.1 Image_1 sourceHDMI V1 V2 VGA DVI SDID.2 Image_2 source V1 V2 VGA DVI SDI HDMI Pic 7-8a LCD window: PIP setting LVP909 Series User Manual LVP909 User Manual Series

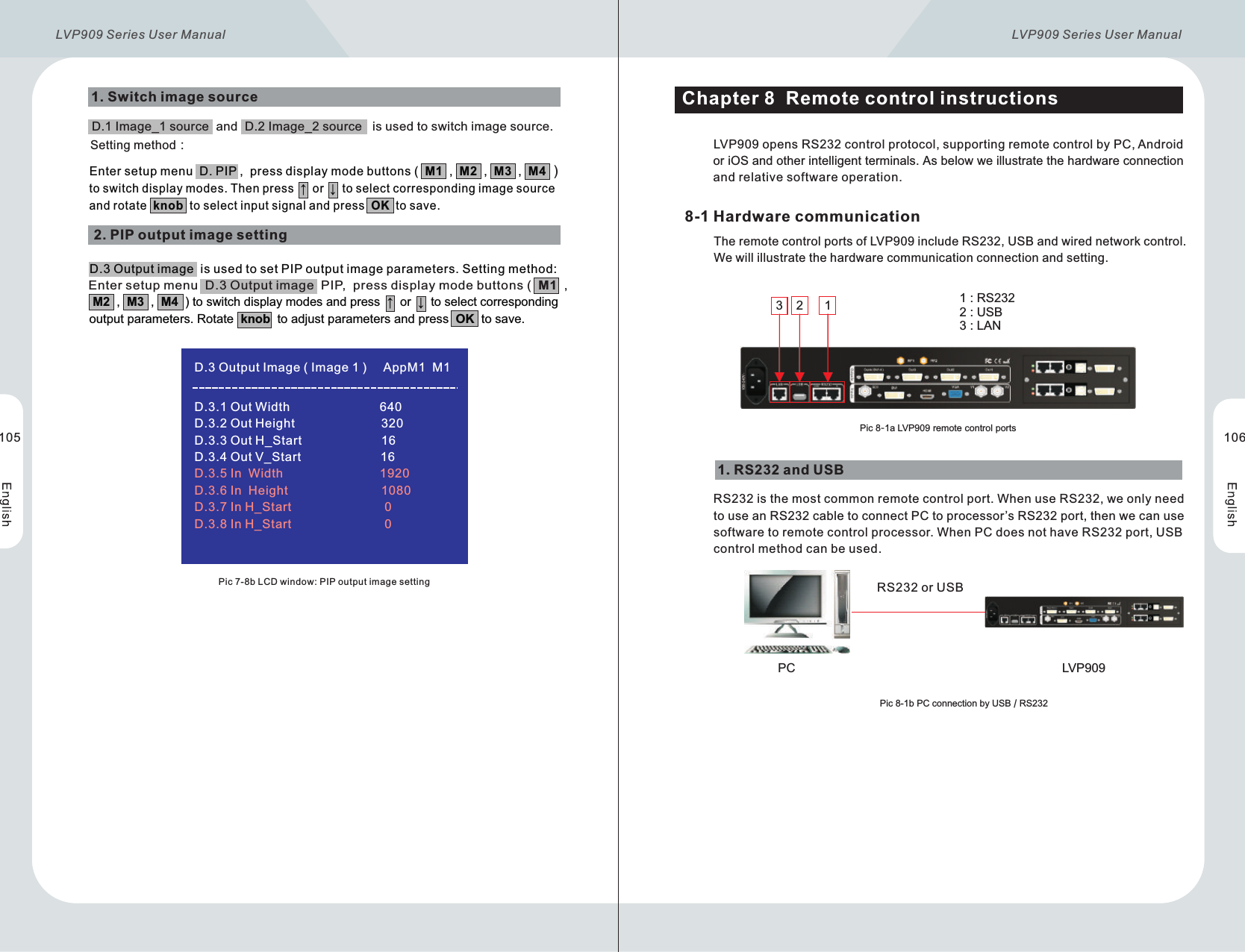

105 106D.3 Output Image ( Image 1 ) AppM1 M1 D.3.1 Out Width 640D.3.2 Out Height 320D.3.3 Out H_Start 16D.3.4 Out V_Start 16D.3.5 In Width 1920D.3.6 In Height 1080D.3.7 In H_Start 0D.3.8 In H_Start 02. PIP output image setting D.3 Output image is used to set PIP output image parameters. Setting method: M2 , M3 , M4 ) to switch display modes and press ↑ or ↓ to select corresponding output parameters. Rotate knob to adjust parameters and press OK to save. Pic 7-8b LCD window: PIP output image setting 1. Switch image source D.1 Image_1 source and D.2 Image_2 source is used to switch image source. Setting method： Enter setup menu D. PIP , press display mode buttons ( M1 , M2 , M3 , M4 ) to switch display modes. Then press ↑ or ↓ to select corresponding image source and rotate knob to select input signal and press OK to save. Enter setup menu D.3 Output image PIP, press display mode buttons ( M1 , LVP909 opens RS232 control protocol, supporting remote control by PC, Android or iOS and other intelligent terminals. As below we illustrate the hardware connection and relative software operation.Chapter 8 Remote control instructions RS232 is the most common remote control port. When use RS232, we only need to use an RS232 cable to connect PC to processor’s RS232 port, then we can use software to remote control processor. When PC does not have RS232 port, USB control method can be used.8-1 Hardware communicationThe remote control ports of LVP909 include RS232, USB and wired network control. We will illustrate the hardware communication connection and setting.32 1 1 : RS2322 : USB3 : LANPic 8-1a LVP909 remote control ports1 RS232 and USB.Pic 8-1b PC connection by USB / RS232PC LVP909 RS232 or USBLVP909 Series User Manual LVP909 User Manual Series

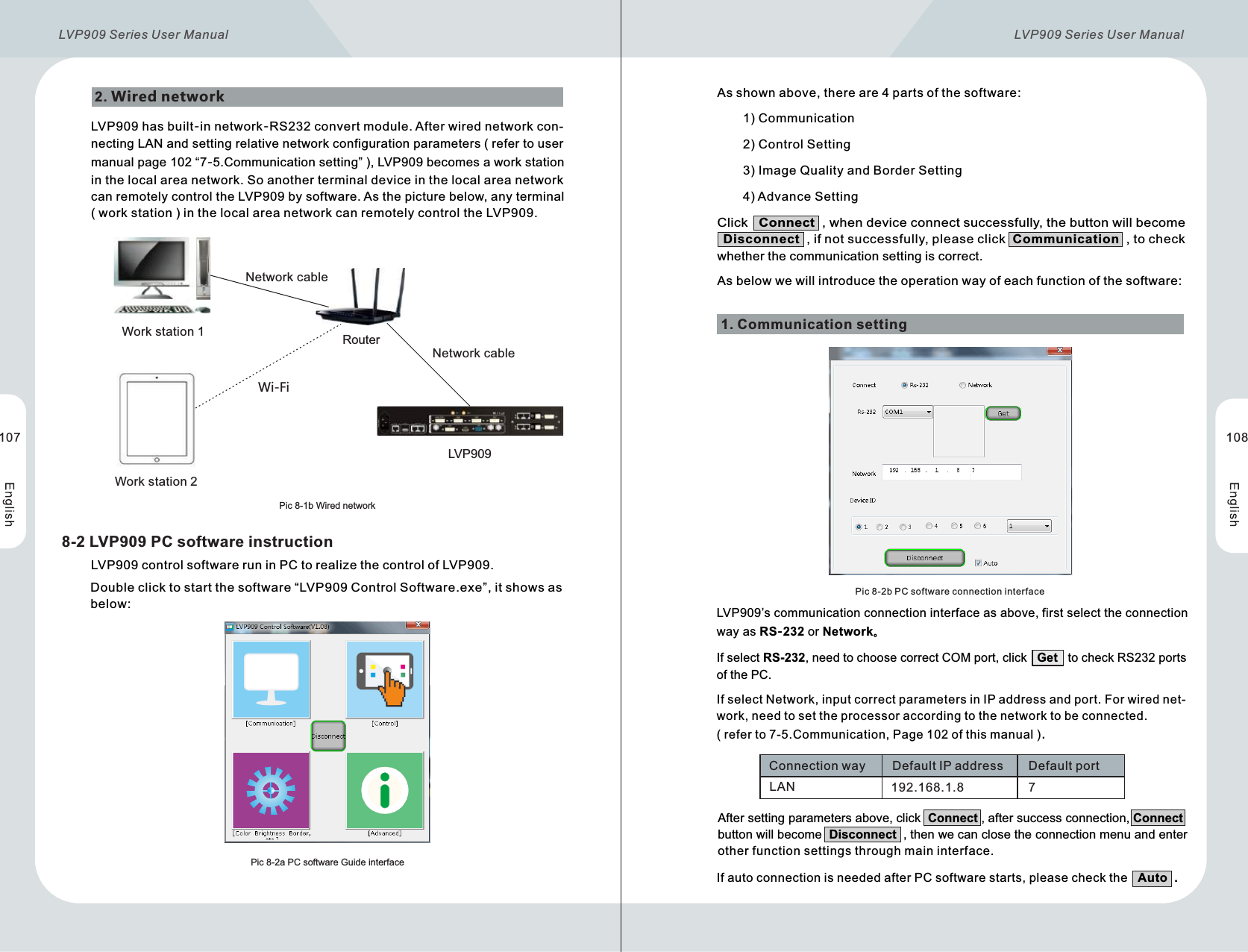

LVP909 control software run in PC to realize the control of LVP909. Double click to start the software “LVP909 Control Software.exe”, it shows as below:LVP909 has built-in network-RS232 convert module. After wired network con-necting LAN and setting relative network configuration parameters ( refer to user manual page 102 “7-5.Communication setting” ), LVP909 becomes a work station in the local area network. So another terminal device in the local area network can remotely control the LVP909 by software. As the picture below, any terminal ( work station ) in the local area network can remotely control the LVP909.As shown above, there are 4 parts of the software:1) Communication2) Control Setting3) Image Quality and Border Setting4) Advance Setting2. Wired networkPic 8-1b WirednetworkPic 8-2a PC software Guide interfaceNetwork cableNetwork cableRouterWi-FiWork station 1Work station 2LVP9098-2 LVP909 PC software instructionLVP909’s communication connection interface as above, first select the connection way as RS-232 or Network。1. Communication settingPic 8-2b PC software connection interfaceLAN 192.168.1.8 7Connection way DefaultIPaddress Default portAfter setting parameters above, click Connect , after success connection, Connect button will become Disconnect , then we can close the connection menu and enter other function settings through main interface.If select Network, input correct parameters in IP address and port. For wired net-work, need to set the processor according to the network to be connected. ( refer to 7-5.Communication, Page 102 of this manual ). If auto connection is needed after PC software starts, please check the Auto .Click Connect , when device connect successfully, the button will become Disconnect , if not successfully, please click Communication , to check whether the communication setting is correct.As below we will introduce the operation way of each function of the software:107 108If select RS-232, need to choose correct COM port, click Get to check RS232 ports of the PC. LVP909 Series User Manual LVP909 Series User Manual

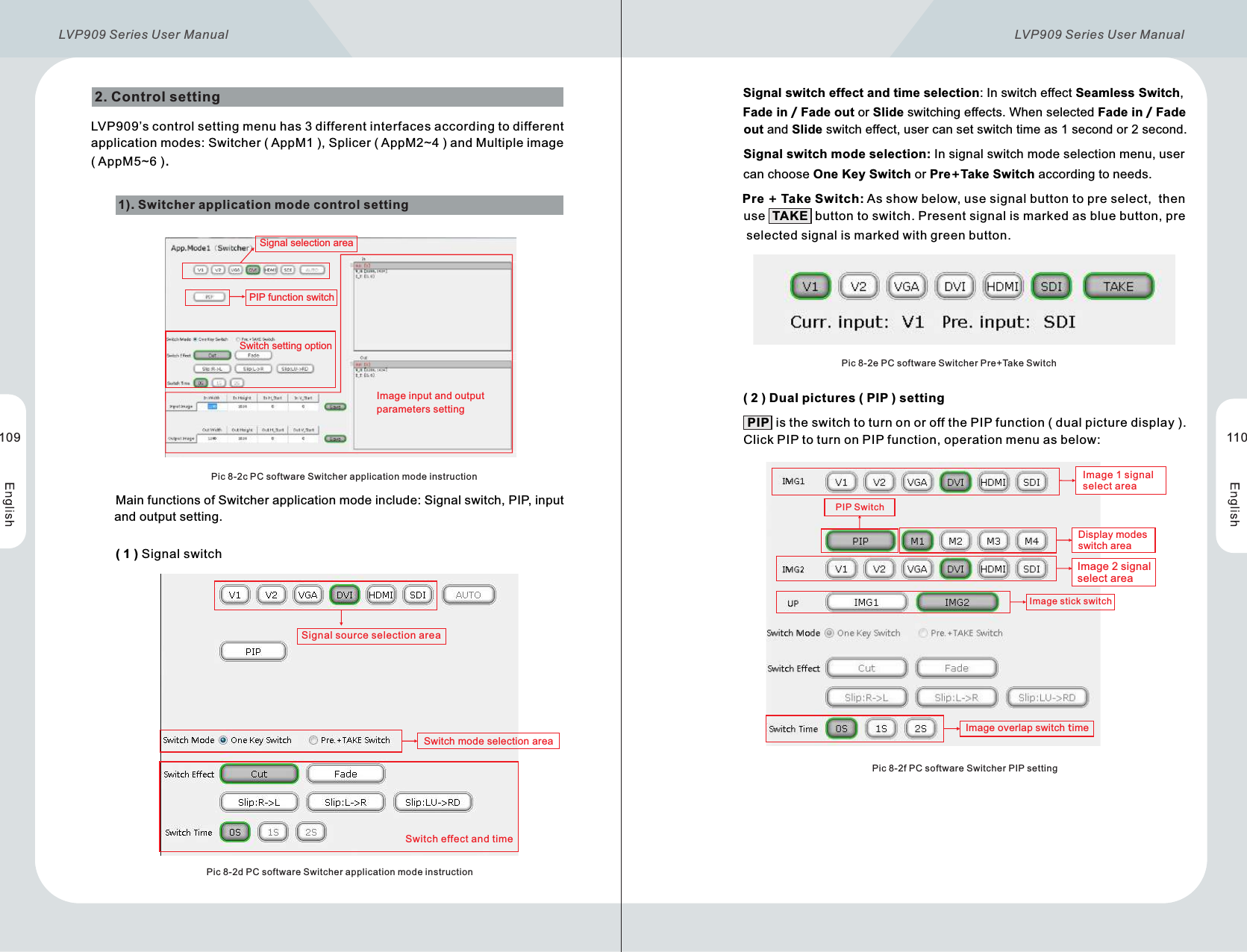

Signal switch effect and time selection: In switch effect Seamless Switch, Fade in / Fade out or Slide switching effects. When selected Fade in / Fade out and Slide switch effect, user can set switch time as 1 second or 2 second. Signal switch mode selection: In signal switch mode selection menu, user can choose One Key Switch or Pre+Take Switch according to needs. 2. Control setting1). Switcher application mode control settingLVP909’s control setting menu has 3 different interfaces according to different application modes: Switcher ( AppM1 ), Splicer ( AppM2~4 ) and Multiple image( AppM5~6 ). Main functions of Switcher application mode include: Signal switch, PIP, input and output setting.Pic 8-2c PC software Switcher application mode instructionSignal selection areaPIP function switchSwitch setting optionImage input and output parameters settingPic 8-2d PC software Switcher application mode instruction ( 1 ) Signal switchSwitch effect and timeSwitch mode selection areaSignal source selection area109 110 Pic 8-2e PC software Switcher Pre+Take Switch Pic 8-2f PC software Switcher PIP setting ( 2 ) Dual pictures ( PIP ) setting PIP is the switch to turn on or off the PIP function ( dual picture display ). Click PIP to turn on PIP function, operation menu as below:PIP SwitchImage 1 signal select areaDisplay modes switch areaImage 2 signal select areaImage stick switchImage overlap switch time Pre + Take Switch: As show below, use signal button to pre select, then use TAKE button to switch. Present signal is marked as blue button, pre selected signal is marked with green button.LVP909 Series User Manual LVP909 Series User Manual

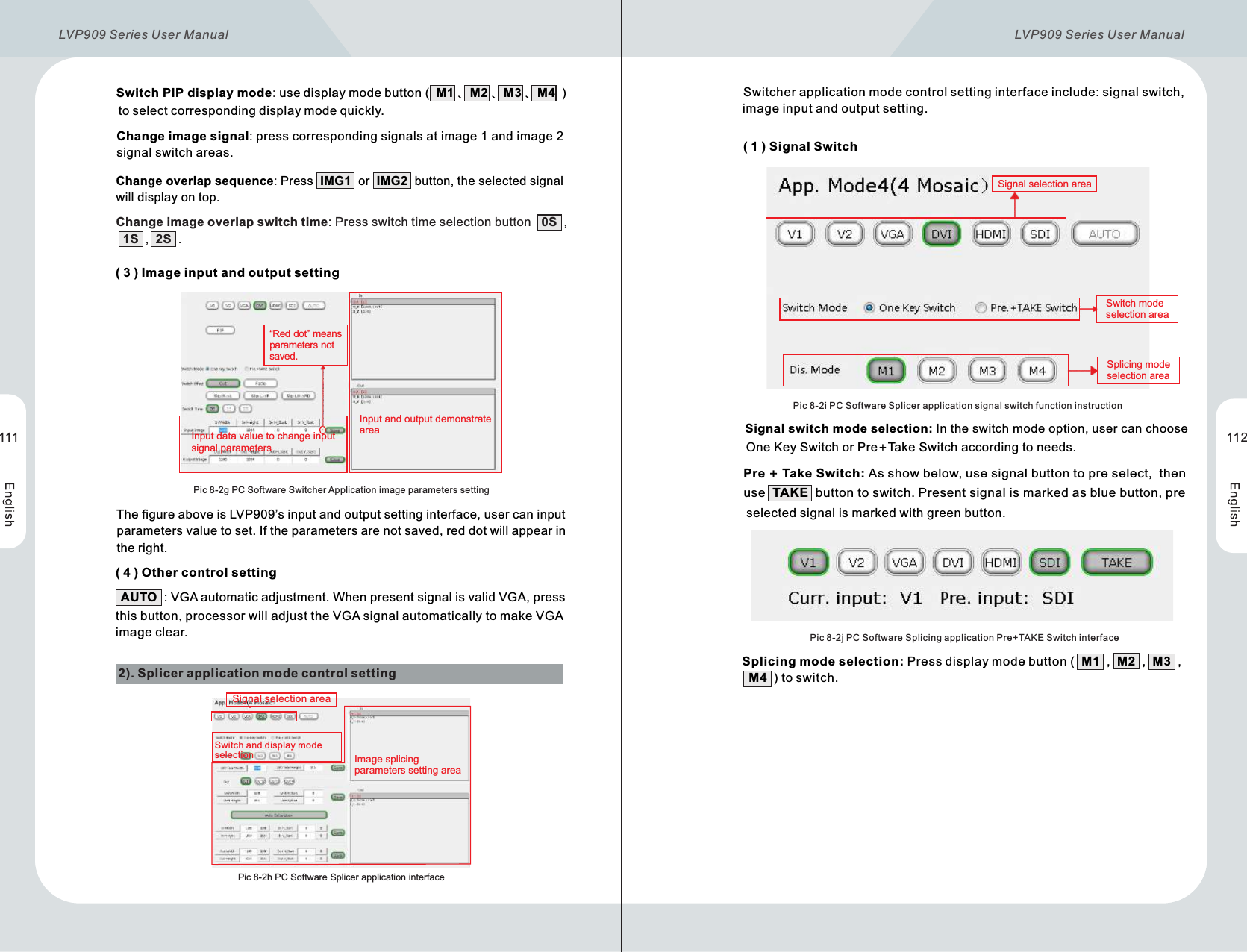

Switch PIP display mode usedisplaymodebutton ( M1 、M2 、M3 、M4 ) : toselectcorrespondingdisplaymodequickly. Change image signal press corresponding signals at image 1 and image 2 : signal switch areas. Change overlap sequence Press IMG1 or IMG2 button, the selected signal : will display on top. Switcher application mode control setting interface include: signal switch, image input and output setting. ( 3 ) Image input and output settingInput data value to change input signal parametersInput and output demonstrate area“Red dot” means parameters not saved.Pic 8-2g PC Software Switcher Application image parameters setting The figure above is LVP909’s input and output setting interface, user can input parameters value to set. If the parameters are not saved, red dot will appear in the right. ( 4 ) Other control setting AUTO : VGA automatic adjustment. When present signal is valid VGA, press this button, processor will adjust the VGA signal automatically to make VGA image clear.2). Splicer application mode control settingPic 8-2h PC Software Splicer application interfaceSignal selection areaSwitch and display mode selection Image splicing parameters setting area111 112Change image overlap switch time: Press switch time selection button 0S , 1S , 2S . ( 1 ) Signal SwitchSwitch mode selection areaSplicing mode selection area Pic 8-2i PC Software Splicer application signal switch function instruction Pic 8-2j PC Software Splicing application Pre+TAKE Switch interface Splicing mode selection: Pressdisplaymodebutton ( M1 , M2 , M3 , M4 ) toswitch.Signal selection area Signal switch mode selection: In the switch mode option, user can choose One Key Switch or Pre+Take Switch according to needs. Pre + Take Switch: As show below, use signal button to pre select, then use TAKE button to switch. Present signal is marked as blue button, pre selected signal is marked with green button.LVP909 Series User Manual LVP909 Series User Manual

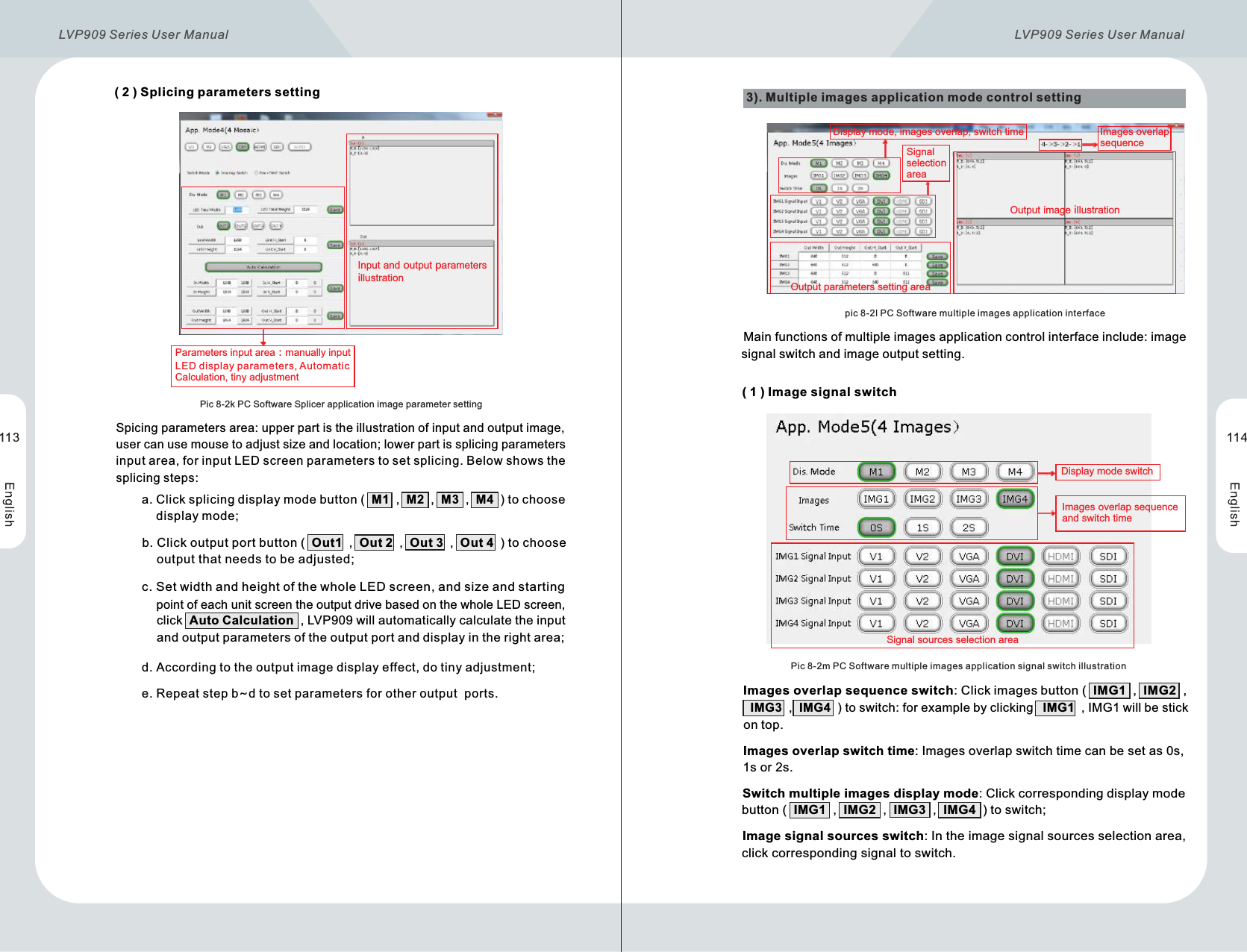

( 2 ) Splicing parameters settingInput and output parameters illustrationParameters input area：manually input LED display parameters, Automatic Calculation, tiny adjustmentPic 8-2k PC Software Splicer application image parameter setting Spicing parameters area: upper part is the illustration of input and output image, user can use mouse to adjust size and location; lower part is splicing parameters input area, for input LED screen parameters to set splicing. Below shows the splicing steps: a. Click splicing display mode button ( M1 , M2 , M3 , M4 ) to choose display mode; b. Click output port button ( Out1 , Out 2 , Out 3 , Out 4 ) to choose output that needs to be adjusted; c. Set width and height of the whole LED screen, and size and starting point of each unit screen the output drive based on the whole LED screen, click Auto Calculation , LVP909 will automatically calculate the input and output parameters of the output port and display in the right area; d. According to the output image display effect, do tiny adjustment; e. Repeat step b~d to set parameters for other output ports.3). Multiple images application mode control settingOutput parameters setting areaOutput image illustrationSignal selection areaImages overlap sequence pic 8-2l PC Software multiple images application interface Main functions of multiple images application control interface include: image signal switch and image output setting.Display mode, images overlap, switch time Pic 8-2m PC Software multiple images application signal switch illustration ( 1 ) Image signal switchSignal sources selection area Images overlap sequence switch: Clickimagesbutton ( IMG1 , IMG2 , IMG3 , IMG4 ) toswitch: forexamplebyclickingIMG1 , IMG1willbe stickontop. Images overlap switch time: Images overlap switch time can be set as 0s, 1s or 2s. Switch multiple images display mode: Click corresponding display mode button ( IMG1 , IMG2 , IMG3 , IMG4 ) to switch; Image signal sources switch: In the image signal sources selection area, click corresponding signal to switch.Display mode switchImages overlap sequence and switch time113 114LVP909 Series User Manual LVP909 Series User Manual

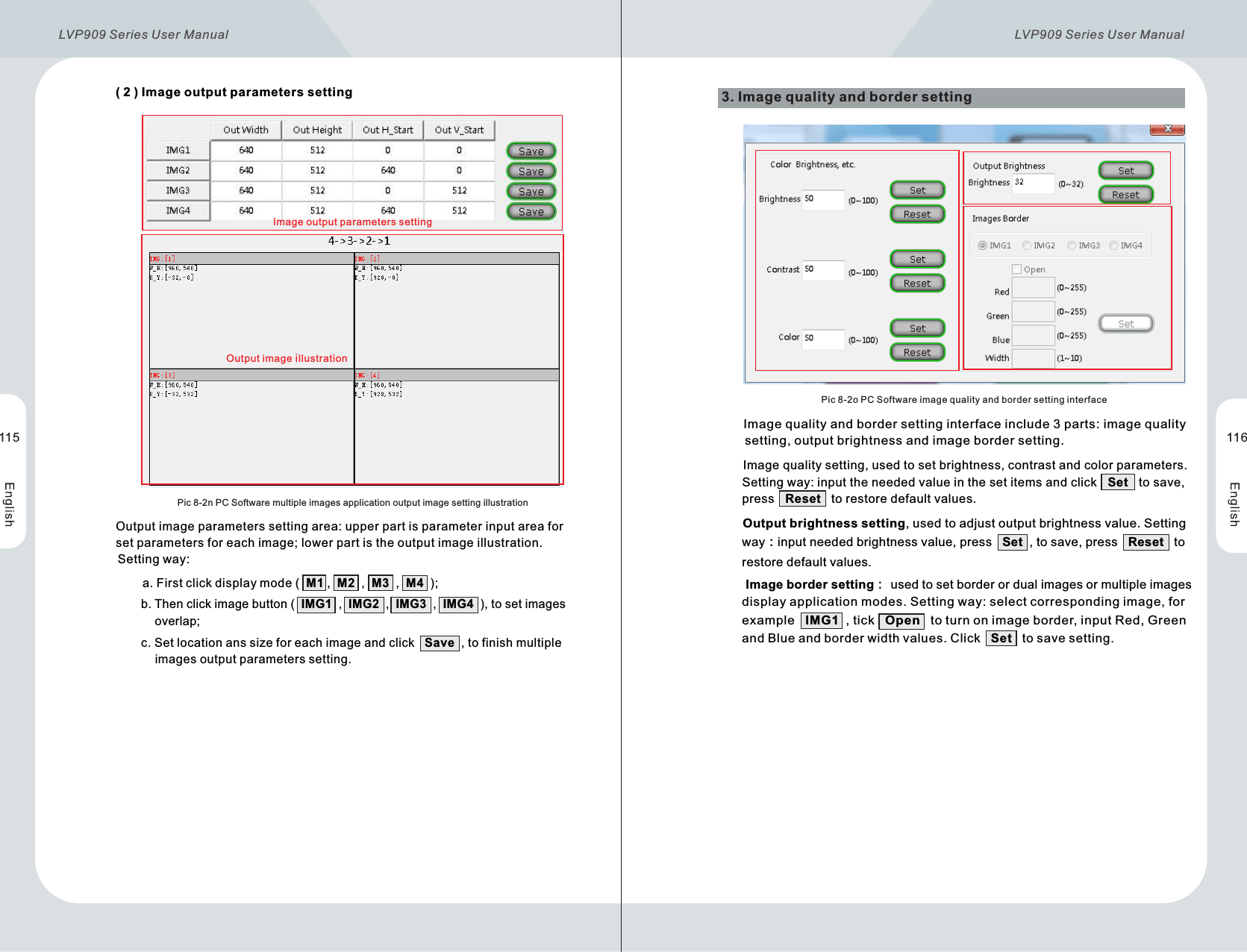

( 2 ) Image output parameters settingPic 8-2n PC Software multiple images application output image setting illustration Output image parameters setting area: upper part is parameter input area for set parameters for each image; lower part is the output image illustration. Setting way: a. Firstclickdisplaymode ( M1 , M2 , M3 , M4 ); b. Then click image button ( IMG1 , IMG2 , IMG3 , IMG4 ), to set images overlap; c. Set location ans size for each image and click Save , to finish multiple images output parameters setting.3. Image quality and border setting Pic 8-2o PC Software image quality and border setting interface Image quality and border setting interface include 3 parts: image quality setting, output brightness and image border setting. Image quality setting, used to set brightness, contrast and color parameters. Setting way: input the needed value in the set items and click Set to save, press Reset to restore default values. Output brightness setting, used to adjust output brightness value. Setting way：input needed brightness value, press Set , to save, press Reset to restore default values. Image border setting： used to set border or dual images or multiple images display application modes. Setting way: select corresponding image, for example IMG1 , tick Open to turn on image border, input Red, Green and Blue and border width values. Click Set to save setting.Output image illustration115 116Image output parameters settingLVP909 Series User Manual LVP909 Series User Manual

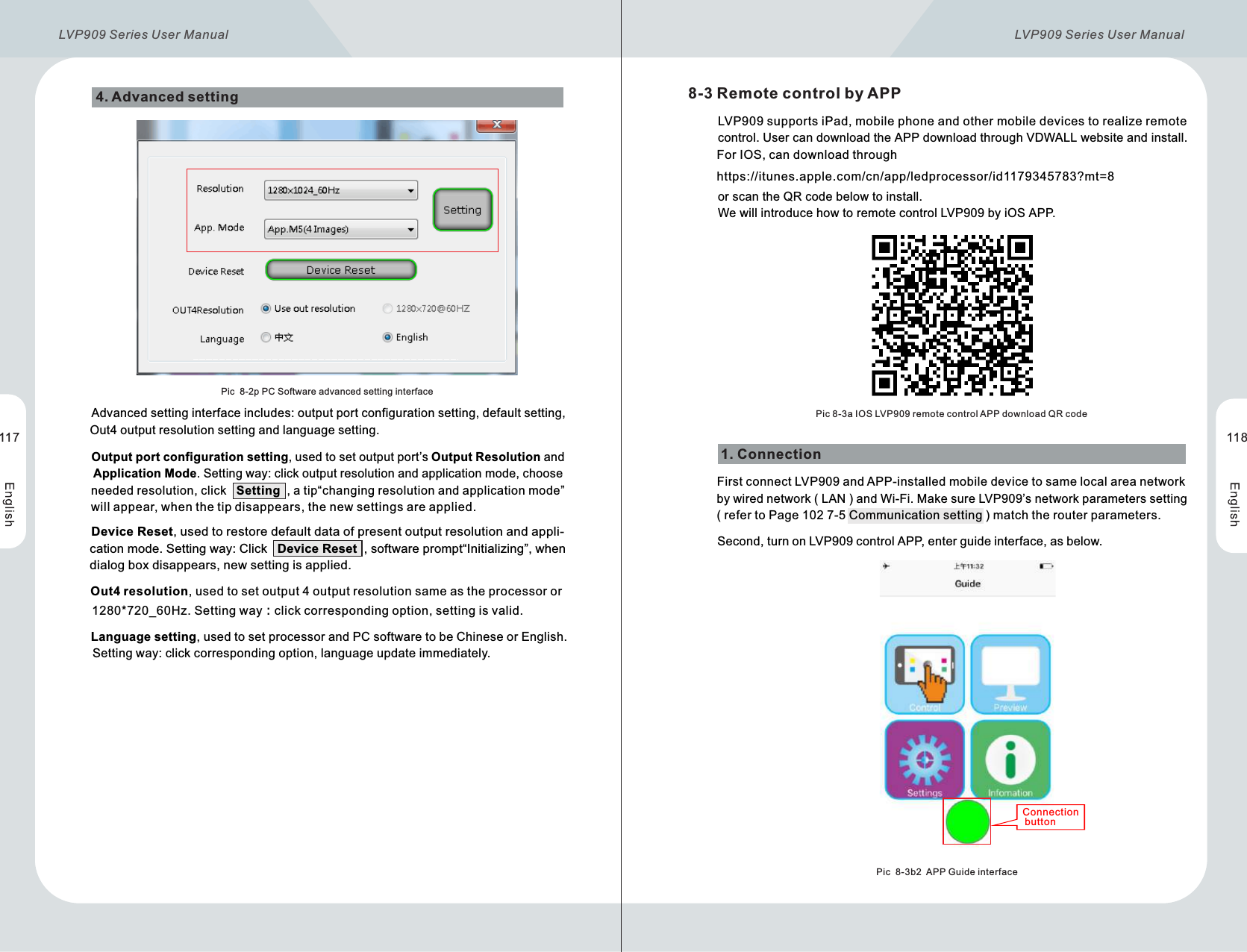

4. Advanced settingPic 8-2p PC Software advanced setting interface Advanced setting interface includes: output port configuration setting, default setting, Out4 output resolution setting and language setting. Output port configuration setting, used to set output port’s Output Resolution and Application Mode. Setting way: click output resolution and application mode, choose needed resolution, click Setting , a tip“changing resolution and application mode” will appear, when the tip disappears, the new settings are applied. Out4 resolution, used to set output 4 output resolution same as the processor or 1280*720_60Hz. Setting way：click corresponding option, setting is valid. Language setting, used to set processor and PC software to be Chinese or English. Setting way: click corresponding option, language update immediately. 8-3 Remote control by APPLVP909 supports iPad, mobile phone and other mobile devices to realize remote control. User can download the APP download through VDWALL website and install. or scan the QR code below to install.We will introduce how to remote control LVP909 by iOS APP.For IOS, can download through https://itunes.apple.com/cn/app/ledprocessor/id1179345783?mt=8 Pic 8-3a IOS LVP909 remote control APP download QR code117 118 Device Reset, used to restore default data of present output resolution and appli- cation mode. Setting way: Click Device Reset , software prompt“Initializing”, when dialog box disappears, new setting is applied. First connect LVP909 and APP-installed mobile device to same local area network by wired network ( LAN ) and Wi-Fi. Make sure LVP909’s network parameters setting Second, turnonLVP909controlAPP, enterguideinterface, asbelow. Pic 8-3b2 APP Guide interface1. ConnectionConnectionbutton ( refer to Page 102 7-5 Communication setting ) match the router parameters.LVP909 Series User Manual LVP909 Series User Manual
Click Connect , if communication is normal, the button will turn from Grey to Green.ConnectedConnectingPic 8-3b4 APP IP address modification If failed to connect, click the Modify IP address option on the popped-up dialogue box to check whether IP address and port setting are correct.Click Modify IP address Check whether IP address and port are correctPic 8-3b3 APP connectionPic 8-3c APP Guide interface For wired network, need to set the processor according to the network to be connected. ( refer to 7-5.Communication , Page 102 of this manual ). Below is the default parameter value.LAN 192.168.1.8 7Connection way Default IP address Default port2. APP instruction1). Operation control LVP909 has 3 different application mode: Switcher ( AppM1 ), Splicer ( App M2~4 ) and Multiple images ( AppM4,5 ). The interfaces of each application modes are different.Pic 8-3d Switcher operation interface ( 1 ) Switcher application operation interface119 120Click Connect Connect7192.168.1.8After communication connected successfully, user can operate the LVP909 by APP. As shows above, the APP has 4 function areas: Control, Preview, Setting and Information. Press the button to enter interface of each function. Below is instruction of the 4 functions.LVP909 Series User Manual LVP909 Series User Manual

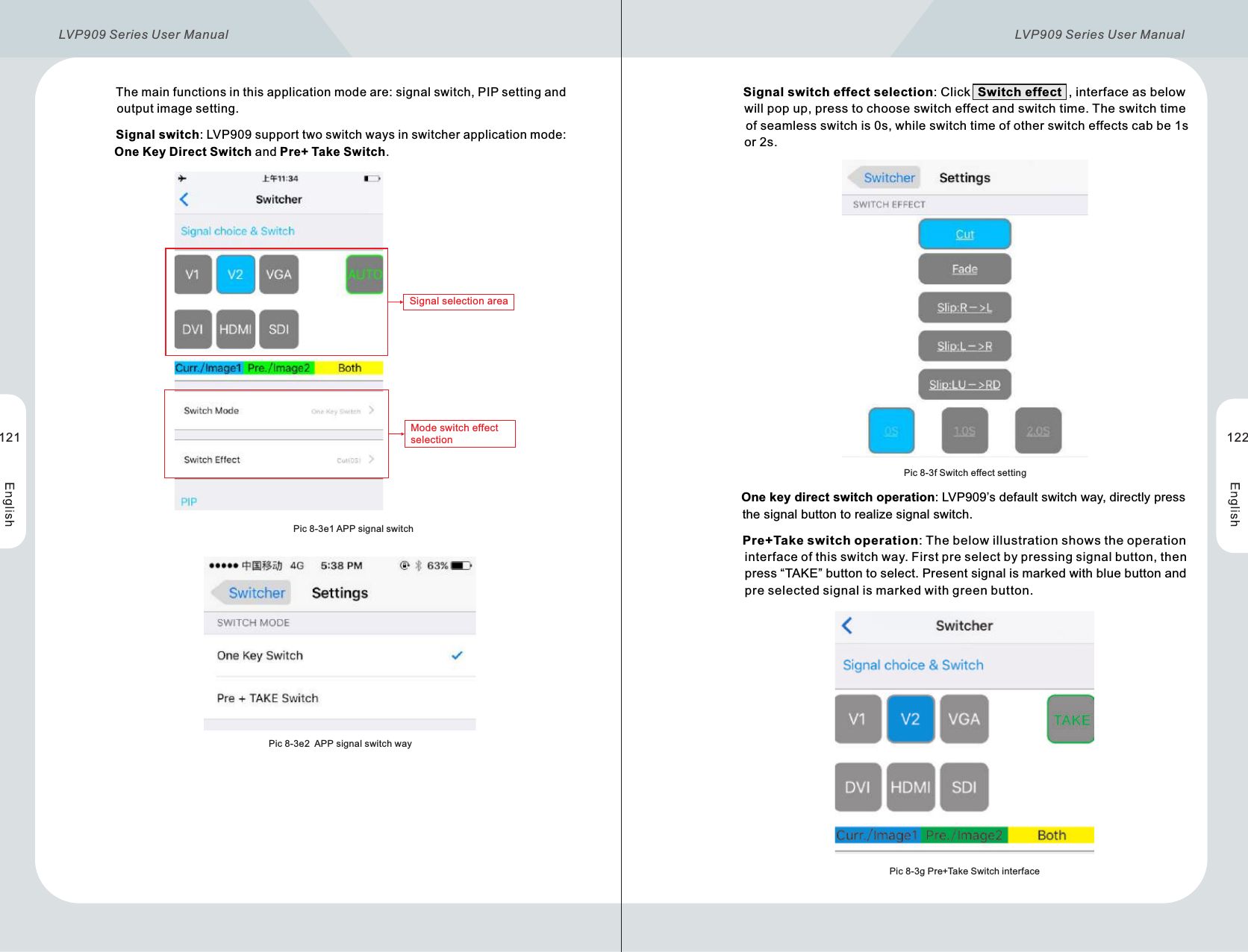

The main functions in this application mode are: signal switch, PIP setting and output image setting. Signal switch: LVP909 support two switch ways in switcher application mode: One Key Direct Switch and Pre+ Take Switch.Pic 8-3e1 APP signal switchPic 8-3e2 APP signal switch way Signal switch effect selection: Click Switch effect , interface as below will pop up, press to choose switch effect and switch time. The switch time of seamless switch is 0s, while switch time of other switch effects cab be 1s or 2s. Pic 8-3f Switch effect settingPic 8-3g Pre+TakeSwitchinterface One key direct switch operation: LVP909’s default switch way, directly press the signal button to realize signal switch. Pre+Take switch operation: The below illustration shows the operation interface of this switch way. First pre select by pressing signal button, then press “TAKE” button to select. Present signal is marked with blue button and pre selected signal is marked with green button.121 122Signal selection areaMode switch effect selectionLVP909 Series User Manual LVP909 Series User Manual
Output image parameters setting : This option is used to set output image’s input and output parameters. Interface shows below:Pic 8-3h Output image input / output parameters setting interfacePic 8-3j PIP input / output parameters setting interface PIP interface shows as above, the setting steps are: FirstpressPIPbuttontoturnonPIPfunction, thenselectsignalsforIMG1and IMG2 , choosedisplaymodebypressing ( M1 , M2 , M3 , M4 ). TosetPIPlocation, sizeandborder, pressPIPInputSizeSetting , PIPOutputSizeSettingandPIPBorder Setting .Input value and press + , - for tiny adjustment Illustration of output image’s input/output location and size.Single-spot -touch-drag to adjust location.In IOS system supporting single-spot -touch-drag to zoom up or down image size ( in Android it is click any corner to drag ) Dual pictures ( PIP ) settingPic 8-3i PIP interface PIP switchThis area will be hided when PIP is offInput parameters of Main picture ad PIP picture, press+,-for tiny adjustment.Main picture and PIP picture location and size.Single-spot -touch-drag to adjust location.In IOS system supp-orting single-spot -touch-drag to zoom up or down image size ( in Android it is click any corner to drag)123 124LVP909 Series User Manual LVP909 Series User Manual

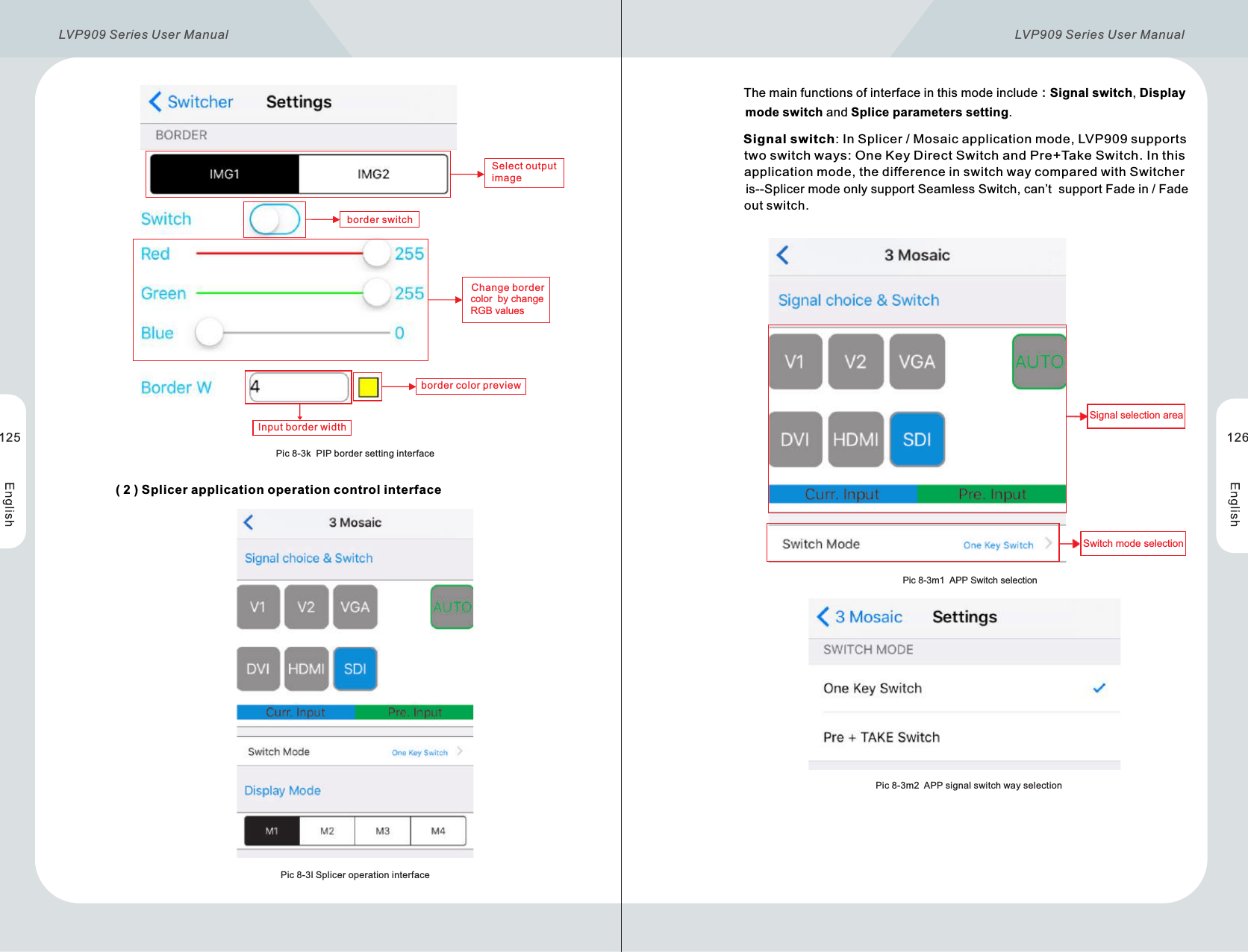

Pic 8-3k PIP border setting interfacePic 8-3m1 APP Switch selection Pic 8-3l Splicer operation interface ( 2 ) Splicer application operation control interface The main functions of interface in this mode include：Signal switch, Display mode switch and Splice parameters setting. Signal switch: In Splicer / Mosaic application mode, LVP909 supports two switch ways: One Key Direct Switch and Pre+Take Switch. In this application mode, the difference in switch way compared with Switcher is--Splicer mode only support Seamless Switch, can’t support Fade in / Fade out switch.Pic 8-3m2 APP signal switch way selectionSignal selection area Switch mode selectionSelect output imageborder switchChange border color by change RGB valuesInput border widthborder color preview125 126LVP909 Series User Manual LVP909 Series User Manual

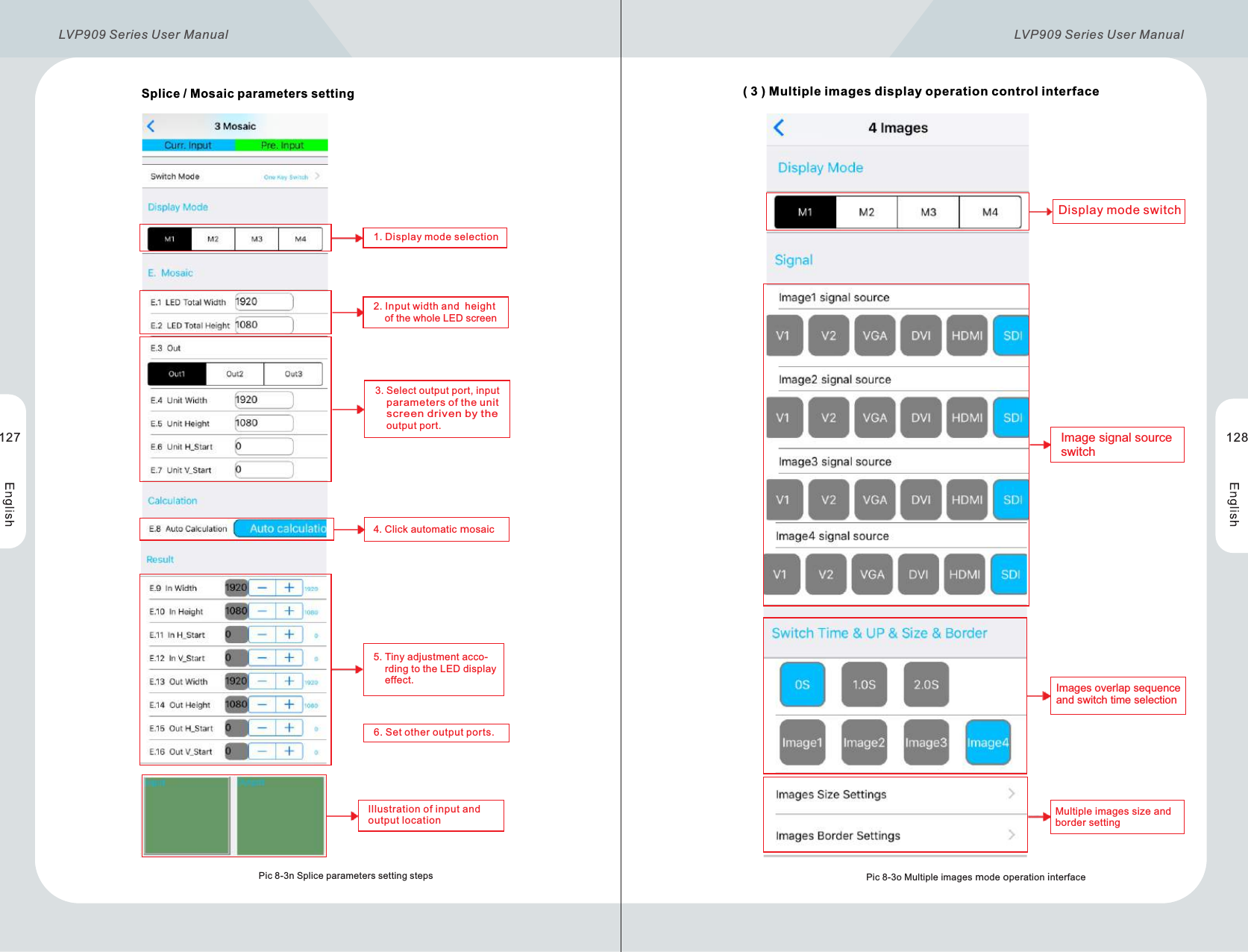

Splice / Mosaic parameters setting1. Display mode selection4. Click automatic mosaic6. Set other output ports.2. Input width and height of the whole LED screen3. Select output port, input parameters of the unit screen driven by the output port.5. Tiny adjustment acco- rding to the LED display effect.Illustration of input and output locationPic 8-3n Splice parameters setting steps ( 3 ) Multiple images display operation control interfaceDisplay mode switchImage signal source switchImages overlap sequence and switch time selectionMultiple images size and border settingPic 8-3o Multiple images mode operation interface127 128LVP909 Series User Manual LVP909 Series User Manual

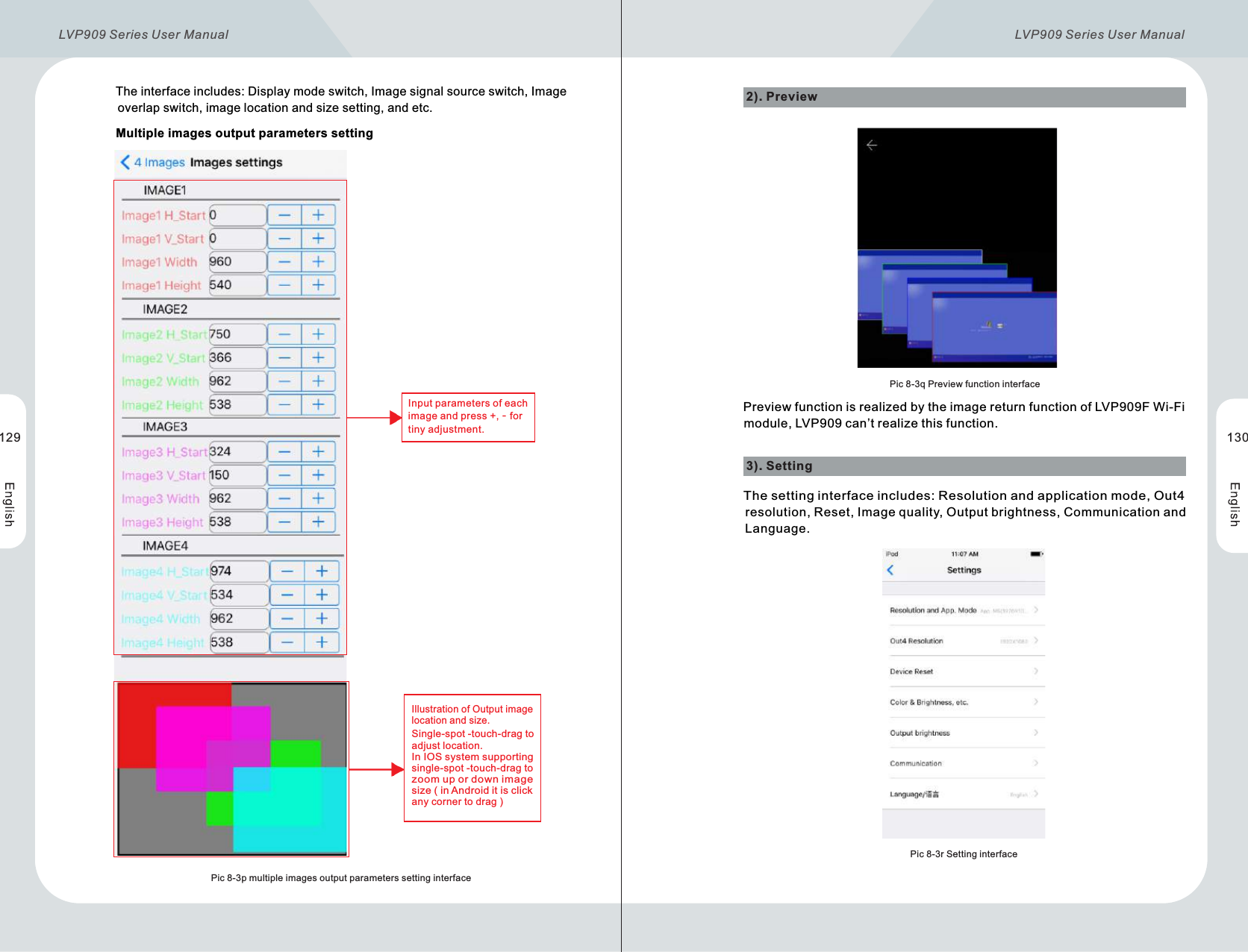

The interface includes: Display mode switch, Image signal source switch, Image overlap switch, image location and size setting, and etc. Multiple images output parameters settingInput parameters of each image and press +, - for tiny adjustment.Illustration of Output image location and size.Single-spot -touch-drag to adjust location.In IOS system supporting single-spot -touch-drag to zoom up or down image size ( in Android it is click any corner to drag )Pic 8-3p multiple images output parameters setting interface2). PreviewPic 8-3q Preview function interface3). Setting The setting interface includes: Resolution and application mode, Out4 resolution, Reset, Image quality, Output brightness, Communication and Language.Pic 8-3r Setting interface129 130 Preview function is realized by the image return function of LVP909F Wi-Fi module, LVP909 can’t realize this function.LVP909 Series User Manual LVP909 Series User Manual

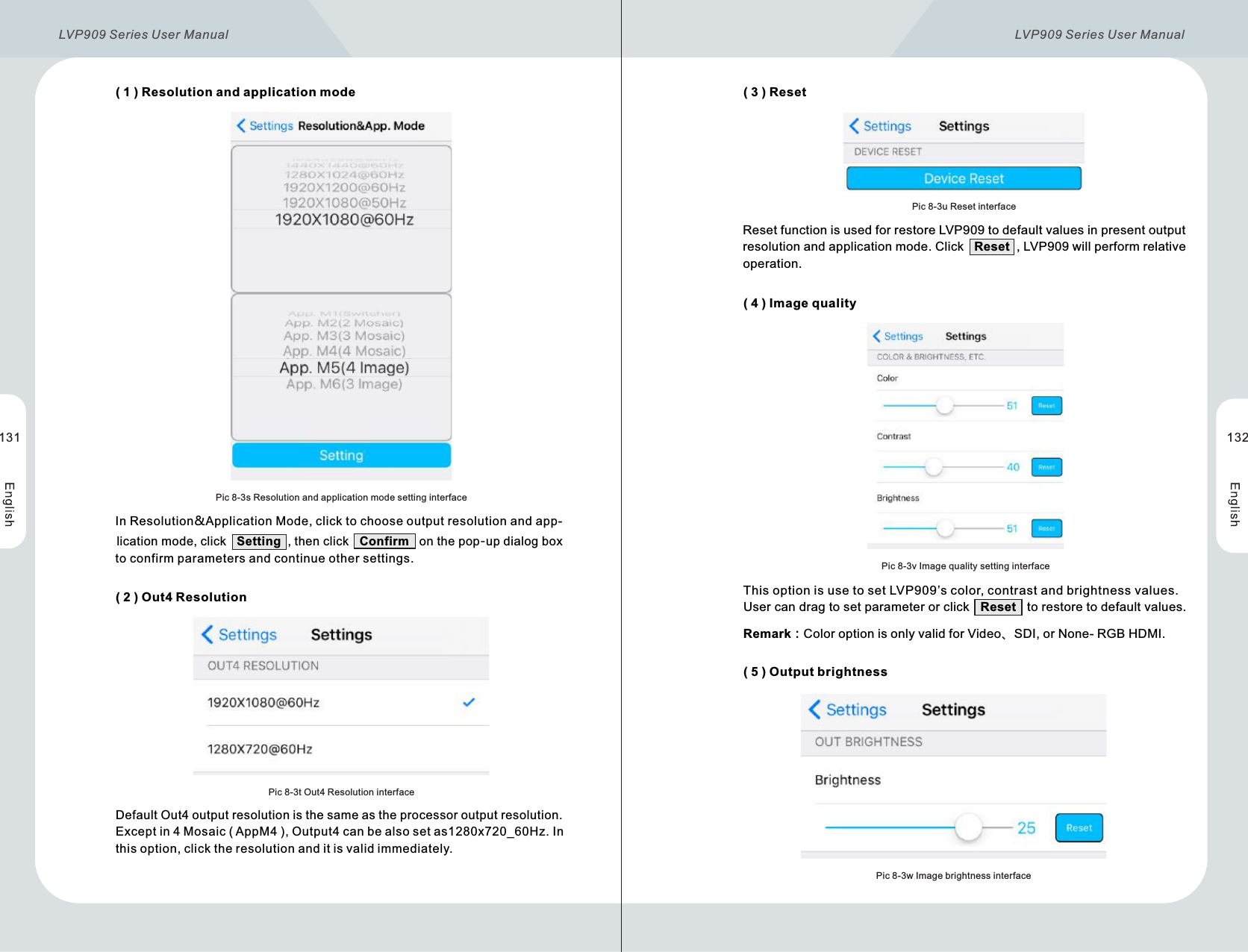

( 1 ) Resolution and application mode ( 2 ) Out4 ResolutionPic 8-3s Resolution and application mode setting interfacePic 8-3t Out4 Resolution interface In Resolution&Application Mode, click to choose output resolution and app- lication mode, click Setting , then click Confirm on the pop-up dialog box to confirm parameters and continue other settings.Default Out4 output resolution is the same as the processor output resolution. Except in 4 Mosaic ( AppM4 ), Output4 can be also set as1280x720_60Hz. In this option, click the resolution and it is valid immediately. ( 3 ) Reset ( 4 ) Image quality ( 5 ) Output brightnessPic 8-3u Reset interfacePic 8-3v Image quality setting interfacePic 8-3w Image brightness interface Reset function is used for restore LVP909 to default values in present output resolution and application mode. Click Reset , LVP909 will perform relative operation. This option is use to set LVP909’s color, contrast and brightness values. User can drag to set parameter or click Reset to restore to default values. Remark：Color option is only valid for Video、SDI, or None- RGB HDMI.131 132LVP909 Series User Manual LVP909 Series User Manual

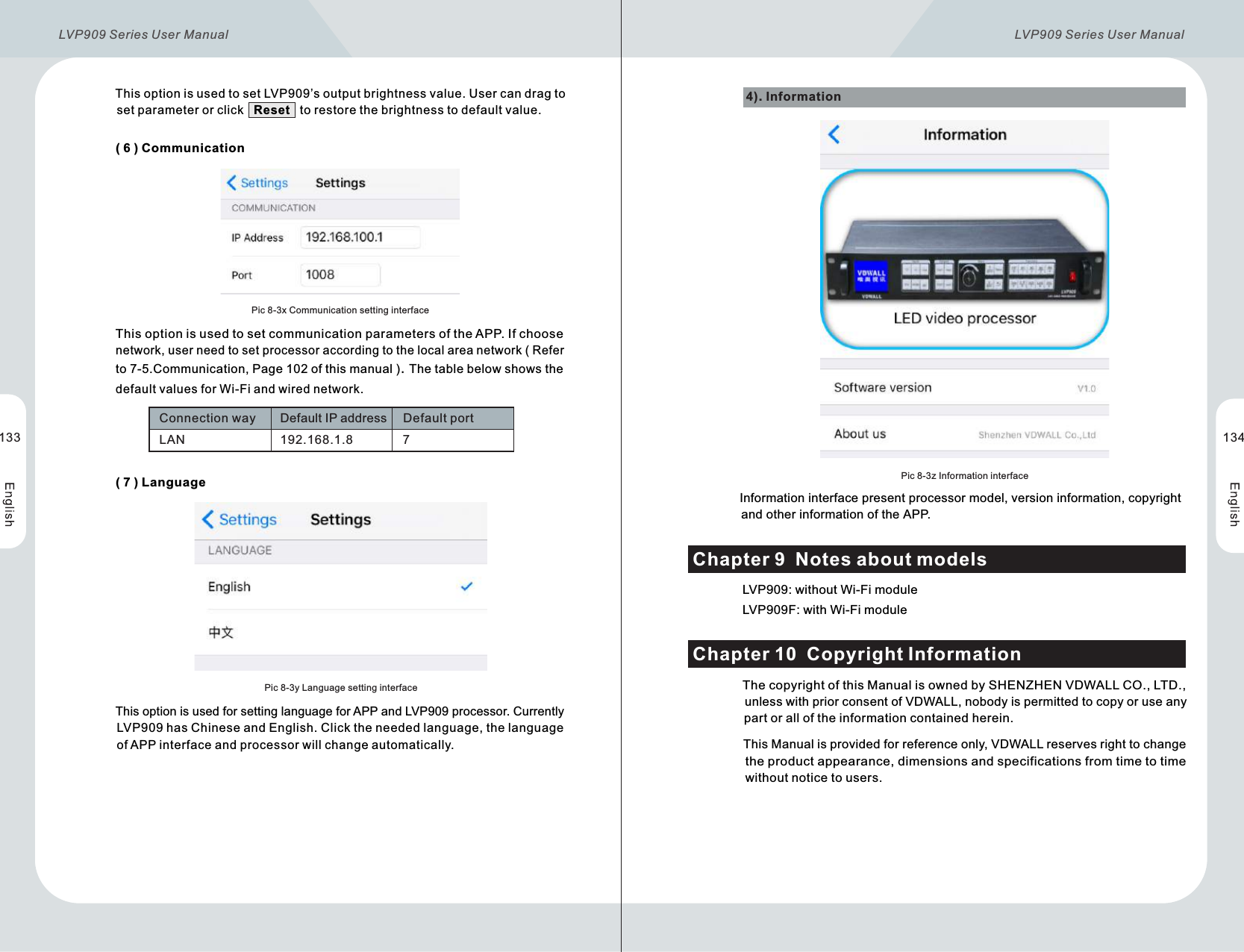

( 6 ) CommunicationPic 8-3x Communication setting interface This option is used to set communication parameters of the APP. If choose network, user need to set processor according to the local area network ( Refer to 7-5.Communication, Page 102 of this manual ). The table below shows the default values for Wi-Fi and wired network. LAN 192.168.1.8 7Connection way Default IP address Default port ( 7 ) LanguagePic 8-3y Language setting interface This option is used for setting language for APP and LVP909 processor. Currently LVP909 has Chinese and English. Click the needed language, the language of APP interface and processor will change automatically.4). Information Pic 8-3z Information interface Information interface present processor model, version information, copyright and other information of the APP. LVP909: without Wi-Fi module LVP909F: with Wi-Fi moduleChapter 9 Notes about models The copyright of this Manual is owned by SHENZHEN VDWALL CO., LTD., unless with prior consent of VDWALL, nobody is permitted to copy or use any part or all of the information contained herein. This Manual is provided for reference only, VDWALL reserves right to change the product appearance, dimensions and specifications from time to time without notice to users.Chapter 10 Copyright Information This option is used to set LVP909’s output brightness value. User can drag to set parameter or click Reset to restore the brightness to default value.133 134LVP909 Series User Manual LVP909 Series User Manual

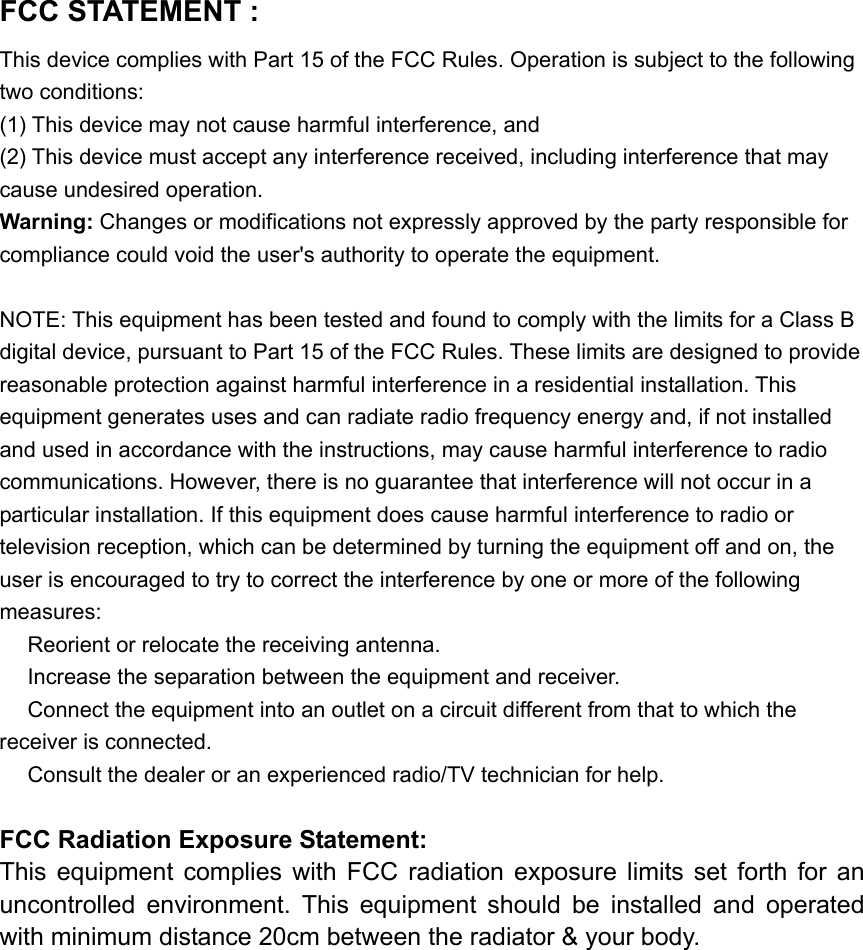

FCC STATEMENT : This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving an　tenna. Increase the separation between the equipment and receiver.　 Connect the equipment into an outlet on a circuit different from that to which the 　receiver is connected. Consult the dealer or an experienced radio/TV technician for help.　 FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
