VIDEOTEK VDT-7106 Underwater Camera System User Manual Videotek Company Limited

VIDEOTEK COMPANY LIMITED Underwater Camera System Videotek Company Limited

Contents

Manual

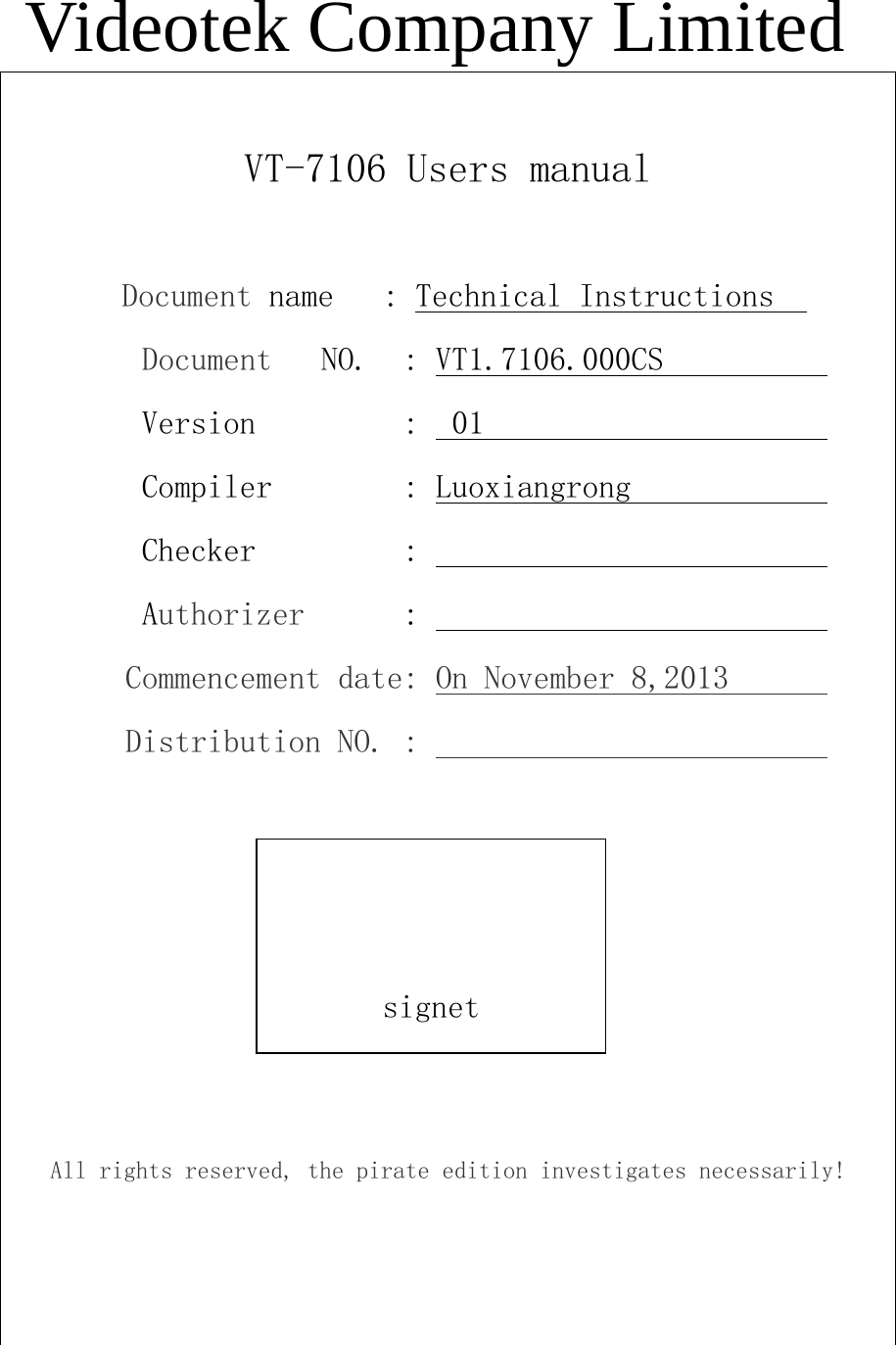

Videotek Company Limited VT-7106 Users manual Document name : Technical Instructions Document NO. : VT1.7106.000CS Version : 01 Compiler : Luoxiangrong Checker : Authorizer : Commencement date: On November 8,2013 Distribution NO. : All rights reserved, the pirate edition investigates necessarily! signet

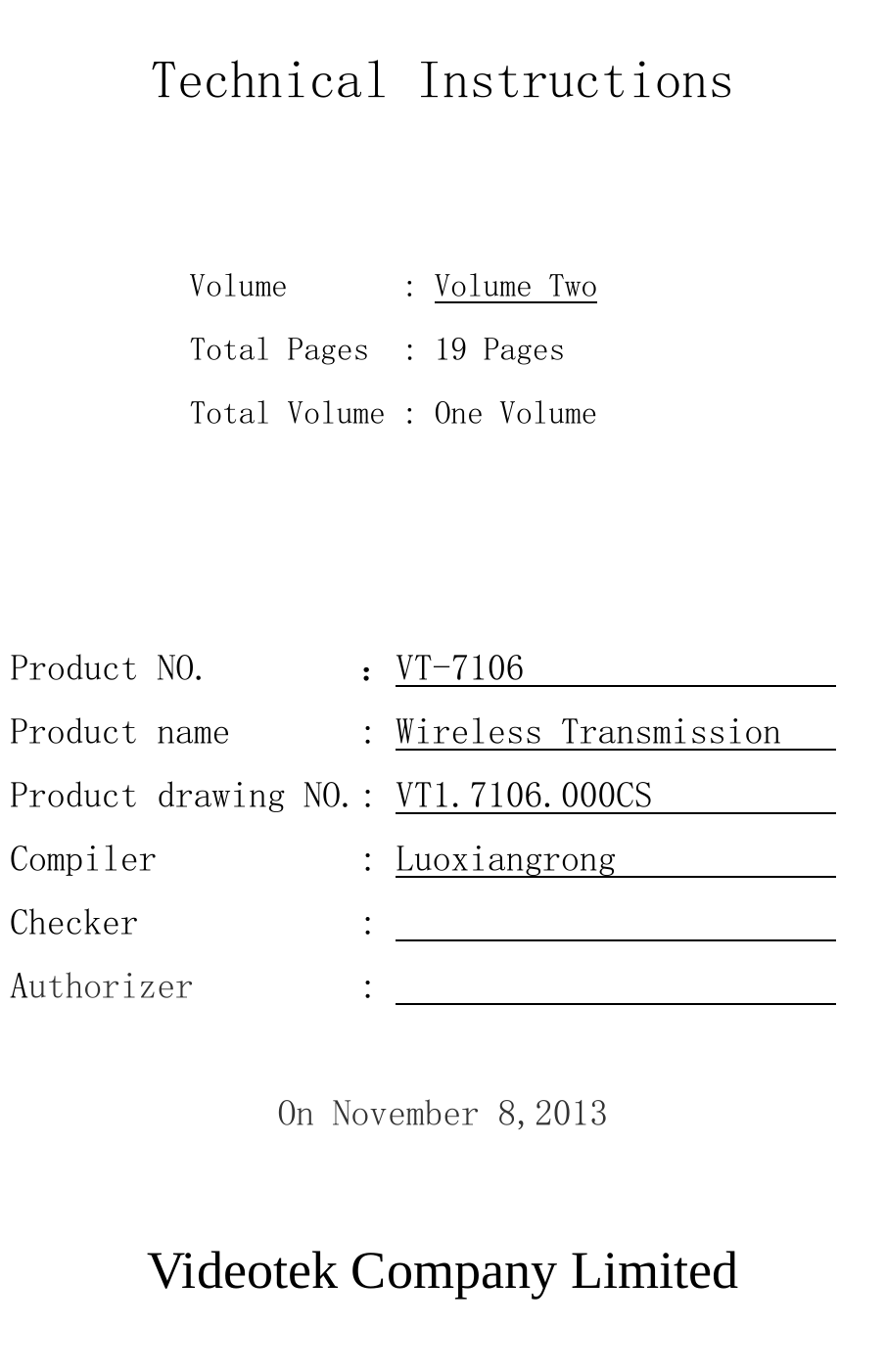

Technical Instructions Volume : Volume Two Total Pages : １９ Pages Total Volume : One Volume Product NO. ：VT-7106 Product name : Wireless Transmission Product drawing NO.: VT1.7106.000CS Compiler : Luoxiangrong Checker : Authorizer : On November 8,2013 Videotek Company Limited

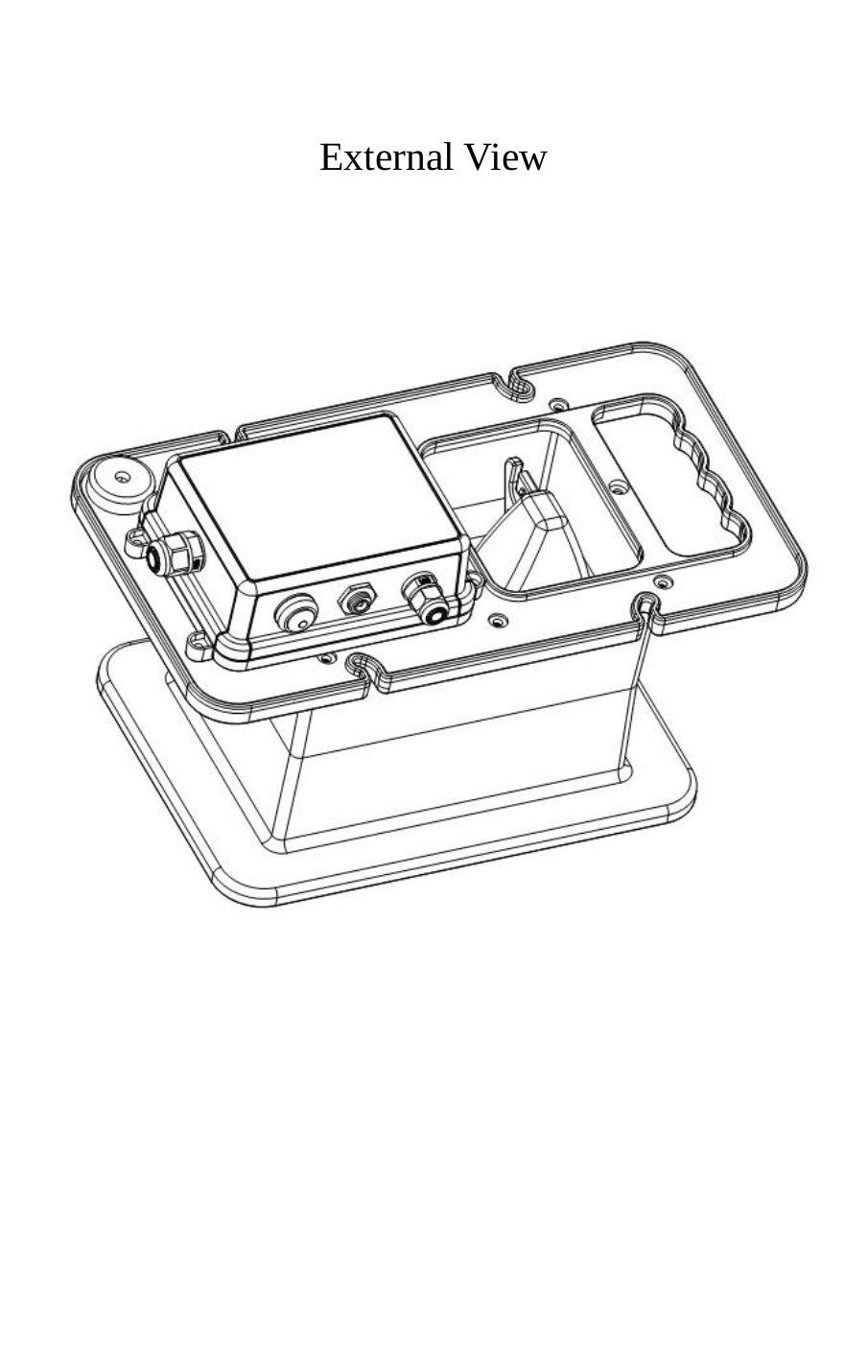

External View

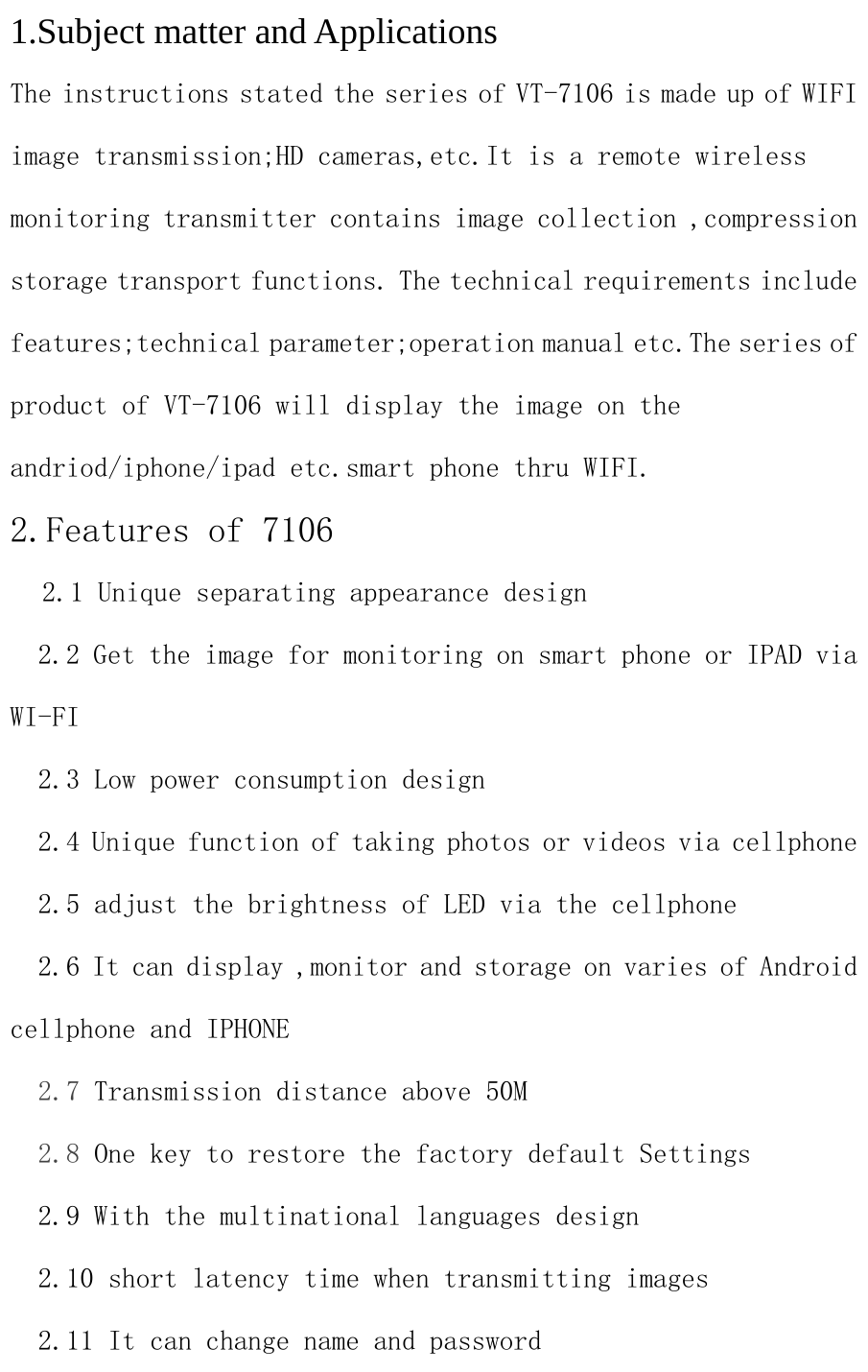

1.Subject matter and Applications The instructions stated the series of VT-7106 is made up of WIFI image transmission;HD cameras,etc.It is a remote wireless monitoring transmitter contains image collection ,compression storage transport functions. The technical requirements include features;technical parameter;operation manual etc.The series of product of VT-7106 will display the image on the andriod/iphone/ipad etc.smart phone thru WIFI. 2.Features of 7106 2.1 Unique separating appearance design 2.2 Get the image for monitoring on smart phone or IPAD via WI-FI 2.3 Low power consumption design 2.4 Unique function of taking photos or videos via cellphone 2.5 adjust the brightness of LED via the cellphone 2.6 It can display ,monitor and storage on varies of Android cellphone and IPHONE 2.7 Transmission distance above 50M 2.8 One key to restore the factory default Settings 2.9 With the multinational languages design 2.10 short latency time when transmitting images 2.11 It can change name and password
3.Technical Data Wireless transmitter It is made of super compressive engineering plastic ,high efficiency power and high resolution camera etc. 3.1 Video input:Composite Video,1V(p-p)+or-20% 75 Ohms 3.2 Dimensions:IPHONE or Android etc.Varies of smart phone 3.3 System: Above Android 2.3 or IOS 6.0 3.4 wireless parameter: Frequency range:2412-2472MHz Wireless transmit operation mode:ieee802.11b/g/n Receiving sensitivity:-88dBM Maximum power supply:(16dBM) Modulation system:OFDM 3.5 Video output: 1V(p-p)+or-20% 75 Ohms 3.6 cable length: 20M 3.7 Power supply:DC :10V-15V 3.8 Power consumption: ≤4W 3.9 Standby current:0MA 3.10 TV system：PAL/NTSC 3.11 Light button:red 3.12 Low voltage display:≤10.5V±0.5V 3.13 Waterproof standard:IP65

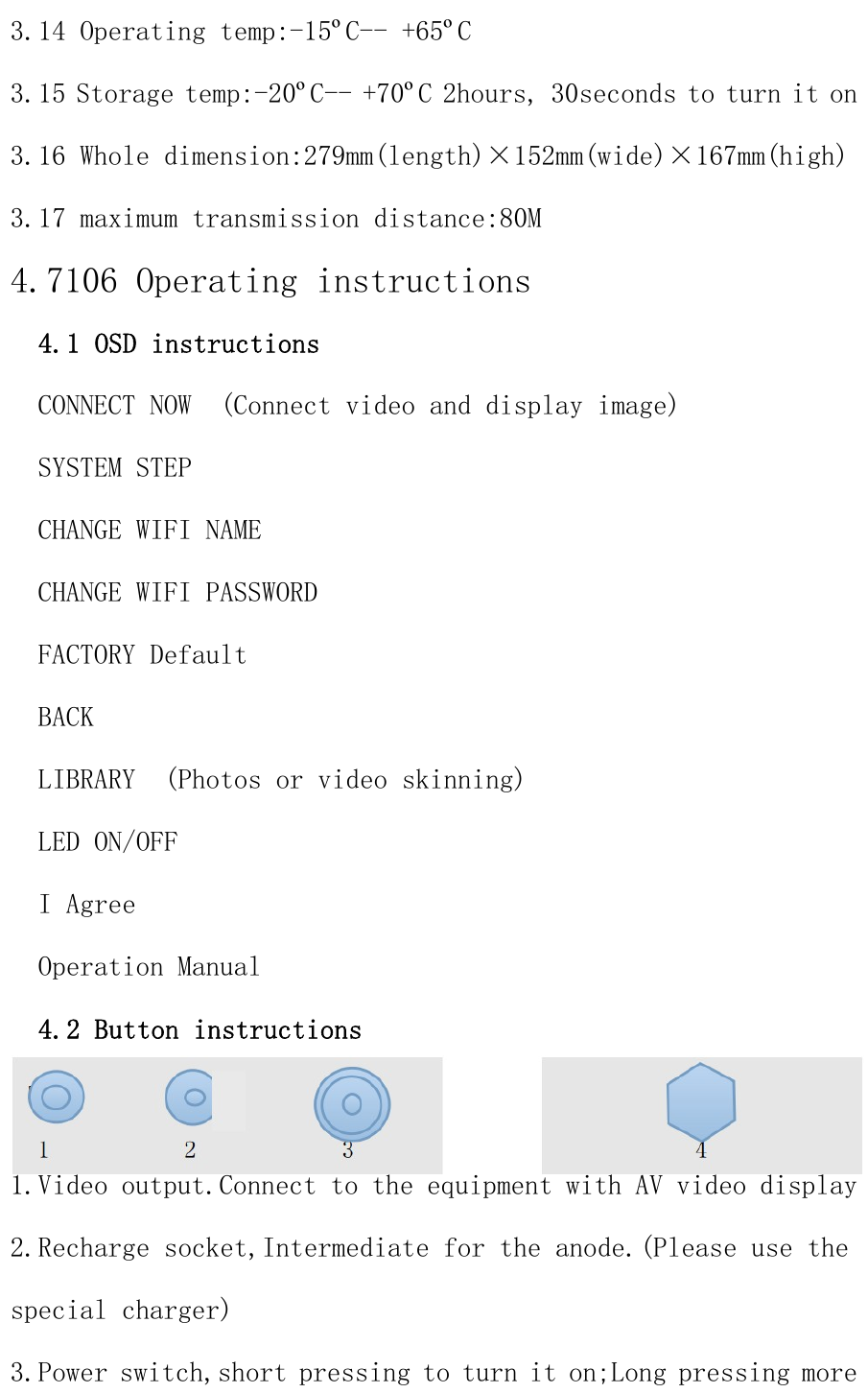

3.14 Operating temp:-15ºC-- +65ºC 3.15 Storage temp:-20ºC-- +70ºC 2hours, 30seconds to turn it on3.16 Whole dimension:279mm(length)×152mm(wide)×167mm(high) 3.17 maximum transmission distance:80M 4.7106 Operating instructions 4.1 OSD instructions CONNECT NOW (Connect video and display image) SYSTEM STEP CHANGE WIFI NAME CHANGE WIFI PASSWORD FACTORY Default BACK LIBRARY (Photos or video skinning) LED ON/OFF I Agree Operation Manual 4.2 Button instructions 1.Video output.Connect to the equipment with AV video display2.Recharge socket,Intermediate for the anode.(Please use the special charger) 3.Power switch,short pressing to turn it on;Long pressing more

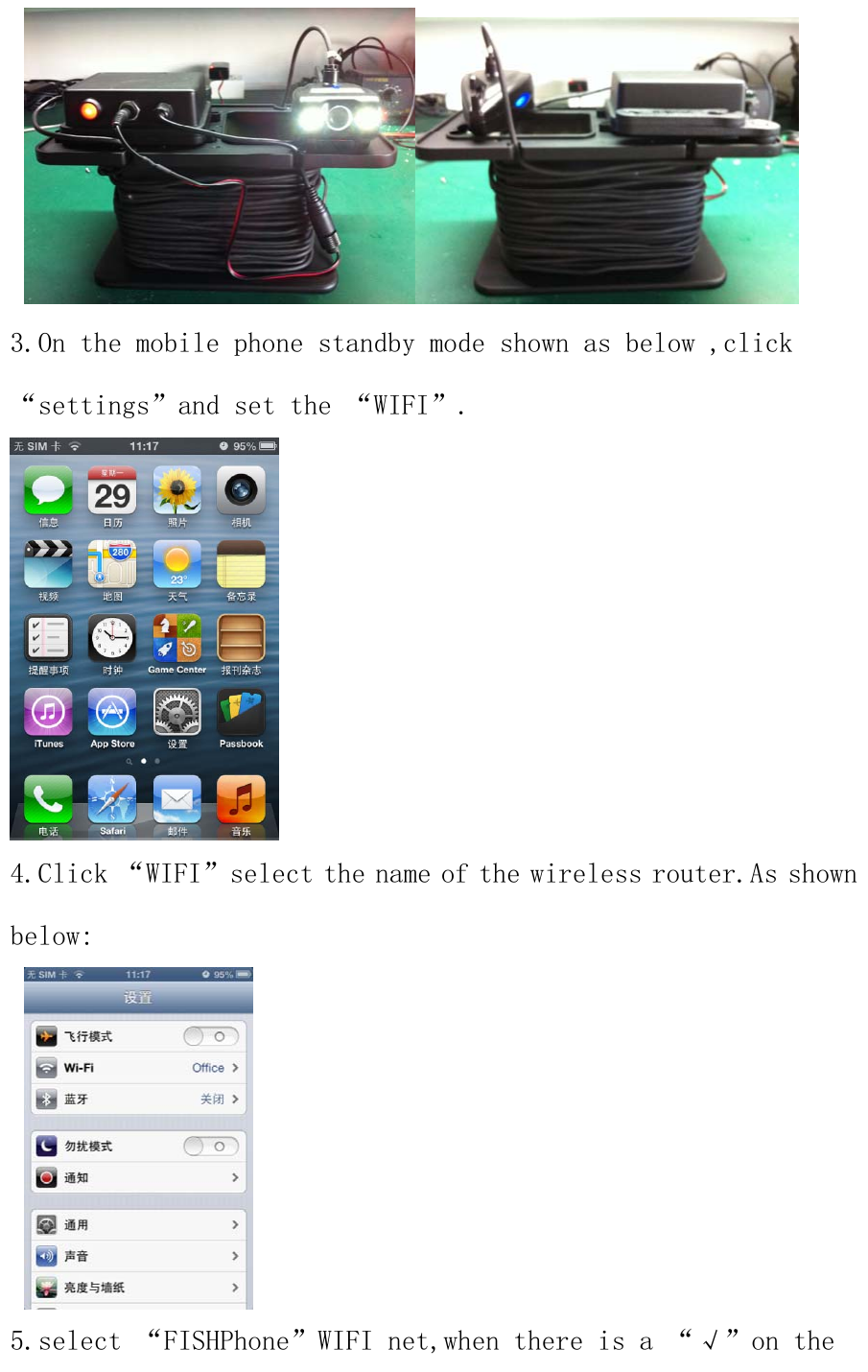

than 2 seconds to turn it off;3times short pressing to reset.4.Video port.To connect the video with varies of same ports. 4.3 FISHphone WIFI wireless monitoring operation manual 1.Make sure the camera have connected with the WIFI equipment.As shown below: 2.turn on the power of WIFI equipment,the equipment include a rechargeable battery,when insert the special charger in the DC socket,it will work by recharge.A full battery can work more than 8 hours.(remark:one time pressing turn it on.more than 3 seconds pressing turn it off,three times continuous pressing reset the system.
3.On the mobile phone standby mode shown as below ,click “settings”and set the “WIFI”. 4.Click “WIFI”select the name of the wireless router.As shown below: 5.select “FISHPhone”WIFI net,when there is a “√”on the

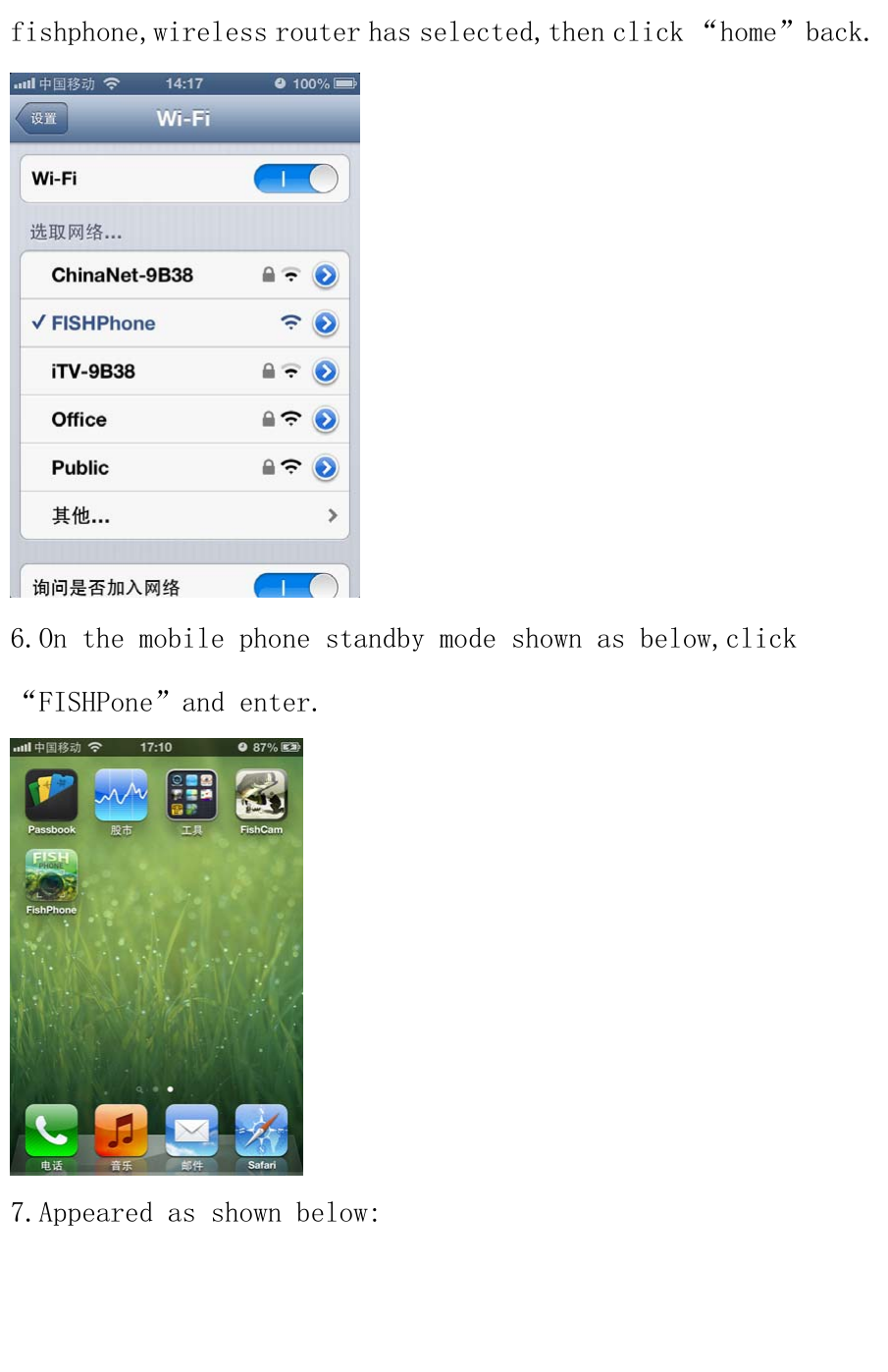

fishphone,wireless router has selected,then click “home”back. 6.On the mobile phone standby mode shown as below,click “FISHPone”and enter. 7.Appeared as shown below:

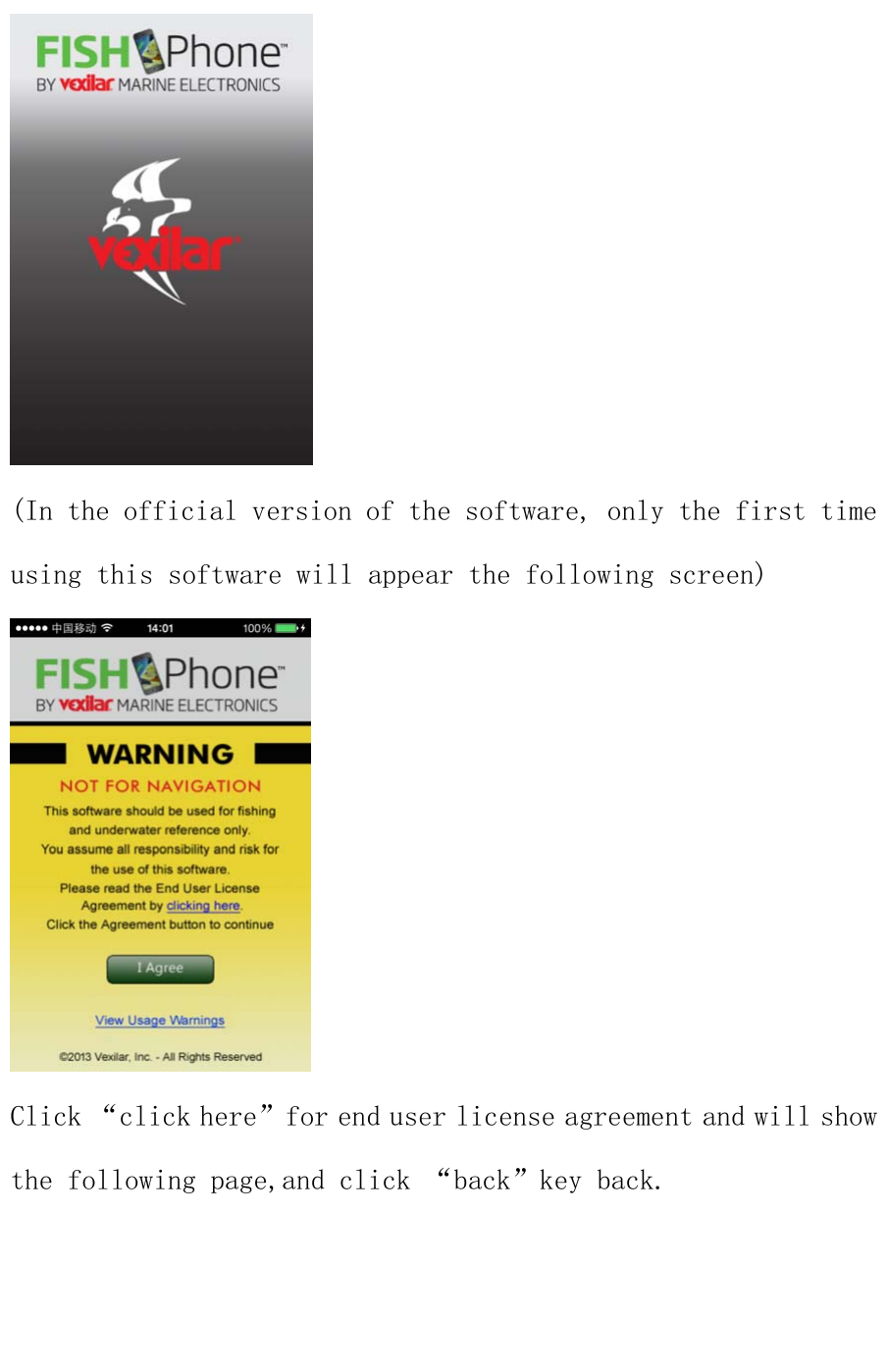

(In the official version of the software, only the first time using this software will appear the following screen) Click “click here”for end user license agreement and will show the following page,and click “back”key back.
Click “View Usage Warnings” and will turn to following page,and click “back”key back.

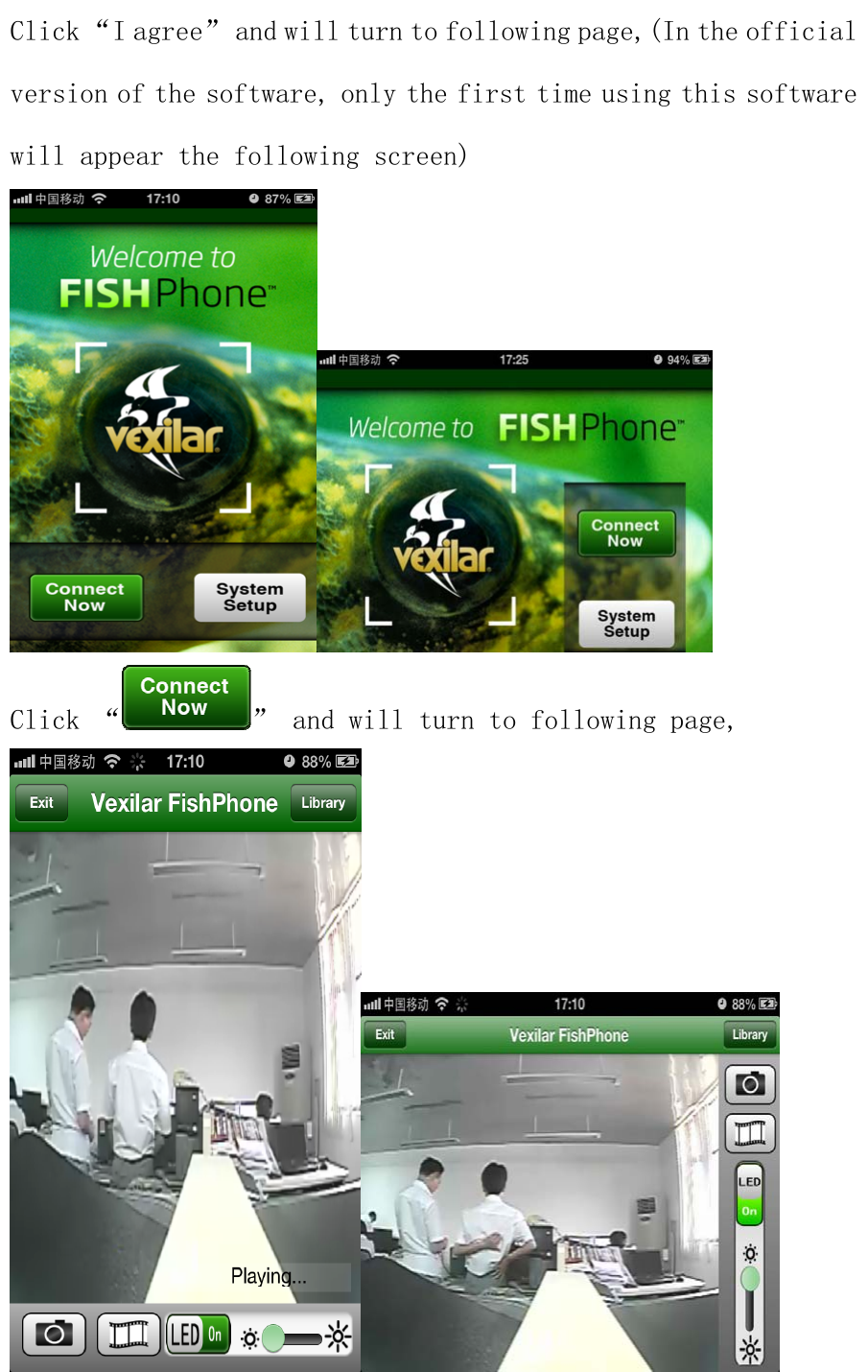

Click “I agree” and will turn to following page,(In the official version of the software, only the first time using this software will appear the following screen) Click “ ” and will turn to following page,

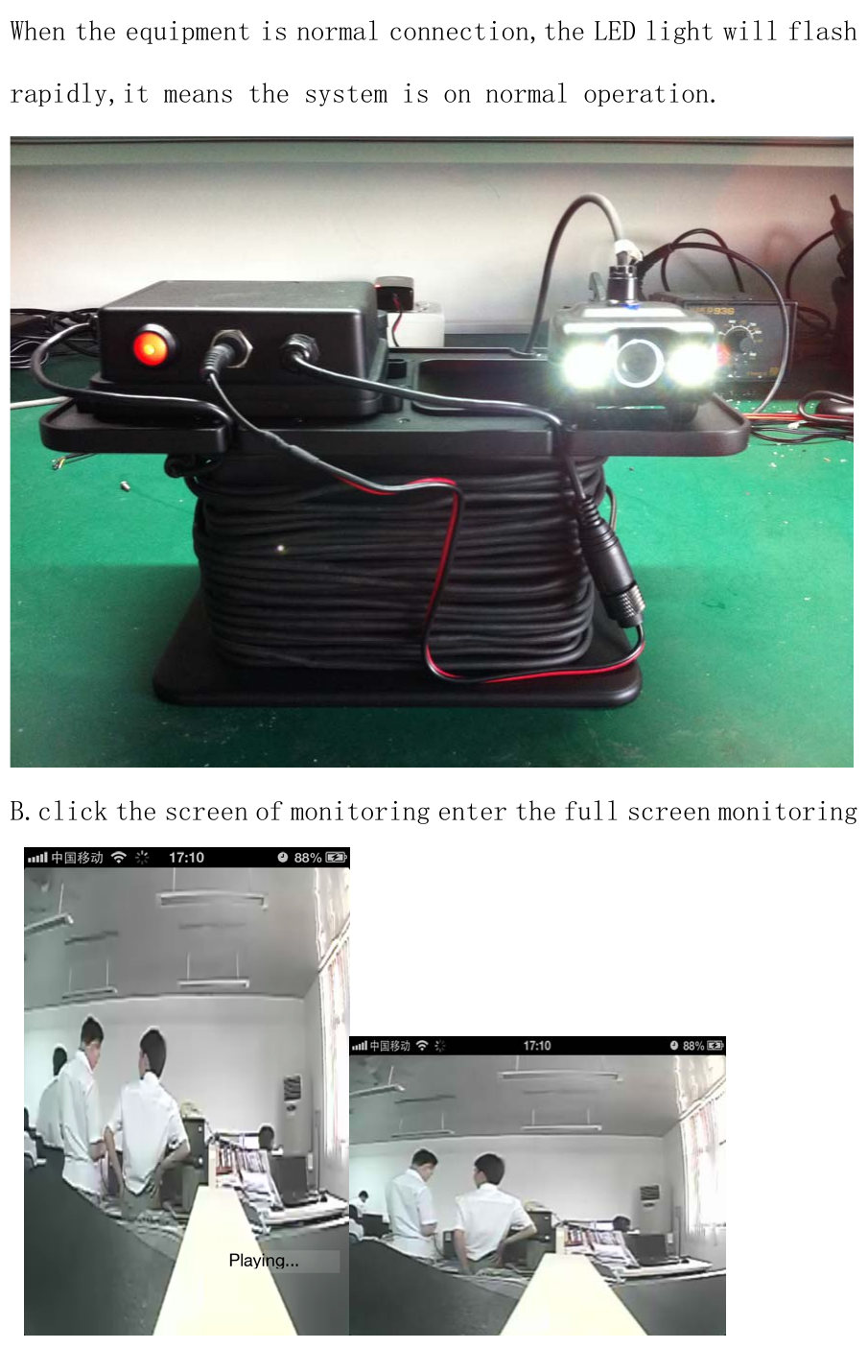

When the equipment is normal connection,the LED light will flash rapidly,it means the system is on normal operation. B.click the screen of monitoring enter the full screen monitoring

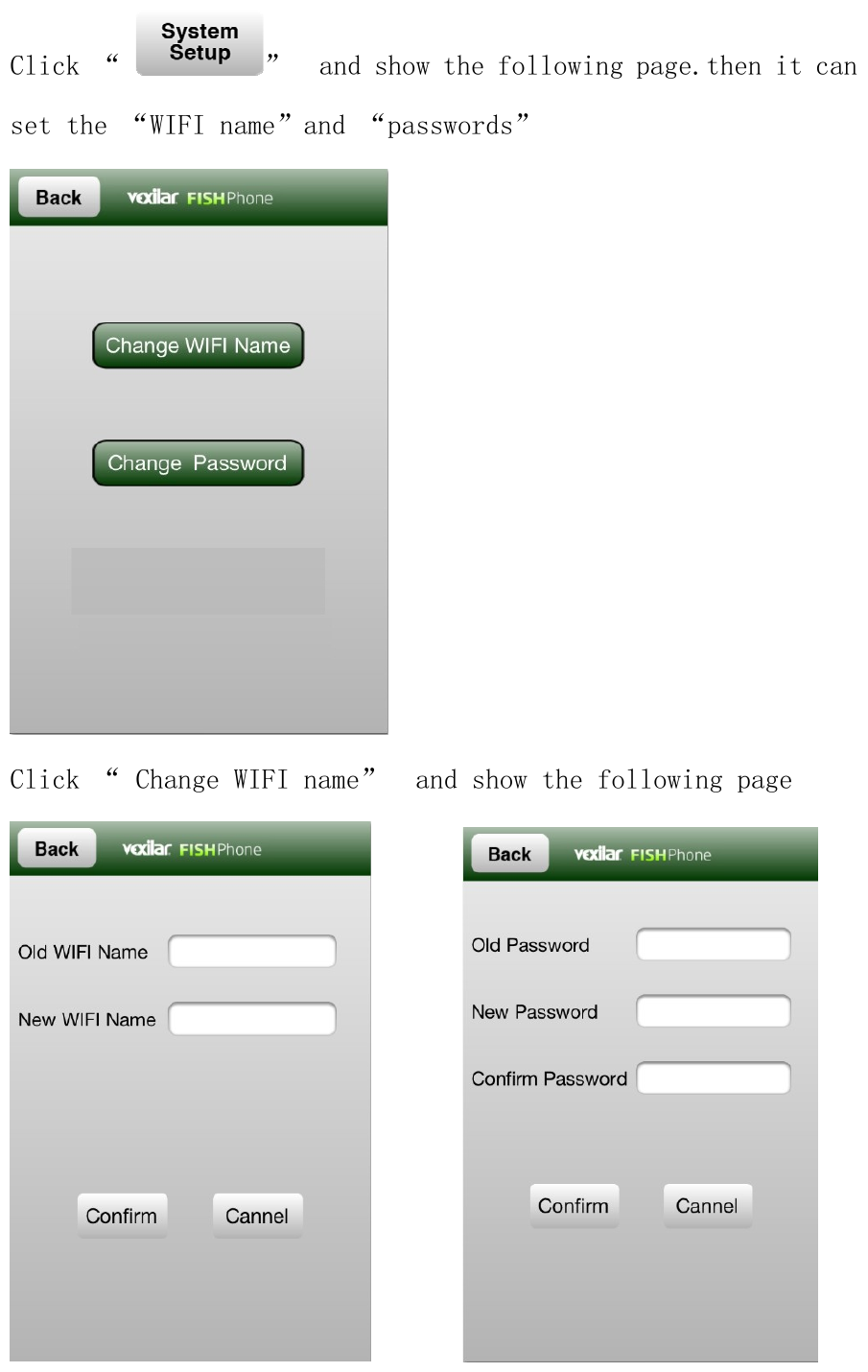

Click “ ” and show the following page.then it can set the “WIFI name”and “passwords” Click “ Change WIFI name” and show the following page

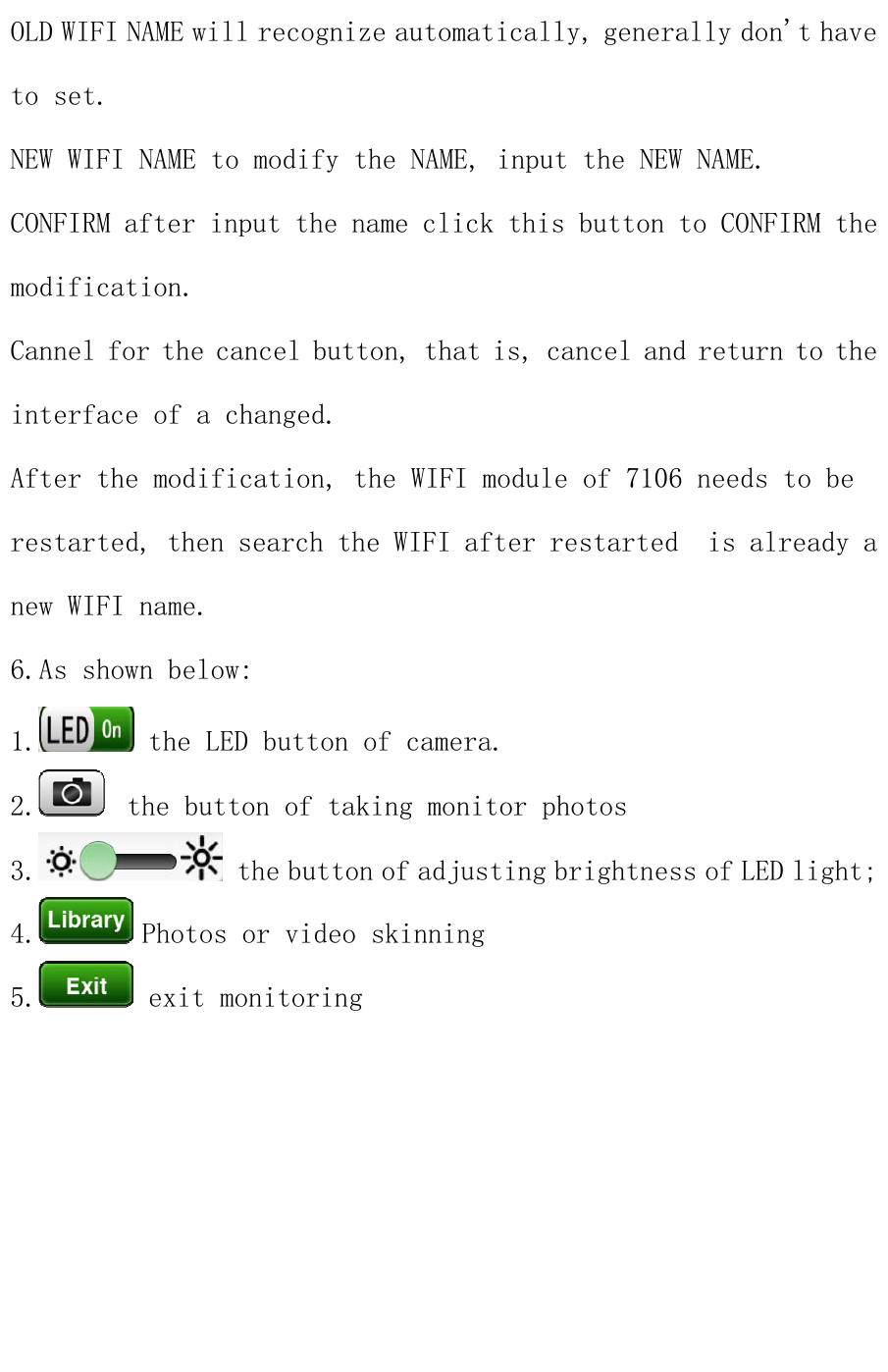

OLD WIFI NAME will recognize automatically, generally don't have to set. NEW WIFI NAME to modify the NAME, input the NEW NAME. CONFIRM after input the name click this button to CONFIRM the modification. Cannel for the cancel button, that is, cancel and return to the interface of a changed. After the modification, the WIFI module of 7106 needs to be restarted, then search the WIFI after restarted is already a new WIFI name. 6.As shown below: 1. the LED button of camera. 2. the button of taking monitor photos 3. the button of adjusting brightness of LED light;4. Photos or video skinning 5. exit monitoring

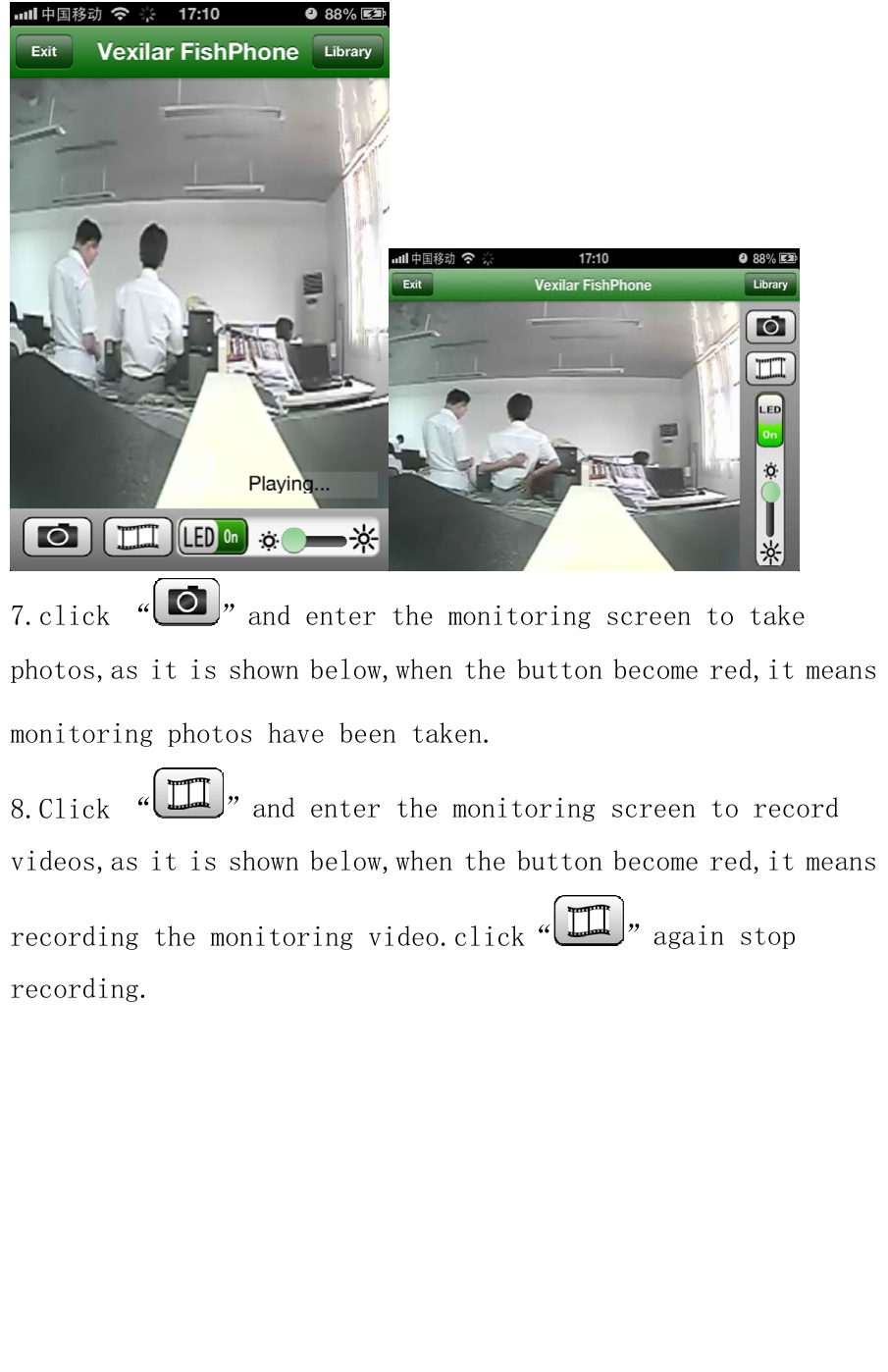

7.click “ ”and enter the monitoring screen to take photos,as it is shown below,when the button become red,it means monitoring photos have been taken. 8.Click “ ”and enter the monitoring screen to record videos,as it is shown below,when the button become red,it means recording the monitoring video.click“ ”again stop recording.

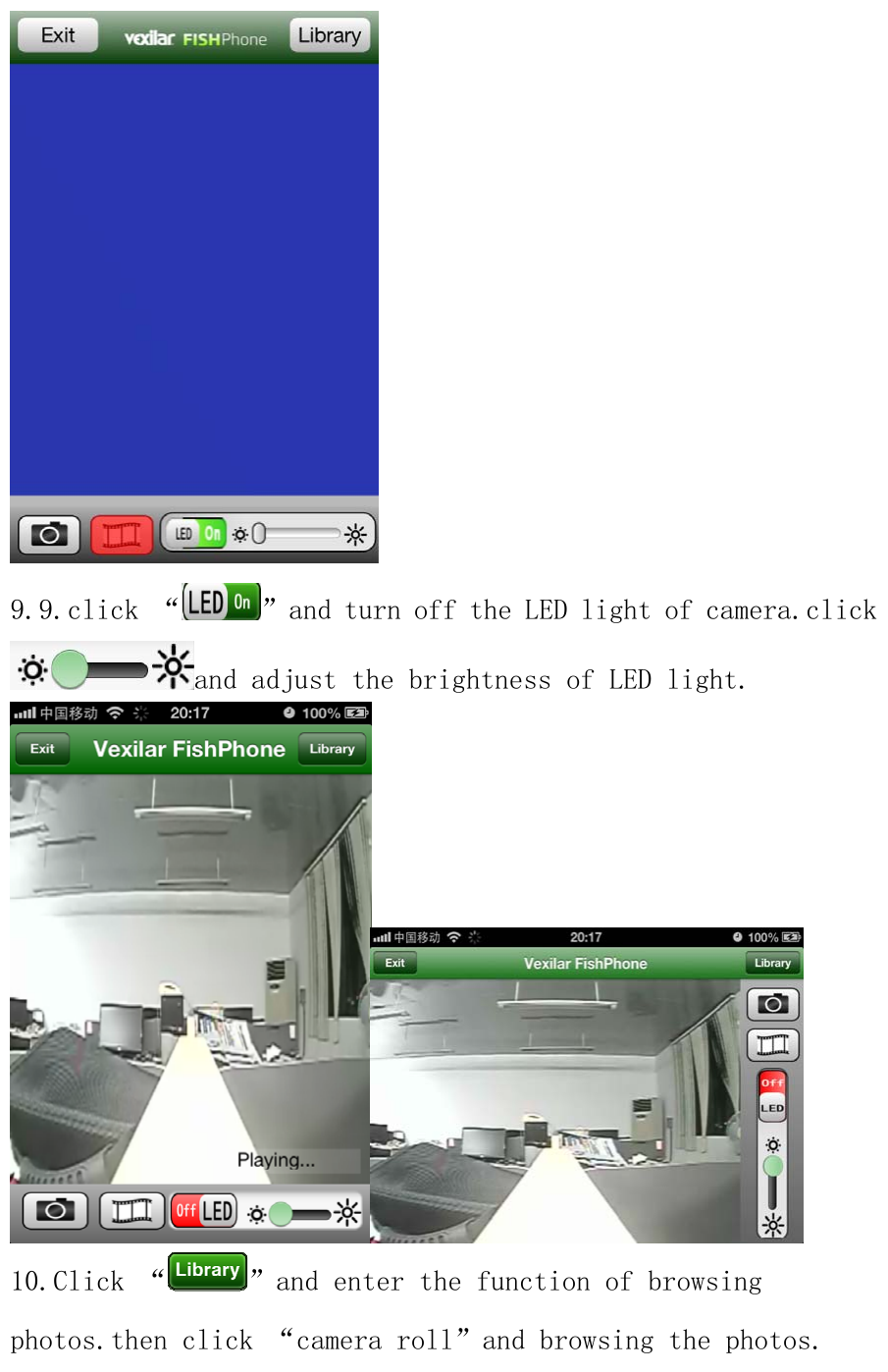

9.9.click “ ”and turn off the LED light of camera.click and adjust the brightness of LED light. 10.Click “ ”and enter the function of browsing photos.then click “camera roll”and browsing the photos.
13.click one photo and show below, Click “Cancel”back to “camera roll”interface,click “choose”back to monitoring interface.
