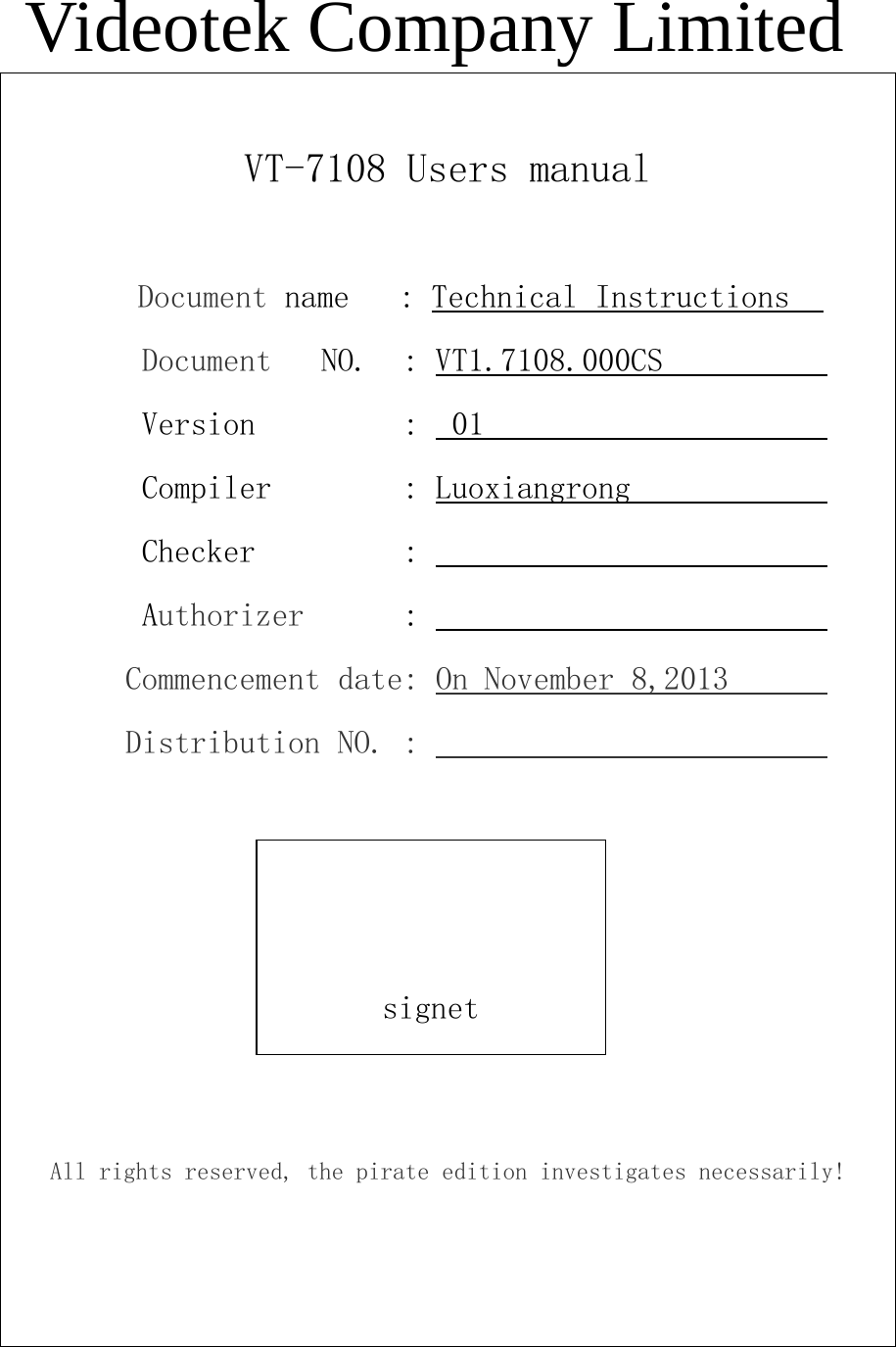

Videotek Company LimitedVT-7108 Users manualDocument name : Technical InstructionsDocument NO. : VT1.7108.000CSVersion : 01Compiler : LuoxiangrongChecker :Authorizer :Commencement date: On November 8,2013Distribution NO. :All rights reserved, the pirate edition investigates necessarily!signet
Technical InstructionsVolume : Volume TwoTotal Pages : 5 PagesTotal Volume : One VolumeProduct NO. ：VT-7108Product name : Wireless TransmissionProduct drawing NO.: VT1.7108.000CSCompiler : LuoxiangrongChecker :Authorizer :On November 8,2013Videotek Company Limited

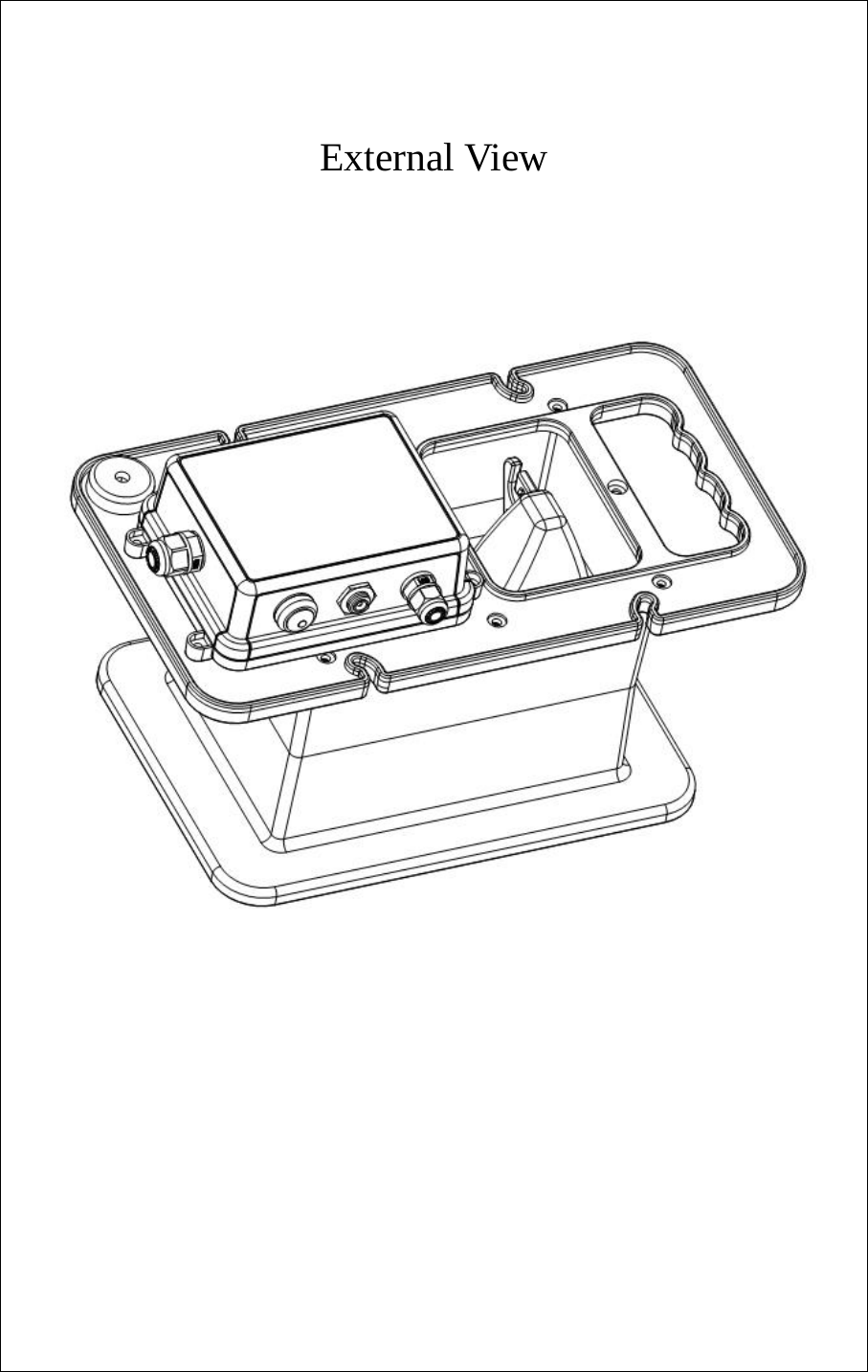

External View

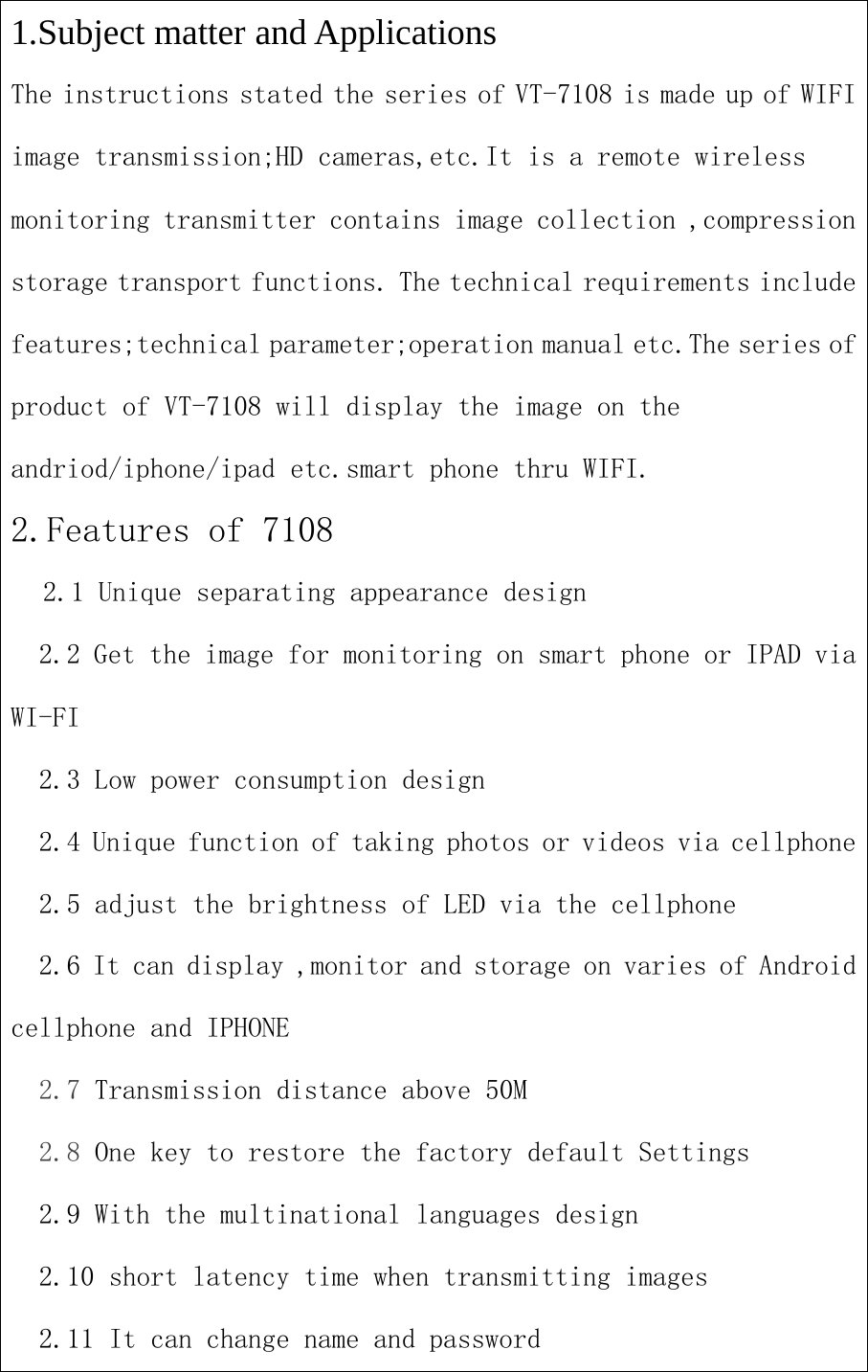

1.Subject matter and ApplicationsThe instructions stated the series of VT-7108 is made up of WIFIimage transmission;HD cameras,etc.It is a remote wirelessmonitoring transmitter contains image collection ,compressionstorage transport functions. The technical requirements includefeatures;technical parameter;operation manual etc.The series ofproduct of VT-7108 will display the image on theandriod/iphone/ipad etc.smart phone thru WIFI.2.Features of 71082.1 Unique separating appearance design2.2 Get the image for monitoring on smart phone or IPAD viaWI-FI2.3 Low power consumption design2.4 Unique function of taking photos or videos via cellphone2.5 adjust the brightness of LED via the cellphone2.6 It can display ,monitor and storage on varies of Androidcellphone and IPHONE2.7 Transmission distance above 50M2.8 One key to restore the factory default Settings2.9 With the multinational languages design2.10 short latency time when transmitting images2.11 It can change name and password

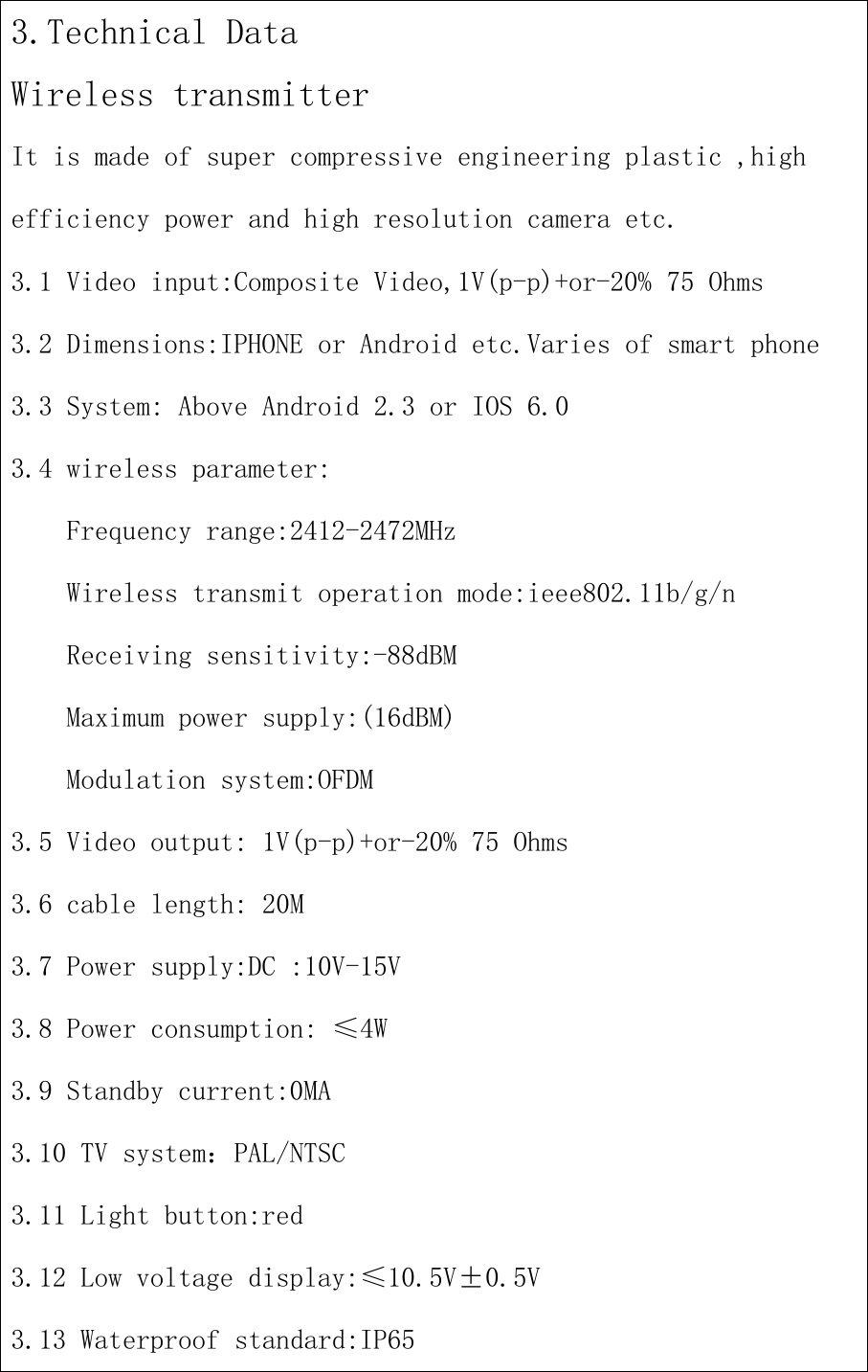

3.Technical DataWireless transmitterIt is made of super compressive engineering plastic ,highefficiency power and high resolution camera etc.3.1 Video input:Composite Video,1V(p-p)+or-20% 75 Ohms3.2 Dimensions:IPHONE or Android etc.Varies of smart phone3.3 System: Above Android 2.3 or IOS 6.03.4 wireless parameter:Frequency range:2412-2472MHzWireless transmit operation mode:ieee802.11b/g/nReceiving sensitivity:-88dBMMaximum power supply:(16dBM)Modulation system:OFDM3.5 Video output: 1V(p-p)+or-20% 75 Ohms3.6 cable length: 20M3.7 Power supply:DC :10V-15V3.8 Power consumption: ≤4W3.9 Standby current:0MA3.10 TV system：PAL/NTSC3.11 Light button:red3.12 Low voltage display:≤10.5V±0.5V3.13 Waterproof standard:IP65

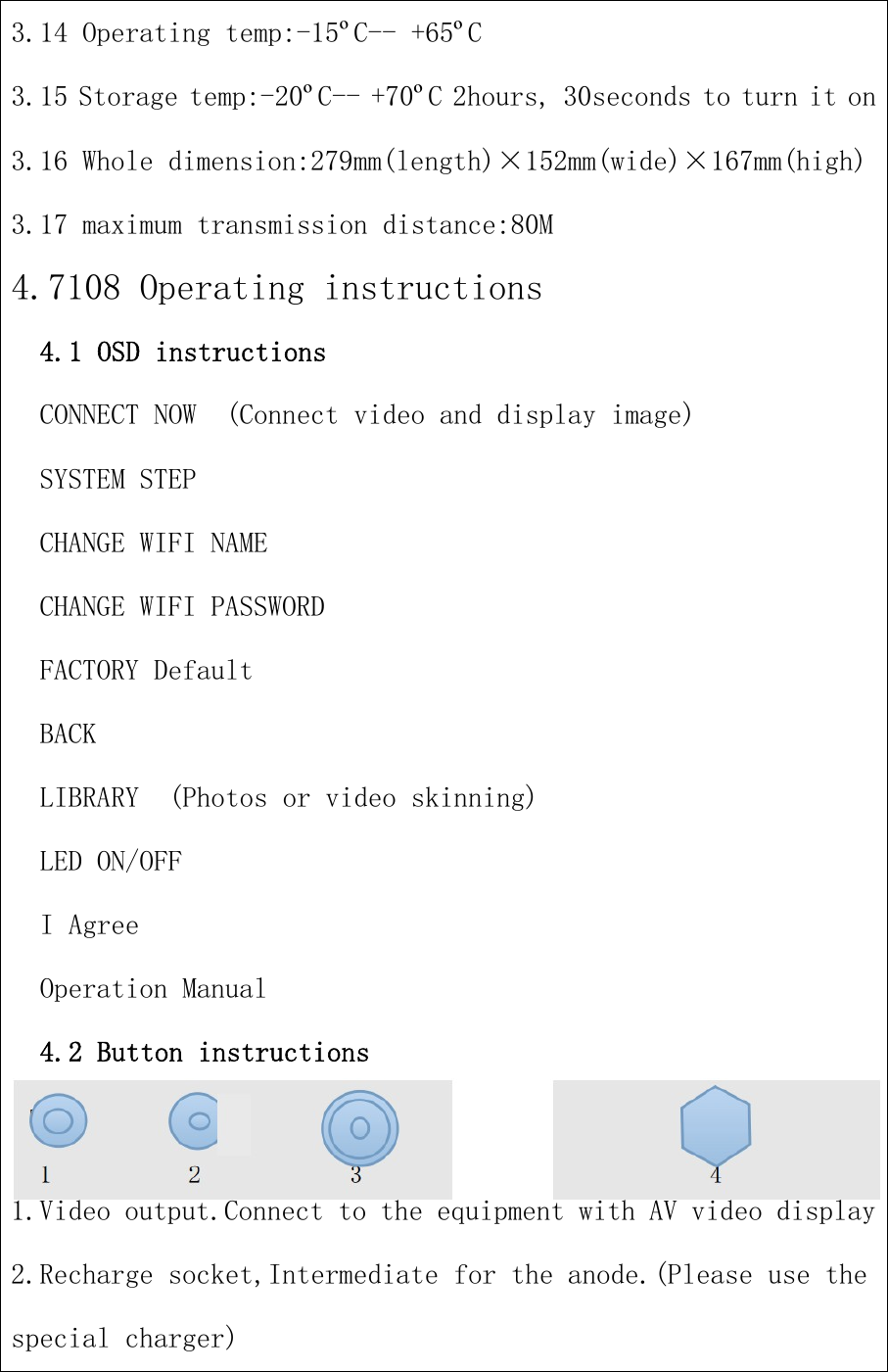

3.14 Operating temp:-15ºC-- +65ºC3.15 Storage temp:-20ºC-- +70ºC 2hours, 30seconds to turn it on3.16 Whole dimension:279mm(length)×152mm(wide)×167mm(high)3.17 maximum transmission distance:80M4.7108 Operating instructions4.1 OSD instructionsCONNECT NOW (Connect video and display image)SYSTEM STEPCHANGE WIFI NAMECHANGE WIFI PASSWORDFACTORY DefaultBACKLIBRARY (Photos or video skinning)LED ON/OFFI AgreeOperation Manual4.2 Button instructions1.Video output.Connect to the equipment with AV video display2.Recharge socket,Intermediate for the anode.(Please use thespecial charger)
3.Power switch,short pressing to turn it on;Long pressing morethan 2 seconds to turn it off;3times short pressing to reset.4.Video port.To connect the video with varies of same ports.4.3 FISHphone WIFI wireless monitoring operation manual1.Make sure the camera have connected with the WIFI equipment.Asshown below:2.turn on the power of WIFI equipment,the equipment include arechargeable battery,when insert the special charger in the DCsocket,it will work by recharge.A full battery can work more than8 hours.(remark:one time pressing turn it on.more than 3 secondspressing turn it off,three times continuous pressing reset the

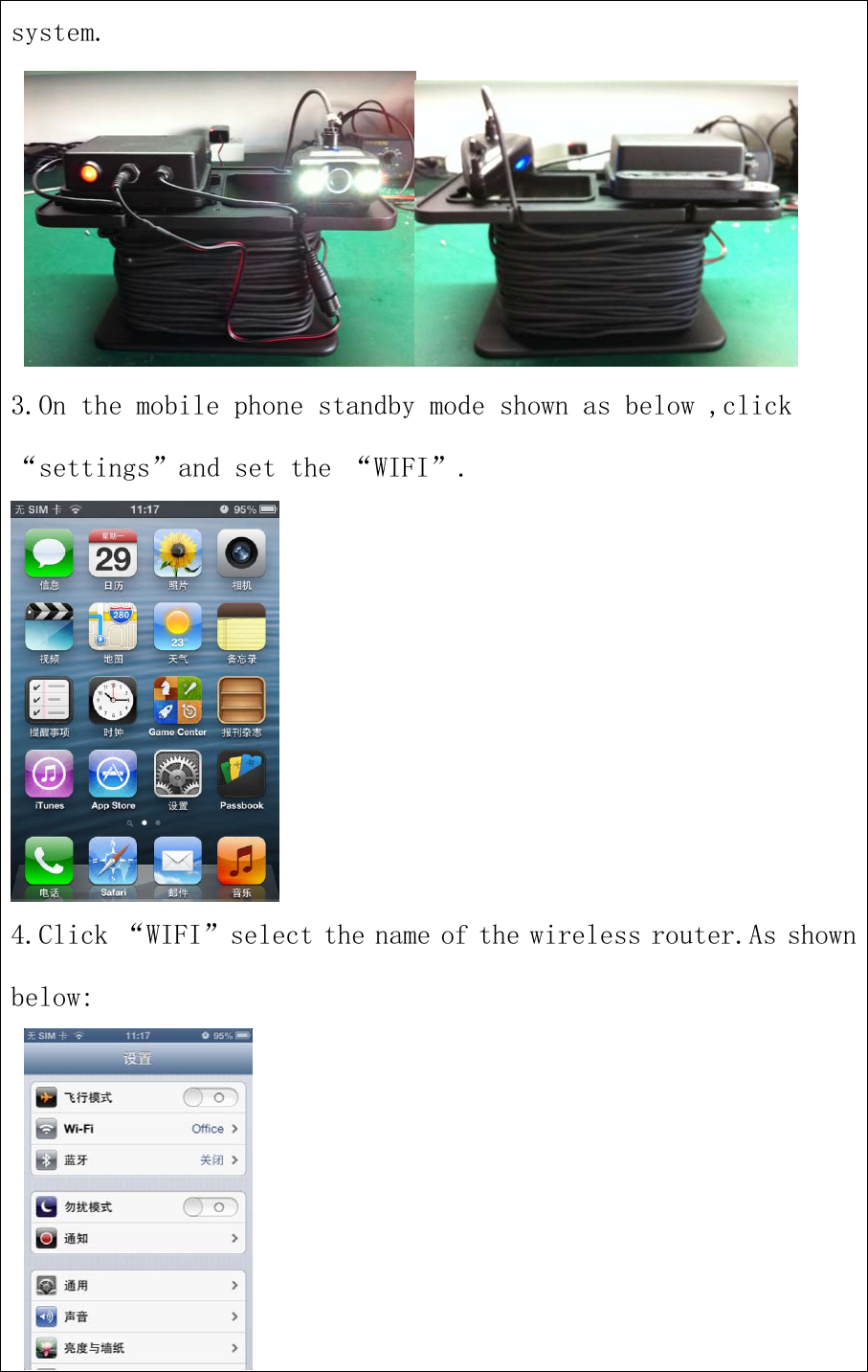

system.3.On the mobile phone standby mode shown as below ,click“settings”and set the “WIFI”.4.Click “WIFI”select the name of the wireless router.As shownbelow:

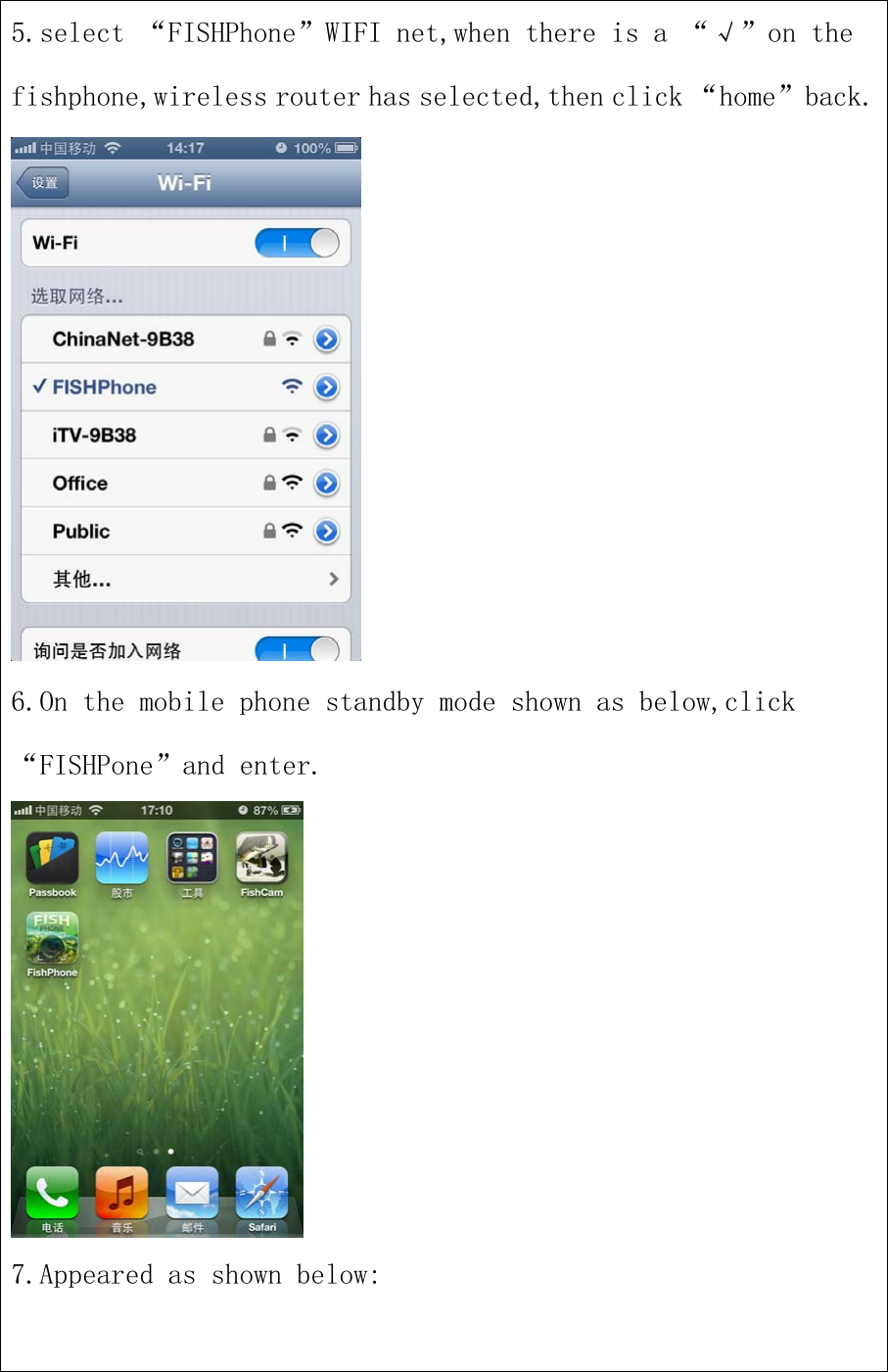

5.select “FISHPhone”WIFI net,when there is a “√”on thefishphone,wireless router has selected,then click “home”back.6.On the mobile phone standby mode shown as below,click“FISHPone”and enter.7.Appeared as shown below:

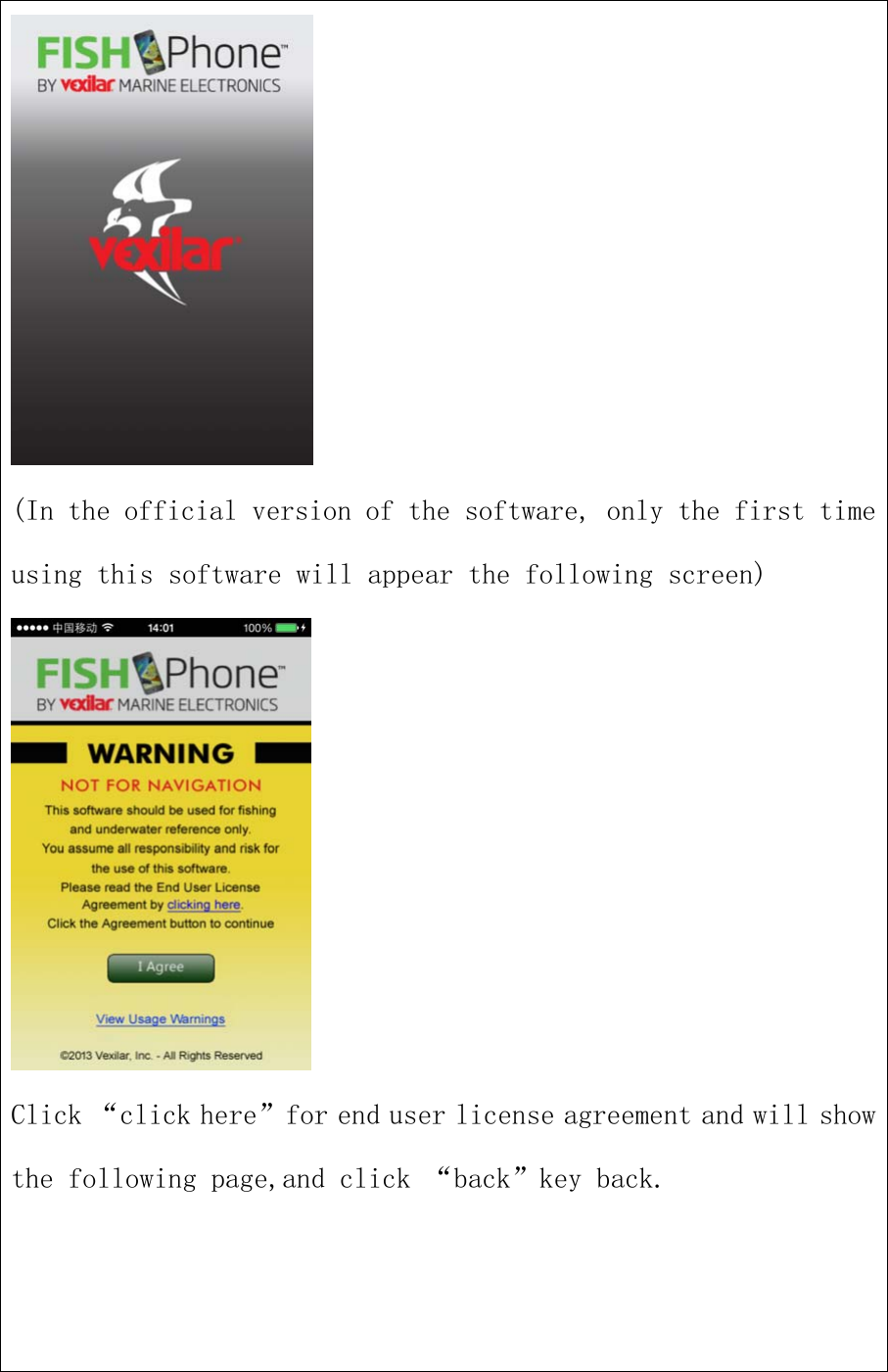

(In the official version of the software, only the first timeusing this software will appear the following screen)Click “click here”for end user license agreement and will showthe following page,and click “back”key back.

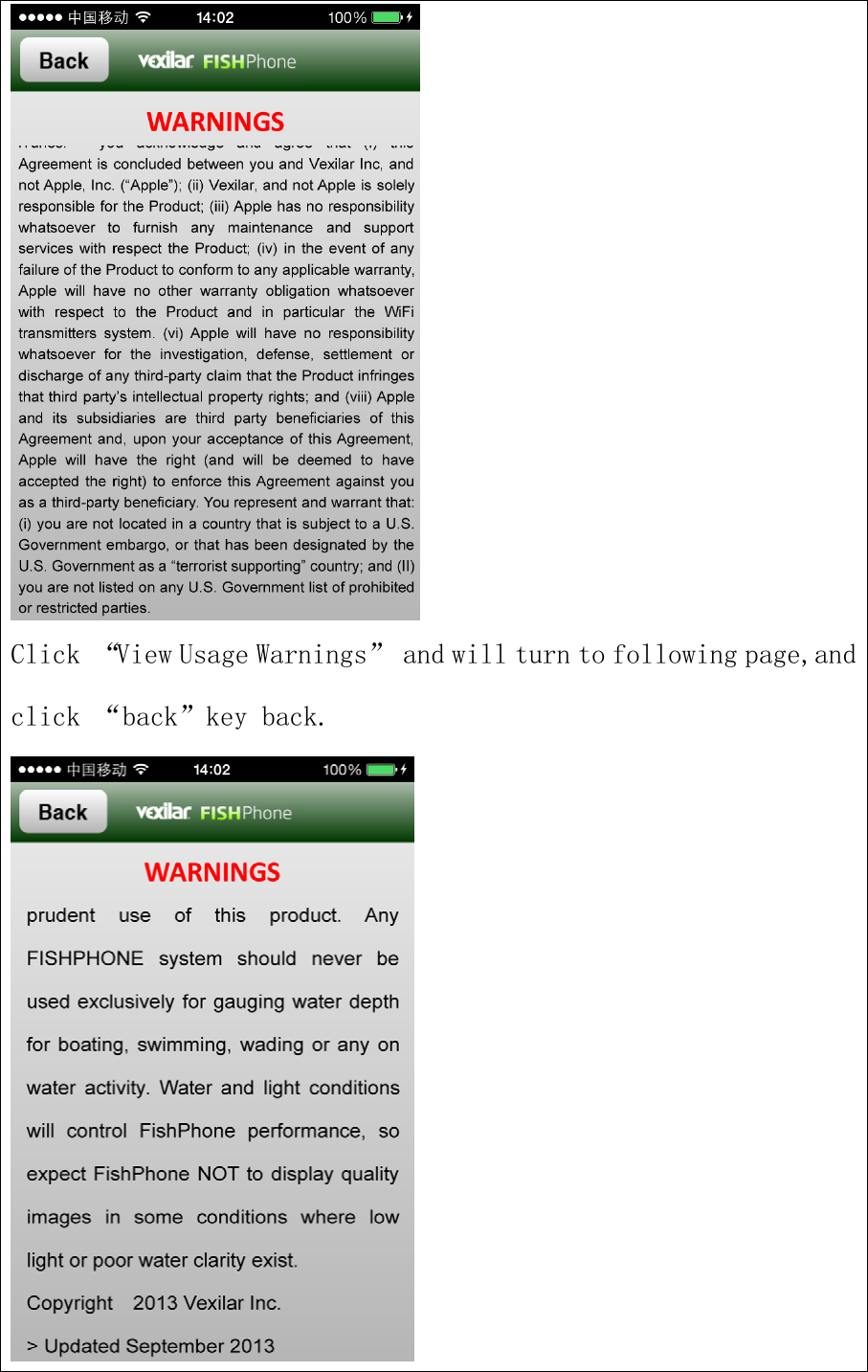

Click “View Usage Warnings” and will turn to following page,andclick “back”key back.

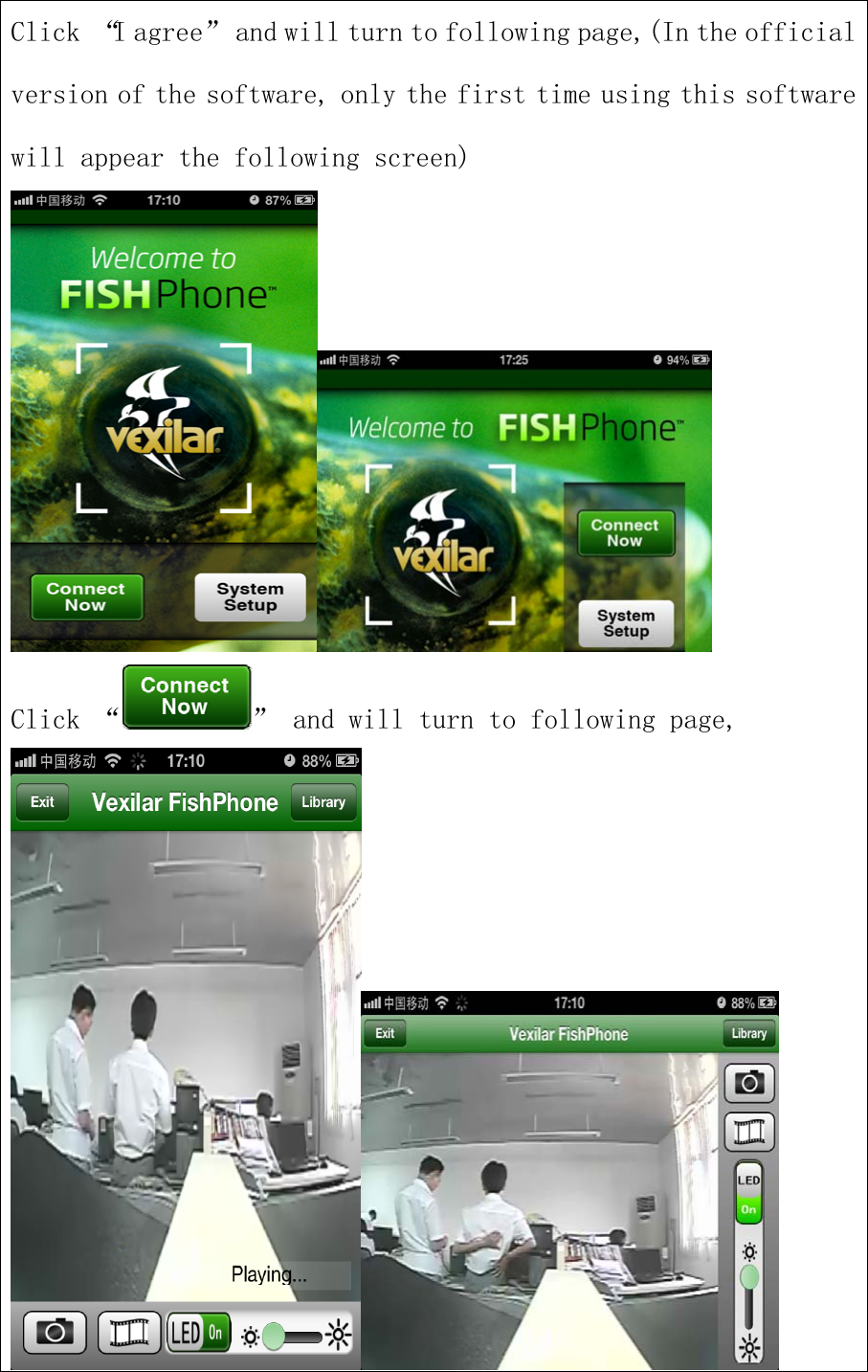

Click “I agree” and will turn to following page,(In the officialversion of the software, only the first time using this softwarewill appear the following screen)Click “ ” and will turn to following page,

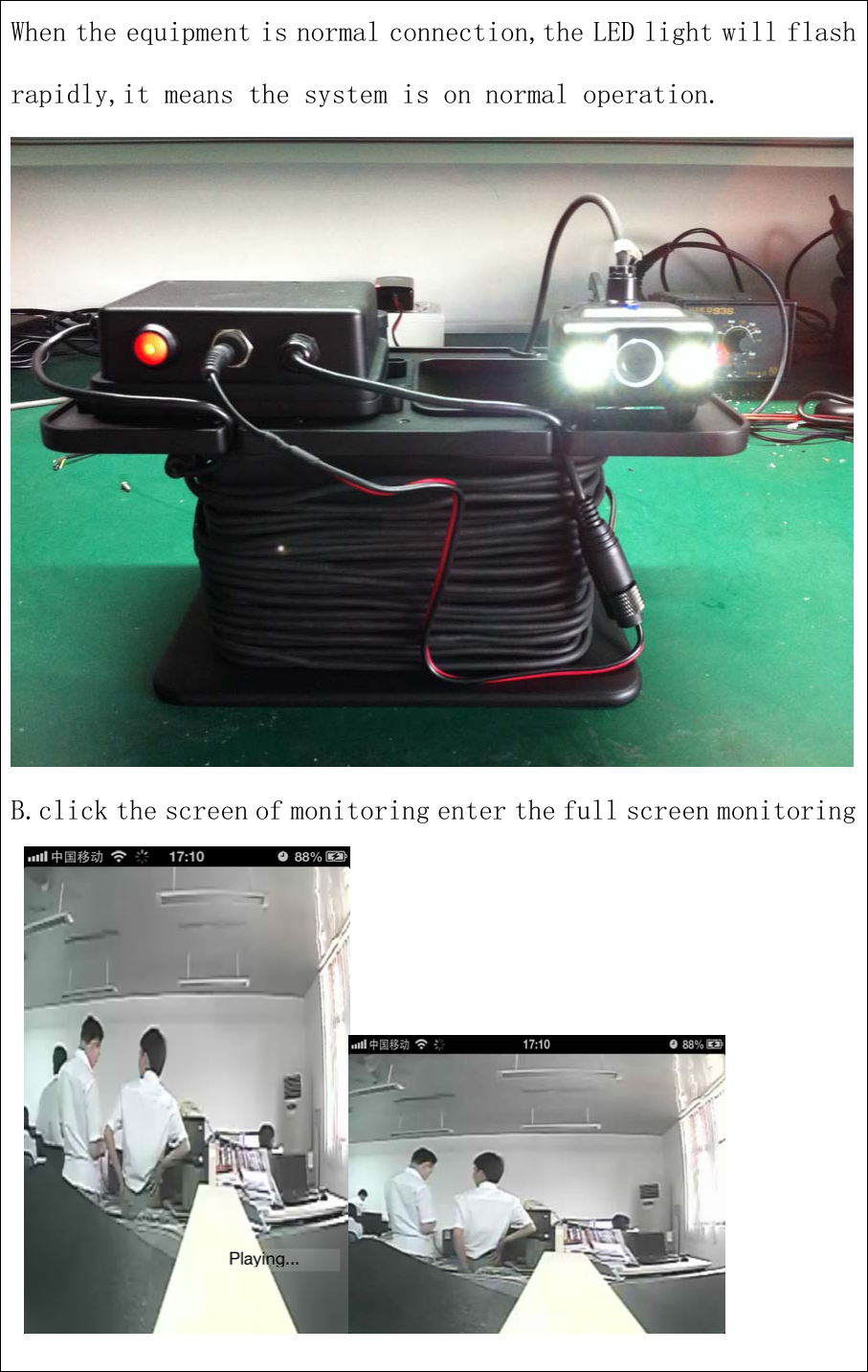

When the equipment is normal connection,the LED light will flashrapidly,it means the system is on normal operation.B.click the screen of monitoring enter the full screen monitoring

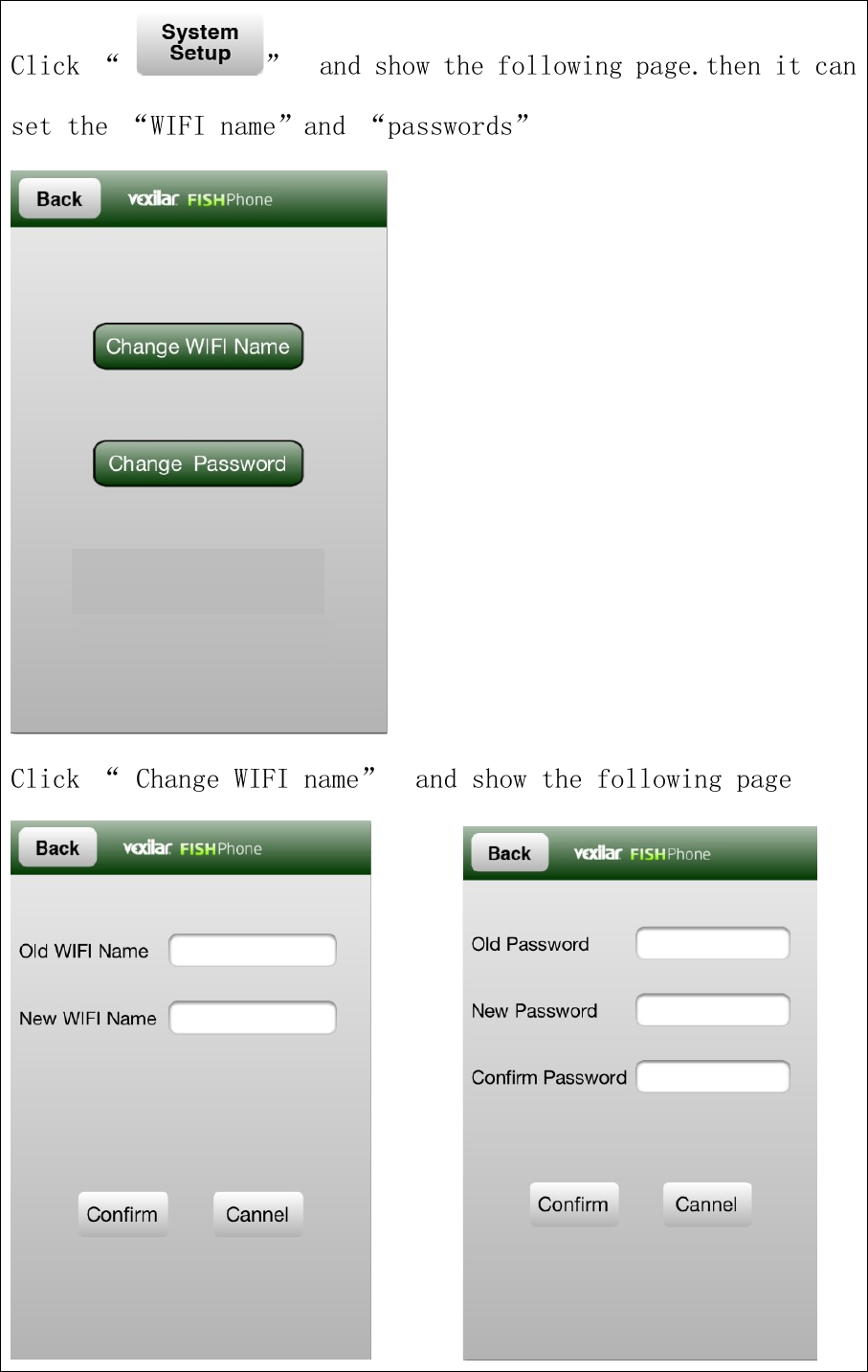

Click “ ” and show the following page.then it canset the “WIFI name”and “passwords”Click “ Change WIFI name” and show the following page

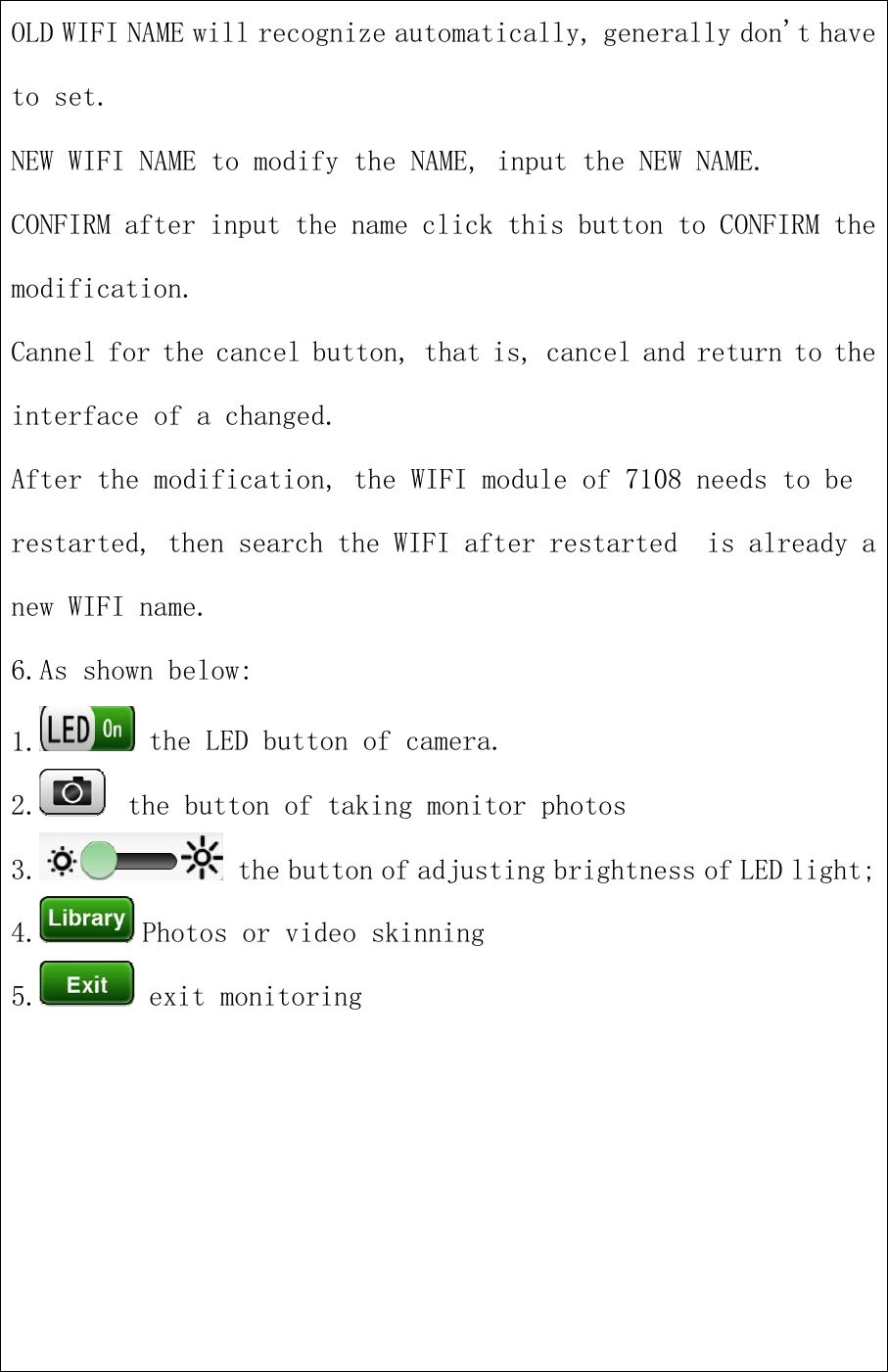

OLD WIFI NAME will recognize automatically, generally don't haveto set.NEW WIFI NAME to modify the NAME, input the NEW NAME.CONFIRM after input the name click this button to CONFIRM themodification.Cannel for the cancel button, that is, cancel and return to theinterface of a changed.After the modification, the WIFI module of 7108 needs to berestarted, then search the WIFI after restarted is already anew WIFI name.6.As shown below:1. the LED button of camera.2. the button of taking monitor photos3. the button of adjusting brightness of LED light;4. Photos or video skinning5. exit monitoring
7.click “ ”and enter the monitoring screen to takephotos,as it is shown below,when the button become red,it meansmonitoring photos have been taken.8.Click “ ”and enter the monitoring screen to recordvideos,as it is shown below,when the button become red,it meansrecording the monitoring video.click“ ”again stoprecording.

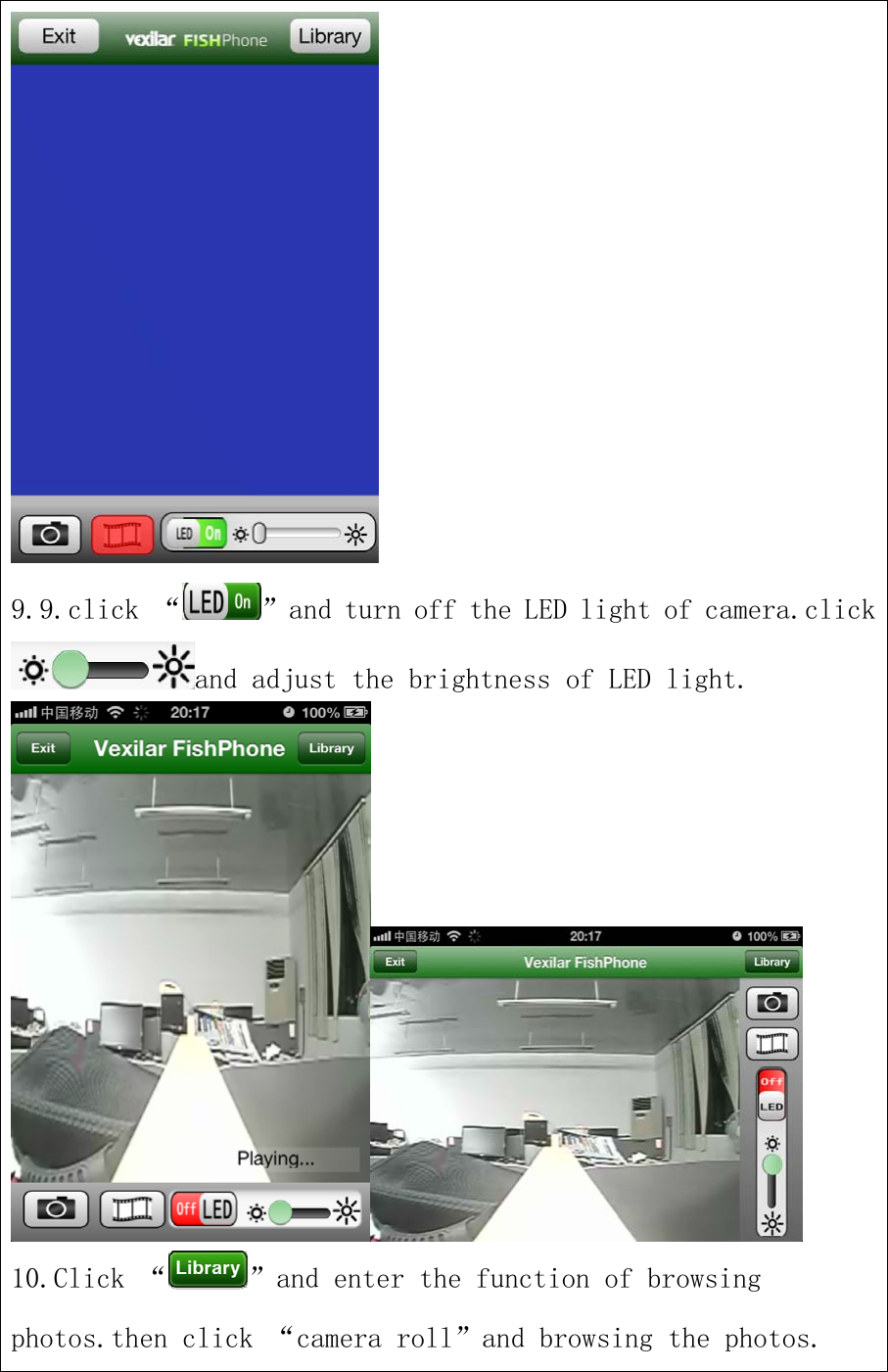

9.9.click “ ”and turn off the LED light of camera.clickand adjust the brightness of LED light.10.Click “ ”and enter the function of browsingphotos.then click “camera roll”and browsing the photos.

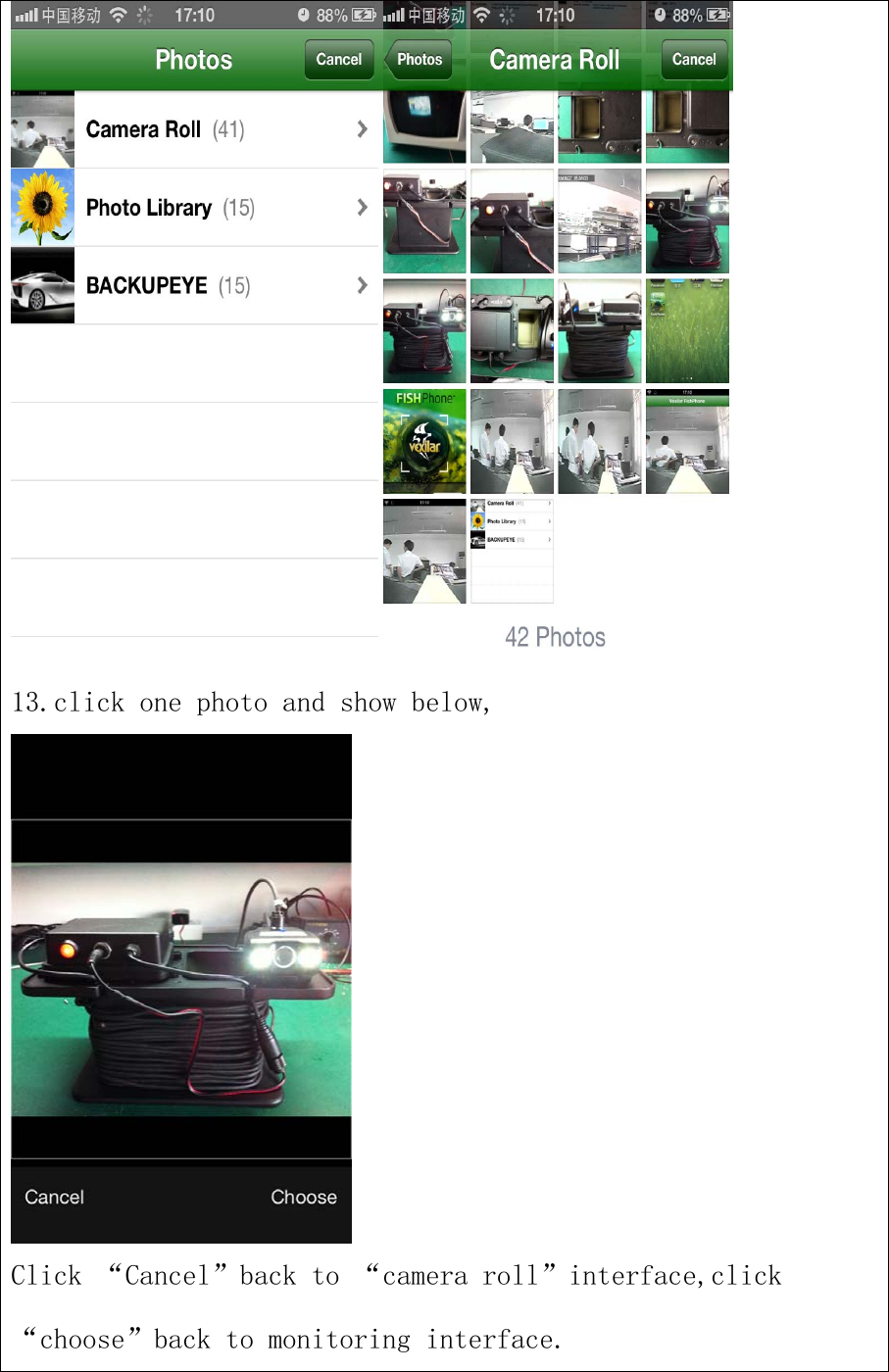

13.click one photo and show below,Click “Cancel”back to “camera roll”interface,click“choose”back to monitoring interface.
