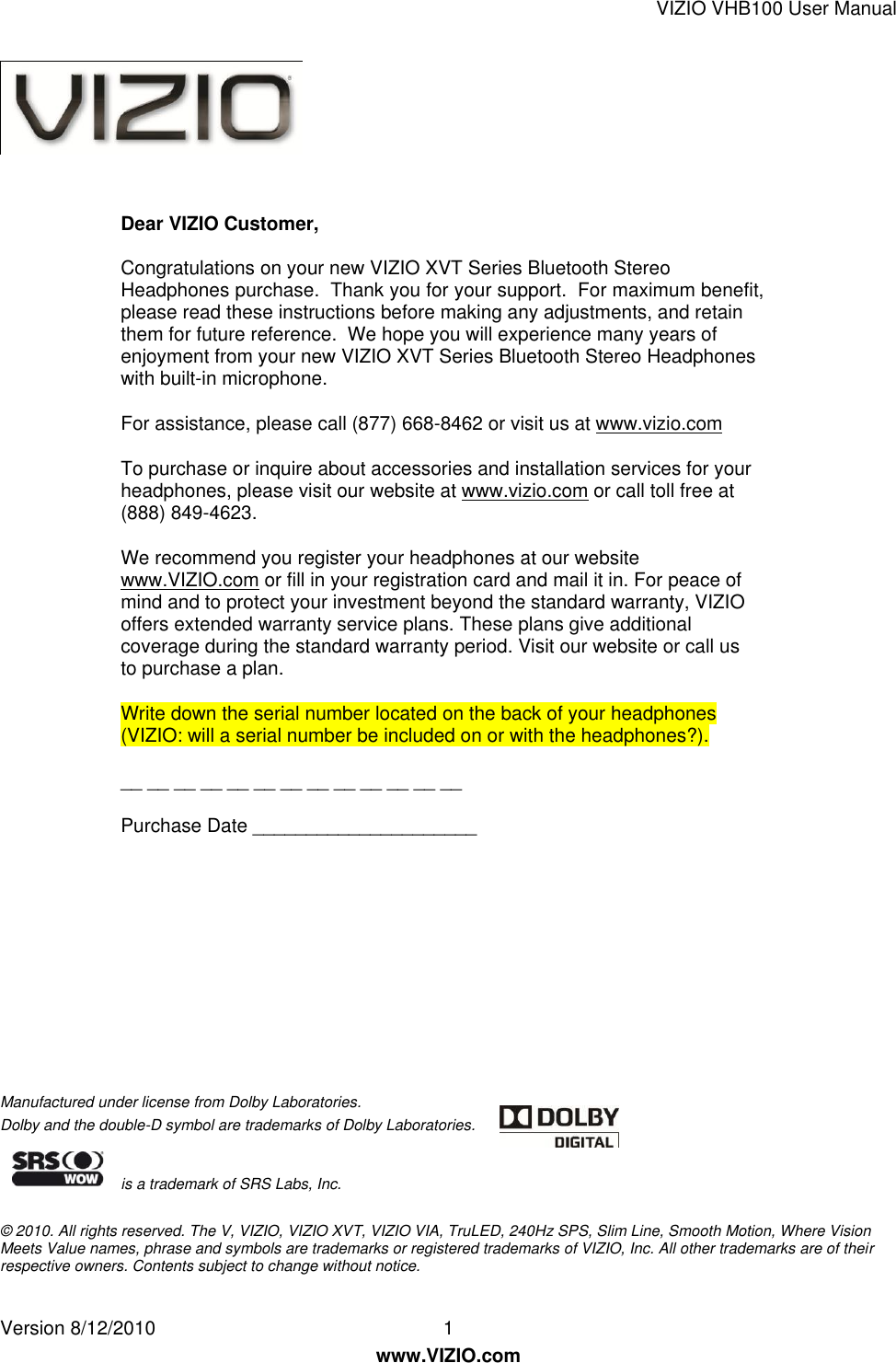

VIZIO VHB100 User Manual Version 8/12/2010 1 www.VIZIO.com Dear VIZIO Customer, Congratulations on your new VIZIO XVT Series Bluetooth Stereo Headphones purchase. Thank you for your support. For maximum benefit, please read these instructions before making any adjustments, and retain them for future reference. We hope you will experience many years of enjoyment from your new VIZIO XVT Series Bluetooth Stereo Headphones with built-in microphone. For assistance, please call (877) 668-8462 or visit us at www.vizio.com To purchase or inquire about accessories and installation services for your headphones, please visit our website at www.vizio.com or call toll free at (888) 849-4623. We recommend you register your headphones at our website www.VIZIO.com or fill in your registration card and mail it in. For peace of mind and to protect your investment beyond the standard warranty, VIZIO offers extended warranty service plans. These plans give additional coverage during the standard warranty period. Visit our website or call us to purchase a plan. Write down the serial number located on the back of your headphones (VIZIO: will a serial number be included on or with the headphones?). __ __ __ __ __ __ __ __ __ __ __ __ __ Purchase Date _____________________ Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. is a trademark of SRS Labs, Inc. © 2010. All rights reserved. The V, VIZIO, VIZIO XVT, VIZIO VIA, TruLED, 240Hz SPS, Slim Line, Smooth Motion, Where Vision Meets Value names, phrase and symbols are trademarks or registered trademarks of VIZIO, Inc. All other trademarks are of their respective owners. Contents subject to change without notice.

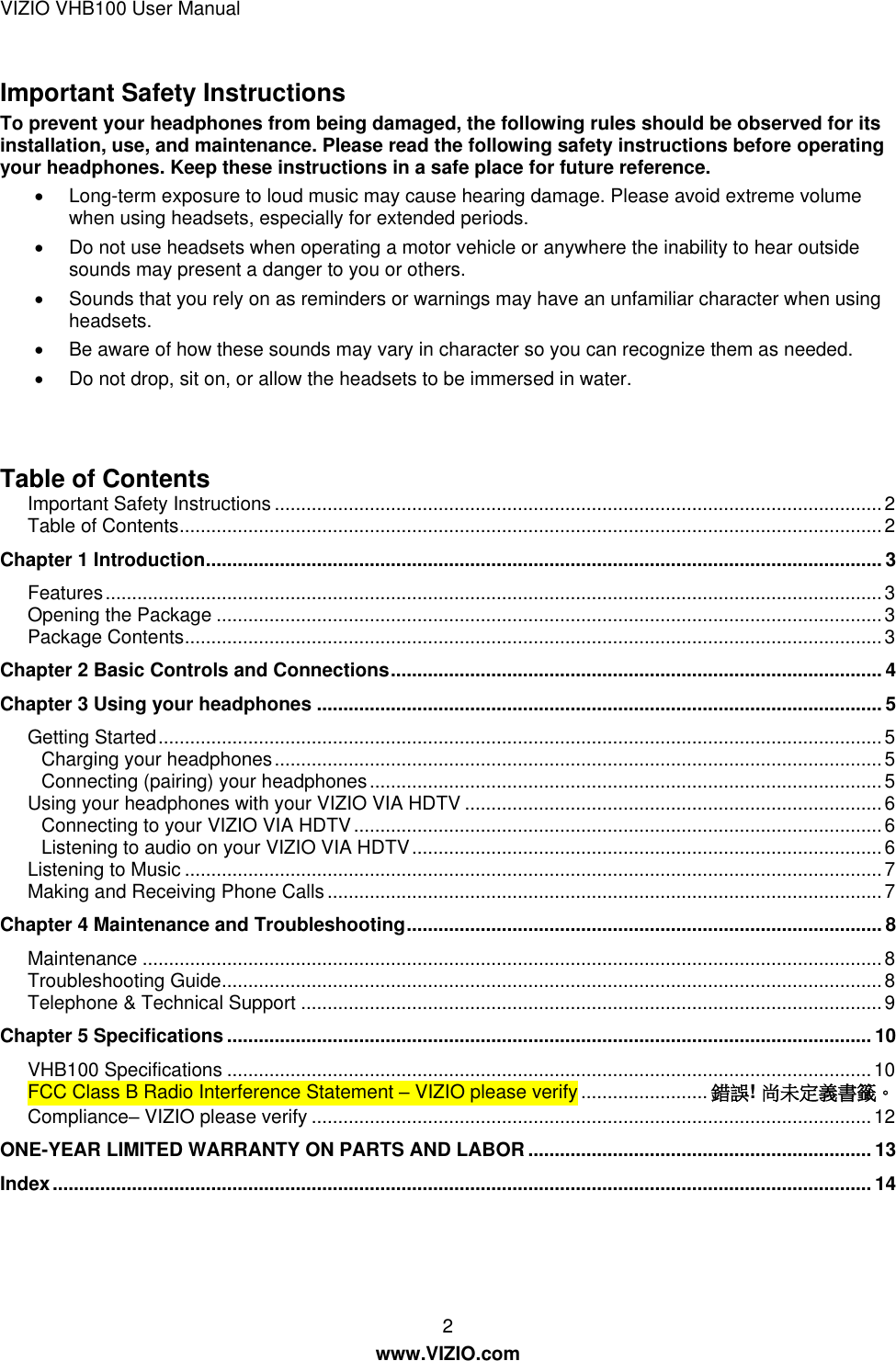

VIZIO VHB100 User Manual 2 www.VIZIO.com Important Safety Instructions To prevent your headphones from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your headphones. Keep these instructions in a safe place for future reference.  Long-term exposure to loud music may cause hearing damage. Please avoid extreme volume when using headsets, especially for extended periods.  Do not use headsets when operating a motor vehicle or anywhere the inability to hear outside sounds may present a danger to you or others.  Sounds that you rely on as reminders or warnings may have an unfamiliar character when using headsets.  Be aware of how these sounds may vary in character so you can recognize them as needed.  Do not drop, sit on, or allow the headsets to be immersed in water. Table of Contents Important Safety Instructions ................................................................................................................... 2 Table of Contents ..................................................................................................................................... 2 Chapter 1 Introduction ................................................................................................................................ 3 Features ................................................................................................................................................... 3 Opening the Package .............................................................................................................................. 3 Package Contents .................................................................................................................................... 3 Chapter 2 Basic Controls and Connections ............................................................................................. 4 Chapter 3 Using your headphones ........................................................................................................... 5 Getting Started ......................................................................................................................................... 5 Charging your headphones ................................................................................................................... 5 Connecting (pairing) your headphones ................................................................................................. 5 Using your headphones with your VIZIO VIA HDTV ............................................................................... 6 Connecting to your VIZIO VIA HDTV .................................................................................................... 6 Listening to audio on your VIZIO VIA HDTV ......................................................................................... 6 Listening to Music .................................................................................................................................... 7 Making and Receiving Phone Calls ......................................................................................................... 7 Chapter 4 Maintenance and Troubleshooting .......................................................................................... 8 Maintenance ............................................................................................................................................ 8 Troubleshooting Guide ............................................................................................................................. 8 Telephone & Technical Support .............................................................................................................. 9 Chapter 5 Specifications .......................................................................................................................... 10 VHB100 Specifications .......................................................................................................................... 10 FCC Class B Radio Interference Statement – VIZIO please verify ........................ 錯誤! 尚未定義書籤。 Compliance– VIZIO please verify .......................................................................................................... 12 ONE-YEAR LIMITED WARRANTY ON PARTS AND LABOR ................................................................. 13 Index ........................................................................................................................................................... 14

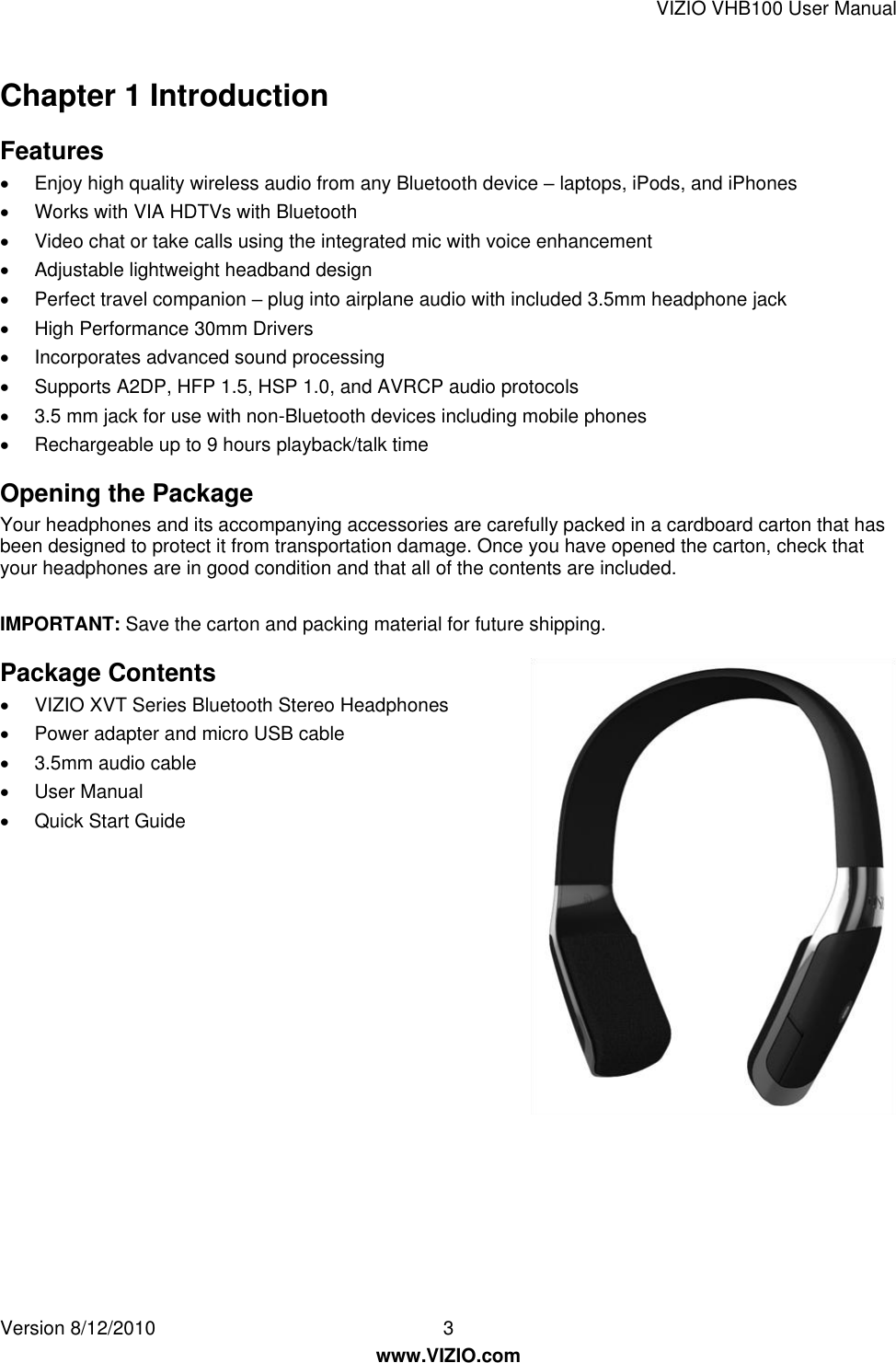

VIZIO VHB100 User Manual Version 8/12/2010 3 www.VIZIO.com Chapter 1 Introduction Features  Enjoy high quality wireless audio from any Bluetooth device – laptops, iPods, and iPhones  Works with VIA HDTVs with Bluetooth  Video chat or take calls using the integrated mic with voice enhancement  Adjustable lightweight headband design  Perfect travel companion – plug into airplane audio with included 3.5mm headphone jack  High Performance 30mm Drivers  Incorporates advanced sound processing  Supports A2DP, HFP 1.5, HSP 1.0, and AVRCP audio protocols  3.5 mm jack for use with non-Bluetooth devices including mobile phones  Rechargeable up to 9 hours playback/talk time Opening the Package Your headphones and its accompanying accessories are carefully packed in a cardboard carton that has been designed to protect it from transportation damage. Once you have opened the carton, check that your headphones are in good condition and that all of the contents are included. IMPORTANT: Save the carton and packing material for future shipping. Package Contents  VIZIO XVT Series Bluetooth Stereo Headphones  Power adapter and micro USB cable  3.5mm audio cable  User Manual  Quick Start Guide

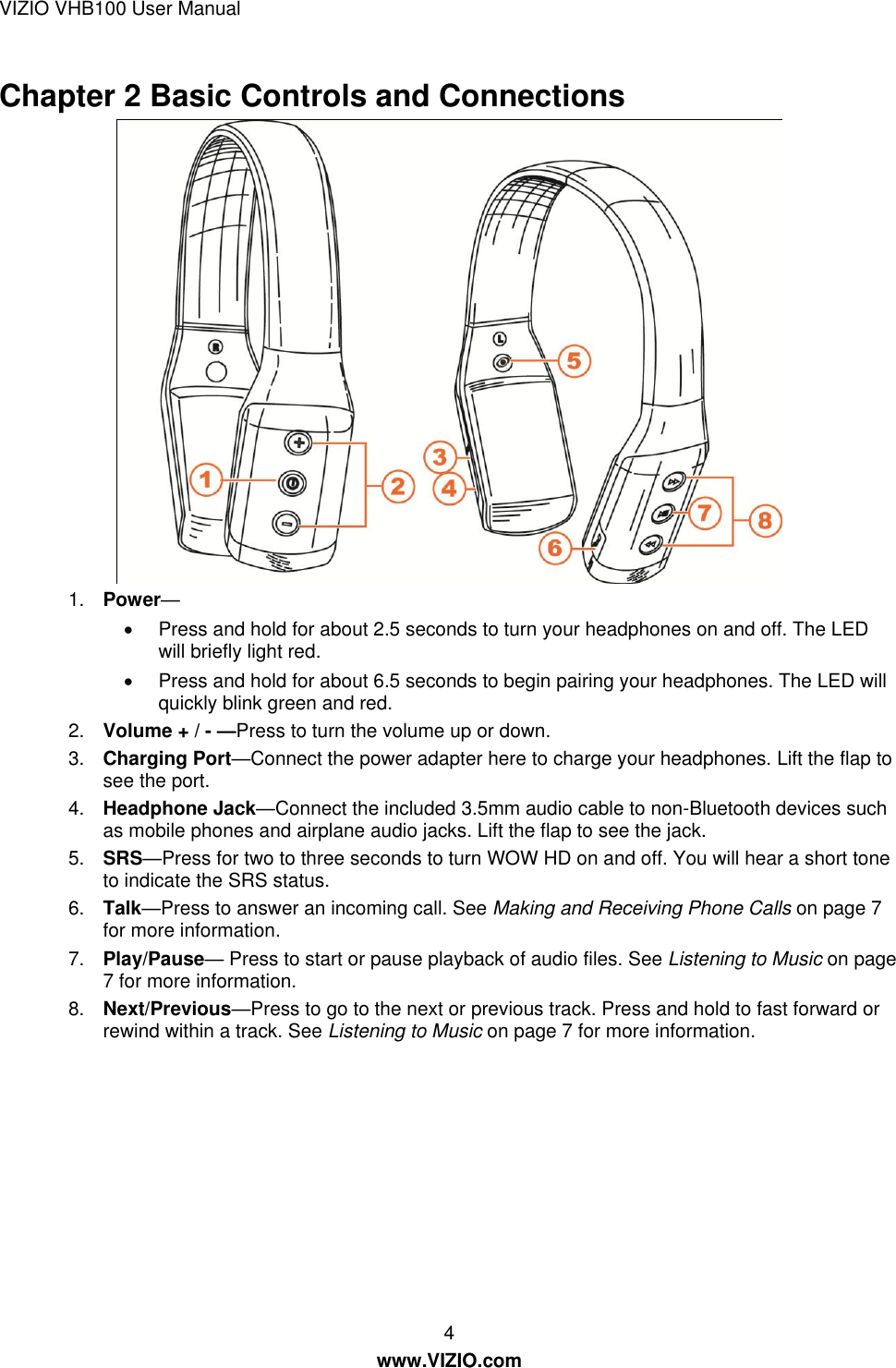

VIZIO VHB100 User Manual 4 www.VIZIO.com Chapter 2 Basic Controls and Connections 1. Power—  Press and hold for about 2.5 seconds to turn your headphones on and off. The LED will briefly light red.  Press and hold for about 6.5 seconds to begin pairing your headphones. The LED will quickly blink green and red. 2. Volume + / - —Press to turn the volume up or down. 3. Charging Port—Connect the power adapter here to charge your headphones. Lift the flap to see the port. 4. Headphone Jack—Connect the included 3.5mm audio cable to non-Bluetooth devices such as mobile phones and airplane audio jacks. Lift the flap to see the jack. 5. SRS—Press for two to three seconds to turn WOW HD on and off. You will hear a short tone to indicate the SRS status. 6. Talk—Press to answer an incoming call. See Making and Receiving Phone Calls on page 7 for more information. 7. Play/Pause— Press to start or pause playback of audio files. See Listening to Music on page 7 for more information. 8. Next/Previous—Press to go to the next or previous track. Press and hold to fast forward or rewind within a track. See Listening to Music on page 7 for more information.

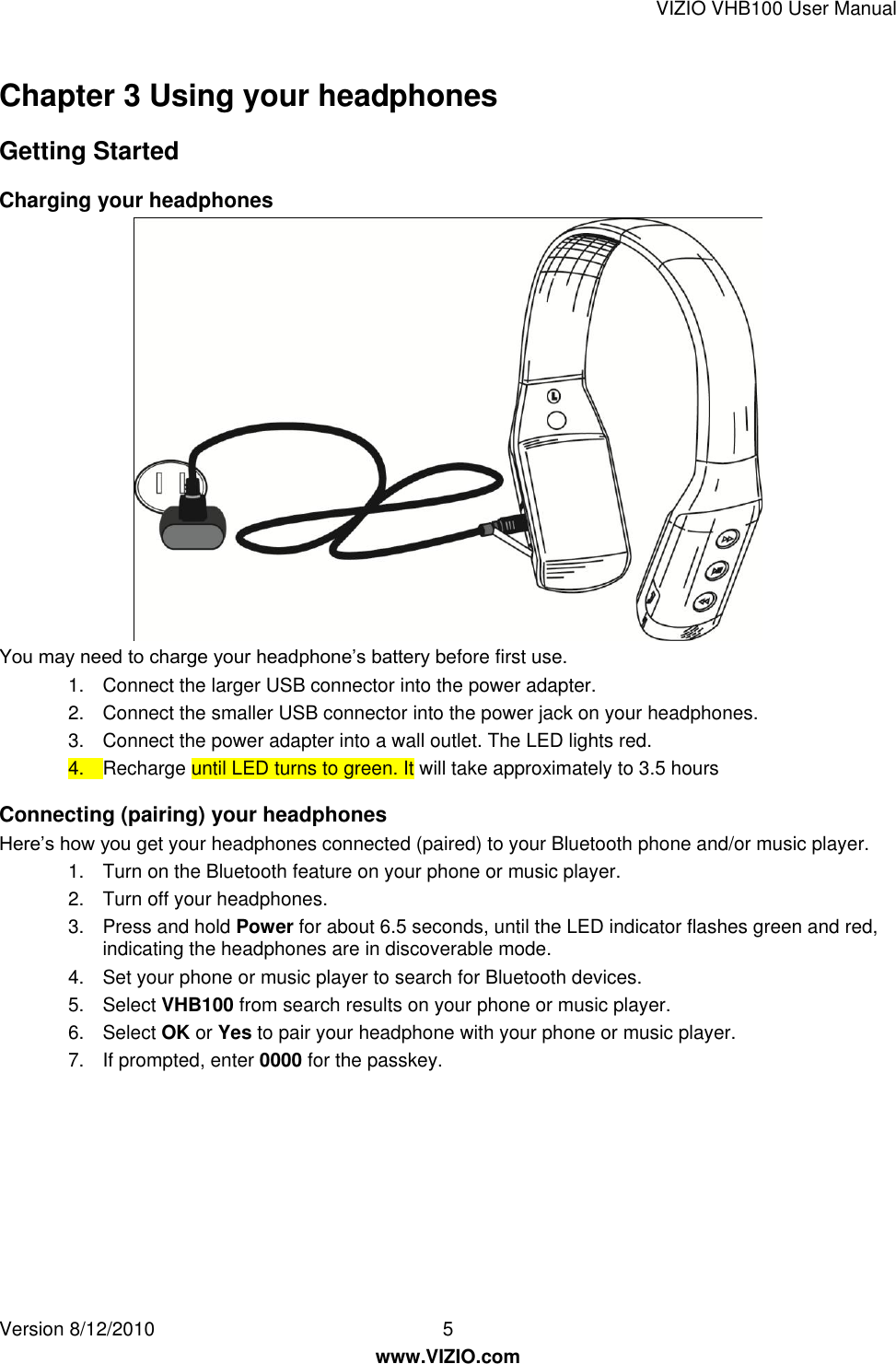

VIZIO VHB100 User Manual Version 8/12/2010 5 www.VIZIO.com Chapter 3 Using your headphones Getting Started Charging your headphones You may need to charge your headphone’s battery before first use. 1. Connect the larger USB connector into the power adapter. 2. Connect the smaller USB connector into the power jack on your headphones. 3. Connect the power adapter into a wall outlet. The LED lights red. 4. Recharge until LED turns to green. It will take approximately to 3.5 hours Connecting (pairing) your headphones Here’s how you get your headphones connected (paired) to your Bluetooth phone and/or music player. 1. Turn on the Bluetooth feature on your phone or music player. 2. Turn off your headphones. 3. Press and hold Power for about 6.5 seconds, until the LED indicator flashes green and red, indicating the headphones are in discoverable mode. 4. Set your phone or music player to search for Bluetooth devices. 5. Select VHB100 from search results on your phone or music player. 6. Select OK or Yes to pair your headphone with your phone or music player. 7. If prompted, enter 0000 for the passkey.
VIZIO VHB100 User Manual 6 www.VIZIO.com Using your headphones with your VIZIO VIA HDTV Connecting to your VIZIO VIA HDTV Here’s how you get your headphones connected (paired) to your VIZIO VIA HDTV. 1. Turn off your headphones. 2. Turn on your VIZIO VIA HDTV. 3. Press MENU on your HDTV remote control. 4. Press ◄ ►▲ or ▼ on your HDTV remote control to select Bluetooth and then press OK. 5. Press ▲ or ▼ on your HDTV remote control to select Pair Devices and then press OK. 6. On your headphones, press and hold Power for about 6.5 seconds, until the LED indicator flashes green and red, indicating the headphones are in discoverable mode. 7. Press ▲ or ▼ on your HDTV remote control to select Start searching for devices and then press OK. Your HDTV will begin searching for your headphones. When paired, VHB100 will appear in the list of Bluetooth devices. If your headphones do not appear in the list, repeat the above steps. Listening to audio on your VIZIO VIA HDTV 1. Connect (pair) your headphones to your HDTV. See Connecting to your VIZIO VIA HDTV on page 6. 2. Turn on your headphones. 3. Turn on your VIZIO VIA HDTV. 4. Press the MENU button on your HDTV remote control. 5. Press ◄ ►▲ or ▼ on the remote control to select TV Settings and then press OK. 6. Press ▲ or ▼ on the remote control to select Audio and then press OK. 7. Press ▲ or ▼ on the remote control to select Bluetooth Audio and then press ◄ or ► to select On. 8. Press EXIT on your HDTV remote control to close the menu and begin listening to the audio through your headphones. Notes:  The audio and video may be out of synch. This is normal. (VIZIO: please verify if this will exist even in the final sample. It was REALLY out of synch when we were testing.)  You will still hear audio coming from your HDTV speakers. Turn the speakers off or turn down the volume using your remote control if you do not want to hear the audio from your HDTV speakers.

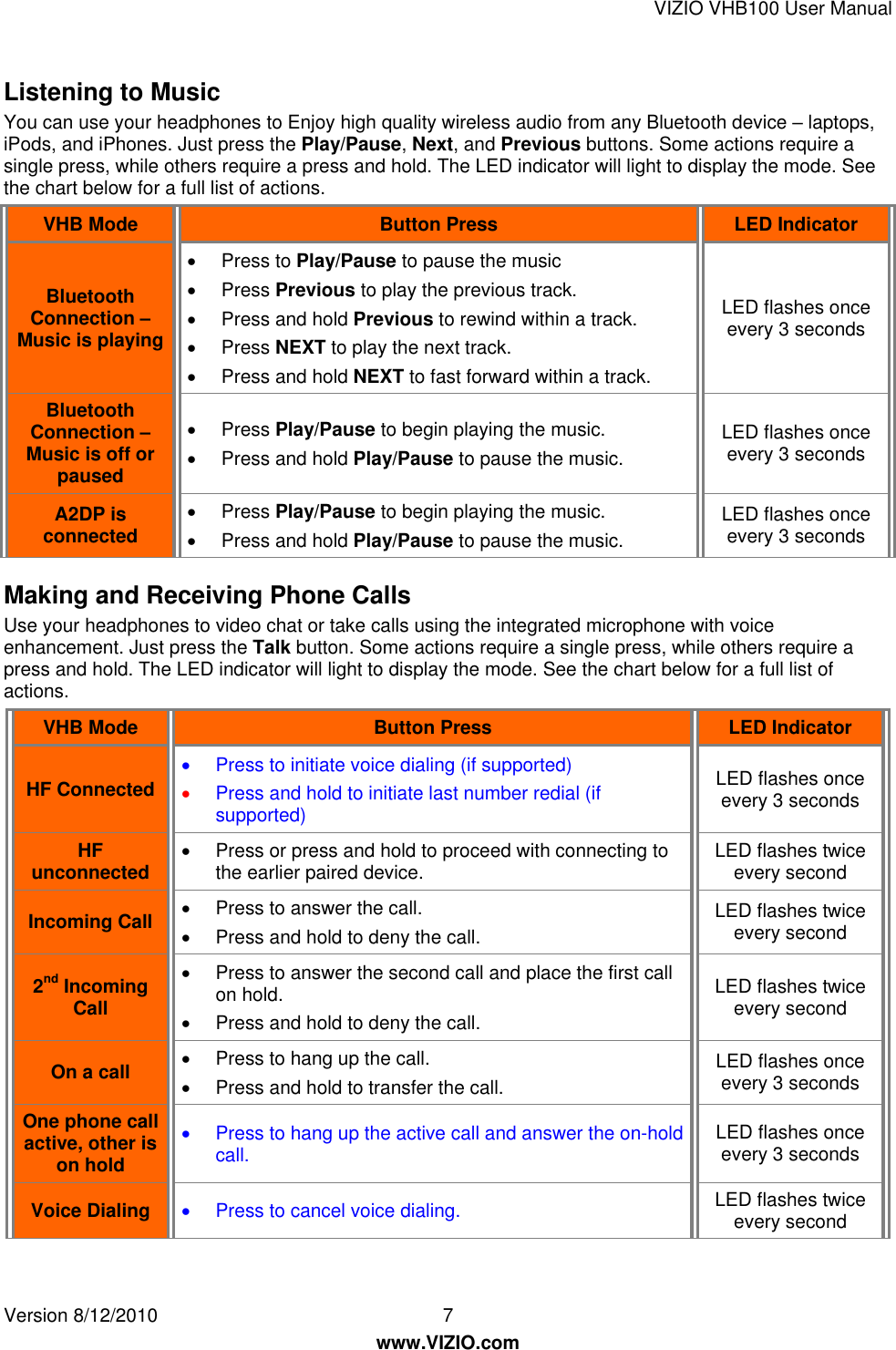

VIZIO VHB100 User Manual Version 8/12/2010 7 www.VIZIO.com Listening to Music You can use your headphones to Enjoy high quality wireless audio from any Bluetooth device – laptops, iPods, and iPhones. Just press the Play/Pause, Next, and Previous buttons. Some actions require a single press, while others require a press and hold. The LED indicator will light to display the mode. See the chart below for a full list of actions. VHB Mode Button Press LED Indicator Bluetooth Connection – Music is playing  Press to Play/Pause to pause the music  Press Previous to play the previous track.  Press and hold Previous to rewind within a track.  Press NEXT to play the next track.  Press and hold NEXT to fast forward within a track. LED flashes once every 3 seconds Bluetooth Connection – Music is off or paused  Press Play/Pause to begin playing the music.  Press and hold Play/Pause to pause the music. LED flashes once every 3 seconds A2DP is connected  Press Play/Pause to begin playing the music.  Press and hold Play/Pause to pause the music. LED flashes once every 3 seconds Making and Receiving Phone Calls Use your headphones to video chat or take calls using the integrated microphone with voice enhancement. Just press the Talk button. Some actions require a single press, while others require a press and hold. The LED indicator will light to display the mode. See the chart below for a full list of actions. VHB Mode Button Press LED Indicator HF Connected  Press to initiate voice dialing (if supported)  Press and hold to initiate last number redial (if supported) LED flashes once every 3 seconds HF unconnected  Press or press and hold to proceed with connecting to the earlier paired device. LED flashes twice every second Incoming Call  Press to answer the call.  Press and hold to deny the call. LED flashes twice every second 2nd Incoming Call  Press to answer the second call and place the first call on hold.  Press and hold to deny the call. LED flashes twice every second On a call  Press to hang up the call.  Press and hold to transfer the call. LED flashes once every 3 seconds One phone call active, other is on hold  Press to hang up the active call and answer the on-hold call. LED flashes once every 3 seconds Voice Dialing  Press to cancel voice dialing. LED flashes twice every second

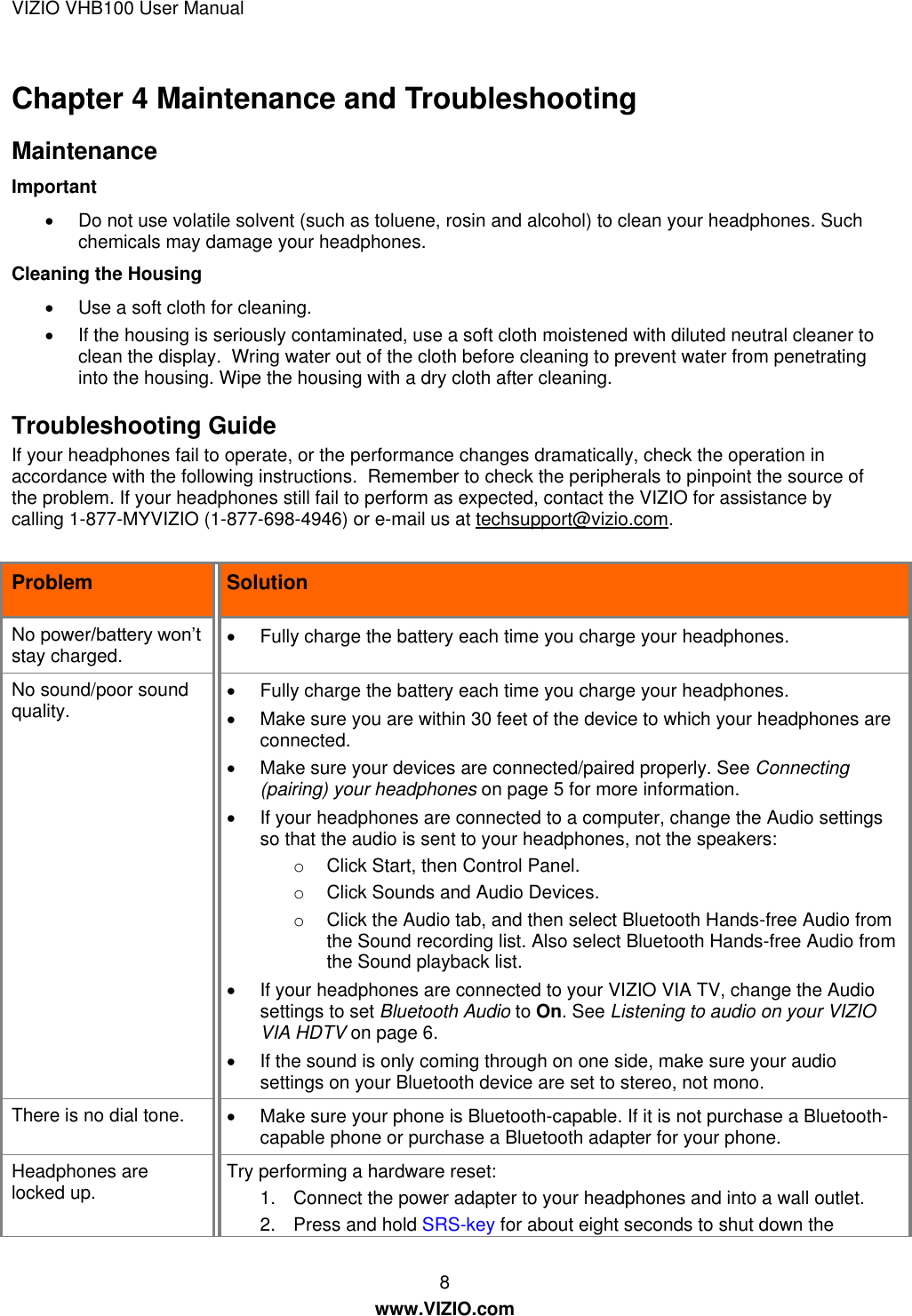

VIZIO VHB100 User Manual 8 www.VIZIO.com Chapter 4 Maintenance and Troubleshooting Maintenance Important  Do not use volatile solvent (such as toluene, rosin and alcohol) to clean your headphones. Such chemicals may damage your headphones. Cleaning the Housing  Use a soft cloth for cleaning.  If the housing is seriously contaminated, use a soft cloth moistened with diluted neutral cleaner to clean the display. Wring water out of the cloth before cleaning to prevent water from penetrating into the housing. Wipe the housing with a dry cloth after cleaning. Troubleshooting Guide If your headphones fail to operate, or the performance changes dramatically, check the operation in accordance with the following instructions. Remember to check the peripherals to pinpoint the source of the problem. If your headphones still fail to perform as expected, contact the VIZIO for assistance by calling 1-877-MYVIZIO (1-877-698-4946) or e-mail us at techsupport@vizio.com. Problem Solution No power/battery won’t stay charged.  Fully charge the battery each time you charge your headphones. No sound/poor sound quality.  Fully charge the battery each time you charge your headphones.  Make sure you are within 30 feet of the device to which your headphones are connected.  Make sure your devices are connected/paired properly. See Connecting (pairing) your headphones on page 5 for more information.  If your headphones are connected to a computer, change the Audio settings so that the audio is sent to your headphones, not the speakers: o Click Start, then Control Panel. o Click Sounds and Audio Devices. o Click the Audio tab, and then select Bluetooth Hands-free Audio from the Sound recording list. Also select Bluetooth Hands-free Audio from the Sound playback list.  If your headphones are connected to your VIZIO VIA TV, change the Audio settings to set Bluetooth Audio to On. See Listening to audio on your VIZIO VIA HDTV on page 6.  If the sound is only coming through on one side, make sure your audio settings on your Bluetooth device are set to stereo, not mono. There is no dial tone.  Make sure your phone is Bluetooth-capable. If it is not purchase a Bluetooth-capable phone or purchase a Bluetooth adapter for your phone. Headphones are locked up. Try performing a hardware reset: 1. Connect the power adapter to your headphones and into a wall outlet. 2. Press and hold SRS-key for about eight seconds to shut down the

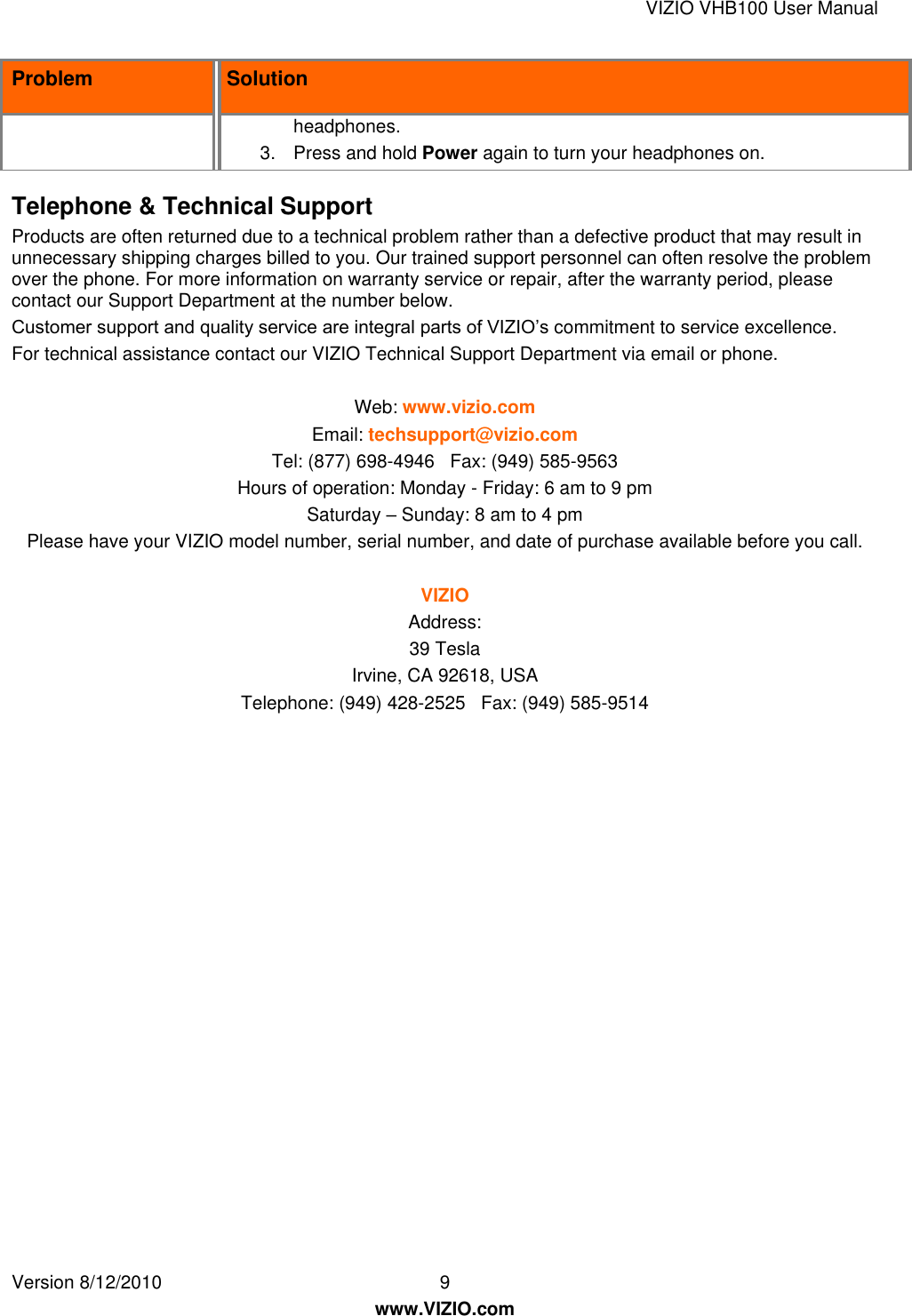

VIZIO VHB100 User Manual Version 8/12/2010 9 www.VIZIO.com Problem Solution headphones. 3. Press and hold Power again to turn your headphones on. Telephone & Technical Support Products are often returned due to a technical problem rather than a defective product that may result in unnecessary shipping charges billed to you. Our trained support personnel can often resolve the problem over the phone. For more information on warranty service or repair, after the warranty period, please contact our Support Department at the number below. Customer support and quality service are integral parts of VIZIO’s commitment to service excellence. For technical assistance contact our VIZIO Technical Support Department via email or phone. Web: www.vizio.com Email: techsupport@vizio.com Tel: (877) 698-4946 Fax: (949) 585-9563 Hours of operation: Monday - Friday: 6 am to 9 pm Saturday – Sunday: 8 am to 4 pm Please have your VIZIO model number, serial number, and date of purchase available before you call. VIZIO Address: 39 Tesla Irvine, CA 92618, USA Telephone: (949) 428-2525 Fax: (949) 585-9514

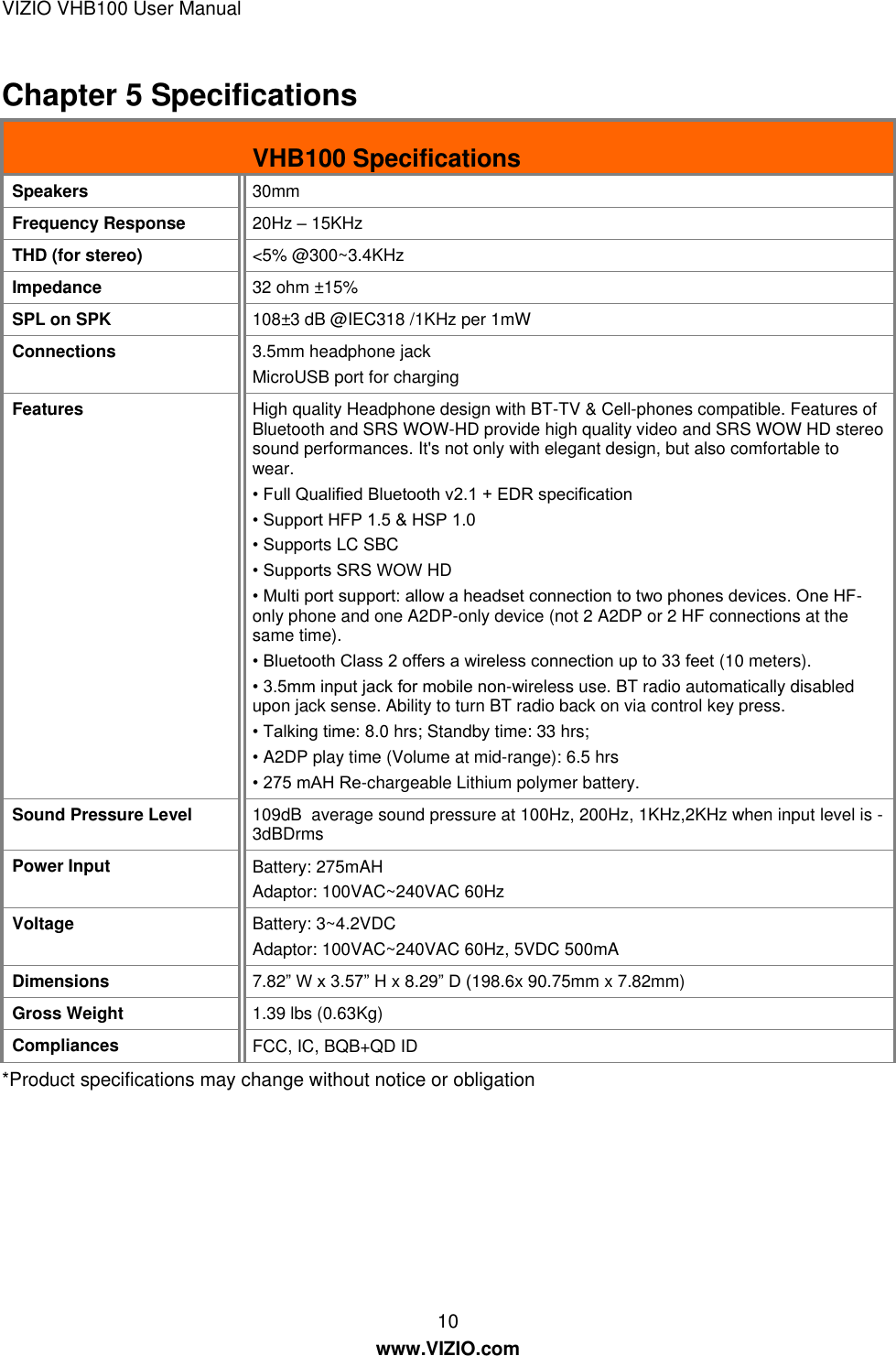

VIZIO VHB100 User Manual 10 www.VIZIO.com Chapter 5 Specifications VHB100 Specifications Speakers 30mm Frequency Response 20Hz – 15KHz THD (for stereo) <5% @300~3.4KHz Impedance 32 ohm ±15% SPL on SPK 108±3 dB @IEC318 /1KHz per 1mW Connections 3.5mm headphone jack MicroUSB port for charging Features High quality Headphone design with BT-TV & Cell-phones compatible. Features of Bluetooth and SRS WOW-HD provide high quality video and SRS WOW HD stereo sound performances. It's not only with elegant design, but also comfortable to wear. • Full Qualified Bluetooth v2.1 + EDR specification • Support HFP 1.5 & HSP 1.0 • Supports LC SBC • Supports SRS WOW HD • Multi port support: allow a headset connection to two phones devices. One HF-only phone and one A2DP-only device (not 2 A2DP or 2 HF connections at the same time). • Bluetooth Class 2 offers a wireless connection up to 33 feet (10 meters). • 3.5mm input jack for mobile non-wireless use. BT radio automatically disabled upon jack sense. Ability to turn BT radio back on via control key press. • Talking time: 8.0 hrs; Standby time: 33 hrs; • A2DP play time (Volume at mid-range): 6.5 hrs • 275 mAH Re-chargeable Lithium polymer battery. Sound Pressure Level 109dB average sound pressure at 100Hz, 200Hz, 1KHz,2KHz when input level is -3dBDrms Power Input Battery: 275mAH Adaptor: 100VAC~240VAC 60Hz Voltage Battery: 3~4.2VDC Adaptor: 100VAC~240VAC 60Hz, 5VDC 500mA Dimensions 7.82‖ W x 3.57‖ H x 8.29‖ D (198.6x 90.75mm x 7.82mm) Gross Weight 1.39 lbs (0.63Kg) Compliances FCC, IC, BQB+QD ID *Product specifications may change without notice or obligation

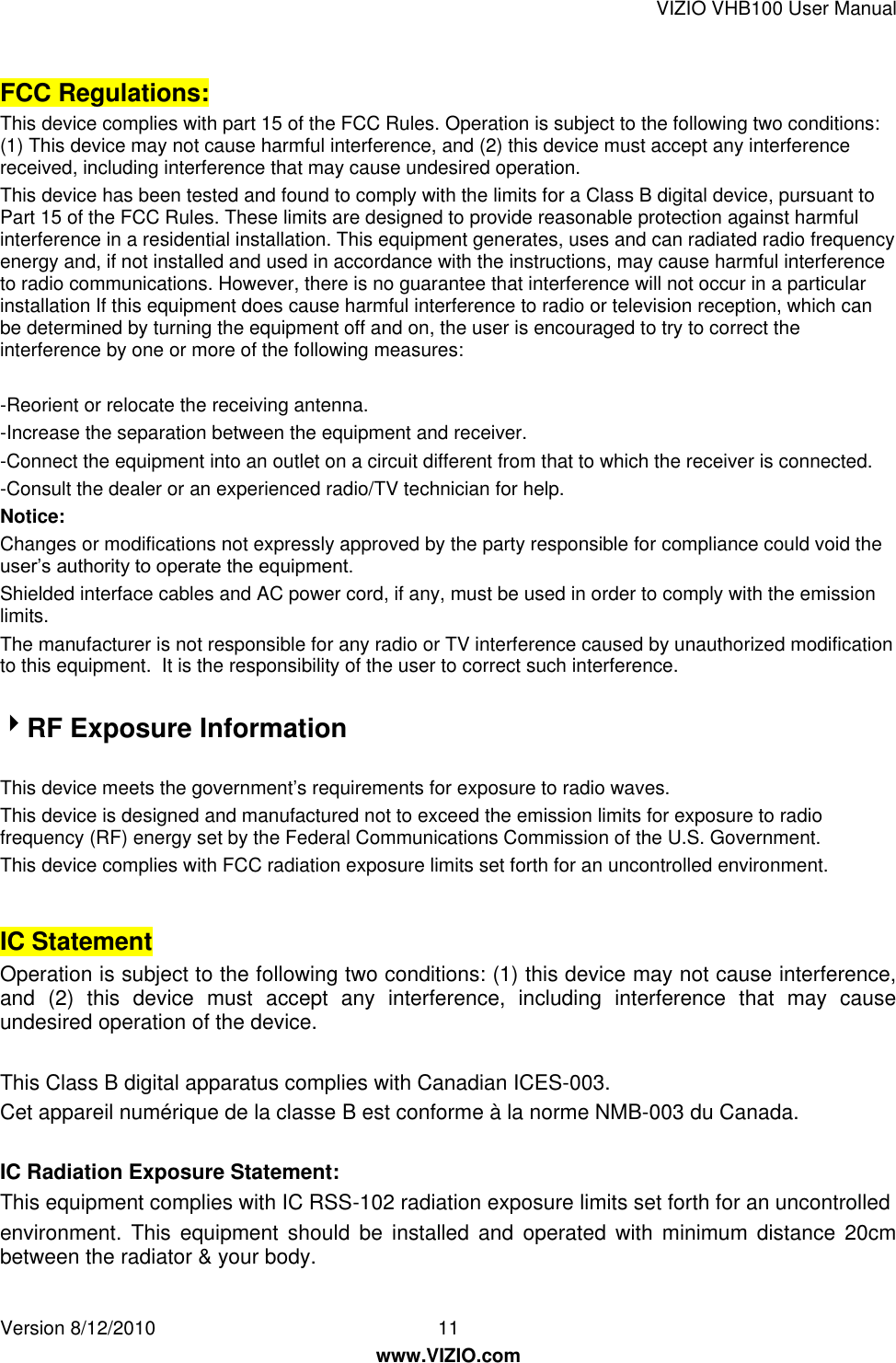

VIZIO VHB100 User Manual Version 8/12/2010 11 www.VIZIO.com FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Notice: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibility of the user to correct such interference. RF Exposure Information This device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. IC Statement Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
VIZIO VHB100 User Manual 12 www.VIZIO.com Compliance– VIZIO please verify Caution: Always use a power cable that is properly grounded. Please use the AC cords listed below for each area. USA FCC Canada IC BQB+QD ID

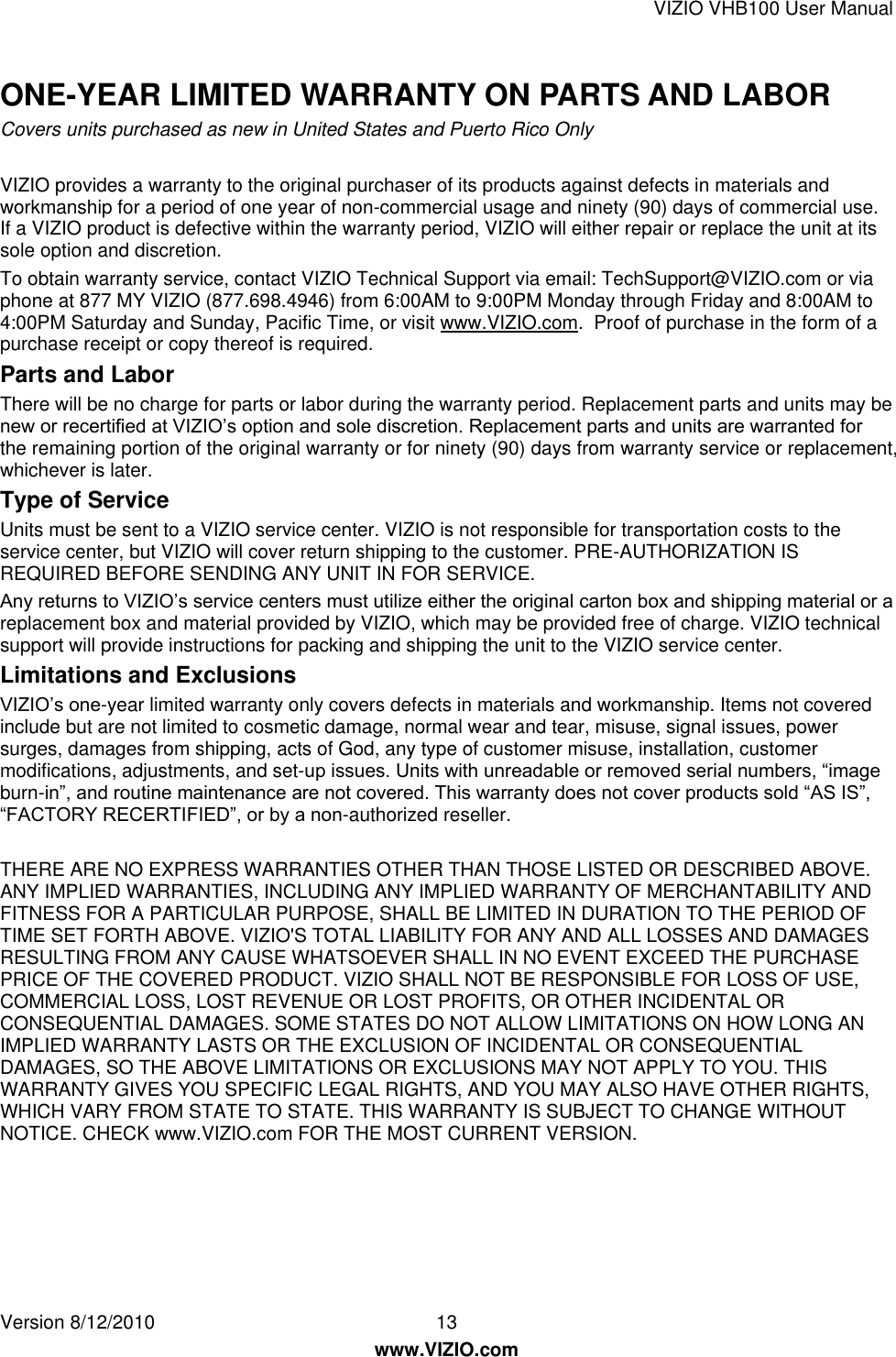

VIZIO VHB100 User Manual Version 8/12/2010 13 www.VIZIO.com ONE-YEAR LIMITED WARRANTY ON PARTS AND LABOR Covers units purchased as new in United States and Puerto Rico Only VIZIO provides a warranty to the original purchaser of its products against defects in materials and workmanship for a period of one year of non-commercial usage and ninety (90) days of commercial use. If a VIZIO product is defective within the warranty period, VIZIO will either repair or replace the unit at its sole option and discretion. To obtain warranty service, contact VIZIO Technical Support via email: TechSupport@VIZIO.com or via phone at 877 MY VIZIO (877.698.4946) from 6:00AM to 9:00PM Monday through Friday and 8:00AM to 4:00PM Saturday and Sunday, Pacific Time, or visit www.VIZIO.com. Proof of purchase in the form of a purchase receipt or copy thereof is required. Parts and Labor There will be no charge for parts or labor during the warranty period. Replacement parts and units may be new or recertified at VIZIO’s option and sole discretion. Replacement parts and units are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service or replacement, whichever is later. Type of Service Units must be sent to a VIZIO service center. VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover return shipping to the customer. PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY UNIT IN FOR SERVICE. Any returns to VIZIO’s service centers must utilize either the original carton box and shipping material or a replacement box and material provided by VIZIO, which may be provided free of charge. VIZIO technical support will provide instructions for packing and shipping the unit to the VIZIO service center. Limitations and Exclusions VIZIO’s one-year limited warranty only covers defects in materials and workmanship. Items not covered include but are not limited to cosmetic damage, normal wear and tear, misuse, signal issues, power surges, damages from shipping, acts of God, any type of customer misuse, installation, customer modifications, adjustments, and set-up issues. Units with unreadable or removed serial numbers, ―image burn-in‖, and routine maintenance are not covered. This warranty does not cover products sold ―AS IS‖, ―FACTORY RECERTIFIED‖, or by a non-authorized reseller. THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. VIZIO'S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE COVERED PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR LOSS OF USE, COMMERCIAL LOSS, LOST REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE. CHECK www.VIZIO.com FOR THE MOST CURRENT VERSION.

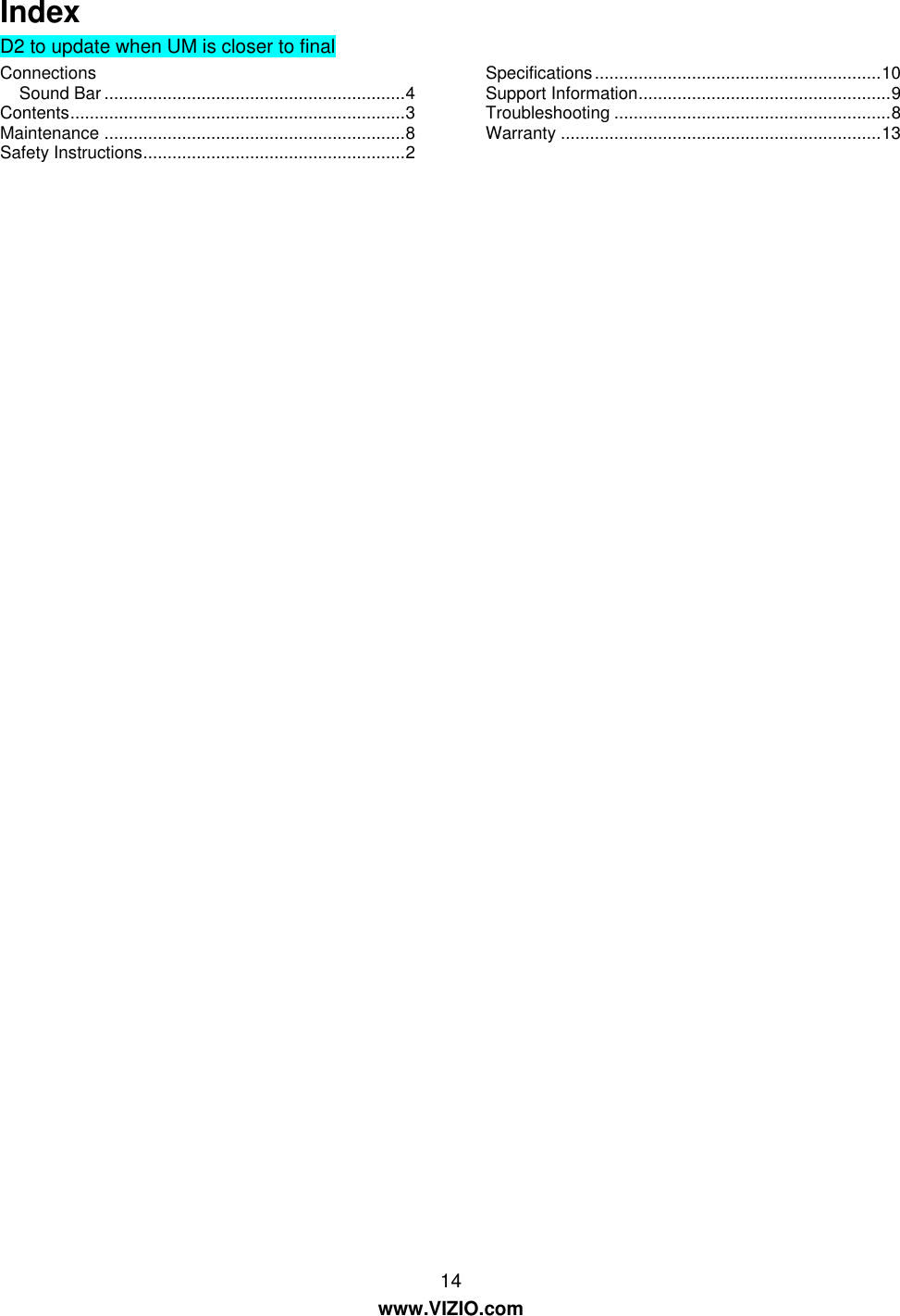

14 www.VIZIO.com Index D2 to update when UM is closer to final Connections Sound Bar .............................................................. 4 Contents ..................................................................... 3 Maintenance .............................................................. 8 Safety Instructions ...................................................... 2 Specifications ........................................................... 10 Support Information .................................................... 9 Troubleshooting ......................................................... 8 Warranty .................................................................. 13
