VSON TECHNOLOGY V829 Wireless Presenter User Manual V829 USER S MANUAL

Vson Technology Co.,Ltd. Wireless Presenter V829 USER S MANUAL

Users Manual

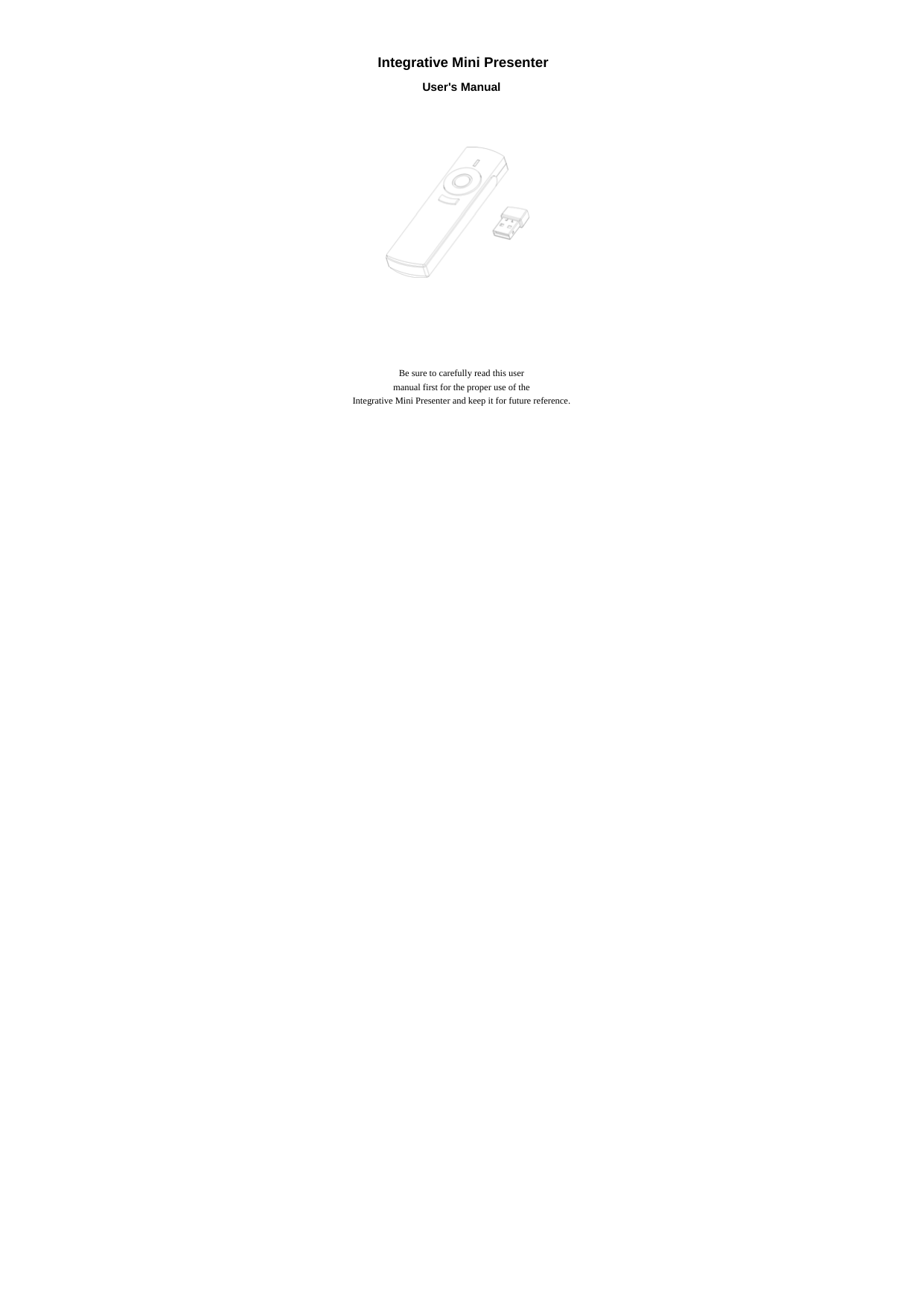

Integrative Mini Presenter User's Manual Be sure to carefully read this user manual first for the proper use of the Integrative Mini Presenter and keep it for future reference.

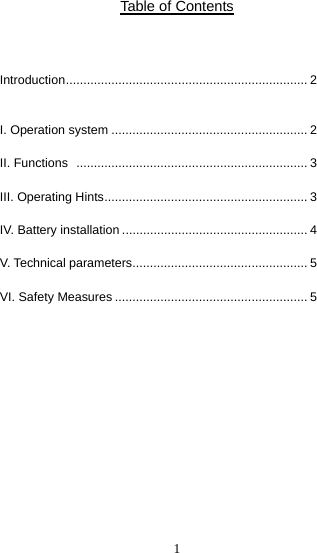

1Table of Contents Introduction ..................................................................... 2 I. Operation system ........................................................ 2 II. Functions .................................................................. 3 III. Operating Hints .......................................................... 3 IV. Battery installation ..................................................... 4 V. Technical parameters .................................................. 5 VI. Safety Measures ....................................................... 5

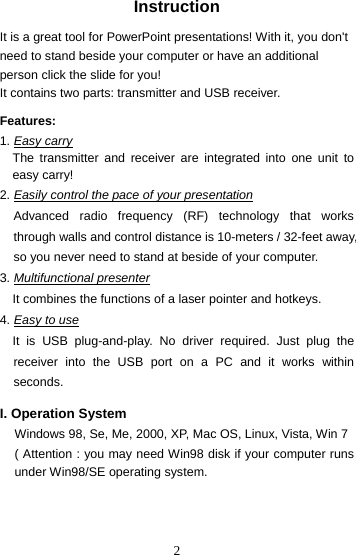

2Instruction It is a great tool for PowerPoint presentations! With it, you don't need to stand beside your computer or have an additional person click the slide for you! It contains two parts: transmitter and USB receiver. Features: 1. Easy carry The transmitter and receiver are integrated into one unit to easy carry! 2. Easily control the pace of your presentation Advanced radio frequency (RF) technology that works through walls and control distance is 10-meters / 32-feet away, so you never need to stand at beside of your computer. 3. Multifunctional presenter It combines the functions of a laser pointer and hotkeys. 4. Easy to use It is USB plug-and-play. No driver required. Just plug the receiver into the USB port on a PC and it works within seconds. I. Operation System Windows 98, Se, Me, 2000, XP, Mac OS, Linux, Vista, Win 7 ( Attention : you may need Win98 disk if your computer runs under Win98/SE operating system.

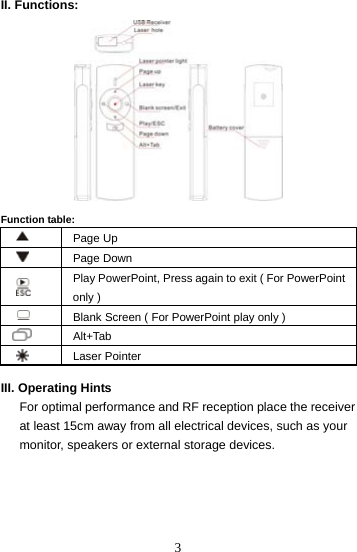

3II. Functions: Function table: Page Up Page Down Play PowerPoint, Press again to exit ( For PowerPoint only ) Blank Screen ( For PowerPoint play only ) Alt+Tab Laser Pointer III. Operating Hints For optimal performance and RF reception place the receiver at least 15cm away from all electrical devices, such as your monitor, speakers or external storage devices.

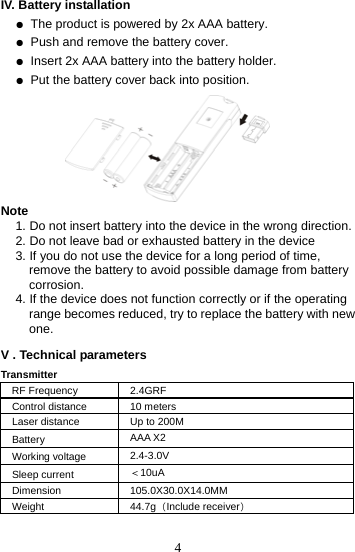

4IV. Battery installation ● The product is powered by 2x AAA battery. ● Push and remove the battery cover. ● Insert 2x AAA battery into the battery holder. ● Put the battery cover back into position. Note 1. Do not insert battery into the device in the wrong direction. 2. Do not leave bad or exhausted battery in the device 3. If you do not use the device for a long period of time, remove the battery to avoid possible damage from battery corrosion. 4. If the device does not function correctly or if the operating range becomes reduced, try to replace the battery with new one. V . Technical parameters Transmitter RF Frequency 2.4GRF Control distance 10 meters Laser distance Up to 200M Battery AAA X2 Working voltage 2.4-3.0V Sleep current ＜10uA Dimension 105.0X30.0X14.0MM Weight 44.7g（Include receiver）

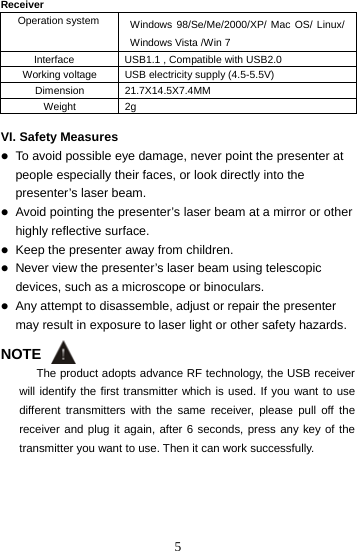

5Receiver Operation system Windows 98/Se/Me/2000/XP/ Mac OS/ Linux/ Windows Vista /Win 7 Interface USB1.1 , Compatible with USB2.0 Working voltage USB electricity supply (4.5-5.5V) Dimension 21.7X14.5X7.4MM Weight 2g VI. Safety Measures  To avoid possible eye damage, never point the presenter at people especially their faces, or look directly into the presenter’s laser beam.  Avoid pointing the presenter’s laser beam at a mirror or other highly reflective surface.  Keep the presenter away from children.  Never view the presenter’s laser beam using telescopic devices, such as a microscope or binoculars.  Any attempt to disassemble, adjust or repair the presenter may result in exposure to laser light or other safety hazards. NOTE The product adopts advance RF technology, the USB receiver will identify the first transmitter which is used. If you want to use different transmitters with the same receiver, please pull off the receiver and plug it again, after 6 seconds, press any key of the transmitter you want to use. Then it can work successfully.

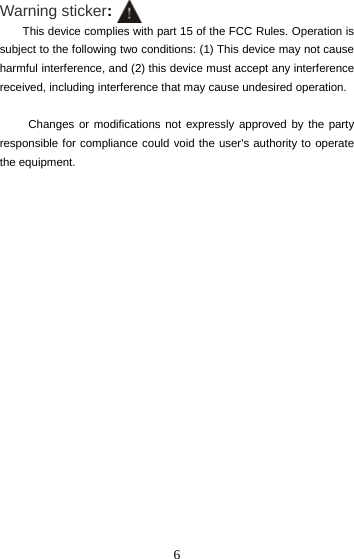

6Warning sticker: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
