Vecima Networks OBR3650 VistaMAX OBR3650 3.65 GHz Station Transceiver User Manual obr3650 ml 01 sd

Vecima Networks Inc. VistaMAX OBR3650 3.65 GHz Station Transceiver obr3650 ml 01 sd

Contents

Users Manual part2

3CHAPTERobr3650_ml_01_sd Approved: C.W. 3-13.0 Getting Started with OBR36503.1 Before You BeginThe OBR3650 provides the base station component of the Vecima VistaMAX system. To set up and configure the base station, you require the following:• One VistaMAX OBR3650 base station with a stand-alone Power over Ethernet (PoE) or WES800 Ethernet Switch• One VistaMAX outdoor subscriber station or indoor subscriber station such as the OSR3500C or ISR3510.• One of the following components to provide the DHCP and TFTP server:– Vecima’s Network Management 8000– A third-party DHCP and TFTP server as per the WiMAX standard. This setup is not covered in this manual.Setting up the system using NMS8000Using the NMS8000 as the provisioning tool for all OSR subscriber stations and hosts on the VistaMAX system is the most common scenario. The platinum, gold, silver, or bronze VistaMAX starter kits available from Vecima Networks includes an NMS8000.NOTEIf you wish to connect Internet-accessible hosts to the VistaMAX system, you will need to provide a router witha public IP address and a valid DNS server. When you are connecting to Internet-accessible host and using theNMS8000, Vecima recommends connecting one of the NMS8000 Ethernet interfaces on a public routeable IPaddress.Figure 3-1 Using NMS8000 to Provision VistaMAX System

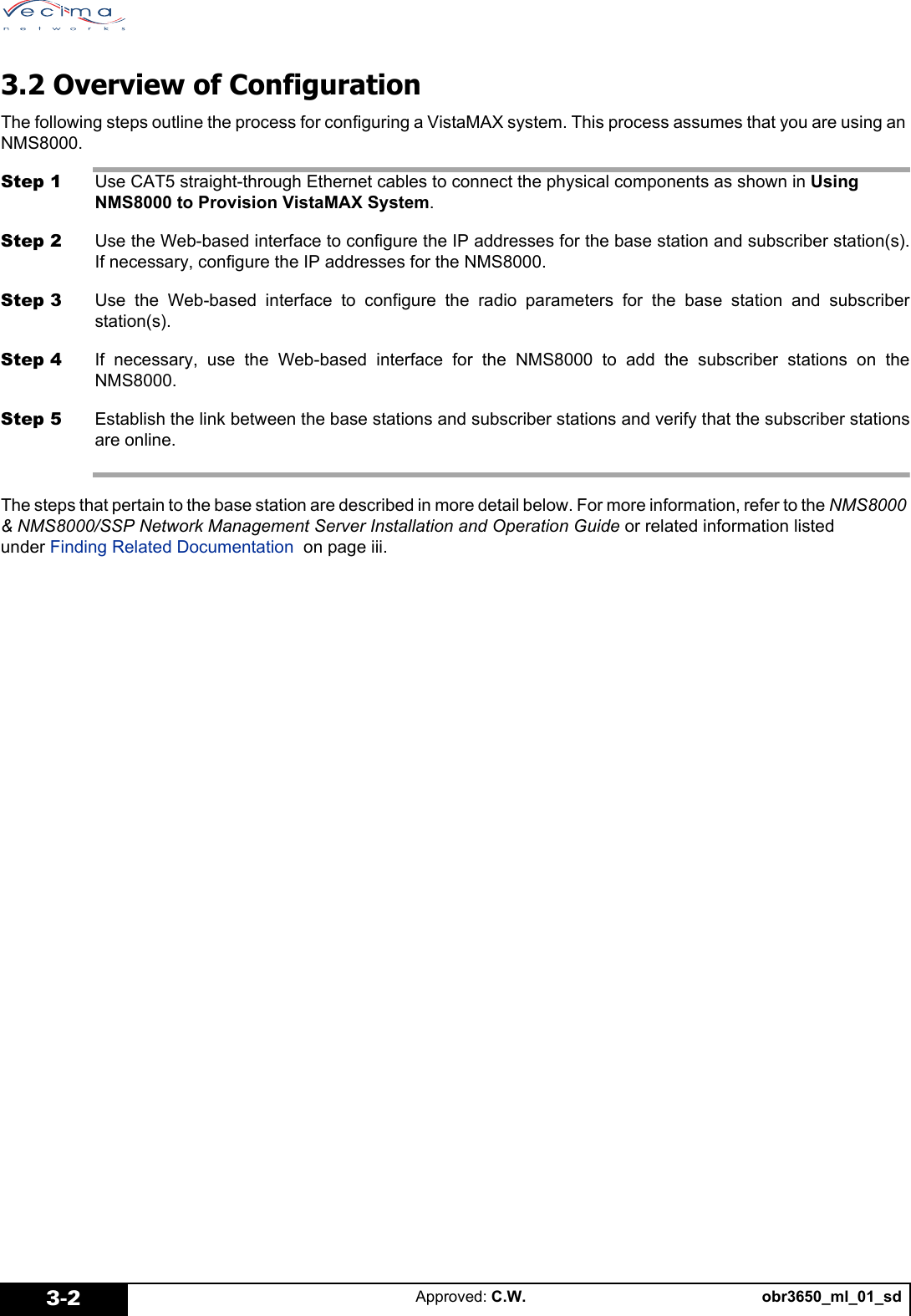

obr3650_ml_01_sdApproved: C.W.3-23.2 Overview of ConfigurationThe following steps outline the process for configuring a VistaMAX system. This process assumes that you are using an NMS8000.Step 1 Use CAT5 straight-through Ethernet cables to connect the physical components as shown in Using NMS8000 to Provision VistaMAX System.Step 2 Use the Web-based interface to configure the IP addresses for the base station and subscriber station(s).If necessary, configure the IP addresses for the NMS8000.Step 3 Use the Web-based interface to configure the radio parameters for the base station and subscriberstation(s).Step 4 If necessary, use the Web-based interface for the NMS8000 to add the subscriber stations on theNMS8000.Step 5 Establish the link between the base stations and subscriber stations and verify that the subscriber stationsare online.The steps that pertain to the base station are described in more detail below. For more information, refer to the NMS8000 & NMS8000/SSP Network Management Server Installation and Operation Guide or related information listed under Finding Related Documentation on page iii.

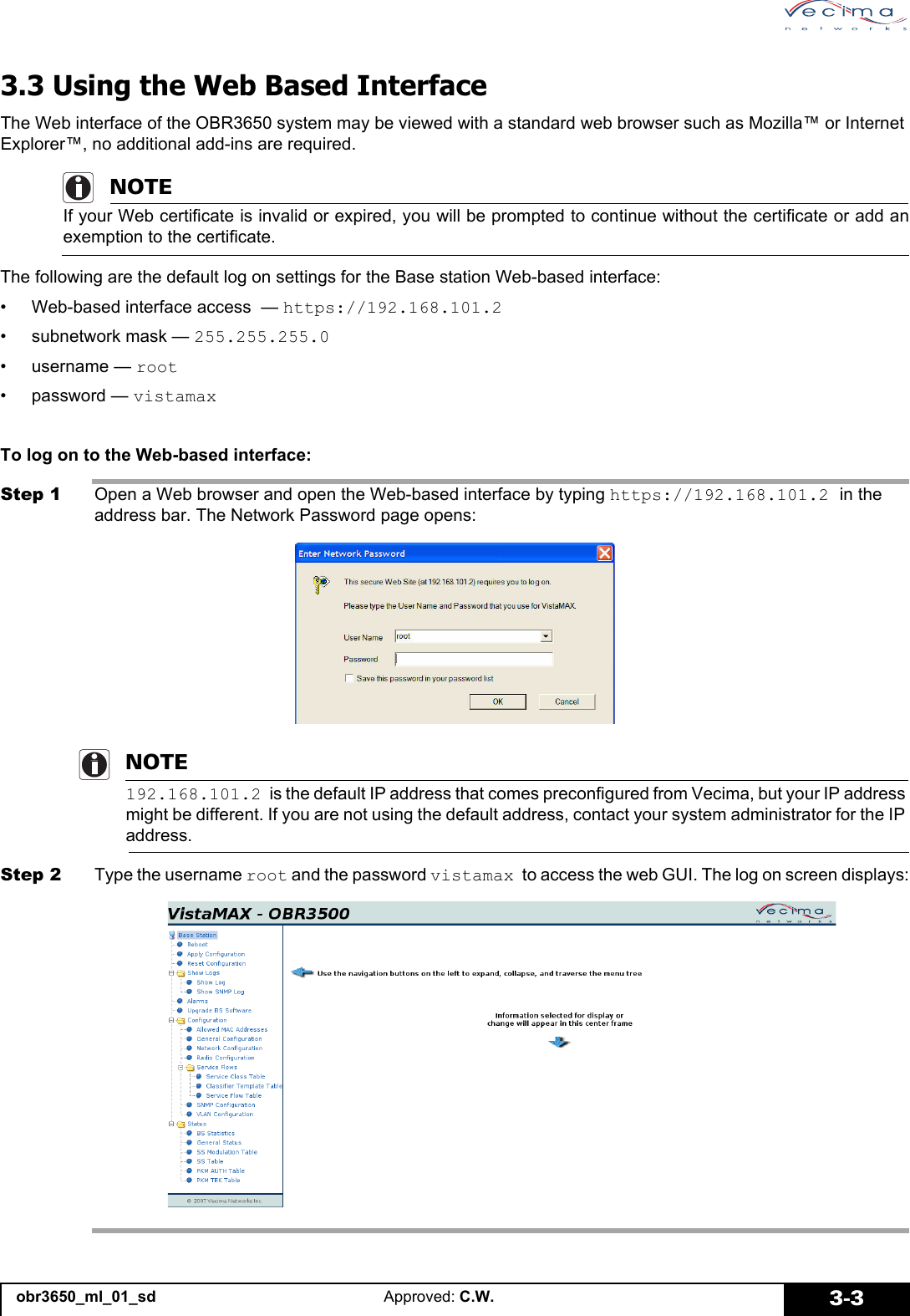

obr3650_ml_01_sd Approved: C.W. 3-33.3 Using the Web Based InterfaceThe Web interface of the OBR3650 system may be viewed with a standard web browser such as Mozilla™ or Internet Explorer™, no additional add-ins are required.NOTEIf your Web certificate is invalid or expired, you will be prompted to continue without the certificate or add anexemption to the certificate.The following are the default log on settings for the Base station Web-based interface:• Web-based interface access — https://192.168.101.2• subnetwork mask — 255.255.255.0•username — root• password — vistamaxTo log on to the Web-based interface:Step 1 Open a Web browser and open the Web-based interface by typing https://192.168.101.2 in the address bar. The Network Password page opens:NOTE192.168.101.2 is the default IP address that comes preconfigured from Vecima, but your IP address might be different. If you are not using the default address, contact your system administrator for the IP address.Step 2 Type the username root and the password vistamax to access the web GUI. The log on screen displays:

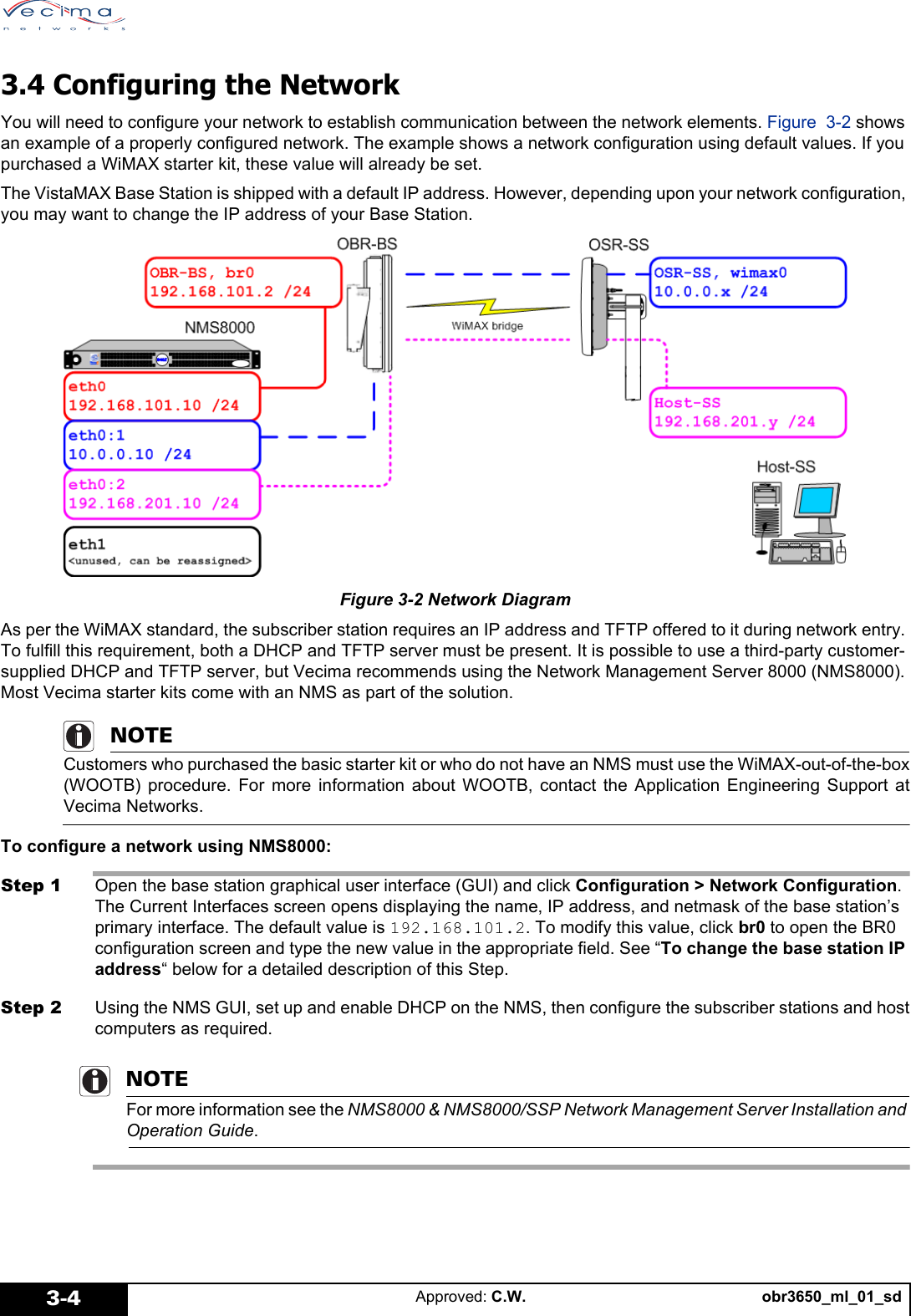

obr3650_ml_01_sdApproved: C.W.3-43.4 Configuring the NetworkYou will need to configure your network to establish communication between the network elements. Figure 3-2 shows an example of a properly configured network. The example shows a network configuration using default values. If you purchased a WiMAX starter kit, these value will already be set.The VistaMAX Base Station is shipped with a default IP address. However, depending upon your network configuration, you may want to change the IP address of your Base Station. Figure 3-2 Network DiagramAs per the WiMAX standard, the subscriber station requires an IP address and TFTP offered to it during network entry. To fulfill this requirement, both a DHCP and TFTP server must be present. It is possible to use a third-party customer-supplied DHCP and TFTP server, but Vecima recommends using the Network Management Server 8000 (NMS8000). Most Vecima starter kits come with an NMS as part of the solution.NOTECustomers who purchased the basic starter kit or who do not have an NMS must use the WiMAX-out-of-the-box(WOOTB) procedure. For more information about WOOTB, contact the Application Engineering Support atVecima Networks.To configure a network using NMS8000:Step 1 Open the base station graphical user interface (GUI) and click Configuration > Network Configuration. The Current Interfaces screen opens displaying the name, IP address, and netmask of the base station’s primary interface. The default value is 192.168.101.2. To modify this value, click br0 to open the BR0 configuration screen and type the new value in the appropriate field. See “To change the base station IP address“ below for a detailed description of this Step.Step 2 Using the NMS GUI, set up and enable DHCP on the NMS, then configure the subscriber stations and hostcomputers as required. NOTEFor more information see the NMS8000 & NMS8000/SSP Network Management Server Installation and Operation Guide.

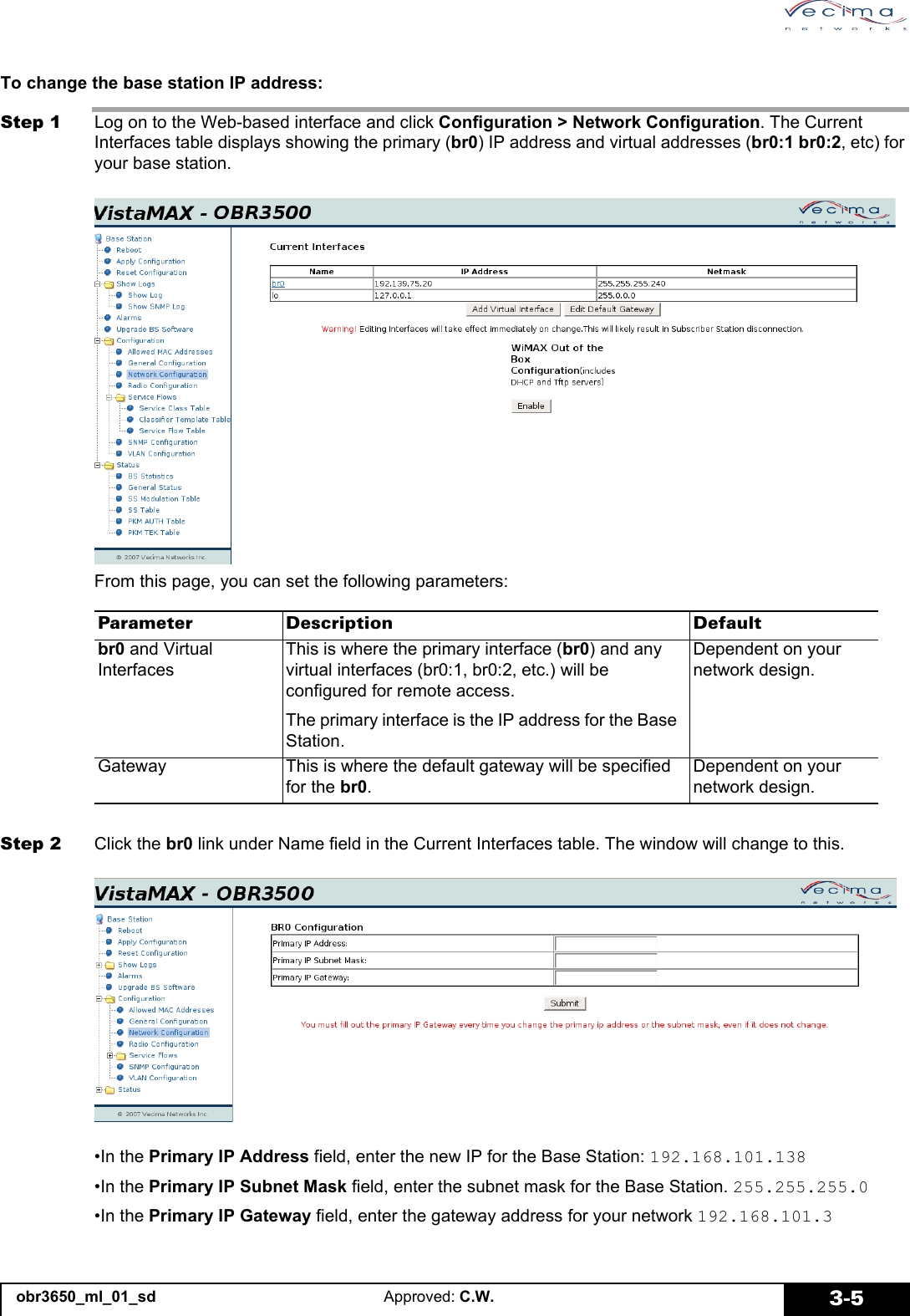

obr3650_ml_01_sd Approved: C.W. 3-5To change the base station IP address:Step 1 Log on to the Web-based interface and click Configuration > Network Configuration. The Current Interfaces table displays showing the primary (br0) IP address and virtual addresses (br0:1 br0:2, etc) for your base station.From this page, you can set the following parameters:Step 2 Click the br0 link under Name field in the Current Interfaces table. The window will change to this.•In the Primary IP Address field, enter the new IP for the Base Station: 192.168.101.138•In the Primary IP Subnet Mask field, enter the subnet mask for the Base Station. 255.255.255.0•In the Primary IP Gateway field, enter the gateway address for your network 192.168.101.3Parameter Description Defaultbr0 and Virtual InterfacesThis is where the primary interface (br0) and any virtual interfaces (br0:1, br0:2, etc.) will be configured for remote access.The primary interface is the IP address for the Base Station.Dependent on your network design.Gateway This is where the default gateway will be specified for the br0.Dependent on your network design.

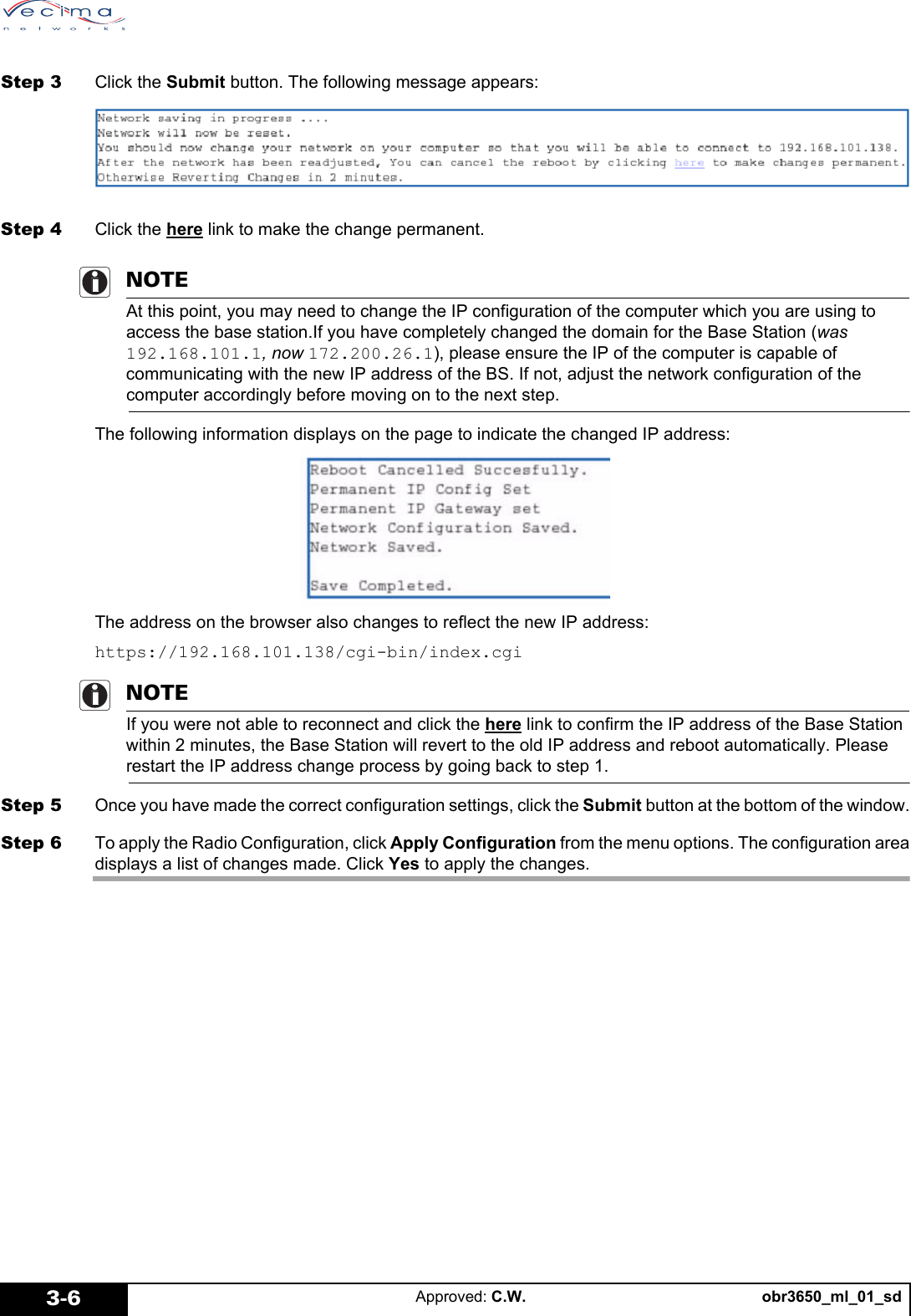

obr3650_ml_01_sdApproved: C.W.3-6Step 3 Click the Submit button. The following message appears:Step 4 Click the here link to make the change permanent.NOTEAt this point, you may need to change the IP configuration of the computer which you are using to access the base station.If you have completely changed the domain for the Base Station (was 192.168.101.1, now 172.200.26.1), please ensure the IP of the computer is capable of communicating with the new IP address of the BS. If not, adjust the network configuration of the computer accordingly before moving on to the next step. The following information displays on the page to indicate the changed IP address:The address on the browser also changes to reflect the new IP address:https://192.168.101.138/cgi-bin/index.cgiNOTEIf you were not able to reconnect and click the here link to confirm the IP address of the Base Station within 2 minutes, the Base Station will revert to the old IP address and reboot automatically. Please restart the IP address change process by going back to step 1.Step 5 Once you have made the correct configuration settings, click the Submit button at the bottom of the window.Step 6 To apply the Radio Configuration, click Apply Configuration from the menu options. The configuration areadisplays a list of changes made. Click Yes to apply the changes.

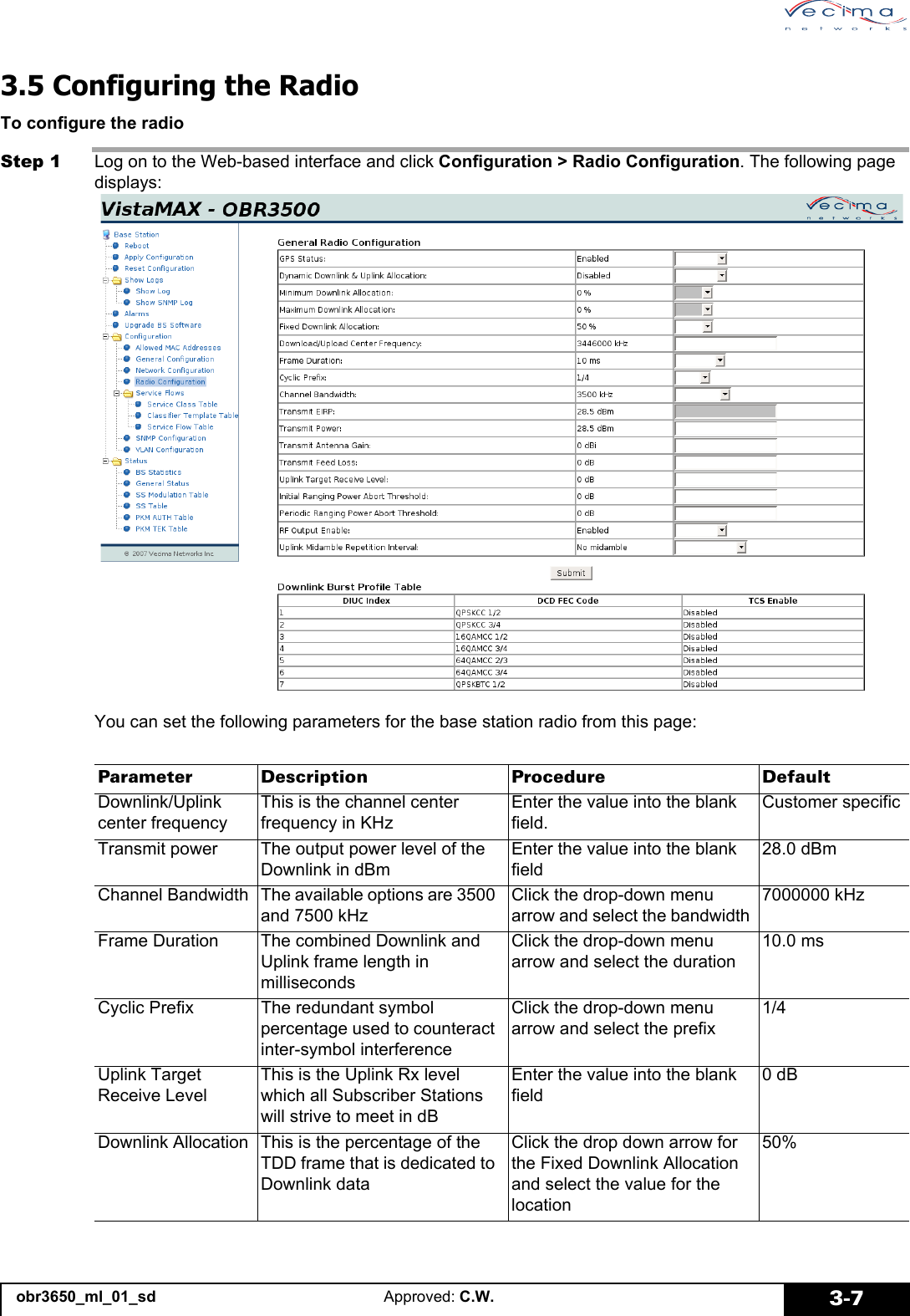

obr3650_ml_01_sd Approved: C.W. 3-73.5 Configuring the RadioTo configure the radioStep 1 Log on to the Web-based interface and click Configuration > Radio Configuration. The following page displays:You can set the following parameters for the base station radio from this page:Parameter Description Procedure DefaultDownlink/Uplink center frequencyThis is the channel center frequency in KHzEnter the value into the blank field.Customer specificTransmit power The output power level of the Downlink in dBmEnter the value into the blank field28.0 dBmChannel Bandwidth The available options are 3500 and 7500 kHzClick the drop-down menu arrow and select the bandwidth7000000 kHzFrame Duration The combined Downlink and Uplink frame length in millisecondsClick the drop-down menu arrow and select the duration10.0 msCyclic Prefix The redundant symbol percentage used to counteract inter-symbol interferenceClick the drop-down menu arrow and select the prefix1/4Uplink Target Receive LevelThis is the Uplink Rx level which all Subscriber Stations will strive to meet in dBEnter the value into the blank field0 dBDownlink Allocation This is the percentage of the TDD frame that is dedicated to Downlink dataClick the drop down arrow for the Fixed Downlink Allocation and select the value for the location50%

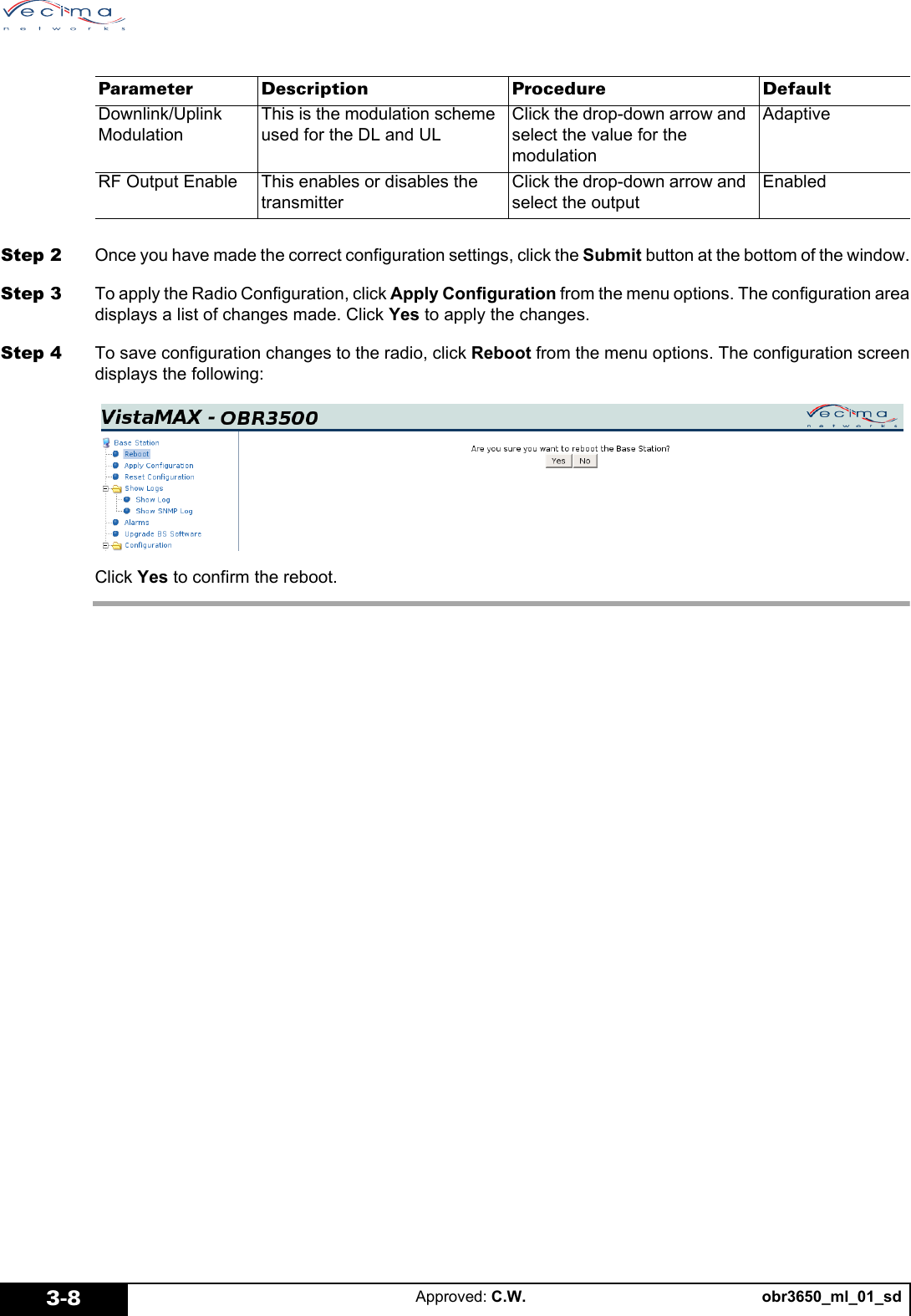

obr3650_ml_01_sdApproved: C.W.3-8Step 2 Once you have made the correct configuration settings, click the Submit button at the bottom of the window.Step 3 To apply the Radio Configuration, click Apply Configuration from the menu options. The configuration areadisplays a list of changes made. Click Yes to apply the changes.Step 4 To save configuration changes to the radio, click Reboot from the menu options. The configuration screendisplays the following:Click Yes to confirm the reboot.Downlink/Uplink ModulationThis is the modulation scheme used for the DL and ULClick the drop-down arrow and select the value for the modulationAdaptiveRF Output Enable This enables or disables the transmitterClick the drop-down arrow and select the outputEnabledParameter Description Procedure Default

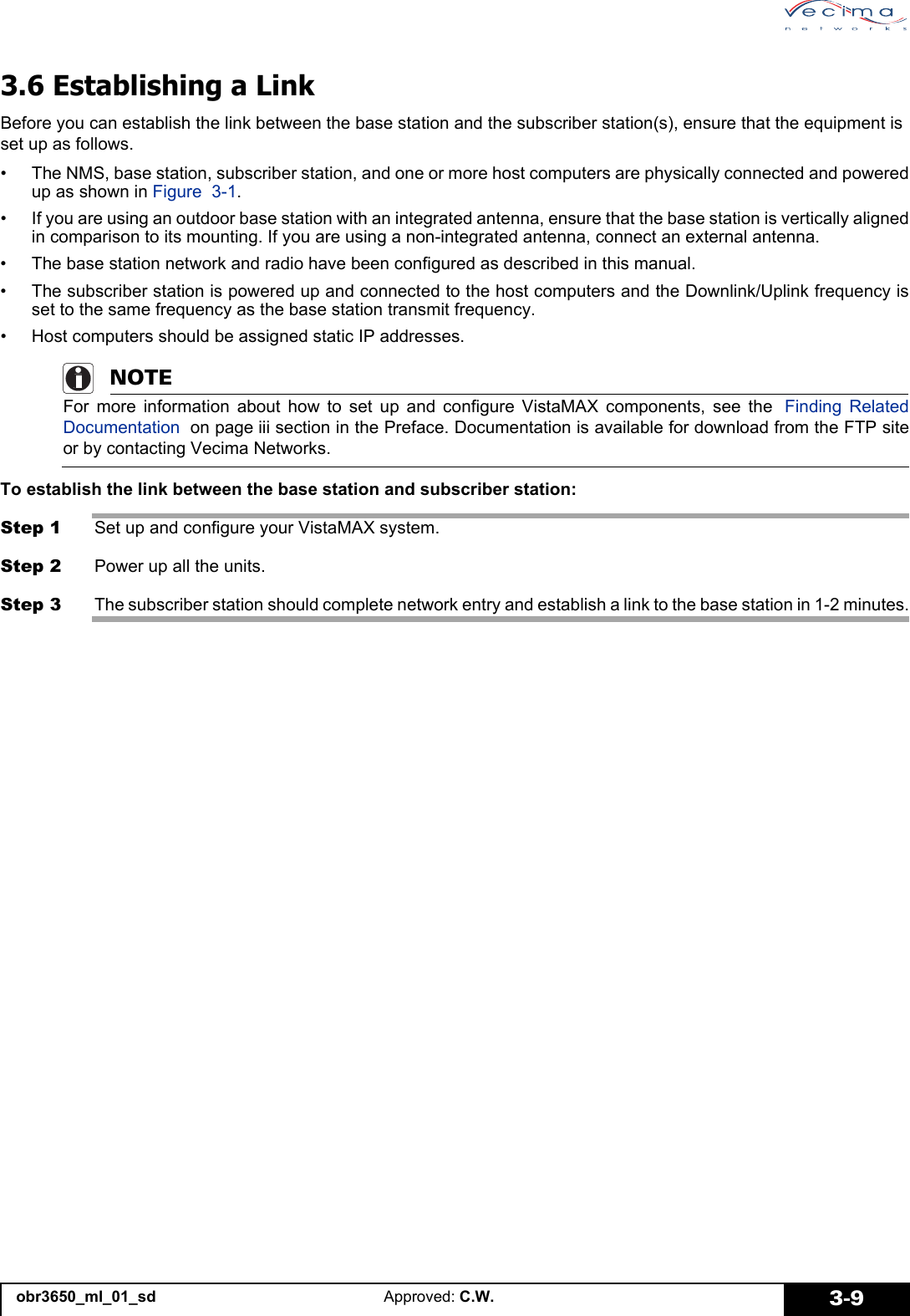

obr3650_ml_01_sd Approved: C.W. 3-93.6 Establishing a LinkBefore you can establish the link between the base station and the subscriber station(s), ensure that the equipment is set up as follows.• The NMS, base station, subscriber station, and one or more host computers are physically connected and poweredup as shown in Figure 3-1. • If you are using an outdoor base station with an integrated antenna, ensure that the base station is vertically alignedin comparison to its mounting. If you are using a non-integrated antenna, connect an external antenna.• The base station network and radio have been configured as described in this manual.• The subscriber station is powered up and connected to the host computers and the Downlink/Uplink frequency isset to the same frequency as the base station transmit frequency.• Host computers should be assigned static IP addresses. NOTEFor more information about how to set up and configure VistaMAX components, see the Finding RelatedDocumentation on page iii section in the Preface. Documentation is available for download from the FTP siteor by contacting Vecima Networks.To establish the link between the base station and subscriber station:Step 1 Set up and configure your VistaMAX system.Step 2 Power up all the units.Step 3 The subscriber station should complete network entry and establish a link to the base station in 1-2 minutes.

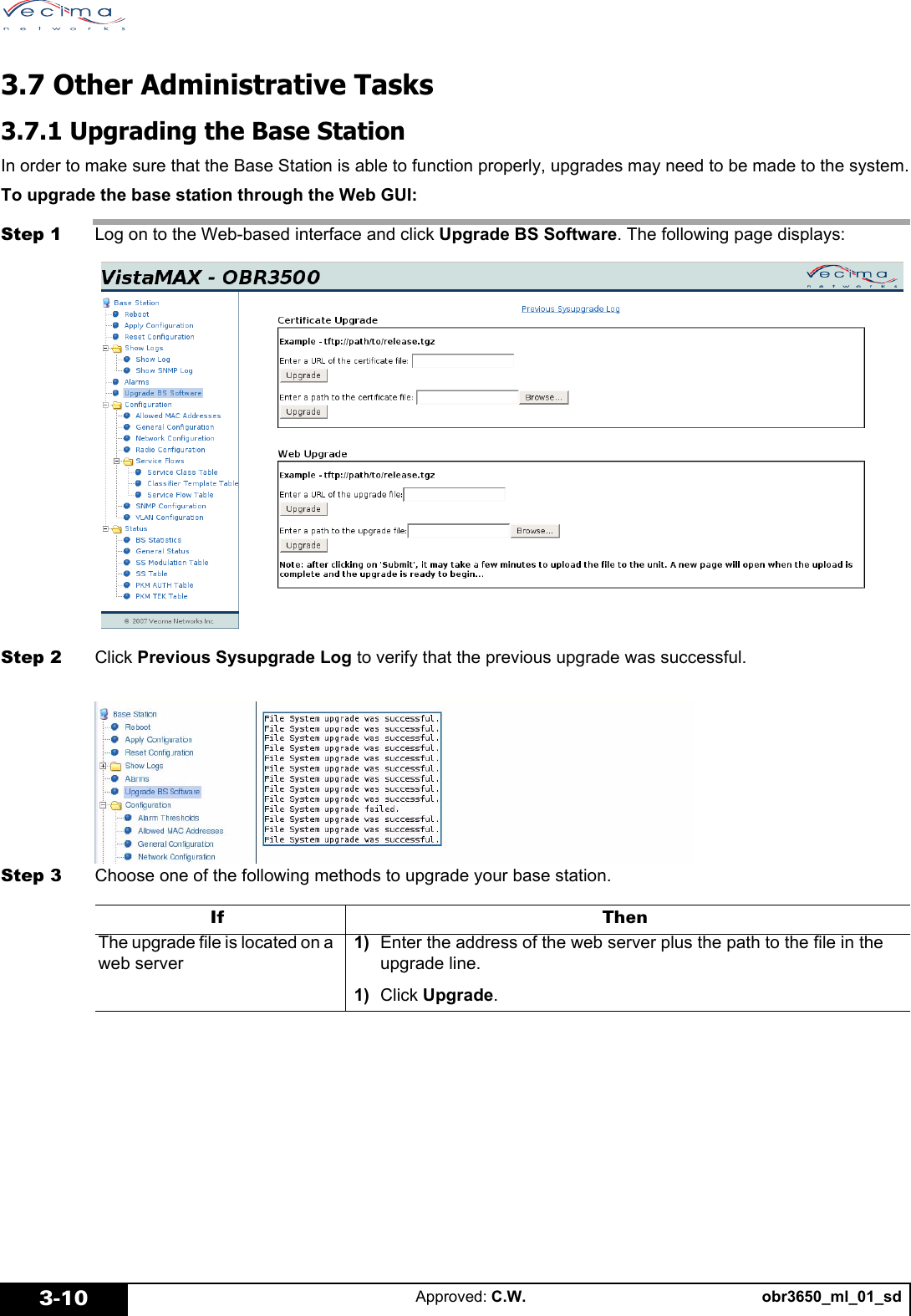

obr3650_ml_01_sdApproved: C.W.3-103.7 Other Administrative Tasks3.7.1 Upgrading the Base StationIn order to make sure that the Base Station is able to function properly, upgrades may need to be made to the system.To upgrade the base station through the Web GUI:Step 1 Log on to the Web-based interface and click Upgrade BS Software. The following page displays:Step 2 Click Previous Sysupgrade Log to verify that the previous upgrade was successful.Step 3 Choose one of the following methods to upgrade your base station.If ThenThe upgrade file is located on a web server 1) Enter the address of the web server plus the path to the file in the upgrade line. 1) Click Upgrade.

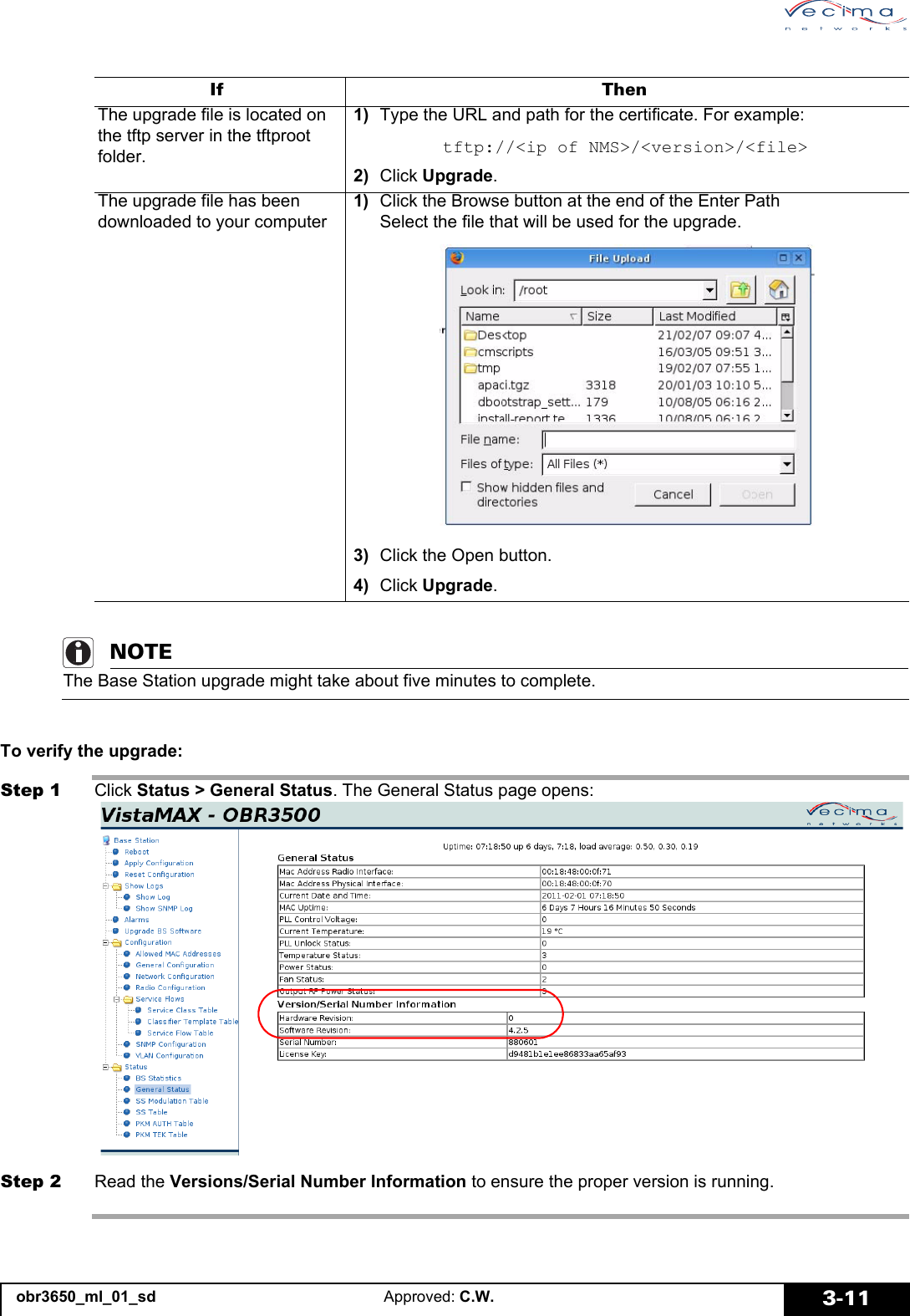

obr3650_ml_01_sd Approved: C.W. 3-11NOTEThe Base Station upgrade might take about five minutes to complete.To verify the upgrade:Step 1 Click Status > General Status. The General Status page opens:Step 2 Read the Versions/Serial Number Information to ensure the proper version is running.The upgrade file is located on the tftp server in the tftproot folder. 1) Type the URL and path for the certificate. For example:tftp://<ip of NMS>/<version>/<file> 2) Click Upgrade.The upgrade file has been downloaded to your computer 1) Click the Browse button at the end of the Enter PathSelect the file that will be used for the upgrade. 3) Click the Open button. 4) Click Upgrade.If Then

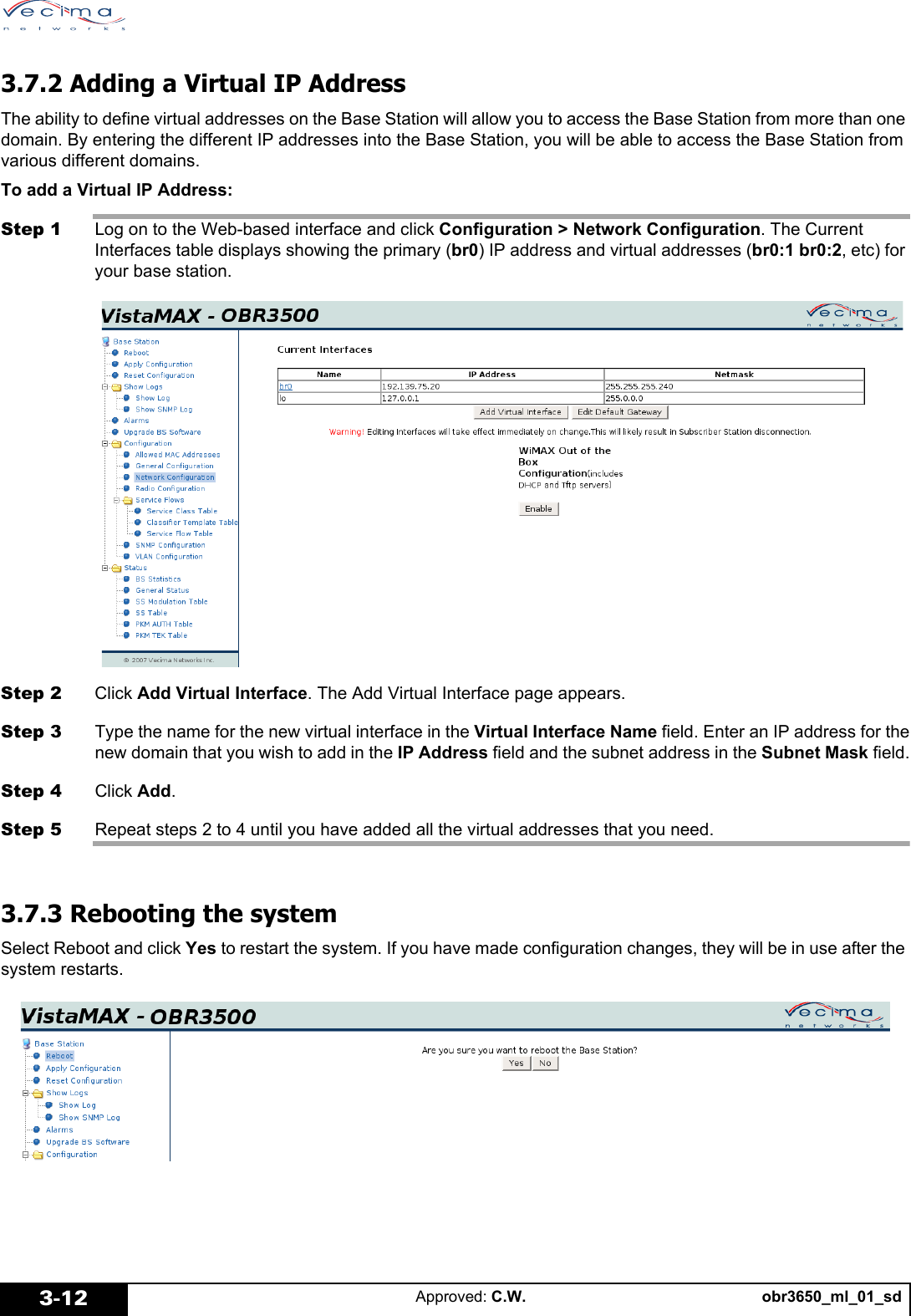

obr3650_ml_01_sdApproved: C.W.3-123.7.2 Adding a Virtual IP AddressThe ability to define virtual addresses on the Base Station will allow you to access the Base Station from more than one domain. By entering the different IP addresses into the Base Station, you will be able to access the Base Station from various different domains. To add a Virtual IP Address:Step 1 Log on to the Web-based interface and click Configuration > Network Configuration. The Current Interfaces table displays showing the primary (br0) IP address and virtual addresses (br0:1 br0:2, etc) for your base station.Step 2 Click Add Virtual Interface. The Add Virtual Interface page appears.Step 3 Type the name for the new virtual interface in the Virtual Interface Name field. Enter an IP address for thenew domain that you wish to add in the IP Address field and the subnet address in the Subnet Mask field.Step 4 Click Add.Step 5 Repeat steps 2 to 4 until you have added all the virtual addresses that you need.3.7.3 Rebooting the systemSelect Reboot and click Yes to restart the system. If you have made configuration changes, they will be in use after the system restarts.

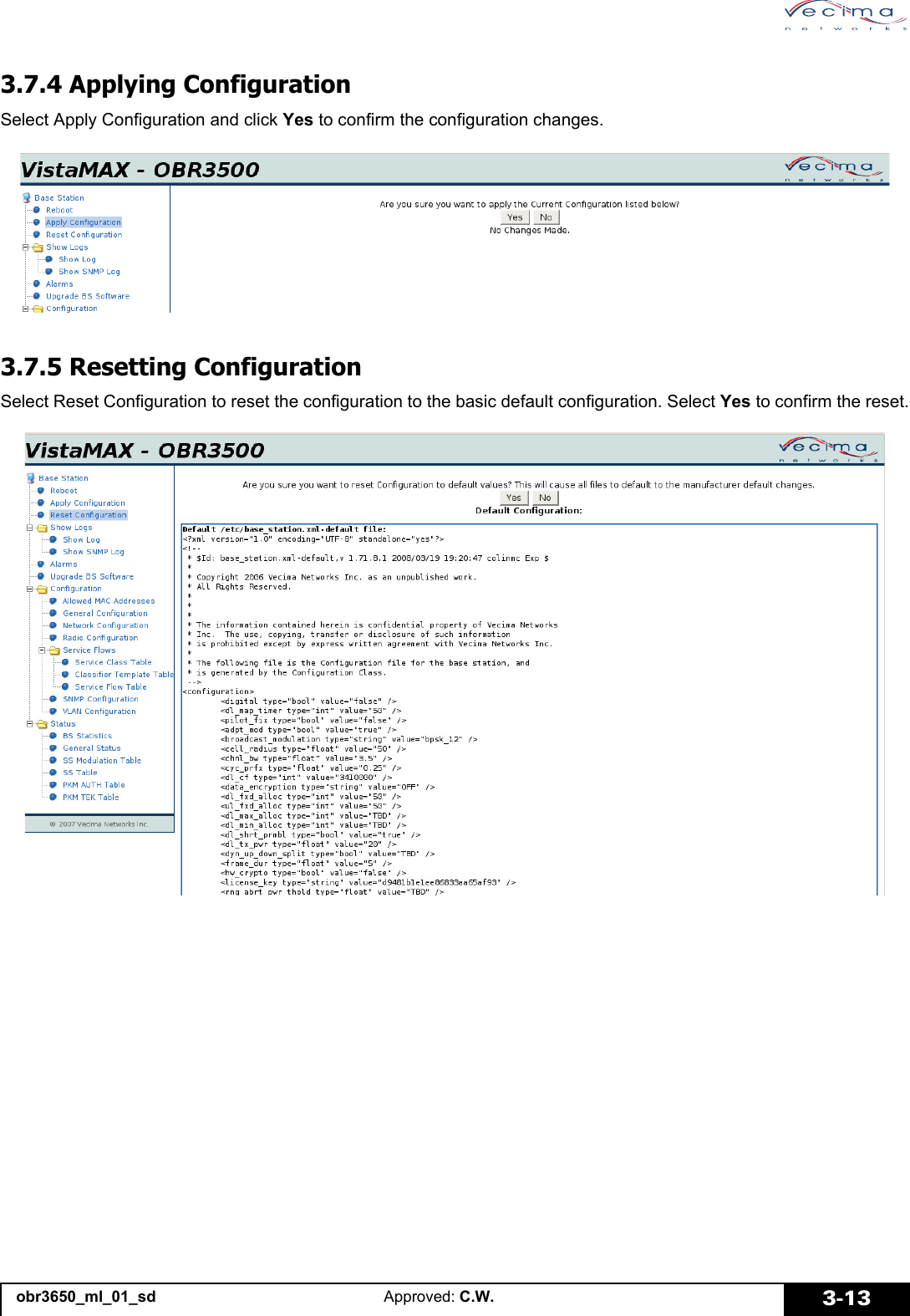

obr3650_ml_01_sd Approved: C.W. 3-133.7.4 Applying ConfigurationSelect Apply Configuration and click Yes to confirm the configuration changes.3.7.5 Resetting ConfigurationSelect Reset Configuration to reset the configuration to the basic default configuration. Select Yes to confirm the reset.

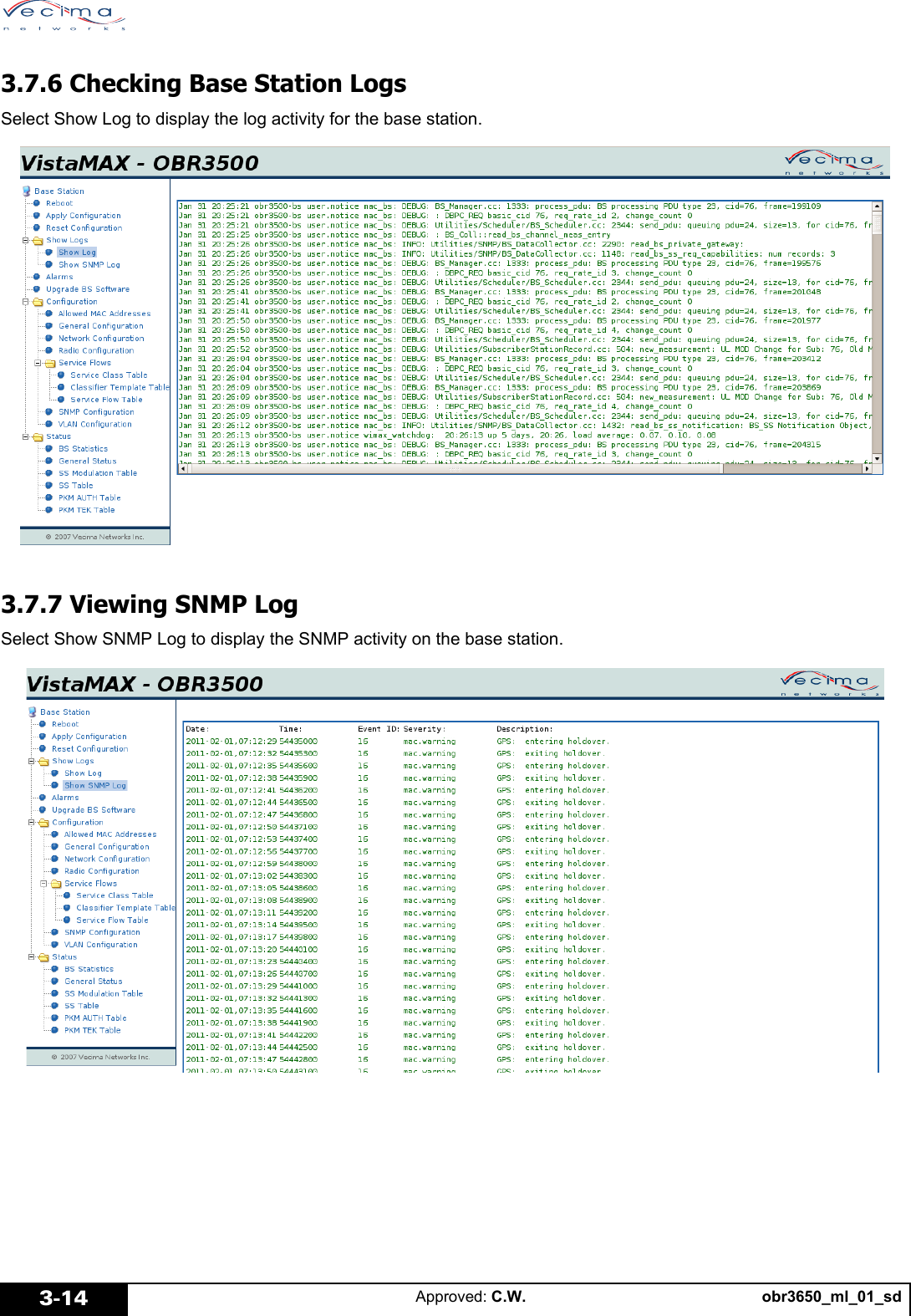

obr3650_ml_01_sdApproved: C.W.3-143.7.6 Checking Base Station LogsSelect Show Log to display the log activity for the base station.3.7.7 Viewing SNMP LogSelect Show SNMP Log to display the SNMP activity on the base station.

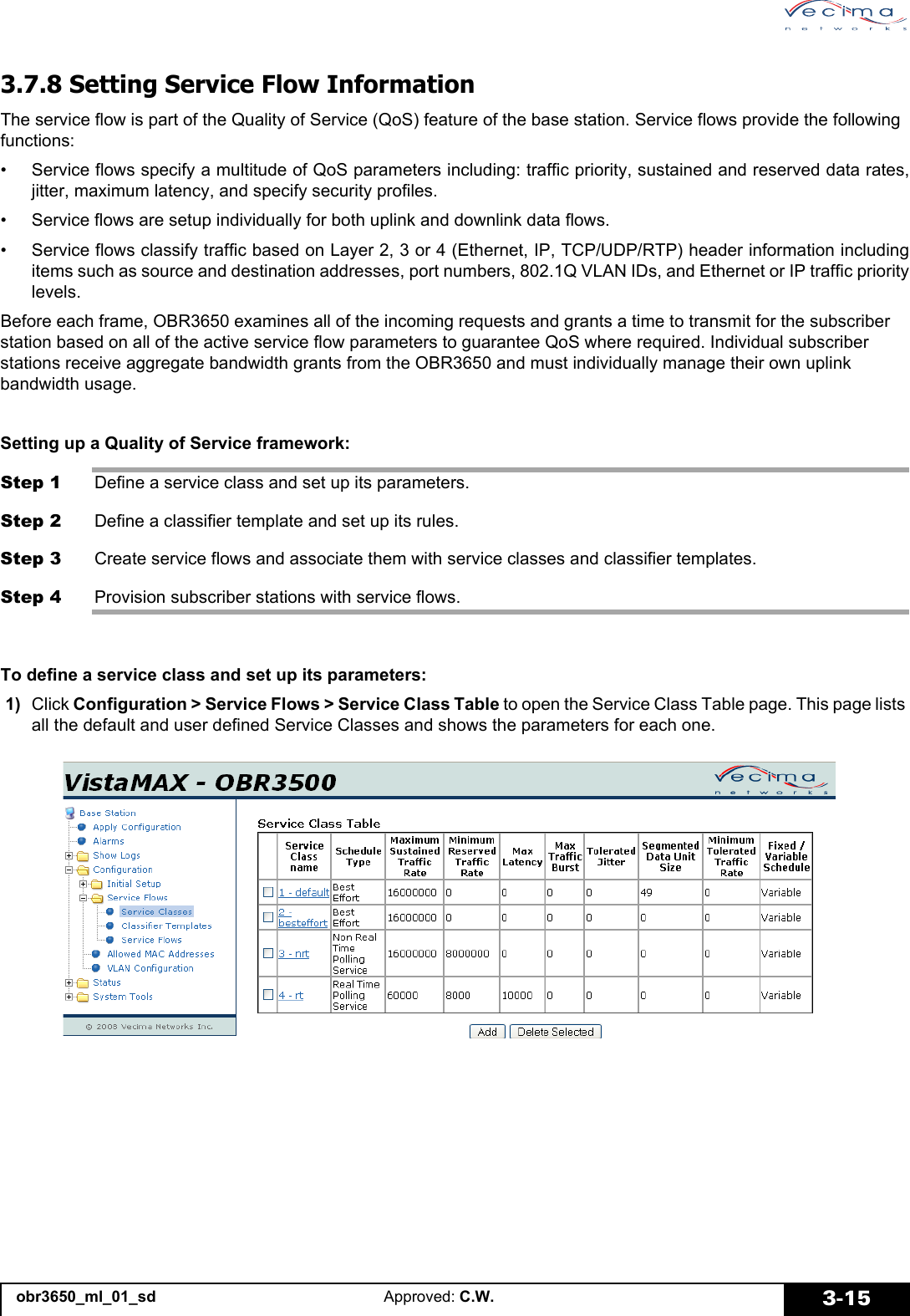

obr3650_ml_01_sd Approved: C.W. 3-153.7.8 Setting Service Flow InformationThe service flow is part of the Quality of Service (QoS) feature of the base station. Service flows provide the following functions:• Service flows specify a multitude of QoS parameters including: traffic priority, sustained and reserved data rates,jitter, maximum latency, and specify security profiles.• Service flows are setup individually for both uplink and downlink data flows.• Service flows classify traffic based on Layer 2, 3 or 4 (Ethernet, IP, TCP/UDP/RTP) header information includingitems such as source and destination addresses, port numbers, 802.1Q VLAN IDs, and Ethernet or IP traffic prioritylevels.Before each frame, OBR3650 examines all of the incoming requests and grants a time to transmit for the subscriber station based on all of the active service flow parameters to guarantee QoS where required. Individual subscriber stations receive aggregate bandwidth grants from the OBR3650 and must individually manage their own uplink bandwidth usage.Setting up a Quality of Service framework:Step 1 Define a service class and set up its parameters.Step 2 Define a classifier template and set up its rules.Step 3 Create service flows and associate them with service classes and classifier templates.Step 4 Provision subscriber stations with service flows.To define a service class and set up its parameters: 1) Click Configuration > Service Flows > Service Class Table to open the Service Class Table page. This page lists all the default and user defined Service Classes and shows the parameters for each one.

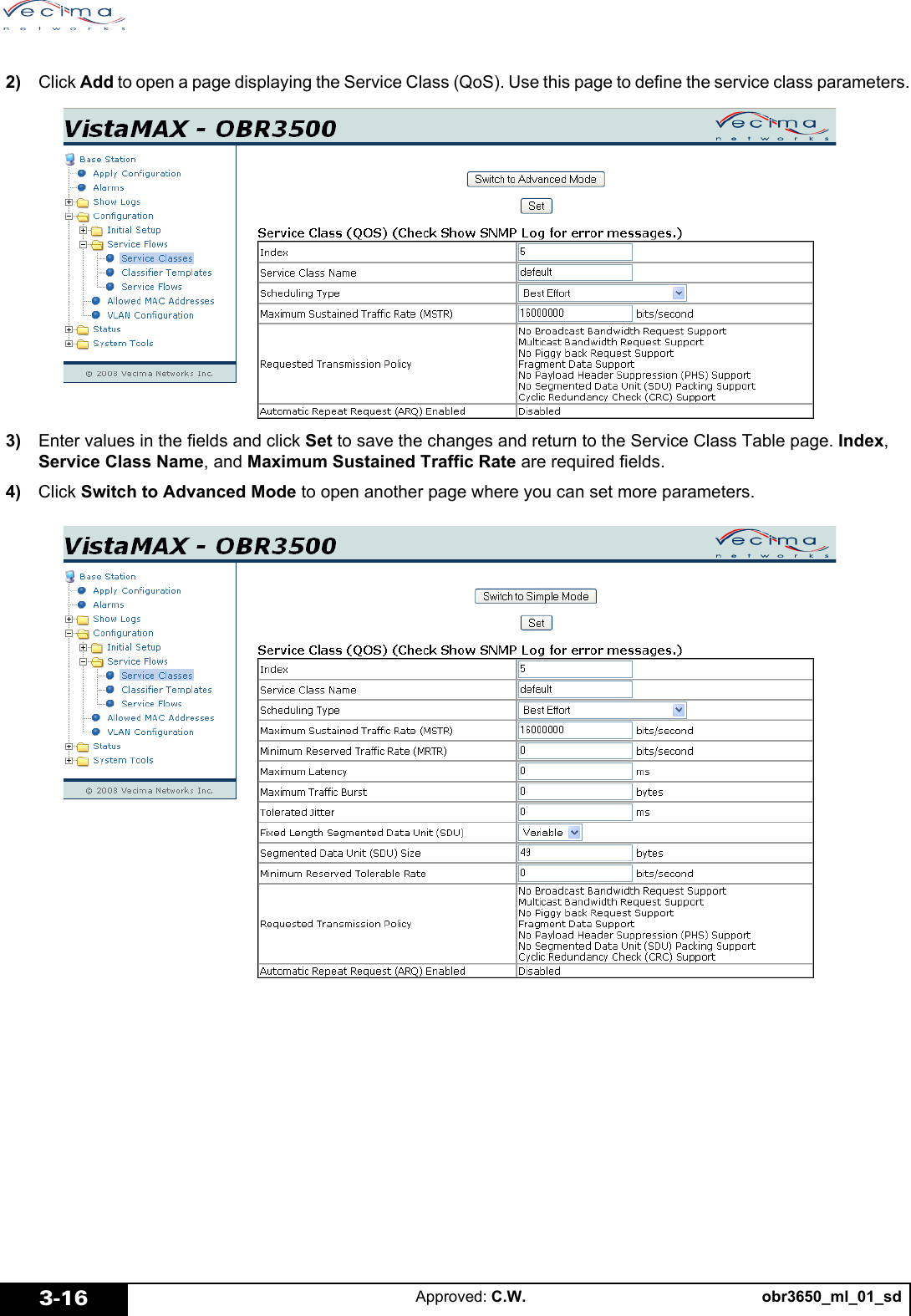

obr3650_ml_01_sdApproved: C.W.3-16 2) Click Add to open a page displaying the Service Class (QoS). Use this page to define the service class parameters. 3) Enter values in the fields and click Set to save the changes and return to the Service Class Table page. Index, Service Class Name, and Maximum Sustained Traffic Rate are required fields. 4) Click Switch to Advanced Mode to open another page where you can set more parameters.

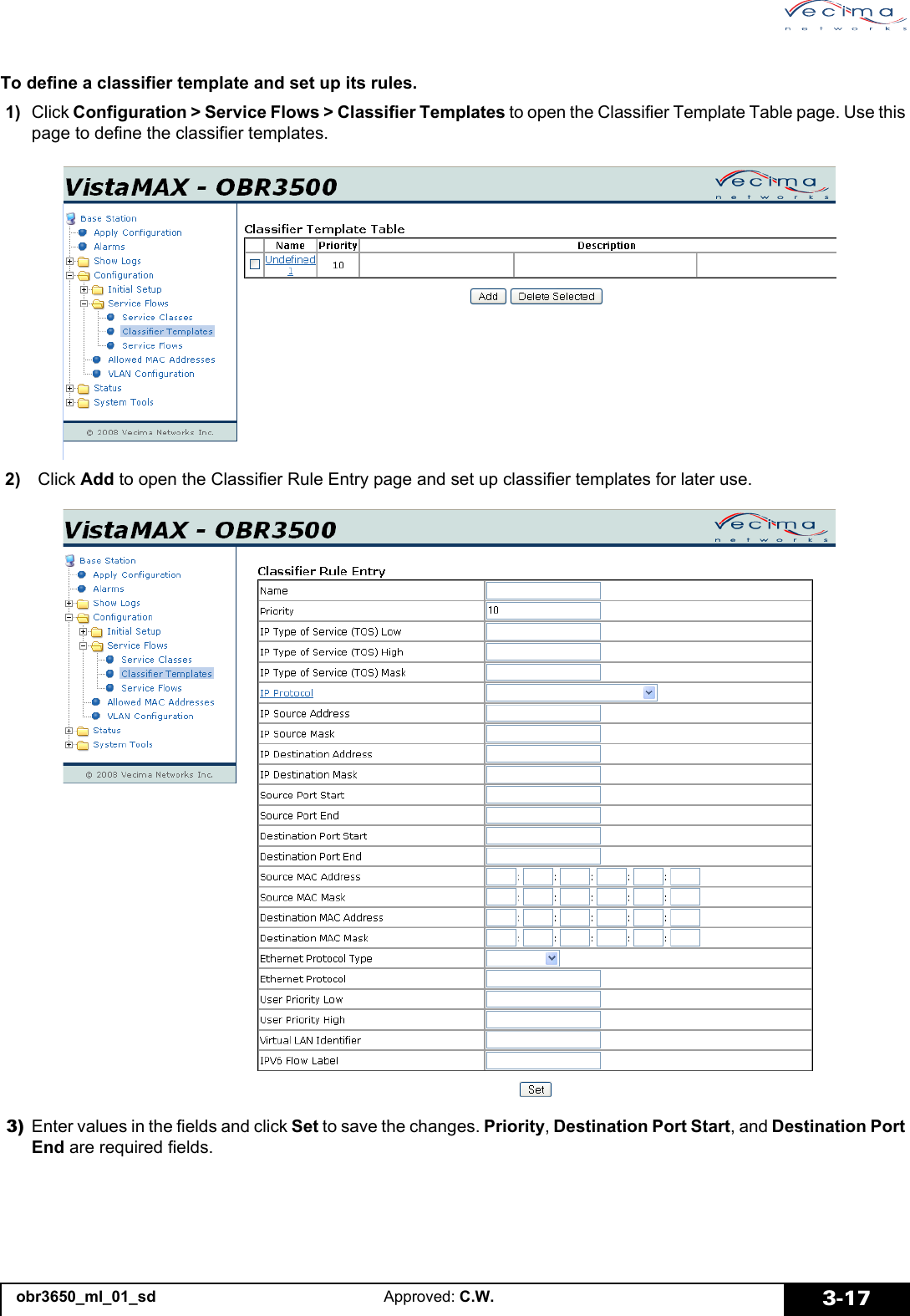

obr3650_ml_01_sd Approved: C.W. 3-17To define a classifier template and set up its rules. 1) Click Configuration > Service Flows > Classifier Templates to open the Classifier Template Table page. Use this page to define the classifier templates. 2) Click Add to open the Classifier Rule Entry page and set up classifier templates for later use. 3) Enter values in the fields and click Set to save the changes. Priority, Destination Port Start, and Destination Port End are required fields.

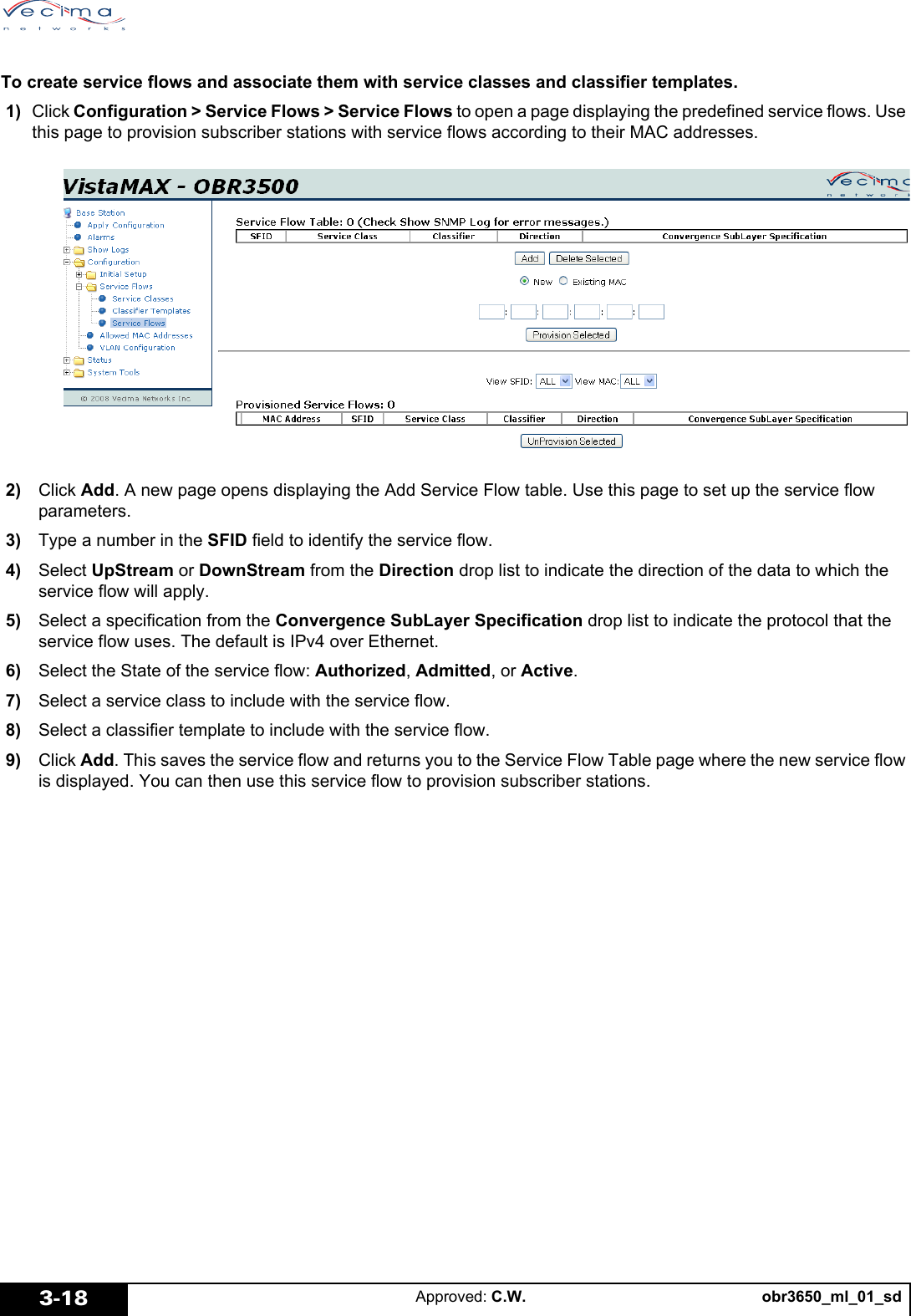

obr3650_ml_01_sdApproved: C.W.3-18To create service flows and associate them with service classes and classifier templates. 1) Click Configuration > Service Flows > Service Flows to open a page displaying the predefined service flows. Use this page to provision subscriber stations with service flows according to their MAC addresses. 2) Click Add. A new page opens displaying the Add Service Flow table. Use this page to set up the service flow parameters. 3) Type a number in the SFID field to identify the service flow. 4) Select UpStream or DownStream from the Direction drop list to indicate the direction of the data to which the service flow will apply. 5) Select a specification from the Convergence SubLayer Specification drop list to indicate the protocol that the service flow uses. The default is IPv4 over Ethernet. 6) Select the State of the service flow: Authorized, Admitted, or Active. 7) Select a service class to include with the service flow. 8) Select a classifier template to include with the service flow. 9) Click Add. This saves the service flow and returns you to the Service Flow Table page where the new service flow is displayed. You can then use this service flow to provision subscriber stations.

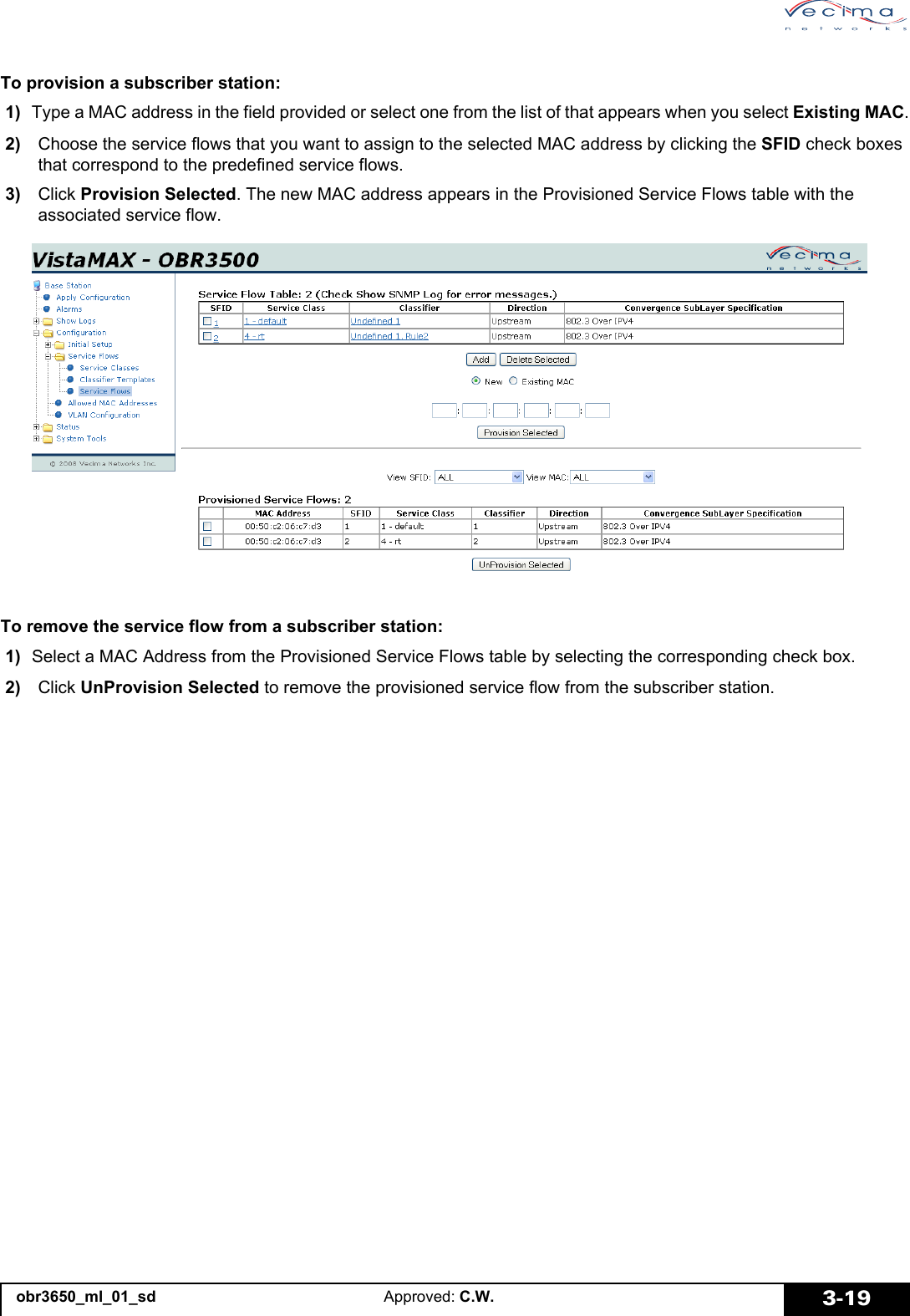

obr3650_ml_01_sd Approved: C.W. 3-19To provision a subscriber station: 1) Type a MAC address in the field provided or select one from the list of that appears when you select Existing MAC. 2) Choose the service flows that you want to assign to the selected MAC address by clicking the SFID check boxes that correspond to the predefined service flows. 3) Click Provision Selected. The new MAC address appears in the Provisioned Service Flows table with the associated service flow.To remove the service flow from a subscriber station: 1) Select a MAC Address from the Provisioned Service Flows table by selecting the corresponding check box. 2) Click UnProvision Selected to remove the provisioned service flow from the subscriber station.

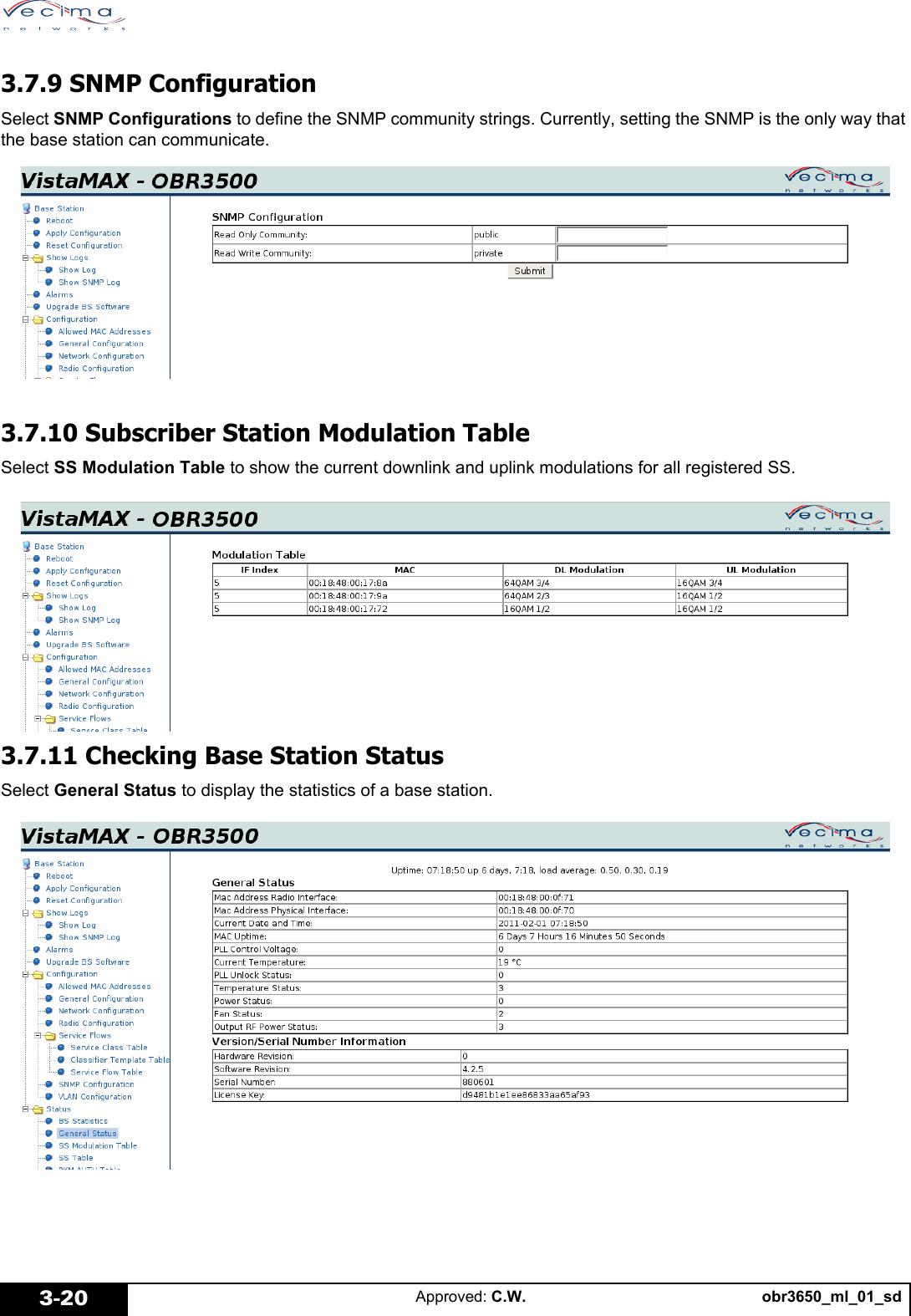

obr3650_ml_01_sdApproved: C.W.3-203.7.9 SNMP ConfigurationSelect SNMP Configurations to define the SNMP community strings. Currently, setting the SNMP is the only way that the base station can communicate.3.7.10 Subscriber Station Modulation TableSelect SS Modulation Table to show the current downlink and uplink modulations for all registered SS.3.7.11 Checking Base Station StatusSelect General Status to display the statistics of a base station.

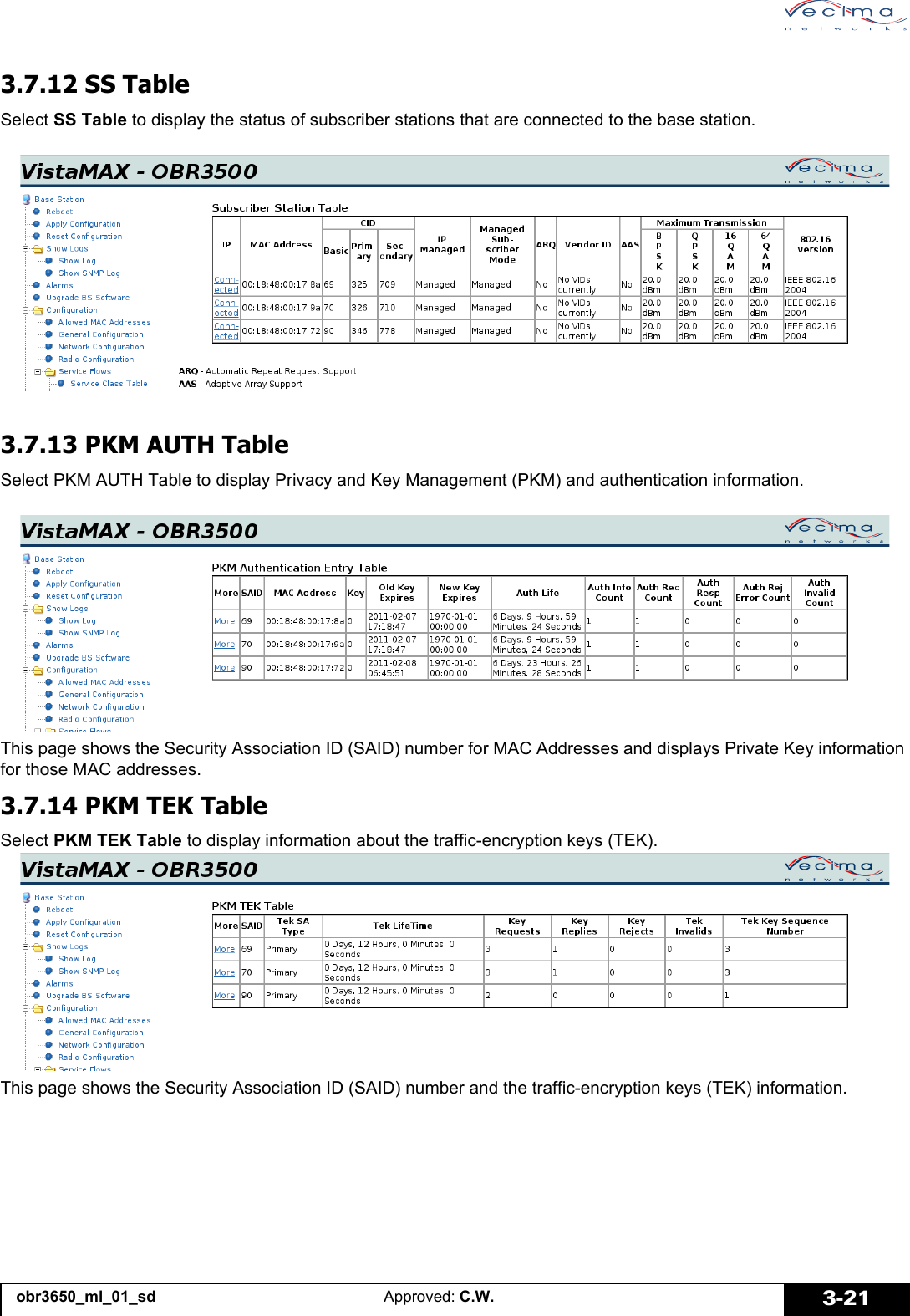

obr3650_ml_01_sd Approved: C.W. 3-213.7.12 SS TableSelect SS Table to display the status of subscriber stations that are connected to the base station.3.7.13 PKM AUTH TableSelect PKM AUTH Table to display Privacy and Key Management (PKM) and authentication information.This page shows the Security Association ID (SAID) number for MAC Addresses and displays Private Key information for those MAC addresses.3.7.14 PKM TEK TableSelect PKM TEK Table to display information about the traffic-encryption keys (TEK).This page shows the Security Association ID (SAID) number and the traffic-encryption keys (TEK) information.
obr3650_ml_01_sdApproved: C.W.3-22This page intentionally left blank

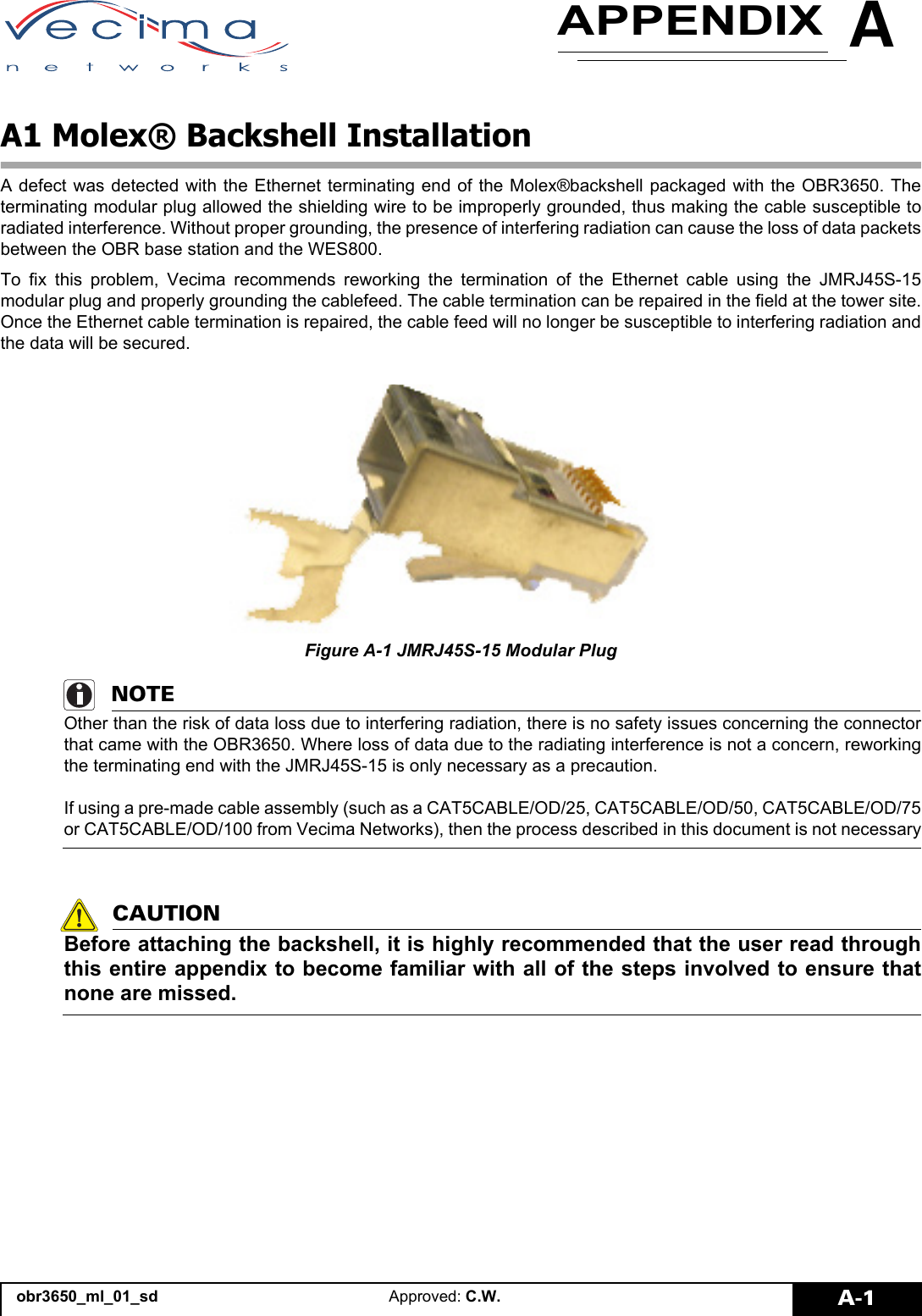

Aobr3650_ml_01_sd Approved: C.W. A-1APPENDIXA1 Molex® Backshell InstallationA defect was detected with the Ethernet terminating end of the Molex®backshell packaged with the OBR3650. Theterminating modular plug allowed the shielding wire to be improperly grounded, thus making the cable susceptible toradiated interference. Without proper grounding, the presence of interfering radiation can cause the loss of data packetsbetween the OBR base station and the WES800.To fix this problem, Vecima recommends reworking the termination of the Ethernet cable using the JMRJ45S-15modular plug and properly grounding the cablefeed. The cable termination can be repaired in the field at the tower site.Once the Ethernet cable termination is repaired, the cable feed will no longer be susceptible to interfering radiation andthe data will be secured.Figure A-1 JMRJ45S-15 Modular PlugNOTEOther than the risk of data loss due to interfering radiation, there is no safety issues concerning the connectorthat came with the OBR3650. Where loss of data due to the radiating interference is not a concern, reworkingthe terminating end with the JMRJ45S-15 is only necessary as a precaution.If using a pre-made cable assembly (such as a CAT5CABLE/OD/25, CAT5CABLE/OD/50, CAT5CABLE/OD/75or CAT5CABLE/OD/100 from Vecima Networks), then the process described in this document is not necessaryCAUTIONBefore attaching the backshell, it is highly recommended that the user read throughthis entire appendix to become familiar with all of the steps involved to ensure thatnone are missed.

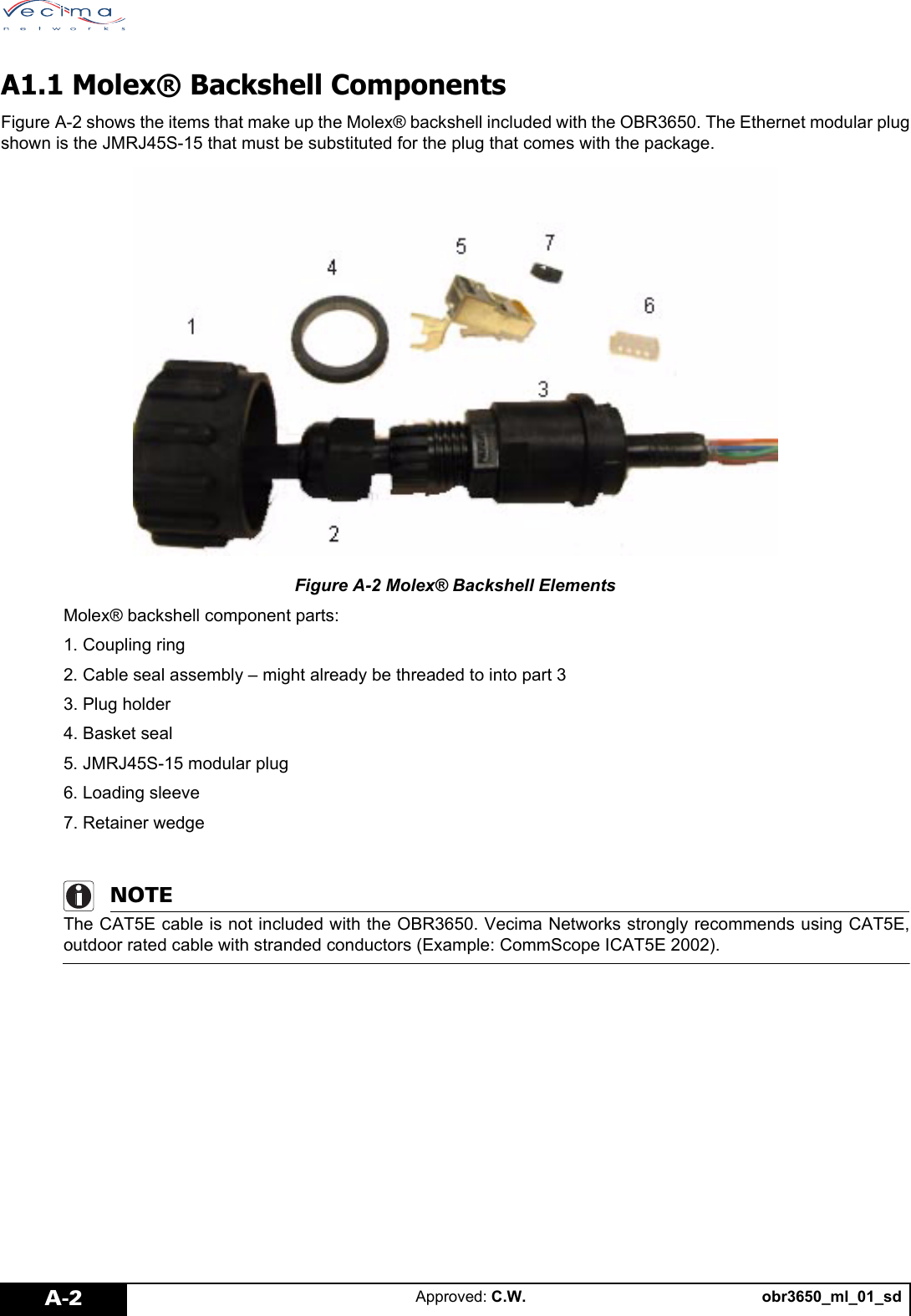

obr3650_ml_01_sdApproved: C.W.A-2A1.1 Molex® Backshell ComponentsFigure A-2 shows the items that make up the Molex® backshell included with the OBR3650. The Ethernet modular plugshown is the JMRJ45S-15 that must be substituted for the plug that comes with the package.Figure A-2 Molex® Backshell ElementsMolex® backshell component parts:1. Coupling ring2. Cable seal assembly – might already be threaded to into part 33. Plug holder4. Basket seal5. JMRJ45S-15 modular plug6. Loading sleeve7. Retainer wedgeNOTEThe CAT5E cable is not included with the OBR3650. Vecima Networks strongly recommends using CAT5E,outdoor rated cable with stranded conductors (Example: CommScope ICAT5E 2002).

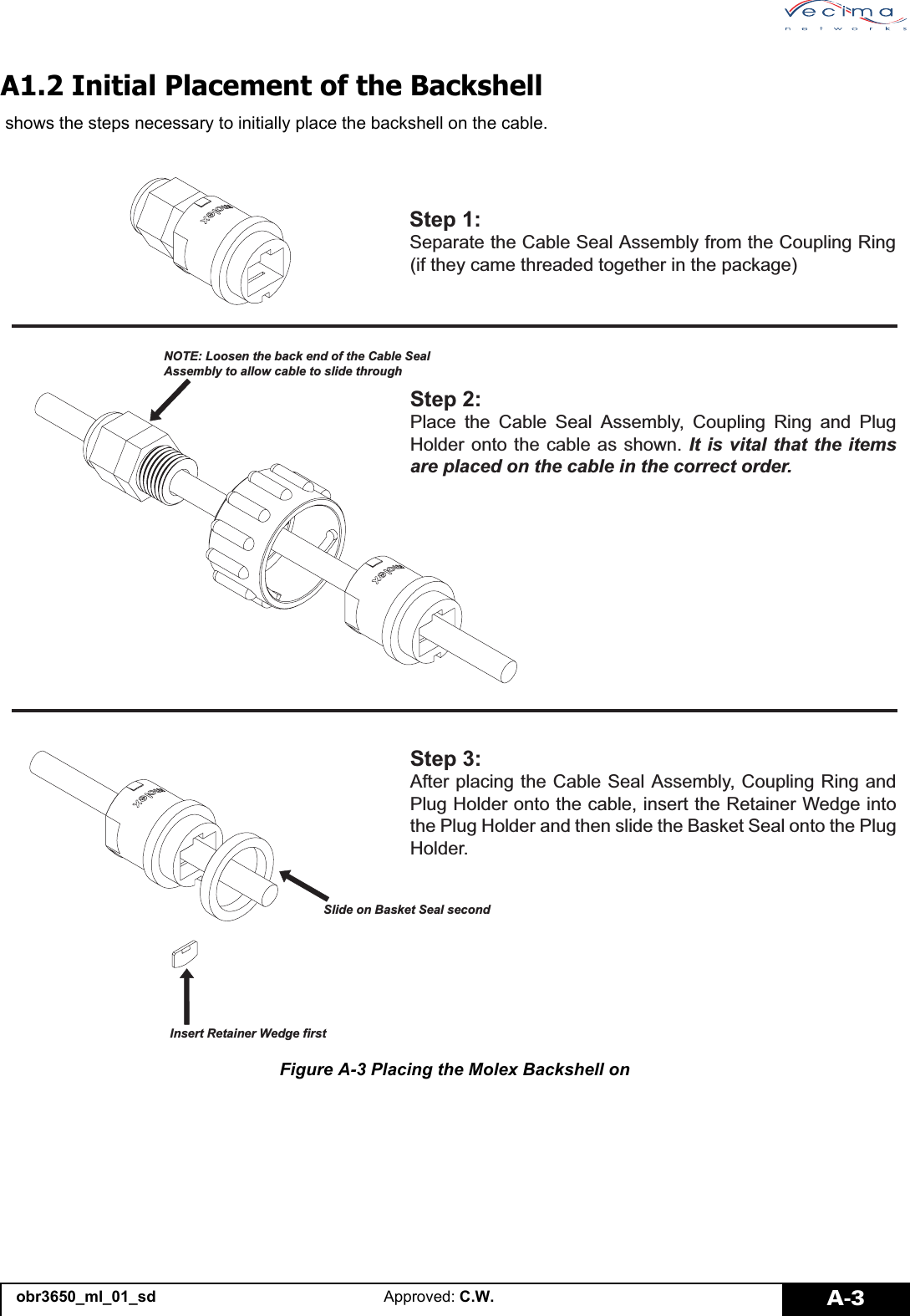

obr3650_ml_01_sd Approved: C.W. A-3A1.2 Initial Placement of the Backshell shows the steps necessary to initially place the backshell on the cable.Figure A-3 Placing the Molex Backshell on6WHS6HSDUDWHWKH&DEOH6HDO$VVHPEO\IURPWKH&RXSOLQJ5LQJLIWKH\FDPHWKUHDGHGWRJHWKHULQWKHSDFNDJH6WHS3ODFH WKH &DEOH 6HDO $VVHPEO\ &RXSOLQJ 5LQJ DQG 3OXJ+ROGHURQWRWKHFDEOHDVVKRZQ,WLVYLWDOWKDWWKHLWHPVDUHSODFHGRQWKHFDEOHLQWKHFRUUHFWRUGHU127(/RRVHQWKHEDFNHQGRIWKH&DEOH6HDO$VVHPEO\WRDOORZFDEOHWRVOLGHWKURXJK6WHS$IWHUSODFLQJWKH&DEOH6HDO$VVHPEO\&RXSOLQJ5LQJDQG3OXJ+ROGHURQWRWKHFDEOHLQVHUWWKH5HWDLQHU:HGJHLQWRWKH3OXJ+ROGHUDQGWKHQVOLGHWKH%DVNHW6HDORQWRWKH3OXJ+ROGHU,QVHUW5HWDLQHU:HGJHILUVW6OLGHRQ%DVNHW6HDOVHFRQG

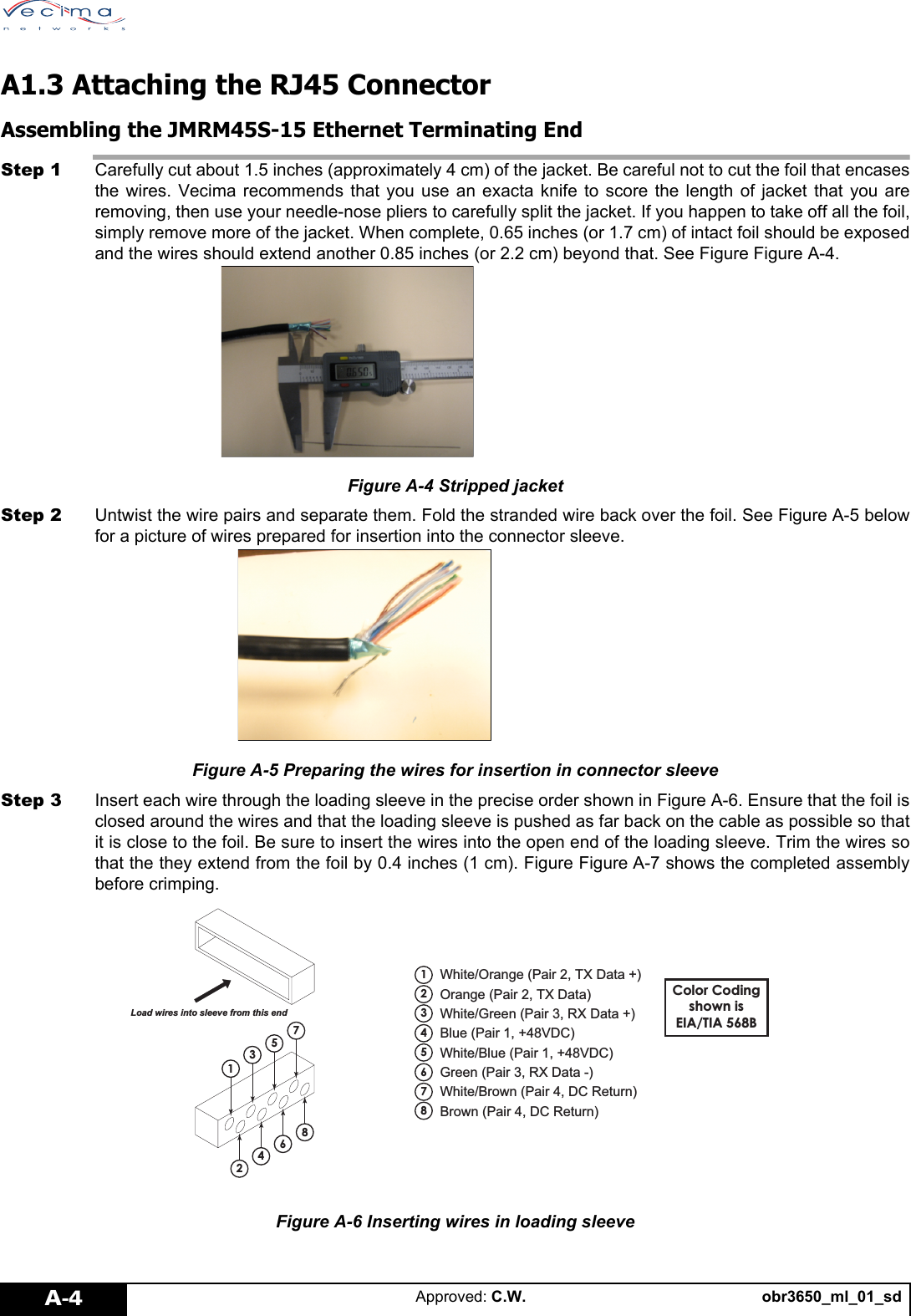

obr3650_ml_01_sdApproved: C.W.A-4A1.3 Attaching the RJ45 ConnectorAssembling the JMRM45S-15 Ethernet Terminating EndStep 1 Carefully cut about 1.5 inches (approximately 4 cm) of the jacket. Be careful not to cut the foil that encasesthe wires. Vecima recommends that you use an exacta knife to score the length of jacket that you areremoving, then use your needle-nose pliers to carefully split the jacket. If you happen to take off all the foil,simply remove more of the jacket. When complete, 0.65 inches (or 1.7 cm) of intact foil should be exposedand the wires should extend another 0.85 inches (or 2.2 cm) beyond that. See Figure Figure A-4.Figure A-4 Stripped jacketStep 2 Untwist the wire pairs and separate them. Fold the stranded wire back over the foil. See Figure A-5 belowfor a picture of wires prepared for insertion into the connector sleeve.Figure A-5 Preparing the wires for insertion in connector sleeveStep 3 Insert each wire through the loading sleeve in the precise order shown in Figure A-6. Ensure that the foil isclosed around the wires and that the loading sleeve is pushed as far back on the cable as possible so thatit is close to the foil. Be sure to insert the wires into the open end of the loading sleeve. Trim the wires sothat the they extend from the foil by 0.4 inches (1 cm). Figure Figure A-7 shows the completed assemblybefore crimping.Figure A-6 Inserting wires in loading sleeve/RDGZLUHVLQWRVOHHYHIURPWKLVHQG:KLWH2UDQJH3DLU7;'DWD2UDQJH3DLU7;'DWD:KLWH*UHHQ3DLU5;'DWD%OXH3DLU9'&:KLWH%OXH3DLU9'&*UHHQ3DLU5;'DWD:KLWH%URZQ3DLU'&5HWXUQ%URZQ3DLU'&5HWXUQ&RORU&RGLQJVKRZQLV(,$7,$%
obr3650_ml_01_sd Approved: C.W. A-5Figure A-7 Cable ready for crimpingStep 4 Before installing into the connector bend back the metal strain relief along the cable length. The metal strainrelief should fit just after the jacket and cover the foil.Check the following before crimping:1) The wires are in the correct order. See Figure A-62) You can see the copper ends of the wires. If the wires are not snug against the connector end, theconnection will be intermittent.After ensuring that the cable is prepared correctly, crimp the cable using a WT1144 or WT1145 crimpingtool as shown in Figure A-8. The crimped cable is shown in Figure A-9.NOTEIf no crimping tool is available, use a pair of pliers to crimp the shield to the cable.Ensure that the shield is securely attached to the cable.Figure A-8 Crimping the cableFigure A-9 Assembled cable terminating end

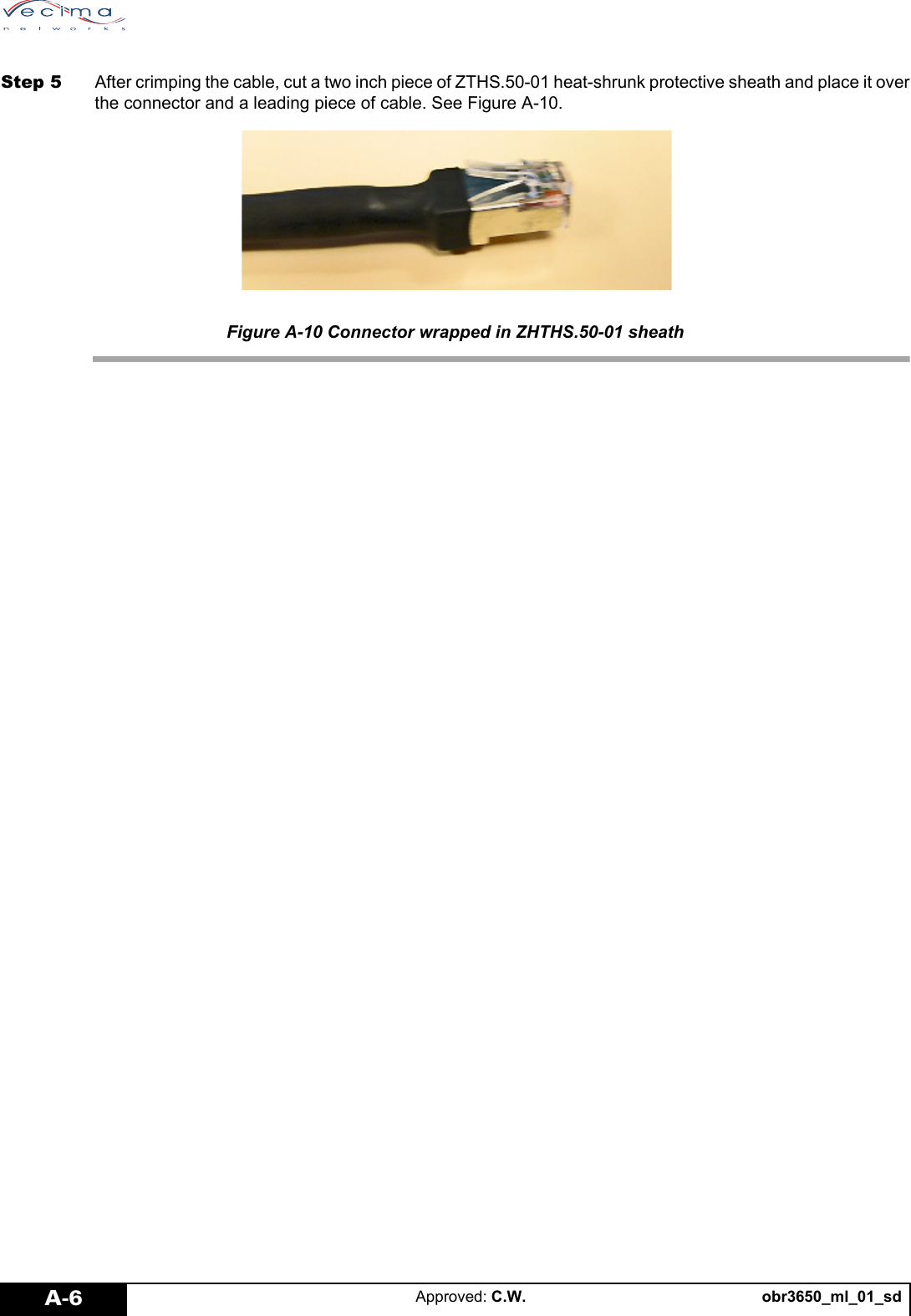

obr3650_ml_01_sdApproved: C.W.A-6Step 5 After crimping the cable, cut a two inch piece of ZTHS.50-01 heat-shrunk protective sheath and place it overthe connector and a leading piece of cable. See Figure A-10.Figure A-10 Connector wrapped in ZHTHS.50-01 sheath
obr3650_ml_01_sd Approved: C.W. A-7A1.4 Completing the Backshell InstallationFigure A-11 shows the steps necessary to compete the installation of the backshell on the cable.Figure A-11 Attaching the RJ45 Connector6WHS3XVKWKH3OXJ+ROGHUDVIDUEDFNLQWRWKH&RXSOLQJ5LQJDVSRVVLEOHWKHQIDVWHQWKH&DEOH6HDO$VVHPEO\LQWRWKHUHDURIWKH3OXJ+ROGHU$IWHUSXVKLQJWKH5-FRQQHFWRULQWRWKH3OXJ+ROGHUWLJKWHQWKHUHDURIWKH&DEOH6HDO$VVHPEO\6WHS3XVKWKH5-FRQQHFWRULQWRWKH3OXJ+ROGHUXQWLOLWLVVQXJDJDLQVWWKH5HDWDLQHU:HGJHDQGWKHQWLJKWHQWKHUHDURIWKH&DEOH6HDO$VVHPEO\WRKROGWKHFDEOHLQSODFH:KHQLQVHUWLQJWKH5-FRQQHFWRULQWRWKH3OXJ+ROGHUKROGWKHWDEGRZQVRWKDWLWVOLGHVLQWRWKLVQRWFK:KHQSXVKLQJWKH5-FRQQHFWRULQWRWKH3OXJ+ROGHUEHVXUHWRKROGWKHWDEGRZQVRWKDWLWVOLGHVLQWRWKHVORWDVLQGLFDWHG7KLV SUHYHQWV WKH 5- FRQQHFWRU WDE IURP ORFNLQJ VLQFHWKHUHLVQRDFFHVVWRSXVKGRZQWKHWDERQFHLWLVLQVLGHWKH&RXSOLQJ5LQJ7KH&RXSOLQJ5LQJWDNHVFDUHRIORFNLQJWKH5-FRQQHFWRULQSODFHYLDLWVED\RQHWORFNLQJPHFKDQLVP

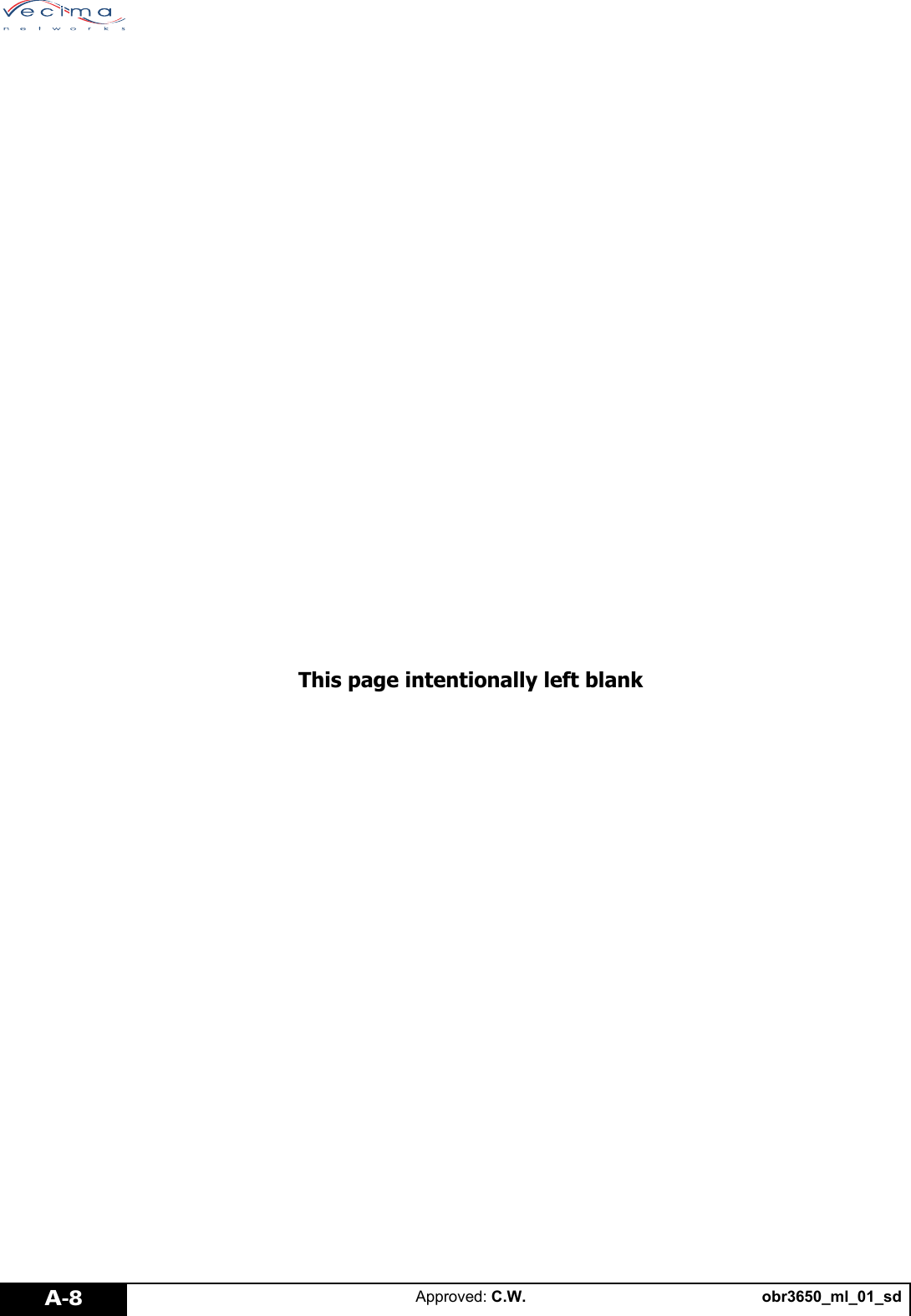

obr3650_ml_01_sdApproved: C.W.A-8This page intentionally left blank

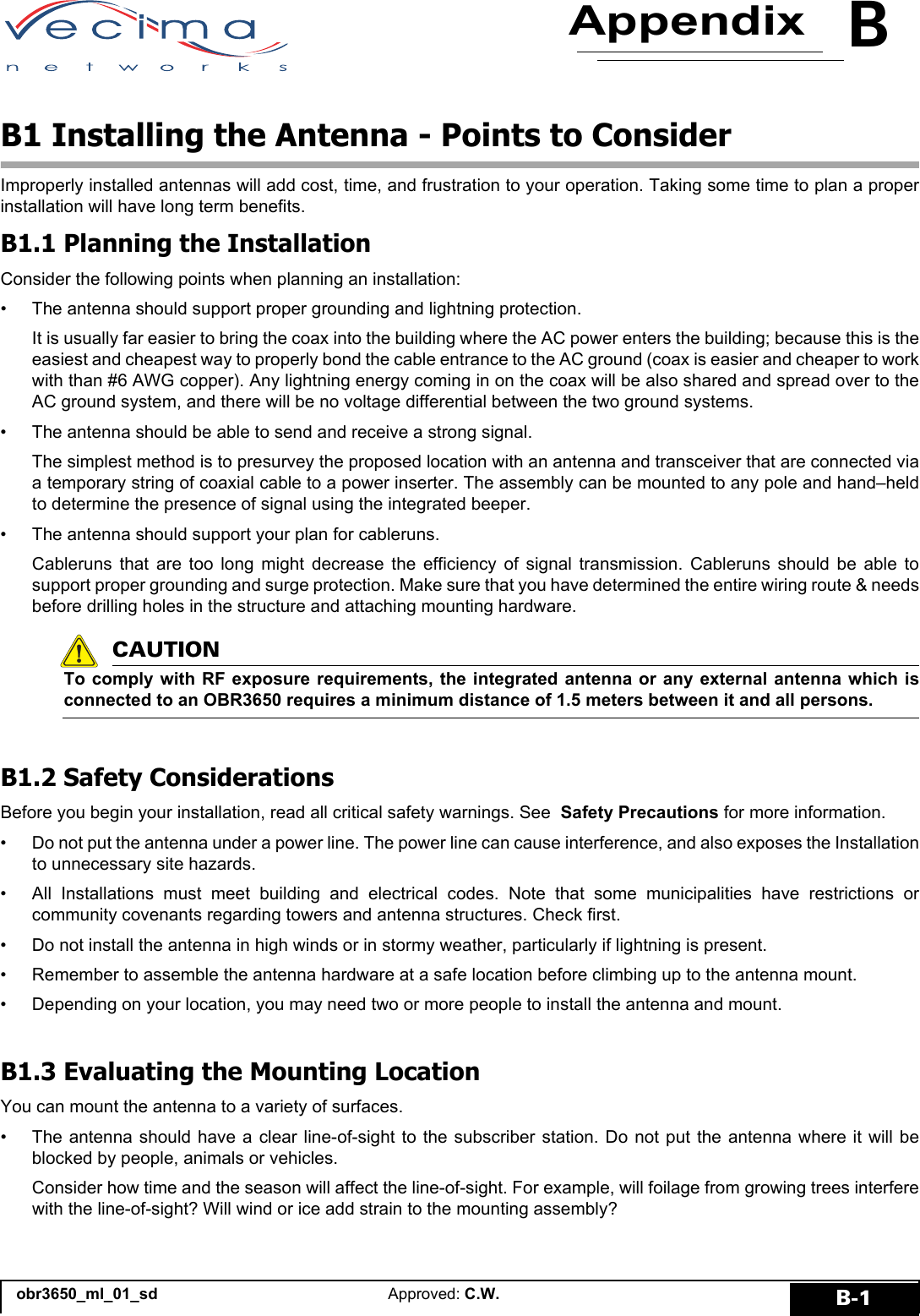

BAppendixobr3650_ml_01_sd Approved: C.W. B-1B1 Installing the Antenna - Points to ConsiderImproperly installed antennas will add cost, time, and frustration to your operation. Taking some time to plan a properinstallation will have long term benefits.B1.1 Planning the InstallationConsider the following points when planning an installation:• The antenna should support proper grounding and lightning protection.It is usually far easier to bring the coax into the building where the AC power enters the building; because this is theeasiest and cheapest way to properly bond the cable entrance to the AC ground (coax is easier and cheaper to workwith than #6 AWG copper). Any lightning energy coming in on the coax will be also shared and spread over to theAC ground system, and there will be no voltage differential between the two ground systems. • The antenna should be able to send and receive a strong signal. The simplest method is to presurvey the proposed location with an antenna and transceiver that are connected viaa temporary string of coaxial cable to a power inserter. The assembly can be mounted to any pole and hand–heldto determine the presence of signal using the integrated beeper.• The antenna should support your plan for cableruns.Cableruns that are too long might decrease the efficiency of signal transmission. Cableruns should be able tosupport proper grounding and surge protection. Make sure that you have determined the entire wiring route & needsbefore drilling holes in the structure and attaching mounting hardware.CAUTIONTo comply with RF exposure requirements, the integrated antenna or any external antenna which isconnected to an OBR3650 requires a minimum distance of 1.5 meters between it and all persons.B1.2 Safety ConsiderationsBefore you begin your installation, read all critical safety warnings. See Safety Precautions for more information.• Do not put the antenna under a power line. The power line can cause interference, and also exposes the Installationto unnecessary site hazards.• All Installations must meet building and electrical codes. Note that some municipalities have restrictions orcommunity covenants regarding towers and antenna structures. Check first.• Do not install the antenna in high winds or in stormy weather, particularly if lightning is present. • Remember to assemble the antenna hardware at a safe location before climbing up to the antenna mount.• Depending on your location, you may need two or more people to install the antenna and mount. B1.3 Evaluating the Mounting LocationYou can mount the antenna to a variety of surfaces.• The antenna should have a clear line-of-sight to the subscriber station. Do not put the antenna where it will beblocked by people, animals or vehicles. Consider how time and the season will affect the line-of-sight. For example, will foilage from growing trees interferewith the line-of-sight? Will wind or ice add strain to the mounting assembly?

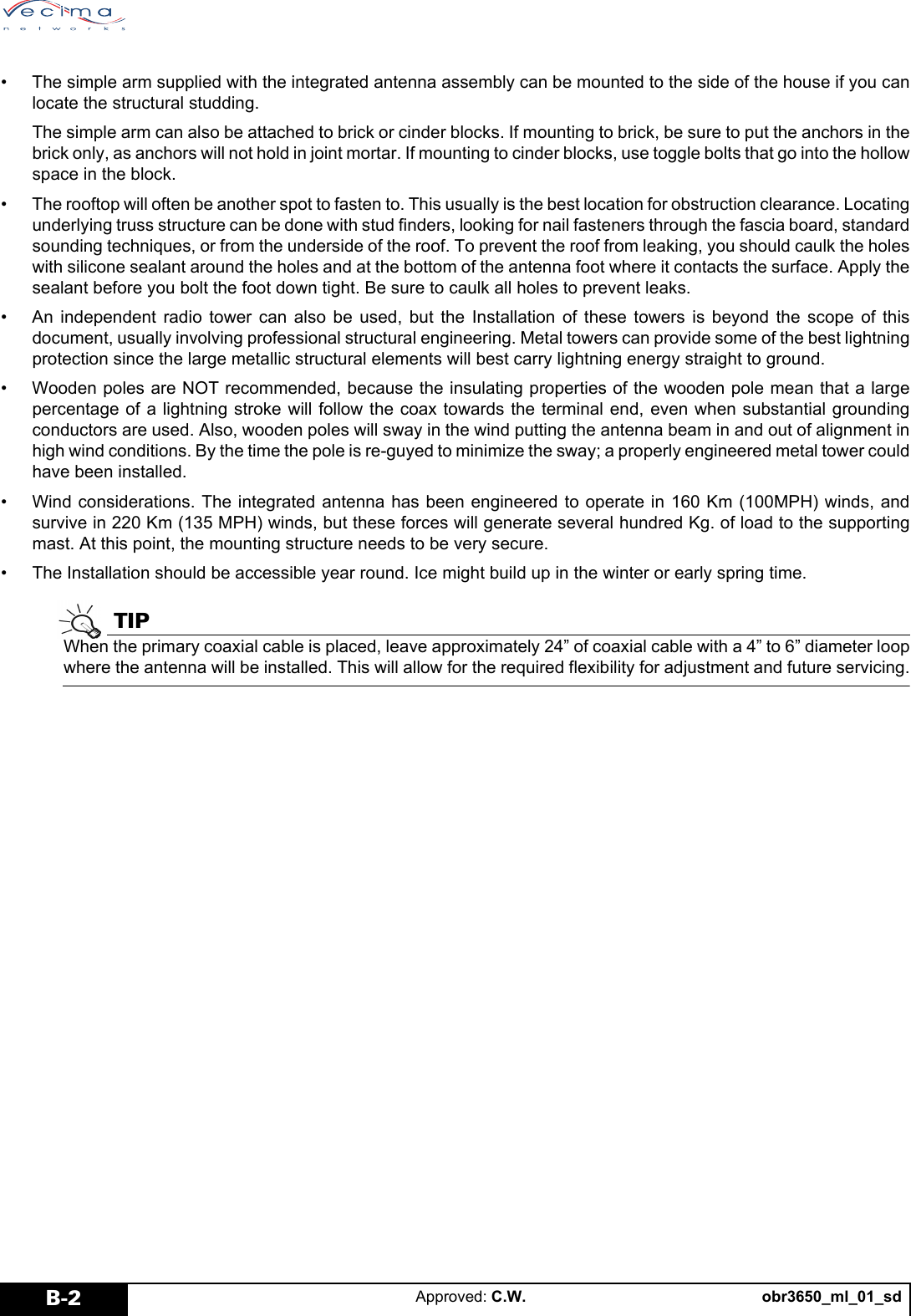

obr3650_ml_01_sdApproved: C.W.B-2• The simple arm supplied with the integrated antenna assembly can be mounted to the side of the house if you canlocate the structural studding.The simple arm can also be attached to brick or cinder blocks. If mounting to brick, be sure to put the anchors in thebrick only, as anchors will not hold in joint mortar. If mounting to cinder blocks, use toggle bolts that go into the hollowspace in the block.• The rooftop will often be another spot to fasten to. This usually is the best location for obstruction clearance. Locatingunderlying truss structure can be done with stud finders, looking for nail fasteners through the fascia board, standardsounding techniques, or from the underside of the roof. To prevent the roof from leaking, you should caulk the holeswith silicone sealant around the holes and at the bottom of the antenna foot where it contacts the surface. Apply thesealant before you bolt the foot down tight. Be sure to caulk all holes to prevent leaks.• An independent radio tower can also be used, but the Installation of these towers is beyond the scope of thisdocument, usually involving professional structural engineering. Metal towers can provide some of the best lightningprotection since the large metallic structural elements will best carry lightning energy straight to ground.• Wooden poles are NOT recommended, because the insulating properties of the wooden pole mean that a largepercentage of a lightning stroke will follow the coax towards the terminal end, even when substantial groundingconductors are used. Also, wooden poles will sway in the wind putting the antenna beam in and out of alignment inhigh wind conditions. By the time the pole is re-guyed to minimize the sway; a properly engineered metal tower couldhave been installed.• Wind considerations. The integrated antenna has been engineered to operate in 160 Km (100MPH) winds, andsurvive in 220 Km (135 MPH) winds, but these forces will generate several hundred Kg. of load to the supportingmast. At this point, the mounting structure needs to be very secure.• The Installation should be accessible year round. Ice might build up in the winter or early spring time.TIPWhen the primary coaxial cable is placed, leave approximately 24” of coaxial cable with a 4” to 6” diameter loopwhere the antenna will be installed. This will allow for the required flexibility for adjustment and future servicing.
